USER MANUAL 1KBDD12 BARAZZA

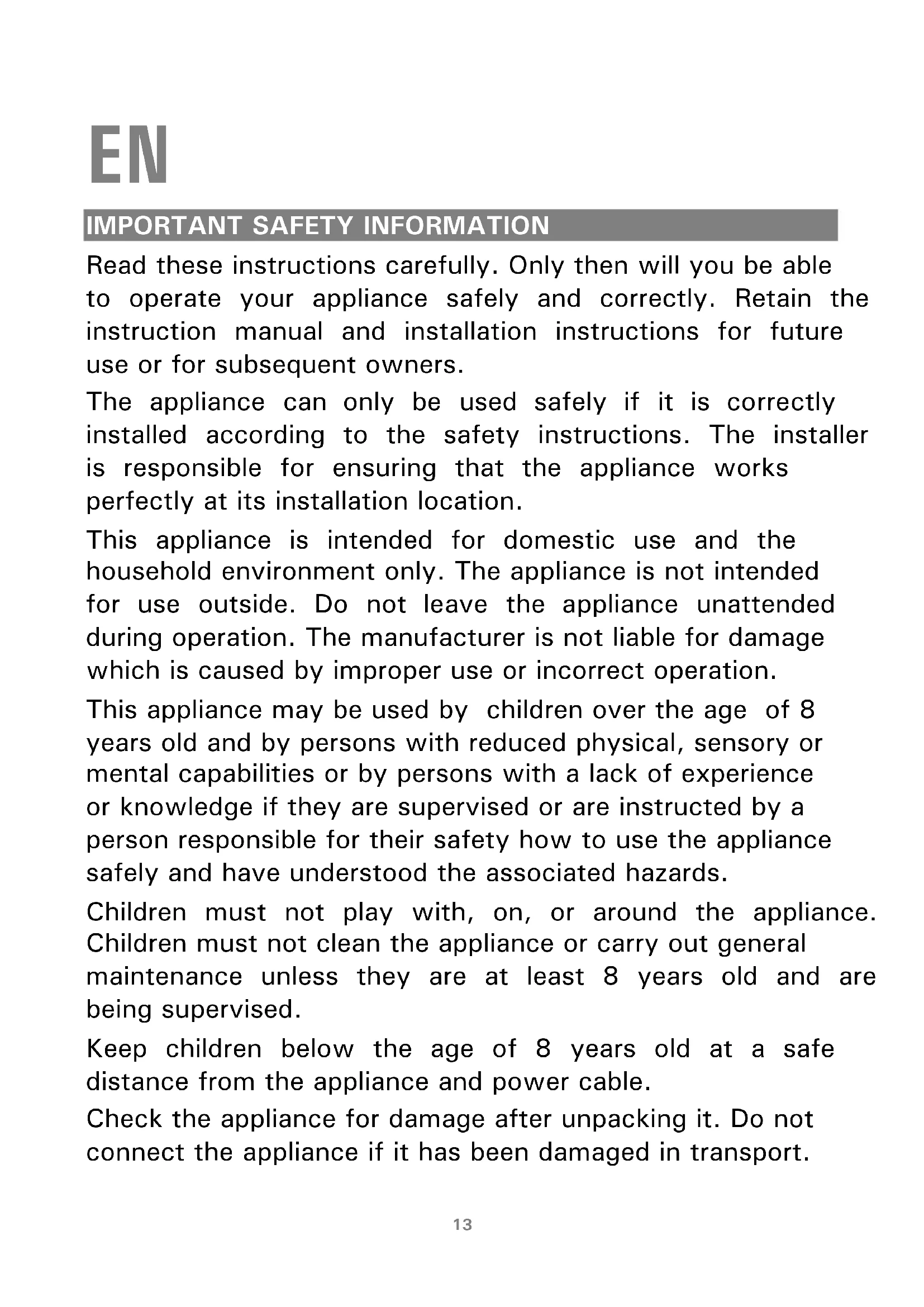

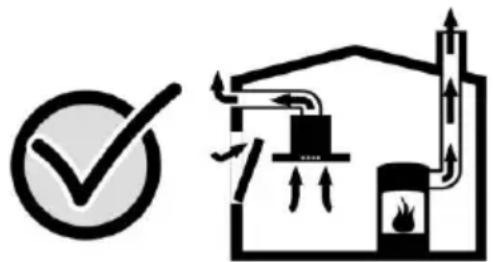

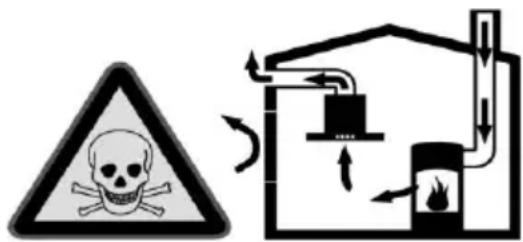

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners. The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location. This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improper use or incorrect operation. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.14 Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty. Danger of suffocation! Packaging material is dangerous to children. Never allow children to play with packaging material. Danger of death! Risk of poisoning from flue gases that are drawn back in. Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as room air-dependent heat-producing appliance is being operated. Room air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open air through an exhaust gas system (e.g. a chimney). In combination with an activated vapour extractor hood, room air is extracted from the kitchen and neighbouring rooms - a partial vacuum is produced if not enough fresh air is supplied. Toxic gases from the chimney or the extraction shaft are sucked back into the living space. ■ Adequate incoming air must therefore always be ensured. ■ An incoming/exhaust air wall box alone will not ensure compliance with the limit.15 Safe operation is possible only when the partial vacuum in the place where the heat-producing appliance is installed does not exceed 4 Pa (0.04 mbar). This can be achieved when the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. In any case, consult your responsible Master Chimney Sweep. He is able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you. Unrestricted operation is possible if the vapour extractor hood is operated exclusively in the circulating-air mode. Risk of fire! ■ Grease deposits in the grease filter may catch fire. Clean the grease filter at least every 2 months. Never operate the appliance without the grease filter. Risk of fire! ■ Grease deposits in the grease filter may catch fire. Never work with naked flames close to the appliance (e.g. flambéing). Do not install the appliance near a heat- producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is available. There must be no flying sparks. ■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.16 Risk of burns! The accessible parts become very hot when in operation. Never touch hot parts. Keep children at a safe distance. Risk of injury! Components inside the appliance may have sharp edges. Wear protective gloves.Risk of injury! Risk of electric shock! ■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. ■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after- sales service. ■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. ENVIRONMENTAL PROTECTION Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance. SAVING ENERGY ■ During cooking, ensure that there is a sufficient supply of air so that the extractor hood can work efficiently and with a low level of operating noise. ■ Adjust the fan speed to the intensity of the cooking fumes. Only use intensive mode where this is required. A lower fan speed means that less energy is consumed. ■ If there are intensive cooking fumes, select a higher fan speed in good time. If cooking fumes have already spread in the kitchen, the extractor hood must be operated for longer. ■ Switch off the extractor hood if you no longer require it. ■ Switch off the lighting if you no longer require it. ■ Clean and, if required, replace the filter at regular intervals in order to increase the effectiveness of the ventilation system and to prevent the risk of fire.17 GENERAL A SUCTION HOOD extracts air, fumes and vapours from the inside environment and then expels them outside. It is not necessary to use carbon filters for purifying. A FILTERING HOOD extracts air, fumes and vapours from the inside environment, purifies them by means of carbon filters and then emits the purified air into the same environment. In this case the use of carbon filters is absolutely necessary. Carbon filters are available separately and can be purchased as optional accessories. If the hood uses a plasma filter, do not set it in filtering mode. BEFORE MOUNTING The instruction manual apply to several versions of the appliance. Accordingly you may find descriptions of individual features that do not apply to your specific appliance. Before mounting the hood it is necessary to pay attention to the minimum installation distances between the lower part of the hood and the upper part of the hob as shown in the specific mounting pictures. Where it is possible to reach, we advice a distance between 700 and 800 mm. If the user decides to install the hood at lower distances than the ones shown, the manufacturer declines any responsabilità for eventual damages caused by the hood due to strong heat or damages to property or persons caused directly or indirectly by any type of malfunctioning break down or possible fire. It is absolutely forbidden for the user to connect the air discharge of the hood, when used a suction hood, to boiler chimneys, gas, fume or vapour scavenging chimneys or any other duct, even only ventilation ducts, which have been used or will be used for other devices. Moreover it is not permitted to connect the scavenging pipe for fumes in other adjacent rooms or wellholes, or pipes for fire-fighting devices. In any case it is necessary to respect all norms concerning scavenging of the air. Any user who does not adhere to these instructions is risking his own life and the lives of others. In this case, the manufacturer declines any responsibility. MOUNTING INSTRUCTIONS Mount the cooker hood as shown in the pictures of the M series if the hood is used for suction use, or C series if the hood is used for filtering use. The hood is equipped with standard fixing material. The person who is mounting the hood should make sure that the fixing elements are right and suitable for the walls and ceilings he finds. The manufacturer declines any responsibility for damages caused by incorrect mounting. The cooker hood is heavy and in order to move it 2 persons are needed. During the installation of the cooker hood, always wear protective handgloves to prevent injuries. The pipe must be heat, flame and corrosionproof. The manufacturer strongly advises against the use of reducers or pipes with different diameter to the hood outlet pipe, and pipes made of flexible aluminium because performance is diminished and noise level increased. The end part of the pipe, on the outside of the hole on the wall, must be of such a shape to avoid rain, gusts of wind or other foreign bodies getting into the pipe. Should there be any doubt, contact anyone specialising in the installation of gas or ventilation system and not to reduce air flow. Favorable conditions for the use of a Downdraft hood:18 ■ Use of the product in the suction function. ■ The optimal operation of the aspiration is with hobs in-line cooking zones. ■ When used with gas hobs, fume capture is more difficult than with induction hobs. ■ Use of the lid placed over the pot by placing a ladle in between to let the steam escape in the direction of the suction mouth. ■ The presence in the room where the hood is installed of an air inlet grille of suitable dimensions that does not obstruct the air inlet. Use an air outlet pipe no longer than 5 metres. ■ Limit the number of curves in the duct since each curve reduces the suction effectiveness equivalent to 1 linear metre. (E.g.: if two 90° curves are used, the duct should be no longer than 3 metres). ■ Avoid drastic changes of direction. (E.g.: succession of bends or change of section of the pipeline). ■ Use a duct with 150mm diameter constant for the whole length. ■ Use a duct made of standard complying material. ■ In case of failure to observe the instructions above, the supplier can not be held responsible for low capacity or excessive noise problems and no warranty will be given in this granted.

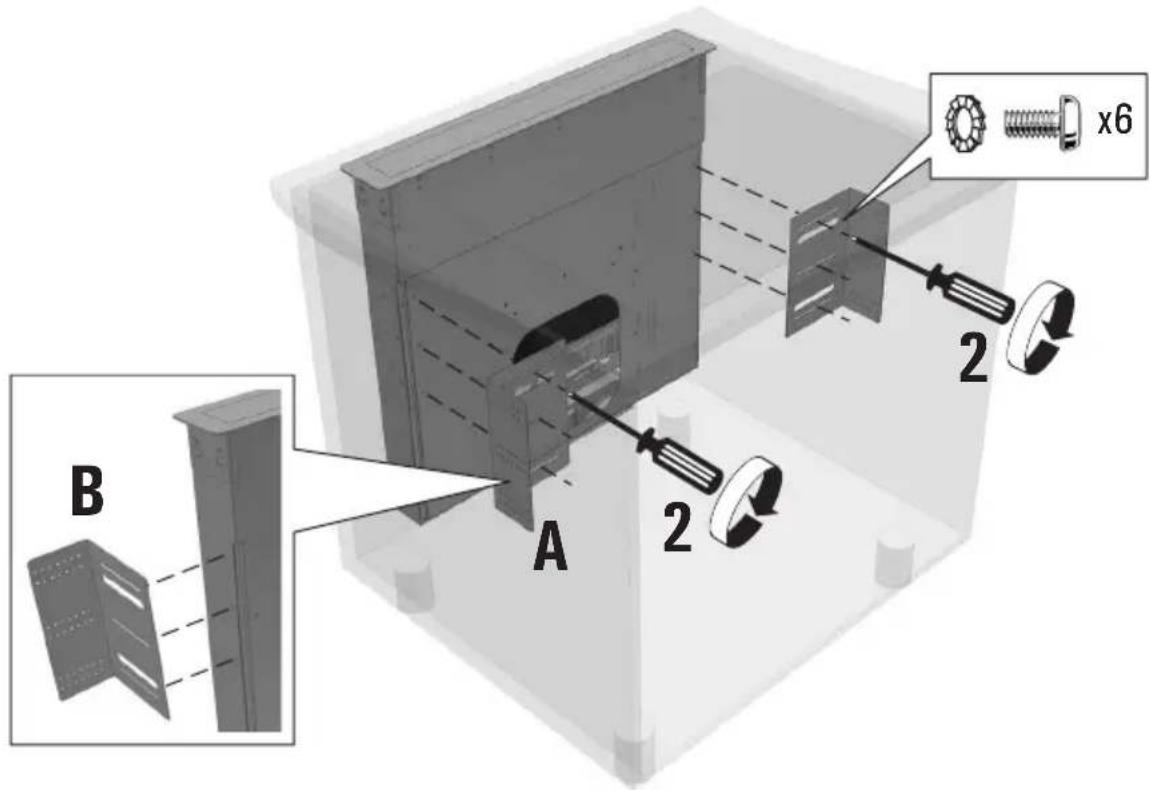

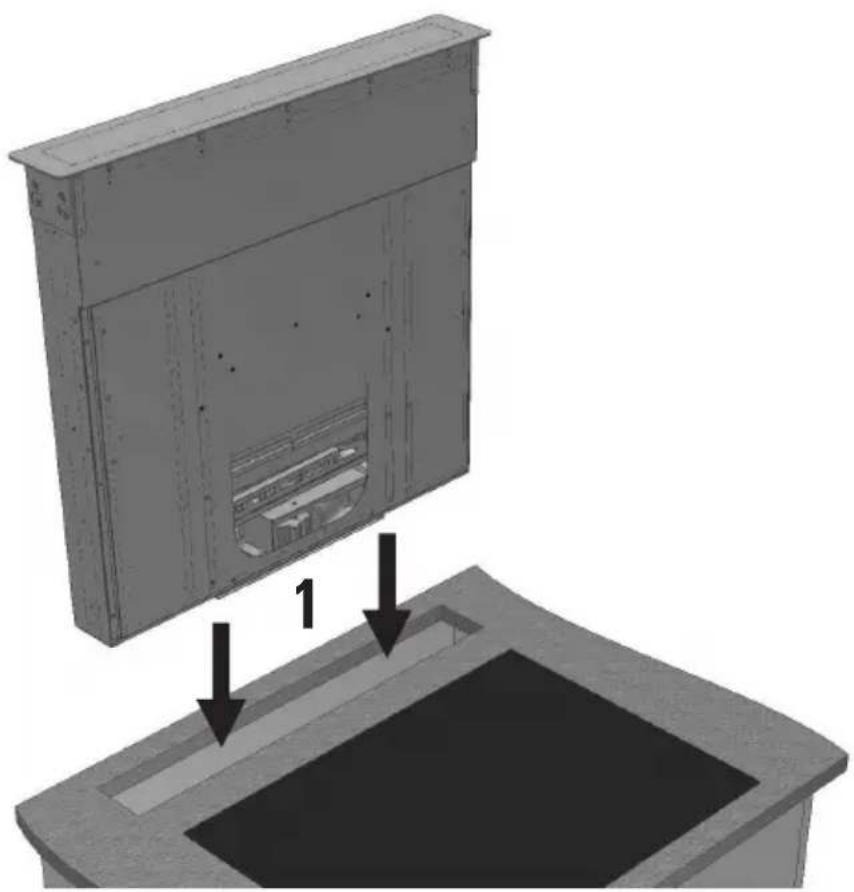

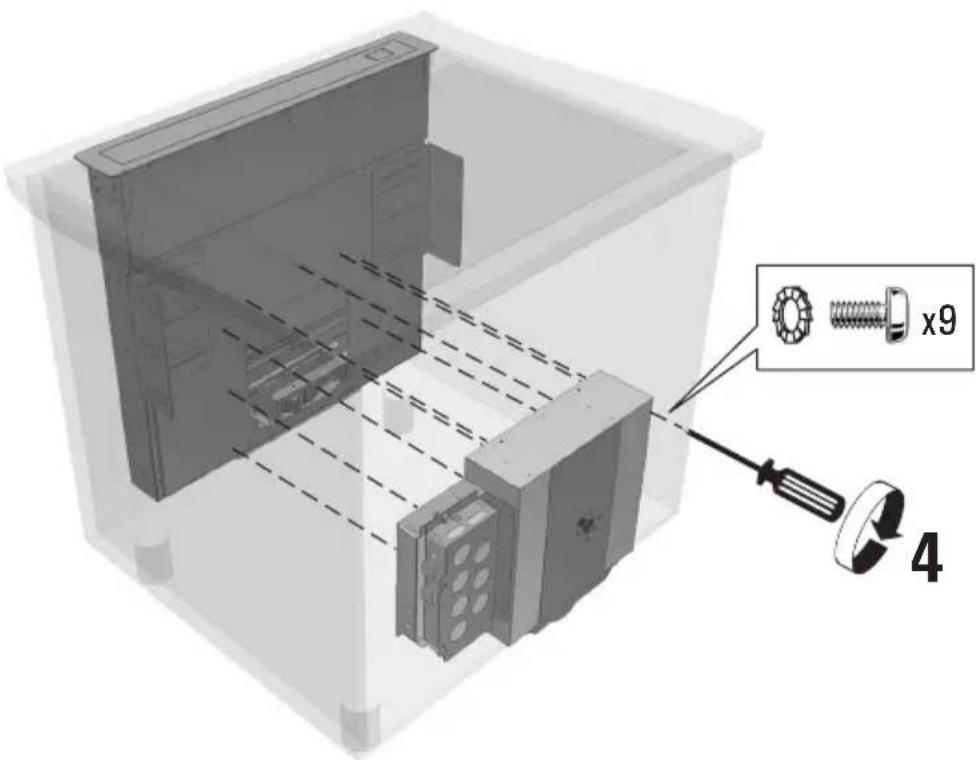

BEFORE ELECTRICAL INSTALLATION

Before connection you must: ■ check that the electrical data indicated are in conformity with the main voltage and frequency values of the building where the hood is to be installed; ■ check that the building is fitted with electric safety systems to protect against short circuits and electric shock systems, according to the laws in force; ■ install an electric socket (or connection point) with a bipolar switch, which has contacts with an opening of at least 3 mms; ■ if it is wished to install the hood with a plug, it is necessary that you have access to the plug; ■ always turn off the main voltage supply by means of the bipolar switch before connecting and switch on again only when connections have been completed, tested and are safe. ELECTRICAL CONNECTION WARNING The electrical connection can only be carried out by qualified professional personnel, using standard material and state of the art installation methods. The manufacturer declines any responsibility for installations carried out by unskilled persons and for installations which are not in conformity with the standard norms concerning electrical safety (both concerning methods and materials).

ELECTRICAL TECHNICAL DATA

The electrical technical data are visible inside the hood after the removal of the grease filters.

CONNECTION TO THE POWER SUPPLY

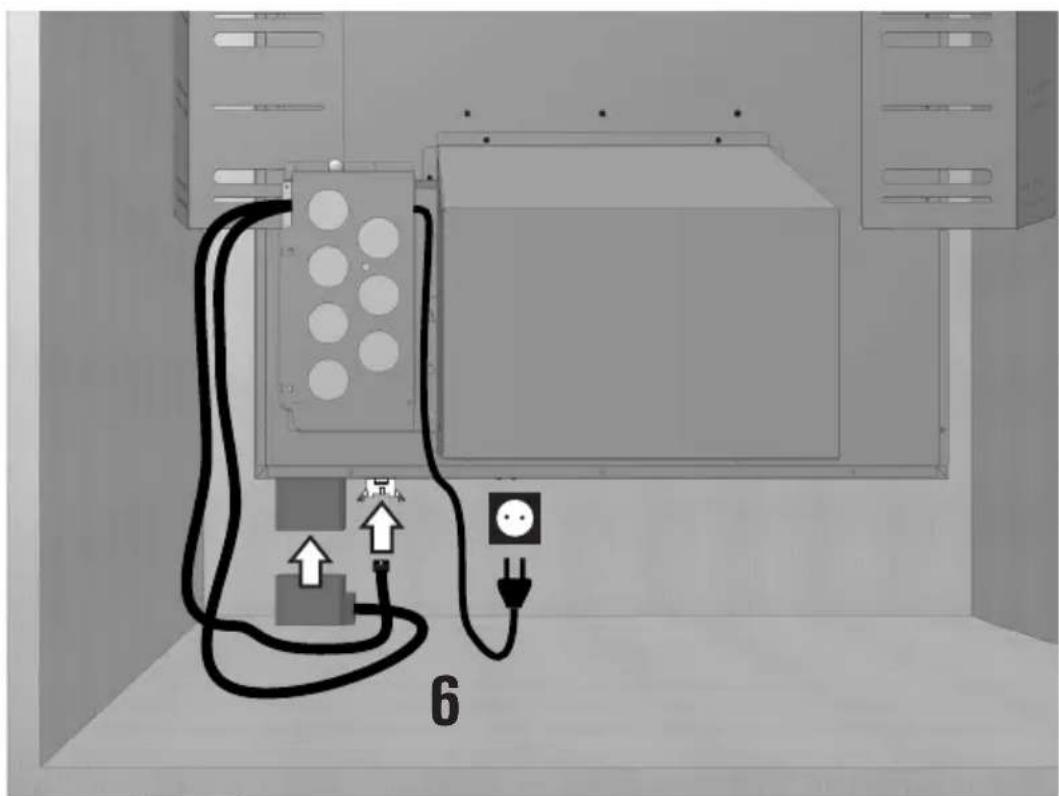

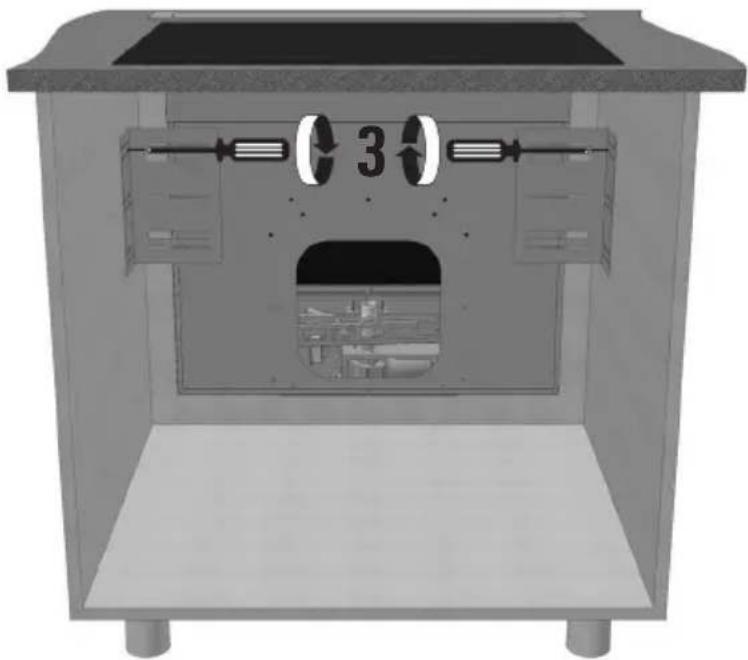

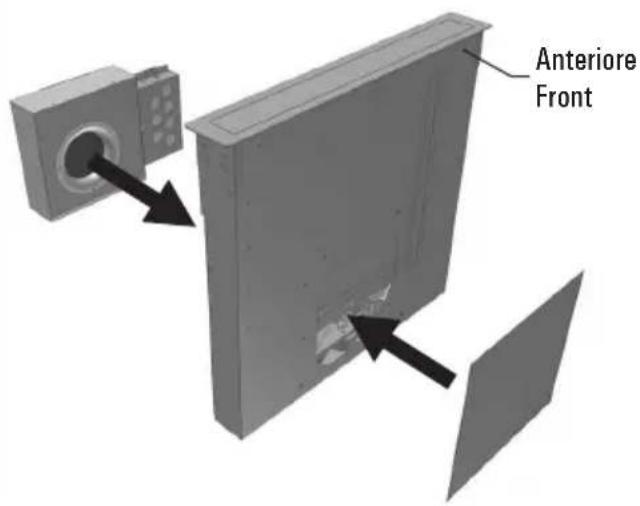

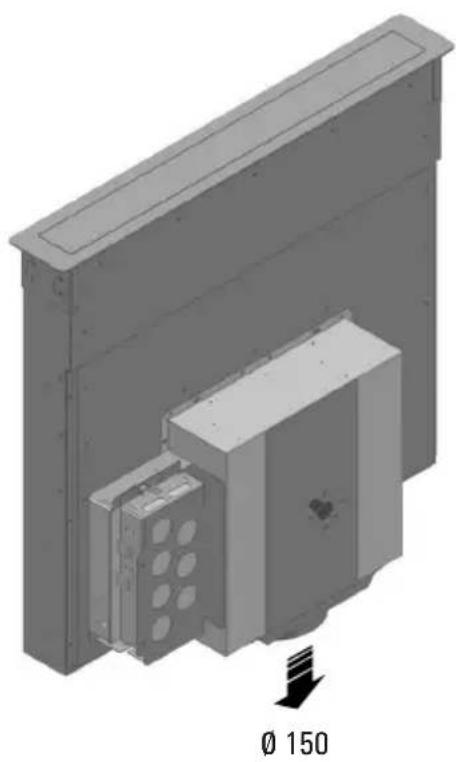

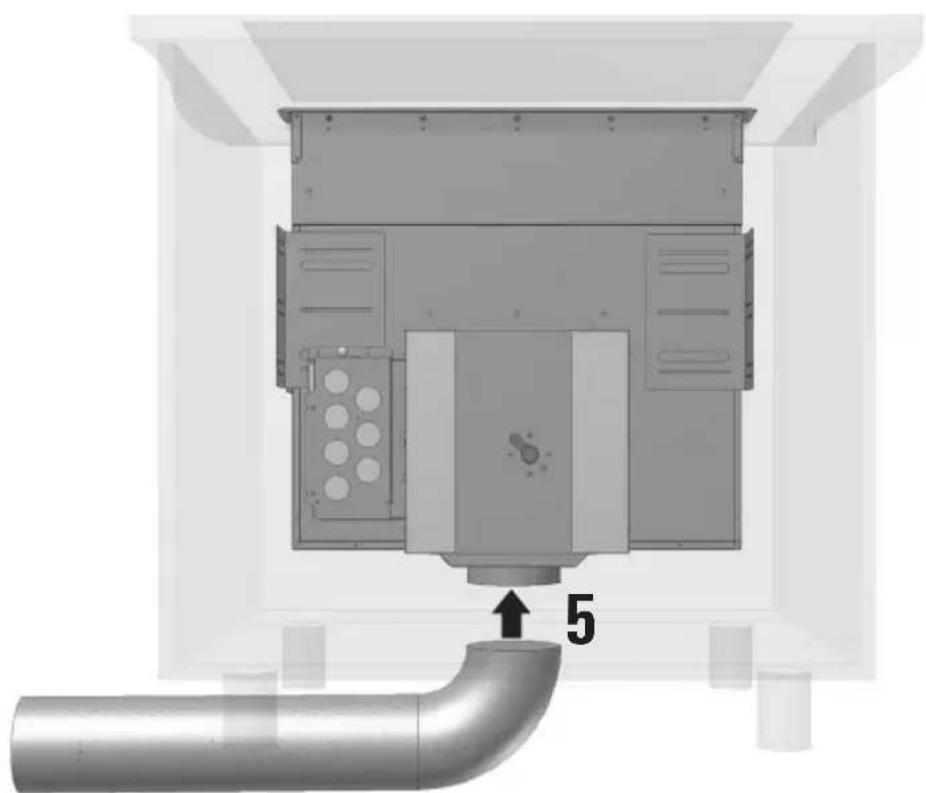

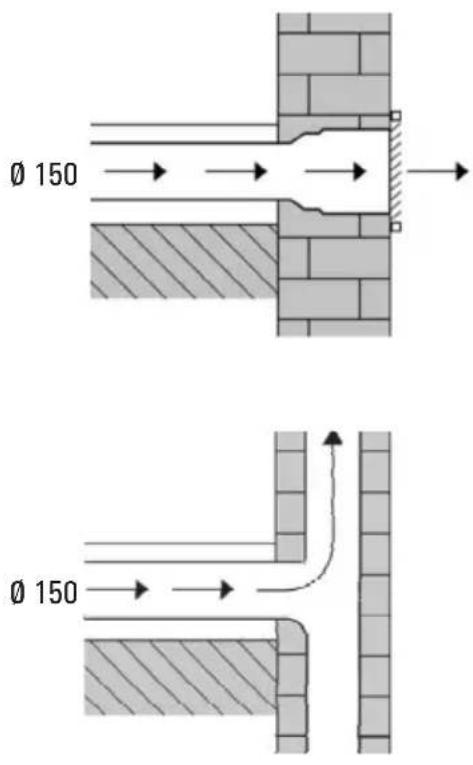

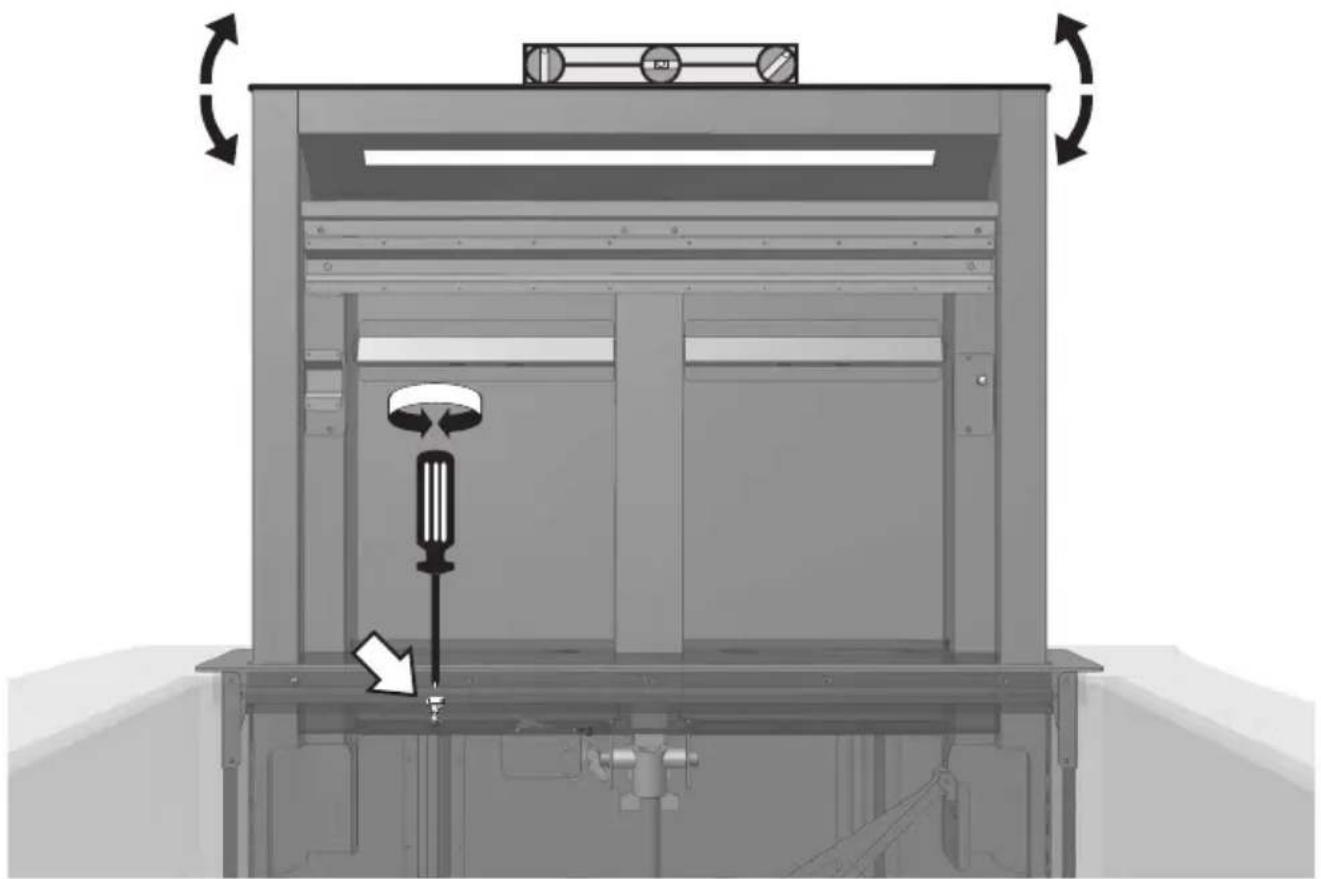

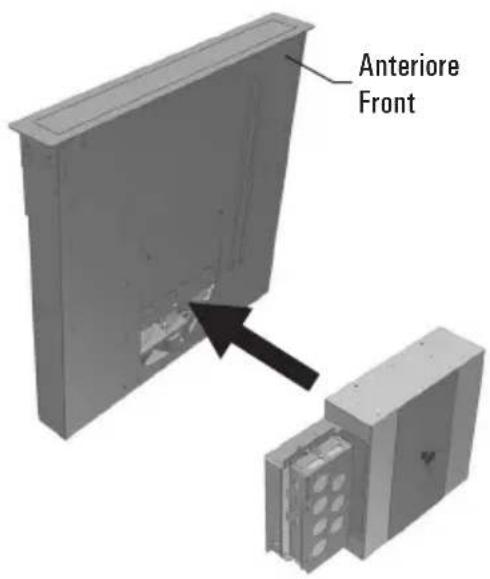

The flexible feed cable supplied is already connected internally and emerges from the hood near the air outlet duct. It is possible to effect two types of electric installation: ■ fixed installation; ■ installation by means of plug on a socket.19 PRECAUTIONS TO BE TAKEN IF REPAIRS ARE TO BE CARRIED OUT Repairs, including the replacement of the feed cable if necessary, are to be carried out only by qualified personnel, using standard methods, instruments and materials. Any repairs carried out by others could prove to be dangerous and could be a fire risk.

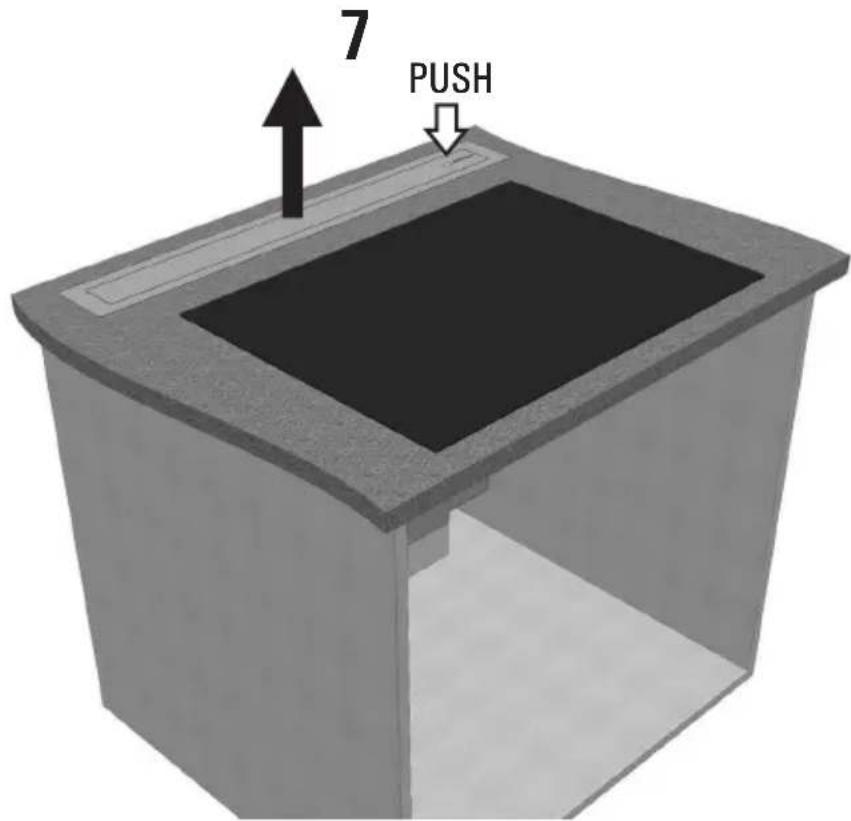

IF THE DRAWER IS CLOSED: If you press the push button for less than 3 seconds, the drawer opens till it is completely out (limit stop). If you press the push button for more than 3 seconds, you enter into a CLEANING MODE and an acoustic signal is issued each 10 seconds. During this CLEANING MODE it is not possible to open the drawer. Keeping pressed the push button for more than 3 seconds you leave the CLEANING MODE. IF THE DRAWER IS OPEN: If you press the push button, the drawer will close completely (limit stop) under the condition that the grease filters are mounted in a correct way. If the drawer is not moving after you press the push button and 5 acoustic signals are issued, it means that the grease filter is not completely inserted. Please insert the grease filter in a correct way and then press again the push button. If the drawer is encountering obstacles when opening or closing, the motor stops. 4 or 2 acoustic signals are issued. Please press again the push button / / to restart the moving of the drawer.

This push button stops the motor if the motor is on. With the optional remote control, each time you press the push button you decrease the motor speed till it completely stops.

If the push button is switched on, it shows that the motor is running at that speed. The motor can work only if the filters and side suction panel are correctly mounted.20

If you press the push button of the speed when the motor is off, then you activate the motor at that speed. If you press the push button of the speed when the motor is already running at that speed, you set the TIMER FUNCTION and the light of the push button becomes flashing and after 10 minutes the motor stops in an automatic way. With the optional remote control each time you press you increase the motor speed and each time you press the you decrease the motor speed till it stops. With the push button you set the TIMER function and the motor stops after 10 minutes in an automatic way.

The intensive speed is selected and the light of the / / push button will be flashing. The motor is set at the highest speed for 10 minutes after which it goes back to speed 2. With the optional remote control and with motor already on speed 3, if you press the push button the intensive speed is selected.

If the hood is with light, these push buttons are switching the light on and off. When the light is on, the / / push button has got light on the back.

GREASE FILTER SATURATION ALARM: After ca 100 working hours of the motor, a periodical acoustic signal is issued to inform that it is time to clean the grease filters and the push button starts flashing. The grease filters need to be immediately cleaned and you have to reset the counter as follows. HOW TO RESET THE COUNTER: When motor is off, press twice in succession on the push button; to confirm that reset has been made an acoustic signal is issued. With the optional remote control press the push button.

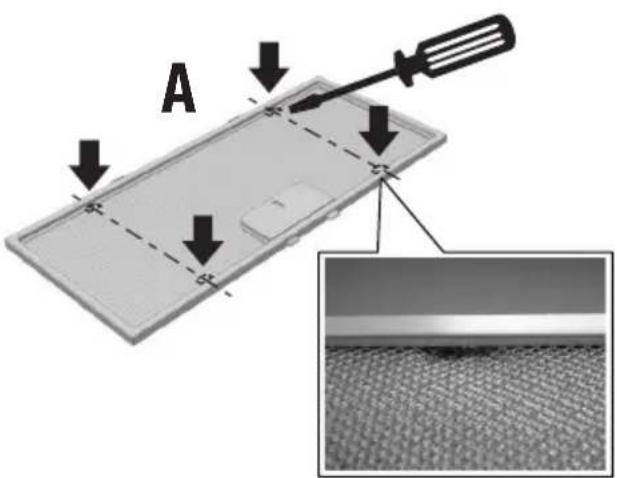

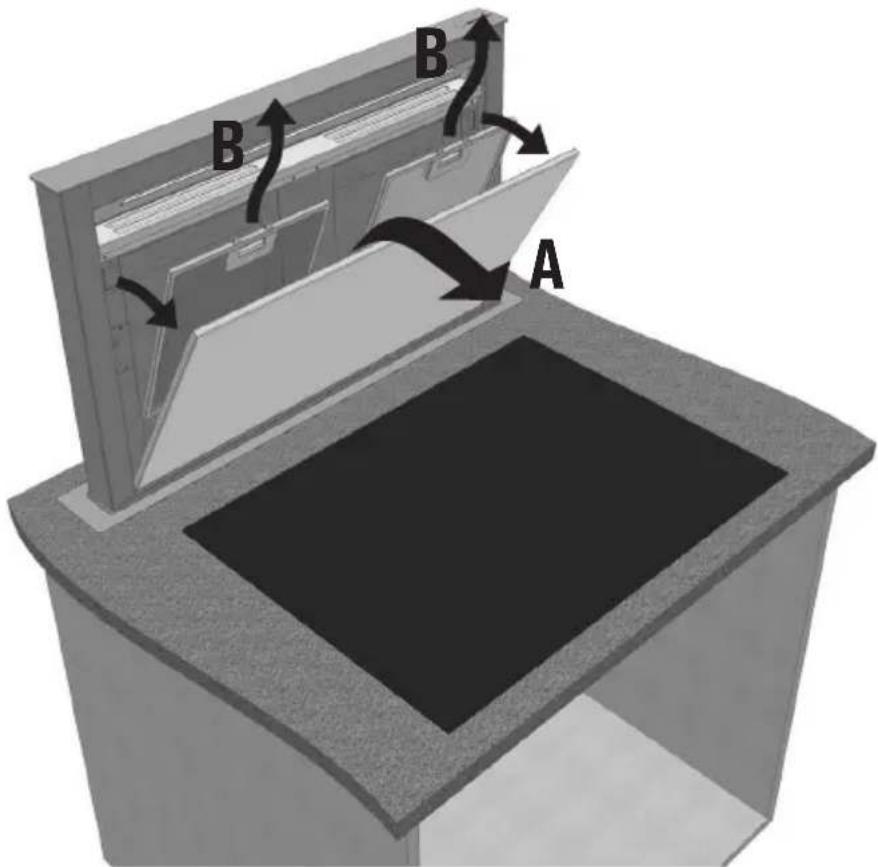

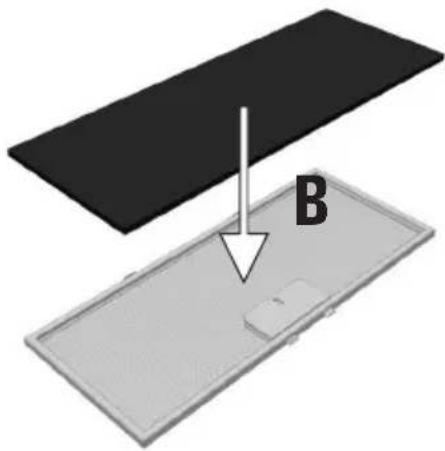

MAINTENANCE GREASE FILTERS The metallic grease filters are positioned on the bottom of the hood and are used to contain any grease which is normally emitted in cooking fumes, thereby impeding the deterioration of the motor.They can be washed either by hand or in the dish washer. For washing by hand, use hot water and soap; this can be done by hand brushing vigorously several times and then rinsing under the tap. After washing, the grease filters should be dried and re-fitted correctly. It is possible that after washing the filter will have slight change in the colour.21 It is advised to wash the grease filters after circa 50-100 hours of use of the cooking top. If the grease filters are very dirty, the motor can only take in a small quantity of air, and performance is reduced; The grease which accumulates on dirty filters is easily inflammable and can cause fires, if they are not removed by periodic washes. The manufacturer declines any responsibility for fires caused by poor maintenance of the grease filters. Do not install or remove the grease filters with the engine running. Never activate suction without fitted grease filters. The Company declines all liability if the above warnings are dropped. CARBON FILTERS The carbon filters are used to retain the odours of the kitchen fumes. It is not necessary to use carbon filters. The use of carbon filters is necessary if you use the hood as filtering. Please follow and read the instructions given with the carbon filters as far as mounting and regenerated/substitution are concerned. Carbon filters that cannot be regenerated: we advise to replace the carbon filters after circa 300-400 hours of use of the cooking top. The carbon filters that cannot be regenerated cannot be either washed nor regenerated but need to be replaced when expired. REPLACEMENT OF LAMPS (as expected) Always replace the lamps with lamps which have the same electrical characteristics (see TECHNICAL DATA). Before replacing the lamps, make sure that they are cold and that power has been completely turned off. Please follow the sequenze as shown in L series pictures. Reconnect to electricity. If te lights are not working, check that the lamps are correctly fit. CLEANING To preserve the hood in good condition, clean this periodically following the advice given as follows. Make sure that power has been completely turned off. The detergent solution recommended is a combination of WATER and NEUTRAL LIQUID SOAP. It is of vital importance that the liquid soap should not contain any grains which could scratch the surface. The solution should be applied first onto a soft cloth which is then rubbed over the shell. It is important to follow the pattern of the satin finish with the cloth. It is absolutely forbidden to pour liquids directly onto the hood. The cloth used should not have any buttons, zips, fasteners or anything else which could scratch the surface. The use harsh abrasive or granular products, petrol, spirits or similar products which could damage the surface of the materiall, is severely forbidden.22 The manufacturer will not be responsible for any damages either functional or to the appearance of the hood, caused by cleaning operations carried out using unsuitable products or unsuitable methods. During cleaning, do not overuse the keys in order to avoid accidental ignition.
