Bluetooth Car Kit BTCC001 - Built-in kit Gembird - Free user manual and instructions

Product type	Bluetooth car kit
Brand	Gembird
Model	BTCC001
Dimensions (approx.)	10 x 5 x 2 cm
Weight (approx.)	50 g
Power supply	12 V via cigarette lighter
Bluetooth version	Bluetooth 4.0
Bluetooth range	Up to 10 meters
Main function	Hands-free kit for phone calls
Audio streaming	Yes, via Bluetooth A2DP
USB port	Yes, for charging devices
Built-in microphone	Yes, for hands-free calls
Control buttons	Answer/hang up, volume, next/previous track
Maintenance and cleaning	Clean with a soft, dry cloth
Safety	Do not expose to moisture or extreme temperatures
Spare parts and repairability	Wear parts (battery) are not covered by the warranty
Warranty	36 months from date of purchase
General information	CE compliant, separate disposal of electronic waste

Frequently Asked Questions - Bluetooth Car Kit BTCC001 Gembird

How do I pair the Bluetooth kit with my phone?

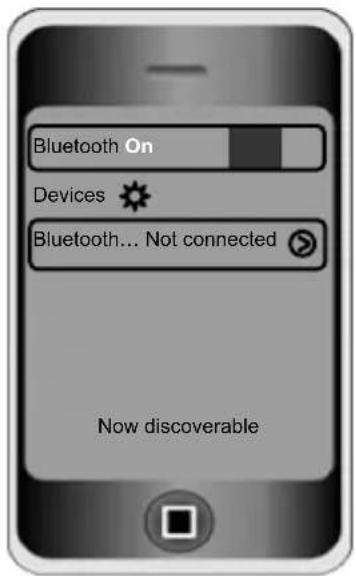

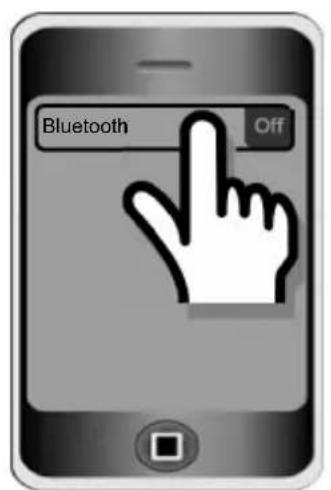

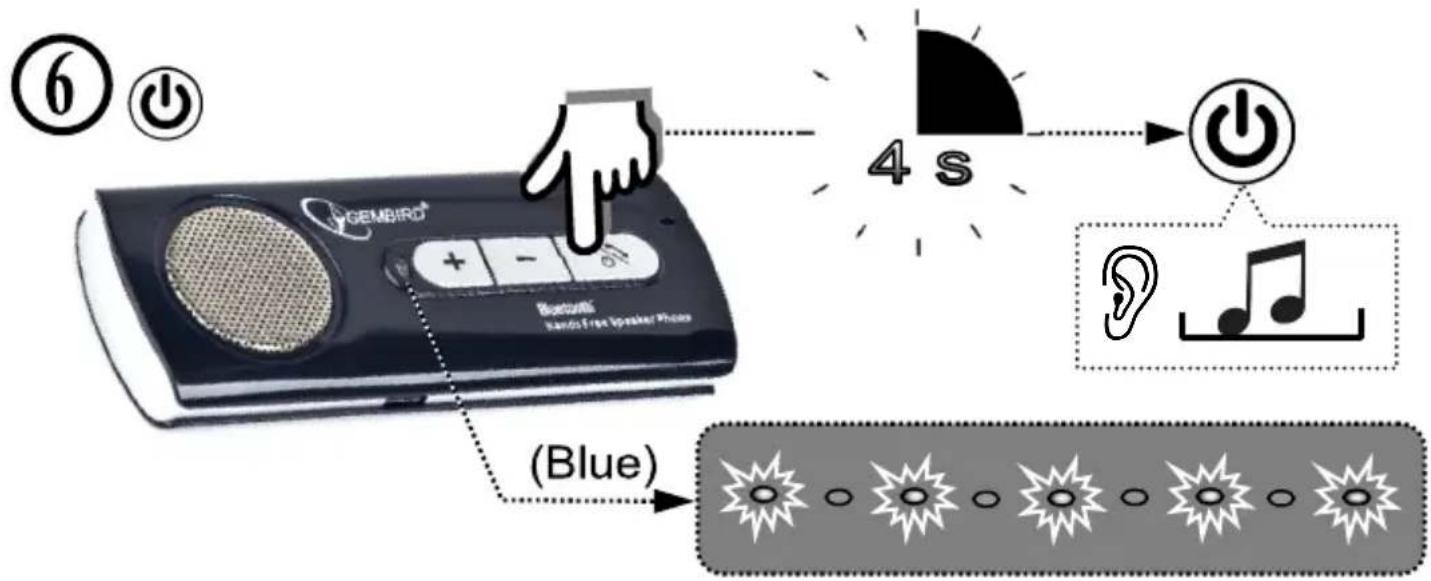

Activate Bluetooth on your phone, then put the kit in pairing mode by holding down the power button. Select 'Gembird BTCC001' from the list of available devices.

What is the Bluetooth range of this kit?

The Bluetooth range is approximately 10 meters in open field.

Can I listen to music via this kit?

Yes, the kit supports audio streaming via the A2DP profile. You can stream your music from your phone.

How do I charge my phone with this kit?

The kit has a USB port for charging your mobile devices. Simply plug in your USB cable.

Is the kit compatible with all phones?

The kit is compatible with most phones equipped with Bluetooth. Ensure your phone supports the hands-free profile (HFP) and A2DP.

How do I adjust the volume?

Use the volume buttons on the kit. You can also adjust the volume from your phone.

Does the kit have a built-in microphone?

Yes, the kit has a built-in microphone for hands-free calls.

How do I clean the kit?

Use a soft, dry cloth to clean the surface. Avoid chemical products.

What should I do if the kit does not turn on?

Check that the cigarette lighter adapter is properly plugged in and the indicator light turns on. Try resetting the kit by unplugging it and plugging it back in.

Does the warranty cover accidental damage?

The 36-month warranty does not cover damage due to misuse, abuse, or external effects such as water or shocks.

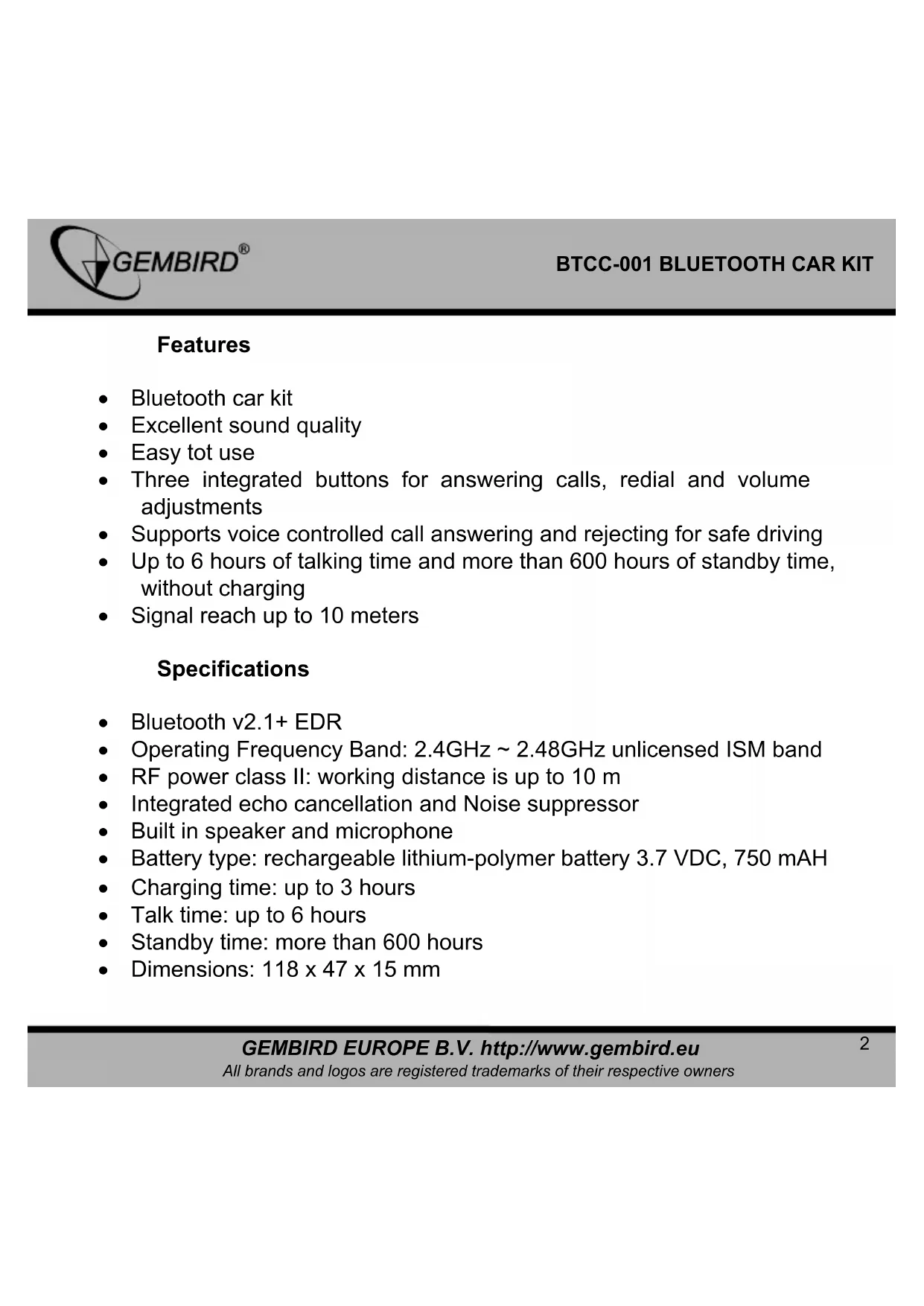

USER MANUAL Bluetooth Car Kit BTCC001 Gembird

PYKOBODCTBO NOIb3OBATEJIa

KEPIBHNICTBO KOPNCTYBAUA

GEMBIRD

BLUETOOTH CAR KIT

• Bluetooth car kit
  Excellent sound quality
  Easy tot use

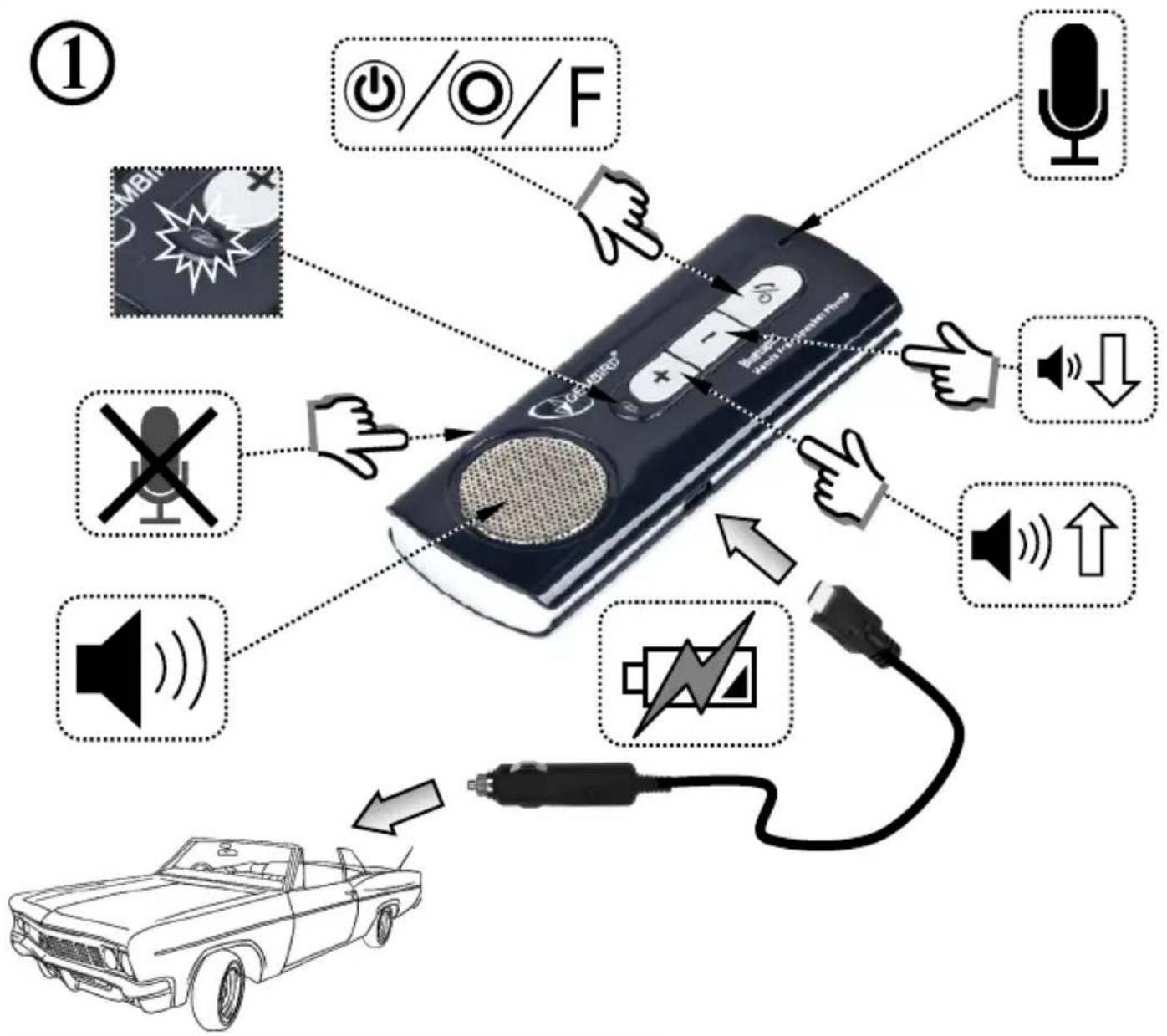

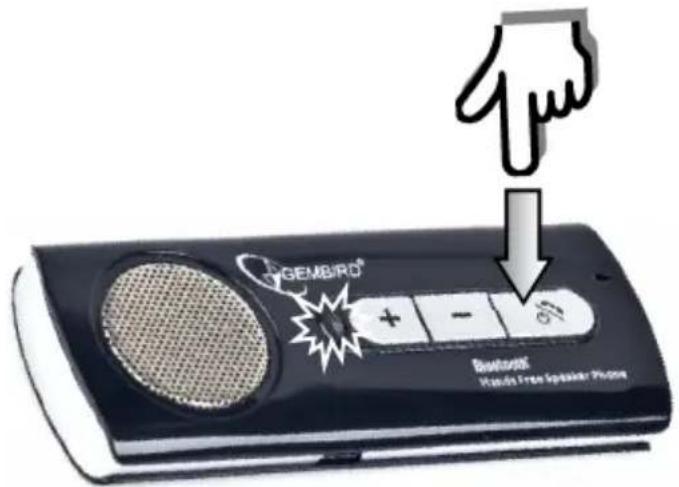

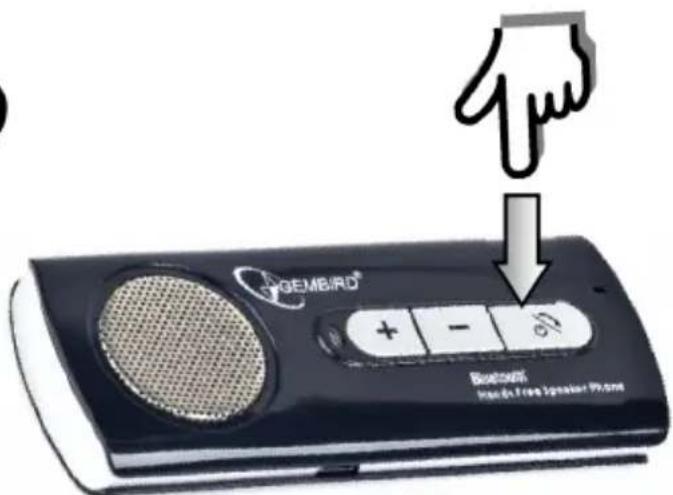

• Three integrated buttons for answering calls, radial and volume adjustments
  Supports voice controlled call answering and rejecting for safe driving
• Up to 6 hours of talking time and more than 600 hours of standby time, without charging
  Signal reach up to 10 meters

Specifications

• Bluetooth v2.1+ EDR
• Operating Frequency Band: 2.4GHz ~ 2.48GHz unlicensed ISM band
  RF power class II: working distance is up to 10m
• Integrated echo cancellation and Noise suppressor
  Built in speaker and microphone
• Battery type: rechargeable lithium-polymer battery 3.7 VDC, 750 mAH

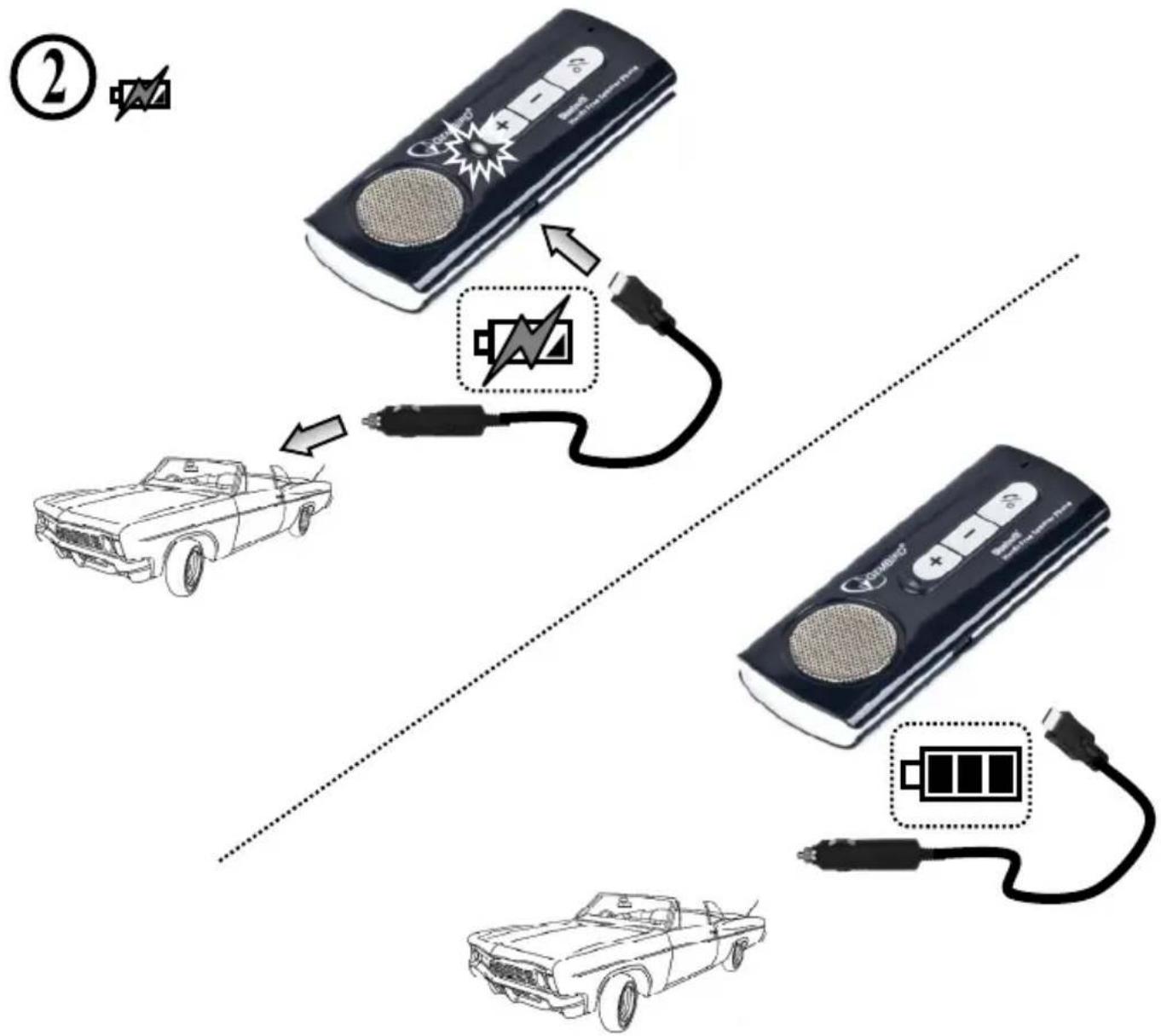

• Charging time: up to 3 hours
• Talk time: up to 6 hours
• Standby time: more than 600 hours
• Dimensions: 118 × 47 × 15 mm

GEMBIRD

BTCC-001 BLUETOOTH CAR KIT

GEMBIRD

BTCC-001 BLUETOOTH CAR KIT

8

9

10

12

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of 4 EMVG and of the Directives 2006/95/EC, 93/68/EEC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56

1358CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

BTCC-001

Product description :

BTCC-001 Bluetooth v.2.1 + EDR car kit, class II

European standards

R&TTE ETSI 301489:2002; ETSI 30022:2000; O EN60950:2001;

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1368CD, Almere, The Netherlands

Tel: [phone].Fax: [phone]

Director

The Netherlands/Feb.2,2010

Place and Date

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

The warranty period is 36 months and begins with the sale to the end user. The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products

Gembird Europe B.V.
Wittevrouwen 56, 1358CD Almere
The Netherlands
www.gembird.nl/support
[e-mail]
Tel. [phone]

(0900-4362473 inside The Netherlands, € 0,15 p/m, mobile costs not included)
