USER MANUAL BS 1288 CLATRONIC

Thank you for selecting our product. We hope that you will enjoy use of the appliance.

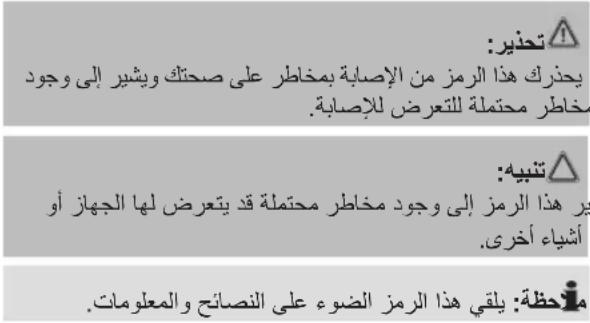

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use the appliance outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this appliance

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Do not suck up liquids!

• Do not suck up hot ashes or pointed or sharp objects!
• Do not use the device in damp rooms!
• Never use without the filter. Check that the filter is inserted correctly!
• Hair, clothing and body parts away from the vacuum nozzle during use!
• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.!

Overview of the Components

1 Telescopic suction pipe
2 Suction power control
3 Cover for extraction filter
4 Top carry handle
5 Cable-winding button
6 Power cord with plug
7 Lever for extending and retracting the brushes
8 Floor nozzle (with hook (not shown))
9 Carrying handle
10 Opener dust bag compartment
11 Hose connection
12 Connection head of the vacuum hose
13 Suction hose
14 Dust bag filling display
15 On/off button
16 Slide for telescopic suction pipe
17 Stowage clip
18 Stowage compartment with crevice nozzle and brush nozzle

Start-up

• Insert the connection head of the suction hose into the hose connector until it locks in place. To do so, please press the buttons simultaneously. In order to release the hose again, please press the buttons once more on the connection head.
• Keep the buttons pressed down and then pull out the hose.
• Insert the vacuum tube into the handle if required.
• You can adjust the length to individual requirements using the slide on the telescopic suction pipe.
• Then assemble the floor nozzle and/or the accessories.

Using the Appliance

1. Unwind the length of cable you require.

CAUTION:

• Pull out the cable up to the maximum length indicated with the yellow mark.
• Never pull the cable out up to the red mark as the cable winding can be damaged.

NOTE:

If the red mark is visible, pull in the cable with the help of the cable winding button back to the yellow mark.

1. Insert the mains plug into a correctly installed power socket. Turn the device on by the on/off switch by pressing down the button.
2. Set the "carpet/hard floor" switch, depending on the floor covering.
3. Adjust the suction power with the suction power control.
4. Vacuum at a steady speed. There is no need to exert pressure.

Pay attention to the range that can be covered with the cable length!

Suction power control (2)

Low suction power:
for curtains, sensitive material.
Moderate suction power:

for deep pile velour carpets and textile floor covering.
High suction power:

for robust carpets and floors.

Turn the suction power control clockwise if you want to increase the suction power.

Air Slide

Open the air slide on the hose handle in order to regulate the airflow or to clear any particles sticking to the nozzle.

Switching off and Winding up the Mains Lead

1. Turn the vacuum cleaner off by the on/off switch and remove the plug from the socket.
2. Keep the plug in your hand.
3. Press the cable winding button and guide the cable. Hold the cable to avoid wrapping.

Nozzle Attachment

Floor nozzle (8)

The floor nozzle is fitted with a roller for easy guiding. You can clean smooth surfaces and carpets with the floor nozzle.

• Adjust the brushes outwards or inwards using the lever (7).

Best use of the appliance depends on the texture of the floor covering. We recommend the following use:

Use without brushes: For vacuuming floor coverings with a deep pile
- Use with brushes: For vacuuming smooth floors and carpets with a shallow pile

Crevice and jointed nozzle

For vacuuming upholstery, curtains and in corners and crevices etc.

The stowage compartment with the crevice nozzle and brush nozzle can be found on the back of the appliance next to the mains cord.

NOTE: "2-in-1" nozzle:

When this is folded together it can be used as a groove nozzle. If you would like to use the brush nozzle, pull the brush section in the direction of the arrow until it locks in place.

To detach the nozzle attachments from the suction pipe, pull them off by turning them slightly.

Maintenance

Dust bag replacement display (14)

Hold the hose up into air. If the display for the vacuum bag change shows "red", the dust bag is full. Please change it.

Changing the dust bag

1. Pull the plug out of the socket.
2. Use the opener (10) to open the lid of the dust bag compartment.
3. Then remove the dust bag by pulling it upwards.
4. Insert a new bag. Please ensure that the bag is located correctly in the guide mechanism.
5. Press down the fastener with the bag. The bag must be located completely in the dust bag compartment. Close the cover so that it snaps into place.

Filter

Your appliance has two filters.

Motor protection filter (inlet filter)

The inlet filter is located in the dust bag compartment. The filter is located vertically in the rear section of the dust housing. Remove the filter by pulling upwards.

Cleaning the Filter Element

Clean the engine protection filter after 10 dust bag changes. If necessary, the filter can also be washed in warm water without any additives. Place it back into place only once it is completely dry!

Outlet filter

The appliance is also equipped with an outlet filter.

1. Raise the top handle.
2. Refer to Fig. A on page 3: Push the cover of the extraction filter upwards on the arrows. Remove the cover.
3. Remove the ventilation grille.
4. Remove the filter insert and clean it as described above.
5. Place the completely dry filter back into the ventilation grille.
6. Fit the ventilation grille back onto the appliance.
7. Close the extraction filter again with the filter. It must audiably click into place.

Cleaning

WARNING:

• Before cleaning remove the mains lead from the socket.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Clean the housing with a soft, dry cloth without additives.

Storage

• Let the device cool down completely.
• Wind the cable completely.
• Please insert the hook of the floor nozzle into the parking assistant on the rear of the device.
• If you want to stand the appliance vertically: Hook the floor nozzle onto the stowage clip on the bottom of the appliance.

Troubleshooting

The Device Does Not Work.
Remedy:
Check the connection to the mains.
The device does not suck up anything.

Possible Cause:

The suction power is set too low.

Remedy:

Check the position of the control.

Possible Cause:

The dust bag is full.

Remedy:

Renew the dust bag.

or

Possible Cause:

The filters are dirty.

Remedy:

Clean the components.

Possible Cause:

There is a foreign body in the suction tube or the nozzle.

Remedy:

Check the accessories for foreign bodies.

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 77 dB(A) (no limit)

Technical Data

Model: BS 1288
Power supply: 230 V~, 50 Hz
Power consumption: 800 W
Dust filter bag: SSB 101 / Swirl Y 101
Protection class:
Net weight: 6.10 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
