Product type	Stroller
Brand	Giordani
Model	Jolly
Recommended age	6 to 36 months
Maximum child weight	15 kg
Open dimensions (L x H x D)	74 x 103 x 45.5 cm
Folded dimensions (L x H x D)	22 x 113 x 21.5 cm
Cover materials	Polyester
Frame materials	Steel, Polyamide, PVC
Restraint system	5-point safety harness with crotch strap
Brake	Linked rear brakes
Canopy	Removable, with joints and lock
Basket capacity	5 kg maximum
Safety standard	EN 1888-1:2018+A1:2022
Care and cleaning	Clean plastic parts with a damp cloth, without abrasive detergents. Dry metal parts to prevent rust. The cover can be cleaned with a damp cloth.
Warnings	Never leave the child unattended. Always use the harness. Do not use for jogging or rollerblading. Do not overload the handles.

Frequently Asked Questions - Jolly Giordani

How to open the Jolly stroller?

Unhook the safety on the side, then firmly lift the handles upward. Next, push the rear crossbar down with your foot. Make sure it is fully open before use.

How to install the front wheels?

Insert the front wheels into the front frame until you hear a click indicating they are locked. Check they are securely attached before using the stroller.

How to use the safety harness?

The harness is a 5-point system. To release, press the central button. To fasten, do the opposite until you hear a click. Open the shoulder straps by unhooking them. Always use the crotch strap.

How to operate the brakes?

To lock the linked rear brakes, push down on the left or right lever with your foot. To unlock, lift the same lever. Always apply the brakes when the stroller is stationary with the child.

How to install the canopy?

Attach the canopy using the plastic joints on the tubes at the metal pivot, lock with the lever, then push the plastic clip onto the tube. To open, open both side joints.

How to fold the stroller?

First close the canopy by unhooking the joints. Lift the rear bar with your foot. Lower the secondary locking system on the right side. Push the handles forward until completely folded, then hook the safety.

What is the maximum weight supported by the stroller?

The maximum child weight is 15 kg, for ages 6 to 36 months. Do not carry more than one child at a time.

How to maintain the stroller?

Clean plastic parts with a damp cloth without abrasive detergents. Remove sand and dust from the wheels. Dry metal parts to prevent rust. Clean the cover with a damp cloth. Avoid prolonged exposure to sunlight.

Is the stroller suitable for jogging?

No, this product is not suitable for jogging or rollerblading. Use it only for walking.

Can I hang bags on the handles?

It is not recommended to hang items on the handles, backrest, or sides as this compromises stability. The lower basket supports up to 5 kg.

USER MANUAL Jolly Giordani

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

E

IMPORTANTE

Line drawings of a stroller and two separate views (A, B, C) showing different body parts (no text or symbols present)

I CONTENUTO

A Stroller (seat, frame and rear wheels)
B 2 Front wheels
C Hood

E CONTENIDO

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Line drawing of a mechanical assembly with a blue arrow indicating a downward motion (no text or symbols present)

Line drawing of a stroller with wheels and seat (no text or symbols)

Illustration of a hand holding a small mechanical component with a blue arrow indicating upward motion (no text or symbols)

Line drawing of a seatbelt device with straps and handle (no text or symbols)

Illustration of hands adjusting a small object with a blue arrow indicating rotation (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or assembly (no text or symbols)

Line drawing of a mechanical device with wheels and brackets (no text or symbols)

Line drawing of a hand gripping a bicycle frame, no text or symbols present

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of mechanical components (no text or symbols)

Line drawing of a person's arm holding a tool, with a teal arrow pointing to a detail (no text or symbols)

Line drawing of a stroller with wheels and handle (no text or symbols)

Line drawing of a person's hand holding a fabric with a blue upward arrow indicating motion (no text or symbols)

Line drawing of a hand operating a small aircraft with a blue upward arrow indicating motion (no text or symbols)

Line drawing of a children's playground structure with wheels and overhead structures (no text or symbols)

15 ↓

8

I GIORDANI JOLLY PASSEGGINO (DA 6 A 36 MESI CIRCA)

APERTURA DEL PASSEGGINO

1. Remove the stroller and all the components from the packaging and wrapping.

WARNING! Do not allow children to play with the plastic bags used for packaging because they may suffocate.

Release the safety catch situated on one side of the stroller. Open the stroller by lifting the handles upwards firmly (Fig. 1).

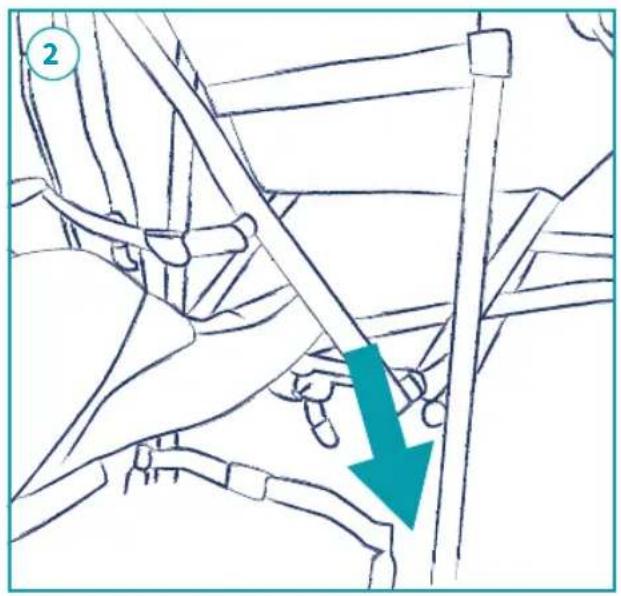

1. Secure the stroller by pushing the rear cross-bracing downwards and all the way with your foot (Fig. 2).

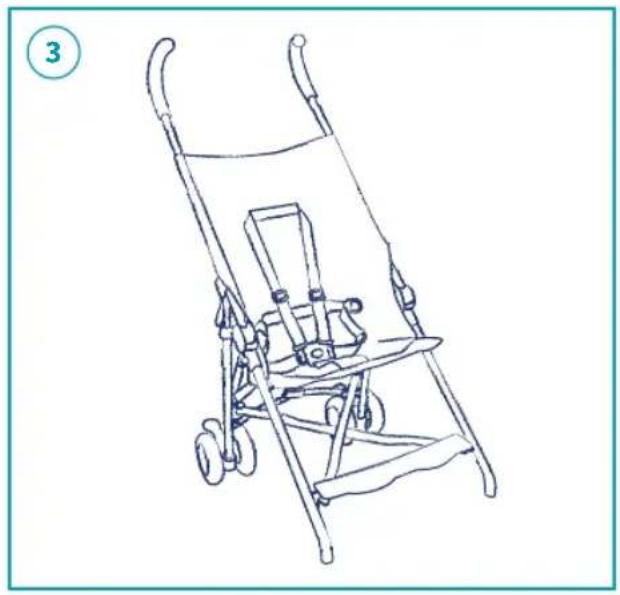

2. The stroller is open (Fig. 3).

WARNING! Always ensure that the stroller is completely open before using it.

ASSEMBLING THE FRONT WHEELS

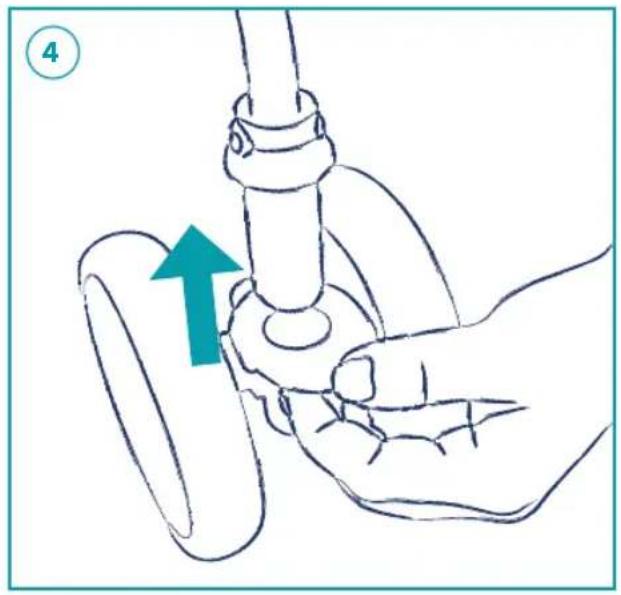

1. Insert the front wheels in the front structure until you hear a "click" (Fig. 4).

WARNING! Before using the stroller make sure that the wheels are fully engaged.

USE OF THE STROLLER

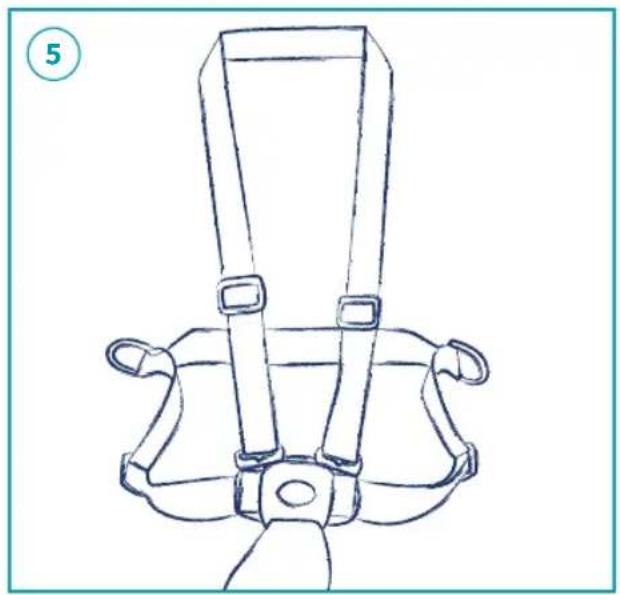

1. The stroller is equipped with five-point safety belts (Fig. 5).

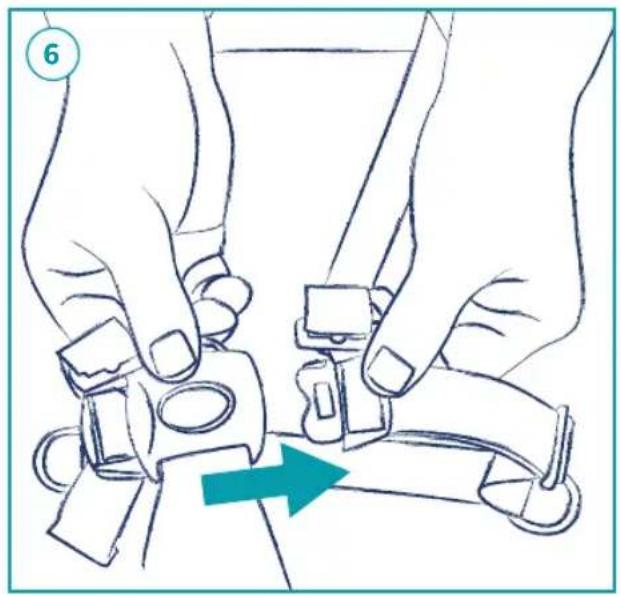

2. To unfasten the belts press the central button (Fig. 6). To fasten the belts proceed in reverse order until the lock "clicks".

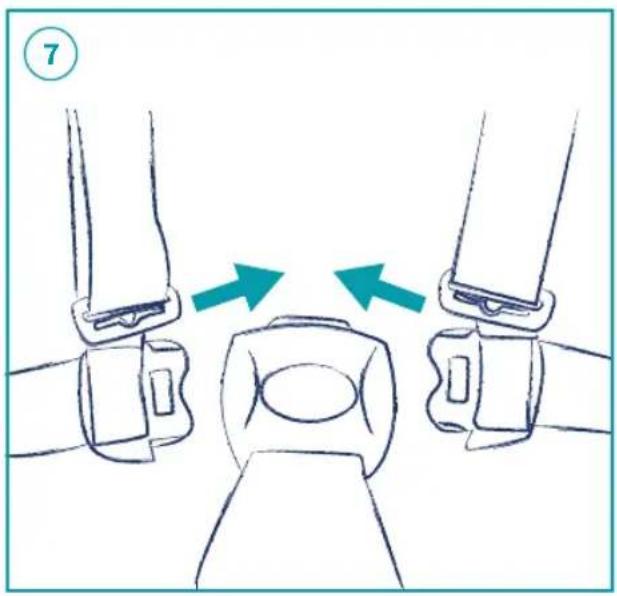

3. To open the shoulder straps remove the hooks (Fig. 7).

WARNING! Always use the stroller with the child strapped with the safety harnesses! Always use the safety harnesses together with the crotch strap.

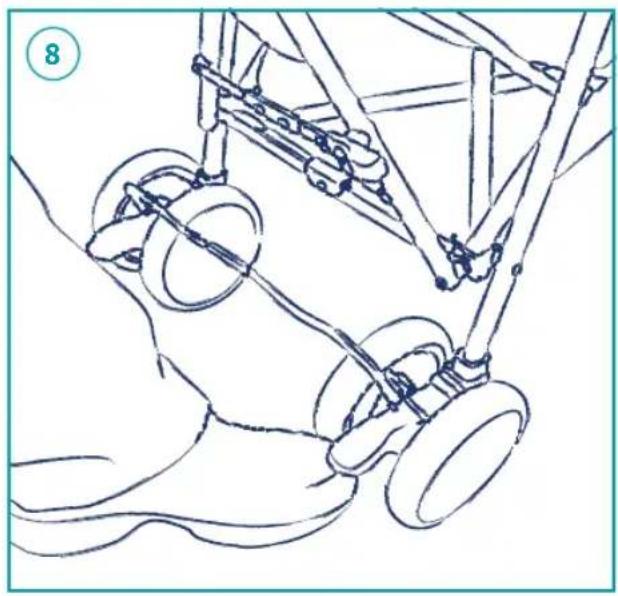

1. The stroller is fitted with twin rear brakes. These lock by pressing the lever (right or left) with your foot. They unlock raising the same lever (Fig. 8).

WARNING! Always operate the wheel brake when the stroller is stationary with the child inside.

ACCESSORIES

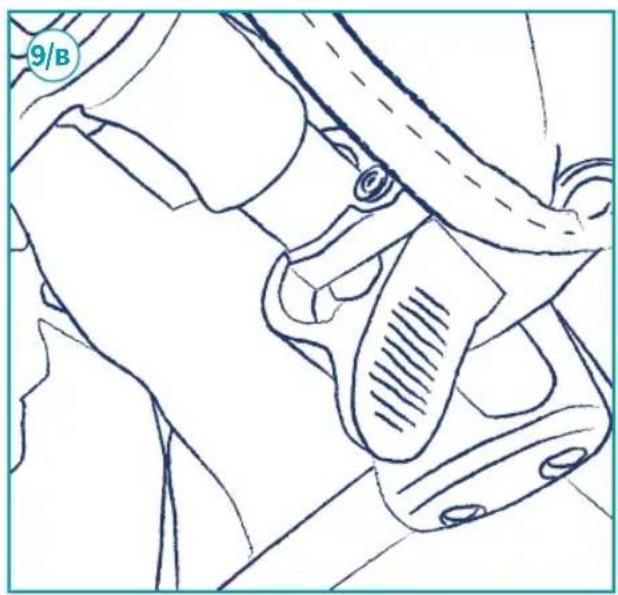

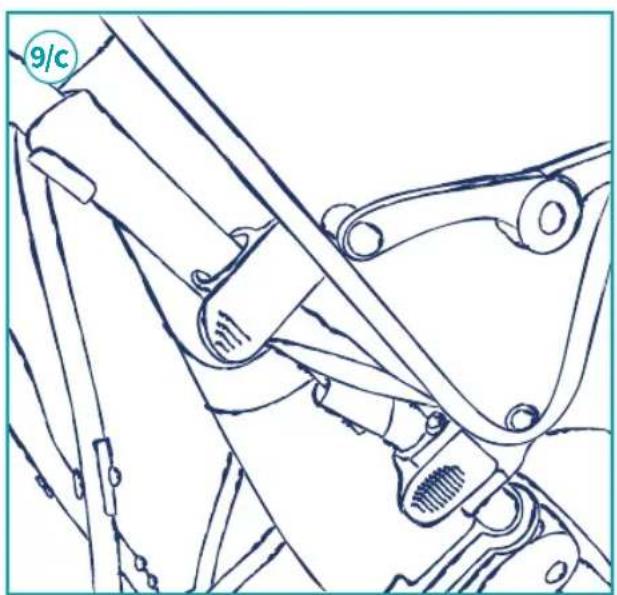

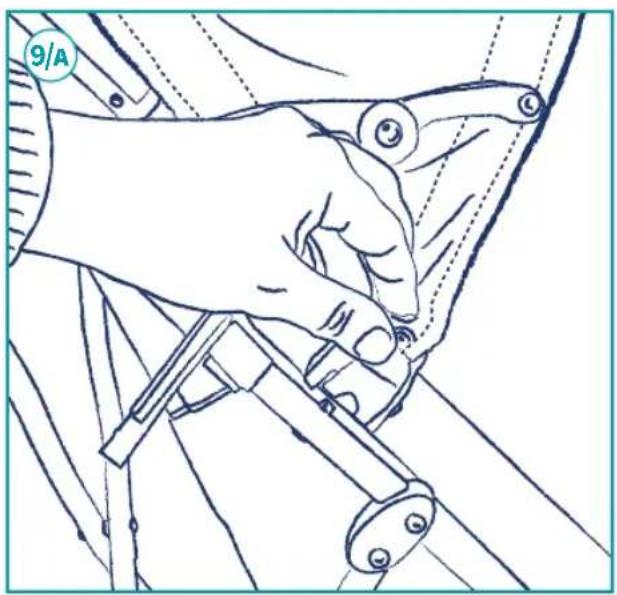

1. HOOD, it fastens with specific plastic joints on the tubes at the metal pin (Fig. 9/A) and it locks with a lever (Fig. 9/B). Push the plastic clip onto the tube (Fig. 9/C).

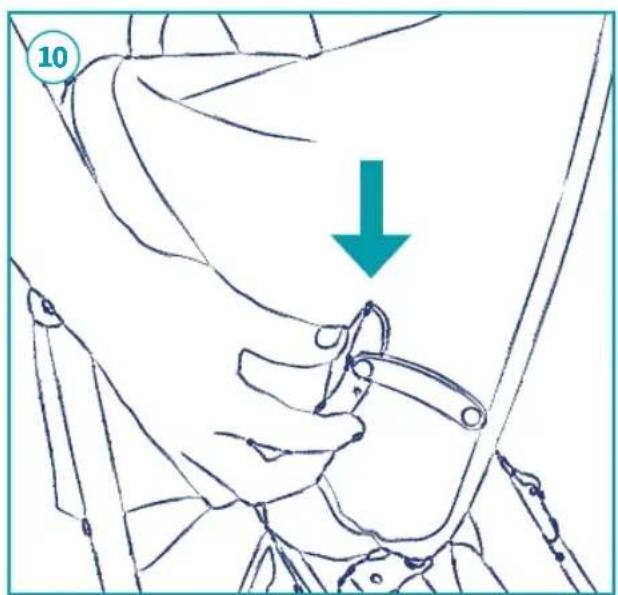

2. The hood locks in the open position by opening both side joints (Fig. 10).

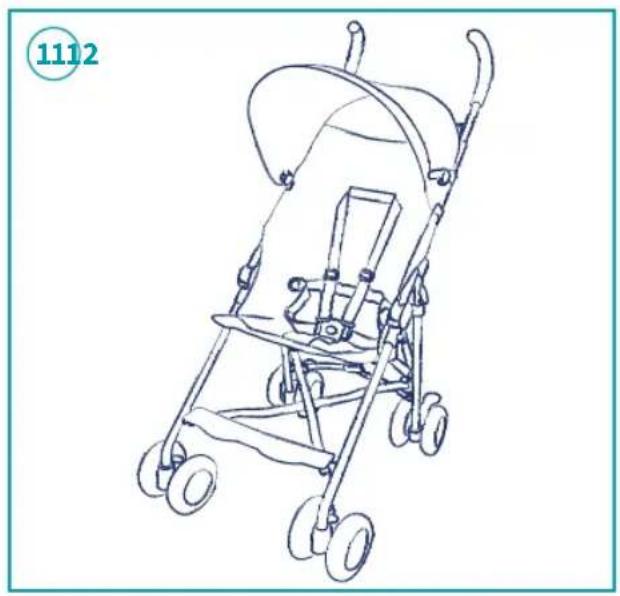

3. The hood is fitted (Fig. 11). To remove it, proceed with the operation in reverse order.

1. Before closing the stroller, close the hood by releasing the joints on both sides (Fig. 12).

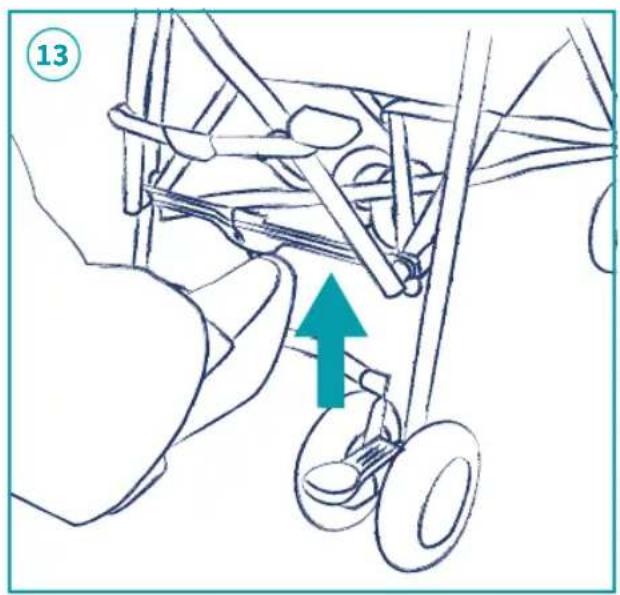

2. Raise the rear bar with your foot (Fig. 13).

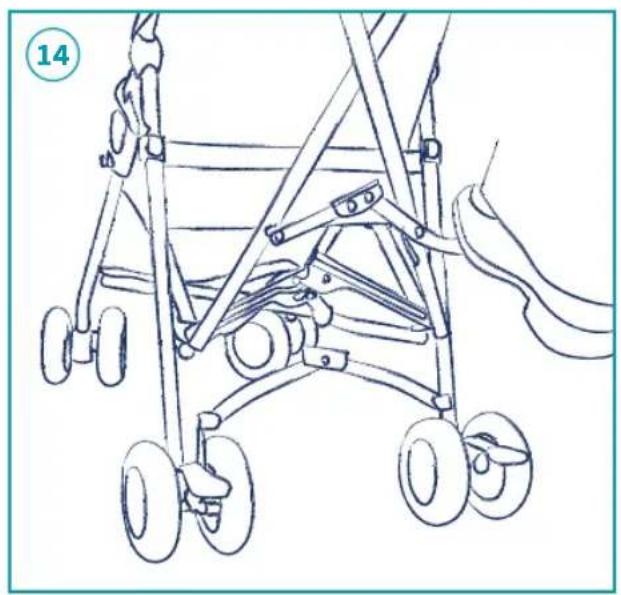

3. Lower the secondary-lock mechanism located at the bottom on the right side of the stroller (Fig. 14).

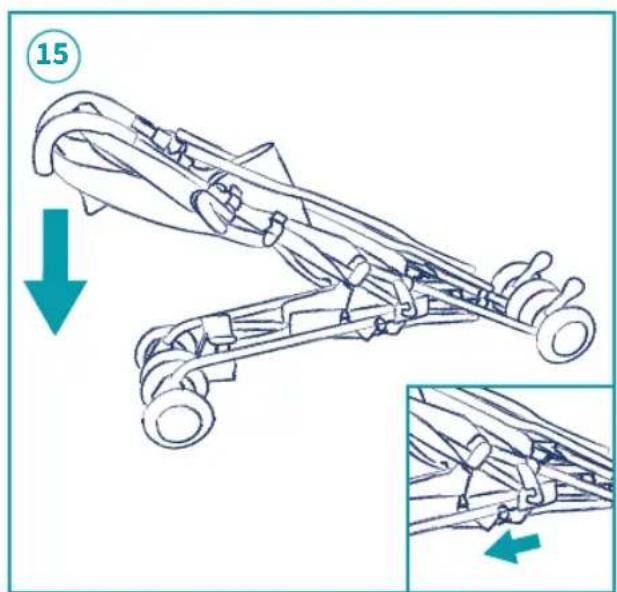

4. Push the stroller handles forward until it is completely closed. Fasten the safety catch to close the stroller (Fig. 15). It is now ready for transport.

MAINTENANCE

Clean plastic parts with a damp cloth. Do not use abrasive detergents. Keep wheels clean from sand and dust. Dry the metal parts accurately to prevent the formation of rust. Do not leave the product exposed to sunlight or bad weather for a long time to avoid fabrics and materials changing colour. Clean the lining with a damp cloth.

MATERIALS

Cover: Polyester

Structure: Steel

Polyamide

PVC

SIZES

Open: L: 74 cm;

H: 103 cm;

D: 45.5 cm.

Closed: L: 22 cm;

H: 113 cm;

D: 21.5 cm.

WARNINGS

- All components used for product assembly and any packaging elements (plastic bags, cardboard boxes, etc.) are not toys, therefore they must not be left within the reach of children as they are hazardous.

• WARNING: Never leave the child unattended.
- WARNING: Ensure that all the locking devices are engaged before use.
- WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.
- WARNING: Do not let the child play with this product.
- WARNING: This seat unit is not suitable for children under 6 months.
- WARNING: Always use the restraint system.
- WARNING: This product is not suitable for running or skating.
- The stroller is intended for use with children aged between 6 and 36 months, up to 15 kg of weight.
- The parking device shall be engaged when placing and removing the child.
- Do not overload the baskets. Maximum allowed weight: 5 kg/basket.
- Any load attached to the handle and/or on the backrest and/or the sides of the vehicle will affect the stability of vehicle.
- Do not carry more than one child at a time.
- Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer/distributor.
- WARNING: Before assembly, check that the product and all of its components have not been damaged during transportation

otherwise do not use the product and keep it out of the reach of children.

• Do not use the product if some of its parts are broken, torn or missing.
  • The product must be assembled by an adult.
  • This product must only be pushed by an adult.
• Ensure that the person using the stroller knows how to use it safely.
• Ensure that during these adjust operations the moveable parts of the stroller do not come into contact with your child.
• The use of the crotch strap and safety harness is necessary to guarantee the safety of your child. Always use the safety harness together with the crotch strap.
• Never leave the stroller on a sloped surface with a child onboard, even with the brakes applied.
• Do not use the stroller on stairs or elevators: it could cause the loss of control of the stroller.
• Pay special attention when maneuvering the stroller up or down pavements or a step.
• Always apply the brakes whenever the stroller is stationary.
• To avoid the risk of strangulation, keep objects fitted with strings or laces out of the reach of children.
• If the stroller is left exposed to direct sunlight for a long time, allow it to cool before placing your child in it. Prolonged exposure to direct

sunlight may cause the fabric and material to fade.

• Prevent the stroller from coming into contact with salt water. It may cause the formation of rust.
• Do not use the stroller on the beach.
• When not in use, the stroller must be kept away from the reach of children.
• The correct use and maintenance of your stroller will ensure it gives it long and trouble-free use.
• Remember the child is your responsibility.
• WARNING: Always ensure that your child, all fingers and other body parts are clear of all moving parts and hinged joints when adjusting or folding/unfolding the stroller to prevent entrapment.
• WARNING: Always use the stroller with the child strapped with the safety harness! use the safety harness together with the crotch strap.

FOR TECHNICAL OR COMMERCIAL REASONS, PRG RESERVES THE RIGHT, AT ANY TIME AND ALSO ONLY IN A SPECIFIC COUNTRY, TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE MODELS DESCRIBED IN THIS LEAFLET, AND/OR THE SHAPE, TYPE AND NUMBER OF THE ACCESSORIES SUPPLIED.

GIORDANI JOLLY SILLA DE PASEO (DE 6 A 36 MESES APROXIMADAMENTE)

APERTURA DE LA SILLA DE PASEO

Bekleding: polyester

Frame: staal

polyamide

pvc

AFMETINGEN

UK Approved to: EN 1888-1:2018+A1:2022
