USER MANUAL Sunrise 2.0 Giordani

Line drawing of a baby stroller with wheels and a curved handle (no text or symbols)

READ CAREFULLY AND KEEP

FOR FUTURE REFERENCE.

E

IMPORTANTE

LEER DETENIDAMENTE Y MANTENERLAS

Technical line drawing of a mechanical device with no visible text or symbols

B

F

D

C

Simple line drawing of a helmet with curved brim and seat slots (no text or symbols)

E

Simple line drawing of a curved arc with two side notches (no text or symbols)

Line drawing of a triangular metal bracket with mounting holes (no text or symbols)

I LISTA DELLE PARTI

A. Passeggino
8. 2 Ruote anteriori
C. Capote
D. Parapioggia
E. Corrimano
F. Ruote posteriori

P LISTA DE PEÇAS

A. Stroller
B. 2 Front wheels
C. Hood
D. Raincover
E. Safety bar
F. Rear wheels

Technical line drawing of a mechanical assembly with clamps and brackets (no text or symbols)

2

3

4 ① ② ③ ④ ⑤ ⑥ G

5

Line drawing of four mechanical components with no text or symbols, labeled '5A' in top-left corner (no other text or symbols)

5B

Technical line drawing of two mechanical belt buckle components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

678 ↓

9

Diagram of a mechanical component with two wheels and a red arrow indicating rotation (no text or symbols)

1112

Line drawing of a stroller with wheels and a red double-headed arrow indicating vertical motion (no text or symbols)

1314

Technical diagram showing mechanical assembly with red annotations highlighting component changes, including a hand holding a tool and a red arrow indicating rotation.

1. Remove the stroller and all the components from the packaging and wrapping. Release the plastic safety catch situated on one side of the stroller (Fig. 1).

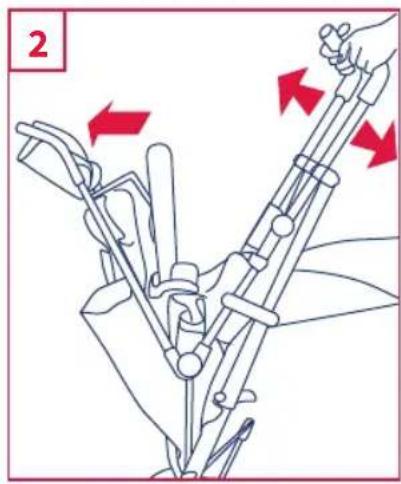

2. Open the stroller by lifting the handles upwards firmly (Fig. 2).

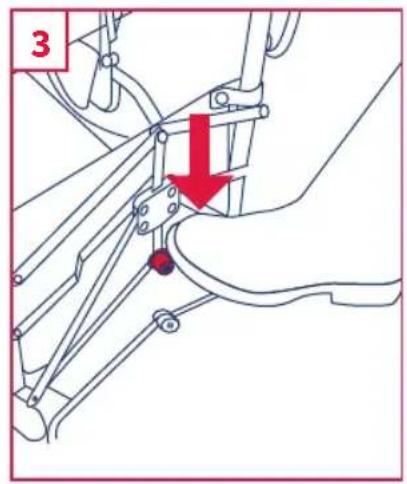

3. Secure the stroller by pushing the rear cross-bracing downwards and all the way (Fig. 3).
   WARNING! Always ensure that the stroller is completely open before using it.

ASSEMBLING THE WHEELS

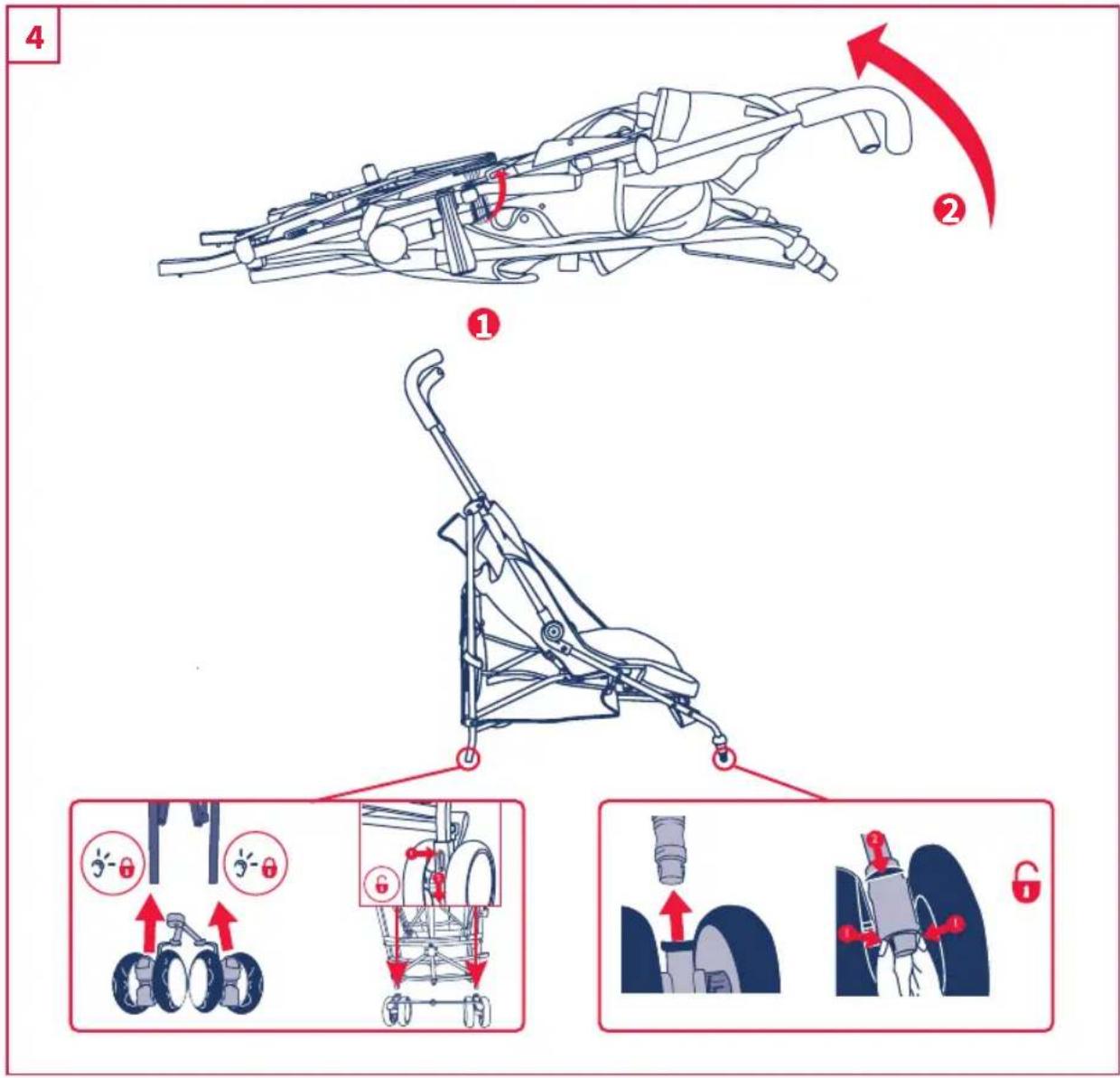

1. Insert the front wheels in the front structure until you hear a "click", continue to repeat the operation for rear wheels (Fig.4).

USE OF SAFETY BELTS

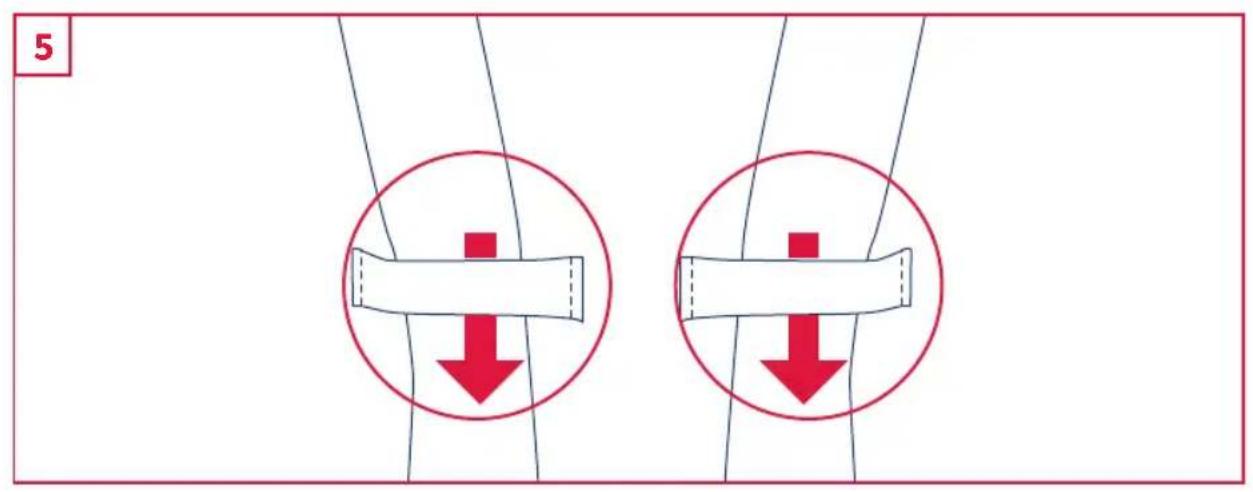

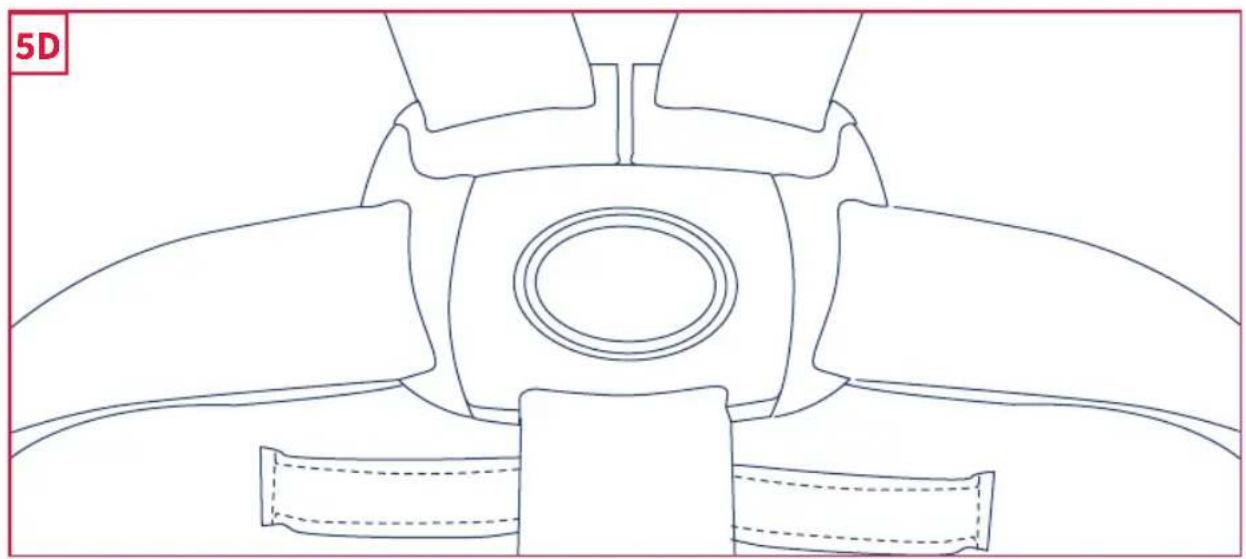

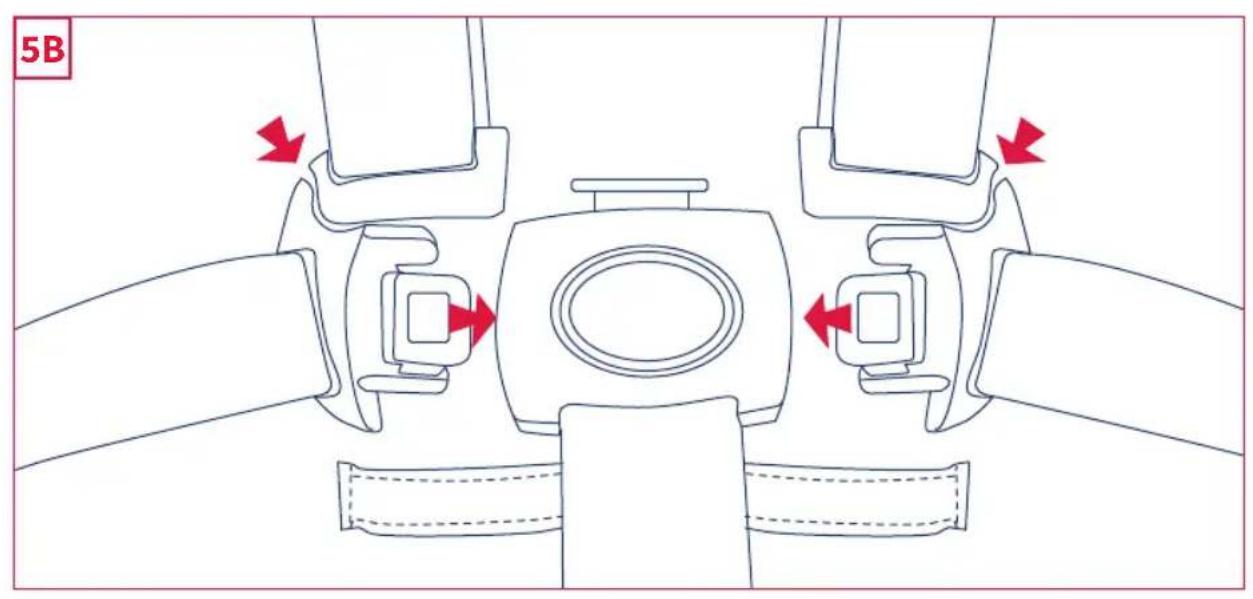

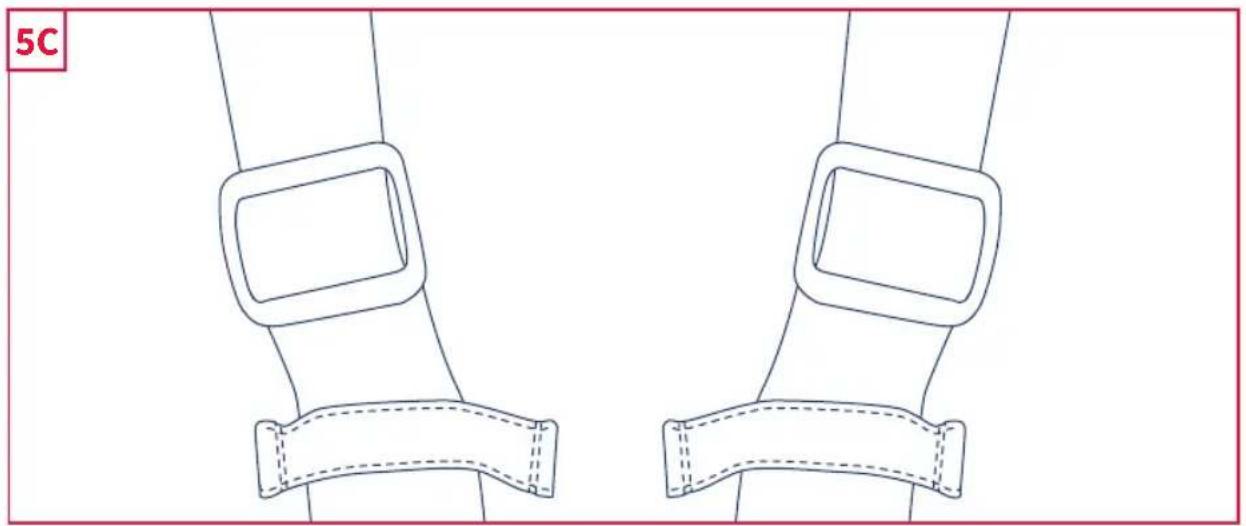

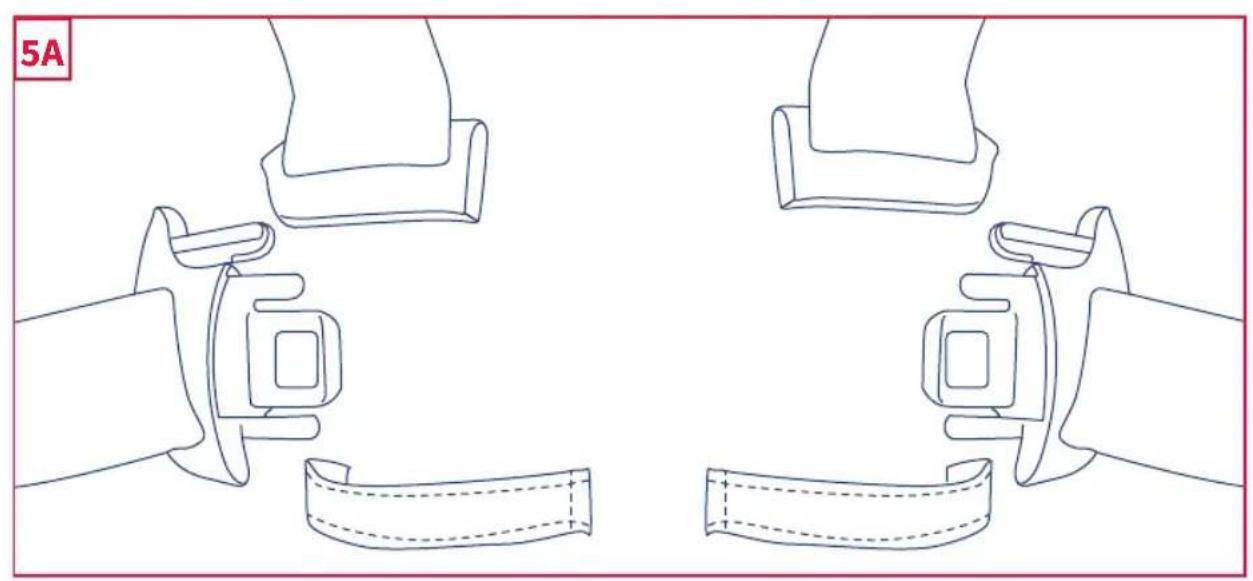

1. The stroller has a 5-point restraint anchoring system consisting of two shoulder straps, two adjustment slots, a waist strap and a crotch strap with buckle. WARNING: For use with children from birth up to approximately 6 months, you must use the shoulder straps by first making them go through the two horizontal adjustment slots (Fig. 5). After placing your child in the stroller, fasten the belts by inserting the shoulder strap connectors first in the side forks (Fig. 5A) and then insert them into the crotch strap buckle (Fig. 5B); adjust the length of the belts (Fig. 5C) making them adhere to the child's shoulders and body. To unfasten the waist belt, press the button on the crotch strap buckle (Fig. 5D). WARNING: Always use the restraint systems. For your child's safety use all five anchoring points of the safety belts.

2. Fitting the bumper (Fig. 6).

3. Removing the bumper (Fig. 7).

4. The backrest can be adjusted in 4 positions. To adjust the position of the backrest press the lever on the back (Fig. 8).

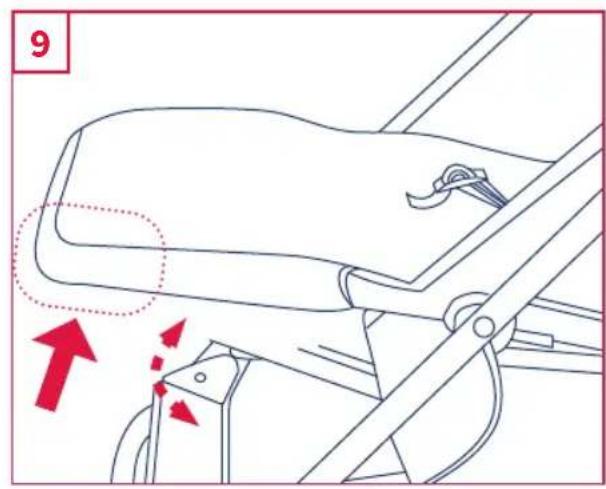

5. The footrest is adjustable: it unlocks pressing the two buttons on the sides under the same (Fig. 9).

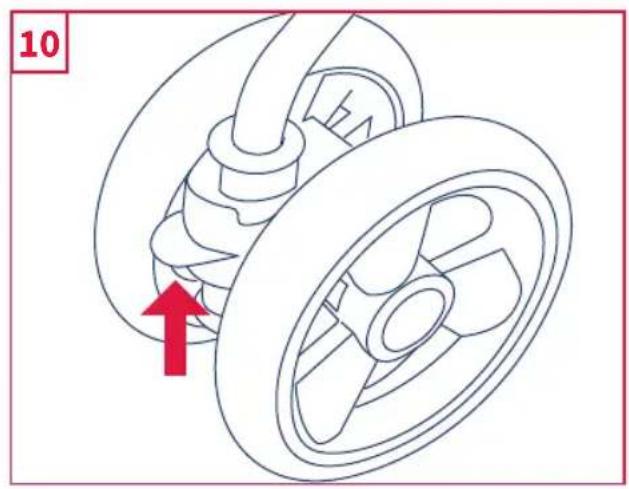

6. The stroller has front swivel wheels that can be locked in a fixed position, recommended on a bumpy ground. Wheel-locking is done by raising both the levers (Fig. 10).

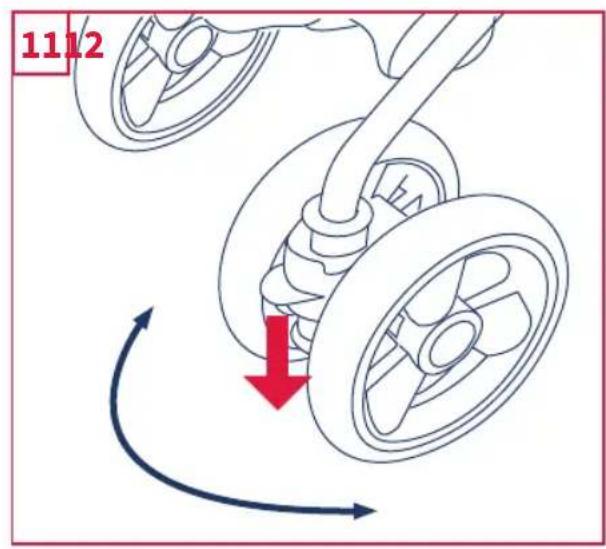

7. Viceversa to unlock the wheel s and make them swivel for bet ter manoeuvrabilit y of the stroller just lower the levers (Fig. 11). WARNING! The wheels must always be both fixed or both swivel for correct use of the stroller.

8. The stroller is also fitted with twin rear brakes. These lock by pressing the lever (right or left) with your foot. They unlock raising the same lever (Fig. 12). WARNING! The brakes must be engaged each time you stop with your child on the stroller.

ACCESSORIES

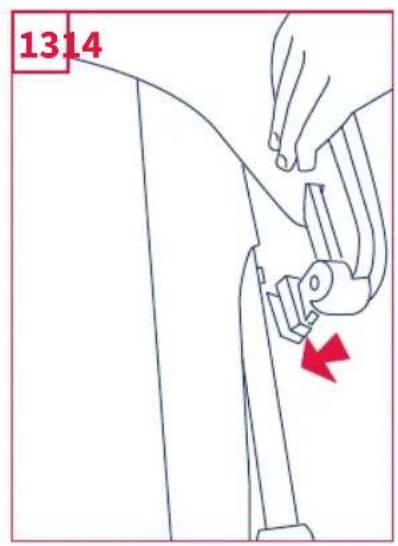

1. HOOD, included in the package. It fastens with specific plastic joints along the side tubes of the structure (Fig. 13) and attaches to them using the appropriate Velcro straps.
2. RAIN COVER, To attach the raincover open the stroller hood completely, wrap the Velcro straps around the stroller pipe at the indicated position and fasten the stud as shown in figure 14; repeat the same operation also on the other side. After use allow the rain cover to air-dry if it is wet. WARNING: The rain cover cannot be used on the stroller without a hood, because it may lead to child suffocation. ATTENTION: When the rain cover is fitted to the stroller, never leave it exposed to the sun with the child inside due to the risk of overheating.

1. Before closing the stroller, close the hood and lower the backrest (Fig. 15).
2. Unlock the frame pushing the rear cross-bracing upwards (Fig. 16).
3. Lower the secondary-lock mechanism located at the bottom on the right side of the stroller (Fig. 17).
4. Push the stroller handles forward until it is completely closed (Fig. 18).
5. The stroller can be transported with the carrying handle located on the side (Fig. 19).

MAINTENANCE

Clean plastic parts with a damp cloth. Do not use abrasive detergents. Keep wheels clean from sand and dust. Dry the metal parts accurately to prevent the formation of rust. Do not leave the product exposed to sunlight or bad weather for a long time to avoid fabrics and materials changing colour. Clean the lining with a damp cloth.

SIZES

Open: L: 67 cm;

H: 106 cm;

P: 51 cm.

Closed: L: 107 cm;

H: 34 cm;

P: 30 cm.

WARNINGS

- All components used for product assembly and any packaging elements (plastic bags, cardboard boxes, etc.) are not toys, therefore they must not be left within the reach of children as they are hazardous.

• WARNING: Never leave the child unattended.

- WARNING: Ensure that all the locking devices are engaged before use.

- WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.

• WARNING: Do not let the child play with this product.

- WARNING: Always use the restraint system.

- WARNING: This product is not suitable for running or skating.

- The stroller is intended for use with children aged between 0 and 36 months, up to 15 kg of weight.

- It is recommended that the backrest should be used in its most reclined position for children from birth to 6 months of age.

• The parking device shall be engaged when placing and removing the child.

- Do not overload the baskets. Maximum allowed weight: 3kg/ basket.

- Any load attached to the handle and/ or on the backrest and/or the sides of the stroller will affect the stability of the stroller.

• Do not carry more than one child at a time.

- Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer/ distributor.

- WARNING: Before assembly, check that the product and all of its components have not been damaged during transportation. Should any part be damaged do not use and keep out of the reach of children.

- Do not use the product if some of its parts are broken, torn or missing.

• The product must be assembled by an adult.

• This product must only be pushed by an adult.

- Ensure that the person using the stroller knows how to use it safely.

- Ensure that during these adjustment operation the moveable parts of the stroller do not come into contact with your child.

- The use of the crotch strap and safety harness is necessary to guarantee the safety of your child. Always use the safety harness together with the crotch strap.

- Never leave the stroller on a sloped surface with a child onboard, even with the brakes applied.

- Do not use the stroller on stairs or elevators: it could cause the loss of control of the stroller.

• Pay special attention when maneuvering the stroller up or down pavements or a step.
  • Always apply the brakes whenever the stroller is stationary.
  • To avoid the risk of strangulation, keep objects fitted with strings or laces out of the reach of children.
• If the stroller is left exposed to direct sun light for a long time, allow it to cool before placing your child in it. Prolonged exposure to direct sunlight may cause the fabric to fade.
• Prevent the stroller from coming into contact with salt water. It may cause the formation of rust.
  • Do not use the stroller on the beach.
• When not in use, the stroller must be kept away from the reach of children.

FOR TECHNICAL OR COMMERCIAL REASONS, PRG RESERVES THE RIGHT, AT ANY TIME AND ALSO ONLY IN A SPECIFIC COUNTRY, TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE MODELS DESCRIBED IN THIS LEAFLET, AND/ OR THE SHAPE, TYPE AND NUMBER OF THE ACCESSORIES SUPPLIED.

UK - Approved to: EN 1888-1:2018+A1:2022
