USER MANUAL DCAM003 Gembird
PYKOBODCTBO NOIb3OBATEJIa
KEPIBHNICTBO KOPNCTYBAUA
GEMBIRD

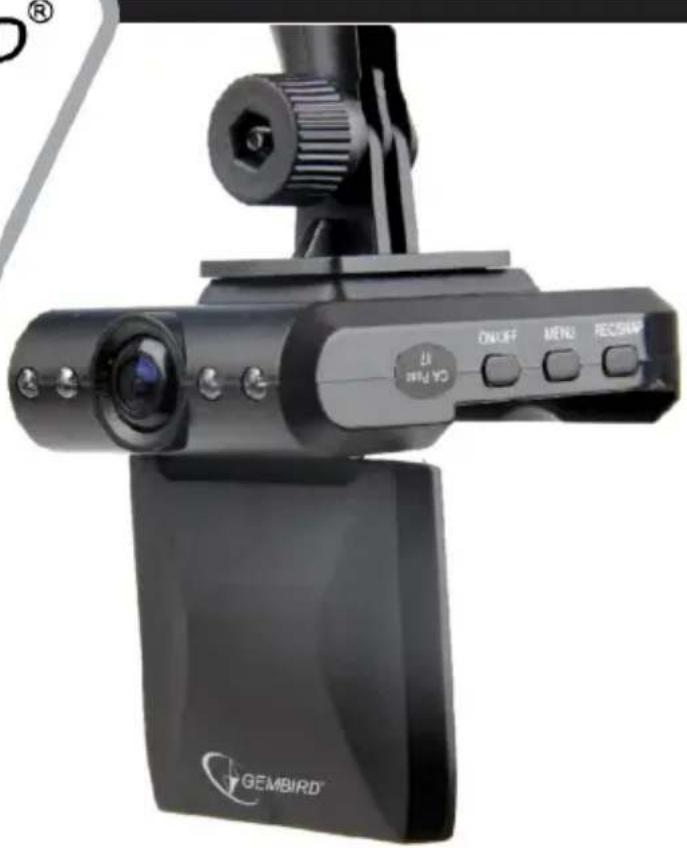

In-car HD camera with built-in microphone and night vision
- Wide angle lens and automatic brightness adjustment
- Automatically starts recording when the car is started
Stores hours of video material on removable SD card (not included)
Built-in pivoting 2.5" LCD screen
Motion detection

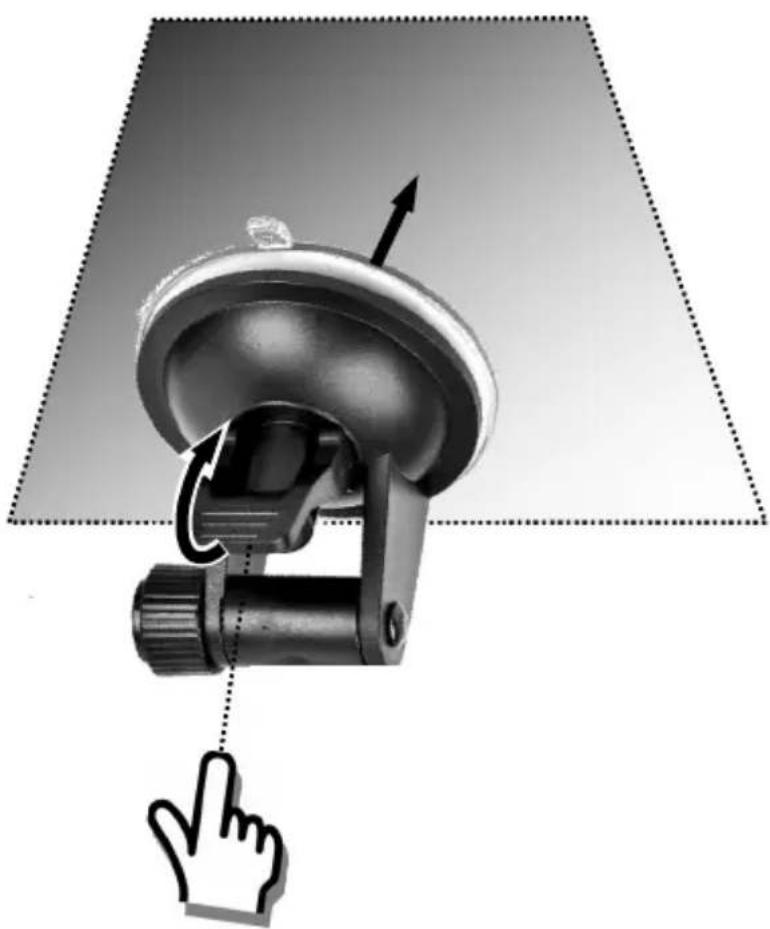

Suction cup window mount

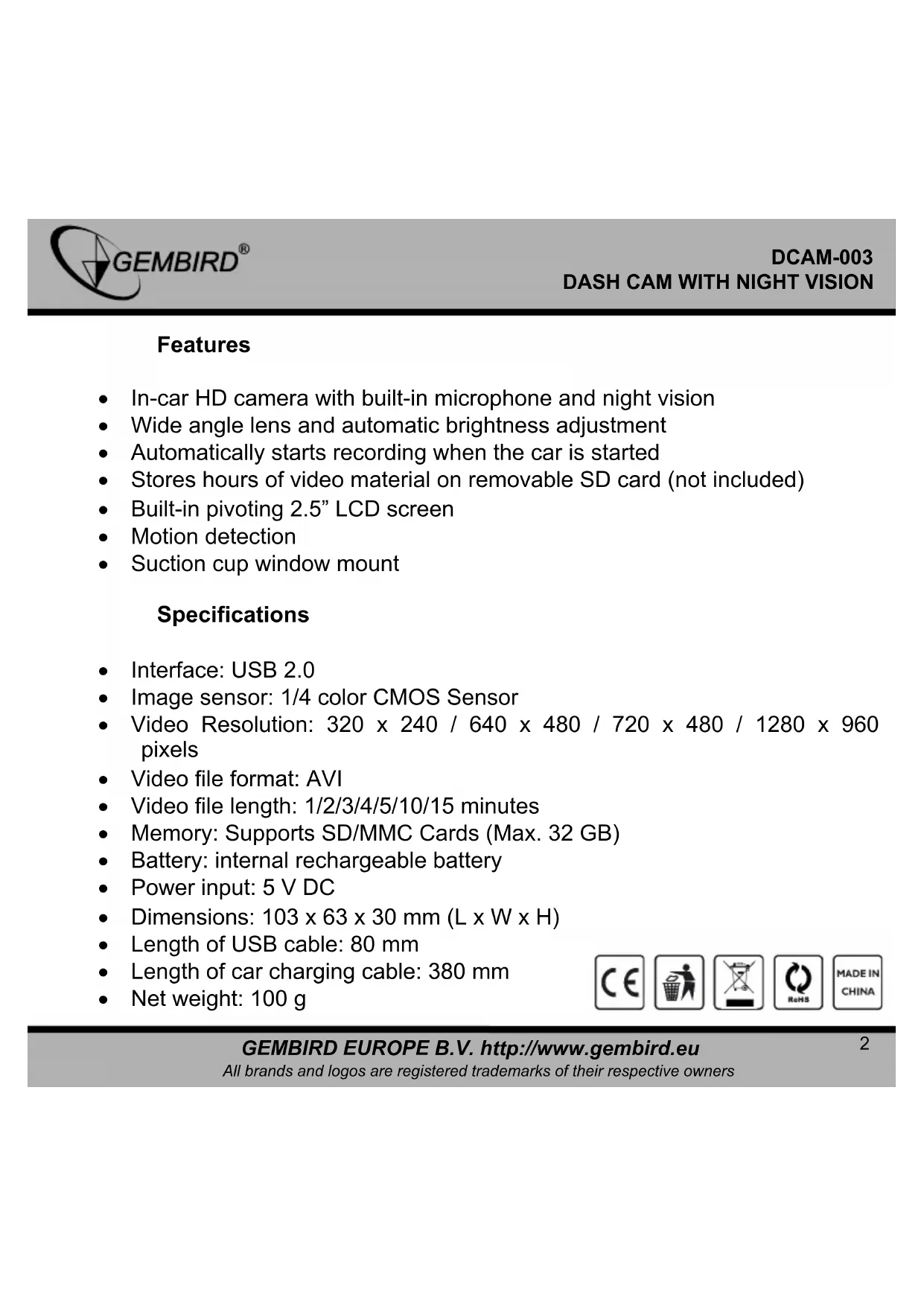

Specifications
- Interface: USB 2.0
- Image sensor: 1/4 color CMOS Sensor
Video Resolution: 320 × 240 / 640 × 480 / 720 × 480 / 1280 × 960 pixels
Video file format: AVI
Video file length: 1/2/3/4/5/10/15 minutes
Memory: Supports SD/MMC Cards (Max. 32 GB) - Battery: internal rechargeable battery
Power input: 5 V DC - Dimensions: 103 × 63 × 30 mm( L × W × H)
Length of USB cable: 80mm
Length of car charging cable: 380mm
Net weight: 100g
(2)

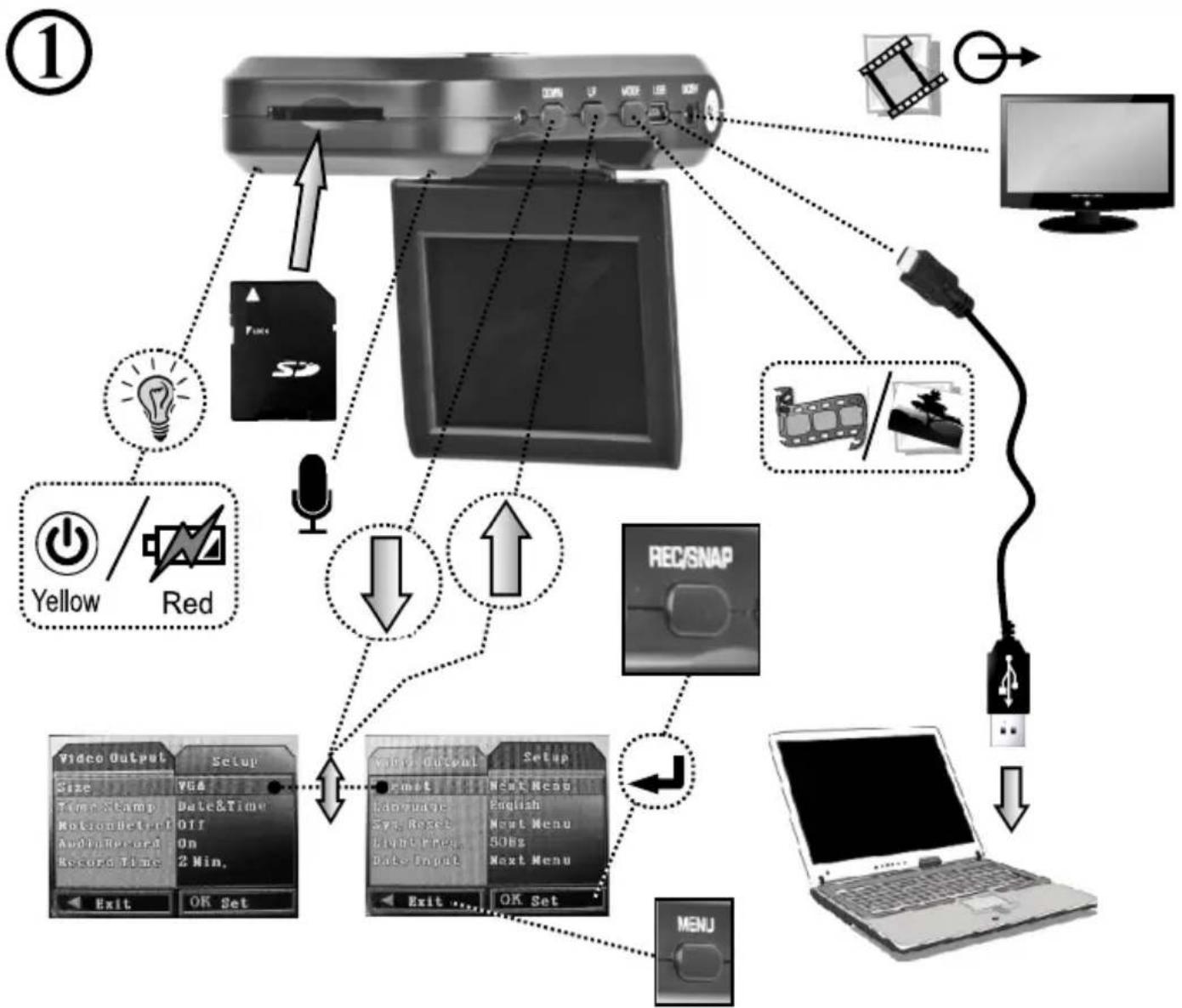

GEMBIRD
0
REC
ScLup
Date&Time
01
图2
2 Min.
OK Set
Setup
102
English
VATXRENU
SOnz
Next Menu
English
(En / Ch / Jp / Ru)
3
(4)
This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu
Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
