USER MANUAL Comforttemp 99270 TREBS

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

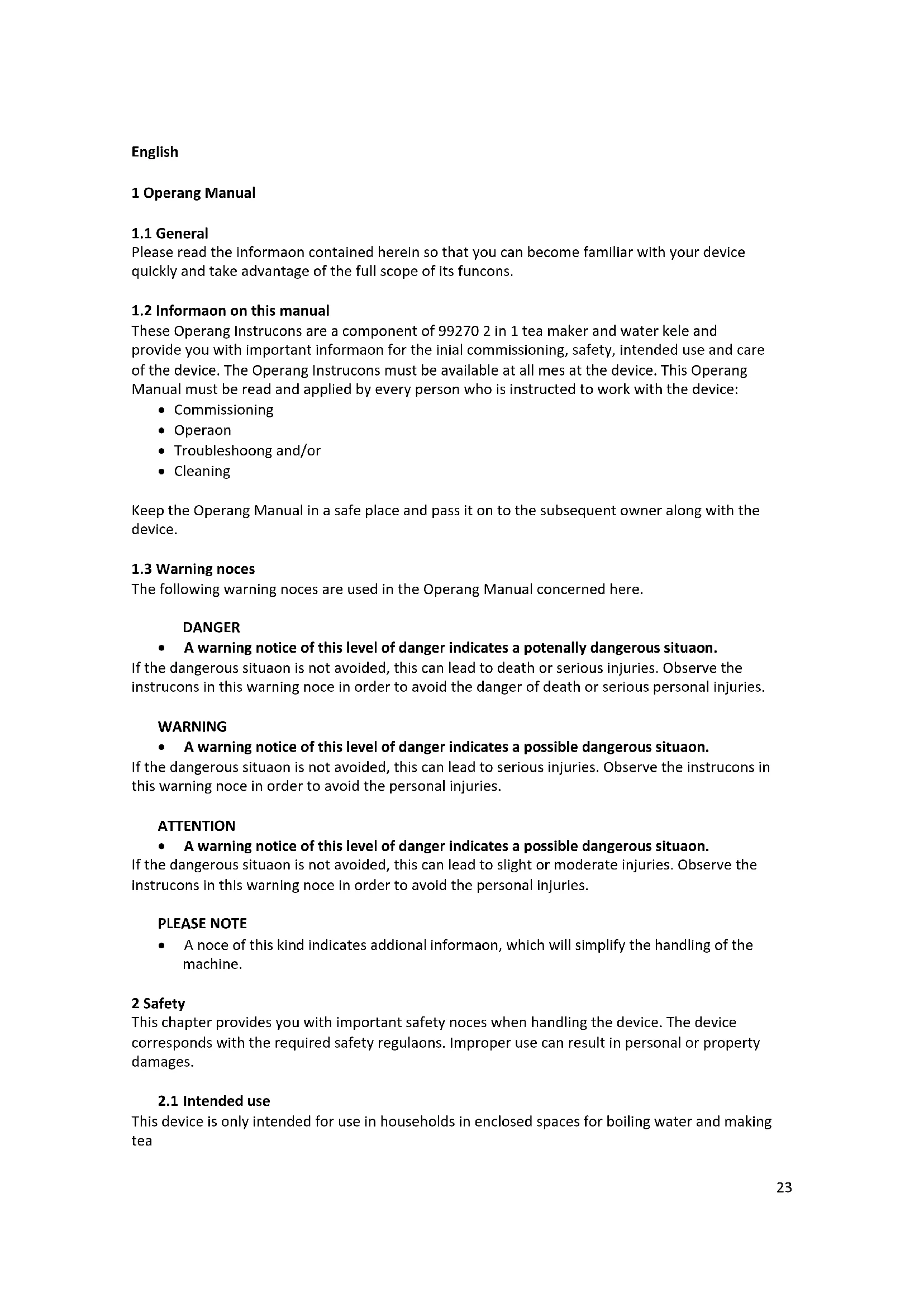

1.2 Information on this manual

These Operating Instructions are a component of 99270 2 in 1 tea maker and water kettle and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine. 2 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for boiling water and making tea24

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. WARNING Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. Use the device exclusively for its intended use. Observe the procedural methods described in this Operating Manual. ATTENTION! ONLY USE THE ORIGINAL POWER BASE TO HEAT THE DEVICE! Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

2.2 General Safety information

Please observe the following general safety notices with regard to the safe handling of the device. Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician. The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety; children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years. Do not leave the device unsupervised when it is in operation. Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. Only customer service departments authorized by the supplier may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not it for commercial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket if the appliance is not being used and remove the attached accessories. The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used. Do not use other liquids than water.25

DANGER The heated water in the water kettle and the glass of the jug can get very hot. Observe the following safety instructions and be careful not to burn or scald yourself or others: When the water is heated, the interior of the jug gets very hot! Always check the temperature of the water or the tea, before drinking it. When you are boiling the water, keep the lid closed.

2.4 Dangers due to electrical power

DANGER Mortal danger due to electrical power Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician. Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers. Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. 3 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

3.1 Safety information

WARNING Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: Packaging materials may not be used for playing. There is a danger of suffocation.

3.2 Delivery scope and transport inspection

As a rule, the 2 in 1 tea maker and water kettle is delivered with the following components: 1 Water kettle 1 Heating element 1 manual 1 Safety lid 1 Lid with tea filter PLEASE NOTE Examine the package for its completeness and for any visible damages.

Unpack your device as follows: Take out the device from the box and remove the interior and exterior packaging. Clean the appliance thoroughly before the first use. (see chapter Cleaning and maintenance)26

3.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. PLEASE NOTE If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

3.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfill the following prerequisites: The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity. Choose the setup location in such a way that children cannot reach the device. The device is not intended to be installed in a wall or a built-in cupboard. Do not set up the device in a hot, wet or extremely damp environment or near flammable material. The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency. The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

3.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician. The electrical outlet must be protected by a 16A safety cut-out switch. The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this. Make sure that the power cable is undamaged and has not been installed under the 2 in 1 tea maker and water kettle or over hot or sharp surfaces. The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor. 4 Function In this chapter, you'll find important information on the function of the device.27

5 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: When connecting to the outlet a buzzer sounds twice. As soon as you take the kettle from the base, a buzzer will sound. The appliance returns to standby mode. Using the function buttons, you can select the optimum water temperature of your drink. You can heat up water to the following specific temperatures: 70°C, 80°C, 90°C and 100°C. Using an additional function, you can keep the temperature of the water hot at 70°C, 80°C, 90°C. You can use the tea infuser to prepare tea in your kettle.

Before using for the first time, boil fresh water at least three times in the appliance. Use only water without any additives or ingredients. PLEASE NOTE Always use fresh water.28

1. Place the machine on a flat surface.

2. Opening the Lid. Press the (2) button. The opener springs open. You can remove the lid by pulling

3. Then fill in the water (max. 1.7 Liter). You can read the filling level on the water level indicator of

4. In order to close the lid, press the (2) button. The lid must audibly lock into place.

5. Place the kettle lush on the base.

2. Press the button. The light on the button will light up.

PLEASE NOTE The light on the temperature button flashes whilst the water heats up. If the temperature has been reached, you hear two buzzers. The light on the button turns of. The light on the temperature button lights up until you take the jug from the base.

5.4 Keep warm function

You can keep the water hot for half an hour at the following temperatures: 70°C, 80°C and 90°C. To do this, press the button after you have selected a temperature. The light on the button lights up. Then press the On/ Off button The keep warm will remain active, even if you take the jug from the base for up to a minute. The keep warm function cannot be used for 100 °C.

Press the button after putting the jug onto boil. The water will be heated to 100°C.

5.6 Ending/Terminating operation

There are three options for ending/terminating the boiling process: The appliance will switch off after the boiling process. You can press the button again in order to end the boiling process. Take the jug from the base. The light on the button will go out. WARNING Danger of scalding When pouring the water out, keep the lid closed. During operation the housing becomes hot. Do not touch it and allow the device to cool down before storing it away. Remove the mains plug. Emptying the water container.29

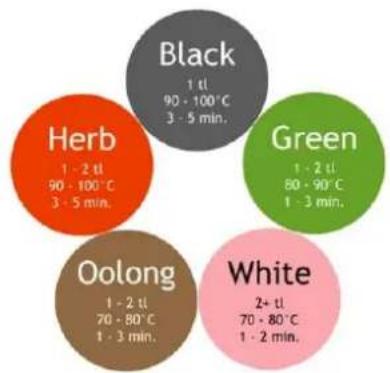

You can replace the lid of the kettle with the tea strainer. See the illustration. In order to open the strainer, rotate it slightly in an anticlockwise direction. Add the tea and close the strainer again. Put the tea strainer on instead of the lid. Use the plunger to determine when and for how long the tea is supposed to brew. CAUTION Bring maximal 1.2 liters (TeaMax) of water to the boil. The tea strainer should only be immersed in water if the desired temperature has been reached. The tea strainer will continue to drip! Using the temperature indicators you can heat the water to the perfect temperature for the kind of tea you like. There are many types of teas and they vary not only in taste, but in proper preparation. Some teas taste wonderful steeped in just-boiled water while other teas such as the delicate green and whites, are more temperature sensitive and offer the best aroma and taste when steeped in lower temperature water. Ideal steeping temperatures vary based on the type of tea. You can use the table below to make an estimation for the ideal temperature and time the tea needs to steep. Black tea: 90- 100 °C, 3 to 5 minutes Oolong tea: 70- 80 °C, 1 to 3 minutes Green tea: 80- 90 °C, 1 to 3 minutes Herb tea: 90- 100 °C, 3 to 5 minutes White tea: 70- 80 °C, 1 to 2 minutes

6 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

Always turn the device off before cleaning it and remove the mains plug. Wait until the device has cooled down. Never immerse the device or the base in water or other liquids. This may result in electric shock or ire. CAUTION Do not use any wire brush or other abrasive objects. Do not use any acidic or abrasive detergents.30 Clean the perforated area in the spout with a nylon brush from the inside. Rinse out the water jug and the tea strainer with clear water. Dry everything with a cloth. Clean the housing after use with a slightly damp cloth.

The frequency of the decalcifying operation depends on the hardness of the water and on how often the appliance is used. If the machine switches off before the water boils, it probably needs to be decalcified. Please do not use vinegar but a commercially available decalcification agent on the basis of citric acid. Only use the quantities stated in the instructions. NOTE After descaling the device boil fresh water in it several times (approximately 3-4 times) in order to remove any residues. Do not consume this water. 7 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.

7.1 Security advices

ATTENTION Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer. Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

Error Possible cause Problem solving The appliance doesn't work. Mains plug is not connected correctly. Please check that the mains plug of the appliance is connected correctly. Electronic defect. Please contact customer support.

ATTENTION If above mentioned steps don't solve the problem, please contact your customer service. 8 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. PLEASE NOTE Utilize the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. Ensure that your old device is stored safely away from children until it is taken away.31 9 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 10 Technical Data Device 2 in 1 tea maker and water kettle Model

Service If you have any further questions about the product after reading this manual, please contact the Trebs customer service: [e-mail]. CE32 Français
