USER MANUAL Quadrio 4D SB HA HOTPOINT

Operating Instructions, 1

Assistance, 3

Description of the appliance, 7

Description of the appliance, 13

Installation, 23

Start-up and use, 23

Maintenance and care, 24

Precautions and tips, 25

Troubleshooting, 26

Mode d'emploi COMBINE REFRIGERATEUR/CONGELATEUR

Sommaire

Mode d'emploi, 1

Assistance, 3

HeicnpaBHOCTn MeToDbIx ycTpaHEnH,59

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
• serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

F

Assistance

Description of the appliance

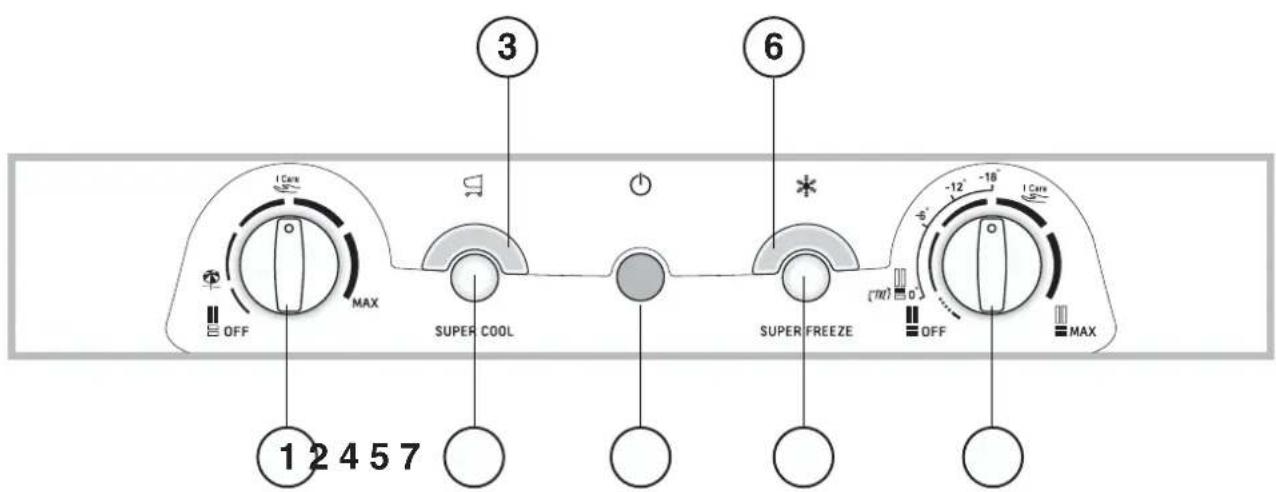

Control panel

1 REFRIGERATOR OPERATION Knob to regulate the temperature of the refrigerator compartment. Care is the optimal temperature for energy saving levels. is the holiday function (see Maintenance and care). OFF switches the refrigerator off.
2 SUPER COOL (quick cool) to lower the temperature of the refrigerator compartment rapidly. When it is pressed, the SUPER COOL indicator light illuminates (see Start-up and use).
3 SUPER COOL Yellow indicator light (rapid cooling) illuminates when the SUPER COOL button is pressed.
4 POWER Indicator light illuminates when the appliance is connected to the electricity network.
5 SUPER FREEZE button (rapid freezing) to freeze fresh food. When it is pressed, the SUPER FREEZE indicator light illuminates (see Start-up and use). If pressed for at least 3 seconds, this activates the "Optimization Energy Saving" function (see Care and maintenance).
6 SUPER FREEZE Yellow indicator light (rapid freezing) illuminates when the SUPER FREEZE button is pressed.
7 FREEZER OPERATION Knob to regulate the temperature of the freezer compartment. Care is the optimal temperature for energy saving levels. OFF switches the appliance off, including the refrigerator TVZ (see Using the freezer to its full potential)

The indicator lights are also used to indicate an unusual temperature increase in the freezer compartment (see Troubleshooting).

F

Description of the appliance

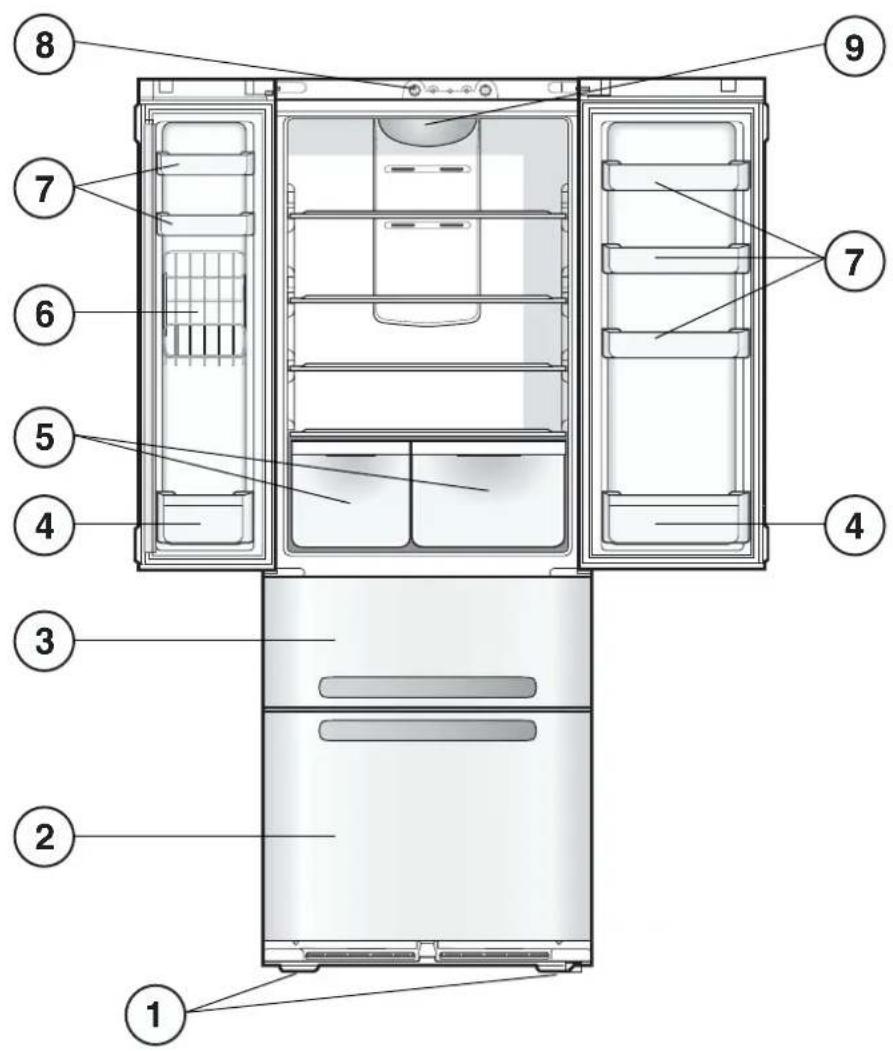

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

1 Levelling FEET
2 FREEZER and STORAGE compartment
3 TVZ compartment and FREEZER and STORAGE compartment
4 BOTTLE shelf
5 FRUIT and VEGETABLE bin
6 CAN RACK.
7 Removable multipurpose SHELVES
8 Control panel
9 LAMP (see Maintenance).
- Varies by number and/or position.

Funzione Optimization Energy Saving

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference.

Pass them on to possible new owners of the appliance.

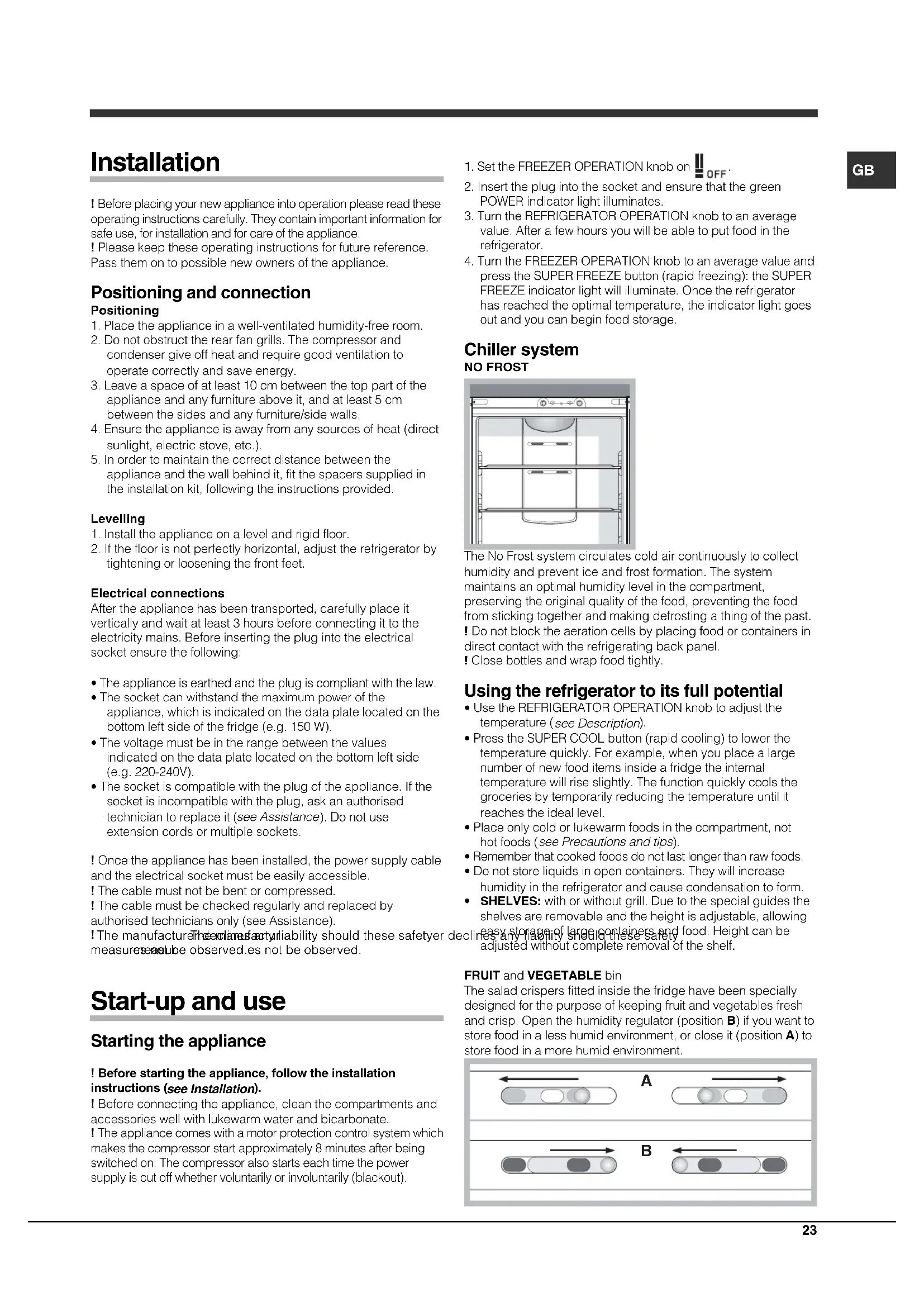

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Leave a space of at least 10cm between the top part of the appliance and any furniture above it, and at least 5cm between the sides and any furniture/side walls.
4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

The appliance is earthed and the plug is compliant with the law.
- The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacture of safetyer measures as observed.es not be observed.

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.
! The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Set the FREEZER OPERATION knob on OFF
2. Insert the plug into the socket and ensure that the green POWER indicator light illuminates.
3. Turn the REFRIGERATOR OPERATION knob to an average value. After a few hours you will be able to put food in the refrigerator.
4. Turn the FREEZER OPERATION knob to an average value and press the SUPER FREEZE button (rapid freezing): the SUPER FREEZE indicator light will illuminate. Once the refrigerator has reached the optimal temperature, the indicator light goes out and you can begin food storage.

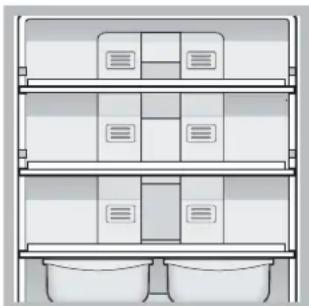

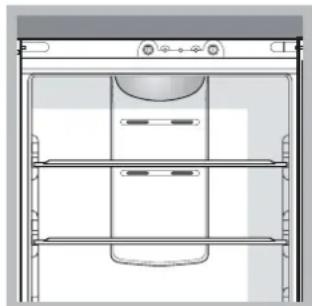

Chiller system NO FROST

The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in the compartment, preserving the original quality of the food, preventing the food from sticking together and making defrosting a thing of the past.

! Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel.
! Close bottles and wrap food tightly.

Using the refrigerator to its full potential

• Use the REFRIGERATOR OPERATION knob to adjust the temperature (see Description).
• Press the SUPER COOL button (rapid cooling) to lower the temperature quickly. For example, when you place a large number of new food items inside a fridge the internal temperature will rise slightly. The function quickly cools the groceries by temporarily reducing the temperature until it reaches the ideal level.
• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.
• SHELVES: with or without grill. Due to the special guides these shelves are removable and the height is adjustable, allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

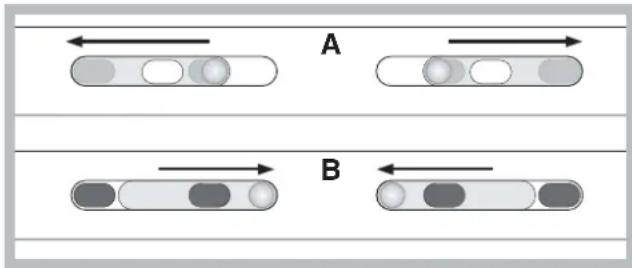

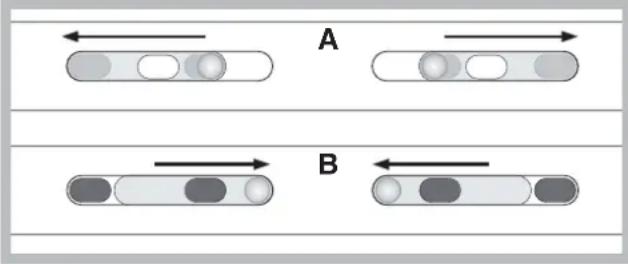

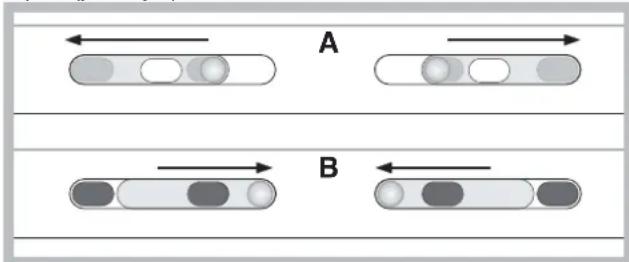

FRUIT and VEGETABLE bin

The salad crispers fitted inside the fridge have been specially designed for the purpose of keeping fruit and vegetables fresh and crisp. Open the humidity regulator (position B) if you want to store food in a less humid environment, or close it (position A) to store food in a more humid environment.

TEMPERATURE Indicator light*: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see diagram).

1. If the word "OK" does not appear it means that the temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher position (colder) and wait approximately 10 hours until the temperature has been stabilised.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

Food hygiene

1. Once you have bought your food, remove all external packaging made of paper/cardboard or other wrappers, which could introduce bacteria or dirt inside your refrigerator.
2. Protect the food, (especially easily perishable items and those that have a strong smell), in order to avoid contact between them, thereby removing both the possibility of germ/bacteria contamination as well as the diffusion of strong odours inside the fridge.
3. Store all food in such a way as to ensure air can circulate freely between different items.
4. Keep the inside of your fridge clean, taking care not to use oxidiser or abrasive products.
5. Remove all food past its expiry date from the refrigerator.
6. For the correct preservation of food, all easily perishable items (soft cheeses, raw fish, meat, etc.) should be stored in the coldest zone of the fridge compartment, i.e. just above the salad crisper where the temperature indicator is situated.

Using the freezer to its full potential

• Use the FREEZER OPERATION knob to adjust the temperature (see Description).
• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted.
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4).
• The top drawer can be used to store several types of food (semifreddo frozen desserts, ice creams and alcohol) at the most suitable temperature; the lower drawer (see overall view) is designed to store frozen food in normal conditions. To freeze food (if the freezer is already in operation), deactivate the TVZ and empty the top drawer, press the rapid-freezing SUPER FREEZE button (the corresponding LED lights up), place the food inside and close the drawer. The function is deactivated automatically after 24 hours or when the optimal temperatures have been reached (LED switches off). The food may now be moved to the lower drawer (so that the TVZ functions may be used) or left in the TVZ compartment which, when left inactive, will function as a normal storage compartment.
• In order to obtain a greater amount of space in the freezer compartment, you may remove the bins (except the lowest bin and the special COOL CARE ZONE bin, which has an adjustable temperature) and place the food directly onto the evaporator plates.

! To avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers.

I Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9-14 hours.

TVZ compartment

The TVZ is a special compartment in the freezer which allows the user to choose between 6 different operating modes that may be set according to specific requirements and the type of food stored inside. The temperature settings available are 0^ , -6^ , -12^ and -18^ ; these options are displayed on the control panel (FREEZER COMPARTMENT knob). The TVZ has an independent control feature; it may also be deactivated using the control panel, for use as a normal freezer compartment. WARNING: the TVZ compartment does not instantly shift from one temperature setting to another, as it requires a certain amount of time to stabilise.

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on OFF
2. pull the plug out of the socket

If this procedure is not followed, the alarm may sound. This alarm does not indicate a malfunction. To restore normal operation, it is sufficient to set the FREEZER OPERATION knob on the desired value. To disconnect the appliance, follow point 1 and 2.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.
• During the cleaning of the slide rails for the drawers in the freezer compartment, it may happen that the automatic drawer closure mechanism is deactivated. To reactivate it, simply close the drawer a little more forcefully than is usually necessary.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Holiday function

To minimise energy usage when on holiday, it is not necessary to switch the appliance off. The appliance has a function which allows it to maintain the temperature of the refrigerator compartment at approximately 15^ (which can also be used to conserve make-up and beauty products). The freezer

temperature must be set to the minimum value in order to preserve the food.

To enable the function:

set the REFRIGERATOR OPERATION knob on A double acoustic signal informs you when it has been enabled. A single acoustic signal informs you when it has been disabled.

Optimization Energy Saving function

The "Optimization Energy Saving" function may be activated in order to optimise energy consumption while maintaining the cooling performance of the product. This function maximises the energy saved. It is activated by setting the knobs to "I CARE", then pressing and holding the Super Freeze button for at least 3 seconds; the Super Freeze indicator light will begin to flash, signalling the activation of this function.

The "Optimization Energy Saving" function may also be deactivated by pressing the Super Freeze button again. The corresponding indicator light will stop flashing, thereby signalling that the original operating conditions have been restored. In humid environments, when the "Optimization Energy

Saving" function is activated, slight condensation may form on the door of the appliance; normal operating conditions are restored when the function is deactivated.

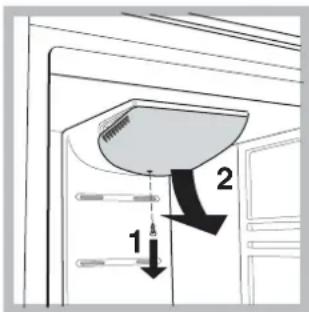

Replacing the light bulb

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram.

Replace it with a similar light bulb within the power range indicated on the cover (10 W, 15 W or 25 W).

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

• 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments;

-2002/96/CE...

General safety

The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on OFF (appliance off) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.
• When closing the refrigerator doors, pay attention to the position of the upright (see figure).

• Make sure that excessive volumes of food are not placed in the upper part of the freezer compartment, in the space reserved for the ice tray (where present).

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.
  The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
  Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.

GB

• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).
• Thanks to its independent freezer door and drawer opening system, this product offers a 50% energy saving in comparison with a normal 2-door combined refrigerator/freezer unit.

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The green POWER indicator light does not illuminate.

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

The motor does not start.

The appliance comes with a motor protection control (see Start-up and use).

The indicator lights are on but the light is dim.

• Pull out and reverse the plug before putting it back in the socket.

a) The alarm sounds.

a) The refrigerator door has remained open for more than two minutes (the buzzer will stop sounding when you shut the door) or the correct switching-off procedure was not followed (see Maintenance).

b) The alarm sounds and the two yellow indicator lights flash.

b) The temperature in the freezer is too high. Check the quality of the food products and dispose if necessary.

c) The alarm sounds and the two yellow indicator lights as well as the green one flash.

c) The temperature in the freezer has reached a dangerous level. The food must be disposed immediately.

b/c) In both these cases the freezer will maintain a temperature of about 0^ so that the food does not re-freeze.

To turn off the acoustic signal open and close the refrigerator door. To restore normal operation bring the FREEZER

OPERATION knob setting to off and turn the appliance on again.

d) The yellow SUPERFREEZE indicator light flashes

d) The Optimization Energy Saving function is activated.

The green POWER indicator light flashes.

• The appliance is not operating correctly. Contact the Technical Assistance Centre.

The refrigerator and the freezer do not cool well.

The doors do not close properly or the seals are damaged.
- The doors are opened too frequently.
- The OPERATION knobs are not on the correct setting (see Description).
- The refrigerator or the freezer have been over-filled.

The food inside the refrigerator is beginning to freeze.

• The REFRIGERATOR OPERATION knob is not on the correct setting (see Description).
• The food is in contact with the back inside wall of the refrigerator.

The motor runs continuously.

• The SUPER FREEZE button has been pressed (rapid freezing): the yellow SUPER FREEZE light is on or flashing (see Description).
  The door is not closed properly or is continuously opened.
  The outside ambient temperature is very high.

The appliance makes a lot of noise.

• The appliance has not been installed on a level surface (see Installation).
• The appliance has been installed between cabinets that vibrate and make noise.
• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

The back wall of the refrigerator unit is covered in frost or droplets of water

• This shows the appliance is operating normally.

Installation

Fonction Optimization Energy Saving

Predal SADJE in ZELENJAVA

Hladilnik je opremljen s predali za sadje in zelenjavo, ki so namenoma oblikovani za zagotavljanje svezega vona in okusa sadja in zelenjave. ČeŽelite shranitiŽivila v manj Vladznem okolju, odprite regulator Vladznosti (položaj B), v nasprotnem primuru ga zaprite (položaj A).

3neKtpnueckoe nooCoeHHeHne

IocJe DoCTaBKn 3dEInr yctaHOBNTe erO B eptnKanbHoe noTOXKeHne nIOoXdNtHe MeHee 3 YacOB nepei erO noCoeDHNHeHm K Cetn 3NeKTPonITAHn. Pepe nOcOeDHNHeHm BNkN n3dEnr N 3NeKTPnueckOn p03eTKe Heo6xOIMO npOBepNTcJeDyUoee:

3NeKtpuecka po3eTka DOnJXHa 6bItb CoeHHeHa C 3a3emHeHm I COOTBeTCTBOBaTb HOpMaTnBAM;
3NeKtpnueckra po3eKa doJHKha 6bItb paCHTaHa Ha MaKcImaIbHyIO MOLHOCt bN3JeINy, yKa3aHHyIO Ha Ta6NIuKe C TexNHueckmXapakTePncTnKaAMn, pacNOIOKeHHoB Nebom HxKHeM yRrNBy BHTpN XOIOINbHO KAmepbI (HanpIMep, 150BT);
HAnpKaKeHne 3JNEKTPoNITaHnI DOnIKHO 6bITB INpeDenax, Yka3aHHbIX Ha Ta6JIuKCe TExNHueCKmM XapaKTEPNCTKaMn, paCNOJIOKeHHo B IeBOM HnKHeM yTlY BHYTpN XONODINbHO KaMepbl (HanpImep,220-240B);
3NEKTPnuecka po3eTka DOJnxHa 6bITb COBmecTmAc BNIKOI n3dJIINr. B npOTNBOM cnyae nopuynte 3aMeHy BNIKN u3dJIINr yNOHOMOeHHOMy TexHNY (CM. ObcnyxueaHue); He NCNoB3yIneYdINHInTeN IN TpOHNIK.

1 N3dJIeMe DoJNHO 6bIb yCTaHOBNeHo TAKIM O6pa3OM, YTO6bl
3JIeKTPnueckn npoBOu n3JIeKTPpopo3eTKa 6bln IeKO DOCTyNHbI.
1 3JIeKTPnueckn npoBOu n3dEInr He doJxKeH 6bITb corHyT ININ
cXaT.

!Perynnpno npOBepaTe COCToHHe 3NeKtpuCheKOro npOBoDa n3dEInna I pI IN Heo6xOIMocTn NOpuyaTe erO 3aMeHy TOnbKO yNoHOMOeHHbIM TexHNkAM (cm.ObcnyKueaHue).
！ΦnPMA CHHMaET Cce6B BCaKyO OTBeTCTBeHHocTb B Cnyae Heco6IIODeHnB BblweOnuCaHHbIX npaBn.

BkIouHe n 3KcPnyataun

IopraDOK BkHoueHn H3dJIIna

！IpeTe TEM KAK BKNIOHTb N3deJIe BBINOJHITe yKa3aHnno yCTaHOBKe (cM. YcmaHOBka).

Ipeid noCoEHHHem n3dneK cTeN 3eKtpoNTAHn
TtateBbHO BbIMOt KeAmepbH NAKCECCyapbI TepNo BOOc CcooJ.
IN3dene OCHaSeHo npedoxpaHnteJeM DBiratEJI, KOTopbI
3anyckaet Kompeccop ToIbKO uepe3 8 MNHy Tocne BKIOUeHnR
n3dne. 3To npOnCxOHT TaKke KaXdb pa3 nocne BHe3aHORO
OTKnIOUeHn 3NeKTPoNTAHn KaHamepeHHoro, TaK n
CnyauHOrO (KOPOTKe 3ambKaHHe).

1.yctaHOBtpepyKoTkyPEyIATOPAMOPO3HOBH

$$ \mathrm {K A M E P b l H a} _ {\text {O F F}} ^ {\parallel} $$

2.BCTabTe BnKyB 3JNEKTPnueckyHpo3Etky n npOBepbTe, YTO6bI 3arOpencra 3eJeHb INHnKaTOp 3JIJKTPoNTAHHE.
3.YctahOBHTe pyKoTky PEGYJITOPA MOPO3NbHOI KAMEPbl Ha cpeHHe 3HaueHHe N HaxMITE KhoNkY SUPER FREEZE (6bIcTpra 3AmOpO3ka): 3aorpntcKa JeIbIy INdikatop SUPER FREEZE. 3ToT INDikatop NoracHet, KOJa TemnepaTypa B MOpO3NbHoi KaMepe DocTINHET ONTMaJIbHOrO 3HaueHn: 3aTeM Bbl MoKeTe NOMECTNTB IPOdyKTb I B MOpO3NlbHyIO KaMepy.
4.YctaHOBnTe pyKoRky PEGyIANTOPA XOJOnINbHOJ KAMEPbHa cpeHne 3NaueHne. No npoeCTBN HeCKONbKnX YaCoB Bbl MoKeTe NOMEcTb IpoDyKbI B XOJOnINbHNK.

CnCTema oxJaXkeHnA

CnCTema No Frost

CnCTema No Frost obecneuBaeT He nppepbHyIO uipKyIaIIO xOIOHO BO3dyxa, ydaJIIOUeBO Bnary n npenrTCTByoIeO o6pa3OBAHIO Hanei N nHeR: B XOIOINHbOH KaMepe eoIepKBAeTCs HAnEkaun ypOBeH BnaxKHOCTN, n 6bnorapd OTCyTcBmIO Hner npOyKTb COxpaHOT CboN kauectBa. B MOpO3InbHO KAmpe 3Ta CnCTema npenrTCTByet o6pa3OBAHIO Hanei N cMep3AHHN pOpyKTOB MeJxD co60, n OCBo6oxJaET nonb3OBaTeN T Heo6XoIMOCt N npOn3BOIDNb peYJnPHy po3Mop03ky.

I He npnclohnyte npodykTbI nn EMMKocn K 3aDHeN oxJaxdAioSei CTeHKe KAMepbI BO n36eKaHne 3akpbBaHnBeHTINyLIOHHbIX peWetOK N O6paSObAHn KOHdeHCata.

1 3aKpbIbaiTe 6yTbIInKn 3aBopauHbaiTe npOdykTbI.

OnTMaJIbHoe NcNoJIb3OBAHHe XOJIoNJbHOJ KaMepbl

-Дяpernylaц TemnepaTpybI nCIOJIb3yTe pyKoTky PEYJIATOPA XOJOIDINbHOJ KAMEPbI (cM. Onucahue).
Haxmte KhoNky SUPER COOL (6bictpe oxnaJdeHne) nIb 6bictporo NOHHKeHnTe TMnepaTybl, HapnpMep, KOrda Bbl 3anONHReTe XONOINbHyIO KAMepy 60bnIMKOnuYeCTBOM npOyKTOB.3Ta fynkUABOTMaTHueCKN OTKNIOUaeTc, NcIcTeHeHN YCTAHOBHeHHORo BPemHn.
IomeuTe BxOIOINbHnK TOJIbKO xOIOHBHe IIN eBa TeNble npOyKtB, HO He ropaHne (CM. peoocmopoxHoCmu u pekOMeHaauu).

-ПOMHHTe,чTo npriroTOBNeHHbI epOdyKTbIXpaHrTcH He DOJIbWe CbIPBX.
He NOMEUaIte B XOIOINbHnK KINKOCTN B EMKoCTX 6e3 KpbIuKN: 3TO INPOBOnT K NOBbIeHNBO BIAxHOCTN B XOIOINbHOJ KaMepe C NocJeDyUoIUM Oba3OBaHnEM KOHDeHCata.
- NOJKN: cIIOUHbIe IIN peWteTKI. POJIK MOrYt 6bITb BbHyTbI N yCtAHOBJIeHbI Ha pa3NIuHbIX YpOBHx HA cNeUaJIbHbIX HAnpaBnIooX (CM.pucyHOK) dIra pa3MeueHnB XOJODINbHIke 60nbIX EMKoCTei. IpypeYJrCm BBICOTbI NOJOK IX He HxKHOIIOHcTbIO BbIHIMATb IN XOJOIDINbHnKa.

JINK DnOBOUENΦPYKTOB

Jiunn dnn Oouei n cykTOB, KOtOpbIMN yKOMNIKTOBaHa XOnOuInbHa KaMepa, CneuaJIbHO CNpoeKtnPOBaHbI dnn CoxpaHHocTN Oooue i cykTOB CBexmKn KaK MoXHO DonbWe. OtkpOte peryTn BnaXHocTn (noXKeHne B),ecn Tpe6yeTcMeHee BnaXHae Cpea XpaHenHn npOdyKTOB, INI 3akpoTe erO (noXKeHne A) InI bOee BnaXHoi cpebl.

HnDkaTOp TEMNEPATpybI*: nIa onpeJeHnHaNboonee XoNoHOH 30Hb I KamaPe xoNoDInbHnKa.

HencnpaBHOCTN MeToDbI INx yctpaHeHna

EcInBaXoIOnHbNHe pa6OaTe. IpexKeJe yem oBpaNTbCBAeHTp Texnueckoro 06cnyKbAHHa (CM.Texnueckoe 06cnykuaHue), npOBepbTe, moxHO JIN ycTaPAnTb HEnCnpaBHOCTb, IcNoJIb3ypeKOMeHNdaUu, pNBeDeEHbE B CteNyUoem nepeHne.

3eHbI HnDkaTOp 3JEKTPoNTAHNE He ropnt.

BnIka He coeHHeHa c 3neKtpnuecko p03eTko nn CoeHHeHa PNOXn H He o6ecneuBaET KOHTaTa, nN OTKIOHIOCb 3NEKTPoNTaHne.

Komnpcecop He 3anyckaetca.

-3dneHoe OchaueHO npedoxpaHntenem KOMnpeccopa (cM. BkIIOUeHue u 3Kcnnyamaua).

HdkaTopbIcna6o roprT.

• BbHbTe BnKy n3 po3eTKN, nepeBepHInTe ee n BHObB BOTKHInTe B 3JIekTpopo3eTKy.

a) BkIIOUOHNacb 3ByKOBaCnHaN3aUN.

a)Деверхлолдьнka OTkpblta 60nee DBYx MHNYT. 3BykoBoI CnHAn OTknIOuAeTcI NOcIe 3akpbIBaHnI DBePn. BbI He npabINbHO OTOeDmHInN IN3dJIne OT cETN 3NeKTponNTaHnI (cm.TexHuueckoe obcnykuaHue).

b) BkIIOUyInacb 3ByKOBa CnHaHn3auN N MmraT DBa JeNTbIX INDnKaTopa.

RU

b) CnHaJIIN3aIgI OAnCHO BbICOKO TempePbI B MOpO3HbHO KAmpe. IpoBepTe COCTOHNpOdyKTOB: BO3MOKHO, YTO IN npDcTcR Bbl6pocITb.

+3ByKOBaCnHaJIIm3aUIN = NepepeB

c) BkIIOuHnIacb 3ByKOBa CnHAnHa3aunr N MmraT Dba XeNTbIX INHnKaTopa n ODNH 3eJIeHbI.
c) CnHaJIIN3aIgIOnaCHO BbICOKo TeMnepaTypbB Mopo3NtBHOJ KaMepe. Heo6xoIMO Bbl6pocNTb BCE PPOyKTbl.

+3BykoBaaCnHaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaIaI

b/c) B obox cnyaRx B mopo3nIbHoi kamepe 6ydet noepKmbatcra TemnepaTpa OKoJ0 0^ Bo n36eXaHne NOBTOHO 3amOpO3Kn IpoDyKTOB.ДЯ OTKJIIOUeHIN 3ByKOBoI CNHaIN3aUN:OTkPoTe N 3akPoTe DBepb XOnODINbHIna.ДЯ BO3BpTa B pa6OHy peKIM: yCTaHOBtpe pyKoTky

PEVJYTAPO MA PO3NJIbHOI KAMEPbIB noIOxKeHne OFF (BbIKIOUeHO) IN BHOBB BKIOUHTe N3DeHne.

d) Miraet XeNTbI INHdkaTop SUPERFREEZE
d)BkHoueHaФyHKU3HeProc6epExeHnOHTMm3aU3KOHOMN3Heprn.

Mnraet3eIeHbI INHdkaTOp 3JIKTPONITAHNE.

3JIeKtpPonp6op pa6oTaET HeNCnpaBHO. O6paTntecb B LcHtp TexHHeCKOrO 06CnyKuBaHHa

XoNoIbHaN MOpO3HbHa N KAmepa Bbipa6aTbBaHO mano Xono.

-Dbepn IINOxo 3aKpbBaIOTcN INI IOBpeXdHbYIIOTHHTeIN.
-Деврхлолиьнka OTkpblaTOC cHlWkOM YAcTo.
PyKoTKn PEPYJATOPOB yCTaHOBNeHb B HnPaBnIbHOM nOIOKeHH (CM. Onucahue).
XoIOnIOuINbHaN mOpO3nBHaKaMepbl npeNoJIHeHbI npOdyKTAMN.

PpOdyKtB XoJIoNlNbHoi KaMepe 3aMep3aIOT.

PyKoTka PEPYJATOPA XOIOINbHOI KAMEPbI yCTaHOBHeHa B HnpaBnHbHom nOIOKeHN (cM. OnucHue).
- PódykTbI KacaiToCra 3aDHei CTeHKn XoNoDInbHnKa.

Komnpeccopa6oTaet HenpepbIBHO.

• Hακατα Κθοικα SUPER FREEZE (6bictpa 3amop03ka): JeIbIy INdikatop SUPER FREEZE ropnt nIN Mmraet (cM. Onucahue).
  -Довь плохо зakpbita ИИ чаTOТКрьbaETсЯ.
  CINUKOM BbICOKaTeMnepaTypaB NOMEeHnN.

XoOnaHbHnK pa6OtaeT CInuKOM yMHO.

• N3deneye yctaHOBneHo HepoBHO (cM. YcmaHO6ka).
  -ⅢdJIeHcYcTaHOBHeHO MeKJy Bn6pnpHyOuIMM ININ ⅢyMOH3daHOUIMN KxOHbHM NJaMeHTAMN ININ ppeMetamN.
  XJaIaIaREHT B LpKpyJLqnn Ppon3BOOIT NERKNI TAKKe Ipn OCTaHOBJIeHHOM KOMPpeCCope: 3TO He RBLTcR HeNCnPpaBHOCtbo, a HopMaIbHbIM RBLHeHEM.

TemnepaTpa HeKoTOPbIX BHeuHnx YacteX OJIOuNbHnKa BBICOKa

Harpeb HeKOTopbIX DeTaeJIeX XOJOnIbHnka Heo6xOIM BO u36exaHHe 06pa3OBAHn KOhDeHcTaB O npeJeHhbix yactkax u3deJIy.

Installatie
