Technical Specifications	TRITTON Trigger stereo headset with virtual 7.1 surround sound, 40 mm speakers, frequency response from 20 Hz to 20 kHz, impedance of 32 ohms.
Usage	Compatible with PC, PlayStation 4, Xbox One, and mobile devices. Connection via 3.5 mm jack and USB for surround sound.
Maintenance and Repair	Regularly clean the ear pads with a soft cloth. Check cables to avoid damage. If problems occur, contact TRITTON customer service.
Safety	Avoid prolonged exposure to high volume to prevent hearing damage. Do not use in rain or humid environments.
General Information	Lightweight for extended comfort, ergonomic design with adjustable headband. 1-year warranty against manufacturing defects.

Frequently Asked Questions - Trigger Stereo Headset TRITTON

Why won’t my TRITTON Trigger headset turn on?

Check that the headset is properly charged. Ensure the charging cable is securely connected and the outlet is working. Try charging it for at least 30 minutes before attempting to turn it on again.

How do I connect my TRITTON Trigger headset to my console?

To connect your headset to a console, plug the 3.5 mm audio cable into the console’s controller. Make sure the console’s audio output mode is set to 'Headset' or 'Stereo Audio'.

The sound from my headset is very low, what should I do?

Check the volume on your source device and on the headset. Also ensure the volume setting on your controller or console is at maximum. If the problem persists, try testing the headset with another device.

My microphone isn’t working, what should I do?

Make sure the microphone is properly plugged in and that mute is not activated. Also check your device settings to ensure the microphone is selected as the audio source.

How do I adjust the comfort of my TRITTON Trigger headset?

You can adjust the ear pads and headband for a better fit. Try repositioning the headset on your head to find the best position that is both comfortable and secure.

Is the TRITTON Trigger compatible with mobile devices?

Yes, the TRITTON Trigger is compatible with most mobile devices that have a 3.5 mm audio jack. It can also work with devices equipped with appropriate adapters.

How do I clean my TRITTON Trigger headset?

Use a soft, slightly damp cloth to wipe the surfaces of the headset. Avoid using harsh chemicals that could damage the material.

What should I do if my TRITTON Trigger headset makes static noises?

Check that all cables are properly connected and that there are no visible damages. Try moving the cable to see if the noise changes. If the problem persists, test the headset with another device to isolate the source of the problem.

USER MANUAL Trigger Stereo Headset TRITTON

TRIGGER"STEREO HEADSET

PRODUCT MANUAL

PACKAGE CONTENTS

[A]

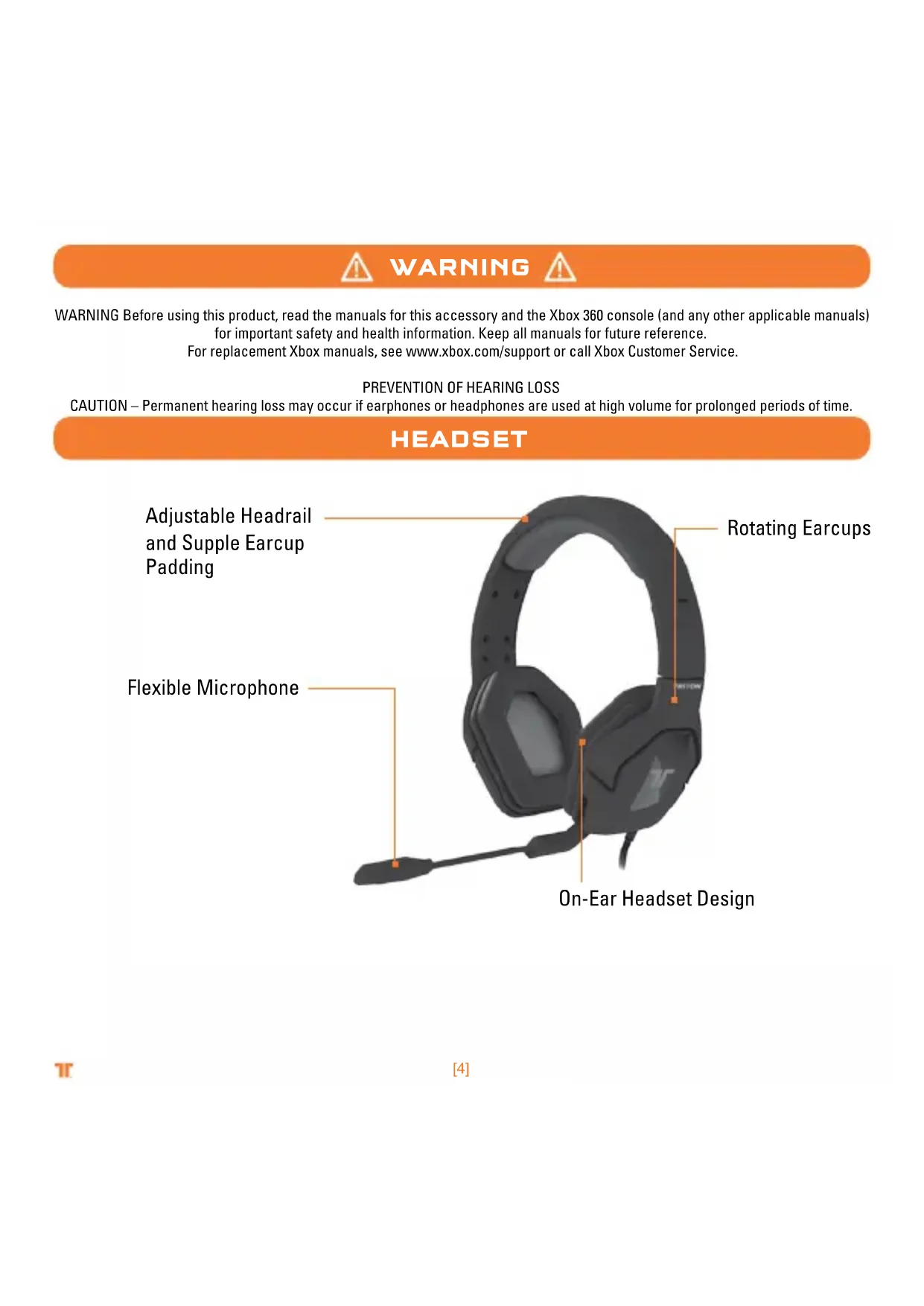

WARNING Before using this product, read the manuals for this accessory and the Xbox 360 console (and any other applicable manuals)

for important safety and health information. Keep all manuals for future reference.

For replacement Xbox manuals, see www.xbox.com/support or call Xbox Customer Service.

PREVENTION OF HEARING LOSS

CAUTION - Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time.

HEADSET

Adjustable Headrail and Supple Earcup Padding

Flexible Microphone

Rotating Earcups

On-Ear Headset Design

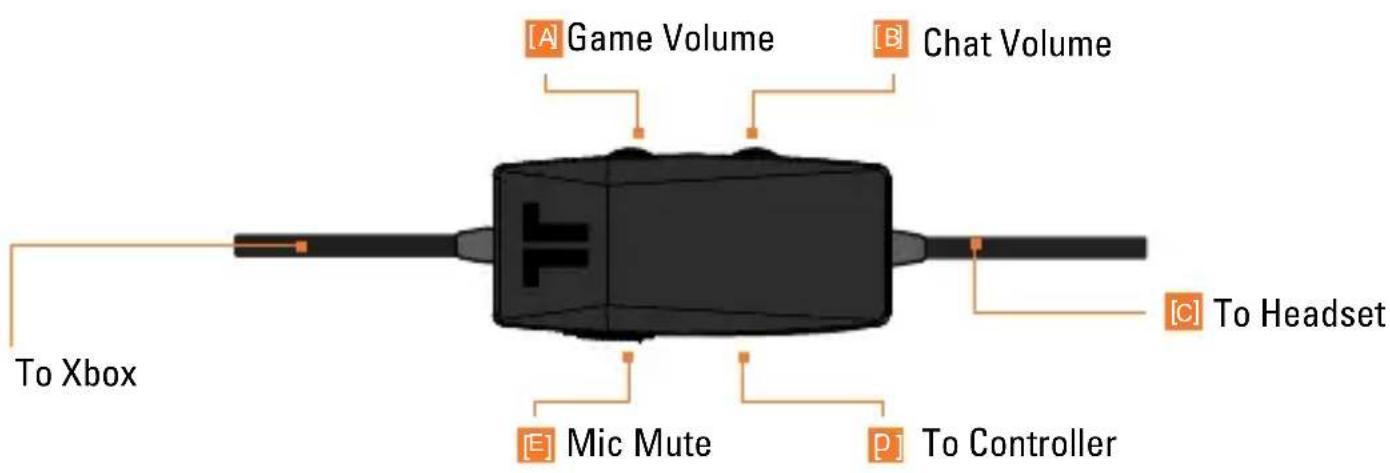

IN-LINE CONTROLLER

A Use to adjust the volume of game audio.
Use to adjust the volume of the voices of other players.
Headset port.
Use to connect Headset Connector Cable to controller.
Slide the Mic Mute switch to mute the microphone so others can not hear you.

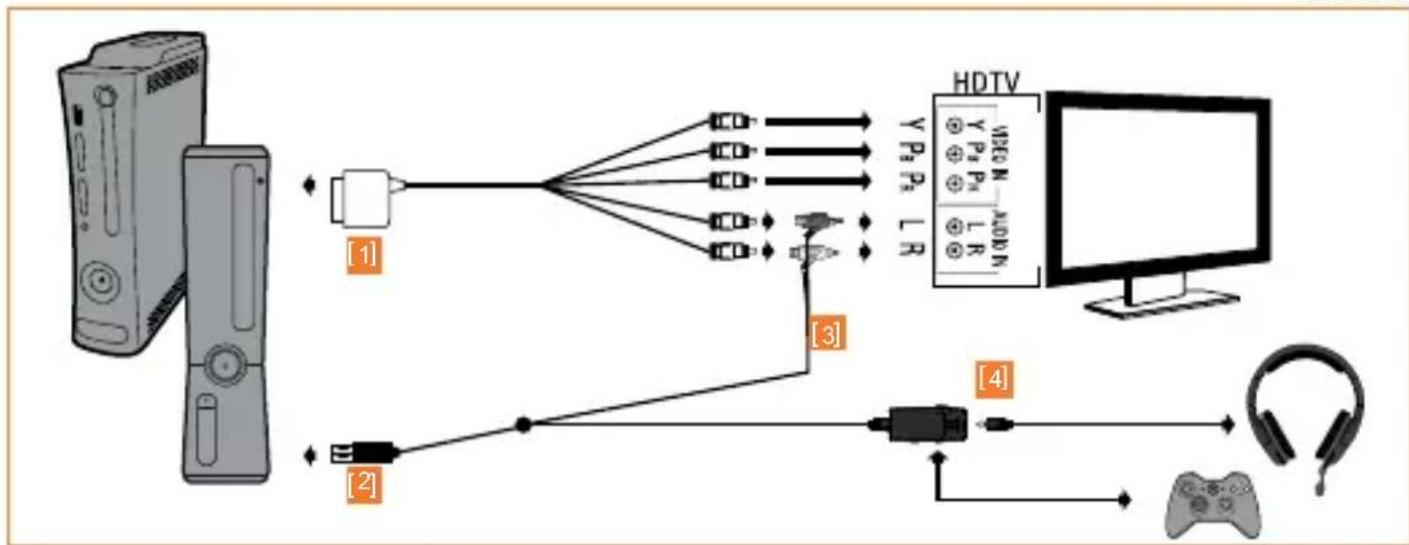

XBOX 360·COMPONENT / VGA / COMPOSITE

Ensure that TV/Monitor and Xbox 360 are powered OFF.

Connect the AV cable* to the console.
Connect the USB Cable to a USB port on the Xbox 360.
3 Connect the RCA connection cable to the Xbox 360 AV Cable.
4 Be sure to connect the Headset Connector Cable in the proper order:

1 - Connect Headset Connector Cable to the Headset Connector Port on the in-line controller.
2 - Connect puck side of Headset Connector Cable into Xbox 360-compatible controller.

XBOX 360-LIVE

Troubleshooting:

If others cannot hear you:

Make sure the microphone is not muted.
Make sure the Headphone Connector Cable is plugged in properly.

If you cannot hear others:

Press the Xbox Guide Button when a game is loaded, and go to Personal Settings >Voice. Ensure that "Headset only" is selected.
Make sure the Headphone Connector Cable is plugged in properly.

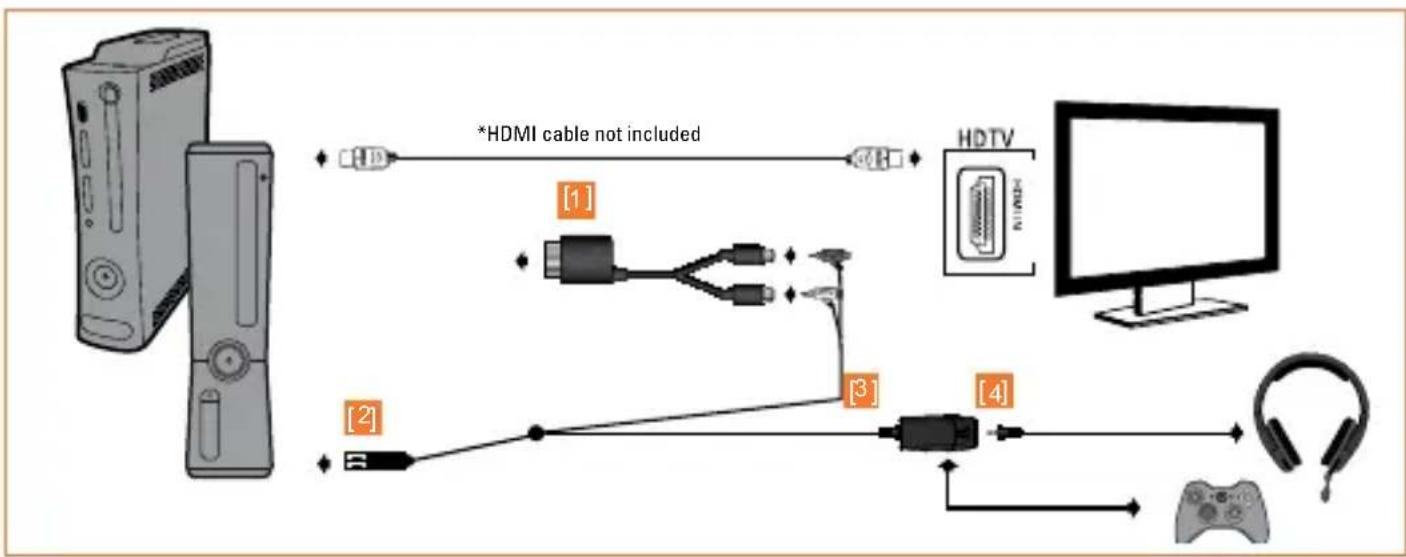

XBOX 360·HDMI

Ensure both HDMI-compliant TV/Monitor and Xbox 360 gaming system are powered OFF. Note: The Analog Audio Adapter (hereafter AAA) will work with ANY HDMI-equipped Xbox 360.

Insert AAA into the AV port on the Xbox 360.
Connect the USB Cable to a USB port on the Xbox 360.
[3] Connect the RCA connection cable to the AAA.
4 Be sure to connect the Headset Connector Cable in the proper order:

1 - Connect Headset Connector Cable to the Headset Connector Port on the in-line controller.
2 - Connect puck side of Headset Connector Cable into Xbox 360-compatible controller.

Troubleshooting:

I don't have any audio when connecting in analog mode.

There is no setting in the Xbox that can turn off Analog output, so it is always on.

Check the following:

1. Ensure the Xbox 360 is powered ON, and that audio is playing. When on the dashboard, and when not navigating, only silence is emitted on all audio channels.
2. Ensure all analog connections are secure.
3. Ensure that your audio device is powered ON, and the volume levels are set.

WARRANTY

Register your product at TRITTONUSA.COM to receive warranty coverage, news, events and updates.

If you have any issues using this product, please try the following before returning this product to the store:

If people cannot hear you talk, make sure that the mute switch is not enabled and that the mic is fully inserted into the headset.

To confirm Xbox LIVE settings, press the Xbox Guide Button when a game is loaded, and go to Personal Settings > Voice. Ensure that "Headset only" is selected.
For immediate support, visit http://www.trittontechnologies.com to find the latest documentation, Knowledge Base articles, and software for your device. You can also chat live with a support technician or submit a trouble ticket.

2-year limited warranty

Mad Catz warrants this product to be free from defects in materials and workmanship for the warranty period. This non-transferable, two- (2) year limited warranty is only to you, the first end-user purchaser. If a defect covered by this warranty occurs AND you have registered your product with Mad Catz AND you provide proof of purchase, Mad Catz, at its option, will repair or replace the product at no charge.

The Mad Catz two- (2) year limited warranty is available to North American and European customers. Your sole and exclusive remedy is repair or replacement of your Mad Catz product. In no event shall Mad Catz liability exceed the original purchase price of the product. This warranty does not apply to: (a) normal wear and tear or abusive use; (b) industrial, professional or commercial use; (c) if the product has been tampered with or modified.

To receive warranty service you must:

• North America: call Mad Catz Technical Support at 1.800.659.2287 or 1.619.683.2815
• Europe: call Mad Catz Technical Support at [phone]
• Obtain a Return Authorization Number from Mad Catz Technical Support
• Ship the product to Mad Catz at your expense for service
• Enclose a copy of the original sales receipt showing a purchase date
• Enclose a full return address with daytime and evening phone numbers

TECHNICAL SUPPORT

Online Support and User Guides: www.trittonusa.com

North American E-mail: [e-mail]

North American telephone: Available 8am - 12pm, 1 to 4pm Pacific Standard Time, Monday

through Friday (excluding holidays) at 1.800.659.2287 (US only) or 1.619.683.2815

(Outside US).

European E-mail: [e-mail]

European telephone: Available 9 A.M. to 5 P.M. Greenwich Mean Time, Monday through Friday (excluding bank holidays) at [phone]

CAUTIONS

• Long-term exposure to loud music or other sounds in headphones may cause hearing damage. It is best to avoid extreme volume levels when using headphones, especially for extended periods.
• Use this unit only as intended.
  To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do not use within 30^ of any water such as swimming pools, bathtubs, or sinks.
• To avoid electrical shock, do not disassemble. Refer servicing to qualified personnel only.
• Never insert objects of any kind, other than authorized items, into the product as they may touch dangerous voltage points or short out parts that could result in fire or electrical shock.
• Stop using this unit immediately if you begin to feel tired or if you experience discomfort or pain in your hands and/or arms while operating the unit. If the condition persists, consult a doctor.
• Avoid prolonged use of this unit. Take breaks every 30 minutes.
• Route all cords so that they are not likely to be walked on or tripped over. Make sure that cords are not placed in a position or areas where they may become pinched or damaged.
• Do not wrap cords around any part of anyone's body.
• Do not allow children to play with cords.

United States and Canada:

As required, certain of these class B digital devices (the headsets) have been tested by Mad Catz, Inc., 7480 Mission Valley Road, Suite 101, San Diego, CA 92108, and found to comply with part 15 of the FCC rules and the Canadian RSS-210 which sets forth limits designed to provide reasonable protection against harmful interference in a residential installation. These device(s) use, generate and can radiate radio frequency energy and, if not assembled, installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in any particular location or use. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

Exposure to Radio Frequency Radiation:

The radiated output power of the headset is well within FCC radio frequency exposure limits for this type of device when unaltered and used as described in our instructions and the controller operates within guidelines found in radio frequency safety standards, which reflect the consensus of the scientific community and therefore, the manufacturer believes the device's internal wireless radio is safe for use by consumers. The level of energy emitted is far less than the electromagnetic energy emitted by wireless devices such as mobile phones. However, the use of wireless radios may be restricted in some situations (e.g., on airplanes). If you are unsure of restrictions that may apply in any situation, you must ask for authorization before turning on, connecting or using the controller.

EU DECLARATION OF CONFORMITY:

As required, certain of these products have been tested and conform to the requirements of the European Union Directives 2002/95/EC, 2002/96/EC, and 2004/108/EC. Authorized signatory of the manufacturer is Mad Catz, Inc., 7480 Mission Valley Road, Suite 101, San Diego, CA 92108.

08/11
