Features	Details
Product type	Combined refrigerator
Total gross capacity	200 liters
Refrigerator capacity	150 liters
Freezer capacity	50 liters
Energy class	A+
Noise level	39 dB
Dimensions (H x W x D)	145 x 55 x 60 cm
Weight	50 kg
Cooling system	Static cooling
Additional features	LED lighting, vegetable drawer
Maintenance	Manual defrosting of freezer recommended
Annual energy consumption	250 kWh
Warranty	2 years
Safety advice	Do not block ventilation grilles

Frequently Asked Questions - KDV20N00 BOSCH

The BOSCH KDV20N00 refrigerator is not cooling properly. What should I do?

Check that the temperature is set correctly. Make sure the ventilation openings are not blocked and that the refrigerator is level. If the problem persists, it may be necessary to check the compressor or contact a professional service.

There is frost in the refrigerator. What should I do?

Defrost the refrigerator according to the manual instructions. Also check that the door is properly closed and that the door seals are not damaged, as this can cause frost buildup.

The refrigerator is making noise. Is this normal?

A certain level of noise is normal for refrigerators, but if the noise is excessive or unusual, check that the refrigerator is level and that there are no objects inside that could vibrate. If the noise persists, contact a technician.

How do I clean the inside of the refrigerator?

Unplug the refrigerator and remove all food. Use a mixture of warm water and mild soap to clean the interior surfaces. Avoid abrasive products that could scratch the surfaces.

The interior lights of the refrigerator do not turn on. What should I do?

Check if the refrigerator is properly plugged in and if the fuse is functional. If everything seems in order, the bulb may be burnt out and need replacement.

The refrigerator consumes too much energy. What should I check?

Make sure the door seals are in good condition and that no air is escaping. Also check the set temperature and avoid overloading the refrigerator, as this can affect its energy efficiency.

How do I set the temperature of the BOSCH KDV20N00 refrigerator?

Use the temperature control located inside the refrigerator. Consult the user manual for the recommended temperature range.

Are there common issues with the BOSCH KDV20N00?

Common issues include insufficient cooling, unusual noises, and frost buildup. Most of these problems can be resolved by following the advice mentioned in this FAQ.

USER MANUAL KDV20N00 BOSCH

EN Operating Instructions

FR Mode d'emploi

Household Appliances

Inhaltsverzeichnis

Information concerning disposal	14
Safety information	14-16
Your new appliance	16
Observe ambient temperature and ventilation	17
Connecting the appliance	17
Turning on and temperature selection	18
Switching-off and setting out of use	18
Arranging food	19
Freezing fresh products storing frozen food and making ice	20-21
Defrosting	22
Cleaning	23
Energy saving tips	23
Small problems for self-help	24-25
Calling customer service	25

Innholdsfortegnelse

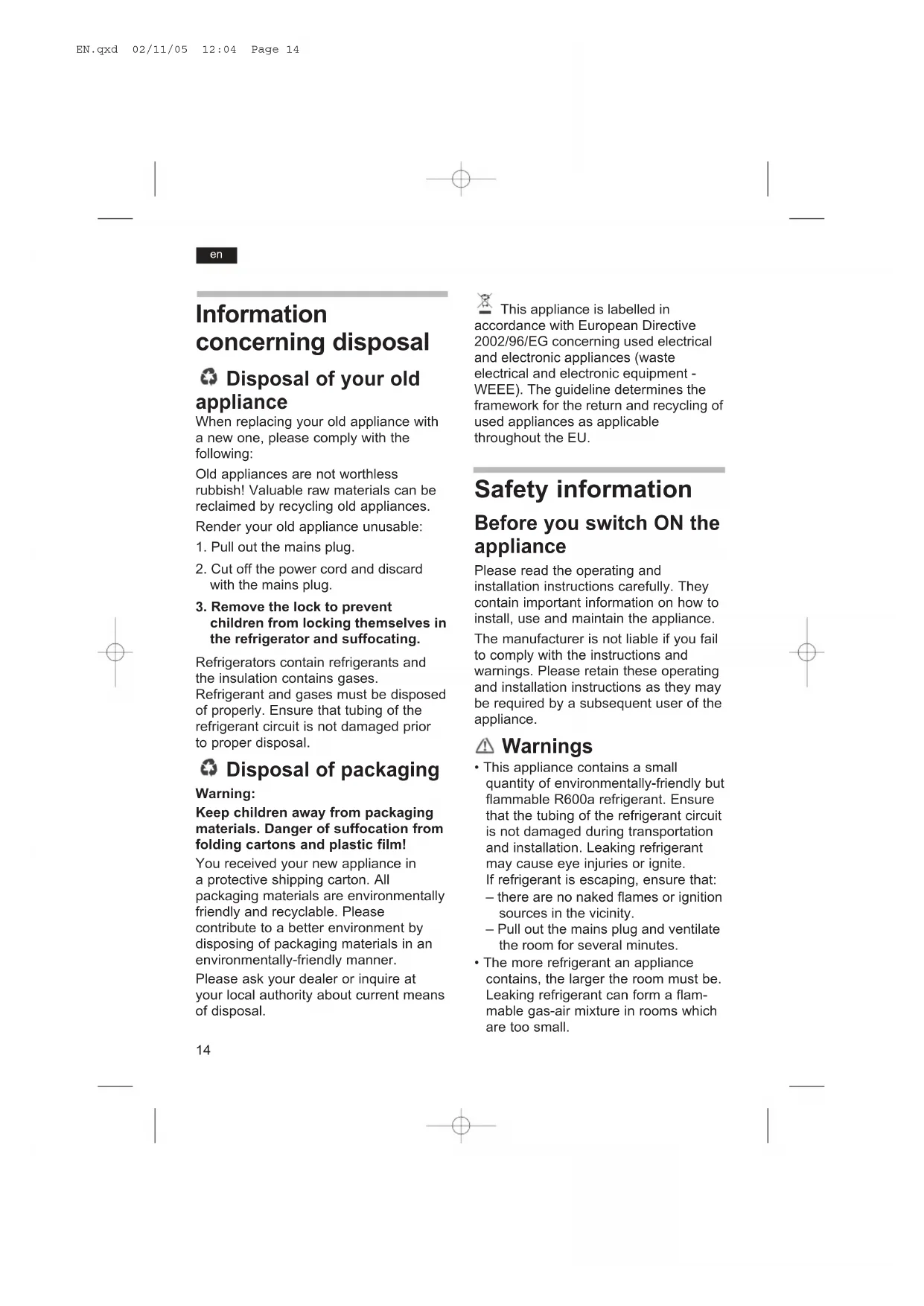

Information concerning disposal

Disposal of your old appliance

When replacing your old appliance with a new one, please comply with the following:

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.

Render your old appliance unusable:

1. Pull out the mains plug.
2. Cut off the power cord and discard with the mains plug.
3. Remove the lock to prevent children from locking themselves in the refrigerator and suffocating.

Refrigerators contain refrigerants and the insulation contains gases. Refrigerant and gases must be disposed of properly. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Disposal of packaging

Warning:

Keep children away from packaging materials. Danger of suffocation from folding cartons and plastic film!

You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Safety information

Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings. Please retain these operating and installation instructions as they may be required by a subsequent user of the appliance.

Warnings

• This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite. If refrigerant is escaping, ensure that:
• there are no naked flames or ignition sources in the vicinity.
• Pull out the mains plug and ventilate the room for several minutes.
• The more refrigerant an appliance contains, the larger the room must be. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.

en

The room must be at least 1m^3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.

In an emergency

Rinse eyes and call a doctor.
- Keep ignition sources and naked flames away from the appliance.
- Pull out the mains plug and ventilate the room for several minutes.

• In the following cases pull out the mains plug or switch off the fuse.

• Defrosting

• Cleaning

Do not pull out the mains plug by tugging the cable.

• Do not switch on damaged or defective appliances. If in doubt, contact your dealer.
• Never use electrical appliances inside the refrigerator (e.g. heater, electric ice maker, etc.).
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance - Risk of explosion!
• Do not allow children to play with the appliance!
• NEVER use a steam cleaner to defrost or clean the appliance. Steam may come into contact with electrical components and cause a short-circuit or an electric shock.

When using the appliance, comply with the following:

• Never cover or block the ventilation openings!
• Repairs may be performed by qualified technicians only. Improper repairs may put the user in considerable danger.
• Do not stand or support yourself on the base, drawers or doors, etc.
• Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position.
  If the appliance features a lock, keep the key out of the reach of children.
• Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
• Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans will explode.
• Do not put an ice lolly or ice cube directly from the freezer compartment into your mouth. Risk of burns from very low temperatures!
• Never touch frozen food with wet hands. Your hands could freeze to the food!
• Do not scrape off hoar frost or stuck frozen food with a knife or pointed object. You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries.
• Use only agents recommended by the manufacturer to accelerate the defrosting process.
  People who have limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions

en

Important

• Do not block the ventilation grilles on the refrigerator casing.
• Do not use mechanical devices or any other method to accelerate the thawing-out process, other than those recommended by the manufacturer.
• Do not damage the refrigeration circuit.
  Always use the internal electrical components recommended by the manufacturer for your refrigerator/freezer.

General requirements

The appliance is suitable

• for refrigerating and freezing food,
  for making ice.

The appliance is designed for domestic use.

If the appliance is used industrially, the appropriate standards and regulations shall apply.

The appliance has been interference-suppressed in compliance with EU Directive 89/336/EEC.

The refrigerant circuit has been tested for leaks.

This product complies with the relevant safety regulations for electrical appliances (EN 60335/2/24).

Your new appliance

Details may differ according to the appliance type, especially with respect to features.

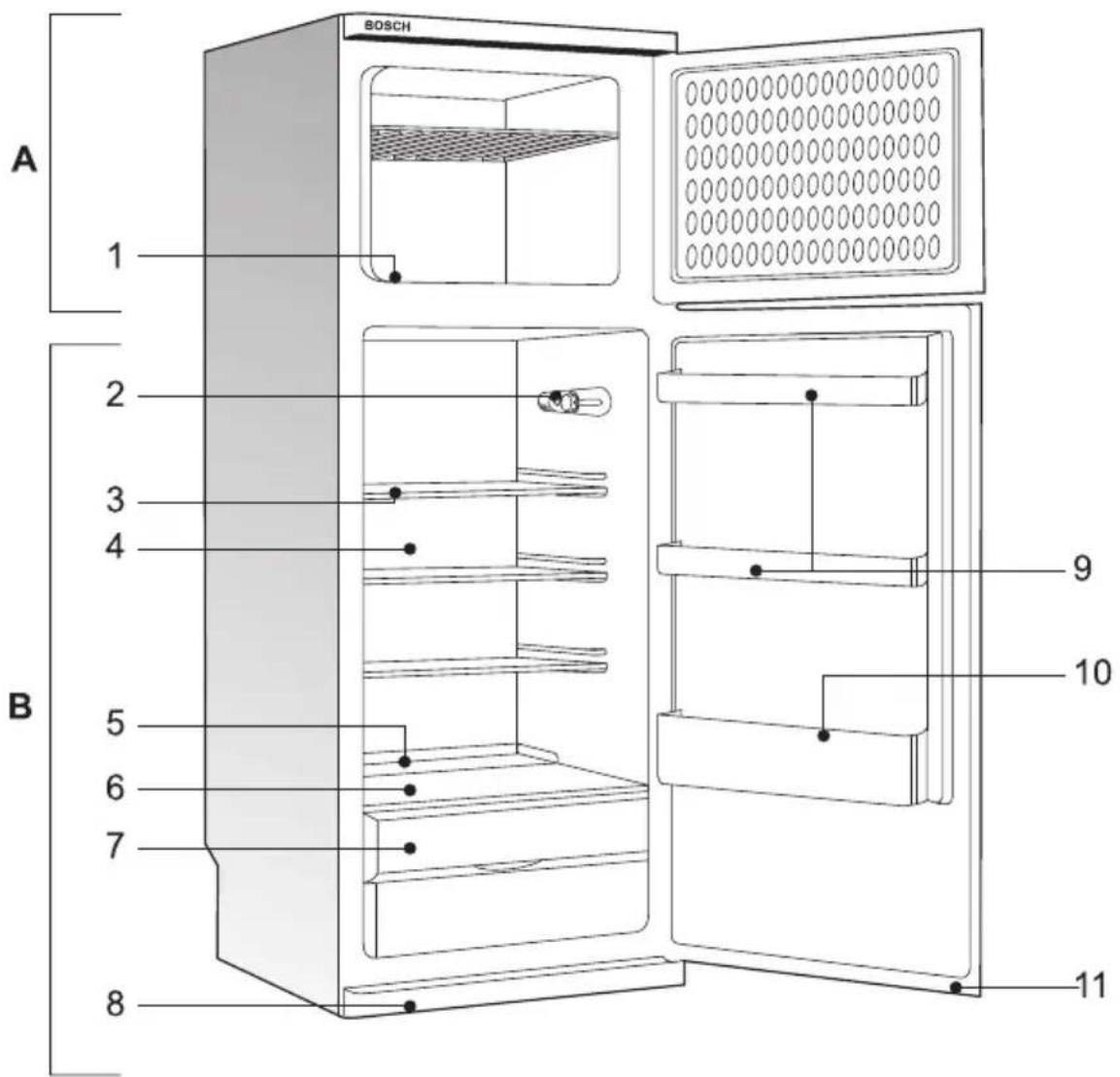

Fig. 1

1 Ice-cube tray
2 Temperature selector/inner light
3 Racks
4 Meat container
5 Discharge gutter for thaw-water
6 Shelf
7 Vegetable bin
8 Kickstrip with ventilation outlet
9 Container
10 Big shelf
11 Door seal
22 Freezer switch (Fig. 3)

A Deep-freezing compartment

B Refrigerator

Observe ambient temperature and ventilation

The climatic class can be found on the rating plate (Fig. 10) and indicates the ambient temperatures at which the appliance can be operated.

Climatic class Permitted ambient temperature
SN +10 °C to 32 °C
N +16 °C to 32 °C
ST	+16 °C to 38 °C
T	+16 °C to 43 °C

Ventilation

Fig. 4

The air on the rear panel of the appliance heats up. The warm air must be able to escape. Otherwise, the refrigerator must work harder. This will increase the power consumption.

Therefore: Never cover or block ventilation openings!

Usable capacity

Information on the usable capacity can be found inside your appliance on the rating plate.

Connecting the appliance

After installing the appliance, wait at least 1/2 hour until the appliance starts up. During transportation the oil in the compressor may have flowed into the refrigeration system.

Before switching on the appliance for the first time, clean the interior (see Cleaning).

The socket should be easily accessible. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed earthed socket. The socket must be fused with a 10 A fuse or higher.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply. The rating plate is located in the appliance at the bottom left-hand side. The mains connection cable may be replaced by an electrician only.

en

Turning on and temperature selection

Clean the inside of the appliance thoroughly, before using the first time (see cleaning).

Turning on

Turn temperature selector (figure 3) out of the position "O".

The refrigerating process begins.

Should the door of the freezer compartment refuse to come open shortly after having closed it, please wait for two or three minutes for the suction produced, when the door was first opened, to release.

Temperature selection

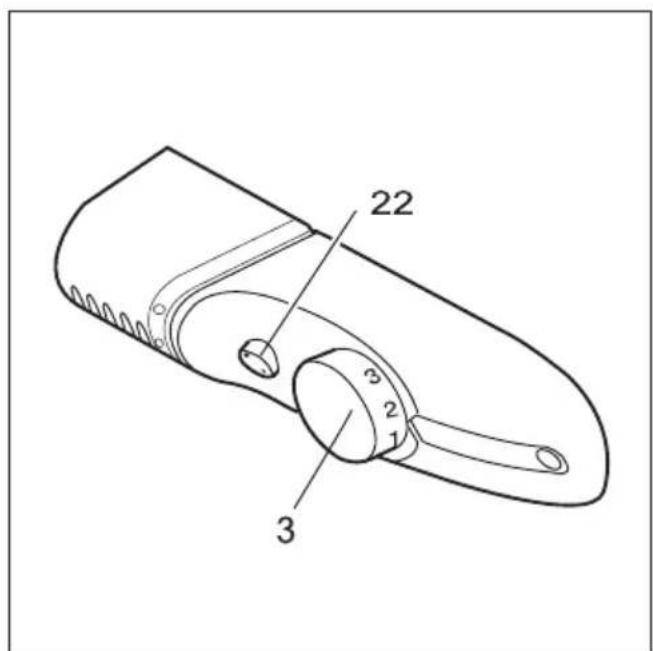

Use the temperature selector (Figure 3) to adjust the temperature of both freezer and refrigerating compartments.

Observe the high figures yield low degrees of temperature.

When the temperature selector is placed at setting "O" the refrigerating process is turned off.

From setting "1" onwards it starts and increases.

We suggest a medium temperature setting (approximately "2-3").

To freeze foods, rotate the temperature control to "3" (see also "Freezing").

Observe the following for the storage of frozen food:

If the temperature of the room where the appliance has been placed drops below +18^ the freezer switch should be connected. A red mark will indicate it is on (figure 3/22). On connecting the switch, the inner light will remain on at reduced power. This ensures that the temperature required in the freezer compartment for long-life storage of food is maintained.

Switching-off and setting out of use

Switching-off

Turn the temperature selector (Figure 3) to the setting "O".

The refrigerating process stops for the whole appliance.

Setting out of use

If the appliance is set out of use for a long period of time, unplug, allow to defrost and clean. Leave the door of the freezer compartment and appliance's door open.

en

Arranging food

How to rearrange the inner fittings

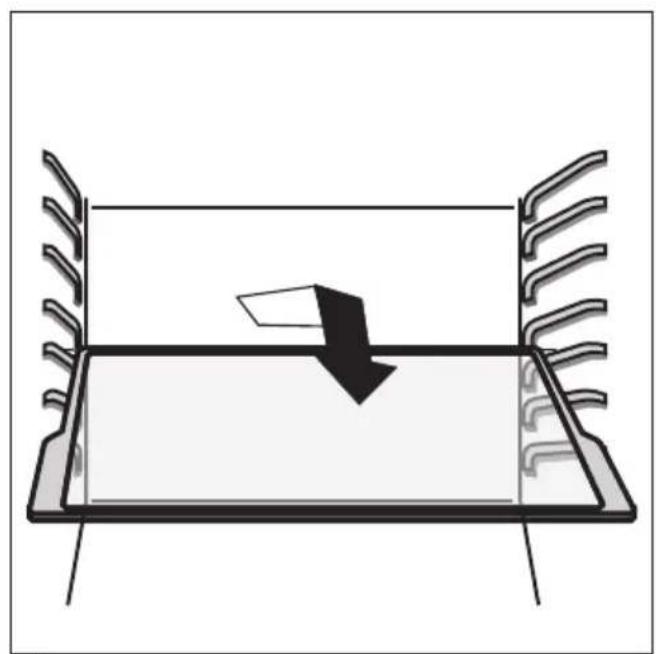

The shelf racks in the refrigerator area may be adjusted to different levels. To adjust, pull rack forward, push it down and reinstall at the desired position. (Fig. 4).

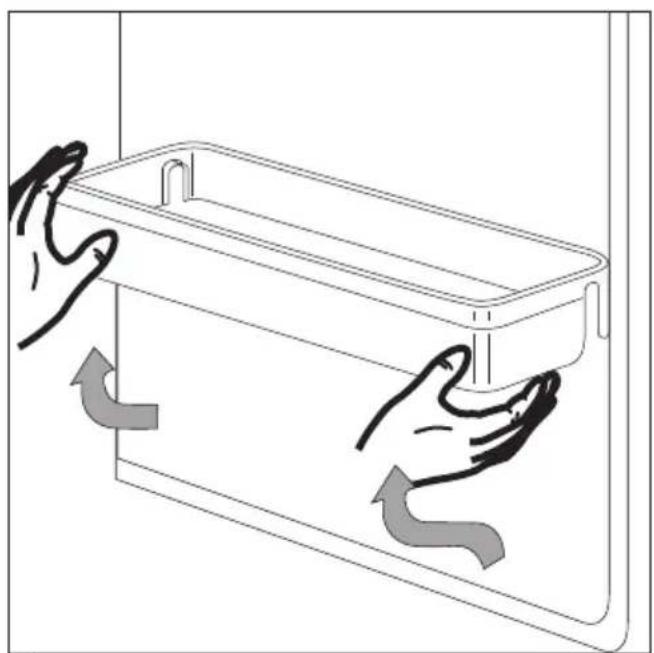

The containers on the inside of the door may be taken out for cleaning (Fig. 6).

Please observe the following when arranging food inside the appliance:

• Allow warm food or beverages to cool down before placing inside the appliance.
• Wrap or cover food well before placing inside the appliance.
• Oil or fat should not be allowed to come in contact with the plastic parts of the appliance or with the door seal (these are materials which tend to become easily porous).
• Do not store explosive substances inside the appliance.
• Keep high-proof alcoholic beverages in air-tight bottles or jars and store in upright position.
  The coldest areas in the refrigerator are the rear wall and the area around the bottom shelf.

Example of arrangement

Figure 1

In the freezer compartment (A): freezing of fresh products, storage of deep-frozen goods and making ice cubes.

In the refrigerator (B):

On racks (3), from top to bottom: pastries, ready-cooked meals, dairy products.

In the meat containers (4)

meat and cold slices.

On the shelf (6):

meat, sausages and cold slices.

In the vegetable bin (7):

vegetables, lettuce and fruit

In the door compartment (9):

tubes and small tins.

On the large shelf (10):

large bottles.

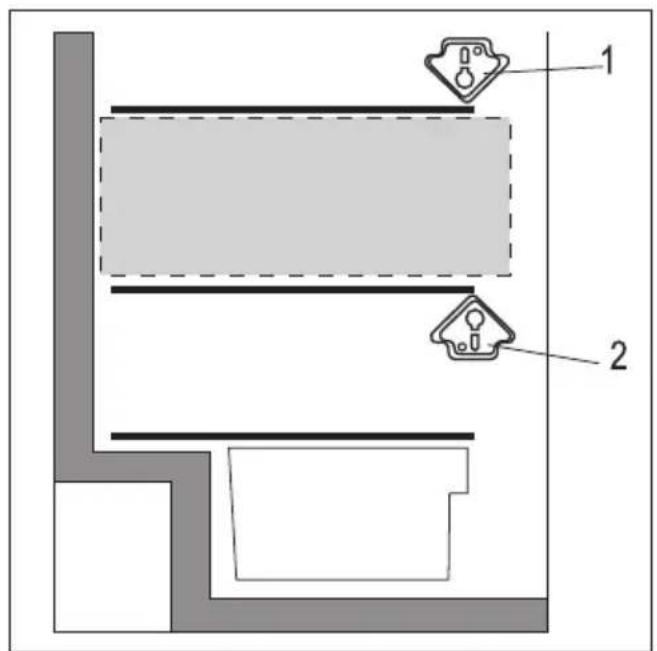

Note refrigeration zones in the refrigerator compartment!

The air circulation in the refrigerator compartment means that there are zones at different temperatures.

Depending on the model, the zone for sensitive foods is right at the bottom between the arrow on the side and the glass surface below (fig. 11/1 and 2) or between the two arrows (fig. 12/1 and 2). Ideal for storing meat, fish, sausage and salad mixtures, etc.

en

Freezing fresh products storing frozen food and making ice

Observe the following when purchasing deep-frozen food:

• Inspect the package and ensure that it is perfect conditions.
• Check the expiry date stamped on the package; make sure it has not run out.
• Check the thermometer in the freezer of the store where you purchase your goods; it should indicate a temperature lower than -18^ .
• When shopping, ensure that the deep-frozen products are the last items to be purchased; wrap them up in newspaper or place in an insulating bag and take them home at once, place in the home freeze right away.

Wrapping-up

If home freezing, ensure that the products of your choice are absolutely fresh and in perfect condition. Pack food airtight so that it does not lose its taste or dehydrate.

Suitable wrapping material:

Plastic film, polyethylene bags, alu-foil and freezing containers.

All these products are available at your local dealers and most large supermarkets.

Unsuitable wrapping material:

wrapping paper, wax-coated paper, butcher's paper, cellophane, rubbish bags or used carrier bags.

Wrap-up food, press down on parcel to remove all air and seal airtight.

Suitable sealing material:

rubber bands, plastic clips, string, waterproof adhesive tape or similar. Plastic and polyethylen bags may be heat-sealed with an appropriate machine.

Label package indicating contents and date of freezing before storing in the freezer compartment.

Freezing capacity:

Information about the max. freezing capacity according to current standards can be found on the rating plate.

The maximum freezing capacity for fresh food in 24h (distributed on the freezer racks) is indicated on the characteristics plate (in Kg/24h), see figure 10.

To retain the vitamins, nutritional value, appearance and flavour, do not exceed the max. freezing capacity.

Adjust temperature selector to freezing and switch on freezing process

Turn temperature selector to an average temperature setting (approx. "3") whenever fresh products are put in to freeze.

This temperature setting is sufficient for freezing up to 2,5kg of food. For larger amounts you should additionally actuate the freezing switch (Fig. 3/22).

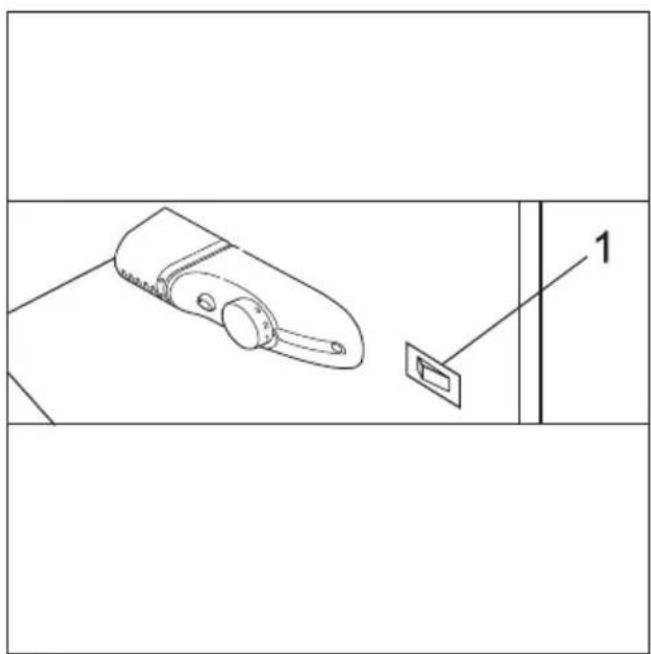

(Press the rocker switch -red marking appears).

If takes approximately 24 hours for the freezing process to reach full completion; once the food is thoroughly frozen, you may disengege the freezing switch.

Please observe following when putting fresh food into the freezer compartment:

Please carefully ensure that freshly freezing food does not come into contact with food which is already frozen.

Observe the following tips for better storage of frozen food:

If the temperature of the room where the appliance has been placed drops below +18^ the freezer switch should be connected. A red mark will indicate it is on (figure 3/22). On connecting the switch, the inner light will remain on at reduced power. This ensures that the temperature required in the freezer compartment for long-life storage of food is maintained.

Storage life

To avoid quality loss, it is important not to be exceed the admissible storage life assigned to each product. The length of admissible storage varies from product to product. Fish, cold slices, ready-cooked meals bread and pastries will keep out to two months at a temperature of -18^ . At the same degree of temperature you may keep meat, poultry and cheese for up to four months and fruit and vegetables for up to six months.

Defrosting frozen products

Depending on the type of food and the use intended for it, you may choose among any of the following defrosting methods:

• at ambient temperature,
• in the refrigerator,
• in an electric oven.
• with/without fanheater,
• in a microwave oven.

You may refreeze food that has partially or totally defrosted provided that:

• in the case of meat and fish, these products were not kept for longer than a day at a temperature of 3^ or higher;
• in the case of other products, these were not kept for longer than three days at a temperature of 3^ or higher.

Otherwise, check food for smell, appearance and flavour, if these have remained unaltered, boil, fry, roast or cook food to some kind of ready meal and refreeze. Observe that the maximum admissible storage life in this case is shorter than average.

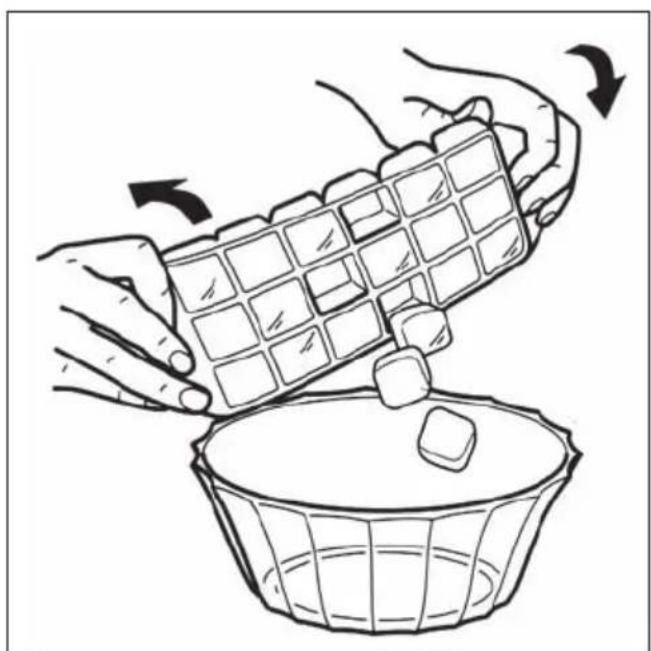

Making ice

Figure 7

Fill ice tray 3/4 full with water and place on the bottom of the freezer compartment. Ice cubes will be easier to remove if the tray is given a gentle twist.

en

Defrosting

Refrigerator

The refrigerator defrosts automatically. The thaw-water collects in the discharge gutter (figure 8/7) and is then conducted to the refrigerating unit to evaporate. Ensure that the discharge gutter and the discharge outlet (figure 8/19) are clean at all times, so that water may drain unhindered.

Freezer compartment

For safety reasons, the freezer compartment (Figure 1/A) does not defrost automatically, since the products stored in this area, are not supposed to accidentally thaw out. Intensive frost and ice build-up adversely influence the cold transmission to the frozen products and cause the rate of energy consumption to increase.

Scrape off frost build-ups

To remove frost build-ups you may use the standard frost scrapers available at most local dealers and large supermarkets. Ensure that the freezer compartment is not damaged when frost is scraped. Never use sharp or pointed items or metal utensils to remove frost.

Allow ice coats to thaw out

If a thick ice coat has built up inside the freezer compartment, it should be allowed to thaw out.

If there are still frozen products in the freezer, swicht on the freezer switch (Fig. 3/22) about 4 hours before defrosting so that the food is once again deep frozen.

Observe the following procedure:

• Remove frozen products, wrap up well in newspaper and store in a cool place.
• Turn the temperature selector (Figure 1/2) to setting "O" or unplug. Do not allow thaw water to run into the temperature selector.
• Leave door open and wipe-up thaw water with a cloth or sponge.
• Rub freezer compartment dry, switch appliance on once more and reinsert frozen products.

Defrosting aids

Be extremely careful when using defrosting sprays. These sprays may cause the formation of explosive gases, contain propellants or substances which may be a major health hazard and even damage the plastic parts of the appliance.

When making use of these sprays, read the manufacturer's instructions most carefully and adhere strictly to the given indications.

Cleaning

Before cleaning, make it a rule to unplug the appliance and/or disengage the fuse

Use luke-warm water with a little desinfectant and washing-up liquid to clean the entire appliance, except for the door seal. Never use sand, abrasive cleansers or acids, e.g. chemical solvents.

Clean the door seal (Figure 1/11) with clear water and dry thoroughly afterwards.

Do not allow cleaning water to get into the temperature selector.

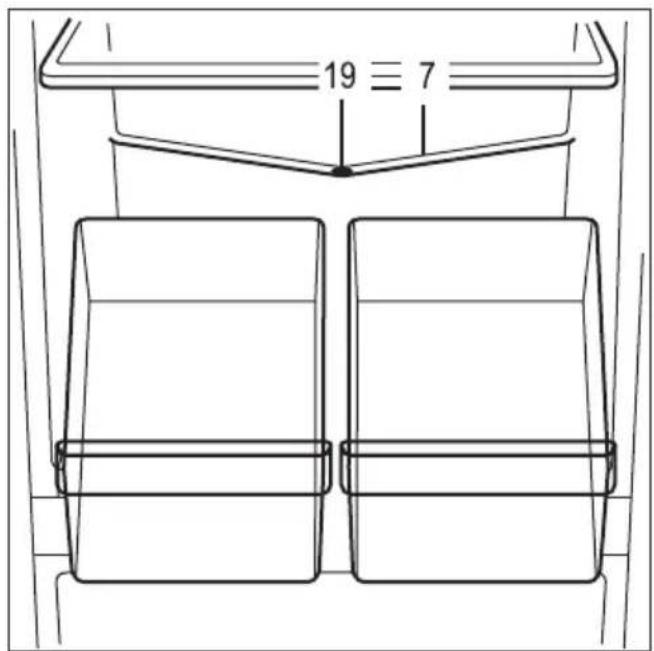

The discharge gutter (Figure 8/7) and the discharge outlet (Figure 8/19) should be cleaned more frequently to ensure that thawwater can drain unhindered. Pierce the discharge outlet with a toothpick or similar object to get it clean. Try to prevent cleaning water from getting into discharge outlet and running through to the evaporating plate.

In you so wish, you may additionally use a standard furniture polish to clean the outer cabinet panels. Ensure that the door of the appliance is closed while doing this, to

prevent the polish from getting to the door seal or to the plastic parts inside the appliance.

Energy saving tips

Install appliance in a cool and well ventilated room, do not expose to direct sunlight and keep away from heat sources (radiators, cookers etc.).
- Allow warm food and beverages to cool down before storing in the appliance.
- When defrosting, place the deep-frozen goods inside the refrigerator. The cold loss from the frozen goods can be effectively used-up to assist the cooling process inside the refrigerator.
- Allow freezer compartment to thaw out when ice has built-up. A thick coat of ice adversely affects the cold transmission to the frozen goods and causes the rate of energy consumption to increase.
- When putting in or taking out food, avoid keeping the door of the appliance open for too long.

en

Small problems for self-help

Before calling the service engineer, check the following points and see if you can solve the problem yourself.

If the service engineer is simply called-in for advice, i.e. if he finds no real fault with the appliance when he visits, you will be charged the full cost of service time, even before the guarantee period has run out.

Problem	Possible cause

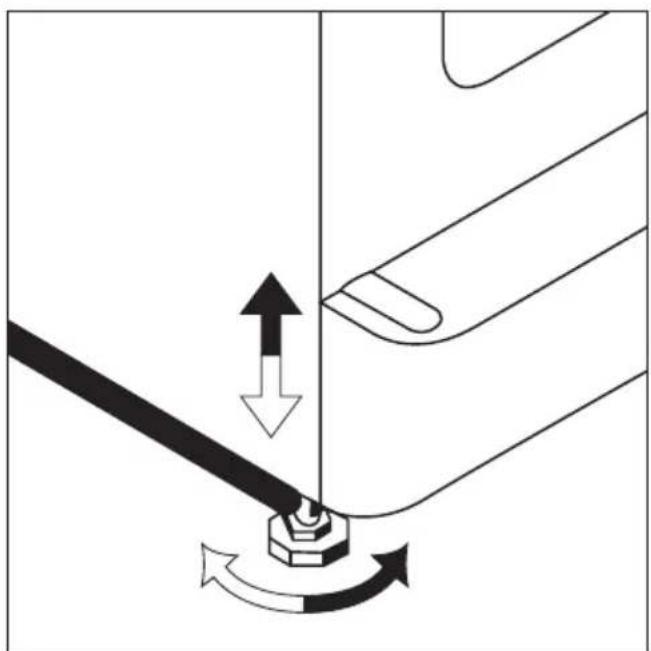

Unusual noises:	- The appliance may not be standing level or some kind of object is caught near the refrigerating unit. - A part on the rear wall of the appliance cannot turn freely and rubs against the appliance or against the wall. In this case, bend part carefully away.
The inner light does not work:	- The bulb has burnt out. Pull plug out of supply socket. Remove screen (Fig. 9) then remove bulb and exchange for a new one, maximum 15W, 220-240 V, E 14 base. - The light switch sits (Figure 5/1). Try to get the switch to move. If it doesn't budge call customer service. - The temperature selector (figure 9/3) is on setting “O”.
The temperature inside the refrigerator is too cold:	- Temperature setting dial is set at a too low position. - Fresh food was put into freeze without switching on the super-freeze (Fig. 8/22).
Cooling output deteriorates:	- The door was opened too often. - A large amount of food was placed in the refrigerator. - A thick layer of frost has built up inside the freezer. - The relief outlet and the ventilation grid are covered. - Some kind of object is caught between the refrigerating unit and the wall.
Total lack of cooling:	- Plug does not fit properly into socket. - The fuse has disengaged. - Temperature selector (figure 1/2) is on setting “O”.

Small problems for self-help

If you have not managed to solve the problem with help of the above mentioned tips, call customer service.

Do not insist on solving the problem yourself. Above all, refrain from working on the electrical parts.

Try not to open the door of the appliance unnecessarily to avoid cooling loss.

Calling customer service

You can find your local customer service in the telephone directory or in the customer service list. When calling customer service, please quote the product number (E-Nr.) and the production number (FD) of the appliance.

This information can be found on the rating plate (Fig. 10).

To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.

fr

Compartment congélateur

CoBeTbI NO yJaJIeHnIO

YNAKOBKN

He daaIte JETAM HpTaB C yNakOBouHbMaTepeHa.ION HcCactbO eTO dIeHentOB.Annapat - 30 He Hpyka! Ectb onacnoctbyyu, B CBBn C TEM, TIO Kopo6Kn HILACTHBICAHHbH N IACTMACCB!

BoBpeMTrpanCHOpTHPOBKNIOBaHreroDoma HOBn annapat 3aHHHeu ynaKOBKO.Bce yHaKOBOHTbIe MaTePNaJIb CJeTaJIb B COOTBETCTBNI C HopMaMH 3aHHITb OKpyKaHOWeCpeB, INHXMOJHO perEhepPOBaTb HINHCIOJIb3OBaTBTOPHNO.

CJeIaIeBaaKTHBbHbKbIbB3aHHTy OKpyKaIOHcIcPbIy,yaIbHnpeHEpHpyyBAKOBOHbE MaTePbIb B COOTBetCTBn C HOpMaHncc3aHHTbl.

BaI Dnctprh6bIOTOp HIN MeCTHbI ynpabJIIOHN C yIOBOJcTBNCM IPOHHOPMHyOT Bac O HANOOE e 0fpeKTHBHN N COBPemEHBN MEOJAN H BO3MOKHOCTX YdA.TeHN, B COOTBeTCTBH N C HOpMaH 3aHIHTb OKpyKaIOUe Cpebl.

AaHb npOp HmEe OTMeKy O COOTBcETCBn EBponecckn HopMa 2002/96/EG yTH.13aunn 3Jektpnueknx n 3JektponuHx npOpOBw (waste electrical and electronic equipment - WEEE).

JaHHHe HOpMb OHpeJIeHOT JeHCTByIOHHe Ha TeppHTOPHN EBPOCOO3IpaBnIa BOBpATA H yTHINBAHHN CTapBX IpuHOBOPOB.

CobetbI IO MEPaM

BbHcHTe HpeK. HOpaTe.16 22 TeMHepaTpyb H3 NOIOKeHHN "0"(pHc. 3).XoIOHN.BHHN haHHnact paOToTaB.

EeHbepn MOp03NbHoi KaMepBHe OTKpbBaCTC, HIOJOKHTc 2-3 MHHyTb, HOKa BbipOBHHETCAJBIEHHe B KaMepe.

BbOp TemnepaTpybI

Temepatpy B xIOHOHBHNO H MOpO3HbHOI KaMep MOaHO yCTaHOBBHT HOB3yHCb HepeKoHnate. cem Temepatpyb. UuFpM 60.1bHeTo nopKa Ka oBeCneHBAOT B ObeHX KaMepax 6OLee IIIBKyIO Temepatpy.

Korla nepeknoateIb yctanobien na *0" Tcua ox.na kcnne Bknocho. Nobopot nepekoate.Iha *1" mBnBnne oecnnaeBknochnc TeHepaTpyb.

MpeKomeHcyem yctanabHbAtbHepeKnOHaTe.IB HIOIOKeHne“2”HIN“3”.UHAaMopaaKNBaHH CBeKHX npOyKTOBHOCTAAbbEpeckHOHaTeIB HIOIOKeHne“3”（cm.“3aMopaaKNBaHne npOyKTOB").

Ecm TcHepatypa B HOMeHNn Hnaact
Hke +18^ nKmHTe KHOKNy rTy6oKo
amop0Kn. 3to o6ecnHt HOIEpcKaHne
temepatpyb, He6xoHMOJ Ln XpAHEN
IPOyKTOB IITcBIOc BcPM.

ru

BbIKJIIOUeHne XOJIOINJIbHnKa

BbKIOUeHHe XOJOIOJIbHnKa

HocraBte HepeKIOHate. TeMHepaTypB HIOIOKEHNE "0" (PHC. 3). Ipn ATOM HOIOKEHH HepeKIOHATEXOIOHNbHHK He pa6oTACr.

EChn BHe HIOB3yETcB XOIOHbHHKOM
JIHTeBHOC BPCM,TOHYAKHO BHTaHHITb
BNIky H3 PO3ETKN,paMOPo3HTb H OINCTHTb
XIOIOHbHHK.，BepuO OCTABTEOTpBTbMH

Pa3meHHeIpoIyKTOB

HIOIKIINCKIAIBBAAHHNPOOyKTOB B XIOIOIHBIHOI KAMPe MOKHO CTABHTIIO CBOEMY yCMOTpeHHIO HA IIOoON BICOTE. UTObI NOMEHHTPACCTOHNHE MEKDy IO.KAMH, HJyKHO BBHyTBHX HBCTABHTB H yHKHO MecrO (pnc.4).

No.Kn,paioIOJKeHHbIe Ha IBepeue XIOIOJIIBHOI KAMEPH,MOKHO BBHMAThbIIT H OINCTKN (PHC.6).

HpyyIADMBAHIN HPOYKTOB BXOIOHNBBHNEO6XIOHMO HEMTB BBUAYCIEYIOOEe:

OCTyKaHrTe TcIbIe HPOyKTb H HAHHTKn Hpea IHomeueHHem Hx B XoJOuJIbIK;
XOPHOYNAKOBHBAHTC HPOUYKTBEHXOPHOZAKPBBAHTE HOCYJ,CEOHNXPAHITCA.
IeOnyckaiTe COUPHKOCHOBHMA Maca HIN KJPA C BYHTPCHHHCTCHKaHH XIOHN BHHKA HIN YIOTHTHEIEM DEpHM
HCXPaHHTBCXOTIOHHTBHHKBCPbMHTBECBEHCTBA;
aJIKOTOBHBC HAHHTKH XPAHHTC B XOPHO 3AKyIOPEHHX6yTbHKAX,BBEPTHKA.BHOM HOJOGKCHH;

HMEITBCBURY，CAHIEXOIOIHHEOOACTH XOTIOIIBHNEKHXOXUHTCAY3AHHECTEHN HAHHKEHIOKE.

PacnoJIOxKeHne IPOyKTOB BB XOJIOMJIbHnke

B MOpOJIbHOH Kamepe (A) MOKHO
ZAMOPAKHBATCBCKHE IPOYKTb H XPAHHTb H
LIHTBE BpEMa, a TAKKE IIPIROTOBHT. Tei.
B XOTIOHBHOH Kamepe (B):
Ha peuETkax (3) (CBepxy BuH3) MOKHO
pa3MCCTHTB BnEpy, rTOOBIE 6.HOTA,
MOIOHIIe IPOYKTbI;
B EMKOCTH LBI MICA (4): MCO, KOJACHBE
H3IE.TIN;
HA CTKEHHHOH HOJIke (6): MCO, KOJACHBE
H3IE.TIN;
B EMKOCTH LBI OBOUei (7): OBOUH, fpyKTH,
CA.IAT;
HA HOJIke (9): MAJIeBHNE 6aIKH H cyTBHK;
HA BOJIbHOH HOJIke (10): 6oJIbHIc 6yTBHK.

O6paTHTe BHHMaHHe Ha 30HbIXOJOJa BEXOJOINJBHOMOTJeJEHN.

B CBAH CTQM,4TO BO3yX HJPKY.HJpyET BHYTPN XOIOIIBHORO OTICHEHHB HCM OpaayOTCH pa3.IHbE HO TCMcpatype 30h6 XOJIQA:

TemepatypnH30HaIbIe.IhKaTHBX
HPOyKTOB 3aBHCHT OT MOEJIH H HAXOHTC8
BHN3y,MeKdy BOKOBIO CTpe.KoJH
CTKJHHHOH HIKHeH NOKO (Pc.1/1HM2)
HIN TAKKE MOKeR HAXOHTCBi MEKdy DByM
CTpe.KAMn (Pc.12/1n2).

HueaIbIO IOXoIHIT.II XpaJIeHHMIMCA, pb6b, KO.16aChbIX H3JE.HIN, pa3JIMHBIX CA.IBATOB, H.T.I.

ru

3amopaxinbaHne XpaHeHne IpoJyKTOB

IpaBnJa o6paIeHnn CC IpoIyKtAmN,IOIBeprABHHMmC Hn3KOTemHepaTyPhoI o6pa60TKe

Ipnnoynkncnntnc3aTEmytaObyuNkoBka6bKaHeo.
- O6aTeJIbIO CO6IOJaiTe ykaaHbHcI cPOK xpaiHn.
Hn Hnyke OpaaiHre BHHMaHHe Ha To, TTOBt TEMHepaTypa, KOTOPyIO HOKa3bBaER TepMomet BHyTpXIOIOHBOHO pIeBBKa, 6bHa -18Cnnnne
HPOyTb,HOBepHHeC HIOKOTMEHepaTyOo6pAbOtKe CIEyET HOKYHb B HOCIO OHIO OHepeBn, THATcTBHO ZABePHyB B TaCtY HIN IOJOKHB H HePCHOOXIOUIMIBHUN,6bCTPO OTHEHTN HOMOH N yIooHTB MOpOBTbHYO Kamepy. EChn Bc Camn ZAMopAKBHaTe IPOyKTb, HIOJb3yHTc TITTO TTObKO CBCKHC BBICOKKaueCTBeHHbE HPOyKTb.

YnakOBKa npOyKTOB

IpoNYKTHHEO6XODHMO REpMeTHNHO 3AHAKOBMBATB,TOO6b OH HC HOTCPA.HCBOB BKYCHHCYBAH.

JIy yIaKOBKn IOJXOJBT:

IIactKOBaIIeKa，HOIMTHIEIOBBie NaKeTb，aIOMHHHeBaΦOJIbra H CHEHa.IbHBe KOHTeHepBdH 3aMopakHBaHH.

JIyIyIaKOBKn He IIOxOJI:

YnakOBOHnB6yMaH，NEpramENT，NEIIOOan HBCPbTaN MaRaHHHa YnakOBKa.

BIOKHTIPOJyIKTBYHAKOBKY，BBHcyHTHE H3IEEBO3IyXHIIOTHO3aKpOITe.

JIa 3aKpbBaHn yIaKObKn IIOxOJrT:

PcHOBbc KObHa,PiactMaccOBbc 3aKHMb, MOpOyCToHHBBe KJIeHNHe JeHTb (CKOT) H T.I. NIOTHAIECHOBbc NaKCTb MoKaHO 3aIaHBaTb C HOMOIBBO CHIIHAJIbIOr ObTOBO np6opa.

Ipei 3akJaIKo IpoIyKTOB B MOpO3HbHyIO KaMepy, HOMeTbTe NaKeTb, yKa3aB IX COIEpKIMoe H JAty 3akJaIK.

MoHOCtB 3amOpaJKBaHHa

JIaHIIe OTHOCHTEJIbHO MaKc.
IPOH3BO.IITcJIbHOCTN 3aMopaJKBaHHB B COOTBETCTBM C Tpe6oBaHHIM,
IPMBCHHbIMn B IeICTByeIOIIeH
HOPMaTHBHOJ IOkymeHTaHH, BbHaHJeTc BΦHPMeHHo TaBJHKe.

MaKcHMaJIbHa MoIIIOCTb
3aMopaxHBaHHn CBxHX IPOyKTOB 3a
24 Yaca (HOmeHeHHbx Ha
3aMopaxHBaIOHnpe PienETKN),
yKa3BaAeTcB Ta6JIHe XapakTePnCTHK
(B Kf/24I.)CM.PcyHOK 10.

No.10KHTI npOyKTb, KOTOpBte BxOHTI 3AMOPo3HTb, HJHO MOpO3HbHOI KAMcPb. CTeIITRE 3a TEM, TTO6b yke ZAMOpOKeHHne I CBEKHe npOyKTb Hc COUPBaCAIIOBbApYr CIPyTOM.

BkJIOueHHe 3amopaknBaHnNn BbOp TemIepaTypb

IocTaBtepeKIOHATcBtemepaTybB HIOJKeHnOo"3",CmBbXOTHeZAMOpOBHTB CBeKHe npOyKtB.1Pn EToM NOToKEHH HpeKIOHATcBbMoKTe ZAMOpOBHTB JO2,5 KTPoYKTob.1JMaZamopKaHNBaHH60JIIErO KOJIIECTBa IPOyKTOB Heo6XoHMO IOHOITcBHO HAkaTb KOnHy Tny6OKOH ZAMOpOaKN 22 (pnc.3).PiH eTOM 3aTopaETcKpaCHn HnHKaTOP.1JMaNoHOI 3aMOpOaKN npOyKTOB Heo6XoHMO 24 Yaca. IocTe 3rTOpeKHM Tny6OKOH ZAMOpOaKN IIyKHO OTKIOHNTB.

KaJIeHJIapb 3aMOpaKINBaHn

TTO TOO TTOB COXpaHHTb KaueCTBO 3AMOPOKEHHN HPOYKTOB,BAKHO COIOIATB IONYCTHMBI CPOK XpaHEHH, KOTOPB 3AHHCT OT BHA 3AMOPOKEHHN HPOYKTOB. Npeo 3AMOPaKaHBAHem OTMETTE DAty H3TOBOTHEHH HPOyTA H DAty 3AKJALIK B MOpO3HbHyIO KaMepy.

Pa3mopaknBaHne 3aMOPKeHHbIX IPOIyKTOB

B3ABHCMOCTHOTBnAipOpyKTOB HHXOCIcyIOHNEo6pa60TNp3MOPaKaBaHMeMOHOOCYHCCTBHTbpa3THHBMNCO6aM:

-ПИЗ KOMHATHON TemHepaType,
-BXOIOH.BHOI KaMPO,
B 3.1EKTpHueckOJ LyXOBKe,
-BMHKPOBOIHOBOIHEH

Pazmopojekhne H pazmopaknaeembe npOyTbMOTyBbCHOBaZamOpokehn, ecH Mco Hp6Ba He 6o.lee 1 nH, a npTyHe npOyTb - He 6oice 3 hEn HaxOnHHCb npTe mepatype Bblue +3cC.Bo cx npTyX CUYAHx, cHn Blyc, 3aHax HBeHHHnBn HpOyKTA He HMeHHInCb, eTO MoKnIO cApHTb Hn HOkapHTb CHOBa ZAMOpO3HTb. Ppn EToM cPOK NocTeYIOHO XpaHENH npOyTKa COKpaHaacTc.

PnIroTOBJIeHHeJIbJa

HaONHHTe BAHHOuy Ky IINI JbHa Ha 3/4 BOIOH HIOCTABBTE BMOPOHNbHyIO KAMpy.

TOTO TOO BAM 6bIO. JERTE EBBIEKAeTB TOTOBK KyBNI HAI N3 BAHHOH, MOKHOC CICRKA HepeHyTB.

Pa3mopaJxNbHne XOJIOnJIbHnKa

Pa3MopaaKNaBHe XOJIIOJIbHOJ KaMepbI

XOIOHbHK pa3mopaknBaetc
ABTOMAHTueckn. Bota co6npaetcB CTQHHJ
KeTo67 (pnc. 8),OTkyIa HOnaeTcB
XIOIOHbHyIO MAHHy H TAM HCnapETcR.
PiOBePbTe, TTO6bl CTQHHJ KeTo6 H CTQHHoe OTBepCTHe 19 (pnc. 8) BCEHa HAnOJIINCB B
HCTOTE.

Pa3MopajKbHHe MOpO3NJIbHOJ KaMepbI

Mop03HbHaKaMepa pa3MaOpaaHBaetcHe ABTOMAHTUeCN, TAK KaK 3aMOp0KeHHbc HPOyTb He IOJbHbIOITaHbTaB.CToI HnE HIN. bJa yXyIiHaET HOaY XoIOna B MOp03HbHyIO KaMepy, YTO B CBOIO OpepeB yBeIMNBAe pACxO1 EJIeKTPOHeprHn.

CHATNE CIOH INHEA

TTObIydaHITbCIOIobpa3OBaBHeOcHHeia, HyaKHOHCIOIB3OBATCbCHEHa.IbHbIKcpe6oK. HIN B KOOM CUYAC HC-HaHHOIB3OBATbCH OCTbIMM META.IINIECKHMIIpeIMETAMH, TTObIHC HOPEITb HOEPXHOCTb MOpOHNbON KaMepbI.

ru

OrTaBaHnE CIOJbJa

EcmBMOPO3HbHOKAMpeO6pa3OBaJIC CIOIbHaTOpaMOPaKaHBaTbccHyKHO CTyIOHM Opa3OM:

BKIOHITPCGKHM CYBOKOHAMOPOKHN4YACA,HAKAB KHOHky22(pHC.3);
BBHbTEZAMOPOKCHHHICHPOLYKTM，BABCPHTE HXB43ETYHIOJOKHTBEHPOXTAHHOEC MCTO;
HEPCKHOHATC,TEMHPATyPHIOCTABNTB HIOJOKEHNE“0”HINBBITAHHTBEIHKYH3 PO8ETN.CHHTTEaTEM，YTO6bBOHAHE HONATA BHYTPBHEPKHOHATC,TEMHPATyPH;
-ocrabtreBepnyotkpbrton;
-ydaJIHTe BOYI NOIOTHeIM HIN rOkoi;
HAcyO HOpOTHTC MPOBILbHyIO KAMEPY, BKHOHTE XOIOIBUBHK HIOJOGKHTTE 3AMOPGCKHHBUPOUYKTB.

PoiptyuHbIe cpeJcTbA

PnHIOIb3OBAHH 3JIKTPOBENTHTOTOPOB HINΦHOB,paBHOMePHo paNpCteHITc HOTOK TOpHrERo BO3yXa IIO BceH IOBepxHOCTH KAMEpb.HN B KOem Cuyae He pa3MeHnIte 3JIKTPoPNH6Opb BHyTPh MOp0HNbHONKAMEpb.

ByIbte OCTOPOKHb IPN HCHIOJIbOBAHH CHINHA.IBHN A3P03OJIe, KOTOPBE MOrYT O6pa3OBBBaTB B3pBBOONACHIE Ra3b, COIEpKaT BENOCBHa, NHOpeKJDAIOHHe IIACTMaccOBBe ITeA. INIH BPeIHbE JTe 3IOPOBBa.

UNTka XOJIOJIbHnKa

HepeTcKaHauatbHCTHTbH MHTb XOIOIHINHHK, He 3aBHyTe OTEIOOHHTb cTO OT CTH. JTH MHTb BcETo XOIOIHINHHKa, KPOME yIOOTHETHE IBEpHb, COHTCH TELIAB BOIA C H6oBHMM IO6aBteHNMe MOIOIHX cpeCTB. HenpHROHb JIO6be paCTBOPHTeJIa a TaKaKe YHCTAHNC cpeICTBA, CoepKaHIne NECOK HIN KHCOTbl.

YIOHTHTE 11 (pnc.1)
IPOTHPATB TOIBKO YCTOIO BDOIO H 3ATCM
HACXNO BHTPATB.CIEHNTe 3a TEM, TTO6b
BOIA HC HONLA BHYTPB HEPCKIOAATE.H
TEMHEPATy.

CTOHHJKeIOB H CTOHHOE OTHBcPTHE HUYKHO OHHATb HAJIe, YEM OCTaJIbIbIe YACTN XOOHUNBHnKA, YTOOB HmTTO HC MHeIaIO BOIE HPIr OTaHBAHH CTKaTB HO HIM. CTOHHOE OTHBcPTHE OHHAAITE HAIOKOJ. CKeITTE 3a TEM, YTOOB BOJa, KOTOPOI MOOT XOOHUNBHnK, HC HOnA IaIa TYda, UDE HCHAPAE TCA BOJa.

CoBeTbI IO 3KOHOMH NJIeKTPo3Heprn

YCTAHABHBAHHTXOIOUBHBHKB HPOXBAHOM, XOPHO IPOBETPBACMOMIOMCHHHB, BTAHOTIPIMBX COIHCHBH.NyCNI HNCTOHIKOB TELTA.
- He zakpbbaite bentn. binnounhne otBepctna.
TeIbIe 6JIOJa nepei pa3MeHHeHem B XIOIOJIbIKKe Ipe.IBaPITcIbIO OCTyKaIITBE MOpO3JIbHKa.
XOpOIO 3AMOPOBBTEUPOLYKTH,UPCKIEcEM pA3MOPaKaHBATb MPO03HbHyIO KAMEpy.
吕B3Hpy3HH Bbypy3HHPOyKTOB DEPAHTIIBCPHIO OTKpHTBMNH MHHMAJIbHO BO3MOJHOE BPEM. YEM MEHHe Bb6yTe DEPAHTIIBCPHIO OTKpHTBMNH, TEM MCHHE Jb4a6yETOBxOBBBHTBCHA MOPO3HbHO PEHCTKE.
HeocraBnIe IepbXoIOHbIMKa OTKpHTbIMM UHTTEbHOBC BcEMH.

ru

Kak camocToTeJbHo yCTpaHnTb MeJkne HeIOJaIKN /CepBnchA cnjx6a

JaIeKO He np KaKIOH HeIOJKe HEoXIOHMO BbBbBaTc CHEHaJIHCTa CepBnCHOH cTyKb. OeHb qACTO JeIO 3aIKHOaETcB KaKoJIN6O MeIOHN. IOTOMy, PekJe HEm oBpaIIaTbC B CepBnCHHy cIyKbO, IpOBepbTe, HeJb3A JIn yCTpaHNTb Ety HeNCIPpaBHOCtB CBOIMN CNJAmn Ha OCHOBAHH NpBeJIHHbIX Hnke yKa3aHH.

Pn HeobyHOM yMe:

HINXOIOHNBHHK CTOH HEPOBNO H/HH HENPOHO, HIN B XOIOHNBHHa Iparat HONA.1 HOCTOPOHHN IIpeIMET TAK, TTO Jeta Ha 3aIHei CTEHKe XOIOHNBHHka He Mojket CBOOOHIO BnOpnpoBaTb. Octopogho ydaJIHTe EOTIpeIMET.

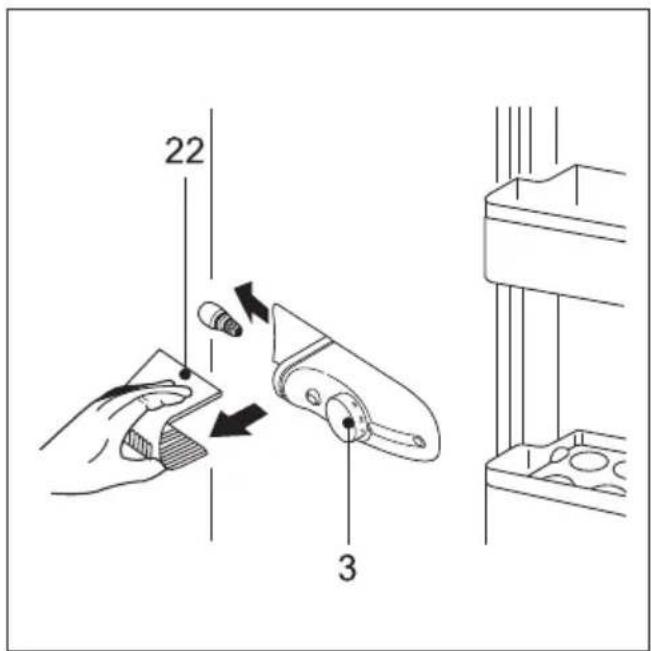

EcJn He ropnt ocBeneHne XOJIIOJIbHOI KaMepbl:

HnnpabHa JAMHa HaaHaHaHH. BbHtBnky CEREBORO UHPa Hb POETK, CHMHTKpHnky (PNC.9), ZAMHNTcJAMHY (MAK.15 Br, 220 B, uKO.IE 14).
3aHHHCHBHKHOHATB,OCHEHHI (pHc.5).PiOBepbTe,MOKETJIN OH IHHATbC.IEHNHT,TO BBEBOHTe CHeHNA.HCTA CePBCHOH cYak6bl.
IpeKIOHnATcB,TCMnepaTypMa HANOTTCB NOJIOKeHHN "0".

BExoJIOJIbHOJ Kamepe TemepaTypa Hnke OobHNOJ:

• IpeekIOHATE. IB TEMHepaTyb CTOH He B TOIHO3AHII.

B MOPOBIIBHYIO KAMEPY HOIOKIN CHINIKOM MHORO CBOKHX IPOTYKOB, HC BIKOHNB KHOKY peKHMA TAYOKOH ZAMOPOKH.

BExoJIOJIbHnKe TemHepaTpa Bblue OobuHOI:

C. BAHINKOM RACTO OTKPBANOTCEBEPHA
B MOpO3HbHOI KAmpe CmHKOM MHOOR CBEXN HPOYKTOB.
OueHB 60JIbHON CIOH HHeB MOpO3MbHO KaVcpe.
3aKpbTbBeHTBHHH H BbTBKa.
Mcayy cteohn HxolnnbHKOM nonan noctopounn npimet.

COBCEM HET OXJaKJdeHnA:

Bunka loxo ykpenenha npocne.
BbIKIOIOIOIpeIOxpaHHTe.HHOyycpOIOCTBO.
HepeKIOHATE.1b TEMHepATypb CTnT B NOIOKEHHN "0".

EcmBamye yiaIOc byctpaHHTb HnnpabHIOCTb HA OCHOBAHIN HINBCENHHbX 3decykaaHH, opaanaiTecb B CepBHCHyO cyko.

YTO6bH36eKaTHnoTePBxOIOa,He OTKpbBaIHTbeepn6e3neoNOUMOCNT.

He npohBODHTe camOCToTeJIbHO ⅡIbHeHnHnpepa0tB，IpeKcIEBCero，C ⅢJekTPnueckoiqactbOarperata.

Cep Bnch a cnyk6a

PnO6paHcHHB CcpBcHcyoCtyK6y COO6aHte,HOKaJyHcta，cepHbH (pnc.10/23) H3aBOIcko (pnc.10/24) Homep BaHero arperata.

Tn daHHHe Bb HainctcBuepeHoi pAMKe Ha TINIOBOI Ta6HKe,paCHOIOKEHOI CTeBa CH3y BMOPO3U1BHOIMOTICICHHI,PIOMC 6OKCOM IIOOBoIIe.

YBaKaembe rooHoa, CooBHaem BaM, TIO Hauu npolykna OceTHpHnPOBaHa HA COOTBETCTBNE pocHHckm Tpe6oAHHM 6eOaHcHcTn corAio 3akOny PΦ «O zaiHne npab nhotpebteJe. NupopMaHNO no ceTPhKanH HauHx np6OpOB, a taKke JAAHHe o Homepe oceTHpHkata m cpoKe erO deHCTBn Bb MoKete No.tyHtB bΦnpMe OOO «BCX BHTOBaI texHka» no TeJePOny (095) 737-22939.

TeepoHmchertepckoi cyk6bno pemohry 6b08bx np6op08 [phone]

TeJeFOnIINcHTepeckOy cIyKbI no pemOITry bblIOBx npHOpOB 《CmEno》(095) 737-22962

TepeoH. HcHepckoi CuyKbHOpemOHry BbTOBbX np6opOB 《d'artehay》[phone]

TexnneKncy.braHn no tepeohy: (095) 737-22975

HpHcMaBOKHaPcMOHTn peKaJaMaHn: [phone](4Kc)

FapantnnaIaIroTOBHTeJIa

Hpma-HcTOTOBHTB HpeoCTaBBHtBaHnHpO6ptenHHb Bamn HpO6Op, K KOTOPOMy npnIOkyIke 6bl BHH TapaTHHH taJHO, rapaTHIO B COOTBEcTBHc C DeHCTByIOHM 3aKHOaTeJIcTBOM P0 o 3aIIHTePab HOtpBNTEC pOKOM 12meHIE.

BnMaHHe! BaKaHa HfOpMaHuaIaI Iotpe6nteJe

JaHHH HnHOp HcHHe3AHmEH JINHCHIOBAAHH HCKHOHTeJIbHO UJIN JINHbIX, CEmEHbIX, IOMaHHIX HbHX HyKJ, He CHBaBHIX C OcyHcCTBHeHHc HpeHHMaTeBckOJeTBeIbHOCTN. HcHIOBBAHHe HpHOpBa B NeHIX, OTNHbIX OT BnEeyKa3HHbIX, BnHETCn HApUHeHHem PpaBn HauNeKaeHNn EKCLUYATAUHHn HpHoOpA
HAROTOBITE.BHEHOCTOTBETCBENHOCTb3aHEIOCTATKINBB HINBOPE,ECNCEPOHOCHCYKKBO BYAEJNOA3HNO,TOO OHN BOHHNIOOCNEIPEPNAH NIPBOOPAHTPOBEHCIO HOBCIECTBNE HAPUENHN HNHPANH NIOHOBOBBHNN TPAHONPTPOBNX,XPAHENHN,NECHTBNTPOBTBNN HENPEODMOHCNBI (HOKApa,HPNPONHO KATACTPCPOBn H.T.I),HOBAAHNN BHYOBHX IACOKOMBX H PLYBYOH BOAIECTBNN HNBX NOCTOPONHNX PAKTOPOB, A TAKKE BCIECTBNE CYNECTCBENHNS HAPUENEH NEXTHIECKNX TpeBOBAAH, OROBOEPBNN H NICTPYKUNH IOKCIUYATAHNN,BTONMCCNEHCIECTAOHBIOCTNAPAMETPOB 3HETCPOEHTYCAHOBENHIX FOCT13109-827.
1HIOITBEPKDEHN HATI NOKYIN PIP6Opa IHP TAPAHTHHOMPcMOHTE HINIIEpTBAHENH HINb HEPyCMOTpeHHx ZAKOHOM TpeOBaHIN, yEeHTREbHO IPOGM BAC COXPaHbTI COPIPOBDTEbHIe KOYMeHTH (Yek, KBHTAHHIO, IPAABbHO N YETKO ZAIOnHEHHI BAPAHTHHNI TaIOI C YKcAaHHeCepHHORIO HOpema IIP6Opa, TAIOI pOlaJKN, YETKO pa3NTHMoi NcSATAI HPOdAHA, HIIBE IOKYMeHTH, HOITBepKaAHOHne DAty IN MecTO NOkYIK). C NeJIIO OBeJIeYHHI DaJIeHHIeero cEBPHORO 06CTyKbHaHHBaBn EAMERO np6Opa, ObaaAHTrecB K MaCTepaM OepHCA C IPOBOoI O aHECCEHN CBEEH N O6OBCEX PpOIBETCHHHxPcMOHTHbX paBoTAX BCOOTBCTByIOHN PAaEL TAPAHTHHOrO TaIOHA.

PekomeHuyem IOBepbTb HOIKIOHOHE (yCTAHOBky) HIO60pO, Tpe6yOIMX CHINBAIHORO HOIKIOHOENH (yCTAHOBK), TOIbKO OPRHAIIHHM (HPEIHHHMATEBIM), ZAHMAHOHNCHM IO poly CBOE HeTeJIHOCTN OcyIECCTBTHEMN TAKHX paBOT. CHeHAIHCTb, OcyIeCTBHOHNHE HOIKIOHOHENH (yCTAHOBky), HEIAOT OTMEKY OHOIOHOHENH (yCTAHOBK) BCOOTBCTBYHOHNMPaTE TApAHNIHOHRo TAIOH. IPOcIM COXPaHIb KIBTAHHN H HIIbe KOyMeHTN OIOIOHOHNH (yCTAHOBKe) BaIIero np60paB TceHHNE cPoka erkQUYtaTAMn.
Cobnoe HnpeKOMHuaHHykaaHH,coepKanHHXcB HHCPTyKHIN HO KCHUYaTHAHN (PpAHBXHOJIOOJIHH) HOMOKET HOEKAIT HPOJEM BKKCIUYATAHNI PIPBOPAI HEOOCTYKHAHH.
HeHcnpabHbE yIbI np6OpOB I rapaHTHHn HnepHO GecuHATIO pemOHHTpyOCTCH Hn 3aMeHHOTCH HOBBM. PEmHHe BOPOCA O HeNCOoBpaHOCHTH IN 3aMeHHH Hn pemOHTA OCTAETCH 3ACUYb6AMn OEBPNA.
B nepnoHIO H NOCTeHcHHeHraPHTHHORO cPoka HnHa Cyaobcepnc, aTakke MaCtepckHeaHnx HaptnepOB BCERTA rTOBNOI ppeIOKHTB Bam cOny yCyTT. CnHOOK aIpcOB yIOHOMOHbIX HrTOBOTcHjem NyHKTOB AHTOPBOBBOHIO OEPUBHOIO 06CNYKBAHINH INPnHATAETCA.
CnHfOpmaHHeOspKcLsyKaBHa 6bTBoBHeIepbOpBb MoKgEe C0BkOMHTBCH B TOBPOOOHPoBOHTBEJHOI KOKyMeHTaBH,BMaTa3HeHpNIOYtkePpIOOPa,TaBO CpeBCHx HeHtpx.

1
2

3

4

5

6

7

8

9

10

11

12

Internet:

Subject to modification
