Product Type	Fridge-freezer (combined)
Brand	Bosch
Model	KGN397IEQ
Height	186 cm (estimated)
Width	70 cm (estimated)
Depth	75 cm (estimated)
Weight	Approx. 90 kg
Energy Efficiency Class	A++ (estimated)
Annual Energy Consumption	~250 kWh
Climate Class	SN-T (estimated)
Noise Level	~38 dB(A) (estimated)
Refrigerant	R600a (estimated)
Cooling System	NoFrost
Special Functions	SuperCool, SuperFreeze, LED lighting, electronic control
Door Hinge	Reversible (left/right)
Shelves	Adjustable glass shelves, door racks, bottle tray, frozen food container
Lighting	Maintenance-free LED (top, side, spot)
Maintenance	Replaceable door gasket, hinges, shelves, LED modules
Safety	Disconnect power before repair; safety test per VDE 0701 required after repair
Repairability	Designed for consumer repair: spare parts available, repair hints provided
User Manual	Available in multiple languages (769 pages)

Frequently Asked Questions - KGN397IEQ BOSCH

How do I adjust the temperature in the fridge and freezer compartments?

Use the electronic control panel on the appliance. Press the SuperCool button to rapidly cool the fridge, or adjust the temperature settings manually via the display. Refer to the user manual for specific instructions.

Can I change the door hinge side from left to right?

Yes, the door hinges are reversible. Follow the repair hints in the manual: remove the door upper hinge (section 4.4), middle hinge (4.5), and lower hinge (4.6), then install them on the opposite side in reverse order. Ensure the appliance is disconnected from power.

How do I replace the door gasket?

First, release the gasket from the groove at the corners. Pull it out carefully. Inspect the groove for damage. Heat the new gasket with a hair dryer for flexibility, then press it into the groove step by step. Small holes in the gasket are normal for ventilation.

What should I do if the LED light in the fridge fails?

The LED lights are maintenance-free but replaceable. For spotlights, use the special tool to pull it out and disconnect the electrical connection. For the top light, slide it left and release hooks. For side bar light, use a suction cup. Always disconnect the appliance from power before starting repairs and have a safety test performed after.

How can I prevent ice buildup in the freezer?

The appliance features NoFrost technology, which automatically prevents ice formation. If ice still builds up, ensure the door is properly sealed and not left open. Check the door gasket for damage and replace if necessary.

How do I clean the condenser coils?

Clean the condenser coils at least once a year to maintain efficiency. Access them at the back of the appliance. Use a vacuum cleaner with a soft brush attachment to remove dust. Be careful not to damage the fins.

What safety precautions should I take before repairing the refrigerator?

Always disconnect the appliance from the mains for at least 60 seconds before any repair. Wear protective gloves against sharp edges. Secure heavy components from falling. After repair, have a safety test performed according to VDE 0701 or local regulations.

Where can I find spare parts for my Bosch KGN397IEQ?

Spare parts can be ordered from Bosch customer service or authorized dealers. Common parts include door gaskets, hinges, shelves, door racks, LED modules, and the power supply module. Use original parts for safety and function.

How do I transport the refrigerator safely?

Disconnect the appliance and empty all contents. Secure the doors with tape. Place the appliance upright during transport. If tilting, do not exceed 45 degrees. Allow the appliance to stand upright for at least 2 hours before connecting to power to allow oil to return to the compressor.

What should I do if the appliance displays an error code?

Refer to the user manual for error code explanations. Common errors may indicate a door left open, temperature sensor fault, or communication issue. If the problem persists, contact Bosch customer service for assistance.

USER MANUAL KGN397IEQ BOSCH

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Ремонт

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Ремонт

Ремонт

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram of a roof drainage system with wavy roof lines and a black arrow indicating flow direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component, showing a red component and surrounding vertical lines (no text or symbols)

Ремонт

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Ремонт

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door panel (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Ремонт

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device mounted on a wall with a red panel and cable, against a gray background (no text or symbols visible)

Ремонт

1. Развийте винта.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-step photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols present)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a door frame with shelves and an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Brtva vrata je postavljena.

Popravak

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Zahtjev:

Popravak

1. 1. Pritisnite poklopac gornjeg zgloba s obje strane (1).

2. Izvadite poklopac gornjeg zgloba (2).

3. Okrenite poklopac zgloba (3).
4. Uklonite poklopac gornjeg zgloba (4).
5. Odvijte dva vijka (5).
6. Uklonite gornji zglob (6)/

Gomji je zglob uklonjen.

4.3.2 Postavljanje gornjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Popravak

1. 1. Uklonite poklopac gornjeg zgloba (1).

2. Uklonite poklopac kutije za kabele (2).

3. Odvojite električni priključak (3)
4. Odvijte vijak priključka za uzemljenje (4).
5. Uklonite zaštitu kabela (5).
6. Odvijte vijak (6)

Gomji je zglob uklonjen.

4.4.2 Postavljanje gornjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Teški, veliki uređaji!

Srednji je zglob uklonjen.

4.5.2 Postavljanje srednjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

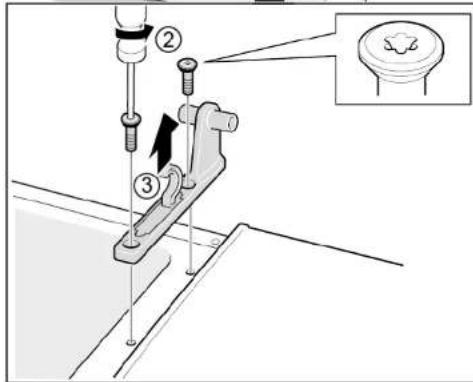

4.6 Zamjena donjeg zgloba vrata

Specijalni alati:

Nastavak Torx TX20 6.3 mm (1/4") [00340865]

Zahtjev:

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Donji je zglob vrata uklonjen.

4.6.2 Postavljanje donjeg zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police

- Izvucite policu.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Polica za boce je uklonjena.

4.8.2 Postavljanje police za boce

▶ Postavite obratnim redoslijedom.

Popravak

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Prilagodljiva posuda za vrata je uklonjena.

4.10.2 Postavljanje prilagodljive posude za vrata

▶ Postavite obratnim redoslijedom.

Popravak

4.11 Zamjena spremnika za zamrznute namirnice

Zahtjev:

Vrata su otvorena.

4.11.1 Uklanjanje spremnika za zamrznute namirnice

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Spremnik za zamrznute namirnice je uklonjen.

4.11.2 Postavljanje spremnika za zamrznute namirnice

▶ Postavite obratnim redoslijedom.

Popravak

4.12 Zamjena spremnika

Zahtjev:

Vrata su otvorena.

4.12.1 Uklanjanje spremnika

1. Izvadite donji spremnik hladnjaka (1).
2. Izvadite gornji spremnik hladnjaka (2).

Spremnici su uklonjeni.

- Izvlačni spremnik je uklonjen.

4.13.2 Postavljanje izvlačnog spremnika

▶ Postavite obratnim redoslijedom.

Popravak

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component with a red block, showing mechanical assembly (no text or symbols)

Popravak

Close-up of a refrigerator interior showing a door, shelf, and door panel (no text or symbols visible)

Popravak

Close-up of a refrigerator interior showing glass panels and a circular doorbell (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Popravak

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Popravak

1. Odvijte vijak.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

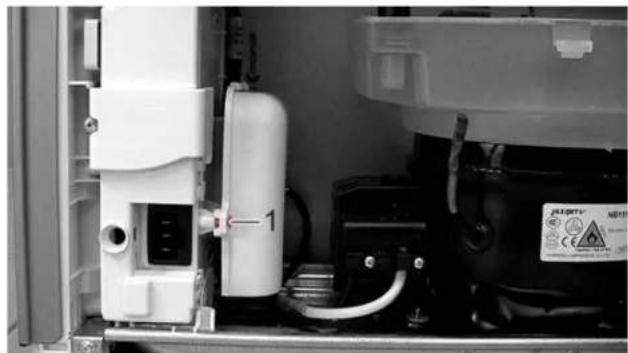

Otpušta se kutija za kondenzator za pokretanje kompresora i LED modul za napajanje.

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Otpušta se poklopac kutije za kondenzator za pokretanje kompresora i LED modul za napajanje.

1. Otpustite četiri kuke.

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the components themselves)

Uklanja se LED modul za napajanje.

Popravak

4.18.2 Ugradnja LED modula za napajanje

▶ Postavite obratnim redoslijedom.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Oprava

Oprava

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram of a tool interacting with a red rectangular object, possibly a component or device (no text or symbols visible)

Oprava

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Oprava

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Oprava

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Oprava

1. Vyšroubujte šroub.

Interior view of an industrial equipment cabinet with white components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with red connectors, next to an industrial machine component (no visible text or symbols)

Close-up of hands assembling an electric motor with visible wiring and components (no text or symbols)

Two-step photo showing hands installing or adjusting a component with wires and wiring (no visible text or symbols)

LED napájecí modul je vyjmutý.

Oprava

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Reparation

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Reparation

▶ Sørg for at sikre apparater mod at glide.

PAS PÅ!

Reparation

Diagram of a device with a labeled component and arrow, no readable text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating movement (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

1. Afbryd LED-spotlampens elektriske tilslutninger.
   LED-spotlampen er fjernet.

4.14.2 Montering af LED-spotlampe

Diagram of a mechanical or electrical component with a red rectangular block and arrow indicating direction (no text or symbols present)

Diagram of a screwdriver inserted into a red component, with no visible text or symbols

Reparation

Close-up of a refrigerator interior showing a glass door and shelf, with a circular component inserted (no text or symbols visible)

Reparation

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background (no text or symbols)

Reparation

Diagram of a tool interacting with a device, showing motion lines and no visible text or symbols

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Reparation

1. Skru skruen ud.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-step photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols present)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Reparatie

Reparatie

Diagram of a mechanical device with a labeled component (①) and an arrow indicating direction, no text or symbols present.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Apparaat is losgekoppeld is van de stroomvoorziening.
Deur is open.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical or electrical component with a tool inserted, showing a red rectangular block and vertical supports (no text or symbols visible)

Reparatie

Diagram of a mechanical assembly with a red component and a black arrow indicating direction (no text or symbols)

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparatie

Close-up of a refrigerator interior showing glass panels and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background (no text or symbols)

Reparatie

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular device with internal components and a red panel, set against a gray background with white curved lines (no text or symbols)

Reparatie

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the components themselves)

Repair hints - Fridge-freezer

i Concerning this document.... 163

1.1 Important information.... 163

1.1.1 Purpose.... 163

1.2 Explanation of symbols 163

1.2.1 Danger levels.... 163

1.2.2 Hazard symbols 163

1.2.3 Structure of the warnings.... 164

1.2.4 General symbols.... 164

Safety....

2.1 General Safety instructions 165

2.1.1 All domestic appliances 165

Tools and aids....10

Repair

4.4 Replacing door upper hinge (door with display) 173

4.4.1 Removing door upper hinge.... 173

4.4.2 Installing door upper hinge.... 174

4.5 Replacing door middle hinge 175

4.5.1 Removing door middle hinge 175

4.5.2 Installing door middle hinge 175

4.6 Replacing door lower hinge.... 176

4.6.1 Removing door lower hinge 176

4.6.2 Installing door lower hinge 176

4.7 Replacing shelf....177

4.7.1 Removing shelf 177

4.7.2 Installing shelf.... 177

4.8 Replacing bottle tray 178

4.8.1 Removing bottle tray.... 178

4.8.2 Installing bottle tray 178

4.9 Replacing door rack 179

4.9.1 Removing door rack.... 179

4.14 Replacing LED spot light 184

4.14.1 Removing LED spot light.... 184

4.14.2 Installing LED spot light 184

4.15 Replacing LED top light 185

4.15.1 Removing LED light.... 185

4.15.2 Installing top LED light 186

4.16 Replacing LED side bar light 187

4.16.1 Removing LED side bar light 187

4.16.2 Installing LED side bar light 188

4.17 Replacing LED spot light 189

4.17.1 Removing LED spot light.... 189

4.17.2 Installing LED spot light 190

4.18 Replacing LED power supply module 191

4.18.1 Removing LED power supply module 191

4.18.2 Installing LED power supply module 193

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
StartIdentification of a key or button
[00123456] Identification of a material number
StatusIdentification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Slotted screwdriver	Blade 2.4 mm x 0.4 mm x60 mm, in the kit [00341820]
Special tool[00342180]
Suction cup[00342224]	∅50 mm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Slotted screwdriver	Blade 10 mm x 1.6 mm x200 mm

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

1. Pull out door gasket from groove.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

1. (if) If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing door handle

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Slotted screwdriver Blade 10 mm x 1.6 mm x 200 mm

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.2.1 Removing door handle

1. Remove two screw caps (1).
2. Unscrew two screws (2).
3. Remove door handle (3).

Door handle is removed.

Door handle for the second door can be removed in the same manner.

▶ Install in reverse order.

Repair

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

Repair

1. 1. Press upper hinge cover on both sides (1).

2. Move out upper hinge cover (2)

3. Rotate hinge cover (3).
4. Remove upper hinge cover (4).
5. Unscrew two screws (5).
6. Remove upper hinge (6)

Upper hinge is removed.

▶ Install in reverse order.

Repair

4.4 Replacing door upper hinge (door with display)

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Heavy, bulky appliances!

Back and muscle injuries

▶ Appliance door removal operation should only be carried out by
trained specialists.
To move the appliance, two people are required.
▶ Use only suitable tools and equipment.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

▶ Secure appliances against slipping

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.

1. Place appliance on the back side.

Repair

1. 1. Remove upper hinge cover (1).

2. Remove cable box cover (2).

3. Disconnect electrical connection (3)
4. Unscrew ground connection screw (4).
5. Remove cable protection (5).
6. Unscrew the screw (6)

Upper hinge is removed.

▶ Install in reverse order.

Repair

4.5 Replacing door middle hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Door upper hinge is removed.

4.5.1 Removing door middle hinge

▶ 1. Remove fridge compartment door (1).
2. Unscrew two screws (2).
3. Remove middle hinge (3).

Middle hinge is removed.

4.5.2 Installing door middle hinge

▶ Install in reverse order.

Repair

4.6 Replacing door lower hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance interior fittings are removed.
√ Upper hinge is removed.

√ Middle hinge is removed.

4.6.1 Removing door lower hinge

▶ 1. Remove freezer compartment door (1).
2. Unscrew the screw (2).
3. Turn lower hinge out (3).
4. Remove lower hinge (4).

Door lower hinge is removed.

▶ Install in reverse order.

Repair

4.7 Replacing shelf

Prerequisite:

Door is open.

4.7.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Shelf is removed.

4.7.2 Installing shelf

▶ Install in reverse order.

Repair

4.8 Replacing bottle tray

Prerequisite:

√ Door is open.

4.8.1 Removing bottle tray

▶ Pull out bottle tray.

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

→ Bottle tray is removed.

4.8.2 Installing bottle tray

▶ Install in reverse order.

Repair

4.9 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Door rack is removed.

▶ Install in reverse order.

Repair

4.10 Replacing adjustable door rack

Prerequisite:

√ Door is open.

4.10.1 Removing adjustable door rack

- Move high-adjustable door rack upwards until the door rack is released from the holder.

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Adjustable door rack is removed.

4.10.2 Installing adjustable door rack

▶ Install in reverse order.

Repair

4.11 Replacing frozen food container

Prerequisite:

√ Door is open.

4.11.1 Removing frozen food container

1. Pull out frozen food container all the way (1).
2. Remove food container (2).

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Frozen food container is removed.

4.11.2 Installing frozen food container

▶ Install in reverse order.

Repair

4.12 Replacing container

Prerequisite:

√ Door is open.

4.12.1 Removing container

1. Move out lower fridge container (1).
2. Move out upper fridge container (2).

Containers are removed.

4.12.2 Installing container

▶ Install in reverse order.

Repair

4.13 Replacing extendable container

Prerequisite:

√ Door is open.

4.13.1 Removing extendable container

1. Pull extendable container out all the way (1).
2. Remove extendable container (2).

Extendable container is removed.

4.13.2 Installing extendable container

▶ Install in reverse order.

Repair

4.14 Replacing LED spot light

Required tools:

Special tool [00342180]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.

4.14.1 Removing LED spot light

1. Use special tool to pull out LED spot light (1).

1. Unplug electrical connections of LED spot light.

→ LED spot light is removed.

4.14.2 Installing LED spot light

▶ Install in reverse order.

Repair

4.15 Replacing LED top light

Required tools:

Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light.

These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
Door is open.
√ Upper interior fittings are removed.

4.15.1 Removing LED light

1. Move the LED light to the left side.

Diagram of a mechanical or electrical component with a red rectangular block and an arrow pointing to it, no visible text or symbols.

LED light electrical connection is disconnected.

1. Release LED light hooks.

Diagram of a mechanical or electrical component with a tool inserted, showing a red block and vertical supports (no text or symbols present)

Repair

1. Remove LED light moving it forward.

LED light is removed.

4.15.2 Installing top LED light

▶ Install in reverse order.

Repair

4.16 Replacing LED side bar light

Required tools:

Suction cup ∅50 mm [00342224]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.16.1 Removing LED side bar light

1. Stick the suction cup on the upper third of LED side bar light.

Close-up of a refrigerator interior showing a door, glass panel, and lid (no text or symbols visible)

Repair

1. Pull suction cup with forward LED side bar light in one rotary movement.

Close-up of a refrigerator interior showing glass shelves and a circular button with an arrow pointing to the door (no text or symbols visible)

1. Disconnect electrical connection of LED side bar light.

LED side bar light is removed.

4.16.2 Installing LED side bar light

1. Connect electrical connection of LED side bar light.
2. Fix LED side bar light into it's location on compartment wall (hooks click).
   LED side bar light is installed.

Repair

4.17 Replacing LED spot light

Required tools:

Special tool [00342180]
Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair - Electric parts should be repaired by a qualified electricians. - After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution - Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.17.1 Removing LED spot light

1. Release LED spot light cover.

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Repair

1. Detach LED spot light module.

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED spot light is removed.

4.17.2 Installing LED spot light

▶ Install in reverse order.

Repair

4.18 Replacing LED power supply module

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]
Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]
Container min. 200 ml capacity

Valid for appliance variants with Camera in Fridge (CIF).

Electronic modules may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.
After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Back side of appliances is accessible.

4.18.1 Removing LED power supply module

1.

Notice

Risk of damage!

Defrost water being spilled on the compressor's electronics and connections may damage appliance electronics.

During removal of drainage hose ensure that defrost water will not be spilled on electronic components.

1. Disconnect drainage hose from water drain outlet (1).
2. Pour defrost water into the container.
3. Disconnect drainage hose from water evaporation tray (2).

Repair

1. Unscrew the screw.

Interior view of an industrial equipment cabinet with white components and a labeled component (no readable text or symbols)

Compressor starting capacitor and LED power supply module box is released.

1. Release two hooks.

Close-up of a hand holding a white plastic enclosure with red connectors, next to an industrial machine component (no visible text or symbols)

Compressor starting capacitor and LED power supply module box cover is released.

1. Release four hooks.

Close-up of hands assembling an electric motor with visible wiring and components (no text or symbols)

LED power supply module is released.

1. Disconnect LED power supply module electrical connections (1) and (2).

Two-panel photo showing hands installing or adjusting a component with wires and wiring (no visible text or symbols)

LED power supply module is removed.

Repair

4.18.2 Installing LED power supply module

▶ Install in reverse order.

Remonditeave - Kombikülmik

i Selle dokumendiga seoses 195

1.1 Tähtis teave 195

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a refrigerator with an eye icon above, showing shelves and doors (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Remont

Remont

Diagram of a device with a labeled component and arrow, no readable text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component with a red rectangular block, no text or symbols present

Remont

1. Eemaldage LED-tuli, liigutades seda ettepoole.

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Remont

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door panel (no text or symbols visible)

Abstract graphic with a rectangular object and two arrows pointing outward, set against a dark background with faint white patterns (no text or symbols)

Remont

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Remont

1. Keerake kruvi lahti.

Interior view of an industrial equipment cabinet with visible components and wiring (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with red connectors, next to an industrial machine component (no visible text or symbols)

Close-up of hands assembling an electric motor with visible wiring and components (no text or symbols)

Two-step photo showing hands installing or adjusting a component with wires and wiring (no visible text or symbols)

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural details (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Korjaus

Korjaus

Diagram of a device with a labeled component and arrow, no readable text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram of a roof drainage system with wavy roof lines and a black arrow indicating flow direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a red arrow pointing to a component, no visible text or symbols.

Diagram of a screwdriver inserted into a component with a red block, showing mechanical assembly (no text or symbols)

Korjaus

Imukuppi ∅50 mm [00342224]

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Korjaus

Close-up of a refrigerator interior showing glass shelves and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Korjaus

1. Irrota LED-kohdevalomoduuli.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Korjaus

1. Kierrä ruuvi auki.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the components themselves)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Réparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Réparation

Réparation

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a red arrow pointing to a component, no visible text or symbols.

Diagram of a screwdriver interacting with a red component, showing mechanical assembly (no text or symbols)

Réparation

Close-up of a refrigerator interior showing a door, glass panel, and lid (no text or symbols visible)

Réparation

Close-up of a refrigerator interior showing glass shelves and a circular button with an arrow pointing to the door (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Réparation

Diagram of a tool interacting with a device, showing motion lines and no visible text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Réparation

1. Dévisser la vis.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel black-and-white photo showing hands assembling or adjusting a small electronic component, labeled with numbers 1 and 2 (no visible text or symbols)

Diagram of hands connecting a cable to a door panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Instandsetzen

Instandsetzen

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component with a red block, showing mechanical assembly (no text or symbols)

Instandsetzen

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Instandsetzen

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door panel (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Instandsetzen

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Instandsetzen

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel black-and-white photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols visible)

Instandsetzen

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Επισκευή

Επισκευή

Diagram of a mechanical component with a labeled section (①) and an arrow indicating direction, no text or symbols present.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram of a roof drainage system with wavy roof lines and a black arrow indicating flow direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

To páfi pórtas me duvatótnta rúθμισης έχει αφαιρεθεί.

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

To theckopiko surtári aφαιρέθηκε.

Diagram of a mechanical or electrical component with a red arrow pointing to a central component (no text or symbols visible)

Diagram of a screwdriver inserted into a mechanical component with a red block and vertical supports (no text or symbols)

Επισκευή

Close-up of a refrigerator interior showing a door, shelf, and door panel (no text or symbols visible)

Επισκευή

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Επισκευή

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a monitor mounted on a wall with a red panel, against a gray background (no text or symbols visible)

Επισκευή

1. Ξεβιδώστε τη βίδα.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-step photo showing hands assembling a small electronic component, labeled with arrows and numbered positions (no text or symbols present)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Javítás

Javítás

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical component with a red arrow pointing to a central component (no text or symbols visible)

Diagram of a screwdriver inserted into a mechanical component with a red component, no text or symbols present

Javítás

Close-up of a refrigerator interior showing a door, shelf, and door panel (no text or symbols visible)

Javítás

Close-up of a refrigerator interior showing glass panels and a circular doorbell (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Javítás

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Javítás

Interior view of an industrial equipment cabinet with white components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with red connectors, next to an industrial machine component (no visible text or symbols)

Close-up of hands assembling an electric motor with visible wiring and components (no text or symbols)

Two-step photo showing hands installing or adjusting a component with wires and wiring (no visible text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Riparazione

Riparazione

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and a black arrow indicating flow direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver interacting with a red component, no text or symbols present

Riparazione

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Riparazione

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door panel (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Riparazione

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Riparazione

1. Svitare la vite.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the components themselves)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

→ Durvju rokturis ir nonemts.

Otru durvju rokturi nonem tāpat.

Remonts

Remonts

Diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

1. Atvienojiet LED starmeša elektriskos savienojumus.

LED starmetis ir nonemts.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red component and mechanical assembly (no text or symbols)

Remonts

1. Lai nonemtu LED gaismekli, virziet to uz priekšu.

LED gaismeklis ir nonemts.

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Remonts

Close-up of a refrigerator interior showing glass shelves and a circular door (no text or symbols visible)

1. Atvienojiet sānu LED apgaismes joslas elektriskos savienojumus.

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background (no text or symbols)

Remonts

1. Atvienojiet LED starmeša moduli.

Diagram showing a tool interacting with a rectangular device, no text or symbols present

1. Atvienojiet LED starmeša elektrisko savienojumu.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED starmetis ir nonemts.

Remonts

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Tiek atbrivots LED barošanas padeves modulis.

Two-panel black-and-white photo showing hands assembling or adjusting a small electronic component, labeled with numbers 1 and 2 (no visible text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Remontas

Remontas

Diagram of a mechanical component with a labeled section (①) and an arrow indicating direction, no text or symbols present.

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram of a roof drainage system with wavy roof lines and a black arrow indicating flow direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Talpyklos išimtos.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red block and connecting rod (no text or symbols visible)

Remontas

LED lemputė išimta.

Close-up of a refrigerator interior showing the door, glass panel, and lid (no text or symbols visible)

Remontas

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Remontas

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, set against a gray background (no text or symbols)

Remontas

1. Išsukite varžta.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

LED elektros tiekimo modulis atlaisvintas.

1. Atjunkite LED elektros tiekimo modulio elektros junglis (1) ir (2).

Two-panel photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the components themselves)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame, with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparasjon

∅vre hengsel er demontert.

Reparasjon

∅vre hengsel er demontert.

Diagram of a mechanical device with a handle and blade, showing motion direction (no text or symbols)

Diagram of a mechanical component with a labeled section (①) and an arrow indicating direction, no text or symbols present.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Flaskehyllen er demontert.

4.8.2 Montering av flaskehylle

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

→ Beholderen for frysevarer er demontert.

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

LED-lampens elektriske tilkobling kobles fra.

1. Løsne LED-lampens kroker.

Diagram of a screwdriver inserted into a mechanical component with a red block and connecting rod (no text or symbols visible)

Reparasjon

LED-lampen er demontert.

Interior view of a refrigerator showing the door, glass panel, and shelf (no text or symbols visible)

Reparasjon

1. Trekk sugekoppen forover med LED-lampen i sidelisten i en roterende bevegelse.

Close-up of a refrigerator interior showing glass shelves and a circular button with an arrow pointing to the door (no text or symbols visible)

1. Koble fra den elektriske tilkoblingen for LED-lampen i sidelisten.

LED-lampen i sidelisten er demontert.

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background (no text or symbols)

Reparasjon

1. Løsne LED -spotlightmodulen.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlight er demontert.

Reparasjon

1. Skru ut skruen.

Interior view of an industrial equipment enclosure showing internal components and wiring (no visible text or symbols)

Kapasitor for kompressorstart og LED-modul for strømforsyningsboks frigis.

1. Løsne to kroker.

Close-up of a hand holding a white plastic enclosure with red connectors, next to an industrial machine component (no visible text or symbols)

Kapasitor for kompressorstart og LED-modul for strømforsyningsboksdeksel frigis.

1. Løsne fire kroker.

Close-up of hands assembling an electric motor with visible wiring and components (no text or symbols)

LED for strømforsyningsmodulen frigis.

Two-panel black-and-white photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the device itself)

Reparasjon

LED for strømforsyningsmodulen fjernes.

Diagram of hands connecting a cable to a rectangular panel with shelves, showing structural components (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Naprawy

Naprawy

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.7.2 Montaż półki

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open lid and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red block and vertical supports (no text or symbols visible)

Naprawy

Close-up of a refrigerator interior showing the door, glass panel, and lid (no text or symbols visible)

Naprawy

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Naprawy

Diagram of a tool interacting with a rectangular device, showing motion lines and no text or symbols

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Naprawy

1. Odkręcić śrubę.

Interior view of an industrial equipment cabinet with white components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with red connectors, next to an industrial machine component (no visible text or symbols)

Close-up of hands assembling an electric motor with visible wiring and components (no text or symbols)

Two-step photo showing hands installing or adjusting a component with wires and wiring (no visible text or symbols)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparação

1. 1. Pressione a tampa da dobradiça superior de ambos os lados (1).

2. Extraia a tampa da dobradiça superior (2).

3. Rode a tampa da dobradiça (3).
4. Remova a tampa da dobradiça superior (4).
5. Desaperte dois parafusos (5).
6. Remova a dobradiça superior (6).

Reparação

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a mechanical or electrical component with a tool inserted, showing a red rectangular block and vertical supports (no text or symbols visible)

Reparação

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparação

Interior view of a refrigerator showing the door and shelf, with a black arrow pointing to the door handle (no text or symbols visible)

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparação

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Reparação

1. Desaperte o parafuso.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with red connectors, next to an industrial machine component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel black-and-white photo showing hands assembling or adjusting a small electronic component, labeled with numbers 1 and 2 (no visible text or symbols)

Reparação

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Cap torx TX20 6.3 mm (1/4") [00340865]

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Repararea

Cap torx TX20 6.3 mm (1/4") [00340865]

Diagram of a mechanical device with a labeled component (①) and a black triangular piece inserted, showing motion direction (no text or symbols)

Cap torx TX20 6.3 mm (1/4") [00340865]

Diagram of a mechanical device with a labeled component (①) and an arrow indicating direction, no text or symbols present.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and a black arrow indicating flow direction (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

- Containerele sunt demontate.

Instrument special [00342180]

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red rectangular block and mechanical assembly (no text or symbols)

Repararea

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Repararea

Interior view of a refrigerator with shelves and a door, showing a black arrow pointing to the door (no text or symbols visible)

Abstract graphic with a document icon and two arrows pointing right, set against a dark background with blurred white patterns (no text or symbols)

Repararea

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Repararea

1. Deşurubați şurubul.

Interior view of an appliance or enclosure showing internal components and wiring (no visible text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel black-and-white photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the device itself)

Repararea

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable inside a rectangular appliance with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Oprava

Oprava

1. 1. Odoberte kryt horného závesu (1).

2. Odoberte kryt priestoru na káble (2).

3. Odpojte elektrické pripojenie (3)
4. Odskrutkujte skrutku uzemňovacieho pripojenia (4).
5. Odoberte ochranu kábla (5).
6. Odskrutkujte skrutku (6)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Odkladací priestor na fl'aše je odobratý.

4.8.2 Montáž odkladacieho priestoru na fl'aše

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

4.9.2 Montáž poličky do dvierok

Diagram of a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red rectangular block (no text or symbols visible)

Oprava

Diagram of a mechanical assembly with a red component and a black arrow pointing to it, no visible text or symbols.

LED svetlo je odobraté.

Close-up of a refrigerator interior showing a glass door and lid, with no visible text or symbols.

Oprava

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with a document icon and arrows, no readable text or symbols

Oprava

Diagram of a screwdriver interacting with a rectangular device, showing internal components and wiring (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Oprava

1. Odskrutkujte skrutku.

Interior view of an appliance showing internal components and a numbered label (1), with no readable text or symbols beyond the label.

Spustí sa spúšťací kondenzátor kompresora a skrinka LED modulu napájania.

1. Uvoľnite dva háčiky.

Close-up of a hand holding a white plastic enclosure with red connectors, next to an inset close-up of a small electronic component (no visible text or symbols)

Spusti sa spúštaci kondenzátor kompresora a kryt skrinky LED modulu napájania.

Close-up of a hand holding an open electrical control box with visible wiring and components (no text or symbols)

Spustí sa LED modul napájania.

1. Odpojte elektrické pripojenia (1) a (2) LED modulu napájania.

Two-panel black-and-white photo showing hands assembling a small electronic component, labeled with numbers 1 and 2 (no text or symbols on the device itself)

LED modul napájania je odobratý.

Oprava

4.18.2 Montáž LED modulu napájania

Illustration of hands connecting a cable to a rectangular panel with shelves, no text or symbols present

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a door handle with hand gestures indicating left and right motion (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Popravilo

Poškodbe hrbta in mišic

Popravilo

Poškodbe hrbta in mišic

Diagram of a device with a labeled component and arrow, no readable text or symbols present

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.7.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

4.8 Zamenjava nosilca za steklenice

Zahteva:

Vrata so odprta.

4.8.1 Odstranjevanje nosilca za steklenice

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and connected components (no visible text or symbols)

Električni priključek lučke LED je odklopljen.

1. Sprostite zatiče lučke LED.

Diagram of a screwdriver interacting with a red rectangular object on a mechanical assembly (no text or symbols visible)

Popravilo

1. Lučko LED premaknite naprej in jo odstranite.

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Popravilo

Close-up of a refrigerator interior showing glass panels and a circular button with an arrow pointing to the door (no text or symbols visible)

1. Pokrovček točkovne lučke LED povlecite navznoter in ga hkrati potisnite naprej.

Abstract graphic with a document icon and arrows, no readable text or symbols

Popravilo

Diagram showing a tool interacting with a rectangular device, no text or symbols present

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Popravilo

1. Odvijte vijak.

Interior view of an appliance or enclosure showing internal components and wiring (no visible text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the components themselves)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular frame with a curved arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparación

Reparación

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Abstract diagram with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a component, showing a red rectangular object and mechanical assembly (no text or symbols)

Reparación

Close-up of a refrigerator interior showing a glass door and adjacent storage unit (no text or symbols visible)

Reparación

Interior view of a refrigerator showing the door, shelves, and a circular vent (no text or symbols visible)

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Reparación

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

Reparación

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel black-and-white photo showing hands assembling or adjusting a small electronic component, labeled with numbers 1 and 2 (no visible text or symbols)

Reparación

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon, showing internal compartments and directional arrows (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with arrows indicating movement (no text or symbols)

Reparation

Reparation

Diagram of a device with a labeled component and arrow, no readable text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Diagram of a roof drainage system with wavy roof lines and black directional arrows indicating flow or movement (no text or symbols)

Flaskhyllan har tagits bort.

4.8.2 Montera flaskhylla

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Den justerbara dörrhyllan har tagits bort.

4.10.2 Montera justerbar dörrhylla

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

1. Lossa elanslutningarna till LED-spotlighten.
   → LED-spotlighten har tagits bort.

4.14.2 Montera LED-spotlight

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a tool interacting with a red rectangular object, possibly a device or component (no text or symbols visible)

Reparation

Sugkopp ∅50 mm [00342224]

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Reparation

Close-up of a refrigerator interior showing glass doors and a circular door (no text or symbols visible)

1. Lossa elanslutningen till LED-sidoramplampan.

LED-sidoramplampan har tagits bort.

4.16.2 Montera LED-sidoramplampa

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Reparation

1. Ta loss LED-spotlightmodulen.

Diagram of a tool interacting with a device, showing motion lines and a red highlighted section (no text or symbols)

1. Lossa LED-spotlightens elanslutning.

3D rendering of a rectangular electronic device with a red panel and white components, set against a gray background (no text or symbols visible)

LED-spotlighten har tagits bort.

4.17.2 Montera LED-spotlight

Reparation

1. Skruva ut skruven.

Interior view of an appliance or enclosure showing internal components and wiring (no visible text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-step photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the device itself)

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Onarim

Onarim

Diagram of a device with a labeled component and arrow, no readable text or symbols present

Illustration of hands holding a tablet with a black curved arrow indicating rotation (no text or symbols)

Abstract diagram with wavy blue lines and a black arrow pointing downward (no text or symbols)

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Diagram of a mechanical or structural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a refrigerator with an open door and directional arrows indicating movement (no text or symbols)

Special tool [00342180]

Diagram of a mechanical or electrical setup with a red component and wiring, no visible text or symbols

Diagram of a screwdriver inserted into a mechanical component with a red component, no text or symbols present

Onarim

Diagram of a mechanical assembly with a red component and a black arrow indicating direction (no text or symbols)

LED ışığı söküldü.

Close-up of a refrigerator interior showing a glass door and shelf, with no visible text or symbols.

Onarim

Interior view of a refrigerator showing the door, shelves, and a hanging glass (no text or symbols visible)

Special tool [00342180]

Düz tornavida Biçak 2,4 mm x 0,4 mm x 60 mm,

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Onarim

Diagram of a screwdriver inserted into a rectangular component with a red edge, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Onarim

1. Vidayı sökün.

Interior view of an appliance showing internal components and a labeled component (no readable text or symbols)

Close-up of a hand holding a white plastic enclosure with a magnified inset showing a small component (no visible text or symbols)

Close-up of hands assembling an electric motor casing with visible wiring and components (no text or symbols)

Two-panel photo showing hands installing or adjusting a small electronic component, labeled ① and ② (no text or symbols on the components themselves)
