USER MANUAL DTFT 272 DUAL

Antennenanschlüsse 31

Menu Install (Installation) 16

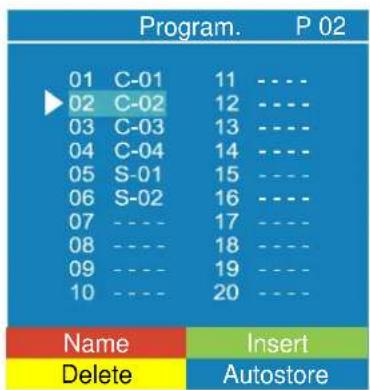

MenuProgramme 18

Menu SourceAV 19

Autres fonctions 20

Menu Install (Installation)

German + Nicam Stereo

PUISSANCE DESORTIE AUDIO (WRMS.) (%10 THD)

2 × 8 ~W

CONSOMMATION ELECTRIQUE (W) (max.)

140W

<2,7W (attente)

TYPE D'ECRAN

Affichage 16:9, taillde le'ecran 27"

DIMENSIONS (mm)

DIMENSIONS (mm)
PLH			Poids (kg)
245	797	470	12.8	Avec pied
102	797	440	11	Sans pied

INDICE

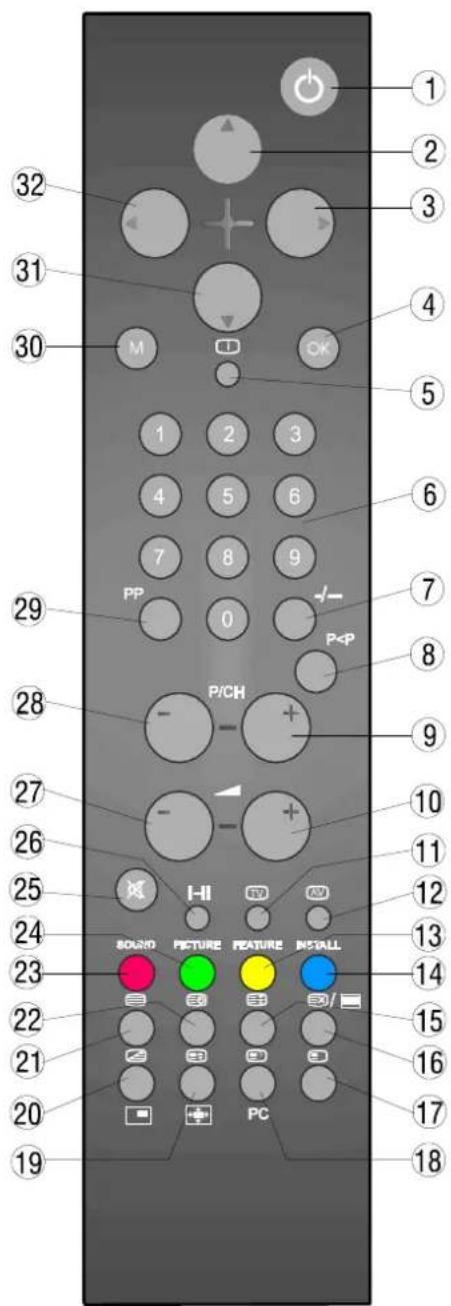

I PULSANTI SUL TELECOMANDO 2

I PULSANTI SUL PANNELLO DI

CONTROLLO. 3

PREPARAZIONE 5

Funzioni 5

1 = Stand By
2 = Cursor Up
3 = Cursor Right
4 OK = Okey (Store)
5 1 = Info (Program Menu)
60-9=Direct Program
7 - - = Double Digit
8 P<P=PreviousProgramme
9 P/CH + = Programme Up
10 + = Volume +
11 TV = TV / Quit Menu
12 AV = External Source (AV-1,AV-2,AV-3,S-VIDEO,PC)
13 Yellow (FEATURE) = Feature Menu
14 Blue (INSTALL) = Installation Menu
15 = Hold
16 = Update, No Function
17 = Index Page
18 = Reveal, PC = Switch from TV to PC
19 = Expand, picture mode
20 = Mix, No Function
21 Teletext
22 = Time
23 Red (SOUND) = Sound Menu
24 Green (PICTURE) = Picture Menu
25 M = Mute
26 I-II = Mono/Stereo - Dual I-II
27 - volume -
28 - P/CH = Programme Down
29PP=Personal Preference
30M=Menu
31 = Cursor Down
32 = Cursor Left

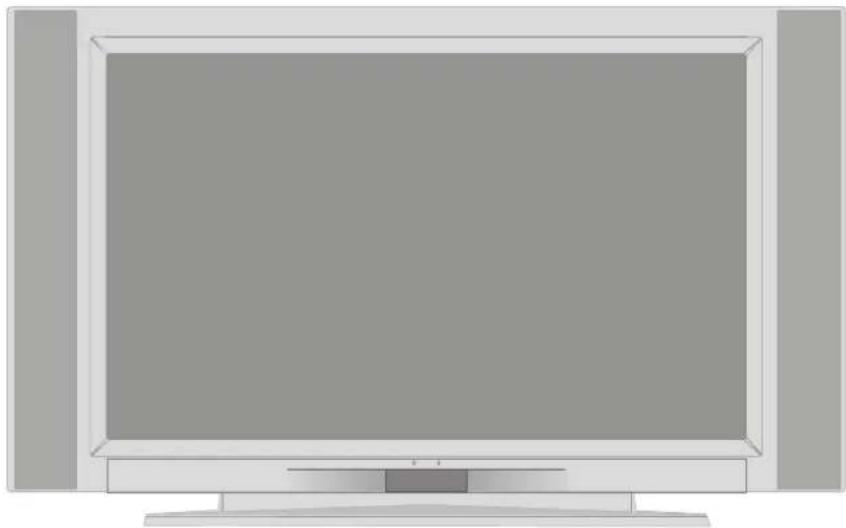

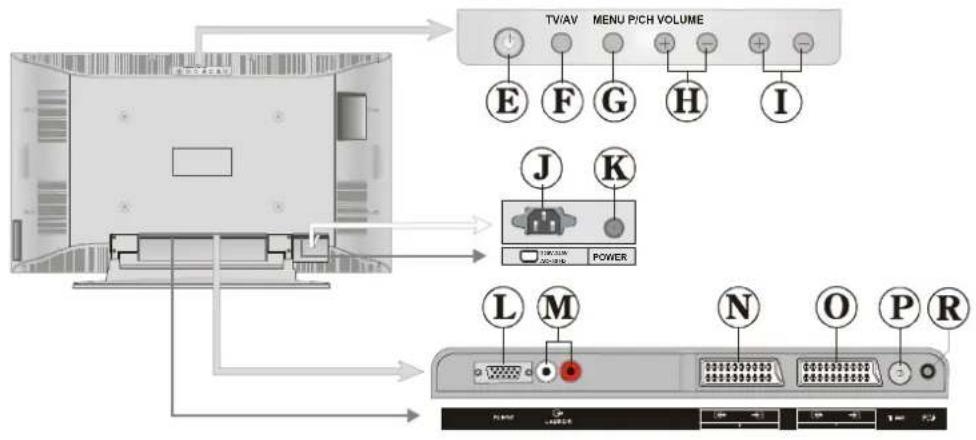

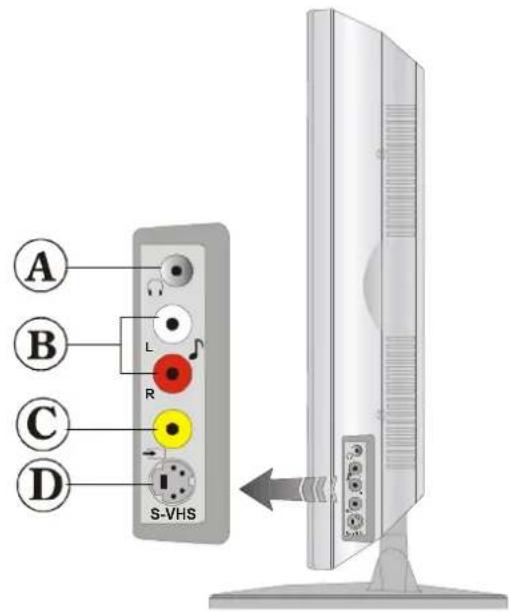

Control Panel Buttons

A Headphone
Audio Input (Left, Right)
Video Input
D S-VHS Input
E STAND BY button
TV/AV button
MENU button
H Program Up, Program Down buttons
Volume Up, Volume Down buttons

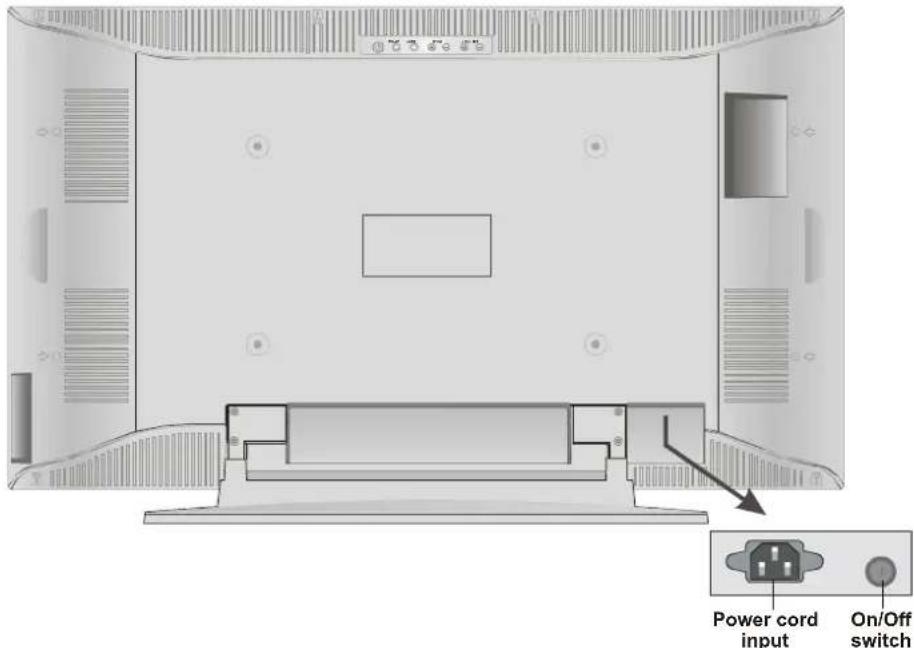

① Power cord input
On/Off switch
PC Input
Audio Line Out L, R
Scart Socket 2 (AV-2)
Scart Socket 1 (AV-1)
Antenna
R PCAudio In

Preparation

Install Display on solid horizontal surface such as a table or desk.

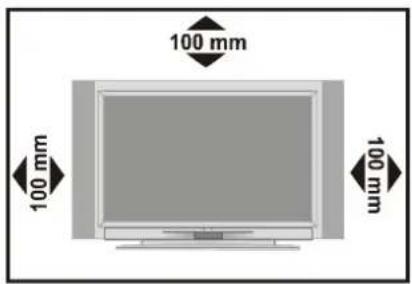

For ventilation, leave a space of at least 10cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

This apparatus can be used in tropical and/or moderate climates.

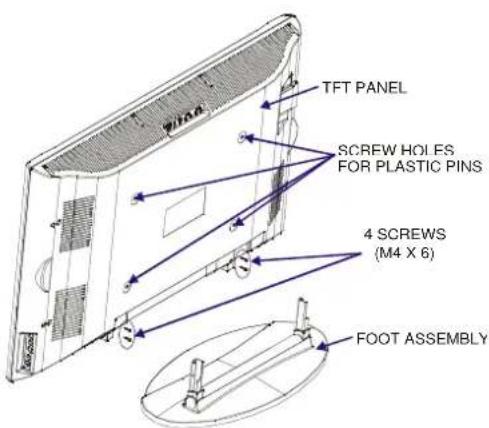

Installation Of The TFT TV To The Wall

1- To install the TFT TV on the wall, first of all, foot assembly should be removed. (Figure 1). Unscrew the 4 screws (M4× 6) that attach the foot assembly to the TFT panel and remove the foot assembly from the TFT panel.

FIGURE 1

2- Place the 4 plastic pins to the circular screw holes at the rear of the TFT and screw them to the TFT panel with 4 (M6 x 20) screws.
3- Install the wall hanger as in figure 2 to the wall with 4 anchors (M7 x 30) and 4 screws (M4 x 30).

Decide the place on the wall where the TFT panel would be placed. Level and mark with a pencil the 4 mounting points on the wall hanger. Drill pilot holes for the plastic anchors and then fix the wall hanger with 4 screws (M4 x 30).

4- Raise the TFT panel and hang it to the holes on the wall hanger from the 4 hanging screws at the rear of the TFT panel.

WALL HANGERS

TNNNNE

Features

• It is a remote controlled colour television and PC monitor.
• 100 programmes from VHF, UHF bands or cable channels can be preset.
• It can tune cable channels.
• Controlling the TV is very easy by its menu driven system.
• It has 2 pieces of Euroconnector socket for external devices (such as video, video games, audio set, etc.)
• Optional stereo sound systems (German or German+Nicam) are available.
• Multilanguage OSD.
• Teletext (Fastext, 7 pages).
• It is possible to connect headphone.
  A.P.S. (Automatic programming system)
• PLL (Channel Search)
• All programmes can be named.
  Programme swapping between last watched two programmes.
• Forward or backward automatic tuning.
• Sleep timer.
  Child lock
• Auto, 4:3, 16:9, Cinema, Subtitle, Zoom and Panorama modes.
  Automatic sound mute when no transmission.
• When no valid signal is detected, after 5 minutes the TV switches itself automatically to stand-by mode.
• NTSC Playback.
• TV Picture in PC (if PC input available)
• TV Picture and PC
• PC input (Support Up to 1280 x 720)
• PC Audio input

SafetyPrecautions

1. Power Source

The receiver should be operated only from a 220-240V AC, 50Hz outlet. Ensure you select the correct voltage setting for your convenience.

2. Power Cord

The power supply cord should be placed so that it is not likely to be walked on or pinched by items placed upon them or against it. Pay particular attention to cord where it enters the plug, power outlet, and the point where it exits from the receiver.

3. Moisture and Water

Do not use this equipment in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this equipment to rain or water, as this may be dangerous and do not place objects filled with liquids on.

4. Cleaning

Before cleaning, unplug the adaptor from the main supply, outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

5. Ventilation

The slots and openings on the receiver are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

6. Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

7. Replacement Part

When replacement parts are required, be sure the service technician has used replacement parts which are specified by the manufacturer or have the same specifications as the original one. Unauthorised substitutions may result in fire, electrical shock, or other hazards.

8. Servicing

Please refer all servicing to qualified personnel. Do not remove cover as this may result in electric shock.

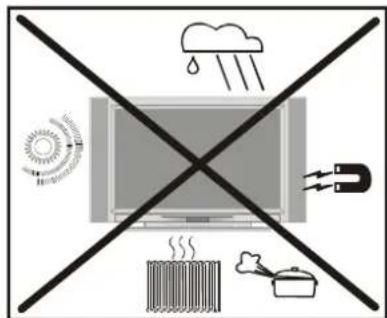

9. Naked Flame Sources

Do not place naked flame sources on the apparatus.

WARNING: When the device is not in use for a long time, disconnect from power. Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
• Battery, including those which is heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environmentally sound manner. Find out about the legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury, please for low local ordinates or regulations for disposal.

"DO NOT LEAVE YOUR TV AT STAND-BY OR OPERATING WHEN YOU LEAVE YOUR HOUSE"

"The LCD panel is very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product."

Before Switching on your TV

Power connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.

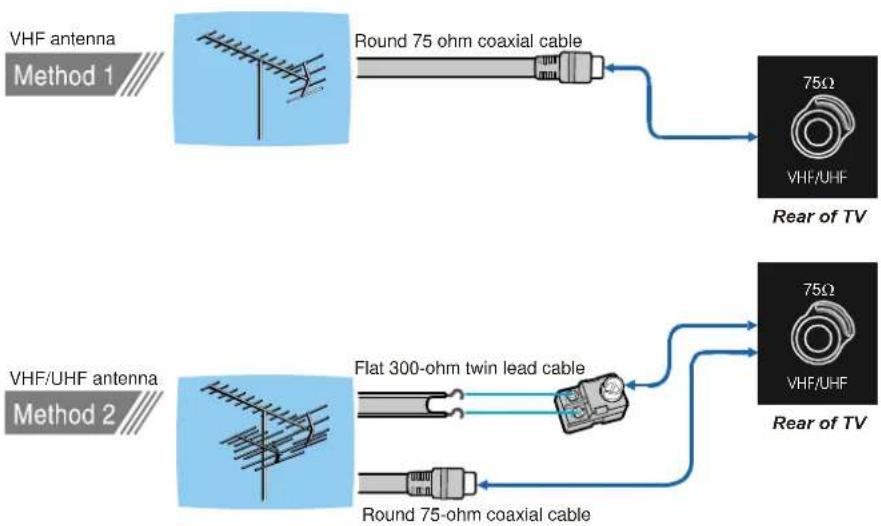

Connections to the RF input socket

• Connect the aerial or cable TV plug to the RF input socket located at the back of the TV and connect the cable plug coming out from the TV out socket located at the devices (VCR, DVB etc.) to this socket as well.

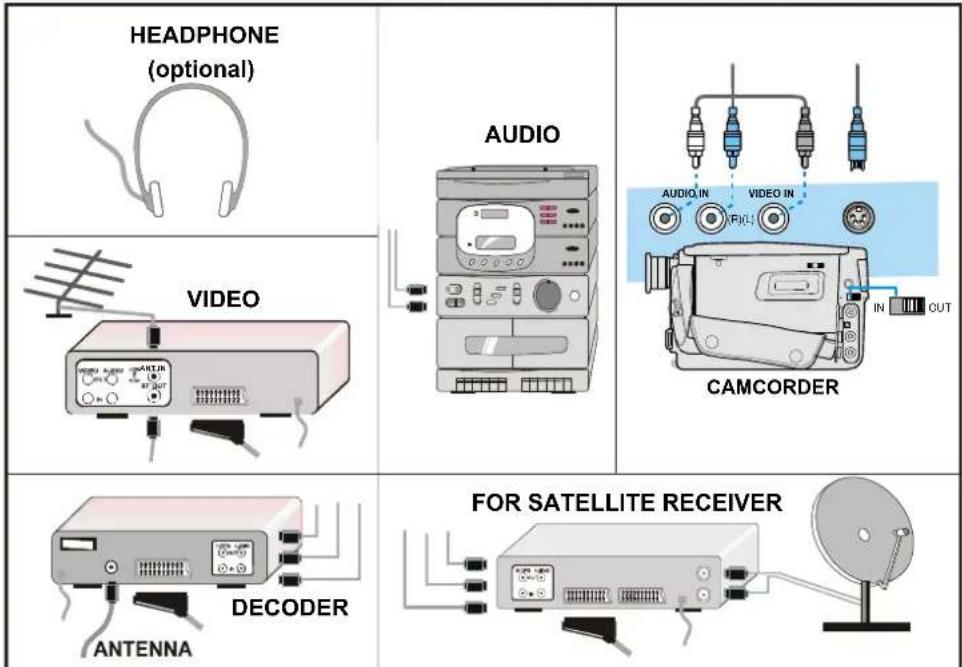

How to connect other devices

IMPORTANT: Switch off the TV before connecting any external device.

Sockets for external connections are at the back and right side of the TV. For connection of other devices via Euroconnector refer to the manuals of the related devices.

Inserting batteries in the remote control handset

• Remove the battery cover located on the back of the handset by gently pulling upwards from the indicated part.
• Insert two AAA (R03) or equivalent type of batteries inside.
• Replace the battery cover.

NOTE: Remove the batteries from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of battery.

Switching the TV ON/OFF

To switch the TV on

Your TV will switch on in two steps:

1- Connect the power supply cord to the system. Press On/Off switch at the rear of the TV. Then the TV switches itself to stand-by mode and the led becomes red located on the front of the TV.
2- To switch on the TV from stand-by mode either:

Press the "O" button on the remote control, or,

Press a digit button on the remote control so that a programme number is selected, or,

Press "P/CH" or "P/CH+" button on the top of the TV or press "P/CH" or "P/CH+" button on the remote control, so that last switched off programme is selected.

By either ways the TV will switch on and the led becomes green.

To switch the TV off

• Press the "O" button on the remote control, so the TV will switch to stand-by mode and the GREEN LED will become RED, or,

Press the "Button located on the top of the TV, so the TV will switch off and the GREEN LED will become RED.

To power down the TV completely, press On/Off switch, or unplug the power cord from the mains socket.

Operatingthe TV

You can operate your TV using both the remote control handset and onset buttons.

A.P.S.(AutomaticProgrammingSystem)

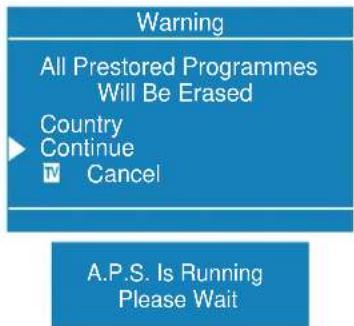

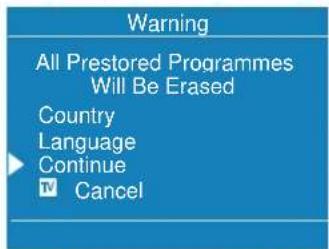

"All Prestored Programmes Will Be Erased" message will be displayed when you turn your TV on for the first time. APS, searches and sorts all channels and stores them automatically on your TV, according to the transmission of programme systems in your area.

To cancel APS before starting, press " button. First of all choose the "Country". This, will effect the sort process in APS. By pressing the or button, come to the "Language" item and select the language in which the menus of the TV will appear. As soon as you change the language, the menu items will be displayed in the selected language. To select Continue use or button and press or button.

A.P.S. Is Running Please Wait

After APS is finalized, a programme list will appear on the screen. In the programme list you will see the programme numbers and names assigned to the programmes.

If you press the button at any time while the A.P.S. is running, the A.P.S. will be

ended. Then, the program list on the screen will show channels captured until this time. If you do not accept the locations and / or the programme names of programmes, you can change them in Programme menu.

Operating with the buttons on the TV set

Volume setting and programme selection can be made by using the buttons at the control panel on the top of the TV.

Volume Setting

• Press " - VOL. " button to decrease volume or "VOL. + " button to increase volume, so a volume level scale (slider) will be displayed at the middle of the bottom on the screen.

Programme Selecting

• Press "P/CH +" button to select the next programme or "- P/CH" button to select the previous programme.

Entering Main Menu

• Press "MENU" button to enter Main menu. In the Main menu select submenu using "-P/CH" or "P/CH+" button and enter the submenu using "-VOL." or "VOL.+ button. To learn the usage of the menus, refer to the Menu System section.

Operating with Remote Control

The remote control handset of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.

Functions of the menu system are described in Menu System section.

Volume Setting

Press 4 + 1 button to increase volume. Press -12 button to decrease volume. A volume level scale (slider) will be displayed at the middle of the bottom on the screen.

Programme Selecting

(Previous or next programme)

• Press "P/CH" button to select the previous programme.
• Press "P/CH+” button to select the next programme.

Programme Selecting (direct access):

Press digit buttons on the remote control handset to select programmes between 0 and 9. TV will switch to the selected programme. To select programmes between 10 - 99, you must use the double digit button - / - -

this OSD is displayed at the left hand upper on the screen.

After then, press the digit buttons consecutively which programme you want to select (eg. for programme 27, first press 2 and then 7). When it is late to press any digit button this function will be ignored and the display will be erased. In the same way it must not be late to press any digit button after entering the first digit. The limit of the delay time is 3 seconds.

Press directly the programme number to reselect single digit programmes.

Programme Swapping

• Press "P<P" (programme swap) button to select the last selected programme. This button provides swapping between last two selected programmes. For example, select programme 8, then select programme 2. Now, if you press "P<P" button, programme 8 will be selected. If you press the same button again, programme 2 will be selected and so on.

MenuSystem

Your TV has been designed with a menu system to provide an easy manipulation of a multi-function system. The TV is controlled by choosing the commands, which are displayed on the screen.

Press the "M" button. The main menu will be displayed in the middle of the screen.

To select a sub-menu use "△" or "▽" button, and press "◁" or "▷" button or directly press "OK" button.

MAIN MENU

The menu system is described below.

The short way in order to enter the menus, press :

"M" Button, Main Menu.

Red Button, Sound Menu.

GreenButton,PictureMenu.

Yellow Button, Feature Menu.

Blue Button, Install Menu.

"i" Button, Programme Menu in TV mode or, Source Menu In AV mod

Menu button has two functions; first is opening or closing the main menu, and the second is closing the sub-menu and then opening its parent menu.

Menu does not disappear automatically if it is left on the screen.

Press the "TV" key on the remote control unit to remove menu.

Sound Menu

To change sound settings

• Enter the Sound Menu directly by pressing the Red button or,
• As you enter the main menu, sound will be the first item. In the main menu, select Sound by using “ ” or “ ” button, then enter the sound menu by pressing “ ”, “ ” or “OK” button.

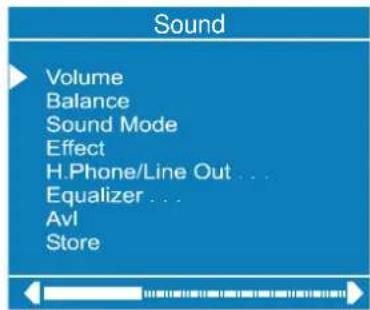

Setting Volume:

As you enter the sound menu, Volume will be the first selected option.

• Press "D" button to increase volume.
• Press " " button to decrease volume.

Or you can directly change the volume settings using + (to increase) or - (to decrease) button.

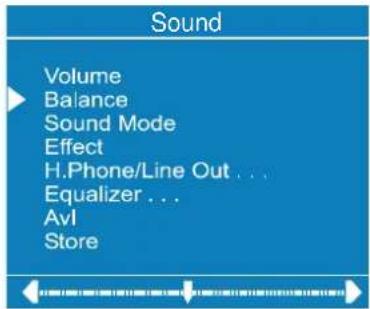

Setting Balance

It allows adjusting the distribution between the left and right speakers.

• Using “ ” or “ ” button select Balance.
• Press "D" button to change balance rightward.
• Press "←" button to change balance leftward.

When balance control is in mid position, the cursor is displayed with one arrow.

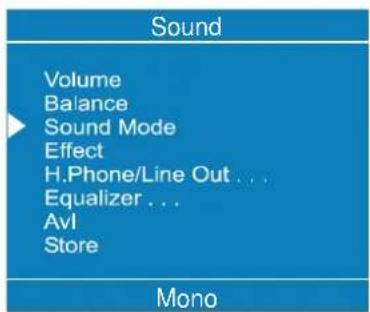

Selecting Mode

• Using "△" or "▽" button select Mode.
• Press "←" or "→" button to change Mode.

You can choose Mono, Stereo or Dual (I-II) mode, only if the selected channel supports that mode.

You can also change sound mode directly pressing "I-II" button on your remote control.

In case of bilingual broadcast (Dual Sound), you can select original or dubbed language using mode option.

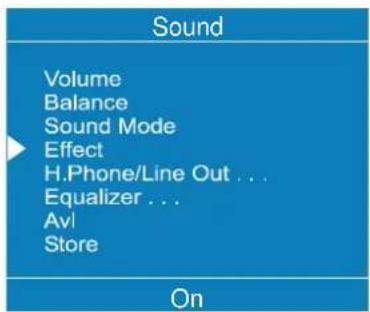

Setting Effect

You can use this feature to switch the sound effect on and off. Pressing " < " or " > " button will turn on and off this feature. If the current sound system is Mono and the sound effect is set ON, then the sound will be heard as if it is Stereo. If the current sound system is Stereo, switching this effect on will make the sound deeper. Switching it off will make no change in Mono and Stereo.

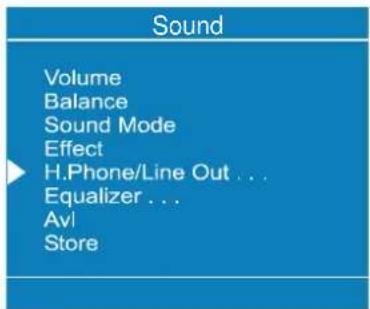

To Change H. Phone/Line Out Settings

• Using " or " button select H. Phone/ Line Out.
• Press " or " button or directly press OK" button on H. Phone/Line Out, to enter the H. Phone/Line Out menu. This is a submenu of Sound menu, and all options in this menu are working as the same in the Sound menu.

Setting H. Phone/Line Out Volume

• As you enter the H.Phone/Line Out sound menu, Volume will be the first selected option.
• Press “ ” button to increase volume.
• Press " " button to decrease volume.

Setting H. Phone/Line Out Sound Mode

• Using “ ” or “ ” button select Sound Mode.

Pressing " " or " button will change the current sound mode. (e.g.: If the current sound mode is stereo, it will be stereo or visa versa). In case of bilingual broadcast, you can select original or dubbed language again using mode menu. So when somebody listens to the original language from the loudspeakers, somebody else can listen to the dubbed language from headphone.

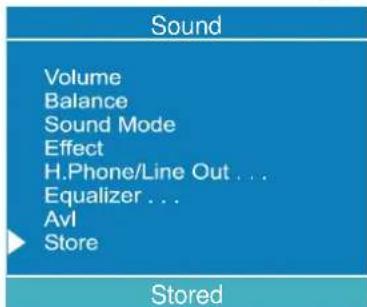

To Store the Settings

• Press "OK" button on the remote control to store the settings directly.

or,
- Using "or button selectStore. Press", "D" or "OK" button to store current H. Phone/ Line Out volume and sound mode. The stored values will be valid for all the programmes.

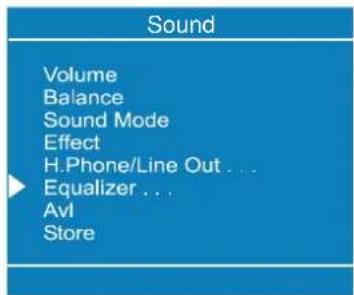

Equalizer

• Using “ ” or “ ” button select Equalizer.
• Press " " or " button or directly press "OK" button to enter Equalizer sub-menu.

In Mode item there are five predefined and one user defined options. These are User,

Flat, Pop, Rock, Jazz and Classic. The predefined options can not be changed by the user. If you want to change one of the frequency values of the predefined options, the Mode must be switched to User option.

The 5 items above the Mode are available to adjust the sound settings in 5 frequency values: 120Hz 500Hz 1.5kHz 5kHz and 10 kHz. To change the values of 5 frequency options, select one of the options by " " or " button, and then press " " to increase the value, or " " to decrease the value. In mid position, cursor is displayed with one arrow.

To store the Equalizer settings, press " " or " " button or directly press "OK" button on "Store" option.

During the store process all the items are stored, moreover, the User mode information would not be lost. In other words, when the user mode is selected again, after storing the Mode with one of the predefined options, the user defined frequency values would be set.

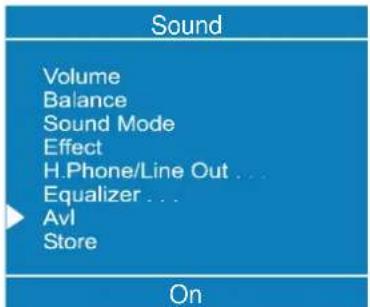

Setting AVL

• Using “ ” or “ ” button select AVL.
• Pressing or button will turn on and off this feature.

Automatic Volume Limiting (Avl) function normalises sound to obtain fixed output level between programmes, having different sound levels.

To Store the Settings

• When the cursor is on any item which has no sub-menu press "OK" button on the remote control to store the settings directly.

• Press "OK" button on "Store" option to store Sound menu settings.

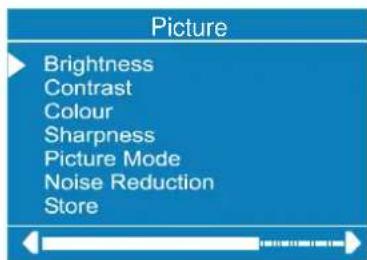

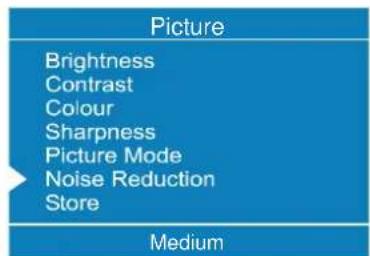

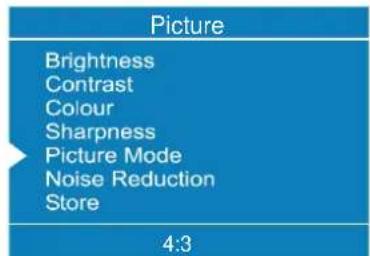

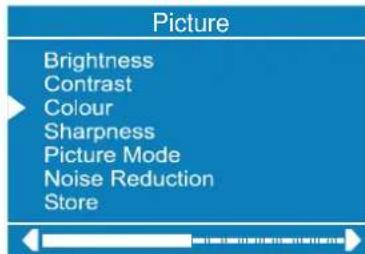

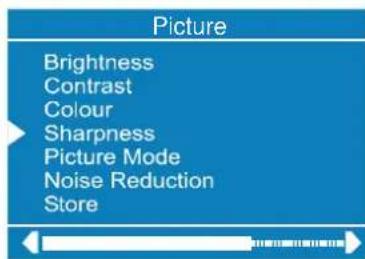

Picture Menu

To enter the Picture menu directly, press the Green button, or
- Press "M" button, now you are in main menu. In the Main menu, select "Picture" by using "△" or "√" button, then enter the Picture menu by pressing "√" / "or OK" button.

Setting Brightness

• As you enter the picture menu, Brightness will be the first item.
• Press “D” button to increase brightness.
• Press " " button to decrease brightness.

Setting Contrast

• Using “ ” or “ ” button select Contrast.
• Press "D" button to increase contrast level.
• Press " " button to decrease contrast level.

Setting Colour

• Using "△" or "▽" button select Colour.
• Press “ ” button to increase colour level.
• Press " button to decrease colour level.

Setting Sharpness

• Using "△" or "▽" button select Sharpness.
• Press " " button to increase sharpness level.
• Press " " button to decrease sharpness level.

Setting Picture Mode:

• Using “ ” or “ ” button select Picture Mode.
  Press " or " button to set Picture Mode. Picture Mode can be set to Auto, 4:3, 16:9, Cinema, Subtitle, Zoom or Panorama.

Setting Noise Reduction

• Using "or" button select Noise Reduction.
• Press " " or " " button to select Noise Reduction level "Off" or "Minimum" or "Medium" or "Maximum" then select "store" and press " " or " " button to save your setting.

Note 1:

At low signal level, the changings on the Noise Reduction function are not effective when there is menu on the screen. If the menu is removed, the effect of this function is seen. At normal broadcasting, Noise Reduction changings are effective at once.

Note 2:

At moving pictures, while Noise Reduction is at maximum level, some picture distortions may occur. If Noise Reduction is set to medium or minimum, the picture will improve.

Setting Hue

(During Playback NTSC system, this will appear in AV mode only when NTSC video source is applied. Otherwise, HUE option is invisible in Picture menu.)

• Using “ ” or “ ” button select Hue.
• Press “ ” button to increase hue level.
• Press " button to decrease hue level.
  Center value is indicated with one arrow.

To Store the Settings

• When the cursor is on any item which has no sub-menu press "OK" button on the remote control to store the settings directly. or,
• Press " ", " " or "OK" button on Store option to store Picture menu settings.

Feature Menu

To enter the Feature menu directly, press the Yellow button, or
- Press "M" button, now you are in main menu. In the main menu, select Feature by using or button. Then enter the Feature menu by pressing 空 / or OK button.

Sleep Timer

As you enter the Feature menu, Sleep Timer will be the first selected option. Use " " or " " button to change the Sleep Timer values between Off, 0:15, 0:30, 0:45, 1:00, 1:15, 1:30, 1:45 and 2:00.

If sleep timer is activated, it is displayed with the TV status on the upper right of the screen.

0:15

Feature

Sleep Timer

Child Lock

Language

Av-2 Output

PC Sound Mode

Off

After the setting time of sleep timer ended, TV goes automatically to stand-by.

Child Lock

You can use this feature to prevent children turning on/off TV or changing programmes or adjustments etc. without remote control. The Child Lock feature can be set On or Off by " " or " button. When Off is selected, there will be no difference in the operation of your TV. When On is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons, except " button, at the top of the TV will not work.

Feature

Sleep Timer

Child Lock

Language

Av-2 Output

PC Sound Mode

Off

Selecting Menu Language

Menu language can be chosen by pressing " " or " " button on Language item.

Feature

Sleep Timer

Child Lock

Language

Av-2 Output

PC Sound Mode

English

Av-2 Output

From Av-2 Output; TV, AV-1 or AV-3 can be given.TV, AV-1 or AV-3 can bechosen by pressing "or" button on Av-2 OUTPUT.

Feature

Sleep Timer

Child Lock

Language

Av-2 Output

PC Sound Mode

TV

PC Sound Mode

PC sound can be chosen by pressing " ^ 一 ^ 一 or button on PC Sound Mode item. You can select sound that comes from TV, AV-1,AV-2,AV-3 or PC to hear in PC mode.

Feature

Sleep Timer

Child Lock

Language

Av-2 Output

PC Sound Mode

PC

To Store Settings

In Feature menu all settings are stored automatically.

Installation Menu

To enter the Installation menu directly, press the Blue button, or
- Press "M" button, now you are in main menu. In the main menu, select "Install." by using "△" or "√" button. Then enter the Install menu by pressing "∨" / "▷" or "OK" button.

Menu

Sound...
Feature .
Install...
Program . . .
Source...

When any item is selected with " " button in the install menu, the selected item will be highlighted on the bottom bar.

Changes by pressing " " or " button will be result only at highlighted item on the bottom bar.

Selecting Programme

To select programme number, you can use " < "or" ^ 串 Button, Digit Buttons or The Double Digit button with digit buttons.

Install.

Programme

Band

Channel

Standard

Search

Fine Tunning

Vcr Mode

Store

P 02 C-36 C 36 BG 252

Selecting Band

Band, can be chosen either,

• “C” or “S” by or “ ” button.

Selecting Channel

Channel can be changed by " " or " button,by Digit Buttons or by the Double Digit button with digit buttons.

For band C,

01-83, WEST EUROPE.

01-12,21-69,EAST EUROPE.

01-17,21-73,UK

01-76, FRANCE.

04-09, FRANCE 2.

For band S,

01 - 41, for all channel tables.

Selecting Standard

Using or button on Standard, you can change the standard to B/G, D/K, K', I/I', L/L'.

Selecting Search

To start the search process, press " button for forward search or " button for backward search. If a signal is found or reaches to end of the band after searching, press " or " buttons to continue search process. To stop the search process when you want, press " or " buttons again.

Selecting Fine Tuning

You can use the Fine Tuning process for fine adjustment (after coarse adjustment), if you are not happy with the image on the screen.

Use " " or " " button on Fine Tuning item, until getting the best image on the screen.

Normally the Fine Tuning cursor is placed next to the left side on the slider and this is indicated with one arrow.

Setting VCR (Video Cassette Recorder) Mode

• This item can be seen in TV, AV-1, AV-2, AV-3, S-VIDEO modes.
• If you want to watch a VCR source from one of these modes, then it will be better to set VCR mode "on". For this, while the cursor is on this item press the "▲" or "▶" buttons to set it "On".
• If you want to watch a DVD, then you must set this item "off"; because DVD is not a source like a VCR and to see the picture better, you must set the VCR mode "Off".

To Store Settings

• Press "OK" button on the remote control to store the settings directly.
  or,
• Press " ", " " or "OK" button on Store option to store Install menu settings.

Installation menu in AV mode is as follows.

Programme Menu

• To enter Programme menu directly, press the "i" button in TV mode, or
• Press "M" button, now you are in main menu. In the main menu, select "Program." by using "△" or "▽" button. Then enter the Programme menu by pressing "▲" / "▷or "OK" button.

Moving cursor to four direction you can reach programmes in the same page. By scrolling the pages up or down by pressing the navigation buttons you can select all the programmes in TVmode (except the AV mode).

By cursor action, programme selection is done automatically. In order to select programme is also possible by using digit or double-digit button. In this way programme selection gets also automatically. The TV Status is changed by the programme selection too. When using double-digit button in order to select a programme, the Programme Number in TV Status OSD is displayed in "P --" form, and by pressing digit buttons they are displayed in it.

Programme Number is between 00 and 99. Programme Name has a name string with 4 characters. After autostore process the Programme Names are set to:

• Channel search "C-01" or "S-01" (band and channel number) or name of the tuned channel if defined.

At the bottom of the menu there is a programme sort functions section. Each function is activated by colour button (seen above). Name allows changing the programme name. By Delete you can delete programmes that you decided. Insert section is for inserting programmes into another programme spaces. By selecting Autostore section, Autostore menu will be available.

Name:

To change the name of a decided programme, that programme is selected and pressed to the Red button (Name). The first letter begins to blink on the selected name. To change that letter or button can be used, and to select the other letters, or button can be used. If the cursor is at the last letter of the Programme Name, pressing button moves the cursor at the beginning. On the contrary, if the cursor is at the beginning of the Programme Name, pressing button moves the cursor at the end.

After changing the name by pressing the Red button (Store) it is stored. After activating the name process the "Insert", "Delete" and "Autostore" processes will be inactive and "Cancel" option will be valid. This option cancels the name process, if the new name do not want to be stored. To cancel option is activated by pressing Blue button.

Insert:

When it is pressed to Green button (Insert), "Name", "Autostore" and "Delete" functions are erased, the selected programme (A) is displayed with an arrow. From now on, the automatic selection is canceled. With navigation buttons, the decided programme space (B) can be selected and by pressing the green button again inserting is occurred to that space (B).

Press Blue button to activate "Cancel" function of "Insert" process.

Delete:

For "Delete" process it is pressed to yellow button, ("Name", "Insert" and "Autostore" functions are inactive). Pressing yellow button again erases the selected programme from the programme list, and the programmes below shift one up. Pressing Blue button cancels the activated "Delete" process.

Autostore:

To enter Autostore menu, press the blue button. To learn the features of this function see "Autostore" below.

Autostore, searches and stores all channels automatically on your TV, according to the transmission of programme systems in your area.

First of all choose the "Country" by using < or ^ 一 button.

To cancel Autostore before starting, press "TV" button. To select "Continue" use "△" or "▽" button and press "←" or "▶" button.

After Autostore is finalized, a programme list will appear on the screen. In the programme list you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and/or the programme names of programmes, you can change them in Programme menu.

Source Menu

You can switch your TV to AV modes by pressing directly to "AV" button or by selecting in source menu from the main menu.

While in AV mode, you can also switch your TV to TV or other AV modes by selecting in source menu from the main menu or by pressing directly to "i" button.

In main menu, firstly use “ or “ button then use “ ”/“ ” or “OK” button to enter Source menu. In source menu, move the cursor by “ ” or “ ” button and then press

"OK" button or " " or " " buttons when the cursor is on the required item. The selected mode comes automatically on the screen.

Other Features

TV Status

Programme Number, Programme Name (or AV), (they are displayed on the upper left of the screen) and Sleep Timer (shows the time left on the upper right screen if enabled). The sound indicator and picture mode are displayed with them too. They are displayed after programme change for 3 seconds.

P01 Programme Number

PR01 Programme Name (4 characters)

These OSD's are displayed when a new programme is entered by digit button or by pressing "P<P", "P/CH", "P/CH+", "TV", "A" or "B" button.

Programme Swap (P < P)

This button is used to reenter to the preceding entered programme again. Pressing "P<P" consecutively allows to swap between the two last entered programmes.

Double-digit (- / -)

This OSD is displayed when the "Double-Digit" button is pressed in place of the programme number indicator.

P--

After then, in order to enter a programme it must be pressed to two digit consecutively. When it is late to press any digit button this function will be ignored and the display will be erased. In the same way it must not be late to press any digit button after entering the first digit. The limit of the delay time is 3 seconds.

Personal Preferences (PP)

All the preset values will be restored by pressing "PP".

PP

Sound Indicator

The alternatives of the indicator are Mono, Stereo, Dual I and Dual II. This indicator is displayed under the programme number indicator on the screen. "I-II" button is used to select Mono or Stereo, or Dual I or Dual II.

MONO

In Mono broadcast or in forced-mono (for stereo broadcast).

STEREO

In Stereo broadcast.

DUALI

If dual broadcast detected. Dual I is selected in default and also can be selected after Dual II by Remote Control.

DUAL II

If Dual II selected by Remote Control.

Picture Mode

Picture mode OSD is displayed when " button is pressed. Picture mode can be changed to Auto, 4:3, 16:9, Cinema, Subtitle, Zoom or Panorama by pressing " button.

Sleep Timer Indicator

It is displayed on the upper right of the screen when a new programme is entered by digit button or by pressing "P<P", "-P/CH", "P/CH+", "TV", "AV" or "B" button. If sleep timer is activated it is displayed with the TV status and erased with it after 3 seconds. In last minute, sleep timer indicator is displayed on the upper right of screen and stays there until the TV goes automatically to stand-by.

0:15

Mute Indicator

It is placed in the upper middle of the screen when enabled, and it stays there until it is disabled.

To cancel mute, there are two alternatives; the first one is pressing to " 串 button, this volume is set to the preceding value, and the second one is increasing the volume level, thus it starts at the minimum level to increase. By decreasing the volume level in mute state, mute will not be ignored, only the volume level will decrease. If mute is cancelled after decreasing the volume level, the volume will be valid with the decreased level.

No-Signal Detection (TV)

If no valid signal detected, it takes 5 minutes for the switching to the Stand-By mode unless any signal detected or no any Remote Control command is accessed.

After a Remote Control command (if No-Signal Timer is active) the timer stops and if no signal detected again the timer is initialized to 5 minutes and starts 3 seconds later again to count down.

It is not valid in AV mode.

4:31

No-Signal Detection (PC)

If no valid signal detected for 5 minutes system goes to Stand-By mode. To switch on the system press "O" button.

No input signal detected

As the last status feature, system starts from TV or PC, whichever was the status before stand-by or switch-off. Note that SCART inputs have the precedence on both TV and PC.

Volume Bar

It is displayed in the lower middle of the screen. When a volume command is received (pressing “+” or “-” by Remote Control or Control panel at the top of the TV) and no menu is active, it stays on the screen for 3 seconds, after the last volume command or until another command is received in between.

AV Modes

By pressing the button you can switch your TV to AV modes (except being in Teletext). Pressing this button consecutively will switch the TV in one of the optional AV modes: AV-1, AV-2, AV-3, S-VIDEO, PC.

In order to quit the AV mode press the "IV", digit buttons or "-P/CH" or "P/CH+".

Signal Out Of Range

When the PC input signal is not supported by LCD-TFT TV, a message is displayed like "Signal out of range" and screen is blanked.

Signal out of range

If no valid signal detected for 5 minutes system goes to Stand-By mode.

PC MODE

Installation

• Power off both Computer and Display before making any connections.
• Connect end of the signal cable to the 15-pin connector on the rear of the Computer.

• Tighten the screws of the Display cable until the connectors are fastened securely (finger-tighten only).
  If you are using Windows operating system running on a PC with a Microsoft Plug & Play compatible video card, your system will select the appropriate timing for your monitor.

Switching from TV to PC

Press "PC" button to switch directly to PC mode.

Main Menu in PC mode:

Enter the main menu by pressing the "M" button on the remote control.

Sound Menu

In the main menu select "Sound" by using or button then enter the Sound menu by pressing , or OK buttons. The items in this menu are described at Sound menu starting page 11.

Picture Menu

In the Main menu, select "Picture" by using or button, then enter the Picture menu by pressing , or OK buttons.

All adjustment in this menu except Picture Mode is identical to adjustment defined TV picture menu starting on page 14. Picture Mode can be set to Auto, 4:3 and 16:9 in PC mode.

Feature Menu:

In the main menu select "Feature" by using "△" or "▼" button then enter the Feature menu by pressing "▲", "▼" or "OK" buttons.

The items in this menu are described at Feature menu starting page 16.

Geometry Menu:

Geometry menu is not available when there is no valid PC signal.

In the Main menu, select "Geometry" by using "△" or "按钮, then enter the Geometry menu by pressing "√", "or "OK" buttons.

Adjust the required horizontal or vertical position or Hsync Phase by "buttons.

You can make position adjustment directly by Auto position.

Select Auto position by “ ” or “ ” buttons and press “ ” or “ ” button.

"Wait" is displayed at the bottom of the menu. After a few seconds screen geometry is adjusted automatically.

Warning: Auto position adjustment is recommended to be done with the full screen image for the proper adjustment.

To store this menu setting select "Store" by "△" or "▽" buttons and then press "OK" button, "Stored" will be displayed for few seconds at the bottom of menu.

Source Menu:

In the Main menu, select "Source" by using "△" or "▼" button, then enter the Source menu by pressing "◁", "▷" or "OK" buttons.

Select the available sources of TV, AV-1, AV-2, AV-3, S-Video or PC by pressing " ", "D" or "OK" buttons.

Teletext

Teletext is an information system that displays text on your TV screen. Using the Teletext information system you can view a page of information on a subject that is available in the list of contents (index).

On screen display is not available in text mode.

Contrast, brightness or colour control is not available, but volume control is available in text mode.

To operate Teletext

• Select a TV station on which Teletext is being transmitted.
• Press (TELETEXT) "按钮. Usually the list of contents (index) is displayed on the screen.

To select a page of Teletext

• Press the appropriate digit buttons for the required Teletext page number.

The selected page number is displayed at the top left corner of the screen. The Teletext page counter searches until the selected page number is located, so that the desired page is displayed on the screen.

• Press "P/CH +" button to move the Teletext screen forward one page at a time.
• Press "P/CH" button to move the Teletext screen backward one page at a time.

To Select Index Page

To select the page number of the index (generally page 100), press "E" button.

To Select Teletext with a TV Programme

• Press " 一 button. The text is now superimposed over the programme on the screen.
• Press " 三 " button again to return to the Teletext page.

To Select Double Height Text

• Press "按钮" button for the top half of the information page to be displayed in double height text.
• Press "按钮" button again for the bottom half of the information page to be displayed in double height text.
• Press "回" button once more for the full page of normal height text.

To Reveal "concealed" Information

• Pressing " " button once will reveal answers on a quiz or games page.
• Pressing "E? button again will conceal the revealed answers.

To Stop Automatic Page Change

The teletext page you have selected may contain more information than what is on the screen; the rest of the information will be displayed after a period of time.

• Press " 品 " button to stop the automatic page change.
• Press "按钮 again to allow the next page to be displayed.

To Select a Subcode Page

Subcode pages are subsections of long Teletext pages that can only be displayed on the screen one section at a time.

• Select the required Teletext page.

• Press "按钮。

• Select the required subcode page number by pressing four digit buttons (e.g. 0001).

• If the selected postcode page is not displayed in a short time, press " R " button. TV programme will be displayed on the screen.
• Teletext page number will be displayed on the upper left corner of the screen when the selected page is found.
• Press " l button to display the selected Teletext page.

Fastext

(This is applicable if your TV is equipped with FASTEXT feature)

Your TV supports the 7 page Teletext system. When the page number of any of the 7 pages in memory is entered, the system will not search for the requested page; instead it will display the page automatically.

• Press "P/CH +" button to move the Teletext screen forward one page at a time.
• Press “- P/CH” button to move the Teletext screen backward one page at a time.

For Fastext

The subject-heading for the information may have a particular colour.
- Press an appropriate Red, Green, Yellow or Blue button in order to reach the relevant page quickly.

For TOP text

TOP text mode of operation will be activated automatically according to the transmission.

• If TOP text transmission is present, color coded buttons will appear in status row.
• If TOP text transmission is not present, status row will not appear.

The subject-heading for information may be located in colored box.

In TOP mode the "-P/CH" or "P/CH+" commands will request the next or previous page respectively. If TOP text transmission is not available, in case of operation of these commands, wraparound occurs. For example page 100 appears to be one greater than page 199.

To exit Teletext

• Press the " " button. The screen will switch to TV mode.

To Display the Time

• While watching a TV programme with Teletext transmission press button. The current time information, captured from Teletext will be displayed at the upper right of the screen until the "0", "Acr" "M" button pressed.

• If the programme being watched does not have Teletext transmission, no information will be displayed.

PeripheralEquipment Connections

There is a wide range of audio and video equipment that can be connected to your TV. Connection diagrams at the end of this section show you where the different equipment should be connected at the back or right side of the TV.

PC Sound Connection

• Connect the PC Audio output to the TFTPC Audio In socket with stereo connection cable.

• In the main menu select "Feature" by using "△" or "▽" button then enter the Feature menu by pressing "◁", "▷" or "OK" button. Come on "PC Sound Mode" by using "△" or "▽" button and select PC from the TV, AV-1, AV-2, AV-3 and PC options by using ⟨⟩, "▷" or "OK" button.

• Source also should be selected as PC in the main menu.

Via the Euroconnector

Your TV set has 2 Euroconnector sockets. If you want to connect peripherals (e.g. video, decoder, etc.) which have Euroconnectors, to your TV, use SCART input.

If an external device is connected via Euroconnector sockets TV is switched to AV mode automatically. In this case if both sockets are connected, SCART-1 has the precedence.

Via Ant Input

If you want to connect to your TV, peripherals like video recorders or decoders, but the device you want to connect does not have Euroconnector, you should connect it to the ANT input of your TV set.

If the VCR is connected via antenna input it is suggested to use the Programme 0.

Decoder

Cable TV offers you a wide choice of programmes. Most of them are free, others are to be paid for by the viewer. This means that you will need to subscribe to the broadcasting organisation whose programmes you wish to receive. This organisation will supply you a corresponding decoder unit to allow the programmes to be unscrambled.

For further information ask your dealer. See also the booklet supplied with your decoder.

Connect a decoder with an aerial socket to the TV

• Connect the aerial cable.

Connect a decoder without an aerial socket to the TV

• Connect the decoder to your TV with a eurocable (RCA Jack Cable) to EXTERNAL (RCA Jack) (optional). When your decoder has a Euroconnector / RCA Jack you can obtain better picture quality if you connect a eurocable (RCA Jack Cable) to EXTERNAL (RCA Jack)(optional).

TV and Video Recorder

• Connect the aerial cables.

Better picture quality can be obtained if you also connect a euroable to EXTERNAL socket (optional).

Playback NTSC

Connect NTSC VCR player to one of the two Euroconnectors at the back of the TV.

Then, press "AV" button to select AV-1 or AV-2.

Search for and store the test signal of the video recorder

• Unplug the aerial cable from the aerial socket "ANT" of your video recorder.
• Switch on your TV and put the video recorder on the test signal. (See the handbook for your video recorder.)
• Search for the test signal of your video recorder in the same way as you searched for and stored the TV signals. See Install, Search and Store TV channels. Store the test signal under programme number 0.
• Replace the aerial cable in the aerial socket "ANT" of your video recorder once you have stored the test signal.

Camera and Camcorder

To connect to (AV-3) input

Connect your camera or camcorder to the right side of your TV.

• Connect your equipment to the TV via VIDEO (yellow), AUDIO R (red) and AUDIO L (white) inputs. You should connect the jacks to the input in the same colour.

Connect the decoder to the video recorder

Some video recorders have a special euroconnector for decoder.

• Connect a eurocable to the euroconnector of your decoder and to the special euroconnector of your video recorder. See also the handbook of your video recorder.
  To connect your video recorder to the TV, see TV and Video Recorder section.

If you want to connect more equipment to your TV, consult your dealer.

Connecting Headphones

Use the stereo headphone socket on the right side of your TV, to connect headphones.

Connecting the PC

Connect PC monitor with 15-pin PC cable to the 15-pin connector on the rear of the computer. For detail installation procedure see Installation in PC mode.

To connect to S-Video input

Connect your camera or camcorder to the right side of your TV.

• Connect your equipment to the TV via S-Video input at the right side by using S-Video cables.

AntennaConnections

Outdoor Antenna Connections

PeripheralEquipment Connections

PCINPUT TYPICALDISPLAYMODES

The display has a maximum resolution of 1366 × 768 , vertical sync. frequency range of 50-75 Hz and a horizontal sync. frequency range of 30-69 KHz.

The following table is an illustration of some of the typical video display modes.

Mode	Resolution		Frequency
	Horizontal Vertical Hor. (kHz) Ver. (Hz)
1 640 400 31.5 70
2 640 480 31.5 60
3 640 480 37.9 72
4 640 480 37.5 75
5 720 400 31.5 70
6 800 600 35.2 56
7 800 600 37.9 60
8 800 600 48.1 72
9 800 600 46.9 75
10	1024	768 48.4	60
11	1024	768 56.5	70
12	1024	768 60.0	75
13	1280	720 44.8	60
14	1280	768 47.8	60
15	1366	768 47.8	60

The native resolution of the TFT-LCD Panel is 1366 × 768 . Therefore using Mode 15 is advised to get the best PC input display quality.

Tips

Care of the Screen

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the TV screen coating layer

Colors of image on screen are abnormal

For TV:

Have you selected the correct TV system? Is your TV set or house aerial located too close to the loudspeakers, non-earthy audio equipment or neon lights, etc. ?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or Teletext unrecognisable? Check if you have entered the correct frequency.

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

For Monitor:

• Check that Video (Signal) Cable from the Display has been securely and correctly connected to the 15-pin Video Connector on the rear panel of the Computer.
• If you have used an adaptor to convert the 15-pin Video (Signal) Cable Connector from the Display to fit the connector on the rear of the Computer, check the pin assignment of the Display.

No Image on Display Screen

For TV :

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Image means that your TV is not receiving any transmission. Have you pressed the

correct buttons on the remote control? Try once more.

For Monitor :

• Check that power cord of the Display has been connected securely into wall outlet or grounded extension cable or strip.
• Display is equipped with electronic power switch, it will remain power-off in case of any power failure. It is necessary to push power switch again to power-on the display. Check that LED on front of display is green.
• Check that Video (Signal) Cable from the Display has been securely and correctly connected to the 15-pin Video Connector on the rear panel of the Computer.
• Check that Video Card is firmly seated in card slot of Computer motherboard.
• Check that the Brightness and/or the Contrast adjustments of the Display have not been turned down to minimum levels.

Sound

You can not hear any sound. Did you perhaps interrupt the sound, pressing " 品 button? Are external speakers connected to the TV?

Sound is coming from only one of the speakers. Is the balance set to one direction extreme? See Sound menu.

Remote Control

Your TV no longer responds to the remote control. Press the "TV" button on the remote control once more. Perhaps the batteries are exhausted. If so you can still use the buttons on the control panel at the top of your TV.

Have you selected the wrong menu? Press "TV" button to return to TV mode or press "M" button to return to the previous menu.

No solution:

Switch your TV set off and on. If this does not work, switch off, remove the mains plug and call the service personnel; never attempt to repair it yourself.

Specifications

TV BROADCASTING

PAL SECAM B/G D/K I/I

RECEIVINGCHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

CABLE TV (S1-S20/ S21-S41)

CHANNELINDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER

$$ 2 \times 8 W _ {\text {RMS.}} (\% 10 \text {THD}) $$

POWER CONSUMPTION (W) (max.)

136W

$$ < 3 \mathrm {W} (\text {S t a n d - b y}) $$

PANEL

16:9 display, 27" Screen Size

DIMENSIONS (mm)

DIMENSIONS (mm)
DLH			Weight (kg)
245	797	470	12.8	With foot
102	797	440	11	Without foot
