USER MANUAL DTFT 371 DUAL

VCR (Video-Cassette recorder)

PAL/SECAM B/G D/K K' I/I L/L

EMPFANGSKANÄLE

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

KABELFERNSEHEN (S1-S20/ S21-S41)

ANZAHLDERVOREINGESTELLTEN KANÄLE 100

KANALANZEIGE

Bildschirmanzeige

RF-ANTENNENEINGANG

PAL/SECAM B/G D/K I/I L/L

RéCEPTION DE CANAUX:

VHF (BAND I/III)

UHF (BAND U)

HYPER BANDE

CABLE TV (S1-S20/ S21-S41)

NUMERO DES CANAUX PRE-REGLES: 100

INDICATEURDE CANAL

German + Nicam Stereo

PUISSANCE DE SORTIE AUDIO (Wm.) (%10 THD)

2 × 8

CONSOMMATION D'ENERGIE (W)

180W

2,3 W (Veille)

ECRAN

PAL/SECAM B/G D/K K' I/I' L/L'

CANALIRICEVENTI

VHF (BANDA I/III)

UHF (BANDA U)

HYPERBAND

TV VIA CAVO (S1-S20/ S21-S41)

NUMERO DICANALI PREIMPOSTATI

100

INDICATORECANALE

German + Nicam Stereo

Safety Precautions 35

Before Switching On Your TV 37

Power Connection. 37

Connections To The Aerial Input Socket . 37

How To Connect Other Devices 37

Inserting Batteries In The Remote

Control Handset 37

Switching The TV ON/OFF 37

To switch the TV on: 37

To switch the TV off: 37

Initial Settings 38

Initial APS (Automatic Programming

System) 38

Operating The TV 38

Operating with the buttons on the TV set. 38

Operating With Remote Control 38

Menu System 39

Picture menu 39

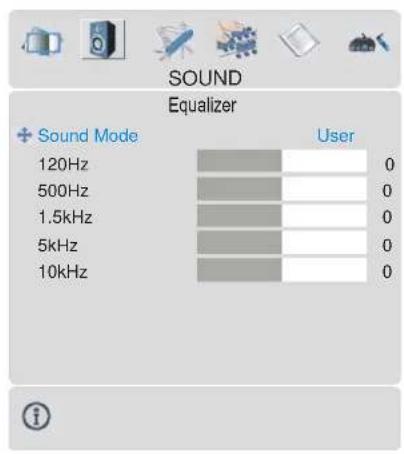

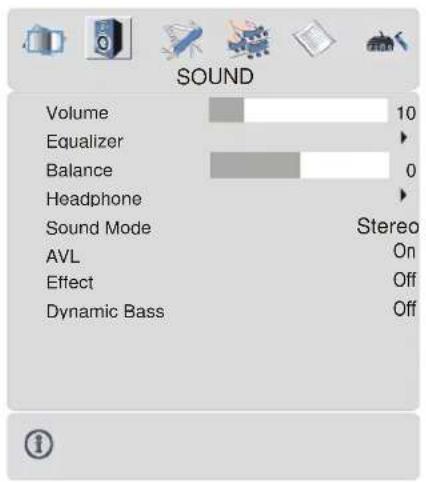

Sound menu 40

Feature menu 42

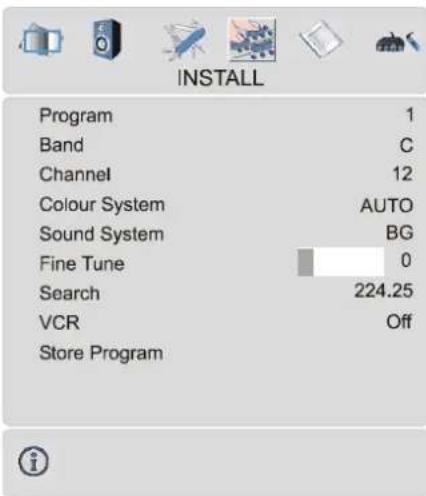

Install menu 43

Program menu 44

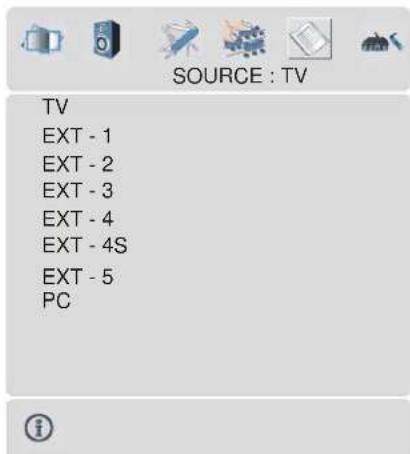

Source menu 45

PC Mode 45

Installation 45

Menu System in PC mode 45

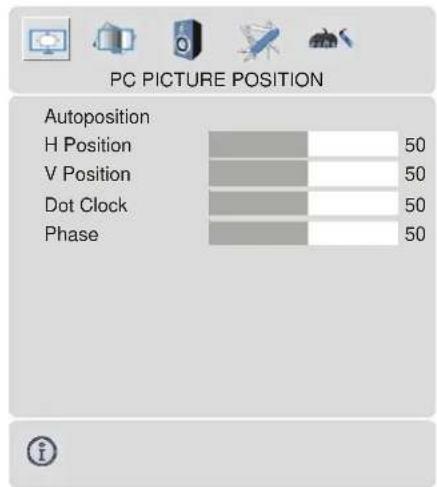

PC Picture Position Menu 45

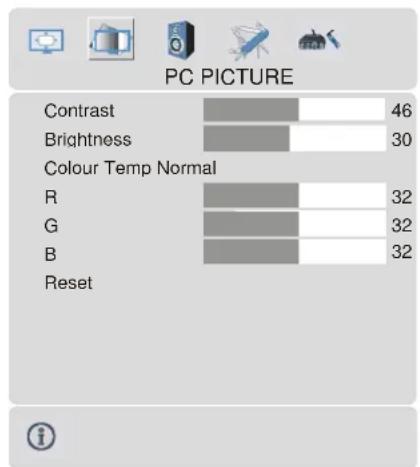

PC Picture Menu 46

Sound Menu 46

Feature Menu 46

Source Menu 46

Sound in PC mode 46

Other Features 47

TV Status. 47
Mute Indicator 47
PIP and PAP modes 47
Freeze Picture. 47
Zoom Modes 48

Teletext 49

To Operate Teletext. 49
To Select A Page Of Teletext 49
To Select Index Page. 49
To Select TeletextWithATV Programme. 49
To Select Double Height Text 49
To Reveal "Concealed" Information ...49
To Stop Automatic Page Change.....49
To Select A Subcode Page 49
To Exit Teletext 50
To Display The Time 50
Fastext 50

Connect Peripheral Equipment 50

High Definition. 50
Via The Scart 50
ViaAerial Input 50

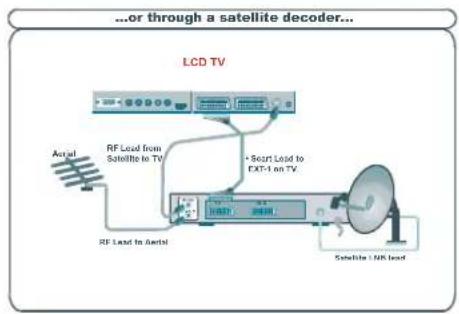

Decoder. 51
TV And Video Recorder. 51
Playback NTSC 51
Copy Facility 51
Search For And Store The Test
Signal Of The Video Recorder. 51

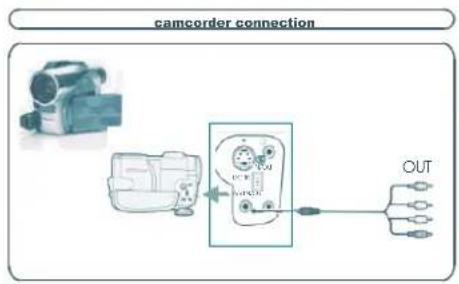

Camera And Camcorder 51
EXT-2 S Mode 51
Connect The Decoder To The Video
Recorder. 52
Connecting Headphones. 52
Connecting External Equipment 52

Tips 52

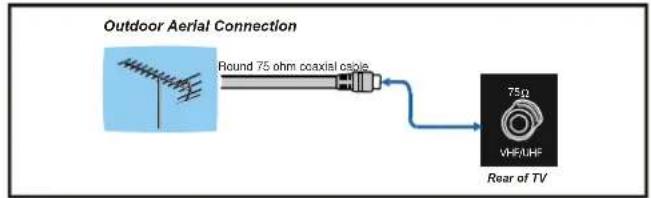

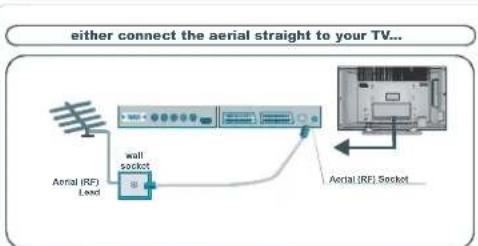

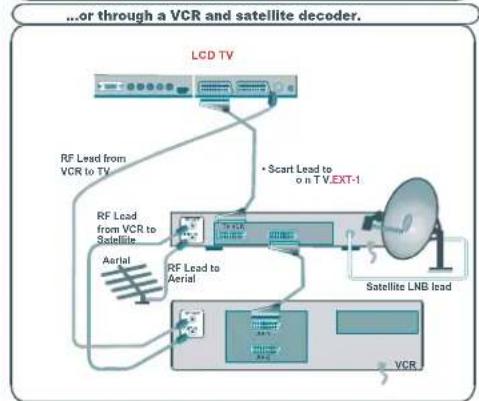

Aerial Connection 53

PC Input Typical Display Modes 54

Specifications 55

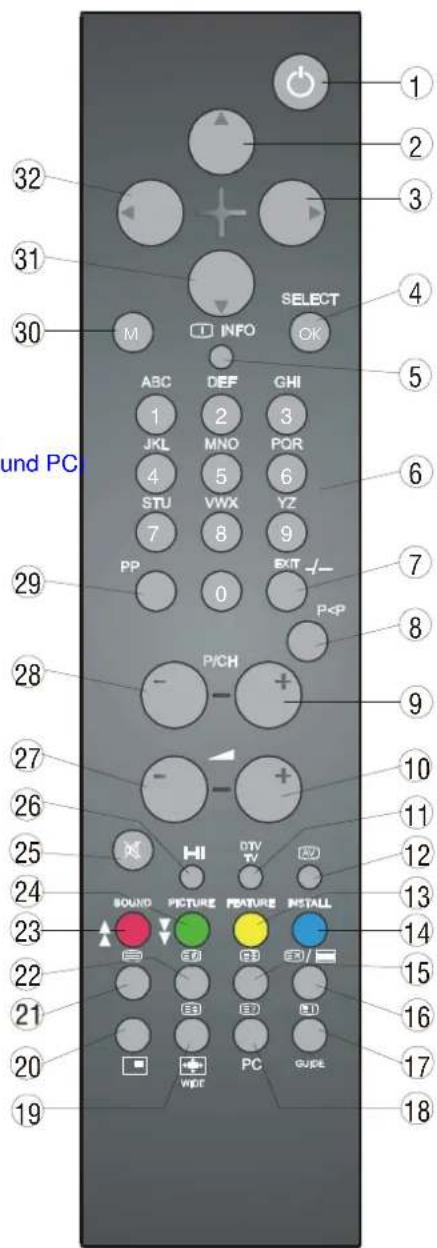

Remote Control Buttons

1 = Stand By
2 = Cursor Up
3 Cursor Right
OK/SELECT=Confirm/Freeze Image
5 INFO=Info
6 0-9=DirectProgramme
7-/-/EXIT not used
8 P < P = VorhergehendesProgramm
9 P/CH + = Previous Programme
10 + =Programme Up
11 DTV / TV = TV / Quit Menu
12 AV = Source Select

(EXT-1,EXT-2,EXT-3,EXT-4,EXT-4S,EXT-5 und PC

13 Yellow (FEATURE) = Call Function Menu
14 Blue (INSTALL)= Call Programming Menu
15 = Stop Videotext
16 = Update Videotext, PAP-Mode
17GUIDE Indexpage Videotext
18 ① =Show，PC=CallPCMode
19 = Enlarge Videotext,

WIDE = Picture format change

20 PIP On/Off
21 = Teletext
22 = Clock
23 Red (SOUND) / = Call Sound Menu
24 Green (PICTURE) Call Picture Menu
25 = Sound off (Switch to Mute)
26 I-II = Mono/Stereo - Dual A-B
27 -decreaseVolume
28 - P/CH = Programme Down
29 PP = Picture Mode Selection
30 M = Main menu
31 = Cursor down
32 = Cursor Left

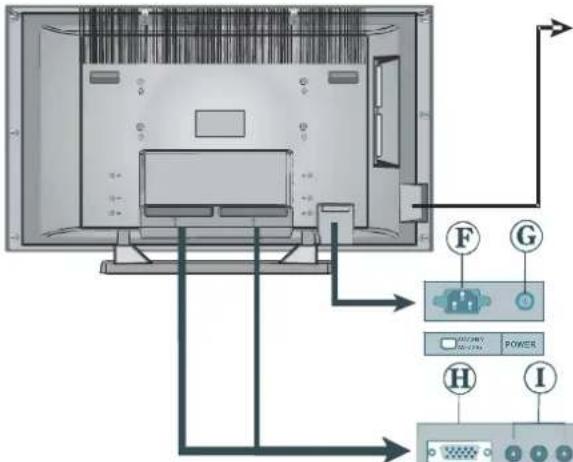

LCD TV

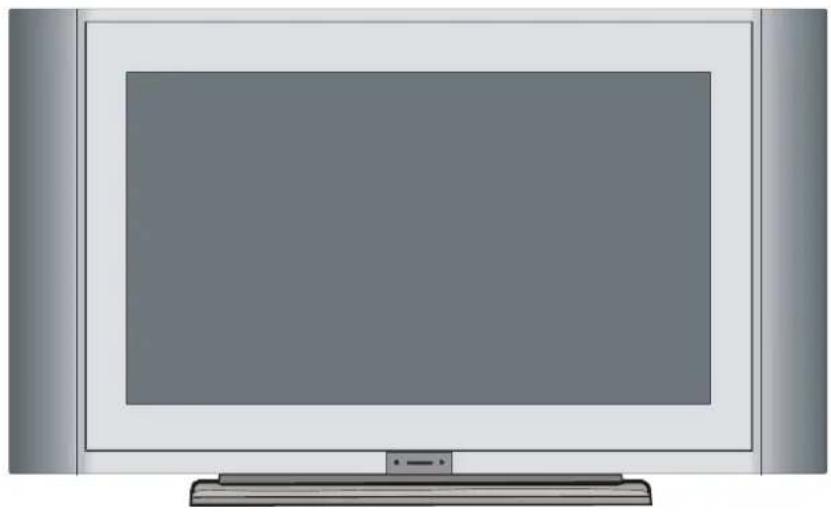

FRONT VIEW

S-VHS Input EXT-4S
B Video Input
Audio Inputss
Audio Line Out
E Headphone
Power cord input
G Power On/Off switch
VGA Input
① Component Video (YPbPr) Inputs
① Component Audio Inputs
HDMI-Input (EXT-5)
1Scart 2 (EXT-2)
M Scart 1 (EXT-1)
Aerial
① PCAudio Input

D

E

A

H ① J K

0000

10 4=

L M N 0

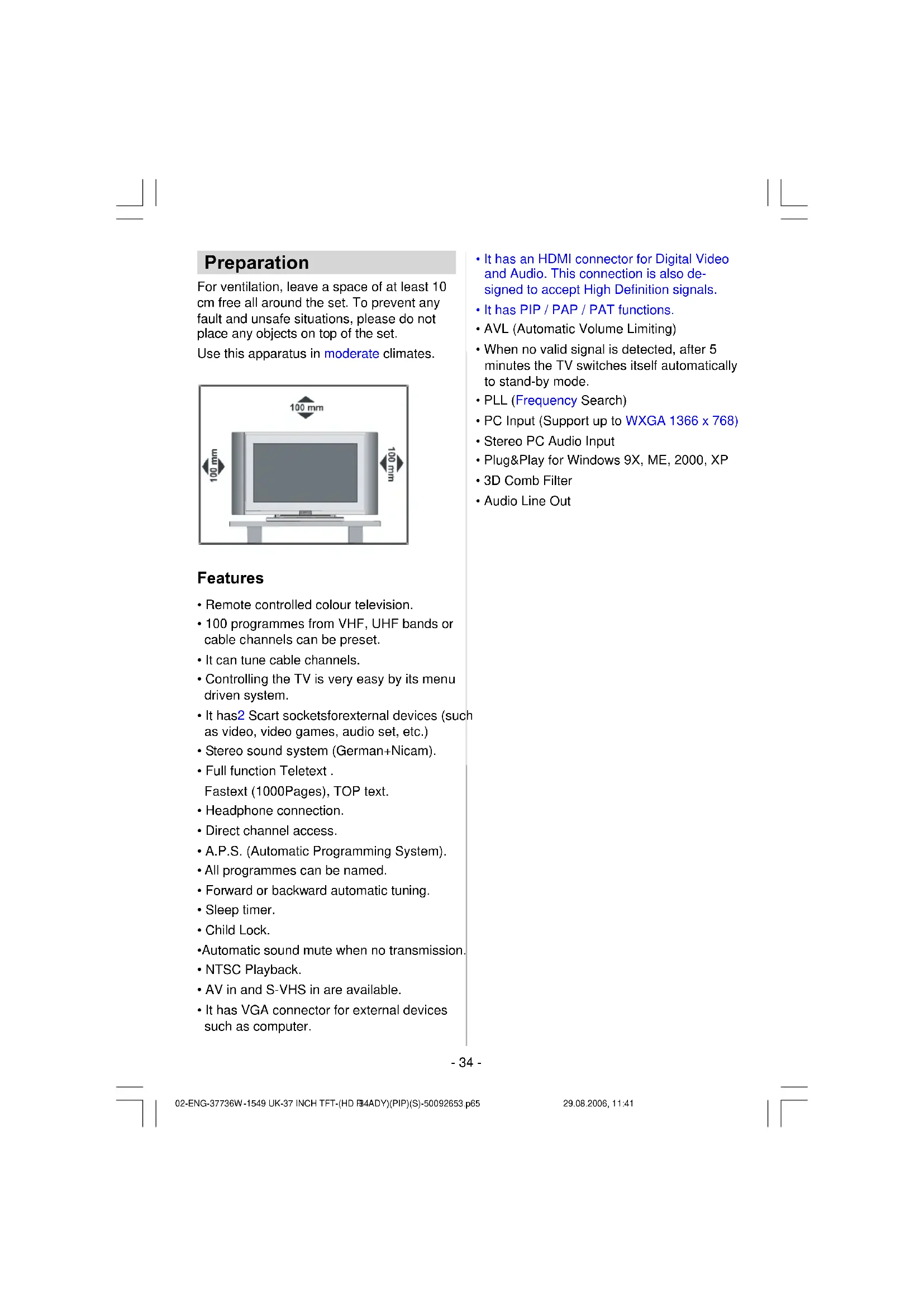

Preparation

For ventilation, leave a space of at least 10 cm free all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.

Use this apparatus in moderate climates.

Features

• Remote controlled colour television.
  100 programmes from VHF, UHF bands or cable channels can be preset.
• It can tune cable channels.
• Controlling the TV is very easy by its menu driven system.
• It has 2 Scart socketsforexternal devices (such as video, video games, audio set, etc.)
• Stereo sound system (German+Nicam).
  Full function Teletext.

Fastext (1000Pages), TOP text.

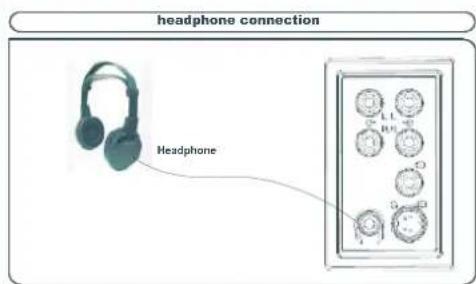

• Headphone connection.
• Direct channel access.
  A.P.S. (Automatic Programming System).
• All programmes can be named.
• Forward or backward automatic tuning.
• Sleep timer.
• Child Lock.
  Automatic sound mute when no transmission.
• NTSC Playback.
• AV in and S-VHS in are available.

• It has VGA connector for external devices such as computer.

• It has an HDMI connector for Digital Video and Audio. This connection is also designed to accept High Definition signals.

• It has PIP / PAP / PAT functions.
  AVL (Automatic Volume Limiting)
• When no valid signal is detected, after 5 minutes the TV switches itself automatically to stand-by mode.
• PLL (Frequency Search)
• PC Input (Support up to WXGA 1366 x 768)
• Stereo PC Audio Input
  Plug&Play for Windows 9X, ME, 2000, XP
  3D Comb Filter
  Audio Line Out

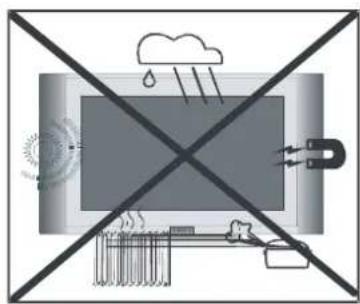

SafetyPrecautions

Please read the following recommended safety precautions carefully for your safety

1. Power Source

The set should be operated only from a 220-240V AC, 50Hz outlet. Ensure you select the correct voltage setting for your convenience.

2. Power Cord

Do not place the set,a piece of furniture,etc. on the power cord(mains lead) or pinch the cord.Handle the power cord by the plug.Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock.Never make a knot in the cord or tie it with other cord.The power cord should be placed in such a way that they are not likely to be stepped on.

A damaged power cord can cause fire or give you an electric shock. When it is damaged and need to be changed, it should be done by qualified personnel.

3. Moisture and Water

Do not use this equipment in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this equipment to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases on top of the set. Avoid from dripping or splashing.

If any solid object or liquid falls into the cabinet, unplug the set and have it checked by qualified personnel before operating it any further.

4. Cleaning

Before cleaning, unplug the set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.

5. Ventilation

The slots and openings on the back cover are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.

6. Heat and Flames

The set should not be placed near to naked flames and sources of intense heat, such as an electric heater. Ensure that no naked flame sources, such as lighted candles, are placed on top of the set.

7. Lightning

In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.

8. Replacement Part

When replacement parts are required, be sure the service technician has used replacement parts which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

9. Servicing

Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.

WARNING: When the device is not in use for a long time, disconnect from power.

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
• Battery, including those which is heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environmentally sound manner. Find out about the legal regulations which apply in your area.
• Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury, please follow local ordinates or regulations for disposal.
  The mains plug is used to disconnect the TV from the mains and therefore it shall remain readily operable.

Warning: To prevent injury, this device must be securely attached to the floor/wall in accordance with the installation instructions.

Notes regarding the use of the equipment

• Avoid frequently displaying the same image. static content has been displayed for a relatively long period of time, it is advisable to view a moving image for a period at least twice as long as the previous image was displayed.

• Avoid frequently displaying the 4:3 format on your screen. If an image in 4:3 format has been displayed for a relatively long period of time, it is advisable to view a full-screen image for a period at least twice as long as the previous format was displayed.

• Teletext content as well as superimposed OSDs should not be displayed for long periods of time.

• Donotconstantlyleavetheimage infreezemode or on pause(e.g. in the caseof DVDplayers).
• Trailers should not be shown for long periods of time.

"The LCD panel is very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the

screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product."

"DO NOT LEAVE YOUR TV AT STAND-BY OR OPERATING WHEN YOU LEAVE YOUR HOUSE"

Be sure to ground the connection properly.

Connect the ground terminal of TV with the ground terminal provided at the power outlet using the enclosed power cord. If the provided plug does not fit your outlet, consult an electrician for replacement of the obsolete outlet.

Surely connect the ground wire.

A NOTE ON RECYCLING

The packaging materials for this device are recyclable and can be reused. Please dispose of any materials in accordance with the regional laws on environmental protection.

Please pay attention to the disposal regulations applicable locally when disposing of the device. Batteries should never be discarded or incinerated, but should instead be disposed of in accordance with the regional guidelines for chemical waste.

Before Switching On Your TV

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.

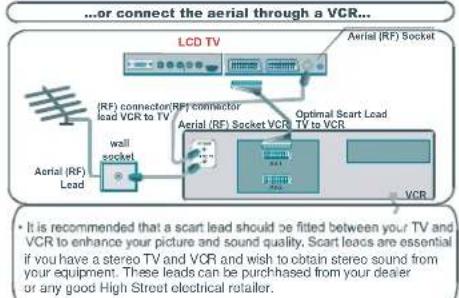

Connections To The Aerial Input Socket

• Connect the aerial orcableTV plug to theAerial input socket located at the rear of the TV and

connect the cable plug coming out from the TVPress a digit button on the remote control so out socket located on the devices (VCR,DVB-T that a programme number is selected, etc.) to this socket as well. or.

How To Connect Other Devices

IMPORTANT: Switch off the TV before connecting any external device.

Sockets for external connections are at the rear side of the TV. For connection of other devices via Scart refer to the manuals of the related devices.

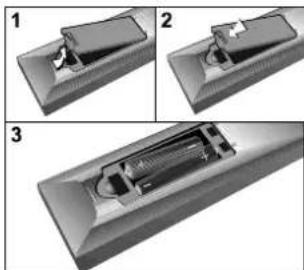

Inserting Batteries In The Remote Control Handset

• Remove the battery cover located on the back of the handset by gently pulling downwards from the indicated part.
• Insert two AA/R6 or equivalent type batteries inside. Place the batteries in the right directions.
• Replace the battery cover.

NOTE: Remove the batteries from remote control handset when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries.

Switching The TV ON/OFF

To switch the TV on:

Your TV will switch on in two steps:

1- Connect the power supply cord to the system. Press Power On/Off switch ① located by the mains input socket. Then the TV switches itself to stand-by mode and the LED on the front of the TV becomes RED.
2- To switch on the TV from stand-by mode either:

Press a digit button on the remote control so that a programme number is selected,

or,

Press "O", "+P/CH" or "P/CH-" button at the top of the TV or press the "O", "-P" or "P+" button on the remote control, so that last mode switched off is selected.

By either method the TV will switch on and the LED is BLUE.

To switch the TV off:

• Press the "O (stand-by)" button on the remote control, so the TV will switch to standby mode and the LED will become RED.

To power down the TV completely, press On/Off switch ①

or,

Unplug the power cord from the mains socket.

Initial Settings

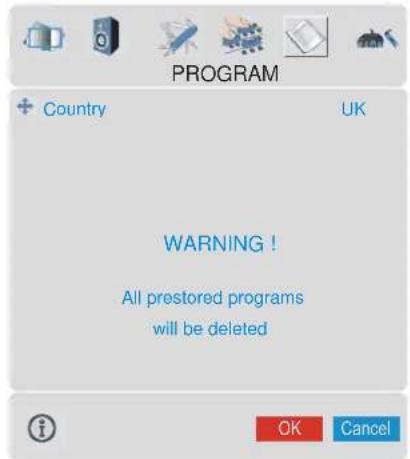

Initial APS (Automatic Programming System)

The following menu will be displayed on the screen when you turn your TV on for the first time. APS, searches and sorts all channels and stores them automatically on your TV, according to the tran smi ssi o n of programme systems in your area.

Language Country

English UK

PLEASE CHECK ANTENNA CABLE AUTO.PROGRAMMING SYSTEM

AUTO PROGRAM

First of all choose Language and Country by using / and / buttons. This will affect the sort process in APS. To start APS, press the RED or "OK" button.

After APS is finalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.

If you do not accept the locations and / or the programme names of programmes, you can change them from the Program Menu. (See page 44)

Operating The TV

You can operate your TV using both the remote control handset and the buttons on the set.

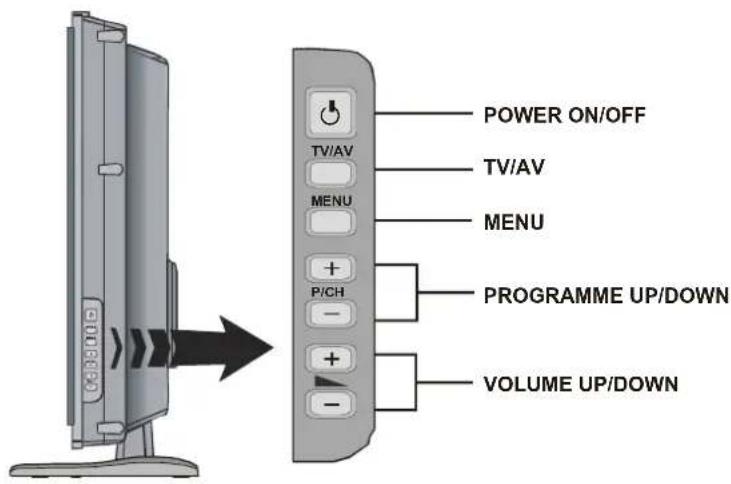

Operating with the buttons on the TV set

Volume setting and programme selection can be made by using the buttons on the control panel at the top of the TV.

Volume Setting

Press the "VOLUME -" button to decrease volume or the "+" VOLUME" button to increase volume, so a volume level scale (slider) will be displayed at the bottom of the screen.

Programme Selecting

Press the "+"P/CH" button to select the next programme or the "P/CH-" button to select the previous programme.

Entering The Menu

Press the "MENU" button on the control panel at the top of the TV to enter the menu.

^ +P / CH^ / PCH^ and "VOLUME -" / "+" VOLUME" buttons on the TV are used as navigation buttons in the menu.

AV Mode

Press the "TV / AV" button on the control panel at the top of the TV to switch your TV to EXT modes.

Operating With Remote Control

The remote control handset of your TV is designed to control all the functions of your TV. The functions will be described in accordance with the menu system of your TV.

Functions of the menu system are described in Menu System section.

Volume Setting

Press the "V +" button to increase volume. Press the "-V" button to decrease volume. A volume level scale (slider) will be displayed at the bottom of the screen.

Programme Selecting

(Previous or next programme)

• Press the " - P" button to select the previous programme.
• Press the "P +" button to select the next programme.

Programme Selecting (direct access):

Press digit buttons on the remote control handset to select programmes between 0 and 9. The TV will switch to the selected programme after a short delay.

• For a two-digit programme number enter the second digit after pressing the first digit within 2 seconds.

Menu System

Your TV has been designed with a menu system to provide easy manipulation of a multifunction system.

Press the "M" button to enter the menu. Press / button to select a menu title and then / button to select a menu item and / or OK button to enter the menu item.

You can access the menus directly by pressing the coloured buttons on the remote control:

Red Button

Sound Menu

Green Button

Picture Menu

Yellow Button

Feature Menu

Blue Button

Install Menu

• Press the "M" or 10 button to return to the previous menu.

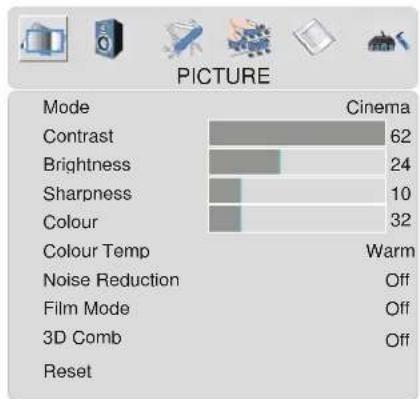

Picture menu

By pressing / button, select the first icon. Picture menu appears on the screen.

PAL 50Hz

Mode

By pressing / button, select Mode. Press / button to choose one of these options: Natural, Cinema and Dynamic.

Picture Mode can be directly changed via pressing the "PP" button on the remote control.

Contrast

By pressing / button, select Contrast. Press button to increase contrast. Press button to decrease contrast. Contrast level can be adjusted between 0 and 63.

Brightness

By pressing / button, select Brightness. Press button to increase brightness. Press button to decrease brightness. Brightness level can be adjusted between 0 and 63.

Sharpness

By pressing / button, select Sharpness. Press button to increase sharpness. Press button to decrease sharpness. Sharpness level can be adjusted between 0 and 31.

Colour

By pressing / button, select Colour. Press button to increase colour. Press button to decrease colour. Colour level can be adjusted between 0 and 99.

Hue

This item is displayed in picture menu when the TV receives an NTSC signal. By pressing / button, select Hue. Press button to increase hue level. Press button to decrease hue level. Hue level can be adjusted between -31 and 31.

Colour Temp

By pressing / button, select Colour Temp. Press / button to choose one of these options: Cool, Normal and Warm.

Noise Reduction

This item is used to reduce the image noise and improve the picture quality at weak signals.

By pressing / button, select Noise Reduction. Press / button to set Noise reduction level to Off, Low, Medium or High.

Film Mode

Films are recorded at a different number of frames per second to normal television programmes.

By pressing / button, selectFilm Mode. Press / button to set this feature On or Off. Turn this feature on when you are watching films to see the fast motion scenes clearly.

3D Comb

3D Comb is used to improve colour transitions and colour quality of pictures.

By pressing / button, select 3D Comb. Press / button to set this feature On or Off.

Reset

By pressing / button, select Reset. Press / or "OK" button to reset the picture modes to factory default settings.

Sound menu

By pressing / button, select the second icon. Sound menu appears on the screen.

Volume

By pressing / button, select Volume. Press button to increase volume level. Press button to decrease volume level. Volume level can be adjusted between 0 and 63.

Equalizer

By pressing / button, select Equalizer. Press / or "OK" button to enter equalizer menu.

In equalizer menu the sound mode can be changed to User, Pop, Rock, Jazz, Flat and Classic by pressing / button. Equalizer menu settings can be changed only when Sound Mode is User. Select the desired frequency by / button and increase or decrease the frequency gain by pressing / button.

Press the "M" button to return to the previous menu.

Balance

By pressing / button, select Balance. Press button to increase balance to the right. Press button to increase balance to the left. Balance level can be adjusted between -31 and 31.

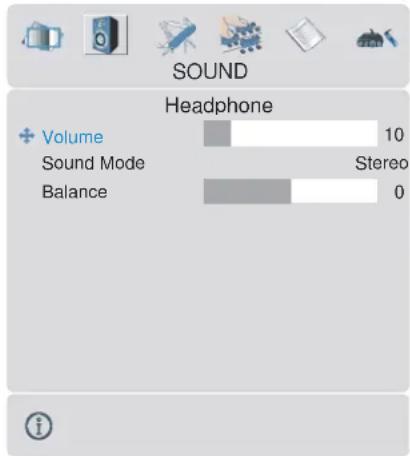

Headphone

By pressing / button, select Headphone. Press / or "OK" button to enter hedphone menu.

volume

By pressing / button, select Volume. Press button to increase hp volume level. Press button to decrease hp volume level. Headphone volume level can be adjusted between 0 and 63.

sound mode

By pressing / button, select Sound Mode. Press / button to change sound mode.

Sound mode is used to identify sound mode of the headache and can be set to mono, stereo, dual a or dual b according to the transmission.

balance

By pressing / button, select Balance. Press button to increase balance to the right. Press button to decrease balance to the left. Balance level can be adjusted between -31 and 31.

Press the "M" button to return to the previous menu.

Sound Mode

By pressing / button, select Sound Mode. Press / button to change the mode.

You can select Mono, Stereo, Dual A or Dual B mode, only if the selected channel supports that mode.

In case of bilingual broadcast (Dual Sound), you can select original or dubbed language using mode option.

AVL

Automatic Volume Limiting (AVL) function adjusts the sound to obtain fixed output levels between programs, having different sound levels.

Pressing / button will turn this feature on or off.

Effect

You can use this feature to switch the sound effect on or off. If the current sound system is Mono and the sound effect is switched on, then the sound will be heard as if it is Stereo. If the current sound system is Stereo, switching this effect on will give a more spatial effect.

Pressing / button will turn this feature on or off.

Dynamic Bass

Dynamic Bass is used to increase bass effect of the TV set.

By pressing / button, select Dynamic Bass. By pressing / button set Dynamic bass to Low, High or Off. It is not recommended to select High if listening at high volume levels.

Feature menu

By pressing button, select the third icon. Feature menu appears on the screen.

Sleep Timer

Off

Child Lock

Off

Language

English

Ext-2 Out

EXT-1

Default Zoom

Panoramic

Menu Background

Translucent

Menu Timeout

30 sec

Teletext Language

West

Sleep Timer

By pressing / button, select Sleep Timer. The timer can be programmed between Off and 2 hours in steps of 10 minutes by pressing / button. If sleep timer is activated, at the end of the selected time, the TV automatically goes into stand-by mode.

Child Lock

You can use this feature to prevent children from turning the TV on or changing programmes or adjustments etc. without remote control.

The child lock feature can be set by / button to either On or Off. When Off is selected, there will be no difference in the operation of your TV. When On is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons, except the Power on/off button, at the rear side of the TV will not work. If one of these buttons is pressed, "Child Lock On" will be displayed on the screen.

Language

By pressing / button, select Language. By pressing / button, you can select the language.

Ext-2 Out

By pressing / button, select Ext-2 Out. You can set Ext-2 Out to TV,EXT-1,EXT-3, EXT-4,EXT-5 or PC by pressing button. Note: Only audio output is available for EXT3,EXT-5 and PC.The other options have both audio and video outputs.

DefaultZoom

By pressing / button, select Default Zoom. You can set Default Zoom to Panoramic, 4:3 or 14:9 Zoom by pressing / button.

If there is no WSS or aspect ratio (picture size) information and zoom mode is selected as Auto by pressing the "WIDE" button, then the zoom mode will automatically change to Default Zoom setting. See also Zoom Modes on page 48.

Menu Background

By pressing / button, select Menu Background. You can change menu background to Translucent or Opaque by pressing / button.

Menu Timeout

By pressing / button, select Menu Timeout. Press / button to change menu timeout to 15 sec, 30 sec or 60 sec.

Teletext Language

By pressing / button, select Teletext Language. Press / button to change Teletext Language to West, East, Cyrillic, Turk/Gre or Arabic. This will normally be set to West for Western Europe.

Install menu

By pressing / button, select the fourth icon. Install menu appears on the screen.

Program

By pressing / button, select Program. Press / button to select the program number. You can also enter a number via digit buttons on the remote control. There are 100 program storage between 0 and 99.

Band

Band can be selected either "C" or "S" by pressing / button.

Channel

Channel can be changed by / button or Digit Buttons.

Colour System

By pressing / button, select Colour System. Press / button to change the colour system to PAL, SECAM, PAL60 or AUTO.

If Sound System is set to I, SECAM is not available for the Colour System.

Note: In EXT mode, you can choose NTSC 3.58 and NTSC 4.43 as well.

Sound System

By pressing / button, select Sound System. Press / button to change the sound system to BG, DK, I, L or LP.

Fine Tune

By pressing / button, select Fine Tune. Press / button to adjust the tuning.

Search

By pressing / button, select Search. Press / button to start program searching. The searching will stop when a signal is found. You can also enter a frequency value directly by pressing the digit buttons.

VCR (Video Cassette Recorder)

• This item can be seen in all modes except EXT-3, EXT-5 and PC.
• If you want to watch a VCR source from one of these modes, then it will be better to set VCR mode "on". For this, while the cursor is on this item press the / buttons to set it "On".
  If you want to watch a DVD, then you must set this item "Off".

Store Program

By pressing / button, select Store Program. Press / or "OK" button to store the adjustments. "Program Stored" will be displayed on the screen.

Program menu

By pressing / button, select the fifth icon. Program menu appears on the screen.

01 ITV	11 C-43
02 ZDF	12 C-64
03 CH5	13 C-88
04 C-02	14 S-40
05 C-05	15--------
06 C-06	16--------
07 C-08	17--------
08 C-21	18--------
09 C-23	19--------
10 C-35	20--------

By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except the AV mode).

By cursor action, programme selection is done automatically.

Name:

To change the name of a decided programme, select the programme and press the RED button.

The first letter of the selected name starts to blink. Press / button to change that letter and / button to select the other letters. By pressing the RED button, you can store the name.

Insert:

Select the programme which you want to insert by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again.

Delete:

To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the programmes below shift one up.

APS (Automatic Programming System)

When you press the BLUE button for APS, the following warning screen will be displayed.

Press the BLUE button to cancel APS if you do not want to delete your existing programme list.

To continue APS, first select the country by pressing / button and then press the RED or "OK" button.

After APS is finalized, the programme table will appear on the screen.

Source menu

By pressing / button, select the sixth icon. Source menu appears on the screen.

In source menu, highlight a source by pressing / button and switch to that mode by pressing / or "OK"button.

PCMode

Installation

• Power off both Computer and Display before making any connections.
• Set your PC's resolution correctly before connecting to the TV. See the table on page 54 for supported modes.
• Use a D-SUB cable to connect the TV's PC input to the computer's RGB output terminal.

• Tighten the screws of the Display cable until the connectors are fastened securely (finger-tighten only).

In TV mode, you can directly enter the PC mode via pressing the PC button.

Menu System in PC mode

Press the "M" button. The menu will be displayed in the middle of the screen.

PC Picture Position Menu

By pressing / button, select the first icon. PC Picture Position menu appears on the screen.

Autoposition

If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically.

• Select Autoposition item by using / buttons.
• Press or "OK" button.

Warning: Auto position adjustment recommended to be done with the full screen image for the proper adjustment.

H (Horizontal) Position

This item shifts the image horizontally to right hand side or left hand side of the screen.

• Select H Position item by using / button.
• Use / button to adjust the value.

V (Vertical) Position

This item shifts the image vertically towards the top or bottom of the screen.

• Select V Position item by using / button.
• Use / button to adjust the value.

Dot Clock

Dot Clock adjustments correct interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
- Use / button to adjust the value.

Phase

Depending on the resolution and scan frequency that you input to the TV Set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
- Use / button to adjust the value.

PC Picture Menu

By pressing / button, select the second icon. PC Picture menu appears on the screen.

Contrast, Brightness and Colour Temperature adjustments in this menu are identical to adjustments defined in TV picture menu.

When Colour Temp is Manual, you can also adjust the R,G,B items. R, G and B adjust the TV image colour in PC mode. You can change the TV colour to your desired colour: R (Red), G (Green), B (Blue)

Select Reset and press / or "OK" button to reset the picture modes to factory default settings.

Sound Menu

By pressing / button, select the third icon. Sound menu appears on the screen.

The items in this menu are described at Sound menu starting page 40.

Feature Menu

By pressing / button, select the fourth icon. Feature menu appears on the screen. The items in this menu are described at Feature menu starting page 42.

Source Menu

By pressing / button, select the fifth icon. Source menu appears on the screen.

In source menu, highlight a source by pressing / button and switch to that mode by pressing / or "OK" button.

Sound in PC mode

• Connect the PC's Audio output to the TV's PC Audio In socket with an audio cable.

Other Features

TV Status

Programme Number, Programme Name, Sound Indicator and Zoom Mode are displayed on the upper right side of the screen when a new programme is entered, button is pressed.

Mute Indicator

It is placed in the upper left side of the screen when enabled.

To cancel mute, there are two alternatives; the first one is pressing the button and the second one is increasing/decreasing the volume level.

PIP and PAP modes

Press the button to switch to PIP mode. At PIP Mode, a small picture (PIP picture) is displayed on the main picture. There are 1 size and 4 positions (upper left, upper right, bottom left and bottom right)(optional) available for the PIP window. You can use button to change the PIP position. Aspect Ratio of the PIP window is fixed and 4:3.

When PIP Mode is entered, the default active window is PIP window and the active window is indicated by a white frame around it. The active window can be changed by pressing / button. The status info OSD belongs to active window. The place of the status OSDs are same for both windows.

By pressing "P+" or "-P" button or directly entering the channel number, you can watch the channel you want at the active window.

Press the AV button to select the source for active window.

Press "M" button to see the main menu in PIP mode. Items change due to the case

whether the active window is PIP window or main window.

You can see the available sources in source menu.

Press the button again to exit the PIP mode.

Press the button to switch to PAP mode.

At PAP Mode, two pictures with equal sizes are displayed on the screen. Aspect Ratios of the windows are fixed.

When you switch to PAP Mode, Main window in PAP Mode is displayed on the right side of the screen. The active window can be changed by pressing / button.

By pressing "P+ or "-P" button or directly entering the channel number, you can watch the channel you want at the active window.

Press the AV button to select the source for active window.

Press "M" button to see the main menu in PAP mode. Items change due to the case whether the active window is PAP window or main window.

You can see the available sources in source menu.

In PAP mode:

Press the teletext ( 電 ) button to display the teletext page of the channel at the main window. It is displayed at the left window. Press the teletext ( 電 ) button or TV (TV) button to exit from teletext.

Press the button again to exit the PAP mode.

Freeze Picture

You can freeze the picture on the screen by pressing the OK button. At PIP and PAP layouts; only the main picture can be frozen.

Zoom Modes

Zoom mode can be changed by pressing the WIDE button. You can change the screen size according to the picture aspect ratio. Select the optimum one from the following ZOOM modes.

Note: You can only choose 4:3 and FULL in PC mode.

Auto:

When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.

• When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.

Full:

This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen.

• For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the Full mode to restore the picture to its original shape.

Cinema:

This zooms up the wide picture (16:9 aspect ratio) to the full screen.

16:9 Subtitle:

This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.

"Default Zoom" Modes:

4:3

Use to view a normal picture (4:3 aspect ratio) as this is its original shape.

14:9 Zoom:

This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.

Panoramic:

This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen, without making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

Teletext

Teletext is an information system that displays text on your TV screen. Using the Teletext information system you can view a page of information on a subject that is available in the list of contents (index).

To Operate Teletext

• Select a TV station where Teletext is being transmitted.

• Press the button. Usually the list of contents (index) is displayed on the screen.

To Select A Page Of Teletext

• Press the appropriate digit buttons for the required Teletext page number.

The selected page number is displayed in the top left corner of the screen. The Teletext page counter searches until the selected page number is located, the desired page is then displayed on the screen.

• Press the or "P +" button to move the Teletext screen forward one page at a time.
• Press the or " - P" button to move the Teletext screen backward one page at a time.

To Select Index Page

To select the page number of the index (generally page 100), press the button.

To Select Teletext With A TV Programme

• Press the 2 button. The text is now super-imposed over the programme on the screen.

• Press the button again to return to the Teletext page.

To Select Double Height Text

• Press the button for the top half of the information page to be displayed in double height text.
• Press the button again for the bottom half of the information page to be displayed in double height text.
• Press the button once more for the full page of normal height text.

To Reveal "Concealed" Information

• Pressing the button once will reveal answers on a quiz or games page.
• Pressing the button again will conceal the revealed answers.

To Stop Automatic Page Change

The teletext page you have selected may contain more information than what is on the screen; the rest of the information will be displayed after a period of time.

• Press the button to stop the automatic page change.
• Press the button again to allow the next page to be displayed.

To Select A Subcode Page

Subcode pages are subsections of long Teletext pages that can only be displayed on the screen one section at a time.

• Select the required Teletext page.
• Press the button.
• Select the required subcode page number by pressing four digit buttons (e.g. 0001).
  If the selected subcode page is not displayed in a short time, press the × button. TV programme will be displayed on the screen.

• Teletext page number will be displayed on the upper left corner of the screen when the selected page is found.

• Press the x button to display the selected Teletext page.

To Exit Teletext

• Press the button. The screen will switch to TV mode.

To Display The Time

While watching a TV programme with Teletext transmission press the button. The current time information, captured from Teletext will be displayed on the screen.
- If the programme being watched does not have Teletext transmission, no information will be displayed.

Fastext

Your TV supports the 1000 page Teletext system. When the page number of any of the 1000 pages in memory is entered, the system will not search for the requested page; instead it will display the page automatically. If the requested page is not in memory, the system will search for the requested page number and save the 1000 pages including the requested page into memory after finding it.

• Press the button to move the Teletext screen forward one page at a time.
• Press the button to move the Teletext screen backward one page at a time.

For Fastext

The subject-heading for the information may have a particular colour.
- Press an appropriate RED, GREEN, YELLOW or BLUE button in order to reach the relevant page quickly.

For TOP text

TOP text mode of operation will be activated automatically according to the transmission.
- If TOP text transmission is present, colour coded buttons will appear in status row.
- If TOP text transmission is not present, status row will not appear.

The subject-heading for information may be located in coloured box.

In Top mode the or commands will request the next or previous page respectively. If TOP text transmission is not available, in case of operation of these commands, wraparound occurs. For example page 100 appears to be one greater than page 199.

Connect Peripheral Equipment

There is a wide range of audio and video equipment that can be connected to your TV. The following connection diagrams show you where the different (Optional) equipment should be connected at the rear side of the TV.

High Definition

Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI socket (EXT-5) or Component Socket (EXT-3). These sockets can accept either 720p or 1080i signals.
Note: For proper connection of a device to HDMI input of your TV via using a DVI-to-HDMI cable, use PC Audio In input for sound connection.

Via The Scart

LCD TV has 2 Scart sockets. If you want to connect peripherals (e.g. video, decoder, etc.) which have Scart sockets to the TV, use SCART 1 or SCART 2.
If an external device is connected via the Scart sockets, the TV will be switched to AV mode automatically.
- Do not connect Digital Set Top Box devices via Scart 1. Use Scart 2.

Via Aerial Input

If you want to connect to your TV, peripherals like video recorders or decoders, but the device you want to connect does not have a Scart socket, you should connect it to the Aerial input of the TV.

If the VCR is connected via Aerial input it is suggested to use Programme 0.

Decoder

Cable TV offers you a wide choice of programmes. Most of them are free, others are to be paid for by the viewer. This means that you will need to subscribe to the broadcasting organisation whose programmes you wish to receive. This organisation will supply you a corresponding decoder unit to allow the programmes to be unscrambled.

For further information ask your dealer. See also the booklet supplied with your decoder.

Connect a decoder with an aerial socket to the TV

• Connect the aerial cable.

Connect a decoder without an aerial socket to the TV

• Connect the decoder to the TV with a Scart cable to SCART 1.

TV And Video Recorder

• Connect the aerial cables.

Better picture quality can be obtained if you also connect a Scart cable to SCART sockets.

Playback NTSC

To use this option you can;

• Connect an NTSC VCR player to a Scart socket at the rear side of the TV.
• Connect an NTSC VCR player to RCA Jacks at the side of the TV.

Then, press AV button to select appropriate source.

Copy Facility

Source selection for VCR recording.

• Select Feature menu.
• Select Ext-2 Out by pressing / button.
• Select a source to copy the picture from that source.

Search For And Store The Test Signal Of The Video Recorder

• Unplug the aerial cable from the aerial socket of your video recorder.
• Switch on your TV and put the video recorder on the test signal. (See the booklet for your video recorder.)
• Enter the Install menu and select search.
• Search for the test signal of your video recorder in the same way as you searched for and stored the TV signals. Store the test signal under programme number 0.
• Replace the aerial cable in the aerial socket of your video recorder once you have stored the test signal.

Camera And Camcorder

To Connect To AV Input

Connect your camera or camcorder to AV (EXT-4) input at the right side of the TV.

• Connect your equipment to the TV viaVIDEO (yellow), AUDIO R (red) and AUDIO L (white) inputs. You must connect the jacks to the input using the same colour.

To Connect To S-VHS Input

Connect your camera or camcorder S-VHS input (EXT-4S) at the right side of the TV.
- Connect your equipment to the TV via S-VHS input and audio inputs of AV inputs by using S-VHS cables.

EXT-2 S Mode

If the equipment connected to your TV set supports S-Video (Y/C) output from Euroconnector, you can have a better picture quality by selecting EXT-2 S mode and connecting your equipment to the EXT.2 (EXT-2 S) terminal of TV. See your equipment's booklet to check if your equipment has such feature.

Connect The Decoder To The Video Recorder

Some video recorders have a special Scart socket for decoder.

• Connect a Scart cable to the Scart socket of your decoder and to the special Scart socket of your video recorder. Refer to the booklet of your video recorder.
  To connect your video recorder to the TV, refer to the TV and Video Recorder section.

If you want to connect more equipment to your TV, consult your dealer.

Connecting Headphones

Use the stereo headphone socket at the right side of the TV, to connect headphones.

Connecting External Equipment

To connect audio amplifiers or home theatre systems to your TV, use the Audio Line Outs of the TV.

Tips

Care Of The Screen

Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the TV screen coating layer.

Poor Picture

Have you selected the correct TV system? Is your TV set or house aerial located too close to non-earthy audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial.

Is the picture or Teletext unrecognisable? Check if you have entered the correct frequency.

The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.

No Picture could mean that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more.

Sound

You can not hear any sound. Did you perhaps interrupt the sound, pressing the button?

Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound menu.

Remote Control

Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV.

Have you selected the wrong menu? Press the button to return to TV mode or press the "M" button to return to the previous menu.

No solution:

Switch your TV set off and on. If this does not work, call the service personnel; never attempt to repair it yourself.

Aerial Connection
Connect Peripheral Equipment

PC Input Typical Display Modes

The display has a maximum resolution of 1366 × 768 , vertical sync. frequency range of 56-85 Hz and a horizontal sync. frequency range of 30-69 KHz.

The following table is an illustration of some of the typical video display modes.

Mode Resolution Frequency
	Horizontal Vertical Hor.(kHz) Ver.(Hz)
1 640	400 31,5 70
2 640	480 31,5 60
3*	848	480	31 60
4 640	480 37,9 72
5 640	480 37,5 75
6 640	480 43,3 85
7 800	600 35,2 56
8 800	600 37,9 60
9 800	600 48,1 72
10	800 600 46,9 75
11	800 600 53,7 85
12	1024	768 48,4 60
13	1024	768 56,5 70
14	1024	768	60 75
15	1024	768 68,7 85
16	1152	864 67,5 75
17	1280	1024	64 60
18*	1280	768 47,8 60
19*	1280	768 56,1 70
20	1366	768 47,7 60

*Only available in Full and PAP modes,not in 4:3 mode

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

RECEIVINGCHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

CABLE TV (S1-S20/ S21-S41)

NUMBER OF PRESET CHANNELS 100

CHANNELINDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German+Nicam Stereo

AUDIO OUTPUT POWER (W_RMS) (%10 THD)

2 × 8

POWER CONSUMPTION (W)

180W

2,3 W (Stand-by)

PANEL

16:9 display, 37^ (82 cm) Screen Size

DIMENSIONS (mm)

DIMENSIONS (mm)
DLH			Weight (kg)
250	1062	646	21,2	With foot
128	1062	607	19,4	Without foot
