CB 148 - Coffee machine BOMANN - Free user manual and instructions

Product Type	Filter Coffee Machine
Brand	Bomann
Model	CB 148
Power Supply	230 V, 50 Hz
Water Tank Capacity	Approx. 1.25 L (10 cups)
Functions	Delayed programming, automatic shut-off after 2 h, hot plate, anti-drip system, permanent filter, water level indicator
Display	Digital with time display and timer
Filter Type	Permanent nylon filter (paper filter size 1x4 possible)
Dimensions (approx.)	25 x 20 x 30 cm
Weight (approx.)	2 kg
Care and Cleaning	Descaling with citric acid-based product; clean the body with a damp cloth; wash the glass carafe and filter holder with soapy water
Safety	Do not open the lid during operation, hot plate is hot, do not immerse in water, overcurrent protection
Warranty	24 months
Spare Parts and Repairability	Original accessories recommended; repair by qualified technician; power cord replaceable only by the manufacturer or service center

Frequently Asked Questions - CB 148 BOMANN

How to set the time on the Bomann CB 148 coffee machine?

To set the time, press the PROG button once until "CLOCK" is displayed. Use the HOUR button for hours and MIN button for minutes. To exit, press PROG twice or wait 10 seconds.

How to program a delayed start?

Press the PROG button twice until "TIMER" is displayed. Set the start time using the HOUR and MIN buttons. Then prepare the coffee (water, ground coffee), and press the ON/OFF button twice to activate the automatic mode (green AUTO light on). The machine will start at the programmed time.

What to do if the coffee drips slowly or the machine takes longer than usual?

This indicates that descaling is necessary. Use a commercially available citric acid-based descaling product. Follow the product instructions to descale the machine.

Can I use paper filters in this machine?

Yes, you can remove the permanent nylon filter using the handle and place a paper filter size 1x4 in the filter holder.

How to clean the Bomann CB 148 coffee machine?

Always unplug the appliance and let it cool before cleaning. Clean the body with a slightly damp cloth. Wash the glass carafe and filter holder with soapy water. Do not use abrasive cleaners.

Why does water flow from the machine even without the carafe?

Your machine is equipped with an anti-drip system. If you remove the carafe during brewing, the system stops the flow. If water flows, ensure the carafe is correctly placed under the filter.

Does the hot plate stay on after brewing?

Yes, the hot plate keeps the coffee warm as long as the switch is in position "1". The appliance turns off automatically about 2 hours after the end of brewing.

Can I use the appliance without the timer?

Yes, you can use it in manual mode. After preparing the machine (water, coffee), press the ON/OFF button once to start immediately. The red RUN light turns on.

How to turn off the machine manually?

Press and hold the ON/OFF button until both lights (red and green) turn off.

What is the warranty period and what to do in case of a problem?

The warranty is 24 months from the date of purchase. In case of a defect, return the complete appliance with original packaging and receipt to your dealer. Repairs after warranty are chargeable.

USER MANUAL CB 148 BOMANN

Exterior view of a modern coffee maker with clear glass lid and control knob (no visible text or symbols)

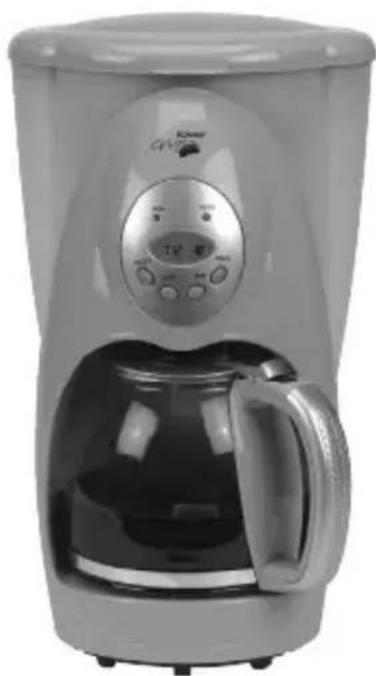

Exterior view of a modern coffee maker with a glass pitcher and control panel (no visible text or symbols)

CB 147/CB 148

CE

D

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Measures for this Machine

• Only fill the water tank with cold water!
• Never open the lid of the water tank while the water is being boiled. Danger of scalding.
• The hot plate and the coffee pot become very hot. DANGER OF SCALDING!

First Use of the Machine

- Remove all the packaging and transport protections from the device. Wipe all the parts with a moist cloth to remove all the dust that may have deposited on and in the device during transport. Then mount the device again by proceeding in the opposite order.

- Carry out 2 or 3 cycles with cold water only to clean the device before brewing the first cup of coffee.

Electrical Connection

• Make sure that the machine is switched off (operating switch on „0“).
- Before inserting the mains lead into the socket, check whether the voltage you intend to use complies with that of the machine. For details see the machine label.
- Only connect the machine to a properly installed safety socket, 230 V/50 Hz.

Operation for models without a timer (CB 147)

1. Pull the lid of the water tank forwards. Fill the machine to the level corresponding to the number of cups required with cold water.
2. As your machine has a permanent nylon filter, you can fill the coffee powder directly into the nylon filter (approx. 1 teaspoon for 2 cups).
3. The nylon filter can be removed by the clip and a paper filter (size 1 x 4) inserted into the filter funnel.
4. Please close the lid of the water tank.
5. Place the pot evenly on the base. Please ensure that the lid is on the pot.
6. Your appliance is provided with a drip stop. By removing the pot, before the water runs through the filter completely, it avoids that the coffee drips on the base. If there is still water in the tank or filter, make sure that the pot is placed back under the filter to avoid overflowing.
7. Move the switch to the „1“ position. The coffee takes approximately 10 - 15 minutes to boil. When no more coffee is running into the pot it can be removed.
8. If you would like to keep the remaining coffee warm, the switch must remain in the „1“ position. The hot plate will keep the coffee warm until you switch the machine „0“.

Switching Off

The machine is switched off when the switch is in the „0“ position.

Operation for models with a timer (CB 148)

Set the time (24h):

• Press the PROG button once. "CLOCK" appears in the display.
  Set the hours: press the "HOUR" button.
  Set the minutes: press the "MIN" button.
• In order to leave the adjustment mode press the PROG button twice or wait for 10 seconds.

Set the switching time (24h):

• Press the PROG button once. "TIMER" appears in the display.
  Set the hours: press the "HOUR" button.
  Set the minutes: press the "MIN" button.

GB

- In order to leave the adjustment mode press the PROG button once or wait for 10 seconds.

1. Continue as described under "Operation for models without a timer" items 1 to 6. Press the ON/OFF button once. The red RUN light (for immediate percolation) illuminates and the device is switched on. If you have programmed the device, press the ON/OFF button twice. The green LED lights up next to AUTO (automatic). The device switches itself on at the set time (the red light is on).
2. The unit switches itself off automatically about two hours after the brewing.
3. The unit is switched off when both LEDs are off.
4. If you wish to switch the unit off manually or to deactivate the timer, press the ON/OFF button repeatedly until both LEDs go out.

Descaling

• Descaling is necessary when the time needed to prepare coffee becomes considerably longer.
• Only commercially available descaling products based on citric acid should be used.

Cleaning

• Before cleaning the machine you should always remove the mains lead and wait until the machine has cooled down. The machine should only be cleaned with a slightly damp cloth.
• Do not use any strong detergents or solvents for cleaning. The coffee pot and the filter pad should be cleaned by rinsing in cold water.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
