Product Type	Portable battery-powered stereo amplifier
Brand	Roland
Model	Mobile BA
Nominal Output Power	2.5 W + 2.5 W
Speakers	10 cm (4 inches) × 2
Power Supply	6 AA alkaline batteries (LR6) or AC adapter (optional, PSB series)
Battery Life (alkaline)	Approx. 15 hours (continuous)
Audio Inputs	MIC (6.35 mm jack), LINE (2 × 6.35 mm jacks L/MONO, R), PC/AUDIO (stereo mini-jack, phono RCA)
Headphone Output	PHONES jack (stereo mini-jack)
Special Functions	Center Cancel (vocal suppression), Mic Echo (reverb/echo), Anti-Larsen
Controls	MIC, LINE, PC/AUDIO volume; TONE (treble/bass); Mic Echo
Microphone Stand Mount	Compatible with mic stands (9.5 mm and 15 mm), max. height 125 cm, min. spread 63 cm
Dimensions (W × D × H)	280 × 108 × 177 mm
Weight (including batteries)	2.5 kg
Supplied Accessories	Strap, 6 AA alkaline batteries, owner's manual
Options (sold separately)	PSB series AC adapter
Power Consumption (with adapter)	175 mA
Maintenance and Cleaning	Soft, dry cloth; do not use solvents
Safety	Do not disassemble; use only the specified adapter; avoid moisture and shock
Repairability	Contact your dealer or an authorized Roland service center

Frequently Asked Questions - Mobile BA ROLAND

What is the battery life of the Roland Mobile BA?

With six AA alkaline batteries (LR6), the battery life is approximately 15 hours of continuous use. This duration may vary depending on the batteries and usage conditions.

How do I activate the Center Cancel function to remove vocals from a song?

Press the CENTER CANCEL switch on the top panel. This will minimize centered sounds (such as vocals) from sources connected to the PC/AUDIO jacks, ideal for karaoke.

Can I connect a microphone to the Mobile BA?

Yes, use the MIC jack (6.35 mm mono) on the side panel. Adjust the volume with the MIC VOLUME knob.

How do I mount the Mobile BA on a microphone stand?

Remove the mic stand adapter (if necessary for a 15 mm stand) and screw on the stand holder (9.5 or 15 mm hole). Ensure the stand is stable and that its height (with the unit) does not exceed 125 cm and the leg spread is at least 63 cm.

What should I do if the sound is distorted or the volume is insufficient?

First check that the batteries are sufficiently charged (replace them if necessary). Make sure all volume knobs are not pushed to maximum and connections are correct. If the problem persists, reduce the volume of the connected source.

Can I use headphones with the Mobile BA?

Yes, plug headphones with a stereo mini-plug into the PHONES jack on the side panel. When headphones are plugged in, the speakers are muted.

How do I connect a smartphone or computer?

Use the PC/AUDIO jacks: stereo mini-jack (for smartphone, tablet) or phono RCA jacks (for CD player). Adjust the volume with the PC/AUDIO VOLUME knob.

What AC adapter can I use?

Use only the PSB series AC adapter (sold separately). Using any other adapter may damage the unit.

How do I clean the Mobile BA?

Use a soft, dry or slightly damp cloth. Never use benzine, thinner, alcohol, or solvents which could discolor or deform the unit.

What should I do if there is humming or feedback?

The Anti-Larsen function is always active to suppress acoustic feedback. If the problem persists, change the microphone direction, move it away from the speakers, or lower the volume.

USER MANUAL Mobile BA ROLAND

White electronic guitar with visible grille and buttons (no text or symbols on body)

Roland

BATTERY POWERED STEREO AMPLIFIER

MOBILE BA

Owner's Manual

Bedienungsanleitung

Mode d'emploi

Manuale dell'utente

Manual del usuario

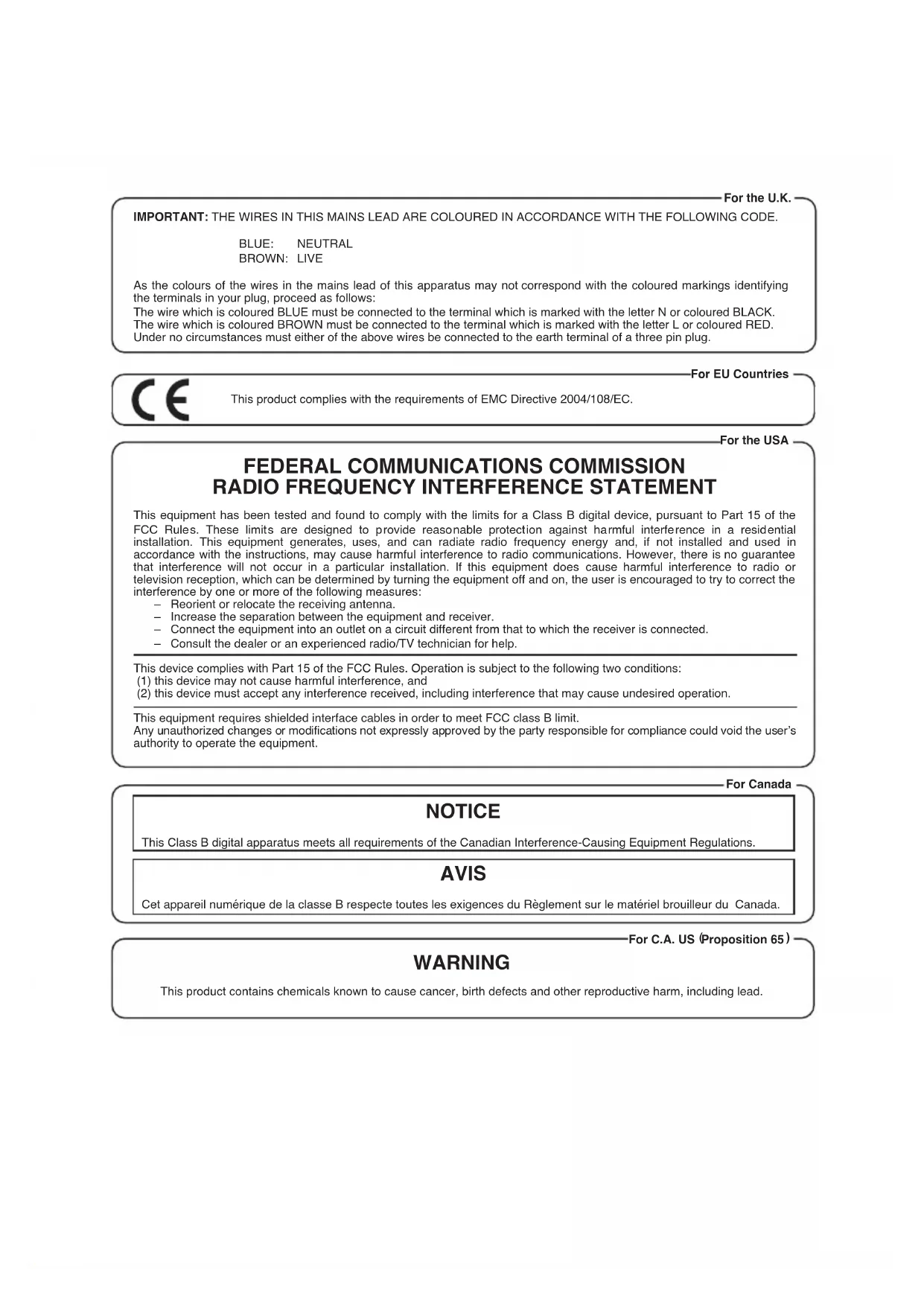

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.

-For EU Countries

This product complies with the requirements of EMC Directive 2004/108/EC.

For the USA

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment requires shielded interface cables in order to meet FCC class B limit.

Any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

AVIS

This product contains chemicals known to cause cancer, birth defects and other reproductive harm, including lead.

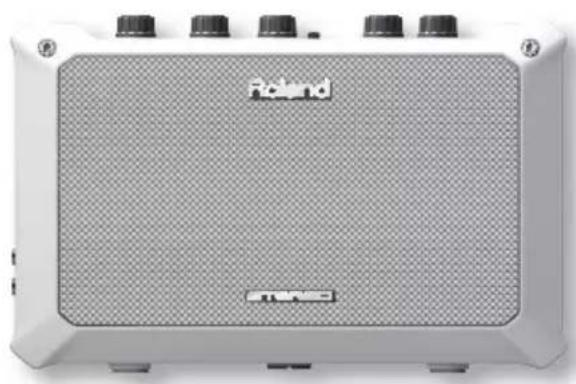

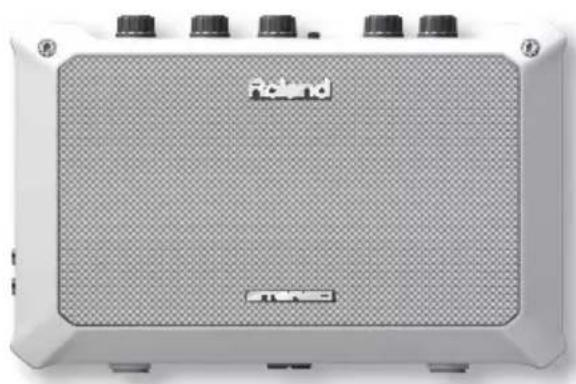

Front view of a white electronic device with black buttons and a textured grille (no visible text or symbols)

Roland

Owner's Manual

BATTERY POWERED STEREO AMPLIFIER

MOBILE BA

Easy portability

• A compact stereo amp with two 10 cm (4-inch) speakers and 5 W (2.5 W + 2.5 W) output power.
• Six alkaline batteries (AA, LR6) allow approximately 15 hours of operation, letting you use the unit anywhere.
• A dedicated strap is included for convenient portability.

Useable in a variety of situations

• In addition to microphone input and line input, the unit also provides for PC/AUDIO input. This allows you to conveniently connect personal computers, a variety of digital audio playback devices (including smartphones), and CD players. The lightweight, battery-powered MOBILE BA is ready to perform almost anywhere, whether it be at the office, a school or college, or outdoors. And, with three different kinds of input, it can accept almost any device you want to connect to it.
• You can use a commercially available mic stand to position the MOBILE BA at an ideal height for monitoring or for use as a simple PA system.

In the office In the classroom Outdoors

Illustration of a classroom lecture with a presenter at a podium and students seated, facing a world map on the wall (no text or symbols visible)

Illustration of a woman speaking at a podium with four seated people, set against a mountainous background (no text or symbols)

Use for vocal lessons or karaoke

• The MOBILE BA provides a Center Cancel function, which lets you remove the vocal from a song played back by your music CD or digital audio player. At the simple touch of a button, you can create a minus-one song—a feature that is eminently useful for vocal lessons or karaoke.
• Also built-in is a Mic Echo function, which adds great-sounding ambience to your vocals.

Getting Ready

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (p. 11; p. 14). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

Attaching the Strap

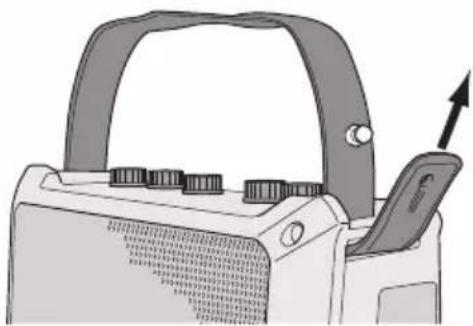

1. Pass the strap through the strap holder.

Illustration of a handheld electronic device with a handle and a scroll, showing internal components (no text or symbols)

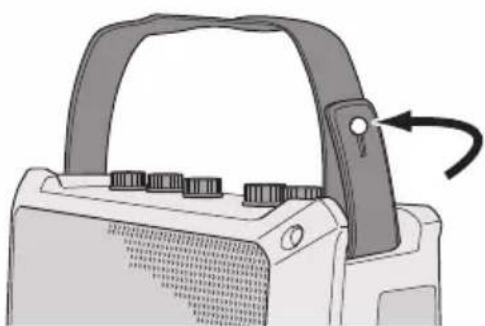

1. Secure the strap to the strap pin.

Diagram of a handheld electronic device with a handle and internal components, showing a curved arrow indicating rotation (no text or symbols present)

NOTE

• Use only the provided strap.
• Attach the strap securely so that it does not easily become detached. If the strap is loose, and you use it that way when carrying the MOBILE BA, the amp could be dropped, possibly resulting in damage or injury.
• Do not spin or swing the MOBILE BA while holding it by the strap. This is extremely dangerous, as it may cause the strap to become detached; or, if the motion is repeated enough, may even break the strap.
• The included strap is meant for exclusive use with the MOBILE BA. Do not use this strap for other products.

Installing the Batteries

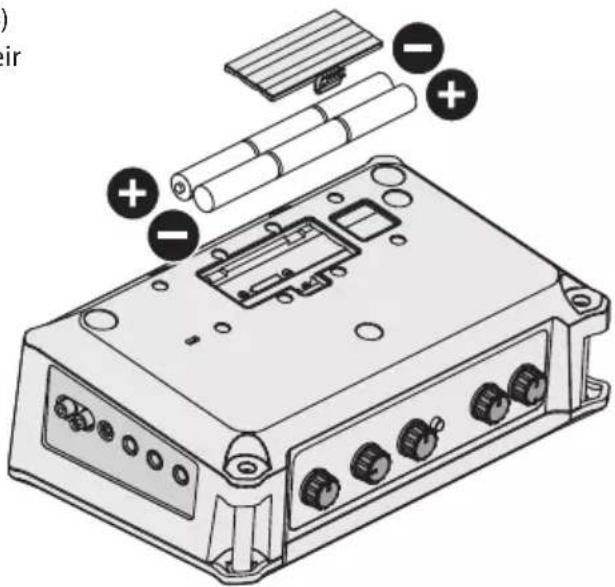

Insert the included six alkaline batteries (AA, LR6) as shown in the illustration, making sure that their polarity is correct.

NOTE

• When closing the lid of the battery compartment, first insert the catches on the lid into the matching cavities, then push the lid down firmly until you hear a click.
• Incorrect handling of batteries can cause leakage, overheating, fire, or explosion. Before use, you must read and strictly observe all of the precautions that accompany the batteries.
• Carefully follow the installation instructions for batteries, and make sure you observe the correct polarity.
• Avoid using new batteries together with used ones. In addition, avoid mixing different types of batteries.
• Remove the batteries whenever the unit is to remain unused for an extended period of time.
• Never keep batteries together with metallic objects such as ballpoint pens, necklaces, hairpins, etc.
  • Used batteries must be disposed of in compliance with whatever regulations for their safe disposal that may be observed in the region in which you live.
• If operating this unit on batteries, please use alkaline batteries.
• If operating this unit on batteries, please disconnect the AC adaptor from this unit.
  • Expected battery life under continuous use: Alkaline (AA, LR6): approximately 15 hours
  * These figures will vary depending on the specifications of the batteries and the actual conditions of use.

MEMO

If you want to use an AC adaptor (sold separately), refer to p. 6.

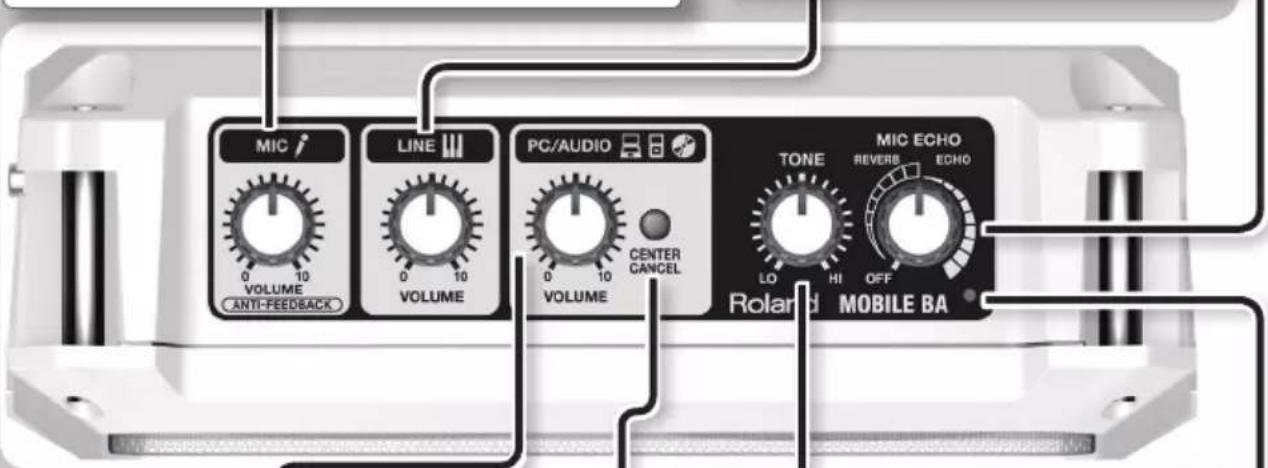

Panel Descriptions

Top Panel

■ Adjusting the volume

[MIC VOLUME] knob

This knob adjusts the volume of the microphone.

The anti-feedback function (p. 7) suppresses the occurrence of acoustic feedback.

[LINE VOLUME] knob

This knob adjusts the volume of the device connected to the LINE jacks.

[PC/AUDIO VOLUME] knob

This knob adjusts the volume of the device connected to the PC/AUDIO jacks (stereo mini-jack and RCA phono jacks).

* If you want to independently adjust the volume of the devices connected to the stereo mini-jack and the RCA phono jacks, adjust the volume on the devices themselves.

■ Adjusting the brightness of the sound

[TONE] knob

This knob adjusts the brightness of the sound that's output by the MOBILE BA. Turning the knob toward the right will brighten the sound; turning it toward the left will produce a milder tone.

■ Eliminating the vocal (Center Cancel)

[CENTER CANCEL] switch

When playing back a song from a device connected to the PC/AUDIO jacks, pressing this switch to turn it on will minimize sounds (e.g., vocals) heard from the center of the stereo field. This allows you to enjoy karaoke using commercially available music CDs.

OFFON

* For some stereo sources, it may not be possible to obtain a sufficient cancellation effect.
* If you're using a digital audio player, the sound may not play back correctly, depending on how the source was compressed.

Power indicator

This indicator lights when the unit is turned on.

* When operating on battery power only, the unit's indicator will become dim during play when battery power gets too low. Replace the battery as soon as possible.

Applying an echo to sound from the microphone

[MIC ECHO] knob

You can apply echo to the sound from the microphone.

Turning the knob toward the right will apply increasing amounts of reverberation. The left half of the knob's range (OFF-center) will apply a natural-sounding reverb; the right half will apply a repeating echo that is ideal for karaoke.

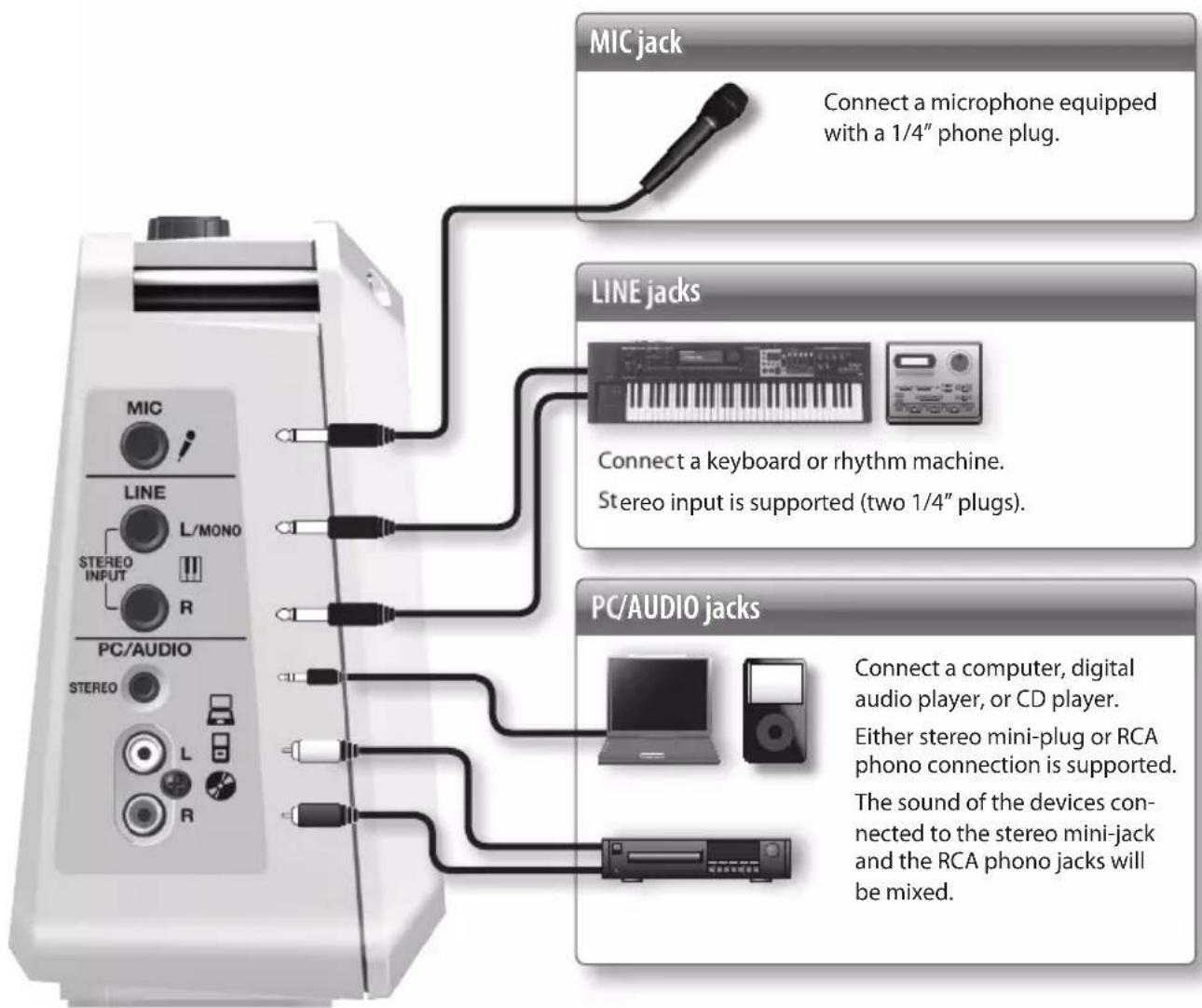

Side Panel (Connecting Your Equipment)

NOTE

To prevent malfunction and equipment failure, always turn down the volume, and turn off all the units before making any connections.

Side Panel

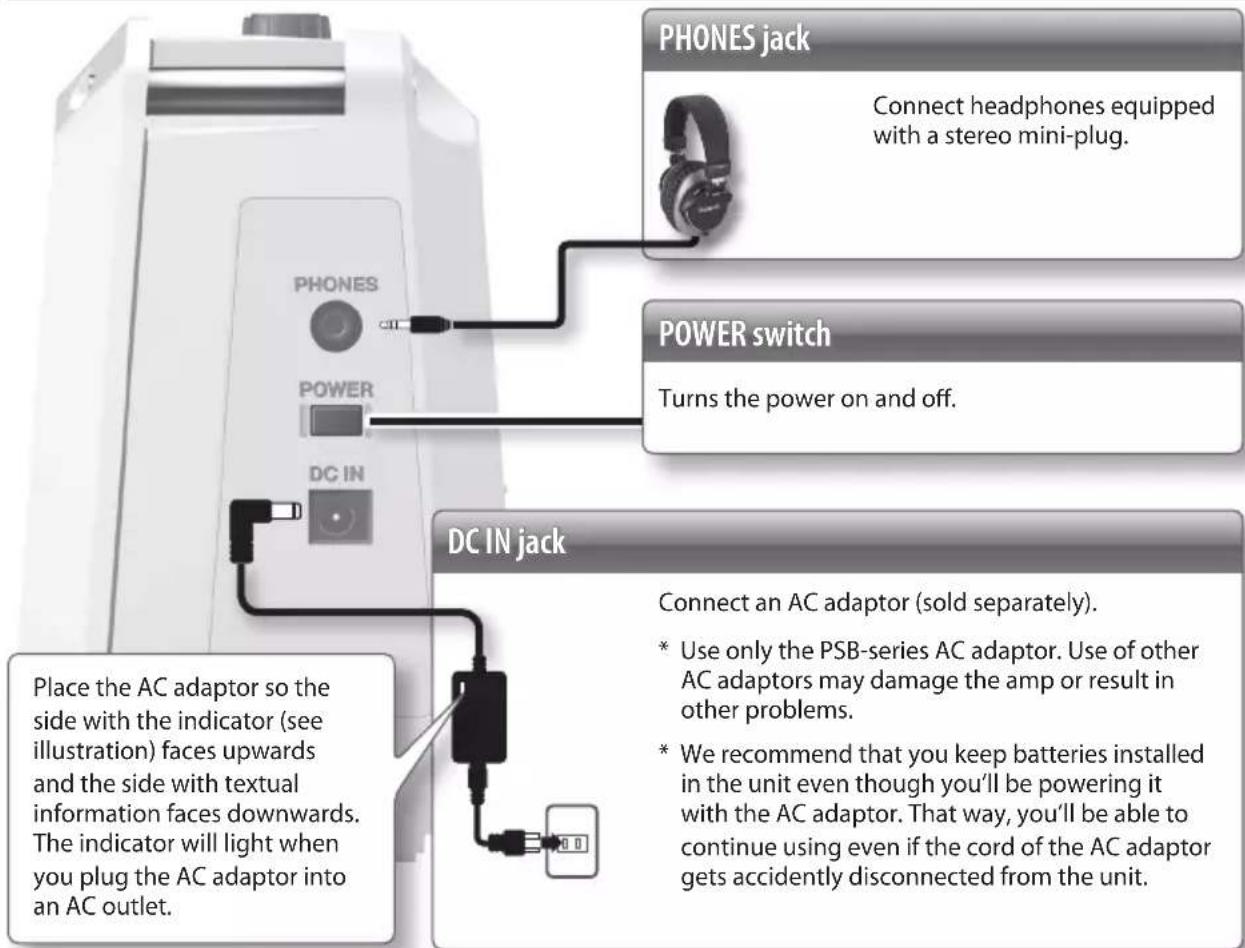

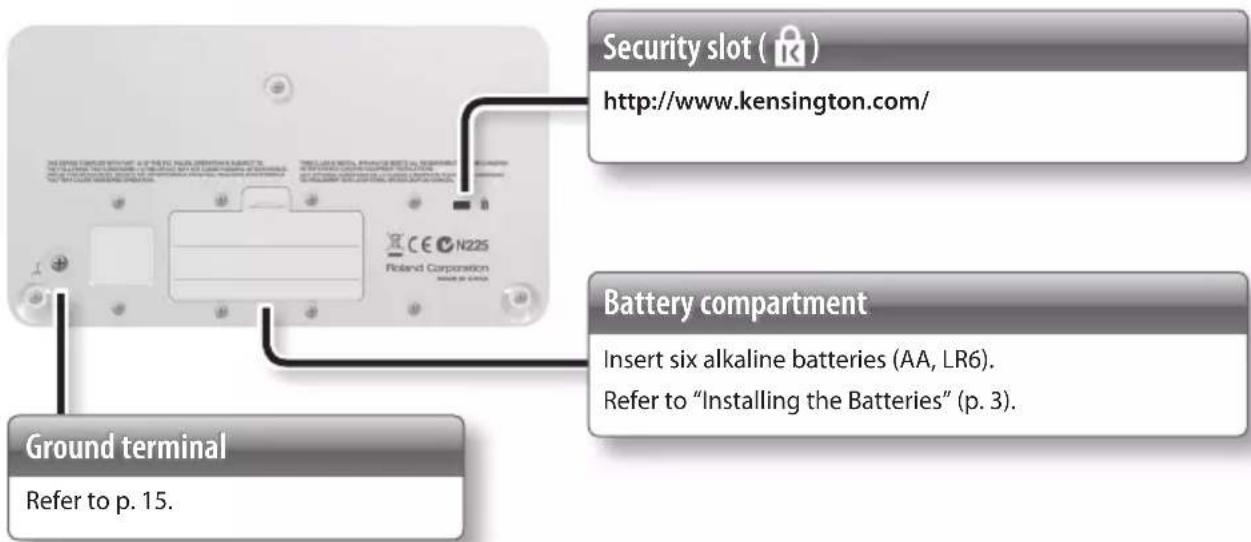

Rear Panel

Turning the Power On and Off

* Once everything is properly connected, be sure to follow the procedure below to turn on their power. If you turn on equipment in the wrong order, you risk causing malfunction or equipment failure.

1. Make sure that all volume controls on the MOBILE BA and all connected devices are at the minimum setting.
2. Turn on the power of the connected devices.
3. Press the [POWER] switch to turn on the MOBILE BA.

* This unit is equipped with a protection circuit. A brief interval (a few seconds) after turning the unit on is required before it will operate normally.

1. Adjust the volume of the MOBILE BA and the connected devices.

2. When you want to turn the power off, minimize the volume on the MOBILE BA and all connected devices, and then turn off their power in the opposite order of that followed when turning them on.

* Before turning the unit on/off, always be sure to turn the volume down. Even with the volume turned down, you might hear some sound when switching the unit on/off. However, this is normal and does not indicate a malfunction.

Anti-Feedback Function

The MOBILE BA has an anti-feedback function, which suppresses the occurrence of acoustic feedback.

Acoustic feedback is the unpleasant howl or squeal that can occur when a microphone is pointed toward speakers, or when the volume is high.

The anti-feedback function of the MOBILE BA is always active, in order to suppress feedback.

* If the anti-feedback function is not enough to suppress feedback, take the following steps.

• Change the direction of the microphone
• Move the microphone away from the speakers
• Lower the volume

Mounting on a Mic Stand

By using a mic stand, you can mount the MOBILE BA at the optimal height for use as a monitor speaker or simple PA device.

The mic stand holder (the hole diameter) is compatible with both 3/8-inch and 5/8-inch types.

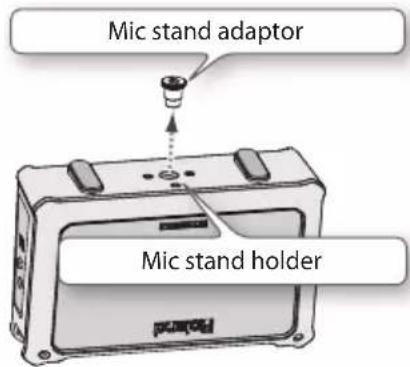

If you're using the MOBILE BA with a 5/8 inch mic stand, remove the mic stand adaptor from the bottom of the unit.

NOTE

• When placing the MOBILE BA upside down, take care not to damage the buttons or knobs, and be careful not to let it fall or tip over.
• If you're not using a mic stand, be sure to attach the mic stand adaptor to prevent leakage of sound (air).

Requirements when using a mic stand

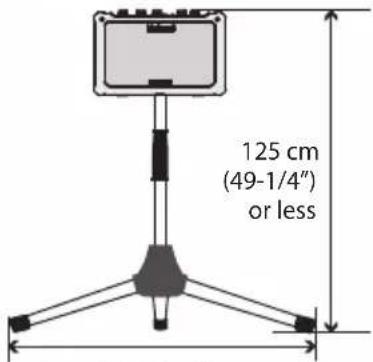

As shown in the illustration, you must use a mic stand that can be lower than 125 cm (49-1/4"; including the MOBILE BA), and whose legs will be 63 cm (24-13/16") or more when opened to a maximum width.

63 cm (24-13/16") or more

NOTE

• Using a mic stand that does not meet the specifications above may result in damage to equipment or injury due to the stand tipping over.
• When using MOBILE BA with a mic stand, the mic stand must be carefully placed so it is level and sure to remain stable.
• Cables connected to MOBILE BA should be given enough slack to prevent accidents that might result from someone tripping over them.
• To prevent accidents due to falls, do not place any object on the MOBILE BA when it's mounted on a mic stand.
  • After attaching the MOBILE BA to the mic stand, check to make sure that it is stable before you use it.

Troubleshooting

If the system does not work as you expect, check the following points first.

Problem Items to check Action	Page
Power won't turn on	Could the batteries be exhausted?	When operating on battery power only, the power indicator will become dim during play when battery power gets too low. Install fresh batteries.	p. 3
	Is the specified AC adaptor (PSB-series; sold separately) connected correctly?	Check the connection once again. Never use any AC adaptor other than the specified model.	p. 6
No sound/Insufficient volume	Are connections with other devices correct?	Check the connections again. p. 5
	Is the [VOLUME] knob set appropriately?	Adjust the volume appropriately.	p. 4
	Could headphones be connected?	If headphones are connected, no sound will be produced from the unit's speakers.	-
Insufficient volume from the speakers	Could the batteries be exhausted?	Install fresh batteries. p. 3
The volume level of the device connected to LINE or PC/AUDIO jacks are too low	Could you be using a connection cable that contains a resistor?	Use a connection cable that does not contain a resistor.	-
Something is wrong with the sound of the device connected to the PC/AUDIO jacks	Could the Center Cancel function be on?	Press the [CENTER CANCEL] switch to turn off the Center Cancel function.	p. 4
Sound is distorted or noisy	Could each [VOLUME] knob be raised excessively?	Turn each [VOLUME] knob toward the left to adjust the volume appropriately.	p. 4
	Is the input level from the connected device appropriate?	Lower the volume of the connected device.	-
	Could the batteries be exhausted?	Sounds may distort easily or may cut off when played at high volume as the battery power begins to fade, but this is normal and does not indicate a malfunction.In such instances, either replace the batteries or use the AC adaptor (sold separately).	p. 3p. 6

Roland MOBILE BA: BATTERY POWERED STEREO AMPLIFIER

Rated Power Output 2.5 W + 2.5 W
Nominal Input Level (1 kHz)	MIC jack: -50 dBuLINE jacks: -10 dBuPC/AUDIO jacks: -10 dBu
Speakers 10 cm (4 inches) x 2
Controls	POWER switchTONE knobMIC ECHO knobVOLUME knobVOLUME knobVOLUME knobCENTER CANCEL switch
Indicator Power
Connectors	MIC jack: 1/4-inch phone typeLINE L/MONO jack: 1/4-inch phone typeLINE R jack: 1/4-inch phone typePC/AUDIO jacks: Stereo miniature phone type, RCA phono typePHONES jack: Stereo miniature phone typeDC IN jack
Power Supply DC 9 V: Alkaline battery (AA, LR6) x 6 or AC Adaptor (sold separately)
Current Draw 175 mA
Expected battery life under continuous use	Alkaline battery (AA, LR6): approximately 15 hours* These figures will vary depending on the specifications of the batteries and the actual conditions of use.
Dimensions	280 (W) x 108 (D) x 177 (H) mm11-1/16 (W) x 4-1/4 (D) x 7 (H) inches
Weight 2.5 kg / 5 lbs 9 oz (including batteries)
Accessories	Strap, Alkaline battery (AA, LR6) x 6, Owner's Manual
Option (sold separately)	AC adaptor (PSB series)

* 0 dBu = 0.775 Vrms
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

USING THE UNIT SAFELY

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About ⚠ WARNING and ⚠ CAUTION Notices

[TZE] WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
[ACK] CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

Symbol	The △symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
Transit	The ⊗symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
Transit	The ●symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

Do not disassemble or modify by yourself

Do not open (or modify in any way) the unit or its AC adaptor.

Do not repair or replace parts by yourself

Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

Do not use or store in the following types of locations

- Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are

- Damp (e.g., baths, washrooms, on wet floors); or are

- Exposed to steam or smoke; or are

- Subject to salt exposure; or are

- Humid; or are

- Exposed to rain; or are

• Dusty or sandy; or are

- Subject to high levels of vibration and shakiness.

WARNING

Do not place in an unstable location

Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

Use only the specified AC adaptor and the correct voltage

Use only the specified AC adaptor (p. 10), and make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

Use only the included power cord

Use only the attached power-supply cord. Also, the supplied power cord must not be used with any other device.

Do not bend the power cord or place heavy objects on it

Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

WARNING

Avoid extended use at high volume

This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

Don't allow foreign objects or liquids to enter unit; never place containers with liquid on unit

Do not place containers containing liquid on this product. Never allow foreign objects (e.g., flammable objects, coins, wires) or liquids (e.g., water or juice) to enter this product. Doing so may cause short circuits, faulty operation, or other malfunctions.

Turn off the unit if an abnormality or malfunction occurs

Immediately turn the unit off, remove the AC adaptor from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page when:

• The AC adaptor, the power-supply cord, or the plug has been damaged; or
  • If smoke or unusual odor occurs; or
• Objects have fallen into, or liquid has been spilled onto the unit; or
• The unit has been exposed to rain (or otherwise has become wet); or
• The unit does not appear to operate normally or exhibits a marked change in performance.

Adults must provide supervision in places where children are present

When using the unit in locations where children are present, be careful so no mishandling of the unit can take place. An adult should always be on hand to provide supervision and guidance.

Do not drop or subject to strong impact

Protect the unit from strong impact.

(Do not drop it!)

WARNING

Do not share an outlet with an unreasonable number of other devices

Do not force the unit's power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord's outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

Do not use overseas

Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

Handle batteries carefully

• Batteries must never be recharged, heated, taken apart, or thrown into fire or water.
• Never expose batteries to excessive heat such as sunshine, fire or the like.
• Incorrect handling of batteries can cause leakage, overheating, fire, or explosion. Before use, you must read and strictly observe all of the precautions that accompany the batteries.

CAUTION

Place in a well ventilated location

The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.

Grasp the plug when connecting or disconnecting the AC adaptor

Always grasp only the plug on the AC adaptor cord when plugging into, or unplugging from, an outlet or this unit.

Periodically clean the AC adaptor's plug

At regular intervals, you should unplug the AC adaptor and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

Manage cables for safety

Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

Avoid climbing on top of the unit, or placing heavy objects on it

Never climb on top of, nor place heavy objects on the unit.

Do not connect or disconnect the AC adaptor with wet hands

Never handle the AC adaptor or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.

Disconnect everything before moving the unit

Before moving the unit, disconnect the AC adaptor and all cords coming from external devices.

Unplug the AC adaptor from the outlet before cleaning

Before cleaning the unit, turn it off and unplug the AC adaptor from the outlet (p. 6).

If there is a possibility of lightning strike, disconnect the AC adaptor from the outlet

Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet.

CAUTION

Handle batteries carefully

If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following precautions (p. 3).

• Carefully follow the installation instructions for batteries, and make sure you observe the correct polarity.
• Avoid using new batteries together with used ones. In addition, avoid mixing different types of batteries.
• Remove the batteries whenever the unit is to remain unused for an extended period of time.
• Never keep batteries together with metallic objects such as ballpoint pens, necklaces, hairpins, etc.
  • Used batteries must be disposed of in compliance with whatever regulations for their safe disposal that may be observed in the region in which you live.

Keep small items out of the reach of children

To prevent accidental ingestion of the parts listed below, always keep them out of the reach of small children.

• Removable Parts Mic stand adaptor (p. 8)

Handle the ground terminal carefully

If you remove the screw from the ground terminal, be sure to replace it; don't leave it lying around where it could accidentally be swallowed by small children. When refastening the screw, make that it is firmly fastened, so it won't come loose.

Handle leaking batteries carefully

• If fluid has leaked from a battery, make sure not to touch it with your bare hands.
• If any of the leaking fluid gets into your eyes, the loss of vision may result. Do not rub your eyes; use clean water to flush them thoroughly. Then, promptly see a doctor.
• Burning of the skin or dermatitis may result if fluid has gotten onto your skin or clothing. Use clean water to flush affected areas thoroughly; then, promptly see a doctor.
  • Using a soft cloth, carefully wipe any remaining fluid from the inside of the battery compartment. Then, install new batteries.

IMPORTANT NOTES

Power Supply

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter or a motor (such as a refrigerator, washing machine, microwave oven, or air conditioner). Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
• The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern.
• The use of an AC adaptor is recommended as the unit's power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.
• To prevent malfunction and equipment failure, always make sure to turn off the power on all your equipment before you make any connections.

Power Supply: Use of Batteries

• When installing or replacing batteries, always turn this unit off and disconnect any other devices you may have connected. This way, you can prevent malfunction and damage.
• The life of the supplied batteries may be limited, since its primary purpose was to enable testing.
• If the batteries run extremely low, the sound may distort / interruptions in the sound may occur at high volume levels, but this does not indicate a malfunction. If this occurs, please replace the batteries / use the AC adaptor (sold separately).
• If operating this unit on batteries, please use alkaline batteries.
• If operating this unit on batteries, please disconnect the AC adaptor from this unit.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface.
  You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.
• Do not put anything that contains water on this unit. Also, avoid the use of insecticides, perfumes, alcohol, nail polish, spray cans, etc., near the unit. Swiftly wipe away any liquid that spills on the unit using a dry, soft cloth.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• When disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• To avoid disturbing others nearby, try to keep the unit's volume at reasonable levels.
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

Ground terminal

- Depending on the circumstances of a particular setup, you may experience a discomforting sensation, or perceive that the surface feels gritty to the touch when you touch this device, microphones connected to it, or the metal portions of other objects. This is due to an infinitesimal electrical charge, which is absolutely harmless. However, if you are concerned about this, connect the ground terminal with an external ground. When the unit is grounded, a slight hum may occur, depending on the particulars of your installation. If you are unsure of the connection method, contact the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

Unsuitable places for connection

• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in fire or explosion)
- Telephone-line ground or lightning rod (may be dangerous in the event of lightning)

Copyrights/Licences/Trademarks

• It is forbidden by law to make an audio recording, video recording, copy or revision of a third party's copyrighted work (musical work, video work, broadcast, live performance, or other work), whether in whole or in part, and distribute, sell, lease, perform, or broadcast it without the permission of the copyright owner.
• Do not use this product for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this product.
• MMP (Moore Microprocessor Portfolio) refers to a patent portfolio concerned with microprocessor architecture, which was developed by Technology Properties Limited (TPL). Roland has licensed this technology from the TPL Group.
• Roland is an either registered trademark or trademark of Roland Corporation in the United States and/or other countries.
• Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.

Roland

Front view of a white electronic device with a textured gray grille and black buttons (no visible text or symbols)

Roland

Bedienungsanleitung

Illustration of a classroom scene with a teacher at a podium and students seated, facing a world map on the wall (no text or symbols visible)

Illustration of a woman speaking into a microphone at an outdoor gathering with seated people and a landscape background (no text or symbols)

Illustration of a handheld electronic device with a handle and a clip, showing internal components (no text or symbols)

Illustration of a handheld electronic device with a handle and internal components, showing a curved arrow indicating rotation (no text or symbols present)

HINWEIS

HINWEIS

Front view of a white electronic device labeled 'Poland' with no visible text or symbols on its body.

Roland

Mode d'emploi

AMPLIFICATEUR STÉRÉO ALIMENTÉ PAR PILES

MOBILE BA

Transport facile

Illustration of a classroom scene with a teacher at a podium and students seated, facing a world map on the wall (no text or symbols visible)

Illustration of a woman speaking at an outdoor gathering with seated people and a microphone (no text or symbols visible)

Illustration of a hand holding a battery with a handle and a switch, no text or symbols present

Illustration of a handheld electronic device with a handle and internal components, showing a curved arrow indicating rotation (no text or symbols present)

REMARQUE

Copyrights/Licences/Marques commerciales

Front view of a white electronic audio amplifier with visible grille and buttons (no text or symbols)

Roland

Manuale dell'utente

AMPLIFICATORE STEREO CON ALIMENTAZIONE A BATTERIA

MOBILE BA

Illustration of a classroom scene with a teacher at a podium and students seated, facing a world map on the wall (no text or symbols visible)

Illustration of a woman speaking at an outdoor event with seated audience and mountain backdrop (no text or symbols)

Illustration of a handheld electronic device with a handle and a scroll, showing internal components (no text or symbols)

Illustration of a handheld electronic device with a handle and scroll, showing internal components and a curved arrow indicating rotation (no text or symbols)

NOTA

Front view of a white electronic device with a mesh grille and control knobs (no visible text or symbols)

Roland

Manual del usuario

Illustration of a classroom scene with a teacher at a podium and students seated, facing a world map on the wall (no text or symbols visible)

Illustration of a woman speaking at an outdoor gathering with seated people and a microphone (no text or symbols visible)

Illustration of a portable electronic device with a handle and a tool inserted, showing no visible text or symbols.

Illustration of a handheld electronic device with a handle and internal components, showing a curved arrow indicating rotation (no text or symbols present)

NOTA

Front view of a white electronic device with black buttons and a textured grille (no visible text or symbols)

Roland

Illustration of a classroom scene with a teacher at a podium and students seated, facing a world map on the wall (no text or symbols visible)

Illustration of a woman speaking at a podium with audience seated outdoors (no text or symbols visible)

Illustration of a handheld electronic device with a handle and a scroll, showing internal components (no text or symbols)

1. Prenda a alça no pino.

Diagram of a handheld electronic device with a handle and internal components, showing a curved arrow indicating rotation (no text or symbols present)

OBSERVAÇÃO

Diagram of an electronic device with labeled ports and battery, showing internal components and connections (no text or symbols present)

OBSERVAÇÃO

Front view of a white electronic device with a mesh grille and black buttons (no visible text or symbols)

Roland

Illustration of a classroom scene with a teacher at a podium and students seated, facing a world map on the wall (no text or symbols visible)

Illustration of a woman speaking into a microphone at an outdoor gathering with seated people and a small table (no text or symbols visible)

Illustration of a handheld electronic device with a handle and a scroll, showing internal components (no text or symbols)

Illustration of a handheld electronic device with a handle and internal components, showing a curved arrow indicating rotation (no text or symbols present)

OPMERKING

Diagram of an electronic device with labeled ports and battery, showing internal components and connections (no text or symbols)

OPMERKING

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.

When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below.

AFRICA

EGYPT

Al Fanny Trading Office

9, EBN Hagar Al Askalany Street.

Royal Cape Park, Unit 24

Londonderry Road, Ottery 7800

Cape Town, SOUTH AFRICA

TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics

Co.,Ltd.

SI. No.1500 Pingliang Road

Shanghai 200090, CHINA

TEL: [phone]

Roland Shanghai Electronics

Co.,Ltd. (BEIJING OFFICE)

3F, Soluxe Fortune Building

63 West Dawang Road, Chaoyang

District, Beijing, CHINA

TEL: [phone]

HONG KONG

Tom Lee Music

11/F Silvercord Tower 1

30 Canton Rd

Tsimshatsui, Kowloon,

HONG KONG

TEL:[phone]

Parsons Music Ltd.

8th Floor, Railway Plaza, 39

Chatham Road South, 1.5.1,

Kowloon, HONG KONG TEL: [phone]

TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd.

411, Nirman Kendra Mahalazmi

Hats Compound Off. Dr. Edwin

Moses Road, Mumbai-400011,

INDA TEL-0

INDONESIA

PT. Citra Intirama

Ruko Garden Shopping Arcade

Unit 8 CR, Podomare City

JLletjend, S.Parman Kav,28

Jakarta Barat 1470, INDO TEL: [phone]/5520

KAZAKHSTAN

Alatau Dybystary

141 Abylai-Khan ave, 1st floor,

050000 Almaty, KAZAKHSTAN

注：(72)2725471

HOC (727) 2720750

KOREA

Cosmos Corporation

1461-9, Seocho-Dong

Seocho Ku, Seoul, KOREA

TEL: [phone]

MALAYSIA/

SINGAPORE

Roland Asia Pacific Sdn. Bhd.

45-1, Block C2, Jalan PJU 1/39,

Dataran Prima, 47301 Petaling

Jaya, Selangot, MALAYSIA

TEL: [phone]

PHILIPPINES

G.A. Yupangco & Co. Inc.

339 Gill J. Puyat Avenue

Makati, Metro Marila 1200,

PHILIPPINES

TEL:[phone]

TAIWAN

ROLAND TAIWAN ENTERPRISE

CO., LTD.

9F-5, No. 112 Chung Shan

North Road Sec. 2 Taipei 104,

TAIWAN R.O.C.

TEL: [phone]

THAILAND

Theera Music Co., Ltd.

100-108 Soi Vemg Nakomkasem,

New Road, Sumpantawong

Bangkok 10100, THAILAND

TEL: [phone]

VIET NAM

VIET THUONG CORPORATION

386 CACH MANG THANG TAM ST.

DIST.3, HO CHI MINH CITY,

VIET NAM

TEL:[phone]

OCEANIA

AUSTRALIA/

NEW ZEALAND

Roland Corporation

Australia Pty., Ltd.

38 Campbell Avenue

Dee Why West. NSW 2099,

AUSTRALIA

For Australia

TEL: [phone]

For New Zealand

TEL: [phone]

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A.

Av.Santa Fe 2055

(1123) Buenos Aires, ARGENTINA

TEL: [phone]

BARBADOS

A&B Music Supplies LTD

12 Webster Industrial Park

Wildey, St. Michael, BARBADOS

TEL: [phone]

BRAZIL

Roland Brasil Ltda.

Rua San Jose, 211

Parque Industrial San Jose

Cotia - Sao Paulo - SP, BRAZIL

TEL:[phone]

CHILE

Comercial Fancy II S.A.

Rut. 96,919,420.

Nataniel Cox #739, 4th Floor

Santiago - Centro, CHLE

TEL:[phone]

COLOMBIA

Centro Musical Ltda.

Cra 43 B No 25 A 41 Bododega 9

Medellin, COLOMBIA

TEL:[phone]

COSTA RICA

JUAN Bansbach Instrumentos

Musicales

Ave.1. Calle 11, Apartado 10237,

San Jose, COSTA RICA

TEL:[phone]

CURACAO

Zeelandia Music Center Inc.

Orionweg 30

Curacao, Netherland Antilles

TEL: [phone]

DOMINICAN REPUBLIC

Instrumentos Fernando Giraldez

Cale Roberto Pastoriza 4325

Sanchez Naco

Santo Domingo,

DOMINICAN REPUBLIC

TEL: [phone]

ECUADOR

Mas Musika

Boulevard Andrews, Albrook,

Panama City, REP. DE PANAMA

TEL: [phone]

PARAGUAY

155, New National Road

Patras 26442, GREECE

TEL: [phone]

HUNGARY/ROMANIA

Roland East Europe Ltd

E2 Calmount Park, Calmount

Avenue, Dublin 12,

Republic of RELAND

TEL: [phone]

ITALY

Roland Italy S. p. A.
