Product Type	Built-in gas hob
Brand	Constructa
Model	CA174651
Number of Burners	4 (wok, rapid, semi-rapid, auxiliary)
Dimensions (W x D x H)	Approx. 58 x 51 x 5 cm (standard estimate)
Weight	Approx. 10 kg (standard estimate)
Power Supply	Gas (G20/G25/G30/G31 depending on country)
Gas Type	Natural gas or propane/butane (adjustable)
Ignition	Automatic by spark plugs (electric ignition)
Safety	Thermocouple (gas shut-off if flame goes out), child safety (lock? not specified)
Surface Material	Stainless steel or enamel (depending on model)
Wok Burner	High power, min pan diameter 22 cm
Rapid Burner	Pan diameter 22-26 cm
Semi-rapid Burner	Pan diameter 14-20 cm
Auxiliary Burner	Pan diameter 12-16 cm
Included Accessories	Wok grate, coffee machine grate, Simmer Plate/Cap (depending on version)
Cleaning	Manual cleaning, no steam cleaner
Maintenance	Clean burners regularly, use stainless steel cleaner
Energy Consumption	Not specified (gas)
Installation	Built-in, by authorized technician
Warranty	According to conditions of country of purchase
After-Sales Service	By phone: B 070 222 145, FR 01 40 10 11 00, CH 0848 840 040
Spare Parts	Accessories available: code 363300 (wok grate), 184200 (coffee machine grate), 648786 (Simmer Plate), 616229 (Simmer Cap), cleaning product 464524
Repairability	Repairability index not provided, parts available via after-sales service

Frequently Asked Questions - CA174651 CONSTRUCTA

How to light a burner on the Constructa CA174651 hob?

Press the control knob of the chosen burner and turn it to the left. If your model has automatic ignition, hold it down until the flame lights (sparks appear). Then release the knob. If ignition does not occur, wait 15 seconds and try again by holding it down longer (max 10 seconds).

What to do if the burner goes out after releasing the knob?

This may be due to a thermocouple not hot enough. Hold the knob down for 4 seconds after ignition. Also check that the burner slots are clean and the caps are properly placed.

How to clean the burners and grates?

Wait for the appliance to cool. Wash the parts with soapy water using a non-metallic brush. Dry completely before reassembling. Never use a steam cleaner. For stainless steel surfaces, use a specific product (code 464524).

What types of pots and pans to use on this hob?

Use flat, thick-bottomed pans. Respect diameters: wok burner min 22 cm, rapid 22-26 cm, semi-rapid 14-20 cm, auxiliary 12-16 cm. Never place a pan directly on the burner, always on the grates.

How to maintain the automatic ignition?

Clean the spark plugs (electrodes) regularly with a small non-metallic brush to remove residue. Ensure the gap between the spark plug and the burner is clean and dry.

What to do if I install the appliance in a poorly ventilated room?

Gas cooking produces heat and combustion gases. Ensure natural or mechanical ventilation (hood). For intensive use, open a window. Do not place the appliance in a direct draft.

How to safely turn off a burner?

Turn the corresponding control knob to the right to position 0. Do not force if the knob is stuck; contact after-sales service.

Is the appliance suitable for persons with reduced mobility?

Yes, the appliance can be used by children over 8 years and persons with reduced capabilities if supervised or instructed. Children must not play with the appliance or perform cleaning without supervision.

How to adapt the hob to a different gas type?

Adaptation must be carried out by an authorized technician. Refer to the installation manual. The factory gas type is indicated on the rating plate.

Where to find the rating plate of the CA174651?

The rating plate is located on the underside of the hob. It indicates the product number (E-Nr.) and the manufacturing number (FD) required for after-sales service.

USER MANUAL CA174651 CONSTRUCTA

[en] Instruction manual 22

[es] Instrucciones de uso 28

Illustration of a cooking process showing a pan on a gas stove with an upward arrow indicating heating (no text or symbols present)

Ekstra rist til wok

Illustration of a kettle being heated by a stove, with steam rising from the base (no text or symbols)

Ekstra kafferist

Illustration of a cooking pot and its octagonal stove with a side table (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Diagram of a circular device with a central button and surrounding symbols (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Manuel tænding

⚠️ Fare for stikflammer!

Illustration of a cooking process showing a pan on a gas stove with a side panel (no text or symbols)

Zusatzrost Wok

Illustration of a kettle being heated by two steamers, with no text or symbols present.

Illustration of a cooking pot and its octagonal stove with a side table (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a flat top and base (no text or symbols)

Simmer Cap

Diagram of a circular device with indicator lights and dotted lines, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal gears and housing (no text or labels)

Anzünden per Hand

Technical line drawing of a circular mechanical component with internal components and a pointed tip (no text or symbols)

Zündkerze| Thermoelement

Illustration showing two cooking pots with checkmarks and X marks indicating heating conditions

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Two identical illustrations of a cooking pot with a checkmark and a cross symbol, no text or labels present.

kg

Illustration of a cooking process showing a pan on a stove with a gas stove underneath (no text or symbols)

Illustration of a kettle being heated by two steamers, with no text or symbols present.

Illustration of a cooking pot, its lid, and side table with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Simple diagram of a circular device with a handle and three small icons below, no text or symbols present.

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Χειροκίνητο άναμμα

Technical line drawing of a circular mechanical component with two embedded pins (no text or symbols)

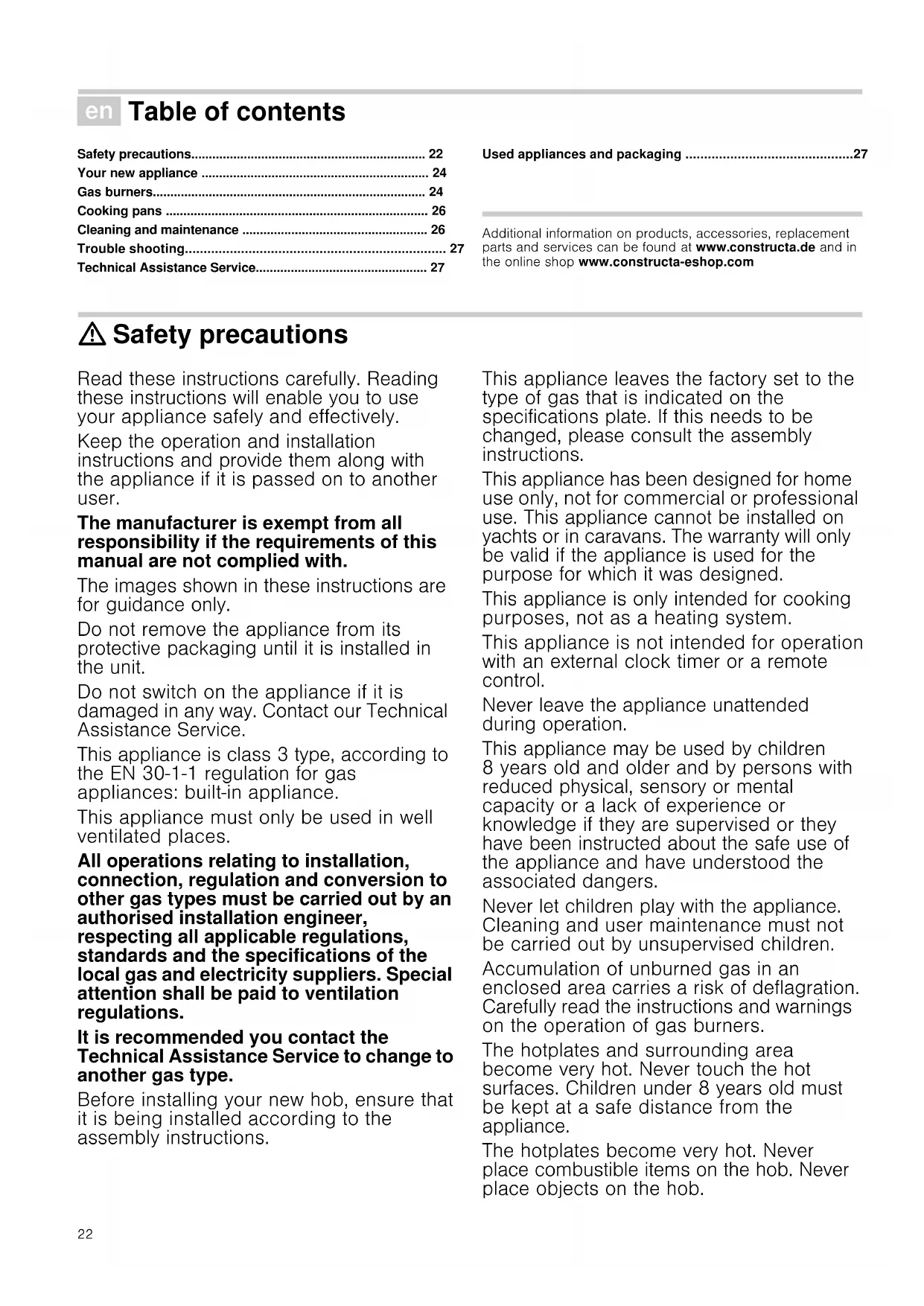

Your new appliance 24

Gas burners.... 24

Cooking pans 26

Cleaning and maintenance 26

Trouble shooting.... 27

Technical Assistance Service.... 27

Used appliances and packaging 27

Additional information on products, accessories, replacement parts and services can be found at wwwConstructa.de and in the online shop wwwConstructa-eshop.com

Safety precautions

Read these instructions carefully. Reading these instructions will enable you to use your appliance safely and effectively.

Keep the operation and installation instructions and provide them along with the appliance if it is passed on to another user.

The manufacturer is exempt from all responsibility if the requirements of this manual are not complied with.

The images shown in these instructions are for guidance only.

Do not remove the appliance from its protective packaging until it is installed in the unit.

Do not switch on the appliance if it is damaged in any way. Contact our Technical Assistance Service.

This appliance is class 3 type, according to the EN 30-1-1 regulation for gas appliances: built-in appliance.

This appliance must only be used in well ventilated places.

All operations relating to installation, connection, regulation and conversion to other gas types must be carried out by an authorised installation engineer, respecting all applicable regulations, standards and the specifications of the local gas and electricity suppliers. Special attention shall be paid to ventilation regulations.

It is recommended you contact the Technical Assistance Service to change to another gas type.

Before installing your new hob, ensure that it is being installed according to the assembly instructions.

This appliance leaves the factory set to the type of gas that is indicated on the specifications plate. If this needs to be changed, please consult the assembly instructions.

This appliance has been designed for home use only, not for commercial or professional use. This appliance cannot be installed on yachts or in caravans. The warranty will only be valid if the appliance is used for the purpose for which it was designed.

This appliance is only intended for cooking purposes, not as a heating system.

This appliance is not intended for operation with an external clock timer or a remote control.

Never leave the appliance unattended during operation.

This appliance may be used by children 8 years old and older and by persons with reduced physical, sensory or mental capacity or a lack of experience or knowledge if they are supervised or they have been instructed about the safe use of the appliance and have understood the associated dangers.

Never let children play with the appliance. Cleaning and user maintenance must not be carried out by unsupervised children.

Accumulation of unburned gas in an enclosed area carries a risk of deflagration. Carefully read the instructions and warnings on the operation of gas burners.

The hotplates and surrounding area become very hot. Never touch the hot surfaces. Children under 8 years old must be kept at a safe distance from the appliance.

The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.

Do not store or use corrosive chemicals, steamers, inflammable materials or non-food products below or near this domestic appliance.

Fat or oil which is overheated can catch fire easily. Do not leave oil or fats to heat up unattended. If oil or fats do catch fire, never use water to put the fire out. Risk of burns! Put the fire out by covering the pan with a lid and switch off the hotplate.

Pans which are damaged, are not the right size, hang over the edge of the hob or are not positioned correctly can cause serious injuries. Follow the advice and warnings provided relating to the cooking pans.

The kitchen will become hot and humid and combustion products produced when this gas appliance is used. Make sure the kitchen is well ventilated, particularly when the hob is in use: either keep the natural ventilation apertures open, or install a ventilation system (extractor hood).

Intense prolonged use of the appliance may require additional or more effective ventilation: open a window or increase the power of the ventilation system.

Do not subject the appliance to draughts. These might blow out the burners.

Do not clean the hob using a steam cleaner. Risk of electrocution!

In the event of a malfunction, turn off the appliance's gas and electricity supply. For repairs, call our Technical Assistance Service.

Do not tamper with the appliance's interior. If necessary, call our Technical Assistance Service.

If one of the control knobs will not turn, do not force it. Call the Technical Assistance Service immediately, so that they can repair or replace it.

Your new appliance

Page 2 shows an overall view of your new appliance as well as the burner power.

Accessories

Depending on the model, the hob may include the following accessories. These can also be acquired from the Technical Assistance Service.

Illustration of a cooking process showing a pan on a stove with gas stove (no text or symbols)

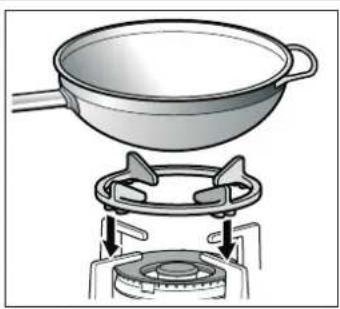

Additional wok pan support

Only for use on wok burners with pans with a round base. Using these pans may cause some temporary deformation of the grease drip tray. This is normal and does not affect the operation of the appliance.

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Additional coffee maker support

Only for use on the auxiliary burner with pans which are no more than 12 cm in diameter.

Illustration of a cooking pot and its cooking tray (no text or symbols)

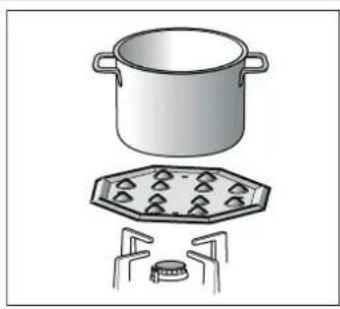

Simmer Plate

This accessory has been designed to reduce the level of heat at the lowest power setting.

Place the accessory directly on the pan support with the cones facing upwards, never directly over the burner. Centre the pan over the accessory.

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

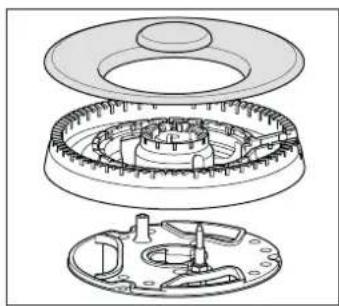

Simmer Cap

Burner specially designed to cook at minimum power. In order to use it, remove the auxiliary burner and replace it with the Simmer Cap burner.

Code

363300 Additional wok pan support

184200 Additional coffee maker support

648786 Simmer Plate

616229 Simmer Cap

The manufacturer accepts no liability if these accessories are not used or are used incorrectly.

Gas burners

There are indications to show which burner each control knob operates.

Diagram of a circular device with flame icons and dots, no text or symbols present

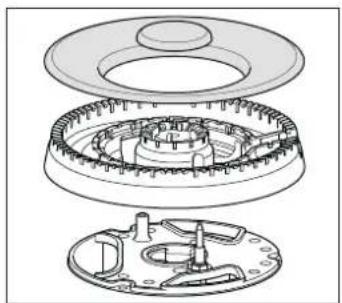

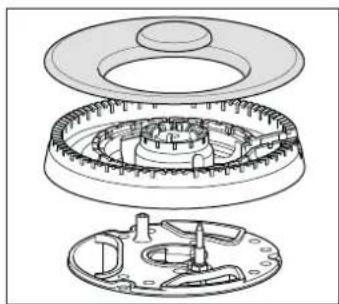

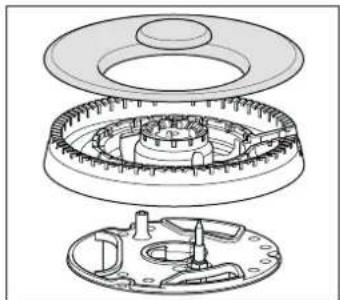

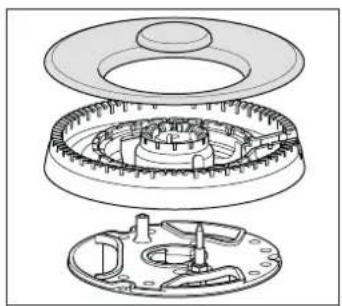

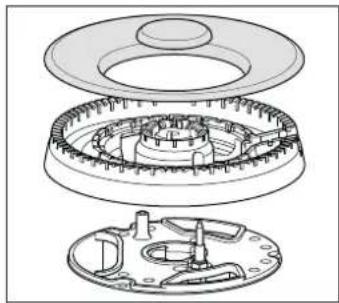

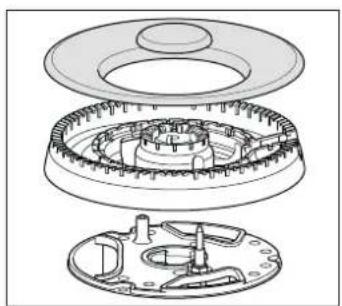

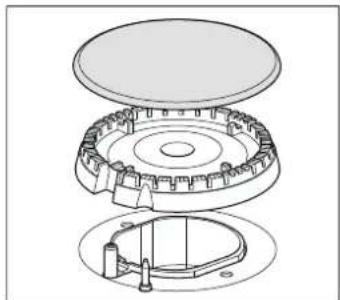

It is essential to ensure that all the burner parts and pan supports are correctly installed for the appliance to work correctly. Do not swap the burner caps around.

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Switching on manually

1. Press the chosen burner control knob and turn it anticlockwise to the required setting.
2. Use any type of lighter or flame (cigarette lighter, matches, etc.) and bring it close to the burner.

Switching on automatically

If your hob can be switched on automatically (ignition sparkers):

1. Press the chosen burner control knob and turn it anticlockwise to the maximum power setting.
   While the control knob is still pressed down, sparks are produced on all burners. The flame ignites.

2. Release the control knob.

3. Turn the control knob to the required setting.

If it does not come on, turn the control knob to the off setting and repeat the steps above. This time, press and hold the control knob for longer (up to 10 seconds).

Risk of deflagration!

If after 15 seconds the flame does not ignite, switch off the burner and open a nearby window or door. Wait at least one minute before trying to switch the burner back on.

Safety system

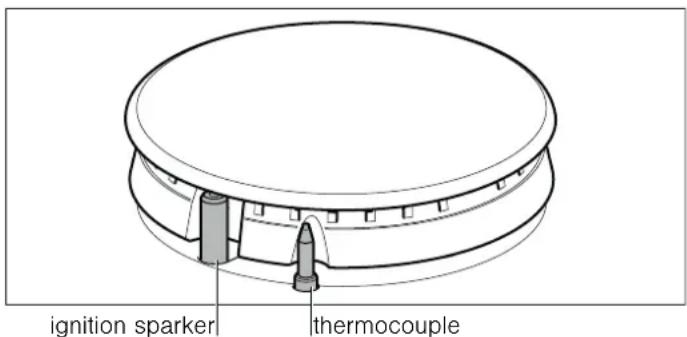

Depending on the model, your hob may have a safety system (thermocouple) that prevents the flow of gas if the burners accidentally switch off.

ignition sparker thermocouple

To ensure that this device is active:

1. Switch on the burner as usual.
2. Without releasing the control knob, press and hold it down firmly for 4 seconds after lighting the flame.

Switching off a burner

Turn the corresponding control knob clockwise to the 0 setting.

Power levels

The progressive control knobs can be used to control the power needed, from minimum to maximum power.

Setting	●	Control knob off
High flame		Maximum capacity or aperture and electricity on
Low flame		Minimum capacity or aperture

Warnings

It is normal to hear a soft whistling noise while the burner is operating.

When first used, it is normal for the burner to give off odours. This does not pose any risk and does not indicate a malfunction. They will disappear in time.

An orange-coloured flame is normal. This is caused by the presence of dust in the atmosphere, spilt liquids, etc.

If the burner flames are accidentally blown out, switch off the burner operating control knob and do not try to relight it for at least 1 minute.

A few seconds after the burner is switched off, a sound (thud) will be produced. This is not a fault - this means that the safety device is no longer operating.

Keep the burner as clean as possible. If the ignition sparkers are dirty they will not light properly. Clean them periodically using a small non-wire brush. Bear in mind that the ignition sparkers must not suffer any serious impacts.

Cooking guidelines

Burner Very high - High Medium Low
Wok burner Boiling, steaming, griddling, toasting, paellas, Asian food (wok).		Reheating and keeping things hot: cooked and pre-cooked dishes
Rapid burner Escalopes, steaks, omelettes, frying		Rice, white sauce, ragout	Steaming: fish, vegetables
Semi-rapid burner	Steamed potatoes, fresh vegetables, vegetable stews, pasta	Reheating, keeping things hot and making tasty casseroles
Auxiliary burner	Cooking: casseroles, rice pudding, caramel	Defrosting and slow cooking: vegetables, fruit and frozen products	Melting: butter, chocolate, jelly

Cooking pans

Suitable pans

Burner Minimum pan diameter	Maximum pan diameter
Wok burner 22 cm
Rapid burner 22 cm 26 cm
Semi-rapid burner 14 cm 20 cm
Auxiliary burner 12 cm 16 cm

Precautions for use

The following advice is intended to help you save energy and prevent pan damage:

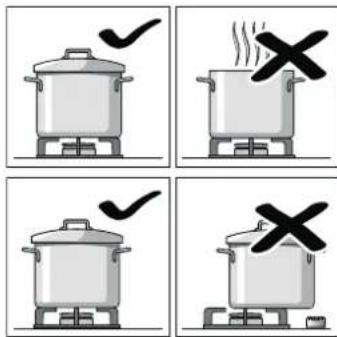

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Use pans which are the right size for each burner.

Do not use small pans on large burners. The flame must not touch the sides of the pan.

Illustration showing a cooking pot with a checkmark and a crossed-out cooking pan with a cross, indicating cooking resistance.

Do not use damaged pans, which do not sit evenly on the hob. Pans may tip over.

Only use pans with a thick, flat base.

Do not cook without using a lid and make sure the lid is properly fitted. This wastes energy.

Always centre the pan over the burner, not to one side. Otherwise it could tip over.

Do not place large pans on the burners near the control knobs. These may be damaged by the very high temperatures.

Place the pans on the pan supports, never directly on the burner.

Make sure that the pan supports and burner caps are correctly positioned before using the appliance.

Pans should be placed on the hob carefully.

Do not strike the hob and do not place excessive weight on it.

Cleaning and maintenance

Cleaning

Once the appliance is cool, use a sponge to clean it with soap and water.

After each use, clean the surface of the respective burner parts once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. The holes and grooves must be clean for the flame to ignite properly.

The movement of some pans may leave metal residue on the pan supports.

Clean the burners and pan supports using soapy water and scrub with a non-wire brush.

If the pan supports are fitted with rubber rests, ensure that these are also cleaned. The rests may come loose and the pan support may scratch the hob.

Always dry the burners and pan supports completely. Water droplets or damp patches on the hob at the start of cooking may damage the enamel.

After cleaning and drying the burners, make sure the burner caps are correctly positioned on the diffuser.

Caution!

■ Do not use steam cleaners. This could damage the hob.
If your hob is fitted with a glass or aluminium panel, never use a knife, scraper or similar implement to clean the point where it joins the metal.

Maintenance

Always clean off any liquid as soon as it is spilt. This will prevent food remains from sticking to the hob surface and you will save yourself any unnecessary effort.

Due to the high temperatures endured, the wok burner and the stainless steel zones (grease drip tray, burner outline, etc.) can change colour. This is normal. After each use, clean these areas with a product that is suitable for stainless steel.

It is recommended that the cleaning product available from our Technical Assistance Service (code 464524) is used regularly.

Caution!

The stainless steel cleaner must not be used in the area around the controls. The (printed) symbols may be wiped off.

Do not leave acidic liquids (e.g. lemon juice, vinegar, etc.) on the hob.

Trouble shooting

Sometimes certain faults detected can be easily resolved. Before calling the Technical Assistance Service, bear in mind the following advice:

Fault Possible cause Solution

The general electrical system is malfunctioning.	Defective fuse. Check the fuse in the main fuse box and change it if it is damaged.
	The automatic safety switch or circuit breaker has tripped.	Check the main control panel to see if the automatic safety switch or circuit breaker has tripped.
The automatic switching on function does not work.	There may be food or cleaning products stuck between the ignition sparkers and the burners.	The space between the ignition sparker and the burner must be clean.
	The burners are wet. Dry the burner caps carefully.
	The burner caps are not correctly positioned. Check that the burner caps are correctly positioned.
	The appliance is not earthed, is poorly connected or the earthing is faulty.	Contact the installation technician.
The burner flame is not uniform.	The burner components are not correctly positioned. Correctly place the parts on the appropriate burner.
	The grooves on the burner are dirty. Clean the grooves on the burner.
The gas flow is not normal or there is no gas.	The gas supply is blocked by gas taps. Open all gas taps.
	If the gas is supplied from a gas cylinder, check that it is not empty.	Change the gas cylinder.
The kitchen smells of gas.	A gas tap has been left on. Turn off the taps.
	Incorrect coupling of gas cylinder. Check that the coupling is sound.
	Possible gas leak. Shut off the gas supply, ventilate	the premises and immediately notify an authorised installation technician to check and certify the installation. Do not use the appliance until ensuring that there is no gas leak in the installation or appliance itself.
The burner immediately switches off after releasing the control knob.	The control knob was not held down for long enough.	Once the burner is on, hold the control knob down a few seconds longer.
	The grooves on the burner are dirty. Clean the grooves on the burner.

Technical Assistance Service

When contacting our Technical Assistance Service, please provide the product number (E-Nr.) and production number (FD) of the appliance. This information is given on the specifications plate located on the lower section of the hob and on the label in the user manual.

Please find the contact data of all countries in the enclosed customer service list..

Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.

Warranty conditions

In the unlikely event that the appliance is damaged or does not meet your expectations in terms of quality, please inform us as soon as possible. For the warranty to be valid, the appliance must not have been tampered with, or used inappropriately.

The applicable warranty conditions are those set out by the company's representative office in the country of purchase. Detailed information is available from retail outlets. Proof of purchase must be presented to obtain the benefits of the warranty.

We reserve the right to introduce changes.

Used appliances and packaging

If the ⚙ symbol is shown on the specifications plate, bear in mind the following instructions:

Environmentally-friendly waste management

Unpack the appliance and dispose of the packaging by environmentally-friendly means.

The packaging of your appliance has been manufactured using only the materials which are strictly necessary to guarantee efficient protection during transport. These materials are 100% recyclable, thus reducing the environmental impact. You can also contribute to caring for the environment by following the advice below:

■ Dispose of the packaging in the appropriate recycling bin.
■ Before you get rid of an old appliance, make sure you disable it. Contact your local authority to find out the address of your nearest recycling centre to dispose of your appliance.
- Do not pour used oil down the sink. Collect it in a sealed container and take it to an appropriate collection point or, failing that, place it in the rubbish bin (it will end up in a controlled dump; this is probably not the best option, but it will avoid contaminating ground water)

This appliance complies with European directive 2002/96/EC on electrical and electronic equipment identified as WEEE (waste electrical and electronic equipment).

Illustration of a cooking process showing a pan on a stove with gas stove (no text or symbols)

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Parrilla supletoria cafetera

Illustration of a cooking pot and its cooking tray (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Diagram of a circular device with indicator lights and dotted lines, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Encendido manual

Two identical cooking pots with steamers, one checked and one crossed out (no text or symbols)

Illustration showing a cooking pot with a checkmark and a cross symbol indicating incorrect cooking conditions.

Service Technique....40

Illustration of a cooking process showing a pan on a stove with gas stove underneath (no text or symbols)

Illustration of a kettle being heated by a stove, showing cooling process (no text or symbols)

Illustration of a cooking pot and its octagonal stove with side legs (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Diagram of a circular device with indicator lights and dotted lines, no text or symbols present

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal gears and housing (no text or labels)

Allumage manuel

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, both labeled in English.

Illustration showing a cooking pot with a checkmark and a cooking pan with a cross, indicating cooking or heating conditions.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking process.

Illustration showing two cooking pots with checkmarks and a cross symbol, likely indicating cooking or cooking process.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Illustration of a cooking process showing a pan on a gas stove with an upward arrow indicating heating (no text or symbols present)

Illustration of a kettle being heated by a stove burner, with no text or symbols present.

Illustration of a cooking pot and its lid with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Diagram of a circular device with indicator lights and dotted lines, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Kézi gyújtás

Illustration showing cooking process with a pot and a cooking pan, indicating heating or cooking steps.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking error.

Illustration of a cooking process showing a pan on a stove with a gas stove underneath (no text or symbols)

Griglia supplementare wok

Illustration of a kettle being heated by a stove, with hands holding the stove (no text or symbols)

Illustration of a cooking pot, a hexagonal tray with food items, and a cooking pan (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Diagram of a circular device with indicator lights and dotted lines, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Accensione manuale

Two identical illustrations of a cooking pot with a stove and a cooking pan, both showing a checkmark (no text or symbols present)

Illustration showing a cooking pot with a checkmark and a cross symbol indicating cooking resistance.

Illustration of a cooking process showing a pan on a stove with an upward arrow indicating heating (no text or symbols present)

Illustration of a kettle being heated by a stove, with steam rising from the base (no text or symbols)

Illustration of a cooking pot and its octagonal stove with side legs (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Diagram of a circular device with candle-like elements and dots, no text or symbols present

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Illustration showing two cooking pots with checkmarks and X marks indicating heating conditions

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Illustration showing two cooking pots with checkmarks and X marks indicating cooking resistance or absence.

kg

Illustration of a cooking process showing a pan on a stove with a gas stove underneath (no text or symbols)

Tilleggsrist for wok

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Tilleggsrist for kaffekjeler

Illustration of a cooking pot and its octagonal stove with side legs (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

363300 Tilleggsrist for wok

184200 Tilleggsrist for kaffekjeler

648786 Simmer Plate

616229 Simmer Cap

Simple diagram of a circular object with a central rectangle and surrounding symbols, no text or labels present.

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal gears and housing (no text or labels)

Manuell antenning

Fare for store flammer!

Technical line drawing of a circular mechanical component with two embedded pins (no text or symbols)

tennstift| termopar

Illustration showing two cooking pots with checkmarks and X marks indicating heating conditions

Bruk kokekar av korrekt størrelse til hver brenner.

Illustration showing two cooking pots with checkmarks and X symbols indicating cooking defects or failure.

Bruk ikke deformerte kokekar som kan stå ustøtt på koketoppen. Beholder kan velte.

Two identical illustrations of a cooking pot with a checkmark and a cross symbol, no text or labels present.

kg

Illustration of a cooking process showing a pan on a stove with gas stove (no text or symbols)

Ruszt dodatkowy wok

Illustration of a kettle being heated by a stove, showing cooling process (no text or symbols)

Illustration of a cooking pot and its octagonal stove with side legs (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Simple diagram of a circular device with candle and flame symbols, no text or labels present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal gears and housing (no text or labels)

Zapalanie ręczne

Illustration showing a cooking pot with a checkmark and a cooking pot with a cross, both labeled in English.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure, likely for cooking instructions.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol indicating absence or invalid.

kg

Illustration of a cooking process showing a pan on a stove with gas stove (no text or symbols)

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Illustration of a cooking pot, a tray with food items, and a gas stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Diagram of a circular device with flame icons and dotted lines indicating motion or signal paths (no text or symbols)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Acendimento manual

Two identical illustrations of a cooking pot with a stove and a cooking pan, both showing different symbols (no text or labels present)

Illustration showing two cooking pots with checkmarks and X marks indicating cooking resistance or absence.

Illustration showing two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or heating conditions.

Illustration showing a cooking pot with a checkmark and a crossed-out pot, likely indicating a cooking or cooking process.

Illustration showing two cooking pots with checkmarks and X marks indicating absence or failure.

Illustration of a cooking process showing a pan on a stove with gas stove (no text or symbols)

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Illustration of a cooking pot and its octagonal stove with side legs (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

Simple diagram of a circular object with internal components and scattered symbols, no text or labels present.

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Aprindere manuală

Technical line drawing of a mechanical component with cylindrical body and two embedded pins (no text or symbols)

bujiel termocuplu

Illustration showing two cooking pots with checkmarks and X symbols indicating heating conditions

Illustration showing two cooking pots with checkmarks and X marks indicating cooking resistance or absence.

Illustration showing two cooking pots with checkmarks and X marks indicating cooking resistance or absence.

kg

Illustration of a cooking process showing a pan on a gas stove with an upward arrow indicating heating (no text or symbols present)

Extra wok-galler

Illustration of a kettle being heated by a stove, with hands operating it (no text or symbols)

Illustration of a cooking pot and its lid with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular platform with a base and top, no text or symbols present.

Simmer Cap

363300 Extra wok-galler

Diagram of a circular device with indicator lights and dotted lines, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Manuel tändning

Illustration showing two cooking pots with checkmarks and X marks indicating heating conditions

Illustration showing two cooking pots with checkmarks and X symbols indicating cooking defects or failure.

Two identical illustrations of a cooking pot with a checkmark and a cross symbol, no text or labels present.

kg

Illustration of a cooking process showing a pan on a stove with a gas stove underneath (no text or symbols)

Wok izgara eki

Illustration of a kettle being heated by a stove burner, with no text or symbols present.

Kahve cezvesi eki

Illustration of a cooking pot and its lid with a stove (no text or symbols)

Simmer Plate

Simple 3D illustration of a circular plate with a base, no text or symbols present

Simmer Cap

Diagram of a circular device with indicator lights and dotted lines, no text or symbols present

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Manuel çakmak
