KP 1092 - Cooker SEVERIN - Free user manual and instructions

USER MANUAL KP 1092 SEVERIN

Two SEVERIN electric cooktops with black and silver shades, placed side by side (no visible text or symbols on the devices themselves)

ART.-NO. DK 1014 / KP 1092

GB Instructions for use

FR Mode d'emploi

Simple line drawing of a cooking pot with crossed panes and two handles (no text or symbols)

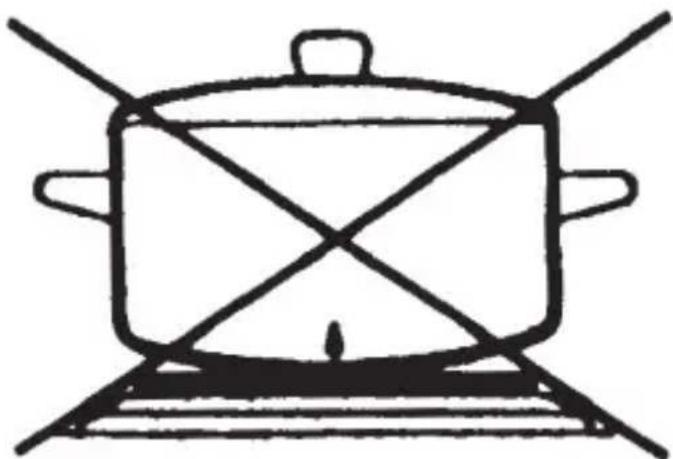

Simple line drawing of a cooking pot with crossed panes on a railway track (no text or symbols)

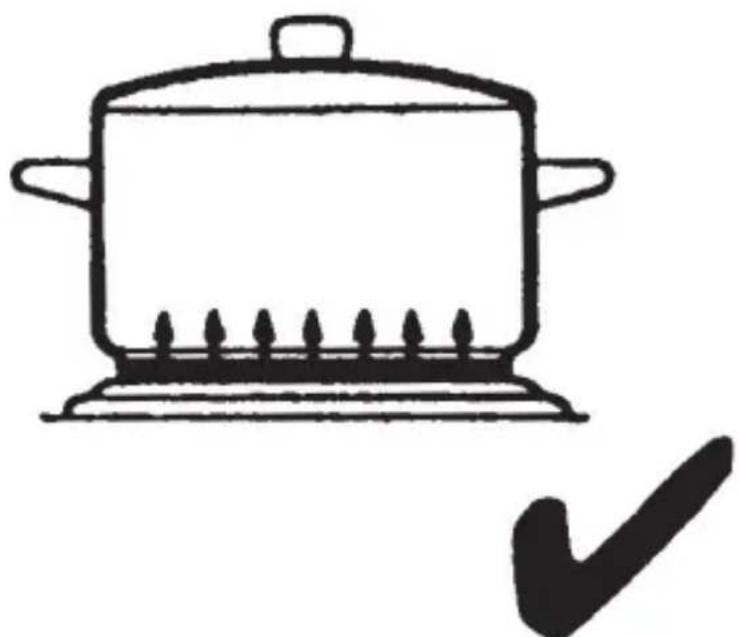

Simple line drawing of a cooking pot with a checkmark below it (no text or symbols)

DE

Kochplatten

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations.

Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

Important safety instructions

• In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).

• This appliance must only be used indoors. It must be kept away from rain and moisture.

• It must not be stored in any areas where there is likely to be relatively high humidity (e.g. cellars, attics, garden sheds).

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• This appliance must never be immersed in water or any other liquids.
• Clean the cooking surfaces with a damp cloth after each use. For detailed information on cleaning the appliance, please refer to the section General care and cleaning.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system
  Caution! Hot surfaces!

This symbol indicates that the touchable surfaces of the unit, particularly on and around the hotplate, may get very hot. The sticker with this symbol must not be removed.

- This appliance is intended for household use and similar applications, such as

- in kitchens for employees in stores, offices and other similar work environments, - in agricultural settings, - by customers in hotels, motels and other typical residential environments, - in establishments offering bed and breakfast.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental

capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.
  • Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
• The appliance and its power cord must be kept well away from children under 8 at all times.

- Caution: Keep any packaging materials well away from children – such materials are a potential source of danger, e.g. of suffocation.

• Every time the appliance is used, the main body including the power cord as

well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

- Do not leave the appliance unattended while in use.

- Caution:

When overheated, food may tend to ignite. However, the likelihood of this occurring is increased where food with a high fat or oil content is concerned.

- Do not position or operate the appliance close to or underneath any wall-cupboards or hanging objects such as curtains or any other inflammable materials.

- During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes, stains or hot steam.

• Always ensure that air is able to circulate freely underneath the unit. A minimum distance of 10 cm to any wall must also be observed

- The ventilation slots underneath the unit must not be covered during use.

• Always remove the plug from the wall socket

• in case of any malfunction,
• after use, and also
• before cleaning the appliance.

- Do not take the power plug out of the socket by pulling on the power cord, but hold the power plug to take it out.

• Before handling the mains plug, always

ensure that your hands are always dry.

- The power cord must not be bent, pinched, run over or allowed to come into contact with heat sources or sharp edges. It must also be positioned in such a way as to not be a tripping hazard.

- Never use the power cord to carry or move the appliance.

- Do not let the power cord hang free.

- Do not allow the power cord to touch any hot parts of the appliance.

- No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

Start up

Before using the appliance for the first time, let it heat up for approximately 3 minutes at maximum power (but without using a pot or saucepan), while ensuring sufficient ventilation. During this process, a slight smell and a little smoke may be emitted. This is normal and will only last for a very short time. Ensure adequate ventilation by opening windows or balcony doors.

Clean the appliance afterwards as described in section General care and cleaning) below.

Operation

• Always place a pot / saucepan on the hot-plate before the appliance is switched on.
- Ensure that the pot is clean and dry on the outside. Do not use stain covered pots / saucepans.
- To prevent damage to the hot-plate, only use pots / saucepans with flat bottoms. Most suitable are pots specifically

designed for use on electric plates (see picture I).

- Always make sure that the pot / saucepan used is of at least the same diameter as the plate; this minimises the loss of heat and prevents the plate from being damaged as a result of uneven heat distribution.

Thermostat setting

MAX : Pre-cooking and quick frying

4-5 : Regular cooking, frying

3-4 : Simmering

1-2 : Keeping warm

Set the thermostat knob to the 'MIN' position after use. Remove the plug from the wall socket afterwards to ensure that the appliance is completely disconnected from the mains.

Indicator light

The indicator light stays on while the hot-plate is heating up. It goes out once the pre-set temperature has been reached.

General care and cleaning

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
  • To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives or harsh cleaning solutions.
  • After use, a wet cloth may be used to remove any spills from the plates.
  • A special cleaning agent should be used to treat the plate from time to time.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
