USER MANUAL MobiCool S13 DC WAECO

Our Name is our Mission

S13 DC
S24 DC
S28 DC
S28 DC/AC
S32 DC
S32 DC/AC

GB

Cool bag

Instruction Manual 4

D

Kühltasche

Safety instructions S13, S24, S28, S32

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is handed over to another person, this manual is to be handed over along with it.

Contents

1 Safety instructions 4
2 Intended use 6
3 Scope of delivery 6
4 Technical description 7
5 Operation 7
6 Cleaning and maintenance 8
7 Troubleshooting 9
8 Disposal 9
9 Technical data 10

Please observe the following safety instructions.

1 Safety instructions

1.1 General safety

• Do not operate the device if it is visibly damaged.
• Ensure that the ventilation slots are not covered.
• This device may only be repaired by qualified personnel. Inadequate repairs can lead to considerable hazards.
• Persons (including children) whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely should not use this appliance without initial supervision or instruction by a responsible person.
  Electronic devices are not toys.

Always keep and use the device out of the reach of children.

Children must be supervised to ensure that they do not play with the device.
- Food may only be stored in its original packaging or in suitable containers.
- The cooling device is not suitable for transporting caustic materials or materials containing solvents.

S13, S24, S28, S32 Safety instructions

- Warning!

Keep Ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Warning!

Do not use electrical appliances inside the food storage compartment of the appliance.

• Only connect the device as follows:

• With the supplied mains rectifier to the 100–240 V AC mains supply (S28 DC/AC, S32 DC/AC only)

• With the 12V cable supplied to a 12V socket

• Do not pull the plug out of the cigarette lighter or the socket by the cable.

• If the supply cord is damaged, it must be replaced with the cable of the same type and specifications.

Pull out the connection cable:

• Before cleaning and maintenance

• After use

• Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.

• On boats: if the device is powered by the mains, ensure that the power supply has a ground fault interrupter circuit. Danger of fatal injuries!

• Disconnect the cooling device and other power consuming devices from the battery before connecting the quick charging device.

• Check that the voltage specification on the type plate corresponds to that of the energy supply.

1.2 Operating the device safely

• Before starting the device, ensure that the power supply cable and the plug are dry.

• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)

- Caution! Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

Intended use S13, S24, S28, S32

• Do not fill the inner container with ice or fluid.
• Never immerse the device in water.
• Protect the device and the cable against heat and moisture.
• A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.
• Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply. Danger of fatal injuries!
• The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

2 Intended use

The cooler is suitable for keeping cool foodstuffs.

The device has been designed for use with a 12 V DC on-board power supply socket of a car (cigarette lighter), boat or caravan as well as a 100-240 V AC mains supply (S28 DC/AC, S32 DC/AC only).

The appliance may also be used for camping use. The appliance shall not to be exposed to rain.

Caution!

If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question.

3 Scope of delivery

Quantity Description

1 Cool bag S32
1 Rectifier (100-240 V/12 V) (S28 DC/AC, S32 DC/AC only)
1 Instruction manual

S13, S24, S28, S32 Technical description

4 Technical description

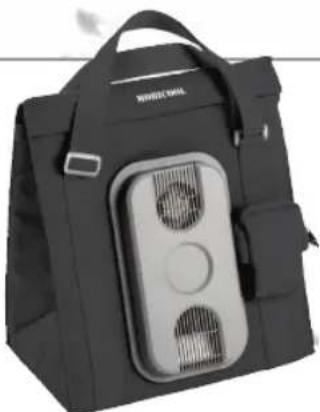

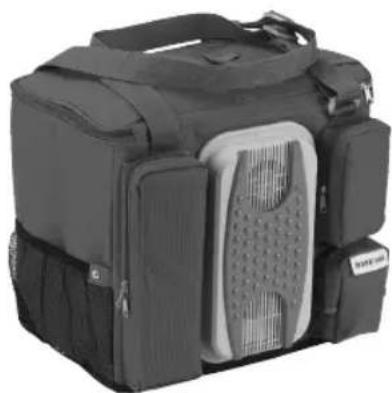

The cool bag is designed for mobile use. It can cool down or keep products cool up to 15^ below ambient temperature.

It can be folded together to a compact size when empty.

You can store the 12V connection cable and the rectifier (S28 DC/AC, S32 DC/AC only) in a pocket on the side (fig. 1, page 3).

Its cooling system is a non-wearing and CFC-free Peltier cooling, the heat is discharged by a fan.

S32

A single drinks bottle can be removed via the bottle hatch (fig. 2, page 3).

5 Operation

Note

Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 8).

Energy saving tips

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow warm food to cool down first before placing it in the device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cool bag open for longer than necessary.

Using the cool bag

Note

Like every cooling device, your cool bag must be properly ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured.

Connect the 12 V connection cable into the cigarette lighter socket or a 12 V socket in the vehicle.

or

Cleaning and maintenance S13, S24, S28, S32

S28 DC/AC, S32 DC/AC only: connect the 12 V connection cable to the rectifier (fig. 4, page 3) and plug rectifier into a 100-240 V AC socket.

√The cool bag starts cooling the interior.

Caution!

Ensure that the objects placed in the cool bag are suitable for cooling to the selected temperature.

Disconnect the power cable to switch the device off.

Folding away the cool bag

Fold up the bottom towards the handle, then fold the empty cool bag flat and fasten it with the press studs.

6 Cleaning and maintenance

Caution!

Before cleaning the cool bag, pull the cable out of the socket or the cigarette lighter.

Caution!

Never clean the cool bag under running water or in dishwater.

Caution!

Do not use abrasive cleaning agents or hard objects for cleaning as these can damage the cool bag.

Occasionally wipe the inside and outside of the cool bag with a damp cloth. Do not fold it away until it is completely dry.

S13, S24, S28, S32 Troubleshooting

7 Troubleshooting

Fault Possible cause Suggested remedy
Your cooler does not function (plug is inserted).	There is no voltage flowing from the 12 V socket (cigarette lighter) in your vehicle.	The ignition must be switched on in most vehicles for voltage to flow at the cigarette lighter.
	No voltage present at the AC voltage socket (S28 DC/AC, S32 DC/AC only).	Try using another plug socket.
Your cooler does not cool (plug is inserted).	The inner fan or the cooling element is defective.	This can only be repaired by an authorised customer services unit.
Operation with a 12 V socket (cigarette lighter):	The cigarette lighter socket is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the cigarette lighter socket, either the socket must be cleaned or the plug has not been assembled correctly.
The ignition is on and the cooler is not working.	The fuse of the 12 V plug has blown.	Replace the fuse (5 A) in the 12 V plug (fig. 31, page 3).
Pull the plug out of the socket and make the following checks.	The vehicle fuse has blown.	Replace the vehicle's 12 V socket fuse (usually 15 A). (Please refer to the oper-ating manual of your vehicle.)

8 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the device, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

Technical data S13, S24, S28, S32

9 Technical data

	S13 DC S24 DC
Gross capacity: 13 litres	24 litres
Connection voltage:	12 V DC	12 V DC
Average power consumption: 35 W 35 W
Cooling capacity: Max.	15 °C under ambient temperature
Dimensions (L x W x H): 350 x 200 x	260 mm 350 x 200 x	430 mm
Weight 1.95 kg	2.27 kg
Testing/certification:	CE E4 GS

	S28 DC	S28 DC/AC
Gross capacity:	28 litres
Connection voltage:	12 V DC	12 V DC 100-240 V AC, ~50/60 Hz (separate adapter)
Average power consumption:	35 W	DC: 35 W AC: 20 W
Cooling capacity: Max.	15 °C under ambient temperature
Dimensions (L x W x H):	370 x 230 x 410 mm
Weight	2.3 kg	2.45 kg
Testing/certification:	CE E4 GS

S13, S24, S28, S32 Technical data

	S32 DC S32 DC/AC
Gross capacity: 32 litres
Connection voltage:	12 V DC	12 V DC 100-240 V AC, ~50/60 Hz (separate adapter)
Average power consumption:	35 W DC: 35 W AC: 20 W
Cooling capacity: Max.	15 °C under ambient temperature
Dimensions (L x W x H): 400 x 280 x	370 mm
Weight 2.75 kg 2.9 kg
Testing/certification:	CE E4 GS

This device is CFC-free.

Versions, technical modifications and delivery options reserved.
