USER MANUAL KSW 344 BOMANN

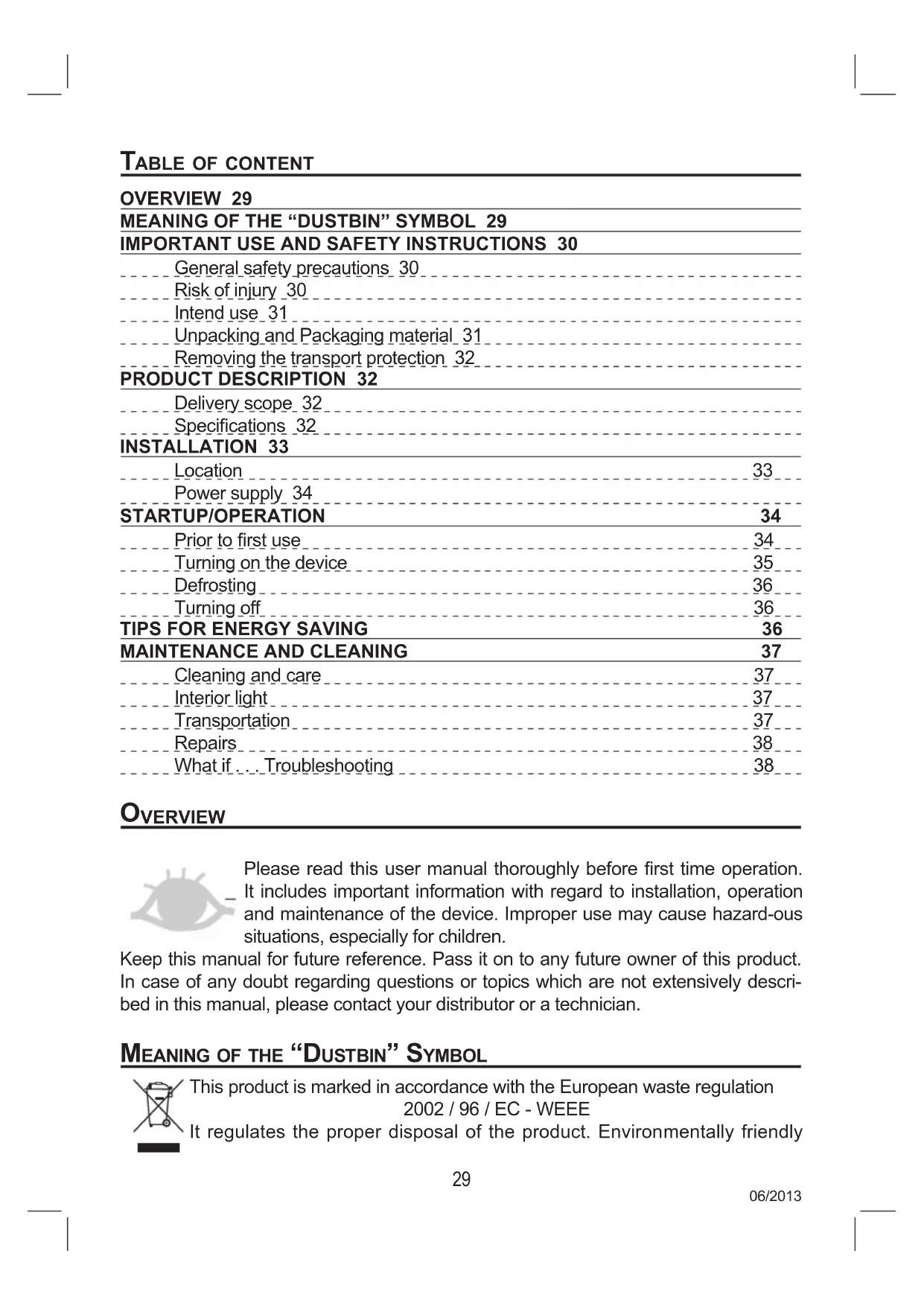

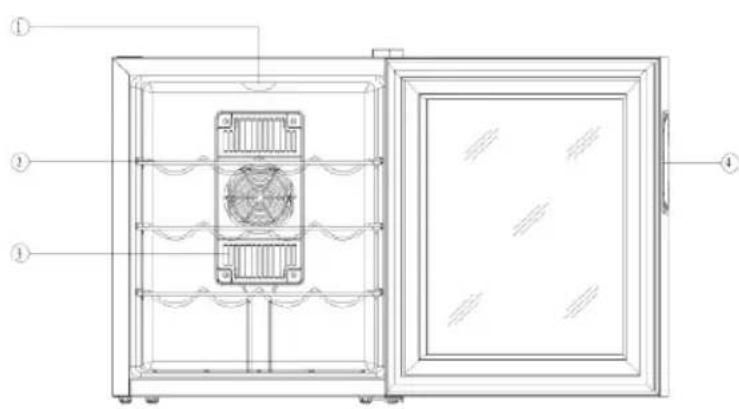

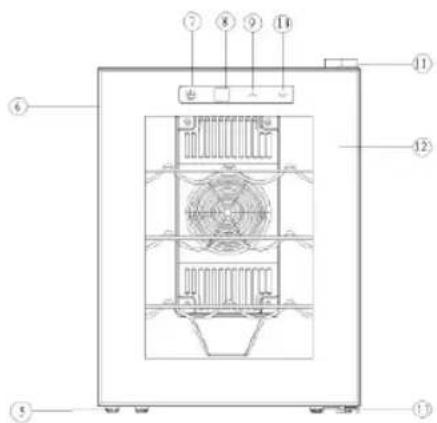

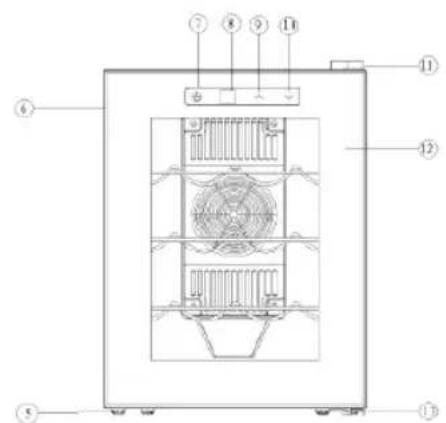

vervieW Please read this user manual thoroughly before rst time operation. It includes important information with regard to installation, operation and maintenance of the device. Improper use may cause hazard-ous situations, especially for children. Keep this manual for future reference. Pass it on to any future owner of this product. In case of any doubt regarding questions or topics which are not extensively descri- bed in this manual, please contact your distributor or a technician. MeaninG OF the “DUstBin” sYMBOl This product is marked in accordance with the European waste regulation

2002 / 96 / EC - WEEE

It regulates the proper disposal of the product. Environmentally friendly30 06/2013 disposal will prevent possible negative consequences to health caused by improper disposal. This symbol on the product or its packaging indicates that this product must not be disposed of with the regular household waste. The user has to return the product to a collection point for the recycling of electric and electronic equipment. The disposal must comply with the local regulations in place. For further information please contact your local authorities or waste collection ser- vice. Disable waste equipment before disposal:

• Disconnect the mains plug from the wall socket.

• Disconnect the plug from the mains cable.

• Remove or disable any existing spring or latch locks. This will prevent children from locking themselves (risk of suffocation!) or from get- ting into perilous situations. Children might not understand the risks that arise from handling household devices. Therefore, observe children and make sure they do not play with the device.

nstrUctiOns General safety precautions All safety information in this user manual are marked with a warning symbol. They indicate possible dangers precociously. It is imperative to read and follow this informa- tion. WARNING Do not touch the plug at the mains cable with wet or moist hands when connecting or disconnecting. Risk of death by electric shock!

• In case of emergency, unplug the device immediately.

• Hold the plug when disconnecting the mains cable; do not pull the cable.

• Disconnect the plug before cleaning or servicing.

• Regularly check the device and cable for signs of damage. Do not continue to ope- rate the device in case of damage.

• A damaged mains cable must be replaced by the manufacturer or a technician and without any delay. Do not use the device with a damaged cable or plug.

• Do not repair the device by yourself. Please contact authorized personnel. In or- der to avoid hazards a damaged mains cable must be replaced with an equivalent cable by the manufacturer or qualied specialist.

• Except for cleaning and maintenance work described in this manual, no other alte- rations of this device must be executed.

• Do not place vases or other containers lled with liquids on the device. Risk of injury

• So that you can disconnect the appliance quickly in event of an emergency, do not use extension cables.06/2013

• This appliance can be used by children aged from 8 years and abo- ve if they have been given supervision or instruction concerning the safe use of the appliance understands the hazards involved.

• Cleaning and maintenance by the user shall not be made by child- ren unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Children shall not play with the appliance.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the ap- pliance in a safe way and if they understand the hazards involved.

• Never transport the unit with content. WARNING Packaging materials (e.g. plastic bags, polystyrene) are dangerous for children. Risk of suffocation! Keep packaging materials out of reach of children. WARNING Containers with ammable gases or liquids can leak due to cold ambi- ent temperatures. Risk of explosion! Do not store combustible materials such as aerosol cans or rell cartridges for lighters in your device. Intend use

• Only use the appliance in a dry, indoor area. It is intended for domestic use and si- milar areas. This device is not intended for use outside areas.

• For safety reasons, alterations or modications of the device are prohibited.

• Please keep in mind that the manufacturer is not reliable for any damage resulting from incorrect or any other use then cooling/storing beverages. Unpacking The packaging must be undamaged. Check the device for any possible transport damage. Do not install a damaged device. In case of damage, please contact your distributor. Packaging material The packaging for transportation of the device and individual parts is produced of re- cyclable materials.

• corrugated cardboard / paperboard (mainly of waste paper)32 06/2013

• form part of PS (foamed, CFC-free polystyrene)

• Films and bags of PE (polyethylene)

• Strapping strips of PP (polypropylene) IMPORTANT Make sure you dispose of packaging materials environmentally friendly (see page 29). Removing the transport protection The device and parts of the interior are protected for transport. Remove all adhesive tapes from the right and left side of the door. You may remove adhesive residue with a cleaning solvent. Also remove any adhesive tapes and packaging materials from the inside of the device.

Delivery scope The delivery scope of this device includes 3 chrome shelves and this user manual. Specications BOMANN Model No. KSW 344 Bottle capacity 16 à 0,75 l Net capacity 46 l Energy consumption / 24h (1)

Energy consumption / year 131.0 kWh Climate class N (+16°C up to +32°C) Noise level 43 dB(A) re 1 pW Type Free-standing Power supply 220-240 V, 50/60 Hz Input power 70 W Fuse protection 1 A Light, LED 1 W Dimensions H x W x D 52.0 x 42.0 x 48.0 cm Net weight 13.8 kg (1) The actual energy consumption depends on the use and installation of the device. All device-specific energy data have been determined by the manufacturer under laboratory conditions in accordance with pan-European standardized measuring methods. These are regulated by EN ISO 15502. The actual energy consumption de- pends on the usage and might therefore also be above the values determined by the manufacturer under standard conditions. An expert knows these relations and will execute the tests with special measurement instruments in accordance with the regulations in place. MANUFACTURER DATA Product is subject to changes and improvements. installatiOn Location Sufcient ventilation around the device is necessary in order for the heat to dissipate properly and to guarantee efcient cooling operation at low power consumption. For this purpose, leave sufcient space around the device.

• Minimum clearance of 5 cm between rear side and wall,

• at least 20 cm on both sides and on the top of the device.

• Leave proper space in front of the device in order to open the door at an angle of 120°. IMPORTANT

• Do not expose the device to direct sunlight.

• Do not place near heaters, next to a stove or any other heat sources.

• Do not use the device outdoors.

• Only install at a location with an ambient temperature suitable for the climate class of the device. For information on the climate class, please refer to chapter “Specications“ or to the rating label located in the interior or on the rear side of the device.

• Avoid installation at locations with high humidity (e.g. outdoors, cellar, bathroom), as metal parts would be susceptible to corrosion under such circumstances.34 06/2013

• Do not place the device near volatile or combustible materials (e.g. gas, fuel, alco- hol, paint, etc.) and in rooms which may have poor air circulation (e.g. garages).

• Only place on a steady and safe surface.

• This appliance is equipped with non-slip rubber feet. As furniture surfaces are made of a variety of materials and are treated with many different types of cleaning agents, it cannot be completely ruled out that some of these substances may con- tain ingredients which could corrode the rubber rests and soften them. If possible place an antislip material under the feet of the device.

• If the device is not horizontally leveled, adjust the feet accordingly. Power supply The kind of current (AC) and the voltage must be conform to the data of the rating label, located inside or outside on the back of the unit. In case of heavy voltage uctu- ations, it is recommended to use an automatic alternating current regulator. The plug, together with the grounding conductor, must fit into the wall socket. The mains plug must be freely accessible. The cord should be secured behind the wine refrigerator and not let exposed or dangling to prevent accidental injury.

PeratiOn Prior to rst use IMPORTANT: Before connecting the appliance to the power source, let it stand upright for ap-proximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

• Clean the interior of the device including all accessory parts located inside with lu- kewarm water and by using a soft cloth. Connect the device to the mains supply IMPORTANT The device must be earthed properly. For this purpose the plug of the mains cable has been tted with the intended lead. IMPORTANT Contact an electrician if the plug does not t in the wall socket. IMPORTANT In case you disconnect the device or in case of power failure: Wait for 5 minutes before restarting the device.06/2013

Turning on the device Turn on the device by connecting the plug to a wall socket. Operate the temperature control, which is located on the control panel at the front of the unit. Please also refer to the following chapter “Settings“. Settings Light “ ”button turns on or off the interior light. LED Display The display indicates your temperature setting and the actual internal temperature.

• When the device turned on the LED always shows the standard setting 17°C. Short time after the LED indicates the internal temperature. Temperature setting Regulate the internal temperature by pressing the buttons“▲” and “▼” to increases or decreases the set temperature by 1°C-steps. About 5 seconds after the last button press the electronic switch automatically and the actual internal temperature will be indicated in display.

• The temperature range can be regulating between +11°C and +18°C, max. +14°C below the ambient temperature. The optimal room temperature is approx. +20°C.

• It is recommended that you installed the wine refrigerator in a place where the ambient temperature is between +16°C - +26°C. When the ambient temperature around +25°C or less, unit can maintain a temperature range between +11°C - +18°C.

• If the ambient temperature is above or below recommended temperatures, the per- formance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause interior temperature to uctuate. The range of +11°C - +18°C may not be reached.

• The temperature may uctuate depending on whether or not the interior light is on or off or whether the bottles are located on the upper, middle or lower section.

• We recommend always switching off the light. Storing/Tempering

• Fill the device from the bottom tot he top, this cools the bottles faster.

• The following specications are only recommendations and are optional: Wine Temperature Champagne, sparkling wine 7 – 10°C Fruit wine 10 – 12°C Light red wine / white wine 12 – 13°C Dessert wine 14 – 15°C Red wine 14 – 17°C36 06/2013

• We suggest serving wine cool than too warm; white wines less cool in winter and red wines cooler in summer.

• The temperature in the device will be warmer at the top of the cooling zone and cooler at the bottom. If you are going to store a mixture of wine types in the device, it is recommended that the red wines are stored at the top of the cooling zone, white wine in the middle of the cooling zone and sparking wines at the bottom.

• Ultimately, the correct temperature is a matter of personal taste. Defrosting The device has an automatic defrosting system. The arising condensate during the operation runs through the drain opening to the outside into the water tray, where it will evaporate. Turning off Unplug the device in order to turn it off. If the device will not be operated for a longer period of time:

• Remove the entire content from the device.

• Disconnect the plug or turn off / unscrew the fuse.

• Thoroughly clean the device (refer to chapter of “Cleaning and Care”).

• Keep the door open in order to prevent bad odors.

• Disconnect the plug if you do not use the device.

• Do not install the device near stoves, heaters or other heat sources. In case of higher ambient temperatures, the ventilator will run more frequently and longer.

• Ensure sufcient ventilation at the bottom and rear side of the device. Never block any ventilation openings.

• Always keep the ventilation openings at the rear side clean.

• Only set the temperature as low as needed.

• The temperature in the device will be warmer at the top of the cooling zone and cooler at the bottom. If you are going to store a mixture of wine types in the device, it is recommended that the red wines are stored at the top of the cooling zone, white wine in the middle of the cooling zone and sparking wines at the bottom.

• Pre-cool the wine for 2 hours in refrigerator before storing inside the device.

• Only switch the interior light on if necessary.

• Do not open the door longer then necessary.

• Make sure the door sealing is in good order for the door to close properly.06/2013

aintenance anD cleaninG Cleaning and care For hygienic reasons, clean the interior and accessory parts regularly. WARNING Always disconnect the plug or turn off/ unscrew the fuse before cleaning. Pull the plug and not the cable. WARNING Do not use steam cleaners for cleaning the device; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts. The device must be dry before restarting operation. IMPORTANT Essential oils and organic solvents, such as the juice of lemon or orange skin, butanoic acid or cleaning agents containing acetic acid can damage plastic parts. Prevent contact of any part with such substances. Do not use abrasive cleaning agents.

• Remove the contents and keep covered at a cool location.

• Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.

• The outside of wine cooler should be cleaned with mild detergent and warm water.

• Cleaning the water box at the bottom outside.

• After thorough drying, restart operation.

• Clean the ventilation openings on the rear side by using a soft brush or vacuum cleaner. Interior light The light contributes to a warming of the interior. Therefore we recommend, switch the light off if it is not needed. This also saves energy! IMPORTANT The light diodes of the device have an extremely long lifespan. It is not necessary and also not possible, to exchange them. The light diodes are rmly assembled into the light. Under no circumstances should you open the light! This would irreparably damaged the device. Transportation For transportation the device must secure.

• Securely tape down all loose items inside your wine refrigerator.

• Turn the leveling legs up to the base to avoid damage.

• Be sure the wine refrigerates stays in the upright position during transportation.38 06/2013 Repairs WARNING Servicing of electric devices must be conducted by qualied experts only. Incorrect or improper repairs constitute a risk for the user and will void the warranty! What if . . . Troubleshooting The design of the device ensures a trouble-free operation as well as a long life cycle. Nevertheless, if any defect occurs during operation, please check if it is caused by im- proper operation. The following problems can be solved by you by checking for the possible cause.

PROBLEM POSSIBLE CAUSE SOLUTION

The device is not working properly or at all Is the plug securely connected to the mains? Connect the plug properly to the socket. Is the temperature control proper- ly set? Check the settings. Is the place unqualied? Check the ambient temperature. Do bottles or shelves prevent the door from closing properly? Arrange the bottles and shelves properly. Is the ventilation of the device hedged? Clear the ventilation openings, install the device freely Wine refrigerator is not cold enough Temperature is not setting? Check the temperature control setting- Is the ambient temperature too warm or cold? External environments may re- quire a higher setting or another place. Are bottles or shelves preventing door the closing? Arrange the bottles and shelves properly. Is the ventilation openings co- vered? Clear the ventilation openings, install the device freely Was door open for long time? Only open the door longer is then necessary. Is the door seal loosing? Loud noise du- ring operation Does the device not stand hori- zontal? Adjust the feet accordingly. Use a water level. Vibrations Does the device not stand hori- zontal? Adjust the feet. Use a water level to check. The door doesn’t close Does the device not stand hori- zontal? Adjust the feet accordingly.06/2013

PROBLEM POSSIBLE CAUSE SOLUTION

The ventilation runs often or always. The temperature has been pro- grammed to a very low tempe- rature, or the difference between the ambient and programmed temperature is very large. Then it is normal that the ventila- tor is running. It is not a malfunc- tion. Water on the bottom. Is the temperature control set pro- perly? Check the temperature settings. Is the drain opening logged? Clean the drain opening with a pipe cleaner or knitting needle. Interior lamp does not work. Is the plug not connected to the mains? Connect the plug properly to the socket. Is the illuminant defect? Contact a technician. Note. On days of high humidity, condensation might occur on the outer surface of the device. This is no malfunction; you may simply wipe the water off. If a problem still persists after following the steps above, please contact your distribu- tor and/or a technician. Are you interested in other Bomann products? Please visit our website: www.bomann.de40 06/2013 PrODUct Fiche OF hOUsehOlD reFriGeratOrs accOrDinG

Directive (eU) 1060/2010 Brand Bomann Model KSW 344 Category 10 Energy efciency class

A+++ (highest efciency) to G (lowest efciency). Consumption data Annual energy consumption

Frost-free - Temperature rise time h - Freezing capacity kg/24h - Climate class

Noise level dB(A) re 1pW 43 Design Free-standing Measures and weights Height cm 52.0 Width cm 42.0 Depth cm 48.0 Net weight kg 13.8 Electrical connection Compressor - Connection voltage 220-240V~ / 50Hz Connection power 70 W 1) A+++ (highest efciency) to G (lowest efciency). 2) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.

3) * = compartment: a frozen-food storage compartment in which the temperature is not warmer than

-6°C. ** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C.06/2013

*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C. *(***) = food freezer compartment in which the temperature is not warmer than -18°C and a minimum freezing capacity in 24 h.

4) Climate class SN: ambient temperature of +10°C up to +32°C.

Climate class N: ambient temperature of +16°C up to +32°C. Climate class ST: ambient temperature of +16°C up to +38°C. Climate class T: ambient temperature of +16°C up to +43°C.42 06/2013
