PARTIE 4. NETTOYAGE ET ENTRETIEN

Cartoon illustration of a refrigerator with various food items including a cup, bottle, and hand gestures (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a gear mechanism (no text or symbols)

Technical line drawing of a mechanical component with internal parts (no text or symbols)

Safety Instructions 15

Recommendations 16

Switching On the Appliance 17

HOW TO OPERATE THE APPLIANCE 18

Thermostat Setting 18

"Door Open" Indicator; 19

FOOD STORAGE IN THE APPLIANCE 19

Refrigerator Compartment.... 19

Freezer Compartment 20

CLEANING AND MAINTENANCE 21

Defrosting the Refrigerator Compartment: 21

Defrosting the Freezer Compartment: 22

Replacing the Light Bulb 22

BEFORE CALLING YOUR AFTER SALES SERVICE ....23

PARTS OF THE APPLIANCE AND THE COMPARTMENTS ......25

-The operating instructions apply to several models. Differences may therefore occur.

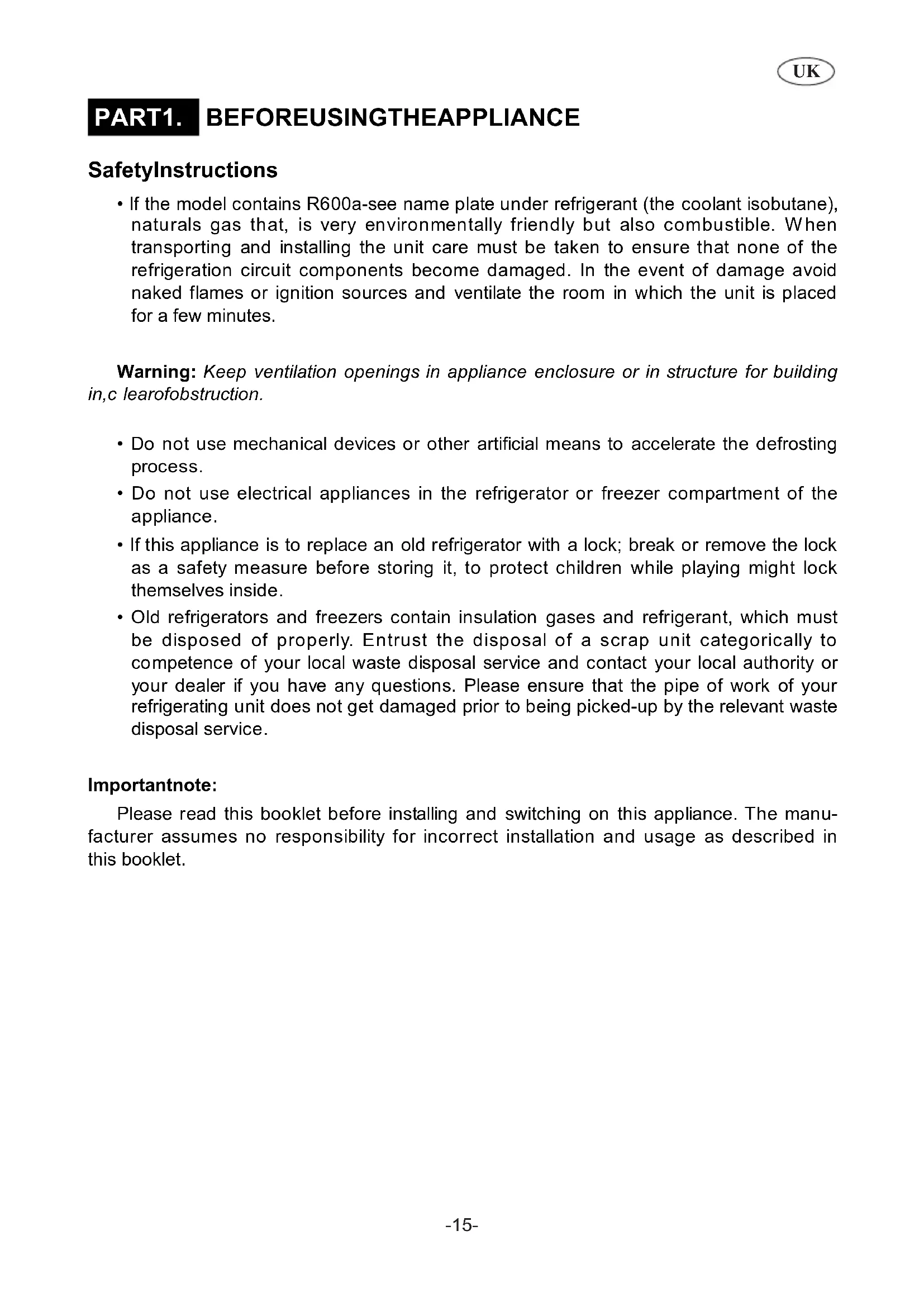

PART1. BEFOREUSINGTHEAPPLIANCE

SafetyInstructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, c learofobstruction.

- Do not use mechanical devices or other artificial means to accelerate the defrosting process.

- Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.

- If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.

- Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Importantnote:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Recommendations

Warning: Do not use mechanical devices or other artificial means to accelerate the defrosting process. Do not use electrical appliances in the food storage of the appliance. Keep the appliance ventilation openings free. Do not damage the refrigerator's refrigerant circuit.

• Do not damage the refrigerant circuit.
• Do not allow children to play with the appliance. Children must never sit in the drawers or hang from the door.
• Do not use adapters or shunts, which could cause overheating or burning.
• Do not plug old, warped power supply cables.

Illustration of three hands tying a knot using ropes and wires (no text or symbols)

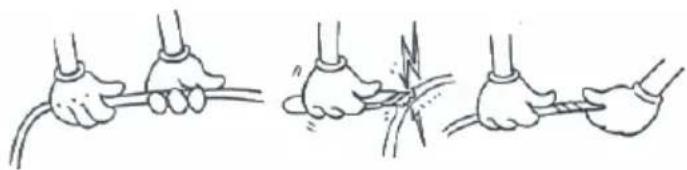

- Do not twist and bend the cables, and keep them away from hot surfaces.

- Do not plug the power supply with wet hands.

- Your old appliances contain insulation gases and refrigerant that must be disposed of properly. Please ensure that the refrigerant circuit is not damaged before the appliance is taken away for disposal.

• After installation make sure that the power cable is not trapped underneath appliance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

- If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed qualified person.

- Do not defrost the appliance with other electrical devices (i.e. hair dryer) or other artificial means, and do not use sharp metal objects to remove the ice on the freezer, as this could cause damage to the refrigerant system.

- Do not operate any electrical appliances inside the refrigerator or freezer.

- Do not place bottles (glass or tin) containing liquids (especially sparkling liquids) into the freezer as they could cause the bottle to burst during freezing.

- Do not touch the cooling surfaces while the appliance operates, especially with wet hands, because the skin may stick to cold surfaces.

- Do not eat ice, which has just been removed from the freezer.

Simple line drawing of a cartoon character peeking from behind a door (no text or symbols)

- The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

- If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed person.

SwitchingOntheAppliance

- If the power supply cord is damaged, in order to avoid hazard it must be replaced by the service or by qualified personnel.

- Before switching on, place the appliance on upright position and wait at least three hours without moving the appliance. This will give the refrigerant circuit time to settle and operate efficiently.

- Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).

- Installation of the appliance and electrical connections must be carried out by a qualified technician, in accordance with the Installation Manual and local regulations.

- Installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorized electrician for a assistance.

- Manufacturerisnotresponsibleforfailuretocompletethe ground connection as described in this booklet.

- There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

Cartoon illustration of a distressed refrigerator with arms and legs, showing a sad face (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

PART 2. HOW TO OPERATE THE APPLIANCE

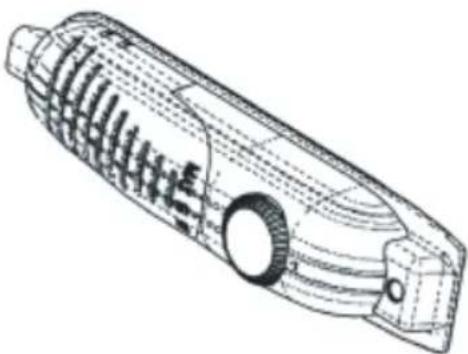

Thermostat Setting

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

- Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

- The “0” position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position (1-3).

- For long-term storage of food in the freezer compartment, you can set knob medium position.(3-4)

- Note that the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments. If required, change the temperature setting.

- When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put much food inside.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in order not to damage the compressor.

- REFRIGERATORS (with 4 star rating): The freezer of the refrigerator cools down to -18°C and less.

- LARDERS (without star rating): Larders (coolers) have not any freezer compartment but can cool down to 4-6°C.

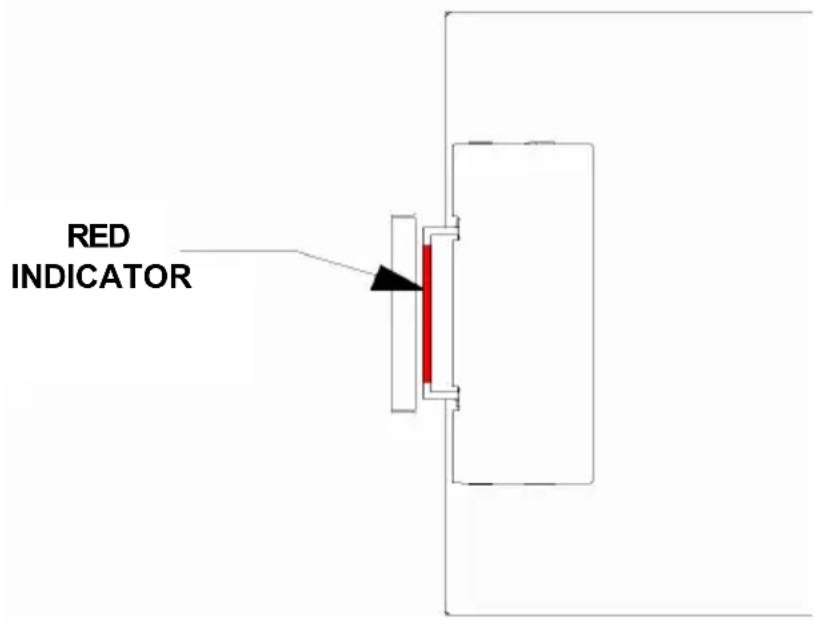

"DoorOpen"Indicator; (forSingleDoorrefrigeratorswithfreezercompartment)

• The “Door Open” indicator on the lock slide indicates whether the door is closed properly or not.
  • If the red indicator is visible, the door is still open.
• If the red indicator is invisible, the door is properly closed.
• Observe that the freezer door should always be kept closed properly. This will prevent food inside the freezer from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

RED INDICATOR

PART3. FOOD STORAGE IN THE APPLIANCE

RefrigeratorCompartment

Refrigerator compartment is used for storing fresh food for few days.

- Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around food to allow circulation of air.

- Do not place hot food or evaporating liquid in the refrigerator.

- Always store food in closed containers or wrapped.

- To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.

- Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf just above the vegetable bin, where the air is colder.

- You can put the fruits and vegetables into crisper without packing.

- To avoid the cold air escaping, try not to open the door too often, and not leave the door open for a long time.

FreezerCompartment

Freezer compartment is used for freezing fresh foods and for storing frozen foods for the period of time indicated on packaging, and for making ice cubes.

- For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil (heavy grade, in doubt double wrap), polythene bags and plastic containers are ideal.

- Do not allow the fresh food to be frozen to come into contact with the already frozen food.

• Always mark the date and the content on the pack and do not exceed the stated storage time.

- In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.

- The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).

• Never place warm food in the freezer compartment.

- When purchasing and storing frozen food products; ensure that the packaging is not damaged.

- The storage time and the recommended temperature for storing frozen foods are indicated on the packaging. For storing and using, follow the manufacturer's instructions. If no information is provided, food should not be stored for more than 3 months.

- Place frozen food in the freezer compartment as soon as possible after buying it.

- Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again.

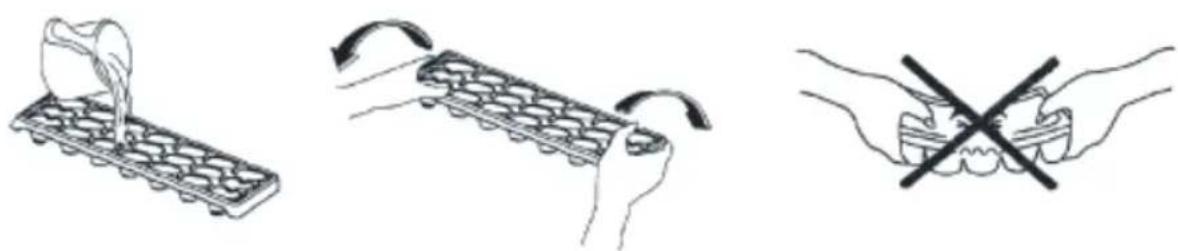

- When making ice cubes, fill the ice tray with water and place in freezer compartment. After the water r completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a dental abacus: pressing a tooth with a bulb, moving the abacus with arrows indicating rotation, and removing a tooth with a black X mark (no text or symbols)

PART4. CLEANINGANDMAINTENANCE

- Disconnect the appliance from the power supply before cleaning.

- Do not pour water over the appliance.

Simple line drawing of a hand reaching toward a box with a small object inside (no text or symbols)

- The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not put them in the dishwasher.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug with dryhands.

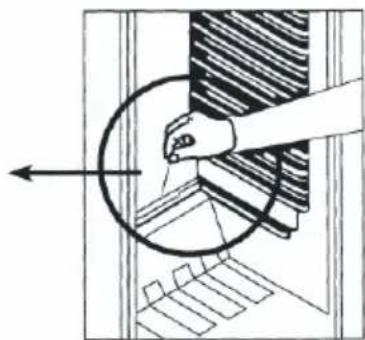

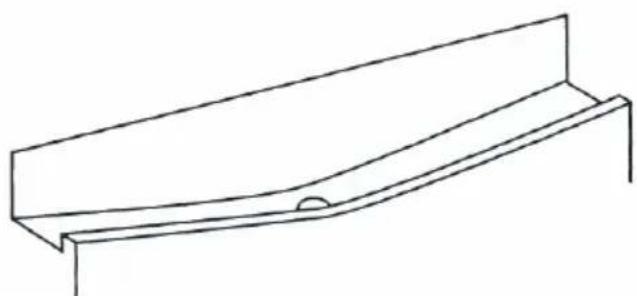

DefrostingtheRefrigeratorCompartment:

Line drawing of a structural beam or support frame with a small circular hole at one end (no text or symbols)

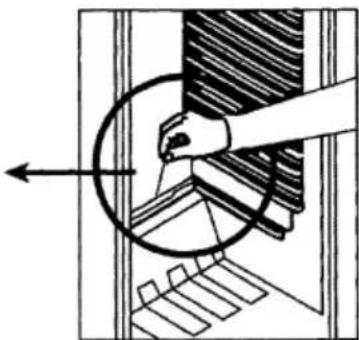

Diagram showing a hand holding a circular object with an arrow pointing to a textured surface (no text or symbols)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

DefrostingtheFreezerCompartment: (ifavailable)

WARNING: Never use sharp metal tools, unless recommended by manufacturer, for this operation as they can damage the refrigeration circuit.

After a period of time, frost will build up in certain areas in the freezer compartment. The frost, accumulated in the freezer compartment, should be removed periodically (use the plastic scraper if available).

Complete defrosting will become necessary if the frost layer exceeds 3-5 mm to maintain the efficiency of the freezer.

• The day before you defrost, set the thermostat dial to position "5" to freeze the foods completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Set the thermostat knob to position "0" and switch off the appliance.
• Leave the door open to accelerate defrosting. Remove the defrost water from the compartment.
• Clean the interior by hand with lukewarm water and a little detergent.

Never use abrasive products or aggressive cleaning agents.

- Dry the inside of the unit, plug on the mains, and set the thermostat knob to position "5". After 24 hours, reset the thermostat to the desired position.

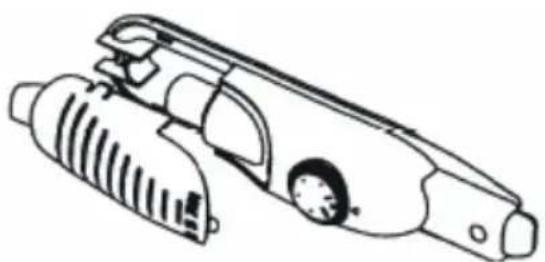

ReplacingtheLightBulb

Line drawing of a mechanical device with internal components and a dial (no text or symbols)

When replacing the bulb of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

PART 5. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
• The mains plug is not properly plugged in, or is loose
- The thermostat setting is on position "0",
- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
  • The doors are not closed perfectly,
• There are not enough ventilati on ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;

• The appliance is installed firmly as described in the Installation Manual.
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check if;

The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

ClimateClassAmbientTemperature(°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

• Tropical Climate Class is described as between 16^ and 43^ of ambient temperatures according to EN ISO15502 standards.
• Appliance complies with EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Recommendations

• In order to increase space and improve the appearance, the “cooling section” of refrigerators is positioned inside the back wall of the refrigerator compartment. When the compressor is working, this wall is covered with frost or water drops. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick ice layer forms on the back wall.
• If the appliance is not used for a long time (for example during the summer holidays), set the thermostat knob to position "0". Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.

PART6.

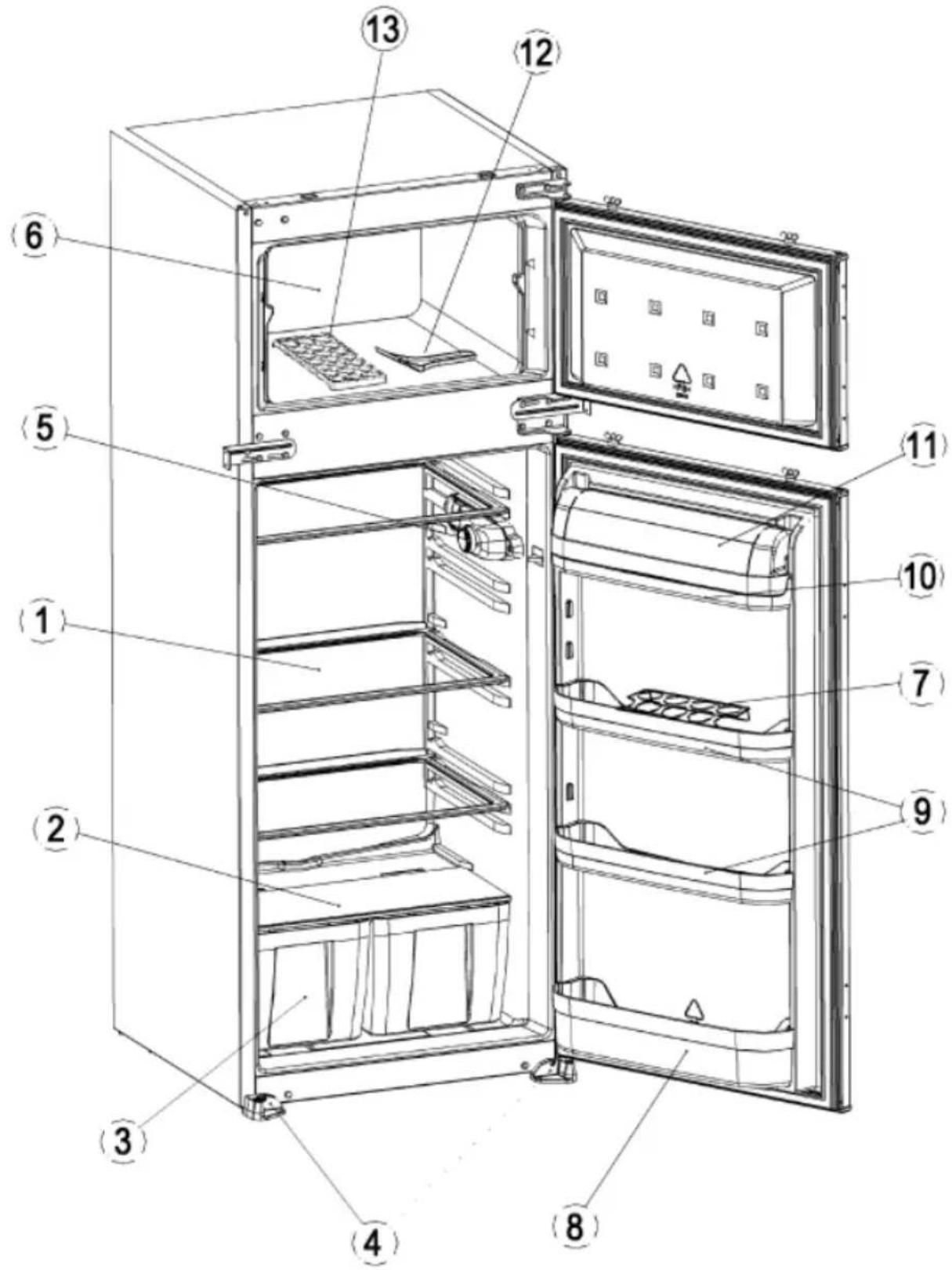

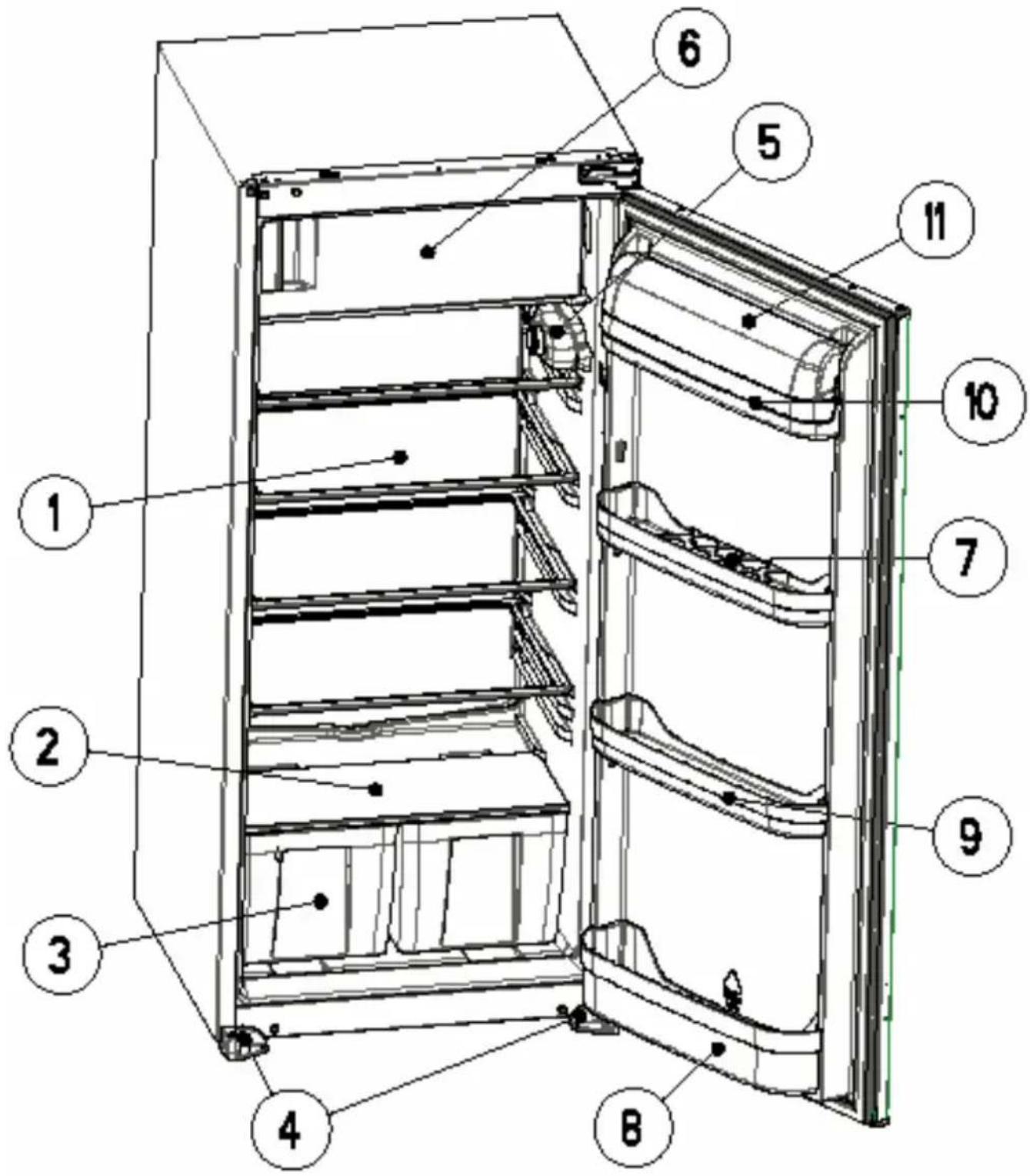

PARTS OF THE APPLIANCE AND THECOMPARTMENTS

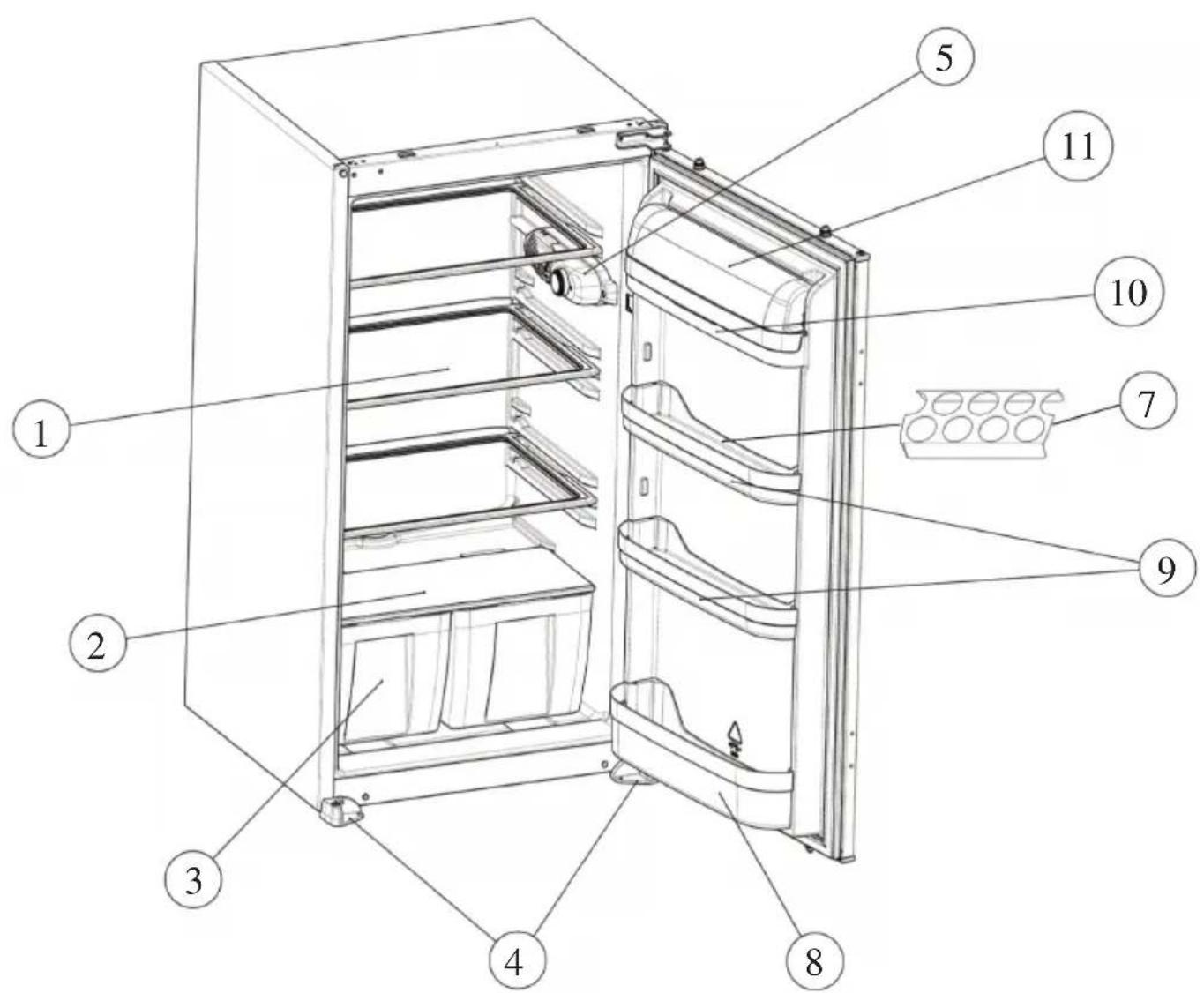

1) REFRIGERATOR SHELF
3) CRISPER
4) LEFT&RIGHT FEET
5) THERMOSTATBOX
6) FREEZER COMPARTMENT
7) EGG SHELF
8) BOTTLE SHELF
9)MIDDLE SHELF
10) BUTTERSHELF
11) BUTTER SHELF COVER
12) PLASTIC SCRAPER
13) ICE TRAY

2) CRISPER COVER(SAFETYGLASS)

See in page: 63 - 67

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

INHALT

Illustration of two hands holding a rope, showing motion (no text or symbols)

Illustration showing various types of cleaning and anti-smoking behaviors, including a person using a tool, a device with a magnifying glass, a hand holding a mask, a bottle with a stopper, and a hand holding a bag.

Simple line drawing of a cartoon character holding a cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a pencil, no text or symbols present

Technical line drawing of a mechanical component with threaded end and circular opening (no text or symbols)

Illustration showing three hand gestures: moving a keyboard, rotating a curved arrow, and holding a crossed-out pen (no text or symbols)

Cartoon illustration of a refrigerator with various items including a bird, airplane, and cups (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a component (no text or symbols present)

Technical line drawing of a mechanical component with internal cavities and housing (no text or symbols)

Illustration of three hands performing a knot or knotting technique (no text or symbols present)

Illustration showing various types of hazardous substances including swimming, cleaning, and disinfection with corresponding icons.

Aanbevelingen

Cartoon illustration of a smiling container with arms and legs, holding a paper labeled '红书' (Red Book), no text or symbols on the container itself.

Cartoon illustration of a smiling refrigerator with arms and legs, holding a tray and a bowl (no text or symbols)

Technical line drawing of a mechanical component with threaded body and circular end (no text or symbols)

Illustration showing three steps of a dental tool: opening a tooth, moving a curved blade, and holding a tooth with a crossed-out tool (no text or symbols)

Cartoon illustration of various household appliances and food items (no text or symbols)

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand holding a circular object with an arrow pointing to a textured surface (no text or symbols)

Technical line drawing of a mechanical component with internal parts (no text or symbols)

Technical diagram of a refrigerator with numbered parts for identification

SINGLEDOORLARDER(HEIGHT:87,5cm)

GARDE-MANGERD'UNEPORTE(HAUTEUR:87,5cm)

Technical diagram of an open refrigerator with numbered parts for identification

SINGLEDOORREFRIGERATOR(HEIGHT:122cm) RÉFRIGÉRATEUR D'UNE PORTE (HAUTEUR: 122 cm) EINTÜRIGER 4**** KÜHLSCHRANK (HÖHE: 122 cm) FRIGORÍFICODEUMAPORTA(ALTURA:122cm) FRIGORIFICODEUNAPUERTA(ALTURA:122cm) KOELKASTMETENKELEDEUR(HOOGTE:122cm)

13

Technical diagram of a refrigerator with numbered components for identification

Technical diagram of a refrigerator with numbered parts for identification

SINGLE DOOR REFRIGERATOR (HEIGHT: 102cm)

RÉFRIGÉRATEUR D'UNE PORTE (HAUTEUR: 102cm)

Labeled diagram of a refrigerator interior with numbered components for identification

SINGLE DOOR LARDER (HEIGHT: 102cm)

RÉFRIGÉRATEUR D'UNE PORTE (HAUTEUR: 102cm)

EINTÜRIGER VOLLRAUMKÜHLSCHRANK (HÖHE): 102cm)

REFRIGERADOR DE UMA PORTA (ALTURA: 102cm)

REFRIGERADOR DE UNA PUERTA (ALTURA: 102cm)

PROVISIEKAST MET ENKELE DEUR (HOOGTE: 102cm)

Technical diagram of a refrigerator with numbered parts for identification

DOUBLE DOOR REFRIGERATOR (HEIGHT: 144 cm)

RÉFRIGÉRATEUR DE DEUX PORTES (HAUTEUR: 144 cm)

KOELKASTMETDUBBELEDEUR(HOOGTE:144cm)

Labeled diagram of a refrigerator interior showing numbered components for identification
