VT14 - Refrigerator FAGOR - Free user manual and instructions

Product type	Wine cabinet / wine refrigerator
Model	VT14
Brand	Fagor
Capacity	14 bottles
Temperature range	5 °C to 18 °C (adjustable)
Recommended temperature red wine	14 °C - 16 °C
Recommended temperature white wine	10 °C - 12 °C
Dimensions (W x H x D)	59.5 cm x 84 cm x 57 cm
Net weight	Approximately 25 kg
Power supply	220-240 V ~ 50 Hz
Energy consumption	Approximately 100 kWh/year (class E)
Noise level	42 dB (A)
Display	Digital temperature display
Temperature control	▲ and ▼ buttons
Interior lighting	Yes, controlled by dedicated button
Number of shelves	3 removable shelves
Door type	Solid door with handle
Ventilation	Minimum space: 5 cm on sides, 10 cm at rear
Maintenance and cleaning	Clean with a damp cloth, avoid abrasive products
Repairability	Use an authorized service, original spare parts
Standards	Compliant with European directives on electromagnetic compatibility and low voltage

Frequently Asked Questions - VT14 FAGOR

What is the ideal temperature for storing wine in the VT14?

For red wine, set between 14°C and 16°C. For white wine, between 10°C and 12°C. Use the ▲ and ▼ buttons to adjust.

How many bottles can I store in this cabinet?

The capacity is 14 standard bottles, distributed on 3 removable shelves.

How do I turn on the interior lighting?

Press the lighting button (4) to turn the interior light on or off.

What should I do if the wine cabinet is not cooling enough?

Check that it is not near a heat source, that ventilation is sufficient (minimum space 5 cm sides, 10 cm rear), and that the door is properly closed. Avoid opening it too often.

Can I place warm bottles directly in the cabinet?

No, allow food and drinks to cool to room temperature before placing them, to avoid disturbing the cooling.

How do I clean the interior of the cabinet?

Unplug the appliance, then clean with a damp cloth and mild detergent. Do not use abrasive products.

What should I do in case of a power outage?

Check that the plug is properly connected and that the fuse has not blown. If the problem persists, contact an authorized service.

The wine cabinet is making noise, is this normal?

Operating noise (compressor) is normal. If the noise is excessive, check the appliance's balance and that it is not in contact with furniture.

What is the electrical consumption of this model?

The estimated annual consumption is approximately 100 kWh, energy class E (according to current standards).

Where can I find spare parts for the VT14?

Contact a Fagor authorized Technical Assistance Service. Use only original parts.

USER MANUAL VT14 FAGOR

The manufacturer research the right to identify the focus of the 2018 US OER.

Two metallic industrial storage cabinets with open doors, no visible text or symbols on the cabinets themselves.

VINOTECAS / WINE COOLER / ARMOIRES À VIN / WEINKLIMASCHRANK /

CANTINETTE / KAREZ / BORHÜTÖ / VINOTÉKA / SZAFY CHŁODNICZE DO WIN /

3D diagram of a stainless steel oven with labeled internal structure (no text or symbols)

ES

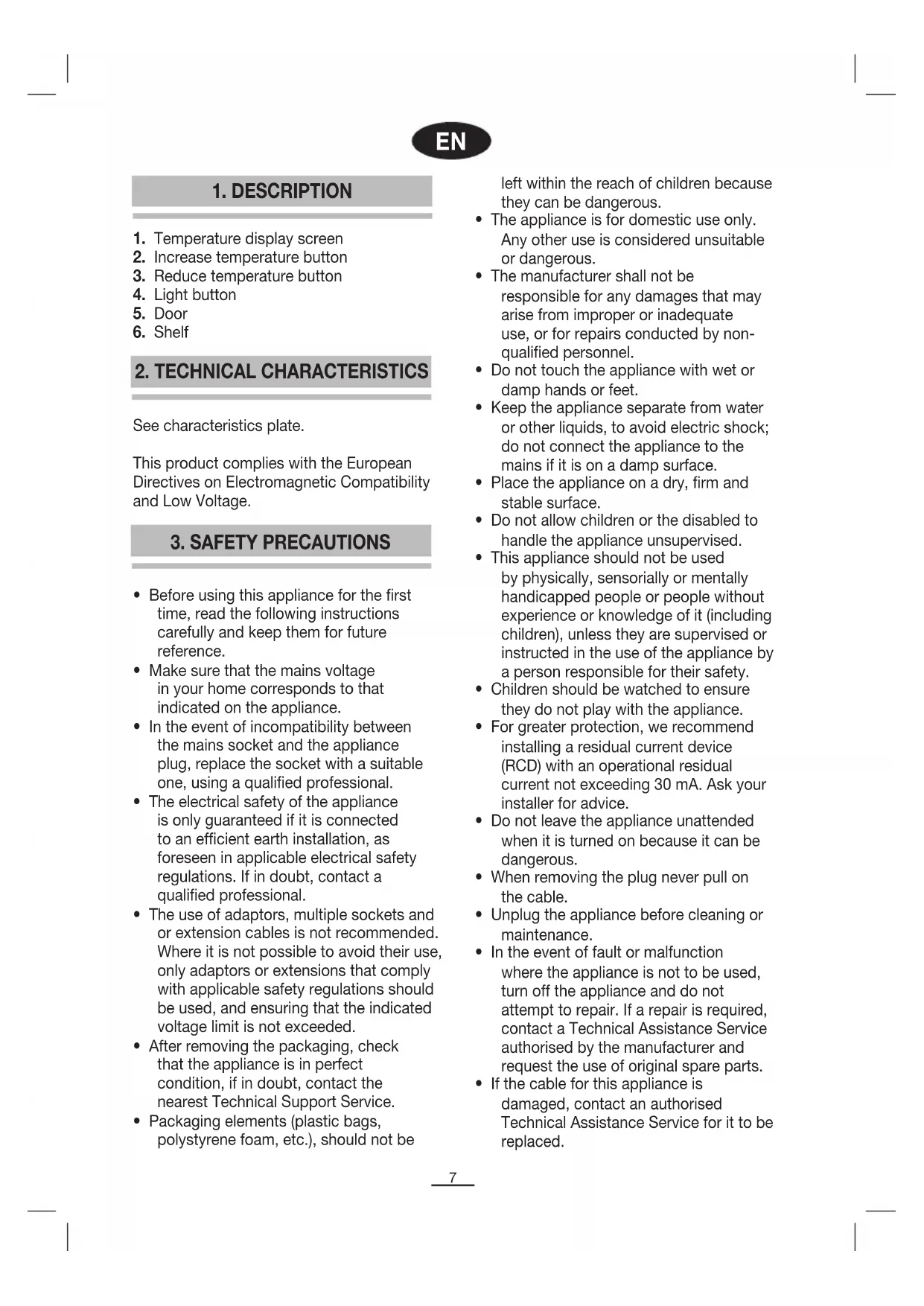

1. DESCRIPCIÓN

See characteristics plate.

This product complies with the European Directives on Electromagnetic Compatibility and Low Voltage.

3. SAFETY PRECAUTIONS

• Before using this appliance for the first time, read the following instructions carefully and keep them for future reference.
• Make sure that the mains voltage in your home corresponds to that indicated on the appliance.
• In the event of incompatibility between the mains socket and the appliance plug, replace the socket with a suitable one, using a qualified professional.
• The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation, as foreseen in applicable electrical safety regulations. If in doubt, contact a qualified professional.
• The use of adaptors, multiple sockets and or extension cables is not recommended. Where it is not possible to avoid their use, only adaptors or extensions that comply with applicable safety regulations should be used, and ensuring that the indicated voltage limit is not exceeded.
• After removing the packaging, check that the appliance is in perfect condition, if in doubt, contact the nearest Technical Support Service.
• Packaging elements (plastic bags, polystyrene foam, etc.), should not be

left within the reach of children because they can be dangerous.

• The appliance is for domestic use only. Any other use is considered unsuitable or dangerous.
• The manufacturer shall not be responsible for any damages that may arise from improper or inadequate use, or for repairs conducted by non-qualified personnel.

- Do not touch the appliance with wet or damp hands or feet.

- Keep the appliance separate from water or other liquids, to avoid electric shock; do not connect the appliance to the mains if it is on a damp surface.

- Place the appliance on a dry, firm and stable surface.

- Do not allow children or the disabled to handle the appliance unsupervised.

- This appliance should not be used by physically, sensorially or mentally handicapped people or people without experience or knowledge of it (including children), unless they are supervised or instructed in the use of the appliance by a person responsible for their safety.

• Children should be watched to ensure they do not play with the appliance.

- For greater protection, we recommend installing a residual current device (RCD) with an operational residual current not exceeding 30 mA. Ask your installer for advice.

- Do not leave the appliance unattended when it is turned on because it can be dangerous.

- When removing the plug never pull on the cable.

- Unplug the appliance before cleaning or maintenance.

- In the event of fault or malfunction where the appliance is not to be used, turn off the appliance and do not attempt to repair. If a repair is required, contact a Technical Assistance Service authorised by the manufacturer and request the use of original spare parts.

- If the cable for this appliance is damaged, contact an authorised Technical Assistance Service for it to be replaced.

• Do not leave the appliance exposed to the elements (rain, sun, ice, etc.).
• Do not use or let any part of the appliance come into contact or near hot surfaces (kitchen gas or electric hobs or ovens).
• Do not use detergents or abrasive sponges to clean the appliance.
• Do not touch the hot surfaces. Use the handles.
• Do not let the cable come into contact with the hot parts of the appliance.
• When installing the appliance, make sure that there is at least 5 cm of free space at the sides and 10 cm at the rear of the appliance. This will allow for the appropriate amount of ventilation.
• Do not place hot food or drinks in the wine cooler until they have cooled down to room temperature.
• Close the door properly and do not open it too often or for a long period of time, as the wine will not reach the selected temperature.
• Keep the appliance well away from any heat source or direct sunlight.
• Do not place anything on top of the appliance.
• Do not use the appliance outside or in humid conditions.
• Keep the cable well away from hot surfaces.

4. OPERATING INSTRUCTIONS

1. Place the wine cooler on an even, horizontal and stable surface, well away from hot surfaces and humidity.

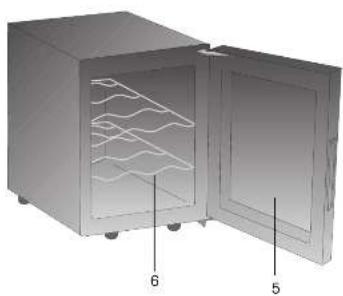

2. Open the door (5) and place the shelves (6) onto the guides inside the wine cooler. Close the door (5).
3. Plug the wine cooler into a power socket and select the desired temperature (see "Adjusting the temperature" section).
4. Leave the wine cooler on, and empty, for approximately one hour in order for it to reach the selected temperature.
5. Once the wine cooler has reached the selected temperature, open the door (5) and place the bottles of wine at room temperature on to the shelves

(6). The bottles will reach the selected temperature within approximately one hour.

The wine cooler will automatically set an on-and-off cycle in order to constantly maintain the selected temperature. Press the light button (4) to turn the inside light on and see what is inside the wine cooler. To turn the light off, press the same button again.

Important: Close the door (5) properly and do not open it too often or for a long period of time, as the wine will not reach the selected temperature.

5. ADJUSTING THE TEMPERATURE

Select the temperature inside the wine cooler by pressing the increase/reduce temperature buttons (2 & 3). Press the “▲” button (2) to increase the temperature and press the “▼” button (3) to reduce it. The selected temperature will appear on the temperature display screen (1).

Advice and recommendations:

• The recommended temperature for red wine is 14-16°C
• The recommended temperature for white wine is 10-12°C.

The temperature inside the wine cooler will depend on the room temperature.

6. TROUBLESHOOTING

Problem Possible causes Solution
The wine cooler is not working	1. Fault in the power supply.2. A fuse has blown.	1. Make sure that the wine cooler is plugged in and that the power socket is switched on.2. Change the blown fuse.
The wine cooler is not reaching the selected temperature	1. The wine cooler has been placed too near a heat source.2. Lack of ventilation.3. The door is being opened too often or for a long period of time.	1. Keep the wine cooler well away from sunlight and other heat sources.2. Place the wine cooler in a well-ventilated position and keep all objects away from the ventilation grilles.3. Close the door properly and do not open it too often or for a long period of time.

7. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection

centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local authority or the shop where you bought the product.
