USER MANUAL Gran Style GAGGIA

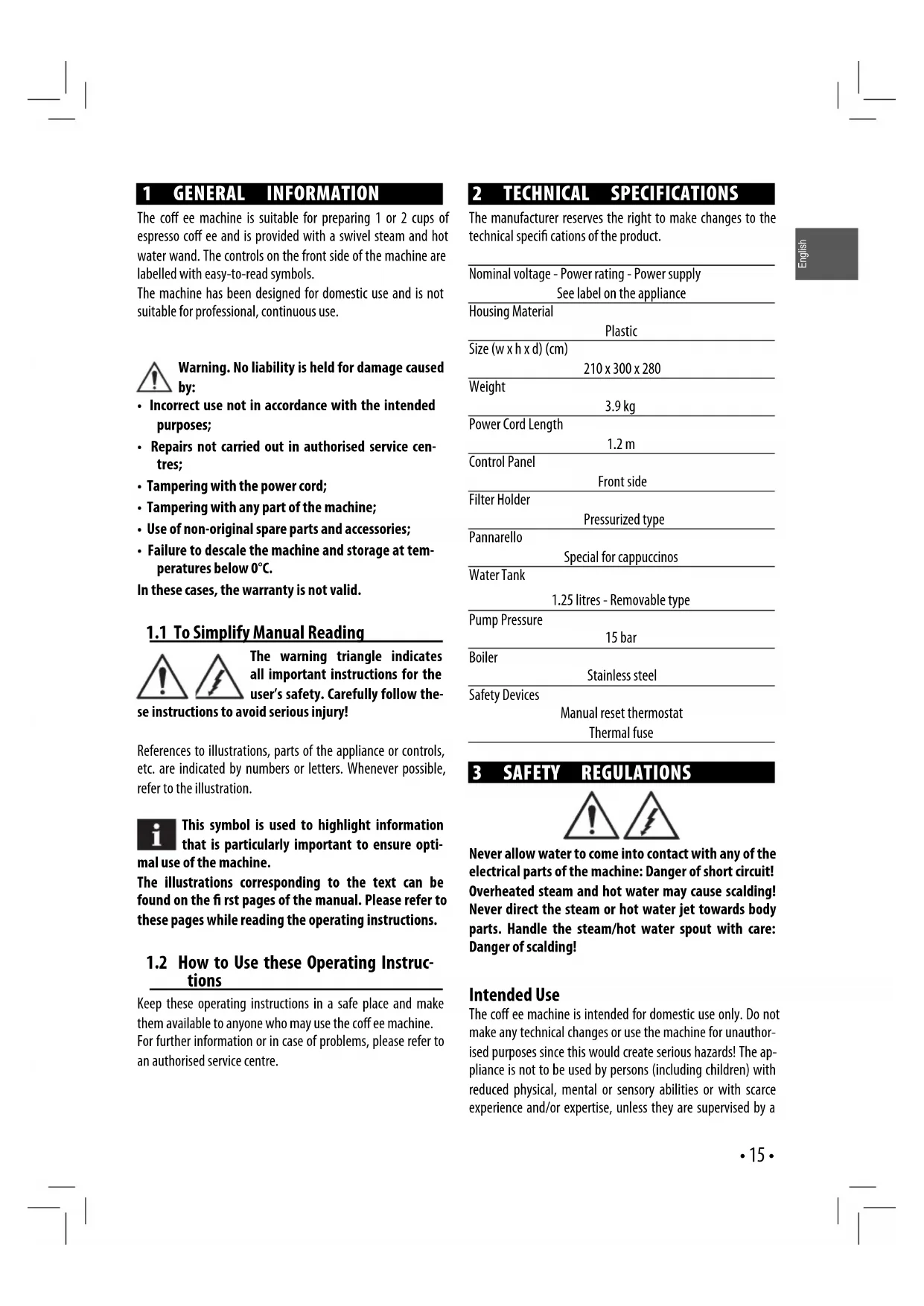

• Incorrect use not in accordance with the intended purposes;

• Repairs not carried out in authorised service cen- tres;

• Tampering with the power cord;

• Tampering with any part of the machine;

• Use of non-original spare parts and accessories;

• Failure to descale the machine and storage at tem- peratures below 0°C. In these cases, the warranty is not valid.

1.1 To Simplify Manual Reading

The warning triangle indicates all important instructions for the user’s safety. Carefully follow the- se instructions to avoid serious injury! References to illustrations, parts of the appliance or controls, etc. are indicated by numbers or letters. Whenever possible, refer to the illustration. This symbol is used to highlight information that is particularly important to ensure opti- mal use of the machine. The illustrations corresponding to the text can be found on the rst pages of the manual. Please refer to these pages while reading the operating instructions.

1.2 How to Use these Operating Instruc-

tions Keep these operating instructions in a safe place and make them available to anyone who may use the co ee machine. For further information or in case of problems, please refer to an authorised service centre. 2 TECHNICAL SPECIFICATIONS The manufacturer reserves the right to make changes to the technical speci cations of the product. Nominal voltage - Power rating - Power supply See label on the appliance Housing Material Plastic Size (w x h x d) (cm) 210 x 300 x 280 Weight

Control Panel Front side Filter Holder Pressurized type Pannarello Special for cappuccinos Water Tank

1.25 litres - Removable type

Pump Pressure 15 bar Boiler Stainless steel Safety Devices Manual reset thermostat Thermal fuse 3 SAFETY REGULATIONS Never allow water to come into contact with any of the electrical parts of the machine: Danger of short circuit! Overheated steam and hot water may cause scalding! Never direct the steam or hot water jet towards body parts. Handle the steam/hot water spout with care: Danger of scalding! Intended Use The co ee machine is intended for domestic use only. Do not make any technical changes or use the machine for unauthor- ised purposes since this would create serious hazards! The ap- pliance is not to be used by persons (including children) with reduced physical, mental or sensory abilities or with scarce experience and/or expertise, unless they are supervised by a• 16 • person responsible for their safety, or they are instructed by this person on how to properly use the machine. Power Supply Connect the co ee machine only to a suitable socket. The volt- age must correspond to that indicated on the appliance label. Power Cord Never use the co ee machine if the power cord is defective or damaged. If the power cord is damaged, it must be replaced by the manufacturer or by its authorised service centre. Do not pass the power cord around corners, over sharp edges or over hot objects and keep it away from oil. Do not use the power cord to carry or pull the co ee machine. Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord hang freely from tables or shelves. For the Safety of Others Prevent children from playing with the machine. Children are not aware of the risks related to electrical house- hold appliances. Do not leave the machine packaging materials within the reach of children. Danger of Burns Never direct jets of overheated steam and/or hot water towards yourself or others. Always use the handles or knobs provided. Do not disconnect (remove) the lter holder during co ee brewing. Hot water drips may spill out of the brew unit during the warm-up phase. Never brew co ee when button ( ) is pressed because this means that the steam function is on and the temperature of the boiler is too high. Location Place the co ee machine in a safe place, where there will be no danger of overturning or injury. Hot water or overheated steam may spill out of the machine: Danger of scalding! Do not keep the machine at a temperature below 0°C. Frost may damage it. Do not use the co ee machine outdoors. In order to prevent its housing from melting or being dam- aged, do not place the machine on very hot surfaces and close to open ames. Cleaning Before cleaning the machine it is necessary to turn o all but- tons and then remove the plug from the socket. Wait for the machine to cool down. Never immerse the ma- chine in water! It is strictly forbidden to tamper with the internal parts of the machine. Water left in the tank for several days should not be consumed. Wash the tank and ll it with fresh drinking water. Suitable Location for Operation and Mainte- nance To ensure a correct and e cient performance of the co ee ma- chine, we recommend following the instructions below:

• Choose a level surface;

• Choose a location that is su ciently well-lit, clean and near an easily reachable socket;

• Allow for a minimum distance from the sides of the ma- chine as shown in (Fig.A). Storing the Machine If the machine is to remain inactive for a long time, turn it o and unplug it. Store it in a dry place and out of the reach of children. Keep it protected from dust and dirt. Repairs / Maintenance In case of failure, problems or a suspected fault resulting from the falling of the machine, immediately remove the plug from the socket. Never attempt to operate a faulty machine. Servic- ing and repairs may only be carried out by Authorised Service Centres. All liability for damages resulting from work not car- ried out by professionals is declined. Fire Safety Precautions In case of re, use carbon dioxide (CO

) extinguishers. Do not use water or dry powder extinguishers.• 17 • English Key to Machine Parts (Page 2) 1 Control panel 2 Water tank lid 3 Hot water/steam knob 4 Seat for accessories 5 Water tank 6 Cup holder rest 7 Water recovery tray + grill 8 Brew unit 9 Steam wand (Pannarello) 10 Power cord 11 Pressurized lter holder 12 Ground co ee measuring scoop 13 Ground co ee lter (single piece for 1 or 2 co ee(s)) 14 Co ee pod lter adapter 15 Co ee pod lter 16 ON/OFF button 17 "Machine on" indicator light Light ON = the machine is on Light OFF = the machine is o 18 Co ee brew button 19 Co ee/water - "Machine ready" indicator light Light ON = OK for co ee brewing / hot water dispensing Light OFF = temperature is low for co ee brewing / hot water dispensing 20 Steam button 21 "Steam ready" indicator light Light ON = OK for steam dispensing Light OFF = temperature is low for steam dispensing 4 INSTALLATION For your own and other people safety, carefully follow the "Safety Regulations" indicated in section 3.

The original packaging has been designed and manufactured to protect the machine during transport. We recommend keep- ing the packaging material for possible future transport.

4.2 Installation Instructions

Before installing the machine, read the following safety in- structions carefully:

• Place the machine in a safe place;

• Make sure children cannot play with the machine;

• Do not place the machine on hot surfaces or near open ames. The co ee machine is now ready to be connected to the electric network. Note: We recommend washing the components before using them for the rst time and/or af- ter they have not been used for a certain period of time.

• (Fig.1A) - Remove the lid from the water tank (2) by lifting it.

• (Fig.1B) - Remove the water tank (5). Note: The machine accessories are placed on the water tank's (5) side.

• (Fig.2) - Rinse the tank and ll it with fresh drinking water taking care not to over ll. Fill the tank only with fresh, non-sparkling, drinking water. Hot water or any other liquid may damage the tank. Do not operate the machine without water. Make sure there is enough water in the tank.

• (Fig.3) - Insert the water tank making sure that it has been properly repositioned in its former seat and then reposition the lid (2). Make sure that the tank is fully inserted in the machine by pressing it gently up to its limit stop (THE REFERENCE MARK SHOWN IN FIG. 4 SHOULD BE COMPLETELY VISIBLE). This is to avoid water leaks from its bottom.

4.4 Machine Connection

Electric power may be very dangerous! It is therefore necessary to strictly follow the safety regulations. Do not use faulty power cords. Faulty cords and plugs must be replaced immediately by Authorised Service Centres. The voltage of the appliance has been pre-set by the manu- facturer. Check that the voltage matches the indication on the data plate at the bottom of the appliance.

• Make sure that the ON/OFF button (16) is NOT pressed be- fore connecting the machine to the electric network.

• Insert the plug into a wall socket with suitable power volt- age.• 18 •

Upon rst use, after dispensing steam or when the water tank is empty, the machine’s water circuit must always be primed.

• (Fig.5) - Press the ON/OFF button (16). The indicator light (17) turns on.

• (Fig.6) - Place a container under the steam wand. Open the "hot water/steam" knob (3) by turning it counter- clockwise.

• (Fig.7) - Press the brew button (18).

• Wait until a steady jet of water ows out of the steam wand (Pannarello).

• (Fig.7) - Press the brew button (18) again to end the op- eration.

• (Fig.8) - Close the "hot water/steam" knob (3) by turning it clockwise. Remove the container. The machine is now ready to brew co ee and dispense steam. Please see related chapters for operating details.

4.6 Using the Machine for the First Time

or after a Period of Inactivity This simple operation ensures an optimum brewing and must be performed: - At rst start-up; - When the machine remains inactive for a long time (more than 2 weeks). Water dispensed during this process must be emptied into an adequate drain and is not suit- able for food use. If the container lls up during the cycle, stop dispensing water and empty the container before resuming the operation. A (Fig.2) - Rinse the tank and ll it again with fresh drinking water. B (Fig.6) - Place a container under the steam wand. Open the knob (3) slowly by turning it counter-clockwise. (Fig.7) - Press the brew button (18). C Dispense the whole water tank content from the steam/ hot water wand. (Fig.7) - Press the brew button (18) again to end the op- eration. (Fig.8) - Close the knob (3) by turning it clockwise. D (Fig.2) - Fill the tank with fresh drinking water. E (Fig.15-16) - Insert the lter holder into the brew unit (8) from the bottom and turn it from left to right until it locks into place. F Place a suitable container under the lter holder. G (Fig.18) - Press the brew button (18) and dispense all the water in the tank. Once the water tank is empty, stop dis- pensing by pressing the brew button (18) again. At the end, empty the container. H (Fig.20) - Remove the lter holder from the unit by turn- ing it from right to left and rinse it with fresh drinking wa- ter. I The machine is now ready to be used. 5 COFFEE BREWING Warning! During the co ee brewing it is forbid- den to remove the pressurized lter holder by manually turning it clockwise. Danger of burns.

• During this operation the "machine ready" indicator light (19) may ash. This should be considered a standard op- eration, not a fault.

• Before using the machine, make sure that the hot water/ steam knob (3) is closed and that there is enough water in the machine tank.

• (Fig.5) - Press the ON/OFF button (16). The indicator light (17) turns on.

• Wait until the "machine ready" indicator light (19) turns on. The machine is now ready to brew co ee.

5.1 Using Ground Co ee

• (Fig.9) - Insert the lter (13) in the pressurized lter holder (11); the lter is already inserted when using the machine for the rst time.

• (Fig.15) - Insert the pressurized lter holder into the brew unit (8) from the bottom.

• (Fig.16) - Turn the lter holder from left to right until it locks into place. Release the grip from the pressurized lter holder. The handle is automatically slightly turned leftwards. This movement guarantees proper pressurized lter holder performance.

• (Fig.18) - Preheat the pressurized lter holder by pressing the brew button (18), some water will ow out of the pres- surized lter holder (this operation is only necessary for the rst co ee).

• After 150cc of water has owed out, press the brew button (18) again to stop hot water dispensing.

• (Fig.16) - Remove the lter holder from the machine by turning it from right to left and pour out any water left.

• (Fig.35) - Remove the measuring scoop from the ma-• 19 • English chine.

• (Fig.10) - Add 1-1.5 measuring scoop(s) for single co ee and 2 measuring scoops double co ee. Remove any co ee residues from the rim of the lter holder.

• (Fig.15) - Insert the lter holder (11) into the brew unit (8) from the bottom.

• (Fig.16) - Turn the lter holder from left to right until it locks into place.

• (Fig.17) - Take 1 or 2 preheated cups and place them under the lter holder. Make sure that they are correctly placed under the co ee brewing nozzles.

• (Fig.18) - Press the brew button (18).

• When the desired quantity of co ee has been obtained, press the brew button (18) again to stop brewing and re- move the cups of co ee (Fig.19).

• (Fig.20) - Wait a few seconds after completing the brew- ing. Then remove the lter holder and empty the remain- ing co ee grounds out. Note: If a small quantity of water remains in the lter holder, this has to be considered as absolutely normal and is due to the lter holder fea- tures. Important Note: The lter (13) should be kept clean to guarantee perfect results. Clean daily after use (Fig.21).

5.2 Using Co ee Pods

• (Fig.11) - Use a co ee spoon to remove the lter for ground co ee (13) from the pressurized lter holder (11).

• (Fig.12) - Insert the pod adapter (14) - with the convex part facing down - into the pressurized lter holder (11).

• (Fig.13) - Then, insert the pod lter (15) into the pressur- ized lter holder (11).

• (Fig.15) - Insert the pressurized lter holder into the brew unit (8) from the bottom.

• (Fig.16) - Turn the lter holder from left to right until it locks into place. Release the grip from the pressurized lter holder. The handle is automatically slightly turned leftwards. This movement guarantees proper pressurized lter holder performance.

• (Fig.18) - Preheat the pressurized lter holder by pressing the brew button (18), some water will ow out of the pres- surized lter holder (this operation is only necessary for the rst co ee).

• After 150cc of water has owed out, press the brew button (18) again to stop hot water dispensing.

• (Fig.20) - Remove the pressurized lter holder from the machine by turning it from right to left and pour out any water left.

• (Fig.14) - Insert the pod into the lter holder and make sure that the paper of the pod does not overhang the lter holder.

• (Fig.15) - Insert the pressurized lter holder into the brew unit (8) from the bottom.

• (Fig.16) - Turn the lter holder from left to right until it locks into place.

• Take 1 preheated cup and place it under the lter holder. Check that it is correctly placed under the co ee brewing nozzles.

• (Fig.18) - Press the brew button (18).

• When the desired quantity of co ee has been obtained, press the brew button (18) again to stop brewing and re- move the cup of co ee.

• (Fig.20) - Wait a few seconds after brewing, then remove the lter holder and dispose of the used pod. Important Note: The lter (15) and the adapter (14) should be kept clean to guarantee perfect results. Clean daily after use (Fig.21).

6 TIPS FOR CHOOSING COFFEE

As a general rule, any type of co ee available on the market can be used. However, co ee is a natural product and its avour changes according to its origin and blend; it is therefore a good idea to try di erent types of co ee in order to nd the most suited to your personal taste. For optimal results, we recommend using espresso machine blends. As a rule, co ee should always come out of the pres- surized lter holder, without dripping. The co ee brewing speed can be modi ed by slightly chang- ing the amount of co ee in the lter and/or using a di erent co ee grind. GAGGIA recommends using ESE single-dose co ee pods for a tasty co ee and easier cleaning and preparing.• 20 •

BEFORE PERFORMING ANY OPERATIONS RELATED

TO HOT WATER/STEAM DISPENSING, MAKE SURE THAT THE STEAM WAND IS DIRECTED OVER THE WATER RECOVERY TRAY. 7 HOT WATER Danger of scalding! Dispensing may be preced- ed by small jets of hot water. The steam wand may reach high temperatures: Never touch it with bare hands.

• (Fig.5) - Press the ON/OFF button (16). The indicator light (17) turns on.

• Wait until the "machine ready" indicator light (19) turns on. The machine is now ready.

• During this operation the "machine ready" indicator light (19) may ash. This should be considered a standard op- eration, not a fault.

• (Fig.22) - Place a container under the steam wand. Open the "hot water/steam" knob (3) by turning it counter- clockwise.

• (Fig.23) - Press the brew button (18).

• (Fig.23) - When the required amount of hot water has been dispensed, press the brew button (18) again.

• (Fig.24) - Close the "hot water/steam" knob (3) by turning it clockwise. Remove the container. 8 STEAM / CAPPUCCINO Danger of scalding! Dispensing may be preced- ed by small jets of hot water. The steam wand may reach high temperatures: Never touch it with bare hands. Warning! Never brew co ee when the steam function is on, as the temperature is too high and there is a risk of burns.

• (Fig.5) - Press the ON/OFF button (16). The indicator light (17) turns on.

• Wait until the "machine ready" indicator light (19) turns on.

• (Fig.19) - Press the steam button (20). The "machine ready" indicator light (19) turns o .

• Wait until the "machine ready" indicator light (19) and the "steam ready" indicator light (21) turn on. The machine is now ready for steam dispensing.

• During this operation, the indicator lights (19) and (21) may ash on and o ; this is to be considered as standard operation and not a fault.

• (Fig.26) - Insert a container under the steam wand and open the knob (3) for a few seconds, so that remaining wa- ter can ow out of the steam wand. In a short delay only steam will come out.

• (Fig.27) - Close the knob (3) and remove the container.

• Fill 1/3 of the container you wish to use to prepare the cap- puccino with cold milk. Use cold milk to get a better result.

• (Fig.28) - Immerse the steam wand in the milk and open the knob (3) by turning it counter-clockwise. Turn the milk container with slow upward movements so that it warms up evenly.

• (Fig.29) - At the end, close the knob (3) and take the cup with frothed milk.

• (Fig.25) - Press the steam button (20) again.

• Prime the circuit as described in Section 4.5 to make the machine ready for use. Never brew co ee when the ( ) button is pressed or when the 21 indicator light is on, be- cause this means that the steam function is on and the temperature of the boiler is too high. Wait for the co ee ready condition to be active (19 indi- cator light on) before brewing co ee. Note: The machine is ready when the "machine ready" indicator light (19) is permanently on. Important note: If it is not possible to brew a cappuccino as described, prime the circuit as explained in Section 4.5 and then repeat the steps. The same procedure can be performed to heat other beverages.

• After this operation, clean the steam wand with a wet cloth.• 21 • English 10 DESCALING Limescale normally builds up with the use of the appliance. The machine needs descaling every 1-2 months (if used) and/ or whenever a reduction in water ow is noticed. Use the GAG- GIA descaling solution only. In case of con ict, priority must be given to what is indicated in the operation and mainte- nance manual over the instructions provided on sepa- rately sold accessories and materials. Use the GAGGIA descaling solution only. Its formula has been designed to ensure bet- ter machine performance and operation for its whole operat- ing life. If correctly used, it also avoids alterations in the brewed product. The descaling solution is to be disposed of according to the manufacturer’s instructions and/or regulations in force in the country of use. Never drink the descaling solution or any prod- ucts dispensed until the cycle has been carried out to the end. Never use vinegar as a descaling solu- tion. 1 (Fig.15-16) - Insert the lter holder (without co ee) into the brew unit (8) from the bottom and turn it from left to right until it locks into place. 2 (Fig.1) - Remove and empty the water tank. 3 (Fig.2) - Pour the ENTIRE content of the GAGGIA concen- trated descaling solution into the water tank, then ll the tank with fresh drinking water up to the MAX level. 4 Remove the Pannarello (or Cappuccinatore) installed on the steam wand, if any. 5 Turn on the machine by pressing the ON/OFF button (16). The indicator light (17) turns on. Fill up (as described in the “HOT WATER” section of the manual) 2 cups of water (about 150ml each) from the steam / hot water wand and turn o the machine by press- ing the ON/OFF button (16); the indicator light (17) turns o . 6 Let the descaling solution take e ect for approx.15-20 minutes with the machine turned o . 9 CLEANING Maintenance and cleaning can only be carried out when the machine is cold and disconnected from the electric network.

• Do not immerse the machine in water or place any of its parts in a dishwasher.

• Do not use spirit, solvents and/or aggressive chemical agents.

• We recommend cleaning the water tank and re lling it with fresh water daily.

• (Fig.31-33) - Every day, after heating milk, remove the external part of the Pannarello and wash it with fresh drinking water.

• (Fig.31-32-33) - Clean the steam wand weekly. In order to do this, perform the following operations: - Remove the external part of the Pannarello (for standard cleaning); - Remove the upper part of the Pannarello from the steam wand; - Wash the upper part of the Pannarello with fresh drinking water; - Wash the steam wand with a wet cloth and remove any milk residue; - Reposition the upper part in the steam wand (make sure it is completely inserted); - Reassemble the external part of the Pannarello.

• (Fig.34) - Empty and clean the drip tray every day.

• Use a soft, dampened cloth to clean the appliance.

• (Fig.21) - Perform the following operations to clean the pressurized lter holder: - (Fig.11) - Remove the lter and wash it thoroughly with hot water. - Remove the adapter (if tted), and wash it thoroughly with hot water. - Wash the internal part of the pressurized lter holder.

• Do not dry the machine and/or its parts using a microwave and/or standard oven.• 22 • 7 Turn on the machine by pressing the ON/OFF button (16). The indicator light (17) turns on. Fill up (as described in the "HOT WATER" section of the manual) 2 cups of water (about 150ml each) from the steam / hot water wand. Then turn o the machine by pressing the ON/OFF button (16) and leave it o for 3 min- utes. 8 Repeat the operations described in step 7 until the water tank is completely empty. 9 (Fig.2) - Rinse the tank and ll it again with fresh drinking water. 10 (Fig.6) - Place a container under the steam wand (Pan- narello). Open the knob (3) slowly by turning it counter- clockwise. (Fig.7) - Press the brew button (18). 11 Dispense the whole water tank content through the steam/hot water wand. (Fig.7) - Press the brew button (18) again to end the op- eration. (Fig.8) - Close the knob (3) by turning it clockwise. 12 (Fig.2) - Fill the water tank with fresh drinking water. 13 (Fig.17) - Place a suitable container under the lter hold- er. 14 (Fig.18) - Press the brew button (18) and dispense all the water in the tank. Once the water tank is empty, stop dispensing by pressing the brew button (18) again. At the end, empty the container. 15 Repeat the operations from step (9) once again for a total of 4 tanks. The machine is now ready to be used. (Fig.20) - Remove the lter holder from the unit by turning it from right to left and rinse it with fresh drinking water. The descaling cycle is now complete. (Fig.2) - Fill the tank again with fresh water. If necessary, prime the circuit as described in Section 4.5 of the manual. Once nished, reposition the previously installed Pannarello (or Cappuccinatore) on the steam wand. 11 DISPOSAL - The packing materials can be recycled. - Appliance: Unplug the appliance and cut the power cord. - Deliver the appliance and power cord to a service center or public waste disposal facility. This product complies with eu directive 2002/96/EC. The symbol on the product or on its packaging indi- cates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inap- propriate waste handling of this product. For more detailed in- formation about recycling of this product, please contact your local city o ce, your household waste disposal service or the shop where you purchased the product.• 23 • English Problem Possible Causes Solution The machine does not switch on. The machine is not connected to the elec- tric network. Connect the machine to the electric network. The pump is very noisy. No water in the tank. Re ll with water (Section 4.3). Co ee is too cold. The "co ee ready" indicator light (15) was o when the button was pressed (14)
