Product Type	Hi-fi system with CD player and FM radio
Brand	Karcher Audio
Model	MC 6510
Power supply	DC 5V 1.0A (external mains adapter included)
Backup battery	2 AAA 1.5V batteries (not included) for clock backup
Radio frequency range	FM 87.5 - 108 MHz
Number of presets	20
Dimensions (W x D x H) approx.	302 × 90 × 220 mm (with stand)
Weight	Not specified by manufacturer
Main functions	CD player, FM radio, dual alarm, CD track programming, repeat and shuffle modes, sleep timer, AUX input, headphone jack
AUX input	3.5mm jack for external device
Headphone jack	3.5mm jack (headphones not included)
Display	LCD screen
Remote control	Included
Safety instructions	Do not expose to water, heat sources, do not open the case, use only the supplied adapter, unplug during storms or prolonged non-use
Maintenance and cleaning	Clean with a dry, clean cloth, do not use chemical products. Unplug before cleaning.
Repairability	Do not attempt to repair yourself. Consult a qualified technician.
General information	Manual available in multiple languages. User manual provided.

Frequently Asked Questions - MC 6510 Karcher Audio

How to set the clock on the Karcher Audio MC 6510?

The clock can only be set in standby mode. Press and hold the FUNCTION button on the unit or TIME SET on the remote, choose 12h/24h format, then set the hours and minutes using the navigation buttons. Press TIME SET/FUNCTION to confirm.

How to set the alarm on this hi-fi system?

In standby mode, press AL. ON/OFF or the AL1/AL2 buttons on the remote. Press and hold to enter settings, set the hour, minutes, then choose the wake-up mode: CD, radio (rAd) or buzzer (bb). Confirm with AL. ON/OFF or AL1/AL2.

How to enable/disable the alarm?

In standby mode, briefly press AL. ON/OFF on the unit or AL1/AL2 on the remote. The alarm symbol appears (active) or disappears (disabled).

How to use the Snooze function?

While the alarm is sounding, press SNOOZE. The alarm stops and reactivates after about 9 minutes.

How to search for radio stations manually or automatically?

In radio mode, briefly press the navigation buttons to change frequency manually. Press and hold for 2 seconds to start automatic search for the next station.

How to save a radio station?

Tune to the station, press MEM (unit) or MEMORY (remote). Choose a location from P-01 to P-20 using the navigation buttons, then press MEM/MEMORY again to confirm.

How to program CD track playback order?

In CD stop mode, press MEM or PROG/MODE. Select the first track with the navigation buttons, press MEM/PROG/MODE again. Repeat for up to 20 tracks. Start playback with PLAY/PAUSE.

What to do if condensation forms inside the unit?

If you move the unit from a cold to a warm environment, condensation may occur. Wait about an hour without turning on the unit to let the moisture evaporate before using.

How to clean compact discs?

Use a soft, clean cloth. Wipe gently from the center to the outer edge. Never use benzene, thinner, record cleaning fluid, or antistatic spray.

What type of batteries are used for the backup battery?

Two 1.5V AAA batteries (not included) can be installed to maintain the clock during a power outage. Remove the batteries if the unit will not be used for an extended period.

USER MANUAL MC 6510 Karcher Audio

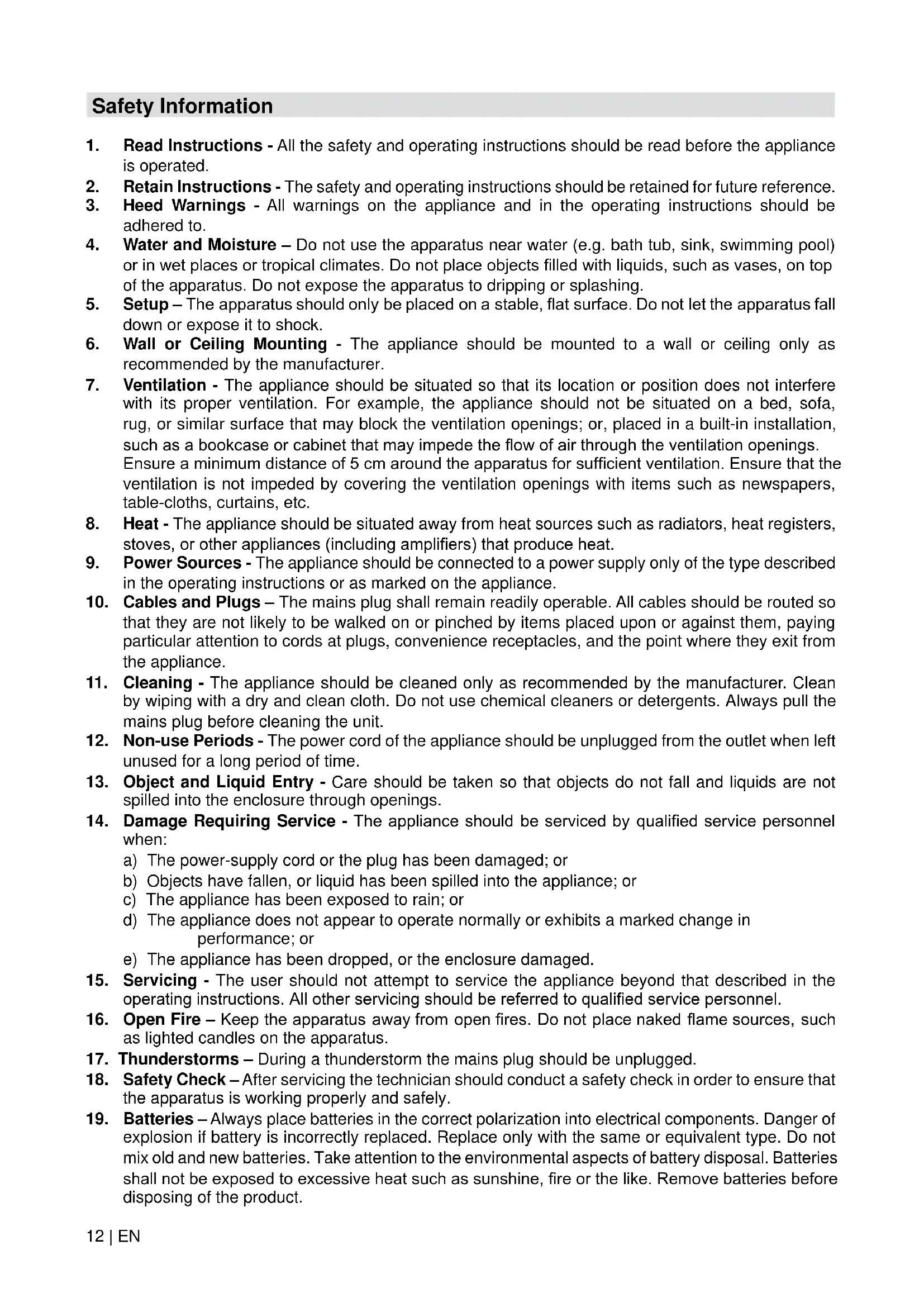

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture - Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup - The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
   Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs - The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
2. Open Fire - Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
3. Thunderstorms - During a thunderstorm the mains plug should be unplugged.
4. Safety Check - After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

5. Batteries - Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

6. Volume Levels - To prevent possible hearing damage, do not listen at high volume levels for long periods.

7. Headphones - Excessive sound pressure from earphones and headphones can cause hearing loss.

EN

CAUTION

RISK OF ELECTRO SHOCK DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DO NOT STARE INTO BEAM - INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Handling discs

Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

1. Storing discs

2. To avoid scratches/damages always put CDs back into their cases after use.

3. Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

4. Cleaning discs

5. Use a soft cloth to wipe fingerprints and dust from the disc surface.

6. Carefully move the cloth from the center of the disc to its edge:

Correct False

• Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.
• Compatibility
• Due to the numerous compression methods, some discs may not play.

NOTES ABOUT THIS INSTRUCTION MANUAL

1. This instruction manual is published by the manufacturer without any warranty. Corrections and changes of this instruction manual for the removal of typographic mistakes and editorial inaccuracies as well as due to (technical) improvements (changes) of the devices can be done by the manufacturer at any time without announcement. Changes of this kind are considered in future versions of this user manual. All rights reserved.
2. All figures are only for illustration and do not always show the exact representation of the product.
3. This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.

FURTHER NOTES ON THE DEVICE

Setting a safe volume level

If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.
What seems normal to you can be already for long time too loud and unhealthy.
- To protect yourself from this, set the volume to a low level.
- Increase the volume slowly.
- Damage to your hearing can be extensive and cannot be reversed.
If you notice a hearing problem, please consult a doctor.

Condensation

• Condensation may occur when moving the device from a cold to a warm environment. If there is

moisture inside the player, it may not operate properly. Don't turn on the device and wait about one hour for the moisture to evaporate.

Saving energy

If the unit is not used for a long period of time, it should be unplugged from the AC socket.
- If there is no sound in CD mode the unit will switch into standby after about 10 minutes.

Unpacking

• Take out carefully the unit from the packing. Please keep the packing for further use.
• Carefully remove possible protection cardboards and slipcovers.

Location of Controls

1. VOL- button
2. VOL+ button
3. SNOOZE/SLEEP button
4. Remote sensor
5. MEM button
6. MODE button

7. button

8. Display

9. baton
10. STOP button
11. PLAY/PAUSE button
12. STANDBY/ON button
13. FUNCTION button

14. AL. ON/OFF button

15. Speakers

16. CD door
17. AUX jack
18. Headphone jack
19. Backup battery door
20. DC jack

Remote Control

1. SNOOZE button
2. STOP button
3. MUTE button
4. M- button
5. M_+ button
6. PLAY/PAUSE button
7. button
   8.PROG/MODE button

8. SPANDBY/ON button

9. FUNCTION button

10. SLEEP button
11. VOL+ button
12. MEMORY button
13. button
14. AL1 button
15. VOL- button
16. AL2 button
17. TIME SET button

Power Supply

The unit requires DC 5V 1.0A
Plug the supplied adaptor cable into the connector on the back of the unit and the other end into a suitable wall socket.
Make sure that the output power of the wall outlet matches the required power of the adaptor.

• Adaptor must be plugged in to operate. The unit does not operate on batteries.

Battery Backup Function

Two 1.5V "AAA" batteries (not included) can be installed as a backup option to maintain the time if electrical power fails. In the event of a power outage, the time will not appear on the clock LCD Display, however, the clock will continue to operate and the actual time will be maintained. The clock LCD Display and other functions will resume once electrical power is restored if using the backup battery. The backup batteries should be replaced as needed. Remove the batteries if the unit is not used or stored for long periods of time.

Basic Functions

Switching the Unit On & Off

1. Power the unit as described above.
2. The unit is now in standby mode.
3. To switch the unit on, press the STANDBY/ON button.
4. To switch the unit off into standby mode, press the STANDBY/ON button once again.

Clock Setting

The clock can only be set while the unit is in standby mode.

1. While the unit is in standby mode, press and hold the FUNCTION button on the unit or the TIME SET button on the remote control. The time format will be shown.
2. Select between 12h display and 24h display by pressing the /bouns.
3. Press the FUNCTION or TIME SET button again. The hours will start flashing.
4. Set the current hours by pressing the /butions.
5. Press the FUNCTION or TIME SET button again. The minutes will start flashing.
6. Set the current minutes by pressing the /burns.
7. Press the FUNCTION or TIME SET button again to confirm all settings. The time is now set.

Alarm Setting

An alarm can only be set while the unit is in standby mode.

This unit enables you to set 2 separate alarms. You can select to wake to CD, radio or buzzer.

1. While the unit is in standby mode, press the AL. ON/OFF button on the unit or the AL1 (or AL2) button on the remote control. The symbol (or) will be shown in the display.
2. Press and hold the AL. ON/OFF button on the unit or the AL1 (or AL2) button on the remote control again. The hours will start flashing.
3. Set the desired hour by pressing the /buHns.
4. Press the AL. ON/OFF button or the AL1 (or AL2) button again. The minutes will start flashing.
5. Set the desired minutes by pressing the /bouns.
6. Press the AL. ON/OFF button or the AL1 (or AL2) button again to select the wake up mode.
7. Select between CD, radio ("rAd"), or buzzer ("bb") by pressing the /b#n#s.
8. Press the AL. ON/OFF button or the AL1 (or AL2) button again to confirm your settings.

Activating/Deactivating an Alarm

• To activate a previously set alarm, press the AL. ON/OFF button on the unit or the AL1 (or AL2) button on the remote control while the unit is in standby mode. The alarm symbol (or) appears in the display. This alarm will now ring at the previously set time.
• To deactivate a set alarm, press the the AL. ON/OFF button on the unit or the AL1 (or AL2) button on the remote control while the unit is in standby mode. The alarm symbol (or) will disappear from the display. This alarm is now deactivated and will not ring.

Stopping an Active Alarm

• When the alarm is sounding, press the STANDBY/ON button to turn it off. The alarm will come on again on the next day at the set time.

Snoopze Function

The snooze function allows you to delay an active alarm for approximately 9 minutes. To do so, press the SNOOZE button once while the alarm is active. The alarm will stop and come on again after 9 minutes.

Radio

1. Switch the unit on as described previously.
2. Press the FUNCTION button repeatedly to select "RADIO". The frequency will be shown in the display.
3. Select a desired radio station by pressing the button repeatedly.
4. To automatically search for the next available radio station, press and hold for 2 seconds the or button.
5. For the best FM reception completely unroll the FM wire antenna.

Radio Station Presets

This unit enables you to store up to 20 radio stations.

1. Tune to a radio station which you would like to store.
2. Press the MEM button on the unit or the MEMORY button on the remote control. The preset will start flashing (e.g. "P-01").
3. Select a desired preset place from P-01 - P-20 on which you want to store the current frequency by pressing the button.
4. Press the MEM button or the MEMORY button again to confirm your setting.
5. Repeat steps 1 - 4 to store up to 20 frequencies.
6. To recall a stored frequency, press the MODE button on the unit and then the or button, or the M+ or M- button on the remote control until you reach the desired preset.

Note:

If the unit gets disconnected from the power supply, all stored channels will be lost and will have to be reset.

CD Operation

Playing Discs

1. Switch the unit on and select the CD mode by pressing the FUNCTION button.
2. Open the CD door and insert a disc with the printed side facing outward.
3. Close the CD door. The CD is being read and will start playback automatically.
4. To temporarily stop the playback (pause), press the PLAY/PAUSE button once. Press the button again to resume playback.
5. To stop playback, press the STOP button.

Fast Forward / Fast Rewind & Skipping Tracks

• To jump to the beginning of the currently playing track, press the button once. Press it a second time to skip to the previous track.
• To skip to the next track, press the button once.
  To fast forward the currently playing track, press and hold the button. Once you reach the desired section of the track, release the button to resume normal playback.
• To fast rewind the currently playing track, press and hold the button. Once you reach the desired section of the track, release the button to resume normal playback.

Repeat Modes

At any time during playback,

• press the MODE button on the unit or the PROG/MODE button on the remote control once to

repeat the current track. "REPEAT" will be shown in the display.

• press the MODE button on the unit or the PROG/MODE button on the remote control twice to repeat all tracks. "REPEAT ALL" will be shown in the display.
• press the MODE button on the unit or the PROG/MODE button on the remote control repeatedly until all repeat indicators disappear from the display to deactivate the repeat function.

Random Play

• At any time during playback, press the MODE button on the unit or the PROG/MODE button on the remote control repeatedly until "RDM" will be shown in the display.
• All tracks will now be played in random order.
• Press the MODE button on the unit or the PROG/MODE button on the remote control repeatedly until all indicators disappear from the display to deactivate the random function.

Programming Track Order

You can store up to 20 tracks in a desired sequence.

1. While in CD stop mode, press the MEM button on the unit or the PROG/MODE button on the remote control. "PGM" will be shown and "P01" will be flashing.
2. Using the /<buttons, select the track to be played first in the sequence.
3. Press the MEM button or the PROG/MODE button again. "P02" will be shown in the display.
4. Repeat the steps 2 - 3 to select up to 20 tracks for your sequence.
5. Press the PLAY/PAUSE button to start the playback of your sequence.

Note:

After all programmed tracks have been played, the CD player will return to the stop mode. To clear the programmed tracks from the memory, press the STOP button until "PGM" disappears from the display.

Other Functions

Sleep Timer

The sleep function enables you to set a countdown timer after which the unit will turn itself into standby mode automatically.

While listening, press the SLEEP button. "120" and "SLEEP" will be shown in the display.
- Press the SLEEP button repeatedly to select a desired countdown after which the radio will turn itself off automatically.
- You can select 120, 90, 60, 45, 30, 15 or 5 minutes.

Headphone Connector

You can connect stereo headphones (not included) to the headphone connector of this unit. When headphones are connected the unit speakers will be deactivated. To listen over the unit speakers again, disconnect the headphones.

AUX Input

You can connect the audio output of an external device such as an MP3 player to this unit to listen to the sound of that device through the amplifier of this music system.

1. To connect the external device please use a standard stereo audio cable (3.5 mm to 3.5 mm plugs) (not included) to connect the headphone out or audio line out of the external device to the AUX input socket of this unit.
2. Switch the unit on and select the AUX mode "AU" by pressing the FUNCTION button.
3. Switch the external device (e.g. MP3 player) on.
4. Start playback of the external device and adjust the volume control of the main unit to the desired level.
5. Remember to switch off the unit when you are finished using the external device.

Specifications

EN

Power Supply: DC 5V--1.0A (external adaptor)

Radio Frequency Range: FM 87.5 - 108 MHz

Dimensions (WxDxH) ca.: 302 × 90 × 220 mm (with stand)

Technical specifications and design may change without notice.

Specifications techniques
