| Product type | Multiroom audio adapter |
| Brand | SilverCrest |
| Model | SMRA 5.0 A1 |
| Dimensions (L x H x P) | 133 x 33 x 95 mm |
| Weight (without mains adapter) | approx. 190 g |
| Power supply | Mains adapter 5 V / 1.2 A (supplied, model YN12W-0500120VZ) |
| Standby power consumption | Network connection active in standby |
| Audio outputs | Stereo RCA (analogue) and optical S/PDIF |
| USB port | USB 2.0, 5 V / max 500 mA (music playback and charging) |
| Wi-Fi connectivity | Dual band 2.4 GHz and 5 GHz, standards 802.11 a/b/g/n, encryption WEP/WPA/WPS |
| Internet radio | Yes (vTuner portal, creating favorites) |
| Spotify Connect | Yes (Spotify Premium account required) |
| Music services | Deezer and others via streaming |
| Local playback | USB, DLNA/UPnP, files on smartphone |
| Multiroom function | Up to 16 devices per network, groups of 5 max. |
| Control app | SilverCrest Smart-Audio (iOS and Android) |
| Software update | Via the app (duration up to 15 minutes) |
| Operating temperature | 0 °C to 35 °C |
| Operating humidity | 85% RH max. |
| Warranty | 3 years |
| Cleaning | Soft, dry cloth, no solvents |
| Package contents | Adapter, RCA cable, mains adapter, instruction manual |
Frequently Asked Questions - SMRA 5.0 A1 SILVERCREST
User questions about SMRA 5.0 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-Fi System in PDF format for free! Find your manual SMRA 5.0 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SMRA 5.0 A1 by SILVERCREST.
USER MANUAL SMRA 5.0 A1 SILVERCREST
Venture data information - 2nd Horizon Update 09/2014: Index No. SWRA 5.0 A1 052016-1
Spotify Connect....18
Music player (Musikplayer)....21
The Spotify Software is subject to third party licenses found here: https://developer.spotify.com/esdk-third-party-licenses/
Music player (Musikplayer)
Mode Veille 53
Modes de lecture 53
www.spotify.com/connect
Licences
https://developer.spotify.com/esdk-third-party-licenses/
Licenses
The Spotify Software is subject to third party licenses found here:
https://developer.spotify.com/esdk-third-party-licenses/
Mode Veille
Music streaming (Streaming musical) (autres services musicaux)
Local music (Musique locale)
Cher client, chère cliente,
Music player (Lettore musicale)....89
www.spotify.com/connect
Licenze
https://developer.spotify.com/esdk-third-party-licenses/
Licenses
The Spotify Software is subject to third party licenses found here:
https://developer.spotify.com/esdk-third-party-licenses/
Modalità Standby
Safety instructions....106
Copyright....110
Connections and controls....110
Before you start 111
SilverCrest Smart-Audio App....111
Configuring the network 111
LED indicators....112
Software update....112
Getting started....113
Connecting the adapter to the Hi-Fi equipment....113
Switching the adapter on....113
Establishing the Wi-Fi connection....113
Establishing the Wi-Fi connection via WPS....113
Establishing the WiFi connection via the SilverCrest Smart-Audio App....114
Spotify Connect....115
Standby mode 118
Playback modes 118
Switching the adapter off....118
Playing back music....118
Internet radio 118
Spotify....119
Music streaming (more music services) 119
Local music 119
Music player....119
Adjusting the volume....120
USB port 120
Factory default values....120
Multi-room functionality 120
Cleaning 121
Storage when not using the product....121
Troubleshooting 121
QR codes....122
What you need to know about setting up the network 123
Network glossary 125
Environmental regulations and disposal information 128
Conformity notes.... 128
Warranty and Service Information.... 129
Trademarks
Apple ^® , iPhone ^® and iPad ^® are registered trademarks, App Store is a service mark of Apple Inc., registered in the USA and other countries.
Google ^® and Android ^® are registered trademarks of Google Inc.
USB is a registered trademark.
The Spotify ^® logo, Spotify ^® and Spotify ^® Connect are registered trademarks of Spotify Ltd.
Other names and products may be the trademarks or registered trademarks of their respective owners.
Introduction
Thank you for buying a SilverCrest product.
The SilverCrest SMRA 5.0 A1 Multi-room Streaming Adapter, hereinafter referred to as the adapter, is easy to operate and has a modern, appealing design. It lets you play audio data received from a Wi-Fi network. You can use this adapter together with Hi-Fi equipment to enjoy music, online music services (Spotify) and Internet radio stations (vTuner portal) from your home network.
Intended use
This SilverCrest SMRA 5.0 A1 Multi-room Streaming Adapter is a consumer electronics device designed to play audio from a Wi-Fi network. Furthermore it is possible to play audio files from external audio sources. The adapter is suitable only for private use, not for industrial or commercial purposes. The device may not be used outdoors or in tropical climates. This device fulfils all relevant standards and directives. The manufacturer is not liable for any damage or problems caused by unauthorised modifications. Only use accessories recommended by the manufacturer. Observe the regulations and laws in the country of use.

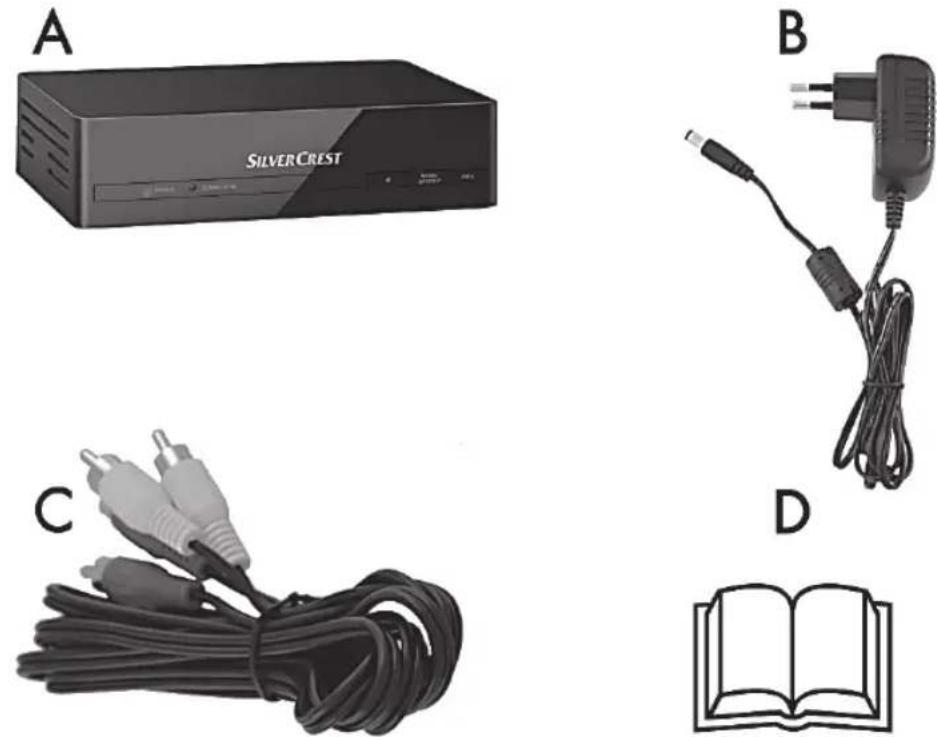

Package contents
Remove the device and all the accessories from the packaging. Remove the packaging material and check that all components are complete and undamaged. If you find anything missing or damaged, please contact the manufacturer.
| A SMRA 5.0 A1 Multi-room Streaming Adapter | |
| B | Power adapter |
| C | RCA cable |
| D These operating instructions (line-art illustration) | |
Technical specifications
SMRA 5.0 A1
| Input voltage / input current 5 V / 1.2 A, | - |
| USB 2.0 output 5 V / max. 500 mA | - |
| RCA Output (Cinch) Stereo L/R, analogue | |
| S/PDIF output optical | |
| Wi-Fi Frequency Band 2.4 GHz/5GHz | |
| Wi-Fi Standard 802.11 a/b/g/n | |
| Encryption WEP, WPA, WPS | |
| Dimensions (W x H x D) approx. 133 x 33 x 95 mm | |
| Weight without power adapter approx. 190 g | |
| Operating temperature 0 to 35 °C | |
| Operating humidity | 85% rel. humidity |
| Permissible storage conditions | 0 to 40°C, max. 85% rel. humidity |
Power adapter
| Manufacturer | winna |
| Type | YN12W-0500120VZ |
| Input voltage / input current 100 to 240 V , 50/60 Hz / 0.3 A | |
| Output voltage / output current | 5 V = 1.2 A, ⊖⊕ |
| Safety class | II |
The technical specifications and design can be changed without prior notice.
Safety instructions
Before you use this device for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell the device or give it away, pass on the user manual at the same time. The User Manual is part of the product.
Explanation of symbols used
DANGER! This symbol and the word "DANGER" denote a potentially dangerous situation. Ignoring it can lead to severe injury or even death.
WARNING! This symbol and the word "WARNING" denote important information required for the safe operation of the product and for the safety of its users.
WARNING! This symbol denotes danger for human health and risk of death and/or risk of damage to equipment due to electric shock.
Please only use the supplied power adapter (manufacturer: winna / Model number: YN12W-0500120VZ) to power your adapter.
This symbol denotes further information on the topic.
DANGER! Always make sure that
• the device is not exposed to direct heat sources (e.g. radiators);
- no direct sunlight or bright artificial light reaches the device;
- contact with water sprays or drops and corrosive liquids is avoided and the device is never operated near water; in particular the device may never be immersed in liquids (do not place any objects containing liquids, such as vases or drinks, on or near the device)
• no naked flames (e.g. burning candles) are placed on or near the device;
- you keep at least 1 m of space to radio frequency and magnetic sources (e.g. TV, speakers, mobile phones, etc.) to avoid any malfunction. In case of malfunction, install the device at a different place.
- no foreign bodies can penetrate into the device;
- the device is not exposed to any extreme temperature fluctuations as this can cause moisture through condensation and cause short circuits. If the device has been exposed to extreme temperature fluctuations, wait for it to reach the ambient temperature before switching it on (about 2 hours)
• the device should not be subjected to excessive shocks and vibrations;
- the device is not covered. Heat can accumulate when the device is covered, therefore there is a risk of fire.
Failure to heed the warnings above may result in damage to the device or injury.
DANGER! Children and persons with disabilities
Electrical devices are not suitable for children. Also persons with reduced physical, sensory or mental capabilities should only use electrical devices within the limits of their abilities. Do not allow children or persons with reduced physical, sensory or mental capabilities to use electrical devices unsupervised unless they are instructed accordingly and supervised by a competent person responsible for their safety. Children should always be supervised to ensure that they do not play with the product. Small parts can represent choking hazards. Keep the packaging away from children and persons with disabilities.
There is a risk of suffocation.
DANGER! Power adapter
Please only use the supplied power adapter (manufacturer: winna / model number: YN12W-0500120VZ) to power your adapter.
Only plug the power adapter into a suitable and easily accessible power socket. Do not touch the power adapter with wet hands as this could cause an electric shock.
To unplug the power adapter from the power socket, always hold its casing and never pull from the cable. Unplug the power adapter from the mains in the following circumstances:
• in any dangerous situation
- if the power adapter makes an unusual noise or gives off smoke
• before a storm and/or thunderstorm
- if the power adapter is damaged
- if the power adapter has been exposed to rain, liquids or high levels of humidity
• before a prolonged absence, e.g. holiday
- when you wish to clean it
- The power adapter consumes electricity even in Standby mode. In order to completely disconnect the device from the mains, the power adapter must be pulled out from the power socket.
Please follow these instructions to avoid risk of potential fatal injury or fire! Never cover the power adapter, otherwise there is a risk of fire. Do not attempt to open the housing of the power adapter. This could result in potentially fatal electrocution.
WARNING! Cables
Unplug all cables by holding the plugs and never pull on the cables themselves. Never place pieces of furniture or other heavy objects on the cables and take care that they do not become damaged, especially at the plugs and sockets. Never install the cable around hot or sharp objects to avoid damaging it. Never tie knots in cables and do not tie them to other cables. All cables should be positioned so that nobody can trip over them or be obstructed by them.
DANGER! Radio interface
Turn the device off when on board an aircraft, in a hospital, in an operating theatre or in the vicinity of electronic medical equipment. The RF signals may interfere with the functionality of sensitive devices. Keep the device at least 20 cm (8 inches) away from pacemakers, as the RF signals could interfere with the functionality of the pacemaker. The RF signals transmitted can interfere with hearing aids. If the wireless mode is switched on, do not place the device near flammable gases or in a potentially explosive area (e.g. a paint shop), as the RF signals transmitted could cause explosions or fire. The range of the radio frequency signals depends on environmental conditions. If data is transmitted via a wireless connection, it can also be received by unauthorised parties. Targa GmbH is not liable for any interference caused to RF or TV signals through unauthorised modification to this device. Furthermore, Targa accepts no liability for replacing any cables or devices that have not been specifically approved by Targa GmbH. The user is solely responsible and liable for remedying any interference caused by such unauthorised modification of this device and for replacing appliances.
Servicing / Repair
Repairs are required if this device is damaged in any way, for example, if the power adapter or device housing is damaged, if liquids or objects have entered the device or if the product has been exposed to rain or moisture. Repairs are also necessary if the product is not working properly or has been dropped. If you notice any smoke, unusual noise or strange smells, switch off the device immediately and pull the power adapter out of the power socket. If this occurs, do not continue to use the device and have it checked out by an expert. All repairs must be carried out by qualified service personnel.
Operating environment
The device is not designed for use in environments with high humidity (e.g. bathrooms) or excessive levels of dust. Operating temperature and operating humidity: 0 to 35 °C, max. 85% relative humidity.
Please note that caring products for furniture surfaces may contain substances that can damage the rubber feet of the adapter, so be careful if you have been using this type of products.
Copyright
All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.
Connections and controls
An additional illustration of the items and controls and their corresponding numbers can be found on the inside page of the fold-out cover of this user manual. You can keep this page folded out whilst reading the different chapters of this user manual. This allows you to refer to the relevant controls at any time.
| 1 POWER LED | |
| 2 CONNECTION LED | |
| 3 On/Standby button | |
| 4 MODE / SPOTIFY button | |
| 5 WPS button | |
| 6 AUDIO OUT L | |
| 7 AUDIO OUT R | |
| 8 S/PDIF output | |
| 9 U S B p o r t | |
| 10 RESET button | |
| 11 DC IN socket (power adapter connection, polarity ) ⊖⊕⊕ | |
| 12 Power switch (ON/OFF) |
Before you start
Remove the adapter and all accessories from the package and remove the plastic films. Verify that you have received all items listed.
SilverCrest Smart-Audio App
This app lets you control your adapter conveniently from your smartphone or tablet PC. You can download the "SilverCrest Smart-Audio" control app from the Apple® App Store and from the Google® Play Store.
The SilverCrest Smart-Audio app allows you to navigate between the different functions, tune-in a different radio station, set the volume, etc.
Among others, the app supports the following functions:
- Access to Internet radio stations and podcasts
- Internet Radio control
- Setup and control of a multi-room system
The SilverCrest Smart-Audio app is very intuitive, however please also read the operating instructions for the SilverCrest Smart-Audio app.
www.silvercrest-multiroom.com
Configuring the network
The SMRA 5.0 A1 adapter is connected to the network via Wi-Fi. The built-in Wi-Fi antenna receives the network router signals.
In order for the adapter to access the music files on the network, the network must meet the following requirements:
- DHCP must be enabled on the network router so the adapter can obtain an IP address automatically.
- UPnP media sharing has to be enabled on the router.
See the operating instructions for your router.
LED indicators
| orange LED on Standby mode (network connection active) | |
| green LED on and blue LED on Adapter is initialising | |
| blue LED flashes slowly AP mode, waiting for network connection | |
| blue LED flashes 3 times fast, followed by a short pause | WPS mode, waiting for WPS signal from router |
| blue LED on Adapter on, Wi-Fi connection OK | |
| green and blue LEDs flashing fast Wi-Fi connection fault | |
| green and blue LEDs flashing slowly two times Maximum volume has been reached |
Software update
As the product is constantly being developed, it can sometimes become necessary to update the software on your device. This will be notified with a corresponding notice in the app.
Please perform the software update according to the app instructions.
Please note that the update may take up to 15 minutes, depending on the Internet connection and the number of devices to be updated.
The update process:
- The update starts loading. The blue and green LEDs light up for approx. 15 seconds, then the blue LED goes out for a second and then the blue and green LEDs flash during the download (approx. 10-30 seconds).
- Then the blue LED comes on for approx. 10 to 15 seconds.
- Next, the device restarts and the update is installed. This is indicated by the blue and green LEDs flashing (approx. 1-2 minutes).
- After the update is finished, the device restarts. After the reboot, it is available in the SilverCrest Smart-Audio App again, the blue LED is now lit constantly.
Important! Please note the following:
Do not interrupt the power supply to the device while the update is running. Please wait for the update to complete. The entire process is automatic, you don't need to do anything.
If you have any questions regarding the update process, please contact our hotline, who will be happy to help you.
Getting started
Connecting the adapter to the Hi-Fi equipment
Connect one end of the supplied RCA cable (C) to the AUDIO OUT L (6) and AUDIO OUT R (7) sockets of the adapter and the other end to the RCA audio input of your Hi-Fi equipment. Alternatively you can use an optical S/PDIF cable (not supplied) to connect the S/PDIF (8) socket of the adapter to the optical S/PDIF input (if any) of your Hi-Fi equipment. To finish, select the corresponding input on your Hi-fi system. See also the User Manual for your Hi-fi system.
Switching the adapter on
Connect the adapter to the supplied power adapter (B) and then connect the power adapter (B) to an easily accessible power socket. Toggle the power switch (12) located on the back panel of the unit to "ON". The green and blue LEDs go on simultaneously. After initialising, the blue LED flashes slowly. The adapter is now in AP mode.
Establishing the Wi-Fi connection
There are 2 ways to connect the adapter (A) to the existing network of your router via Wi-Fi: either by pressing the WPS button (5) or by downloading the "SilverCrest Smart-Audio" control app for free from the Apple® App Store or from the Google® Play Store. In both cases, when establishing the connection for the first time, make sure to place the adapter (A) as close as possible to the router to achieve an optimum Wi-Fi signal transmission. Then install the adapter (A) within the Wi-Fi signal range.
Please note that a maximum of 16 multiroom devices can be connected to a network. Furthermore the multiroom devices and your smartphone/tablet must be connected to the same network.
Establishing the Wi-Fi connection via WPS
If your router features a WPS button, the easiest way to connect the adapter (A) to the network is using this button.
- Place the power switch (12) in "ON" position to go to connection mode. After a brief initialisation period (green and blue LEDs on simultaneously, then one LED briefly lights up green) only the blue LED flashes slowly.
If the LED does not flash, the adapter must be reset: Press and hold the RESET button for approx. 5 seconds to restart the device.
- Next press the WPS button on your router and confirm the connection by pressing the WPS button (5) on the adapter (A) front panel.
See the operating instructions for your router.
The adapter (A) establishes a network connection. The blue LED flashes 3 times fast, followed by a short pause.
• After the connection has been established, the blue LED goes on.
• Now the adapter (A) can play audio signals from the network.
- The adapter (A) will save the connection data, so the next time you switch it on you don't need to re-establish the connection again.
Establishing the WiFi connection via the SilverCrest Smart-Audio App
The following contains some important instructions for setting up your device. A detailed, up-to-date description of the SilverCrest Smart-Audio App with plenty of screenshots can be found online. You can find the relevant internet links in the "QR codes" chapter.
Setting up a device
If you cannot establish a connection using WPS, you can use the SilverCrest Smart-Audio App to connect your device to the network.
Power on the device and start AP mode. The AP mode lets you configure and connect your device to the WiFi network.
When you use it for the first time, the device starts in AP mode. Otherwise, hold the RESET button for approx. 5 seconds to restart the device. After a brief initialisation period (green and blue LEDs on simultaneously, then one LED briefly lights up green) only the blue LED flashes slowly and the adapter is in AP mode.
Start the SilverCrest Smart-Audio App and select "Set up audio system". Follow the on-screen instructions to connect the device to your WiFi network.
After setup is finished, you can add more existing WiFi devices to the network in the same way, if you have any.
Setting up a group
In order to create a group, you need at least two Multiroom devices in the same network.
From the overview, select the device you wish to act as the "Master" in the group and press the button next to the device.
In the window that opens, you are shown the Multiroom devices you can add to the group. Select the devices you wish to add to the group. Confirm your selection by checking the boxes next to the names. You can also rename the group.
Then press "Done" or "OK". You have successfully created a group.
Please note that a group cannot contain more than 5 devices.
Source
You can use the "Source" menu option to select the available audio sources for the selected Multiroom system:
- Internet radio
- Spotify
- Music streaming (more music services)
- Local music
- Music player
Browse
Once you have selected a source, you are taken to the "Browse" menu option. Here, you can refine your search based on the audio source selected, e.g. by music genre, station or title.
Now playing
If you select a station or a title, the cover is displayed and you have various settings options based on the source selected, for example, Volume.
Spotify Connect
Spotify is a music streaming service that runs on many mobile devices like smartphones or tablet PCs. Together with one of these devices your adapter SMRA 5.0 A1 can play this streamed music.
Requirements:
- You have to download the Spotify App to your smartphone (iOS, Android) and install it.
- A Spotify account subject to a purchased subscription.
You can find further information at: www.spotify.com
Using Spotify with your SilverCrest SMRA 5.0 A1
• Make sure that your adapter and smartphone are connected to the same wireless LAN.
- Select the Spotify mode from the SilverCrest Smart-Audio app or by pressing the MODE / SPOTIFY button (4) on the adapter. To do this, hold the MODE / SPOTIFY button (4) down for about 2 seconds.
- Launch the Spotify app and play the desired songs on the adapter.
Please note that you must select the adapter in the Spotify app first.
- Playback control and music title selection is done from the Spotify App. Alternatively, you can control some functions (Start / Stop / Pause / Next title / Previous title) from the SilverCrest Smart-Audio app. You can adjust the playback volume on your Hi-Fi equipment or by using the SilverCrest Smart-Audio app.
The Spotify app is very intuitive, however please read the Spotify app documentation for information about using the app.
Using this device with Spotify Connect
A better way to listen at home
Spotify Connect lets you play Spotify through your home speakers or TV, using the Spotify app as remote.
You'll need a Spotify Premium account to use Spotify Connect. If you don't have it, just go to http://www.spotify.com/freetrial for your free 30-day trial.
-
Connect your device to the same wifi network as your phone, tablet or PC running the Spotify app.
-
Open the Spotify app, and play any song.
-
Tap the song image in the bottom left of the screen.
-
Tap the Connect icon
-
Pick your device from the list.
For more information on how to set up and use Spotify Connect please visit:
www.spotify.com/connect
Licenses
The Spotify Software is subject to third party licenses found here:
https://developer.spotify.com/esdk-third-party-licenses/
Standby mode
To set the adapter (A) to standby mode, press the On / Standby button (3). While standby, the adapter (A) keeps the network connection alive so the connection is available immediately after switching it back on.
If the adapter (A) receives no signal, it goes standby automatically after a certain time.
Playback modes
You can also press the MODE / SPOTIFY button (4) on the adapter to toggle between the 5 playback modes:
- Internet radio
- Spotify
• Music streaming (more music services) - Local music
- Music player
Hold the MODE / SPOTIFY button (4) down for about 2 seconds to select the Spotify mode directly.
Switching the adapter off
Toggle the power switch (12) located on the back panel of the unit to "OFF" to switch the adapter (A) off.
Playing back music
The SMRA 5.0 A1 adapter lets you play music from the following sources:
- Internet radio
- Music services
• USB media and DLNA/UPNP playback / Local files
You can use your smartphone or tablet PC for playback control. You can adjust the playback volume on your Hi-Fi equipment and by using the SilverCrest Smart-Audio app.
Internet radio
The adapter includes an Internet radio feature that you can control via the SilverCrest Smart-Audio app.
Registering on the Internet radio portal
If you register on the Internet radio portal, you can create and manage favourite lists. You can also add radio stations manually. The same favourites are then available on all devices registered to an account. In order to register your
Multiroom devices on the Internet radio portal, you need to generate an access code. From the SilverCrest SmartAudio app, select "Internet radio" mode. Next select "Browse/Help" in the sub-menu. Press "Get access code".
- Then register on the website www.wifiradio-frontier.com
- Follow the instructions on the website. The following information is required for registration: access code, e-mail address and password.
- Once registered, you can create and manage your favourite lists on the website www.wifiradiofrontier.com.
In order to register another device, select the "My preferences" option.
Spotify
Play music from the Spotify online service by installing the SPOTIFY app on your smartphone or tablet PC.
Music streaming (more music services)
This menu item contains more music services like Deezer.
Local music
To play music files that are saved locally on your smartphone or tablet PC.
Music player
This lets you play music files saved on a USB mass storage device. Connect the USB mass storage device to the USB port (9) on the back of the adapter and use the SilverCrest Smart-Audio app for playback control.
Shared media (DLNA): Select this option to play music files from your local network. Please note that the music files have to be shared for streaming on your network first. Please read the documentation for the device (computer, router, etc.) you wish to use as playback source.
The description below gives you an insight into the subject:
DLNA (Digital Living Network Alliance) is a standard within a network which ensures that computers, media players/servers and smart devices understand one another and enables the shared use of network music files.
How to set up a DLNA media server depends on the hardware/software solution in use. To find out, read the documentation for your device or look it up on the internet.
Adjusting the volume
You can adjust the volume via the SilverCrest Smart-Audio app or on your Hi-Fi equipment.
USB port
On the one hand, the USB port can be used to connect a USB storage device to play the saved music files in "Music player" mode. On the other hand, you can charge a device (smartphone or tablet PC) connected to this port. Please note that the adapter has to be switched on in order to charge a device connected to its USB port.
Factory default values
Proceed as follows to restore the factory default values:
Press and hold the RESET button for approx. 5 seconds. The device will restart. After a brief initialisation period (green and blue LEDs on simultaneously, then one LED briefly lights up green) only the blue LED flashes slowly and the device is in AP mode.
Please note that all custom settings will be lost when restoring the factory default values.
Restore the factory default values before passing on the device so that your data are not revealed to any third parties!
Multi-room functionality
A multi-room system is very versatile. If you have multiple Wi-Fi speakers or Wi-Fi adapters, you can group them by using the SilverCrest Smart-Audio app. For example, you can install one speaker or adapter per room, group them and then use your smartphone or tablet PC for centralised control. For instance, if you select a radio station, it will be played on all grouped speakers and/or adapters.
Of course, you can ungroup the devices at any time and then control each speaker or adapter individually.
Or you can create multiple small groups for individual control.
Cleaning
Switch the device off and unplug the power adapter from the mains. To clean it, use a soft, dry cloth. Never use any solvents or cleaners and never an abrasive sponge. Otherwise the adapter housing can be damaged.
Storage when not using the product
If the device is not to be used for an extended period, store it in a clean, dry and cool place.
Troubleshooting
The adapter does not power on.
- Check that the power switch located on the back panel of the adapter is switched to "ON".
- Check that the power adapter is correctly inserted into the power socket. Connect it properly if not.
- Check whether the used power socket is alive. Try a different power socket, if necessary.
No sound
- Please check if the correct playback mode has been selected. Select the proper playback mode first.
- Check the playback volume on your Hi-Fi equipment and in the SilverCrest Smart-Audio app.
• Make sure that the RCA cable (C) or the S/PDIF cable is properly connected to your Hi-Fi equipment. - There might be no signal reception. Double-check the network settings.
Router connection problems
- You have entered a wrong network encryption key. Double-check the encryption key and enter it again.
Cannot control the adapter with the app
- The adapter and the smartphone or tablet PC are not connected to the same wireless network. If necessary, correct the network settings of the corresponding devices.
QR codes
The following QR codes connect you to interesting Websites that contain more helpful information about your device. Use your smartphone or tablet PC to scan the code to open the corresponding website. Alternatively, you can also enter the corresponding URL into your Internet browser address bar.
| Here you can download apps available for this device:URL: http://www.multiroom-sound.com/app-download |  |
| This website contains detailed information about setting up and installing the SilverCrest multi-room system:URL: http://www.multiroom-sound.com/about |  |
| Here you can find specific information for your device:URL: http://www.multiroom-sound.com/116073 |  |
This link forwards you to the SilverCrest Multi-room system homepage:
URL: http://www.multiroom-sound.com
Make sure that the smartphone and/or tablet with which you wish to register and operate your smart audio device in the network belongs to the relevant network.
To prevent unauthorised persons gaining access to the system, the WiFi network should be encrypted. There are numerous encryption algorithms, including WPS, WPA, WEP, etc. Make sure you use the same encryption algorithm for your Multiroom product as for your wireless network. Otherwise, no connection can be established to the wireless network.
In large apartments or buildings with several storeys, a number of different wireless networks can be installed. Make sure that the network equipment (routers/repeaters) are connected to one another, otherwise your smart audio devices cannot communicate with one another and you will not be able to control them as expected.
Some smart audio devices also have a LAN connection socket which allows the device to be connected to the network via a network cable.
If you connect your device to your network using a cable, make sure that the network cable for the relevant device is connected to the same network (WiFi) as your smartphone and/or tablet and any other smart audio devices.
In buildings with fixed network sockets in the walls, these sockets can often lead to different networks.
If this cannot be guaranteed, the devices cannot be controlled.
Other tips and instructions on setting up the network can be found on our website: www.silvercrest-multiroom.com
WPS
Most wireless routers and access points have a WPS button. Press this button and then the WPS button on your Multiroom device for the Multiroom device to establish a connection with your wireless network. Make sure that the device you wish to use to control you Multiroom products (e.g. smartphone or tablet) is also connected to the same wireless network (i.e. router or access point).
Dynamic/static IP addresses
By default, your Multiroom device expects to be automatically assigned an IP address by your wireless router or access point when it connects to it (DHCP function activated). However, if you use static IP addresses for your network devices, this will not work. In this case, you need to manually assign your Multiroom device an available IP address.
Wireless range
Wireless routers normally work in the 2.4 GHz range, but this is also used by other RF devices (not only wireless networks). This can reduce speeds and ranges as the numerous wireless signals interfere with each other. It is even possible that there is no reception any more just two rooms away. The best solution is to use multiple aerials or routers/access points which support the standard 802.11n in order to combine the channels available. If necessary, install a repeater to extend the WiFi network range.
Combined wireless with 2.4 and 5 GHz
Older wireless devices are not able to work in the 2.4 and 5 GHz ranges at the same time. This applies not only to routers and access points, but also to PCs, laptops and other devices you may wish to use to control your Multiroom system. If you cannot find or control your Multiroom products or the connection is too slow, check that they really support both frequency ranges.
Router overnight standby function
If your router has an overnight standby function, it is possible that the speakers will switch on automatically (but not automatically play music) when you switch the router back on again. In this case, the speakers obviously consume electricity. If necessary, deactivate the overnight standby function.
Allow network discovery
Make sure that the wireless router or access point allows devices in the wireless network to be visible to one another and exchange data with one another. Otherwise, the speakers are no longer visible after they have been set up.
Network glossary
| Access Point | Device which provides an access hub between a wireless (WiFi) network and a cabled one (LAN). It gives wireless-compatible devices (laptops, smartphones, loud-speakers, etc. with wireless functionality) access to the LAN and any other networks connected (e.g. the internet). |
| AP mode | Operating mode in which a Multiroom device can be connected and configured via the wireless network (WiFi) using the Smart-Audio App or another compatible app. |
| Bluetooth | Industrial standard for wireless communication between devices. The range for this system is normally max. 10 m. After an initial synchronisation (pairing) between two devices, the wireless connection between them is automatically restored when the two devices are switched on and within range at a later date. |
| DHCP | Abbreviation for “Dynamic Host Configuration Protocol”. Computer networks can contain large numbers of computers. Each computer is given a unique IP address to ensure the data intended for it is only sent to it. There is the option either of assigning IP addresses yourself (these are then fixed) or leaving this to a device within the network (normally the router). And this is what the DHCP function does: after a computer is switched on, it is automatically assigned a free IP address which is valid until it is switched off again. |
| DLNA | Abbreviation for “Digital Living Network Alliance”. Guidelines which define the interaction between various multimedia devices when it comes to the transfer of digital content. They make it possible to transfer this content to fixed home devices, mobile devices and other products connected to various networks, including cable, satellite and mobile phone networks. These guidelines also include standards such as UPnP. |
| Encryption | To prevent unauthorised persons gaining access to a wireless network, it should be encrypted. There are numerous encryption algorithms, including WPS, WPA, WEP, etc. |
| Ethernet | Ethernet is without a doubt the most popular standard for computer networks. The signals can be transferred via various types of cables and at differing speeds. A computer is connected to one end of the cable, while the other end is connected to a hub or switch which acts a distributor within the network. |
| Hub | Within the network, the hub is responsible for distributing data to the computers it is intended for. In larger networks, this can be connected to additional hubs or switches, themselves serving numerous computers. Many routers already incorporate a hub, allowing direct connection of multiple computers and quick setup of small home networks. |
| Internet radio | Internet radio is an audio service transmitted via the internet. Listeners are provided with a permanent audio stream which cannot normally be paused, time-shifted or repeated. This is a radio broadcast which is not transmitted via radio waves. |
| IP Address | In the same way as the postman needs a street and house number in order to deliver post, the target devices must be assigned addresses in data communication in order for the data to be delivered to the right device. On the internet and in conventional computer networks, this is the IP address. As a user, you do not normally need to think about IP addresses, as the applications and devices you use do this for themselves. |
| LAN | Abbreviation for “Local Area Network”. The LAN is a traditional cabled network used in companies and now in the home. It consists of multiple computers and other devices which are connected with one another and can communicate and exchange data with one another. The LAN is often connected to the internet. |
| Multiroom | A function whereby multiple compatible devices can be grouped on the wireless network and centrally controlled (e.g. via a smartphone app). For example, you can install one speaker per room, group them and then use your smartphone or tablet to control them centrally. For instance, if you select a radio station, it will be played on all grouped speakers. |
| Network | A series of data processing devices which are connected together and can communicate with one another. This connection can be via cable (LAN) or via wireless (WiFi). |
| Pairing | One-off synchronisation between two Bluetooth devices to “get to know one another”. After two devices have been successfully paired once, the wireless connection between them is automatically restored when the two devices are switched on and within range at a later date. |
| Podcast | Digital media file (audio or video) which is broadcast via the internet or another network on request. This is not a live stream. |
| Repeater | A repeater extends the range of a wireless network. This lets you include devices originally located outside the WiFi range into the wireless network via the repeater. |
| Router | The router is the link between a local network (LAN) or wireless network (WiFi) and the internet. Many routers incorporate a hub or switch to allow direct access to the internet from various computers to form a small home network. |
| Smart-Audio | An app based on the UNDOK standard which allows Multiroom systems to be controlled by a smartphone or tablet. |
| Spotify | A commercial music streaming service which allows the music of your choice to be played on various devices and operating systems (computers, smartphones, tablets, smart TVs, etc.). |
| Switch | Many routers already incorporate a switch, allowing direct connection of multiple computers and quick setup of small home networks. |
| UNDOK | UNDOK has become established as the standard for Multiroom systems. It is an app which allows Multiroom devices to be grouped and controlled from a smartphone or tablet. |
| Update | An update refers to upgrading a software. An update may include enhancements or new features. |
| UPnP | Abbreviation for "Universal Plug and Play". A series of network protocols which allow devices in the network to find one another, communicate and share data easily without requiring specific intervention or knowledge. |
| WiFi | Abbreviation for "Wireless Fidelity" A standard which enables computers, smartphones, digital cameras and other compatible devices to establish a connection with a wireless network (WLAN). The WiFi environment is normally provided by an access point connected to a cabled network (LAN) or the internet via a router. |
| WLAN | Abbreviation for "Wireless Local Area Network". The WLAN is the modern variant of a computer network which is used in small companies and households. It consists of multiple computers and other devices which are connected with one another and can communicate and exchange data with one another. However, unlike a LAN, the data is transferred wirelessly rather than by cable. To ensure the wireless signals are not intercepted by unauthorised parties, encryption of the signals is very important. The WLAN is often connected to the internet. |
| WPS | Abbreviation for "WiFi Protected Setup". For security reasons, wireless networks are encrypted and a password is required to establish a connection to them. On the one hand, this password can be defined manually. In this case, the user needs to enter the password to establish a connection. On the other hand, there is the option whereby a button is pressed on the access point or router providing the wireless network with a few moments to attempt synchronisation with the connecting device (e.g. smartphone). This is achieved using the WPS function. As with Bluetooth, this synchronisation is only required once. The access data for the WLAN is saved and the device (e.g. smartphone) restores the network connection as soon as it is in range and its wireless function is activated. |
Environmental regulations and disposal information
Devices marked with this symbol are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Avoid damage to the environment and risks to your personal health by disposing of the device properly. For further information about proper disposal, contact your local council, recycling centre or the shop where you bought the device.
Dispose of all packaging in an environmentally-friendly manner. Cardboard packaging can be taken
to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.
Conformity notes
This device complies with the basic and other relevant requirements of the EMC Directive 2014/30/EU, the Low-voltage Directive 2014/35/EU, the ErP Directive 2009/125/EC, the R&TTE Directive 1999/5/EC and the RoHS Directive 2011/65/EU. To obtain a complete EU Declaration of Conformity, send an e-mail to the following e-mail address:
ce@targa.de
Warranty and Service Information
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.
Service
Phone: 020 - 70 49 04 03
E-Mail: service.GB@targa-online.com
Phone: 01-4370121
E-Mail: service.IE@targa-online.com
Phone: 027 78 11 03
E-Mail: service.MT@targa-online.com
Phone: 02 - 20 09 025
E-Mail: service.CY@targa-online.com
IAN: 116073
Manufacturer
Please note that the following address is not a service address. First contact the service point stated above.
TARGA GmbH
Coesterweg 45
59494 SOEST
GERMANY
