USER MANUAL Vinyl Transport ION

Make sure that the items listed below are included in the box:

Vinyl Transport
Felt Slipmat
Power Adapter
45 RPM Adapter
- Quickstart Guide
- Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit ionaudio.com.

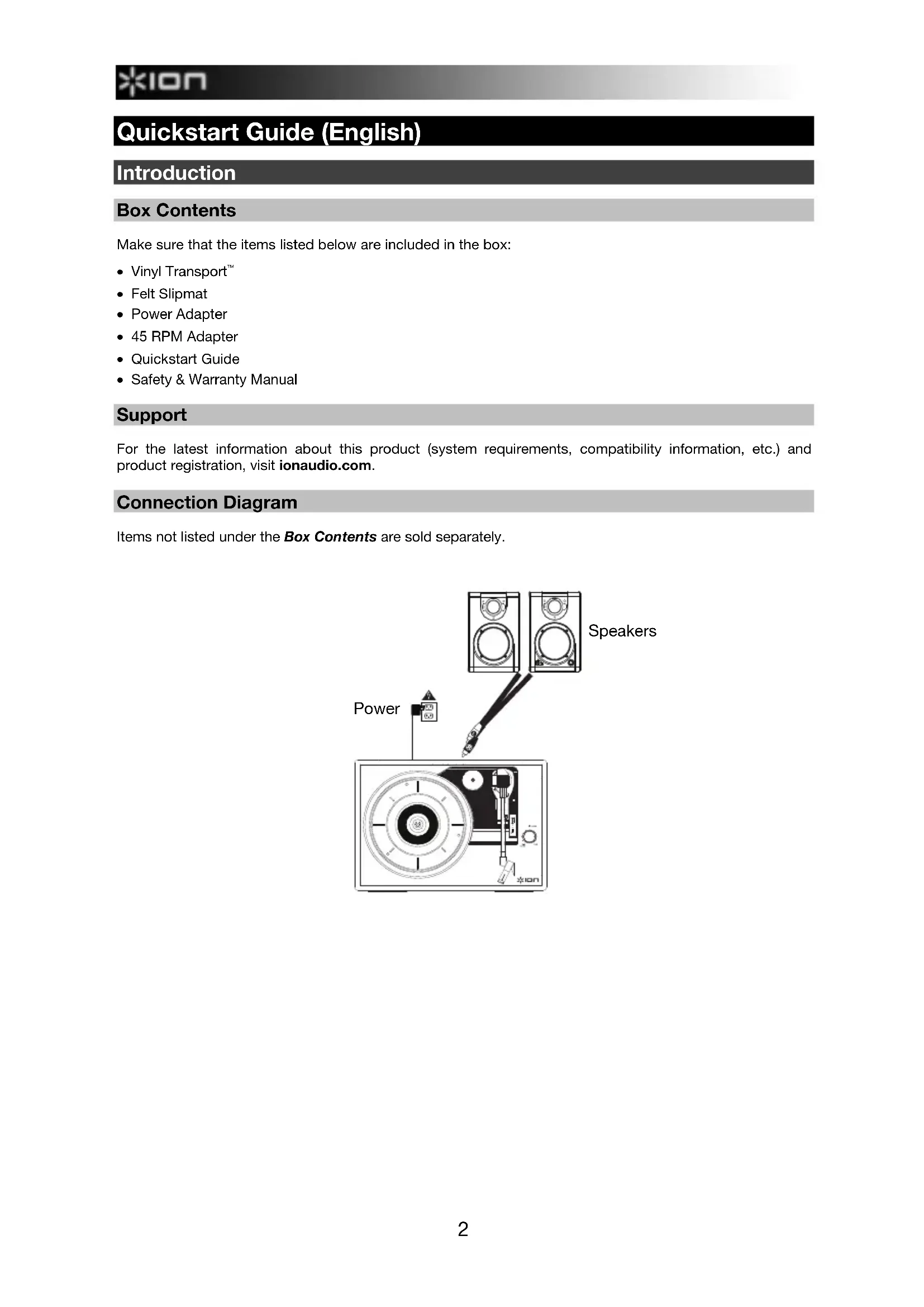

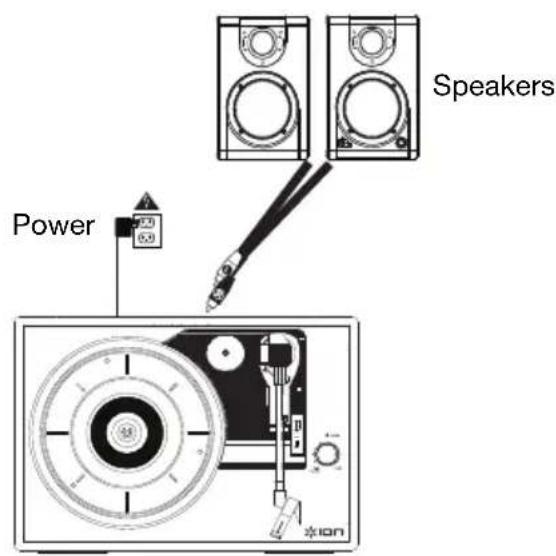

Connection Diagram

Items not listed under the Box Contents are sold separately.

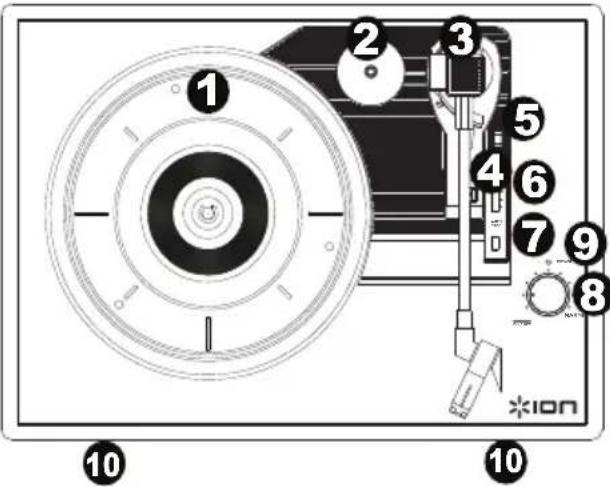

Features

1. Platter - Place your record here.
2. 45 RPM Adapter Holder - Holds the included 45 RPM adapter. When not using the adapter, please place it in this holder.
3. Tonearm - The fixed tonearm can be raised and lowered by hand, or by pressing the raise / lower lever.
4. Arm Clip - This specially designed arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position while unlocked.
5. Raise / Lower Lever - Raises and lowers the tonearm.
6. 33/45/78 Switch - This switch controls the RPM of the turntable platter.

Note: For best results when playing 78 RPM vinyl records, use a 78 stylus (sold separately). Only use a 78 stylus with 78 RPM vinyl records. Purchase the iCT06rs 78 stylus at ionaudio.com/ict06rs.

IMPORTANT: Place the included felt slipmat on the platter; then place your record on the felt slipmat to carefully hold your records.

1. Autostop switch - This switch turns autopost on or off. When autopost is on, the platter will start spinning when the tonearm is placed over the record and stop spinning when the record has reached the end. (When autopost is off, the platter will always spin regardless of the position of the tonearm.)

IMPORTANT: Remove the plastic cartridge cover (needle cover) before operating the turntable.

Note: If your vinyl record stops before it reaches the end of the music, turn Autostop to the off position for this particular record. This is generally recommended for 45 RPM records.

*WARNING: The RCA outputs are LINE level. Please only connect these to LINE level inputs. You may damage your receiver if you plug in a LINE level device into a PHONO level input.

1. Volume/Power Knob - To power on Vinyl Transport, turn this knob clockwise until it clicks. When powered on, use this knob to adjust the volume. To turn off Vinyl Transport, turn this knob counterclockwise until it clicks.

1. Power Indicator - This LED illuminates when the power is on.
2. Speaker - The record's audio will be played through this built-in speaker.
3. RCA Output* - The audio from a playing vinyl record is sent to this line-level coaxial audio output. This must not be connected to phono level devices.
4. Power Cable Input - Use the included adapter to connect to wall power.

Troubleshooting

If you experience any difficulties, please refer to the troubleshooting steps below.

I'm not hearing any audio when playing music:

• If you are playing music from vinyl:

o Make sure that Vinyl Transport is powered on and that the needle is on the record.
- Connect Vinyl Transport's RCA outputs to a stereo system or powered speakers. (Do not connect them to phono-level inputs; Vinyl Transport's RCA outputs are line-level and could damage a device with phono-level inputs.)

My record is not playing at the correct speed; its pitch is too high or too low:

Ensure the 33 / 45 / 78 switch is set to the correct speed for your record.

My record is hitting the edge of the top cover:

Use a slipmat at all times to raise your records high enough to clear the top cover.

BEFORE RETURNING THE PRODUCT, please contact ION Audio or your retailer for technical support. Contact information can be found in the Safety Instruction Booklet included with this product.

ionaudio.com

Technical Specifications

Dimensions Length x Width x Depth)	13.75” x 10” x 4.5” 349 mm x 254 mm x 114 mm
Weight	6.1 lbs; 2.8 kg
Power	5V DC, 1A, center pin-positive, tip-negative; or 4 AA batteries (into the bottom compartment).
Battery Type	4 AA batteries
Battery Life:	Up to 6 hours
Cartridge Type	Ceramic
Cartridge and Stylus	CZ-800-10 (sapphire-tipped) is included, and also available at www.ionaudio.com/products/details/CZ-800-10. For a 78 stylus, the iCT06rs is available at www.ionaudio.com/ict06rs.

Specifications are subject to change without notice.
