USER MANUAL MC 1016 CDMP3 CLATRONIC

Exterior view of a modern CD-ROM with two silver audio units and a central digital display (no visible text or symbols on the devices themselves)

MC 1016 CD/MP3

CE

D

Inhalt

D

Seite

Indice

I

Pagina

Overview of the Components 3

Instruction Manual.... 50

Technical Data 57

Guarantee 57

F

E

Sommaire

F

Page

Spis treści

PL

Strona

Technical diagram of a device with numbered labels pointing to various components and parts.

34 33 36 39 REVERSE MEMORY FLASH/RESET SEBI/RESET STOP FOLDER STOP ON UP 40 35 37 38 MPS" REMOTE CONTROL UNIT

32 FM ANT R L 30 31

D

CLASS 1 LASER PRODUCT TO IEC 60825 LASER KLASSE 1 NACH IEC 60825

PLAY/PAUSE ▶II (4/35):

D-47906 Kempen/Germany

CLASS 1 LASER PRODUCT TO IEC 60825 LASER KLASSE 1 NACH IEC 60825

MW / AM 540 - 1600 kHz

CLASS 1 LASER PRODUCT TO IEC 60825 LASER KLASSE 1 NACH IEC 60825

21 ▶ PLAY touche lecture - cassettes

PLAY/PAUSE ▶II (4/35):

CLASS 1 LASER PRODUCT TO IEC 60825 LASER KLASSE 1 NACH IEC 60825

CLASS 1 LASER PRODUCT TO IEC 60825 LASER KLASSE 1 NACH IEC 60825

MW / AM 540 - 1600 kHz

General Safety Instructions

To avoid the risk of fi re or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.

Use the device only for the intended purpose.

Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket.

When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.

Assemble the device in such a way that the available ventilation openings are not covered.

Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.

If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

GB

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.

Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.

Special safety information

This device works with a class 1 laser.

CLASS 1 LASER PRODUCT TO IEC 60825 LASER KLASSE 1 NACH IEC 60825

Overview of the components

1 ■ CD/MP3 STOP button
2 ◀◀◀ CD/MP3 SKIP button (back)
3 ▶▶▶ I CD/MP3 SKIP button (ahead)
4 ▶ II CD/MP3 PLAY/PAUSE button
5 POWER button
6 FOLDER UP MP3 button
7 PROGRAM button
8 PHONES (Headphone connection)
9 VOLUME / volume regulator
10 X-BBS ON/OFF
11 ▲ button for opening the CD compartment
12 CD compartment
13 Function selector (MP3/CD/TAPE/TUNER)
14 BEAT CUT 1 ■ / ■ 2 Selector
15 Band selector (AM/FM/FM-ST)
16 Regulator TUNING
17 Frequency scale
18 Flap PULL OPEN
19 Cassette compartment
20 ● REC / record button - cassette
21 ▶ PLAY / play button – cassette
22 ◀◀ REW / rewind button – cassette
23 ▶▶ F.FWD / forward button – cassette
24 ■ ▲ STOP/EJ. / stop/eject button - cassette

25 II PAUSE button – cassette
26 LED display
27 POWER control lamp
28 FM-ST control lamp
29 Sensor for the remote control

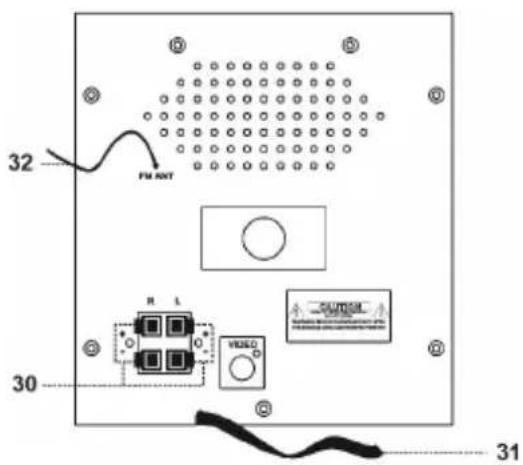

Reverse side

30 Loudspeaker connections
31 AC Power supply
32 FM ANT. Throw-out antenna

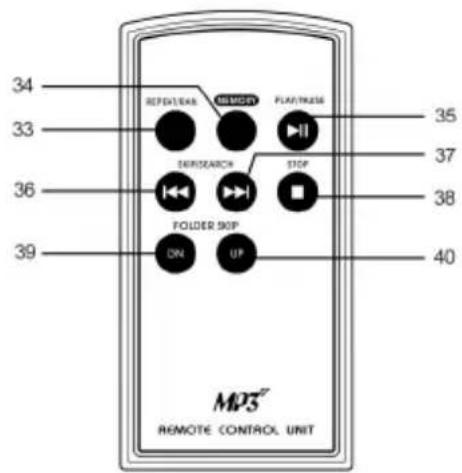

Remote Control

33 REPEAT/RAN. button
34 PROGRAM button
35 ▶ II PLAY/PAUSE button
36 ◀◀◀ SKIP/SEARCH button (back)
37 ▶▶I SKIP/SEARCH button (ahead)
38 ■ STOP button

Only for CDs in MP3 format

39 FOLDER SKIP DN Folder downwards
40 FOLDER SKIP UP Folder upwards

Start-up of the device

• Remove any transport safety equipment on the CD and cassette sections.
• Select an appropriate location for the device, e.g. a dry, flat, non-slip surface on which the device can be easily operated.
• Connect the loudspeakers to the back of the music centre to the sockets market „Speaker R and L“ (30).
• Insert the plug into a properly installed 230 V, 50 Hz power socket. Please ensure that the mains voltage corresponds to the information on the type plate.

Note: The lithium cell in the battery compartment of the remote control has been secured for transport with a foil. This prolongs the lifetime of the battery. Before initial use please remove this foil so that the remote control is ready for operation.

Remote Control Batteries

The battery of the remote control is a long-life lithium cell. If the range of the remote control is reduced during use, please proceed as follows:

• Open the battery compartment on the side of the remote control.
• Replace the cell by a battery of the same type. Ensure correct polarity (See imprint on the back of the remote control).
• Close the battery compartment.

If the remote control is not used for a prolonged period, remove the batteries in order to prevent battery acid leaking.

Note: Batteries should not be disposed of in domestic waste. Please return used batteries to the appropriate collection points or dealer where you bought them.

Never throw batteries into a fi re.

GB

General Operation

POWER (5): Switches the unit to „ready for operation“ or to „off“. The POWER (27) control lamp shows the function.

X-BASS (10): Boosts the reproduction of the bass.

PHONES (8): Insert the plug of a set of headphones into the head-phone socket – the loudspeakers are „muted“. If your headphone plug does not fit, please use a suitable adapter.

BEAT CUT (14): When recording from AM transmitters there may be interference from frequency overlays. It may be impossible to remove these by turning the BEAT CUT switch.

Loudspeakers: Connect the loudspeakers to the back of the machine.

Infra-red remote control:

For cordless remote control from a distance of up to 5 metres. If this range becomes shorter, the batteries need to be changed. When operating the remote control ensure that there is nothing blocking the view between the remote control unit and the infra-red receiver on the music centre.

Note: Some keys are to be found both on the device itself and on the remote control. Keys with the same designation have the same function.

Listening to the Radio

1. Open the flap (18).
2. Set the function switch (13) to TUNER.
3. Select the desired frequency band using the band selection switch (15).
4. VHF Stereo = FM ST VHF = FM Medium wave = AM (mono)
5. Tune in the desired station with the station adjustment knob TUNING (16).
6. The stereo control light (28) beneath the adjustment knob only lights up when you have selected VHF stereo and receive the station in stereo quality. If reception is too weak and the station received crackles, it may be that this light will not come on. Try to improve reception by turning and bending or twisting and altering the length of the antenna. If no improvement can be achieved we recommend switching to VHF-mono.
7. To receive MW/AM stations proceed in the same manner. In this frequency band programs are transmitted in „mono“ only.

Note: An antenna has been built in to the device for receiving AM stations. The music centre can be directed towards a station by rotating it or changing its position. For the reception of short-wave stations there is a throw-out antenna connected to the music centre (32).

Listening to a cassette

Playing cassettes

1. Turn the function switch (13) to the TAPE position.
2. Press the STOP/EJ. button (24), in order to open the cassette compartment (19).
3. Insert an audiocassette into the compartment with the tape facing forward and the side you wish to listen to facing upwards.
4. Press the PLAY button (21) in order to play the tape.
5. Use the STOP/EJ. key (24) to stop the playing.
6. If necessary, run the tape forwards or backwards as required by means of the arrow buttons.

$$ \text { REW } = \text { backwards }, \text { F.FWD } = \text { forwards } (2 2 / 2 3) $$

Between switching over and also to stop the tape running functions, always press the STOP/EJ. button (24). By doing so, you can avoid damages to the device or to the tape.

1. By pressing the STOP/EJ. key (24) again the lid of the cassette deck opens.
2. For brief interruption of the playing, press the PAUSE button (25). Press again to resume the playing.

Recording a cassette

1. Insert an audiocassette into the compartment with the tape facing forward and the side you wish to listen to facing upwards. Make sure that the cassette is not protected against dubbing (the copy protection tab on the upper edge of the cassette must not be broken).
2. Select the recording source with the function button (13) and if necessary start this source. You record from the source of sound to which you are listening. The recording level is controlled automatically. Alterations to the tone and volume will not alter the recording.
3. Press the REC button (20). The recording will begin. All previous recordings will automatically be erased.
4. Playing can be interrupted briefly with the PAUSE key (25) or stopped with the STOP/EJ. key (24).

Playing CDs

This is how you play a CD

1. Set the selector switch (13) to the „MP3/CD“ position.
2. Press the key (11) to open the CD deck cover (12).
3. The CD compartment opens upwards. Now insert an audio CD with the printed side facing forwards onto the central cone and close the CD compartment by hand.
4. After a few seconds the total number of tracks on the CD appears in the display (26).
5. Press the PLAY/PAUSE button (4) in order to play the CD. The CD will play from the first title. The current track and the symbol ▶ appear on the display.
6. Set the desired volume using the VOLUME control (9).

Note: If a disc is incorrectly inserted, or no disc has been inserted, the numbers „--“, and the word „no“ appear in the display.

Please note:

There are a number of different recording and compression methods, as well as quality differences between CDs and self-recorded CDs.

Furthermore, the music industry does not adhere to fixed standards (copy protection).

For these reasons it is possible that in rare cases there are problems with the playback of CDs and MP3 CDs. This is not a malfunction of the device.

Description of the CD buttons

PLAY/PAUSE ▶II (4/35): You can briefly interrupt the playing. The symbol ▶fl ashes in the display.

SKIP I◀◀ (2/36): Press once = This starts the current track again from the beginning.

Press a second time = This jumps back to the

Press a third time = This plays the song before etc. If the button is kept pressed down, the machine starts to search through the tracks.

SKIP ▶▶▶I (3/37): With this button you can jump to the following track or the next track but one etc. If the button is kept pressed down, the machine starts to search through the tracks.

STOP ■ (1/38): The CD is stopped. REPEAT/RAN. (33): Press once = he current track is repeated

continuously (REPEAT appears in the display).

Press a second time = the whole CD is played continuously (REPEAT appears in the display).

Press a third time = The display (26) contains the word RANDOM and the track number that is to be played first. All tracks are played back in random order.

Press a fourth time = The function is deactivated and the CD is played in the normal mode.

Programmed Play

1. Press the STOP key
2. Press the PROGRAM key (7/34).
3. PROG. and „P01“ (memory location) flash in the display.
4. Use the SKIP/SEARCH buttons to select the desired track and then press the PROGRAM button again.
5. The display changes to memory slot P02.
6. Use the SKIP/SEARCH buttons to select the next track and press the PROGRAM button again. Repeat the procedure until all the desired tracks are selected.

7. Press the PLAY/PAUSE key. Playback begins (PROG. and ▶ appear in the display). Press this button to pause briefly the playback.

8. Press once the STOP key to stop the playback while retaining the program.

9. In order to play back the programme again press the PLAY/PAUSE key.
10. To delete the programme please press the STOP key twice.

The device stops automatically once the entire sequence of programmed tracks is completed. The programmed sequence remains in the memory until the CD is taken out of the CD deck or until the device is switched off. In order to play the programmed sequence again, press the PLAY/PAUSE key.

It is also possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the REPEAT/RAN. button up to three times and then you can use the functions „REPEAT“ and „REPEAT“ as described under „REPEAT“.

Special Functions

MP3 – CDs: This music centre is able to play MP3 CDs. Up to 200 tracks can be compressed and stored on these CDs. Your music centre detects an MP3 CD automatically. The sound quality is therefore retained. If you would like to play one of these CDs, proceed as described under „Playing CDs“. The programming of 10 tracks can be carried out as described in the section „Programmed Playback“.

It is possible to combine the programmed tracks with the REPEAT function. After you have programmed and started the device, please press the REPEAT/RAN. button up to third times (REPEAT, 📋)

REPEAT/RAN. (33) for MP3 CDs

Press once =	he current track is repeated continuously (REPEATappears in the display).
Press a second time =	All directories of the MP3 CD are repeated continuously (REPEAT FOLDER appears in the display).
Press a third time =	the whole CD is played continuously (REPEAT appears in the display).
Press a fourth time =	The display (26) contains the word RANDOM and the track number that is to be played first. All tracks are played back in random order.
Press a fifth time =	The function is deactivated and the CD is played in the normal mode.

Additional buttons for MP3 operation

39 FOLDER SKIP DN button: Press this button twice to change down one directory.
6/40 FOLDER SKIP UP button: Press this button twice to change up one directory.

Technical Data

Model: ...... MC 1016 CD/MP3

Power supply: 230 V, 50 Hz

Output rating:....100 W PMPO

Protection class: II

Radio section:

Frequency ranges: FM 88 – 108 MHz

MW / AM 540 - 1600 kHz

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.
