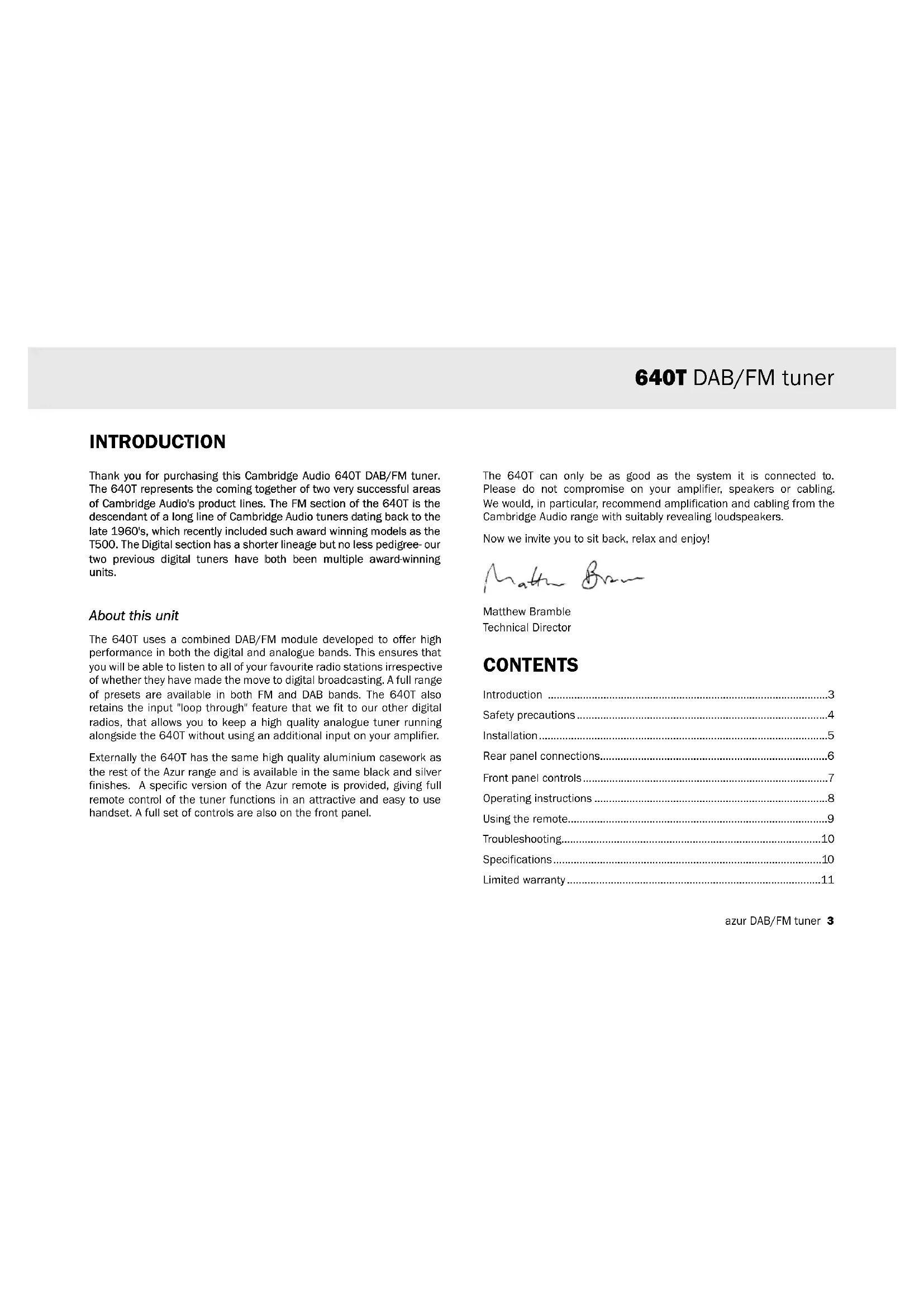

• azur 640T DAB/FM Tuner / DAB/FM Tuner / Syntoniseur DAB/FM / Sintonizador DAB/FM / Sintonizzatore DAB/FM / DAB/FM Tuner / DAB/FM Tuner / Тюнер (с цифровой адресацией и каналом ЧМ) User’s manual / Bedienungsanleitung / Mode d'emploi / Manual del usuario / Manuale per l'utente / Gebruikershandleiding / Brugermanual / Руководство для пользователя2 azur DAB/FM tuner640T DAB/FM tuner azur DAB/FM tuner 3 Thank yyou ffor ppurchasing tthis CCambridge AAudio 6640T DDAB/FM ttuner. The 6640T rrepresents tthe ccoming ttogether oof ttwo vvery ssuccessful aareas of CCambridge AAudio's pproduct llines. TThe FFM ssection oof tthe 6640T iis tthe descendant oof aa llong lline oof CCambridge AAudio ttuners ddating bback tto tthe late 11960's, wwhich rrecently iincluded ssuch aaward wwinning mmodels aas tthe T500. TThe DDigital ssection hhas aa sshorter llineage bbut nno lless ppedigree- oour two pprevious ddigital ttuners hhave bboth bbeen mmultiple aaward-wwinning units. About tthis uunit The 640T uses a combined DAB/FM module developed to offer high performance in both the digital and analogue bands. This ensures that you will be able to listen to all of your favourite radio stations irrespective of whether they have made the move to digital broadcasting. A full range of presets are available in both FM and DAB bands. The 640T also retains the input "loop through" feature that we fit to our other digital radios, that allows you to keep a high quality analogue tuner running alongside the 640T without using an additional input on your amplifier. Externally the 640T has the same high quality aluminium casework as the rest of the Azur range and is available in the same black and silver finishes. A specific version of the Azur remote is provided, giving full remote control of the tuner functions in an attractive and easy to use handset. A full set of controls are also on the front panel. The 640T can only be as good as the system it is connected to. Please do not compromise on your amplifier, speakers or cabling. We would, in particular, recommend amplification and cabling from the Cambridge Audio range with suitably revealing loudspeakers. Now we invite you to sit back, relax and enjoy! Matthew Bramble Technical Director INTRODUCTION Introduction p. 3
• Safety precautions p. 4
• Installation p. 5
• Rear panel connections p. 6
• Front panel controls p. 7
• Operating instructions p. 8
• Using the remote p. 9
• Troubleshooting p. 10
• Specifications p. 10
• Limited warranty CONTENTS4 azur DAB/FM tuner Checking tthe ppower ssupply rrating For your own safety please read the following instructions carefully before attempting to connect this unit to the mains. Check that the rear of your unit indicates the correct supply voltage. If your mains supply voltage is different, consult your dealer. This unit is designed to operate only on the supply voltage and type that is indicated on the rear panel of the unit. Connecting to other power sources may damage the unit. This equipment must be switched off when not in use and must not be used unless correctly earthed. To reduce the risk of electric shock, do not remove the unit's cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel. If the power cord is fitted with a moulded mains plug the unit must not be used if the plastic fuse carrier is not in place. Should you lose the fuse carrier the correct part must be reordered from your Cambridge Audio dealer. The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the service literature relevant to this appliance. This product complies with European Low Voltage (73/23/EEC) and Electromagnetic Compatibility (89/336/EEC) Directives when used and installed according to this instruction manual. For continued compliance only Cambridge Audio accessories should be used with this product and servicing must be referred to qualified service personnel. Plug ffitting iinstructions ((UK only) The cord supplied with this appliance is factory fitted with a 13A mains plug fitted with a 3A fuse inside. If it is necessary to change the fuse, it is important that a 3A one is used. If the plug needs to be changed because it is not suitable for your socket, or becomes damaged, it should be cut off and an appropriate plug fitted following the wiring instructions below. The plug must then be disposed of safely, as insertion into a 13A socket is likely to cause an electrical hazard. Should it be necessary to fit a 3-pin BS mains plug to the power cord the wires should be fitted as shown in this diagram. The colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug. Connect them as follows:- The wire which is coloured BLUE must be connected to the terminal which is marked with the letter 'N' or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter 'L' or coloured RED The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter 'E' or coloured GREEN. If your model does not have an earth wire, then disregard this instruction. If a 13 Amp (BS 1363) plug is used, a 3 Amp fuse must be fitted, or if any other type of plug is used a 3 Amp or 5 Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board. SAFETY PRECAUTIONS640T DAB/FM tuner azur DAB/FM tuner 5 Please take a moment to read these notes before installing your Azur tuner, they will enable you to get the best performance and prolong the life of the product. We advise you follow all instructions, heed all warnings and keep the instructions for future reference. This unit must be installed on a sturdy, level surface. Since the power transformers generate a magnetic hum-field of moderate strength, a turntable should not be located nearby. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. The unit must be installed in manner that makes diconnection of mains plug from the mains socket outlet (or appliance connector from the rear of the unit) possible. Do not plug your 640T directly into a power amplifier unless it has a variable output level. Do not route the power cable so that it can be walked upon or damaged by other items near it. The unit requires ventilation. Do not situate it on a rug or other soft surface and do not obstruct any air inlets or outlet grilles. Do not place in a sealed area such as a bookcase or in a cabinet. Any space open at the back (such as a dedicated equipment rack) is fine however. Do not install near any heat sources auch as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. When using for the first time it is advisable that it is left on, playing music, for at least 36 hours prior to critical listening. For subsequent use, a warm up period of 10-15 minutes is recommended for maximum enjoyment. If you do not intend to use this unit for a long period, switch it to Standby and unplug it from the mains socket. Also unplug the unit during lightning storms. WARNING - To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. This unit must not be exposed to dripping or splashing water or other liquids. No objects filled with liquid, such as vases, shall be placed on the unit. In the event of spillage, switch off immediately, disconnect from the mains supply and contact your dealer for advice. To clean the unit, wipe its case with a moist, lint-free cloth. Do not use any cleaning fluids containing alcohol, ammonia or abrasives. Do not spray an aerosol at or near your 640T. Ensure that small objects do not fall through any ventilation grille. If this happens, switch off immediately, disconnect from the mains supply and contact your dealer for advice. Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as a damaged power-supply cord or plug, liquid has been spilled or objects have fallen into the unit, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped. If you have checked the Troubleshooting guide in the manual with no improvement, do not attempt to repair, dissassemble or reconstruct the unit. A serious electric shock could result if this precautionary measure is ignored. IMPORTANT SAFETY INSTRUCTIONS6 azur DAB/FM tuner AC ppower ssocket Once all connections have been made, plug the AC Power Cable into an appropriate mains socket. Your 640T is now ready for use. Natural CContour TTechnology This switch is used to select two types of subtle tone settings, either Warm or Lively. The default position is off (flat frequency response). Audio IInput Allows another unit (such as an analogue radio) to be connected through the 640T to your amplifier, saving an input on your amplifier. To listen to the unit connected, put the 640T into standby. Aerial Input 50 Ohms F-Type Aerial Input 50 Ohms F-Type "Lively" Off "Warm" "Warm" Off "Lively" See Manual for details Aux Tuner Input Aux Tuner Input Optical Optical S/P DIF Co-axial S/P DIF Co-axial p. 11

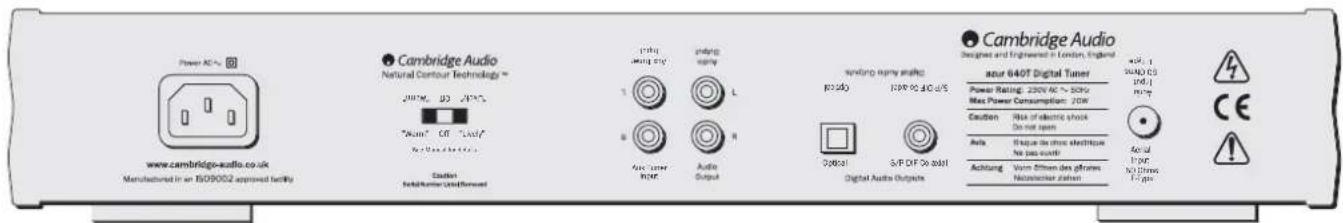

REAR PANEL CONNECTIONS

Audio OOutput Connect to your amplifier here using phono cables (2RCA-2RCA). Digital AAudio OOutputs Both S/P DIF Co-axial and Toslink Optical connectors are fitted for connection to a digital recorder e.g. Minidisc, CDR etc or an offboard digital to analogue convertor (DAB only). Aerial The 640T has an F-type screw connection aerial for both FM and DAB signals (supplied). Extend the lead and attach it to a window frame or wall, or move around the room, where reception is best In an area where signals are weak, it may be necessary to use a 75 ohm unbalanced-type outdoor antenna.640T DAB/FM tuner azur DAB/FM tuner 7

FRONT PANEL CONTROLS

Standby/On Switches the 640T between Standby and On. When in Standby the front panel display shows the current time in hours, minutes and seconds

Presets The 640T can store up to 10 presets for both FM and DAB. The Shift button alternates the five buttons between accessing presets 1-5 and 6-10. The display will show which choice has been made. DAB/FM This button switches between the DAB and FM bands. The display will show "Switching to …" Autotune In DAB mode Autotune will scan the entire DAB band. The stations it has found will be displayed in alphabetical order, shown as ‘A-Z’. In FM mode a brief press will scan up through all available stations. Press and hold Autotune to scan down. Info Displays information such as time, date, music genre and programme type. RDS information on the FM band is dependant on signal strength. Select In DAB mode press to listen to selected station. If you do not press Select the 640T will revert to showing the information of the station playing before you started scanning through the station list. In FM mode press to switch between auto (normally stereo) and mono transmission. Step <<> In DAB mode, press to scroll through available stations alphabetically. In FM mode the Step button moves the frequency in .05mhz steps up or down. Also used for Clock/Alarm/Sleep settings8 azur DAB/FM tuner OPERATING INSTRUCTIONS Tuning aand llistening tto tthe 6640T Press the Standby/On button on the front panel. For DAB stations, select DAB mode using the DAB/FM button. Press the Autotune button. The 640T will search for all available DAB stations and display them in alphabetical order on the display. Press the Step buttons to scroll through the list. Press the Select button to listen to your chosen station. For FM stations, select FM mode using the DAB/FM button. Press the Autotune button. The 640T will scan up through the FM band and play the first station found (RDS may accompany a strong signal). Press the Autotune button again to scan up to the next available station (to scan down the FM band press and hold the Autotune button). DAB Manual ffine ttune Hold the select button down until "Manual Tune" appears on the display. Frequency and name of the particular station will be displayed. Use the Step buttons to adjust the frequency Press Select again until DAB is displayed. Setting PPresets Select the station you wish to store and hold down the desired preset number (e.g. 3) until the display shows that the station has been stored. To store the presets 6-10 press the Shift button first. You can store 10 stations for both FM and DAB. Press chosen Preset button at any time to listen to the corresponding station DAB SSystem RReset If the 640T is moved to another location where there are different stations then the old stations should be removed from the memory. To do a system reset unplug the 640T then hold down the Select button whilst plugging back in. Continue holding Select until "System Reset" appears on the display. Alarm ffunction The Alarm function will turn on the 640T at a chosen time. Press Alarm on your remote handset. ‘Alarm’ and ‘Off’ will appear. Press Select. ‘00:00’ will appear. Press the < > keys to alter the time (‘Alarm Setting’ will be displayed). Press Select again to set (press twice to turn off alarm function). An asterisk will appear on the display when the 640T is in standby. Sleep FFunction The Sleep function will turn the 640T off after a set period. Press the Alarm button twice when the unit is on. Select number of minutes required (01 - 99). Press Select again to activate. It is necessary to reset the Sleep function before each use. Natural CContour TTechnology Experiment with the three available settings (switch on rear panel) to achieve the optimum tone from your 640T.640T DAB/FM tuner azur DAB/FM tuner 9

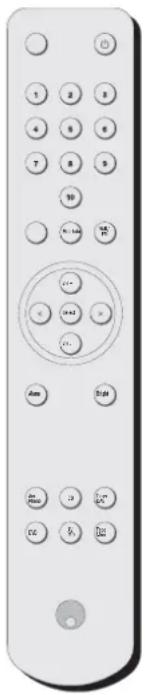

USING THE REMOTE HANDSET

The 640T is supplied with a system remote control that operates both this Tuner and the Cambridge Azur amplifiers. Power Switches the 640T between Standby mode and On mode. The Blue LED on the front panel of the 640T indicates that it is On when bright and in Standby when dim.

These allow access to any stored presets you might have saved on the 640T. Info Displays information such as music genre and station provider. The information on the FM band is dependant on the strength of the signal. DAB/FM This button switches between the DAB and FM bands that the 640T is capable of receiving. The display will show "Switching to …". Select Confirms DAB station, alarm and sleep Choices. Step << >> For use with Manual Tuning, Alarm, Sleep, and Clock settings. Will also cycle through the alphabetical list of stations in the DAB band. Alarm This button is used to access the Alarm and Sleep menus as discussed in the Operation section. Bright Switches the display brightness between low and high. Please nnote tthat tthe ffollowing bbuttons wwill oonly ooperate aa mmatching Cambridge AAzur AAmplifier. Mute This button mutes the audio. The mute mode is indicated by the channel LED flashing. Volume ++/- The volume buttons increase and decrease the Volume of the amplifier output. Channel SSelect The five channel select buttons and the Tape monitor select button are used to change the input source (CD, DVD etc).

Tape Mon Bright10 azur DAB/FM tuner There iis nno ppower Ensure the AC power cord is connected securely. Ensure the plug is fully inserted into the wall socket and is switched on. Check fuse in the mains plug or adaptor. There iis nno ssound Ensure that the amplifier is set correctly. Check that the interconnects are inserted correctly. The ssound iis ddistorted oor ggarbled Check aerial connections and placements There iis aa hhum ccoming ffrom tthe sspeaker Ensure that all cable connections are secure. There iis uunwanted bbackground nnoise aand iinterference Move the tuner away from other electrical equipment that is likely to cause interference The rremote hhandset wwill nnot ffunction Check that the batteries have not expired. Ensure that nothing is blocking the remote sensor. TROUBLESHOOTING SPECIFICATIONS Sample RRate 48kHz Frequency RRange VHF (87MHz to 108MHz) Band 2 DAB (174MHz to 240MHz) Band 3 DAB (1452MHz to 1491MHz) L-Band Aerial iinput iimpedance 50 ohms Sensitivity -97dBm typical Signal tto nnoise 105dB typical (DAB) 58dB typical (FM) Frequency rresponse 20-20KHz+0.1,-0.3 (NCT at Flat, DAB) 20-15KHz+0.1,-0.5 (NCT at Flat, FM) Distortion <0.005%, 1KHz 2vrms o/p, DAB <0.15%, 1KHz 50KHz deviation, FM Stereo SSeparation >60dB, 20Hz-20KHz, DAB >40dB, 1KHz, FM Input VVoltage 220-240V AC~50Hz 110V-120V AC~60Hz (depending on model) Maximum PPower CConsumption 12W Standby PPower CConsumption
