KPT-1802-HLS

OWNER'S MANUAL

KPT-1802-HLS

The Klipsch KPT-1802-HLS cinema subwoofer utilizes a patented horn-loaded vented cabinet design utilizing an 18" drivers, resulting in class-leading acoustic output combined with commanding sub-20Hz bass response previously unattainable from even a 21" driver configuration system. This high performance level is perfect for large cinemas and those desiring to provide a maximum acoustic experience. The use of horn-loaded 18" drivers also provides both a lower level of distortion with less driver excursion and a faster driver response for tighter, highly realistic bass due to lower driver mass.

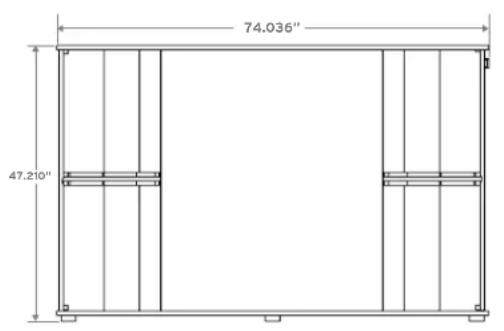

DIMENSIONS

FRONT VIEW TOP VIEWSIDE VIEW

74.036" 47.210"

30.880" 20.309" 44.150"

74.000" 13.956" 21.015" 52.985"

CONNECTIONS

The KPT-1802-HLS uses a 2 point barrier strip connection block. Make sure polarity is matched between amplifier and subwoofer(s).

Connecting an 8Ω capable amplifier to a single KPT-1802-HLS

Simple diagram showing a device connected to a terminal block with polarity indicators (no text or symbols)

Connecting a 6Ω capable amplifier to two KPT-1802-HLSs

Pure electrical circuit lines without any symbols

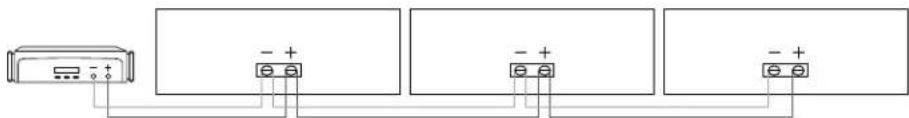

Connecting a 4Ω capable amplifier to three KPT-1802-HLSs

Pure electrical circuit lines without any symbols

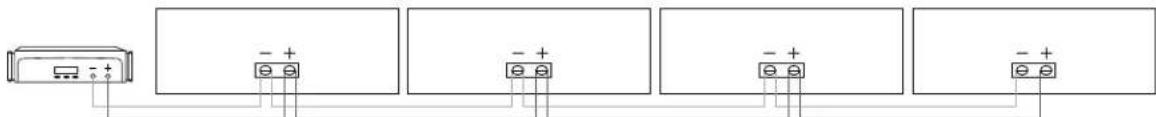

Connecting a 2Ω capable amplifier to four KPT-1802-HLSs

Pure electrical circuit lines without any symbols

PLACEMENT

The KPT-1802-HLS is designed for behind-the-screen placement on the floor and against the back wall for quarter-space loading producing 6dB additional output vs. half space (no boundary other than the floor). For larger theaters dual subs positioned next to each other, wired in parallel, gain an additional 6 dB in output, due to efficiency gains from mutual coupling (3 dB) and the added power handling of the second subwoofer. (3 dB)

Additional mutual coupling occurs for up to 4 subwoofers placed next to each other. An asymmetrical configuration of multiple subwoofers minimizes standing wave stimulation for more even bass throughout the theater.

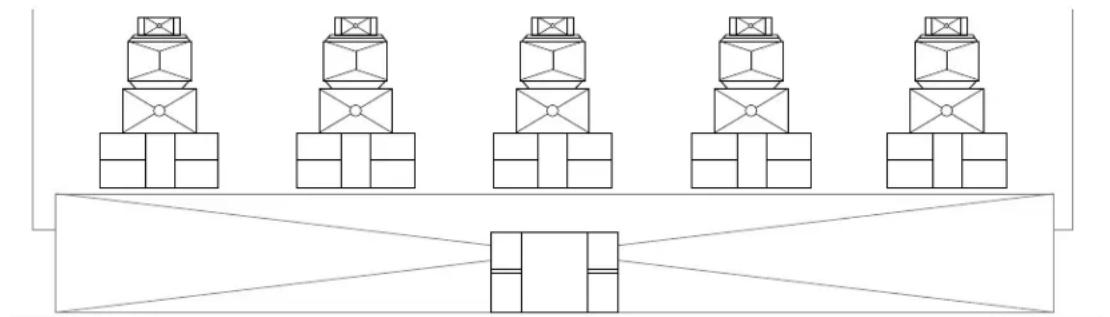

SINGLE SUBWOOFER QUARTER SPACE FLOOR/WALL PLACEMENT


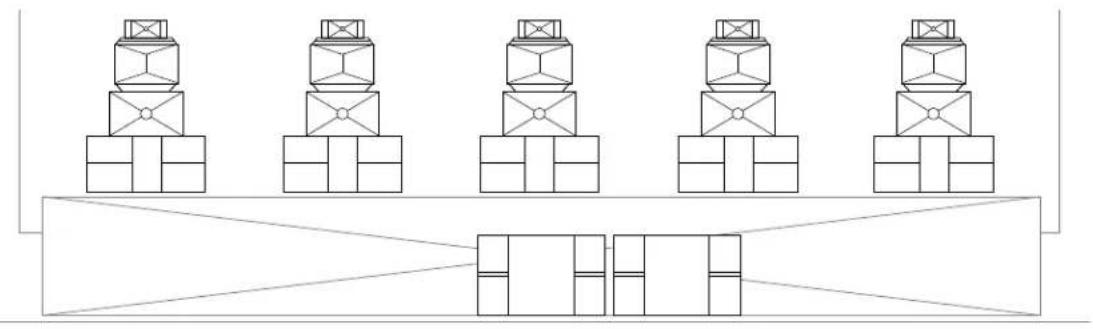

DUAL SUBWOOFERS QUARTER SPACE FLOOR/WALL PLACEMENT


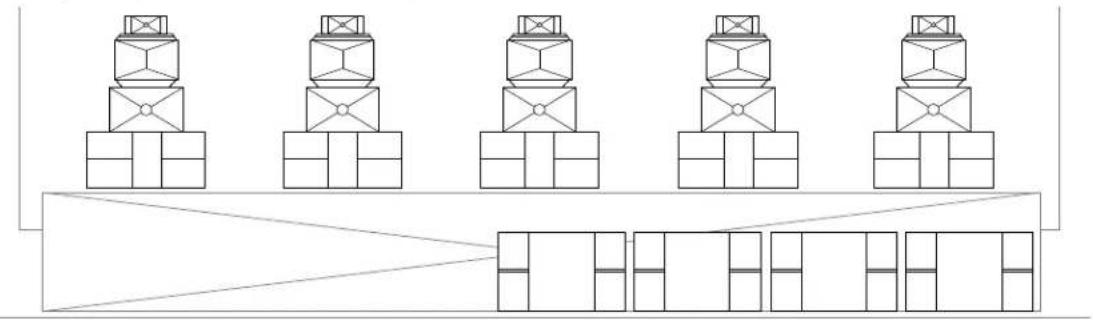

FOUR SUBWOOFERS QUARTER SPACE FLOOR/WALL PLACEMENT

SPECIFICATIONS

Frequency Response ^1	26Hz-240Hz +/- 3dB
Frequency Response (f10)	21Hz-500Hz -10dB
Power Handling ^2	1100W (67W) 26 - 250 Hz
Calculated Max. Continuous Output ^3	130db 26Hz-250Hz
Sensitivity ^4	102 db @ 2.83V
Nominal Impedance 6 ohm (4.5 ohm min.@100Hz)
Transducers One K-473 18" woofer w/4" voice coil
Enclosure ^5	Horn-loaded vented system
Enclosure Material 3/4" Plywood
Terminals Barrier Strip
Dimensions 74" (188cm)W x 48" (121.9cm)H x 31" (78.7cm) D
Net Weight 300 lbs
Recommended EQ PEQ f=70 Hz, Q=6, Gain=-6 dB
Shipping Weight 330 lbs
Part Number	1016560

1 - 3M, half-space anechoic
2 - AES standard, continuous pink noise, 6dB peaks
3 - Calculated at 1M, half-spaced at power handling power input
4 - SPL at 1M, half-spaced anechoic with 2.83 volts input
5 - US Patent 5,898,138

klipsch.com/pro

© 2013 Klipsch Group, Inc.
