Latitude D830 - Laptop DELL - Free user manual and instructions
Find the device manual for free Latitude D830 DELL in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Professional laptop |
| Brand | Dell |
| Model | Latitude D830 |
| Dimensions (W x D x H) | 36.1 cm x 26.2 cm x 3.5 cm |
| Weight | 2.5 kg |
| Power supply type | 6-cell Li-Ion battery, 65 W AC adapter |
| Battery life | Up to 4 hours |
| Processor | Intel Core 2 Duo (up to 2.6 GHz) |
| Memory (RAM) | Up to 4 GB DDR2 |
| Hard drive | Up to 320 GB SATA |
| Display | 15.4-inch WXGA (1280 x 800) or WXGA+ (1440 x 900) |
| Optical drive | DVD-RW drive or combo |
| Connectivity | Wi-Fi 802.11 a/b/g, Bluetooth, Gigabit Ethernet |
| Ports | 4x USB 2.0, VGA, DVI-D, RJ-45, RJ-11, microphone/headphone jack, PC Card, ExpressCard |
| Operating system | Windows XP Professional or Windows Vista Business |
| Maintenance and cleaning | Clean with a slightly damp soft cloth; do not use solvents. Dust the ventilation grilles regularly. |
| Security | Kensington lock slot, BIOS password, fingerprint reader (optional) |
| Spare parts and repairability | Battery, AC adapter, hard drive, memory, keyboard, display (parts available from Dell or authorized resellers) |
| Included accessories | Battery, AC adapter, power cable, quick start guide, user manual |
Frequently Asked Questions - Latitude D830 DELL
How to turn on and shut down the Dell Latitude D830?
To turn on, press the power button located at the top left of the keyboard. To shut down, use the Windows Start menu or hold the power button for 5 seconds in case of emergency.
How to connect the Latitude D830 to a Wi-Fi network?
Click the network icon in the taskbar, select your Wi-Fi network, enter the security key if required, then click 'Connect'. You can also use the physical Wi-Fi button on the side of the computer.
How to extend battery life?
Avoid full discharges, store the battery at 50% charge in a cool place, and use the power-saving mode in Windows power options.
What to do if the screen stays black on startup?
Check that the AC adapter is plugged in and the power indicator is on. Try restarting while holding the F2 key to enter the BIOS. If nothing appears, the issue may be with the display or the motherboard.
How to replace the hard drive of the Latitude D830?
Turn off the computer and remove the battery. Unscrew the hard drive cover located on the bottom of the device. Remove the old drive by pulling the tab, insert the new one, screw the cover back on, and reinstall the battery.
How to clean the keyboard without damaging it?
Use a can of compressed air to remove dust between the keys. For stains, lightly dampen a microfiber cloth with distilled water and gently wipe the keys. Never pour liquid directly.
How to reset a forgotten BIOS password?
Resetting the BIOS password may require discharging the CMOS battery (open the case, remove the CR2032 coin battery for 30 seconds) or a reset jumper on the motherboard. Refer to the full manual.
What type of RAM is compatible?
The Latitude D830 uses DDR2 SO-DIMM memory at 667 MHz. It has two slots that can hold up to 2 GB each, for a maximum total of 4 GB.
How to use the fingerprint reader?
Install the Dell ControlPoint or DigitalPersona software. Then, register your fingerprints via the application. You will be able to log into Windows or unlock the computer by swiping your finger over the sensor located to the right of the keyboard.
Where to find drivers for Windows 10?
The Latitude D830 is not officially supported on Windows 10, but you can download compatible drivers from the Dell support website by searching by model. For many components, Windows 7 or Vista drivers work.
User questions about Latitude D830 DELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Laptop in PDF format for free! Find your manual Latitude D830 - DELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Latitude D830 by DELL.

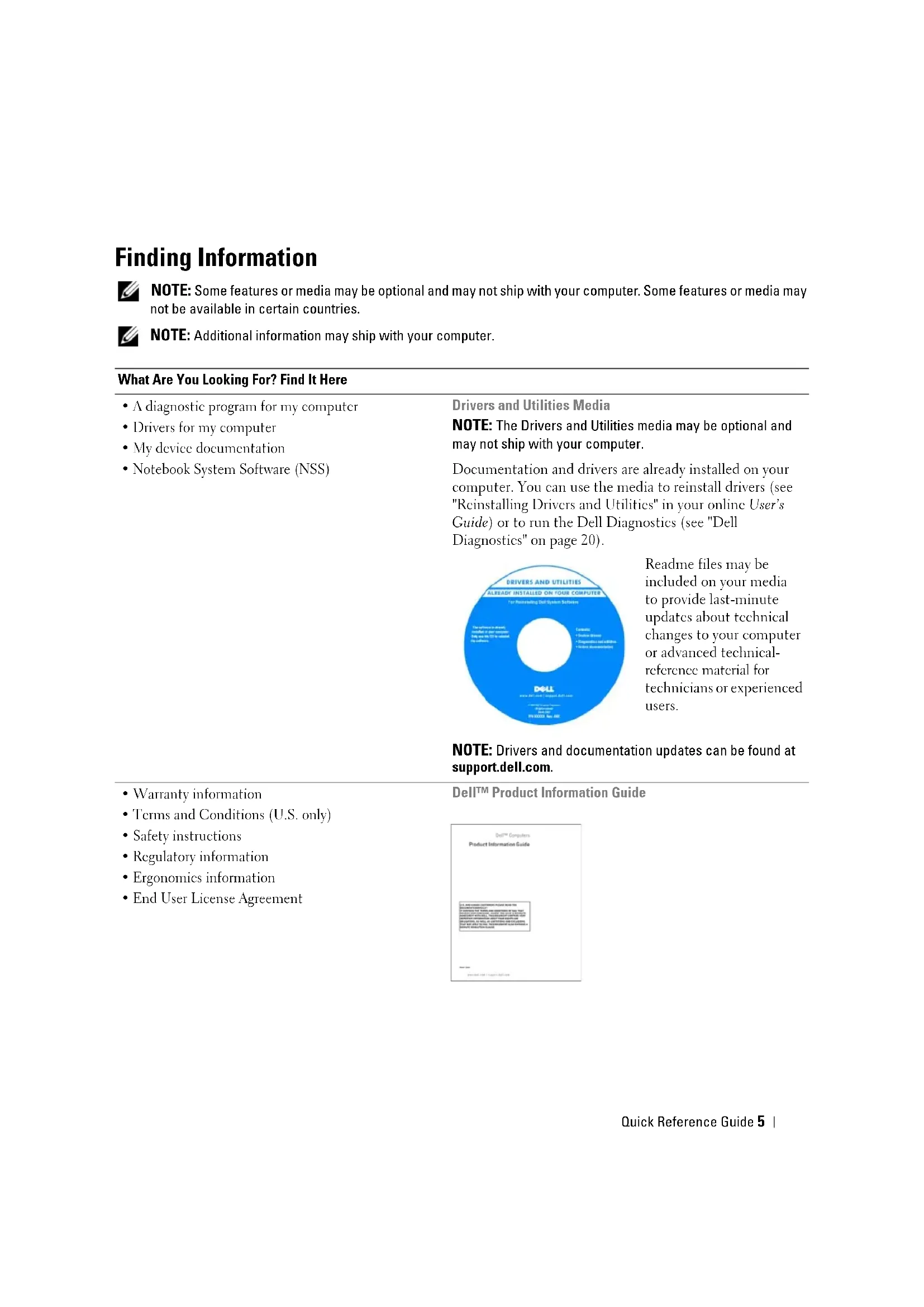

USER MANUAL Latitude D830 DELL
