USER MANUAL AVR884 DENON

TO PREVENT FIRE OR SHOCK HAZARD,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

FOR CANADA MODEL ONLY

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

POUR LES MODELE CANADIEN UNIQUEMENT

ATTENTION

POUR EVITER LES CHOCS ELECTRIQUES, INTERODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRESE ET POUSSER JUSQU'AU FOND.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus meets all requirements of the Canadian Interference-Caising Equipment Regulations.

1. Read Instructions - All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
6. Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a

mounting accessory recommended by the manufacturer.

1. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

1. Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

1. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

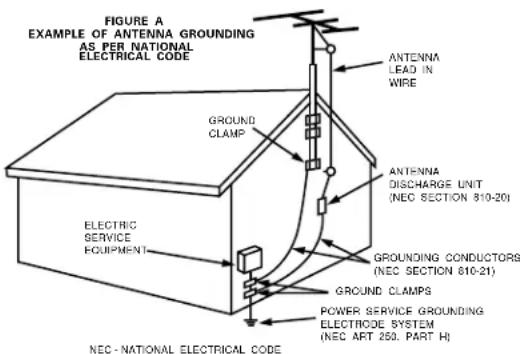

2. Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

3. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

4. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

5. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

6. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

7. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

8. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates a need for service.

1. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
2. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
3. Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
4. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

INTRODUCTION

Thank you for choosing the DENON AVR-1804/884 Digital Surround AV receiver. This remarkable component has been engineered to provide superb surround sound listening with AV theater sources such as DVD, as well as providing outstanding high fidelity reproduction of your favorite music sources.

As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the contents of this manual before proceeding.

TABLE OF CONTENTS

1 Before Using 5
2 Cautions on Installation. 5
3 Cautions on Handling. 5
4 Features 6
5 Part Names and Functions. 7,8
6 Read this first. 9
[7] Setting up the Speaker Systems 9
8 Connections. 10-18
9 Using the Remote Control Unit 19
10 Setting up the System 20-29
Remote Control Unit. 30-34

12 Operation 35~40
13 Multi Zone 41, 42
14 Surround 43-49
15 DSP Surround Simulation 50-53
16 Listening to the Radio. 54-57
17 Last Function Memory. 57
18 Initialization of the Microprocessor 57
19 Additional Information. 58-63
20 Troubleshooting. 64
21 Specifications 65
List of Preset Codes 128-132

■ ACCESSORIES

Check that the following parts are included in addition to the main unit:

① Operating instructions 1
② Warranty. 1
③ Service station list. 1
Remote control unit (RC-939)

1 BEFORE USING

Pay attention to the following before using this unit:

• Moving the set

To prevent short circuits or damaged wires in the connection cords, always unplug the power cord and disconnect the connection cords between all other audio components when moving the set.

• Before turning the power switch on

Check once again that all connections are proper and that there are not problems with the connection cords. Always set the power switch to the standby position before connecting and disconnecting connection cords.

• Store this instructions in a safe place.

After reading, store this instructions along with the warranty in a safe place.

• Note that the illustrations in this instructions may differ from the actual set for explanation purposes.

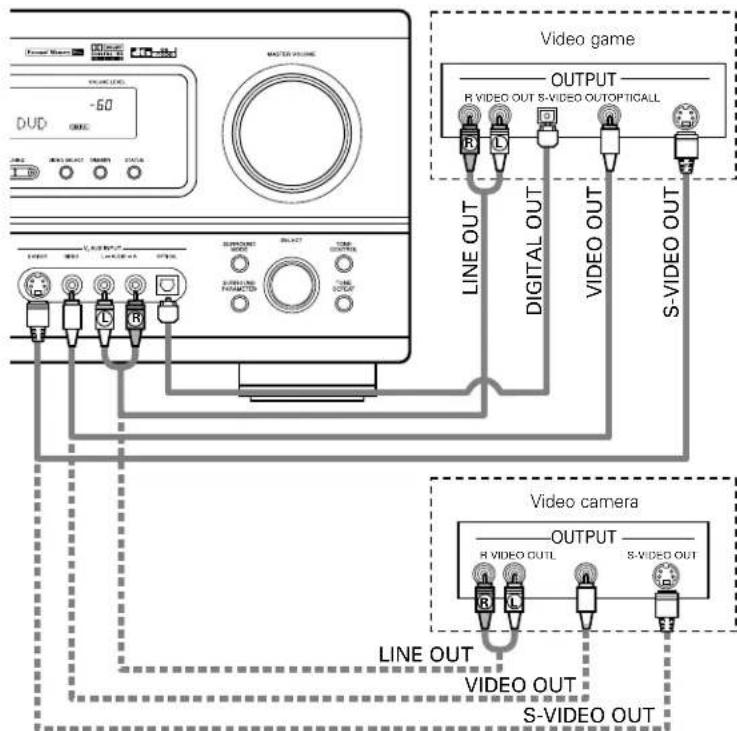

  V.AUXjacks

The AVR-1804/884's front panel is equipped with a V. AUX jacks. Remove the cap covering the jacks when you want to use it.

2 CAUTIONS ON INSTALLATION

Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV.

If this happens, take the following steps:

• Install this unit as far as possible from the tuner or TV.
• Set the antenna wires from the tuner or TV away from this unit's power cord and input/output connection cords.
• Noise or disturbance tends to occur particularly when using indoor antennas or 300 Ω/ohms feeder wires. We recommend using outdoor antennas and 75 Ω/ohms coaxial cables.

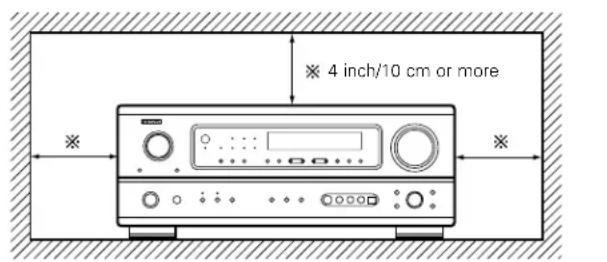

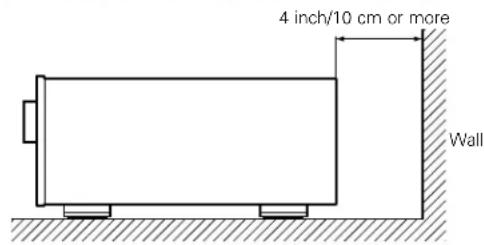

For heat dispersal, leave at least 10cm of space between the top, back and sides of this unit and the wall or other components.

3 CAUTIONS ON HANDLING

• Switching the input function when input jacks are not connected

A clicking noise may be produced if the input function is switched when nothing is connected to the input jacks. If this happens, either turn down the MASTER VOLUME control or connect components to the input jacks.

• Muting of PRE OUT jacks, HEADPHONE jack and SPEAKER terminals

The PRE OUT jacks, HEADPHONE jack and SPEAKER terminals include a muting circuit. Because of this, the output signals are greatly reduced for several seconds after the power switch is turned on or input function, surround mode or any other-set-up is changed. If the volume is turned up during this time, the output will be very high after the muting circuit stops functioning. Always wait until the muting circuit turns off before adjusting the volume.

• Whenever the power switch is in the STANDBY state, the apparatus is still connected on AC line voltage.

Please be sure to unplug the cord when you leave home for, say, a vacation.

4 FEATURES

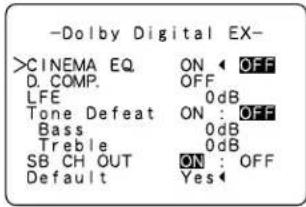

1. Dolby Digital EX decoder system

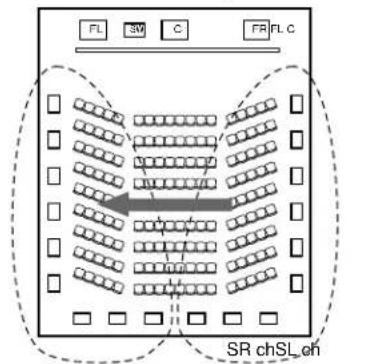

Dolby Digital EX is a 6.1-channel surround format proposed by Dolby Laboratories that allows users to enjoy in their homes the "DOLBY DIGITAL SURROUND EX" audio format jointly developed by Dolby Laboratories and Lucas Films and first used for the movie "Star Wars Episode 1 - Phantom Menace".

The 6.1 channels of sound, including surround back channels, provide improved sound positioning and expression of space.

2. DTS-ES Extended Surround and DTS Neo:6

The AVR-1804/884 is compatible with DTS-ES Extended Surround, a new multi-channel format developed by Digital Theater Systems Inc. The AVR-1804/884 is also compatible with DTS Neo:6, a surround mode allowing 6.1-channel playback of regular stereo sources.

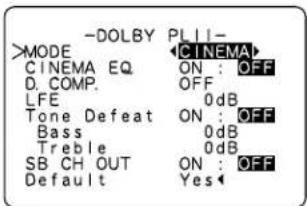

3. Dolby Pro Logic II decoder

Dolby Pro Logic II is a new format for playing multichannel audio signals that offers improvements over conventional Dolby Pro Logic. It can be used to decode not only sources recorded in Dolby Surround but also regular stereo sources into five channels (front left/right, center and surround left/right). In addition, various parameters can be set according to the type of source and the contents, so you can adjust the sound field with greater precision.

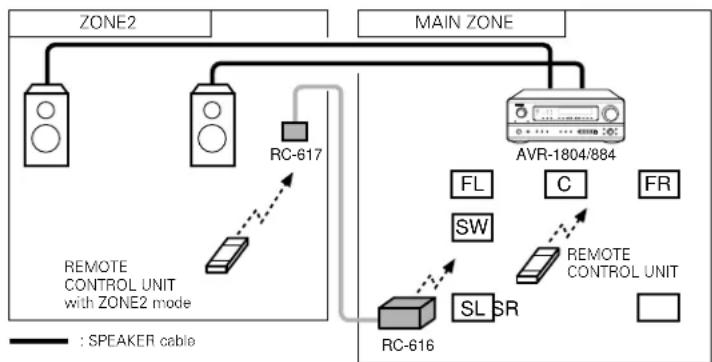

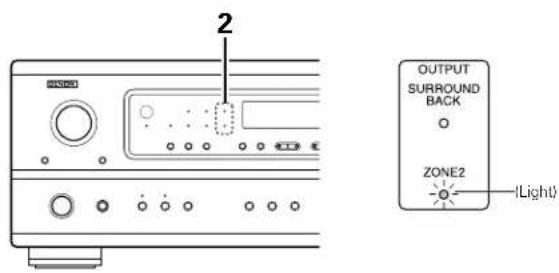

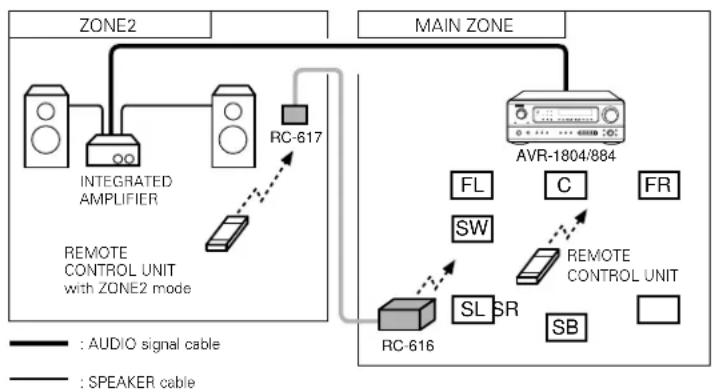

4. Multi Zone Music Entertainment System

Multi Source Function:

This unit's Multi Source function lets you select different audio sources for listening. Different sources can thus be enjoyed in the main room (MAIN) and the subroom (ZONE 2) simultaneously.

5. On Screen Diplay

Troublesome operations such as adjusting the delay time and other parameters according to the listening environment are greatly simplified. The various parameters can be set simply by selecting the graphic displayed on the monitor screen according to the listening room's system environment.

6. Video Conversion Function

The AVR-1804/884 is equipped with a function for converting the signals input to the video input connector and S-Video input connector. With this function, the AVR-1804/884's monitor output connector and the monitor (TV) can be connected with video pinplug cords or an S-Video connection cord.

7. Dolby Digital

Using advanced digital processing algorithms, Dolby Digital provides up to 5.1 channels of wide-range, high fidelity surround sound. Dolby Digital is the default digital audio delivery system for North American DVD and DTV.

8. DTS (Digital Theater Systems)

DTS provides up to 5.1 channels of wide-range, high fidelity surround sound, from sources such as laser disc, DVD and specially-encoded music discs.

9. Component Video Switching

In addition to composite video and "S" video switching, the AVR1804/884 provides 2 sets of component video (Y, Rb / Ca Pr / Cr) inputs assignable, and one set of component video outputs to the television, for superior picture quality.

10.Auto Surround Mode

This function stores the surround mode last used for an input signal in the memory and automatically sets that surround mode the next time that signal is input.

PART NAMES AND FUNCTIONS

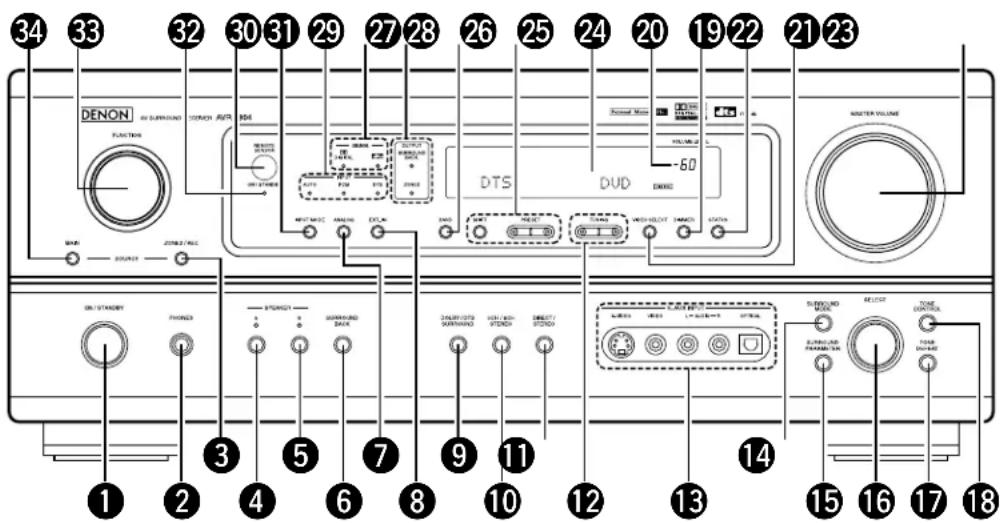

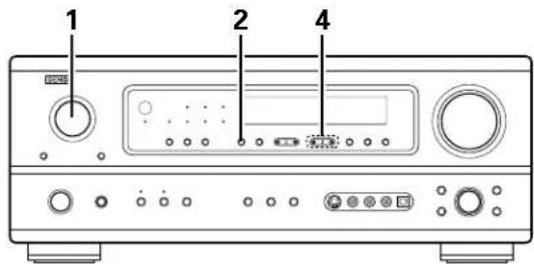

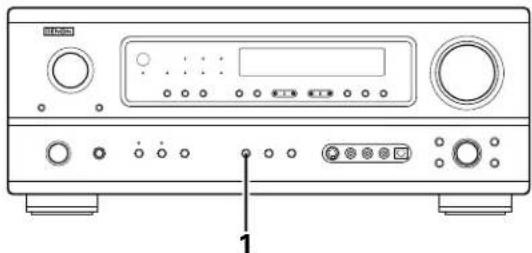

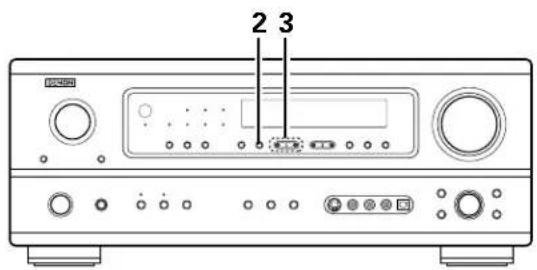

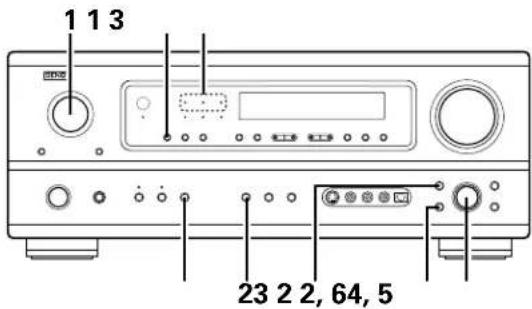

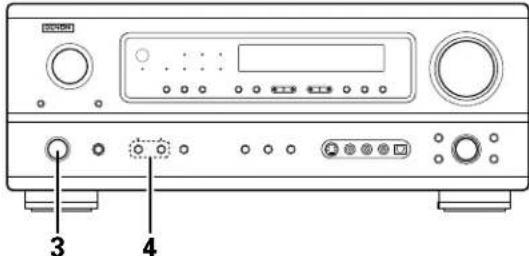

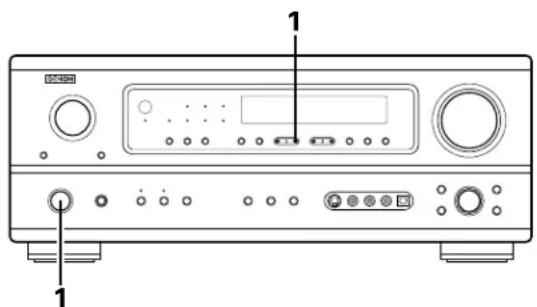

Front Panel

For details on the functions of these parts, refer to the pages given in parentheses ( ).

1 Power ON/STANDBY switch (21, 35, 54)
2 Headphones jack (PHONES) (39)
3 ZONE2/REC button. (40 ~ 42)
4 SPEAKER A button. (35, 57)
SPEAKER B button. (35, 57)
6 SURROUND BACK button (41, 48)
7 ANALOG button. (36, 38)
EXT. IN button (36, 38)
DOLBY/DTS SURROUND button. (43, 45, 48)
10 5CH/6CH STEREO button (50)
11 DIRECT/STEREO button (38, 50)
12 TUNING UP/DOWN buttons (55)
13 V. AUX input jacks (5, 15)
14 SURROUND MODE button (37, 48, 52)
15 SURROUND PARAMETER button. (45, 51)
16 SELECT knob (37, 45, 52)
TONE DEFEAT button. (39)

18 TONE CONTROL button (39)
19 MASTER VOLUME control (37)
VIDEO SELECT button. (39)
STATUS button (40)
DIMMER button. (40)
23 MASTER VOLUME indicator. (37)
24 Display
PRESET STATION select buttons. (54, 56)
26 BAND button. (55)
OUTPUT indicator. (41)
28 SIGNAL indicator. (37)
29 INPUT MODE indicator (37)
30 INPUT MODE button (36, 38, 48)
Remote control sensor (REMOTE SENSOR) (19)
32 Power operation indicator (35)
33 FUNCTION knob (36, 40)
34 MAIN button. (36)

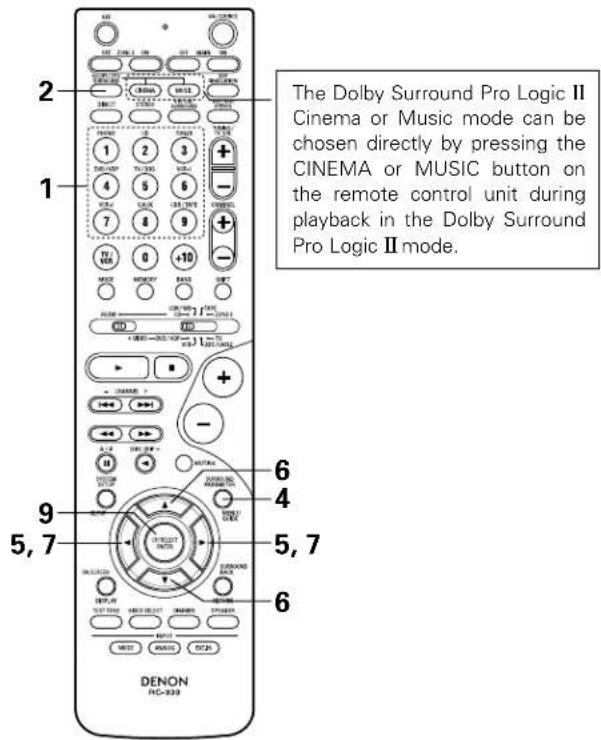

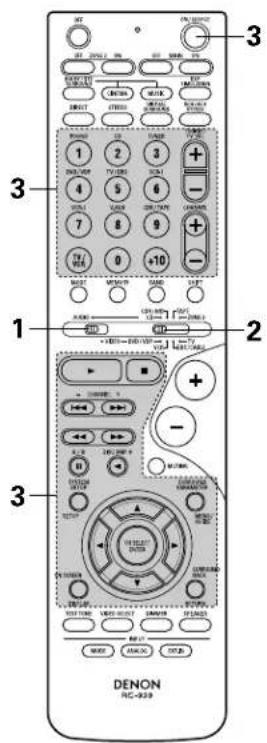

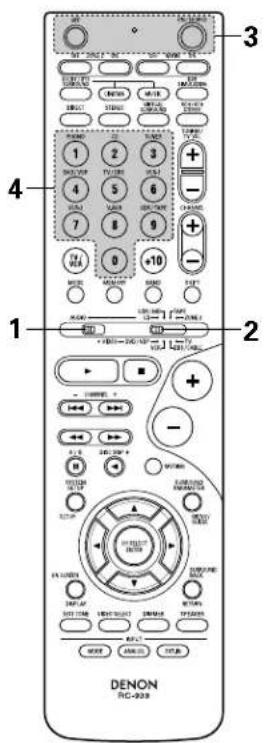

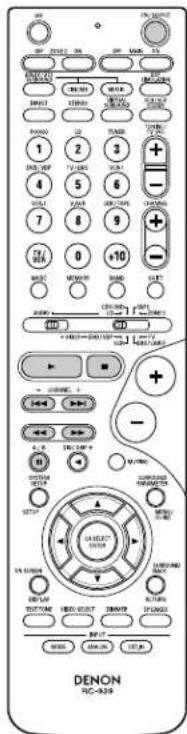

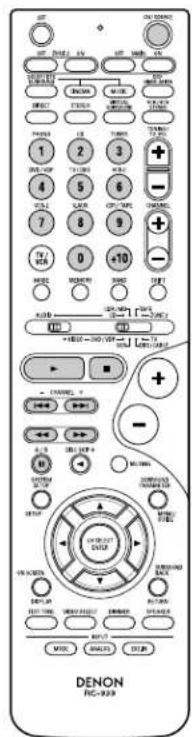

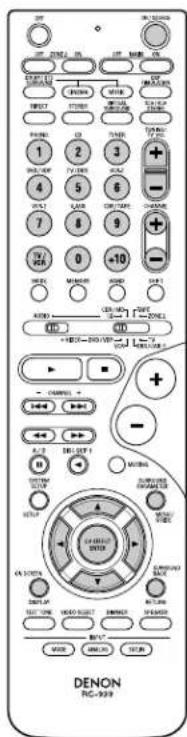

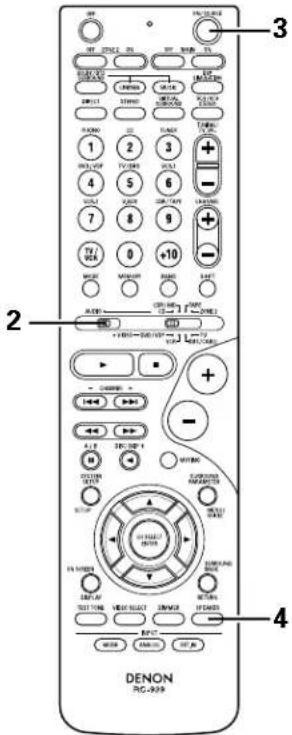

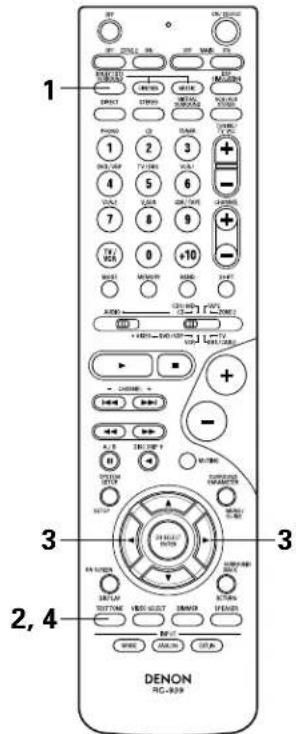

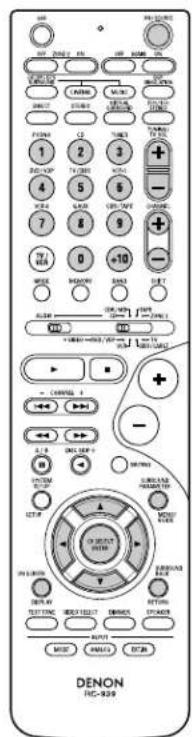

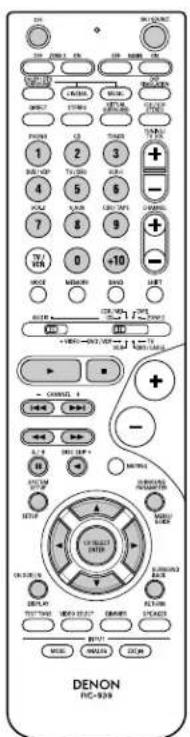

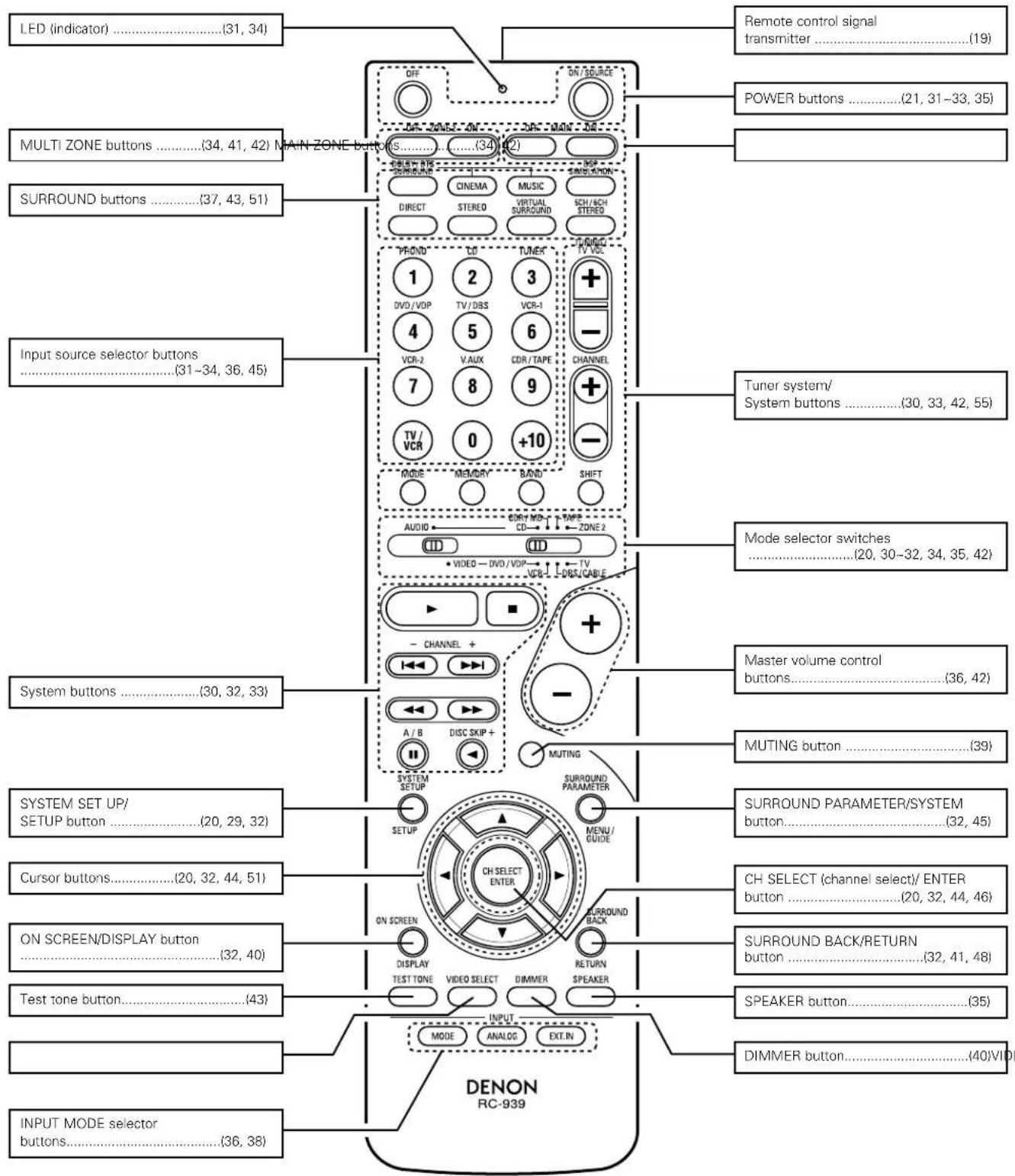

Remote control unit

• For details on the functions of these parts, refer to the pages given in parentheses ( ).

6 READ THIS FIRST

This AV Surround Receiver must be setup before use. Following these steps,

Step 1 (page 9 to 18)

Choose the best location to setup the Speakers and connecting the components.

Step 2 (page 19)

Next, insert the batteries into the remote control unit.

Step 3 (page 20 to 29)

Finally, setting up the system.

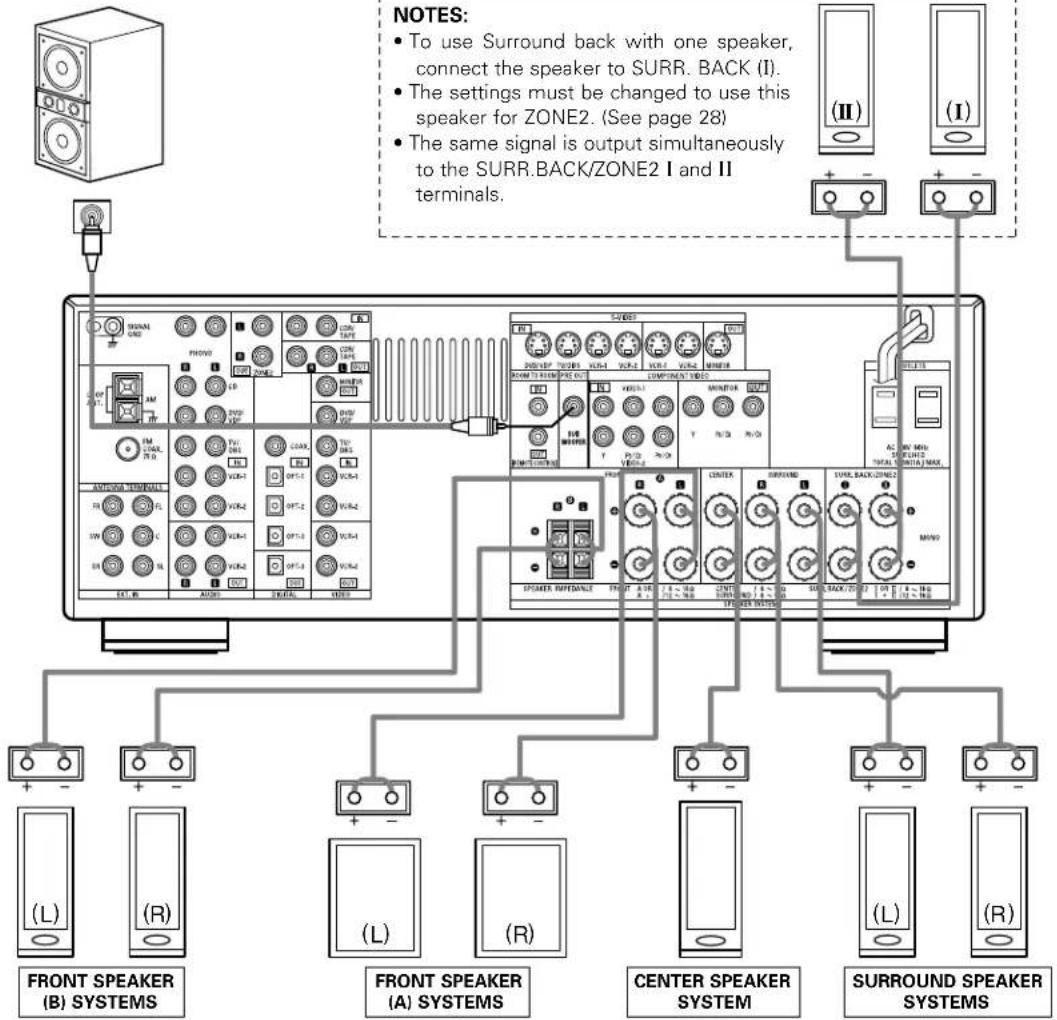

7 SETTING UP THE SPEAKER SYSTEMS

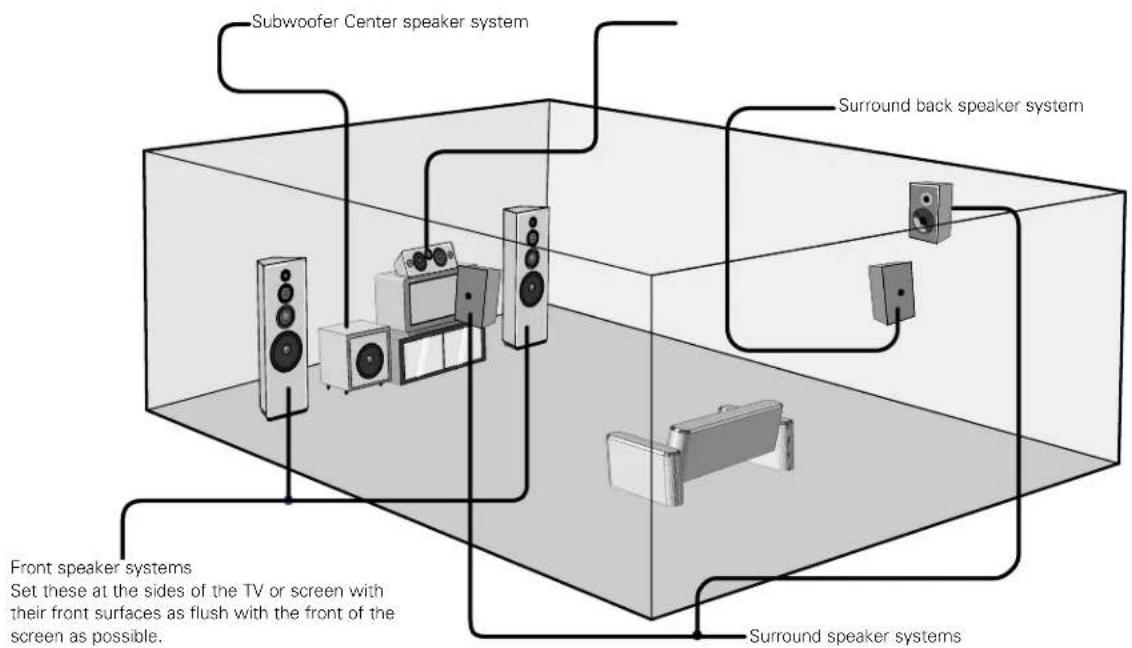

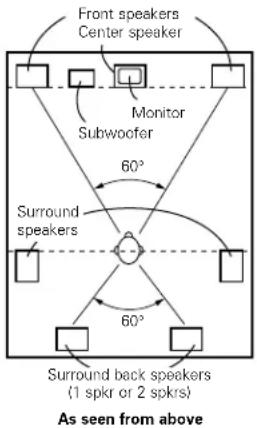

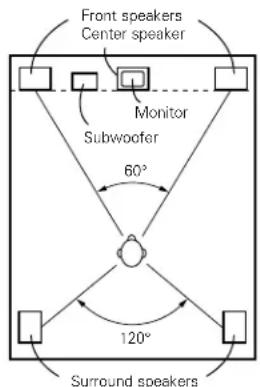

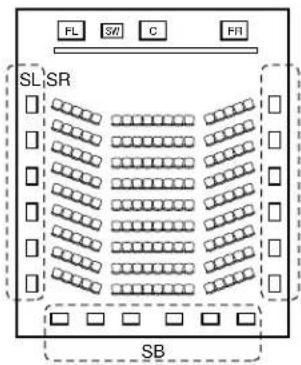

■Speaker system layout

Basic system layout
The following is an example of the basic layout for a system consisting of 7 speaker systems and a television monitor:

8 CONNECTIONS

• Do not plug in the AC cord until all connections have been completed.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Insert the plugs securely. Incomplete connections will result in the generation of noise.
• Use the AC OUTLETS for audio equipment only. Do not use them for hair driers, etc.

Note that binding pin plug cords together with AC cords or placing them near a power transformer will result in generating hum or other noise.
- Noise or humming may be generated if a connected audio equipment is used independently without turning the power of this unit on. If this happens, turn on the power of the this unit.

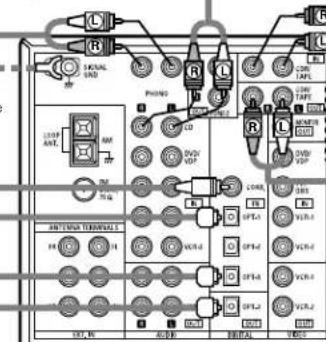

Connecting the audio components

• When making connections, also refer to the operating instructions of the other components.

The power to these outlets is turned on and off when the power is switched between on and standby from the remote control unit or power switch.

CD player
Connecting a CD player

Connect the CD player's analog output jacks (ANALOG OUTPUT) to this unit's CD jacks using pin plug cords.

Connecting a turntable

Connect the turntable's output cord to the AVR-1804/884's PHONO jacks, the L (left) plug to the L jack, the R (right) plug to the right jack.

NOTES:

• This unit cannot be used with MC cartridges directly. Use a separate head amplifier or step-up transformer.
• If humming or other noise is generated when the ground wire is connected, disconnect the ground wire.

Connecting the AC OUTLETS

AC OUTLETS

WITCHED

(total capacity - 120 W (1 A))

The power to these outlets is turned on and off in conjunction with the POWER operation switch on the main unit, and when the power is switched between on and standby from the remote control unit.

No power is supplied from these outlets when this unit's power is at standby. Never connect equipment whose total capacity is above 120 W (1 A.).

NOTE:

Only use the AC OUTLETS for audio equipment. Never use them for hair driers, TVs or other electrical appliances.

Turntable (MM cartridge)
Ground wire

Subwoofer jack

Connect the internal amplifier's subwoofer to the subwoofer terminal. (Refer to page 17.)

MD recorder, CD recorder or other component equipped with digital input/output jack

CD player or other component equipped with digital output jacks

CD recorder or Tape deck
AC CORD
AC 120V,60Hz

Connecting the DIGITAL jacks

Use these for connections to audio (video) equipment with digital output. Refer to page 26 for instructions on setting this terminal.

NOTES:

• Use 75 Ω/ohms cable pin cords for coaxial connections.
• Use optical cables for optical connections, removing the cap before connecting.
  The main unit's power must be turned on when recording via the AVR-1804/884.

Connecting a tape deck

Connections for recording:

Connect the tape deck's recording input jacks (LINE IN or RECI) to this unit's tape recording (CDR/TAPE OUT) jacks using pin plug cords.

Connections for playback:

Connect the tape deck's playback output Jacks (LINE OUT or PB) to this unit's tape playback (CDR/TAPE IN) Jacks using pin plug cords.

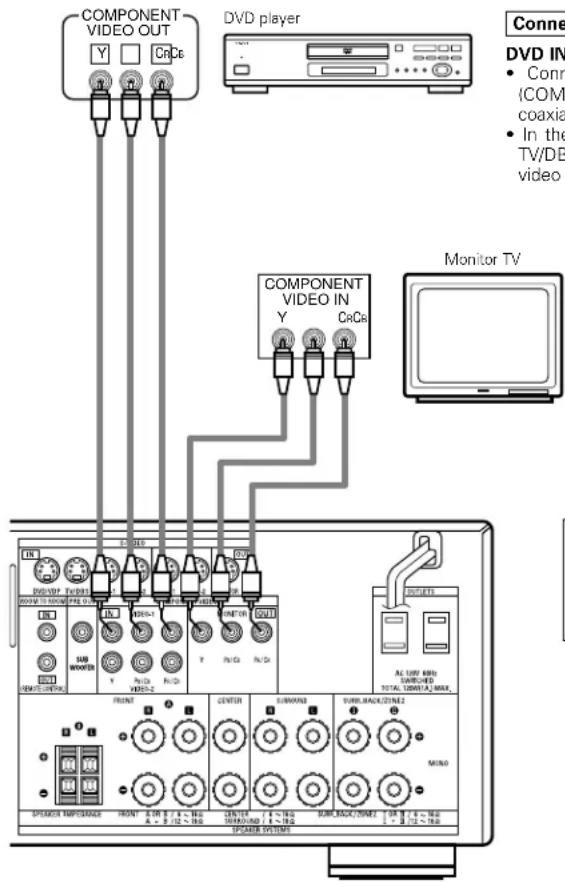

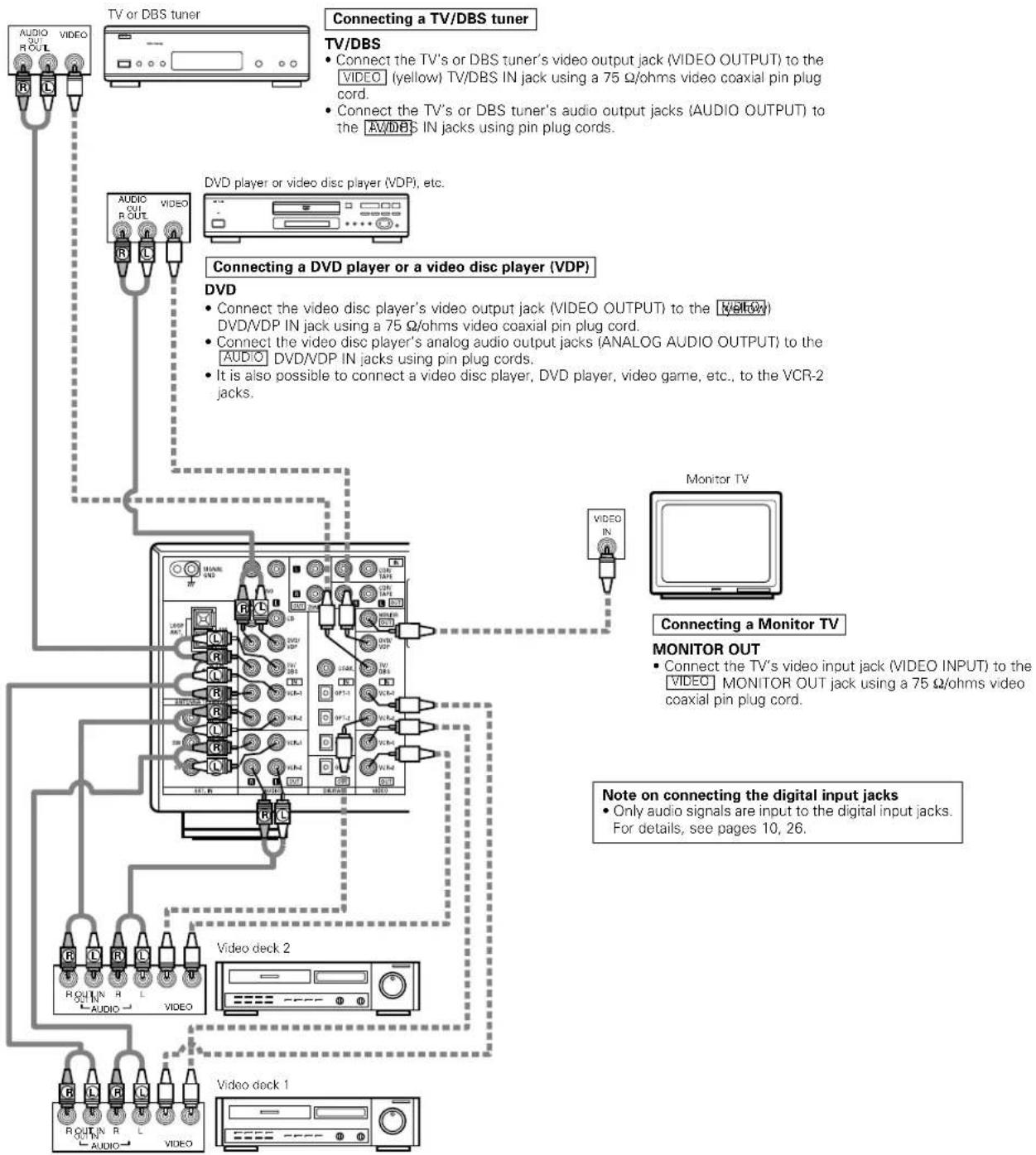

Connecting video components

To connect the video signal, connect using a 75 ohms video signal cable cord. Using an improper cable can result in a drop in video quality.
- When making connections, also refer to the operating instructions of the other components.
- The AVR-1804/884 is equipped with a function for up-converting video signals.
The signal connected to the video signal terminal is output to the S-Video monitor out terminals.
The REC OUT terminals have no conversion function, so when recording only connect the video terminals

Connecting a video decks

There are two sets of video deck (VCR) jacks, so two video decks can be connected for simultaneous recording or video copying.

Video input/output connections:

Connect the video deck's video output jack (VIDEO OUT) to the (yellow) VCR-1 IN jack, and the video deck's video input jack (VIDEO IN) to the (yellow) VCR-1 OUT jack using 75 ohms video coaxial pin plug cords.

Connecting the audio output jacks

Connect the video deck's audio output jacks (AUDIO OUT) to the VCR-1 IN jacks, and the video deck's audio input jacks (AUDIO IN) to the AUCIOVOR-1 OUT jacks using pin plug cords.

Connect the second video deck to the VCR-2 jacks in the same way.

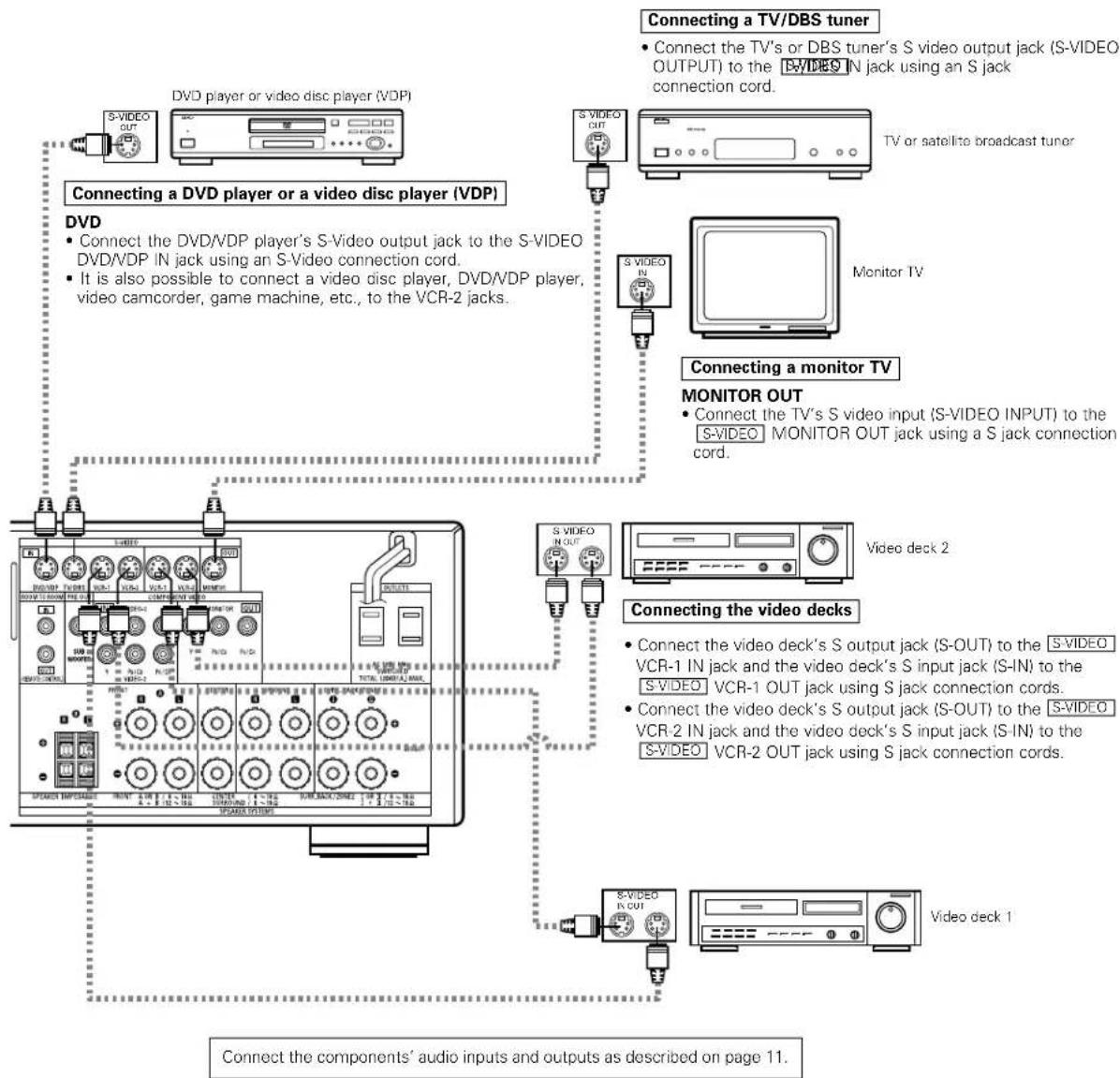

Connecting a video component equipped with S-Video jacks

• When making connections, also refer to the operating instructions of the other components.
• A note on the S input jacks

The input selectors for the S inputs and pin jack inputs work in conjunction with each other.

The AVR-1804/884 is equipped with a function for converting video signals.
The signal connected to the S-Video signal terminal is output to the composite video monitor out terminals.
The REC OUT terminals have no conversion function, so when recording only connect the S-Video terminals.

Connecting a Video Component Equipped with Color Difference (Component - Y, PR/CR, PB/CB) Video Jacks (DVD Player)

• When making connections, also refer to the operating instructions of the other components.
• The signals input to the color difference (component) video jacks are not output from the VIDEO output jack (yellow) or the S-Video output jack. In addition, the video signals input to theVIDEO input (yellow) and S-Video input jacks are not output to the color difference (component) video jacks.
  Some video sources with component video outputs are labeled Y, CB, Cr, or Y, Pb, Pr, or Y, R-Y, B-Y. These terms all refer to component video color difference output.
• At SYSTEM SETUP, the component video input terminal can be assigned for the input sources to which you want to connect AV devices. (For details, see page 26.)

Connecting a DVD player

DVD IN jacks

• Connect the DVD player's color difference (component) video output jacks (COMPONENT VIDEO OUTPUT) to the COMPONENT DVD IN jack using 75 Ω/ohms coaxial video pin-plug cords.
• In the same way, another video source with component video outputs such as a TV/DBS tuner, etc., can be connected to the TV/DBS color difference (component) video jacks.

Connecting a monitor TV

MONITOR OUT jack

• Connect the TV's color difference (component) video input jacks (COMPONENT VIDEO_INPUT) to the COMPONENT MONITOR OUT jack using 75Ω/ohms coaxial video pin-plug cords.

The color difference input jacks may be indicated differently on some TVs, monitors or video components ("Q1, C3 and Y", "R-Y, B-Y and Y", "Pr, Pb and Y", etc.). For details, carefully read the operating instructions included with the TV or other component.

Video Conversion signals

Signal input to the AVR-1804/884	Monitor Output jacks
	Video signal output toVIDEO MONITOR OUT jack (yellow)	Video signal output to S-Video MONITOR OUT jack	Video signal output to color difference (component) Video MONITOR OUT jack
Video signal input jack	○	○ (Up-conversion)	×
S-Video signal input jack	○ (Down-conversion)	○	×
Color difference (component) Video signal input jack	×	×	○

0: Video signal output, × : Video signal not output]

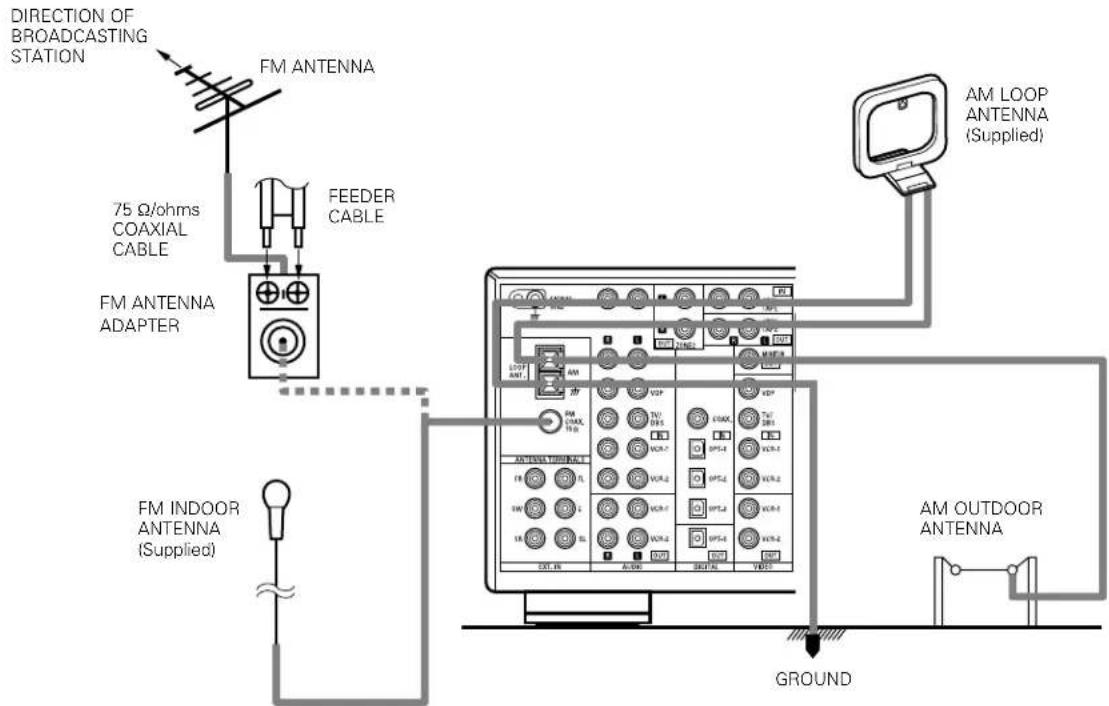

Connecting the antenna terminals

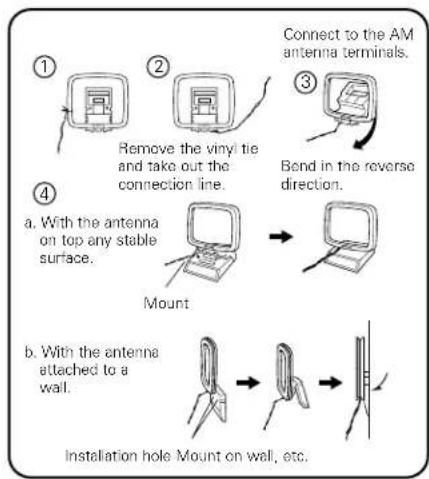

AM loop antenna assembly

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Notes:

• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM loop antenna.
• Make sure AM loop antenna lead terminals do not touch metal parts of the panel.

Connection of AM antennas

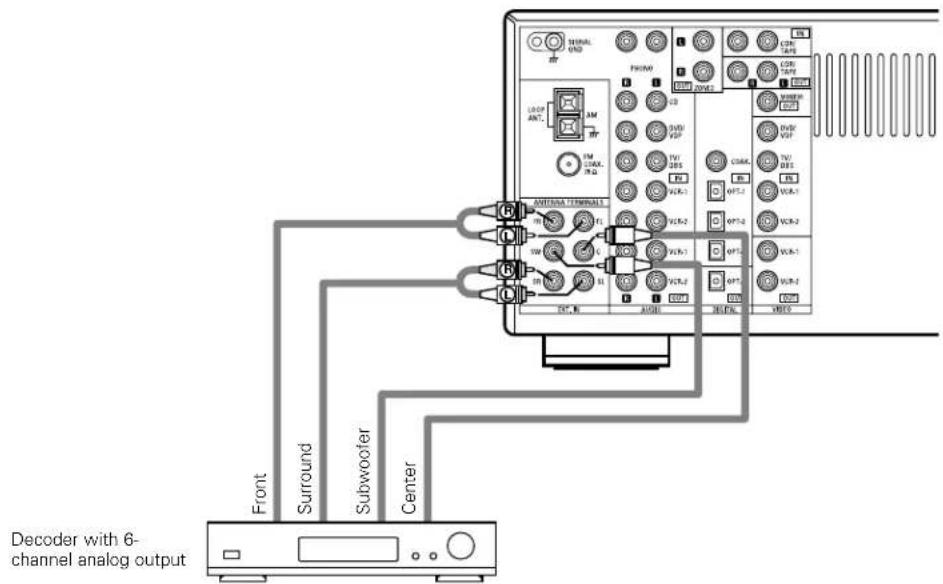

Connecting the external input (EXT. IN) jacks

These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of multi-channel decoder, such as a DVD Audio player, or a multi-channel SACD player, or other future multi-channel sound format decoder.
- When making connections, also refer to the operating instructions of the other components.

For instructions on playback using the external input (EXT. IN) jacks, see page 38.

Connecting the video component equipped with a V. AUX jacks

To connect the video signal, connect using a 75 Ω/ohms video signal cable cord. Using an improper cable can result in a drop in sound quality.

The V. AUX jacks is covered with a cap. Remove this cap in order to use the terminal. (See page 5 for instructions on removing the cap.)

Connecting a Video game component

• Connect the Video game component's output jacks to this unit's V. AUX INPUT jacks.

Connecting a video camera component

• Connect the video camera component's output jacks to this unit's V. AUX INPUT jacks.

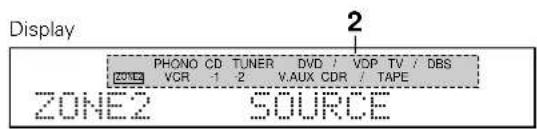

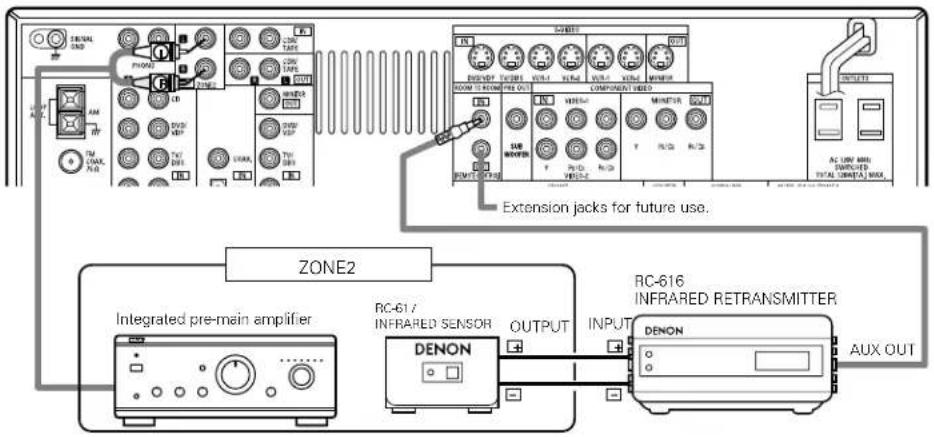

Connecting the ZONE2 jacks

If another pre-main (integrated) amplifier is connected, the ZONE2 jacks can be used to play a different program source in ZONE2 at the same time.

Speaker system connections

• Connect the speaker terminals with the speakers making sure that like polarities are matched (with , with ). Mismatching of polarities will result in weak central sound, unclear orientation of the various instruments, and the sense of direction of the stereo being impaired.
• When making connections, take care that none of the individual conductors of the speaker cord come in contact with adjacent terminals, with other speaker cord conductors, or with the rear panel.

NOTE:
NEVER touch the speaker terminals when the power is on.
Doing so could result in electric shocks.

Speaker Impedance

• When speaker systems A (I) and B (II) are use separately, speakers with an impedance of 6 to 16 Ω/ohms can be connected for use as front and surround back/ZONE2 speakers.
• Be careful when using two pairs of front and Surround Back/ZONE2 speakers (A + B) and (I + II) at the same time, since use of speakers with an impedance of 12 to 16 Ω/ohms.
• Speakers with an impedance of 6 to 16/ohms can be connected for use as center and surround speakers.
• The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance are connected.

Connecting the speaker cords

1. Loosen by turning counterclockwise.

2. Insert the cord. 3. Tighten by turning

clockwise.

1. Push the lever. 2. Insert the cord. 3. Return the lever.

Connecting banana plugs

Turn clockwise to tighten, then insert the banana plug.

Connections

• When making connections, also refer to the operating instructions of the other components.

Connection jack for subwoofer with built-in amplifier (super woofer), etc.

- Precautions when connecting speakers

If a speaker is placed near a TV or video monitor, the colors on the screen may be disturbed by the speaker's magnetism. If this should happen, move the speaker away to a position where it does not have this effect.

Protector circuit

• This unit is equipped with a high-speed protection circuit. The purpose of this circuit is to protect the speakers under circumstances such as when the output of the power amplifier is inadvertently short-circuited and a large current flows, when the temperature surrounding the unit becomes unusually high, or when the unit is used at high output over a long period which results in an extreme temperature rise.

When the protection circuit is activated, the speaker output is cut off and the power supply indicator LED flashes. Should this occur, please follow these steps: be sure to switch off the power of this unit, check whether there are any faults with the wiring of the speaker cables or input cables, and wait for the unit to cool down if it is very hot. Improve the ventilation condition around the unit and switch the power back on.

If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit, switch off the power and contact a DENON service center.

Note on speaker impedance

• The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance (for example speakers with an impedance of lower than 4/ohms ) are connected. If the protector circuit is activated, the speaker output is cut off. Turn off the set's power, wait for the set to cool down, improve the ventilation around the set, then turn the power back on.

9 USING THE REMOTE CONTROL UNIT

Following the procedure outlined below, insert the batteries before using the remote control unit.

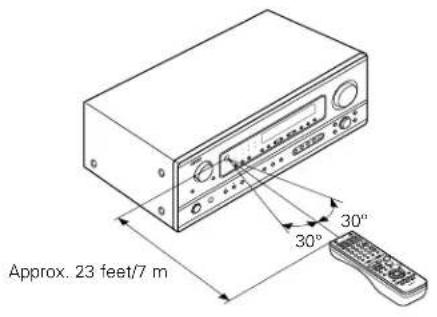

Range of operation of the remote control unit

Point the remote control unit at the remote control sensor as shown on the diagram at the left.

NOTES:

• The remote control unit can be used from a straight distance of approximately 23 feet/7 meters, but this distance will shorten or operation will become difficult if there are obstacles between the remote control unit and the remote control sensor, if the remote control sensor is exposed to direct sunlight or other strong light, or if operated from an angle.
• Neon signs or other devices emitting pulse-type noise nearby may result in malfunction, so keep the set as far away from such devices as possible.

Inserting the batteries

① Press as shown by the arrow and slide off.

② Insert the R6P/AA batteries properly, as shown on the diagram.

③Close the lid.

NOTES:

• Use only R6P/AA batteries for replacement.
• Be sure the polarities are correct. (See the illustration inside the battery compartment.)
• Remove the batteries if the remote control transmitter will not be used for an extended period of time.
• If batteries leak, dispose of them immediately. Avoid touching the leaked material or letting it come in contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.
• Have replacement batteries on hand so that the old batteries can be replaced as quickly as possible when the time comes.
• Even if less than a year has passed, replace the batteries with new ones if the set does not operate even when the remote control unit is operated nearby the set. (The included battery is only for verifying operation. Replace it with a new battery as soon as possible.)

10 SETTING UP THE SYSTEM

• Once all connections with other AV components have been completed as described in "CONNECTIONS" (see pages 10 to 18), make the various settings described below on the display. These settings are required to set up the listening room's AV system centered around the this unit.

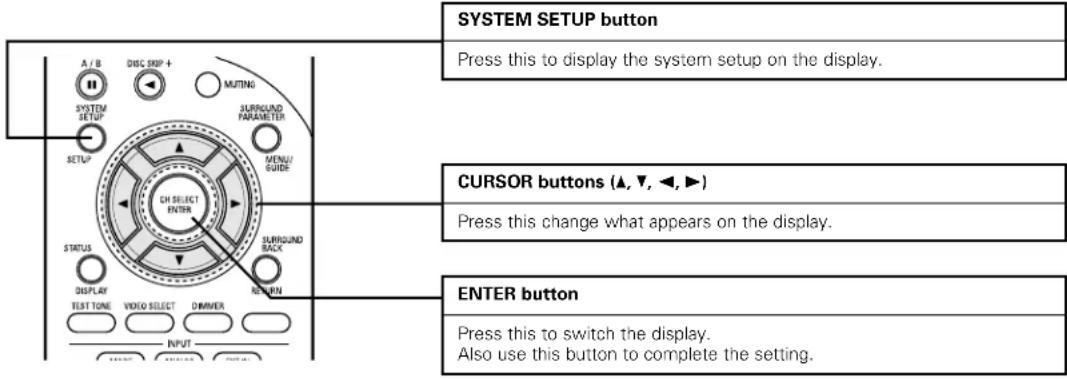

• Use the following buttons to set up the system:

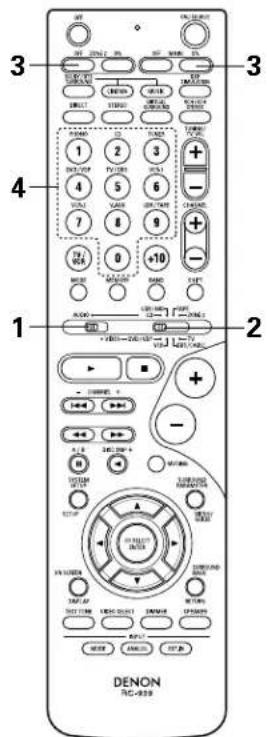

1 Set the slide switch to "AUDIO".

Use the following buttons to set up the system:

• System setup items and default values (set upon shipment from the factory)

System setup Default settings
Speaker Configuration	Input the combination of speakers in your system and their corresponding sizes (SMALL for regular speakers, LARGE for full-size, full-range) to automatically set the composition of the signals output from the speakers and the frequency response.		Front Sp.		Center Sp.	SubwooferSurround Sp.			Surround Back Sp.
			Large		Small YesSmall				Small
Subwoofer mode	This selects the subwoofer speaker for playing deep bass signals.		LFE (Normal)
Crossover Frequency	Set the frequency (Hz) below which the bass sound of the various speakers is to be output from the subwoofer.		80 Hz
Delay Time	This parameter is for optimizing the timing with which the audio signals are produced from the speakers and subwoofer according to the listening position.		Front L Center Surrund Back				Surround L	Surround R			Subwoofer
			12 ft 12 ft 10 f2 ft				10 ft	10 ft			12 ft
Test Tone	This adjusts the volume of the signals output from the speakers and subwoofer for the different channels in order to obtain optimum effects.		Front L Front R Center				Surround L	Surround R	Surround Back		Subwoofer
			0 dB	0 dB	0 dB		0 dB	0 dB	0 dB		0 dB
Digital In Assignment	This assigns the digital input jacks for the different input sources.	Input source	CD DVD/DP TV/DBS					VCR-1	VCR-2 CDR/TAPE
		Digital Inputs	COAXIAL	OPTICAL 1		OPTICAL 2		OFF	OFF		OPTICAL 3
Video In Assignment	This assigns the component video input jacks for the different video input sources.	Input source	DVD/VDP TV/DBS			VCR-1		VCR-2	V. AUX		-
		Component Inputs	VIDEO 1	VIDEO 2		OFF		OFF	OFF		-
Auto Surround Mode	Auto surround mode function setting.		Auto Surround Mode = ON
Ext. In SW Level	Set the Ext. In Subwoofer channel playback level.		Ext. In SW Level = +15 dB

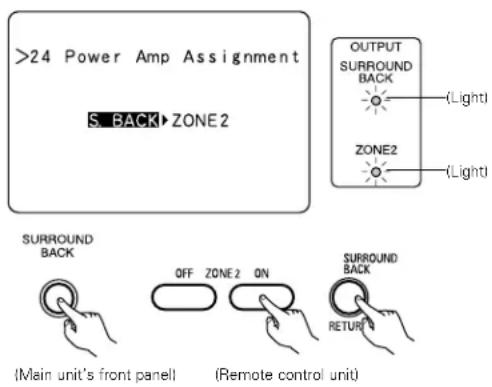

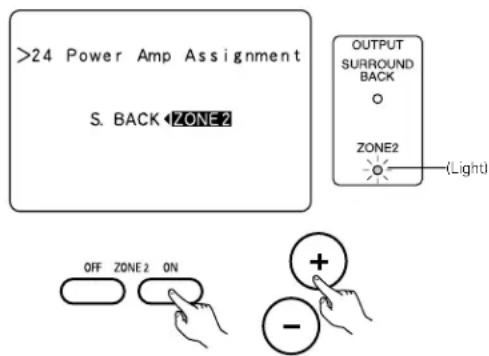

Power AMP Assignment	Set this to switch the surround back channel's power amplifier for use for Zone 2.		Surround Back
On Screen Display	This sets whether or not to display the on-screen display that appears on the monitor screen when the controls on the remote control unit or main unit are operated.		ON

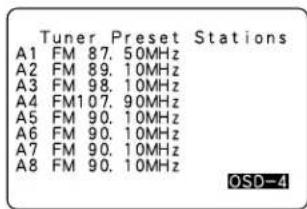

Auto Tuner Presets	FM stations are received automatically and stored in the memory.		A1 ~ A8	87.5/89.1/98.1/107.9/90.1/90.1/90.1 MHz
			B1 ~ B8	520/600/1000/1400/1500/1710 kHz, 90.1/90.1 MHz
			C1 ~ C8	90.1 MHz
			D1 ~ D8	90.1 MHz
			E1 ~ E8	90.1 MHz

NOTES:

The AR-1804/884's on-screen display function is designed for use with high resolution monitor TVs, so it may be difficult to read small characters on TVs with small screens or low resolutions.
- The setup menu is not displayed when headphones are being used.
The system setup is not displayed when "HEADPHONE ONLY" is selected.

Before setting up the system

1

(Main unit) (Remote control unit)

Check that all the components are correct, then press the POWER operation switch on the main unit or the POWER button on the remote control unit to turn on the power.

2

Press the SYSTEM SETUP button to enter the setting.

*SYSTEM SET UP

NOTE: Please make sure the "AUDIO" position of the slide switch on the remote control unit.

System Setup

Speaker Configuration

1 Front Sp. Large 2 Center Sp. Small 3 Surround Sp. Small 4 S. Back Sp. Small 5 Subwoofer Yes

3

Press the ENTER or (down) button to switch to the speaker configuration set up.

NOTE:

Press the SYSTEM SETUP button again to finish system set up. System set up can be finished at any time. The changes to the settings made up to that point are entered.

Setting the type of speakers

• Set up in function of your speaker systems. Performing this setup optimizes the system.
  The composition of the signals output to the different channels and the frequency response are adjusted automatically according to the combination of speakers actually being used.

1

Set whether or not speakers are connected and, if so, their size parameters.

To select the speaker

System Setup

Speaker Configuration

1 Front Sp.
2 Center Sp.
3 Surround Sp.
4 S Back Sp.
5 Subwoofer

Center Sp., Front Sp.Front Sp.

Subwoofer

Listening position

round Sp

Surround back Sp.

To select the parameter

1 FRONT

LARGE

2

Press the ENTER or (Down) button to enter the settings and switch to the SUBWOOFER MODE setting.

- Parameters

Large... Select this when using speakers that can fully reproduce low sounds of below 80 Hz.

Small.... Select this when using speakers that cannot reproduce low sounds of below 80 Hz with sufficient volume. When this setting is selected, low frequencies of below 80 Hz are assigned to the subwoofer.

None.... Select this when no speakers are installed.

Yes/No.... Select "Yes" when a subwoofer is installed, "No" when it's not installed.

NOTE:

Select "Large" or "Small" not according to the physical size of the speaker, but according to the bass reproduction capacity at 80Hz . If you cannot determine the best setting, try comparing the sound when set to "Small" and when set to "Large", at a level that will not damage the speakers.

Caution:

In case the subwoofer is not used, be sure to set "Subwoofer = No", or the bass sound of front channel is divided to subwoofer channel and not reproduced in some mode.

If the subwoofer has sufficient low frequency playback capacity, good sound can be achieved even when "Small" is set for the front, center and surround speakers.
For the majority of speaker system configurations, using the Small setting for all five main speakers and Subwoofer On with a connected subwoofer will yield the best results.

Setting the Subwoofer mode and Crossover Frequency

This screen is not displayed when not using a subwoofer.
- Set the crossover frequency and subwoofer mode according to the speaker system being used.

1

Select the "Subwoofer Mode".

Select the setting.

6 SW MODE NORM

6 Subwoofer Mode

LFE

+Ma in

7 Crossover Frequency

120Hz

2

Select the "Crossover Frequency" mode.

Select the frequency.

?CR.OUER 80Hz

6 Subwoofer Mode

LFE

+Ma n

7 Crossover Frequency

80Hz

3

Press the ENTER or (down) button to enter the setting and switch to the SPEAKER DISTANCE setting.

NOTES:

Assignment of low frequency signal range

The signals produced from the subwoofer channel are LFE signals (during playback of Dolby Digital or DTS signals) and the low frequency signal range of channels set to "SMALL" in the setup. The low frequency signal range of channels set to "LARGE" are produced from those channels.
Crossover Frequency
- When "Subwoofer" is set to "Yes" at the "Speaker Configuration Setting", set the frequency (Hz) below which the bass sound of the various speakers is to be output from the subwoofer (the crossover frequency).
For speakers set to "Small", sound with a frequency below the crossover frequency is cut, and the cut bass sound is output from the subwoofer instead.

NOTE: For ordinary speaker systems, we recommend setting the crossover frequency to 80 Hz. When using small speakers, however, setting the crossover frequency to a high frequency may improve frequency response for frequencies near the crossover frequency.

Subwoofer mode

The subwoofer mode setting is only valid when "Large" is set for the front speakers and "YES" is set for the subwoofer in the "Speaker Configuration" settings (see page 22).
- When the "LFE+MAIN" playback mode is selected, the low frequency signal range of channels set to "Large" are produced simultaneously from those channels and the subwoofer channel. In this playback mode, the low frequency range expand more uniformly through the room, but depending on the size and shape of the room, interference may result in a decrease of the actual volume of the low frequency range.
- Selection of the "LFE" play mode will play the low frequency signal range of the channel selected with "Large" from that channel only. Therefore, the low frequency signal range that are played from the subwoofer channel are only the low frequency signal range of LFE (only during Dolby Digital or DTS signal playback) and the channel specified as "Small" in the setup menu.
- Select the play mode that provides bass reproduction with quantity.
- When the subwoofer is set to "Yes", bass sound is output from the subwoofer regardless of the subwoofer mode setting in surround modes other than Dolby/DTS.
- In surround modes other than Dolby Digital and DTS, if the subwoofer is set to "YES", the low frequency portion is always output to the subwoofer channel. For details, refer to "Surround Modes and Parameters" on page 53.

Setting the delay time

• Input the distance between the listening position and the different speakers to set the delay time for the surround mode.

Preparations:

Measure the distances between the listening position and the speakers (L1 to L5) on the diagram at the right).

L1: Distance between center speaker and listening position
L2: Distance between front speakers and listening position
L3: Distance between surround speakers and listening position
L4: Distance between surround back speaker and listening position
L5: Distance between subwoofer and listening position

CAUTION:

※ Please note that the difference for every speaker should be 15 ft or less.

NOTES:

• No setting when "None" has been selected for the Speaker Configuration setting.
• Surround back is not displayed when ZONE 2 is set with the POWER AMP ASSIGN setting.

1

Select the speaker to be set.

8FRONTL 12ft

Delay Time

8 Front L
9 Front R
10 Center
11 Surr. L
12 Surr. R
13 S Back
14 Subwoofer

12ft 12ft 10ft 10ft 10ft 12ft

2

Set the distance between the speaker and listening position.

The distance changes in units of 1 foot (0.1 meters) each time the button is pressed. Select the value closest to the measured distance.

3

Press the ENTER or (swn) button to enter the setting and switch the Test Tone setting.

Setting the Test Tone

• Use this setting to adjust to that the playback level between the different channel is equal.
• From the listening position, listen to the test tones produced from the speakers to adjust the level.
  The level can also be adjusted directly from the remote control unit. (For details, see page 43.)

1

Select "Yes".

15 T.TONE YES

Test Tone

15 Test Tone: Yes

2

Set the mode.

Select "Auto" or "Manual".

T.TONE AUTO

Test Tone

Auto Manual

Front L

0dB

Center Center B

0dB 0dB

Frent R Surr. R

0dB 0dB

S. Back

0dB

Surr. L Subs.6

0dB

Subwoo

3

Press the (down) button to start Test Tone.

4

a. If the "Auto" mode is selected:

Test tones are automatically emitted from the different speakers.

The test tones are emitted from the different speakers in the following order, at 4-second intervals the

first time and second time around, 2-second intervals the third time around and on:

Use the CURSOR left and right buttons to adjust all the speakers to the same volume.

The volume can be adjusted between -12dB and +12dB in units of 1 dB.

Test Tone

Auto:Manual

Front L

-12d8

Center

Front R
Fvron B

Suff. R S Back

Surr. L

Subwoofer

0dB

0dB 0dB

0dB 0dB

0dB 0dB

0dB

Example: When the volume is set to 0.5

-12 dB while the Front Lch

speaker is selected

5

(Remote control unit)

After completing the adjustment, press the ENTER button.

6

Press the ENTER or (down) button to enter the setting and switch the DIGITAL input setting.

NOTES:

• When you adjust the channel levels while in the TEST TONE mode, the channel level adjustments made will affect all surround modes. Consider this mode a Master Channel Level adjustment mode.
• You can adjust the channel levels for each of the following surround modes: DIRECT, STEREO, DOLBY/CTS SURROUND, 5/6 CH STEREO, MONO MOVIE, ROCK ARENA, JAZZ CLUB, VIDEO GAME, MATRIX and VIRTUAL.

Setting the Digital In Assignment

• This setting assigns the digital input jacks of the AVR-1804/884 for the different input sources.

1

Select the digital input jack to be assigned to the input source.

To select the digital input jack

16

C04X

CD

2

To select the input source

Select "OFF" if nothing is connected.

3

Press the ENTER or (down) button to enter the setting and switch the Component Video input setting.

NOTE:

PHONO, TUNER and V. AUX cannot be selected.

Setting the Video In Assignment

This setting assigns the color difference (component) video input jacks of the AVR-1804/884 for the different input sources.

1

Select the component (Y, PB/CB and PR/CR) video input terminal to be assigned to the input source.

• Component video terminal selection

20VIDEO1 DUD

2

• Input source selection

Select "OFF" if nothing is connected.

3

Press the ENTER or (own) button to enter the setting and switch the Auto Surround Mode setting.

Setting the Auto Surround Mode

For the three kinds of input signals as shown below, the surround mode played the last is stored in the memory. At next time it the same signal inputs, the memorized surround mode is automatically selected and the signal is played. Note that the surround mode setting is also stored separately for the different input function.

	SIGNAL Default Auto Surround Mode
①Analog and PCM 2-channel signals STEREO
②2-channel signals of Dolby Digital, DTS or other multichannel format Dolby PL		II Cinema
③Multichannel signals of Dolby Digital, DTS or other multichannel format		Dolby or DTS Surround

1

Select "ON" if you want to use the auto surround mode, "OFF" if you do not want to use it.

22AUTOSURR. ON

22 Auto Surround Mode

ON OFF

2

Press the ENTER or (down) button to switch the Ext. In SW Level setting.

Setting the Ext. In SW Level

Set the playback level of the analog input signal connected to the Ext. In terminal.

1

Select desired setting.

• Select according to the specifications of the player being used. Also refer to the player's operating instructions.
• +15dB (default) recommended. (0, + 5, 10 and +15 can be selected.)

23EXT.IN5u+15

23 Ext. In SW Level

Subwoofer Level

+1563

2

Press the ENTER or (down) button to switch the Power Amp Assignment setting.

Power Amp Assignment

Setting the power amplifier assignment

Make this setting to switch the power amplifier for the surround back channel to ZONE2.

1

Select "Surround Back" to use as the surround back channel, "Zone2" to use as Zone 2 out.

24 AMP S.BACK

24 Power Amp Assignment

S. BACK ZONE 2

2

Press the ENTER or (down) button to switch the On Screen Display setting.

Setting the On Screen Display (OSD)

• Use this to turn the on-screen display (messages other than the menu screens) on or off.

1

Select "ON" or "OFF".

25 OSD ON

25 On Screen Display

ON OFF

2

Press the ENTER or (Down) button to switch the Auto Preset Memory setting.

Auto Tuner Presets

Use this to automatically search for FM broadcasts and store up to 40 stations at preset channels A1 to 8, B1 to 8, C1 to 8, D1 to 8 and E1 to 8.

NOTE:

If an FM station cannot be preset automatically due to poor reception, use the "Manual tuning" operation to tune in the station, then preset it using the manual "Preset memory" operation.

1

Use the CURSOR button to select "Yes". "Search" flashes on the screen and searching begins. "Completed" appears once searching is completed. The display automatically switches to screen.

26 PRESET <YES

26 Auto Preset Memory
Auto Tuning And
Preset Station Memory
Storing Preset Memory
Start Yes

2

Press the ENTER or (own) button if you want to start the settings over from the beginning.

After setting up the system

1

Press the SYSTEM SETUP button to finish system set up.

This completes the system setup operations. Once the system is set up, there is no need to make the settings again unless other components or speakers are connected to or the speaker layout is changed.

• On-screen display signals

	Signals input to the AVR-1804/884		On-screen display signal output
	VIDEO signal input jack (yellow)	S-video signal input jack	Video signal output toVIDEO MONITOR OUT jack (yellow)	Video signal output to S-Video MONITOR OUT jack
1	×	×	○	○
2	○	×	○	○
3	×	○	○	○
4	○	○	×	○

Signal

X: No signal

C: On-screen signals output

× : On-screen signals not output)

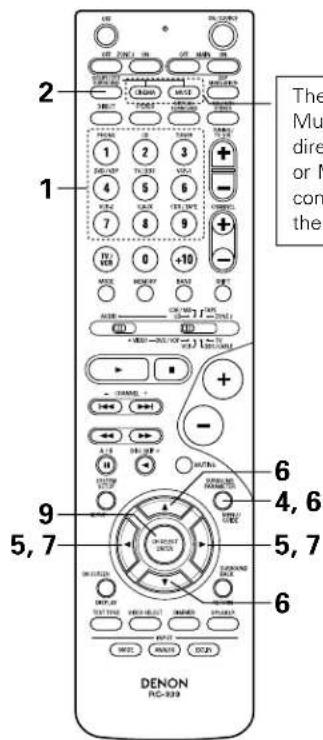

11 REMOTE CONTROL UNIT

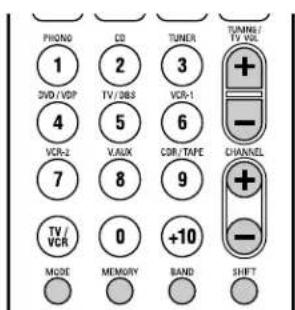

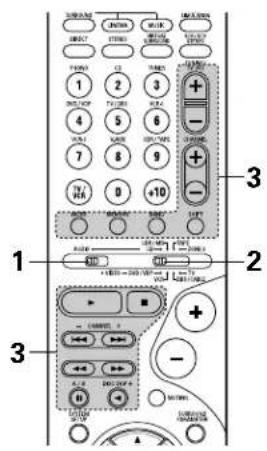

Operating DENON audio components

• Turn on the power of the different components before operating them.

1 Set mode switch 1 to "AUDIO".

2 Set mode switch 2 to the position for the component to be operated. (CD, CDR/MD or Tape deck)

3 Operatetheaudio component. For details,refer to the comp

※ While this remote control is compatible with a wide range of infrared controlled components, some models of components may not be operated with this remote control.

1. CD player (CD) and CD recorder and MD recorder (CDR/MD) system buttons

Manual search (forward and reverse)

:Stop

▶:Play

Auto search (cue)

Pause

DISC:Switch discs

SKIP+ (for CD changers only)

1. Tape deck (TAPE) system buttons

: Rewind

Fast-forward

Stop

Forward play

: Reverse play

A/B : Switch between decks A and B

1. Tuner system buttons

SHIFT:Switch preset channel range

CHANNEL: Preset channel

+,-up/down

TUNING: Frequency

+,-up/down

BAND:Switch between the AM and FM bands

MODE:Switch between auto and mono

MEMORY: Preset memory

NOTE:

TUNER can be operated when the switch is at "AUDIO" position.

Preset memory

DENON and other makes of components can be operated by setting the preset memory.

This remote control unit can be used to operate components of other manufacturers without using the learning function by registering the manufacturer of the component as shown on the list of Preset Codes (pages 128~132).

Operation is not possible for some models.

1

Set mode switch 1 to "AUDIO" or "VIDEO".

Set the AUDIO side for the CD, Tape deck or CDR/MD position, to the VIDEO side for the DVD/VDP, DBS/CABLE, VCR or TV position.

2

Set mode switch 2 to the component to be registered.

3

Press the ON/SOURCE button and the OFF button at the same time.

• Indicator flash.

4

erring to the included List ofset Codes, use the numbertons to input the preset code (a 3-1t number) for the manufacturer ofcomponent whose signals youwant to store in the memory.

tions to input the preset code (a 3-10 number) for the manufacturer of the component whose signals you want to store in the memory.

5

To store the codes of another component in the memory, repeat steps 1 to 4.

NOTES:

The signals for the pressed buttons are emitted while setting the preset memory. To avoid accidental operation, cover the remote control unit's transmitting window while setting the preset memory.
- Depending on the model and year of manufacture, this function cannot be used for some models, even if they are of makes listed on the included list of preset codes.
- Some manufacturers use more than one type of remote control code. Refer to the included list of preset codes to change the number and check.
The preset memory can be set for one component only among the following: CDR/MD, DVD/VDP and DBS/CABLE.

The preset codes are as follows upon shipment from the factory and after resetting:

TV, VCR. HITACHI

CD, TAPE . DENON

CDR/MD .DENON (CDR)

DVD/VDP . DENON (DVD)

DBS/CABLE ABC(CABLE)

Operating component stored in the preset memory

1

Set mode switch 1 to "AUDIO" or "VIDEO".

Set the AUDIO side for the CD, tape deck or CDR/MD position, to the VIDEO side for the DVD/NDP, DBS/CABLE, VCR or TV position.

2

Set mode switch 2 to the component you want to operate.

3

Operate the component.

For details, refer to the component's operating instructions.
※ Some models cannot be operated with this remote control unit.

1. Digital video disc player (DVD, DVD SETUP) system buttons

POWER:Power on/standby

(ON/SOURCE)

OFF: DENON DVD Power off

: Manual search

forward and reverse)

■Stop

▶Play

Auto search

(to beginning of track)

Pause

0~9,+10:10key

DISCSKIP+:Disc skip

(for DVD changer only)

DISPLAY:Switchdisplay

MENU:Menu

RETURN: Return

SETUP: Setup

, , , Cursor up,down,left and right

ENTER : Enter setting

NOTE:

Some manufacturers use different names for the DVD remote control buttons, so also refer to the instructions on remote control for that component.

2. Video disc player (VDP) system buttons

POWER :Power on/standby

(ON/SOURCE)

Manual search

(forward and reverse)

:Stop

:Play

uto search (cue)

:Pause

0~9, +10

:10key

3. Video deck (VCR) system buttons

POWER:Power on/standby

(ON/SOURCE)

: Manual search (forward and rev

:Stop

▶Play

Pause

Channel + channels

4. Digital broadcast satellite (DBS) taper and cable (CABLE) system buttons

POWER:Power on/standby

(ON/SOURCE)

MENU:Menu

RETURN: Return

D,H,F,G Cursor up,down,left and right ENTER:Enter

CHANNEL: Switch channels

+

0-9, +10: Channels

DISPLAY :Switch display

VOL + 1 :Volumeup/down

5. Monitor TV (TV) system buttons

POWER:Power on/standby

(ON/SOURCE)

MENU:Menu

RETURN:Return

D, H, F, G : Cursor up, down, left and right

ENTER:Enter

CHANNEL: Switch channels

+，-

0~9, +10: Channels

DISPLAY :Switch display

TVVCR : Switch between TV

and video player

TV VOL :Volume up/down

+，一

NOTES:

For this CD, CDR, MD and TAPE components, buttons can be operated in the same way as for Denon audio components (page 30).
The TV can be operated when the switch is at DVD/ADP, VCR, TV position.

Punch Through

• "Punch Through" is a function allowing you to operate the PLAY, STOP, MANUAL SEARCH and AUTO SEARCH buttons on the CD, TAPE, CDR/MD, DVD/VDP or VCR components when in the DBS/CABLE or TV mode. By default, nothing is set.

1 Set mode switch 1 to "VIDEO".

2 Set mode switch 2 to the component to be registered (DBS/CABLE or TV).

Press the OFF (ZONE2) button and the ON (MAIN) button at the same time.

Indicator flash.

4 1 2 3 Input the number of the component you want to set. (See Table 1)

Table 1

	No.
CD	1
TAPE	2
CDR/MD	3
DVD/VDP	4
VCR	5
No setting	0

12 OPERATION

Before operating

Refer to "CONNECTIONS" (pages 10 to 18) and check that all connections are correct.
2 Set the remote control unit's slide switch to the AUDIO position. (only when operating with the remote control unit)
3 Turn on the power. Press the ON/STANDBY button on the main unit or ON/SOURCE button on the remote control unit to turn on the power.

(Main unit) {Remote control unit}

ON/STANDBY

When the button is pressed, the power turns on and the display lights after approximately 1 second.

When pressed again, the power turns off, the standby mode is set and the display turns off.

Several seconds are required from the time the power operation switch is set to the "ON" position until sound is output. This is due to the built-in muting circuit that prevents noise when the power switch is turned on and off.

4 Select the front speakers. Press the SPEAKER A or B button to turn the speaker on.

(Main unit)Remote control unit)

• The front speaker A, B setting can be also be changed with the SPEAKER button on the remote control unit.

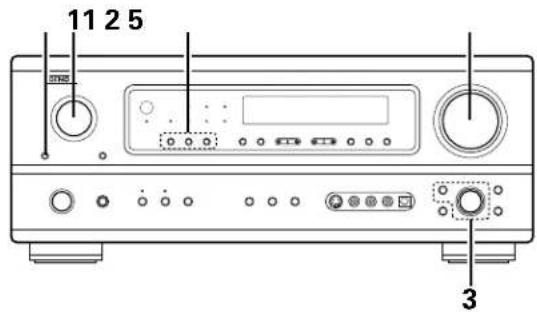

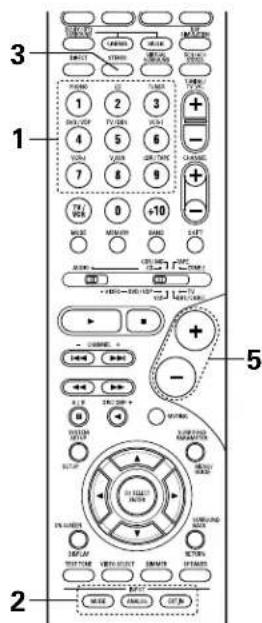

Playing the input source

1 Select the input source to be played. Example: CD

(Main unit) (Remote control unit)

To select the input source when ZONE2/REC OUT is selected, press the MAIN button then operate the input function selector.

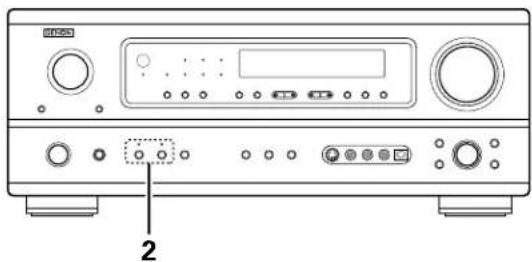

2 Select the input mode.

• Selecting the analog mode Press the ANALOG button to switch to the analog input.

(Main unit) Remote control unit)

• Selecting the external input (EXT. IN) mode Press the EXT. IN to switch the external input.

(Main unit)Remote control unit)

• Selecting the AUTO, PCM and DTS modes
• The mode switches as shown below each time the INPUT MODE button is pressed.

(Main unit)Remote control unit)

Input mode selection function

Different input modes can be selected for the different input sources. The selected input modes for the separate input sources are stored in the memory.

① AUTO (auto mode)

In this mode, the types of signals being input to the digital and analog input jacks for the selected input source are detected and the program in the AVR-1804/884's surround decoder is selected automatically upon playback. This mode can be selected for all input sources other than PHONO and TUNER.

The presence or absence of digital signals is detected, the signals input to the digital input jacks are identified and decoding and playback are performed automatically in DTS, Dolby Digital or PCM (2 channel stereo) format. If no digital signal is being input, the analog input jacks are selected.

Use this mode to play Dolby Digital signals.

②PCM (exclusive PCM signal playback mode)

Decoding and playback are only performed when PCM signals are being input.

Note that noise may be generated when using this mode to play signals other than PCM signals.

③ DTS (exclusive DTS signal playback mode)

Decoding and playback are only performed when DTS signals are being input.

4ANALOG (exclusive analog audio signal playback mode)

The signals input to the analog input jacks are decoded and played.

5EXT.IN (external decoder input jack selection mode)

The signals being input to the external decoder input jacks are played without passing through the surround circuitry.

NOTE:

Note that noise will be output when CDs or LDs recorded in DTS format are played in the "PCM" (exclusive PCM signal playback) or "ANALOG" (exclusive PCM signal playback) mode. Select the AUTO or DTS mode when playing signals recorded in DTS.

Notes on playing a source encoded with DTS

• Noise may be generated at the beginning of playback and while searching during DTS playback in the AUTO mode. If so, play in the DTS mode.
• In some rare cases the noise may be generated when you preform the operation to stop playback of a DTS-CD or DTS-LD.

Select the play mode.

Press the SURROUND MODE button, then turn the SELECT knob.

Example: Stereo

(Main unit) (Remote control unit)

To select the surround mode while adjusting the surround parameters, tone defeat or tone control, press the surround mode button then operate the selector.

(Main unit)

Start playback on the selected component.

• For operating instructions, refer to the component's manual.

5 Adjust the volume.

The volume level is displayed on the master volume level display.

(Main unit) (Remote control unit)

The volume can be adjusted within the range of -70 to 0 to 18 dB, in steps of 1 dB. However, when the channel level is set as described on page 44, if the volume for any channel is set at +1 dB or greater, the volume cannot be adjusted up to 18 dB. (In this case the maximum volume is adjusted to "18 dB — (Maximum value of channel level).")

Input mode when playing DTS sources

• Noise will be output if DTS-compatible CDs or LDs are played in the "ANALOG" or "PCM" mode.

When playing DTS-compatible sources, be sure to connect the source component to the digital input jacks (OPTICAL/COAXIAL) and set the input mode to "DTS".

Input mode display

In the AUTO mode

In the DIGITAL PCM mode

• In the DIGITAL DTS mode

In the ANALOG mode

Input signal display

DOLBY DIGITAL

DTS

• PCM

The Dddlr lights when digital signals are being input properly. If the Dddlr does not light, check whether the digital input component setup (page 26) and connections are correct and whether the component's power is turned on.

NOTE:

The DfAic will light when playing CD-ROMs containing data other than audio signals, but no sound will be heard.

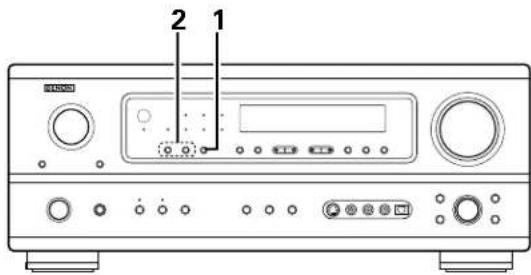

Playback using the external input (EXT. IN) jacks

1 Set the external input (EXT. IN) mode.

Press the EXT. IN to switch the external input.

EXT.IN

Main unit) (Remote control unit)

Once this is selected, the input signals connected to the FL (front left), FR (front right), C (center), SL (surround left), and SR (surround right) channels of the EXT. IN jacks are output directly to the front (left and right), center, surround (left and right) speaker systems without passing through the surround circuitry.

In addition, the signal input to the SW (subwoofer) jack is output to the PRE OUT SUBWOOFER jack.

2 Cancellation the external input mode To cancel the external input (EXT. IN) setting, press the INPUT MODE (AUTO, PCM, DTS) or ANALOG button to switch to the desired input mode. (See page 36.)

(Main unit) (Remote control unit)

• When the input mode is set to the external input (EXT.IN), the play mode (DIRECT, STEREO, DOLBY/CTS SURROUND, 5CH/6CH STEREO or DSP SIMULATION) cannot be selected.

NOTES:

• In play modes other than the external input mode, the signals connected to EXT. IN jacks cannot be played. In addition, signals cannot be output from channels not connected to the input jacks.
• The external input mode can be set for any input source. To watch video while listening to sound, select the input source to which the video signal is connected, then set this mode.
• If the subwoofer output level seems to high, set the "SW ATT." surround parameter to "ON".

Playing audio sources (CDs and DVDs)

The AVR-1804/884 is equipped with two 2-channel playback modes exclusively for music. Select the mode to suit your tastes.

1 DIRECT mode

Use this mode to achieve good quality 2-channel sound while watching images. In this mode, the audio signals bypass such circuits as the tone circuit and are transmitted directly, resulting in good quality sound.

DIRECT/
STEREO
(Main unit)

(Remote control unit)

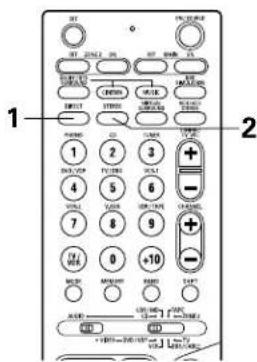

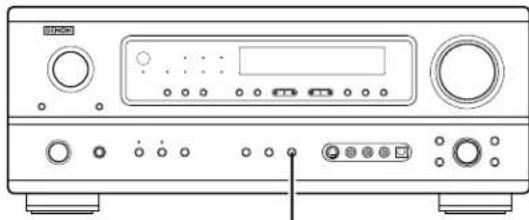

STEREO mode

Use this mode to adjust the tone and achieve the desired sound while watching images.

DIRECT/
STEREO
(Main unit)

(Remote control unit)

1,2

After starting playback

[1] Adjusting the sound quality (tone)

The tone control function will not work in the direct mode.

The tone switches as follows each time the TONE CONTROL button is pressed.

(Main unit)

BASS TREBLE

2 With the name of the volume to be adjusted selected, turn the SELECT knob to adjust the level.

(Main unit)

• To increase the bass or treble: Turn the control clockwise. (The bass or treble sound can be increased to up to +12 dB in steps of 2 dB.)
  To decrease the bass or treble: Turn the control counterclockwise. (The bass or treble sound can be decreased to up to -12dB in steps of 2 dB.)

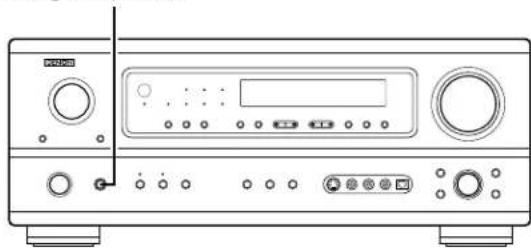

[2] Listening over headphones

Plug the headphones' plug into the jack. Connect the headphones to the

Connect the headphones to the PHONES jack.

The pre-out output (including the speaker output) is automatically turned off when headphones are connected.

[3] Turning the sound off temporarily (muting)

Use this to turn off the audio output temporarily. Press the MUTING button.

Cancelling MUTING mode.

• Press the MUTING button again.
• Muting will also be cancelled when MASTER VOL is adjusted up or down.

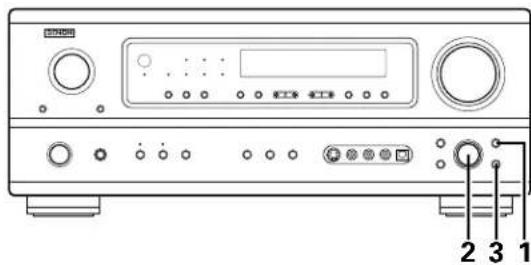

[4] Combining the currently playing sound with the desired image

1 Simulcast playback Use this switch to monitor a video source other than the audio source. Press theVIDEOSELECT button repeatedly until the desired source appears on the display.

Cancelling simulcast playback.

• Select "SOURCE" using the video select button.
• Switch the program source to the component connected to the video input jacks.

(Main unit)

(Remote control unit)

3 If you do not want the bass and treble to be adjusted, turn on the tone defeat mode.

(Main unit)

The signals do not pass through the bass and treble adjustment circuits, so it provides higher quality sound.

NOTE:

To prevent hearing loss, do not raise the volume level excessively when using headphones.

Display

[5] Checking the currently playing program source, etc.

1 On screen display

Each time an operation is performed, a description of that operation appears on the display connected to the unit's VIDEO MONITOR OUT jack. Also, the unit's operating status can be checked during playback by pressing the remote control unit's ON SCREEN/DISPLAY button.

(Remote control unit)

Such information as the position of the input selector and the surround parameter settings is output in sequence.

Front panel display

• Descriptions of the unit's operations are also displayed on the front panel display. In addition, the display can be switched to check the unit's operating status while playing a source by pressing the STATUS button.

(Main unit)

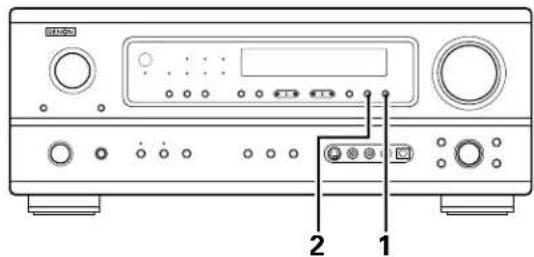

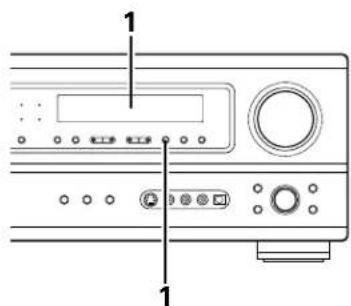

Using the dimmer function

• Use this to change the brightness of the display.

The display brightness changes in four steps (bright, medium, dim and off) by pressing the main unit's DIMMER button repeatedly.

(Main unit)

(Remote control unit)

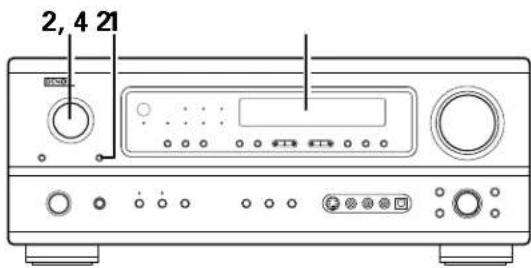

Multi-source recording

Playing one source while recording another (REC OUT mode)

Press the ZONE2/REC button. The display switches as follows each time the button is pressed.

(Main unit)

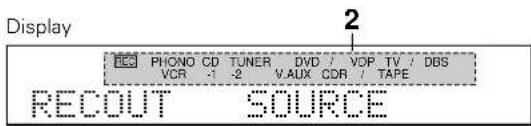

2 With "RECOUT SOURCE" displayed, turn the FUNCTION knob to select the source you wish to record.

(Main unit)

Set the recording mode.

• For operating instructions, refer to the manual of the component on which you want to record.

4 To cancel, turn the function knob and select "SOURCE".

(Main unit)

NOTES:

• Recording sources other than digital inputs selected in the REC OUT mode are also output to the ZONE2 audio output jacks.
• Digital signals are not output to the REC SOURCE or audio output jacks.
  The DIGITAL IN's signal selected with the function selector knob are output to the DIGITAL OUT (OPTICAL) jack.

13 MULTI ZONE

Multi-zone playback with multi-source

• When the outputs of the "ZONE2" OUT terminals are wired and connected to integrated amplifiers installed in other rooms, different sources can be played in rooms other than the main zone in which this unit and the playback devices are installed. (Refer to ZONE2 on the diagram below.)
• ZONE 2 SPEAKER OUT can be used when "ZONE2" is selected at System Setup Menu "Power Amp Assignment". In this case, Surround Back Speaker Out cannot be used for MAIN ZONE.
• When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and connected between the main zone and zone2, the remote-controllable devices in the main zone can be controlled from zone2 using the remote control unit.

NOTES:

For the AUDIO outputs, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
For instructions on installation and operation of separately sold devices, refer to the devices' operating instructions.
- When the main unit is set to the recording output mode, zone2 remote control key cannot be operated.

POWER AMP ASSIGNMENT setting....Set this to switch the surround back channel's power amplifier for use for the ZONE2. (See page 28)
SURROUND BACK button....Operate the surround back button to switch surround back channel ON/OFF. (main unit and remote control unit)

ZONE2 ON/OFF button. Operate the ZONE2 button to switch ZONE2 line out and speaker out ON/OFF (remote control unit)

■MULTI ZONE MUSIC ENTERTAINMENT SYSTEM (When using LINE OUT)

"POWER AMP ASSIGNMENT" setting is S. BACK mode.

• 6.1-channel playback using the surround back speaker is possible in the MAIN ZONE.
  To use the surround back speaker, turn on the SURROUND BACK button.
  To use the ZONE2 line output, turn on the ZONE2 button.
• The ZONE2 OUT terminal's output level cannot be adjusted with the remote control unit.

■ MULTI ZONE MUSIC ENTERTAINMENT SYSTEM (When using SPEAKER OUT)

"POWER AMP ASSIGNMENT" setting is ZONE2 mode.

The SPEAKER OUT and LINE OUT terminals can be used simultaneously in ZONE2.
To use the ZONE2 line output and speaker output, turn on the ZONE2 button.
The output of the ZONE2 SPEAKER OUT terminals can be adjusted with the remote control unit's ZONE2 VOLUME + and - keys.
The SURROUND BACK button on the front panel cannot be used.

Main unit's front panel) (Remote control unit)

Multi-source playback

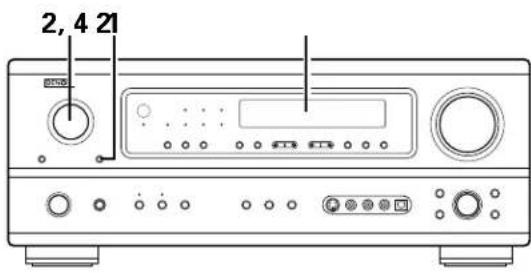

[1] Outputting a program source to an amplifier, etc., in a different room (ZONE2 mode)

1

Press the ZONE2/REC button. The display switches as follows each time the button is pressed.

ZONE2/REC (Main unit)

2	With “ZONE2 SOURCE” displayed, turn the FUNCTION knob and select the source you wish to record.

3	Start playing the source to be output. • For operating instructions, refer to the manuals of the respective components.

4	To cancel, turn the function knob and select "SOURCE".

NOTES:

The signals of the source selected in the ZONE2 mode are also output from the VCR-1, VCR-2 and CDR/TAPE recording output terminals.
Digital signals are not output to the ZONE2 output jacks.

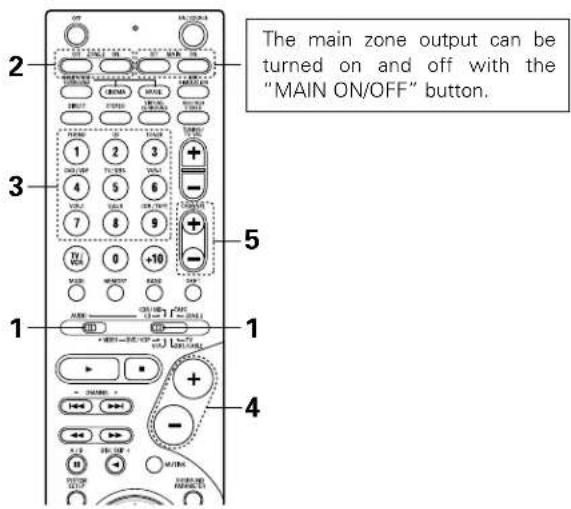

[2] Remote control unit operations during multi-source playback (selecting the source)

1	Set the slide switch to "AUDIO" and "ZONE2".
	AUDIO CD VIDEO (Remote control unit) CDR/MD CD TAPE ZONE 2 ID DVD/VDP VCR TV DBS/CABLE

Press the ZONE2 "ON" button.

To cancel the ZONE2 mode. Press the ZONE2 "OFF" button.

3 Press the input source button. • The ZONE2 source switches directly.

4 The output level of the ZONE 2 SPEAKER OUT terminals can be controlled using the VOLUME + and - buttons on the remote control unit. (Remote control unit)

※ DEFAULT SETTING (ZONE2 VOLUME LEVEL): --- dB (MINIMUM)

When the ZONE2 SOURCE function is set to TUNER, the preset channel can be selected using the CHANNEL + and - buttons on the remote control unit. (This is only possible when the main unit in the ZONE2 mode.)

14 SURROUND

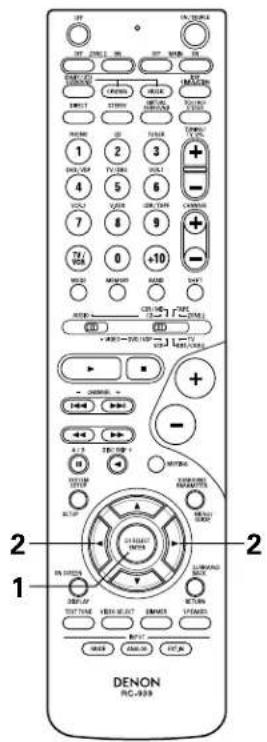

Before playing with the surround function

• Before playing with the surround function, be sure to use the test tones to adjust the playback level from the different speakers. This adjustment can be performed with the system setup (see page 20) or from the remote control unit, as described below.
  Adjusting with the remote control unit using the test tones is only possible in the "Auto" mode and only effective in the DOLBY/DTS SURROUND modes. The adjusted levels for the different modes are automatically stored in the memory.

1 Set the DOLBY/DTS SURROUND modes.

DOLBY / DTS SURROUND
(Main unit) (Remote control unit)

Press the TEST TONE button.

(Remote control unit)

3 Test tones are output from the different speakers. Use the channel volume adjust buttons to adjust so that the volume of the test tones is the same for all the speakers.

(Remote control unit)

After completing the adjustment, press the TEST TONE button again.

(Remote control unit)

After adjusting using the test tones, adjust the channel levels either according to the playback sources or to suit your tastes, as (described) below.

1 Select the speaker whose level you want to adjust.

The channel switches as shown below each time the button is pressed.

串 "SB" appears only when "POWER AMP ASSIGN" setting is SURR. BACK mode.

NOTE: Please make sure the "AUDIO" position of the slide switch on the remote control unit.

2 Adjust the level of the selected speaker.

※ Default setting of channel level is 0 dB.
The level of the selected speaker can be adjusted within the range of +12 to -12 dB using the cursor buttons.
SW channel level can be turned off by decreasing one step from -12 dB.

OFF 12 dB 12 dB

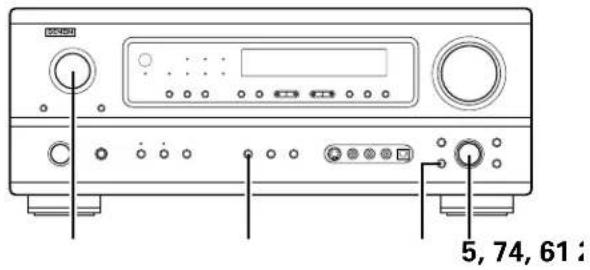

Dolby Surround Pro Logic II mode

1 Select the function to which the component you want to play is connected.

Example: DVD

(Main unit)IRemote control unit)

2 Select the Dolby Surround Pro Logic II mode.

DOLBY / DTS

JROUND

(Main unit)

(Remote control unit)

The Dolby Pro Logic II indicator lights.

Display

Light

PROLOGICII

3 Play a program source with the 13 (DOLBY SURROUND)

• For operating instructions, refer to the manuals of the respective components.

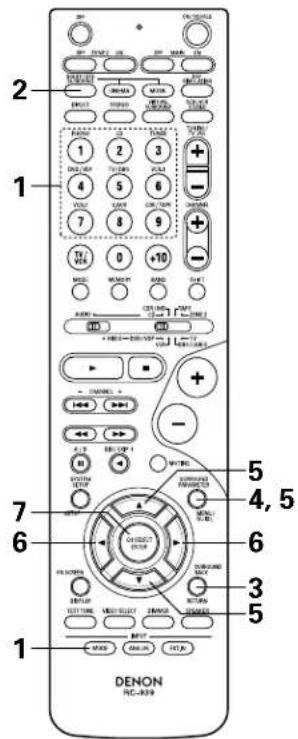

1 Select the surround parameter mode.

(Main unit) (Remote control unit)

To perform this operation from the remote control unit, check that the mode selector switch is set to "AUDIO".

5 Select the optimum mode for the source.

(Main unit) (Remote control unit)

6

Select the various parameters. (See "Surround parameters ①" for a description of the various parameters.)

(Main unit) (Remote control)

7

Set the various surround parameters.

(Main unit) (Remote control unit)

8

When the surround parameters are set using the buttons on the main unit, stop operating buttons after completing the settings. The settings are automatically finalized and the normal display reappears after several seconds.

9

Press the ENTER button to finish surround parameter mode.

(Remote control unit)

NOTE:

• When making parameter settings, the display will return to the regular condition several seconds after the last button was pressed and the setting will be completed.

DTS NEO:6 mode

1

Select the function to which the component you want to play is connected.

Example: DVD

(Main unit) (Remote control unit)

2

Select the DTS NEO:6 mode.

DOLBY / DTS SURROUND

(Main unit)

(Remote control unit)

• The mode switches as shown below each time the button is pressed.

DOLBY PLITDT6 NEO:6

The DTS NEO:6 Cinema or Music mode can be chosen directly by pressing the CINEMA or MUSIC button on the remote control unit during playback in the DTS NEO:6 mode.

3 Play a program source.

4 Select the surround parameter mode.

Display MODE ci hena

(Main unit) (Remote control unit)

To perform this operation from the remote control unit, check that the mode selector switch is set to "AUDIO".

5 Select the optimum mode for the source.

(Main unit) |Remote control unit)

6 Select the various parameters.

(Main unit) (Remote (Remotetnrol unit)

7 Set the various surround parameters.

(Main unit Remote control unit)

When the surround parameters are set using the buttons on the main unit, stop operating buttons after completing the settings. The settings are automatically finalized and the normal display reappears after several seconds.

9 Press the ENTER button to finish surround parameter mode.

(Remote control unit)

Surround parameters ①

Pro Logic II Mode:

The Cinema mode is for use with stereo television shows and all programs encoded Dolby Surround.
- The Music mode is recommended as the standard mode for autosound music systems (no video), and is optional for AV systems.
The Pro Logic mode offers the same robust surround processing as original Pro Logic in case the source contents is not of optimum quality.

Select one of the modes ("cinema", "music" or "Pro Logic").

Panorama Control:

This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging.

Select "OFF" or "ON".

Dimension Control:

This control gradually adjust the soundfield either towards the front or towards the rear.

The control can be set in 7 steps from 0 to 6.

Center Width Control:

This control adjust the center image so it may be heard only from the center speaker; only from the left/right speakers as a phantom image; or from all three front speakers to varying degrees.

The control can be set in 8 steps from 0 to 7.

DTS NEO:6 Mode:

Cinema

This mode is optimum for playing movies. Decoding is performed with emphasis on separation performance to achieve the same atmosphere with 2-channel sources as with 6.1-channel sources.

This mode is effective for playing sources recorded in conventional surround formats as well, because the in-phase component is assigned mainly to the center channel (C) and the reversed phase component to the surround (SL, SR and SB channels).

Music

This mode is suited mainly for playing music. The front channel (FL and FR) signals bypass the decoder and are played directly so there is no loss of sound quality, and the effect of the surround signals output from the center (C) and surround (SL, SR and SB) channels add a natural sense of expansion to the sound field.

CENTER IMAGE (0.0 to 0.5: default 0.2):

The center image parameter for adjusting the expansion of the center channel in the DTS NEO:6 MUSIC mode has been added.

Dolby Digital mode (only with digital input) and DTS Surround (only with digital input)

1

Select the input source.

Playback with a digital input

① Select an input source set to digital (COAXIAL/OPTICAL) (see page 25).

Example: DVD

(Main unit)

(Remote control unit)

② Set the input mode to "AUTO" or DTS.

(Main unit) (Remote control unit)

2

Select the Dolby/DTS Surround mode.

(Main unit)

(Remote control unit)

When performing this operation from the main unit's panel, press the SURROUND MODE button, then turn the SELECT knob and select Dolby Pro Logic II or DTS NEO:6.

(Main unit)

(Main unit)

3

Play a program source with the ,

• The Dolby Digital indicator lights when playing Dolby Digital sources.

• The DTS indicator lights when playing DTS sources.

Operate the SURROUND BACK button to switch Surround Back CH ON/OFF.

(Remote control unit)(Main unit)

• Lights when the SURROUND BACK button is on.

4

(Remote control unit)Main unit)

Display the surround parameter menu.

5

(Remote control unit)
(Remote control unit)Main unit)

Select the various parameters.

6

(Remote control unit)(Main unit)

Adjust the parameter settings.

7

(Remote control unit)

Press the ENTER button to finish surround parameter mode.

Dialogue Normalization

The dialogue normalization function is activated automatically when playing Dolby Digital program sources.

Dialogue normalization is a basic function of Dolby Digital which automatically normalizes the dialog level (standard level) of the signals which are recorded at different levels for different program sources, such as DVD, DTV and other future formats that will use Dolby Digital.

These contents can be verified with the STATUS and ON SCREEN buttons.

Display

OFFSET 4dB

The number indicates the normalization level when the currently playing program is normalized to the standard level.

Surround parameters ②

CINEMA EQ. (Cinema Equalizer):

The Cinema EQ function gently decreases the level of the extreme high frequencies, compensating for overly-bright sounding motion picture soundtracks. Select this function if the sound from the front speakers is too bright.

This function only works in the Dolby Pro Logic II, Dolby Digital and DTS Surround modes. (The same contents are set for all operating modes.)

D.COMP. (Dynamic Range Compression):

Motion picture soundtracks have tremendous dynamic range (the contrast between very soft and very loud sounds). For listening late at night, or whenever the maximum sound level is lower than usual, the Dynamic Range Compression allows you to hear all of the sounds in the soundtrack (but with reduced dynamic range). (This only works when playing program sources recorded in Dolby Digital.) Select one of the four parameters ("OFF", "LOW", "MID" (middle) or "HI" (high)). Set to OFF for normal listening.

LFE (Low Frequency Effect):

This sets the level of the LFE (Low Frequency Effect) sounds included in the source when playing program sources recorded in Dolby Digital or DTS.

If the sound produced from the subwoofer sounds distorted due to the LFE signals when playing Dolby Digital or DTS sources when the peak limiter is turned off with the subwoofer peak limit level setting (system setup menu), adjust the level as necessary.

Program source and adjustment range:

1. Dolby Digital: -10 dB to 0 dB
2. DTS Surround: -10 dB to 0 dB
   × When DTS encoded movie software is played, it is recommended that the LFE LEVEL be set to 0 dB for correct DTS playback.
   ※ When DTS encoded music software is played, it is recommended that the LFE LEVEL be set to -10 dB for correct DTS playback.

SB CH OUT (Surround Back):

"OFF"......Playback is conducted without using the surround back speaker.

"ON".Playback is conducted using the surround back speaker.

NOTE: This operation can be performed directly using the "SURROUND BACK" button.

This unit is equipped with a high performance DSP (Digital Signal Processor) which uses digital signal processing to synthetically recreate the sound field. One of 7 preset surround modes can be selected according to the program source and the parameters can be adjusted according to the conditions in the listening room to achieve a more realistic, powerful sound. These surround modes can also be used for program sources not recorded in Dolby Surround Pro Logic, Dolby Digital or DTS.

Surround modes and their features

1	5CH/6CH STEREO	In this mode, the signals of the front left channel are output from the left surround channel, the signals of the front right channel are output from the right surround channel, and the same (in-phase) component of the left and right channels is output from the center channel. This mode provides all speaker surround sound, but without directional steering effects, and works with any stereo program source.
2	MONO MOVIE (NOTE 1)	Select this when watching monaural movies for a greater sense of expansion.
3	ROCK ARENA	Use this mode to achieve the feeling of a live concert in an arena with reflected sounds coming from all directions.
4	JAZZ CLUB	This mode creates the sound field of a live house with a low ceiling and hard walls. This mode gives jazz a very vivid realism.
5	VIDEO GAME	Use this to enjoy video game sources.
6	MATRIX	Select this to emphasize the sense of expansion for music sources recorded in stereo. Signals consisting of the difference component of the input signals (the component that provides the sense of expansion) processed for delay are output from the surround channel.
7	V R T U A L	Select this mode to enjoy a virtual sound field, produced from the front 2-channel speakers or headphones.

• Depending on the program source being played, the effect may not be very noticeable.
  In this case, try other surround modes, without worrying about their names, to create a sound field suited to your tastes.

NOTE 1: When playing sources recorded in monaural, the sound will be one-sided if signals are only input to one channel (left or right), so input signals to both channels. If you have a source component with only one audio output (monophonic camcorder, etc.) obtain a "Y" adapter cable to split the mono output to two outputs, and connect to the L and R inputs.

NOTE:

DIRECT, STEREO and 5CH/6CH STEREO mode can be used when playing PCM signals with a sampling frequency of 96kHz (such as from DVD-Video discs that contain 24 bit, 96kHz audio). If such signals are input during playback in the other surround modes, the mode automatically switches to STEREO.

Personal Memory Plus

This set is equipped with a personal memorize function that automatically memorizes the surround modes and input modes selected for the input different sources. When the input source is switched, the modes set for that source last time it was used are automatically recalled.

The surround parameters, tone control settings and playback level balance for the different output channels are memorized for each surround mode.

DSP surround simulation

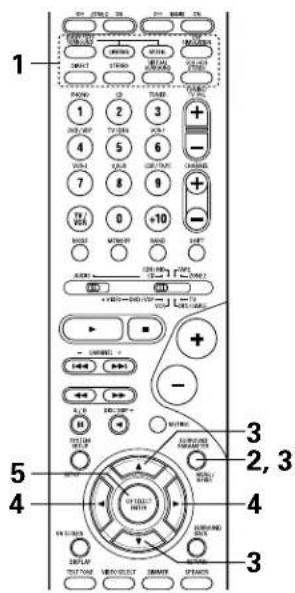

• To operate the surround mode and surround parameters from the remote control unit.

1

Select the surround mode for the input channel.

(Remote control unit)

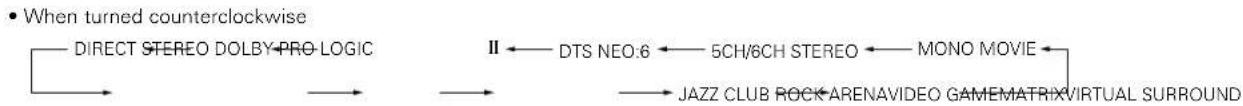

The surround mode switches in the following order each time the DSP SIMULATION button is pressed:

2
(Remote control unit)

To enter the surround parameter setting mode, press the SURROUND PARAMETER button.

• The surround parameter switches in the following order each time the SURROUND PARAMETER button is pressed for the different surround modes.

-ROCK ARENA

ROOM SIZE >EFFECT

medi um 10

Tone Defeat Bass Treble SB CH OUT Default

ON:0dB

0dB

ON OFF Yes

3

Select the various parameters.

(Remote control unit)(Remote control unit)

4

Adjust the parameter settings.

(Remotecnrolunit)

5

(Remotecnrolunit)

Press the ENTER button to finish surround parameter mode.

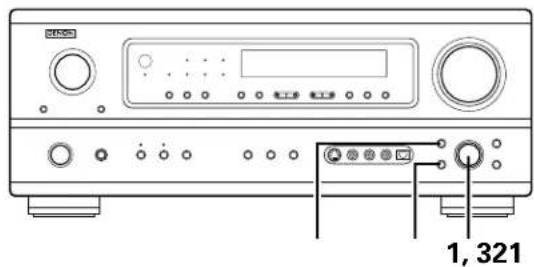

• Operating the surround mode and surround parameters from the main unit's panel.

1 Turn the SELECT knob to select the surround mode.

To select the surround mode while adjusting the surround parameters, tone defeat or tone control, press the SURROUND MODE button then operate the selector.

Press the SURROUND PARAMETER button.

Press and hold in the surround parameter button to select the parameter you want to set.

The parameters which can be set differ for the different surround modes. (Refer to "Surround Modes and Parameters" on page 53.

3 Display the parameter you want to adjust, then turn the SELECT knob to set it.

NOTE:

• When playing PCM digital signals or analog signals in the 5CH/6CH STEREO, ROCK ARENA, JAZZ CLUB, VIDEO GAME, MONO MOVIE or MATRIX surround modes and the input signal switches to a digital signal encoded in Dolby Digital, the Dolby surround mode switches automatically. When the input signal switches to a DTS signal, the mode automatically switches to DTS surround.
• When the "5CH/6CH STEREO" mode is selected, the display differs according to the Surround Back CH ON/OFF.

Surround Back CH ON: 6CH STEREO

Surround Back CH OFF: 5CH STEREO

Surround parameters ③

ROOM SIZE:

This sets the size of the sound field.

There are five settings: "small", "med.s" (medium-small), "medium", "med.l" (medium-large) and "large". "small" recreates a small sound field, "large" a large sound field.

EFFECT LEVEL:

This sets the strength of the surround effect.

The level can be set in 15 steps from 1 to 15. Lower the level if the sound seems distorted.

DELAY TIME:

In the matrix mode only, the delay time can be set within the range of 0 to 110 ms.

Surround modes and parameters

Adjusted
X:Notadjustable

16 LISTENING TO THE RADIO

Auto preset memory

This unit is equipped with a function for automatically searching for FM broadcast stations and storing them in the preset memory. The "Auto tuner preset" operation can also be performed at "System setup". (See page 29.)

When the main unit's power operation switch turn on while pressing the set's PRESET button the unit automatically begins searching for FM broadcast stations.

2 When the first FM broadcast station is found, that station is stored in the preset memory at channel A1. Subsequent stations are automatically stored in order at preset channels A2 to A8, B1 to B8, C1 to C8, D1 to D8 and E1 to E8, for a maximum of 40 stations.
3 Channel A1 is tuned in after the auto preset memory operation is completed.

NOTES:

• If an FM station cannot be preset automatically due to poor reception, use the "Manual tuning" operation to tune in the station, then preset it using the manual "Preset memory" operation.
• To interrupt this function, press the power operation button.

DEFAULTVALUE

AUTO TUNER PRESETS
A1 ~ A8 87.5/89.1/98.1/107.9/90.1/90.1/90.1 MHz
B1 ~ B8 520/600/1000/1400/1500/1710 kHz/90.1/90.1 MHz
C1 ~ C8 90.1 MHz
D1 ~ D8 90.1 MHz
E1 ~ E8 90.1 MHz

Auto tuning

1 Set the input source to "TUNER".

(Main unit) Remote control unit)

2 Watching the display, press the BAND button to select the desired band (AM or FM).

(Main unit) IRemote control unit)

Press the MODE button to set the auto tuning mode.

Press the TUNING UP or DOWN button.

(Remote control unit)Main unit

Automatic searching begins, then stops when a station is tuned in.

NOTE:

• When in the auto tuning mode on the FM band, the "STEREO" indicator lights on the display when a stereo broadcast is tuned in. At open frequencies, the noise is muted and the "TUNED" and "STEREO" indicators turn off.

Manual tuning

1 Set the input function to "TUNER".
2 Watching the display, press the BAND button to select the desired band (AM or FM).

Press the MODE button to set the manual tuning mode. Check that the display's "AUTO" indicator turns off.
Press the TUNING UP or DOWN button to tune in the desired station. The frequency changes continuously when the button is held in.

NOTE:

• When the manual tuning mode is set, FM stereo broadcasts are received in monaural and the "STEREO" indicator turns off.

Preset stations

Preparations:

Use the "Auto tuning" or "Manual tuning" operation to tune in the station to be preset in the memory.

1

Press the MEMORY button.

(Remote control unit)

2

Press the SHIFT button and select the desired memory block (A to E).

(Main unit) (Remote control unit)

NOTE: Please make sure the "AUDIO" position of the slide switch on the remote control unit.

3

Press the PRESET UP or DOWN button to select the desired preset channel (1 to 8).

(Main unit) (Remote control unit)

4

(Remote control unit)

Press the MEMORY button again to store the station in the preset memory.

To preset other channels, repeat steps 1 to 4.

A total of 40 broadcast stations can be preset - 8 stations (channels 1 to 8) in each of blocks A to E.

Checking the preset stations

• The preset (broadcast) stations can be checked on the on screen display.

Press the ON SCREEN/DISPLAY button repeatedly until the "Tuner Preset Stations" screen appears on the OSD.

(Remotecnrolunit)

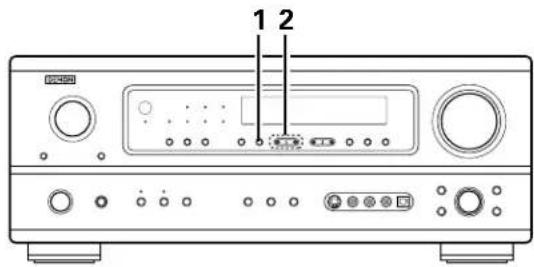

Recalling preset stations

1 Watching the display, press the SHIFT button to select the preset memory block.

(Main unit) (Remote control unit)

NOTE: Please make sure the "AUDIO" position of the slide switch on the remote control unit.

2 Watching the display, press the PRESET UP or DOWN button to select the desired preset channel.

(Main unit) (Remote control unit)

LAST FUNCTION MEMORY

This unit is equipped with a last function memory which stores the input and output setting conditions as they were immediately before the power is switched off.
This function eliminates the need to perform complicated resettings when the power is switched on.
The unit is also equipped with a back-up memory. This function provides approximately one week of memory storage when the main unit's power switch is off and with the power cord disconnected.

18 INITIALIZATION OF THE MICROPROCESSOR

When the indication of the display is not normal or when the operation of the unit does not shows the reasonable result, the initialization of the microprocessor is required by the following procedure.

Switch off the unit and remove the AC cord from the wall outlet.
2 Hold the following SPEAKER A button and SPEAKER B button, and plug the AC cord into the outlet.
3 Check that the entire display is flashing with an interval of about 1 second, and release your fingers from the 2 buttons and the microprocessor will be initialized.

NOTES:

• If step 3 does not work, start over from step 1.
• If the microprocessor has been reset, all the button settings are reset to the default values (the values set upon shipment from the factory).

19 ADDITIONAL INFORMATION

Optimum surround sound for different sources

There are currently various types of multi-channel signals (signals or formats with more than two channels).

Types of multi-channel signals

Dolby Digital, Dolby Pro Logic, DTS, high definition 3-1 signals (Japan MUSE Hi-Vision audio), DVD-Audio, SACD (Super Audio CD), MPEG multi-channel audio, etc.

"Source" here does not refer to the type of signal (format) but the recorded content. Sources can be divided into two major categories.

Types of sources

- Movie audio

Signals created to be played in movie theaters. In general sound is recorded to be played in movie theaters equipped with multiple surround speakers, regardless of the format (Dolby Digital, DTS, etc.).

Movie theater sound field

Listening room sound field

In this case it is important to achieve the same sense of expansion as in a movie theater with the surround channels. To do so, in some cases the number of surround speakers is increased (to four or eight) or speakers with bipolar or dipolar properties are used.

SL: Surround L channel
SR: Surround R channel
SB: Surround back channel (1 spkr or 2 spkrs)

Multiple surround speakers

(For 6.1-channel system)

Other types of audio These signals are designed to recreate a 360^ sound field using three to five speakers.

SLSR

In this case the speakers should surround the listener from all sides to create a uniform sound field from 360^ . Ideally the surround speakers should function as "point" sound sources in the same way as the front speakers.

These two types of sources thus have different properties, and different speaker settings, particularly for the surround speakers, are required in order to achieve the ideal sound.

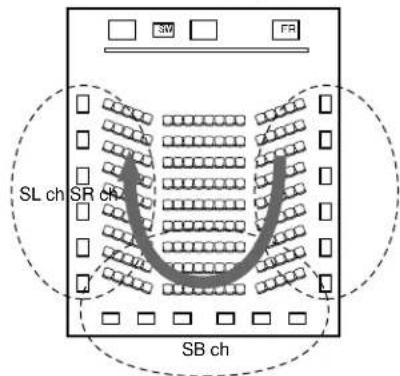

Surround back speakers

A 6.1-channel system is a conventional 5.1-channel system to which the "surround back" (SB) channel has been added. This makes it easy to achieve sound positioned directly behind the listener, something that was previously difficult with sources designed for conventional multi surround speakers. In addition, the acoustic image extending between the sides and the rear is narrowed, thus greatly improving the expression of the surround signals for sounds moving from the sides to the back and from the front to the point directly behind the listening position.

Change of positioning and acoustic image with 5.1-channel systems
Movement of acoustic image from SR to SL

Change of positioning and acoustic image with 6.1-channel systems
Movement of acoustic image from SR to SB to SL

With this set, speaker(s) for 1 or 2 channels are required to achieve a 6.1-channel system (DTS-ES, etc.). Adding these speakers, however, increases the surround effect not only with sources recorded in 6.1 channels but also with conventional 2- to 5.1-channel sources. All the Denon original surround modes (see page 50) are compatible with 7.1-channel playback, so you can enjoy 6.1-channel sound with any signal source.

Number of surround back speakers

Though the surround back channel only consists of 1 channel of playback signals for 6.1-channel sources (DTS-ES, etc.), we recommend using two speakers. When using speakers with dipolar characteristics in particular, it is essential to use two speakers.

Using two speakers results in a smoother blend with the sound of the surround channels and better sound positioning of the surround back channel when listening from a position other than the center.

■ Placement of the surround left and right channels when using surround back speakers

Using surround back speakers greatly improves the positioning of the sound at the rear. Because of this, the surround left and right channels play an important role in achieving a smooth transition of the acoustic image from the front to the back. As shown on the diagram above, in a movie theater the surround signals are also produced from diagonally in front of the listeners, creating an acoustic image as if the sound were floating in space.

To achieve these effects, we recommend placing the speakers for the surround left and right channels slightly more towards the front than with conventional surround systems. Doing so sometimes increases the surround effect when playing conventional 5.1-channel sources in the 6.1 surround or DTS-ES Matrix 6.1 mode. Check the surround effects of the various modes before selecting the surround mode.

Speaker setting examples

Here we describe a number of speaker settings for different purposes. Use these examples as guides to set up your system according to the type of speakers used and the main usage purpose.

1. DTS-ES compatible system (using surround back speakers)

(1) Basic setting for primarily watching movies

• Set the front speakers with their front surfaces as flush with the TV or monitor screen as possible. Set the center speaker between the front left and right speakers and no further from the listening position than the front speakers.
• Consult the owner's manual for your subwoofer for advice on placing the subwoofer within the listening room.
• If the surround speakers are direct-radiating (monopolar) then place them slightly behind and at an angle to the listening position and parallel to the walls at a position 60 to 90 centimeters (2 to 3 feet) above ear level at the prime listening position.
• When using two surround back speakers, place them at the back

facing the front at a narrower distance than the front left and right speakers. When using one surround back speaker, place it at the rear center facing the front at a slightly higher position (0 to 20 cm) than the surround speakers.
- We recommend installing the surround back speaker(s) at a slightly downward facing angle. This effectively prevents the surround back channel signals from reflecting off the monitor or screen at the front center, resulting in interference and making the sense of movement from the front to the back less sharp.

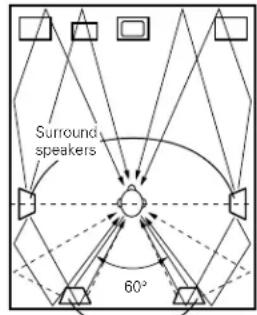

(2) Setting for primarily watching movies using diffusion type speakers for the surround speakers

For the greatest sense of surround sound envelopment, diffuse radiation speakers such as bipolar types, or dipolar types, provide a wider dispersion than is possible to obtain from a direct radiating speaker (monopolar). Place these speakers at either side of the prime listening position, mounted above ear level.

Path of the surround sound from the speakers to the listening position

Surround back speakers
[1 spkr or 2 spkrs]
As seen from above

• Set the front speakers, center speaker and subwoofer in the same positions as in example (1).
• It is best to place the surround speakers directly at the side or slightly to the front of the viewing position, and 60 to 90 cm above the ears.
  Same as surround back speaker installation method (1).

Using dipolar speakers for the surround back speakers as well is more effective.

• Connect the surround speakers to the surround speaker jacks.
• The signals from the surround channels reflect off the walls as shown on the diagram at the left, creating an enveloping and realistic surround sound presentation.

As seen from the side

For multi-channel music sources however, the use of bipolar or dipolar speakers mounted at the sides of the listening position may not be satisfactory in order to create a coherent 360 degree surround sound field. Connect another pair of direct radiating speakers as described in example (3) and place them at the rear corners of the room facing towards the prime listening position.

2. When not using surround back speakers

As seen from above

• Set the front speakers with their front surfaces as flush with the TV or monitor screen as possible. Set the center speaker between the front left and right speakers and no further from the listening position than the front speakers.
• Consult the owner's manual for your subwoofer for advice on placing the subwoofer within the listening room.
• If the surround speakers are direct-radiating (monopolar) then place them slightly behind and at an angle to the listening position and parallel to the walls at a position 60 to 90 centimeters (2 to 3 feet) above ear level at the prime listening position.

As seen from the side

Surround

The AVR-1804/884 is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater.

Dolby Surround

(1) Dolby Digital

Dolby Digital is the multi-channel digital signal format developed by Dolby Laboratories.

Dolby Digital consists of up to "5.1" channels - front left, front right, center, surround left, surround right, and an additional channel exclusively reserved for additional deep bass sound effects (the Low Frequency Effects - LFE - channel, also called the ".1" channel, containing bass frequencies of up to 120 Hz).

Unlike the analog Dolby Pro Logic format, Dolby Digital's main channels can all contain full range sound information, from the lowest bass, up to the highest frequencies - 22 kHz. The signals within each channel are distinct from the others, allowing pinpoint sound imaging, and Dolby

Digital offers tremendous dynamic range from the most powerful sound effects to the quietest, softest sounds, free from noise and distortion.

Dolby Digital and Dolby Pro Logic

Comparison of home surround systems Dolby Digital Dolby Pro Logic
No. recorded channels (elements) 5.1 ch 2 ch
No. playback channels 5.1 ch 4 ch
Playback channels (max.) L, R, C, SL, SR, SW L, R, C, S (SW - recommended)
Audio processing	Digital discrete processing Dolby Digital encoding/decoding
High frequency playback limit of surround channel	20 kHz 7 kHz

■Dolby Digital compatible media and playback methods

Marks indicating Dolby Digital compatibility: DOLBY

The following are general examples. Also refer to the player's operating instructions.

Media Dolby Digital output	jacks Playback method (reference page)
LD (VDP)	Coaxial Dolby Digital RF output jack	Set the input mode to "AUTO".(Page 36)
DVD	Optical or coaxial digital output(same as for PCM)	Set the input mode to "AUTO".(Page 36)
Others(satellite broadcasts, CATV, etc.)	Optical or coaxial digital output(same as for PCM)	Set the input mode to "AUTO".(Page 36)

1 Please use a commercially available adapter when connecting the Dolby Digital RF output jack of the LD player to the digital input jack. Please refer to the instruction manual of the adapter when making connection.
※ 2 Some DVD digital outputs have the function of switching the Dolby Digital signal output method between "bit stream" and "convert to) PCM". When playing in Dolby Digital surround on the AVR-1804/884, switch the DVD player's output mode to "bit stream". In some cases players are equipped with both "bit stream ^+ PCM" and "PCM only" digital outputs. In this case connect the "bit stream ^+ PCM" jacks to the AVR-1804/884.

(2) Dolby Pro Logic II

• Dolby Pro-Logic II is a new multi-channel playback format developed by Dolby Laboratories using feedback logic steering technology and offering improvements over conventional Dolby Pro Logic circuits.
• Dolby Pro Logic II can be used to decode not only sources recorded in Dolby Surround ( 喜 ) but also regular stereo sources into five channels (front left, front right, center, surround left and surround right) to achieve surround sound.
• Whereas with conventional Dolby Pro Logic the surround channel playback frequency band was limited, Dolby Pro Logic II offers a wider band range (20 Hz to 20 kHz or greater). In addition, the surround channels were monaural (the surround left and right channels were the same) with previous Dolby Pro Logic, but Dolby Pro Logic II they are played as stereo signals.
• Various parameters can be set according to the type of source and the contents, so it is possible to achieve optimum decoding (see page 45).

Sources recorded in Dolby Surround

These are sources in which three or more channels of surround have been recorded as two channels of signals using Dolby Surround encoding technology.

Dolby Surround is used for the sound tracks of movies recorded on DVDs, LDs and video cassettes to be played on stereo VCRs, as well as for the stereo broadcast signals of FM radio, TV, satellite broadcasts and cable TV.

Decoding these signals with Dolby Pro Logic makes it possible to achieve multi-channel surround playback. The signals can also be played on ordinary stereo equipment, in which case they provide normal stereo sound.

There are two types of DVD Dolby surround recording signals.

①2-channel PCM stereo signals

②2-channel Dolby Digital signals

When either of these signals is input to the AVR-1804/884, the surround mode is automatically set to Dolby Pro Logic II when the "DOLBY/DTS SURROUND" mode is selected.

■Sources recorded in Dolby Surround are indicated with the logo mark shown below.

Dolby Surround support mark: DOLBY SURROUND

Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

DTS Digital Surround

Digital Theater Surround (also called simply DTS) is a multi-channel digital signal format developed by Digital Theater Systems.

DTS offers the same "5.1" playback channels as Dolby Digital (front left, front right and center, surround left and surround right) as well as the stereo 2-channel mode. The signals for the different channels are fully independent, eliminating the risk of deterioration of sound quality due to interference between signals, crosstalk, etc.

DTS features a relatively higher bit rate as compared to Dolby Digital (1234 kbps for CDs and LDs, 1536 kbps for DVDs) so it operates with a relatively low compression rate. Because of this the amount of data is great, and when DTS playback is used in movie theaters, a separate CD-ROM synchronized with the film is played.

With LDs and DVDs, there is of course no need for an extra disc; the pictures and sound can be recorded simultaneously on the same disc, so the discs can be handled in the same way as discs with other formats.

There are also music CDs recorded in DTS. These CDs include 5.1-channel surround signals (compared to two channels on current CDs). They do not include picture data, but they offer surround playback on CD players that are equipped with digital outputs (PCM type digital output required).

DTS surround track playback offers the same intricate, grand sound as in a movie theater, right in your own listening room.

DTS compatible media and playback methods

Marks indicating DTS compatibility:

The following are general examples. Also refer to the player's operating instructions.

Media Dolby Digital output	jacksPlayback method (reference page)
CD	Optical or coaxial digital output(same as for PCM)	Set the input mode to “AUTO” or “DTS” (page 36).Never set the mode to “ANALOG” or “PCM”.※1
LD (VDP)	Optical or coaxial digital output(same as for PCM)	Set the input mode to “AUTO” or “DTS” (page 36).Never set the mode to “ANALOG” or “PCM”.※1
DVD	Optical or coaxial digital output(same as for PCM)	Set the input mode to “AUTO” or “DTS” (page 36).

※ 1 DTS signals are recorded in the same way on CDs and LDs as PCM signals. Because of this, the un-decoded DTS signals are output as random "hissy" noise from the CD or LD player's analog outputs. If this noise is played with the amplifier set at a very high volume, it may possibly cause damage to the speakers. To avoid this, be sure to switch the input mode to "AUTO" or "DTS" before playing CDs or LDs recorded in DTS. Also, never switch the input mode to "ANALOG" or "PCM" during playback. The same holds true when playing CDs or LDs on a DVD player or LD/DVD compatible player. For DVDs, the DTS signals are recorded in a special way so this problem does not occur.
※ 2 The signals provided at the digital outputs of a CD or LD player may undergo some sort of internal signal processing (output level adjustment, sampling frequency conversion, etc.). In this case the DTS-encoded signals may be processed erroneously, in which case they cannot be decoded by the AVR-1804/884, or may only produce noise. Before playing DTS signals for the first time, turn down the master volume to a low level, start playing the DTS disc, then check whether the DTS indicator on the AVR-1804/884 (see page 48) lights before turning up the master volume.
3 A DVD player with DTS-compatible digital output is required to play DTS DVDs. A DTS Digital Output logo is featured on the front panel of compatible DVD players. Recent DENON DVD player models feature DTS-compatible digital output - consult the player's owner's manual for information on configuring the digital output for DTS playback of DTS-encoded DVDs.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-wide patents issued and pending.

"DTS", "DTS-ES Extended Surround" and "Neo:6" are trademarks of Digital Theater Systems, Inc. ©1996, 2000 Digital Theater Systems, Inc.

All Rights Reserved.

DTS-ES Extended SurroundTM

DTS-ES Extended Surround is a new multi-channel digital signal format developed by Digital Theater Systems Inc. While offering high compatibility with the conventional DTS Digital Surround format, DTS-ES Extended Surround greatly improves the 360-degree surround impression and space expression thanks to further expanded surround signals. This format has been used professionally in movie theaters since 1999.

In addition to the 5.1 surround channels (FL, FR, C, SL, SR and LFE), DTS-ES Extended Surround also offers the SB (Surround Back, sometimes also referred to as "surround center") channel for surround playback with a total of 6.1 channels. DTS-ES Extended Surround includes two signal formats with different surround signal recording methods, as described below.

DTS-ES TM Discrete 6.1

DTS-ES Discrete 6.1 is the newest recording format. With it, all 6.1 channels (including the SB channel) are recorded independently using a digital discrete system. The main feature of this format is that because the SL, SR and SB channels are fully independent, the sound can be designed with total freedom and it is possible to achieve a sense that the acoustic images are moving about freely among the background sounds surrounding the listener from 360 degrees.

Though maximum performance is achieved when sound tracks recorded with this system are played using a DTS-ES decoder, when played with a conventional DTS decoder the SB channel signals are automatically down-mixed to the SL and SR channels, so none of the signal components are lost.

DTS-ES TM Matrix 6.1

With this format, the additional SB channel signals undergo matrix encoding and are input to the SL and SR channels beforehand. Upon playback they are decoded to the SL, SR and SB channels. The performance of the encoder used at the time of recording can be fully matched using a high precision digital matrix decoder developed by DTS, thereby achieving surround sound more faithful to the producer's sound design aims than with conventional 5.1- or 6.1-channel systems.

In addition, the bit stream format is 100% compatible with conventional DTS signals, so the effect of the Matrix 6.1 format can be achieved even with 5.1-channel signal sources. Of course it is also possible to play DTS-ES Matrix 6.1 encoded sources with a DTS 5.1-channel decoder.

When DTS-ES Discrete 6.1 or Matrix 6.1 encoded sources are decoded with a DTS-ES decoder, the format is automatically detected upon decoding and the optimum playing mode is selected. However, some Matrix 6.1 sources may be detected as having a 5.1-channel format, so the DTS-ES Matrix 6.1 mode must be set manually to play these sources.

(For instructions on selecting the surround mode, see page 48.)

The DTS-ES decoder includes another function, the DTS Neo:6 surround mode for 6.1-channel playback of digital PCM and analog signal sources.

■DTS Neo:6 ™ surround

This mode applies conventional 2-channel signals to the high precision digital matrix decoder used for DTS-ES Matrix 6.1 to achieve 6.1-channel surround playback. High precision input signal detection and matrix processing enable full band reproduction (frequency response of 20Hz to 20kHz or greater) for all 6.1 channels, and separation between the different channels is improved to the same level as that of a digital discrete system.

DTS Neo:6 surround includes two modes for selecting the optimum decoding for the signal source.

DTS Neo:6 Cinema

This mode is optimum for playing movies. Decoding is performed with emphasis on separation performance to achieve the same atmosphere with 2-channel sources as with 6.1-channel sources.

This mode is effective for playing sources recorded in conventional surround formats as well, because the in-phase component is assigned mainly to the center channel (C) and the reversed phase component to the surround (SL, SR and SB channels).

- DTS Neo:6 Music

This mode is suited mainly for playing music. The front channel (FL and FR) signals bypass the decoder and are played directly so there is no loss of sound quality, and the effect of the surround signals output from the center (C) and surround (SL, SR and SB) channels add a natural sense of expansion to the sound field.

TROUBLESHOOTING

If a problem should arise, first check the following.

1. Are the connections correct?
2. Have you operated the receiver according to the Operating Instructions?
3. Are the speakers, turntable and other components operating property?

If this unit is not operating properly, check the items listed in the table below. Should the problem persist, there may be a malfunction.

Disconnect the power immediately and contact your store of purchase.

	Symptom Cause Measures	Page
Common problems when listening to the CD, records, tapes and FM broadcasts, etc.	DISPLAY not lit and sound not produced when power switch set to on.	• Power cord not plugged in securely.	• Check the insertion of the power cord plug.• Turn the power on with the remote control unit after turning the POWER switch on.	1035
	DISPLAY lit but sound not produced.	• Speaker cords not securely connected.• Improper position of the audio function button.• Volume control set to minimum.• MUTING is on.• Digital signals not input Digital input selected.	• Connect securely.• Set to a suitable position.• Turn volume up to suitable level.• Switch off MUTING.• Input digital signals or select input jacks to which digital signals are being input.	17, 1836373936
	DISPLAY not lit and power indicator is flashing rapidly.	• Speaker terminals are short-circuited.• Block the ventilation holes of the set.• The unit is operating at continuous high power conditions and/or inadequate ventilation.	• Switch power off, connect speakers properly, then switch power back on.• Turn off the set's power, then ventilate it well to cool it down.Once the set is cooled down, turn the power back on.• Turn off the set's power, then ventilate it well to cool it down.Once the set is cooled down, turn the power back on.	17, 1810, 1710, 17
	Sound produced only from one channel.	• Incomplete connection of speaker cords.• Incomplete connection of input/output cords.	• Connect securely.• Connect securely.	17, 1810~18
	Positions of instruments reversed during stereo playback.	• Reverse connections of left and right speakers or left and right input/output cords.	• Check left and right connections. 18
When playing records	Humming noise produced when record is playing.	• Ground wire of turntable not connected properly.• Incomplete PHONO jack connection.• TV or radio transmission antenna nearby.	• Connect securely.• Connect securely.• Contact your store of purchase.	1010-
	Howling noise produced when volume is high.	• Turntable and speaker systems too close together.• Floor is unstable and vibrates easily.	• Separate as much as possible.• Use cushions to absorb speaker vibrations transmitted by floor. If turntable is not equipped with insulators, use audio insulators (commonly available).	- -
	Sound is distorted.	• Stylus pressure too weak.• Dust or dirt on stylus.• Cartridge defective.	• Apply proper stylus pressure.• Check stylus.• Replace cartridge.	- -
	Volume is weak.	• MC cartridge being used.	• Replace with MM cartridge or use a head amplifier or step-up transformer.	10
Remote control unit	This unit does not operate properly when remote control unit is used.	• Batteries dead.• Remote control unit too far from this unit.• Obstacle between this unit and remote control unit.• Different button is being pressed.• ⊕ and Θ ends of battery inserted in reverse.	• Replace with new batteries.• Move closer.• Remove obstacle.• Press the proper button.• Insert batteries properly.	19191919-19

SPECIFICATIONS

Audio section

• Power amplifier

Rated output:

Front: 90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)

125 W + 125 W (6 Ω/ohms, 1 kHz with 0.7% T.H.D.)

Center: 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)

125 W (6 Ω/ohms, 1 kHz with 0.7% T.H.D.)

Surround: 90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)

125 W + 125 W (6 Ω/ohms, 1 kHz with 0.7% T.H.D.)

Surround Back: 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)

125 W (6 Ω/ohms, 1 kHz with 0.7% T.H.D.)

120 W × 2 ch (8 Ω/ohms)

170 W x 2 ch (4 Ω/ohms)

200 W x 2 ch (2 Ω/ohms)

Front, Surr. Back: A (I) or B (II) 6 ~ 16 Ω/ohms

A (I) + B (II) 12 ~ 16 Ω/ohms

Center, Surround: 6 ~ 16 Ω/ohms

Dynamic power:

Analog

Input sensitivity / input impedance:

Frequency response:

S/N:

Distortion:

Rated output: 1.2V

• Phono equalizer (PHONO input - REC OUT)

Input sensitivity:

RIAA deviation:

Signal-to-noise ratio:

Rated output / Maximum output:

Distortion factor:

200 mV / 47 kΩ/kohms

10 Hz ~ 100 kHz: +1, -3 dB (DIRECT mode)

100 dB (IHF-A weighted) (DIRECT mode)

0.008% (20 Hz ~ 20 kHz) (DIRECT mode)

2.5mV

± 1 dB (20 Hz to 20 kHz)

74 dB (A weighting, with 5 mV input)

150mV/7V

0.03% (1 kHz, 3 V)

Video section

• Standard video jacks

Input / output level and impedance:

Frequency response:

S-video jacks

Input / output level and impedance:

1 Vp-p, 75 Ω/ohms

5 Hz ~ 10 MHz — +1, -3 dB

Y (brightness) signal — 1 Vp-p, 75 Ω/ohms

C (color) signal — 0.286 Vp-p, 75 Ω/ohms

5 Hz ~ 10 MHz — +1, -3 dB

Frequency response:

Color component video jacks

Input / output level and impedance:

Y (brightness) signal — 1 Vp-p, 75 Ω/ohms

P/B/C8(blue) signal 0.7 Vp-p, 75 Ω/ohms

[FM] (note: V at 75 Ω/ohms, 0 dBf=1 x 10-5 W) [AM]

87.50 MHz ~ 107.90 MHz

1.0 V (11.2 dBf)

MONO 1.6 V (15.3 dBf)

STEREO 23 V (38.5 dBf)

MONO 80 dB (IHF-A weighted)

STEREO 75 dB (IHF-A weighted)

MONO 0.15% (1kHz)

STEREO 0.3% (1kHz)

[AM]

520 kHz ~ 1710 kHz

18 μV

Receiving Range:

Usable Sensitivity:

50 dB Quieting Sensitivity:

S/N (IHFA):

Total Harmonic Distortion (at 1 kHz):

AC 120V,60Hz

4.5A

1 W Max. (Standby)

434 (W) x 171 (H) x 417 (D) mm (17-3/32" x 6-47/64" x 16-27/64")

11.9 kg (26 lbs 4 oz)

■General

Power supply:

Power consumption:

R6P/AA Type (three batteries)

55(W)×225(H)×34.5(D)mm(2-11/64"×8-55/64"×1-9/64")

165 g (Approx. 5.8 oz) (including batteries)

Remote control unit (RC-939)

Batteries:

External dimensions:

Weight:

• For purposes of improvement, specifications and design are subject to change without notice.

FRANCAIS

INTRODUCTION

③Refermerle couvercle.

REMARQUES:

Speaker Configuration

1 Front Sp. Large 2 Center Sp. Small 3 Surround Sp. Small 4 S. Back Sp. Small 5 Subwoofer Yes

3

7 Crossover Frequency

120Hz

7 Crossover Frequency

80Hz

22 Auto Surround Mode

ON OFF

2 CH SELECT ENTER

24 Power Amp Assignment

S. BACK ZONE 2

2

(Remote control unit)

Affichage

Tone Defeat Bass Treble SB CH OUT Default

ON 0dB

0dB ON : OFF Yes

DTS Digital Surround

Ambiance Etendue DTS-ES™ (DTS-ES Extended Surround™)

Matrice DTS-ESTM 6.1 (DTS-ESTM Matrix 6.1)

Centre: 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)

Ambiance: 90 W + 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)

Ambiance arriere: 90 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08% T.H.D.)

Centre, Ambiance: 6~16 Ω/ohms

Bornes de sortie:

• Analogique

• Prises video standard

Citizen 006,007,087,088,089,090,095

Craig 007,087,088,091,115

Curtis Mathes 006,049,073,080,087,090,092

Cybermex 087

Daewoo 025,055,059,074,089,093,095, 096

Daytron 025,055

DBX005,085

Dumont 053

Dynatech 009

Electrohome 001,088,097

Electrophonic 088

Emerson 001,009,017,027,086,088,089, 092,093,097,100,101,102,103, 104,117

Fisher 009, 028, 031, 053, 054, 091, 099, 115

GE 007,011,049,050,051,052,073 080,087

Go Video 047,048

Goldstar 000,006,012,062,088

Gradient 094

Grundig 042

Harley Davidson 094

Harman Kardon 040,062

Hi-Q 091

Hitachi 009, 013, 023, 026, 058, *[108], 109, 110, 111

JC Penny 004,005,007,023,028,049,062, 085,087,088

Jensen 013,026

JVC004，005,006,026,029,043,044 045,046,085

Kenwood 004,005,006,026,029,033,045 085,090

Kodak 088

Lloyd 009, 094

LXI 088

Magnavox 015, 016, 042, 049, 063, 106

Magnin 087

Marantz 004,005,006,015,042,049,085 090

Marta 088

MEI 049

Memorex 009,033,049,053,060,081,087 088,091,094,115

Metz 123, 124, 125, 126, 127, 128

MGA 001,017,027,041,097

MGN Technology 087

Midland 011

Minolta 013, 023
Mitsubishi 001, 003, 008, 013, 014, 017, 027, 029, 039, 040, 041, 045, 097
Motorola 081
Montgomery Ward	001, 002, 007, 009, 049, 063, 081, 115, 117
MTC 009, 087, 094
Multitech 007, 009, 011, 087, 090, 094
NAD 038
NEC 004, 005, 006, 018, 026, 029, 045, 061, 062, 085
Nikko 088
Noblex 087
Optimus 081, 088
Optonica 021
Panasonic 024, 049, 064, 066, 067, 068, 069, 107
Perdio 009
Pentax 009, 013, 023, 058, 090
Philco 015, 016, 049
Philips 015, 021, 042, 049, 105
Pilot 088
Pioneer	005, 013, 029, 036, 037, 038, 045, 085
Portland	025, 055, 090
Proscan	063, 080
Pulsar	060
Quartz	033
Quasar	034, 035, 049
Radio Shack	001, 002, 021, 081, 087, 088, 091, 094, 097, 098, 115
Radix	088
Randex 088
RCA 007, 013, 019, 023, 058, 063, 064, 065, 073, 080, 082, 087
Realistic	009, 021, 031, 033, 049, 053, 081, 087, 088, 091, 094, 097, 098
Ricoh 055
Salora	033, 041
Samsung	007, 011, 051, 059, 070, 083, 087, 089, 113
Sanky 081
Sansui	005, 026, 029, 045, 061, 085, 114
Sanyo	032, 033, 053, 087, 091, 115, 116
SBR 042
Scott	017, 020, 086, 089, 093, 117
Sears 013, 023, 028, 031, 033, 053, 054, 088, 091, 098, 099, 115
Sentra 055
Sharp	001, 002, 021, 097

Shogun	087
Sony	075, 076, 077, 078, 079, 121, 122
STS	023
Sylvania	009, 015, 016, 017, 041, 049, 094
Symphonic	009, 094
Tandy	009
Tashiko	009, 088
Tatung	004, 026, 030
Teac 004, 009, 026, 094
Technics 024, 049
Teknika	009, 010, 022, 049, 088, 094
TMK 087, 092
Toshiba 013, 017, 020, 041, 059, 089, 098, 099, 117
Totevision	007, 087, 088
Unirech	087
Vector Research	005, 062, 085, 089, 090
Victor	005, 045, 046, 085
Video Concepts	005, 027, 085, 089, 090
Videosonic	007, 087
Wards 013, 021, 023, 087, 088, 089, 091, 094, 097, 118, 119, 120
XR-1000	094
Yamaha	004, 005, 006, 026, 062, 085
Zenith	060, 078, 079

TV

Admiral	045, 121
Adventure	122
Aiko 054
Akai	016, 027, 046
Alleron 062
A-Mark	007
Amtron 061
Anam	006, 007, 036
Anam National	061, 147
AOC 003, 007, 033, 038, 039, 047, 048, 049, 133
Archer	007
Audiovox	007, 061
Bauer	155
Belcor 047
Bell & Howell	045, 118
Bradford 061
Brockwood	003, 047
Candle 003, 030, 031, 032, 038, 047, 049, 050, 122
Capehart 003
Celebrity	046

Circuit City 003

Citizen 029, 030, 031, 032, 034, 038, 047, 049, 050, 054, 061, 095, 122, 123

Concerto 031, 047, 049

Fisher 014,021,063,064,065,118

Formenti 155

Fortress 012

Fujitsu 004, 062

Funai 004, 062

Futuretech 004

GE 020,036,037,040,044,058,066, 088,119,120,125,147

Goldstar 000, 015, 029, 031, 039, 048, 051, 056, 057, 067, 068, 069, 116

Grundy 062

Hitachi 029,031,051,052,070,111,112 113,124,*[134]

Hitachi Pay TV 151

Infinity 017, 071

Janeil 122

JBL 017,071

JC Penny 020,034,039,040,041,044,048, 050,058,066,069,076,088,090, 095,125,136,159

JCB 046

JVC 019,051,052,072,073,091,117 126

Kawasho 018, 046

Kenwood 038,056,057

Kloss 010, 032

Kloss Novabeam 005,122,127,131

KTV 074,123

Loewe 071

Logik 144

Luxman 031

LXI 008,014,017,024,040,044,063 071,075,076,077,118,125

Magnavox 005, 010, 017, 030, 033, 038, 050, 056, 071, 078, 079, 085, 089, 108, 109, 110, 127, 131, 132, 145

Marantz 015,017,071,080

Matsui 027

Memorex 014,027,045,083,118,144

Metz 160, 161, 162, 163

MGA 001,039,048,056,057,058,065 081,083

Midland 125

Minutz 066

Mitsubishi 001, 016, 039, 048, 056, 057, 058, 065, 081, 082, 083, 105

Montgomery Ward 011, 020, 144, 145, 146

Motorola 121, 147

MTC 031,034,039,048,095

NAD 008,075,076,128

National 002,036,061,147

National Quenties 002

NEC 031,038,039,048,057,084,086 135,147

Nikko 054

NTC 054

Optimus 128

Optonica 011, 012, 093, 121

Orion 004,139

Panasonic 002,009,017,036,037,071,141 143,147

Philco 005,010,030,050,051,056,079 085,127,131,132,145,147

Philips 005,015,017,050,051,056,078 087,088,089,131,132,147

Pioneer 124,128,142

Portland 054

Price Club 095

Proscan 040,044,125

Proton 035, 051, 092, 129

Pulsar 042

Quasar 036,037,074,141

Radio Shack 011,044,063,093,118

RCA 040,044,125,130,137,151,152

Realistic 014, 063, 093, 118

Saisho 027

Samsung 003, 015, 034, 053, 055, 057, 094, 095, 136, 153
Sansui 139
Sanyo 013, 014, 021, 022, 063, 064, 081, 096
SBR 015
Schneider 015
Scott 062
Sears 008, 014, 021, 022, 023, 024, 025, 040, 052, 057, 062, 063, 064, 065, 073, 075, 076, 097, 098, 125, 159
Sharp 011, 012, 013, 026, 093, 099, 100, 104, 121
Siemens 013
Signature 045, 144
Simpson 050
Sony 043, 046, 138, 146, 150
Sounddesign 030, 050, 062
Spectricon 007, 033
Squareview 004
Supre-Macy 032, 122
Supreme 046
Sylvania 005, 010, 017, 030, 078, 079, 085, 089, 101, 127, 131, 132, 145, 155
Symphonic	004, 148
Tandy 012, 121
Tatung 036, 124
Technics	037
Teknika	001, 030, 032, 034, 052, 054, 078, 083, 095, 144, 156, 157
Tera	035, 129
Toshiba	008, 014, 034, 063, 075, 076, 095, 097, 136, 158, 159
Universal	020, 066, 088
Victor 019, 073, 126
Video Concepts	016
Viking	032, 122
Wards	005, 045, 066, 078, 085, 088, 089, 093, 102, 103, 131, 132, 148
Zenith	042, 114, 115, 140, 144, 149
Zonda 007
CABLE
ABC	006, * [007], 008, 009
Archer 010, 011
Century	011
Citizen	011
Colour Voice	012, 013
Comtronic	014

Eastern	015
Garrard	011
Gemini	030, 033, 034
General Instrument	030, 031, 032
Hytex	006
Jasco 011
Jerrold	009, 016, 017, 026, 032
Magnavox	018
Movie Time 019
NSC	019
Oak	000, 006, 020
Panasonic	001, 005
Philips	011, 012, 013, 018, 021
Pioneer	002, 003, 022
RCA	029
Regency 015
Samsung 014, 023
Scientific Atlanta	004, 024, 025
Signal	014
SL Marx	014
Starcom	009
Stargate	014
Teleview 014
Tocom 007, 016
TV86	019
Unika 011
United Artists	006
Universal	010, 011
Viewstar 018, 019
Zenith	027, 028
DBS (SATELLITE)
Alphastar 054
Chaparral 035, 036
Dishnet	053
Drake	037, 038
Echostar Dish	062, 066
GE	048, 055, 056
General Instruments	039, 040, 041
Grundig	070, 071, 072, 073
Hitachi	058, 059
Hughes Network	063, 064, 065, 069
JVC	057
Kathrein	074, 075, 076, 083
Magnavox	060
Nokia 070, 080, 084, 085, 086
Philips	060
Primestar	051
Proscan	048, 055, 056

RCA048,055,056,068

Realistic 042

Sierra I 036

Sierra II 036

Sierra III 036

Sony 049, 067

STS1 043

STS2 044

STS3 045

SRS4046

Technisat 077, 078, 079, 081, 082

Toshiba 047, 050

Uniden 061

CD

Denon *[111]

Aiwa 001, 035, 043

Burmster 002

Carver 003, 035

Emerson 004, 005, 006, 007

Fisher 003, 008, 009, 010

JVC 018, 019

Kenwood 011, 012, 013, 014, 017

Magnavox 006, 015, 035

Marantz 016,028,035

MCS 016, 024

Onkyo 025, 027

Optimus 017,020,021,022,023

Philips 014, 032, 033, 035

Pioneer 006, 022, 030

Sears 006

Sony 023, 031

Teac 002, 009, 028

Technics 016,029,036

Wards 035, 037

Yamaha 038,039,040,041

Zenith 042

CDR

Denon *[111], 112

Philips 112

MD

Denon 113

Kenwood 003,004

Onkyo 007

Sharp 005

Sony 006

TAPE

Denon *[111]

Aiwa 001, 002

Carver 002

Harman/Kardon 002,003

JVC 004, 005

Kenwood 006

Magnavox 002

Marantz 002

Onkyo 016, 018

Optimus 007, 008

Panasonic 012

Philips 002

Pioneer 007, 008, 009

Sony 013, 014, 015

Technics 012

Victor 004

Wards 007

Yamaha 010,011
