USER MANUAL CD7630 Renkforce

Copyright 2009 by Conrad Electronic SE.

Legal notice

These operating instructions are a publication by Conrad Electronic SE, Klaus-Corrad-Str. 1, D-62240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopics, microfilm, or the capture in electronic data-processing systems require the prior written approval by the editor. Reprinting, at least in part, is permitted. These operating instructions represent the technical status at the time of printing. Changes in technology and equipment reserved.

Copyright 2009 by Conrad Electronic SE.

Information legales

Copyright 2009 by Conrad Electronic SE.

Colofon

Copyright 2009 by Conrad Electronic SE.

010369 01

Version 03/09

RENKFORCE

Inhaltsverzeichnis

Seite

Programm Identification (PI)

- Stationstasten 1-6 (4)

$$ F M 1 > F M 2 > F M 3 $$

Introduction 37
Control elements 38
Intended use 40
Product description 41
Explanation of symbols 41
Safety instructions 42
Mechanical installation 43

Installation position 43
Removing and attaching the front control panel 44
Installation into the radio slot 45
Removal 46

Electrical connection 47

Connecting the loudspeakers and the power supply 48
Connecting the aerial 49
Connecting the LINE outputs 50
Connecting AUX IN 50

Operation 51

General operation 51
Menu settings 53
Radio mode 56
CD mode 61
USB/memory card mode 64

Handling 64
Maintenance 65
Disposal 66
Troubleshooting 66
Specifications 68

Introduction

Dear Customer,

Thank you for purchasing this product.

This product complies with the national and European legal requirements. We kindly request the user to follow the operating instructions, to preserve this condition and to ensure safe operation!

These operating instructions relate to this product. They contain important information concerning commissioning and handling. Please bear this in mind when passing on the product to a third party. Keep these operating instructions for future reference!

All company names and product names are trademarks of the respective owner. All rights reserved.

Fon. +49 9604 / 40 88 80

Fax [phone]

e-mail: [e-mail]

Mon to Thurs 8.00am to 4.30pm

Fri 8.00am to 2.00pm

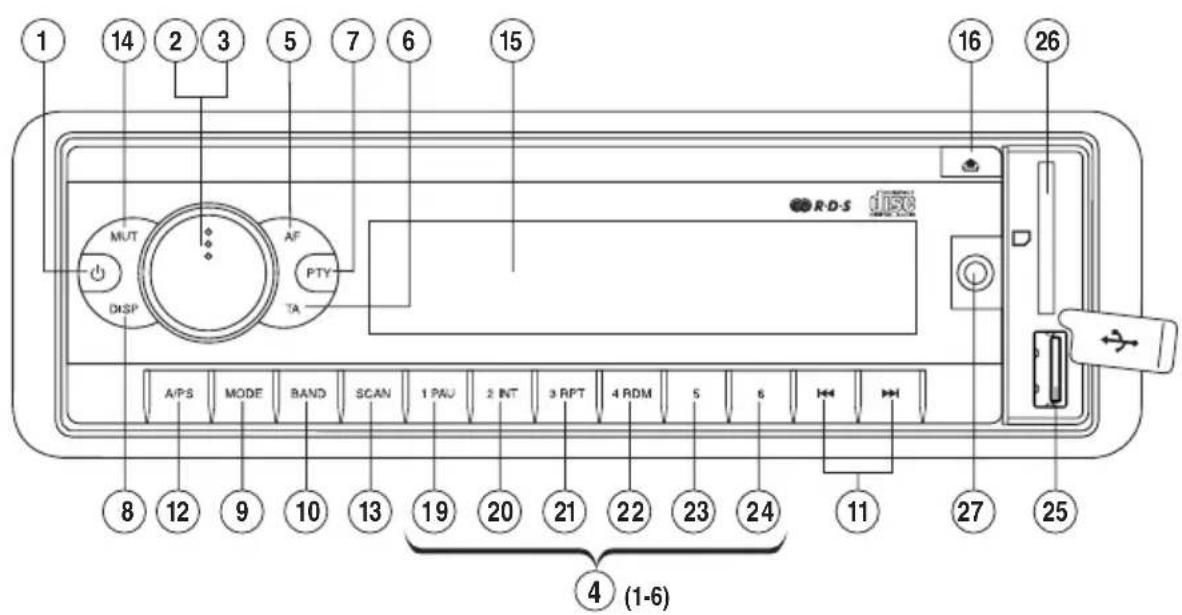

J RENKFORCE

(1) button
(2) SELECT button
(3)VOLUME control
(4) Station buttons 1-6
(5) AF (ALTERNATIVE FREQUENCY) button
(6) TA (TRAFFIC ANNOUNCEMENT) button
(7) PTY (PROGRAMME TYPE) button
(8)DISP (DISPLAY) button
(9) MODE button
(10) BAND button
(11) Buttons
(12) A/PS (AUTO SEEK/PROGRAMME SEEK) button
(13) SCAN button
(14) MUT (MUTE) button
(15) LC display

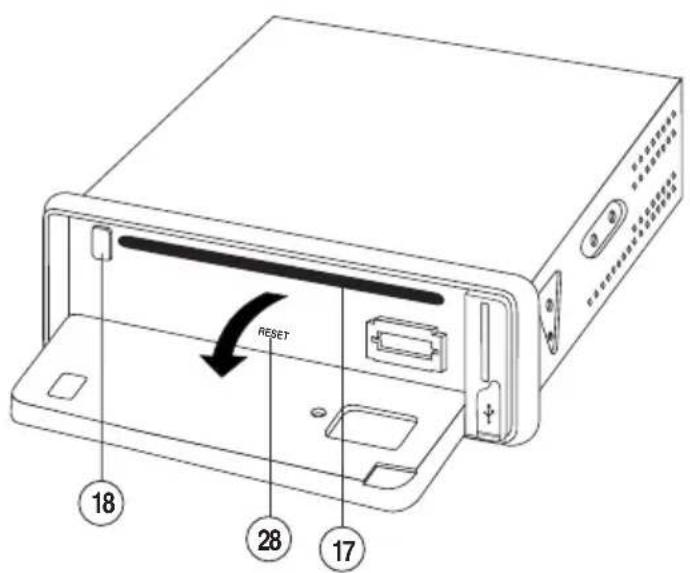

(16) button
(17) CD slot
(18) button
(19) PAU (PAUSE) button
(20) INT (INTRO) button
(21) RPT (REPEAT) button
(22) RDM (RANDOM) button
(23) Track-10 button (only for MP3 playback)
(24) Track+10 button (only for MP3 playback)
(25) USB port
(26) Memory card reader
(27) AUX IN connection
(28) RESET button

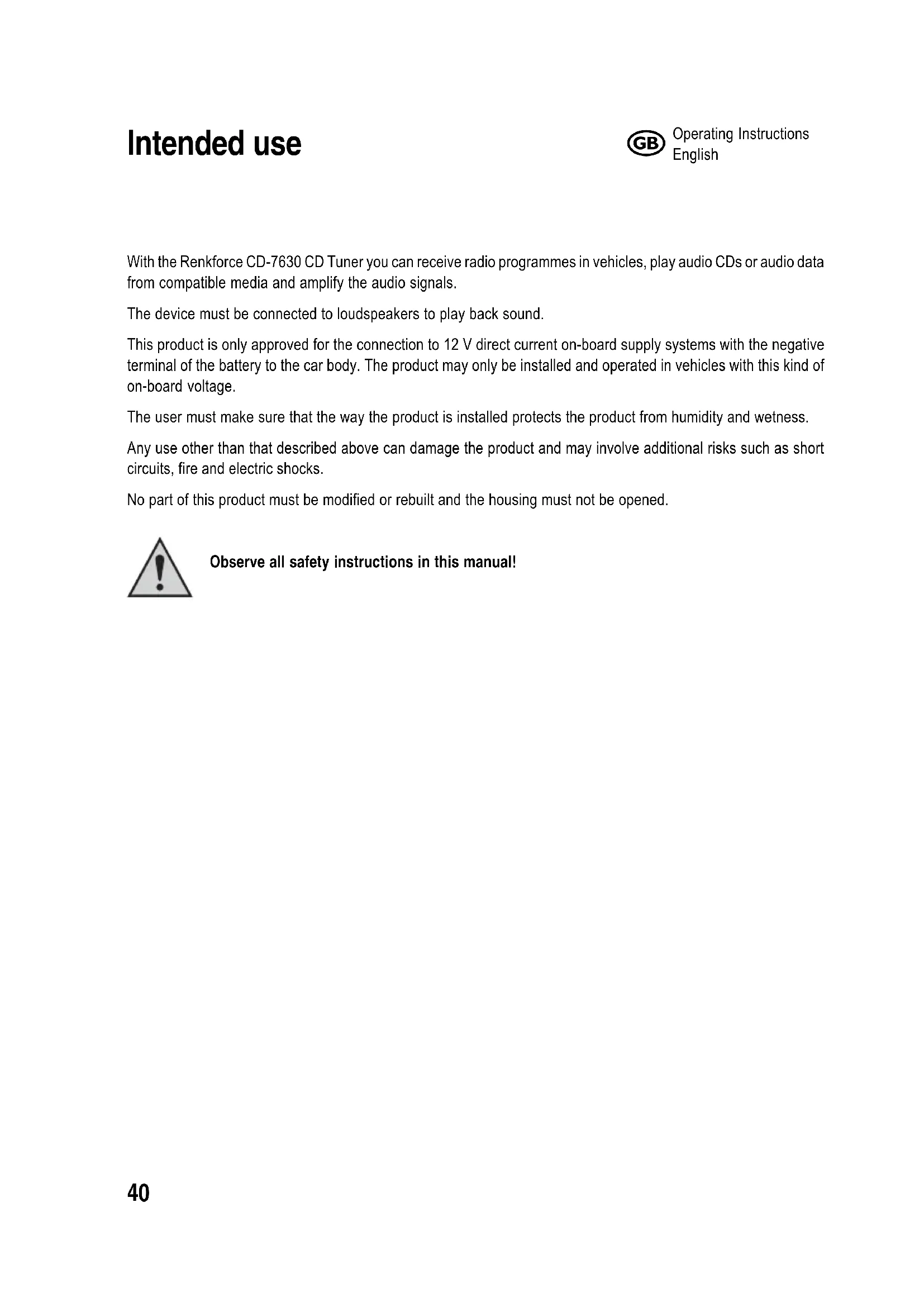

Intended use

With the Renkforce CD-7630 CD Tuner you can receive radio programmes in vehicles, play audio CDs or audio data from compatible media and amplify the audio signals.

The device must be connected to loudspeakers to play back sound.

This product is only approved for the connection to 12V direct current on-board supply systems with the negative terminal of the battery to the car body. The product may only be installed and operated in vehicles with this kind of on-board voltage.

The user must make sure that the way the product is installed protects the product from humidity and wetness.

Any use other than that described above can damage the product and may involve additional risks such as short circuits, fire and electric shocks.

No part of this product must be modified or rebuilt and the housing must not be opened.

Observe all safety instructions in this manual!

Product description

This product is equipped with a removable front control panel, an FM stereo radio unit, a USB interface, an MMC/SD card reader and a CD/CD-R/CD-RW/MP3/WMA player with the following characteristics:

High output power (4 x 40 W max.)
- Pre-amp output for the connection of a power amplifier
- Front AUX IN for the connection of external audio sources
- Electronic volume, bass, treble, fader and balance control
- Digital signal processor for adjusting the sound characteristics to various music styles
- Loudness correction
FM tuner with RDS function
- Exact electronic tuning of the stations using PLL tuner
18-station programmable memory
- Manual/automatic station search in both directions
Automatic station search and storage
- Electronic suppression of vibrations to prevent interruptions during CD playback
- Alphanumeric dot matrix display
- ID3 day display for MP3 playback
Time adjustment by RDS system
ISO terminal

Explanation of symbols

The exclamation mark symbol indicates that the user must read and observe these operating instructions before using the product.

The hand symbol indicates special tips and operating information.

The guarantee/warranty will be void if damage is incurred resulting from non-compliance with the operating instructions. We assume no liability for any consequential damage!

Nor do we assume liability for damage to property or personal injury caused by improper use or failure to observe the safety instructions. In such cases the warranty is voided!

• The unauthorized conversion and/or modification of the product is inadmissible for safety and approval reasons.
• The device may only be used with the 12 V DC vehicle power supply (with the negative terminal of the battery connected to the body of the vehicle). Never connect the device to a different power supply.
• To make sure the device is set up properly, observe these operating instructions.
• When the product is opened or the safety circuit is jumpered, invisible laser radiation may be emitted. If you do not set up the device as described in these operating instructions, you may expose yourself to hazardous radiation.
• This product is not a toy and should be kept out of the reach of children! Children cannot judge the dangers involved when handling electrical devices.
• Do not expose the device to high temperatures, dripping or splashing water, strong vibrations or high mechanical stress.
• Do not operate the device when it is unattended.
• Do not leave packing material lying around unattended. It may become a dangerous toy for children.
• Comply with the safety and operating instructions of any other devices connected to the device.
• If you are not sure about the correct connection or if questions arise which are not covered in these operating instructions, please do not hesitate to contact our technical support or another specialist.

Mechanical installation

Most vehicles are already equipped with a car radio slot. The position of the radio slot has been chosen with regard to safety aspects. Therefore, it is advisable to install the car radio in the designated slot.

The device requires a DIN installation slot with the dimensions 182 × 53 ~mm . These dimensions are standardized and usually the vehicle manufacturers keep to them.

If your vehicle is not equipped with a radio slot, please ask your car dealer about the correct place of installation for your car radio.

Please choose the place of installation carefully so that the device neither influences the driver's activity nor distracts him/her from traffic.

Only use the provided installation material to guarantee a safe installation.

Any changes to the vehicle that become necessary for the installation of the CD tuner or other components must be carried out so that neither the roadworthiness nor the stability of the car are affected. With many cars, the operating licence will lapse if a part of sheet metal is cut out.

Since the device produces heat during operation, the place of installation must be heat-resistant.

Before drilling attachment holes, make sure that no electric cables, brake lines, the fuel tank or similar are damaged.

When you use tools to install your car hi-fi components, observe the manufacturer's safety instructions.

When installing the car hi-fi system, take into consideration the risk of accident which can arise from devices being torn away in the case of an accident. Therefore, fasten each part securely in a location where it will not pose a risk to the passengers.

Before you install the device, check the depth of the designated installation slot.

Installation position

The angle of installation to the horizontal must be smaller than 30^ . If the device is tilted too much, CDs might not be played back properly.

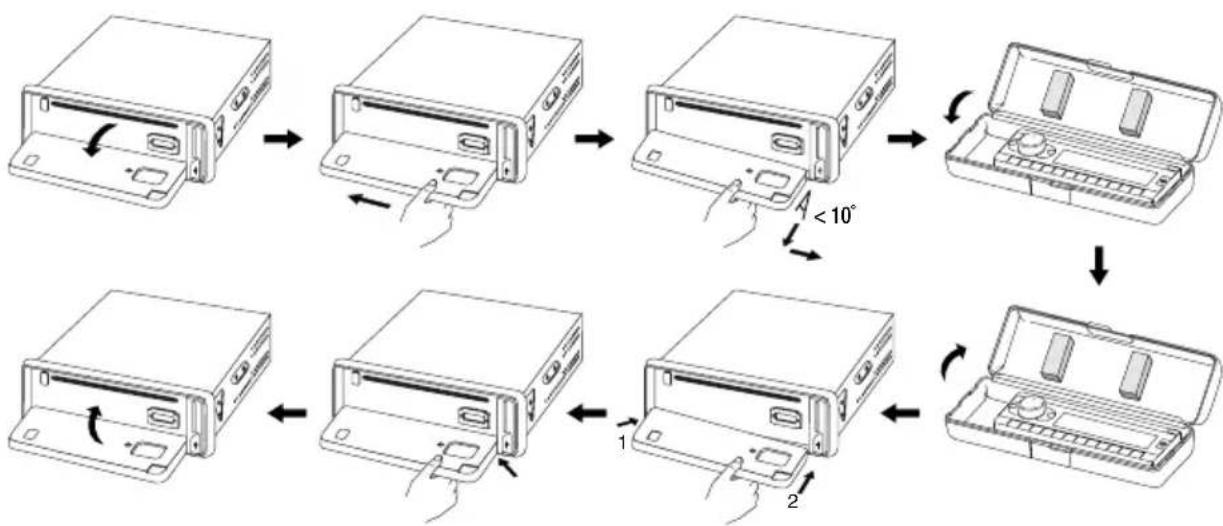

Removing and attaching the front control panel

The front control panel can be removed to prevent theft.

Before you remove the front control panel, press the button (1) to switch off the device.
- Press the button (15) and open the front control panel.
- Push the front control panel to the left to unlatch it from the bracket on the right.
- Remove the front control panel and put it into the provided protective sleeve.
- To attach the front control panel, hold the left side into the bracket as illustrated below (step 1) and push it to the left.
- Let the right side of the front control panel snap in (step 2).
- Tilt up the front control panel until it snaps in.
- Do not press on the display or the buttons.

Make sure you attach the front control panel the right way.

Do not press the front control panel too much against the unit. You can easily attach it by gently pushing it against the device.

When you take along the front control panel, put it into the provided protective sleeve.

Installation into the radio slot

• Remove the front control panel.
• Carefully remove the plastic frame from the front of the device by bending it slightly outwards and pulling it off the device.

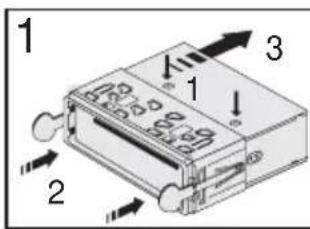

• Remove the two safety screws of the CD drive (ill. 1, pos. 1).
• Unlock the installation frame using the two unlocking keys (ill. 1, pos. 2).
• Remove the installation frame by pulling it towards the back of the device (ill. 1, pos. 3).
• Insert the installation frame into the radio slot (ill. 2).
• Bend down some clips of the installation frame until the frame is securely fastened in the slot (ill. 3).
• When you have set up all the electrical connections (see „Electrical connection”), insert the device into the installation frame until it snaps in (ill. 4).
• Re-attach the plastic frame of the front control panel to the device.

Keep the two unlocking keys. You will need them for future removal of the device.

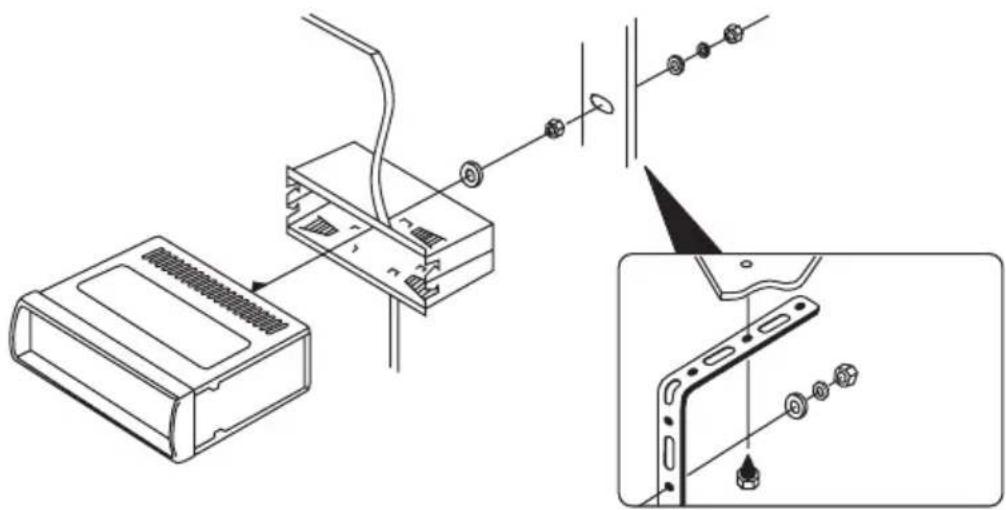

Protect the device against vibrations using the bolt at the back of the unit.

Most vehicles are already equipped with such a safety fastening. If this is not the case in your car, fasten the device with the provided punched metal strip.

To fasten the device, proceed as illustrated below:

Removal

• Remove the front control panel.
• Carefully remove the plastic frame from the front of the device by bending it slightly outwards and pulling it off the device.
• Insert the two unlocking keys into the lateral slots between the device and the installation frame until the device is unlocked.
• Remove the fastening screw at the back of the device.
• Carefully pull the car radio out of the installation frame with the unlocking keys.
• Disconnect the ISO plug, the aerial plug and the LINE connections.

Electrical connection

The electrical connection should be done by a specialist.

To avoid short-circuits and resulting damage to the device, the negative terminal (earth) of the vehicle battery must be disconnected during installation.

Only re-connect the negative terminal of the battery when the device is fully connected and after you have checked the connection.

You should only use a voltmeter or a diode test lamp for checking the voltage on the on-board cables as normal test lamps consume excessive currents and can thus damage the electrical system of the vehicle.

When installing the cables, make sure that they are not squeezed or worn by sharp edges. Use rubber grommets at cable feedthroughs.

The loudspeakers must be connected using two-core cables. Insulate the bare wires at the connecting terminals. Make sure no cables are damaged by sharp edges.

Only use loudspeakers with sufficient capacity (see „Specifications“).

Make sure that all loudspeakers have the correct polarity, i.e. the plus and minus signs must match.

Usually, the connecting cables of the loudspeakers are coded: Some loudspeaker manufacturers indicate the (+) wire by means of an additional colour stripe, others use a corrugated cable for the (+) terminal and a smooth one for the (-) terminal.

The device has been designed for loudspeaker impedances of at least 4 ohms. Never connect loudspeakers with lower impedance.

In most vehicles, the cables for the electrical connection and for the connection to the loudspeakers have been laid directly to the radio slot.

If this is not the case, make sure that any cables laid later are secured by the respective on-board fuses (see vehicle operating instructions).

Connecting the loudspeakers and the power supply

The CD tuner has an ISO system plug.

Vehicles equipped with such a system plug can be connected directly to the device if the pin assignment is the same (please check before connection). If the assignments are different, you need to connect the device using an adapter.

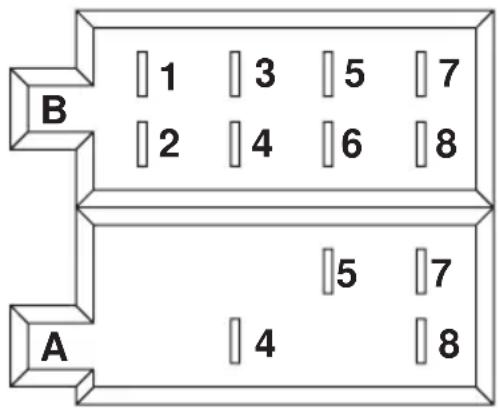

Please see the following illustrations for the contact assignment of the CD tuner socket.

Ask your car dealer for the assignment of your vehicle system plug.

System plug B (loudspeaker connection)

(1) Loudspeaker rear right (+)
(2) Loudspeaker rear right (-)
(3) Loudspeaker front right (+)
(4) Loudspeaker front right (-)
(5) Loudspeaker front left (+)
(6) Loudspeaker front left (-)
(7) Loudspeaker rear left (+)
(8) Loudspeaker rear left (-)

System plug A (power supply)

(1) Not assigned
(2) Not assigned
(3) Not assigned
(4) Continuous current +12V
(5) Aerial control output
(6) Not assigned
(7) Ignition +12 V
(8) Earth

• The constant current +12V pin (4) must be connected to a cable that supplies 12V permanently even when the ignition is off (terminal 30 of the on-board network). This terminal serves to save the user settings, time, etc.
• The aerial control output (5) supplies a voltage of +12V when the device is switched on. This cable can be used for the power supply of an electric aerial and to provide the switch-on voltage for a vehicle amplifier.
• The ignition +12 V pin (7) must be connected to a cable that is only live with +12 V when the ignition is on (terminal 15 of the on-board network).

Do not connect this pin to continuous current; otherwise the on-board battery could be discharged when the vehicle is parked for a longer period of time.

• Connect the earth pin (8) to the vehicle body.

Adhesive techniques, which become increasingly common, or painted metal parts reduce electrical conductivity. Therefore, not every metal part is a suitable ground point.

Connecting the aerial

• Connect the aerial plug of your vehicle with the aerial socket at the back of the device (socket next to the LINE terminals).
• If the aerial plug of your vehicle does not fit, use a suitable adapter available in specialist shops.

Connecting the LINE outputs

The CD tuner has one LINE output for connecting a power amplifier.

For the connection of the RCA sockets only use suitable shielded RCA wires. The use of other cables might cause interferences.

Keep the connecting cables as short as possible.

Do not install the cables near other cables to avoid interferences.

To avoid distortions or mismatches that could damage the device, the RCA sockets must only be connected to devices equipped with the same RCA sockets. Also note the information under „Specifications".

• Connect the LINE OUT sockets at the back of the device with the inputs of a power amplifier.

Connect the red socket to the right channel.

Connect the white socket to the left channel.

Connecting AUX IN

An external audio source (e.g. portable MP3 player) can be connected to the AUX IN socket (27) to be played back by the vehicle loudspeakers.

• Connect the AUX IN socket (27) with the audio output of the external device.

Do not turn on the device before you have read and understood these operating instructions.

Check all the connections again. When you have done so, reconnect the negative terminal of the car battery.

General operation

• button (1)

Use this button to switch the device on/off. Hold down the button for some time to switch off the device.

To switch it on, you can also press any other button.

- SELECT button (2) and VOLUME control (3)

In normal mode, the VOLUME control (3) is used to set the volume. Press the SELECT button (2) once or several times to select BAS (bass control), TRE (treble control), BAL (balance control) or FAD (fader control) and then use the VOLUME control (3) to adjust the selected item.

DISP button (8)

This button allows you to display information on the LC display (15). When the button is pressed, the display is switched.

If the button is not pressed any more, the display switches back to the original information after a little while.

When an RDS station is received

Radio mode: Station name > frequency > time > programme type

CD/MP3 player mode: Track > station name > frequency > time > programme type

When a non-RDS station is received

Radio mode: Frequency > time > NO PTY

CD/MP3 player mode: Track > frequency > time > NO PTY

You can also manually set the time using the DISP (8) button.

The time is set automatically if an RDS station is received that transmits time information with the RDS data.

• Press the DISP button (8) until the time appears on the LC display (15).
• Press the DISP button (8) again and hold it down until the time starts flashing.
• Set the time by turning the VOLUME control (3):

Set the hours by turning it clockwise.

Set the minutes by turning it anti-clockwise.

• Press the DISP button (8) again to save the changes.

-MODE button (9)

Use this button to switch between the audio sources. Every time the button is pressed, the radio switches to the next source:

AUX > TUNER > S-CDP > USB DRV > MEM-CARD

If one of the sources is not active, i.e. no medium is inserted, this source will be skipped.

-MUT (14) button

This button activates the mute function.

Press this button to interrupt the current playback for a short time, for example if you want to ask someone for the way.

To de-activate the mute function, press the MUT button (14) again.

- LC Display (15)

The display (15) shows all the information regarding the current audio source (radio, CD-player etc.).

bullet (16)

Press this button to open the front control panel.

- RESET button (28)

This button resets all settings to factory settings.

Press this button in the following cases:

• when you have completed the installation
• if the device does not respond to the buttons any more
• if the display shows undefined characters

Menu settings

-SELECT button (2) and VOLUME control (3)

To activate the menu settings, hold down the SELECT button (2) for more than 2 seconds and then press the button shortly until the desired function is displayed:

Choose the options of a function by turning the VOLUME control (3).

TA SEEK/ALARM

TA SEEK: When the radio loses the traffic information, it will seek a new station with Traffic Announcement coding.

TA ALARM: When the radio cannot receive the TA code any more, it plays a warning sound.

MASK DPI/ALL

MASK DPI: The radio switches to the best-received frequency of the selected chain of radio stations automatically, only if RDS signals are transmitted there as well.

MASK ALL: The radio switches to the best-received frequency of the selected chain of radio stations, even if no RDS signals are transmitted there.

RETUNE S/L

RETUNE S: When the radio does not receive traffic announcements any more, auto search starts after 30 seconds.

RETUNE L: When the radio does not receive traffic announcements any more, auto search starts after 90 seconds.

DSP

DSP OFF: The digital signal processor is switched off.

POP M: The sound is adjusted to pop music.

ROCK M: The sound is adjusted to rock music.

CLASS M: The sound is adjusted to classical music.

FLAT M: DSP is active, but there is no sound adjustment.

LOUD ON/OFF

LOUD ON: Loudness correction is active.

LOUD OFF: Loudness correction is inactive. The sound is not changed.

At low volumes, the human ear does not perceive very low or very high sounds well. An increase in the frequency range for low volume (loudness correction) counteracts this effect and music playback sounds more natural.

MULT ON/OFF

MULT ON: Multisession CDs are played completely.

MULT OFF: Only the first session of multisession CDs is played.

• CDs you burn yourself can be recorded in several sessions (several successive burning processes).
• If the MULT OFF function is activated, only the first session of such a CD will be played.

BEEP ON/OFF

BEEP ON: Every push of a button is confirmed by an audio signal.

BEEP OFF: Sound confirmation is deactivated.

SEEK 1/2

SEEK 1: Station search stops at the next receivable station even if you keep the PREVIOUS or NEXT button (11) pressed.

SEEK 2: Station search only stops at the next receivable station if the PREVIOUS or NEXT button (11) has been released.

STEREO/MONO

STEREO: Stereo radio reception

MONO: Mono radio reception

When transmission is weak, switching to mono reduces interferences.

LOCAL/DX

LOCAL: Station search only stops at stations with good transmission.

DX: Starion search also stops at weaker stations.

VOL LAST/ADJ

VOL LAST: When the device is switched on, the volume when the device was switched off last is used.

VOL ADJ: When the device is switched on, a predefined volume is set.

Adjust the volume by pressing the SELECT button (2) again and turning the VOLUME control (3).

Radio mode

The receiving concept of RDS

The abbreviation RDS stands for Radio Data System, i.e. inaudible, additional information codes are transmitted by the VHF RDS station.

The CD-7630 CD tuner can interpret this coded information which most radio stations transmit.

The most essential data transmitted is:

• Program identification (PI)
• Traffic programme (TP)
• Traffic announcement (TA)
  -Programme service name (PS)
• Alternative frequency (AF)
  -Programme type (PTY)
• Enhanced other networks (EON)
• Clock time (CT)

Program identification (PI)

This information allows the receiver to clearly identify a station. It enables the radio to differentiate between ranges where the same programme is transmitted. When the reception gets weaker, the car radio only switches to a stronger station if it transmits the same programme identification.

Traffic programme (TP)

This signal enables the receiver to detect if a traffic news station is being received.

Traffic announcement (TA)

This signal allows the receiver to detect a traffic announcement and interrupt the current playback of a different audio source.

Program service name (PS)

This information tells the receiver what station it is receiving. The information will be shown on the radio display, e.g. BAYERN 3.

Alternative frequency (AF)

A list of alternative frequencies that transmit the same programme is transmitted. If the signal of the current station becomes too weak, the receiver uses the AF signal to determine where to look for a station with a stronger signal.

Programme type (PTY)

This code provides information about the type of the transmitted programme (e.g. sports, classical music, news etc.). Thus, the listener can look for the programme of choice more specifically.

National disaster alarm can also be announced this way. However, not all radio stations offer PTY service.

Enhanced other networks (EON)

Many chains of radio stations with various programmes only have one programme with traffic information. If EON information is transmitted, a radio equipped with an EON function switches to the traffic news station when traffic announcements are made, even if a different programme of this chain is on.

If you listen to Bayern 4 for example (no traffic announcement) and the TA button is activated, the radio will switch to Bayern 3 (with traffic announcement) for the time of a traffic announcement.

Clock time (CT)

Many stations transmit the current time in the RDS data. When the device reads that signal, it sets the built-in clock automatically.

The advantage the RDS system offers is that when you leave the transmission area, the device will automatically switch to a station with a stronger signal. However, it only switches if it detects a station with a stronger signal and the same programme.

The RDS system cannot respond to temporary signal drops as this would cause the radio to switch back and forth continuously. The listener would feel much more disturbed by this than by temporary reception difficulties.

Another advantage of the RDS system is that the station name is displayed. The station name of an RDS station is shown on the display of the car radio.

Button functions

- Station buttons 1-6 (4)

If you shortly press these buttons, you can select the stations previously stored.

If you want to store the station you are listening to, simply press the desired button for more than 1 second.

Each of the three FM band ranges (FM 1-3) has six station buttons. This means you can assign 18 station buttons.

- AF button (5)

The AF button (5) activates the alternate frequency function.

"AF" is displayed. If the reception of an RDS transmitter station gets weaker or the radio does not receive any RDS station at all, the display will start flashing. When a station has good reception, the symbol is displayed continuously.

When an RDS station is received, the name of the station is displayed.

When you leave a transmission area, the radio can only automatically switch to a better station if the AF function is activated.

Regional identification

Hold down the AF button (5) for about 2 seconds until the display shows REG ON or REG OFF. Press the AF button again to switch between these two modes. The normal display reappears automatically after a few seconds.

If the regional identification is on and the reception gets weaker, the radio will only switch to a different frequency with exactly the same program.

If the regional identification is off (REG OFF) and the reception gets weaker, the radio switches to a different transmitter station with the same regional identification.

-TA button (6)

Press the TA button (6) once shortly > TA is activated

Press the button again > TA is de-activated

If the current station is a traffic news station, the display will show "TP" (traffic programme).

When you hold down the TA button, "TA" is displayed. Now you can only receive stations with TA signals.

If a different audio source is played (e.g. a CD), the programme is set to mute during the traffic announcement.

If you listen to a radio programme at a very low volume, the volume will be automatically increased to an easily audible level. When the traffic announcement is over, the previous volume is restored.

Depending on whether you have set TA SEEK or TA ALARM (see „Menu Settings”), the radio automatically seeks a new traffic news station or plays a warning sound.

-PTY button (7)

This button activates the PTY function. You can recognize it by the PTY display.

After pressing the PTY button, the display shows the programme type you have selected and station search starts to look for a station that suits your selection (the display flashes during the search).

There are two different PTY groups (MUSIC and LANGUAGE). Select them by pressing the PTY button (7) again: PTY group MUSIC > PTY group LANGUAGE > PTY OFF

To change the programme type, press one of the station buttons 1-6 (4). The buttons are assigned to the following programme types:

Button PTY group MUSIC PTY group LANGUAGE

1 POP M, ROCK M NEWS, AFFAIRS, INFO
2 EASY M, LIGHT M SPORT, EDUCATE, DRAMA
3 CLASSICS, OTHER M CULTURE, SCIENCE, VARIOED
4 JAZZ M, COUNTRY WEATHER, FINANCE, CHILDREN
5 NATION M, OLDIES M SOCIAL, RELIGION, PHONE IN
6 FOLK M TRAVEL, LEISURE, DOCUMENT

·BAND button (10)

Use this button to select the band range of the radio unit. There are 3 FM ranges:

FM1 > FM2 > FM3

On each of the three band ranges, 6 stations can be stored on station buttons 1-6 (4).

·arle11)

With these buttons the receiving frequency can be changed to adjust stations in radio mode.

By shortly pressing a button, the frequency is changed manually step by step.

By holding down a button, you activate station search. The search will stop at the next station with a good signal.

A/PS button (12)

If you press this button shortly, the stations stored on station buttons 1-6 (4) are played for 5 seconds each. To stop this, press the button again.

When you keep the button pressed, all stations that can be received well are stored on station buttons 1-6 (4).

After this procedure, the stored stations are played for 5 seconds each, as described above.

-SCAN button (13)

This button starts station search.

When a station has been found, it is played for 5 seconds and then station search continues.

Press the button again to stop station search and to listen to the current station.

CD mode

• a#l11)

Use these buttons to select individual tracks of a CD or search for a certain section within a CD track.

The arrows on the buttons indicate the search direction (previous or next).

Only press the buttons shortly to jump to the next or previous track.

Hold down a button to search for a certain section within a track. The CD is now played faster.

CD slot (17)

Insert your CD in the CD drive to play it.

Always insert the CD with the printed side up.

bullet (18)

Press this button to eject the CD.

-PAU button (19)

Press this button to pause CD playback.

Press the button again to continue playback where it was paused.

• INT button (20)

Press this button to play each track on the CD for 10 seconds. INT ON appears on the display.

To de-activate this function, press the INT button (20) again. INT OFF appears on the display. Playback is normal again.

RPT button (21)

Press this button to repeat the current track. RPT ON appears on the display.

To de-activate this function, press the RPT button (21) again. RPT OFF appears on the display. Playback is normal again.

-RDM button (22)

Press this button for random playback. The tracks will be played in random order. RDM ON appears on the display. To de-activate this function, press the RDM button (22) again. RDM OFF appears on the display. Playback is normal again.

- Track-10 (23) and track+10 (24) buttons

Press these buttons to jump up or down by 10 tracks at once. The buttons function like the and buttons (11), but skip 10 tracks at one.

These buttons are only active in MP3 mode.

Search functions in MP3 mode

Track search

• Press the A/PS (12) button once to activate track search. TRK SCH appears on the display.
• Press the SELECT button (2), the last digit of the track display flashes.
• Select the last digit of the track display using the VOLUME control (3).
• Press the SELECT button (2), the second to last digit flashes.
• Select the other digits in the same way.
• Press the SELECT button (2).
• The selected track is played automatically.

Title search

• Press the A/PS (12) button twice to activate title search. FILE SCH appears on the display.
• Press the SELECT button (2), a directory list is displayed.
• Use the VOLUME control (3) to select the desired directory.
• Press the SELECT button (2) again. The directory is selected and the name of the first track or the next subdirectory is displayed.
• Select the desired track or the next sub-directory using the VOLUME control (3).
• Continue in the same way until the desired track is displayed.
• Press the SELECT button (2).
• The selected track is played automatically.

Alphabetical search

• Press the A/PS (12) button three times to activate alphabetical search mode. CHAR SCH appears on the display.
• Press the SELECT button (2), the letter _nA " is displayed.
• Use the VOLUME control (3) to select the desired letter.
• Hold down the SELECT button (2) for more than 2 seconds.
• All tracks starting with the selected letter are displayed.
• Use the VOLUME control (3) to select the desired track.
• Press the SELECT button (2).
• The selected track is played automatically.

USB/memory card mode

The device is equipped with a USB interface and a memory card reader for SD/MMC cards.

MP3 or WMA files stored on these media can be played.

Due to the great variety of devices with USB and SD/MMC card interfaces that sometimes have manufacturer-specific functions, we cannot guarantee that all media will be recognized and that all operational functions will be available with this device.

You cannot operate USB hard drives on the device.

SD/MMC cards with a capacity larger than 2GB and SDHC cards are not supported.

• Plug your USB storage medium into the USB port (25).
• If you use a memory card, insert it into the memory card reader (26).
• The player automatically switches to the input used and starts playback.
  See the section on CD playback on how to control USB or memory card playback.

Handling

• If the volume inside your car is too high, you will not hear acoustic warning signals. This constitutes a danger to yourself and other road users. Therefore, make sure the volume is at a suitable level.
• Inattentiveness in traffic may lead to serious accidents. Therefore, only operate the hi-fi system if the traffic situation permits this and if you are not distracted from traffic by operating the system.
• Do not listen to excessively loud music over a long period of time. This may damage your hearing.

Maintenance

Regularly check the technical safety of the CD tuner, e.g. for damage to the cables or the housing.

If it can be assumed that safe operation is no longer possible, the device must be turned off and precautions must be to be taken to ensure that it is not used unintentionally. Disconnect the on-board supply system!

It can be assumed that safe operation is no longer possible if:

the device shows visible damage
- the device does not function any more, or
- following considerable mechanical stress

Before cleaning the CD tuner or servicing it, the following safety instruction must be observed:

Live components may be exposed if the covering is opened or components are removed.

The device must be disconnected from all power sources before carrying out any servicing or repair work.

Capacitors inside the device may still carry voltage even though they have been disconnected from all voltage sources.

Only qualified specialists familiar with the hazards involved and the relevant regulations may perform repairs.

If the fuse has to be changed, make sure that only fuses of the designated type and nominal current are used (see „Specifications“).

It is inadmissible to repair fuses or bridge the fuse holder.

• When the power supply has been disconnected (disconnect ISO plug!), carefully remove the fuse from the fuse holder next to the ISO terminal.
• Replace it with a fuse of the same type.
• Only now may you re-connect the CD tuner to the on-board supply system and operate it.
• Should the fuse be triggered again, take the device to a specialised workshop for repair.

Apart from this, the device does not need any servicing. The outside should only be cleaned with a soft, dry cloth or a brush.

Never use caustic cleaning agents or chemical solutions, as the surface of the housing may be damaged.

Please dispose of the unserviceable device according to the current statutory requirements.

Troubleshooting

By purchasing the Renkforce CD-7630 CD-Tuner you have acquired a state-of-the-art product which operates reliably.

Nevertheless, problems or malfunctions may occur.

We would therefore like to describe how you can eliminate possible malfunctions:

Please observe the safety instructions!

No playback, no display, no light:

• The vehicle fuse is defective. Look up the respective fuse in the operation manual of your car. Check the fuse.
• The fuse of the device is defective. Remove the device and check the fuse.
• The positive line/earth line is loose. Remove the device and check the connections.

Playback on one speaker only:

Balance control is wrongly adjusted. Adjust balance control as described.
- The speaker connection has come loose. Remove the device and/or the speakers and check the connections.

Playback on front or on rear speakers only:

Fader control is wrongly adjusted. Adjust fader control.
- The speaker connection has come loose. Remove the device and/or the speakers and check the connections.

In radio mode hardly any stations can be received:

• The aerial is not fully extended. Pull out the aerial to its full length.
• The aerial connection has come loose. Remove the device and check the connection.
• The aerial is defective. Check the connection, earthing and the aerial itself.

Problems during radio or CD playback:

Interferences get to the device through the positive line. Install an additional noise suppression choke on the positive line. If necessary, use suppression spark plugs, distributor arms etc. to suppress interferences.

When you press a station button, you only hear a hissing sound:

• No station has been programmed. Programme the stations as described above.

Every time you switch off the device, the stored stations are lost:

• The continuous positive line is not connected or has come loose. Connect the continuous positive line as explained in the instructions or check whether the cable is connected properly. Check the fuse.

Repairs other than those described above should only be carried out by an authorised specialist.

Specifications

General

Operating voltage 12 V = (10.8 - 15.6 V=)

Power input 7 A (max.)

Fuse . Vehicle flat fuse 10 A

Output power 4 x 40 W (max.)

Loudspeaker impedance 4-8 ohms

LINE OUT 1.5 V/10 kOhms

Interfaces USB and SD/MMC card

Dimensions 188 x 58 x 193 mm

Weight 1.2 kg

FM tuner

Reception range FM 87.5 - 108.0 MHz

Frequency step 50 kHz

Sensitivity 2.8 V

Intermediate frequency 10.7 MHz

Stereo separation 30 dB

Signal-to-noise ratio 50 dB

CD player

Frequency response 20 - 20,000 Hz

Signal-to-noise ratio >60 dB

Channel separation. > 50 dB (1 kHz)

Compatible media CD/CD-R/CD-RW/MP3/WMA

Table des matieres

Page

Chere cliente, cher client,

Alternative frequencies (AF)

2 EASY M, LIGHT M SPORT, EDUCATE, DRAMA

3 CLASSICS, OTHER M CULTURE, SCIENCE, VARIOED

4 JAZZ M, COUNTRY WEATHER, FINANCE, CHILDREN

5 NATION M, OLDIES M SOCIAL, RELIGION, PHONE IN

6 FOLK M TRAVEL, LEISURE, DOCUMENT

Toets BAND (10)

$$ F M 1 > F M 2 > F M 3 $$
