BT-RSD1802K

SD-Tuner

Bedienungsanleitung

Seite 2 - 41

BT-RSD1802K

SD-Tuner

Operating Instructions

Page 42 - 81

BT-RSD1802K

Syntoniseur SD

Notice d'Emploi

Page 82 - 121

BT-RSD1802K

SD-Tuner

Gebruiksaanwijzimg

Pagina 122 - 161

Technical diagram showing a mechanical assembly with a bracket and a close-up view of hands holding a small object (no text or symbols present)

Mechanischer Einbau

J RENKFORCE

Ausbau

Diagram showing a mechanical clamp and clamping mechanism with hands operating a block (no text or symbols present)

Freisprechmikrofon

Illustration of a sewing machine needle being cut with scissors, no text or symbols present

3 D E

Diagram of a robotic arm with a gear and belt, showing movement direction (no text or symbols)

Diagram of a mechanical device with textured surface and labeled part '5' (no readable text or symbols)

6 F ① ②

Mechanischer Einbau

J RENKFORCE

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

X

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

ok

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT, TEST, ALARM

HOUR 12H / 24H

- Taste BND / A M S (1 1)

- T a s t e n D I R - ( 1 7 ) u n d D I R + ( 1 8 )

Mechanical Installation 49

Installation in the Radio Slot 50

Removal 51

Hands-Free Microphone 51

Remote Control 52

Electric Connection 54

Connecting the Aerial 55

Connecting the LINE Outputs 55

AUX IN Connection 55

Hands-Free Microphone Connection 55

Connection of the Speakers and the Power Supply 56

Inserting / Replacing the Remote Control Battery 58

Operation 59

General Operation 59

Menu Settings 62

Radio Mode 65

USB/Memory Card Operation 69

Remote Control Functions 73

Bluetooth®-Operation 74

Maintenance 76

Fuse Replacement 77

Cleaning 77

Handling 78

Troubleshooting 78

Technical Data 80

Disposal 81

Declaration of Conformity 81

Introduction

J _r RENKFORCE

Dear Customer,

Thank you for purchasing this product.

This product complies with the national and European legal requirements. We kindly request the user to follow the operating instructions, to preserve this condition and to ensure safe operation!

These operating instructions relate to this product. They contain important information concerning commissioning and handling. Please bear this in mind when passing on the product to a third party. Keep these operating instructions for future reference!

All company names and product names are trademarks of the respective owner. All rights reserved.

Fon. +49 9604 / 40 88 80

Fax [phone]

e-mail: [e-mail]

Mon to Thurs 8.00am to 4.30pm

Fri 8.00am to 2.00pm

Intended Use

With the Renkforce BT-RSD-1802K SD tuner you can receive radio programmes in vehicles and play back audio data from suitable media and amplify the audio signals received in this manner. It also serves as hands-free system for Bluetooth®-capable mobile phones.

The device must be connected to speaker.

This device is only approved for connection to 12 V direct current on-board networks with the negative pole of the battery to the car body. The device must only be installed and operated in vehicles with this kind of on-board voltage.

The user must make sure that the way the product is installed protects the product from humidity and wetness.

Any use other than that described above can damage the product and may involve additional risks such as short circuit, fire, electric shock, etc.

No part of the device must be modified or converted, and the casing must not be opened.

Observe all safety information in these operating instructions!

Symbols

The exclamation mark symbol indicates that the user must read these operating instructions before commissioning of the device, and observe them during operation.

The "Hand" symbol indicates special advice and operating information.

In case of damage caused by non-compliance with these operating instructions, the warranty/guarantee will expire. We do not assume any liability for consequential damage!

Nor do we assume any liability for damage to property or personal injury caused by improper use or failure to observe the safety information. In such cases the guarantee/warranty will expire!

• For safety reasons, any unauthorized conversions and/or modifications to the product are not permitted.
• The device must only be used with the 12 V DC vehicle power supply (with the negative terminal of the battery connected to the body of the vehicle). Never connect the device to a different power supply.
• Ensure proper commissioning of the device. Observe the operating instructions for it.
• This product is not a toy and not suitable for children. Children cannot judge the dangers involved when handling electrical devices.
• Do not expose the device to any high temperatures, dripping or splashing water, strong vibrations or heavy mechanical stress.
• Never operate the device unattended.
• Do not leave any packing material unattended. It may become a dangerous toy for children.
• Also observe the safety and operating instructions of any other devices that are connected to the device.
• If you are not sure about the correct connection or if there are any questions that are not covered by the operating instructions, do not hesitate to contact our technical support or another specialist.

Control Elements

Operating Instructions English

1 2 3 4 5 DSP TRANS TRAN DSP TA BNO AMS RENKFORCE Bluetooth® @RDS MP3 LOC MON AF TA EON REG TP PTY 0-aud LOUD EQ CLAS POP ROCK AUX IN PAIR 1 PAU 2 SCN 3 RPT 4 SHF 5 DIR- 6 DIR+ MODE 6 7 8 9 10 11 12 13 14 15 16 17 18 19

RENKFORCE 6 20 19 12 13 16 21 22 23 24 5 6 7 8 9 10 11 12 13 14 15 16 17 18 20 21 22 23 24 25 26 27 SCN RPT 3 BF SHF 5 + MON TA PTY DISP #

28 29

Control Elements

J _r RENKFORCE

(1) ▶▶ button
(2) DSP / TA / button
(3) LC display
(4) AUX IN Connection
(5) USB interface
(6) / MUT button
(7) RESET button
(8) ◀◀ button
(9) VOLUME rotary control / SELECT button
(10) Memory card reader
(11) BND / AMS / button
(12) PAU button
(13) SCN button
(14) RPT button
(15) Station buttons 1-6
(16) SHF button
(17) DIR- button
(18) DIR+ button
(19) MODE / PAIR button
(20) / BAND / LOU button
(21) AF / MON / 7 button
(22) EQ / TA / 8 button
(23) * / << button
(24) DISP / 0 button
(25) Button
(26) PTY button / 9
(27) # / >> button

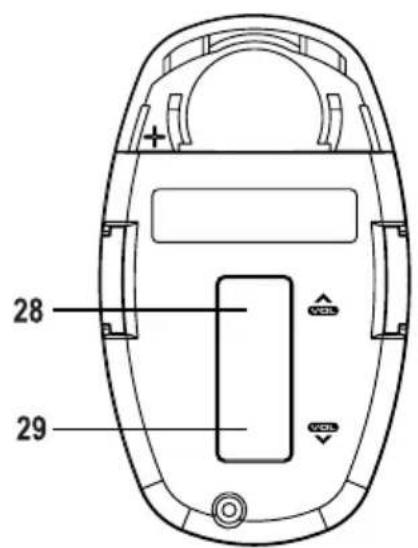

(28) VOL+ button
(29) VOL- button

Product Description

This device is equipped with the following characteristics:

• F M / A M radio unit

• U S B interface

• M M C / S D card slot

• Bluetooth® hands - free system

• Music play back via Bluetooth® i

• IR remote control with steering

• High output (4 x 40 W max.)

• Pream output for the connection

• Front AUX IN for connecting ext

• Electronic volume, bass, treble

• Digital signal processor for the adaptation of the sound characteristics to various music styles

• Loudness correction

• FM radio unit with RDS-function

• Exact electronic tuning of the

• 24 programmable station memory

• Manual / automatic station scan

• Automatic station storage

• Alphanumeric DOT-matrix disp

• ID3-day display for MP3-play back

• Time setting by means of the RD

• ISO terminal

Mechanical Installation

J _r RENKFORCE

In most vehicles the producers plan an installation cut-out for the car radio. The choice of the location depends on safety aspects. Therefore we recommend that you actually install the radio in this place.

The SD tuner requires a DIN installation cut-out with the dimensions 182 x 53 mm; these dimensions are standardized and usually the vehicle manufacturers comply with them.

Should there be no slot, please ask your car dealer about the correct place of installation for your car radio.

Please select the place of installation carefully so that the SD tuner neither influences the driver's activity nor distracts him from the traffic.

Only use the supplied installation material to guarantee a safe installation.

Any changes in the vehicle that become necessary for the installation of the SD tuner or other components must be carried out in such a way that neither traffic security nor the stability of the car are affected. With many cars, the type approval will lapse if you merely saw out a section of the sheet metal.

Since the SD tuner creates heat during operation, the place of installation must be heat-resistant.

Before drilling the attachment holes, make sure that no electric cables, brake lines, the fuel tank or similar are damaged.

When using tools to install your car hi-fi components, observe the manufacturer's safety information.

When installing the car hi-fi system, take into consideration the risk of accident which can arise from devices being torn away in the case of an accident. Therefore, you should secure every component in a place where it cannot be dangerous to passengers.

Before you install the system, check the depth of the installation recess.

Mechanical Installation

Installation in the Radio Slot

• Unlock the installation frame with the two unlocking keys (figure 1, item 1).
• Remove the installation frame towards the back of the system (figure 1, item 2).
• Insert the frame into the respective cut-out in the vehicle (figure 2).
• Bend down some clips in the installation frame until the frame is securely fastened in the recess (figure 3).
• When you have made all the electrical contacts (see "Electric Connection") insert the SD tuner into the frame until it locks in (figure 4).

Keep the two unlocking keys. You will need them for a later removal of the SD tuner.

• Protect your SD tuner from vibrations with the bolt at the back of the unit.
• In most vehicles, such a safety fastening is provided for. If this is not the case in your car, fasten the SD tuner with the enclosed punched metal strip.

For the fastening, proceed as shown in the following figure:

Technical diagram showing a mechanical assembly with labeled parts and a magnified view of the component being threaded.

Mechanical Installation

J RENKFORCE

Removal

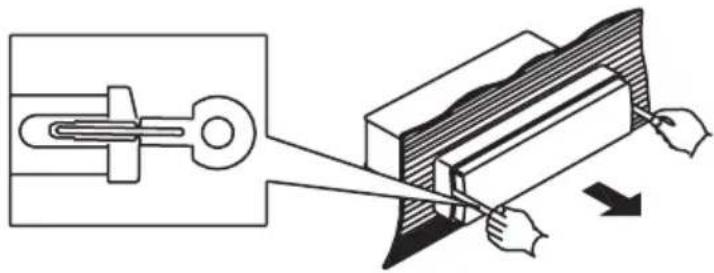

- Insert the two unlocking keys into the lateral slots in the installation frame until the device unlocks.

- Lo o s e n t h e f a s t e n i n g s c r e w a t t h

• Carefully pull out the radio with the unlocking keys from the installation frame.

- Remove all plug connections at t

Diagram showing a mechanical clamp and clamping mechanism with force arrows (no text or symbols)

Hands-Free Microphone

The microphone for the hands-free system can be attached to the sunblind, the steering column cover or any other suitable position inside the vehicle.

The microphone and connection line must never be in the airbag trigger area.

- Attach the hands-free microphone in a suitable position with the clamp.

- Place the connection line to the

Mechanical Installation

Remote Control

The remote control can be attached right to the steering wheel rim with the included steering wheel holder. The IR reception eye is located in the front cover of the SD tuner.

Steering wheel assembly:

• Align the steering wheel straig
• Open the two screws (E) of the
• Place the inner part (A) of the steering wheel holder on the inside of the steering wheel (C).
  • Pull the rubber band (B) around the steering wheel rim and hook it into the latching tabs under tension (figure 1).
• Cut off any excess rubber band
• Attach the outer part (D) of the steering wheel holder again with the two screws (E) (figure 3).

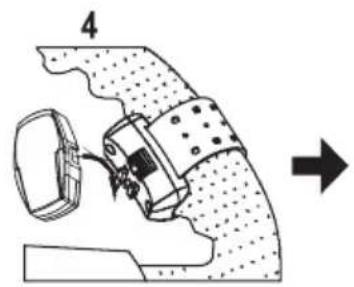

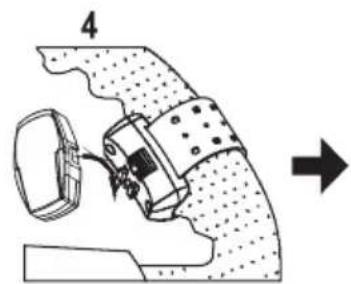

• Push the remote control onto th

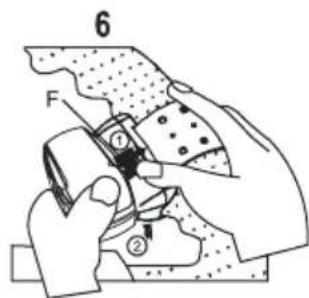

  • To remove the remote control, operate the safety lever (F) and pull the remote control from the holder (figure 6).

1 C A B

Illustration of a sewing machine needle with scissors and fabric (no text or symbols)

3 D E

Diagram of a robotic device with a curved arm and gear, showing motion direction (no text or symbols)

Diagram of a mechanical or biological structure with textured surface and labeled part '5' (no readable text or symbols)

6 F ① ②

Mechanical Installation

J RENKFORCE

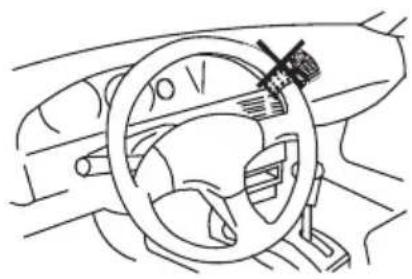

The remote control must not be placed in the airbag trigger area.

The remote control must be installed on the steering wheel so that it cannot impair the driver in steering and operating of the vehicle.

Tighten the holder's rubber band well to ensure that the remote control cannot come loose during the drive.

The remote control must be attached to the inside of the steering wheel to prevent impairment when steering.

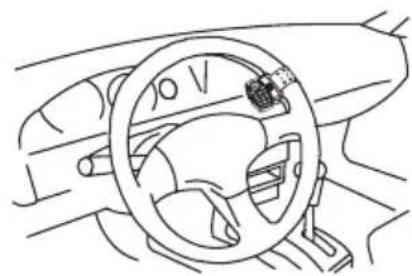

The best installation site for the remote control depends on the installation site of the SD tuner. Before final installation, try it out to ensure proper function. The IR transmitter is located on the rear of the remote control.

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

X

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

ok

The electric connection should be made by a specialist.

To avoid short circuits and resulting damage to the SD tuner, the negative pole (earth) of the vehicle battery must be disconnected during connection.

Only connect the negative pole of the battery when you have completely connected the system and checked the connections.

You should only use a voltmeter or a diode test lamp for checking the voltage on the on-board cables as normal test lamps consume excessive currents and can thus damage the electronic system of the car.

When laying the cables, make sure that they are not squeezed or scoured on sharp edges. Use rubber grommets for the feed-though points.

Connection to the speakers must be two-wire each. Insulate any open connection points. Make sure that the cables are not damaged by sharp edges.

Only use speakers with sufficient load capacity (see "Technical Data").

Observe that all speakers have the correct polarity - that is, that plus and minus marks match.

The connecting cables of the loudspeakers are usually coded: Some speaker manufacturers indicate the (+) wire by means of an additional colour stripe, others use a corrugated cable for the (+) terminal and a smooth one for the (-) terminal.

The system was designed for the operation at speaker impedances of at least 4 Ohm. Never connect speakers with a lower impedance.

In most vehicles the cables for the electric connection and the connection of the speakers have been laid directly to the slot.

If this is not the case, please make sure that any cables placed later are secured by the respective onboard fuses (see vehicle operation manual).

Connecting the Aerial

• Connect the aerial plug of your vehicle with the aerial socket at the back of the radio (socket next to the cinch terminals).
• If your vehicle has a different aerial plug, please use a suitable adapter, available in specialist shops.

Connecting the LINE Outputs

The SD tuner has LINE outputs for connecting a power amplifier.

For the connection of the cinch sockets only use the shielded cinch wires. Use of any other cables may cause interferences.

Keep the distance of the cables as short as possible.

Do not place the cables near other cables to avoid interferences in the cables.

To avoid distortions or mismatching that could damage the device, cinch connector must only be connected to devices with the suitable cinch terminals. For this, observe also the connection information in the section "Technical Data".

- Connect the cinch sockets at the rear of the casing to the power amplifier inputs.

The red socket is a terminal for the right channel

The white socket is a terminal for the left channel

AUX IN Connection

You can connect an external audio device (e.g. portable MP3 player) to the port AUX IN (4) whose signal is played back via the vehicle speakers.

- Connect the port AUX IN (4) with the audio output of the external device.

Hands-Free Microphone Connection

- Connect the plug of the hands-free microphone to the coupling of the black connection line at the back of the device.

Electric Connection

Connection of the Speakers and the Power Supply

Vehicles equipped with an ISO plug can be connected directly to the ISO connection terminal if the plug assignment is the same (please check beforehand!). If the plug assignment differs, use a vehicle-specific adapter from a vendor for connection.

Please refer to the following figures for the contact assignment of the ISO connection socket of the SD tuner.

Please ask your car dealer for the respective assignment of your vehicle system plug.

System connector B (speaker connection)

(1) Speaker rear right (+)

(2) Speaker rear right (-)

(3) Speaker front right (+)

(4) Speaker front right (-)

(5) Speaker front left (+)

(6) Speaker front left (-)

(7) Speaker rear left (+)

(8) Speaker rear left (-)

System plug A (power supply)

(1) (Not assigned)

(2) (Not assigned)

(3) (Not assigned)

(4) Continuous current +12V

(5) Aerial control output

(6) (Not assigned)

(7) Ignition +12V

(8) Ground

B 1 3 5 7 2 4 6 8 A 5 7 4 8

Electric Connection

RENKFORCE

• The constant current terminal +12V (4) must be connected to a cable that also supplies 12V permanently when the ignition is off (terminal 30 of the on-board network). This terminal serves to save the user settings, time, etc.
• The aerial control output (5) supplies a voltage of +12V when the device is switched on. This cable can be used for the power supply of an electrical aerial and for the voltage for switching on a car amplifier.
• The ignition terminal +12V (7) must be connected to a cable that is only live with +12V when the ignition is on (terminal 15 of the on-board networks).

Do not connect this terminal to continuous current, otherwise the on-board battery could be discharged when the vehicle is parked for an extended period of time.

- Connect the ground connection (8

Adhesive techniques which become ever more common and painted metal parts impair the electric conductivity. Therefore, not every metal part is a suitable earthing point.

Electric Connection

Inserting / Replacing the Remote Control Battery

Observe correct polarity when inserting the battery.

Do not leave any batteries lying around openly. There is a risk of batteries being swallowed by children or pets. If swallowed, consult a doctor immediately.

Leaking or damaged batteries may cause alkali burns if they come in contact with the skin. Therefore, use suitable protective gloves.

Do not short-circuit the battery and do not throw it into fire. It also must not be recharged. Danger of explosion.

Remove the battery when the device is not in use for extended periods of time.

• Take the remote control from th

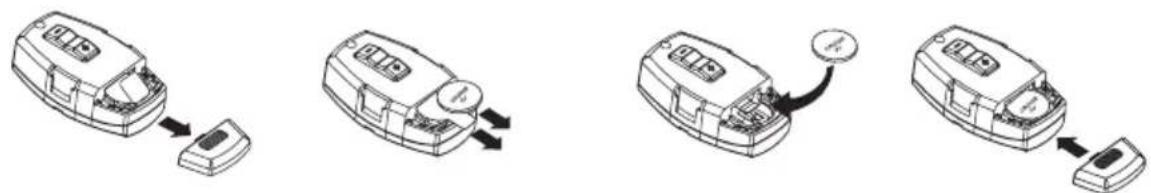

- Slide out the battery compartment cover at the back of the remote control open and remove it.
- Insert a new 3V lithium button cell battery CR2025 in the correct polarity. The positive pole of the battery must point up.
- Close the battery compartment again. The latching tab must latch audibly.
- Attach the remote control in the steering wheel holder again as described above.

• If the remote control no longer functions properly, the battery is discharged and must be replaced with a new one of the same type.
• Battery change takes place as d
• Replace the discharged battery with a new battery of the same type.

Only take the device into operation after familiarising yourself with its functions and these operating instructions.

Check all the connections again. When you have done so, reconnect the negative pole of the car battery.

General Operation

• B u t o n / MUT (6)

This button switches the radio on and off and activates muting.

Push briefly with the device switched off > device is switched on

Push briefly with the device switched on > muting is switched on or off

Keep pushed with the device switched on > device is switched off

To switch the SD tuner on, you can also push any other button on the device.

• VOLUME rotary control / SELECT

In standard operation, the VOLUME control is for setting the volume.

Push the SELECT button (2) once or several times to change the parameters BAS (bass control), TRB (treble control), BAL (balance control) and FAD (fader control), LOUD (loudness function) and DSP (digital signal processor) by turning the VOLUME control.

Loudness function:

LOUD ON: The loudness function is active.

LOUD OFF: The loudness function is inactive. The sound is not influenced.

At low volumes the human ear does not perceive very low and very high sounds well. An increase of the frequency range for low volume (loudness correction) counteracts this effect and the music replay sounds more natural.

DSP function:

FLAT Signal processor on, linear frequency response

CLASSICS Pre-settings for classical music

POP M Pre-setting for pop music

ROCK M Pre-setting for rock music

DSP OFF Signal processor off

• L C Display (3)

The LC-display (3) shows all the information, depending on the audio source that is being played (radio, SD-player etc.).

• D S P / T A b u t t o n ( 2 )

With this button various information can be displayed on the LC display (3). Press the button once more to move to the next display.

When the button is not activated anymore, the display returns to the original information after a little while.

The button can also be used to set the time manually.

Switching the display information

When an RDS station is being received:

Radio operation: Station name > Time > Program type

SD/USB operation: Track display > Time > ID3 Information > Station name > Transmission frequency > Program type

When receiving a non-RDS station:

Radio operation: Transmission frequency > Time > PTY NONE

SD/USB operation: Track display > Time > ID3 Information > Transmission frequency > PTY NONE

Setting the Time

Push the button briefly until the time is displayed.

Then hold the button pushed until the time display flashes.

Use the button ▶▶ (1) to set the minutes and the button ◀◀ (8) to set the hours.

• M O D E / P A I R b u t t o n ( 1 9 )

With this you can select various audio sources.

Briefly push this button to switch to the next source:

TUNER > USB > SD-MMC > AUX

When one of the sources is not active, i.e. no medium inserted, this source will be skipped in the selection.

- RESET button (7)

This button resets all settings to factory settings.

Push this button with a pointy object (e.g. a ball point pen tip) in the following cases:

• when you have completed the installation and connection
• when the SD tuner does not react to the operation of buttons anymore
• when the display shows undefined characters

Menu Settings

• V O L U M E r o t a r y c o n t r o l / S E L E C T

To select the menu settings, please push the SELECT button a little longer (>2 seconds) and then push this button once more, but only very briefly, until the desired function appears on the display.

Choose the options for the respective settings by turning the VOLUME control.

BEEP ON / OFF

BEEP ON: Every activation of a button is confirmed by a signal sound.

BEEP OFF: The sound confirmation function is deactivated.

P-VOL

Set the activation volume of the device here by turning the VOLUME dial.

AREA EUR / USA

AREA EUR: Radio frequency band setting for Europe

FM 87.5-108 MHz / 50 kHz steps

AM 522-1620 kHz / 9 kHz-steps

AREA USA: Radio frequency band setting for USA

FM 87.5-107,9 MHz / 100 kHz steps

AM 530-1710 kHz / 10 kHz-steps

AF ON / OFF

AF ON: AF is switched on

AF OFF: AF is switched off

The AF function activates automatic station tracking (see "Radio Operation").

“AF” will be displayed. If the reception of an RDS transmitter station gets weaker or the radio does not receive and RDS station at all, the display flashes. When a station can be received well, the symbol is displayed continuously.

When you leave a transmission area, the radio can only switch to a better station when the AF function is activated (AF ON).

Operation

J _r RENKFORCE

PTY search

This is where you can specify the desired station type for the PTY search and start searching.

Use the rotary control VOLUME (9) to set the desired programme type and push one of the buttons ◀◀ (8) or ▶▶ (1) to start searching.

Now search for a station with this programme type starts. The following programme modes are available:

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT, TEST, ALARM

HOUR 12H / 24H

12H: The time is displayed in 12h format.
24H: The time is displayed in 24h format.

PCLK ON / OFF

PCLK ON: The time is displayed when the device is off.

PCLK OFF: The time is not displayed when the device is off.

CON BT / DISCON BT

This function connects and disconnects Bluetooth® devices to and from the SD tuner. For more information on this, see chapter "Bluetooth® operation":

TA SEEK / ALARM

TA SEEK: When the radio has lost the traffic information, it will seek a new station with Traffic Announcement coding.

TA ALARM: When the radio cannot receive the TA code anymore, there will be an alarm signal.

PI SOUND / MUTE

Device reaction when a transmission area is reached where 2 different stations with different programme identification are transmitting the same AF (alternative frequency):

PI SOUND: The radio switches to the new station for a few seconds and then back.

PI MUTE: The new station is muted.

Operation

RETUNE L / S

RETUNE L: When the radio does not receive traffic announcements any more, the auto-scan starts 90 seconds later.

RETUNE S: When the radio does not receive traffic announcements any more, the auto-scan starts 30 seconds later.

MASK DPI / ALL

Device reaction during channel search:

MASK DPI: Alternative frequencies with different programme information (PI) are not considered.

MASK ALL: Alternative frequencies with different programme information (PI) and alternative frequencies with a high signal strength but without RDS information are not considered.

EON TA LO / DX

Device reaction when switching to EON traffic announcements:

EON TA LO: The device only switches to EON traffic announcements when the EON transmitter signal strength is good and no interferences are to be expected.

EON TA DX: The device always switches to EON traffic announcements; signal strength is not considered.

TA VOL

In case of traffic reports and activated TA function, the pre-set volume is selected where the volume set is lower.

Set the desired volume by turning the VOLUME rotary control (9).

REG ON / OFF

REG ON: The device only switches to a different frequency with exactly the same program if the reception grows weaker.

REG OFF: When the reception grows weaker, the device switches to another transmitter with the same regional identification.

Operation

Radio Mode

Receiving concept RDS

The abbreviation RDS stands for Radio Data System, i.e. inaudible, additional information codes are transmitted by the FM RDS station.

With the BT-RSD-1802K, you have a SD tuner that is able to evaluate these coded data that are transmitted by most of the radio stations.

The following important data is transmitted:

• Program Identification (PI)
• Traffic Program (TP)
• Traffic Announcement (TA)
• Program Service (PS)
• Alternative Frequencies (AF)
• Program Type (PTY)
• EON Information (enhanced other networks)
• Clock time (CT)

Program Identification (PI)

This information helps the receiver to identify a station. It enables the radio to differentiate between areas where the same programme is transmitted. The car radio only switches to a stronger station when the reception grows weaker if the stronger station transmits the same programme identification.

Traffic Programme (TP)

This signal enables the receiver to detect that a station with a traffic programme is being received.

Traffic Announcement (TA)

With this signal the receiver can detect a traffic announcement and interrupt the current playback of a different audio source.

Program Service (PS)

This information tells the receiver which station it is receiving. It is directly played back in the display of the car radio, e.g. BAYERN 3.

Alternative Frequencies (AF)

A list of alternative frequencies that send the same programme is transmitted. If the transmitter station currently received becomes too weak, the receiver detects from the AF signal on which frequencies it must search for a better station.

Program Type (PTY)

This code gives the receiver information on the type of the transmitted programme (e.g. sports, classic, news etc.). The listener can select his favourite programme more directly.

A national disaster alarm can also be sent this way. However, not all the radio stations offer the PTY service.

EON Information (EON)

Many radio station chains with various programmes only have one programme with traffic information. If EON information is transmitted, a radio equipped with an EON function switches to the Traffic Announcement station whenever such announcements are made, even if a different programme of this chain is being played.

If you listen to BR Klassik (no traffic announcement) and the TA function is activated, the radio will switch to Bayern 3 (with traffic announcements) for the time of a traffic announcement.

Clock time (CT)

Many stations transmit the current time in the RDS data. If a radio receives this signal, it sets the in-built clock automatically.

Therefore, when you leave the transmission area, the RDS system has the advantage that it switches to a similar transmitter station that can be better received. However, it only changes when it finds a better station with the same programme.

Short signal attenuations due to the reception cannot be eliminated by the RDS system either, since this would mean that the car radios permanently switches back and forth. The listener would feel much more disturbed by this than by short-term reception problems.

Another advantage of the RDS system is that the station name is displayed. The station name of an RDS station is displayed in the car radio.

Button functions

• B N D / A M S b u t t o n ( 1 1 )

Briefly push this button to select the band range of the radio unit.

There are 3 FM areas and one AM area available:

$$ F 1 > F 2 > F 3 > A M $$

On each of the four band ranges, 6 stations can be stored on the station buttons 1-6 (15).

Keep this button pushed to activate automatic station search. SEARCH flashes in the display.

All stations that can be received well are automatically stored for the station buttons 1-6 (15).

After this procedure, the stored stations are played for a few seconds.

• ◀◀(8) and ▶▶(1) buttons

With these buttons the receiving frequency can be changed to adjust stations in radio operation.

Briefly pushing a button starts the automatic station search (display shows SEARCH).

The auto-scan only stops at the next station that can be received well.

By pushing a button longer, you activate manual station scan.

The display shows MANUAL.

In this mode, the frequency is changed until you release the corresponding button again. Brief pushes of this button changes the frequency step by step.

If buttons are not pushed for an extended period of time, the devices switches back to automatic station search. The display shows AUTO.

Operation

- Station button 1 - 6 (15)

If you briefly push these buttons, you can select a station you have pre-set.

If you want to store a station you are listening to, simply push the desired button for more than 1 second.

Every one of the three FM ranges (F1-3) and the AM reception range (MW) has six station buttons. Therefore you can assign 24 station buttons.

• D S P / T A b u t t o n ( 2 )

Keep this button pushed to switch the TA function on or off.

When you receive a traffic programme station, the display shows TP (traffic programme).

When you keep the TA button pushed, TA appears in the display as well.

If a different source is being played (e.g. SD playback), the programme is set to mute during the traffic announcement.

If you listen to a current radio programme at very low volume, volume will automatically turn up for the traffic report.

USB/Memory Card Operation

The SD tuner is equipped with a USB interface and a memory card reader for SD/MMC cards.

MP3 files stored on these media can be played.

Do not connect any MP3-player to the USB interface if it is battery-operated.

The USB interface power supply may load the inserted batteries and cause overheating or explosion of a battery.

USB media up to 32 GB and a power intake of up to max. 500 mA can be connected to the USB interface.

Only USB storage media can be operated at the USB socket. MP3 players with a USB port usually switch into PC mode when this port is connected. In this mode, music files cannot be played. However, you may connect the audio output of your MP3 player to the AUX IN (4).

Supports SD/MMC-cards and SDHC-cards up to 16 GB.

The media must be formatted in FAT 16 or FAT 32.

Due to the great variety of systems with USB and SD/MMC card interfaces and their different functions that are sometimes producer-specific, we cannot guarantee that all media will be recognized and that all the operational functions are available in this SD tuner.

If the storage medium is not recognised, remove it and insert it again.

- Connect your USB storage medium

- If you use a memory card, insert

- The player switches to the respective input automatically and starts playback.

• The last inserted medium is sell

• ◀◀(8) and ▶▶(1) buttons

With these buttons you can select individual tracks or search for a specific section within one track.

The arrows on the buttons indicate the search direction (forward or back).

Only push the buttons briefly to jump to the next or previous track.

Push the buttons longer to search a certain section within one track. Playback is accelerated in this case.

• DIR - (17) and DIR + (18) button

These buttons serve to select the folders on the storage medium.

DIR- (17) selects the previous folder.

DIR+ (18) selects the next folder.

If no folder structure is present on the storage medium, these buttons have no function.

- P A U button (12)

Push this button to interrupt the playback briefly.

When you confirm the button again, playback will begin at the point where it was interrupted.

• S C N button (13)

Push this button briefly to play each track approx. for 10 seconds (display S-SCN).

Keep this button pushed to play the tracks of the current folder for approx. 10 seconds each (display D-SCN).

To de-activate this function again, push the button SCN (13) again.

Playback will be normal from this point onward.

• R P T button (14)

Push this button briefly to repeat the currently played track (display S-RPT).

Keep this button pushed to repeat all tracks of the current folder (display D-RPT).

To de-activate this function, push the button RPT (14) again.

Operation

• S H F button (16)

Push this button briefly to play all tracks at random order (display S-SHF).

Keep this button pressed to play the tracks of the current folder in random order (display D-SHF).

To deactivate this function again, push the button SHF (16) again.

Playback continues in normal order from here.

- Search function for USB / memory

Searching for track numbers

• Push the BND / AMS (11) button once to activate track number search.
• Select the desired track number with the rotary control VOLUME (9).
• Press the SELECT button (9).
• The selected track is played automatically.

Searching for track names

• Push the BND / AMS (11) button twice to activate track name search.
• The first digit of the track display flashes.
• Select the desired letter with the rotary control VOLUME (9).
• Press the SELECT button (9), the second character flashes.
• Select the other letters the same way if applicable.
• Keep the SELECT button (9) pushed.
• All tracks and folders starting with the selected letter/s are displayed.
• Select the desired track or folder with the rotary control VOLUME (9).
• If the selected name is a folder name, the display shows (, ,).
• Press the SELECT button (9).
• The selected track is played automatically.

- In this case, select the track name within this folder with the rotary control VOLUME (9).

Operation

Search via the folder structure

• Press the BND / AMS (11) button three times to activate search via the folder structure.
• The first directory structure is displayed.
• Select the desired folder with the rotary control VOLUME (9).
• Press the SELECT button (9). The file is selected and the name of the first track or the next sub-file is displayed.
• Select the desired track or the next sub-file with the VOLUME control (9).
• Continue in the same way until the desired track is displayed.
• Press the SELECT button (9).
• The selected track is played automatically.

Search within the currently selected directory

• Press the BND / AMS (11) button four times to activate search via the current directory.
• The name of the current directory is displayed.
• Use the rotary control VOLUME (9) to select the desired track or (, ,) for the desired directory.
• Proceed as already described in "Search via the folder structure".

Remote Control Functions

Nearly all functions of the SD tuner may also be controlled with the included steering wheel remote control. Additionally, operation of the Bluetooth® hands-free system is possible comfortably and securely from the steering wheel.

The buttons with the same designation as on the device have the same function as well.

Additional keys:

VOL+ (28) and VOL- (29)

Volume control

Buttons 0 to 9 and buttons * (23 and # (27)

Input of phone numbers in connection with the hands-free system

/ BND / LOU (20)

During a phone call > hanging up the phone

During radio operation > switching the reception band

Long operation > The loudness circuit is switched on and off

AF / MON / 7 (21)

Short operation > AF function is switched on and off

Long operation > Mono stereo switching of the radio reception

EQ / TA / 8 (22)

Short operation > Selection of the DSP function (digital sound processor)

Long operation > The TA function is switched on and off

DISP / 0 (24)

Switching the display information

(25)

Accepting a call in connection with the hands-free system

PTY / 9

Activating the PTY function in radio operation (programme type selection with the buttons VOL+ (28) and VOL- (29))

Bluetooth®-Operation

To permit best phone reception and keep electromagnetic irradiation in the vehicle as low as possible, always use an outside aerial in mobile phone operation.

In Bluetooth® operation, the SD tuner can be used as hands-free system for mobile phones and/or as playback device for Bluetooth®A2DP audio streaming. Before transmission between your mobile phone or Bluetooth® device and the SD tuner is possible, however, both devices must be coupled. This process is called "Pairing".

Pairing

• Switch your Bluetooth® device on and activate the pairing mode here (see instructions of the corresponding device). The device scans for Bluetooth® devices in the reception range.
• Press the button MODE / PAIR (
• When the SD tuner was found, y
• Enter the password 0 0 0 0 to cou p
  • After successful pairing, the display (5) indicates the Bluetooth® symbol Ⓞ.
• If pairing was not successful, try repeating the process. The CarBT device may have to be deleted in your mobile phone first (see mobile phone instructions).
• To remove or create a connection, you may also select the item CON BT (connect) or DISCON BT (disconnect) in the main menu (see "Menu Settings").

Only one Bluetooth® device at a time can be coupled with the SD tuner. If there is an active Bluetooth® connection already, this connection must be interrupted first.

If the SD tuner or Bluetooth® device with which there is an active connection is switched off or removed from the range, the connection is interrupted. When switching on again or when the Bluetooth® device returns into the SD tuner range again, the connection is automatically re-established. The SD tuner display shows the Bluetooth® icon 📐again.

To permit this automatic establishment of connection, this function may have to be activated at the Bluetooth® device (read about this in your Bluetooth® device's instructions).

Operation

Initiating a call with manual number input

• Push the ↗ button (25) at the steering wheel remote control to enter the phone mode.
• Dial the desired number with the number keys 0 to 9, * (23) and # (27) at the steering wheel remote control.
• The dialled number appears in th
• Push the button (25) again to dial.

Push the button 📄 / BND / LOU (20) or BND / AMS / 📋 (11) briefly while entering the number to delete the last digit entered.

Push the button 📄 / BND / LOU (20) or BND / AMS / 📋 (11) for a longer time while entering the number to delete the entire number.

Redial

• Pre s s t h e button (25) twice to recall the last number.
  • LAST NUM appears in the display.
• Push the ↘ button (25) again to call the last number dialled again.

Accepting an incoming phone call

• Press the ↗ button (25) to accept an incoming phone call.
• Push the button 📞 / BND / LOU (20) or BND / AMS / 📞 (11) to reject an incoming call.

Ending a phone call

- Push the button 📄 / BND / LOU (20) or BND / AMS / 📋 (11) to terminate a call.

Call handover

- During a phone call, push the button DSP / TA / ↗ (2) for a longer time to hand over the call to the mobile phone or the hands-free system.

Caller ID display

- For an incoming phone call, the

If the caller suppresses his caller ID or the mobile phone network does not support this feature, the caller ID cannot be displayed.

Audio streaming

Audio streaming is the transmission of audio data (music) by Bluetooth® to the SD tuner.

If you have am A2DP-capable Bluetooth®-device, you may connect it to the SD tuner by pairing as described above and establish an audio transmission.

• Ensure that the two devices are
• Start playback/auto transmission at your Bluetooth® device (see corresponding operating instructions).
• Push the button MODE / PAIR (1
  • The audio transmission is now a
• You may now remote-control playback of your Bluetooth® device with the buttons ◀◀ (8) and ▶▶ (1) and button PAU (12) as usual.

Maintenance

Regularly check the technical safety of the SD tuner, e.g. for damage of the cables or the casing.

If it can be assumed that safe operation is no longer possible, the device must be turned off and precautions are to be taken to ensure that it is not used unintentionally. Disconnect the car power system!

It can be assumed that safe operation is no longer possible if:

• the device is visibly damaged
• if the device does not function
• following considerable stress d

Before cleaning the SD tuner or performing maintenance, the following safety information must be observed:

Live components may be exposed if covers are opened or components are removed.

The device must be disconnected from all power sources before any servicing or repair work is carried out.

Capacitors inside the device may still carry voltage even though they have been disconnected from all power sources.

Only qualified experts familiar with the hazards involved and the relevant regulations must perform repairs.

Fuse Replacement

If it becomes necessary to replace a fuse, make sure that only fuses of the prescribed type and nominal current are used (see “Technical Data”).

Never repair fuses or bridge the fuse holder.

• When the power supply has been disconnected (disconnect ISO plug!) carefully remove the fuse from the fuse holder next to the ISO plug.
• Replace it with a fuse of the sam
• Only then can you reconnect the SD tuner to the electric on-board system and turn it on.
• Should the fuse trigger again, have the SD tuner repaired in a specialised workshop.

Cleaning

Clean the exterior of the device with a soft, dry cloth or brush only.

Never use any aggressive cleaning agents or chemical solutions that may damage the surface of the casing.

Handling

• If the volume inside your car is too high, you will not hear any acoustic warning signals. This constitutes a danger to yourself and other road users. Therefore, make sure the volume is at a suitable level.
• Inattentiveness on the road may cause serious accidents. Operation of the hi-fi system may therefore only take place if the traffic situation permits and you are not unduly distracted by operating the system.
• Do not listen to excessively loud music over an extended period of time. This may damage your hearing.

Troubleshooting

The Renkforce BT-RSD1802K SD tuner you have purchased is equipped with state-of-the-art technology and is safe to operate.

Nevertheless, problems or errors may occur.

Therefore, we would like to describe how to eliminate possible errors here:

Always observe the safety information!

No playback, no display, and the lights are out:

• Car fuse defective. Look up the respective fuse in the operation manual of your car. Check the fuse.
• The fuse of the SD tuner is defective. Remove the SD tuner and check the fuse.
• The positive line/earth line is loose. Remove the SD tuner and check the connections of the cables.

playback only through one speaker:

• The balance control is wrongly
• The speaker connection has come loose. Remove the SD tuner and/or speakers and check the connections.

playback only through the front or rear speakers:

• The fader control is not adjustment
• The speaker connection has come loose. Remove the SD tuner and/or speakers and check the connections.

Troubleshooting

In radio operation hardly any stations can be received:

• The aerial is not pulled out completely. Pull out the aerial to its full length.
• The aerial connection has come l
• The aerial is defective. Check the connection, earthing and the aerial itself.

Interferences in radio and USB / memory card operation:

- Interferences reach the SD tuner via the positive line. Install an additional interference suppression coil into the positive line.

- If necessary, also equip the vehicle with spark-plug suppressor sockets, distributor arms, etc. to suppress interferences.

- Bad ground connection. Check ground connection, use other grounding point if required.

When you press a station button, you only hear hissing:

- No station has been programmed.

The device no longer responds to button commands or displays weird characters:

- Reset the device with the RESET

The Bluetooth® audio transmission does not work:

• The connected device does not support the Bluetooth®A2DP audio transmission.
  • The device is not connected to the

The transmission quality in hands-free operation is bad:

• The distance between microphone
• The microphone is located in the air stream of sliding roof, open window, ventilation, etc.
• The distance between speaker and

Repairs other than those described above must only be carried out by an authorised specialist.

Technical Data

General Information

Operating voltage 12 V/DC

Power input 15 A max. / 7 mA standby

Fuse ...... vehicle flat fuse 15 A

Battery remote control .... 3V-Lithium button cell CR2025

Output performance 4 x 40 W (max.)

Speaker impedance 4 - 8 Ohm

Interfaces Bluetooth®, USB and SD/MMC-Card

Installation shaft 1 DIN (182 x 53 mm)

Mounting depth 115 mm

Weight 600 g

Radio

Reception range (Europe) FM 87.5 - 108.0 MHz / AM 522 - 1620 kHz

Reception range (USA) ...... FM 87.5 - 107,9 MHz / AM 530 - 1710 kHz

Frequency step (Europe) ...... FM 50 kHz / AM 9 kHz

Frequency step (USA) ...... FM 100 kHz / AM 10 kHz

Sensitivity ...... FM 10 dbμ / AM 32 dBμ

Intermediate frequency FM 10,7 MHz / AM 450 kHz

Stereo separation FM ....>25 dB

USB/Memory Card Operation

Frequency response 20 - 20000 Hz

Signal-to-noise ratio ....>60 dB

Channel separation ....>50 dB

playable file formats ...... MP3

Admissible Media .... SD/MMC, SDHC max. 16 GB / USB max. 32 GB

USB output current carrying capacity .... max. 500 mA

Disposal

J _r RENKFORCE

Electronic devices are recyclable waste and must not be disposed of in the household waste!

Dispose of the product according to the applicable statutory provisions at the end of its service life.

Remove any inserted batteries and dispose of them separately from the product.

Disposal of Used Batteries/Rechargeable Batteries

You as the end user are required by law (Battery Ordinance) to return all used batteries and rechargeable batteries. Disposing of them in the household waste is prohibited.

Batteries/rechargeable batteries that contain any hazardous substances are labelled with the adjacent icon to indicate that disposal in domestic waste is forbidden. The descriptions for the respective heavy metal are: Cd = cadmium, Hg = mercury, Pb = lead. You may return your used batteries/rechargeable batteries free of charge to collection points in your municipality and anywhere where batteries/rechargeable batteries are sold.

Declaration of Conformity

The manufacturer hereby declares that this product complies with the essential requirements and regulations and all other relevant provisions of the 1999/5/EC directive.

The declaration of conformity for this product is available at www.conrad.com.

Table des matières

Page

Introduction 83

Technical diagram showing a mechanical assembly with labeled parts and a magnified view of the component being threaded.

Montage mécanique

J RENKFORCE

Démontage

Diagram showing a mechanical clamp and clamping mechanism with hands operating a block (no text or symbols present)

Microphone mains-libres

Illustration of a sewing machine needle with scissors and fabric (no text or symbols)

3 D E

4

Diagram of a mechanical device with textured surface and labeled part '5' (no readable text or symbols)

6 F ① ②

Montage mécanique

J RENKFORCE

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

X

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

ok

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT, TEST, ALARM

HOUR 12H / 24H

2 182mm 53mm

3

Diagram of two electronic components with a close-up view showing internal structure (no text or symbols)

Technical diagram showing a mechanical clamp assembly with a close-up view of hands holding a small object (no text or symbols present)

Mechanische inbouw

J RENKFORCE

Demontage

Diagram showing a mechanical clamp and clamping mechanism with force arrows (no text or symbols)

Handsfree microfoon

Illustration of a sewing machine needle cutting fabric, no text or symbols present

3 D E

Diagram of a robotic arm with a gear and belt, showing motion direction (no text or symbols)

Diagram of a mechanical device with textured surface and labeled part '5' (no readable text or symbols)

6 F ① ②

Mechanische inbouw

J RENKFORCE

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

X

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

ok

Diagram of a device with a switch and a separate component, no text or symbols present

Diagram of a device with a switch and a separate terminal block, no text or symbols present

AF ON: AF is ingeschakeld

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT, TEST, ALARM

HOUR 12H / 24H

- Station to et sen 1 - 6 (15)

- Stop u w USB - ge he u gen m e d i u m i n d
