USER MANUAL AN 8006 Renkforce

Copyright 2010 by Conrad Electronic SE

Legal notice

These uplaing instructions are a publication by Corrad Electronic S, KlaeCorrad.1, D22240 Hichna (www corrad.com). All rights including translation reserved. Reproduction by any method e.g.pharmacy, micftling, or the capture in radiochondrocytes and other media. This is an open access article distributed under the Creative Commons Attribution License.

These operating insidues represent the technical status at the time of printing Changes in technology and equipment reserved.

Copyright 2010 by Conrad Electronic SE

Information legales

Copyright 2010 by Conrad Electronic SE.

Colofon

Deze gubriaansooring is a pubizicatio of vma Cntrceoroe SE, Kaus-Conrad-Str.1,D-0224)Hschau [wv conrad.com] alle rchten, vertiz nberzog, boercudien. Ruprulacies van wckk daen kck, jisbeendoc boeckpim. microfivrtihd de regiatinatie in elektronische gegeverserwerkingapparatus, versonen de schlifelchen Immertering de van atgelve. Nader, ck en uultrekei, VEDOC.

Doz gucruksarwiping voicodan da technische stand bi hat in duk bezorgan. Wiziging van tachriak an utrusting vostbehuiden

Copyright 2010 by Conrad Electronic SE.

01081003

CD-Tuner

AN-8006

Bedienungsanleitung

Seite 2-43

CD-Tuner

AN-8006

Operating Instructions

Page 44-85

Syntoniseur CD

AN-8006

Notice d'Emploi

Page 86-127

CD-Tuner

AN-8006

Gebruksaanwzng

Pagina 128-169

Best.-Nr./ItemNo./

N° de commande / Bestn.:

37 19 35

Inhaltsverzeichnis

Seite

Programm Identification (PI)

$$ F M 1 > F M 2 > F M 3 > M W 1 > M W 2 $$

• Stationstaten 1-6 (15)

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT, TEST, ALARM

Installation Position 51
Removing and replacing the front control panel 52
Installation in the radio slot 53
Removal 54
Remote control 55
Hands-free microphone 56

Electric connection 57

Connection of the loudspeakers and the power supply 58
Connecting the aerial 59
Connecting the hands-free microphone 59
Connecting the LINE outputs 60

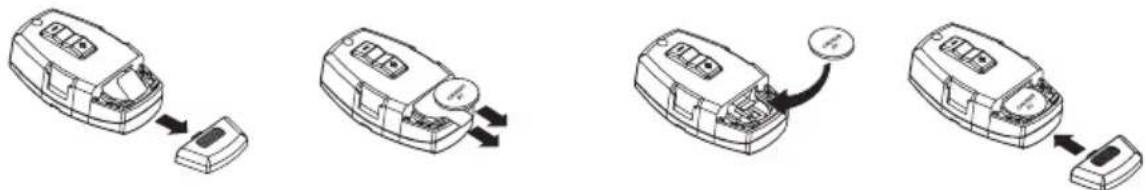

Inserting/replacing the remote control battery 61

Operation 62

General operation 62
Menu settings 63
Selecting the playback source 66
66
Radio mode 67
CD operation 72
USB/memory card operation 75
Remote control functions 75
Bluetooth® operation 76

Maintenance 80
Handling 81
Troubleshooting 82
Technical data 84
Disposal 85
Declaration of conformity 85

Introduction

Dear Customer,

Thank you for purchasing this product.

This product complies with the applicable National and European specifications. We kindly request the user to follow the operating instructions, to preserve this condition and to ensure safe operation!

This user manual is part of this product. It contains important details concerning operation and handling. Bear this in mind when you pass on this product to others. Therefore, keep this user manual for future reference.

Any company or product names are trademarks of their respective owners. All rights reserved.

The Bluetooth trademark is the property of Bluetooth SIG, Inc.

Tel. no.: +49 9604 / 40 88 80

Fax.no.:+49 9604/408848

E-mail: [e-mail]

Mon. to Thur. 8.00am to 4.30pm

Fri. 8.00am to 2.00pm

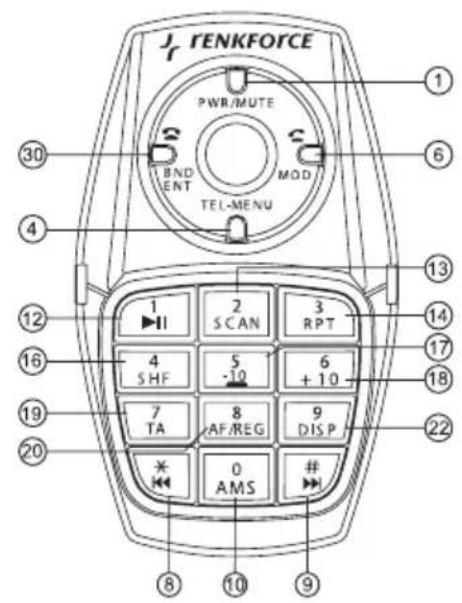

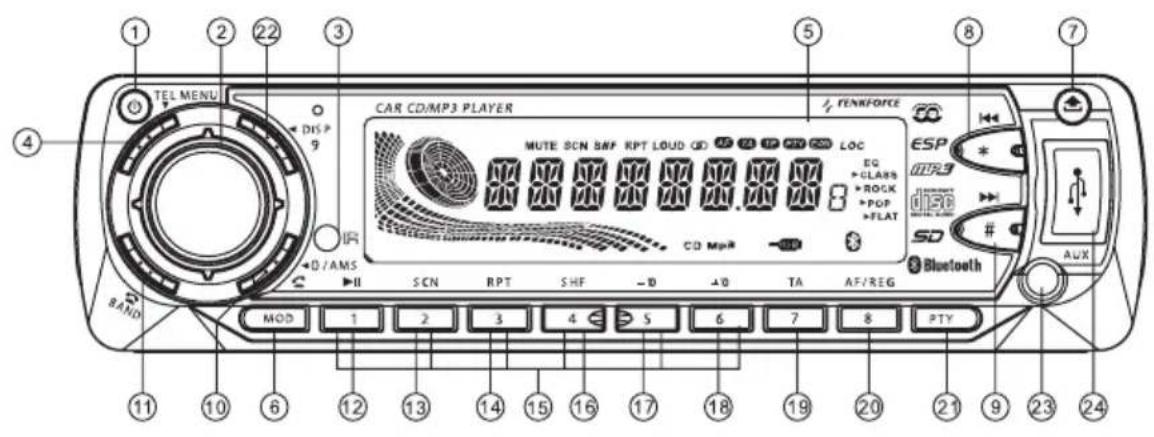

Operating elements

Operating instructions English

(1) Button POWER/MUTE On/off and mute

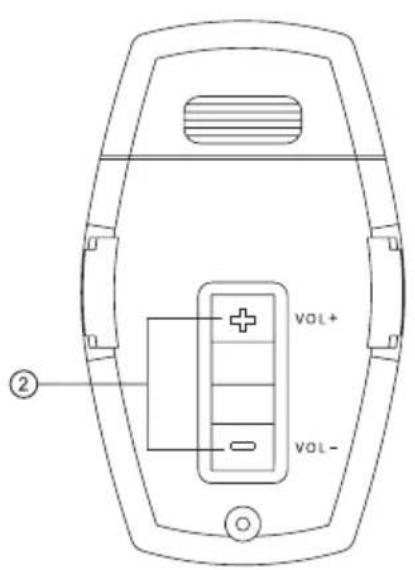

(2) Volume control / dial control Volume control / option selection
(3) IR receiver eye Receiver for the IR remote control
(4) Button TEL MENU Selection of telephone options
(5) Display Display of the operating modes
(6) Button / MODE Picking up the receiver / switching the input sources
(7) Button Opening the front panel
(8) Button / * Stack search or search down / numerical button *
(9) Button / # Stack search or search up / numerical button #
(10) Button 0 / AMS Numerical button 0 / automatic station memory
(11) Button / AND Replacing the receiver / switching the radio reception range
(12) Button 1 / ▶ || Numerical or station button 1 / playback or pause function
(13) Button 2 / SCN Numerical or station button 2 / intro function
(14) Button 3 / RPT Numerical or station button 3 / repeat function
(15) Station buttons 1-6 Numerical or station button
(16) Button 4 / SHF Numerical or station button 4 / random playback
(17) Button 5 / -10 Numerical or station button 5 / track skip 10 backwards
(18) Button 6 / +10 Numerical or station button 6 / track skip 10 forward
(19) Button 7 / TA Numerical button 7 / RDS function TA
(20) Button 8 / AF/REG Numerical button 8 / RDS function AF/REG
(21) Button PTY RDS function PTY
(22) Button 9 / DISP Numerical button 9 / switching the display mode
(23) AUX Connection Connection for external audio sources
(24) USB connection Connection for USB storage media

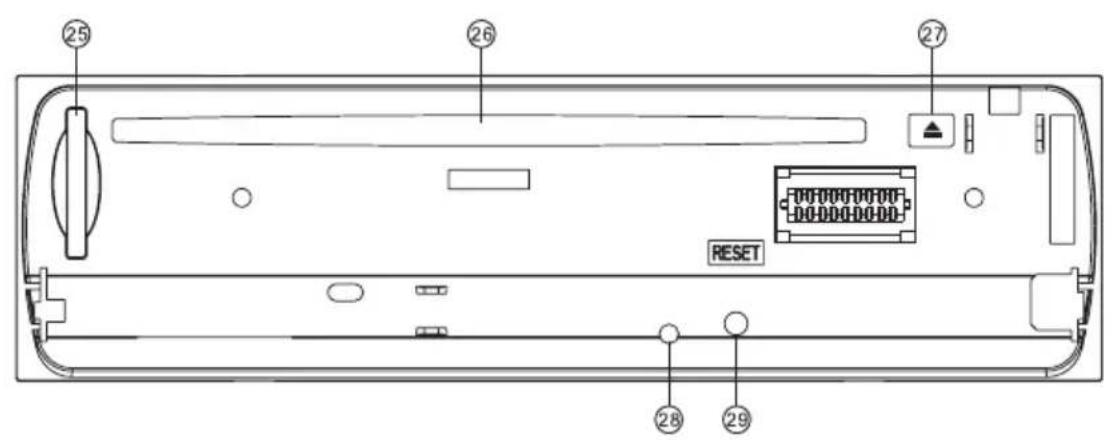

(25) SD/MMC card slot Card reader for SD/MMC memory cards
(26) CD drive slot Insert for CDs
(27) Button Eject button for CDs
(28) Theft protection LED Flashing LED to ward off potential thieves
(29) RESET button Button to reset to the factory setting
(30) Button / BND / ENT

Replacing the receiver / switching the radio reception range / button for selecting options

Intended Use

With the Renkforce AN-8006 CD Tuner, you can receive radio programmes in vehicles and play audio CDs and audio data from suitable media. It also serves as hands-free equipment for mobile phones with Bluetooth® feature.

The CD Tuner must be connected to loudspeakers.

This product is only approved for the connection to 12V direct current on-board networks with the negative pole of the battery to the car body. The product may only be installed and operated in vehicles with this kind of on-board voltage.

The user must make sure that the way the product is installed protects the product from humidity and wetness.

Any use other than the one described above damages the product. Moreover, this involves dangers such as short-circuit, fire, electric shock, etc.

No part of the product may be modified or rebuilt, and the housing must not be opened.

Please observe the regulations concerning radio operation in your country when using this product.

Observe all safety instructions in these operating instructions!

Product description

This product is equipped with a removable front control panel, an FM/AM radio unit, a USB interface, an MMC/SD card reader, a Bluetooth® hands-free installation and a CD/CD-R/CD-RW/MP3 player with the following features:

• IR remote control with steering wheel attachment
  High output (4 x 40 W max.)
• 4-channel pre-amplifier output for connecting amplifiers
• AUX input for connecting external audio sources
• Music playback via Bluetooth® interface (A2DP)
• Electronic volume, bass, treble, fader and balance control
• Digital signal processor for the adaptation of the sound characteristics to various music styles
• Loudness correction
  FM/AMtuner with RDS-function
• Exact electronic tuning of the stations with a PLL-tuner
• 30 programmable station memories (18xFM + 12xAM)
• Manual/automatic station scan in both directions
  Automatic station storage/programme memory search
• Alphanumeric display
  ID3-day display for MP3-replay
  ISO terminal

Symbol Explanation

The exclamation mark symbol on the device indicates that the user should read these operating instructions prior to using the product.

The "Hand" symbol indicates special tips and operating information.

The guarantee/warranty will be void if damage is incurred resulting from non-compliance with the operating instructions. Liability for any and all consequential damage is excluded!

Nor do we assume liability for damage to property or personal injury, caused by improper use or failure to observe the safety instructions. In such cases the guarantee/warranty will be void.

• The unauthorized conversion and/or modification of the product is inadmissible because of safety and approval reasons.
• The device may only be used with the 12 V DC vehicle power supply (with the negative terminal of the battery connected to the body of the vehicle). Never connect the device to a different power supply.
• The device must be set up correctly. Please also follow these operating instructions.
• When the product is opened or the safety circuit is jumpered, invisible laser radiation may be emitted. Caution - if proceeding in a different way or using any other controls than those specified in this manual, you may expose yourself to hazardous radiation.
• The product is not a toy and should be kept out of reach of children! Children cannot judge the dangers involved when handling electrical devices.
• Do not expose the device to high temperatures, dripping or splashing water, strong vibrations or high mechanical stress.
• Do not operate the light when it is unattended.
• Do not leave packing material unattended. This may become dangerous playing material for children.
• Comply with the safety and operating instructions of any other appliances that are connected to the device.
• If you are not sure about the correct connection or if questions arise which are not covered by the operating instructions, please do not hesitate to contact our technical support or another specialist.

Mechanical installation

JRENKFORCE

In most vehicles the producers plan an installation cut-out for the car radio. The choice of the location depends on safety aspects. Therefore we recommend that you actually install the radio in this place.

The device requires a DIN installation slot with the dimensions 182 × 53 ~mm . These installation dimensions are standardized and normally observed by all vehicle manufacturers.

Should there be no slot, please ask your car dealer about the correct place of installation for your car radio.

Please select the place of installation carefully so that the CD tuner neither influences the driver's activity nor distracts him from the traffic.

Only use the supplied installation material to guarantee a safe installation.

Any changes in the vehicle that become necessary for the installation of the CD tuner or other components, must be carried out in such a way that neither the traffic security nor the stability of the car are affected. With many vehicles, the MOT will lapse if you merely saw out a section of the sheet metal.

Since the CD tuner creates heat during operation, the place of installation must be heat-resistant.

Make sure before drilling the attachment holes that no electric cables, brake lines, the fuel tank or similar are damaged.

When using tools to install your car hi-fi components, observe the manufacturer's safety instructions.

When installing the car hi-fi system, take into consideration the risk of accident which can arise from devices being torn away in the case of an accident. Therefore, you should secure every component in a place where it cannot be dangerous to passengers.

Before you install the system, check the depth of the installation recess.

Installation Position

The angle of installation to the horizontal must be under 30^ . A CD tuner that is inclined too much, may cause problems when playing CDs.

Removing and replacing the front control panel

The front control panel can be removed to prevent theft.

• Before you remove the front control panel, press and hold the POWER/MUTE button (1) to turn the product off.
• Press the button (to fold down the front operating panel.
• Hold the front panel on the right side, carefully press it to the left to unlatch it and then pull it out of its attachment.
• When you remove the front control panel, please put it into the supplied protective cover.
• To attach the operating panel, place the left side in the mount as shown on the illustration below and carefully press it to the left until the right side snaps into the mount as well.
• Fold up the control panel again until the latch snaps into place.
• Do not press on the display or the buttons.

Make sure that you place the front operating panel correctly on the device and that it snaps flush into the mount.

Do not press the front control panel too strongly against the device. You can easily put it back by pressing slightly on the device.

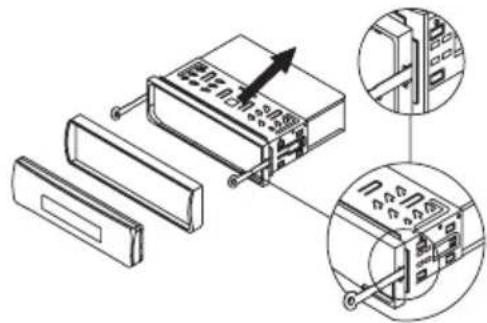

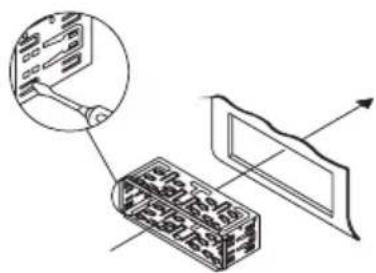

Installation in the radio slot

• Remove the two safety screws of the CD drive.

• Remove the front control panel.
• Carefully remove the plastic frame in the front of the system, by bending it slightly to the outside and pulling it off from the unit.
• Unlock the installation frame with the two unlocking keys.
• Remove the installation frame towards the back of the system.

• Insert the frame into the respective cut-out in the vehicle.
• Bend down some clips in the installation frame until the frame is securely fastened in the recess.

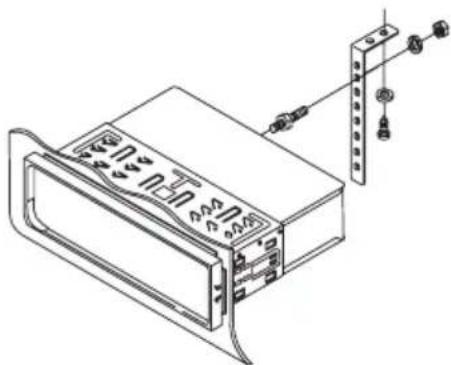

• Protect your CD tuner against vibrations with the bolt at the back of the unit. In most vehicles, such as safety fastening is provided for. If this is not the case in your car, fasten the CD tuner with the enclosed punched metal strip. For the fastening, proceed as follows.

• When you have made all the electrical contacts (see "Electric Connection") insert the CD tuner into the frame until it locks in.
• Replace the frame cover of the front control panel.

Keep the two unlocking keys. You will need them for a later removal of the CD tuner.

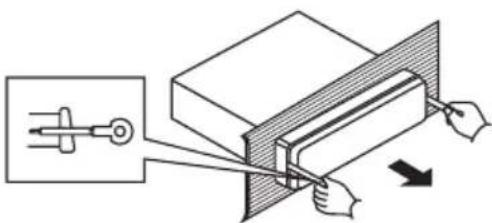

Removal

• Remove the front control panel.
• Carefully remove the plastic frame in the front of the system, by bending it slightly to the outside and pulling it off from the unit.
• Insert the two unlocking keys into the lateral slots between the CD tuner and the installation frame, until the CD tuner unlocks.

• Remove the fastening screw at the back of the unit.
• Carefully pull out the radio with the unlocking keys from the installation frame.
• Disconnect all connectors from the device

Remote control

The remote control can be attached directly at the steering wheel with the enclosed support. The IR receiver eye (3) is located in the front slot of the CD tuner.

Steering wheel installation:

• Straighten out the steering wheel.
• Open the two screws (E) of the steering wheel attachment.

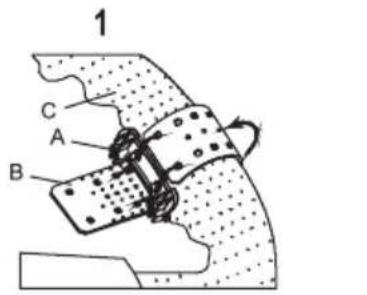

• Position the inner part (A) of the steering wheel attachment on the inside of the steering wheel (C).
• Pull the rubber band (B) around the steering wheel and hook it into the catch under tension (ill. 1).
• Cut off any excess rubber band (ill. 2).
• Attach the external part (D) of the steering wheel attachment with the two screws again (E) (ill. 3).

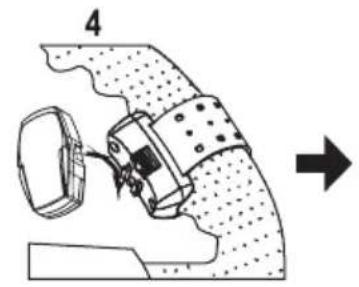

• Slide the remote control onto the steering wheel attachment (ill. 4 and ill. 5).

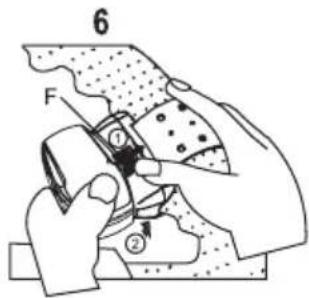

  To remove the remote control, release the safety lever (F) and pull the remote control out of its attachment (ill. 6).

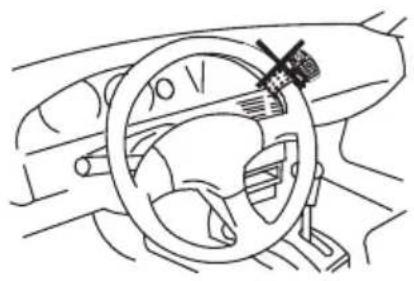

The remote control may not be installed in the trigger range of an airbag.

The remote control must be installed on the steering wheel in such a way that it does not hinder the driver during steering and operating the vehicle.

Tighten the rubber band of the attachment properly to ensure that the remote control does not come off during driving.

The remote control must be attached to the inside of the steering wheel to prevent hindrance during steering.

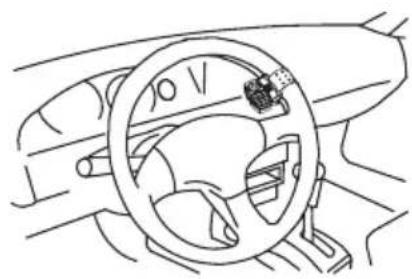

The best installation site for the remote control depends on the installation site of the CD tuner. Test the correct function prior to installation. The IR transmitter is located on the back of the remote control.

X

ok

Hands-free microphone

The hands-free microphone can be attached to the sunshade, the steering wheel column cover or another suitable place on the inside of the car.

The microphone and the connection cable may not be located in the triggering range of an airbag.

• Attach the hands-free microphone with the clamp or the enclosed Velcro tape to a suitable spot.

• Lay the connecting cables up to the radio installation slot.

Electric connection

The electric connection should be done by a specialist.

To avoid short-circuits and resulting damages of the CD tuner, the negative pole (ground) of the vehicle battery must be disconnected during connection.

Only connect the negative pole of the battery, when you have completely connected the system and checked the connections.

Only use a voltmeter or a diode test lamp for checking the voltage on the on-board cables as normal test lamps consume excessive current and can thus damage the electronic system of the vehicle.

When laying the cables, make sure that they are not squeezed or abraded on sharp edges. Use rubber grommets for the lead-though points.

The line towards the loudspeakers must be a bifilar cable. Insulate the bare wires at the connecting terminals. Ensure there are no sharp edges which could damage the cables.

Only use loudspeakers which have a sufficiently high loading capacity (see "Technical Data").

Make sure that all loudspeakers have the correct polarity, i.e. the plus and minus signs must match.

The connecting cables of the loudspeakers are usually coded: Some loudspeaker manufacturers indicate the (+) wire by means of an additional colour stripe, others use a corrugated cable for the (+) terminal and a smooth one for the (-) terminal.

The system was designed for the operation at loudspeaker impedances of at least 4 Ohm. Never connect loudspeakers with a lower impedance.

In most vehicles the cables for the electric connection and the connection of the loudspeakers have been laid directly to the ??slot??

If this is not the case, please make sure that any cables placed later are secured by the respective onboard fuses (see vehicle operation manual).

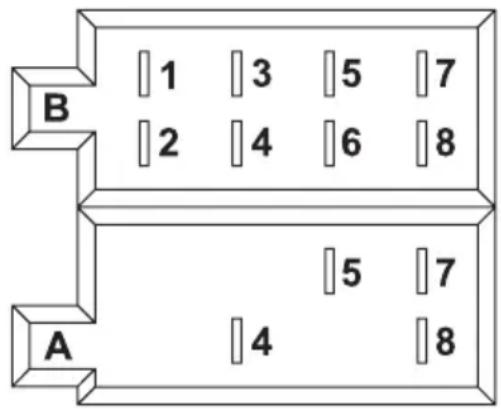

Connection of the loudspeakers and the power supply

The CD tuner has an ISO system plug.

Vehicles equipped with such a system plug can be connected directly to the system if the plug assignment is the same (please check beforehand!). If the assignment differs, please connect the CD tuner to an adapter.

Please refer to the following illustration for the contact assignment of the CD tuner socket.

Please ask you car dealer for the respective assignment of your vehicle system plug.

System connector B (loudspeaker connection)

(1) Loudspeaker rear right (+)
(2) Loudspeaker rear right (-)
(3) Loudspeaker front right (+)
(4) Loudspeaker front right (-)
(5) Loudspeaker front left (+)
(6) Loudspeaker front left (-)
(7) Loudspeaker rear left (+)
(8) Loudspeaker rear left (-)

System plug A (power supply)

(1) (not assigned)
(2) (not assigned)
(3) (not assigned)
(4) Continuous current +12V
(5) Aerial control output
(6) not assigned
(7) Ignition +12V
(8) Ground (GND)

• The constant current terminal +12V (4) must be connected to a cable that also supplies 12V permanently when the ignition is off (terminal 30 of the on-board network). This terminal serves to save the user settings, time, etc.

• The aerial control output (5) supplies a voltage of +12V when the device is switched on. This cable can be used for the power supply of an electrical aerial, and for the voltage for switching on a vehicle amplifier.

• The terminal of the ignition +12V (7) must be connected to a cable that is only live with +12V when the ignition is on (terminal 15 of the on-board networks).

Do not connect this terminal to continuous current, otherwise the on-board battery could be discharged when the vehicle is parked for a longer period of time.

• Connect the ground connection (8) with the vehicle body.

Adhesive techniques which become ever more common and painted metal parts impair the electric conductivity. Therefore not every metal part is a suitable earthing point.

Connecting the aerial

• Connect the aerial plug of your vehicle with the aerial socket at the back of the radio (socket next to the LINE terminals).
  If your vehicle has a different aerial plug, please use a suitable adapter, available in specialist shops.

Connecting the hands-free microphone

• Connect the plug of the hands-free microphone with the MIC socket on the back of the device.

Connecting the LINE outputs

The CD tuner has four LINE outputs for connecting power amplifiers.

For the connection of the cinch sockets only use the shielded cinch wires. The use of other cables might cause interferences.

Keep the distance of the cables as short as possible.

Do not place the cables near other cables to avoid interferences in the cables.

To avoid distortions or mismatching that could damage the unit or the power amplifiers, the cinch connector must only be connected to devices with the suitable cinch terminals. For this, observe also the connection data in the section "Technical Data".

• Connect the sockets OUT FL and FR with the inputs of the power amplifier for the front loudspeakers.
• Connect the sockets OUT RL and RR with the inputs of the power amplifier for the rear loudspeakers.

The red socket is a terminal for the right channel

The white socket is a terminal for the left channel.

Inserting/replacing the remote control battery

Remove the battery when the device is not being used for longer periods of time.

Leaking or damaged batteries might cause acid burns when getting into contact with skin. Therefore, use suitable protective gloves.

Make sure that the batteries are neither short-circuited nor thrown into a fire. Do not recharge batteries. Danger of explosion!

• Take the remote control out of the steering wheel attachment as described further up.
• Slide the battery compartment cover on the back upwards and take it off.
• Insert the batteries observing the correct polarity. The positive pole of the battery must point upwards.
• Close the battery compartment. The latch must snap into place.
• Replace the remote control in the steering wheel attachment as described further up.

• If the remote control no longer functions properly, the battery is discharged and must be replaced.
• Replace the battery analog to the above description.
• Exchange the battery for a new 3V lithium button cell CR2025.

Do not turn the device on before you have read and understood these operating instructions. Check all the connections again. When you have done so, reconnect the negative pole of the car battery.

General operation

Button POWER/MUTE(1)

This button switches the radio on and off.

Briefly press this button while the device is turned off to turn it on or - if the device is on - to briefly mute the current playback. Repeated pressing deactivates the mute function again.

Press this button for approx. 2 seconds to switch off the device.

To switch the device on, you can also press any other button (also on the remote control).

The mute function can also be deactivated by turning or pressing the volume control/selection control (2).

Display (5)

The display (5) shows all information in dependence of the presently active function.

RESET button (29)

This button resets all the settings to the original settings that were made in the factory.

Press this button in the following cases:

• when you have completed the installation and connection
• when the CD tuner does not react to the operation of buttons any more
• when the display shows undefined characters.

Menu settings

Volume control / dial control (2)

In standard operation, the volume control / dial control (2) is for setting the volume.

Press the control once or several times, to change the parameters BAS (bass control), TRE (treble control), BAL (balance control) and FAD (fader control) by turning the control.

To select further functions, first press the volume control/selection button (2) a little bit longer (>2 seconds) and then press this button once more, but only very shortly, until the desired function appears on the display:

You select the options for the respective setting by twisting the volume control/selection button (2) or by pushing the volume buttons (2) on the remote control.

Activation volume INVOL

The preset volume is selected when turning the device on.

Set the desired activation volume by turning the volume control/selection control (2).

Setting the time ADJ

• Turn the volume control/dial control (2) clockwise to set the hours.
• Turn the volume control/dial control (2) counter-clockwise to set the minutes.
• This setting is applied automatically when the display returns to the basic setting.

When receiving an RDS station with time transmission, the clock adjusts automatically to the correct time and the manually set time is overwritten with the RDS time.

Button acknowledgement signal BEEP

You can set the button acknowledgement beep in three different ways:

BEEP ALL: The signal sounds at every push of a button.

BEEP 2ND: The beep only sounds if a button is pressed longer to select the second button function.

BEEP OFF: The signal is off.

TAVOL

In case of traffic reports and activated TA function, the preset volume is selected.

Set the desired volume by turning the volume control/selection control (2).

EON

Here you define whether the RDS-EON function is activated or deactivated (explanation see "RDS as reception concept" further down in this manual).

ON: The EON function is activated.

OFF: The EON function is deactivated

DSP

Here you can set up the integrated signal processor.

DSP NONE: The digital signal processor is switched off.

DSP CLAS: The sound characteristic is adapted to classical music.

DSP ROCK: The sound characteristic is adapted to rock music.

DSP POP: The sound characteristic is adapted to pop music.

DSP FLAT: DSP is active, but there is no sound adaptation.

If the DSP is activated, it is not possible to control the sound via the bass/treble controls.

LOUD

Here is where you set the LOUDNESS sound correction.

LOUD ON: The loudness function is active.

LOUD OFF: The loudness function is inactive. The sound is not influenced.

At low volumes the human ear does not perceive very low sounds well. An increase of the frequency range for low volume (loudness correction) counteracts this effect and the music replay sounds more natural.

LOC

Here you set the sensitivity of the station search.

LOC ON: The auto-scan only stops at strong stations.

LOC OFF: The auto-scan also stops at weaker stations.

STEREO/MONO

Here you set the reception mode when using the radio.

STEREO: The radio receives the stations in stereo.

MONO: The radio receives the stations in mono.

When transmitter stations are weak switching to mono reduces interferences.

ALRM

Here you set whether the device is supposed to show the message ALARM when receiving a catastrophe warning.

ALRM ON: In case of a catastrophe warning, ALARM blinks on the display.

ALRM OFF: In case of a catastrophe warning, ALARM does not blink on the display.

The display message is independent of whether the PTY function is activated or not. Prerequisite for the alarm display is that the station actually sends such an alarm message.

If you select the setting ALRM OFF, you will still receive the message but it will not be indicated on the display.

Selecting the playback source

Press the MODE button (6) in order to select the individual playback sources.

Selection is made in the following sequence:

Radio > CD > SD/MMC > USB > AUX > BT AUDIO

If no CD, USB memory or SD/MMC card is inserted, or if a bluetooth source is not connected, these sources are skipped during selection.

Calling up the display information

You can call up different information via the display (5) with the button 9 / DISP (22) depending on the operating mode. Each push of a button switches the called up information further. After 5 seconds, the display automatically returns to the basic display (first display in the list below).

When an RDS station is being received

Radio operation: Station name > time > program type > received frequency

CD/USB/SD operation: CD/USB/SD information > time > program type > received frequency > station name

When no RDS station is being received

Radio operation: Received frequency > time > PTY NONE > PS NONE

CD/USB/SD operation: CD/USB/SD information > time > PTY NONE > received frequency > PS NONE

If the transmitter does not transfer any time information or PTY information, the display shows NO CLOCK or PTY NONE.

Radio mode

Receiving concept RDS

The abbreviation RDS stands for Radio Data System, i.e. inaudible, additional information codes are transmitted by the FM RDS station.

With the AN-8006, you have a CD tuner that is able to evaluate these coded data that are transmitted by most of the radio stations.

The following important data is transmitted:

• Program Identification (PI)
• Traffic Program (TP)
• Traffic Announcement (TA)
• Program Service (PS)
• Alternative Frequencies (AF)
• Program Type (PTY)
• EON Information (enhanced other networks)
• Clock time (CT)

Program Identification (PI)

These data help the receiver to identify a station. It enables the receiver to differentiate between areas where the same programme is transmitted. The car radio only switches to a stronger station when the reception gets weaker, if the stronger station transmits the same programme identification

Traffic program (TP)

This signal enables the receiver to detect that a station with a traffic programme is being received.

Traffic Announcement (TA)

With this signal the CD tuner can detect a traffic announcement and interrupt the current replay of a different audio source.

Program Service (PS)

This information tells the receiver which station it is receiving. It is directly replayed in the display of the car radio, e.g. BAYERN 3.

Alternative Frequencies (AF)

A list of alternative frequencies that send the same programme is transmitted. If the transmitter station currently received becomes too weak, the receiver detects from the AF signal on which frequencies it must search for a better transmitter.

Program Type (PTY)

This code gives the receiver information about the type of the transmitted programme (e.g. sports, classic, news etc.). The listener can select his favourite programme purposefully.

A national disaster alarm can also be prepared this way. However, not all the radio stations offer the PTY service.

EON Information

Many chains of radio stations with various programmes only have one programme with traffic information. If EON information is transmitted, a radio equipped with an EON function switches to the Traffic Announcement station whenever such announcements are made, even if a different programme of this chain is being played.

If you listen to Bayern 4 for example (no traffic announcement) and the TA function is activated, the radio will switch to Bayern 3 (with traffic announcements)) for the time of a traffic announcement.

Clock time (CT)

Many stations transmit the current time in the RDS data. If a radio receives this signal, it sets the in-built clock automatically.

Therefore, when you leave the transmission area, the RDS system has the advantage that it switches to a similar transmitter station that can be better received. However, it only changes when it finds a better transmitter station with the same programme.

Short signal attenuations due to the reception cannot be eliminated by the RDS system either, since this would mean that the car radios permanently switches back and forth. The listener would feel much more disturbed by this than by short-term reception problems.

Another advantage of the RDS system is that the station name is displayed. The station name of an RDS station is displayed in the car radio.

Function of the keys

• Buttons /# and /#

With these buttons the receiving frequency can be changed to adjust stations in radio operation.

By pressing a button briefly, you activate the auto-scan. The auto-scan only stops at the next station that can be received well.

To deactivate auto-scan and set the receiver frequency manually, keep the desired button depressed until MANUAL is displayed (5).

After some time, the device returns to automatic search and the display (5) shows AUTO briefly.

• Button 0 / AMS (10)

If you press this button shortly, the stations stored on the station memory buttons 1-6 (15) are played for 5 seconds each. To stop the auto-scan, press the button again.

When you keep the button pressed, all the stations that can be received well are stored on the station memory buttons 1-6 (15).

After this procedure, the stored stations are played for approx. 5 seconds each, as described above.

• Button /BAND (11)

With this button you can select the band range of the radio unit. There are 3 FM ranges and 2 MW ranges available: FM1 > FM2 > FM3 > MW1 > MW2

On each of the 5 band ranges, 6 stations can be stored on the station button 1-6 (15).

• Station buttons 1-6 (15)

Brief press > direct selection of a previously saved station.

Long press > the currently received station is saved on the respective station button.

Each of the three FM bandwidths (FM1-3) and also the two MW bandwidths (MW1-2) has six station buttons. Therefore you can assign 30 station buttons.

- Button 7 / TA (19)

Brief press > TA function is activated/deactivated.

When you receive a traffic program station, the display shows "TP" (traffic program).

When the TA function is activated, "TA" blinks on the display.

During a traffic announcement, "TA" is permanently displayed on the display.

After activating the TA function, the receiver starts a scan if no traffic stations are currently being received. The scan stops at the next traffic broadcast station with a good reception.

If a different audio source is being played (a CD for instance), the system switches to the radio during the traffic announcement.

When you listen to a radio program at a very low volume, the volume is automatically increased to an easily audible level (see TAVOL in the "Menu settings"). When the traffic announcement is over, the volume you were hearing before is restored.

With activated TA function, the station search only stops at traffic broadcast stations.

- Button 8 / AF/REG (20)

Brief press > AF function is activated/deactivated.

"AF" will be displayed if the function is activated. If the reception of an RDS transmitter station gets weaker or the radio does not receive and RDS station at all, the display flashes. When a station can be received well, the symbol is displayed continuously.

When an RDS station is being received, the name of the station is displayed.

When you leave a transmission area, the radio can only switch to a better sender when the AF function is activated.

Long press > region ID is activated/deactivated.

Press the AF/REG button (20) for about 2 seconds until the display shows REG ON or REG OFF. When you press the button once more, you switch between these two modes. The normal display reappears automatically after a few seconds.

If REG ON is on and the reception gets weaker, the radio only switches to a different frequency with exactly the same program.

When the regional identification is off (REG OFF), and the reception gets weaker, the radio switches to a different transmitter station with the same regional identification but a different program.

- PTY button (21)

Brief press > PTY function is activated/deactivated.

Long press > the desired program type can be selected by turning the volume control/selection dial (2). The following program types are available:

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIOED, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT, TEST, ALARM

After setting the program type, press the button 丨 / ^ 实 (8) or the button /# (9) to start the program scan.

To stop the program scan, press any button.

With activated PTY function, the station scan only stops at programs with the set program identification. If no such program is found, the display shows NOT FND.

CD operation

• CD drive slot (26)

Open the front panel with the button (7) and slide a CD into the CD drive. CD playback starts automatically.

Always insert the CD with the printed side on top.

-Button (2)

Press this button to eject a CD.

• Button 1 / ▶|| (12)

Press this button during playback to interrupt the CD playback shortly. When you confirm the button again, replay will begin at the point where it was interrupted.

• Buttons /# and /# (9)

With these buttons you can select individual tracks of a CD or search for a certain section within one CD track.

The arrows on the buttons indicate the search direction (up or down).

Only press the buttons shortly to jump to the next or previous track.

Press the buttons longer to search a certain section within one track. Playback is muted in this case.

• Buttons 6 / +10 (18) and button 5 / -10 (17)

Press these buttons to jump up or down by 10 tracks at once. The buttons function like the buttons /^*(8) and / # (9) , but skip 10 tracks at one.

Press this button to play each track in the CD for 10 seconds. SCN appears on the display.

To de-activate this function, press the button again. SCN is no longer shown on the display. Replay will be normal from this point onward.

- Button 3 / RPT (14)

Press this button to repeat the track that is being played. RPT appears on the display.

To de-activate this function, press the button again. RPT is no longer shown on the display. Replay will be normal from this point onward.

- Button 4 / SHF (16)

Press this key for random replay. The tracks will be played in a random order. SHF appears on the display.

To de-activate this function, press the button again. SHF is no longer shown on the display. Replay will be normal from this point onward.

Search function in MP3 mode

Searching for track numbers

• Press the button 0 / AMS (10) once until 00^ * - ·s ·s appears on the display (5).

• Turn the button volume control/dial control (2) to select the track number.

• Press the button Q / BAND (11) or Q / BND / ENT (30) on the remote control, and the desired track is played back automatically.

Searching for track names

• Press the button 0 / AMS (10) twice until A**** appears on the display (5).
• Turn the button volume control/dial control (2) to select the first letter.
• Press the volume control/selection dial (2) for confirmation; the second letter blinks.
• Select the additional letters as described above. You have to select at least three letters to enable a clear search.
• Press the button 一 BAND (11) or 一 BND / ENT (30) on the remote control to start the scan for the track name.
• If several tracks with the entered letters are found, they are shown on the display (5).
• Turn the volume control/selection dial (2) to select the track.
• Press the button Q / BAND (11) or Q / BND / ENT (30) on the remote control, and the desired track is played back automatically.

If no track with the entered letters are found, the display (5) shows NO MATCH.

Searching for directory names

• Press the button 0 / AMS (10) three times.
• Turn the volume control/selection dial (2) to select the directory name.
• Press the button Q / BAND (11) or Q / BND / ENT (30) on the remote control, and the first track of the selected directory is played back automatically.

- Display of the ID3 tag information

During playback, the ID3 tag information like title, artist, album, etc. appears in running letters on the display (5).

This information can only be displayed if the ID3 tag data is available on the CD in version 1.0 or 2.0.

Operation with mixed-mode CDs

Mixed-mode CDs (CDs with both CD audio files as well as MP3 files) can be played back with this CD tuner. In this case, playback starts with the MP3 files followed by the CD audio files.

USB/memory card operation

The CD tuner is equipped with a USB interface and a memory card reader for SD/MMC cards,

MP3 files stored on these media cannot the played.

Due to the great variety of systems with USB and SD/MMC card interfaces and their different functions that are sometimes producer-specific, we cannot guarantee that all media will be recognized and that all the operational functions are available in this CD tuner.

The USB interface is only suited for USB memory sticks, not for the USB ports of MP3 players.

Prior to removing a USB memory stick or an SD/MMC card, please switch the playback source with the button MODE (6), otherwise the system may malfunction or cause data loss.

If a USB memory stick or an SD/MMC card is not detected when inserted, remove the medium again and plug it in again.

The media must be formatted in FAT 32.

• Connect your USB memory stick with the USB port (24).
• When using a memory card, insert it into the SD/MMC card slot (25).
• The player switches to the respective input automatically and starts replay.
  The operation is the same as for CD/MP3 replay.

Remote control functions

You can also control almost all functions of the CD tuner with the enclosed remote control. It also allows you to operate the Bluetooth® hands-free equipment comfortably and safe.

The buttons with the same name as on the device also have the same functions.

The function of the volume control/selection dial (2) is divided into two separate operating elements here, however:

• The buttons on the back of the remote control take over the function as when turning the volume control/selection dial (2).
• The button / BND / ENT (30) takes over the same function as when pressing the volume control/selection dial (2).

Bluetooth® Operation

For the most optimal telephone reception possible and to minimise the electromagnetic radiation in a car, the mobile phone should always be used with an external antenna.

In order for the mobile phone to automatically answer incoming calls, automatic call answering on the CD-Tuner (see the hands-free equipment section) and also on the mobile phone (see the respective manual) needs to be activated.

In Bluetooth® operation, the CD-Tuner can be used as a hands-free speaker for the mobile phone and/or as a reproducer for Bluetooth®A2DP-Audio-Streaming. However, before a communication between your mobile phone i.e. the Bluetooth® device and the CD-Tuner is possible, the devices must be coupled with each other. This procedure is called "Pairing".

Pairing

• As long as there is no Bluetooth® device coupled with the CD-Tuner, the Bluetooth® symbol on the display will blink.
• Turn your Bluetooth® device on and activate the Pairing mode (for this, please see the manual of the corresponding device). The device will then search for other Bluetooth® devices within its reception range.
• When the CD-Tuner is found, your Bluetooth® device will display the name ANSON - - BT.
• Enter the password 0000 to couple the devices together.
  After a successful pairing, the display will show the Bluetooth® symbol as steadily on (5).
• To end the coupling, push and hold the button 7 / TA (19). DEL PAIR will be shown on the display and the Bluetooth® symbol will resume blinking. At this point, all the data of the coupling will be deleted.

There can only be one Bluetooth® device coupled with the CD-Tuner at a time. Should there already be an active Bluetooth® coupling then any additional connections will be denied. To couple another Bluetooth® device with the CD-Tuner, the existing coupling must first be broken as described above.

If the CD-Tuner or the Bluetooth® device, with which an active coupling already exists, is turned off or moved out of reception range, then the connection will be lost. When the Bluetooth® device is then turned on again or returns to within the range of reception of the CD-Tuner, then the connection will be automatically restored. The display of the CD-Tuner will briefly show CONNECT and the blinking Bluetooth® symbol will return to a steady state.

To setup this automatic connection, the function on your Bluetooth® device might possibly need to be activated (please refer to your Bluetooth® device's manual).

Establishing a telephone connection

• Press the button TEL MENU (4) to access telephone mode.
• Dial the desired number with the numerical keys.
• The dialled number appears on the display (5).
• Press the button / MODE (6) to dial.

Press the button TEL MENU (4) while entering the phone number to make corrections.

Accepting an incoming call

• If the automatic call accept function is not activated on the mobile phone, press the button ≤ / MODE (6) to accept the call.

Rejecting an incoming call

• Press the button /BAND (11) to reject the call.

Terminating a call

• Press the button /AND (11) to terminate the call.

Redial

• Press the button /MODE (6) longer to call the last dialled phone number again.
• The display shows REDIAL and the last dialled phone number is redialled.

Call transfer

• During a phone call, press the button ≤ / MODE (6) for 2 seconds to transfer the call to the mobile phone or the hands-free equipment.

Number display

• For incoming calls, the caller's number is shown on the display (5).

If the caller has suppressed the number display or if the mobile phone net does not support this feature, the caller display does not work.

Menu of the free-hands equipment

If you repeatedly press the button TEL MENU (4) while the Bluetooth® connection is active, you access the hands-free equipment menu. Here you can select the different menu items by repeatedly pressing the button TEL MENU (4):

PRE NUM: List of the saved numbers (max. 10)

RECEIVED: List of the last 10 received calls

DIALED: List of the last 10 outbound calls

MISSED: List of the last 10 calls in absence

AUTO ANS (MANU ANS): Switching between automatic and manual call accept

Using the menu:

• To select a menu point, press the button volume control/dial control (2).
  To perform a selection, turn the button volume control/dial control (2).
• Press the button /BAND (11) to leave the settings menu again.

Saving numbers in the phone number memory:

• Select PRE NUM.
• Press the volume control / dial control (2).
• Twist the button volume control/dial control (2) until the desired memory slot (0-9) is displayed.
• Press the volume control / dial control (2) again.
• Enter the number to be saved with the numerical buttons.
• Press the button volume control/dial control (2) to save the number.

Press the button (8) while entering the phone number to make corrections. If a number is saved in a slot which already contains a number, the old number is deleted.

Dialling from the phone number memory

• Select PRE NUM.
• Press the volume control / dial control (2).
• Select the desired number by turning the button volume control/dial control (2).
• Press the /MODE button (6).
  The connection is established.

Dialling from the menu:

• While a number is shown on the display (from the menu PRE NUM, RECEIVED, DIALED or MISSED), this number can be dialled directly by pressing the button MODE (6).

Switching between automatic and manual call accept:

• Select AUTO ANS or MANU ANS by turning the button volume control/dial control (2).

AUTO ANS: The hands-free equipment establishes the connection to the incoming call automatically.

MANU ANS: The connection to an incoming call must be established manually with the button / MODE (6).

Audio streaming

Audio streaming is the transmission of audio data (music) via Bluetooth® e.g. from a mobile phone to the CD tuner.

If you own a A2DP-capable Bluetooth® device, you can connect it with the CD tuner via the pairing procedure as described further up in this manual and establish an audio transmission.

• Make sure that both devices were connected via pairing.
• Start playback/audio transmission on your Bluetooth® device (see the corresponding operating manual).
• Press the button /MODE (6), until BT AUDIO is displayed on the display (5).

• Now audio transmission is activated.

• You can now remote-control the playback of your Bluetooth® device with the buttons! / * (8), / # (9) and 1 / (12) as usual.

Maintenance

Regularly check the technical safety of the CD tuner, e.g. for damage of the cables or the housing.

If it can be assumed that safe operation is no longer possible, the device must be turned off and precautions are to be taken to ensure that it is not used unintentionally. Disconnect the car power system!

It can be assumed that safe operation is no longer possible if:

the device is visibly damaged,
- if the appliance does not function for some reason, or
- following considerable stress during transportation.

Before cleaning the CD tuner or performing maintenance, the following safety instruction must be observed:

Live components may be exposed if the covering is opened or components are removed.

Prior to start of maintenance or repair works, the device must be disconnected from all voltage sources.

Capacitors inside the device may still carry voltage even though they have been disconnected from all voltage sources.

Only qualified experts familiar with the hazards involved and the relevant regulations may perform repairs.

Apart from this, the device does not need servicing. The outside should only be cleaned with a soft, dry cloth or a brush.

Never use caustic cleaning agents or chemical solutions as the surface of the housing may be damaged.

Handling

• If the volume inside your car is too high, you will not hear acoustic warning signals. This constitutes a danger to yourself and other road users. Therefore, make sure the volume is at a suitable level.
• Inattentiveness on the road might involve serious accidents. Operation of the hi-fi system may therefore only take place if the traffic situation permits and you are not unduly distracted by operating the system.
• For safety reasons, many countries demand the operation of hands-free equipment for making calls while driving. You may only telephone in hands-free mode with automatic call accept. Numbers may only be dialled while the vehicle stands still. Inform yourself accordingly prior to the use of the hands-free equipment and observe the traffic laws of the country you are currently in.
• Do not listen to excessively loud music for long periods of time. This may damage your hearing.

Troubleshooting

With the Renkforce AN-8006 CD tuner, you have purchased a product that is equipped with state-of-the-art technology and safe to operate.

Nevertheless, problems or faults may occur.

Therefore, we would like to describe here how to eliminate possible faults:

Please observe the safety instructions!

No playback, no display, and the lights are out

• The vehicle fuse is defective. Look up the respective fuse in the operation manual of your car. Check the fuse.
• The positive line/ground line is loose. Remove the CD tuner and check the connections of the cables.

Replay only through one speaker.

• The balance control is wrongly adjusted. Adjust the balance control as described.
• The speaker connection has come loose. Remove the CD tuner and/or speakers and check the connections.

Replay only through the front or rear speakers.

• The fader control is wrongly adjusted. Adjust the fader control.
• The speaker connection has come loose. Remove the CD tuner and/or speakers and check the connections.

In radio operation hardly any stations can be received.

• The aerial is not pulled out completely. Pull out the aerial to its full length.
• The aerial connection has come loose. Remove the CD tuner and check the connection.
• The aerial is defective. Check the connection, grounding and the aerial itself.

Problems during radio and CD replay.

• Interferences reach the CD tuner via the positive line. Install an additional interference suppression coil into the positive line. If necessary also equip the vehicle with spark-plug suppressor sockets, distributor arms etc. to suppress interferences.

Interruptions of CD playback

• The installation angle of max. 30^ was exceeded.
• The surface of the CD is scratched or dirty.

CD playback not possible.

The CD was not inserted with the label side up.
- The surface of the CD is extremely dirty.
The CD is bent.
- The temperature in the vehicle is too high.
- The air humidity in the vehicle is too high; vapour condenses on the CD surface and renders the CD illegible. Wait until the condensation water has evaporated.
The CD was not created in a compatible format.

The device no longer reacts to input

• The installed microprocessor requires a reset. Press the button RESET (29) behind the front panel.
  The front panel was not placed correctly on the device.

When you press a station button, you only hear hissing.

• No station has been programmed. Program the stations as described above.

Every time you switch off the CD tuner, the station programming gets lost.

• The continuous positive line is not connected, or has come loose. Connect or check the continuous positive line as explained in the instructions or check whether the cable is correctly connected. Check the respective car fuse

Bluetooth® audio transmission does not work.

• The connected device does not support Bluetooth® A2DP audio transmission.
  The device is not connected to the CD tuner. Perform the pairing procedure.

The transmission quality in hands-free operation is bad.

• The distance between the microphone and the vehicle loudspeakers is too short.
  The microphone is located in the air stream of the sun roof, an open window, ventilation, etc.
• The distance between the speaker's mouth and the microphone is too long.

Repairs other than those described above should only be performed by an authorised specialist.

Technical data

General

Operating voltage 12V=

Battery remote control: 3-V lithium button cell CR2025

Output power 4 x 40W (max.)

Outputs 4x loudspeakers

4 x line out

Interfaces...Bluetooth,USB and SD/MMC card

Number memory 10

Installation slot 1 DIN (182 x 53mm)

Mounting depth 170mm

Weight 1.5kg

Radio

Reception range: FM 87.5-108.0MHz

AM 522-1620kHz

Station memory 30

FM sensitivity 4uV (S/N=30dB)

Intermediate frequency.. FM 10.7MHz

AM 450kHz

CD player

Admissible Media CD/CD-R/CD-RW/MP3

Disposal

Please dispose of the device when it is no longer of use, according to the current statutory requirements.

Disposal of used batteries/rechargeable batteries

The user is legally obliged (battery regulation) to return used batteries and storage batteries. Do not dispose of used batteries via the household rubbish.

Contaminated batteries/rechargeable batteries are labelled with these symbols to indicate that disposal in domestic waste is forbidden. The symbols for dangerous heavy metal constituents are: Cd = cadmium, Hg = mercury, Pb = lead. You can return used batteries/storage batteries free of charge to any collecting point of your local authority, to our stores or to any other store where batteries/storage batteries are sold.

Declaration of conformity

The manufacturer hereby declares that this product complies with the essential requirements and regulations of guideline 1999/5/EC.

The declaration of conformity of this product can be found at www.conrad.com.

Table des matieres

Page

Chere cliente, cher client,

$$ F M 1 > F M 2 > F M 3 > O M 1 > O M 2 $$

NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIOED, POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY, NATION M, OLDIES, FOLK M, DOCUMENT, TEST, ALARM
