KDS6060 - Car stereo JVC - Free user manual and instructions

Product type	Car radio with CD player
Brand	JVC
Model	KDS6060
Installation dimensions (WxHxD)	182 × 52 × 150 mm
Panel dimensions (WxHxD)	188 × 58 × 11 mm
Weight	1.3 kg (without accessories)
Power supply	DC 14.4 V (tolerance 11-16 V), negative ground
Maximum output power	45 W × 4 channels (front/rear)
RMS output power	17 W × 4 channels at 4 Ω, 40 Hz-20 kHz, ≤0.8% THD
Load impedance	4 Ω (4-8 Ω tolerated)
FM tuner frequency range	87.5 MHz - 108.0 MHz
AM tuner frequency range	MW: 522 kHz - 1620 kHz, LW: 144 kHz - 279 kHz
Main functions	FM/AM radio with automatic (SSM) and manual presets, CD player, sound adjustments (bass, treble, balance, fader), loudness, sound memory (SCM), clock, detachable panel

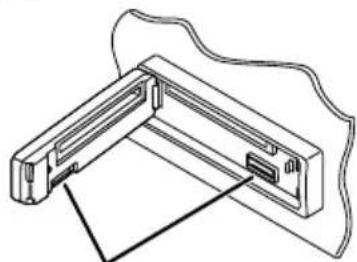

Maintenance and cleaning	Clean connectors with a cotton swab soaked in alcohol; discs: wipe from center to edges with a soft cloth
Safety	Class 1 laser product; do not open the cover; risk of laser radiation; do not increase volume excessively to maintain attention on the road
Spare parts and repairability	No user-serviceable parts; refer all servicing to qualified personnel
General information	Operating temperature: 0 °C to +40 °C ; design and specifications subject to change without notice

Frequently Asked Questions - KDS6060 JVC

How to reset the JVC KDS6060 device?

Hold down the SEL (select) button, then press the ATT (attenuate/mute) button for more than 2 seconds. This resets the microprocessor but erases personalized settings (preset stations, sound adjustments). If a CD is present, it will be ejected.

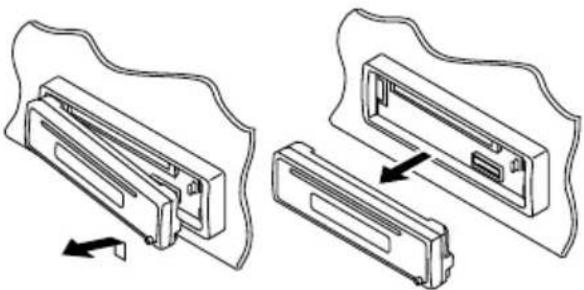

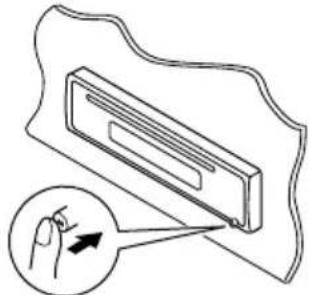

How to detach the control panel?

First turn off the device. Push the release button (located on the top right) to unlock the panel, then lift and pull it toward you. Store it in the provided case. To reattach, first insert the left side into the groove, then press the right side to lock it.

How to set the clock?

Hold down the SEL button for more than 2 seconds until 'CLOCK H' or 'CLOCK M' appears. Use the + or - buttons to set the hours, then press SEL again to go to minutes. Once set, wait or press SEL to finish.

How to manually store a radio station?

Select the band (FM1, FM2, FM3 or AM). Tune to the desired station, then hold down one of the numeric keys (1 to 6) for more than 2 seconds. The preset number flashes, confirming storage.

What to do if a CD does not eject?

If the CD is locked (eject prohibition enabled), hold down the CD button and press the ▲ (eject) button for more than 2 seconds to unlock. If the problem persists, try resetting the device by holding SEL and ATT simultaneously.

How to use the random play function (RND)?

While playing a CD, press MODE to enter function mode, then press the RND (random) button. The RND indicator lights up and tracks are played in random order. Press RND again to deactivate.

The radio receives FM stations poorly, what to do?

Press MODE then MO (monaural) to switch to monaural reception. The MO indicator lights up, improving weak signal reception. Also ensure the antenna is properly connected.

How to adjust the bass and treble?

Press SEL several times until 'BAS' (bass) or 'TRE' (treble) appears. Use the + or - buttons to adjust the level from -06 to +06. You can also adjust fader and balance via the same menu.

Can I use CD-R or CD-RW?

This unit can read finalized CD-Rs but not CD-RWs. Make sure the CD-R is finalized and has no stickers or labels. Some CD-Rs may not be read due to quality or dirt.

How to clean the CD player?

To clean the lens, use a cotton swab soaked in alcohol and gently wipe the panel connectors. For discs, wipe them with a soft cloth in a straight line from center to edges. Avoid solvents. In case of condensation, leave the unit on for a few hours.

USER MANUAL KDS6060 JVC

COMPACT disc DIGITAL AUDIO

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l'installation et les raccordements, se référer au manuel séparé. Montaj ve bağlantılar için diğer elkitabına bakın.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS TALÍMATLAR

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

CAUTION : Visible and invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM (e)

ADVARSEL : Synlig og usynlig laserstråling når maskinen er åben eller interlocken lejler. Undgå direkte eksponering til stråling. (d)

VARNING : Synlig och osynlig laserstråning når den díponas och spårren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojatukhus ohletuna tai vialisena olet alttina näkyvälle ja näkymättmälle lasersäteylle. Våta sälten kondistumista suoraan itsesii. (f)

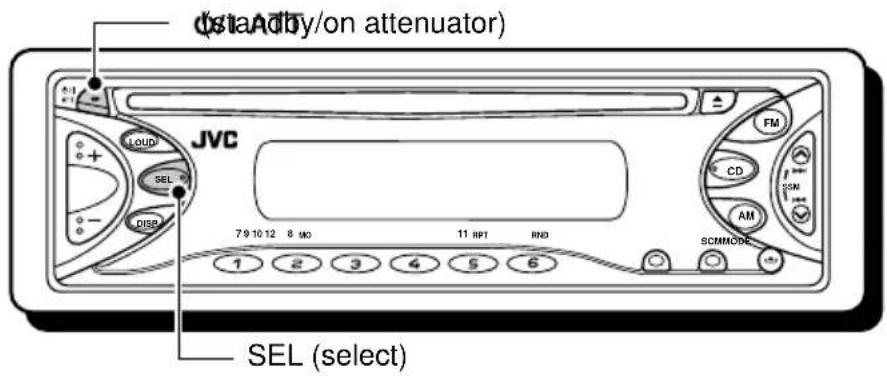

How to reset your unit

While holding SEL (select), press (standby/on attenuator) for more than 2 seconds. This will reset the built-in microcomputer.

Notes:

• Your preset adjustments—such as preset channels or sound adjustments—will also be erased.
• If a CD is in the unit, it will eject when you reset the unit. Be careful not to drop the CD.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

How to reset your unit 2

How to use the MODE button .... 3

LOCATION OF THE BUTTONS ..... 4

Control panel 4

BASIC OPERATIONS .... 5

Turning on the power 5

Setting the clock 6

RADIO OPERATIONS ...... 7

Listening to the radio 7

Storing stations in memory 9

Tuning in to a preset station 10

CD OPERATIONS ...... 11

Playing a CD 11

Locating a track or a particular portion on a CD 12

Selecting CD playback modes .... 12

Prohibiting CD ejection 13

SOUND ADJUSTMENTS ...... 14

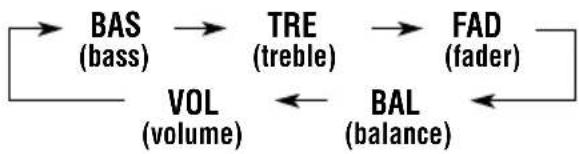

Adjusting the sound 14

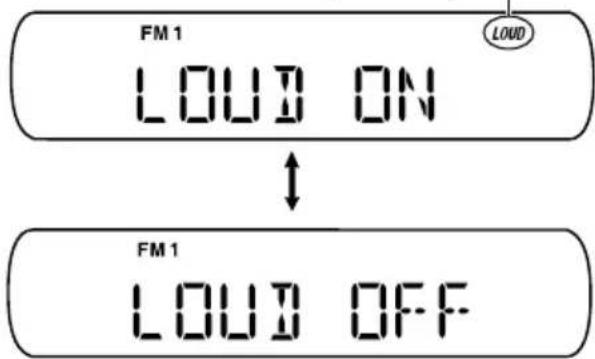

Turning on/off the loudness function ..... 14

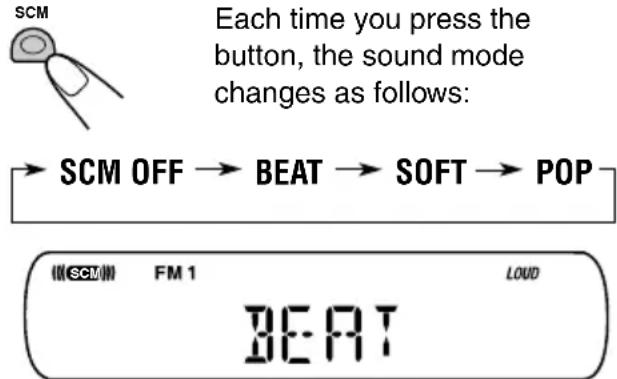

Using the sound control memory (SCM) ... 15

Storing your own sound adjustments ..... 16

OTHER MAIN FUNCTIONS ...... 17

Selecting the level display—LEVEL ..... 17

Canceling Advanced SCM—SCM LINK ... 17

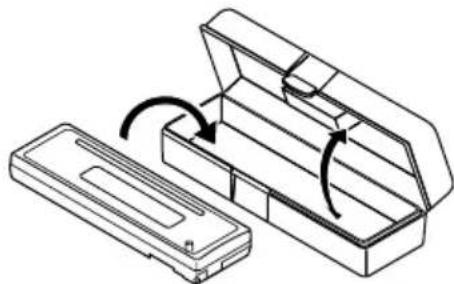

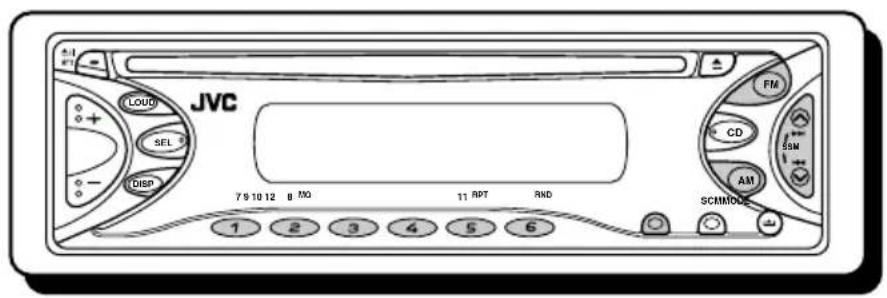

Detaching the control panel 18

TROUBLESHOOTING 19

MAINTENANCE 20

Handling discs 20

SPECIFICATIONS 21

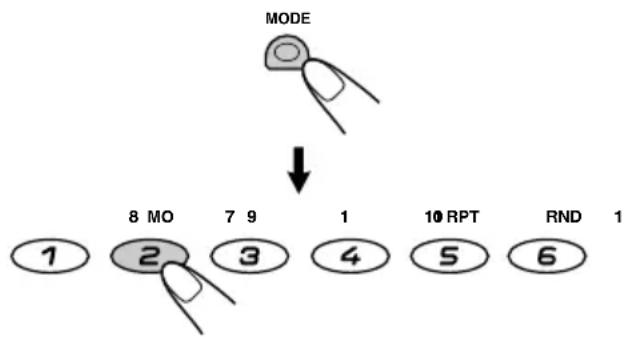

How to use the MODE button

If you press MODE, the unit goes into functions mode and the number buttons work as different function buttons.

Time countdown indicator

To use these buttons as number buttons again after pressing MODE, wait for 5 seconds without pressing any number button until the functions mode is cleared.

- Pressing MODE again also clears the functions mode.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit's chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

\*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.

\*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

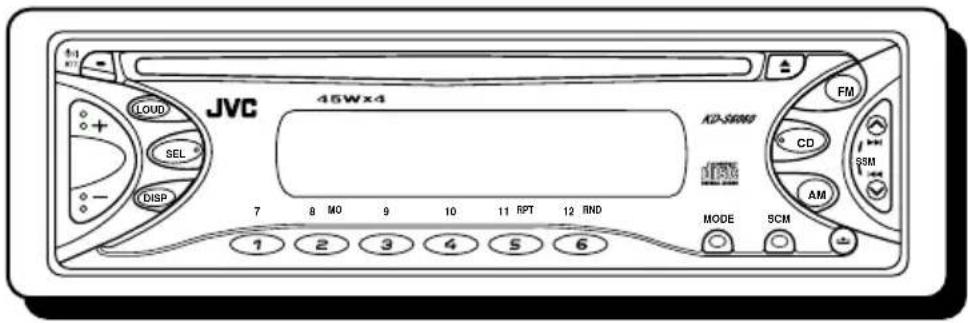

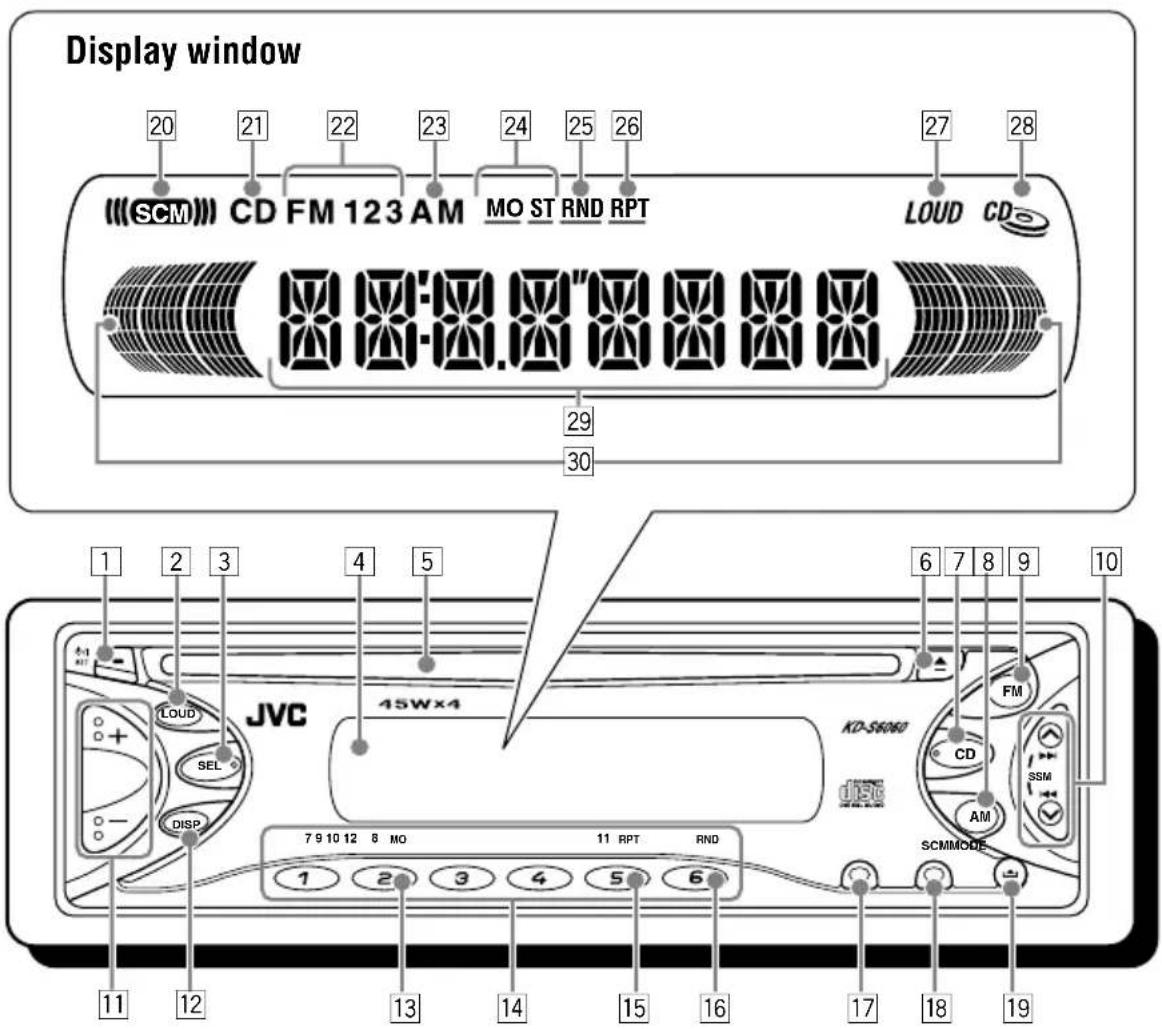

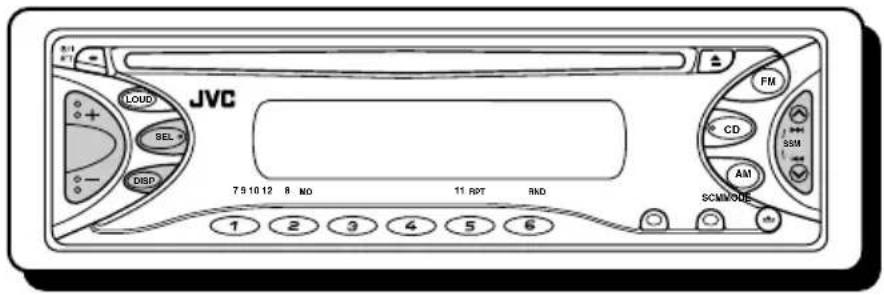

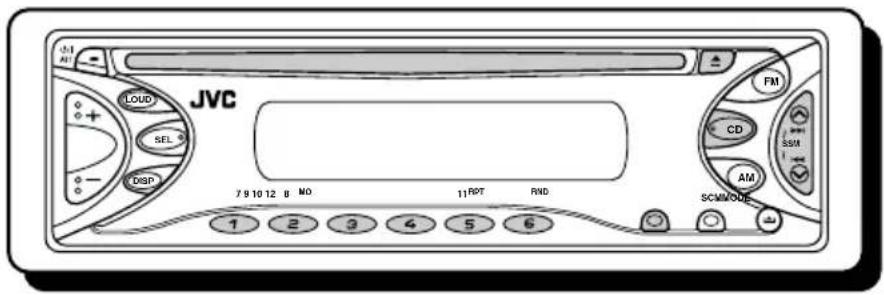

Control panel

1(stand-by on attenuator) button
2LOUD (loudness) button
3SEL (select) button
4 Display window
5 Loading slot
6▲ (eject) button
7CD button
8AM button
9 FM button
10 ▶▶▶▶▶◀◀ buttons

- Also functions as SSM buttons when pressed together.

11+/- buttons
12 DISP (display) button
13MO (monaural) button
14 Number buttons
15RPT (repeat) button
16RND (random) button
17MODE button
18 SCM (sound control memory) button
19(control panel release) button

Display window

20SCM (sound control memory) indicator
21CD source indicator
22FM band indicators (FM1, FM2, FM3)
23AM band indicator
24Tuner reception indicators MO (monaural), ST (stereo)
25RND (random) indicator
26RPT (repeat) indicator
27LOUD (loudness) indicator
28CD-in indicator
29 Main display
30Volume level indicator

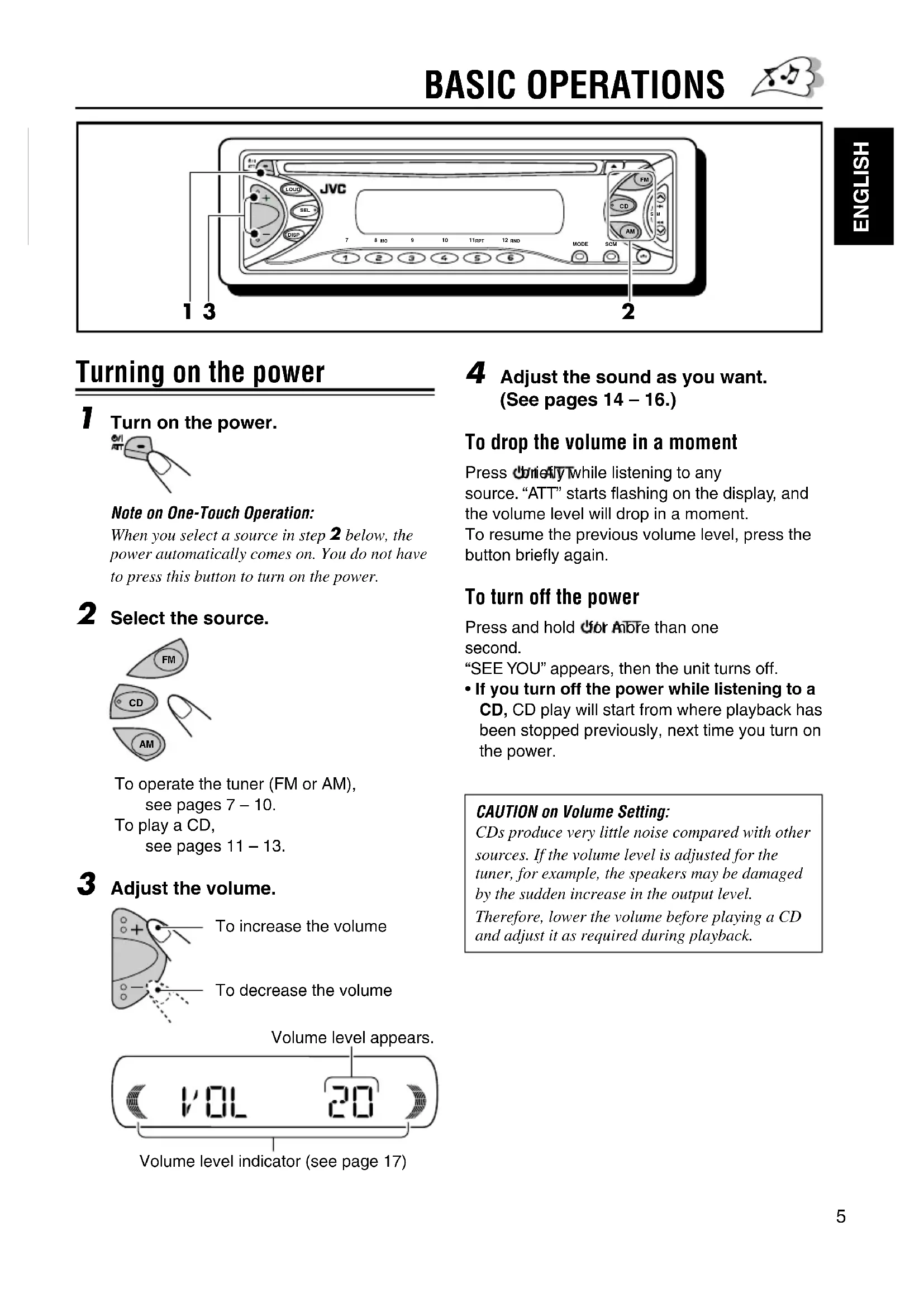

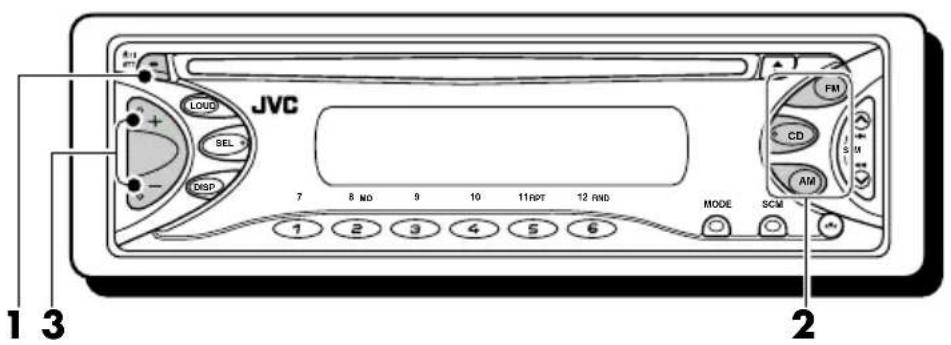

Turning on the power

1 Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

2 Select the source.

To operate the tuner (FM or AM), see pages 7 – 10.

To play a CD, see pages 11 – 13.

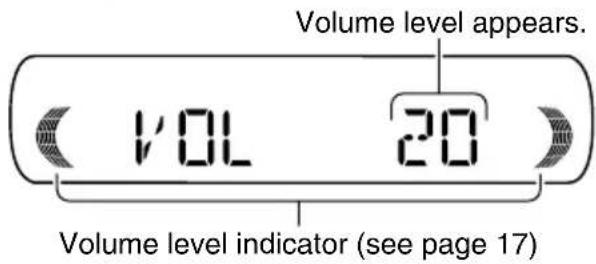

3 Adjust the volume.

To increase the volume

To decrease the volume

4 Adjust the sound as you want. (See pages 14 – 16.)

To drop the volume in a moment

Press briefly while listening to any source. "ATT" starts flashing on the display, and the volume level will drop in a moment.

To resume the previous volume level, press the button briefly again.

To turn off the power

Press and hold for more than one second.

"SEE YOU" appears, then the unit turns off.

- If you turn off the power while listening to a CD, CD play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

CDs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level.

Therefore, lower the volume before playing a CD and adjust it as required during playback.

Setting the clock

1 Press and hold SEL (select) for more than 2 seconds.

"CLOCK H," "CLOCK M," "SCM LINK," or "LEVEL" appears on the display.

2 Set the hour.

1 Select "CLOCK H" (hour) if not shown on the display.

2Adjust the hour.

3 Set the minute.

1 Select "CLOCK M" (minute).

2Adjust the minute.

4 Finish the setting.

To check the current clock time or change the display mode

Press DISP (display) repeatedly. Each time you press the button, the display mode changes as follows:

• During tuner operation:

←→ ClockFre

- During CD operation:

Elapsed playing time ↔ Clock

- During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

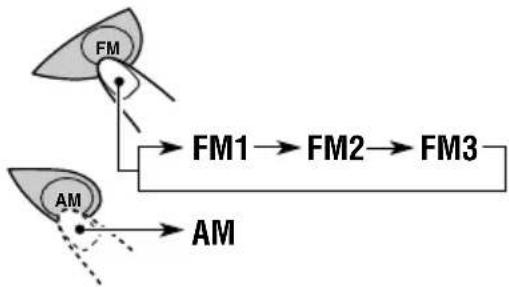

Searching for a station automatically: Auto search

1 Select the band (FM1 - 3, AM).


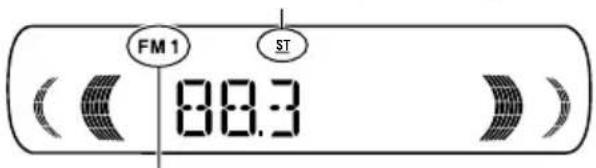

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Selected band appears.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

2 Start searching for a station.

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have pressed for searching.

Searching for a station manually: Manual search

1 Select the band (FM1 - 3, AM).

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

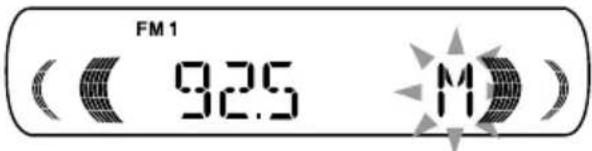

2 Press and hold ▲▶▶ or ◀◀◀ ∨ until “M” (manual) starts flashing on the display.

3 Tune in to a station you want while "M" (manual) is flashing.

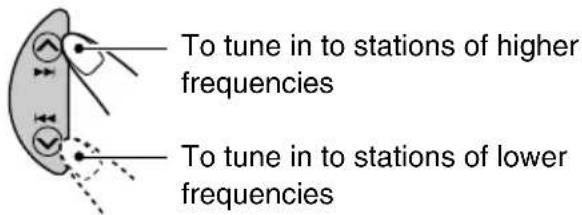

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.
• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM—MW/LW) until you release the button.

When an FM stereo broadcast is hard to receive:

1 Press MODE to enter the functions mode while listening to an FM stereo broadcast.

2 Press MO (monaural), while still in the functions mode, so that the MO indicator lights up on the display. Each time you press the button, the MO indicator lights up and goes off alternately.

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
- Manual preset of both FM and AM stations

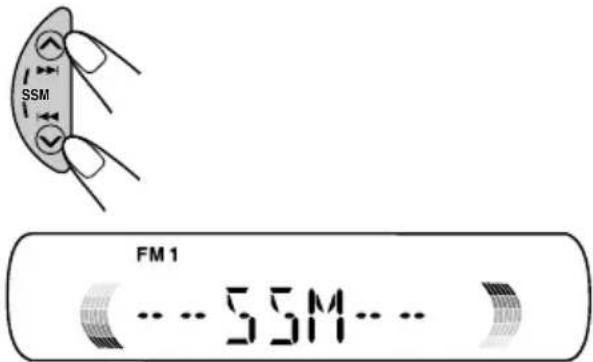

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

1 Select the FM band (FM1 - 3) you want to store FM stations into.

2 Press and hold both buttons for more than 2 seconds.

“SSM” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3).

These stations are preset in the number buttons—No.1 (lowest frequency) to No.6 (highest frequency).

When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

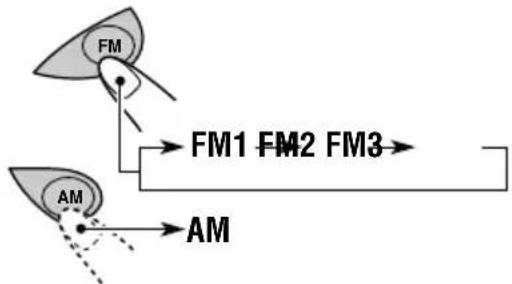

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

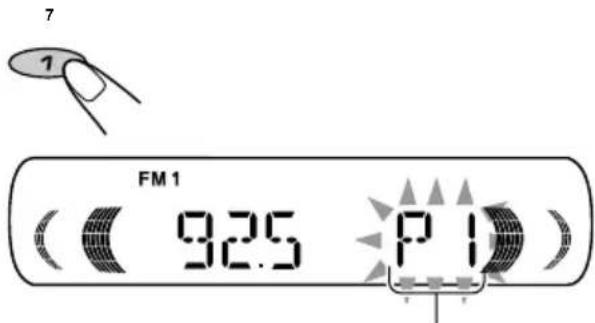

Ex.: Storing FM station of 92.5 MHz into the preset number 1 of the FM1 band.

1 Select the band (FM1 - 3, AM) you want to store stations into (in this example, FM1).

2 Tune in to a station (in this example, of 92.5 MHz).

3 Press and hold the number button (in this example, 1) for more than 2 seconds.

"P1" flashes for a few seconds.

4 Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see "Storing stations in memory" on pages 9 and 10.

1 Select the band (FM1 - 3, AM).

2 Select the number (1 - 6) for the preset station you want.

Playing a CD

Insert a CD into the loading slot.

Diagram of a CD or DVD disc with an arrow indicating direction (no text or symbols present)

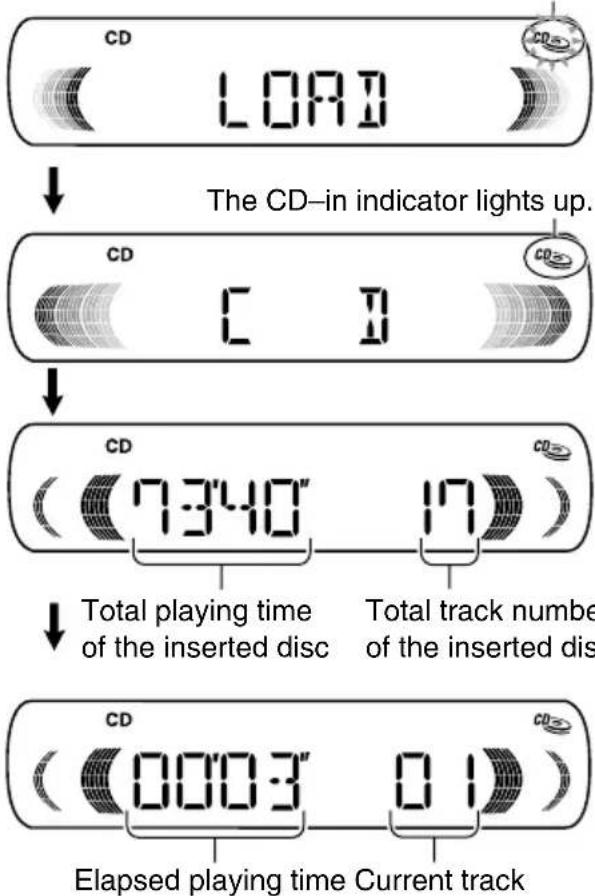

The unit turns on, draws the CD and starts playback automatically.

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

The CD-in indicator flashes.

All tracks will be played repeatedly until you stop playback.

Note:

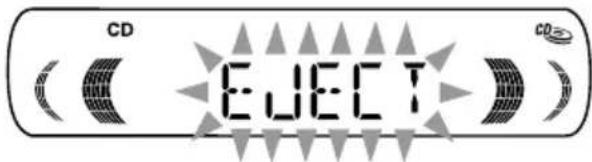

When a CD is inserted upside down, "EJECT" appears on the display and the CD automatically ejects.

To stop play and eject the CD

Press ▲.

CD play stops and the CD automatically ejects from the loading slot. The source changes to the tuner (you will hear the last received station.)

- If you change the source, CD play also stops (without ejecting the CD).

Next time you select "CD" as the source, CD play starts from where playback has been stopped previously.

Notes:

- If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.)

- You can eject the CD even when the unit is turned off.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the CD, but will be annoying.

We recommend that you stop CD play while driving on such rough roads.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ▲▶, while playing a CD, to fast-forward the track.

Press and hold ◀◀◀ ,while playing a CD, to reverse the track.

To go to the next or previous tracks

Simple line drawing of a human eye with lens and eyelid, no text or symbols present

Press ▲▶ briefly, while playing a CD, to go ahead to the beginning of the next track.

Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press ◀◀◀ briefly, while playing a CD, to go back to the beginning of the current track.

Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.
• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

Selecting CD playback modes

To play back tracks at random (Random Play)

You can play back all tracks on the CD at random.

1 Press MODE to enter the functions mode while playing a CD.
2 Press RND (random), while still in the functions mode, so that the RND indicator lights up on the display. Each time you press the button, CD random play mode turns on and off alternately.

RND indicator

When Random Play is turned on, the RND indicator lights up on the display. A track randomly selected starts playing.

To play back tracks repeatedly (Repeat Play)

You can play back the current track repeatedly.

1 Press MODE to enter the functions mode while playing a CD.

2 Press RPT (repeat), while still in the functions mode, so that the RPT indicator lights up on the display.

Each time you press the button, CD repeat play mode turns on and off alternately.

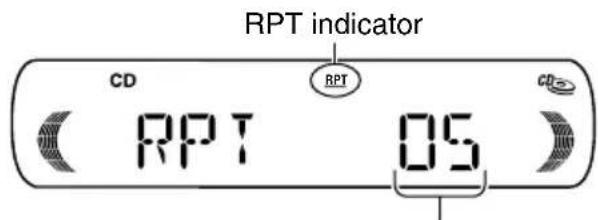

Track number of the currently playing track

When Repeat Play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

Prohibiting CD ejection

You can prohibit CD ejection and can lock a CD in the loading slot.

While pressing CD, press and hold ▲ for more than 2 seconds.

"EJECT" flashes on the display for about 5 seconds, and the CD is locked and cannot be ejected.

To cancel the prohibition and unlock the CD

While pressing CD, press and hold ▲ again for more than 2 seconds.

"EJECT" appears on the display, and the CD ejects from the loading slot.

The CD-in indicator flashes.

Adjusting the sound

You can adjust the sound characteristics to your preference.

1 Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

Indication	To do: Range
BAS Adjust	the bass. -06 (min.)	| +06 (max.)
TRE Adjust	the treble. -06 (min.)	| +06 (max.)
FAD* Adjust	the front R06 (Rear only) and rear speaker balance. F06 (Front only)	|
BAL Adjust	the left L06 (Left only) and right speaker balance. R06 (Right only)	|
VOL Adjust	the volume. 00 (min.)	| 50 (max.)

* If you are using a two-speaker system, set the fader level to "00."

2 Adjust the level.

To increase the level

To decrease the level

Ex.: When you adjust "TRE" (treble)

Note:

Normally, the + and - buttons work as the volume control buttons. So you do not have to select "VOL" to adjust the volume level.

Turning on/off the loudness function

The human ear is less sensitive to low and high frequencies at low volumes.

The loudness function can boost these frequencies to produce a well-balanced sound at low volume levels.

Each time you press LOUD, the loudness function turns on and off alternately.

LOUD (loudness) indicator

Using the sound control memory (SCM)

You can select and store a preset sound adjustment suitable for each playback source (Advanced SCM).

Selecting and storing the sound modes

Once you select a sound mode, it is stored in memory. It will be recalled every time you select the same source and will be shown on the display.

A sound mode can be stored for each of the following sources—FM1, FM2, FM3, AM, and CD.

- If you do not want to store the sound mode separately for each playback source, but want to use the same sound mode for all the sources, see “Canceling Advanced SCM—SCM LINK” on page 17.

Select the sound mode you want.

Ex.: When you select "BEAT"

• When “SCM LINK” is set to “LINK ON,” the selected sound mode can be stored in memory for the current source and the effect applies only to the current source.
• When “SCM LINK” is set to “LINK OFF,” the selected sound mode effect applies to any source.

Indication	For: Preset values
		BAS TRE LOUD
SCM OFF	(Flat sound) 00 00 ON
BEAT Rock or +02 00 ON disco music
SOFT Quiet	+01 -03 OFF background music
POP Light	music +04 +01 OFF

Recalling the sound modes

When "SCM LINK" is set to "LINK ON," select the source.

Each time you change the playback source, the SCM indicator flashes on the display.

The sound mode stored in memory for the selected source is recalled.

Notes:

• You can adjust each sound mode to your preference, and store it in memory.
  If you want to adjust and store your original sound mode, see “Storing your own sound adjustments” on page 16.
• To adjust the bass and treble reinforcement levels or to turn on/off the loudness function temporarily, see page 14. (Your adjustments will be canceled if another source is selected.)

Storing your own sound adjustments

You can adjust the sound modes (BEAT, SOFT, POP) to your preference and store your own adjustments in memory.

- There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

1 Call up the sound mode you want to adjust.

• See page 15 for details.

Ex.: When you select "SOFT"

2 To adjust the bass or treble level.

1 Select "BAS" (bass) or "TRE" (treble).

Ex.: When you select "TRE" (treble)

2Adjust the level.

To turn on or off the loudness function.

• See page 14 for details.

3 Repeat step 2 to adjust the other items.

4 Press and hold SCM until the sound mode you have selected in step 1 flashes on the display.

Your adjustment made for the selected sound mode is stored in memory.

5 Repeat the same procedure to store other sound modes.

To reset to the factory settings, repeat the same procedure and reassign the preset values listed in the table on page 15.

Selecting the level display —LEVEL

You can select the level display according to your preference.

When shipped from the factory, "VOL 2" is selected.

• VOL 1: Shows the volume level indicator.
- VOL 2: Alternates "VOL 1" setting and illumination display.
• OFF: Erases the volume level indicator.

1 Press and hold SEL (select) for more than 2 seconds.

"CLOCK H," "CLOCK M," "SCM LINK," or "LEVEL" appears on the display.

2 Select "LEVEL" if not shown on the display.

3 Select the desired mode—"VOL 1," "VOL 2," or "OFF."

4 Finish the setting.

Canceling Advanced SCM —SCM LINK

You can cancel the Advanced SCM (Sound Control Memory), and unlink the sound modes and the playback sources.

When shipped from the factory, a different sound mode can be stored in memory for each source so that you can change the sound modes simply by changing the sources.

• LINK ON: Advanced SCM (different sound modes for different sources.)
• LINK OFF: Conventional SCM (one sound mode for all sources.)

1 Press and hold SEL (select) for more than 2 seconds.

"CLOCK H," "CLOCK M," "SCM LINK," or "LEVEL" appears on the display.

2 Select "SCM LINK" if not shown on the display.

3 Select "LINK OFF."

4 Finish the setting.

To activate Advanced SCM (Sound Control Memory), repeat the same procedure and press + to select "LINK ON" in step 3.

Detaching the control panel

You can detach the control panel when leaving the car.

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

1 Unlock the control panel.

Diagram of a medical device with an arrow pointing to it, no text or symbols present

2 Lift and pull the control panel out of the unit.

Technical line drawing of two mechanical components with arrows indicating assembly or movement (no text or symbols)

3 Put the detached control panel into the provided case.

Technical line drawing of a mechanical component with an open lid and internal channels, showing rotational motion (no text or symbols)

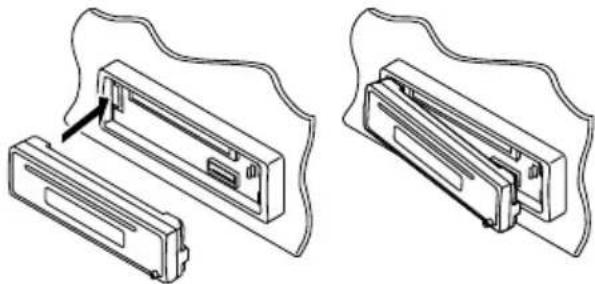

Attaching the control panel

1 Insert the left side of the control panel into the groove on the panel holder.

Technical line drawing of two mechanical components with no visible text or symbols

2 Press the right side of the control panel to fix it to the panel holder.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate.

To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Technical line drawing of a mechanical bracket or housing component (no text or symbols)

Connectors

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms		Causes	Remedies
General	Sound cannot be heard from the speakers.	The volume level is set to the minimum level.	Adjust it to the optimum level.
		Connections are incorrect.	Check the cords and connections.
	This unit does not work at all.	The built-in microcomputer may have functioned incorrectly due to noise, etc.	While holding SEL (select), press dstandby/on attenuator) for more than 2 seconds to reset the unit. (The clock setting and preset stations stored in memory are erased.) (See page 2.)
FM/AM	SSM (Strong-station Sequential Memory) automatic preset does not work.	Signals are too weak.	Store stations manually.
	Static noise while listening to the radio.	The aerial is not connected firmly.	Connect the aerial firmly.
CD Playback	CD automatically ejects.	CD is inserted upside down.	Insert the CD correctly.
	CD-R cannot be played back.Tracks on the CD-R cannot be skipped.	CD-R is not finalized.	Insert a finalized CD-R.Finalize the CD-R with the component which you used for recording.
	CD can be neither played back nor ejected.	CD is locked.	Unlock the CD. (See page 13.)
		The CD player may have functioned incorrectly.	While holding ⬆/I ATT(standby/on attenuator), press ▲ (eject) for more than 2 seconds. Be careful not to drop the CD when it is ejected.
	CD sound is sometimes interrupted.	You are driving on rough roads.	Stop playback while driving on rough roads.
		CD is scratched.	Change the CD.
		Connections are incorrect.	Check the cords and connections.
	“NO DISC” appears on the display.	No CD in the loading slot.	Insert a CD into the loading slot.
		CD is inserted incorrectly.	Insert the CD correctly.

Handling discs

This unit has been designed to reproduce CDs and CD-Rs (Recordable).

- This unit is not compatible with MP3 discs.

How to handle discs

When removing a disc

from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

Center holder

- Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

- Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.

To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.
- If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

When playing a CD-R

Before playing back CD-Rs, read their instructions or cautions carefully.

• Use only "finalized" CD-Rs.
• Some CD-Rs may not play back on this unit because of their disc characteristics, and for the following reasons:

– Discs are dirty or scratched.
- Moisture condensation on the lens inside the unit.
– The pickup lens inside the unit is dirty.

• CD-Rs are susceptible to high temperatures or high humidity, so do not leave them inside your car.
• Do not use following CD-Rs:

– Discs with stickers, labels, or protective seal stuck to the surface.
– Discs on which labels can be directly printed by an ink jet printer.

Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example,

• Stickers or labels may shrink and warp a disc.
• Stickers or labels may peel off so discs cannot be ejected.
  – Print on discs may get sticky.

Read instructions or cautions about labels and printable discs carefully.

- CD-RWs (Rewritable) cannot be played back on this unit.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)
• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.
• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 45 W per channel

Rear: 45 W per channel

Continuous Power Output (RMS):

Front: 17 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 17 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity:

11.3 dBf (1.0 μV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 μV

Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 μV

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 90 dB

Signal-to-Noise Ratio: 95 dB

Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

(11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 11 mm

Mass (approx.):

1.3 kg (excluding accessories)

Design and specifications are subject to change without notice.

IMPORTANTE PARA PRODUCTOS LASER

Nota:

Diagram of a CD or DVD disc with an arrow indicating direction (no text or symbols present)

Ajuste del sonido

Diagram of a device with an arrow pointing to a hand, no text or symbols present

Technical line drawing of two mechanical components with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical component with an open lid and internal slots, showing rotational motion arrows (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Conectores

FM: 87,5 MHz a 108,0 MHz

AM: (OM) 522 kHz a 1 620 kHz

(OL) 144 kHz a 279 kHz

11,3 dBf (1,0 μV/75 Ω)

Diagram of a CD or DVD disc mounted on a rectangular base with an arrow indicating direction (no text or symbols)

Simple line drawing of a human eye with internal organs and a vertical line, no text or symbols present.

Ajustement du son

Diagram of a medical device with an arrow pointing to it, no text or symbols present

Technical line drawing of two mechanical components with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical component with an open lid and internal structure, showing rotational motion arrows (no text or symbols)

Technical line drawing of two mechanical components with internal slots and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical bracket or mounting bracket (no text or symbols)

Connecteurs

11,3 dBf (1,0 μV/75 Ω)

Dimensions (L × H × P):

Diagram of a CD or DVD disc with an arrow indicating direction (no text or symbols)

Simple line drawing of a curved object with arrows and dots indicating motion or force, no text or symbols present.

Sesin ayarlanması

Technical line drawing of two mechanical components with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical component with an open lid and internal structure, showing rotational motion arrows (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Konektörler

FM: 87.5 MHz ila 108.0 MHz

AM: (OD) 522 kHz ila 1 620 kHz

(UD) 144 kHz ila 279 kHz

[FM Tüner]

16.3 dBf (1.8 μV/75 Ω)

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit
