KW-M740BT - Car radio JVC - Free user manual and instructions

Product Type	Car Stereo with DVD/CD Receiver
Brand	JVC
Model	KW-M740BT
Chassis Size	2-DIN (approx. 178 x 100 x 160 mm)
Weight	Approx. 1.5 kg
Power Supply	12V DC (negative ground)
Maximum Power Output	4 x 50 W
Display Type	6.2-inch LCD Touchscreen
Supported Discs	CD, CD-R/RW, DVD, DVD-R/RW, DVD+R/RW
Bluetooth Version	3.0 with A2DP, HFP, AVRCP
USB Port	Front USB (compatible with iPod/iPhone)
Radio Bands	FM (87.5-108 MHz), AM (531-1710 kHz)
Audio Formats	MP3, WMA, WAV, FLAC, AAC
Video Formats	MPEG-1, MPEG-2, DivX, XviD, H.264
Steering Wheel Controls	Compatible with wired remote (sold separately)
Rear Camera Input	Yes, RCA video input
Subwoofer Pre-out	1 set (RCA)
Front/Rear Pre-out	2 sets (RCA, 2V output)
Equalizer	13-band graphic EQ with presets
Additional Features	Bluetooth hands-free, audio streaming, text display, clock
Cleaning Instructions	Use a soft, dry cloth; avoid solvents
Safety Notices	Disconnect battery before installation; use only specified fuses
Spare Parts & Repairability	Contact JVC service center; some parts available online
General Information	User manual available in PDF (96 pages)

Frequently Asked Questions - KW-M740BT JVC

How do I pair my phone via Bluetooth?

Enable Bluetooth on your phone, then press the MENU button on the unit, select Bluetooth, then Pairing. Search for KW-M740BT on your phone and enter PIN 0000 if prompted.

What disc formats are supported?

The unit supports CD, CD-R/RW, DVD, DVD-R/RW, and DVD+R/RW. Discs must be finalized and recorded in formats like MP3, WMA, AAC, or standard audio.

How do I reset the unit to factory settings?

Press and hold the MENU button for 5 seconds, then select Settings > Factory Reset. Confirm with Yes. Alternatively, press the Reset button with a pointed object.

Can I connect a rearview camera?

Yes, the KW-M740BT has a dedicated Rear Camera Input (RCA). Connect the camera to the CAM IN jack and enable the function in settings.

What is the maximum USB drive capacity?

USB drives up to 32 GB are supported. The drive must be formatted in FAT32 or exFAT.

How do I adjust the sound settings?

Press the AUDIO button to access Bass, Treble, Balance, Fader, and Subwoofer settings. Use the touch screen or rotary knob to adjust.

Why is there no sound from the speakers?

Check if the unit is muted (MUTE icon), ensure speaker wires are properly connected, and verify the fader/balance settings. Also confirm the source is playing.

Can I play videos while driving?

For safety, video playback is disabled while the vehicle is moving unless the parking brake wire is connected. This is a legal requirement.

How do I update the firmware?

JVC periodically releases firmware updates. Visit the JVC support website, download the update file to a USB drive, insert it into the unit, and follow the on-screen instructions.

What does the BLUETOOTH indicator mean?

A solid blue BLUETOOTH indicator means a device is connected. Flashing indicates pairing mode. No light means Bluetooth is off or not paired.

USER MANUAL KW-M740BT JVC

MONITOR WITH DVD RECEIVER

KW-V840BT

MONITOR WITH RECEIVER

KW-M740BT

INSTRUCTION MANUAL

JVCKENWOOD Corporation

- Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from http://www.jvc.net/cs/car/ .

Spotify®

waze

YouTube

Bluetooth®

WebLink™

((SiriusXM)) READY

DOLBY AUDIO™

pandora®

Made for

iPod

iPhone

Works with

Apple CarPlay

Android Auto

Contents

Before Use 4

Precautions....4

How to read this manual ....5

Basic Operations 6

Functions of the Buttons on the Front Panel ... 6

Turning on the Unit 7

Initial Settings....7

Adjusting the volume 9

Touch screen operations ....10

HOME screen descriptions....10

Source selection screen descriptions....11

Source control screen descriptions ....13

Popup menu 13

List screen ....14

Disc 15

Playing a disc 15

DVD/ VCD Basic Operation....15

Music CD/ Disc media Basic Operation .....17

File search Operation....18

DVD Disc Menu Operation....19

DVD Setup....20

APPS—Android Auto™/Apple CarPlay 21

Apple CarPlay Operation....21

Android Auto™ Operation....22

Pandora® Operation 24

Spotify Operation....26

WebLink™/Waze Operation 28

USB 29

Connecting a USB device 29

USB Basic Operation....29

Search Operation....31

iPod/iPhone 32

Preparation 32

iPod/iPhone Basic Operation ....33

Search Operation....34

Tuner 35

Tuner Basic Operation 35

Memory Operation....36

Selecting Operation ....37

Traffic Information 38

Tuner Setup....38

SiriusXM® 39

SiriusXM® Basic Operation ....39

Storing Channels in Preset Memory......41

Preset select 41

Direct search ....41

Category/Channel search....42

Replay 42

TuneMix™ 43

SmartFavorites, TuneStart™ 43

TuneScan™ 43

Traffic & Weather Now™ 44

Content Alerts....44

SportsFlash™ 45

SiriusXM Setup 45

Other External Components 51

View Camera 51

External audio/video players—AV-IN ....52

OEM Features Operation ....53

Bluetooth Control 54

Information for using Bluetooth® devices......54

Register the Bluetooth device ....55

Bluetooth Setup....56

Playing Bluetooth Audio Device....58

Using Hands-Free Unit....60

Hands-Free Setup....64

Setting Up 65

Monitor Screen Setup....65

System Setup 65

User Interface Setup....66

Special Setup 67

Display Setup....68

AV Setup 69

Controlling Audio 70

3 way speaker system setup....70

Speaker/ X'over setup....71

Controlling General Audio 73

Equalizer Control....73

Volume Offset....74

Zone Control 74

Sound Effect....75

Listening Position/ DTA....76

Remote control 78

Functions of the Remote control Buttons .....78

Connection/Installation 80

Before Installation....80

Installing the unit 81

Troubleshooting 85

Problems and Solutions....85

Error Messages....85

Appendix 87

Playable Media and Files....87

Region Codes in the World 89

DVD Language Codes....90

Specifications....91

About this Unit....93

Before Use

Precautions

⚠️ WARNINGS

To prevent injury or fire, take the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. - Do not watch or fix your eyes on the unit's display when you are driving for any extended period. - If you experience problems during installation, consult your JVC dealer.

Precautions on using this unit

• When you purchase optional accessories, check with your JVC dealer to make sure that they work with your model and in your area.
• You can select language to display menus, audio file tags, etc. See User Interface Setup (P.66).
• The Radio Data System or Radio Broadcast Data System feature won't work where the service is not supported by any broadcasting station.
• The unit may not function properly if the connectors between the unit and front panel are dirty. Detach the front panel and clean the connector with a cotton swab gently, being careful not to damage the connector.

Protecting the monitor

- To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip.

Cleaning the unit

- If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

NOTE

- Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

Lens fogging

When you turn on the car heater in cold weather, dew or condensation may form on the lens in the disc player of the unit. Called lens fogging, this condensation on the lens may not allow discs to play. In such a situation, remove the disc and wait for the condensation to evaporate. If the unit still does not operate normally after a while, consult your JVC dealer.

Precautions on handling discs

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use disc type accessories.
• Clean from the center of the disc and move outward.
• When removing discs from this unit, pull them out horizontally.
• If the disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc. • Discs that are not round cannot be used.

• 8-cm (3 inch) discs cannot be used. • Discs with coloring on the recording surface or discs that are dirty cannot be used.

• This unit can only play the CDs with

• This unit may not correctly play discs which do not have the mark.
• You cannot play a disc that has not been finalized. (For the finalization process see your writing software, and your recorder instruction manual.)

How to read this manual

• The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual screens or panels used, or some display patterns may be different.
• Indication language: English indications are used for the purpose of explanation. You can select the indication language from the [SETUP] menu. See User Interface Setup (P.66).

Basic Operations

Functions of the Buttons on the Front Panel

KW-V840BT

KW-M740BT

NOTE

The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual panels.

Number	Name Motion
1	-, + (Volume)	• Adjusts volume. The volume will go up until 15 when you keep pressing [+].
2	Disc insert slot	• A slot to insert a disc media.
3	FNC • Displays the popup menu screen. • Pressing for 1 second displays the Voice Recognition screen (P.61). • When the power off, turns the power on.
4	Remote Sensor	• Receives the remote control signal.

Turning on the Unit

The method of turning on is different depending on the model.

1 Press the [FNC] button.

The unit is turned on.

NOTE

If it is your first time turning the unit on after installation, it will be necessary to perform Initial setup (P.7).

To turn off the unit:

1 Press the [FNC] button.

A popup menu appears.

2 Touch

HOME screen appears.

3 Touch

4 Touch [Power Off].

Initial Settings

Initial setup

Perform this setup when you use this unit for the first time.

1 Set each item as follows.

[Language]

Select the language used for the control screen and setting items. Default is "American English (en)".

① Touch [Language]. ② Touch [Language Select]. ③ Select the desired language. ④ Touch [ ]

For detailed operation, see User Interface Setup (P.66).

[Clock]

Sets the synchronization of the clock and adjusts it.

For detailed operation, see Calendar/clock settings (P.9).

[Display]

If it is hard to see the image on the screen, adjust the viewing angle.

① Touch [Display]. ② Touch [Viewing Angle]. ③ Select an angle. ④ Touch [7].

For detailed operation, see Display Setup (P.68).

[Camera]

Set the parameters for the camera.

① Touch [Camera]. ② Set each item and touch [6].

For detailed operation, see Camera Setup (P.51).

Basic Operations

[OEM SETUP]

This function requires a commercial adaptor. Consult your JVC dealer for details.

[DEMO]

Set the demonstration mode. Default is "ON".

① Touch [DEMO] and set ON or OFF.

② Touch [Finish].

NOTE

- These settings can be set from the SETUP menu. See Setting Up (P.65).

Security Code Setup

You can set up a security code to protect your receiver system against theft.

When the Security Code function is activated, the code cannot be changed and the function cannot be released. Note the Security Code can be set as the 4 digit number of your choice.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

4 Touch [Security].

▶ Security screen appears.

5 Touch [Security Code Set] on the Security screen.

▶ Security Code Set screen appears.

6 Enter a security code with four-digit number and touch [Enter].

7 Enter the same code again and touch [Enter].

Now, your security code is registered.

NOTE

• Touch [BS] to delete the last entry.
• If you enter a different security code, the screen returns to step 6 (for the first code entry).
• If you have disconnected the Receiver from battery, enter the correct security code as that you have entered in step 6 and touch [Enter]. You can use your receiver.

To change the security code:

1 Touch [Security Code Change] on the Security screen, then repeat step 6 and 7.

To clear the security code:

1 Touch [Security Code Cancellation] on the Security screen.

Calendar/clock settings

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

4 Touch [User Interface].

▶ User Interface screen appears.

5 Touch [Time Zone].

6 Select the time zone.

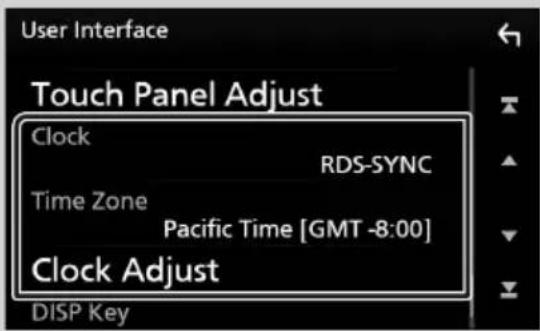

7 Set each item as follows.

Scroll the page to show the item.

[Clock]

RDS-SYNC : Synchronizing the Radio Data System station time data and this unit's clock.

[Manual]: Sets the clock manually.

[Time Zone]

Select the time zone.

[Clock Adjust]

If you select [Manual] for Clock, adjust the date and time manually. (P.66)

NOTE

- Please set the date and time. If it is not set, it may not work with some functions.

Adjusting the volume

To adjust the volume (0 to 40),

Press [+] to increase, and press [-] to decrease. Holding [+] increases the volume continuously to level 15.

Touch screen operations

To perform operations on the screen, you need to touch, touch and hold, flick or swipe to select an item, display setting menu screen or to change the page, etc.

●Touch

Touch the screen gently to select an item on the screen.

●Touch and hold

Touch the screen and keep your finger in place until the display changes or a message is displayed.

●Flick

Slide your finger quickly to the left or right on the screen to change the page. You can scroll the list screen by flicking the screen up/down.

●Swipe

Slide your finger up or down on the screen to scroll the screen.

Monitor Touch Control:

You can also control playback by moving your finger on the touch panel as follows (for some sources, the gesture control is not available).

• Sliding the finger towards up/down: Functions same as pressing [+] / ] (Media). Tuner Preset broadcast stations are switched. Sliding the finger towards left/right: Functions same as pressing [I◄◄] / [►►I].
• Moving your finger clockwise or counterclockwise: increases/decreases the volume.

HOME screen descriptions

Most functions can be performed from the HOME screen.

1	• Short-cut playback source icons (P.12)
2	• Current source information.• Touch to display the control screen of current source.
3	• Widget– You can change the widget by touching[1]/[1].– Touch the widget to display the detailed screen.
4	• Displays the SETUP Menu screen. (P.65)
5	• Displays the source selection screen. (P.11)
6	• Touch to eject the disc.• Touch and hold to forcibly ejects the disc.KW-V840BT only
7	• Displays the Hands Free screen. (P.60)• When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

Display the HOME

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch ].

HOME screen appears.

Source selection screen descriptions

You can display all playback sources and options on the source selection screen.

• Changes the playback source. For playback sources, see P.11.

- Changes the page. (Touch 📋/10.) You can also change the page by flicking left or right on the screen.

- Returns to previous screen.

- Page indication

• Displays the SETUP Menu screen. (P.65)

Select the playback source

1 Touch

From the screen, you can select the following sources and functions.

- Switches to the Android Auto/Apple CarPlay screen from the connected iPhone/Android device.*¹ (P.21)

• Switches to the Radio broadcast. (P.35)

- Switches to the SiriusXM® satellite radio broadcast. (P.39)

- Plays a Bluetooth audio player. (P.58)

- Plays a disc. ^*2 (P.15)

- Plays an iPod/iPhone. (P.32)

- Plays files on a USB device. (P.29)

• Switches to Pandora. (P.24)

• Switches to Spotify. (P.26)

- Switches to an external component connected to the AV-IN input terminal. (P.52)

• Displays the WebLink screen. (P.28)

• Displays the Waze screen. (P.28)

• Displays the Audio screen. (P.70)

• Turns off the AV source. (P.12)

- Turn off the unit. (P.7)

- For sources and information displayed when an ADS adapter is connected, see OEM Features Operation (P.53).

Basic Operations

*1 When iPhone compatible with CarPlay is connected, [Apple CarPlay] is displayed. When an Android device compatible with Android Auto is connected, [Android Auto] is displayed.

*2KW-V840BTonly

To select the playback source on the HOME screen

The 3 items displayed on the source selection screen as the large icons are shown on the HOME screen.

You can change items displayed on this area by customizing the source selection screen. (P.12)

To select the playback source on the source control screen

Display source selection buttons by touching 📄/ID or flicking left or right on the source control screen, then select a playback source.

To turn off the AV source

1 Touch

2 Touch [AV Off].

Customize Short-cut buttons on HOME screen

You can arrange the position of the source icons as you like.

1 Touch

2 Touch and hold the icon which you want to move to go into the customizing mode.

3 Drag it where you want to move.

Changes the page

Source control screen descriptions

There are some functions which can be operated from most screens.

Indicators

KW-M740BT

Short-cut buttons

• Connected Bluetooth device information.

• Lights up when quick charging battery of the connected iPod/ iPhone/ Smartphone.

2 All sources icon

Displays all sources.

3 Secondary screen

• [q]/p]: The Secondary screen changes every time you touch it. You can also change the Secondary screen by flicking left or right on the screen. - Indicators: Displays the current source condition and so on.

- [ATT]: The attenuator is active.

[DUAL]: The dual zone function is on.

- [LOUD]: The loudness control function is on.

- Short-cut buttons: The source changes to the one you have set as a short-cut. For the short-cut setting, refer to Customize Short-cut buttons on HOME screen (P.12).

4 [▲] (KW-V840BT)

• Touch to eject the disc.
• Touch and hold to forcibly ejects the disc. • To forcibly eject the disc, touch it for 2 seconds and touch [Yes] after the message is displayed.

5 [ ] (KW-M740BT)

Touch to display the Hands Free screen. (P.60) When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

Popup menu

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch to display the popup menu.

KW-M740BT

The contents of the menu are as follows.

• Displays the HOME screen. (P.10)

• Switches the screen.

The screen switched to depends on the [DISP Key] setting in the [User Interface] screen. (P.66).

- Touch and hold to turns the screen off.

- Display the Hands Free screen. (P.60) When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

Basic Operations

	• Displays the view camera. (P.51)
	• Displays the Screen Adjustment screen. (P.65)
	• Displays the Graphic Equalizer screen. (P.73)
	• Close the popup menu.
	• Short-cut buttons: The source changes to the one you have set as a short-cut. For the short-cut setting, refer to Customize Short-cut buttons on HOME screen (P.12).
[S3CK]
[z2YY]	• Touch to eject the disc.• Touch and hold to forcibly ejects the disc.• To forcibly eject the disc, touch it for 2 seconds and touch [Yes] after the message is displayed.KW-V840BT only
[ZWHS]	• Touch to display the Hands Free screen. (P.60)• When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.KW-M740BT only

List screen

There are some common function keys in the list screens of most sources.

Displays list type selection window.

Displays music/movie file list.

Scrolls the displayed text.

Keys with various functions are displayed here.

• Play: Plays all tracks in the folder containing the current track. • Q A-Z: Jump to the letter you entered (alphabet search).
• Top Up goes to the upper hierarchy.

You can change the page to display more items by pressing ▲1/▼

• [T]/[E] Displays the top or bottom page.

Returns to previous screen.

NOTE

- Buttons which cannot be activated from the list screen are not displayed.

Disc (KW-V840BT)

Playing a disc

Insert a disc

1 Insert the disc into the slot.

The unit loads the disc and playback starts.

Eject a disc

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch [▲].

When removing a disc, pull it horizontally.

DVD/VCD Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

- The screen shot below is for DVD. It may be different from the one for VCD.

1 When the operation buttons are not displayed on the screen, touch the 7 area.

Control screen

Video screen

1 Information display

Displays the following information.

• Title #, Chapter #: DVD title and chapter number display - Track #/Scene #: VCD track or scene number display. Scene # is displayed only when Playback control (PBC) is on. • Linear PCM, etc.: Audio format - [Hide]: Hides the control screen.

Disc

• ☐ repeats the current content. Each time you touch the key, repeat mode switches in the following sequence;

DVD: Title repeat ( Chapter repeat

( Repeat off ( )

VCD (PBC On): Does not repeat

VCD (PBC Off): Track repeat ( ☐ repeat off

2 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.16).

3 Play mode indicator/ Playing time

- ▶, ▶▶, ■, etc.: Current play mode indicator The meanings of each icon are as follows; ▶ (play), ▶▶ (fast forward), ◀◀ (fast backward), ■ (stop), ■ (resume stop), ■ (pause), I (slow playback), (slow reverse playback).

4 Operation keys

- [I◄◄] [►►I]: Searches the previous/next content. Touch and hold to fast forward or fast backward. - [►III]: Plays or pauses. - [▶◀] : Touch to attenuates/restores the sound.

5 Indicator Items

• [IN]: A disc is inserted. White: A Disc is inside the unit. Orange: Error at the disc player

VCD

• [1chLL/2chLL]: Identifies the left audio output of channel 1 or 2.
• [1chLR/2chLR]: Identifies the monaural audio output of channel 1 or 2.
• [1chRR/2chRR]: Identifies the right audio output of channel 1 or 2.
• [1chST/2chST]: Identifies the stereo audio output of channel 1 or 2. • [LL]: Identifies the left audio output. • [LR]: Identifies the monaural audio output. • [RR]: Identifies the right audio output. • [ST]: Identifies the stereo audio output. • [PBC]: The PBC function is on. • [VER1]: The VCD version is 1. • [VER2]: The VCD version is 2.

6 Searching area

Touch to search the next/previous content.

7 Key display area

Touch to display the control screen.

8 [MENU CTRL] (DVD only)

Touch to display the DVD-VIDEO disc menu control screen. See DVD Disc Menu Operation (P.19).

NOTE

• The control screen disappears when no operation is done for 5 seconds.
• If you use a remote control, you can jump directly to the desired image with entering the chapter number, scene number, play time, etc. (P.79).

Function panel

1 Touch 📋 on the left side of the screen.

The functions of each key are as follows.

Stops playback. When touched twice, the disc is played from the beginning when you play it the next time.

Fast forward or fast backward. Each time you touch the key, the speed changes; 2 times, 8 times.

<1] or [DVD only)

Plays in slow motion forward or backward.

[SETUP] (DVD only)

Touch to display the DVD SETUP screen. See DVD Setup (P.20).

[MENU CTRL] (DVD only)

Touch to display the DVD-VIDEO disc menu control screen. See DVD Disc Menu Operation (P.19).

[PBC] (VCD only)

Turn Playback control (PBC) on or off.

[Audio] (VCD only)

Change the audio output channel.

Music CD/ Disc media Basic Operation

Most functions can be controlled from the source control screen and playback screen.

NOTE

• In this manual, "Music CD" will be referred to as the general CDs which include music tracks in. "Disc media" will be referred to as CD/DVD disc which includes audio or video files.
• The screen shot below is for disc media. It may be different from the one for CD.

Control screen

Open the drawer

1 CODEC / [ ]

• When a high-resolution source is played, its format information is displayed. (Disc media only)
• [ ] : Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; Track/File repeat (older repeat ( ) (Disc media only), Repeat all (
• [×]: Randomly plays all tracks in current folder/disc. Each time you touch the key, random mode switches in the following sequence;

Track random (×Music CD only), Folder random (×Disc media only), Random off (×)

2 Track information

Displays the information of the current track/file. Only a file name and a folder name are displayed if there is no tag information. (Disc media only)

3 Operation keys

• [Q] (Disc media only): Searches file. For details on search operation, see List screen (P.14). - [I◄◄] [►►I]: Searches the previous/next content. Touch and hold to fast forward or fast backward. • [▶III]: Plays or pauses. • [icon] : Touch to attenuates/restores the sound.

4 Function panel (Disc media only)

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

- [−] [+] Searches previous/next folder.

5 Content list

• Touch on the right side of the screen to display the Content list. Touch again to close the list.
• Displays the playing list. When you touch a track/file name on the list, playback will start.

6 Indicator Items

• [IN]: A disc is inserted. White: A Disc is inside the unit. Orange: Error at the disc player • [VIDEO]: Identifies the video file. • [MUSIC]: Identifies the music file.

7 Artwork (Disc media only) /Play mode indicator/ Playing time

• The jacket of the currently playing file is displayed. - ▶, ▶▶, etc.: Current play mode indicator The meanings of each icon are as follows; ▶ (play), ▶▶ (fast forward), ◀◀ (fast backward), ▪ (pause).

Disc

8 Searching file area (Video file only)

Touch to search the next/previous file.

9 Key display area (Video file only)

Touch to display the control screen.

File search Operation (Disc media only)

You can search a file according to hierarchy.

NOTE

- For operations in the list screen, see List screen (P.14).

1 Touch [Q].

▶ Folder List screen appears.

2 Touch the desired folder.

When you touch a folder its contents are displayed.

3 Touch desired item from the content list.

▶ Playback starts.

DVD Disc Menu Operation

You can set up some items in the DVD-VIDEO disc menu.

1 Touch illustrated area during playback.

Menu Control screen appears.

2 Perform desired operation as follows.

■Displays the top menu

Touch [TOP].*

■Displays the menu

Touch [MENU].

Displays the previous menu.

Touch [Return].

Enters selected item.

Touch [Enter].

Enables direct operation.

Touch [Highlight] to enter the highlight control mode (P.19).

Moves the cursor.

Touch [▲], [▼], [◀], [▶].

Switches the subtitle language.

Touch [Subtitle]. Each time you touch this key, language is switched.

Switches the audio language.

Touch [Audio]. Each time you touch this key, language is switched.

Switches the picture angle.

Touch [Angle]. Each time you touch this key, picture angle is switched.

* These keys may not function depending on the disc.

Highlight control

Highlight control lets you control the DVD menu by touching the menu key directly on the screen.

1 Touch [Highlight] in the Menu Control screen.

2 Touch desired item on the screen.

NOTE

- The highlight control is cleared automatically if you do not operate for a constant time.

Disc

DVD Setup

You can set up the DVD playback functions.

1 Touch illustrated area during playback.

2 Touch [19] on the left side of the screen. Touch [SETUP].

▶ DVD SETUP screen appears.

3 Set each item as follows.

■Menu Language] / [Subtitle Language]

/ [Audio Language]

See Language setup (P.20).

■[Dynamic Range Control]

Sets the dynamic range.

[Wide]: The dynamic range is wide.

[Normal]: The dynamic range is normal.

[Dialog] (Default): Makes the total sound volume larger than other modes. This is effective only when you are using Dolby Digital software.

■[Screen Ratio]

Sets the screen display mode.

16:9 : Displays wide pictures.

[4:3 LB]: Displays wide pictures in the Letter Box format (having black stripes at the top and bottom of screen).

[4:3 PS]: Displays wide pictures in the Pan & Scan format (showing pictures cut at the right and left ends).

Language setup

This setting is for the language used in the menu, subtitle, and voice.

1 Touch the desired item; [Menu Language], [Subtitle Language], [Audio Language].

Language Set screen appears.

2 Select a language.

For language code, refer to DVD Language Codes (P.90).

Sets the entered language and returns to the DVD Setting screen.

NOTE

- To set the DVD's original language for audio language, touch [Original].

APPS—Android Auto™/Apple CarPlay

Apple CarPlay Operation

CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product. You can get directions, make calls, send and receive messages, and listen to the music from iPhone while driving. You can also use Siri voice control to make it easier to operate iPhone.

For details about CarPlay, visit https://ssl.apple.com/ios/carplay/.

Compatible iPhone devices

You can use CarPlay with the following iPhone models.

- iPhone 7 Plus

- iPhone 6 Plus

- iPhone 7

- iPhone 6

- iPhone SE

- iPhone 5s

- iPhone 6s Plus

- iPhone 5c

- iPhone 6s

- iPhone 5

Preparation

1 Connect iPhone using KS-U62 via USB (Black) terminal. (P.84)

When iPhone compatible with CarPlay is connected to the USB (Black) terminal, the Bluetooth Hands-Free phone currently connected is disconnected.

2 Unlock your iPhone.

Operation buttons and available Apps on the home screen of CarPlay

You can use the Apps of the connected iPhone. The items displayed and the language used on the screen differ among the connected devices.

To enter CarPlay mode, touch [Apple CarPlay] icon in the source selection screen. (P.11)

• Displays the home screen of CarPlay. - Touch and hold to activate Siri.

2 Application buttons

Starts the application.

3 [HOME]

Exits the CarPlay screen and displays the Home screen.

To exit the CarPlay screen

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

Use Siri

You can activate Siri.

1 Press the [FNC] button for 1 second.

2 Talk to Siri.

To deactivate

1 Press the [FNC] button.

Switch to the Apple CarPlay screen while listening to another source

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch [DISP].

NOTE

• This operation is available when [DISP Key] is set to [Mirroring] in the [User Interface] screen. (P.66)
• If sound is output using Apple CarPlay when the Apple CarPlay screen is displayed, the source is switched to Apple CarPlay.

Android Auto™ Operation

Android Auto enables you to use functions of your Android device convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android device while driving. For details about Android Auto, visit https://www.android.com/auto/ and https://support.google.com/androidauto.

Compatible Android devices

You can use Android Auto with Android devices of Android version 5.0 (Lollipop) or later.

NOTE

- Android Auto may not be available on all devices and is not available in all countries or regions.

Preparation

1 Connect an Android device via USB terminal. (P.84)

To use the hands-free function, connect the Android device via Bluetooth.

When an Android device compatible with Android Auto is connected to the USB terminal, the device is connected via Bluetooth automatically, and the Bluetooth Hands-Free phone currently connected is disconnected.

2 Unlock your Android device.

Operation buttons and available Apps on the Android Auto screen

You can perform the operations of the Apps of the connected Android device.

The items displayed on the screen differ among the connected Android devices.

To enter Android Auto mode, touch [Android Auto] icon in the source selection screen. (P.11)

1 Application/information buttons

Starts the application or displays information.

To exit the Android Auto screen

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

Using voice control

1 Press the [FNC] button for 1 second.

To cancel

1 Press the [FNC] button.

Switch to the Android Auto screen while listening to another source

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch [DISP].

NOTE

- This operation is available when [DISP Key] is set to [Mirroring] in the [User Interface] screen. (P.66)

- If sound is output using Android Auto when the Android Auto screen is displayed, the source is switched to Android Auto.

Pandora® Operation

You can listen to the Pandora® on this unit by controlling the application installed in the iPhone or Bluetooth device.

To enter Pandora source, touch [Pandora] icon in the source selection screen. (P.11)

Preparation

- Install the latest version of the Pandora® application on your iPhone, Android or BlackBerry. iPhone: Search for "Pandora" in the Apple App Store to find and install the most current version. Android: Visit the Google play and search for Pandora to install.

BlackBerry: Visit www.pandora.com from the built-in browser to download the Pandora application.

• iPhones are connected on either USB or Bluetooth.
• Android or BlackBerry devices are connected on Bluetooth.
• To connect a smartphone via Bluetooth, register it as the Bluetooth device and do the App (SPP) profile setting of the connection beforehand. See Register the Bluetooth device (P.55) and Connect the Bluetooth device (P.57).

1 Artwork/Playing time

• The picture data is displayed if available from current content.
• For confirmation of play time.

2 Operation keys

• [E]: Searches for a station. For details on searching, see Station list screen (P.24). • [ ] (Thumbs down): Thumbs down to the current contents and skip to the next contents. • [+] (Thumbs up): Registers the current contents as favorite content.

- [▶], [III]: Plays or pauses the content of the current station.

- [▶▶▶] : Skips the current song. (Note this function is disabled when the Pandora skip limitation is exceeded.)

• Bookmark Song) : Bookmarks a song in the current contents. • [+] : Creates a new station. See Creates a new station (P.25). • [播放] : Touch to attenuates/restores the sound.

3 Content information

Displays the information of the current content being played.

Station list screen

You can perform the following functions from this screen.

1 Touch

▶ Station List screen appears.

■Selects the station

Touch the station name in the list.

■Sort the list by registered date

Touch [By Recent]. The list is sorted to begin with the last registered station.

■Sort the list in alphabetical order

Touch [By Name]. You can select the desired letter from the list which corresponds to the station name to help narrow the search.

NOTE

- You can operate Pandora by using the remote control. However, only playing, pausing, and skipping are available.

Creates a new station

1 Touch

2 Touch desired item.

■Create station from artist

Creates a new station based on an artist being played.

■ Create station from track

Creates a new station based on a song being played.

■ Create station from genre

Displays the genre list screen.

Genre list screen

1 Touch [Create station from genre].

2 The selected genre is created as a new station.

About Pandora®

iPhone or iPod touch

• Install the latest version of the Pandora application on your iPhone or iPod touch. (Search for "Pandora" in the Apple App Store to find and install the most recent version.)

Android™

- Visit the Google play and search for Pandora to install.

BlackBerry®

• Visit www.pandora.com from the built in browser to download the Pandora application.
• Bluetooth must be built in and the following profiles must be supported.

- SPP (Serial Port Profile)

- A2DP (Advanced Audio Distribution Profile)

NOTE

• In the application on your device, log in and create an account with Pandora. (If you are not already a registered user, an account can also be created at www.pandora.com.)
• Establish an Internet connection.
• Pandora is only available in certain countries. Please visit http://www.pandora.com/legal for more information.
• Because Pandora® is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some functions of Pandora® cannot be operated from this unit.
• For issues using the application, please contact Pandora® at [e-mail].

Spotify Operation

You can listen to the Spotify on this unit by controlling the application installed in the iPhone or Android.

To enter Spotify source, touch [Spotify] icon in the source selection screen. (P.11)

Preparation

• Install the latest version of the Spotify application "Spotify" on your iPhone or Android. iPhone: Search for "Spotify" in the Apple App Store to find and install the most current version. Android: Search for "Spotify" in Google play to find and install the most current version.
• iPhones are connected on either USB or Bluetooth.
• Android devices are connected on Bluetooth.
• To connect a smartphone via Bluetooth, register it as the Bluetooth device and do the App (SPP) profile setting of the connection beforehand. See Register the Bluetooth device (P.55) and Connect the Bluetooth device (P.57).

1 Artwork/ Playing time

• The picture data is displayed if available from current content.
• For confirmation of play time.

2 Operation keys

• [目] : Displays the Menu screen • [●] : New radio station that relates to the artist of the currently playing song is selected and playback starts. • [K], [J]. Skips the current song. • [▶], [▶] Plays or pauses the content of the current station. • [+] : Saves currently playing song to My Music. • [ˈɪkəʊdʒ] : Touch to attenuates/restores the sound.

3 Content information

Displays the information of the current content being played.

4 [ ] / [ ] [ ]

• [图标] : Thumbs down to the current contents and skip to the next contents.
• [👍] : Registers the current contents as favorite content. • [ ] : Repeats the current song. • [x]: Randomly plays all song in current playlist.

Selecting a track

1 Touch Menu screen appears.

2 Select the list type, then select a desired item.

■Selects the category and station

Touch the category and station name in the list.

Returns to the first hierarchy of the list.

Returns to the previous list.

About Spotify®

iPhone or iPod touch

- Install the latest version of the Spotify application on your iPhone or iPod touch. (Search for "Spotify" in the Apple App Store to find and install the most recent version.)

Android™

- Visit Google play and search for "Spotify" to install.

Note

• Ensure you are logged in to your smartphone application. If you do not have a Spotify account, you can create one for free from your smartphone or at www.spotify.com.
• Because Spotify is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some functions of Spotify cannot be operated from this unit.
• For issues using the application, contact Spotify at www.spotify.com.
• Establish an Internet connection.

WebLink™/Waze Operation

You can display and control the App on the unit while your smartphone is connected to the USB terminal.

Available Apps

You can use the following Apps on this unit. Install the Apps on your smartphone beforehand.

WebLink™

WebLink™ enables you to use the following Apps with the unit.

• Media player • Waze • Yelp • YouTube • OpenWeatherMap

Waze

Waze is the world's largest community based traffic and navigation App. Join other drivers in your area who share real-time traffic and road info, saving everyone time and gas money on their daily commute.

To use Waze on the unit, you need to install WebLink™ and Waze on your smartphone beforehand.

1 Connecting a smartphone

• Connect an Android device via USB terminal. (P.84)
• Connect iPhone using KS-U62 via USB terminal. (P.84)
• When the smartphone is connected to the unit, a confirmation message to communicate each other appears on the smartphone. Touch [Allow] to establish connection, or [Ignore] to cancel the connection.
• You can check the connection status on the WebLink™ screen on your smartphone.

Operation buttons and available Apps on the App screen

To enter WebLink™ or Waze mode, touch [WebLink] or [Waze] icon in the source selection screen. (P.11)

WebLink source screen

Displays the main menu of the "WebLink" source screen.

Returns to the previous screen.

2 Operate on your smartphone.

- When you are asked to communicate between your smartphone and the unit, touch [Allow] to proceed.

Switching to the App screen while listening to the another source

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch [DISP].

NOTE

• This operation is available when [DISP Key] is set to [Mirroring] in the [User Interface] screen. (P.66)
• If sound is output using WebLink when the App screen is displayed, the source is switched to WebLink.

USB

Connecting a USB device

1 Connect the USB device with the USB cable. (P.84)

2 Press the [FNC] button.

▶ Popup menu appears.

3 Touch

HOME screen appears.

4 Touch

5 Touch [USB]. (P.11)

Disconnect the USB device

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

4 Touch a source other than [USB].

5 Detach the USB device.

Usable USB device

You can use a mass-storage-class USB device on this unit.

The word "USB device" appearing in this manual indicates a flash memory device.

●About file system

The file system should be one of the following.

• FAT16 • FAT32 • exFAT • NTFS

NOTE

• Install the USB device in a place where it will not affect safe driving. - You cannot connect a USB device via a USB hub or Multi Card Reader. • Take backups of the audio files used with this unit. The files can be erased depending on the operating conditions of the USB device. We shall have no compensation for any damage arising from any erased data.

USB Basic Operation

Most functions can be controlled from the source control screen and playback screen.

Control screen

Open the drawer

1 CODEC / [ ] / [ ]

• When a high-resolution source is played, its format information is displayed.
• Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence: File repeat (☐), Folder repeat (☐), Repeat all (☐)
• Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence: File random ( ), Random off ( )

2 Track information

Displays the information of the current file. Only a file name and a folder name are displayed if there is no tag information.

3 Operation keys

• [Q]: Searches track/file. For details on search operation, see Search Operation (P.31). - [◀◀] [▶▶]: Searches the previous/next track/file. Touch and hold to fast forward or fast backward.

• [▶II] : Plays or pauses. • [×] : Touch to attenuates/restores the sound.

4 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [−] [+]: Searches previous/next folder.

5 Content list

• Touch on the right side of the screen to display the Content list. Touch again to close the list.
• Displays the playing list. When you touch a track/file name on the list, playback will start.

6 Indicator Items

• [VIDEO]: Identifies the video file. • [MUSIC]: Identifies the music file.

7 Artwork/ Play mode indicator/ Playing time

The jacket of the currently playing file is displayed.

- ▶, ▶▶, etc.: Current play mode indicator The meanings of each icon are as follows;

▶ (play), ▶▶ (fast forward),

◀◀ (fast backward), ▪ (pause).

8 Searching file area (Video file only)

Touch to search the next/previous file.

9 Key display area (Video file only)

Touch to display the control screen.

Search Operation

You can search music or video files by the following operations.

1 Touch [Q]. 2 Touch [▼].

3 Select the list type.

NOTE

- For operations in the list screen, see List screen (P.14).

Category search

You can search a file by selecting category.

1 Touch [Category List]. 2 Select whether you search by audio files or video files.

3 Touch the desired category.

The list corresponding to your selection appears.

4 Touch to select desired item in the list. Repeat this step until you find the desired file.

Link search

You can search a file of same artist/album/genre as the current track.

1 Touch [Link Search]. 2 Touch the desired tag type. You can select from artists, albums and genres.

The list corresponding to your selection appears.

3 Touch desired item from the content list.

Folder search

You can search a file according to hierarchy.

1 Touch [Folder List]. 2 Touch the desired folder.

When you touch a folder its contents are displayed.

3 Touch to select desired item in the list. Repeat this step until you find the desired file.

iPod/iPhone

Preparation

Connectable iPod/iPhone

The following models can be connected to this unit.

Made for

• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPhone 6 Plus
• iPhone 6
• iPhone 5s
• iPhone 5c
• iPhone 5

- iPod touch (6th generation)

- iPod touch (5th generation)

NOTE

• By connecting your iPod/iPhone to this unit with an optional accessory iPod connection cable KS-U62, you can supply power to your iPod/iPhone as well as charge it while playing music. However, the power of this unit must be on.
• If you start playback after connecting the iPod, the music that has been played by the iPod is played first.

Connect iPod/iPhone

Wired connection

Preparation

• Connect an iPod/iPhone with the KS-U62 (optional accessory) while CarPlay is not connected.
• With a CarPlay-capable iPhone, turn off CarPlay by operating the iPhone at functional setup before connecting iPhone. For details of the setup method, contact the manufacturer of the terminal.
• Only one iPod/iPhone can be connected.

1 Connect the iPod/iPhone using KS-U62. (P.84) 2 Press the [FNC] button.

▶ Popup menu appears.

3 Touch

HOME screen appears.

4 Touch

5 Touch [iPod]. (P.11)

●To disconnect the iPod/iPhone connected with the cable:

1 Detach the iPod/iPhone.

Bluetooth connection

Pair the iPhone through Bluetooth.

Preparation

• To connect an iPhone via Bluetooth, register it as the Bluetooth device and do the profile setting of the connection beforehand. See Register the Bluetooth device (P.55) and Connect the Bluetooth device (P.57).
• Connect an iPhone on Bluetooth while CarPlay and an iPod/iPhone are not connected on USB.

iPod/iPhone Basic Operation

Control screen

Open the drawer

1 [F]

- [O]: Repeats the current track/album. Each time you touch the key, repeat mode switches in the following sequence:

Song repeat ( ☐ all songs repeat ( ) ☐ all

• [✗] : Randomly plays all tracks in current album. Each time you touch the key, random mode switches in the following sequence:

Song random ( ×) random off ( )

2 Track information

• Displays the information of the current file.

- Touch to display the category list screen. See Category search (P.34).

3 Operation keys

• Q ] : Searches track/file. For details on search operation, see Search Operation (P.34). - [▶▶] : Searches the previous/next track/file. Touch and hold to fast forward or fast backward. • [▶III]: Plays or pauses. • [ ] : Touch to attenuates/restores the sound.

4 Content list

• Touch on the right side of the screen to display the Content list. Touch again to close the list.
• Displays the playing list. When you touch a track/file name on the list, playback will start.

5 Indicator Items

• [MUSIC]: Identifies the music file.

6 Artwork/ Play mode indicator/ Playing time

The jacket of the currently playing file is displayed.

•▶, ▶▶, etc.: Current play mode indicator. The meanings of each icon are as follows:

▶ (play), ▶▶ (fast forward), ◀◀ (fast backward), ■ (pause).

iPod/iPhone

You can search music files by the following operations.

1. Touch [Q]. 2. Touch [▼].

3. Select the list type.

NOTE

- For operations in the list screen, see List screen (P.14).

Category search

You can search a file by selecting a category.

1. Touch [Category List]. 2. Touch the desired category.

Link search

You can search a file of the same artist/album/genre/composer as the current track.

1. Touch [Link Search]. 2. Touch the desired tag type. You can select from artists, albums, genres, and composers.

The list corresponding to your selection appears.

3 Touch desired item from the content list.

The list corresponding to your selection appears.

3 Touch to select desired item in the list. Repeat this step until you find the desired file.

Tuner

Tuner Basic Operation

Most functions can be controlled from the source control screen.

To enter Tuner source, touch [TUNER] icon in the source selection screen. (P.11)

Control screen

Preset list screen

1 Information display

Displays the information of the current station: Frequency

Touching [icon] allows you to switch between Content A and Content B.

Content A: PS name, Radio Text, Title & Artist Content B : PTY Genre, Radio Text plus

Preset#: Preset number

2 Seek mode

Switches the seek mode in the following sequence: [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Automatically tunes in a station with good reception.
• [AUTO2]: Tunes in stations in memory one after another.
• [MANUAL]: Switches to the next frequency manually.

3 Operation keys

• [I◄◄] [►►I]: Tunes in a station. The method of frequency switching can be changed (see 2 in table). • [播放]: Touch to attenuate/restore the sound.

4 Preset list

• Recalls the memorized station. - When touched for 2 seconds, stores the current receiving station in memory. - Touch on the right side of the screen to display the Preset list. Touch again to close the list.

5 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.36).

6 Band button

Switches the band (FM, AM).

7 Indicator Items

• [ST]: A stereo broadcast is being received. • [MONO]: The forced monaural function is on. • [TI]: Indicates the reception state of traffic information.

White: TP is being received.

Orange: TP is not being received.

Tuner

Function panel

1 Touch [D] on the left side of the screen.

The functions of each key are as follows.

[TI] (FM only)

Sets the traffic information mode on. For details, see Traffic Information (P.38).

[SETUP]

Displays the TUNER SETUP screen. For details, see Tuner Setup (P.38).

[SSM] (FM only)

Presets stations automatically. For details, see Auto memory (P.36).

[PTY] (FM only)

Searches a program by setting program type. For details, see Search by program type (P.37).

[MONO] (FM only)

Select the Monaural reception.

Memory Operation

Auto memory (FM only)

You can store stations with good reception in memory automatically.

1 Touch [FM].

2 Touch ▶ on the left side of the screen. Touch [SSM].

3 Touch [Yes].

▶ Auto memory starts.

Manual memory

You can store the current receiving station in memory.

1 Select a station you wish to store in memory.

2 Touch [FM#] (#:1-15) or [AM#] (#:1-5) in which you want to store the station for 2 seconds until a beep sounds.

Selecting Operation

Preset select

You can list and select memorized station.

1 Touch [0] on the right side of the screen. Select a station from the list.

Search by program type only)

You can tune to a station with a specific program type when listening to FM.

1 Touch [D] on the left side of the screen. Touch [PTY].

▶ PTY Search screen appears.

2 Select a program type from the list. 3 Touch [Search].

You can search a station of the selected program type.

Tuner

Traffic Information (FM only)

You can listen and watch the traffic information automatically when a traffic bulletin starts. However, this feature requires a Radio Broadcast Data System that includes the TI information.

1 Touch [D] on the left side of the screen. Touch [TI].

▶ Traffic information mode is set.

When the traffic bulletin starts

The Traffic Information screen appears automatically.

NOTE

• It is necessary to have the Traffic Information function set to on in order for the Traffic Information screen to appear automatically.
• The volume setting during reception of traffic information is automatically stored. The next time traffic information is received, this unit recalls the volume setting automatically.

Tuner Setup

You can set tuner related parameters.

1 Touch [icon] on the left side of the screen. Touch [SETUP].

▶ TUNER SETUP screen appears.

2 Set each item as follows.

■[Area Setting]

The tuner channel interval changes depending on the area you use this unit.

[US] (Default): Select this when using in North/Central/South America. FM/AM intervals are set to 200 kHz/10 kHz.

[SA]: Select this when using in South American countries where the FM interval is 50 kHz. The AM interval is set to 10 kHz.

[Europe]: Select this when using in any other areas. FM/AM intervals are set to 50 kHz/9 kHz.

SiriusXM®

SiriusXM® Basic Operation

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com.

To enter SiriusXM source, touch the [SiriusXM] icon in the source selection screen. (P.11)

Activating subscription

• Check your Radio ID. The SiriusXM Satellite Radio ID is required for activation and can be found by tuning to Channel 0 as well as on the label found on the SiriusXM Connect tuner and its packaging. The Radio ID does not include the letters I, O, S or F.
• Activate the SiriusXM Connect Vehicle Tuner using one of the two methods below:
• For users in the U.S.A. Online: Visit www.siriusxm.com/activatenow Phone: Call SiriusXM Listener Care at 1-866-635-2349
• For users in Canada: Online: Visit http://www.siriusxm.ca/help/activation-help/ Phone: Call XM customer Care at 1-877-438-9677

NOTE

- To use SiriusXM® Satellite Radio, the optional accessory is necessary.

Control screen

Preset list screen

1 Indicator display

Displays the "Mix" (TuneMix™), "Scan"

(TuneScan™), (Traffic&Weather),

(SportsFlash™) indicator and the received signal strength of the SiriusXM tuner.

2 Information display

Displays the information of the current channel: Channel Name

P#: Preset number

CH: Channel display

Logo: Channel logo

Touching [O] allows you to switch between

Content A, Content B and Content C.

Content A: Artist Name, Song Title

Content B: Content Info, Category Name

Content C: Channel Description, Similar Channels

[8+] : Touch for 2 seconds to register the artist of the current song as a Content Alert.

[♪]: Touch for 2 seconds to register the current song as a Content Alert.

For details, see Content Alerts (P.44).

3 Band button

Switches the band. (SXM1/ SXM2/ SXM3/ SXM4)

4 Operation keys

• [Q] : Display the Category search screen. For details on search operation, see Category/Channel search (P.42). • ▶II]: Plays or pauses. See Replay (P.42). - [CH▼] [CHA]: Selects a channel. • [ˈɪkəʊ] : Touch to attenuates/restores the sound.

5 Preset list

• Recalls the memorized channel. - When touched for 2 seconds, stores the current receiving channel in memory. - Touch on the right side of the screen to display the Preset list. Touch again to close the list.

6 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel. For details on the keys, see Function panel (P.40).

7 Artwork

Display album artwork for most SiriusXM music channels

Function panel

1 Touch [D] on the left side of the screen.

The functions of each key are as follows.

[Direct Channel]

Touch and enter the desired number. For details, see Direct search (P.41).

[SETUP]

Touch to display the SiriusXM SETUP screen. For details, see SiriusXM Setup (P.45).

[Replay]/ [Live]

Turns the replay mode on or off. See Replay (P.42).

[Traffic & Weather]

For SXV300 *1

Traffic & Weather Now™ allows you to access the latest report whenever you want to hear it. Select your city at the setup menu Select a City for Traffic & Weather (P.50) and press the [Traffic & Weather] button to check the latest report. It will start from the beginning.

• (White): Played already. • (Green): New information arrived. • (Purple): Playing. • (Gray): No information.

For SXV200 or SXV100 *2

Turns the Traffic & Weather Jump function on or off.

• (White): Function on. • (Purple): Playing. • (Gray): Function off.

[TuneScan]*3

Hear a few seconds of the songs from each of the SmartFavorite music channels on the current preset band. See TuneScan™ (P.43).

[TuneMix]*4

When you turn it ON, the preset channels on P1-P6 are shuffled to provide a playback which is a blend of songs from your favorite channels. See TuneMix™ (P.43).

[SportsFlash]*4

Displays during SportsFlash™. To cancel the SportsFlash interruption and return to the previous channel, touch it. See SportsFlash™ (P.45) and SportsFlash™ setup (P.49).

*1 Compatible with SXV300 or later tuner models. It may take a few minutes after power on to get the first full report for your city. Traffic channels are not available in Canada. *2 When SXV200 or SXV100 is connected with this unit. *3 Compatible with SXV200 or later tuner models. *4 Compatible with SXV300 or later tuner models.

Storing Channels in Preset Memory

You can store the current channel in memory.

1 Tune to a channel you wish to store in memory. 2 Touch [a] on the right side of the screen.

3 Touch and hold for 2 seconds (until you hear a beep) the preset number [SXM(1-4) P(1-6)] in which you want to store the channel.

Preset select

You can list and select memorized station or channel.

To select from the preset list

1 Touch [9] on the right side of the screen. Select a channel from the list.

Direct search

You can tune to a channel directly.

1 Touch [D] on the left side of the screen. Touch [Direct Channel].

▶

2 Enter the channel number and touch [Enter].

NOTE

• To clear the number you entered, touch [BS].

Category/Channel search

You can specify the desired category and select a channel.

1 Touch [Q].

2 Select a category.

▶ Channel list appears.

3 Select the desired content from the list.

NOTE

• All the channels in the selected category appear.
• Touching [All-Channels] displays all the channels.
• Touch [Info Change] in the channel list. Select a desired item. Content info, Channel name, artist name, song title, category name
• Categories which have the prefix "Featured - " are Featured Favorites.
• Featured Favorites are groups of channels that are created by the SiriusXM Programming department allowing you to discover new channels. Featured Favorite channels are dynamic and can change often, allowing you to discover new channels.
• You can set whether to be notified when the featured seasonal theme is updated. (P.50)

Replay

You can replay the last 60 minutes of the current channel.

1 Touch [▶II] or [Replay] on the function panel.

Press to skip to the previous/next track.

Press and hold to rewind or fast forward. (It will be cancelled automatically after about 50 seconds.)

Plays or pauses.

■Replay time bar/ Play mode indicator

Display recorded capacity and playback position.

▶, ▶▶, etc.: Current play mode indicator

Display a list of recorded data on a program basis.

2 Touch [Q] to display an Instant Replay list.

Touching this plays back the displayed program.

[LIVE]: To return to live

Touch [Info Change]. Select a desired item. Content info, Channel name, Artist name, Song title, and Category name

To return to live music/content

1 Touch [D] on the left side of the screen. 2 Touch [Live].

TuneMix™

TuneMix™ plays a unique blend of songs from your Preset music channels from the current SiriusXM Preset Band, allowing you to build a custom channel from as few as two to as many as 6 music channels. You can even skip songs you don't want to hear.

1 Touch [D] on the left side of the screen. Touch [TuneMix] to set ON or OFF.

NOTE

- Compatible with SXV300 or later tuner models.

SmartFavorites, TuneStart™

Preset channels 1 through 6 of the current band are SmartFavorites channels.

The SiriusXM Vehicle Tuner automatically buffers the broadcast audio content of the SmartFavorites channels in the background.

You can rewind and replay up to 30 minutes of any of the missed news, talk, sports or music content when you tune to a SmartFavorites channel. (see Replay (P.42))

When tuning from a SmartFavorites channel, songs will play from the beginning of each track (TuneStart™). You can enable/disable TuneStart. (see TuneStart™ (P.50))

NOTE

- Compatible with SXV200 or later tuner models.

TuneScan™

TuneScan™ is a feature that plays samples from the starts of multiple buffered songs from each of the SmartFavorites channels that predominantly play music selections.

You have easy access to a large sampling of music content and can enjoy hearing a full song when stopping the scan on a song of interest.

1 Touch [D] on the left side of the screen.

2 Touch [TuneScan] to begin scanning your SmartFavorites channels.

You will hear a few seconds of the songs from each of the SmartFavorite channels.

3 Touch [TuneScan] again while your favorite song is being played to start listening to that song.

➢ Scan finishes and continues playing the song.

NOTE

• To cancel TuneScan™, touch on the left side of the screen. Touch [TuneScan].
• Touch and hold [TuneScan] to cancel TuneScan; the channel before starting TuneScan will be played.
• Compatible with SXV200 or later tuner models.

Traffic & Weather Now™

Traffic & Weather Now™ allows you to access the latest report whenever you want to hear it. Select your city at the setup menu Select a City for Traffic & Weather (P.50).

1 Touch [D] on the left side of the screen.

2 Touch [Traffic & Weather].

The report starts from the beginning. To stop and return to the previous channel, touch it again.

Indicator display

• (White) : Played already. • (Green): New information arrived. • (Purple) : Playing. • (Gray) : No information.

NOTE

- Compatible with SXV300 or later tuner models.

Content Alerts

When a broadcast program related to the registered artist, song, or team starts, an Alert Content List screen appears to allow you to switch the current channel to the relevant channel.

1. When the broadcast of the registered content starts, an Alert Content List screen appears.

2. Select a content from the list.

NOTE

• Touch [Info Change]. Select a desired item: Artist Alert, Song Alert, GameAlert™.
• To learn how to register artists and songs for the Content Alert function, see "2. Information display of SiriusXM® Basic Operation" (P.39). • To learn how to set up the Content Alerts function and select Teams for alerts, see "Content Alerts setup" (P.47).

SportsFlash™

SportsFlash™ will notify you when a big play happens during a game with one of your favorite sports teams. Choose to tune in and hear the play unfold like it was live. Continue listening to the game, or you can return to your previous channel.

1. When a big play happens during one of the games, an Alert screen appears.

Jump

Touch to tune to that channel and play back the big play.

[Ignore]

Touch to cancel this specific Sports Flash Alert. Touching [Ignore] will ignore this specific alert but will allow future alerts for this game.

[Cancel]

Touch to cancel the SportsFlash alert. No alerts from this game will be displayed afterward.

NOTE

• Compatible with SXV300 or later tuner models.
• To learn how to set up the SportsFlash alert function, see SportsFlash™ setup (P.49).

SiriusXM Setup

1 Touch [D] on the left side of the screen. Touch [SETUP].

SiriusXM SETUP screen appears.

See the following sections for each setting.

• Set up the parental code (P.46)
• Set up the Parental Control (P.46)
• Set up the skip channel select (P.47)
• Set up the Content Alerts (P.47)
• Set up the teams for SportsFlash™ (P49)
• Select the city for Traffic & Weather Jump or Traffic & Weather Now™ (P.50)
• Select the Featured Bands Update Messages (P.50)
• Set up the TuneStart™ (P.50)
• Reset to the default settings (P.50)

Parental code

You can set a SiriusXM parental code for Parental Control.

1. Touch [Parental Code] in the SiriusXM SETUP screen.

▶ The Parental Pass Check screen appears.

NOTE

- The code number is set to "0000" as default.

2. Enter the current code number and touch [Enter].

▶ The Parental Pass 1st entering screen appears.

3. Enter the new code number and touch [Enter].

▶ The Parental Pass 2nd entering screen appears.

4. Enter the same code number as you input in step 3 and touch [Enter].

The code number is confirmed and the SiriusXM parental code is now set.

Parental Control

Parental Control is a feature that provides the user with the ability to prevent unauthorized access to mature content and user-selected channels.

1. Touch [Parental Control] in the SiriusXM SETUP screen.

2. Touch [Mature], [User], or OFF.

[OFF]

Deactivates the parental mature and user locks.

[Mature]

Locks channels classified as "mature" only.

[User]

Locks only the selected channels.

3. Enter the parental code you originally input in Parental code (P.46) and touch [Enter].

When selecting [User]

This allows you to limit access to any SiriusXM channel (Parental Lock Channel).

1. Touch [Parental Lock Channel Selection] in the SiriusXM SETUP screen.

The Parental Pass Check screen appears.

NOTE

- You need to set up a Parental code (P.46) beforehand.

2. Enter the parental code you originally input in Parental code (P.46) and touch [Enter].

The Parental Lock Category Select screen appears.

3. Touch the desired category from the list.

All the channels in the selected category are displayed.

NOTE

• Touch [All-Channels] to display all the channels.
• To delete the parental lock channel setting, touch [Disable All] and then touch [YES] on the confirmation screen.

4. Touch each channel on the list and set to ON or OFF.

[ON]: If you wish to set the lock.

OFF: If you wish to unlock the channel.

NOTE

- Touch [Info Change]. Select a desired item. Content information, Channel name, Artist name, Song title, Category name.

Skip channel select

You can set the undesired channels to skip.

1 Touch [Skip Channel Select].

▶ Skip Category Select screen appears.

2 Touch the desired category from the list.

▶ Displays all the channels in the selected category.

3 Touch each channel on the list and set to ON or OFF.

NOTE

• To delete the skip channel setting, touch [Disable All] and then touch [YES] on the confirmation screen. - Touch [Info Change]. Select a desired item. Content information, Channel name, Artist name, Song title, Category name. - You can also select channels with Direct Channel and Preset Memory functions.

Content Alerts setup

Activating content alert

1 Touch [Content Alerts] in the SiriusXM SETUP screen.

The Content Alerts is turned on or off. Default is "ON".

Selecting the content for the content alert

1 Touch [Content Alerts Contents Set] in the SiriusXM SETUP screen.

▶ Artist list screen appears.

2 Select the content you want to set up.

NOTE

• To set all the content Alerts off, touch [Clear] and then touch [YES] on the confirmation screen.
• Select OFF for the content you want to deactivate the content alert for.

SiriusXM®

3 Touch each content list item you want to set check or uncheck.

NOTE

- You can select ☑ for up to 60 Artists or Songs.

●To delete the Artist and Song

1 Touch [Delete].

2 Touch each content list.

[√ All]

Select all content.

■ [□ All]

Erases all check marks.

3 Touch [Delete] and then touch [YES] on the confirmation screen.

To select a Team

Get alerted when your favorite sports team is playing on another SiriusXM channel with GameAlert™

1 Touch [My Games].

2 Touch the desired league from the list.

3 Touch each team in the list you want to set check or uncheck.

NOTE

- You can select ☑ for up to 30 Teams.

SportsFlash™ setup

Activating SportsFlash

1 Touch [SportsFlash] in the SiriusXM SETUP screen.

The SportsFlash is turned on or off. Default is "ON".

Selecting SportsFlash Beep

1 Touch [SportsFlash Beep] in the SiriusXM SETUP screen.

The SportsFlash Beep is turned on or off. Default is "ON".

Selecting the teams for SportsFlash

1 Touch [SportsFlash Team Set] in the SiriusXM SETUP screen.

▶ Team Set screen appears.

2 Touch [Edit].

3 Touch the desired league from the list.

4 Touch each team in the list you want to set ON or OFF.

5 Touch Device.

Sets and removes teams.

Sets the priority of a team to be posted.

Removes all teams that have been set. Touch [Clear]. When the confirmation screen appears, touch [YES].

NOTE

• SportsFlash™ is available on SXV300 or later tuner models.
• Up to 50 teams can be added.

Set the SportsFlash™ Team Priority

1 Touch [Priority].

2 Set the priority of a team.

Each time you touch a Team, the priority is set and reset.

3 Touch [Done].

NOTE

• Priority can be set on up to 5 teams. - When priority has already been set for 5 teams, it cannot be set for any other team. Delete an unnecessary team.

Select a City for Traffic & Weather

You can select a city for which you wish to receive SiriusXM Traffic & Weather broadcasts and hear them from the beginning.

1 Touch [Traffic & Weather City Select] in the SiriusXM SETUP screen. 2 Touch [◀] and [▶] to select a city.

Selecting Featured Bands Update Messages

You can set whether to be notified when the featured seasonal theme is updated.

1 Touch [Featured Bands Update Messages] in the SiriusXM SETUP screen. The Featured Bands Update Messages is turned on or off. Default is "ON".

TuneStart™

1 Touch [Tune Start] in the SiriusXM SETUP screen.

The TuneStart is turned on or off. Default is "ON".

Reset

1 Touch [SiriusXM Reset] in the SiriusXM SETUP screen.

▶ Confirmation screen appears.

2 Touch [YES].

All SiriusXM settings return to default.

Other External Components

View Camera

NOTE

• To connect a camera, see P.83. - To use a rear view camera, a REVERSE lead connection is required. (P.82) - If [Rear Camera Interruption] is set to on, the camera screen is displayed when you shift the gear to the reverse (R) position.

Display the camera screen

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch [Camera].

▶ View camera screen appears.

3 Adjust each item as follows.

To erase the caution message, touch the screen.

1 Camera off

Touch to exit the camera screen.

Camera Setup

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

▶ SETUP Menu screen appears.

4 Touch [Camera].

▶ Camera screen appears.

5 Set each item as follows.

■ [Rear Camera Interruption]

ON : Displays the picture from the rear view camera when you shift the gear to the reverse (R) position.

OFF : Select this when no camera is connected.

■[Parking Guidelines]

You can display parking guidelines to enable easier parking when you shift the gear to the reverse (R) position.

Default is "ON".

■[Guidelines SETUP]

If you select [ON] for [Parking Guidelines], adjust the parking guidelines. See To adjust the parking guidelines (P.52).

To adjust the parking guidelines

NOTE

• Install the rear view camera in the appropriate position according to the instructions supplied with the rear view camera. - When adjusting the parking guidelines, make sure to use the parking brake to prevent the car from moving.

1 Touch [ON] of [Parking Guidelines] in the Camera screen. (P.51) 2 Touch [Guidelines SETUP] in the Camera screen. 3 Adjust the parking guidelines by selecting the ✪ mark.

4 Adjusting the position of the selected mark.

Make sure that Ⓐ and Ⓑ are horizontally parallel, and that Ⓓ and Ⓛ are the same length.

NOTE

- Touch [Initialize] and after touch [Yes] to set all the 🧑 marks to the initial default position.

External audio/video players—AV-IN

1 Connect an external component to the AV-IN input terminal. (P.83) 2 Press the [FNC] button.

▶ Popup menu appears.

3 Touch

HOME screen appears.

4 Touch 5 Select [AV-IN] as the source. (P.11) 6 Turn on the connected component and start playing the source.

OEM Features Operation

By connecting this unit to the bus system of the vehicle using an iDataLink (commercially available), this unit can access the satellite radio source provided for the vehicle and vehicle information can be displayed on this unit.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

4 Touch icon.

	Displays the control screen of the satellite radio source provided for the vehicle.
	Displays the control screen of the media player source provided for the vehicle.
	Displays the control screen of the Bluetooth Hands Free function provided for the vehicle.
	Displays the control screen of the Bluetooth streaming source provided for the vehicle.
	Displays information about the instruments such as a speedometer.
	Displays information about the air conditioner of the vehicle.*
	Displays information about the Parking Distance Sensor of the vehicle.

• Displays information about the tire pressures of the vehicle. *

- Displays information about the Radar Detector. *

* These ADS adapter features are displayed as the widget on the Home screen. (P.10) You can display these screens by touching the widget.

NOTE

- Displayable screens, button names, and screen names vary depending on the type of the connected iDataLink and the model of the vehicle. For more details, access the following URL: www.idatalink.com/

Bluetooth Control

Using the Bluetooth function, various functions can be used: listening to the audio file, making/receiving a call.

Information for using Bluetooth® devices

Bluetooth®

Bluetooth is a short-range wireless radio communication technology for mobile devices such as mobile phones, portable PCs, and other devices.

Bluetooth devices can be connected without cables and communicate with each other.

NOTE

• While driving, do not perform complicated operations such as dialing numbers, using the phone book, etc. When you perform these operations, stop your car in a safe place.
• Some Bluetooth devices may not connect to this unit depending on the Bluetooth version of the device.
• This unit may not work for some Bluetooth devices.
• Connecting conditions may vary depending on your environment.
• For some Bluetooth devices, the device is disconnected when the unit is turned off.

About the cell-phone and Bluetooth audio player

This unit conforms to the following Bluetooth specifications:

Version

Bluetooth Ver. 3.0

Profile

Cell-phone:

HFP (V1.6) (Hands Free Profile)

SPP (Serial Port Profile)

PBAP (Phonebook Access Profile)

Audio player:

A2DP (Advanced Audio Distribution Profile) AVRCP (V1.5) (Audio/Video Remote Control Profile)

Sound codec

SBC, AAC

NOTE

• The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG.
• However, it may be impossible for such units to communicate with your cell-phone depending on its type.

Register the Bluetooth device

It is necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function.

You can register up to 10 Bluetooth devices.

NOTE

• Up to 10 Bluetooth devices can be registered. If an attempt is made to register the 11th Bluetooth device, the Bluetooth device connected on the earliest date will be deleted to register the 11th one.
• This unit is compatible with the Apple Easy Pairing function. When an iPod touch or iPhone is connected to this unit, an authentication dialog appears. Performing operation for authentication on this unit or iOS smartphone registers the smartphone as a Bluetooth device.

Follow the step 1, 2 and 3 for registration.

Step 1: Registration the Bluetooth device

1 Search the unit ("KW-V*****"/ "KW-M*****") from your smartphone/cell-phone. 2 Input the PIN Code in your smartphone/cell-phone. PIN Code is set to "0000" as the default.

●SSP (Secure Simple Pairing of Bluetooth 2.1 or later)

1 Search the unit ("KW-V*****"/ "KW-M*****") from your smartphone/cell-phone.

2 Confirm the request both on the smartphone/cell-phone and the unit.

Step 2: Connection settings

• When the HFP profile is supported, Hands Free 1 or 2 is automatically selected for connection, proceeding to the next step.
• When the A2DP or SPP profile is supported, the cell-phone or audio player is automatically connected, proceeding to the next step. If cell-phones and/or audio players have already been connected, a selection screen appears.

1 Select the hands-free number to connect.

2 Select if you want to use the audio player app in your smartphone over A2DP, and the other apps in your smartphone over SPP.

This message appears if the device supports BT audio (A2DP) or smartphone link (SPP).

Step 3: Phonebook transfer

1 Select if you want to transfer your phonebook data.

This message appears if the device supports PBAP.

The phonebook data transmission starts. Some smartphones may request permission to access the data. The data transmission will start with your permission.

When the data transmission and connection have completed, the Bluetooth connection icon appears on the screen.

Bluetooth Setup

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

▶ SETUP Menu screen appears.

4 Touch [Bluetooth].

Bluetooth SETUP screen appears.

See the following section for each setting.

• Connect the Bluetooth device (P.57)
• Change the PIN Code (P.58)
• Change the device name (P.58)

Connect the Bluetooth device

1 Touch [Select Device] in the Bluetooth SETUP screen.

2 Touch the device name you want to connect.

▶ Profile select screen appears.

NOTE

- If the icon is lighted, it means that the unit will use that device.

3 Set each profile as follows.

■ [TEL (HFP) 1], [TEL (HFP) 2]

The device is connected with the unit as hands-free phone 1 or 2.

■ [Audio (A2DP)/App (SPP)]

Set to interwork with an application installed in a smartphone or to use as an audio player.

4 Touch [Close].

To delete the registered Bluetooth device

1 Touch [Delete].

2 Touch the device name to check.

[√ All]

Select all Bluetooth device.

■ [□ All]

Erases all check marks.

3 Touch [Delete].

▶ Confirmation message appears.

4 Touch [Yes].

Change the PIN Code

1 Touch [PIN Code] in the Bluetooth SETUP screen.

▶ PIN Code Set screen appears.

2 Touch and hold

3 Input the PIN Code.

4 Touch [SET].

Change the device name

1 Touch [Device Name] in the Bluetooth SETUP screen.

▶ Change Device Name screen appears.

2 Touch and hold

3 Input the device name.

4 Touch [Enter].

Playing Bluetooth Audio Device

Most functions can be controlled from the source control screen.

To enter Bluetooth source, touch [BT Audio] icon in the source selection screen. (P.11)

Bluetooth basic operation Control screen

1 Device name/ [F]

• Connected device name.
• Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence: File repeat ( ), Folder repeat ( ), All songs repeat ( ), Repeat off ( ).
• Randomly plays all tracks in current folder. Each time you touch the key, random mode switches in the following sequence: Folder random ( ), Random off ( ).

2 Information display *

Displays the name of the track information.

3 Operation keys *

• [Q]: Searches file. See File search (P.59). - [I◄◄] [►►I]: Searches the previous/next content. Touch and hold to fast forward or fast backward. • [▶]: Plays. • [III]: Pauses. • [icon] : Touch to attenuate/restore the sound.

4 Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

- [BT DEVICE CHANGE] : Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP). See Connect the Bluetooth audio (P.59).

5 Play mode indicator/ Playing time

The meanings of each icon are as follows:

▶ (play), ▶▶ (fast forward), ◀◀ (fast backward),

■ (pause), ■ (stop).

* These items appear only when the audio player which supports AVRCP profile is connected.

NOTE

• The operation buttons, indications and information displayed on the screen differ depending on the connected device.
• If the operation keys do not appear, operate from the player.
• Depending on your cell-phone or audio player, audio may be heard and controlled but text information may not appear.
• If the volume is too low, raise it on your cellphone or audio player.

Connect the Bluetooth audio

Selects the device to connect via Bluetooth audio (A2DP) or APP (SPP).

1 Touch [D] on the left side of the screen. Touch [BT DEVICE CHANGE].

2 Touch the device name you want to connect.

3 Touch [Close].

File search

1 Touch [Q]. 2 Touch the desired file or folder.

When you touch a folder its contents are displayed.

3 Touch desired item from the content list.

▶ Playback starts.

NOTE

- For operations in the list screen, see List screen (P.14).

Using Hands-Free Unit

You can use telephone function by connecting the Bluetooth telephone to this unit.

NOTE

- While Apple CarPlay or Android Auto is being connected, Bluetooth Hands-Free function and two Bluetooth devices connections cannot be used. Only Apple CarPlay or Android Auto Hands-Free function can be used.

Make a call

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch [ ] .

▶ Hands Free screen appears.

NOTE

- If your mobile phone supports PBAP, you can display the phone book and call lists on the touch panel screen when the mobile phone is connected. - Phone book: up to 1000 entries - Up to 50 entries including dialed calls, received calls, and missed calls

3 Select a dialing method.

• [ ] Call using call records • [icon]: Call using the phonebook • [star]: Call using the preset number • [ ]: Call by entering a phone number • [icon]: Voice Recognition (P.61)

- Select the cell-phone to use

When you connect two cell-phones

1) Touch [Device name1 Device name2] to select the phone you want to use.

●Bluetooth SETUP

1) Touch [O].

Bluetooth SETUP screen appears.

NOTE

• The status icons such as battery and antenna displayed may differ from those displayed on the cell-phone.
• Setting the cell-phone in the private mode can disable the hands-free function.

Call using call records

1 Touch

2 Select the phone number from the list.

Call by entering a phone number

1 Touch

2 Enter a phone number with the number keys.

3 Touch

Call using the preset number

1 Touch

2 Touch the name or phone number.

Call using the phonebook

1 Touch

2 Touch

3 Select the initial.

• Characters with no corresponding name will not appear. - A first character with an accent character such as "ü" can be searched for with a non-accent character "u". A character with an accent character in a sentence cannot be searched.

4 Select the person you want to call from the list.

5 Select the phone number from the list.

NOTE

- You can set the list to arrange in the order of last name or first name. For details, see Hands-Free Setup (P.64).

Voice Recognition

You can access the voice recognition function of the cell-phone connected to this unit.

You can search the cell-phone phonebook by voice. (The functionality depends on the cell-phone.)

1 Press the [FNC] button for 1 second.

▶ Voice Recognition screen appears.

2 Start speaking.

NOTE

- You can use voice recognition function by touching 📄 in the Hands Free screen.

Receive a call

1 Touch [icon] to answer a phone call or [icon] to reject an incoming call.

NOTE

- While monitoring the view camera, this screen does not appear even if a call comes in.

To end call

1 While talking, touch

Operations during a call

●Adjust the volume of your voice

1) Touch [Speech Quality]. 2) Touch [◀] or [▶] of [Microphone Level].

●Adjust the receiver volume

Press the [-] or [+] button.

●Mute your voice

Touch [icon] to mute or not to mute your voice.

●Output the dial tone

Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys on the screen.

●Switching the speaking voice output

Touching [icon]//[icon] such time switches the speaking voice output between cell-phone and speaker.

- Call-waiting

When you receive a call while talking on another call, you can answer the newly received call by touching [icon]. The current call is on hold.

Each time you touch [icon], the caller will change. When you touch [icon], the current call will end and switch to the call in hold.

●To close the Hands-Free popup screen

Touching [×] closes the Hands-Free popup screen. To display it again, touch [Phone] after pressing the [FNC] button.

Phone number preset

You can register frequently used phone numbers to this unit.

1 Touch

2 Touch [Edit].

3 Select where to preset.

■[Delete all]

To delete all preset numbers, touch [Delete all] and then touch [OK] on the confirmation screen.

4 Select how to preset.

■[Add number from phonebook]

Select the number to preset by referring to "Call using the phonebook". See Call using the phonebook (P.61).

■[Add number direct]

Enter the telephone number directly and touch [SET]. See Call by entering a phone number (P.60).

[Delete]

To delete the preset number, touch [Delete] and then touch [OK] on the confirmation screen.

Phonebook transfer

You can transfer the phonebook in your Bluetooth smartphone via PBAP.

1 Touch

2 Touch

The phonebook data transmission starts.

Phonebook deletion

1 Touch

2 Touch the name to check.

[√ All]

Checks all boxes.

■ [□ All]

Erases all check marks.

3 Touch [Delete].

▶ Confirmation message appears.

4 Touch [OK].

Hands-Free Setup

You can perform various setup about handsfree function.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

▶ SETUP Menu screen appears.

4 Touch [Bluetooth].

Bluetooth SETUP screen appears.

5 Touch [TEL SETUP].

▶ TEL SETUP screen appears.

6 Set each item as follows.

■[Bluetooth HF/Audio]

Select the speakers to output the sound from cell-phone (such as phone call voice and ringing tone) and Bluetooth audio player.

[Front]: Outputs from the front speakers.

[All] (Default): Outputs from all speakers.

Sets an automatic response time to pick up an incoming call.

OFF (Default): Automatic response is not available.

[1]/ [5]/ [10]/ [15]/ [20]/ [25]/ [30]: Set calling ring time (second).

[Auto Pairing]

When set to "ON", the Apple Auto Pairing function is turned on to automatically register the iPod touch or iPhone connected to this unit.

ON : Uses Apple Auto Pairing function.

OFF : Not uses Apple Auto Pairing function.

[Sort Order]

Sets how to arrange the cell-phone phonebook.

[First]: Arranges in the order of first name.

[Last ] (Default): Arranges in the order of last name.

■ [Echo Cancel Level]

Adjusts the level of echo cancellation. Default is "0".

■ [Noise Reduction Level]

Reduces the noises generated by surrounding environment without changing the microphone volume. Use this setting when the voice of caller is not clear. Default is "0".

* Either the time interval for automatic answer set on this unit or the time interval set on the cell-phone, whichever is shorter takes effect.

7 Touch [OK].

Setting Up

Monitor Screen Setup

You can adjust image quality in video, menu screen, etc.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch [Screen Adjust].

▶ Screen Control screen appears.

3 Adjust each item as follows.

■ [Backlight] / [Contrast] / [Black] / [Brightness] / [Color] / [Tint]

Adjusts each item.

■[Aspect]

Select screen mode.

[Full]: Changes the aspect ratio of video and displays fully on the screen.

[Normal]: Displays with 4:3 ratio.

[Auto]:

DVD, VCD and disc media: Video of 16:9 ratio is displayed in Full and video of 4:3 ratio is displayed in Regular. USB device: Displays video fully on vertical or horizontal with no ratio change.

NOTE

- Adjusting items are different depending on the current source.

System Setup

NOTE

• Each operation in this section can be started from the multi function menu.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

See the following section for each setting.

• Set up AV (P.69)
• Set up display (P.68)
• Set up the user interface (P.66)
• Set up camera (P.51)
• Set up special (P.67)
• Set up Bluetooth (P.56)
• Set up security (P.8)

User Interface Setup

You can set up user interface parameters.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

▶ HOME screen appears.

3 Touch

▶ SETUP screen appears.

4 Touch [User Interface].

▶ The User Interface screen appears.

5 Set each item as follows.

[Beep]

Turns the key touch tone on or off.

Default is "ON".

■[Parking Assist Display]

When an ADS adapter is connected, you can display information about obstacles around the car.

[ON]: Always displays information.

[Dyn.] (Default): Displays information when the sensor detects obstacles.

This can be set when the iDataLink (commercially available) is connected.

■ [Parking Assist Position]

Select where information about obstacles is displayed on the screen (left or right).

"Left"/ "Right" (Default)

This can be set when the iDataLink (commercially available) is connected.

[Language Select]

Selects a language.

[Touch Panel Adjust]

Adjust the sensing position of the touch panel. (P.67)

[Clock]

[RDS-SYNC] (Default): Synchronizes the Radio Data System station time data with this unit's clock.

[Manual]: Sets the clock manually.

[Time Zone]

Select the time zone.

[Clock Adjust]

If you select [Manual] for Clock, adjust the date and time manually. (P.66)

[DISP Key]

Select the source screen displayed when

the button on the popup menu screen is pressed.

[Mirroring] (Default): Switches to the App screen from the connected iPod touch/iPhone/Android device or Apple CarPlay screen from the connected iPhone by pressing the button. (P.21)

OFF: Displays the control screen of the current source.

Adjust the date and time manually.

1 Touch [Clock] in the User Interface screen. 2 Select [Manual]. 3 Touch [Time Zone] in the User Interface screen. 4 Select the time zone. 5 Touch [Clock Adjust] in the User Interface screen. 6 Adjust the date, then adjust the time.

7 Touch [Set].

Touch panel adjustment

1 Touch [Touch Panel Adjust] on the User Interface screen.

▶ The Touch Panel Adjust screen appears.

2 Follow the instructions on the screen and long-press the center of each [

NOTE

• To cancel the touch panel adjustment, touch [Cancel].
• To reset to the initial status, touch [Reset].

Special Setup

You can set up special parameters.

1 Press the [FNC] button.

▶ The popup menu appears.

2 Touch

HOME screen appears.

3 Touch

▶ SETUP screen appears.

4 Touch [Special].

▶ Special screen appears.

5 Set each item as follows.

[DEMO]

Set the demonstration mode. Default is "ON".

[SETUP Memory]

Locks or unlocks the Audio SETUP Memory/Recall/Clear.

■[Audio SETUP Memory]

Memorizes the current audio setting.

- Fader/ Balance, Speaker / X'over, Equalizer (User Preset, SW Level), Position/DTA, Sound Effect (P.70)

■[Audio SETUP Recall]

Recalls the memorized audio setting.

■[Audio SETUP Clear]

Clears the AUDIO SETUP Memory and the currently memorized audio setting.

■[Software Information]

Check the software version of this unit. (P.67)

■[Open Source Licenses]

Displays the open source licenses.

■[Initialize]

Touch [Initialize] and then touch [Yes] to set all the settings to the initial default settings.

• Audio SETUP Memory is not initialized.

Software Information

Check the software version of this unit.

1 Touch [Software Information] in the Special screen. 2 Confirm the software version.

NOTE

- For how to update the software, see the relevant update procedure manual which comes with the software.

Display Setup

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

▶ SETUP screen appears.

4 Touch [Display].

▶ Display screen appears.

5 Set each item as follows.

Dimmer

Select dimmer mode.

OFF : The display and buttons do not dim.

[ON]: The display and buttons dim.

[SYNC] (Default): Turns the dimmer function on or off when the vehicle light control switch is turned on or off.

[OSD Clock]

Select if you want to display the clock while watching DVD video, etc.

"ON" (Default)/ "OFF"

[Wallpaper Customize]

Changing wallpaper image. (P.68)

[Viewing Angle]

If it is hard to see the image on the screen even, adjust the viewing angle. The smaller the (negative) value, the more whitish the image on the screen looks.

"0" (Default)/"-1"/"-2"/"-3"

Change wallpaper image

1 Touch [Wallpaper Customize] in the Display screen.

2 Select an image.

*1 Select an original image in advance.

To register original image

You can load an image from the connected USB device and set it for the wallpaper image. Before operating this procedure, it is necessary to connect the device which has the image to load.

1 Touch [User1 Select] or [User2 Select] in the Wallpaper Customize screen.

2 Select the image to load.

3 Touch [Enter].

The selected image is loaded and the display returns to the Wallpaper Customize screen.

NOTE

• Touching [icon] rotates counter clockwise.
• Touching [R] rotates clockwise.
• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP (.bmp)

AV Setup

You can set AV parameters.

1 Press the [FNC] button. ▶ Popup menu appears.

2 Touch ➤ HOME screen appears.

3 Touch ➤ SETUP screen appears.

4 Touch [AV].

AV screen appears.

5 Set each item as follows.

[AV-OUT]

You can select an AV source to be output from the AV OUTPUT port.

OFF, AV-IN, DISC, USB, or iPod

• You cannot select iPod if it is connected via Bluetooth.
• If you select USB, iPod, Disc, Spotify, Pandora or Bluetooth audio as the main source, you cannot select USB or iPod as the AV output source.
• If you select Mirroring (WebLink/ Waze), Apple CarPlay or Android Auto as the main source, you cannot select DISC (Music CD/ Disc media), USB or iPod as the AV output source.

■[Driving Position]

Select the driving position (left or right).

"Left" (Default)/ "Right"

[OEM SETUP]

Confirm the information about/ change the settings for using the ADS adapter.

Controlling Audio

You can adjust the various settings such as audio balance or subwoofer level.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [Audio].

See the following section for each setting.

• Set up speaker/ X'over (P.71) • Controlling equalizer (P.73)
• Set listening position/ DTA (P.76)
• Controlling general audio (Fader / Balance) (P.73)
• Set volume offset (P.74) • Performing zone control (P.74)
• Set sound effect (P.75)

3 way speaker system setup

Select the appropriate crossover network mode according to the speaker system (2-way speaker system or 3-way speaker system).

1 Press the [FNC] button. ▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [AV Off].

5 Press the [FNC] (①) button and the [-] (②) button for 1 second at the same time.

▶ Speaker system select screen appears.

6 Select the crossover network mode.

▶ A confirmation screen appears.

7 Touch [Yes].

NOTE

• When the 3-way speaker system is selected, the following functions are disabled.
• Zone Control – Fader of Controlling General Audio
• Front focus of Listening Position/ DTA
• Select the speakers to output the sound from cell-phone of Bluetooth HF/Audio
• Beep of User Interface Setup

- Connecting 3-way speakers with the 2-way mode selected can break the speakers.

Speaker/ X'over setup

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [Audio].

▶ Audio screen appears.

5 Touch [Speaker/X'over].

6 Select a car type.

You can set up the car type and speaker network, etc.

If your car type is selected, the Delay Time Alignment is set automatically (for timing adjustment of sound output for each channel) to have the highest surround effects.

7 Touch the speaker (①) you wish to adjust and set each item (②) as follows.

■[Speaker]

You can select a speaker type and its size to get the best sound effects.

When the speaker type and size are set, the speaker crossover network is set automatically.

■ [Location] (Only for Front, Rear)

Select the speaker position you have fixed.

■ [Tweeter] (Only for Front)

You can set the tweeter when you are selecting front speakers.

None, Small, Medium, Large

[X'over]

Displays the speaker crossover setup screen.

You can adjust the crossover setup that was set automatically when you selected the speaker type.

For details, see Crossover network setup (P.72)

When Speaker network is set to 3 way:

NOTE

• For how to switch to the 3-way speaker system, see 3 way speaker system setup (P.70). Connecting 3-way speakers with the 2-way mode selected can break the speakers.
• Select "None" if you have no speakers.

Controlling Audio

Crossover network setup

You can set a crossover frequency of speakers.

1 Touch [X'over].

2 Touch the speaker to set.

3 Set each item as follows.

■[HPF FREQ]

High Pass Filter adjustment. (When front or rear speaker is selected on Speaker Select screen)

LPF FREQ

Low Pass Filter adjustment. (When subwoofer is selected on Speaker Select screen)

[Slope]*

Sets a crossover slope.

[Gain]

Adjusts the front speaker, rear speaker, or subwoofer level.

[TW Gain]*

Adjusts the tweeter level. (When front is selected on Speaker Select screen)

■ [Phase Inversion]*

Sets the phase of subwoofer output.

Check [Phase Inversion] to shift the phase 180 degrees. (When subwoofer is selected on Speaker Select screen)

*1 Only when "LPF FREQ"/"HPF FREQ" is set to a mode other than "Through" in [X'over]. *2 Only when "Tweeter" is set to "Small", "Medium", "Large" in [Speaker Setup].

*3 Only when "Subwoofer" is set to a mode other than "None" in [Speaker Setup].

When Speaker network is set to 3 way:

■ [FREQ] (High Pass)

High Pass Filter adjustment. (When tweeter is selected on Speaker Select screen)

■ [HPF FREQ, LPF FREQ] (Band Pass)

Band Pass Filter adjustment. (When mid range speaker is selected on Speaker Select screen)

■ [FREQ] (Low Pass)

Low Pass Filter adjustment. (When woofer is selected on Speaker Select screen)

[Slope]*

Sets a crossover slope.

[Gain]

Sets gain of each speaker.

■ [Phase Inversion]*2

Sets the phase of tweeter, mid range, and woofer output.

Check [Phase Inversion] to shift the phase 180 degrees.

*1 Only when "LPF FREQ"/"HPF FREQ" is set to a mode other than "Through" in [X'over]. *2 Only when "Subwoofer" is set to a mode other than "None" in [Speaker Setup].

NOTE

- For how to switch to the 3-way speaker system, see 3 way speaker system setup (P.70). Connecting 3-way speakers with the 2-way mode selected can break the speakers.

Controlling General Audio

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [Audio].

▶ Audio screen appears.

5 Touch [Fader / Balance].

6 Set each item as follows.

■ [Fader / Balance]

Adjust the volume balance around the touched area.

[◀] and [▶] adjust the right and left volume balance.

[▲] and [▼] adjust the front and rear volume balance.

[Center]

Clear the adjustment.

Equalizer Control

You can adjust equalizer by selecting the optimized setting for each category.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [Audio].

▶ Audio screen appears.

5 Touch [Equalizer].

6 Touch the screen and set the Graphic Equalizer as desired.

■Gain level (dotted frame area)

Adjust the gain level by touching each frequency bar.

You can select a frequency bar and adjust its level with [▲] and [▼].

[Preset Select]

Displays the screen to recall the preset equalizer curve.

[Memory]

Saves the adjusted equalizer curve from "User1" to "User4".

[Initialize]

The current EQ curve returns to flat.

[ALL SRC]

Apply the adjusted equalizer to all sources. Touch [ALL SRC] and then touch [OK] on the confirmation screen.

[Bass EXT] (Bass Extend Settings)

When turned on, the frequency lower than 62.5 Hz is set to the same gain level as 62.5 Hz.

[SW Level]

Adjusts the subwoofer volume. This setting is not available when subwoofer is set to "None". See Speaker/X'over setup (P.71).

Controlling Audio

Recall the EQ curve

1 Touch [Preset Select]. 2 Select EQ curve.

NOTE

- [iPod] is available only during iPod source.

Save the EQ curve

1 Adjust the EQ curve. 2 Touch [Memory]. 3 Select where to save.

Volume Offset

Finely adjust the volume of the current source to minimize the difference in volume between different sources.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [Audio].

▶ Audio screen appears.

5 Touch [Volume Offset].

6 Touch [+] or [−] to adjust the level.

[Initialize]

Returns to the initial settings.

* If you have increased the volume first, then reduced the volume using the "Volume Offset", the sound generated if you suddenly switch to another source may be extremely loud.

Zone Control

You can select different sources for both front and rear positions in the vehicle.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [Audio].

▶ Audio screen appears.

5 Touch [Zone Control].

▶ Zone Control screen appears.

6 Touch [Zone Select].

7 Touch [Dual Zone].

8 Set each source as follows.

■ [Zone Select]

Touch [Single Zone] to turn off the dual zone function.

■ [Front Source] [Rear Source]

Select the audio source for each.

[Rear VOL.]

Adjusts the rear source volume.

NOTE

• When the rear speaker sound is switched, the audio source that is output at the AV OUTPUT terminal is also switched to the same source.
• When the dual zone function is set to on, the following functions are not available.
• Output from the subwoofer
• Subwoofer Level/ Bass Boost (P.75)
• Equalizer Control/ Sound Effect/ Listening Position (P.73, 75, 76)
• Speaker Setup (P.71) – High-resolution Sound Source File Playback

NOTE

• You cannot select iPod if it is connected via Bluetooth.
• If you select USB, iPod, Disc, Spotify, Pandora or Bluetooth audio as the Front Source, you cannot select USB or iPod as the Rear Source.
• If you select Mirroring (WebLink/ Waze), Apple CarPlay or Android Auto as the Front Source, you cannot select DISC (Music CD/ Disc media), USB or iPod as the Rear Source.

Sound Effect

You can set sound effects.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [Audio].

▶ Audio screen appears.

5 Touch [Sound Effect].

Set each item as follows.

[Bass Boost]

Sets the amount of bass boost among "OFF"/"1"/"2"/"3".

[Loudness]

Sets the amounts of boost of low and high tones.

"OFF", "Low", "High"

Controlling Audio

[Volume Link EQ]

Reduces the driving noise by raising the bandwidth.

"OFF", "ON"

■ [Space Enhancement]

Select the feeling of sound space enhancement.

"OFF"/"Small"/"Medium"/"Large".

This setting is not available during Tuner source.

[K2]

Turns ON/OFF the K2 function.

Technology to extrapolate and supplement with proprietary algorithm, the high-frequency range that is cut off when encoding.

■[Sound Response]

Virtually makes the sound more realistic using the Digital Signal Processor (DSP) system.

Select the level from "OFF"/"1"/"2"/"3".

■[Sound Lift]

You can adjust the height of speakers virtually to suit your listening position. "OFF"/"Low"/"Middle"/"High".

Listening Position/ DTA

Listening Position/DTA allows you to improve the sound field depending on the position of the seat you sit.

Listening Position/DTA allows you to set "Listening Position" and "Front Focus". You cannot set both at the same time.

1 Press the [FNC] button.

▶ Popup menu appears.

2 Touch

HOME screen appears.

3 Touch

Source selection screen appears.

4 Touch [Audio].

▶ Audio screen appears.

5 Touch [Position/DTA].

- Set up Listening Position (P.76)

- Set up Front Focus (P.77)

Listening Position

Adjust the sound delay time as nearer speakers to the selected seat have more delay time, so that the sound from each speaker arrive a listener at the same time.

1 Touch [Listening Position] in the Position/ DTA screen.

2 Select listening position from [Front R] (Right front), [Front L] (Left front), [Front All] (All front), and [All].

Position DTA control

You can fine-adjust your listening position.

1 Touch [Adjust].

2 Touch [Delay].

3 Touch [◀] or [▶] to adjust the delay time of the selected speaker.

4 Touch [Level]. 5 Touch [◀] or [▶] to adjust the sound level of the selected speaker.

NOTE

- To return to the initial setting of Delay and Level, touch [Initialize] and [YES] in the confirmation screen.

Front Focus

This is the function to focus the imaginary sound image in front of the selected seat.

1 Touch [Front Focus] in the Position/DTA screen. 2 Select a front focus position.

For [Front All] and [All], select Priority L or R depending on which side you want to put the imaginary sound image.

Front Focus fine adjustment

1 Touch [Adjust]. 2 Touch [Delay]. 3 Set each item as follows.

■[Sound Image LR (Front)]

Adjust the sound image to focus on in front of front seats.

■[Sound Image LR (Rear)]

Adjust the sound image to focus on in front of rear seats.

■ [Size of the Virtual Sound Field]

Adjust the size of sound image to meet your taste. If the sound image is shifted from the front, adjust it by [Sound Image LR (Front)] or [Sound Image LR (Rear)].

■ [Subwoofer Delay]

Adjust the delay time of the subwoofer.

4 Touch [Level]. 5 Touch [◀] or [▶] to adjust the sound level of the selected speaker.

NOTE

- To return to the initial setting of Delay and Level, touch [Initialize] and [YES] in the confirmation screen.

Remote control

This unit can be operated using the remote control RM-RK258 (optional accessory).

WARNING

- Do not ingest the battery, Chemical Burn Hazard

The remote control supplied with this product contains a coin / button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CAUTION

• Put the remote control in a place where it will not move during braking or other operations. A dangerous situation could result if the remote control falls down and gets wedged under the pedals while driving.
• Do not leave the battery near fire or under direct sunlight. A fire, explosion or excessive heat generation may result.
• Do not recharge, short-circuit, disassemble, or heat the battery, and do not dispose of it in fire. Such actions may cause the battery to leak fluid. If the leaked fluid comes into contact with your eyes or clothing, rinse immediately with water and consult a physician.
• Danger of explosion if the lithium battery is incorrectly replaced. Replace only with the same or equivalent type.

Removing the battery sheet

Pull the battery sheet out from the remote controller to activate the battery.

Changing the battery of the remote controller

• Use a commercially available button battery (CR2025).
• Insert the battery with the + and – poles aligned properly.

- If the effectiveness of the remote controller decreases, replace the battery.

Functions of the Remote Control Buttons

Key Name	Function
SRC Switches	to the source to be played.In hands-free mode, hangs up the phone.
VOL + - Adjusts the volume.
ATT Lowers the volume by pressing the key once.Restores the previous volume by pressing the key twice.
DISP Switches	the screen between the current source and the App screen from the connected iPod touch/ iPhone/Android.
FM/▲AM/▼	Selects the folder to be played.During tuner source, select FM/ AM band to be received.During SiriusXM source, switches the bands to be received.During DVD/VCD source, selects the title to be played.
|◀◀ ∨▶▶| ^	Selects the track or file to be played.During tuner, and SiriusXM source, switches to broadcast stations received by the unit.During DVD/VCD source, selects the chapter/scene/track to be played.
ANGLE Not used.
	When a call comes in, answers the call.
DIRECT Switches to the direct search mode.For details on the direct search mode, seeDirect search mode (P.79).
ASPECT Changes the aspect ratio.To check the current aspect ratio setting, operate on the touch panel.(P.65)
Numeric Keypad	Specifies the number to search in direct search.For details on the direct search mode, seeDirect search mode (P.79).
CLR Deletes a character while in direct search mode.
ENT Performs the selected function.

Direct search mode

Using the remote control, you can jump directly to the desired file, track, chapter, etc. by entering the number corresponding to the content.

NOTE

- This operation cannot be performed for USB devices and iPod.

1. Press the [SRC] button several times until the desired content appears.

The available contents are different depending on the source.

DVD

Title number/Chapter number

■VCD 1.X and 2.X (PBC OFF)

Track number

■VCD 2.X (PBC ON)

Scene number/Track number

Music CD

Track number

Tuner

Frequency value

SiriusXM

Channel number

2 Press the [DIRECT] button. 3 Enter the number of the content you want to play using the numeric keypad. 4 For DVD or VCD, music CD, press the [ENTER] button.

For Tuner, press the [◀◀] or [▶▶] button.

▶ The content you entered is played.

Connection/Installation

Before Installation

Before installation of this unit, please note the following precautions.

▲ WARNINGS

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, which could start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use. Metal parts such as the heat sink and enclosure become hot.

NOTE

• Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If the power is not turned ON ("There is an error in the speaker wiring. Please check the connections." is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle, and the protection function may have been activated. Therefore, the speaker wire should be checked.
• If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the

ignition key. If you connect the ignition wire to a power source with a constant voltage supply, such as with battery wires, the battery may be drained.

• If the console has a lid, make sure to install the unit so that the front panel will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal. • After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less.
• This unit has the cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit is blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.

Cooling fan

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.
• Reception may drop if there are metal objects near the Bluetooth antenna.

Bluetooth antenna unit

Supplied accessories for installation

Installation procedure

1) To prevent a short circuit, remove the key from the ignition and disconnect the terminal of the battery. 2) Make the proper input and output wire connections for each unit. 3) Connect the speaker wires of the wiring harness. 4) Connect the wiring harness wires in the following order; ground, battery, ignition. 5) Connect the wiring harness connector to the unit.

6) Install the unit in your car. 7) Reconnect the negative terminal of the battery. 8) Perform the Initial Setup. See Initial setup (P.7).

Installing the unit

NOTE

- Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (e.g., the sound may skip).

Microphone unit

1) Check the installation position of the microphone (accessory ③). 2) Clean the installation surface. 3) Remove the separator of the microphone (accessory ③), and stick the microphone to the place shown below. 4) Wire the microphone cable up to the unit with it secured at several positions using tape or other desired method. 5) Adjust the direction of the microphone (accessory ③) to the driver.

Fix a cable with a commercial item of tape.

Connecting wires to terminals

3 way speaker system setup

NOTE

• For speaker system setup, see 3 way speaker system setup (P.70).
• For speaker setup and crossover setup, see Speaker/ X'over setup (P.71).
• For how to connect speaker wires to terminals other than speaker terminals and Preout terminals, see Connecting the system and external components (P.83) and Connecting wires to terminals (P.82).

Connecting the system and internal components

1	AV Audio output (ø3.5 mini jack)
2	FM/AM antenna input
3	When connecting to an external amplifier, connect its ground wire to the car's chassis to avoid damaging the unit.Rear Audio Preout(Left; White, Right; Red)Front Audio Preout(Left; White, Right; Red)Subwoofer Preout(Left; White, Right; Red)
4	SiriusXM Connect Vehicle Tuner connector For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included with the tuner.
5	iDatalink connector
6	AV-IN input (1; Left audio, 2; Right audio, 3; Ground, 4; Visual)1234
7	Accessory 3: Bluetooth Microphone
8	Rear view camera input (Yellow)
9	Visual Output (Yellow)

Connecting a USB device

[1] USB maximum power supply current: DC 5 V = 1.5 A [2] Sold separately [3] See Securing the USB extension cable (P.84).

Connecting an Android phone

[1] USB maximum power supply current: DC 5 V = 1.5 A [2] Sold separately [3] See Securing the USB extension cable (P.84).

Connecting an iPod/iPhone

Lightning connector

iPhone (with CarPlay/WebLink/Waze)

[1] USB maximum power supply current: DC 5 V = 1.5 A [2] Sold separately [3] Optional accessory [4] See Securing the USB extension cable (P.84).

Securing the USB extension cable

Secure the USB extension cable with insulating tape or the like so that its connectors are not disconnected.

Troubleshooting

Problems and Solutions

If any trouble occurs, first check the following table for possible problems.

NOTE

• Some functions of this unit may be disabled by some settings made on this unit.
• What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring.

About settings

• Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass filter.
• Cannot set up the high pass filter.

Subwoofer is not set to on.

▶ Set the subwoofer to on. See Speaker/X'over setup (P.71).

The dual zone function is enabled.

▶ Set the dual zone function to off. See Zone Control (P.74).

- Cannot select the output destination of the subsource in the dual zone.

- Cannot adjust the volume of the rear speakers.

The dual zone function is disabled.

▶ Set the dual zone function to on. See Zone Control (P.74).

- Cannot set up the equalizer.

- Cannot set up the crossover network.

The dual zone function is enabled.

▶ Set the dual zone function to off. See Zone Control (P.74).

About audio operations

Radio reception is poor.

The car antenna is not extended.

▶ Pull out the antenna all the way.

The antenna control wire is not connected.

Connect the wire correctly. See Connecting the system and external components (P.83).

Cannot select a folder.

The random play function is enabled.

▶ Turn off the random function.

Cannot perform repeat play during VCD playback.

The PBC function is enabled.

▶ Turn off the PBC function.

The specified disc does not play, but another one plays instead.

The disc is quite dirty.

▶ Clean the disc. See Precautions on handling discs (P4).

The disc is severely scratched.

▶ Try another disc instead.

The sound skips when an audio file is being played.

The disc is scratched or dirty.

▶ Clean the disc. See Precautions on handling discs (P.4).

The recording condition is bad.

Record the file again or use another disc.

Other

The Touch Sensor Tone doesn't sound.

The preout jack is being used.

The Touch Sensor Tone cannot be output from the preout jack.

Error Messages

When you fail to operate the unit correctly, the cause of the failure appears as a message on the screen.

There is an error in the speaker wiring. Please check the connections.

The protective circuit has been activated because a speaker cord has shorted or has come in contact with the car chassis.

Wire or insulate the speaker cord as appropriate, then turn the power off and on again.

Hot Error

When the internal temperature of this unit rises to 60°C or more, the protection circuit is activated and you may not be able to operate the unit.

Use the unit again after reducing the temperature of the unit.

Mecha Error

The disc player is malfunctioning.

Eject the disc and try inserting it again. Contact the JVC dealer if this indicator continues blinking or the disc cannot be ejected.

Disc Error

An unplayable disc is inserted.

Change the disc. See Playable Media and Files (P.87).

Troubleshooting

Read Error

The disc is quite dirty.

▶ Clean the disc. See Precautions on handling discs (P.4).

Disc is upside down.

▶ Load the disc with the labeled side up.

Region Code Error

The disc you wanted to play has a region code that cannot be played with this unit.

➢ See Region Codes in the World (P.89) or try another disc.

Error 07-67

The unit is not operating correctly due to some reason or other.

▶ Turn the power off and on again. If the "Error 07–67" message does not disappear, see your nearest JVC dealer.

No Device (USB device)

The USB device is selected as a source although no USB device is connected.

Change the source to any source other than USB/iPod. Connect a USB device, and change the source to USB again.

Disconnected (iPod, Bluetooth audio player)

The iPod/Bluetooth audio player is selected as a source although no iPod/Bluetooth audio player is connected.

Change the source to any source other than iPod/Bluetooth. Connect an iPod/Bluetooth audio player, and change the source to iPod/Bluetooth again.

No Media File

The connected USB device contains no playable audio file. Media was played that doesn't have data recorded that the unit can play.

▶ See Playable Media and Files (P.87) and try another USB device.

USB device over current status detected.

The connected USB device is rated a current capacity higher than the allowable limit.

Check the USB device. Some trouble may have occurred to the connected USB device.

Change the source to any source other than USB. Remove the USB device.

SiriusXM

Check Tuner

A SiriusXM tuner is not connected to this unit.

▶ Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio.

Subscription Updated - Press Return To Continue

The SiriusXM subscription has been renewed.

▶ Pressing the Control knob will clear the message.

SXM Channel Unavailable

The currently selected channel is unavailable.

Visit www.siriusxm.com for more information about the SiriusXM channel lineup.

SXM Channel Unsubscribed

The currently selected channel is not subscribed to.

In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions about your subscription package or would like to subscribe to this channel.

In Canada, visit www.siriusxm.ca or call 1-877-438-9677.

SXM Check Antenna

No antenna is connected to the SiriusXM tuner.

▶ Check that an antenna is connected to the SiriusXM tuner. Check antenna for damages.

SXM No Signal

No SiriusXM radio signal is received.

▶ Verify that your vehicle is outdoors with a clear view of the sky.

Channel Locked

The selected channel has been locked by the parental controls.

Enter the unlock code when you are asked. See Parental Control (P.46).

Incorrect Pass Code entered

The selected channel is a mature or parental lock channel, and locked by the parental lock or user lock code.

Enter the correct lock code.

Appendix

Playable Media and Files

You can play various kinds of media and files on this unit.

List of playable discs (KW-V840BT)

Disc types / Standard Support Remark
DVD DVD V	deo	O
	DVD Audio ×
	DVD-VR ×
	DVD-R*1	O	· MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ MPEG1/ MPEG2/ MPEG4/ H.264/ WMV/ MKV playback· Multi-border/Multisession playback (Playback depends on authoring conditions)
	DVD-RW	O
	DVD+R	O
	DVD+RW	O
	DVD-R DL (Dual layer)	O	Only video format
	DVD+R DL (Double layer)	O
	DVD-RAM ×
CD Music CD* 1		O
		Video CD (VCD)	O
		Super video CD ×
		Photo CD ×
		CD-EXTRA	△	Only music CD session can be played.
		HDCD	△	Normal music CD sound quality
		CCCD ×
Others	Dualdisc	×
	Super audio CD	△	Only CD layer can be played.

O: Playback is possible. △: Playback is partly possible. ×: Playback is impossible.

■ Use of DualDisc

When playing a "DualDisc" on this unit, the surface of the disc that is not played may be scratched while the disc is inserted or ejected. Since the music CD surface does not conform to the CD standard, playback may be impossible.

(A "DualDisc" is a disc with one surface containing DVD standard signals and the other surface containing music CD signals.)

*1 Incompatible with 8 cm (3 inch) discs.

■ About disc format

The disc format should be one of the following.

• ISO 9660 Level 1/2 • Joliet - Romeo - Long file name

About files

The following audio and video files are supported.

Playable Audio files

	Format Bit rate	Sampling frequency	Bit count
AAC-LC (.m4a)	MPEG2/4 AAC LC HE-AAC(V1,V2)	8 – 320kbps, VBR 16 – 48	kHz 16 bit
MP3 (.mp3)	MPEG 1/2 Audio Layer 3 8 – 320kbps, VBR 16 – 48 kHz 16 bit
WMA (.wma)	Windows Media Audio Standard L3 profile (Version 7,8,9)	8 – 320kbps 16 – 48 kHz	16 bit
Linear PCM (WAVE) (.wav)	RIFF waveform Audio Format	-	16 – 48 kHz (Disc), 16 – 192 kHz (USB)	16/ 24 bit
FLAC (.flac)	flac	-	16 – 48 kHz (Disc), 16 – 192 kHz (USB)	16/ 24 bit
Vorbis (.ogg)	vorbis	VBR	16 – 48 kHz	16 bit
DSD (.dsf, .dff)	DSF, DSDIFF	-	2.8 MHz, 5.6 MHz, 11.2 MHz	1 bit

• If music of normal CD and other playback systems are recorded in the same disc, only the playback system recorded at the first setout is played.
• WMA and AAC files protected by DRM cannot be played. DSD sound is converted to PCM sound before playback. The EmChinks tag of DSDIFF is not supported.
• Although the audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. This unit supports playback of High-Resolution Audio files.

It is recommended that a car audio system should be configured with all High-Resolution Audio compatible products from player to speaker to enjoy its high quality sound.

Acceptable Video files

	Profile	Max. Picture size	Max. bit rate	Audio format
MPEG-1 (.mpg, .mpeg)	-	352 × 240, 352 × 288	1.5 Mbps	MPEG Audio Layer 2
MPEG-2 (.mpg, .mpeg)	MP@ML	720 × 480, 720 × 576	8 Mbps	MPEG Audio Layer 2
H.264/MPEG-4 AVC (.mp4, .m4v, .avi, .flv, .f4v)	Baseline Profile, Main Profile	1920 × 1080 (30 fps)	8 Mbps	MP3, AAC
MPEG-4 (.mp4, .avi)	Advanced Simple Profile	1920 × 1080 (30 fps)	8 Mbps	MP3, AAC
WMV (.wmv)	Main Profile	1920 × 1080 (30 fps)	8 Mbps	WMA
MKV (.mkv)	Video Format follows H.264/MPEG-4 AVC, MPEG-4, WMV			MP3, AAC, WMA, Vorbis, FLAC

• This unit can only play back files which are less than 4 GB.

Limitation of structure for the file and the folder

	Disc media	USB device
Maximum number of folder layers	8	8
Maximum number of files (per folder)	999	999
Maximum number of folders (per folder)	5000	9999
Maximum number of folders (per device)	5000	Unlimited

• You can enter a folder name and file name with 255 or fewer single-byte characters.
• Files in the folder whose folder name begins with a dot (.) cannot be played.

Region Codes in the World

The DVD players are given a region code according to the country or area it is marketed, as shown in the following map.

■DVD disc marks

Indicates a region number. The discs with this mark can be played with any DVD player.

Indicates the number of audio languages recorded. Up to 8 languages can be recorded in a movie. You can select a favorite language.

Indicates the number of subtitled languages recorded. Up to 32 languages can be recorded.

If a DVD disc has scenes shot from multiple angles, you can select a favorite angle.

Indicates the type of screen for the image. The left mark indicates that a wide image picture (16:9) is displayed on a standard TV set screen (4:3) with a black band at both the top and bottom of the screen (letter box).

■Operation regulatory marks

With this DVD, some functions of this unit such as the play function may be restricted depending on the location where the DVD is playing. In this case, the following marks will appear on the screen. For more information, refer to the disc manual.

■Discs with limited period of use

Do not leave discs with a limited period of use in this unit. If you load an already expired disc, you may not be able to remove it from this unit.

DVD Language Codes

Code Language
aa Afar
ab Abkhazian
af Afrikaans
am Amharic
ar Arabid
as Assamese
ay Aymara
az Azerbaijani
ba Bashkir
be Byelorussian
bg Bulgarian
bh Bihari
bi Bislama
bn Bengali, Bangla
bo Tibetan
br Breton
ca Catalan
co Corsican
cs Czech
cy Welsh
da Danish
de German
dz Bhutani
el Greek
en English
eo Esperanto
es Spanish
et Estonian
eu Basque
fa Persian
fi Finnish
fj Fiji
fo Faroese
fr French
fy Frisian
ga Irish
gd Scots Gaelic
gl Galician
gn Guarani
gu Gujarati
ha Hausa
he Hebrew
hi Hindi
hr Croatian
hu Hungarian
hy Armenian

Code	Language
ia Interlingua
ie Interlingue
ik Inupiak
id Indonesian
is Icelandic
it Italian
ja Japanese
iv Javanese
ka Georgian
kk Kazakh
kl Greenlandic
km Cambodian
kn Kannada
ko Korean
ks Kashmiri
ku Kurdish
ky Kirghiz
la Latin
lb Luxembourgish
In Lingala
lo Laotian
lt Lithuanian
lv Latvian, Lettish
mg	Malagasy
mi Maori
mk Macedonian
ml Malayalam
mn	Mongolian
mo	Moldavian
mr Marathi
ms	Malay
mt	Maltese
my	Burmese
na Nauru
ne Nepali
nl Dutch
no Norwegian
oc Occitan
om	(Afan) Oromo
or Oriya
pa Punjabi
pl Polish
ps Pashto, Pushto
pt	Portuguese
qu Quechua
rm	Rhaeto-Romance

Code Language
rn	Kirundi
ro Romanian
ru Russian
rw Kinyarwanda
sa Sanskrit
sd Sindhi
sg Sangho
sh Serbo-Croatian
si Singhalese
sk Slovak
sl Slovenian
sm	Samoan
sn Shona
so Somali
sq Albanian
sr Serbian
ss Siswati
st Sesotho
su Sundanese
sv Swedish
sw Swahili
ta Tamil
te Telugu
tg	Tajik
th	Thai
ti Tigrinya
tk Turkmen
tl Tagalog
tn	Setswana
to Tongan
tr	Turkish
ts Tsonga
tt	Tatar
tw Twi
uk Ukrainian
ur Urdu
uz Uzbek
vi Vietnamese
vo Volapuk
wo	Wolof
xh Xhosa
yo Yoruba
zh Chinese
zu Zulu

Specifications

■Monitor section

Picture Size

: 6.75 inches (diagonal) wide

: 151.8 mm (W) × 79.68 mm (H)

5-31/32 × 3-1/8 inch

Display System

: TN LCD panel

Drive System

: TFT active matrix system

Number of Pixels

: 1,152,000 (800H x 480V x RGB)

Effective Pixels

: 99.99%

Pixel Arrangement

: RGB striped arrangement

Back Lighting

: LED

■DVD player section (KW-V840BT)

D/A Converter

: 24/32 bit

Audio Decoder

: Linear PCM/ Dolby Digital/ MP3/ WMA/ AAC/ WAV/ FLAC/Vorbis

Video Decoder

: Below Measurable Limit

Frequency Response

• 96 kHz:20-44,000 Hz • 48 kHz : 20 - 22,000 Hz • 44.1 kHz : 20 - 20,000 Hz

Total Harmonic Distortion

: 0.010 % (1 kHz)

S/N Ratio (dB)

: 90.5 dB

Dynamic Range

: 89 dB

Disc Format

: DVD-Video/VIDEO-CD/CD-DA DVD-R/DVD-RW/ DVD+R/+RW

Sampling frequency

: 44.1/48/96 kHz

Quantifying Bit Number

: 16/20/24 bit

■USB interface section

USB Standard

: USB 2.0 High Speed

File System

: FAT 16/32, exFAT, NTFS

Maximum Power Supply Current

: DC 5 V=1.5 A × 2

D/A Converter

: 24/32 bit

Audio Decoder

MP3/ WMA/ AAC/ WAV/ FLAC/ Vorbis/ DSD

Video Decoder

Frequency Response (KW-M740BT)

• 192 kHz: 20 - 88,000 Hz • 96 kHz: 20 - 44,000 Hz • 48 kHz: 20 - 22,000 Hz • 44.1 kHz: 20 - 20,000 Hz

Total Harmonic Distortion (KW-M740BT)

0.0001% (1 kHz)

S/N Ratio (dB) (KW-M740BT)

98.5 dB

Dynamic Range (KW-M740BT)

89 dB

Bluetooth section

Technology

Bluetooth Ver. 3.0

Frequency

2.402 - 2.480 GHz

Output Power

: +4dBm (MAX), 0dBm (AVE), Power Class2

Maximum Communication range

: Line of sight approx. 10m (32.8 ft)

Audio Codec

:SBC/ AAC

Profile (Multi Profile support)

• HFP (V1.6) (Hands Free Profile) • SPP (Serial Port Profile) • A2DP (Advanced Audio Distribution Profile) • AVRCP (V1.5) (Audio/Video Remote Control Profile) • PBAP (Phonebook Access Profile)

Appendix

■FM tuner section

Frequency Range (step)

: 87.9 MHz - 107.9 MHz (200 kHz)

Usable Sensitivity (S/N : 30 dB)

: 9.3 dBf (0.8 μV/75 Ω)

Quieting Sensitivity (S/N : 50 dB)

: 15.2 dBf (1.6 μV/75 Ω)

Frequency Response

: 30 Hz - 15 kHz

S/N Ratio (dB)

: 75 dB (MONO)

Selectivity (± 400 kHz)

: Over 80 dB

Stereo Separation

: 45 dB (1 kHz)

■AM tuner section

Frequency Range (step)

: 530 kHz - 1700 kHz (10 kHz)

Usable Sensitivity

: 28 dBμ

■Video section

Color System of External Video Input

: NTSC

External Video Input Level (RCA jacks)

: 1 Vp-p/75 Ω

External Video Input Level (mini jack)

: 1 Vp-p/ 75 Ω

External Audio Max Input Level (mini jack)

: 2 V/ 25 kΩ

Video Output Level (RCA jacks)

: 1 Vp-p/75 Ω

Audio Output Level (mini jack)

: 1.2 V/ 10 kΩ

■Audio section

Maximum Power (Front & Rear)

: 50 W × 4

Full Bandwidth Power (Front & Rear)

: 22 W × 4 (4Ω, 14.4V, at less than 1%THD)

Output frequency band

: 20 - 88,000 Hz

Preout Level (V)

: 4 V/10 kΩ

Preout Impedance

:≤600Ω

Speaker Impedance

:4-8Ω

■DSP section

Graphics equalizer

Band: 13 Band

Frequency (BAND1 - 13)

: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/

6.3k/10k/16kHz

Q: 1.35/1.5/2.0

Gain

:-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB

2Way X'Over

High pass filter

Frequency: Through, 30/40/50/60/70/80/90/100/

120/150/180/220/250 Hz

Slope: -6/-12/-18/-24 dB/Oct.

Slope: -6/-12/-18/-24 dB/Oct.

Slope: -6/-12 dB/Oct.

Slope: -6/-12 dB/Oct.

Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB

Low pass filter

Frequency: 30/40/50/60/70/80/90/100/120/

150/ 180/ 220/ 250 Hz, Through

Slope: -6/-12 dB/Oct.

Maximum Current Consumption

:15 A

Installation Dimensions (W × H × D)

: 178 × 100 × 155 mm

7 × 3-15/16 × 6-1/8 inch

Operational Temperature Range

:-10°C - +60°C

Weight

KW-V840BT

: 2.1 kg (4.63 lbs)

KW-M740BT

: 1.7 kg (3.75 lbs)

NOTE

- Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may light incorrectly.

Specifications subject to change without notice.

About this Unit

■Copyrights

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

is a trademark of DVD Format/Logo Corporation registered in the U.S., Japan countries.

• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• This software is based in part on the work of the independent JPEG Group. • The "AAC" logo is a trademark of Dolby Laboratories.
• "Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance.
• iPhone, iPod, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
• Apple, Siri, Apple CarPlay and Apple CarPlay logo are trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a trademark of Apple Inc.
• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All rights reserved.
• PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission.
• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB.
• Android, Android Auto, Google Play and other marks are trademarks of Google Inc.
• WebLink™ is a trademark of Abalta Technologies, Inc.
• This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor (Abalta Technologies, Inc.), except as required for reasonable and customary use in describing the origin of the WEBLINK Product.
• Waze and Waze logo are registered trademarks of Google Inc.

Appendix

• YouTube and the YouTube logo are registered trademarks of Google Inc.
• BlackBerry®, RIM®, Research In Motion® and related trademarks, names and logos are the property of Research In Motion Limited and are registered and/or used in the U.S. and countries around the world. Used under license from Research In Motion Limited.
• This product includes FontAvenue® fonts licenced by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.

FontAvenue

- This product includes "Ubiquitous QuickBoot TM" technology developed by Ubiquitous Corp. Ubiquitous QuickBoot TM is a trademark of Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp. All rights reserved.

- THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT RECEIVE REMUNERATION TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

- THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP://WWW.MPEGLA.COM.

- THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NON-COMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD ("VC-1 VIDEO") AND/OR (ii) DECODE VC-1 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED

FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

- libFLAC

Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libvorbis

Copyright (c) 2002-2008 Xiph.org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

- libogg

Copyright (c) 2002, Xiph.org Foundation. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

NOTE

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
• This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety.

JVC KENWOOD Corporation

2967-3, ISHIKAWA-MACHI,

THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location: Top plate

Appendix

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

■IC (Industry Canada) Notice

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAUTION

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from person's body.

• Contains Transmitter Module FCC ID: ZWY8811X
• Contains Transmitter Module IC: 12033A-8811X

CALIFORNIA, USA

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate.
