KD-X472BT - Car radio JVC - Free user manual and instructions

Product Type	Car Stereo Receiver
Form Factor	Single-DIN
Dimensions (W x H x D)	178 x 50 x 115 mm (7.0 x 2.0 x 4.5 in)
Weight	0.8 kg (1.76 lbs)
Power Supply	14.4V DC (10.5 – 16V), negative ground
Maximum Power Output	4 x 50W
Bluetooth	Hands-free calling and audio streaming (A2DP, AVRCP, HSP, HFP)
Disc Playback	CD, CD-R, CD-RW
USB Input	Front USB port, supports MP3/WMA/WAV/FLAC
Auxiliary Input	3.5mm front AUX input
Radio Tuner	AM/FM with 30 presets
Equalizer	13-band graphic equalizer
Display	LCD with white illumination
Detachable Faceplate	Yes, for theft prevention
Remote Control	Included wired remote
Maintenance	Clean with dry soft cloth; avoid alcohol or solvents
Safety	Designed for 12V vehicles with negative ground only
Spare Parts & Repairability	Contact JVC authorized service center; detachable faceplate available as spare part
General Information	Manufacturer: JVC; Model: KD-X472BT; User manual available on notice-facile.com

Frequently Asked Questions - KD-X472BT JVC

How do I pair my phone via Bluetooth?

Press the MENU button, select Bluetooth, then Pairing. Activate Bluetooth on your phone and select KD-X472BT from the list. Enter PIN 0000 if prompted.

How do I reset the unit?

Press and hold the Reset button (small recessed button on the front panel) with a pointed object for at least 2 seconds.

Can I play music from a USB drive?

Yes, insert a USB drive containing MP3, WMA, WAV, or FLAC files into the front USB port. The unit will automatically play music.

How do I adjust the sound settings?

Press the MENU button to enter audio settings. You can adjust bass, treble, balance, fader, and the 13-band equalizer.

What should I do if the faceplate does not detach?

Ensure the unit is turned off. Press the Release button on the bottom of the faceplate and pull it gently outward.

How do I store radio presets?

Tune to the desired station, then press and hold one of the preset buttons (1-6) until the display confirms.

Can I use an external amplifier?

Yes, the unit has front, rear, and subwoofer RCA preamp outputs, allowing connection to external amplifiers.

Why is the sound distorted at high volume?

Reduce the volume level or adjust the equalizer settings. Ensure speaker impedance is 4-8 ohms and the speakers are not damaged.

How do I clean the unit?

Use a soft, dry cloth. Do not use solvents, alcohol, or abrasive cleaners.

What file formats are supported for CD?

The unit supports CD-R and CD-RW discs with MP3, WMA, and WAV files. Discs must be finalized.

USER MANUAL KD-X472BT JVC

1 Cancel the demonstration 2 Set the clock and date 3 Set the basic settings

Radio 7

USB/iPod 9

AUX....11

Spotify 11

Using Other Applications 13

Bluetooth® 14

Bluetooth - Connection

Bluetooth - Mobile phone

Bluetooth - Audio

Audio Settings 21

Display Settings 27

References 29

Maintenance

More information

Change the display information

Troubleshooting....31

Installation/Connection 33

Specifications....36

How to read this manual

• The displays and faceplates shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or faceplates.
• Operations are explained mainly using buttons on the faceplate of KD-X472BT.
• English indications are used for the purpose of explanation. You can select the display language from the menu. (Page 6) • XX indicates the selected items. • (Page XX) indicates references are available on the stated page.

This symbol on the product means there are important operating and maintenance instructions in this manual. Be sure to carefully read instructions in this manual.

2 ENGLISH

Before Use

IMPORTANT

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and Cautions in this manual. - Please keep the manual in a safe and accessible place for future reference.

WARNING

• Do not operate any function that takes your attention away from safe driving.
• Do not ingest the battery, Chemical Burn Hazard.

The remote control supplied with this product contains a coin/button cell battery.

If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

CAUTION

Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.
• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the external device if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

- Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (page 35). Turn off the unit when parking at a low ceiling area.

Remote control (RM-RK52):

• Do not leave the remote control in hot places such as on the dashboard.
• Risk of fire or explosion if the battery is replaced by an incorrect type. Ensure to replace only with the same type.
• Risk of fire, explosion or the leakage of flammable liquid or gas if the battery is left in an extremely high temperature surrounding environment and/or subjected to extremely low air pressure. The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Risk of fire, explosion or the leakage of flammable liquid or gas if the battery is disposed into fire or a hot oven, recharged, shorted, mechanically crushed or cut.
• If spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physician.

Basics

Faceplate

KD-X472BT:

KD-X272BT:

* Only for illustration purpose.

To On the faceplate

Turn on the power	Press ⬇SRC.• Press and hold to turn off the power.
Adjust the volume Turn the volume knob.
	Press the volume knob to mute the sound or pause playback.• Press again to cancel. The volume level returns to the previous level before muting or pause.
Select a source	• Press ⬇SRC repeatedly.• Press ⬇SRC, then turn the volume knob within 2 seconds.
Change the display information	Press ⬇ repeatedly. (Page 30, 31)

4

ENGLISH

Basics GettingStarted

Remote control (RM-RK52)

Remote sensor

(Do not expose to bright sunlight.)

How to replace the battery

To turn on the remote control

Adjust the volume: Press VOL + or VOL -.

- Press and hold VOL + to continuously increase the volume to 15.

Press ✗ to mute the sound or pause playback.

- Press again to cancel. The volume level returns to the previous level before muting or pause.

Select a source: Press SOURCE repeatedly.

1 Cancel the demonstration

When you turn on the power for the first time (or [FACTORY RESET] is set to [YES], see page 6), the display shows: "CANCEL DEMO" → "PRESS" → "VOLUME KNOB"

1 Press the volume knob.

[YES] is selected for the initial setup.

2 Press the volume knob again.

"DEMO OFF" appears.

2 Set the clock and date

1 Press and hold 2 Turn the volume knob to select [CLOCK], then press the knob.

To adjust the clock

3 Turn the volume knob to select [CLOCK ADJUST], then press the knob. 4 Turn the volume knob to make the settings, then press the knob.

Set the time in the order of "Hour" "Minute"

5 Turn the volume knob to select [CLOCK FORMAT], then press the knob. 6 Turn the volume knob to select [12H] or [24H], then press the knob.

To set the date

7 Turn the volume knob to select [DATE SET], then press the knob. 8 Turn the volume knob to make the settings, then press the knob.

Set the date in the order of "Day" "Month" "Year".

Getting Started

9 Press to exit.

To return to the previous setting item, press Q/3.

Set the basic settings

1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit.

To return to the previous setting item, press Q/5

Default: XX

[SYSTEM]
[KEY BEEP]	(Not applicable when 3-way crossover is selected.) (Page 22)[ON]: Activates the keypress tone. ; [OFF]: Deactivates.
[SOURCESELECT]
[AM SRC]*	[ON]: Enables AM in source selection. ; [OFF]: Disables. (Page 7)
[SW1 SRC]*	[ON]: Enables SW1 in source selection. ; [OFF]: Disables. (Page 7)
[SW2 SRC]*	[ON]: Enables SW2 in source selection. ; [OFF]: Disables. (Page 7)
[SPOTIFY SRC]*	[ON]: Enables SPOTIFY/SPOTIFY BT in source selection. ; [OFF]: Disables. (Page 11)
[BT AUDIO SRC]*	[ON]: Enables BT AUDIO in source selection. ; [OFF]: Disables. (Page 20)
[BUILT-IN AUX]*	[ON]: Enables AUX in source selection. ; [OFF]: Disables. (Page 11)

* Not displayed when the corresponding source is selected.

[F/W UPDATE]
[UPDATE SYSTEM]
[F/W UP xxxx]	[YES]: Starts upgrading the firmware.; [NO]: Cancels (upgrading is not activated).For details on how to update the firmware, visit.
[FACTORYRESET]	[YES]: Resets the settings to default (except the stored station).; [NO]: Cancels.
[CLOCK]
[TIME SYNC]	[ON]: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal.; [OFF]: Cancels.
[CLOCK DISPLAY]	[ON]: The clock time is shown on the display even when the unit is turned off.; [OFF]: Cancels.
[ENGLISH]	Select the display language for menu and music information if applicable.By default,[ENGLISH]is selected.
[ESPA NOL]
[DEMO MODE]	[ON]: Activates the display demonstration automatically if no operation is done for about 15 seconds.; [OFF]: Deactivates.

Radio

The unit switches to FM alarm automatically when receiving an alarm signal from FM broadcast.

Search for a station

1 Press ⏻ SRC repeatedly to select FM, AM, SW1 or SW2. 2 Press ◀◀/▶▶ (or press ◀/▶ on the remote control) to search for a station automatically. (or)

Press and hold ◀◀/▶▶ (or press and hold ◀/▶ on the remote control) until "M" flashes, then press repeatedly to search for a station manually.

Settings in memory

You can store up to 18 stations for FM and 6 stations for AM/SW1/SW2.

Store a station

While listening to a station...

Press and hold one of the number buttons (1 to 6).

(or)

1 Press and hold the volume knob until "PRESET MODE" flashes. 2 Turn the volume knob to select a preset number, then press the knob.

"MEMORY" appears once the station is stored.

Select a stored station

Press one of the number buttons (1 to 6).

(or)

1 Press .Q/ 2 Turn the volume knob to select a preset number, then press the knob.

Other settings

1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit.

To return to the previous setting item, press Q/5.

Default: XX

[TUNER SETTING]

[RADIO TIMER] (For KD-X472BT)

Turns on the radio at a specific time regardless of the current source.

1 [ONCE]/[DAILY]/[WEEKLY]/[OFF]: Select how often the timer will be turned on. 2 [FM]/[AM]/[SW1]/[SW2]: Select the source. 3 [01] to [18] (for FM)/[01] to [06] (for AM/SW1/SW2): Select the preset station. 4 Set the activation day*1 and time. “②” indicator lights up when complete.

Radio Timer will not activate for the following cases.

• The unit is turned off.
• [OFF] is selected for [AM SRC]/[SW1 SRC]/[SW2 SRC] in [SOURCE SELECT] after Radio Timer for AM/SW1/SW2 is selected. (Page 6)

Radio

[SSM]	[SSM 01-06]/[SSM 07-12]/[SSM 13-18]: Automatically presets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored.Select [SSM 07-12]/[SSM 13-18] to store the following 12 stations.
[LOCAL SEEK]	[ON]: Searches only AM/SW1/SW2 stations with good reception.;[OFF]: Cancels.- Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.
[IF BAND]	[AUTO]: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ;[WIDE]: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.
[MONO SET]	[ON]: Improves the FM reception, but the stereo effect will be lost.;[OFF]: Cancels.
[NEWS SET]*2	[ON]: The unit will temporarily switch to News Programme if available.;[OFF]: Cancels.
[REGIONAL]*2	[ON]: Switches to another station only in the specific region using the “AF” control.;[OFF]: Cancels.
[AF SET]*2	[ON]: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor.;[OFF]: Cancels.
[TI]	[ON]: Allows the unit to temporarily switch to Traffic Information if available (“TI” indicator lights up) while listening to all sources except in AM/SW1/SW2.;[OFF]: Cancels.
[PTY SEARCH]*2 Select a PTY code (see the following “PTY code”).If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

*1 Selectable only when [ONCE] or [WEEKLY] is selected in step 1. *2 Only for FM source.

PTY code

[NEWS], [AFFAIRS], [INFO], [SPORT], [EDUCATE], [DRAMA], [CULTURE], [SCIENCE], [VARIED], [POP M] (music), [ROCK M] (music), [EASY M] (music), [LIGHT M] (music), [CLASSICS], [OTHER M] (music), [WEATHER], [FINANCE], [CHILDREN], [SOCIAL], [RELIGION], [PHONE IN], [TRAVEL], [LEISURE], [JAZZ], [COUNTRY], [NATION M] (music), [OLDIES], [FOLK M] (music), [DOCUMENT]

USB/iPod

Connect a USB device

The source changes to USB automatically and playback starts.

* Do not leave the cable inside the car when not in use.

Connect an iPod/iPhone (for KD-X472BT)

The source changes to iPod USB automatically and playback starts.

- You can also connect iPod/iPhone via Bluetooth. (Page 14)

* Do not leave the cable inside the car when not in use.

Basic operations

Selectable source:

• KD-X472BT: USB/iPod USB or iPod BT
• KD-X272BT: USB

To On the faceplate On the remote control

Reverse/ Fast-forward	Press and hold ◀◀/▶▶.	Press and hold ◀/▶.
Select a file	Press ◀◀/▶▶.	Press ◀/▶.
Select a folder*1	Press 2▲/1▼.	Press ▲/▼.

Repeat play*2	Press 4 repeatedly.[TRACK REPEAT]/[FOLDER REPEAT]/[ALL REPEAT]:MP3/WMA/AAC/WAV/FLAC file[REPEAT ONE]/[REPEAT ALL]/[REPEAT OFF]:iPod
Random play*2	Press 3 repeatedly.[FOLDER RANDOM]/[ALL RANDOM]/[RANDOM OFF]:MP3/WMA/AAC/WAV/FLAC file[SHUFFLE OFF]/[SHUFFLE ON]:iPod

*1 This does not work for iPod. *2 For iPod: Applicable only when [HEAD MODE] is selected. (Page 10)

ENGLISH

USB/iPod

Select music drive

While in USB source, press 5 MODE repeatedly.

Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).
• Selected drive of a multiple drive device.

Select control mode

While in iPod USB source (or iPod BT source), press 5 MODE repeatedly. [HEAD MODE]: Control iPod/iPhone from this unit.

[IPHONE MODE]: Control iPod/iPhone using the iPod/iPhone itself. However, you can still perform play/pause, file skip, fast-forward or fast-reverse from this unit.

Select a file to play

From a folder or list

- For iPod, applicable only when [HEAD MODE] is selected.

1 Press .Q/ 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob.

Selected file starts playing.

Quick search (applicable only for USB source)

If you have many files, you can search through them quickly.

1 Press .Q/→ 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob quickly to browse through the list quickly. 4 Turn the volume knob to select a file, then press the knob. Selected file starts playing.

Alphabet search (applicable only for iPod USB source and iPod BT source)

You can search for a file according to the first character.

- For iPod, applicable only when [HEAD MODE] is selected.

1 Press .Q/ 2 Turn the volume knob to select a list, then press the knob. 3 Press 2 ▲ / 1 ▼ or turn the volume knob quickly to select the desired character (A to Z, 0 to 9, OTHERS). Select "OTHERS" if the first character is other than A to Z, 0 to 9.

4 Press the volume knob to start searching.

Files with the characters you searched for or with similar characters (alphabetical order) will be displayed.

5 Turn the volume knob to select a file, then press the knob.

Selected file starts playing.

• To return to the previous setting item, press Q/5. • To cancel, press and hold Q/→.

AUXSpotify

You can listen to music from a portable audio player via the auxiliary input jack.

Preparation:

Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 6)

Start listening

1 Connect a portable audio player (commercially available).

2 Press ⏻ SRC repeatedly to select AUX.

3 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

You can listen to Spotify on the following device:

• KD-X472BT: iPhone/iPod touch (via Bluetooth or via USB input terminal) or Android device (via Bluetooth) • KD-X272BT: Android device (via Bluetooth)

Preparation:

• Install the latest version of the Spotify application on your device (iPhone/iPod touch or Android device), then create an account and log in to Spotify.
• Select [ON] for [SPOTIFY SRC] in [SOURCE SELECT]. (Page 6)

Start listening

1 Start up the Spotify application on your device. 2 Connect your device to the USB input terminal.

You can also connect the iPhone/iPod touch or Android device via Bluetooth. (Page 14)

• Make sure the USB input terminal is not connected to any device when you connect via Bluetooth. 3 Press Ⓗ SRC repeatedly to select SPOTIFY (for iPhone/iPod touch) or SPOTIFY BT (for Android device).

Broadcast starts automatically

* Do not leave the cable inside the car when not in use.

Spotify

To On the faceplate On the remote control
Play back/pause Press the volume knob.		Press ✗.
Skip a track	Press ◀◀*1 / ▶▶.	Press ◀*1 / ▶.
Select thumbs up or thumbs down *2	Press 2▲ / 1▼.	Press ▲ / ▼.
Start radio Press and hold 5. ( Not available )
Repeat play*3	Press 4 ↔ repeatedly.[ALL REPEAT], [ONE REPEAT]*1,[REPEAT OFF]	( Not available )
Random play*3	Press 3 ✗ repeatedly *1.[ALL RANDOM], [RANDOM OFF]	( Not available )

*1 Available for premium account users only.

*2 This feature is available for tracks in Radio only. If thumbs down is selected, the current track is skipped.

*3 Available for tracks in Playlists only.

Save favorite song information

While listening to the Radio on Spotify...

Press and hold the volume knob.

"SAVED" appears and the information is stored to "Your Music" or "Your Library" on your Spotify account.

To unsave, repeat the same procedure.

"REMOVED" appears and the information is removed from "Your Music" or "Your Library" on your Spotify account.

Search for a song or station

1. Press Q/. 2. Turn the volume knob to select a list type, then press the knob. The list types displayed differ depending on the information sent from Spotify. 3. Turn the volume knob to select the desired song or station, then press the knob. You can browse through the list quickly by turning the volume knob quickly.

To cancel, press and hold Q/5.

Using Other Applications

JVC Remote application

You can control the JVC car receiver from the following device using JVC Remote application.

• KD-X472BT: iPhone/iPod touch (via Bluetooth or via USB input terminal) or Android device (via Bluetooth) • KD-X272BT: Android device (via Bluetooth)

For more information, visit http://www.jvc.net/cs/car/.

Preparation:

Install the latest version of JVC Remote application on your device before connecting.

Start using JVC Remote application

1. Start up the JVC Remote application on your device. 2. Connect your device.

- For Android device:

Pair the Android device with this unit via Bluetooth. (Page 14)

• For iPhone/iPod touch:

Connect iPhone/iPod touch to the USB input terminal. (Page 9) (or)

Pair the iPhone/iPod touch with this unit via Bluetooth. (Page 14) (Make sure the USB input terminal is not connected to any device.)

3 Select the device to use from the menu.

See the following "Settings to use JVC Remote application".

For KD-X472BT: By default, [ANDROID] is selected. To use iPhone/iPod touch, select [YES] for [IOS].

Settings to use JVC Remote application

1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected or activated.

4 Press to exit.

To return to the previous setting item, press Q/3.

Default: XX

[REMOTE APP]

[SELECT] (For KD-X472BT) Selects the device ([IOS] or [ANDROID]) to use the application.
[IOS]	[YES]: Selects iPhone/iPod touch to use the application via Bluetooth or connected via USB input terminal. ; [NO]: Cancels.If [IOS] is selected, select iPod BT source (or iPod USB source if your iPhone/iPod touch is connected via USB input terminal) to activate the application.The connectivity of the application will be interrupted or disconnected if: - You change from iPod BT source to any playback source connected via the USB input terminal.- You change from iPod USB source to iPod BT source.
[ANDROID]	[YES]: Selects Android device to use the application via Bluetooth. ; [NO]: Cancels.
[ANDROID LIST]	Selects the Android device to use from the list.For KD-X472BT: Displayed only when [ANDROID] of [SELECT] is set to [YES].
[STATUS] Shows the status of the selected device.[IOS CONNECTED]: You are able to use the application using the iPhone/iPod touch connected via Bluetooth or USB input terminal.[IOS NOT CONNECTED]: No iOS device is connected to use the application.[ANDROID CONNECTED]: You are able to use the application using the Android device connected via Bluetooth.[ANDROID NOT CONNECTED]: No Android device is connected to use the application.

Bluetooth®

• Depending on the Bluetooth version, operating system and the firmware version of your mobile phone, Bluetooth features may not work with this unit.
• Be sure to turn on the Bluetooth function of the device to make the following operations. Signal conditions vary depending on the surroundings.

Bluetooth — Connection

Supported Bluetooth profiles

• Hands-Free Profile (HFP)
• Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP)
• Serial Port Profile (SPP)
• Phonebook Access Profile (PBAP)

Supported Bluetooth codecs

• Sub Band Codec (SBC)
• Advanced Audio Coding (AAC)

Connect the microphone

Pair and connect a Bluetooth device for the first time

1 Press ⏻ SRC to turn on the unit. 2 Search and select the name of your receiver ("KD-X472BT"/ "KD-X272BT") on the Bluetooth device.

"BT PAIRING" flashes on the display.

- For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

3 Perform (A) or (B) depending on what appears on the display.

For some Bluetooth devices, pairing sequence may vary from the steps described below.

(A) "Device Name" "XXXXXX" "VOL - YES" "BACK - NO"

"XXXXXX" is a 6-digit passkey randomly generated during each pairing.

1 Ensure that the passkeys appear on the unit and Bluetooth device are the same. Press the volume knob to confirm the passkey. ③ operate the Bluetooth device to confirm the passkey.

(B) "Device Name" "VOL - YES" "BACK - NO"

Press the volume knob to start pairing.

2 • If "PAIRING" → "PIN 0000" scrolls on the display, enter the PIN code "0000" into the Bluetooth device.

You can change to a desired PIN code before pairing. (Page 18)

- If only "PAIRING" appears, operate the Bluetooth device to confirm pairing.

"PAIRING COMPLETED" appears when pairing is completed and "✗" will light up when the Bluetooth connection is established.

- KD-X472BT: "■" indicator lights up to show the strength of the battery of the connected device.

See also [FORMAT] on page 28 for the battery and signal strength shown on the display.

- KD-X272BT: "☐ PHONE 1" and/or "☐ PHONE 2" indicator(s) light(s) up.

Bluetooth®

• This unit supports Secure Simple Pairing (SSP). - Up to five devices can be registered (paired) in total. - Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device, see [DEVICE DELETE] on page 18. - A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time. To connect or disconnect the registered device, see [PHONE SELECT] or [AUDIO SELECT] in [BT MODE]. (Page 18) However, while in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices. (Page 20) - Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. - When the battery of the connected Bluetooth device runs low, "Device Name" ⇒ "LOW BATTERY" appears. - Refer to the instruction manual of the Bluetooth device for more information.

Auto Pairing (for KD-X472BT)

When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to [ON]. (Page 18)

Press the volume knob to pair once you have confirmed the device name.

Bluetooth — Mobile phone

Receive a call

When there is an incoming call:

KD-X472BT:

The buttons will blink in the color you have selected in [RING COLOR]. (Page 17)

KD-X272BT:

The buttons will blink in the blinking pattern you have selected in [RING ILLUMI]. (Page 17)

- The unit answers the call automatically if [AUTO ANSWER] is set to a selected time. (Page 17)

During a call:

KD-X472BT:

The buttons stop blinking and illuminate in the color you have selected in [RING COLOR]. (Page 17)

KD-X272BT:

The buttons stop blinking.

- If you turn off the unit or detach the faceplate, Bluetooth is disconnected.

Bluetooth®

The following operations may differ or be unavailable depending on the connected phone.

To On the faceplate On the remote control First incoming call...

Answer a call	Press 📊 - 🔒 or the volume knob.	Press ▲ / ▼ / ◀ / ▶.
Reject a call	Press and hold 📊 - 🔒 or the volume knob.	Press and hold ▲ / ▼ / ◀ / ▶.
End a call	Press and hold 📊 - 🔒 or the volume knob.	Press and hold ▲ / ▼ / ◀ / ▶.

While talking on the first incoming call...

Answer another incoming call and hold the current call	Press 📊 - 🔒 or the volume knob.	( Not available )
Reject another incoming call	Press and hold 📊 - 🔒 or the volume knob.	( Not available )

While having two active calls...

End current call and activate held call	Press and hold 📁 - 🔒 or the volume knob.	Press and hold ▲ / ▼ / ◀ / ▶.
Swap between the current call and held call	Press 🔒 - 🔒.	( Not available )
Adjust the phone volume*100] to [35] (Default: [15])	Turn the volume knob during a call.	Press VOL +*2 or VOL – during a call.
Switch between hands-ree and private talk modes*3	Press 🔒/⇨ during a call.	( Not available )

*1 This adjustment will not affect the volume of the other sources.

*2 Press and hold VOL + to continuously increase the volume to 15.

*3 Operations may vary according to the connected Bluetooth device.

■ Improve the voice quality

While talking on the phone...

1 Press and hold .☐

2 Turn the volume knob to select an item (see the following table), then press the knob.

3 Repeat step 2 until the desired item is selected or activated.

4 Press to exit.

To return to the previous setting item, press Q/5.

Default: XX

[MIC GAIN]	[LEVEL -10] to [LEVEL +10] ([LEVEL -04]): The sensitivity of the microphone increases as the number increases.
[NR LEVEL]	[LEVEL -05] to [LEVEL +05] ([LEVEL 00]): Adjust the noise reduction level until the least noise is being heard during a phone conversation.
[ECHOCANCEL]	[LEVEL -05] to [LEVEL +05] ([LEVEL 00]): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Make the settings for receiving a call

1 Press to enter Bluetooth mode.

2 Turn the volume knob to select an item (page 17), then press the knob.

3 Repeat step 2 until the desired item is selected or activated.

To return to the previous setting item, press Q/5.

Bluetooth®

Default: XX

[SETTINGS]
[AUTOANSWER]	[01 SEC] to [30 SEC]: Answers an incoming call automatically in the selected time (in seconds). ; [OFF]: Cancels.
[RINGCOLOR]	(For KD-X472BT)[COLOR 01] to [COLOR 49] ([COLOR 08]): Selects the illumination color for the buttons as notification when there is an incoming call and during a call.; [OFF]: Cancels.
[RINGILLUMI]	(For KD-X272BT)[BLINK 01] to [BLINK 05] ([BLINK 02]): Selects the blinking pattern for the buttons as notification when there is an incoming call.; [OFF]: Cancels.

Make a call

You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature.

1 Press to enter Bluetooth mode.

"(First device name)" appears.

• If two Bluetooth phones are connected, press again to switch to the other phone. "(Second device name)" appears. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.

To return to the previous setting item, press Q/5.

[RECENT CALL] (Applicable only if the phone supports PBAP.)1 Press the volume knob to select a name or a phone number."<" indicates call received, "> " indicates call made, "M" indicates call missed."NO HISTORY" appears if there is no recorded call history or call number.2 Press the volume knob to call.
[PHONEBOOK] (Applicable only if the phone supports PBAP.)1 Press 2▲/1▼to select the desired letter (A to Z, 0 to 9, and OTHERS)."OTHERS" appears if the first character is other than A to Z, 0 to 9.Turn the volume knob to select a name, then press the knob.Turn the volume knob to select a phone number, then press the knob to call.For using phonebook with this unit, make sure to allow access to or transfer from your smartphone. Depending on the connected phone, the process may be different.This unit can display only non-accent letters. (Accent letters such as "U" are shown as "U".)
[DIAL NUMBER]	1 Turn the volume knob to select a number (0 to 9) or character(*#, +).2 Press ◄◀◀/▶▶to move the entry position.Repeat step 1 and step 2 until you finish entering the phone number.3 Press the volume knob to call.
[VOICE] Speak the name of the contact you want to call or the voice command to control the phone functions. (See also the following "Make a call using voice recognition".)

Make a call using voice recognition

1 Press and hold to activate the voice recognition of the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions. - Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

Bluetooth®

Store a contact in memory

You can store up to 6 contacts into the number buttons (1 to 6).

1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [RECENT CALL], [PHONEBOOK] or [DIAL NUMBER], then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 6).

"MEMORY P(selected preset number)" appears when the contact is stored.

To erase a contact from the preset memory, select [DIAL NUMBER] in step 2, store a blank number in step 3 and proceed to step 4.

Make a call to a registered number

1 Press to enter Bluetooth mode. 2 Press one of the number buttons (1 to 6). 3 Press the volume knob to call.

"NO PRESET" appears if there is no contact stored.

Bluetooth mode settings

1 Press and hold. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit.

To return to the previous setting item, press Q/5.

Default: XX

[BT MODE]
[PHONESELECT]	Selects the phone or audio device to connect or disconnect. "×" appears in front of the device name when connected.
[AUDIOSELECT]	"▷" appears in front of the current playback audio device. · You can connect a maximum of two Bluetooth phones and one Bluetooth audio device at a time.
[DEVICEDELETE]	1 Turn the volume knob to select a device to delete, then press the knob.2 Turn the volume knob to select [YES] or [NO], then press the knob.
[PIN CODE EDIT] (0000)	Changes the PIN code (up to 6 digits).1 Turn the volume knob to select a number.2 Press ◀◀/▶▶1 to move the entry position.Repeat step 1 and step 2 until you finish entering the PIN code.3 Press the volume knob to confirm.
[RECONNECT]	[ON]: The unit is automatically reconnect when the last connected Bluetooth device is within the connectable range.; [OFF]: Cancels.
[AUTOPAIRING]	(For KD-X472BT)[ON]: The unit is automatically paired with the supported Bluetooth device (iPhone/iPod touch) when it is connected through USB input terminal. Depending on the operating system of the connected device, this function may not work.; [OFF]: Cancels.
[INITIALIZE]	[YES]: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).; [NO]: Cancels.
[INFORMATION] [MY BT NAME]: Displays the name of your receiver ("KD-X472BT"/ "KD-X272BT").; [MY ADDRESS]: Shows address of this unit.

Bluetooth®

Bluetooth compatibility check mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired.

1 Press and hold

"BLUETOOTH" "CHECK MODE" appears. "SEARCH NOW USING PHONE" → "PIN IS 0000" scrolls on the display.

2 Search and select the name of your receiver ("KD-X472BT"/ "KD-X272BT") on the Bluetooth device within 3 minutes.

3 Perform (A), (B) or (C) depending on what appears on the display. (A) "PAIRING" → "XXXXXX" (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey.

(B) "PAIRING"→"PIN IS 0000": Enter "0000" on the Bluetooth device.

(C) "PAIRING": Operate the Bluetooth device to confirm pairing.

After pairing is done successfully, "PAIRING OK" → "Device Name" appears and Bluetooth compatibility check starts. If "CONNECT NOW USING PHONE" appears, operate the Bluetooth device to allow phonebook access to continue.

"TESTING" flashes on the display.

The connectivity result flashes on the display.

"PAIRING OK" and/or "HANDS-FREE OK"*1 and/or "AUD.STREAM OK"*2 and/or "PBAP OK"*3: Compatible

*1 Compatible with Hands-Free Profile (HFP) *2 Compatible with Advanced Audio Distribution Profile (A2DP) *3 Compatible with Phonebook Access Profile (PBAP)

After 30 seconds, "PAIRING DELETED" appears to indicate that pairing has been deleted, and the unit exits check mode.

- To cancel, press and hold ⏻ SRC to turn off the power, then turn on the power again.

Bluetooth®

Bluetooth — Audio

While in BT AUDIO source, you can connect to five Bluetooth audio devices and switch between these five devices.

Listen to the audio player via Bluetooth

1 Press ⏻ SRC repeatedly to select BT AUDIO (or press SOURCE on the remote control). - Pressing enters BT AUDIO directly. 2 Operate the audio player via Bluetooth to start playback.

To On the faceplate On the remote control

Play back/pause Press the volume knob.		Press ✗.
Select group or folder	Press 2▲/1▼.	Press ▲/▼.
Reverse skip/Forward skip	Press ◀◀/▶▶.	Press ◀/▶.
Reverse/Fast-forward	Press and hold ◀◀/▶▶.	Press and hold ◀/▶.

To On the faceplate On the remote control

Repeat play	Press 4 repeatedly.[TRACK REPEAT], [ALL REPEAT],[GROUP REPEAT]*1, [REPEAT OFF]	( Not available )
Random play	Press 3 repeatedly.[GROUP RANDOM]*1,[ALL RANDOM], [RANDOM OFF]	( Not available )
Select a file from afolder/list	Refer to "Select a file to play"on page 10.	( Not available )
Switch betweenconnectedBluetooth audiodevices	Press 5.*2	( Not available )

*1 Depending on the connected device, some devices may not support this feature. *2 Pressing the "Play" key on the connected device itself also causes switching of sound output from the device.

Operations and display indications may differ according to their availability on the connected device.

Listen to iPod/iPhone via Bluetooth (for KD-X472BT)

You can listen to the songs on the iPod/iPhone via Bluetooth on this unit.

Press ⏻ SRC repeatedly to select iPod BT.

• You can operate the iPod/iPhone in the same way as iPod/iPhone via USB input terminal. (Page 9)
• If you plug in an iPod/iPhone to the USB input terminal while listening to iPod BT source, the source automatically changes to iPod USB source. Press ⬇SRC to select iPod BT source if the device is still connected via Bluetooth.

Audio Settings

1 Press and hold 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit.

To return to the previous setting item, press Q/5.

Default: XX

[EQ SETTING]
[PRESET EQ]	Selects a preset equalizer suitable to the music genre. Select [USER] to use the settings made in [EASY EQ] or [PRO EQ]. [FLAT]/[DRVN 3]/[DRVN 2]/[DRVN 1]/[HARD ROCK]/[HIP HOP]/[JAZZ]/ [POP]/[R&B]/[USER]/[CLASSICAL]Drive equalizer ([DRVN 3]/[DRVN 2]/[DRVN 1]) boosts specific frequencies in the audio signal to reduce the noise heard from outside the car or running noise of the tyres.
[EASY EQ]	Adjusts your own sound settings. The settings are stored to [USER] in [PRESET EQ]. The settings made may affect the current settings of [PRO EQ]. [SUB.W SP]*1*2: [00] to [+06] (Default: [+03] [SUB.W]*1*3: [-50] to [+10] [00] [BASS]: [LVL-09] to [LVL+09] [LVL+01] [MID]: [LVL-09] to [LVL+09] [LVL-06] [TRE]: [LVL-09] to [LVL+09] [LVL+03])

[PRO EQ] Adjusts your own sound settings for each source.· The settings are stored to [USER] in [PRESET EQ].· The settings made may affect the current settings of [EASY EQ].
[62.5HZ]
[LEVEL -09] to [LEVEL +09] ([LEVEL +05]): Adjusts the level to memorize for each source.(Before making an adjustment, select the source you want to adjust.)
[ON]: Turns on the extended bass.; [OFF]: Cancels.
[100HZ]/[160HZ]/[250HZ]/[400HZ]/[630HZ]/[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[6.3KHZ]/[10KHZ]/[16KHZ]
[LEVEL -09] to [LEVEL +09]: Adjusts the level to memorize for each source.(Before making an adjustment, select the source you want to adjust.) (Default: [LEVEL +01]/[LEVEL 00]/[LEVEL -01]/[LEVEL -02]/[LEVEL -03]/[LEVEL -06]/[LEVEL -03]/[LEVEL -02]/[LEVEL -04]/[LEVEL +04]/[LEVEL +03]/[LEVEL +07])
[Q FACTOR]	[1.35]/[1.50]/[2.00]: Adjust the quality factor.
[AUDIO CONTROL]
[BASS BOOST]	[LEVEL +01] to [LEVEL +05]: Selects your preferred bass boost level.; [OFF]: Cancels.
[LOUDNESS]	[LEVEL 01]/[LEVEL 02]: Boosts low or high frequencies to produce a well-balanced sound at low volume.; [OFF]: Cancels.
[SUB.W LEVEL]*1	[SPK-OUT]*2	(Not applicable when 3-way crossover is selected.) [SUB.W 00] to [SUB.W +06] ([SUB.W +03]): Adjusts the output level of the subwoofer connected via speaker lead. (Page 35)
	[PRE-OUT]*3	[SUB.W -50] to [SUB.W +10] ([SUB.W 00]): Adjusts the output level of the subwoofer connected to the lineout terminals (SW or REAR/SW) through an external amplifier. (Page 36)

Audio Settings

[SUBWOOFER SET]*3	[ON]: Turns on the subwoofer output. ; [OFF]: Cancels.
[FADER]	(Not applicable when 3-way crossover is selected.)[POSITION R15] to [POSITION F15] ([POSITION 00]): Adjusts the front and rear speaker output balance.
[BALANCE]*4	[POSITION L15] to [POSITION R15] ([POSITION 00]): Adjusts the left and right speaker output balance.
[VOLUME ADJUST]	[LEVEL -15] to [LEVEL +06] ([LEVEL 00]): Presets the initial volume level of each source by comparing to the FM volume levels.(Before adjustment, select the source you want to adjust.)
[AMP GAIN]	[LOW POWER]: Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ; [HIGH POWER]: The maximum volume level is 35.
[SPK/PRE OUT]	(Not applicable when 3-way crossover is selected.)Depending on the speaker connection method, select the appropriate setting for the desired output. (See “Speaker output settings” on page 23.)
[SPEAKER SIZE]	Depending on the crossover type you have selected (see the following [X ' OVER TYPE]), 2-way crossover or 3-way crossover setting items will be shown. (See “Crossover settings” on page 24.)By default, 2-way crossover type is selected.
[X ' OVER]
[DTA SETTINGS]	For settings, see “Digital Time Alignment settings” on page 26.
[CAR SETTINGS]
[X ' OVER TYPE]	Caution: Adjusts the volume before changing the [X ' OVER TYPE] to avoid the sudden increase or decrease of the output level.
[2-WAY]	(Displayed only when [3-WAY] is selected.)[YES]: Selects two way crossover type. ; [NO]: Cancels.
[3-WAY]	(Displayed only when [2-WAY] is selected.)[YES]: Selects three way crossover type. ; [NO]: Cancels.

[SOUND EFFECT]
[SPACE ENHANCE]	(Not applicable for FM/AM/SW1/SW2 source.) [SMALL]/[MEDIUM]/[LARGE]: Virtually enhances the sound space. ; [OFF]: Cancels.
[SND RESPONSE]	[LEVEL 1]/[LEVEL2]/[LEVEL3]: Virtually makes the sound more realistic. ; [OFF]: Cancels.
[SOUND LIFT]	[LOW]/[MIDDLE]/[HIGH]: Virtually adjusts the sound position heard from the speakers. ; [OFF]: Cancels.
[VOL LINK EQ]	[ON]: Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres. ; [OFF]: Cancels.
[K2 TECHNOLOGY]	(Not applicable for FM/AM/SW1/SW2 source and AUX source.) [ON]: Improves the sound quality of compressed music. ; [OFF]: Cancels.

*1 Displayed only when [SUBWOOFER SET] is set to [ON].

*2 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [SUB.W/SUB.W]. (Page 23)

*3 For 2-way crossover: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (Page 23)

*4 This adjustment will not affect the subwoofer output.

Audio Settings

Speaker output settings [SPK/PRE OUT]

(Applicable only if [X' OVER TYPE] is set to [2-WAY]) (page 22)

Select the output setting for the speakers [SPK/PRE OUT], based on the speaker connection method.

Connection via lineout terminals

For connections through an external amplifier (Page 36)

KD-X472BT:

Setting on[SPK/PRE OUT]	Audio signal through lineout terminal
	FRONT REAR SW
[REAR/REAR] (default)	Front speakers output	Rear speakers output Subwoofer output
[SUB.W/SUB.W] Front speakers output		L (left): Subwoofer output R (right): (Mute)	Subwoofer output

KD-X272BT:

Setting on[SPK/PRE OUT]	Audio signal through lineout terminal
	REAR/SW
[REAR/REAR] Rear speakers output
[REAR/SUB.W] (default) Subwoofer output
[SUB.W/SUB.W] Subwoofer output

Connection via speaker leads

You can also connect the speakers without using an external amplifier but still being able to enjoy the subwoofer output with these settings. (Page 35)

Setting on[SPK/PRE OUT]	Audio signal through rear speaker lead
	L (left) R (right)
[REAR/REAR] Rear speakers output Rear speakers output
[REAR/SUB.W]* Rear speakers output Rear speakers output
[SUB.W/SUB.W] Subwoofer output		(Mute)

If [SUB.W/SUB.W] is selected:

[120HZ] is selected in [SUBWOOFER LPF] and [THROUGH] is not available. (Page 25)

- [POSITION R02] is selected in [FADER] and selectable range is [POSITION R15] to [POSITION 00]. (Page 22)

* Except for KD-X472BT.

Audio Settings

Crossover settings

Below are the available setting items for 2-way crossover and 3-way crossover.

CAUTION

Select a crossover type according to how the speakers are connected. (Page 35, 36)

If you select a wrong type:

• The speakers may be damaged.

• The output sound level may be extremely high or low.

SPEAKER SIZE

Selects according to the connected speaker size for optimum performance.

• The frequency and slope settings are automatically set for the crossover of the selected speaker.
• If [NONE] is selected for the following speaker in [SPEAKER SIZE], the [X'OVER] setting of the selected speaker is not available.

- 2-way crossover [TWEETER] of [FRONT]/[REAR]/[SUBWOOFER]

- 3-way crossover [WOOFER]

X'OVER (crossover)

• [FRQ]/[F-HPF FRQ]/[R-HPF FRQ]/[SW LPF FRQ]/[HPF FRQ]/[LPF FRQ]: Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter). If [THROUGH] is selected, all signals are sent to the selected speakers. • [SLOPE]/[F-HPF SLOPE]/[R-HPF SLOPE]/[SW LPF SLOPE]/[HPF SLOPE]/[LPF SLOPE]: Adjusts the crossover slope. Selectable only if a setting other than [THROUGH] is selected for the crossover frequency.
• [SW LPF PHASE]/[PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.
• [GAIN LEFT]/[GAIN RIGHT]/[F-HPF GAIN]/[R-HPF GAIN]/[SW LPF GAIN]/[GAIN]: Adjusts the output volume of the selected speaker.

2-way crossover setting items

[SPEAKERSIZE]
[FRONT] [SIZE]		[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10]
	[TWEETER]	[SMALL]/[MIDDLE]/[LARGE]/[NONE] (not connected)
[REAR]*1	[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10]/[NONE] (not connected)
[SUBWOOFER]*2*3	[16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE] (not connected)
[X'OVER]
[TWEETER] [FRQ]		[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]
	[GAIN LEFT]	[-08DB] to [00DB]
	[GAIN RIGHT]	[-08DB] to [00DB]
[FRONT HPF] [F-HPF FRQ]		[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[F-HPF SLOPE]	[-06DB]/[-12DB]/[-18DB]/[-24DB]
	[F-HPF GAIN]	[-08DB] to [00DB]
[REAR HPF]*1 [R-HPF FRQ]		[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[R-HPF SLOPE]	[-06DB]/[-12DB]/[-18DB]/[-24DB]
	[R-HPF GAIN]	[-08DB] to [00DB]

Audio Settings

[SUBWOOFER LPF]*2*3	[SW LPF FRQ]	[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[SW LPF SLOPE]	[-06DB]/[-12DB]/[-18DB]/[-24DB]
	[SW LPF PHASE]	[REVERSE] (180°)/ [NORMAL] (0°)
	[SW LPF GAIN]	[-08DB] to [00DB]

2-way crossover setting items

[SPEAKERSIZE]
[TWEETER]	[SMALL]/[MIDDLE]/[LARGE]
[MID RANGE]	[8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/[5×7]/[6×8]/[6×9]
[WOOFER]*3	[16CM]/[20CM]/[25CM]/[30CM]/[38CM OVER]/[NONE] (not connected)
[X'OVER]
[TWEETER] [HPF FRQ]	[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]
	[SLOPE] [-06DB]/[-12DB]
	[PHASE] [REVERSE] (180°)/[NORMAL] (0°)
	[GAIN] [-08DB] to [00DB]

[MID RANGE]	[HPF FRQ]	[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[HPF SLOPE]	[-06DB]/[-12DB]
	[LPF FRQ]	[1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/[8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH]
	[LPF SLOPE]	[-06DB]/[-12DB]
	[PHASE]	[REVERSE] (180°)/[NORMAL] (0°)
	[GAIN]	[-08DB] to [00DB]
[WOOFER]*3	[LPF FRQ]	[30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/[THROUGH]
	[SLOPE]	[-06DB]/[-12DB]
	[PHASE]	[REVERSE] (180°)/[NORMAL] (0°)
	[GAIN]	[-08DB] to [00DB]

*1 Displayed only when [SPK/PRE OUT] is set to [REAR/REAR] or [REAR/SUB.W]. (Page 23) *2 KD-X272BT: Displayed only when [SPK/PRE OUT] is set to [REAR/SUB.W] or [SUB.W/SUB.W]. (Page 23) *3 Displayed only when [SUBWOOFER SET] is set to [ON]. (Page 22)

Audio Settings

Digital Time Alignment settings

Digital Time Alignment sets the delay time of the speaker output to create a more suitable environment for your vehicle.

- For more information, see the following "Determining the delay time automatically".

[DTA SETTINGS]
[POSITION]	Selects your listening position (reference point).[ALL]: Not compensating; [FRONT RIGHT]: Front right seat;[FRONT LEFT]: Front left seat; [FRONT ALL]: Front seats• [FRONT ALL] is displayed only when [X' OVER TYPE] is set to[2-WAY]. (Page 22)
[DISTANCE]*1	[0CM] to [610CM]: Fine adjust the distance to compensate.
[GAIN]*1	[-8DB] to [0DB]: Fine adjust the output volume of the selected speaker.
[DTA RESET]	[YES]: Resets the settings ([DISTANCE] and [GAIN]) of the selected [POSITION] to default.; [NO]: Cancels.
[CAR SETTINGS] Identify your car type and rear speaker location in order to make the adjustment for [DTA SETTINGS].
[CAR TYPE]	[COMPACT]/[FULL SIZE CAR]/[WAGON]/[MINIVAN]/[SUV]/[MINIVAN(LONG)]: Selects the type of vehicle.; [OFF]: Not compensating.
[R-SP LOCATION]*2	Selects the location of the rear speakers in your vehicle to calculate the furthest distance from the listening position selected (reference point).• [DOOR]/[REAR DECK]: Selectable only when [CAR TYPE] is selected as [OFF], [COMPACT], [FULL SIZE CAR], [WAGON] or[SUV].• [2ND ROW]/[3RD ROW]: Selectable only when [CAR TYPE] is selected as [MINIVAN] or [MINIVAN(LONG)].

Determining the delay time automatically

If you specify the distance from the currently set listening position to every speaker, the delay time will be automatically calculated.

1 Set [POSITION] and determine the listening position as the reference point (the reference point for [FRONT ALL] will be the center between the right and left in the front seats). 2 Measure the distances from the reference point to the speakers. 3 Calculate the distance between the furthest speaker (subwoofer on the illustration) and other speakers. 4 Sets the [DISTANCE] calculated in step 3 for individual speakers. 5 Adjusts [GAIN] for individual speakers.

Example: When [FRONT ALL] is selected as the listening position

*1 Before making an adjustment, select the speaker:

When 2-way crossover is selected:

[FRONT LEFT]/[FRONT RIGHT]/[REAR LEFT]/[REAR RIGHT]/[SUBWOOFER]:

- [REAR LEFT], [REAR RIGHT] and [SUBWOOFER] are selectable only if a setting other than [NONE] is selected for [REAR] and [SUBWOOFER] of [SPEAKER SIZE]. (Page 24)

When 3-way crossover is selected:

[TWEETER LEFT]/[TWEETER RIGHT]/[MID LEFT]/[MID RIGHT]/[WOOFER]:

- [WOOFER] is selectable only if a setting other than [NONE] is selected for [WOOFER] of [SPEAKER SIZE]. (Page 25)

*2 Displayed only when [X' OVER TYPE] is set to [2-WAY] (page 22) and if a setting other than [NONE] is selected for [REAR] of [SPEAKER SIZE]. (Page 24)

Display Settings

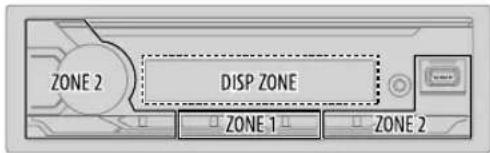

Zone identification for brightness settings

KD-X472BT:

KD-X272BT:

Zone identification for color settings

KD-X472BT:

1 Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit.

To return to the previous setting item, press Q/P.

Default: XX

[DISPLAY]
[DIMMER]	Dims the illumination.[OFF]: Dimmer is turned off. Brightness changes to [DAY] setting.[ON]: Dimmer is turned on. Brightness changes to [NIGHT] setting.(See the following “[BRIGHTNESS]” settings.)[DIMMER TIME]: Set the time to turn on dimmer and to turn off dimmer.1 Turn the volume knob to adjust the [ON] time, then press the knob.2 Turn the volume knob to adjust the [OFF] time, then press the knob.(Default: [ON]: [PM6:00]; [OFF]: [AM6:00][DIMMER AUTO]: Dimmer turns on and off automatically when you turn off or on the car headlights.*1
[BRIGHTNESS] Sets the brightness for day and night separately.1 [DAY]/[NIGHT]: Select day or night.2 Select a zone. (See the illustration on left column.)3 [LEVEL 00] to [LEVEL 31]: Set the brightness level.
[TEXT SCROLL]*2	[SCROLL ONCE]: Scrolls the display information once.;[SCROLL AUTO]: Repeats scrolling at 5-second intervals.;[SCROLL OFF]: Cancels.

Display Settings

[FORMAT]*3 (For KD-X472BT)

Information below is shown on the supplementary display when Bluetooth device is connected. (Page 30)

[BATT/SIGNAL]: Shows the strength of the battery and signal.;

[DATE]: Shows the date.

*1 The illumination control wire connection is required. (Page 35) *2 Some characters or symbols will not be shown correctly (or will be blank). *3 Functionality depends on the type of phone used.

Default: XX

[COLOR] (for KD-X472BT)

[PRESET]Selects illumination colors for the buttons on different zones separately.

1 Select a zone ([ZONE 1], [ZONE 2], [ALL ZONE]). (See the illustration on page 27.)

2 Select a color for the selected zone.

• [COLOR 01] to [COLOR 49]

• [USER]: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown.

• [COLOR FLOW01] to [COLOR FLOW03]: Color changes at different speeds.

• [CRYSTAL]/[FLOWER]/[FOREST]/[GRADATION]/[OCEAN]/[RELAX]/[SUNSET]: The selected color pattern is shown.* (Selectable only when [ALL ZONE] is selected in step 1.)

[DAY COLOR] Stores your own day and night illumination colors for different zones.
	1 Select a zone ([ZONE 1], [ZONE 2]). (See the illustration on page 27.)
	2 [RED]/[GREEN]/[BLUE]: Select a primary color.
	3 [00] to [31]: Select the level.
[NIGHT COLOR]	Repeat step 2 and step 3 for all the primary colors.
	• Your setting is stored to [USER] in [PRESET].
	• [NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car's headlights.
[COLOR GUIDE]	[ON]: The illumination color of [ZONE 1] and [ZONE 2] change to white color when settings are performed on menu and list search, except in color setting mode. ; [OFF]: Cancels.

* If one of these color patterns is selected, the [ZONE 1] and [ZONE 2] illumination colors will change to the default colors.

References

Maintenance

Cleaning the unit

Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Cleaning the connector

Detach the faceplate and clean the connector gently with a cotton swab. Be careful not to damage the connector.

Connector (on the reverse side of the faceplate)

More information

For: — Latest firmware updates and latest compatible item list

— JVC original application

— Any other latest information

Visit .

playablefiles

- Playable audio file for USB mass storage class device:

KD-X472BT:

MP3 (.mp3), WMA (.wma), AAC (.aac), AAC (.m4a), WAV (.wav), FLAC (.flac)

KD-X272BT:

MP3 (.mp3), WMA (.wma), WAV (.wav), FLAC (.flac)

- Playable USB device file system: FAT12, FAT16, FAT32

Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or devices.

- For detailed information and notes about the playable audio files, visit .

About USB devices

• You cannot connect a USB device via a USB hub.
• Connecting a cable whose total length is longer than 5 m may result in abnormal playback.
• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1.5 A.

About iPod/iPhone

• Made for
• iPod touch (6th generation)
• iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later)
• It is not possible to browse video files on the "Videos" menu in [HEAD MODE].
• The song order displayed on the selection menu of this unit may differ from that of the iPod/iPhone.
• You cannot operate iPod if "JVC" or "✓" is displayed on iPod.
• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit.

About Spotify

• Spotify application supports:
• iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later)
• iPod touch (6th generation)
• Android OS 4.0.3 or later
• Spotify is a third party service, therefore the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.
• Some functions of Spotify cannot be operated from this unit.
• For issues using the application, please contact Spotify at .

References

Change the display information

Each time you press, the display information changes.

- If the information is unavailable or not recorded, "NO TEXT", "NO NAME", or other information (e.g., station name) appears, or the display will be blank.

KD-X472BT:

*1 Date will be replaced with battery and signal strength of the connected Bluetooth device if [FORMAT] is set to [BATT/SIGNAL]. (Page 28)

Source name Display information: Main (Supplementary)

FM/AM/SW1/SW2 Frequency (Date) → Frequency (Date) with Music Synchronization Effect*2 → back to the beginning

For FM Radio Data System stations only:Station name/Program type (Date) → Station name/Program type (Date) with Music Synchronization Effect*2 → Radio text (Date)→ Radio text+ (Radio text+) → Song title (Artist) Song title (Date) → Frequency (Date) → back to the beginning

USB For MP3/WMA/AAC/WAV/FLAC files:Song title (Artist) → Song title (Artist) with Music Synchronization Effect*2 → Song title (Album title) → Song title (Date) File name (Folder name) → File name (Date) → Playing time (Date) → back to the beginning

Source name Display information: Main (Supplementary)

iPod USB/iPod BT When [HEAD MODE] is selected (page 10):
	Song title (Artist) ➔ Song title (Artist) with Music Synchronization Effect*2 ➔ Song title (Album title) ➔ Song title (Date) Playing time (Date) ➔ back to the beginning
SPOTIFY/SPOTIFY BT Context title (Date) ➔ Context title (Date) with Music Synchronization Effect*2 ➔ Song title (Artist) ➔ Song title (Album title) ➔ Song title (Date) Playing Time (Date) back to the beginning
BT AUDIO Song title (Artist) ➔ Song title (Artist) with Music Synchronization Effect*2 ➔ Song title (Album title) ➔ Song title (Date) Playing time (Date) ➔ back to the beginning
AUX Source name (Date) ➔ Source name (Date) with Music Synchronization Effect*2 ➔ back to the beginning

*2 During Music Synchronization Effect, the illumination color or brightness level of the buttons changes and synchronizes with the music level (depending on the color setting made for [PRESET] on page 28).

References

FDM	979010:12AM	Main display
	Clock display

Source name Display information: Main
FM/AM/SW1/SW2 Frequency	→ Frequency with Music Synchronization Effect* → Date→ back to the beginning
	For FM Radio Data System stations only:Station name/Program type → Station name/Program type with Music Synchronization Effect* → Radio text → Radio text + → Radio text+ song title/Radio text+ artist → Frequency → Date → back to the beginning
USB For MP3/WMA/WAV/FLAC files:Song title/Artist → Song title/Artist with Music Synchronization Effect* → Album title/Artist →older name File name Playing time → Date → back to the beginning
SPOTIFY BT Context title	→ Context title with Music Synchronization Effect* → Song title → Artist → Album title Playing Time Date → backto the beginning
BT AUDIO Song title/Artist	→ Song title/Artist with Music Synchronization Effect* → Album title/Artist →Playing time Date back to the beginning
AUX Source name	→ Source name with Music Synchronization Effect* → Date → back to the beginning

* During Music Synchronization Effect, the brightness level of the buttons changes and synchronizes with the music level.

Troubleshooting

Symptom Remedy
General	Sound cannot be heard. • Adjust the volume to the optimum level.• Check the cords and connections.
	"MISWIRING CHECK WIRING THEN PWR ON" appears.	Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again.
	"PROTECTING SEND SERVICE" appears.	Send the unit to the nearest service center.
	Source cannot be selected.	Check the [SOURCE SELECT] setting. (Page 6)
	The unit does not work at all.	Reset the unit. (Page 4)
	Correct characters are not displayed.	• This unit can only display uppercase letters, numbers, and a limited number of symbols.• Depending on the display language you have selected (page 6), some characters may not be displayed correctly.
Radio	• Radio reception is poor.• Static noise while listening to the radio.	Connect the antenna firmly.
USB/iPod	Playback order is not as intended.	The playback order is determined by the file name (USB).
	Elapsed playing time is not correct.	This depends on the recording process earlier (USB).
	"NOT SUPPORT" appears and track skips.	Check whether the track is a playable format. (Page 29)
	"READING" keeps flashing.	• Do not use too many hierarchical levels and folders.• Reattach the device (USB/iPod/iPhone).

Troubleshooting

Symptom Remedy
USB/iPod	"UNSUPPORTED DEVICE" appears.	· Check whether the connected USB device is compatible with this unit and ensure the file systems are in supported formats. (Page 29) · Reattach the USB device.
	"UNRESPONSIVE DEVICE" appears.	Make sure the USB device is not malfunction and reattach the USB device.
	"USB HUB IS NOT SUPPORTED" appears.	This unit cannot support a USB device connected via a USB hub.
	"CANNOT PLAY" appears.	Connect a USB device that contains playable audio files.
	· The source does not change to "USB" when you connect a USB device while listening to another source. · "USB ERROR" appears	The USB port is drawing more power than the design limit. Turn the power off and unplug the USB device. Then, turn on the power and reattach the USB device. If this does not solve the problem, turn the power off and on (or reset the unit) before replacing with another USB device.
	The iPod/iPhone does not turn on or does not work.	· Check the connection between this unit and iPod/iPhone. · Disconnect and reset the iPod/iPhone using hard reset.
	"LOADING" appears when you enter search mode by pressing Q/→.	This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later.
	"NO DEVICE" Connect a device (USB/iPod/iPhone), and change the source to USB/iPod/iPhone again.
	"MEMORY FULL" You have reached the maximum storage limit of your iPod/ iPhone.

Symptom Remedy
Spotify	“DISCONNECTED” USB is disconnected from the head unit. Please make sure the device is connected properly through USB.
	“CONNECTING”• Connected via USB input terminal: The device is connecting to the head unit. Please wait.• Connected via Bluetooth: The Bluetooth is disconnected. Please check Bluetooth connection and make sure both the device and unit are paired and connected.
	“CHECK APP” The Spotify application is not connected properly or user is not login. End the Spotify application and restart. Then, log in to your Spotify account.
Bluetooth®	No Bluetooth device is detected.• Search from the Bluetooth device again.• Reset the unit. (Page 4)
	Bluetooth pairing cannot be made.• Make sure you have entered the same PIN code to both the unit and Bluetooth device.• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (Page 14)
	Echo or noise is heard during a phone conversation.• Adjust the microphone unit’s position. (Page 14)• Check the [ECHO CANCEL] setting. (Page 16)
	Phone sound quality is poor.• Reduce the distance between the unit and the Bluetooth device.• Move the car to a place where you can get a better signal reception.
	Voice calling method is not successful.• Use voice calling method in a more quiet environment.• Reduce the distance from the microphone when you speak the name.• Make sure the same voice as the registered voice tag is used.

Troubleshooting

Symptom Remedy
Bluetooth®	Sound is being interrupted or skipped during playback of a Bluetooth audio player.	Reduce the distance between the unit and the Bluetooth audio player.Turn off, then turn on the unit and try to connect again.Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled.	Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP).(Refer to the instructions of your audio player.)Disconnect and connect the Bluetooth player again.
	“PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again.
	“NOT SUPPORT” The connected phone does not support Voice Recognition feature or phonebook transfer.
	“NO ENTRY”/“NO PAIR” There is no registered device connected/found via Bluetooth.
	“ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried.
	“NO INFO”/“NO DATA” Bluetooth device cannot get the contact information.
	“H/W ERROR” Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center.
	“SWITCHING NG” The connected phones might not support phone switching feature.
	The Bluetooth connection between the Bluetooth device and the unit is unstable.	Delete the unused registered Bluetooth device from the unit.(Page 18)

If you still have troubles, reset the unit. (Page 4)

Installation/Connection

This section is for the professional installer.

For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.

WARNING

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit. • To prevent short circuit:

— Insulate unconnected wires with vinyl tape. — Be sure to ground this unit to the car's chassis again after installation. - Secure the wires with cable clamps and wrap vinyl tape around the wires that come in contact with metal parts to protect the wires.

CAUTION

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot. - Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel. - Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. (Page 22) - Mount the unit at an angle of less than 30° . - If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key. - Keep all cables away from heat dissipate metal parts. - After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly. - If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Installation/Connection

Part list for installation

(A) Faceplate (×1)

(B) Trim plate (×1)

(C) Mounting sleeve (×1)

(D) Wiring harness (×1)

(E) Extraction key (×2)

Basic procedure

1. Remove the key from the ignition switch, then disconnect the ⊖ terminal of the car battery. 2. Connect the wires properly. See "Wiring connection" on page 35. 3. Install the unit to your car. See the following "Installing the unit (in-dash mounting)". 4. Connect the terminal of the car battery. 5. Press ⏻ SRC to turn on the power. 6. Detach the faceplate and reset the unit within 5 seconds. (Page 4)

Installing the unit (in-dash mounting)

1. Remove the mounting sleeve and trim plate from the unit. 2. Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available).

⚠ Use only the specified screws. Using wrong screws might damage the unit.

Removing the unit / Installing the unit (with c

Installation/Connection

Wiring connection

IMPORTANT

We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer.

Installation/Connection

Connect external amplifiers via output terminals

* Firmly connect the ground wire of the amplifier to the car's chassis to avoid damaging the unit.

Model Output terminals 2-way crossover 3-way crossover

KD-X472BT		REAR: Rear output Tweeter output
		FRONT: Front output Mid Range output
		SW: Subwoofer output Woofer output
KD-X272BT		REAR/SW: Rear/subwoofer output Woofer output

Specifications

Tuner	FM Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step)
	Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 μV/75 Ω)
	Quieting Sensitivity(DIN S/N = 46 dB)	17.2 dBf (2.0 μV/75 Ω)
	Frequency Response (±3 dB)	30 Hz — 15 kHz
	Signal-to-Noise Ratio (MONO) 64 dB
	Stereo Separation (1 kHz)	40 dB
AM	Frequency Range Band 1 (AM):	S31 kHz — 1 602 kHz (9 kHz step)Band 2 (SW1):2 940 kHz — 7 735 kHz (5 kHz step)Band 3 (SW2):9 500 kHz — 10 135 kHz /11 580 kHz — 18 135 kHz (5 kHz step)
	Usable Sensitivity (S/N = 20 dB) AM:	29 dBμ (28.2 μV)SW: 30 dBμ (32 μV)

USB	USB Standard	KD-X472BT: USB 1.1, USB 2.0 (High speed)KD-X272BT: USB 1.1, USB 2.0 (Full speed)
	Compatible Devices	Mass storage class
	File System	FAT12/16/32
	Maximum Supply Current	DC 5 V=1.5 A
	Digital Filter (D/A) Converter	24 Bit
	Frequency Response ( ± 1 dB)	20 Hz—20 kHz
	Signal-to-Noise Ratio (1 kHz)	99 dB
	Dynamic Range	93 dB
	Channel Separation	89 dB

Specifications

USB	MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode Compliant with Windows Media Audio
	AAC Decode KD-X472BT: AAC-LC ".aac", ".m4a" files
	WAV Decode Linear-PCM
	FLAC Decode FLAC file, up to 24 bit/96 kHz
Auxiliary	Frequency Response (±3 dB) 20 Hz — 20 kHz
	Input Maximum Voltage 1 000 mV
	Input Impedance 30 kΩ
Bluetooth	Version Bluetooth V4.2
	Frequency Range 2.402 GHz — 2.480 GHz
	RF Output Power (E.I.R.P.) +4 dBm (MAX), Power Class 2
	Maximum Communication Range Line of sight approx. 10 m (32.8 ft)
	Pairing SSP (Secure Simple Pairing)
	Profile HFP1.7.1 (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP1.6.1 (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) SPP (Serial Port Profile)

Audio	Maximum Output Power	50 W × 4 or50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
	Full Bandwidth Power(at less than 1 % THD)	22 W × 4
	Speaker Impedance	4 Ω — 8 Ω
	Preout Level/Load	KD-X472BT:3 500 mV/10 kΩKD-X272BT:2 500 mV/10 kΩ
	Preout Impedance	≤ 600 Ω
General	Operating Voltage	12 V DC car battery
	Installation Size (W × H × D)	182 mm × 53 mm × 100 mm
	Net Weight (includes Trimplate,Mounting Sleeve)	0.6 kg

Subject to change without notice.

Table of Contents

Before Use....3

Basic Information 4

Getting Started 5

1 Canceling the Demonstration

1 stands upon the following steps:

iPod touch (6th generation)

iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR (iOS 12.1 or later)

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Android is a trademark of Google LLC.
• The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

SOFTWARE LICENSE AGREEMENT

The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions which Users shall follow in order to use the Licensed Software.

The User shall use the Licensed Software by agreeing with the terms of this Software License Agreement. This Agreement shall be deemed completed at the time the User (hereinafter the "User") initially used the Product in which the "Licensed Software" is embedded.

The Licensed Software may include the software which has been licensed to the Licensor directly or indirectly from any third party. In such case, some third parties require the Users to follow their conditions for use separately from this Software License Agreement. Such software shall not be subject to this Agreement, and the Users are urged to read the "Important Notice concerning the Software" to be provided separately below.

Article 1 General Provision

The Licensor shall grant to the User a non-exclusive and non-transferable (other than the exceptional case referred to in Article 3, Paragraph 1) license to use the Licensed Software within the country of the User (the country where the User bought the Product, hereinafter the "Country").

Article 2 License

1. The license granted under this Agreement shall be the right to use the Licensed Software in the Product.
2. The User shall not duplicate, copy, modify, add, translate or otherwise alter, or lease the Licensed Software and any related documents, whether in whole or in part.
3. The use of the Licensed Software shall be limited to personal purpose, and the Licensed Software shall not be distributed, licensed or sub-licensed whether it is for commercial purpose or not.
4. The User shall use the Licensed Software according to the directions described in the operation manual or help file, and is prohibited to use or duplicate any data in a manner violating the Copyright Law or any other laws and regulations by applying whole or a part of the Licensed Software.

Article 3 Conditions for Grant of License

1. When the User transfers the Product, it may also transfer the license to use the Licensed Software embedded in the Product (including any related materials, updates and upgrades) on condition that no original, copies or related materials continue in the possession of the User, and that the User shall cause the transferee to comply with this Software License Agreement.
2. The User shall not carry out reverse engineering, disassembling, decompiling or any other code analysis works in connection with the Licensed Software.

Article 4 Right pertaining to the Licensed Software

Any and all copyrights and other rights pertaining to the Licensed Software and related documents shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be entitled to any right other than the license granted hereunder, in respect of the Licensed Software and any related documents.

Article 5 Indemnification of Licensor

1. Neither the Licensor nor the Original Rightholder shall be liable for any damage incurred by the User or any third party due to the exercise of the license granted to the User under this Agreement, unless otherwise restricted by law.
2. The Licensor will offer no guarantee for the merchantability, convertibility and consistency with certain objective of the Licensed Software.

Article 6 Liability to Third Party

If any dispute has arisen with any third party due to an infringement upon a copyright, patent or any other intellectual property right that was caused by the User's use of the Licensed Software, the User shall settle such dispute at its own cost and hold the Licensor and the Original Rightholder harmless from any inconvenience it may cause.

Article 7 Confidentiality

The User shall keep the confidentiality of such portion of the Licensed Software, related documents thereof or any other information to be granted under this Agreement, as well as the conditions of this Agreement as has not yet entered the public domain, and shall not disclose or divulge the same to any third party without approval of the Licensor.

Article 8 Termination

In case the User falls under any of the events described in the following items, the Licensor may immediately terminate this Agreement or claim that the User compensates for the damage incurred by the Licensor due to such event:

(1) when the User violated any provision of this Agreement; or (2) when a petition has been filed against the User for an attachment, provisional attachment, provisional disposition or any other compulsory execution.

Article 9 Destruction of the Licensed Software

If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed Software, any related documents and copies thereof within two (2) weeks from such date of termination.

Article 10 Protection of Copyright

1. The copyright and all the other intellectual property rights relating to the Licensed Software shall belong to the Licensor and the Original Rightholder, and in no event shall they be under the ownership of the User.
2. The User shall, whenever it uses the Licensed Software, comply with any laws relating to the copyright and other intellectual property rights.

Article 11 Export Restriction

1. It is prohibited to export the Licensed Software and any related documents outside the country of the User (including transmission thereof outside the country of the User via Internet of other communication tools).
2. The User shall understand that the Licensed Software shall be subject to the export restrictions adopted by the country of User and any other countries.
3. The User shall agree that the software will be subject to any and all applicable international and domestic laws (including the export control regulation of the country of User and any other countries, and any restrictions concerning the end-users, the use by end-users and importing countries to be provided by the country of User and any other countries, and any other governmental authorities).

Article 12 Miscellaneous

1. In the event any part of this Agreement is invalidated by operation of law, the residual provisions shall continue in force.
2. Matters not stipulated in this Agreement or any ambiguity or question raised in the construction of this Agreement shall be provided or settled upon good-faith consultation between the Licensor and the User.
3. The Licensor and the User hereby agree that this Agreement is governed by the laws of Japan, and any dispute arising from, and relating to the rights and obligations under, this Agreement shall be submitted to the exclusive jurisdiction of the Tokyo District Court for its first instance.

Important Notice concerning the Software

Copyright (c) 2009-2012 Petri Lehtinen [e-mail]

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Copyright (c) 2009 Dave Gamble

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

The MIT License (MIT)

Copyright (c) 2014 Charles Gunyon

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

nanopb

Copyright (c) 2011 Petteri Aimonen

This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.

sha2

AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/

Copyright (c) 2000-2001, Aaron D. Gifford

All rights reserved.

You may obtain a copy of the license at

https://opensource.org/licenses/BSD-3-Clause

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Posix

Copyright (c) 1990, 1993

The Regents of the University of California. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

This product includes software developed by the University of California, Berkeley and its contributors.

1. Neither the name of the University nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

Copyright (C) 1993 by Sun Microsystems, Inc. All rights reserved.

Developed at SunPro, a Sun Microsystems, Inc. business.

Permission to use, copy, modify, and distribute this software is freely granted, provided that this notice is preserved.

Copyright (C) 1991-2, RSA Data Security, Inc. Created 1991. All rights reserved.

License to copy and use this software is granted provided that it is identified as the "RSA Data Security, Inc. MD4 Message-Digest Algorithm" in all material mentioning or referencing this software or this function.

Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved.

Author: Chris G. Demetriou

Permission to use, copy, modify and distribute this software and its documentation is hereby granted, provided that both the copyright notice and this permission notice appear in all copies of the software, derivative works or modified versions, and any portions thereof, and that both notices appear in supporting documentation.

CARNEGIE MELLON ALLOWS FREE USE OF THIS SOFTWARE IN ITS "AS IS" CONDITION. CARNEGIE MELLON DISCLAIMS ANY LIABILITY OF ANY KIND FOR ANY DAMAGES WHATSOEVER RESULTING FROM THE USE OF THIS SOFTWARE.

Carnegie Mellon requests users of this software to return to

Software Distribution Coordinator or Software.Distribution@

CS.CMU.EDU

School of Computer Science

Carnegie Mellon University

Pittsburgh PA 15213-3890

any improvements or extensions that they make and grant Carnegie the rights to redistribute these changes.

License is also granted to make and use derivative works provided that such works are identified as "derived from the RSA Data Security, Inc. MD4 Message-Digest Algorithm" in all material mentioning or referencing the derived work.

RSA Data Security, Inc. makes no representations concerning either the merchantability of this software or the suitability of this software for any particular purpose. It is provided "as is" without express or implied warranty of any kind.

Copyright (c) 1993 Martin Birgmeier

All rights reserved.

You may redistribute unmodified or modified versions of this source code provided that the above copyright notice and this and the following conditions are retained.

This software is provided "as is", and comes with no warranties of any kind. I shall in no event be liable for anything that happens to anyone/anything when using this software.

These notices must be retained in any copies of any part of this documentation and/or software.

T-Kernel 2.0

This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org)

BSD-3-Clause

Copyright (c) 2000-2001, Aaron D. Gifford

All rights reserved.

You may obtain a copy of the license at

https://opensource.org/licenses/BSD-3-Clause

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

LFS Subsystem

Copyright The Regents of the University of California. All rights reserved.

You may obtain a copy of the license at

https://directory.fsf.org/wiki/License:BSD-4-Clause

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Accordo2 Player

Apache License

Licensed under the Apache License,

Version 2.0, January 2004 (the "License");

You may obtain a copy of the license at

http://www.apache.org/licenses/LICENSE-2.0

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.
• Apple, iPhone, iPod, iPod touch, and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.
• SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. • Android is a trademark of Google LLC.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVCKENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.

Explanations

(1x) Adjustment ring (B)

(1x) Front panel (A)

(1x) Mounting cover (C)

(6th generation) iPod touch —

iPhone 5S - 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR —

(iOS 12.1)

(6th generation) iPod touch —

: [LPF SLOPE] / [HPF SLOPE] / [SW LPF SLOPE] / [R-HPF SLOPE] / [F-HPF SLOPE] / [SLOPE]

Bluetooth "0000" PIN

. : [SW2] / [SW1] / [AM] / [FM] 2

(for waves) [01] to [06] / (FM) (for waves) [01] to [18] 3

: (SW2 / SW1 / AM)

	[F/W UPDATE]
	[UPDATE SYSTEM]
	[F/W UP xxxx]
	[FACTORYRESET]
	[CLOCK]
	[TIME SYNC]
	[CLOCK DISPLAY]
	[ENGLISH]
	[DEMO MODE]

[SYSTEM]
( Opcti 3.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100.101.102.103.104.105.106.107.108.109.110.111.112.113.114.115.116.117.118.119.120.121.122.123.124.125.126.127.128.129.130.131.132.133.134.135.136.137.138.139.140.141.142.143.144.145.146.147.148.149.150.151.152.153.154.155.156.157.158.159.160.161.162.163.164.165.166.167.168.169.170.171.172.173.174.175.176.177.178.179.180.181.182.183.184.185.186.187.188.189.190.191.192.193.194.195.196.197.198.199.200.201.202.203.204.205.206.207.208.209.210.211.212.213.214.215.216.217.218.219.220.221.222.223.224.225.226.227.228.229.230.231.232.233.234.235.236.237.238.239.240.241.242.243.244.245.246.247.248.249.250.251.252.253.254.255.256.257.258.259.260.261.262.263.264.265.266.267.268.269.270.271.272.273.274.275.276.277.278.279.280.281.282.283.284.285.286.287.288.289.290.291.292.293.294.295.296.297.298.299.300.301.302.303.304.305.306.307.308.309.310.311.312.313.314.315.316.317.318.319.320.321.322.323.324.325.326.327.328.329.330.331.332.333.334.335.336.337.338.339.340.341.342.343.344.345.346.347.348.349.350.351.352.353.354.355.356.357.358.359.360.361.362.363.364.365.366.367.368.369.370.371.372.373.374.375.376.377.378.379.380.381.382.383.384.385.386.387.388.389.390.391.392.393.394.395.396.397.398.399.400.401.402.403.404.405.406.407.408.409.410.411.412.413.414.415.416.417.418.419.420.421.422.423.424.425.426.427.428.429.430.431.432.433.434.435.436.437.438.439.440.441.442.443.444.445.446.447.448.449.450.451.452.453.454.455.456.457.458.459.460.461.462.463.464.465.466.467.468.469.470.471.472.473.474.475.476.477.478.479.480.481.482.483.484.485.486.487.488.489.490.491.492.493.494.495.496.497.498.499.500.501.502.503.504.505.506.507.508.509.510.511.512.513.514.515.516.517.518.519.520.521.522.523.524.525.526.527.528.529.530.531.532.533.534.535.536.537.538.539.540.541.542.543.544.545.546.547.548.549.550.551.552.553.554.555.556.557.558.559.560.561.562.563.564.565.566.567.568.569.570.571.572.573.574.575.576.577.578.579.580.581.582.583.584.585.586.587.588.589.590.591.592.593.594.595.596.597.598.599.600.601.602.603.604.605.606.607.608.609.610.611.612.613.614.615.616.617.618.619.620.621.622.623.624.625.626.627.628.629.630.631.632.633.634.635.636.637.638.639.640.641.642.643.644.645.646.647.648.649.650.651.652.653.654.655.656.657.658.659.660.661.662.663.664.665.666.667.668.669.670.671.672.673.674.675.676.677.678.679.680.681.682.683.684.685.686.687.688.689.690.691.692.693.694.695.696.697.698.699.700.701.702.703.704.705.706.707.708.709.710.711.712.713.714.715.716.717.718.719.720.721.722.723.724.725.726.727.728.729.730.731.732.733.734.735.736.737.738.739.740.741.742.743.744.745.746.747.748.749.750.751.752.753.754.755.756.757.758.759.760.761.762.763.764.765.766.767.768.769.770.771.772.773.774.775.776.777.778.779.780.781.782.783.784.785.786.787.788.789.790.791.792.793.794.795.796.797.798.799.800.801.802.803.804.805.806.807.808.809.810.811.812.813.814.815.816.817.818.819.820.821.822.823.824.825.826.827.828.829.830.831.832.833.834.835.836.837.838.839.840.841.842.843.844.845.846.847.848.849.850.851.852.853.854.855.856.857.858.859.860.861.862.863.864.865.866.867.868.869.870.871.872.873.874.875.876.877.878.879.880.881.882.883.884.885.886.887.888.889.890.891.892.893.894.895.896.897.898.899.900.901.902.903.904.905.906.907.908.909.910.911.912.913.914.915.916.917.918.919.920.921.922.923.924.925.926.927.928.929.930.931.932.933.934.935.936.937.938.939.940.941.942.943.944.945.946.947.948.949.950.951.952.953.954.955.956.957.958.959.960.961.962.963.964.965.966.967.968.969.970.971.972.973.974.975.976.977.978.979.980.981.982.983.984.985.986.987.988.989.990.991.992.993.994.995.996.997.998.999.100
[SOURCESELECT]
* [AM SRC]
* [SW1 SRC]
* [SW2 SRC]
* [SPOTIFY SRC]
* [BT AUDIO SRC]
* [BUILT-IN AUX]

"VOLUME KNOB" ← "PRESS"

(6th generation) iPod touch —

iOS 12.1 (latest) XR, XS MAX, XS, X, 8 Plus, 8, 7 Plus, 7, SE, 6S Plus, 6S, 6 Plus, 6, iPhone 5S

(and newer)

(6th generation) iPod touch

Android OS 4.0.3 - latest

[LPF SLOPE]/ [HPF SLOPE]/ [SW LPF SLOPE]/ [R-HPF SLOPE]/ [F-HPF SLOPE]/ [SLOPE]

Arabic language.

1 Bluetooth 1 Add a device by pressing the '-' to be called.

(KD-X472BT iPhone/iPod Household)

(SW2/SW1/AM [06] [01](FM [18] [01] 3

	[F/W UPDATE]
	[UPDATE SYSTEM]
	[F/W UP xxxx]
	[FACTORYRESET]
	[CLOCK]
	[TIME SYNC]
	[CLOCK DISPLAY]
	[ENGLISH]
	[ESPAÑOL]
	[DEMO MODE]

:KD-X272BT

Arabic to

. Asspect. المُؤْتَالْ أَدْر قَرْض مِسْنَوَى الْ صَوْتِ .	. ازْعَمْ لِيَّقَانِ الْ كَهُرِينَةِ
. ازْعَمْ عَلَى قَرْض مِسْنَوَى الْ صَوْتِ لِكَتَمَ الْ صَوْتِ أَوْ لِيَّقَانِ مُؤْتَ لِلَّنَشْغَيلِ .	. ضَبْط مِسْتَوَى الْ صَوْتِ
. ازْعَمْ مَرَة أَخْرَى لِوقَف تُشْغَيلِ الجُهاِزِ يَعُود مِسْنَوَى حَجِمَ الْ صَوْتِ الْ لِيَّقَانِ الْ مُؤْتَ .	. ازْعَمْ مَرَة أَخْرَى لِوقَف تُشْغَيلِ الجُهاِزِ يَعُود مِسْنَوَى حَجِمَ الْ صَوْتِ الْ لِيَّقَانِ الْ مُؤْتَ .
. ازْعَمْ يَنْكُرَارِ .	. ازْعَمْ يَنْكُرَارِ .
. ازْعَمْ عَلَى مِسْنَوَى الْ صَوْتِ خَلَالَ ثَانِبَّنِ .	. ازْعَمْ عَلَى مِسْنَوَى الْ صَوْتِ خَلَالَ ثَانِبَّنِ .
(31.30)	. ازْعَمْ مَعُلُومَاتِ الْ شَاشَةِ

Arabic 4
