MES212 - Portable DVD Player LENCO - Free user manual and instructions

Product type	Portable DVD player
Brand	Lenco
Model	MES212
Power supply	DC IN 9-12 V
Power consumption	< 10 W
Supported disc formats	DVD, CD, VCD, MP3, JPEG
Video system	NTSC / PAL
Video output	1 Vp-p (75 Ω)
Audio output	1.2 Vrms (1 KHz, 0 dB)
Built-in speakers	1 W x 2
Headphone output	Yes, 3.5 mm jack
Signal-to-noise ratio	> 80 dB (ANALOG OUT)
Dynamic range	> 85 dB (DVD/CD)
Special functions	Zoom, slow motion, repeat, program, subtitles, viewing angles, frame-by-frame
Remote control	Yes, with button battery
OSD languages	Multiple (French, English, German, etc.)
Warranty	Compliant with European regulations
Maintenance	Clean with a dry cloth, do not use water
Safety	Do not open, keep out of reach of children, do not expose to moisture
Manufacturer	Lenco Benelux BV, Thermiekstraat 1a, 6361 HB Nuth, Netherlands

Frequently Asked Questions - MES212 LENCO

How to set the menu language?

Press SETUP, then use the navigation keys to go to OSD Language. Select the desired language and confirm with ENTER.

How to connect the player to a TV?

Use the supplied AV cable. Connect the yellow plug to the TV's video input and the red/white plugs to the audio inputs. Select the appropriate source on the TV.

What to do if the player does not read a disc?

Check that the disc is clean and scratch-free. Make sure the format is compatible (DVD, CD, VCD, MP3, JPEG). Clean the disc with a soft cloth from the center outward.

How to use the Zoom function?

During playback, press the ZOOM button repeatedly to enlarge the image (2x, 3x, 4x, then reduce). Use the directional keys to navigate the enlarged image.

How to program a playlist?

Press PROGRAM during playback. Use the numeric keys to select tracks in the desired order, then choose PLAY to start programmed playback.

How to change the viewing angle on a DVD?

During playback of a compatible DVD, press ANGLE to switch between available viewing angles. The angle icon appears on screen if the function is available.

What to do if the screen stays black?

Check that the device is turned on (power indicator). Ensure the battery is charged or the AC adapter is plugged in. Try adjusting the brightness via the SETUP menu.

How to clean the player?

Unplug the device. Clean the exterior with a soft, dry cloth. Never use water, solvents, or abrasive cleaners. For the disc tray, use an antistatic cloth.

Where to find the serial number?

The serial number is on the label on the back or bottom of the device. It is required for any after-sales service requests.

How to update the firmware?

This player does not have user firmware updates. In case of problems, contact Lenco after-sales service via www.lenco.com.

USER MANUAL MES212 LENCO

1 Safety Instructions

Before using this product, read and follow all warnings and instructions.
- This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their safety:
- This product is intended for household use only and not for commercial or industrial use.
- Do not expose to dripping or splashing.
- No naked flame sources, such as lighted candles, should be placed on or near the product.
- Ventilation should not be impeded by covering ventilation openings with items such as newspapers, table cloths, curtains and the like.
- Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.
- Do not place objects filled with liquids, such as vases on or near the product.
- Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.
- Do not keep or store this product in wet conditions for a long period.
- Do not clean this product with water or other liquids.
- Do not block or cover the slots and holes in the product.
- Do not pu sh foreign objects into the slots or holes in the product.
- Do not attempt to open this product yourself. There are no user serviceable parts inside.
- Do not allow children access to plastic bags.

Notice

• If at any time in the future you should need to dispose of this product please note that: All batteries and accumulators need to be removed from this product (Removal of Waste Batteries and Accumulators).
  Always bring your product to a professional to remove the built-in battery.

WARNING

Do not ingest the battery, Chemical Burn Hazard

(The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Warning

• Never remove the casing of this device.
• Never place this device on other electrical equipment.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

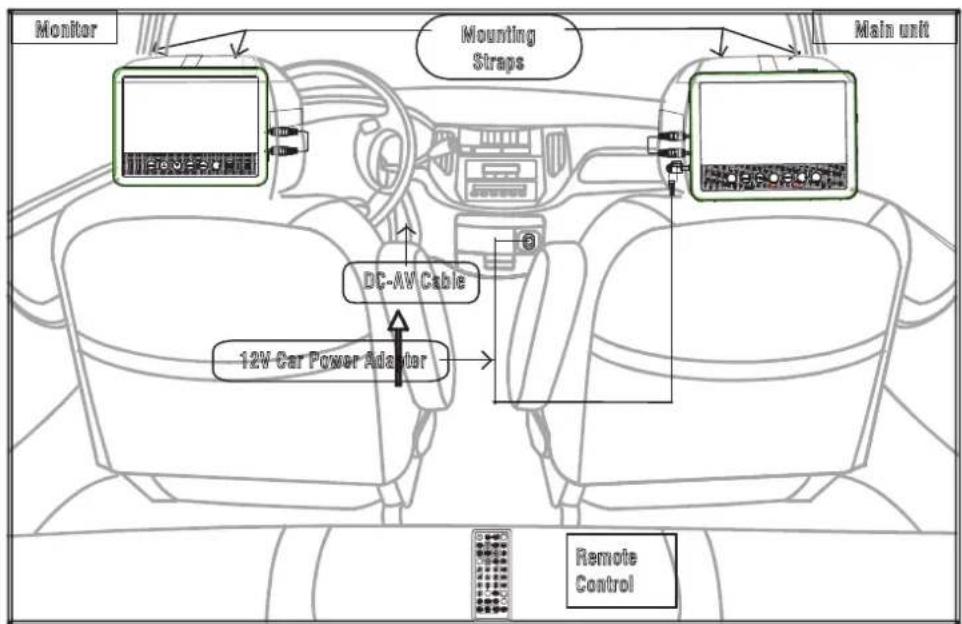

Mounting in the Vehicle

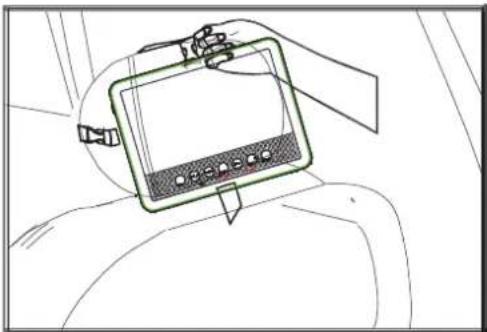

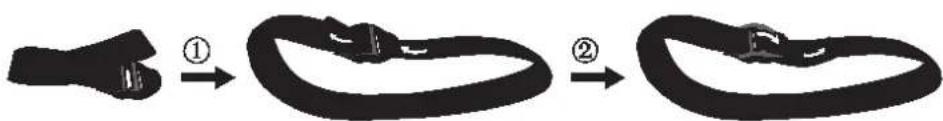

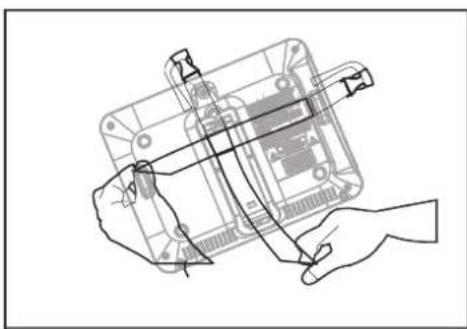

Use the supplied car mounting straps to install the main unit and monitor on the back of the vehicle's headrests. Tightly wrap the mounting strap around the headrest.

2 Idensaon of Controls

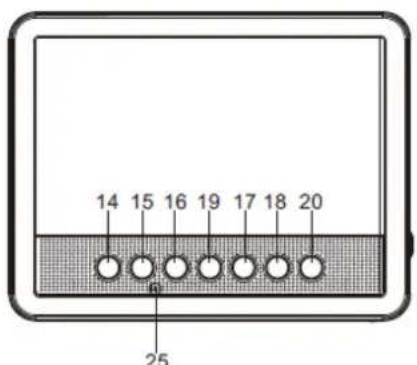

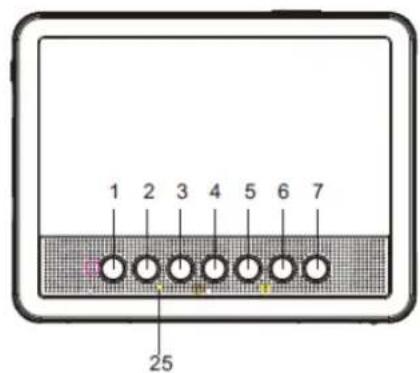

Main Unit

1. SETUP
   2.Up/Prev
2. Down/Next
3. ENTER
   5./VOL-Le/VOL
   6./VOL+Right/VOL+
4. SOURCE
5. ON/OFF
6. USB
7. Earphone Socket
   11.AVOUT
   12.DCOUT
8. DC IN 9-12V
9. MUTE
10. UP
11. Down
12. /VOL- Le/VOL

13. /VOL+ Right/VOL+

14. MODE

15. BACK LIGHT
16. DC IN 9-12V
17. AVIN

Earphone Socket

1. ON/OFF
2. POWER INDICATOR

2 Idencaon of Controls

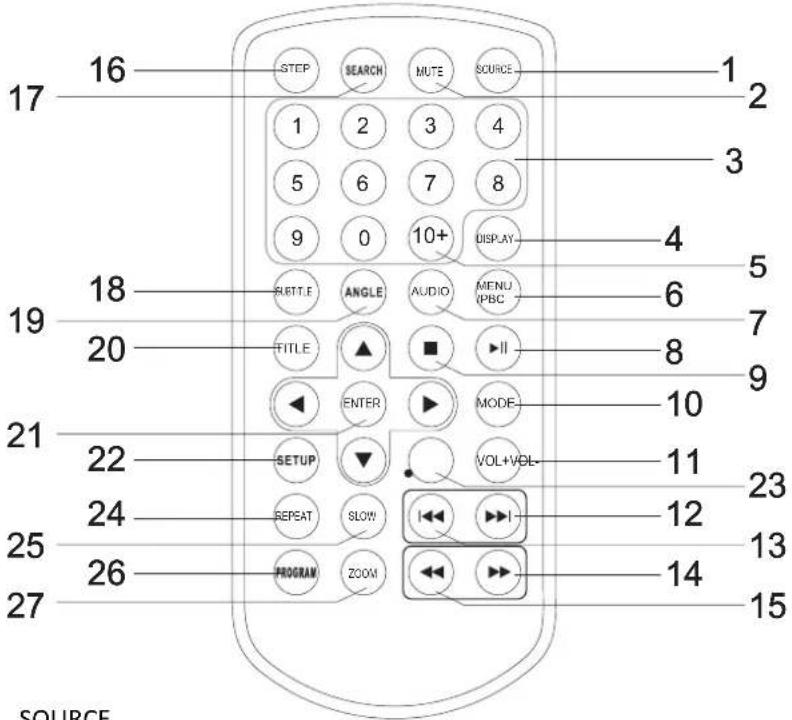

Remote control unit

1. SOURCE

DVD/USB.

1. MUTE

Disable Audio output.

1. 0-9 NUMBER BUTTON

Selects numbered items in a menu.

1. DISPLAY

To display the playme and status informaon.

1. 10+ BUTTON

In order to select a track 10, for CD, press 10+ buon rst, then press 0; for DVD, press 10+ buon; select track greater than 10, for example, track 12; rst press 10+ , a highlighted bar appears and further press 10+ and press number 2; select track 23, press 10+ buon 3 mes and press number 3 buon.

1. MENU/PBC

Return to DVD root menu(DVD).

PBC on/o switch (VCD).

7.AUDIO

DVD: Press AUDIO repeatedly during playback to hear a dierent audio language or audio track, if available.

CD/VCD: Press AUDIO repeatedly during playback to hear a dierent audio channel (Le, Right, Mix, Stereo).

1. PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE a second me will resume the

playback.

1. STOP

When this buon is pressed once, the unit records the stopped point, from where playback will resume if PLAY ( ) is pressed aer wards. But if STOP buon is pressed again instead of PLAY ( Buon, there will be no resume funcon.

1. MODE

Set LCD parameter (adjust brightness, contrast, and saturaon).

1. VOL+

Adjust volume

1. Forward Skip

Go to next chapter/track.

1. Reverse Skip

Go to previous chapter/track to the beginning.

1. BUTTON

Press BUTTON allow skipping ahead at 5-level speed (X2->X4->X8->X16->X32->PLAY),

press PLAY buon return to normal playback

1. BUTTON

Press button allows skipping back at 5-level speed(X2->X4->X8->X16->X32->PLAY), press

PLAYbuon return to normal playback.

1. STEP

Step the moon in DVD mode.

17.SEARCH

Go to me point, tle or chapter you want in DVD Mode.

1. SUBTITLE

Press SUBTITLE repeatedly during playback to hear a dierent subtle languages.

1. ANGLE

DVD: Press ANGLE will change the view angle, on DVDs that support this feature.

1. TITLE

Return to DVD tle menu

1. ENTER

Conrms menu selecon..

1. SETUP

Accesses or removes setup menu.

1. VOL-

Adjust volume

1. REPEAT

Press REPEAT during playback to select a desired repeat mode.

DVD: you can play select repeat chapter/tle/o.

CD/VCD: you can select repeat single/all/o.

Mp3: you can select shue/random/single/repeat one/repeat folder/folder

1. SLOW

Press Slow buon repeatedly to enter slow playback, and cycle between dierent speeds. The

speeds are 1/2, 1/4, 1/8, 1/16, and normal.

26.PROGRAM

DVD/VCD: The program funcon enables you to store your favorite tracks from the disc. Press the PROGRAM buoy, then the PROGRAM MENU will appear on screen, now you can use the number key to direct input the tles, chapters or tracks number and select PLAY opon. to resume normal playback, press PROGRAM and select clear program opon on the program menu, press PROGRAM again to exit the program menu.

27.ZOOM

DVD/VCD: Use ZOOM to enlarge or shrink the video image.

1. Press ZOOM during playback or sll playback to acvate the Zoom funcon. The square frame appears briey in the right boom of the picture.
2. Each press of the ZOOM buoy changes the TV screen in the following sequence:

2X size 3X size 4X size 1/2X size 1/3X size 1/4X size normal size

JPEG: Use ZOOM to enlarge or shrink the picture.

Press 'ZOOM'.

1. Use " " to enlarge, or " " to shorten the picture.
2. Use the button to move through the zoomed picture.

3 SETUP Menu Seng

General Setup Page

Press the SETUP buon to get the setup menu. Use the direcon buons to

select the preferred item. Aer nishing sengs, press SETUP again to normally display.

The following menu items can be changed:

GENERAL: selects the GENERAL PAGE menu.

AUDIO: selects the AUDIO PAGE menu.

VIDEO: selects the VIDEO PAGE menu.

PREFERENCE: selects the PREFERENCE PAGE menu.

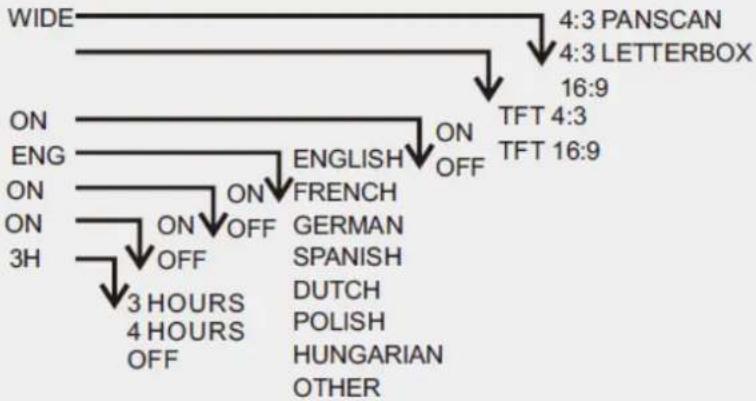

General Setup Page

--GENERALSETUPPAGE

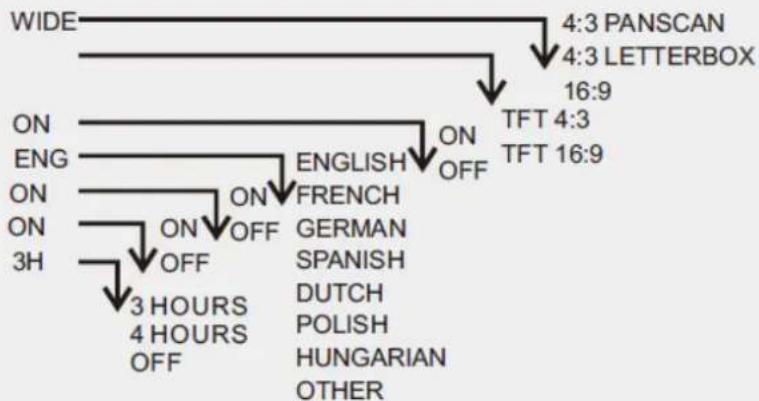

TV DISPLAY

TFT DISPLAY

ANGLE MARK

OSD LANGUAGE

CLOSED CAPTIONS

SCREENSAVER

AUTO STANDBY

GOTO GENERAL SETUP PAGE

TV DISPLAY: selects the aspect rao of the playback picture.

4:3 PANSCAN: if you have a normal TV and want both sides of the picture to be trimmed or formed to t your TV screen.
4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower porons of the TV screen will be displayed.

16:9: wide screen display.

TFT Display

Angle Mark

Displays current angle seng informaon on the right hand corner of the TFT screen if available on the disc.

OSD Language

You can select your own preferred language sengs.

Closed Capons

Closed capons are data that are hidden in the video signal of some discs. Before you select this funcon, please ensure that the disc contains closed capons informaon and your TV set also has this funcon.

Screen Saver

This funcon is used to turn the screen saver On or O

Auto Standby

This funcon is used to select auto standby sengs aer 3 or 4 hours.

3 HOURS: the unit will turn to standby mode aer 3 hours if there is no interacon from the user within this period of me.

4 HOURS: the unit will turn to standby mode aer 4 hours if there is no interacon from the user within this period of me.

OFF: the auto standby funcon is disabled, and the unit will stay in the "on" mode even if there is no interacon from user..

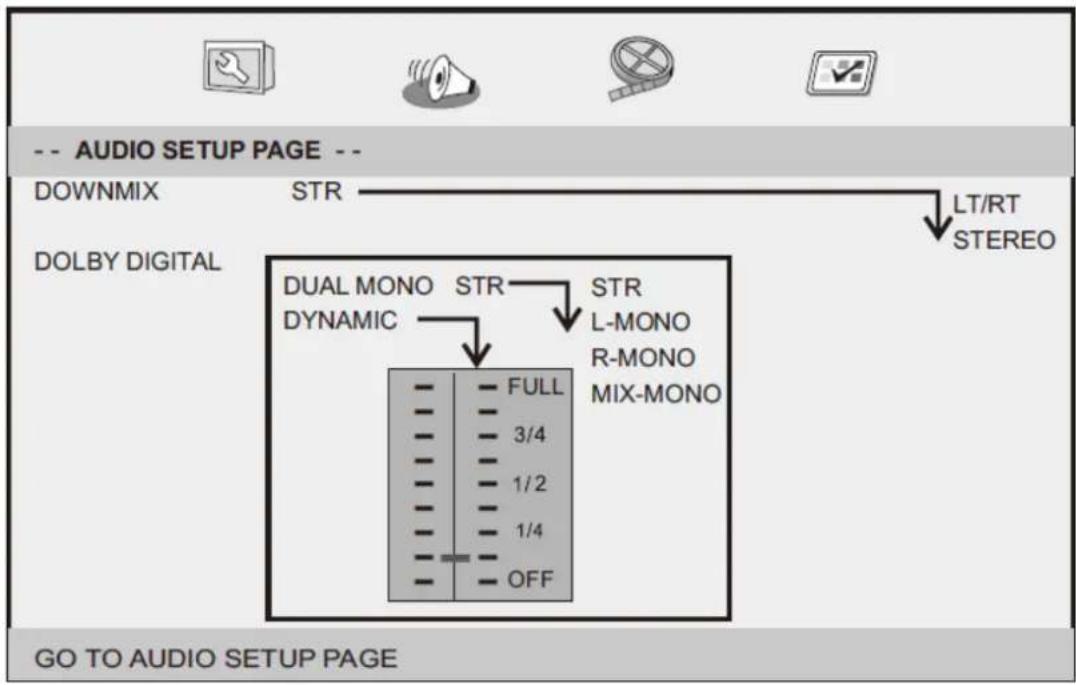

Audio Setup Page

Audio Setup Page

Video Setup Page

Downmix

This opons allows you to set the stereo analog output of your DVD Player.

LT/RT: Select this opon if your DVD Player is connected to a Dolby Pro Logic decoder.

Stereo: Select this opon when the output delivers sound from the two front speakers only.

Dolby digital

The opons included in Dolby Digital Setup are: 'Dual Mono' and 'Dynamic'.

Dual Mono

Stereo: Le mono sound will send output signals to the Le speaker and the Right mono sound will send output signals to the Right speaker.

L-Mono: Le mono sound will send output signals to Le speaker and the Right speaker.

R-Mono: Right mono sound will send output signals to the Le speaker and the Right speaker.

Mix-Mono: Le and Right mixed mono sound will send output signals to the Le and Right speakers.

Dynamic

Dynamic range compression.

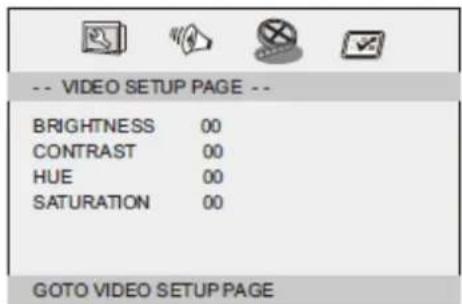

Video Setup Page

VIDEO SETUP PAGE

Brightness, Contrast, Hue, Saturaon: seng the video quality.

Preference Page

Preference Page

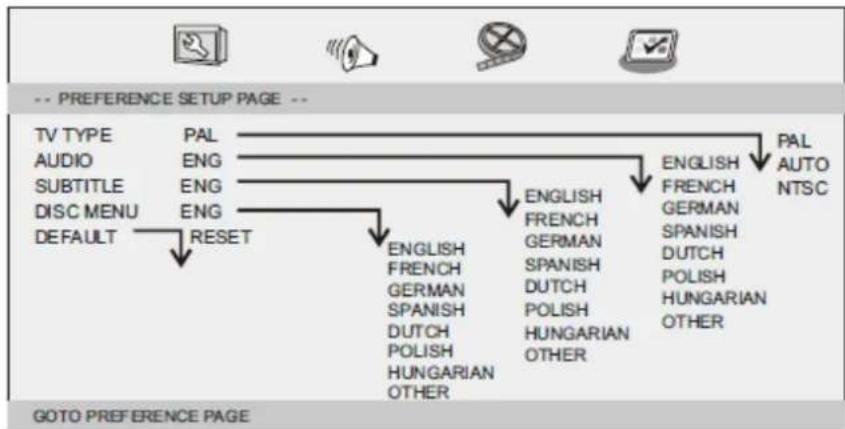

TV Type

Selecng the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible with both NTSC and PAL.

Preference Page

PAL - Select this if the connected TV is a PAL system. It will change the video signal of a NTSC disc and output in PAL format.

NTSC-Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.

Auto: Changes the video signal output automacally according to the playing disk format.

Audio: Selects a language for audio (if available).

Subtle: Selects a language for subtle (if available).

Disc Menu: Selects a language for disc menu (if available).

Default: Back to the factory sengs.

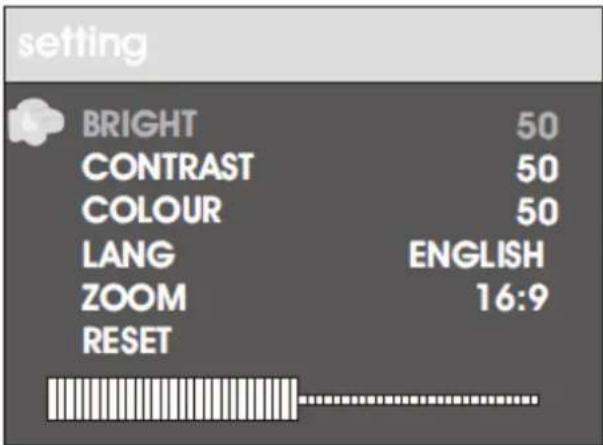

Second display mode

Bright

Adjust screen Bright Seng.

Contrast

Adjust screen Contrast Seng.

Colour

Adjust screen Color Seng.

LANG

Adjust Menu OSD Language

ZOOM

Adjust screen 16:9 or 4:3

RESET

Reset to default seng.

4 Parameters and specicaons

Electronical parameters

Item		Standard requirement
Power consumpon		: <10W
Operang humidity		: 5% to 90%
Output	VIDEO OUT	:1 Vp-p (75 Ω)
	AUDIO OUT	: 1.2 Vrms (1 KHz, 0 dB)
	Audio	:Speaker: 1WX2, Headphones output

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	:NTSC/PAL
Frequency response	: 20Hz to 20 kHz(1 dB)
Signal-to-noise rao	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 85 dB (DVD/CD)

Note: Design and specicaons are subject to change prior noce.

5 Guarantee

Lenco oers service and warranty in accordance with the European law, which means that in case of repairs (both during and aer the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-social service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligaons of the manufacturer will be voided.

6 Disclaimer

Updates to Firmware and/or hardware components are made regularly. Therefore some of the instrucon, specicaons and pictures in this documentaon may differ slightly from your parcular situaon. All items described in this guide for illustraon purposes only and may not apply to parcular situaon. No legal right or entitlements may be obtained from the descripon made in this manual.

7 Disposal of the Old Device

This symbol indicates that the relevant electrical product or baery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and baery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or baeries. In so doing, you will help to conserve natural resources and improve standards of environmental protecon in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Direcve).

8 CE Marking

Products with the CE marking comply with the EMC Directive (2014/30/EU) and the Low Voltage Directive (2014/35/EU) issued by the Commission of the European Community.

Hereby, Lenco Benelux BV, Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essenai requirements and other relevant provisions of Direcve 1999/5/EC.

The declaraon of conformity may be consulted via [e-mail]

9 Service

For more informaon and helpdesk support, please visit www.lenco.com

Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, The Netherlands.

Nederlandss

TV DISPLAY TFT DISPLAY

ANGLE MARK
OSD LANGUAGE
CLOSED CAPTIONS
SCREEN SAVER
AUTO STANDBY

GOTO GENERAL SETUP PAGE

OSD Language (OSD Taal)

U kunt uw eigengewenste taalinstellingen selecteren.

Closed Capons (Ondertels)

Screen Saver (Schembeveiliging)

Closed Capons (Subtulos)

Dual Mono (Mono dual)
