USER MANUAL Nagano SEG

Nagano 55 cm (21,5”) LED BLU-TV11

(All illustrated cables are not supplied) Connecting a DVD player Connect a DVD player using either a SCART cable , the HDMI cable or YPbPr cable (only if your external equipment supports HDMI). HDMI Audio cable YPbPr cable to HDMI SCART (All illustrated cables are not supplied) When using the SCART cable When using the HDMI cable When using the YPbPr cable lect YPbPr as input source

Nagano 55 cm (21,5”) LED BLU-TV25

Nagano 55 cm (21,5”) LED BLU-TV27

Introduction Thank you for purchasing this LED TV which has been designed and manufactured to give you many years of trouble free service. You may already be familiar with using a similar product but please take time to read these instructions which have been written to ensure you get the very best from your purchase. HDMI terface) is the next generation of digital interface. Unlike conventional connec- tions, it transmits uncompressed digital and audio signals using a single cabl input via the HDMI socket on the back of the TV. Safety is important To ensure your safety and the safety of others, please read the safety precautions BEFORE you operate this product. Disclaimer The illustrations of the LED-TV, accessories and menus shown in this User’s Manual may differ from the actual prod- uct. SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE. Take note of the following safety information which appears on the back of the TV. CAUTION: TO PREVENT ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that there are important operating maintenance instructions in the literature accompanying this unit. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. Keep these instructions the TV. WARNING! TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS TV TO RAIN OR MOISTURE. THE TV MUST NOT BE EXPOSED TO DRIPPING AND SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE TV. NOTE: No nak candles should be placed on the TV. NOTE: When displaying the same still picture for more than 2 hours without any interruption, the picture contours of the continuously displayed contents may remain visible on screen, i.e. a persistant image remains. The same applies, when displaying for more than 2 hours: ratio (e.g. 4:3 format) These do not represent any malfunction and will not be covered by the manufacturer’s warranty Nagano 55 cm (21,5”) LED BLU-TV4 This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. tured and rigorously checked prior leaving the fac- tory, as with all electrical appliances it is possible for problems to develop. If you notice smoke, an excessive build up of heat or any other unexpected phenomena, you should disconnect the plug from the mains power socket immediately. Ensur ly ventilated! Never place next to or underneath curtains! disconnect device, the disconnect device shall remain readily operable. supply which matches that stated on the label on the rear of the TV - do not attempt to connect it to any other type of supply. The socket - outlet must be installed near the equip- ment and easily accessible. ply socket with too many other items of equipment. Apparatus with Class 1 construction shall be con- nected to a mains socket outlet with a protective earth connection. Keep away from rodents. Rodents enjoy biting into

exes. Always hold the plug when pulling out the plug from the mains supply sock ex, the ex can become overloaded and cause a short circuit. Set up the unit so that no one is able to trip over the ex. ex, which may dam- age it. Take not ex cannot be reached and pulled by young children, avoiding injury. Do not set up the unit near to heat sources. The casing ex could be damaged by the impact of heat. is done to it. Be careful when collecting sharp edged plastic splinters to avoid injury. Avoid placing the unit on any surfaces that may be subject to vibrations or shocks. To protect the unit during a thunderstorm unplug the AC power cable and disconnect the aerial. Caution: Do not touch the aerial (RF) connector. unplug the AC power cable for safety reasons. The unit becomes warm when in operation. Do not place any covers or blankets on the unit in order to prevent overheating. The ventilation holes are not to be blocked. Do not set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 5 cm (2”) free space around the whole unit. Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas such as Bathrooms, steamy kitchens or near swimming pools. Do not use this unit when moisture condensation may occur Any repairs must be c rsonnel only. pair the unit could be dangerous and potentially cause re hazard. Switch the set OFF and disconnect the mains power supply, then c ce person before attempting to use the unit again. Do NOT remove the safety covers. There are no use- able or serviceable parts inside. You may invalidate the warranty rsonnel must only service this apparatus. internal circuits. Take good care of the remote control, do not drop.

ces on or close to the TV. High temperatures can melt plastic and lead t res.

vents or petr For stubborn stains, you may use a damp cloth with dilute detergent. Headphone Warning Loud music can damage your hearing irreversibly, therefore do not set the volume to a high level when listening through headphones, particularly for lengthy listening periods. Where to install Locate the television away from direct sunlight and strong lights, soft indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen. Place the TV on a sturdy platform of which the surfac steady. This will prevent it from falling over. Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen, and so that small objects cannot be inserted into the ventilation slots or openings in the cabinet. LED Screen The LED display panels are manufactured using an extremely high level of precision technology, however sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of malfunction. Nagano 55 cm (21,5”) LED BLU-TV5

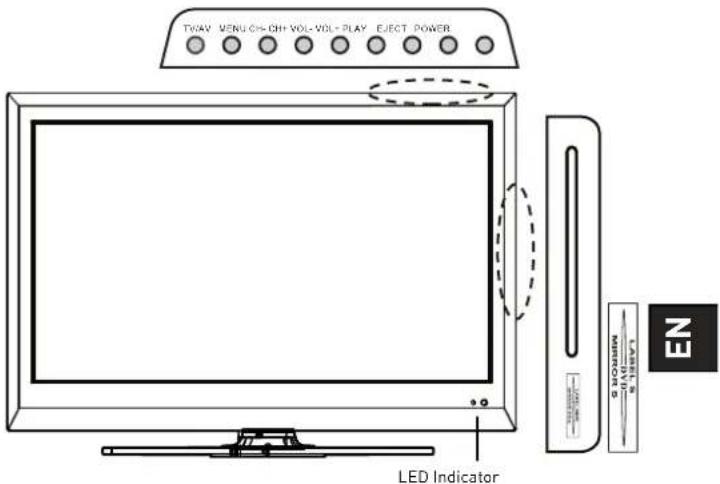

Unit and Accessories TV setRemote ControlBatteriesfor RemoteControlQuick Start GuideUser Guide Getting Started Front view LED IndicatorRemote Control Windowkeep clear Packaging materials are no toys. Please keep away from children. Plastic bags can cause suffocation when pulled over the head. Convertercable forYPbPr videoTV/AV MENU CH- CH+ VOL- VOL+ PLAY EJECT POWERMains adapterSourceMenu HelpQuickStart

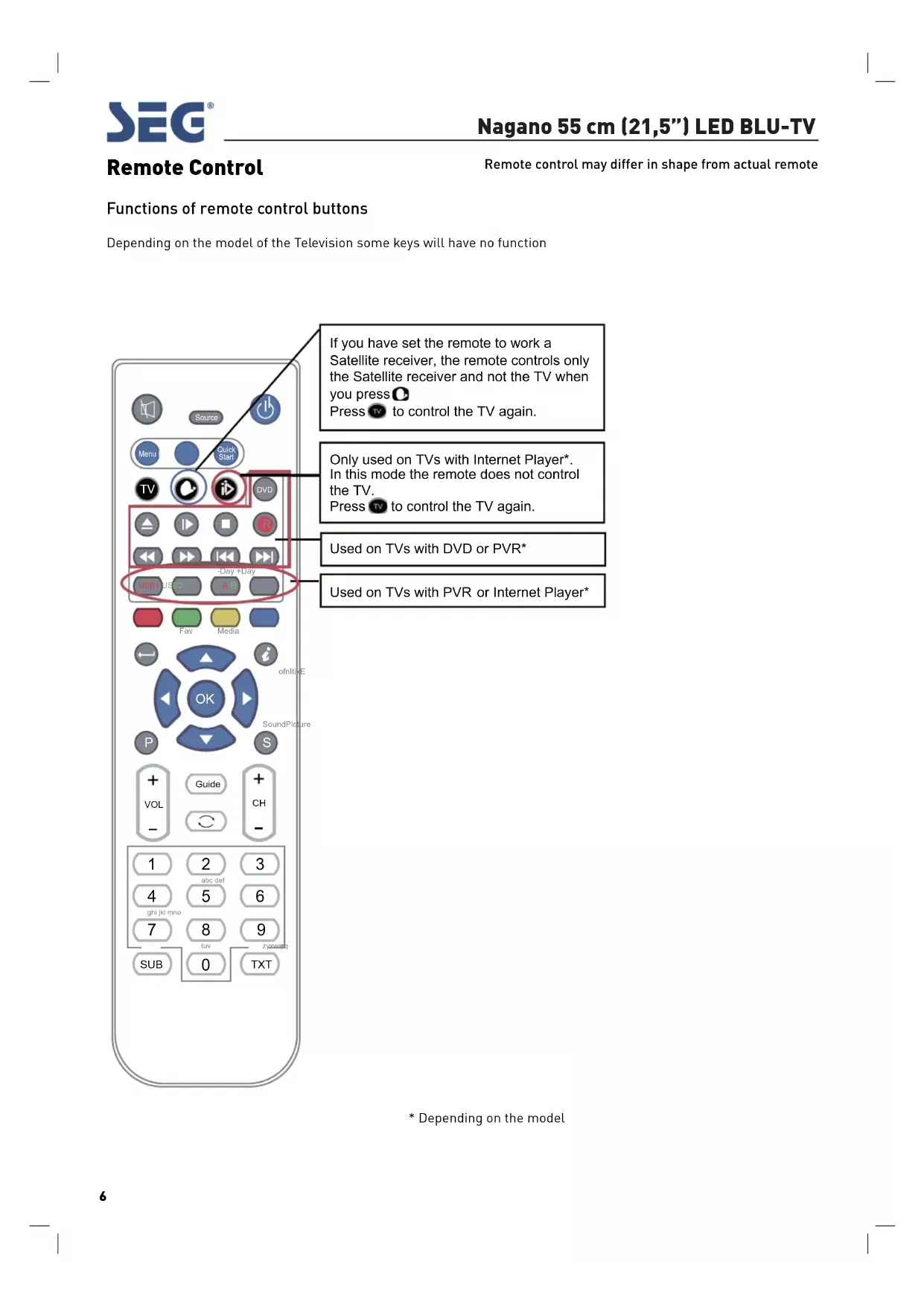

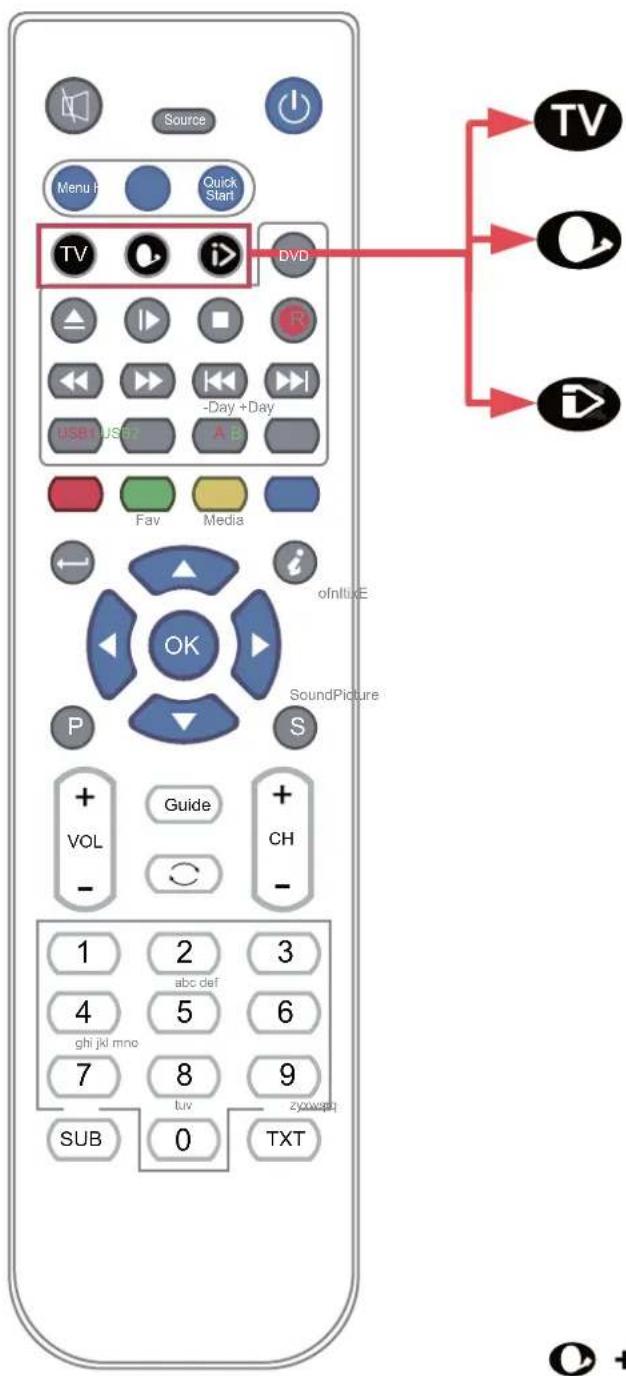

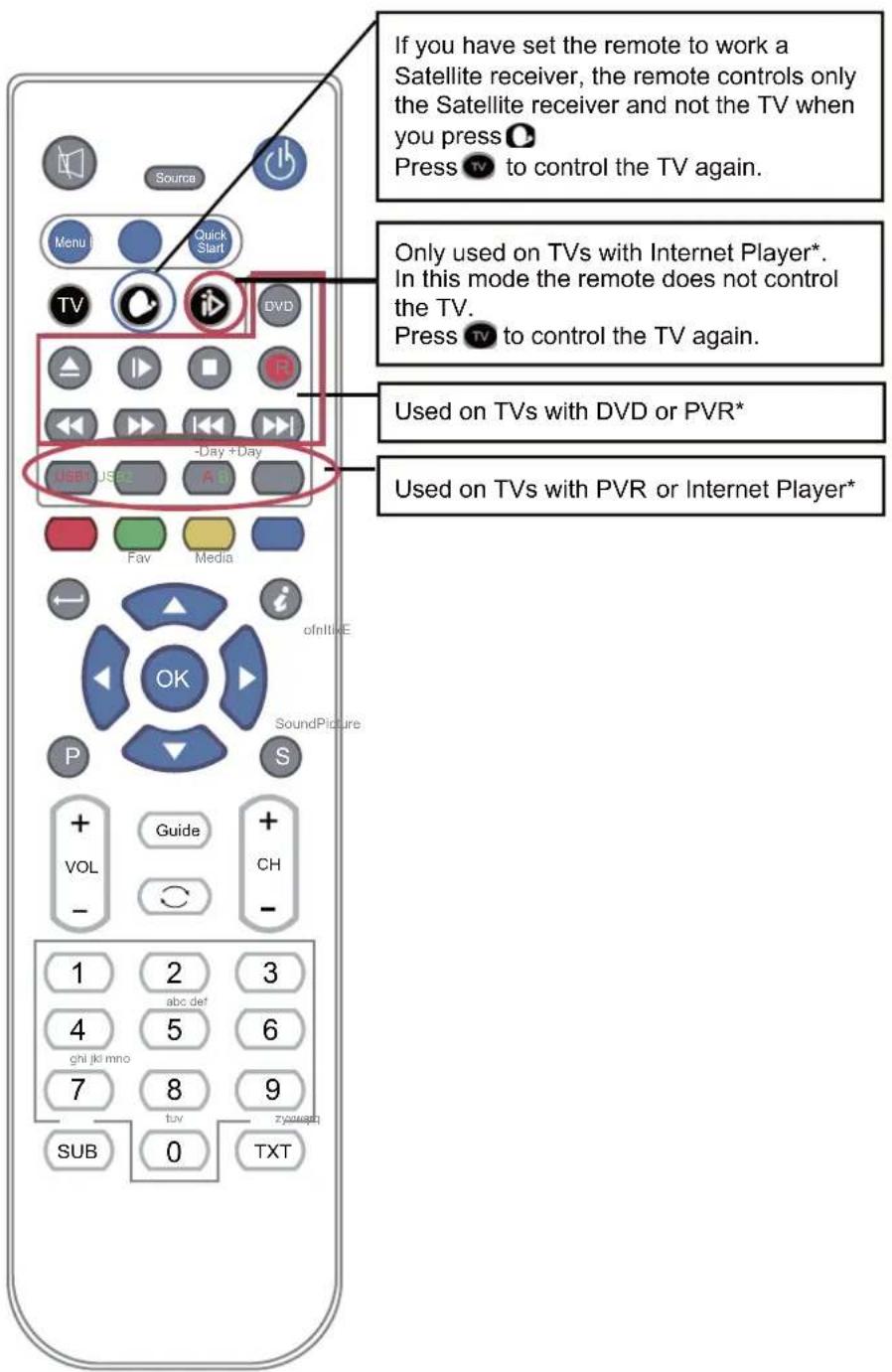

Remote Control Functions of remote control buttons Depending on the model of the Television some keys will have no function Remote control may differ in shape from actual remote If you have set the remote to work a Satellite receiver, the remote controls only the Satellite receiver and not the TV when you press Press to control the TV again. Used on TVs with PVR or Internet Player* Used on TVs with DVD or PVR* Only used on TVs with Internet Player*. In this mode the remote does not control the TV. Press to control the TV again.

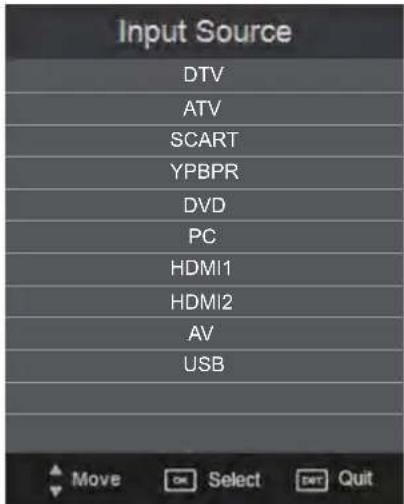

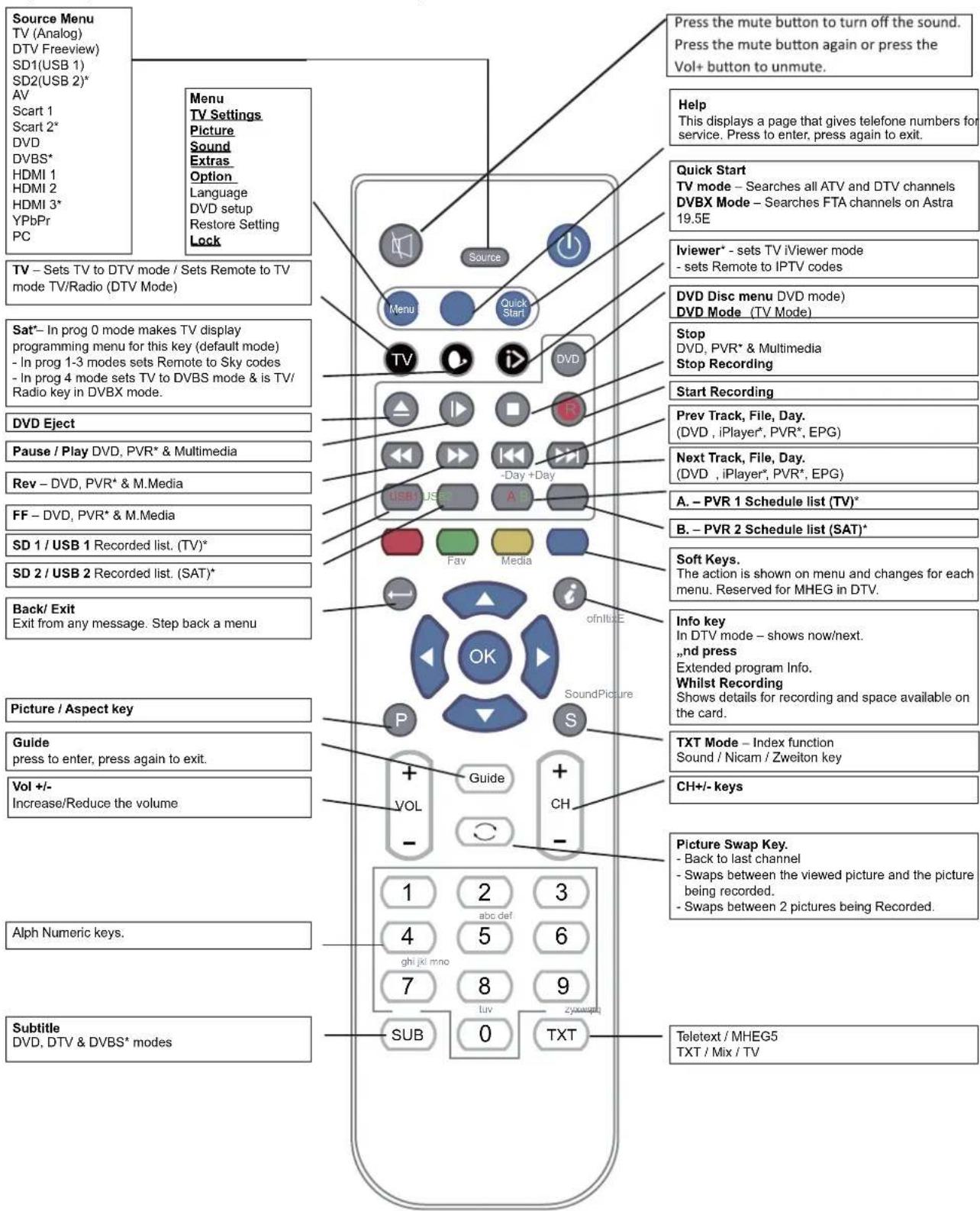

Remote control (continued) Functions of remote control buttons Depending on the model of the Television some keys will have no function Source Menu TV (Analog) DTV Freeview) SD1(USB 1) SD2(USB 2)*

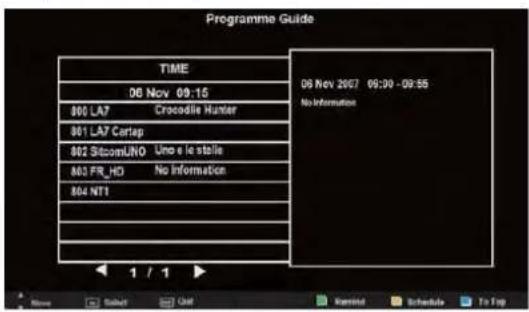

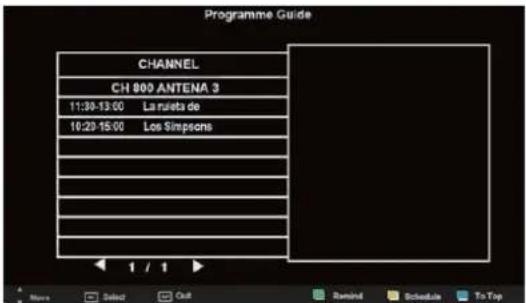

Menu TV Settings Picture Sound Extras Option Language DVD setup Restore Setting Lock TV – Sets TV to DTV mode / Sets Remote to TV mode TV/Radio (DTV Mode) Sat* – In prog 0 mode makes TV display programming menu for this key (default mode) - In prog 1-3 modes sets Remote to Sky codes - In prog 4 mode sets TV to DVBS mode & is TV/ Radio key in DVBX mode. DVD Eject Pause / Play DVD, PVR* & Multimedia Rev – DVD, PVR* & M.Media FF – DVD, PVR* & M.Media SD 1 / USB 1 Recorded list. (TV)* SD 2 / USB 2 Recorded list. (SAT)* Back/ Exit Exit from any message. Step back a menu Picture / Aspect key Guide press to enter, press again to exit. Vol +/- Increase/Reduce the volume Help This displays a page that gives telefone numbers for service. Press to enter, press again to exit. Quick Start TV mode – Searches all ATV and DTV channels DVBX Mode – Searches FTA channels on Astra 19.5E Iviewer* - sets TV iViewer mode - sets Remote to IPTV codes DVD Disc menu DVD mode) DVD Mode (TV Mode) Stop DVD, PVR* & Multimedia Stop Recording Start Recording Prev Track, File, Day. (DVD , iPlayer*, PVR*, EPG) Next Track, File, Day. (DVD , iPlayer*, PVR*, EPG) A. – PVR 1 Schedule list (TV)* B. – PVR 2 Schedule list (SAT)* Soft Keys. The action is shown on menu and changes for each menu. Reserved for MHEG in DTV. Info key In DTV mode – shows now/next. „nd press Extended program Info. Whilst Recording Shows details for recording and space available on the card. TXT Mode – Index function Sound / Nicam / Zweiton key CH+/- keys Alph Numeric keys. Subtitle DVD, DTV & DVBS* modes Picture Swap Key. - Back to last channel - Swaps between the viewed picture and the picture being recorded. - Swaps between 2 pictures being Recorded. Teletext / MHEG5 TXT / Mix / TV Nagano 55 cm (21,5”) LED BLU-TVSourceMenu HelpQuickStart USB1 USB2 Fav -Day +DayofnItixESoundPicture VOL

This button puts the Remote in TV control mode This button puts the Remote in a Multi Satellite control mode

• A number of modes are available. See below for details This button puts the Remote into an Internet Player mode

• This is only used on some TVs and Digital Boxes To Set the Multi-Satellite Mode button The Sat button is programmable in the remote and can be set as follows: To set the button if you have no Satellite Receiver: Press and at the same time press 0. If you have a Satellite Receiver with Recorder (Known as “Plus” type) Press and at the same time press 1. If you have a Satellite Receiv (Known as “HD” type) Press and at the same time press 2. If you have a normal Digital Satellite Receiver (Known as “Digital” type) Press and at the same time press 3. If you want to use this button to switch on the DVBS* Player* Press and at the same time press 4. *DVBS only fitted on certain models.

SAT + SAT HD SAT DIGITAL FTA DVBS Remote control (continued) Dependant on the model of TV some keys will have no function *Dependant on Model

Nagano 55 cm (21,5”) LED BLU-TV9

Installing Batteries in the Remote Control

1. Remove the battery compartment

cover at the rear of the remote control by pushing the retaining clip forward and pulling up.

2. Install the supplied batteries, en-

suring the polarity matches what is shown in the battery compart- ment.

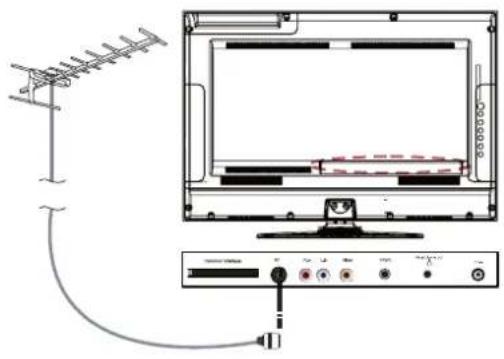

Replace the battery compartment cover. Aerial connection WARNING! ENSURE THE TV AND ALL ANCILLARY EQUIPMENT IS UNPLUGGED FROM THE MAINS BEFORE MAKING ANY CONNECTIONS! Connecting the TV Antenna Connect the TV antenna to the aerial socket with a 75 ohm co-axial plug. For best results use a high gain TV aerial, preferably roof or loft mounted. chase and inst

Way Signal Splitter (not supplied). Using the Remote Control To use the remote control point it at the TV and press the required buttons. You must be within 6 meters and at an angle of less than 30 degrees from the center of the TV. NOTE: Sunshine or other strong light sources may inter- fere with the signal from the remote control. In this situa- tion turn the TV away from the light source.

WHEN INSERTING BATTERIES, REPLACE

BE TREATED WITH CARE AND DISPOSED

OF ACCORDING TO ANY SAFETY OR RECY-

OR THE LIKE. Connecting external devices This instruction manual shows the simplest and most ef- fective way of connecting your TV to ancillary equipment. Alternate methods are listed below. HDMI Lead You can connect this TV to a compatible device using a HDMI lead. This method will give the best picture. Connect the cable from the HDMI equipment to the TV HDMI socket. SCART Lead You can connect this TV to a compatible device using a SCART lead. The connection uses component video signals, i.e. the red, green and blue (RGB) content of the video are sent on separate signals. VGA Cable You can use your TV as a monitor for your personal com- puter by using a VGA cable. Sound from your personal computer may also be played through the TV. CoaxHeadphone out Nagano 55 cm (21,5”) LED BLU-TVCoaxHeadphone outCommon InterfaceTV Signal Satellite Box or Blue Ray DVD Output toAudio amplifier USB device

Connecting external devices (continued) Nagano 55 cm (21,5”) LED BLU-TV11

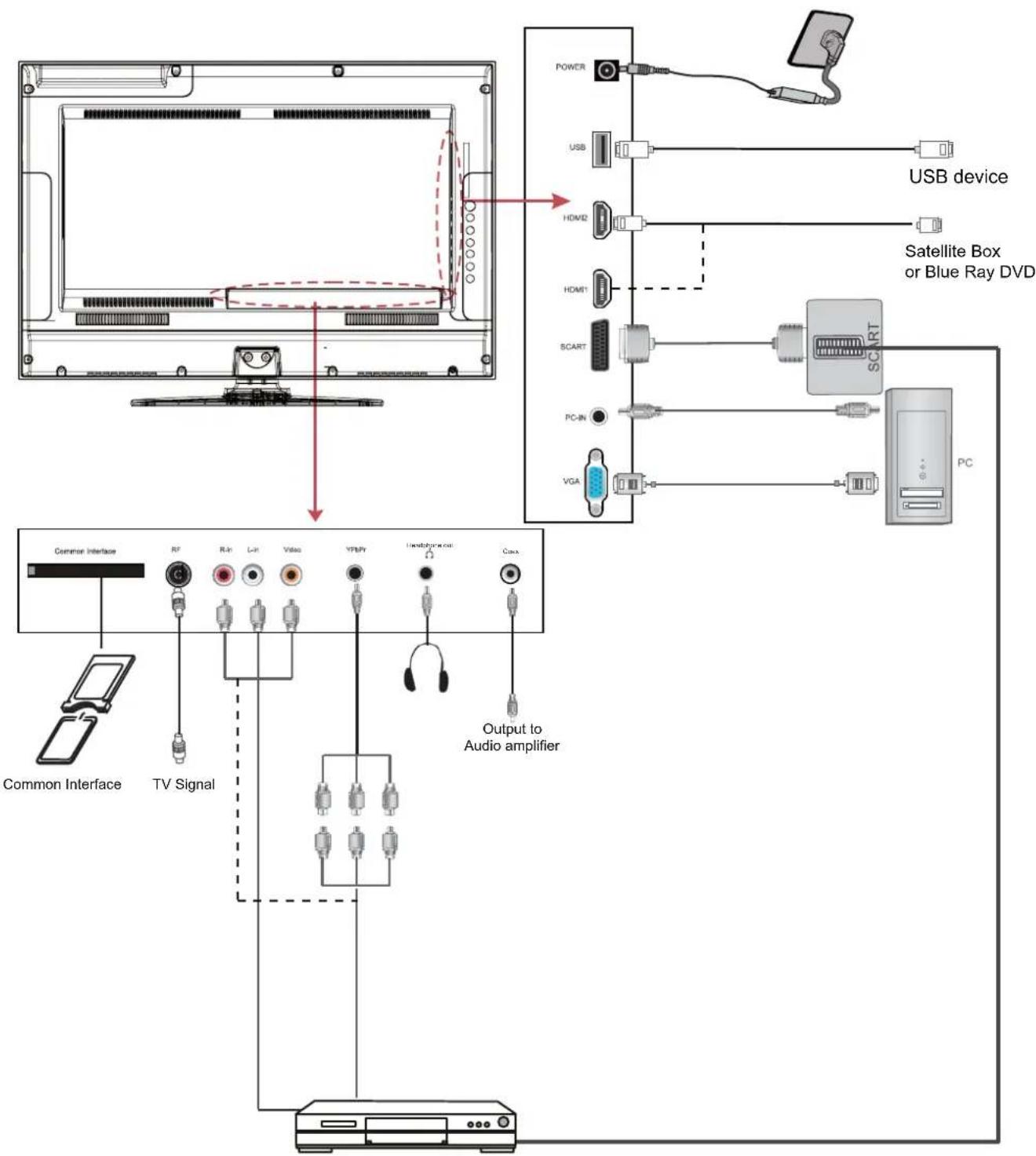

Connecting external devices (continued) CONNECTIONS Connect to the video output of Audio signal input for AV (Shared external devices with YPbPr) Video L/R audio in Connect to USB device for multimediaUSB YPbPr Connect to the YPbPr output on external devices COAX Output to audio amplifier Name Function Description POWER Connect to power supply HDMI 1, 2 Connect to the HDMI socket of your DVD or Satellite Box VGA Connect to the PC VGA output to dis- play PC graphics PC-IN PC audio input SCART Connect to the Scart input / output of external devices Headphone Connect Headphone RF Connect to antenna or cable source CI CI slot (pay as you view card slot) Caution: Before connecting external devices: Makes sure to disconnect the appliances from the power supply in order to avoid any potential damage from occurring.

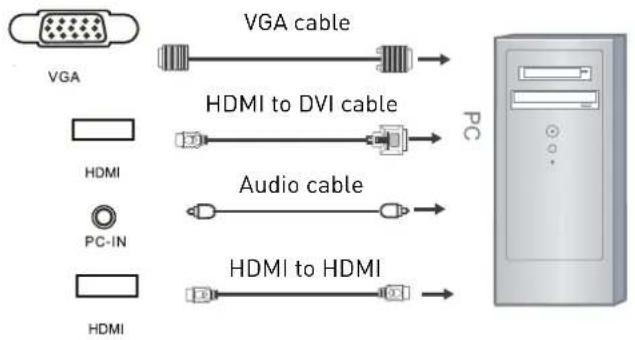

rectly attached before connecting the appliances to the power supply. PC connection As PCs are sometimes still supplied with a ‘conventional’ CRT monitor, you may need to adjust the display set- tings of your PCs graphics card, otherwise the pictures may not appear correctly. Switch on your PC (still with your original monitor connected) now select the screen resolution, and select 60Hz refresh rate. Switch off your PC, then connect it to your TV while both appliances are still switched off. VGA, HDMI PC Connection Use a PC-VGA cable (not supplied) to connect the TV to your PC. You can also use an HDMI cable to connect to your PC (if your PC Graphic card supports HDMI). When the HDMI cable is used, the PC audio cable is no longer required. If you use the HDMI to DVI cable, you will need to use the PC audio cable. Connect all cables carefully and do not bend or break the connector pins. When using the VGA cable When using the HDMI cable VGA cable HDMI to DVI cable Audio cable HDMI to HDMI (All illustrated cables are not supplied) Connecting Video camera and Video recorder Video camera era. camera. Note: to the video camera instruction manual. Video recorder recorder. Note: To connect the video recorder using other cables, refer to the video recorder instruction manual. Nagano 55 cm (21,5”) LED BLU-TV12 Scart cable AV cable Video recorder Video camera (All illustrated cables are not supplied)

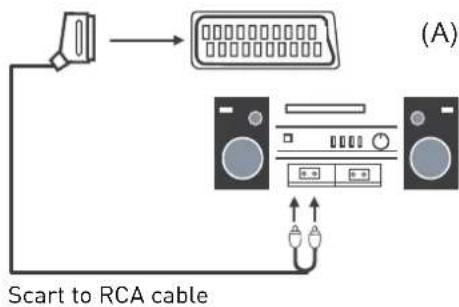

Connecting an audio system You can supply the TV sound to the stereo system (A) with the Scart socket. Use a special Scart cable SCART to RCA. (Please consult y structions for details). If you have a surr coder (B) Use the Scart cable or the special Scart cable Scart to RCA. Scart to RCA cable Scart cabl Coax cable

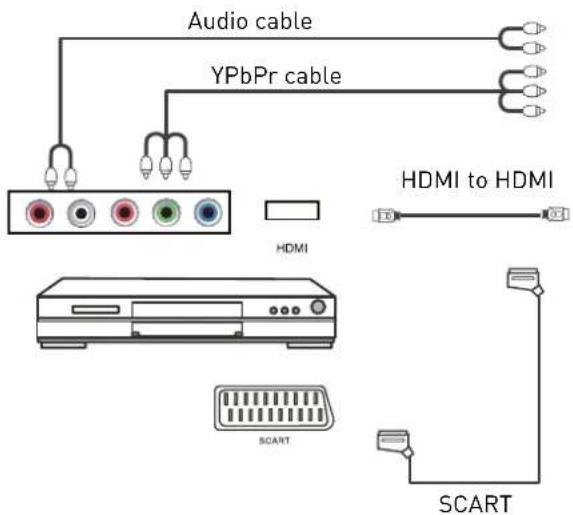

(All illustrated cables are not supplied) Connecting a DVD player Connect a DVD player using either a SCART cable , the HDMI cable or YPbPr cable (only if your external equipment supports HDMI). HDMI Audio cable YPbPr cable to HDMI SCART (All illustrated cables are not supplied) When using the SCART cable When using the HDMI cable When using the YPbPr cable lect YPbPr as input source Use Scart adapter cable Nagano 55 cm (21,5”) LED BLU-TV13

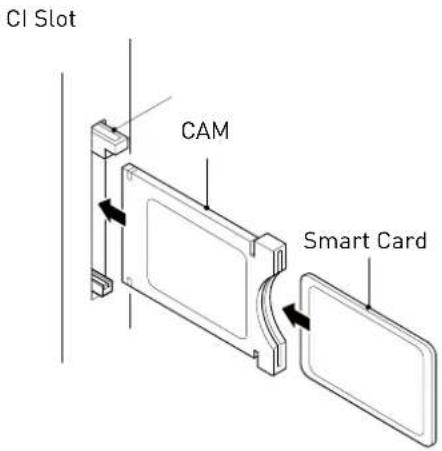

Common Interface Slot

USING YOUR COMMON INTERFACE SLOT

Common Interface The Common Interface (CI) slot is designed to acceptthe Conditional Access Module (CAM) and Smart Cardin order to view the pay TV programmes and additional services. Contact your Pay Per View TV service provider to get more information about the modules and subscrip-tions.NOTE: Conditional Access Module and Smart Cards aresold separately.WARNING! SWITCH OFF YOUR TV BEFORE ANY MODULE IS INSERTED INTO THE COMMON INTERFACE SLOT,THEN ADD THE SMART CARD TO THE CAM.CI Slot CAM Smart Card1. Turn on the TV and ensure ‘DTV’ Source is selected.2. If the CAM is detected the TV will display the followingmessage on the screen. “Common Interface Moduleinserted” wait for a few moments until the card is activated.3. Select the relevant digital Pay Per View channel.4. Detailed information on the Smart Card in use is dis played5. Press the Ok button to access the card menu. Refer tothe Module Instruction Manual for setting details. When the module is removed, the following messagewill appear on the screen. “Common Interface moduleremoved”. Auto installation setup Power On / Off the LED TV To turn on the LED TVPress the power button on the LED TV or the button on the remote control, the standby indicator will light green.To turn off the LED TVPress the power button on the LED TV or the button on the remote control, the standby indicator will light red.When you initially turn on the LED TV y rst time installation menu as below:Ensure that the aerial is plugged in to the TV, Make sureyour Remote is in TV mode (by pressing button),switch on the TV by pressing.Y rst time installation menu.Press the button on the remote control to start the tuning procedure. This procesvailable ATVand DTV channels and store them.By pressing the Quick Start buttrst time installa-tion can be recalled at any time. Nagano 55 cm (21,5”) LED BLU-TV14 Source Menu You can select the input source menu by pressing the Source button on the remote control or the TV / AV button on the LED TV. Press Source button on the remote control. Use to move to the desired input source Press to select. Menu Settings

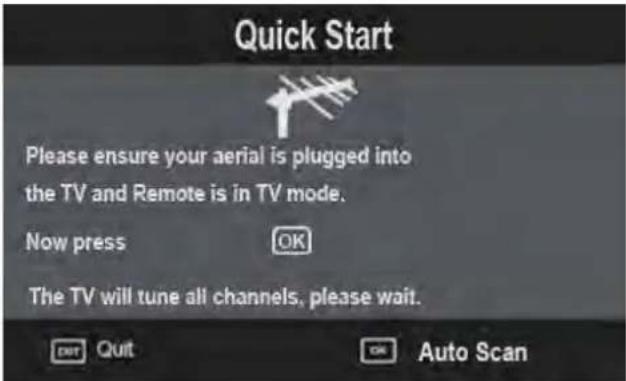

1. Turn the LED TV on.

and buttons to navigate through the menu.

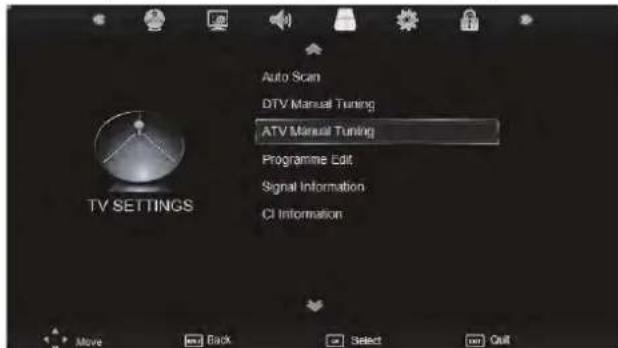

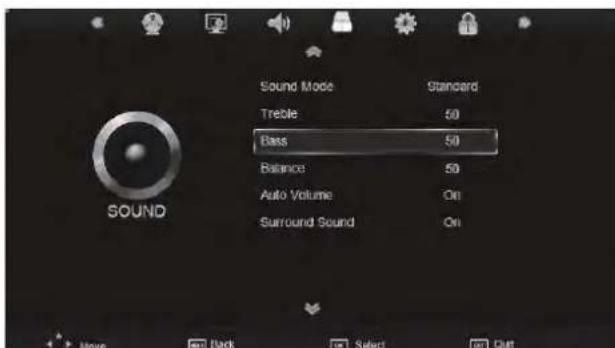

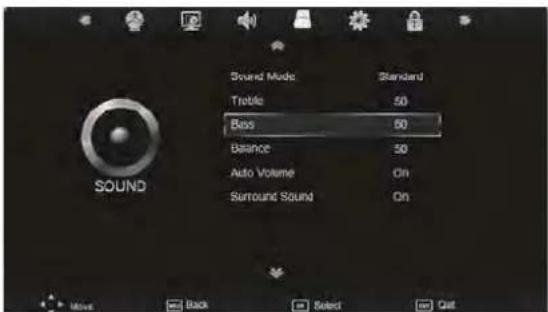

Allows you to search channels and set up a variety of channel options. (Select DTV source for example) PICTURE MENU Allows you to make adjustments to your picture settings. (Select DTV source for example) SOUND MENU Allows you to customize the sound options and effects. (Select DTV source for example) DTV ATV SCART YPBPR DVD

USB ColourColour Nagano 55 cm (21,5”) LED BLU-TVMenu Settings (continued)

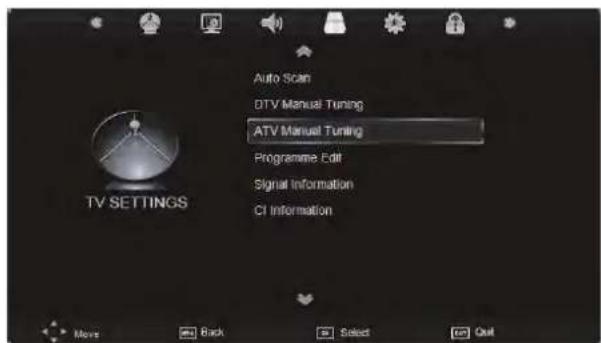

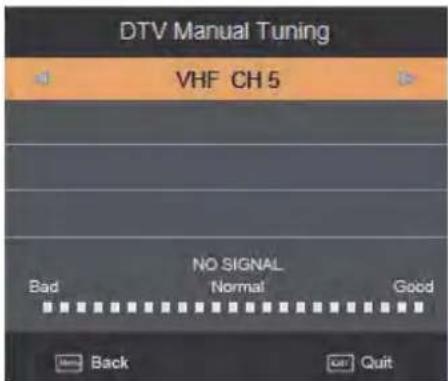

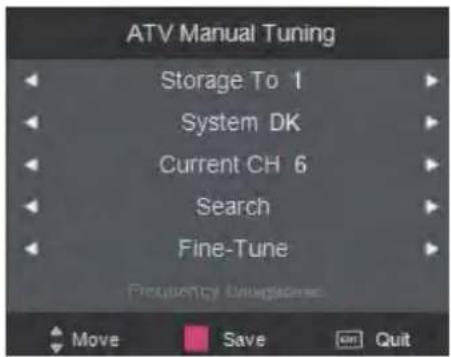

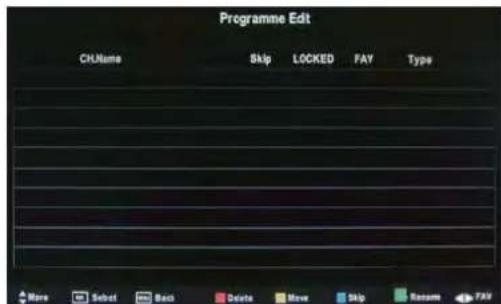

Description Auto Scan Press the OK button to enter the menu, and select the Country and Tuning mode for the TV, then press OK button to start the auto tuning. DTV Manual Tuning Press the OK button to enter the DTV Manual Tuning menu, select a DTV channel, press the OK button to start searching.DVD SetupRestore Setting

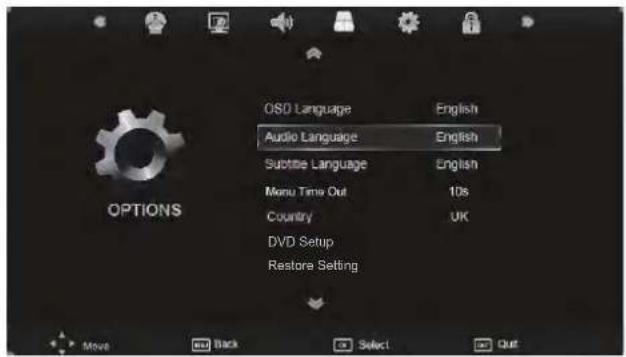

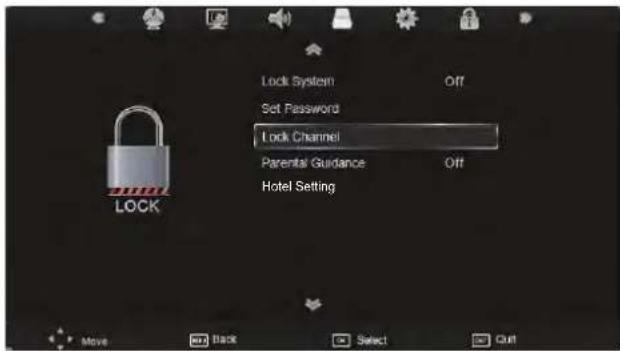

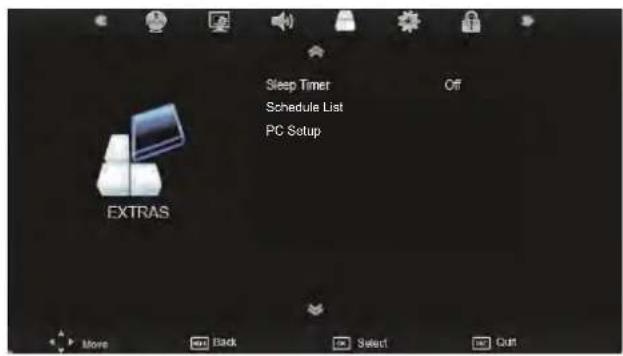

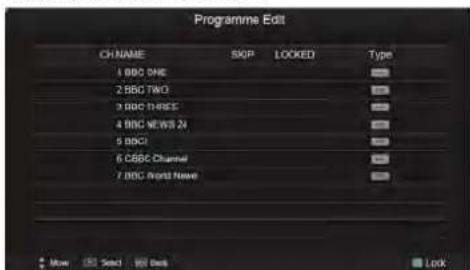

EXTRAS MENU Allows you to setup a variety of time options. (Select DTV source for example) LOCK MENU Allows you to set up a variety of lock options. (Select DTV source for example) OPTIONS MENU Allows you to set up a variety of options. (Select DTV source for example)ATV Manual TuningPress the OK button to enter the ATV Manual Tuning menu.Storage To : Select a position for storing the programme.System: Select a TV system for searching.Current CH : Select the channel you want to manually tune .Search : Press / buttons to manually search.FineTune : Press / buttons to fine-tune.Fre quenc y : Display s the current frequency.Note: Press the RED button to save your settingsPC SetupSchedule ListHotel Setting Nagano 55 cm (21,5”) LED BLU-TVMenu Settings (continued ) Programme Edit Press the OK button to enter the Programme Edit menu as below. Delete: Select a channel and press the RED button to delete it. Move: Select an ATV channel, and press the YELLOW button, then you use buttons to change the position of the programme, press YELLOW again to confirm the change. Press menu to exit and your new changes will be saved. Skip: Select a channel and press the BLUE button, this will label the channel. As long as the channel has a skip label it will be skipped when searching through the channels using the CH+/- buttons. Rename: Select an ATV channel and press the GREEN button to change the name of the channel by using the buttons. Signal Information Displays the digital TV-signal information (DTV mode only). CI Information Please contact your “pay perview” provider who can supply a viewing card and cam unit with instructions for their use.

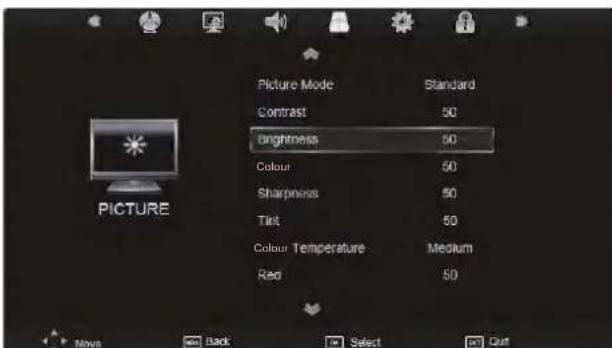

PICTURE menu Picture Mode: Choose from Standard, Dynamic, User and Mild. Note: Contrast, Brightness, Colour and sharpness are only available and can be adjusted in the User mode option in the Picture Mode Settings. Contrast: Controls the difference between the brightest and darkest regions of the picture. Brightness: Controls the overall brightness of the picture. Colour:Control the colour. Sharpness: Increase this setting to see crisp edges in the picture; decrease it for soft edges. Tint: Controls the tint ( NTSC mode only). Colour Temperature: Choose from Medium, Cool, User and Warm. Red: Controls the red colour of the picture. Green: Controls the green colour of the picture. Blue: Controls the blue colour of the picture. Aspect Ratio: Choose from Auto,4:3, 16:9, Zoom1, Zoom2, Just Scan and Panorama. Noise Reduction: Choose interference noise modes from Off, Low, Middle, High and Default. Colour Colour Sound Menu Sound Mode: Allows you to select Standard, Music, Movie, Sports or User. Note: Treble, Bass, Balance can only be adjusted when set in User mode. Treble: Controls the relative intensity of higher pitched sounds Bass: Controls the relative intensity of lower pitched sounds FAV:Select a channel and press or button to add this channel to favourite lost. Balance: Controls the volume between the left and right speaker. Auto Volume: Controls the TVs volume automatically when ON is selected Surround Sound: Turn on / off the surround sound function by selecting “off” or “surround”. Nagano 55 cm (21,5”) LED BLU-TVPC Setup (PC mode only): Press the OK button to enter the submenu to adjust the Horizontal / Vertical position or size and phase of the picture.

EXTRAS Menu Sleep Timer: Allows you to setup the sleep timer among 10min, 20min,30min,60min,90min,120min, 180min,24-0min and off Lock Menu Lock System: Turn ON/OFF the lock system function Note: you should enter the code to operate the menu (Default code is 0000)Set Password: If the code has been changed you mustenter the current password.New: Enter new password Enter new passwordBlock Program: Use buttons to select the channel and press the GREEN button on the remote control to lock the channel. Note: You must enter your password to view channels that have been blocked. OPTIONS Menu OSD Language: choose the menu languageAudio Language (can only be selected in DTV mode): Select the audio language.Subtitle Language (can only be selected in DTV mode) Select the subtitle language.Menu Time Out: Allows you to setup the length of time that the on screen display is visible: 5s, 10s, 15s, 20s, 25s, 30s, 35s, 40s.Country: This is defaulted to UK, but can be changed by using the Auto tune function.DVD Setup: Press the OK button to enter the DVD Setup menu(in DVD mode only). Restore Setting: Press the OK button to restore the factory default settings. Parental Guidance: Allows you to select the parental guidance mode.Hotel SettingPC SetupSchedule ListHotel Setting Press to select Hotel lock, press to select ON or OFF Lock Channel Press to select Lock channel, press to select ON or OFF Set Source Press to select Set Source, press to select a source or OFF the source changed. Channel number Once Set source displayed on the screen.

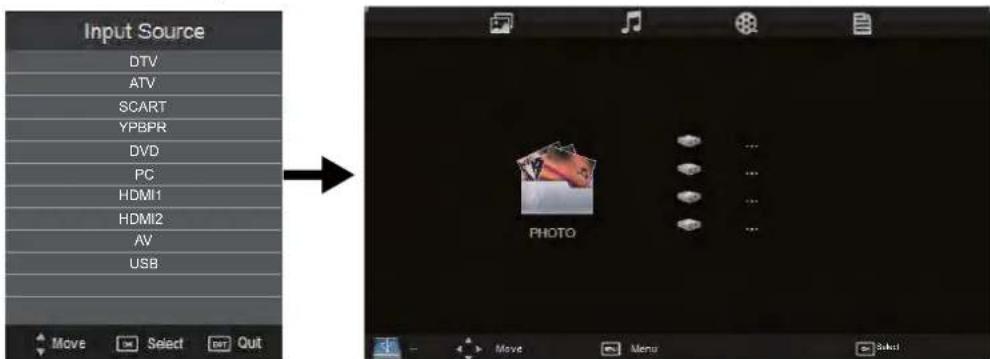

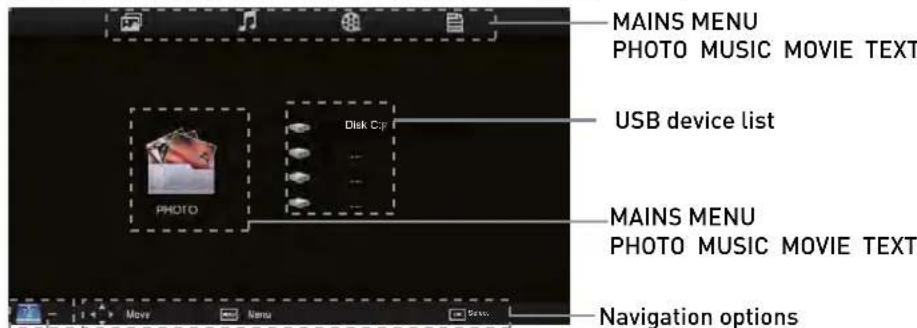

USB to enter the Multimedia menu below.

USB Key Lock Press to select Picture Lock, press to select ON or OFF. This fun on will disable the TV bu ons TV/AV / Menu/CH+ CH-/VOL+ VOL- Max Volume Press to select Max Volume, press to select the required volume value. When powered on the TV will not exceed the set volume value. Source Lock Press to select Source Lock, press OK to a vate the menu. Press to select ON or OFF, all sources that are set to ON will be dea vated in the TV Source menu. Note: USB refers to the TV Source MEDIA. Clear Lock Press to select Clear Lock, press OK to a vate. All Hotel

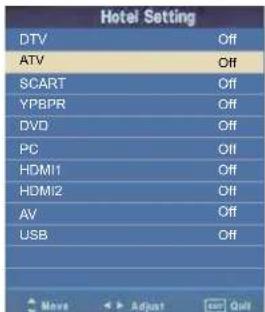

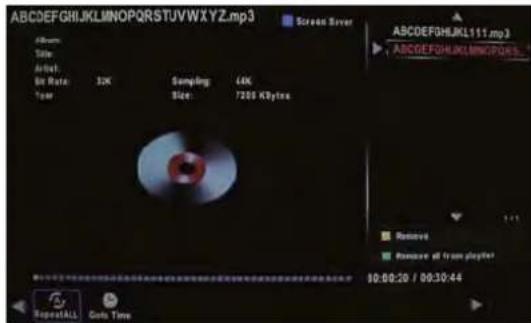

ngs will be dea vated u l Hotel Lock is set to on again. Source Lock Menu Nagano 55 cm (21,5”) LED BLU-TVMusic Press / buttons to select the option on the menu, and press the OK button to activate. Press / buttons to select the option on the menu, and press the OK button to activate. Press / buttons to select the music, and press the OK button to play. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None. Goto Time: Program the music to play from the time you set. Press the OK button to display the time table, and select the position with the buttons. set the time using the numeral buttons on the remote, select “OK” and press the OK button to search. Screen Saver: Press the BLUE button to enter the Screen Saver mode, press again to exit. Listen to music

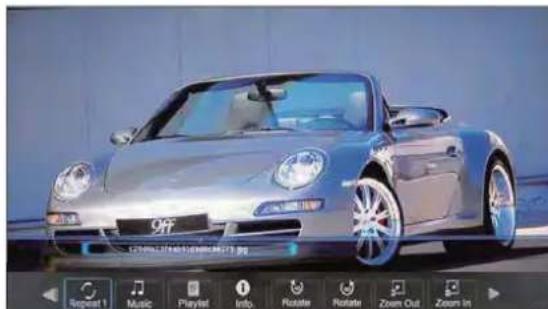

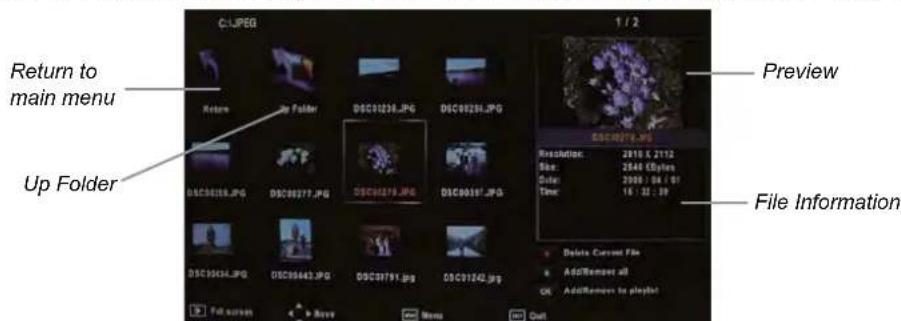

Movie Play the movie Press buttons to select the option on the menu and press OK button to activate. Nagano 55 cm (21,5”) LED BLU-TV Photo Photo viewing Press buttons to select the option on the option on the menu and press OK to activate. Repeat: Select the repeat mode from Repeat All, R- epeat 1, Repeat None. Music: Play/Pause the background music of your choice. Playlist: Display the playlist on the screen and select the photo of your choice. Info: Display the information of the file. Rotate: Turn the photo clockwise or counter clockwise Zoom In/Out: Zoom IN/OUT of the photo. Move View: Move the photo in Zoom in mode. Text Repeat: Select the repeat mode from Repeat All, Rep- eat 1, Repeat None. Set A-B: Select and play the preferable part of the file by setting A and B at the beginning and end. Press OK button to cancel. Playlist: Display the playlist on the screen. Info: Display the information of the movie file. Slow: Play the movies at slow speed, press button to cancel and resume at normal speed Step: Step quickly through the movie by using this option. Zoom In/ Out: Zoom In/Out of the movie screen. Aspect Ratio: Select the aspect ratio of the on screen display. Move View: View the film in Zoom out mode. Press / buttons to select the option on the menu, and press the OK button to activate Prev/Next page: Turn to previous/next page of the text. Prev./Next: Turn to previous/next file. Stop: Stop auto turning pages. Music: Play/pause the background music of your choice Playlist: Display the playlist on the screen. Info: Display the information of the text file. View text files Goto Time: Program the movie form the time you set.20 Press / button to highlight the date, now press the / buttons to select the date you want to view (7 day EPG) Press the / buttons to highlight the channel option, press / buttons to select the channel you want to view. EPG menu You can select a programme for recording using the / buttons. Remind: Press the GREEN button to display the remind menu, and set the time. when the programme starts the TV will automatically switch to this programme. Schedule: Press the YELLOW button to display the schedule list. To Top: Press the BLUE button to return to and highlight the top of the table. Display the programme guide by pressing the GUIDE button. Press the BLUE button to highlight the top of the table in yellow, press the / to select CHANNEL or TIME. Nagano 55 cm (21,5”) LED BLU-TV Programme list by TIME Programme list by CHANNELDVD Operation 4:3 Letter Box This is selected when the player is connected to a normal TV. Wide-screen images are shown on the screen,with black belt on the top and bottom. Wide This is selected when the player is connected to a wide-screen TV. OSD Language This is used to select the OSD language Screen Saver Start the screen saver, the screen saver image will appear when the player stops or the picture is paused for a few minutes.This saver can keep the screen from being damaged. On(Start the screen saver) Off (Turn off the screen saver) Last Memory This is setting enables you to watch the DVD from the last point it was turned off,(for example changing the source to watch TV) ON(Activate the last memory function) OFF(Deactivate the last memory function) Press the Power button on the TV or the remote control, and select “DVD” source by the TV/AV(SOURCE). If there is no disc in the DVD player the screen will show "NO DISC". Insert Disc according to picture next to disc slot. Do not touch the playing surface. Hold the disc around the outside with your fingers and place the disc into the slot The player will automatically draw the disc into the player

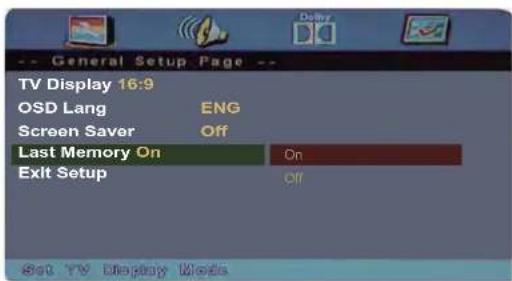

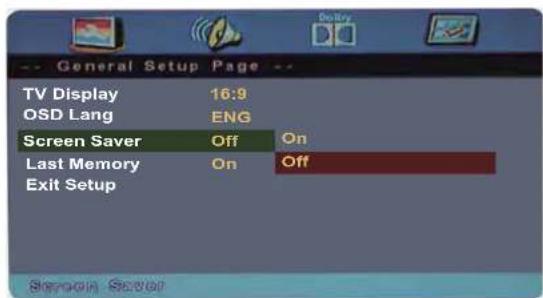

Off Last Memory On Exit Setup

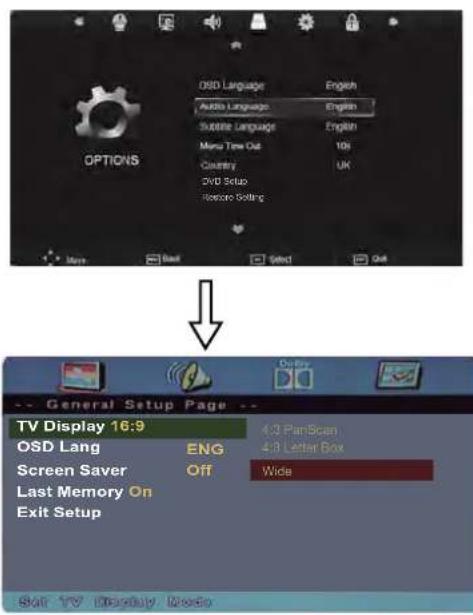

DVD Setup is a menu to enable the user to configure the DVD settings. Press the Menu button on the remote control and select the OPTIONS MENU. Scroll down and select DVD Setup. When in the DVD setup menu use the button to navigate along the top of the menu and the to scroll up and down the menus. In the General setup page options scroll down to Exit setup and press OK. TV Display 4:3 Pan Scan This is selected when the DVD player is connected to a normal TV. Wide-screen images are shown on the screen,but with some parts cut automatically. Nagano 55 cm (21,5”) LED BLU-TVSpdif Setup

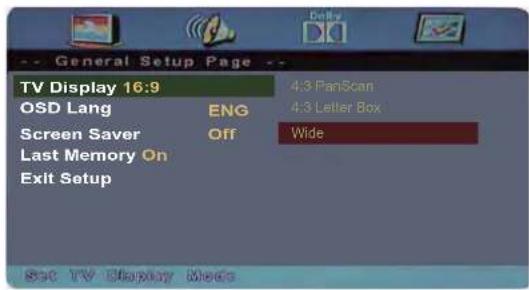

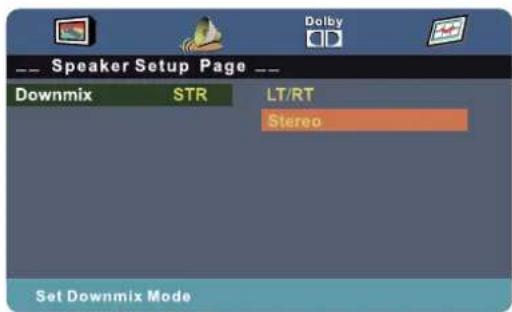

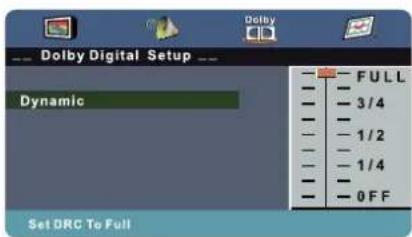

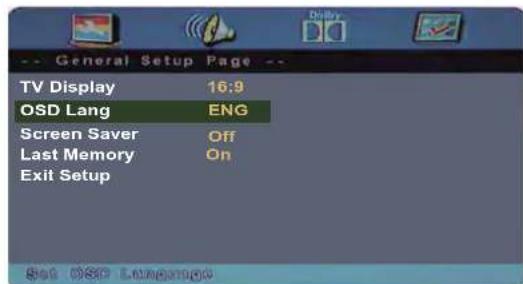

Off TV Display 16:9 ENG Off OSD Lang Screen Saver Last Memory On Exit Setup Speaker Setup Downmix LT/RT A disc recorded multi channel soundtrack,the output signal will be incorporated to left and right channel. Stereo A disc recorded multi channel soundtack,The output signal will be incorporated to stereo. Dynamic This option is used to set the compression ration in order to control the sound (Volume) contrast.

TV Type PAL This is selected when the player is connected to a PAL system TV. MULTI The player will set the TV system according to the disc in the tray. NTSC

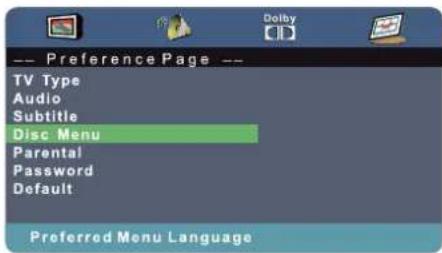

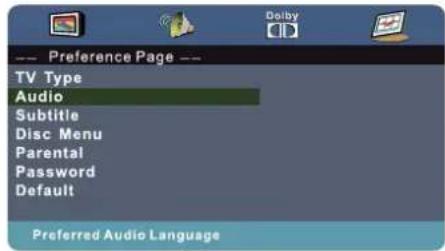

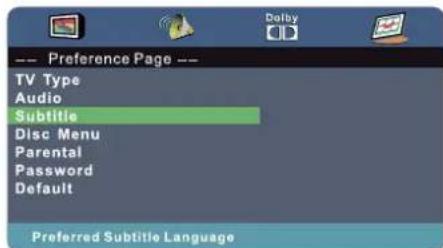

Subtitle Disc Menu dio Choose the language you want to watch your DVD in. Only if the language is recorded to the DVD will this option be functional. Enter the Audio setup page using button, press ok see the options. This menu is only available when in DVD mode and no DVD is playing or the DVD has been stopped. This is selected when the player is connected to a NTSC system TV. Choose the subtitle language you want to watch. Only if subtitles have been recorded to the DVD will this option be functional. Choose the language you want to see the Disc menu in. Only if the language is recorded to the DVD will this option be functional. Nagano 55 cm (21,5”) LED BLU-TVDisc Care Parental KID SAFE

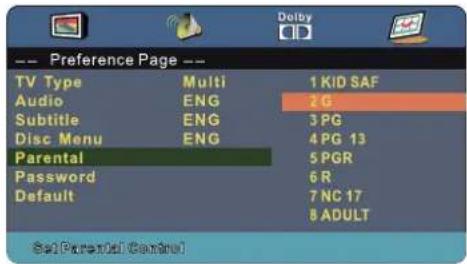

NC 17 ADULT About Disc Terms Title Parental lock gives you the option of selecting an age control grade. For example if PG is selected any disc inserted rated higher will not be played. Generally, pictures or music compressed on a DV D are divided into several sections, "title". Chapter The smaller section unit of picture or music in a DV D under the title, usually one title is comprised of one or more chapters and each of them is numbered for easy searching, but some discs may not have a recording chapter. Track A segment of picture or music on a CD , Each track is numbered for searching. Care of Disc Video disc contains high-density compressed data that needs proper handling.

1. Hold the disc with fingers by outer edge and/or the

center spindle hole. Do not touch the discs surface.

2. Do not bend or press the disc.

3. Do not expose the disc to direct sunlight or heating

sources, Stere discs in cabinet vertically, and in dry condition. Prevent exposure to: Direct sunlight Heat or exhaust from a heating device Extreme humidity Clean the disc surface with a soft, dry cleaning cloth, Wipe the disc surface gently and radically from center toward the outer edge. Do not apply thinner, alcohol, chemical solvent, or sprays when cleaning. Such cleaning fluids will permanently damage the disc surface.

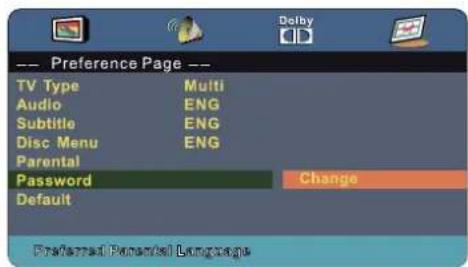

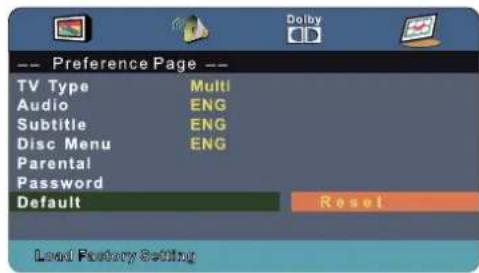

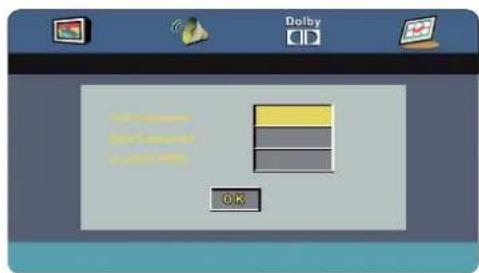

Password The password is a tool to lock and unlock the parental Lock setting. Note: (Default password is 123456) Default To set the DVD settings back to factory default, choose reset and press the OK button. Nagano 55 cm (21,5”) LED BLU-TVTROUBLE SHOOTING GUIDE To assist in locating possible faults use the help guide below. NOITULOSMOTPMYS No Picture, no sound Check that the TV is correctly plugged in. Check that the TV is connected to a suit- No Picture able power source. Check the electrical supply is turned on. ted securely. Ensure Ensure that the TV is powered on. Check that the cables are fit the aerial and/or external sources are connected. Press the SOURCE button to change the source. Turn the TV on or off. lennahc rehtona othctiwS .tes si edom etuM fi kcehc dna nottub ETUM eht sserPdnuoS oN and see if the same problem occurs. Press V+ button to see if the problem can be solv ed. No picture on some channels Check that correct channel is selected. Adjust the antenna. No colour on some channels (black &white) Check if the same problem exists on other channels. Ensure the correct picture settings are selected. Noisy, Snowy, Ghosting picture. Check the antenna is connected correctly. Check that the antenna Is in good condi- tion. Try moving the antenna. If none of the suggestions seem to work, try switching your TV off and then on again. If this does not work contact our technical helpline. NOTE: The TV must only be repair registered service person. Never attempt to remove the back cover as the TV has dangerous voltages inside that may cause fat re. TECHNICAL SPECIFICATIONS cations of the TV that you have just purchased may vary from the information in this table due to technical in- novations. cations TV System PAL/BG/DK/ I Audio System BG/DK/I Screen size 21.5” (Diagonal) Resolution 1920 x 1080 Pixels (RGB) Aerial input 75 Ohm (unbalanced) Audio output power 2 x 3W Power requirements 12V 5A Power consumption 32W Standby power consumption <1W gk4.4thgieW

Will not accept disc DVD not selected. Select DVD mode with SOURCE button. Screen shows "NO DISC" Disc placed incorrectly. Disc must have mirror side facing you if single side. Disc damaged or dirty. Inspect disc. If damaged you must discard. If dirty see "Disc care" page. Picture "Freezes" or breaks up Disc damaged or dirty, See "Disc care" page Certain disc functions not working. Disc may not support required feature. Read disc information. Nagano 55 cm (21,5”) LED BLU-TV This unit is a class 1 laser product. However this unit uses a visible laser beam which could cause operate the player correctly as instructed.100mm 100mm 4 Mounting holes Screw size M4 x10 Remote contr cations Type InfraredControl distance 5mControl angle 30 degrees (Horizontal)Batteries 2 x 1.5V, Size AAADimensions 48 x 193 x 20mmWeight 120g (without batteries) Wall Mounting This unit is VESA-Compliant and designed to be wall mounted with a VESA-Compliant 100mm x 100 mm mounting kit. Mount this unit according to the instruc-tions of the wall bracket (not supplied) Waste Electrical Recycling Correct disposal of Product This sign indicates that this product may not be disposed of with your regular household waste. The recycling and separate collection of such products is your responsibility. Please drop off the above mentioned waste at a designated place for recycling waste electri-cal and electronic equipment. If you do not know whereto drop off your waste equipment for recycling, pleasecontact your local city ce or household waste collec- tion service.The crossed out wheeled dust bin symbol indicates that batteries and /or accumulatorsmust be collected and disposed of separatelyfrom household waste.If the battery or accumulator contains morethan thevalues of lead (Pb), mercury(Hg), and/or cadmium (Cd)in the Bat- tery Directive (2006/66/EC), then the chemicals Hg Cd Pb symbols for lead(Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.By participating in separate collection of batteries, youwill help to assure the proper disposal of products and batteries thus help to prevent potential negative conse- quences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city ce or the shop where you pur- chased this product.This appliance complies with European Safetyand Electrical directives. the following EU regulations:En55013:2001+A1:2003+A2:2006EN55020: 2007EN61000-3-2: 2006 EN61000-3-3:1995+A1:2001+A2:2005EN55022:2006(CLASS-A)EN55024:1998+A1:2001+A2:2003 Manufacturer: Schmid Electronics GmbH In Dürrfeldslach 3D-66780 Rehlingen-Siersburg (Germany)Fon: [phone]Fax: [phone]

Slot Common Interface

Nagano 55 cm (21,5”) LED BLU-TV27 Nagano 55 cm (21,5”) LED BLU-TV
