Product Type	LED Television
Brand	SEG
Model	Riga
Screen Size	40 inches (102 cm diagonal)
Resolution	1920 x 1080 pixels (Full HD)
Refresh Rate	60 Hz
Dimensions (with stand)	902 x 557 x 197 mm
Weight (with stand)	10.2 kg
Power Consumption (typical)	75 W
Standby Power Consumption	< 0.5 W
Power Supply	100-240 V ~ 50/60 Hz
Remote Control	Included (batteries not included)
HDMI Ports	2
USB Ports	1 (USB 2.0)
Audio Output	3.5 mm headphone jack, optical audio
Built-in Speakers	2 x 8 W
Connectivity	Wi-Fi, Ethernet (RJ45)
Smart TV Platform	Yes (proprietary - limited apps)
Tuner	DVB-T/T2/C/S2
Maintenance & Cleaning	Wipe with soft dry cloth; do not use chemicals
Safety Warnings	Do not block ventilation openings; avoid liquid ingress
Spare Parts Availability	Remote control, stand, power cord
Repairability Index	6.5 / 10 (estimated)

Frequently Asked Questions - Riga SEG

How do I connect my SEG Riga TV to Wi-Fi?

Go to Settings > Network > Wireless. Select your network, enter the password, and confirm. If you encounter issues, ensure the router is within range and restart both devices.

Why is there no picture but sound is working?

This may indicate a backlight failure. Try adjusting the brightness and backlight settings. If the screen remains dark, you may need professional repair.

Can I mount the TV on a wall?

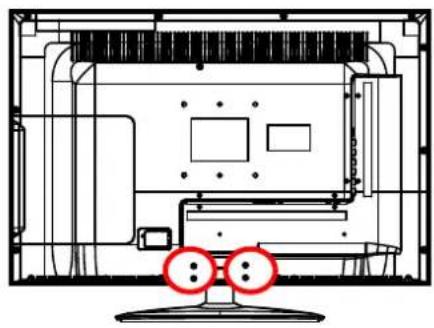

Yes, the TV is VESA compatible (200 x 200 mm). Remove the stand and attach a compatible wall mount using the screws provided with the mount.

How do I perform a factory reset?

Navigate to Settings > System > Reset > Factory reset. Confirm the action. All personal data will be erased.

What file formats are supported via USB?

The TV supports video (MP4, AVI, MKV), audio (MP3, AAC), and image (JPEG, PNG). For unsupported formats, convert using a PC.

How do I update the TV firmware?

Ensure the TV is connected to the internet. Go to Settings > System > Software update and select Check for updates. Follow on-screen instructions.

The remote control is not working. What should I do?

First, replace the batteries. If it still doesn't work, try resetting the remote by removing batteries and pressing all buttons for 10 seconds. Reinsert batteries and test again.

How can I improve audio quality?

Use the Equalizer in Sound settings to adjust bass and treble. For better sound, connect an external speaker via optical or Bluetooth.

The TV turns off by itself. Why?

This could be due to sleep timer, auto power off settings, or overheating. Check Settings > System > Power. Ensure vents are clear and not blocked.

What is the warranty period for my SEG Riga TV?

SEG typically offers a 2-year warranty for manufacturing defects. Keep your purchase receipt as proof. For claims, contact the retailer or SEG support.

USER MANUAL Riga SEG

Cartoon illustration of a smiling computer monitor with a document, no text or symbols present

Cartoon illustration of a computer monitor with a smiling face and a money bag, symbolizing online shopping or financial activity (no text present)

Illustration of a boy standing next to a smiling computer monitor (no text or symbols present)

Cartoon illustration of a distressed monitor with a sad face and falling tears, accompanied by a printer (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and electrical plug, showing hands reacting to stress (no text or symbols)

Cartoon illustration of a computer monitor with a sad face and waving hands (no text or symbols)

Silhouette of a person pushing a ladder with a hammer inside, enclosed in a circular frame (no text or symbols)

Cartoon illustration of a smiling computer monitor with arms and legs, surrounded by clouds and a small phone (no text or symbols)

Illustration of a smiling computer monitor and a delivery worker (no text or symbols present)

Technical line drawing of an electronic device interior with no visible text or symbols

Montagedaten

Quick Installation Guide.... 1

Important safety instructions.... 2

Setting up and using your TV.... 5

What's included with your TV.... 7

Sockets on the back of your TV.... 8

Remote Control Instruction.... 9

Select Input Source.... 13

Basic menu operation.... 13

ATV menu.... 17

PC menu.... 19

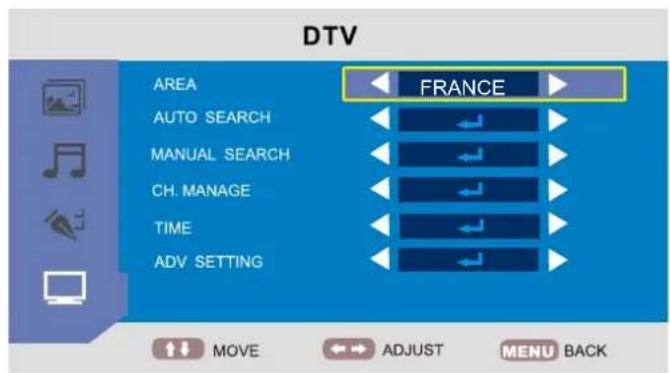

DTV menu.... 20

Shortcut Key for DTV Source.... 25

USB mode.... 27

DVD operation.... 29

Troubleshooting Guide.... 35

Your TV's specification.... 37

Wall mounting operation.... 38

Note:

Illustration may differ and certain functions and settings are available only in certain situations.

RIGA

Quick Installation Guide

English : TV Channel Setting

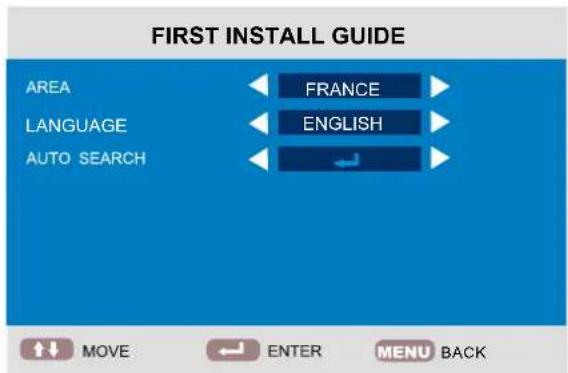

When you turn on your unit for the first time. The FIRST INSTALL GUIDE will display on the screen.

Press the ▲/▼ button to select the AREA, then press the ◀/▶ button to adjust the area

Press the ▲/▼ button to select the LANGUAGE, then press the ◀/▶ button to adjust the language

Press the ▲/▼ button to select AUTO SEARCH, and then press ENTER.

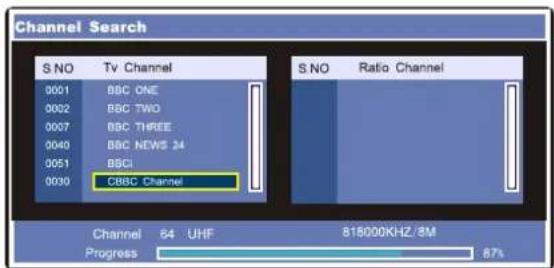

The screen will display as shown in Picture 2.

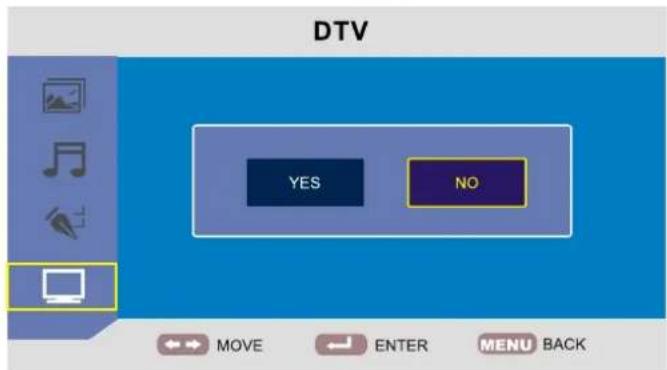

Press ◀/▶ to select YES and press ENTER. The TV will auto search for all the ATV program in your area. This will take a few minutes.

This process takes several minutes

When ATV search has finished, your TV will show the DTV auto search menu on the screen and auto search for all the DTV program in your area. This will take a few minutes.

When auto search is finished, your TV will show the first channel found.

Picture 1

Picture 2

Picture 3

Picture 4

Important safety instructions

Warning

• Do not let your TV become wet(for example, by keeping it in a damp room, leaving it outside or dripping water on it).

• You must not put objects filled with water on your TV (including vases of water).

• Read these instructions carefully.

• Keep these instructions in a safe place.

Cartoon illustration of a smiling computer monitor with a document, no text or symbols present

1. Follow all the instructions.

4.Do not put your TV near water.

Cartoon illustration of a computer monitor with a smiling face and a money bag, no text or symbols present

1. Only clean your TV with a dry cloth.

Illustration of a person interacting with a smiling computer monitor and a power plug (no text or symbols present)

6.Do not block the ventilation openings.

Cartoon illustration of a distressed computer monitor with a frowning face and waving hands (no text or symbols)

1. Do not put your TV near any heat source (such as radiators or stoves), or near equipment (including amplifiers) that produce heat.

Cartoon illustration of a computer monitor with a sad face and falling petals, accompanied by a printer (no text or symbols present)

1. Your TV is either fitted with a polarised plug or grounding-type plug. A polarised plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, ask an electrician to replace your plug socket so that it fits your TV plug.

2. Do not walk on, trap, pinch or damage the power cord. Take care that the cord is not pulled, especially at plug sockets and where it comes out of the TV.

Cartoon illustration of a computer monitor with a sad face and connected to a plug (no text or symbols)

1. Only use attachments and accessories (included with your TV) that we have approved.

Important safety instructions

1. Only use TV trolleys, stands, tripods or tables that we approve. If you use a trolley/table with your TV, be careful when you move it. So that it doesn't tip over.

Silhouette of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

1. Unplug your TV both power and antenna during lightning storms or when you won't be using it for a week or more.

Cartoon illustration of a smiling computer monitor with hands and a small phone, emitting smoke from above (no text or symbols)

1. If your TV needs repairing, use a qualified service technician. If you damage your TV, it will need to be serviced.

Illustration of a smiling computer monitor and a delivery worker pointing at it (no text or symbols present)

1. Be careful when you plug the power cord into a socket. Do not overload wall sockets. They could damage your TV and could give you an electric shock or cause a fire. Check your TV's power cord from time to time, and unplug your TV if the power cord looks worn. Stop using it until you have had the power cord replaced by a qualified technician. Do not twist, kink or pinch the power cord.

2. Disposing of your TV. The fluorescent lamp inside your TV has a small amount of mercury in it. Phone your local council to find out where your nearest recycling centre is located to ensure the TV is scrapped in compliance with UK & EU regulations.

NOTE: When still images played back over a period of more than two hours continuously, contours of content displayed will remain on the screen, i.e. permanent afterimage to remain on the screen.

The same applies if over a period of more than 2 hours
- an unchanged background
• Logos, video games, computer images, teletext
- not be a full-screen format (4:3 formats reproduced).

They represent no operation errors and are not covered by the warranty.

Note

-If your TV is cold, there may be some small 'flickers' when you turn it on. This is normal and there is nothing wrong with your TV.

-Avoid touching the LCD screen with any object or holding your finger against it as this may cause damage.

Important safety instructions

You will see these stickers on your TV.

This symbol means there are wires in your TV which are not insulated. If you touch these wires, you may get an electric shock.

This symbol means you should read the servicing guide before you take further action.

[ Caution ]

-You should not service your TV unless you are qualified to do so. If your TV breaks down, contact a qualified TV engineer.

-Make sure you plug in your TV securely.

-If you use your TV to play video games or connect to your computer to use as a screen, keep brightness and contrast at a low level. Images with a high level of brightness or contrast may burn on to the screen permanently.

How to clean your TV

1 Wipe the TV screen with a soft, dry cloth
2 Do not use solvent methyl benzene. Strong chemicals may damage your TV screen.
3 Make sure you switch the TV off before you clean it.

Setting up and using your TV

1. Check the voltage shown on the serial number or rating label on your TV, and make sure your TV is compatible with the voltage in your home. If you are not sure about the voltage you have in your home, please contact your distributor or an electrician.
2. Make sure you plug the power cable into the socket securely. If you have problems plugging in your TV, please contact the shop you bought your TV from to replace the power cable.

The plug is designed, so that it will only fit one way. If you have problems plugging in the socket properly, please contact the shop you bought your TV from.

1. Do not overload power sockets or extension cords when you are setting up your TV. If you overload the power sockets or extension cords, you could receive an electric shock or cause a fire.
2. Do not place any objects on the power cord when you are setting up your TV. Keep your TV screen away from any sharp objects such as screw drivers or knives so that you don't scratch or damage the TV screen. Only use the correct power cord when you set up your TV.
3. Make sure you turn off your TV when you are not using it. If you won't be using your TV for a week or more, unplug both power and aerial connections.
4. The vents at the back of your TV are to let air cool the inside of your TV, so it doesn't overheat. Please make sure the vents are not blocked.
5. Do not put your TV on a bed, sofa or carpet. This may block the vents.
6. Do not put your TV in an enclosed space, such as on a bookshelf or in a TV cabinet. Doing this may block the vents.
7. Keep your TV away from direct sunlight.
8. Do not place your TV on an unsteady shelf or desk. The TV could fall and injure you.
9. Do not put objects inside the TV (such as children's toys). Doing this could give you an electric shock or damage the parts inside your TV.

When you must call a technician

If any of the following happens, unplug your TV and contact the shop you bought your TV from or a qualified technician to repair your TV.

1. If the power cord or plug is damaged
2. If liquid gets into the screen
3. If your TV is damp or wet
4. If your TV is damaged
5. If the TV doesn't work properly.

The temperatures your TV will work in

Your TV will only work when the temperature is in the range of 0^ C– 40^ C.

Setting up and using your TV

Do not try to repair your TV yourself. There is high voltage inside it and you could receive an electric shock.

Safety notice

Your TV has a CE marking. This means your TV meets both the EMC directive (89/336/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) that the European Community have issued.

When you need to throw your TV away

Please contact the shop that sold you your TV when you need to throw it away.

1. Do not throw your old TV away with your household waste.
2. You can also contact your local council to see if they can collect your old TV. If you throw your TV away at a landfill site, dangerous chemicals from your TV can leak into the ground and get into the food chain.
3. When you replace your TV with a new one, the shop who sold you your TV are legally responsible for taking your old TV and throwing it away.

What is included with your TV

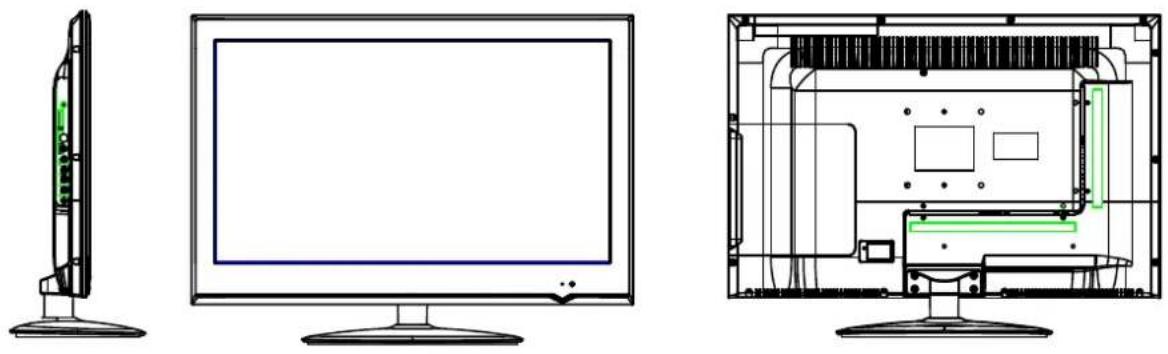

What your TV should look like

What is included with your TV

User guide	Remote control	Power cord	AC adapter	Screwdriver and screws

How to use your remote control

1. Take the back cover off your TV remote and put two AAA batteries into the remote control. Make sure the + and - symbols on your batteries match the diagram.
2. Replace the batteries. So they are facing the right way. If you won't be using the remote control for a long time, take the batteries out. Use your remote control carefully. Do not drop. Keep the remote control away from water, direct sunlight and hot surfaces.

Three grayscale images of a cylindrical device with internal components, shown from different angles (no text or symbols visible)

Sockets on the back of your TV

▲ ▶ VOL- VOL+ CH- CH+ MENU INPUT STANDBY

1. DC IN : Main power input.
2. USB: Connect to portable usb device.
3. HDMI: Connect the HDMI output jack of DVD.
4. VGA: Connect a computer to these jacks.
5. PC AUDIO: Connect the Audio output jack of PC.
6. SCART: Connect the SCART jack of VCR or DVD.

7. HEADPHONES: Connect the earphone.

8. YPbPr: Connect the YPbPr output jack of DVD or VCR.

9. VIDEO: Connect the Video output jack of DVD or VCR.
10. L/R AUDIO INPUT: Connect the Video/YPbPr Audio output jack of DVD.
11. RF IN: Connect the antenna.
    12.CI-Solt

WARNING:

"At full volume, prolonged listening to the portable audio device may damage the user's hearing"

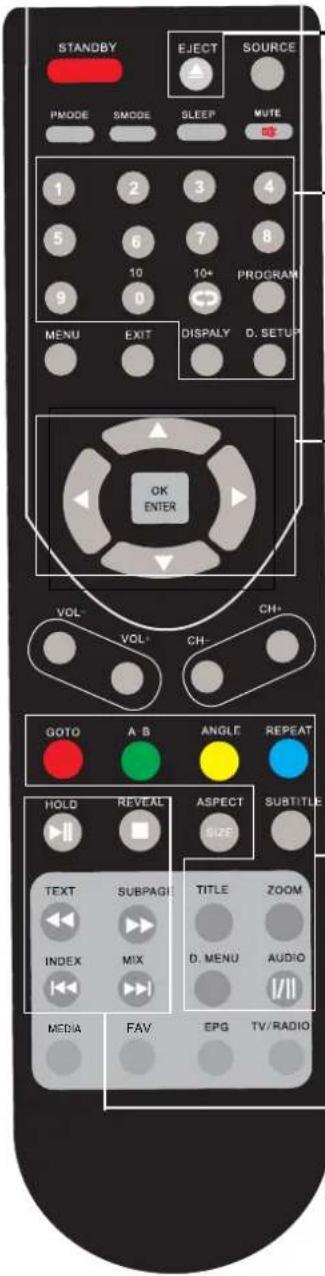

Remote control instruction in TV mode

STANDBY

Turn the TV ON or OFF.

SOURCE

Press to cycle through the input source in following:

PMODE

Press repeatedly to cycle through the available video picture modes.

SMODE

Press to cycle through the different sound settings.

SLEEP

Select amount of time. Let your TV turn off automatically.

MUTE

Press to mute the sound. Press again or press V+ to un-mute the TV.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 2 seconds.

Return to the previous channel viewed.

MENU

Brings up the main TV menu to the screen.

EXIT

Exit the main TV menu to the screen.

DISPLAY

Press to display the source and channel's information.

THUMBSTICK(▲/▼/◄/►/OK ENTER)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

VOL+/VOL-

Press to increase/decrease the sound level.

CH+/CH-

Press to scan through channels.

ASPECT

Press to change the screen scale.

VII

Press to search the NICAM modes.

FAV

Press to increase/decrease your favourite program.

Remote control instruction in TELETEXT mode

Remote control instruction in DTV mode

Remote control instructions in DVD mode

EJECT

To eject the disc.

NUMBER BUTTONS

Numerical buttons for various data.

PROGRAM

Program a disc playing in a desired sequence.

DISPLAY

Press to display the DVD information of DVD mode.

D. SETUP

Used for selecting programs. It may also be used to execute commands.

THUMBSTICK(▲/▼/◄/►/OK ENTER)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

GOTO

It is possible to get access to any point on the directly using the 'GOTO' menu.

Press GOTO to access the 'GOTO' menu.

A-B

This button enables you to repeat a selected section from the disc.

ANGLE

Selects various camera angles for certain scenes or passages on the DVD during playback.

REPEAT

Press REPEAT to cycle through the repeat play options.

SUBTITLE

Select a different subtitle language(the DVD disc must have the subtitle you selected.

TITLE

When DVD is playing, brings up the Title Menu.

ZOOM

In play state, press ZOOM, the player will zoom in the picture one time.

D.MENU

DVD disc menu Access to menu.

AUDIO

AUDIO selection buttons in DVD mode.

PLAY/PAUSE in DVD mode.

DVD STOP

Jump to previous and next track.

Fast backward and forward key.

SELECT INPUT SOURCE

• Press SOURCE button to display the source list.
• Press UP/DOWN button to select the source you want to watch.
• Press OK/ENTER button to enter the source.

Press UP/DOWN button to select PICTURE MODE, then press LEFT/RIGHT button to adjust (Available Picture Mode: Standard, User, Soft, Vivid).

BRIGHTNESS/CONTRAST/SATURATION/SHARPNESS/HUE

Press UP/DOWN button to select these option, then press LEFT/RIGHT button to adjust.

COLOUR TEMP

Press UP/DOWN button to select COLOR TEMP, then press LEFT/RIGHT button to adjust (Available color temp:Warm, Cool, Standard).

-SOUND MENU

• Press MENU button to display main OSD menu.
• Press UP/DOWN button to select SOUND in the main OSD menu, then press RIGHT button to enter.
• After enter SOUND MENU, press UP/DOWN button to select the option you want to adjust.
• Then press LEFT/RIGHT button to adjust the option.

SOUND MODE

Press UP/DOWN button to select SOUND MODE, then press LEFT/RIGHT button to adjust (Available Sound Mode: Standard, Music, Speech, Movie, User).

BASS/TREBLE/BALANCE

Press UP/DOWN button to select these option, then press LEFT/RIGHT button to adjust.

AVL

Press UP/DOWN button to select AVL, then press LEFT/RIGHT button to adjust (Available AVL:ON, OFF).

-FUNCTION MENU

FUNCTION

• Press MENU button to display main OSD menu
• Press UP/DOWN button to select FUNCTION in the main OSD menu, then press RIGHT button to enter
  • After enter FUNCTION MENU, press UP/DOWN button to select the option you want to adjust
• Then press LEFT/RIGHT button to adjust the option

LANGUAGE

Press UP/DOWN button to select LANGUAGE, then press LEFT/RIGHT button to adjust

OSD DURATION

Press UP/DOWN button to select OSD DURATION, then press LEFT/RIGHT button to adjust (Available OSD DURATION: 5 SECONDS, 10 SECONDS, 30 SECONDS, 60 SECONDS, NEVER)

ASPECT RATIO

Press UP/DOWN button to select ASPECT RATIO, then press LEFT/RIGHT button to adjust

TT LANGUAGE

Press UP/DOWN button to select TT LANGUAGE, then press LEFT/RIGHT button to adjust

BLUE SCREEN

Press UP/DOWN button to select BLUE SCREEN, then press LEFT/RIGHT button to adjust (Available BLUE SCREEN:ON, OFF)

RESET

Press UP/DOWN button to select RESET, then press OK/ENTER button to enter

Then press LEFT/RIGHT button to select YES or NO, then press OK/ENTER button to reset the OSD menu's option

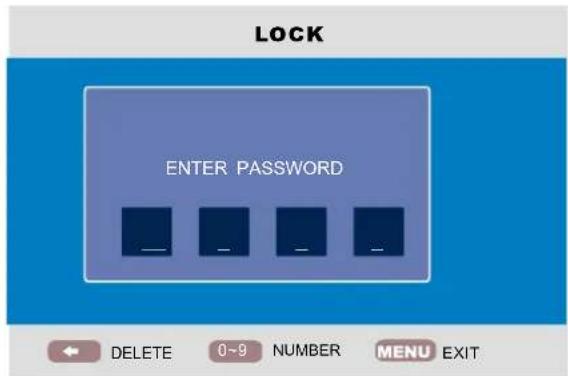

CHILD LOCK

Press UP/DOWN button to select CHIL D LOCK, then press OK/ENTER button to enter

The default password is "0000"

LOCK

Press UP/DOWN button to select LOCK, then press LEFT/RIGHT button to select ON or OFF.

CHANGE CODE

Press UP/DOWN button to select CHANGE CODE. Then press ENTER or OK button to enter the submenu to change the code.

.ATV MENU only for ATV Source

• Press MENU button to display main OSD menu
• Press UP/DOWN button to select ATV in the main OSD menu, then press RIGHT button to enter
• After enter TV MENU, press UP/DOWN button to select the option you want to adjust
• Then press LEFT/RIGHT button to adjust the option

AREA

Press UP/DOWN button to select AREA, then press LEFT/RIGHT button to adjust

AUTO SEARCH

Press UP/DOWN button to select AUTO SEARCH, then press OK/ENTER button to enter

- Then press LEFT/RIGHT button to select YES or NO, then press OK/ENTER button to enter AUTO SEARCH

- Press MENU/EXIT button to exit AUTO SEARCH

MANUAL SEARCH

Press UP/DOWN button to select MANUAL SEARCH, then press OK/ENTER button to enter MANUAL SEARCH

CHANNEL

Press UP/DOWN button to select CHANNEL, then press LEFT/RIGHT button to adjust

COLOR SYSTEM

Press UP/DOWN button to select COLOR SYSTEM, then press LEFT/RIGHT button to adjust

SOUND SYSTEM

Press UP/DOWN button to select SOUND SYSTEM, then press LEFT/RIGHT button to adjust

FINE TUNE

Press UP/DOWN button to select FINE TUNE, then press LEFT/RIGHT button to adjust

SKIP

Press UP/DOWN button to select SKIP, then press LEFT/RIGHT button to adjust (Available SKIP:ON, OFF)

MANUAL SEARCH Sub Menu

- Press UP/DOWN button to select MANUAL SEARCH, then press LEFT button to manual search down or press RIGHT button to manual search up

- Press MENU/EXIT button to exit MANUAL SEARCH

CHANNEL EDIT

- Press UP/DOWN button to select CHANNEL EDIT, then press OK/ENTER button to enter Channel Edit menu

• Press UP/DOWN button to select channel
• Press RED button to swap two channel
• Press GREEN button to insert one channel
• Press BLUE button to delete one channel
• Press MENU button to back to the Main OSD Menu
• Press EXIT button to exit the Menu

- Press OK/ENTER button to enter channel edit sub menu and rename the channel

CHANNEL EDIT sub Menu

• Input channel name at____", press LEFT/RIGHT button to select OK to save and return back to the previous menu

■ PC MENU only for PC Source

H POSITION

Press UP/DOWN button to select H POSITION, then press LEFT/RIGHT button to adjust

V POSITION

Press UP/DOWN button to select V POSITION, then press LEFT/RIGHT button to adjust

PHASE

Press UP/DOWN button to select PHASE, then press LEFT/RIGHT button to adjust

CLOCK

Press UP/DOWN button to select CLOCK, then press LEFT/RIGHT button to adjust

AUTO ADJUST

Press UP/DOWN button to select AUTO ADJUST, then press LEFT/RIGHT button to auto adjust.

- DTV MENU

Press MENU button on the font of panel or on the remote control to display the main menu. Press UP or DOWN button to select DTV in the main menu, then press RIGHT button to enter

• After enter DTV MENU, press UP/DOWN button to select the option you want to adjust
• Then press LEFT/RIGHT button to adjust the option

DTV AREA

Press UP/DOWN button to select AREA, then press LEFT/RIGHT button to select the area.

DTV AUTO SEARCH

- Press UP/DOWN button to select AUTO SEARCH, then press OK/ENTER button to enter

- Then press LEFT/RIGHT button to select YES or NO, then press OK/ENTER button to enter AUTO SEARCH

• Press EXIT button to exit Tunning and exit the menu
• Press MENU button to exit Tunning and back to the DTV Menu.

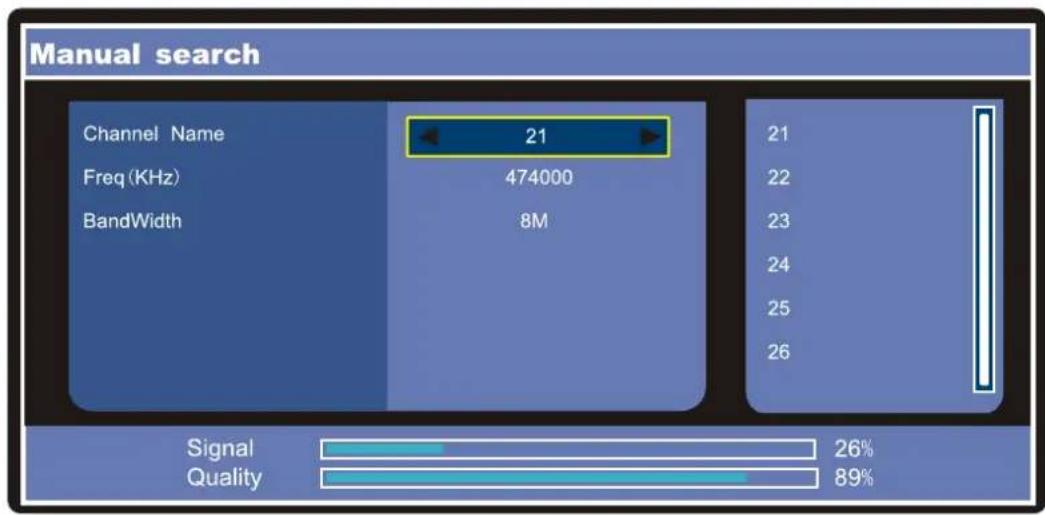

DTV MANUAL SEARCH

- Press UP/DOWN button to select MANUAL SEARCH, then press OK/ENTER button to enter

• Press EXIT button to exit Tunning and exit the menu
• Press MENU button to exit Tunning and back to the DTV Menu.
• Then press LEFT/RIGHT button to adjust Channel Name
• Press OK/ENTER button to start Manual Search.

CH. MANAGE

- Press UP/DOWN button to select CH.MANAGE, then press OK/ENTER to enter.

CH. ORGN

• Press UP/DOWN button to select CH. ORGN you want to adjust
• Then press OK/ENTER button to enter Channel Organizer

• Press UP/DOWN button to select the channel you want to operate
• Press RED button to make the channel in the favorite channel list
• Press GREEN button to delete the channel from channel list
• Press YELLOW button to Swap the channel
• Press BLUE button to make the channel locked
• Press MENU button to back to the main menu

CH. SORT

• Press UP/DOWN button to select CH.SORT you want adjust
• Then press OK/ENTER button to enter Channel Sorting

• Press UP/DOWN/LEFT/RIGHT button to select the option you want to adjust
• Press EXIT button to exit the menu
• Press RED button to change Page Up
• Press GREEN button to change Page Down
• Press OK/ENTER button to enter the option to adjust

CH. GROUP

- Press EXIT button to exit the menu

- Press NUM1-NUM8 button to make the channel in the GROUP1-8.

DEL TV CH.

Press LEFT/RIGHT button to select YES or NO, then press OK/ENTER button to delete all TV Channels

DEL RADIO CH.

Press LEFT/RIGHT button to select YES or NO, then press OK/ENTER button to delete all Radio Channels

DTV TIME

• Press EXIT button to exit the menu
• Press MENU button to back to the DTV MENU.
• Press UP/DOWN button to select the option you want to adjust
• Press LEFT/RIGHT button to adjust the option

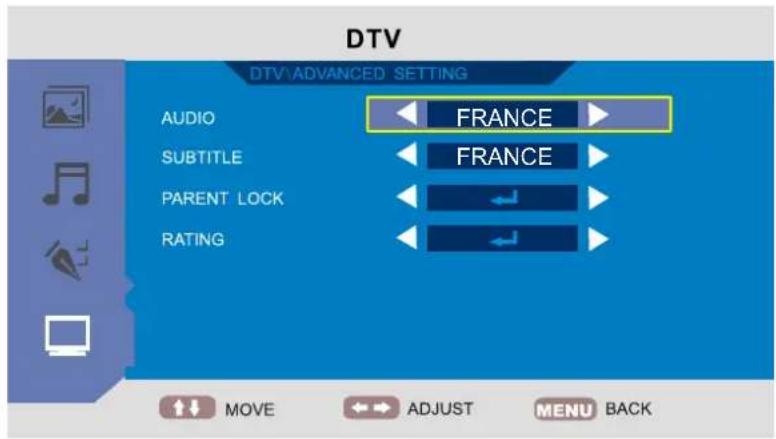

ADV SETTING

Press UP/DOWN button to select ADV SETTING in the DTV MENU, then press OK/ENTER button to enter

AUDIO

Press UP/DOWN button to select AUDIO, then press LEFT/RIGHT button to adjust

SUBTITLE

Press UP/DOWN button to select SUBTITLE, then press LEFT/RIGHT button to adjust

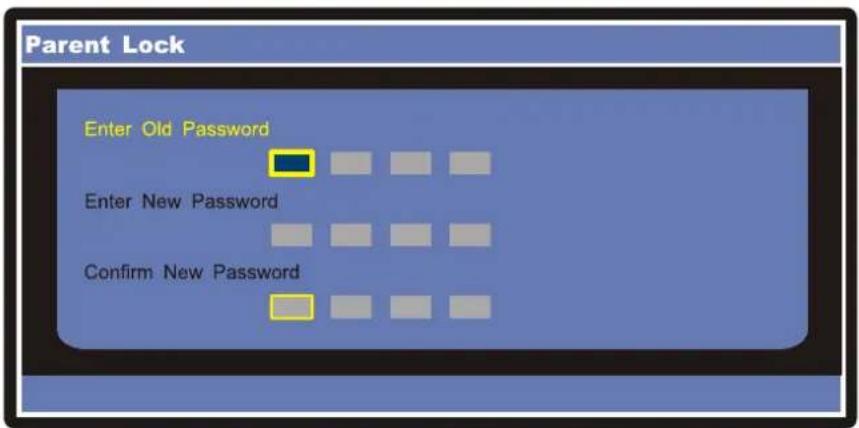

PARENT LOCK

Press UP/DOWN button to select PARENT LOCK, then press OK/ENTER button to enter

Enter Password: Press Number Key 0 four times

RATING

• Press UP/DOWN button to select PARENT LOCK, then press OK/ENTER button to enter
• Enter Password: Press Number Key 0 four times

- Shortcut Key IN DTV SOURCE

DTV SUBTITLE

Press SUBTITLE button when you select the DTV source.

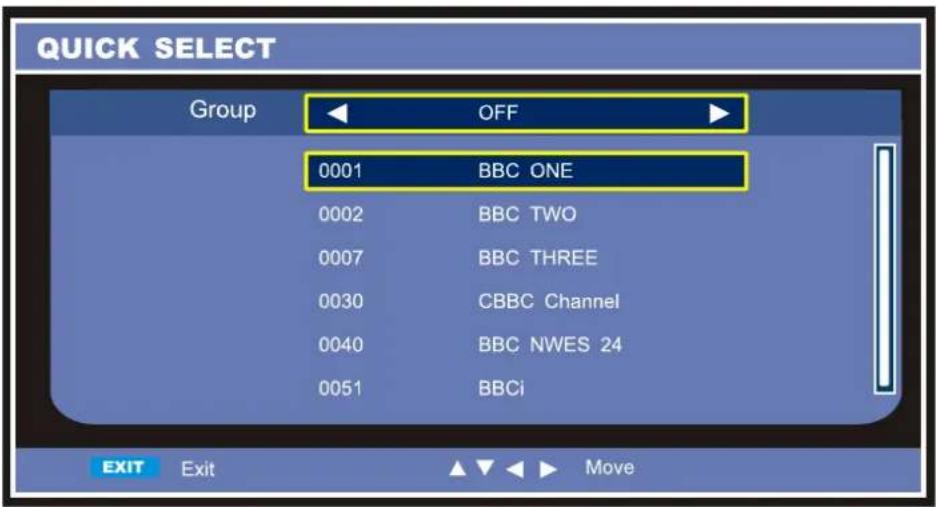

DTV CHANNEL LIST

Press OK/ENTER button when you select the DTV source.

DTV CHANNEL INFO

Press DISPLAY button to display info of the DTV channel

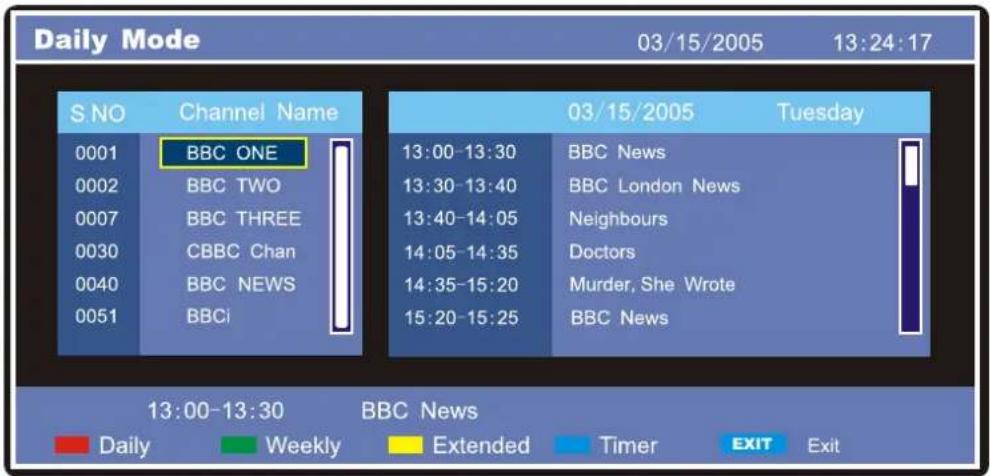

DTV EPG

Press EPG button when you select the DTV source

- USB Mode

• There is the main menu in the USB source

• Press EXIT button to exit the menu
• Press UP/DOWN button to select the file you want to enter
• Press OK/ENTER button to enter the file
• Press RED button to change to the Movie File
• Press GREEN button to change to the Music File
• Press YELLOW button to change to the Photo File

USB PLAY MUSIC

• There is the USB MUSIC MENU.

• Press RED button to change to the Movie File
• Press GREEN button to change to the Music File
• Press YELLOW button to change to the Photo File
• Press STOP button to stop playing, press the button one more time, it will be back to the USB main menu
• Press PLAY button to play music, press the button one more time, the music paused
• Press ◀ button to fast reverse
• Press ▶ button to fast forward
• Press ◀◀ button to select previous music
• Press ▶▶ button to select next music

DVD Function General setup

• Press the DVD SETUP button to activate the DVD player OSD menu;
• Press ▲/▼ buttons to move and highlight between different sub-menus. Press ◀ / ▶ ENTER button to enter the highlighted sub-menu.
• Press DVD SETUP button to exit the OSD menu.

System Setup

TV SYSTEM

- Press ▶ button to enter the TV SYSTEM and then press ▲ / ▼ to select one from below:

NTSC

This format is used by some other countries, e.g. USA

PAL

This is the format used in UK for example.

AUTO

This format can be used if your DVD is capable of both PAL and NTSC formats.

ON: Choose this setting to screen saver.

OFF: Choose this setting to cancel the screen saver

TV TYPE

DVD's are produced in a variety of screen aspect ratios. This menu enables you to select one of the three aspect ratios:

• 4:3 PS (Normal)
• 4:3 LB (Normal)
• 16:9 (Wide)
- Select the most appropriate aspect ratio for the JPG being viewed.

NOTE:

• Playback screen size may vary according to the disc contents.
• For media with 4:3 contents, using any mode would only display a 4:3 screen
• Screen ratio selection should be according to the connected TV / Display aspect ratio.

PASSWORD

• The default setting is locked. No Rating selection or change password could be done. To edit the Rating setting, please enter default password "0000" using the numeric buttons, then press ENTER button to confirm.
• To change password, input any 4 digit number when the lock is unlocked. Once the 4 digit number is entered, that will be your new password.

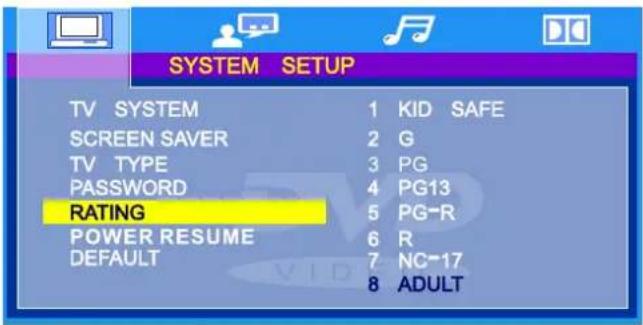

Rating restriction is divided into eight different category from KID

NOTE: Only editable when password is unlocked.

Note: The disc must support this function.

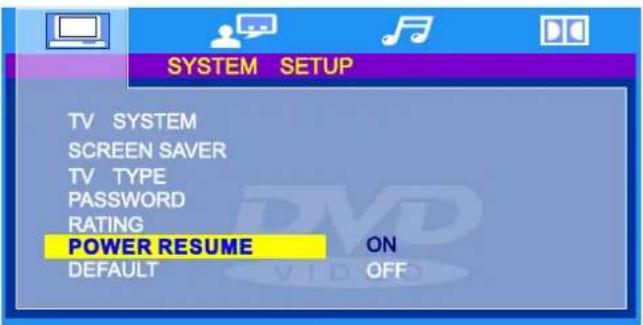

POWER RESUME

ON: Choose this setting to activate the power resume.

OFF: Choose this setting to cancel the power resume.

DEFAULT SETTING

- Press ENTER button to restore factory default.

OSD LANGUAGE

Use navigation buttons to select the OSD LANGUAGE setup icon, press ENTER button to confirm. There are Multi languages for your selection, press ▲/▼ buttons to toggle between different languages, Press ENTER button to confirm.

AUDIO LANGUAGE

Use navigation buttons to select the AUDIO LANG ENTERMultip languages button to confirm. There are - for your selection. Press ▲/▼ buttons to toggle between different languages. Press ENTER button to confirm.

SUBTITLE LANGUAGE

Use navigation buttons to select the SUBTITLE LANG ENTER icon, press

button to confirm. There are Multi languages

for your selection. Press ▲ / ▼ buttons to toggle between different languages. Press ENTER button to confirm.

MENU LANGUAGE

Use navigation buttons to select the MENU LANGUAGE setup icon, press ENTER button to confirm. There are Multi-languages for your selection. Press ▲/▼ buttons to toggle between different languages. Press ENTER button to confirm.

Audio Setup

AUDIO setup

The audio setup options are illustrated below:

TONE

- Use the Up and Down arrow button to move the scroll and adjust the TONE.

- Switch the compress mode to "Audio output" to adjust the compress ratio for different effects. When selected FULL, the peak signal value is smallest. When selected OFF, the peak signal value is largest.

DUAL MONO

- You can select four different audio output, STEREO, MONO L, MONO R, MIX MONO. The audio out description of these Selections is shown in the table below.

MODE LEFT SPEAKER RIGHT SPEAKER
STEREO STEREO-L STEREO-R
L-MONO L-MONO L-MONO
R-MONO R-MONO R-MONO
MIX-MONO	L-MONO+R-MONO	L-MONO+R-MONO

Troubleshooting Guide

If you are having problems with your TV, carry out the following checks first.

If you are still having problems, unplug your TV and contact the service centre.

Problems and how to fix them

There is no sound and no picture coming from my TV.

-Check that you have connected the TV power cord properly and switched the wall socket on.

-Check that you have turned on the POWER button on your TV.

-Check the picture contrast and brightness setting.

There is a normal picture but no sound coming from my TV.

-Check that your TV is not muted or has the volume down.

-Switch the channel, the problem may be with the channel you're on, not the TV.

-Check that your audio cable input has been plugged in properly. If you are using an external amplifier.

The remote control does not work.

-Check to see if there is any object between your TV (such as a piece of furniture) that could block the remote control from connecting with the sensor on your TV.

- Have you put the batteries into the remote control the right way? (So + to + and - to -)

-The TV is not positioned in bright sunlight.

-Try fitting new batteries if none of the above work.

The TV has turned off suddenly.

-Check that you have not set the sleep timer.

-Check that you have not set the timer to control the socket which has your TV power cord on.

The picture on my TV appears slowly after I have switched it on.

This is normal. The image takes a few seconds to appear after you have switched the TV on. Please contact your service centre if picture has not appeared after five minutes.

There is no or poor quality colour or a poor picture on my TV.

-Change the colour setting on the PICTURE MENU.

-Keep a distance between your TV and any VCR you may be using

-Try watching another channel. The problem may be with the channel you're watching.

-Are the video cables installed properly?

-Change the setting of picture brightness on PICTURE MENU.

There are horizontal and vertical bars on the screen, the picture is shaking.

-Check if any signal interference activities is going on nearby, such as an electrical appliance or power tool is in operation.

The reception is poor on some channels.

-The TV channel you're watching may be having problems. Change to another channel and see if the same is happening.

-TV broadcasting signal is weak or has been interrupted.

-Check whether signal sources have any possible interference.

There are lines or streaks on the pictures.

-Check if there is any damage to the aerial on the roof, try to change the direction of the aerial to receive a better signal.

One of the TV's speakers does not work.

-Check the sound balance setting on SOUND MENU.

Troubleshooting Guide

Note: This page only refer to Video Graphics adaptor (VGA) problems.

Problems and how to fix them

The signal is out of range.

-Change the resolution, horizontal or vertical frequency of your source (PC etc.).

-Check whether the signal cable is connected from the PC to your TV properly.

-Check the signal input source is connected properly.

There is a vertical bar or stripe on my TV screen.

-Turn on the auto configure or change the horizontal or vertical frequency position.

Screen colours aren't appearing as they should be or single colour.

-Check if the video signal cable is connected properly.

-Reinstall your PC video card if the signal source is from your computer.

Maintaining your TV

If you clean your TV carefully and regularly, it helps your TV to last longer. Make sure you turn the power off and unplug the power cord on your TV before you begin to clean it.

Cleaning the screen

1. Here's a great way to keep the dust off your screen. Wet a soft cloth in a mixture of lukewarm water and a small amount of fabric softener or washing-up liquid. Wring the cloth until it's almost dry and then use it to wipe the screen.
2. Make sure there is no excess water on your TV when you have finished cleaning it.

Cleaning the plastic parts of your TV

Wipe the plastic parts of your TV with a soft, dry, lint-free cloth. Do not use a wet cloth.

If you are going to be away for a while

If you are not going to use your TV for a while (such as when you go on holiday), you should unplug the power cord from the socket and disconnect your aerial to protect your TV against possible damage from lightning or power surges.

Your TV's specification Your TV's specification

LCD panel	21.5 inch
Pixel pitch	0.24825 (H) x0.24825 (V)
Resolution	1920 x 1080
Aspect Ratio	16:9
Display colours	16.7M colours
Contrast	1000: 1
Brightness	300cd/m ^2
Response time	5 ms
Viewing angle	170 (H) /160 ( V)
Backlight life	60000 hours
Power supply	DC12V 5.3A
Power consumption	65 W
Speaker	2x3W

This appliance complies with European Safety and Electrical directives.

It fulfils the following EU regulations:

En55013:2001+A1:2003+A2:2006

EN55020: 2007

EN61000-3-2: 2006 EN61000-3-3:1995+A1:2001+A2:2005

EN55022:2006(CLASS-A)

EN55024:1998+A1:2001+A2:2003

CE

Manufacturer:

We want to improve our products all the time. We have the right to change the design and the specifications of this TV without telling you. The symbol below on the product or in the instructions means that you should throw your electrical and electronic equipment away separately from your household waste. There are separate collection systems for recycling in the European Union (EU). For more information, please contact your local authority or your retailer where you bought your TV.

Specifications and design are subject to possible modifications without notice due to improvements

Wall mounting operation Wall mounting operation

Attach the stand

To attach the stand, place the stand on the neck of the TV, insert and tighten the screws in the circled area.

Remove the Stand

To remove the stand remove the screws in the circled area and the neck will come off.

Technical line drawing of a device interior with no visible text or symbols

Technical line drawing of an electronic device interior with no visible text or symbols

Mounting Specification

Mounting Specification : 100mm x 100mm using screw size M4 (not supplied). Length of screw should not exceed 8mm.

Please Note : The 8mm length of screw refers to how deep the screw can go inside the mounting holes. When you're buying screws, you should add the original 8mm to the thickness of your mounting plate in order to get the total screw length.

The 3 screws in the package are for securing the TV stand only. If you are mounting the TV please consult a qualified installer for further instructions on bracket support and wall support.

Herstellergarantie

[e-mail]

[e-mail]
