USER MANUAL Pixma TS6000 CANON

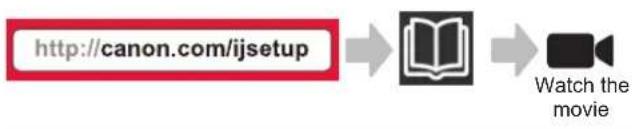

For the procedure with icon, you can watch the video tutorials for installing the printer by accessing the following URL or scanning the QR codes. Watch the movie Checking Included Items CD-ROM for computer (Windows)Manuals Removing Packing Materials/Turning on the Printer You can watch the procedure on a movie by scanning the QR codes. Android iOS

Remove the packing materials (such as tape and protective lm on the touch screen) from outside the printer. Using the printer with the protective lm attached may cause malfunction.

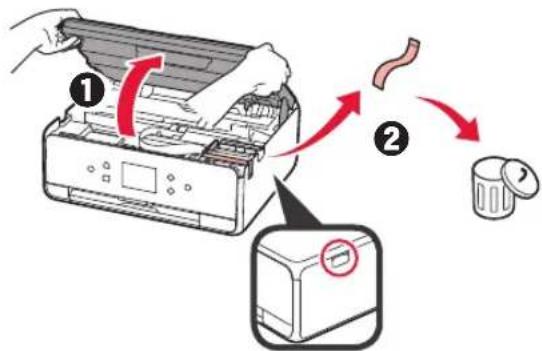

aHook the hollows on the both sides of the printer with your ngers and open the scanning unit / cover. bRemove the orange tape and discard it.

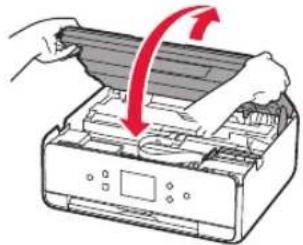

LIFT UP the scanning unit / cover, and then close it.

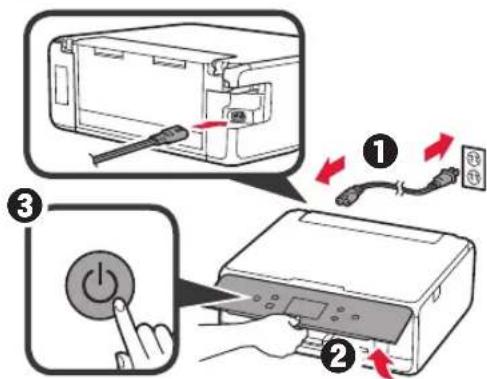

aConnect the power cord. bLift the operation panel. cPress the ON button. Do not connect a USB cable yet.

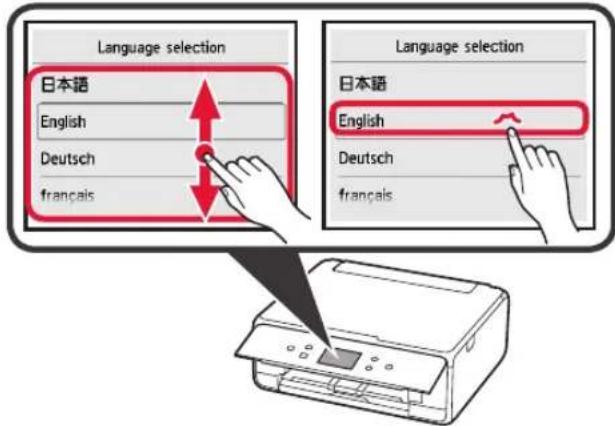

Drag the screen and tap the language to select.

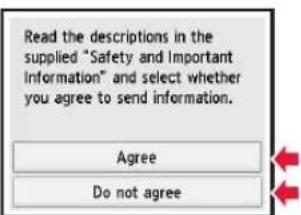

Read the messages and follow the on-screen instructions.

Read the messages and tap OK.2 Installing the Ink Tank You can watch the procedure on a movie by scanning the QR codes. Android iOS

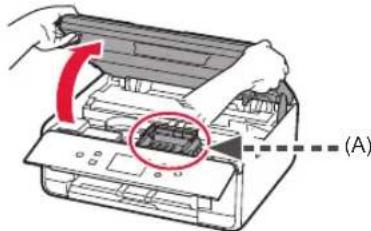

Open the scanning unit / cover. Do not touch the print head holder (A) until it stops. (A)

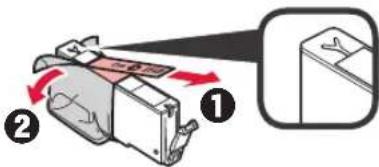

Remove the orange tape completely.

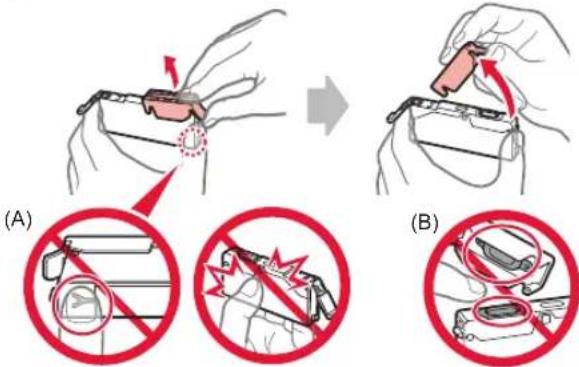

Hook the orange cap with your nger to remove it GENTLY. (A) Do not push the both sides of the ink tank with the Y-shape air hole blocked. (B) Do not touch. (A) (B)

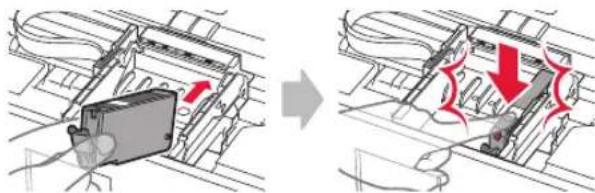

Insert the ink tank into the print head holder and push it down rmly until it snaps into place. After the lamp lights up, install the next ink tank.

Check that all lamps are lit.

LIFT UP the scanning unit / cover, and then close it. If an error message appears, make sure the ink tanks are installed correctly. Loading Paper / Aligning the Print Head You can watch the procedure on a movie by scanning the QR codes. Android iOS To obtain better print result, print a pattern for print head alignment and scan it.

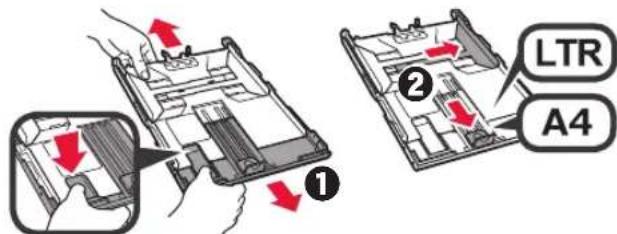

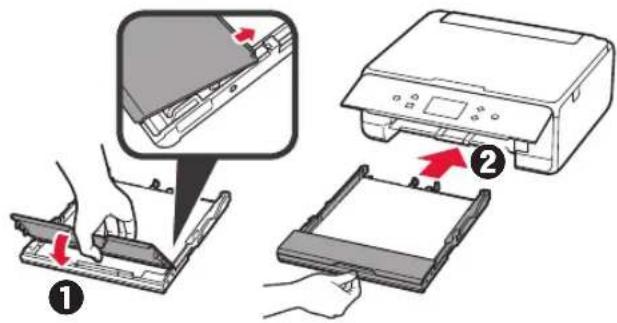

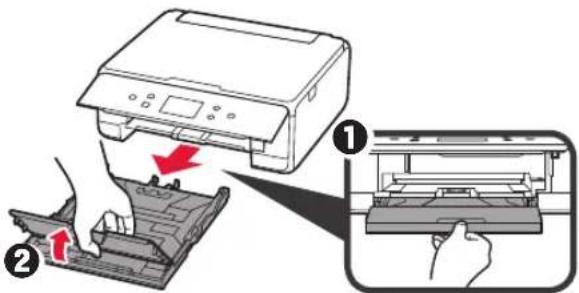

aPull out the cassette forward while pressing the lock on the cassette. bOpen the paper guides, and then align the guide in front with the mark of LTR or A4.

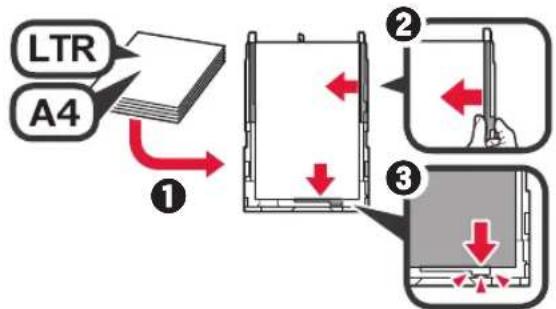

aLoad several sheets of plain paper with the print side facing down. bSlide the right paper guide to align it with the side of the paper stack. cAlign the paper stack with the paper guide in front.

Pull out the paper output tray.

Read the messages and tap OK.

When the pattern for print head alignment is printed, tap Yes.

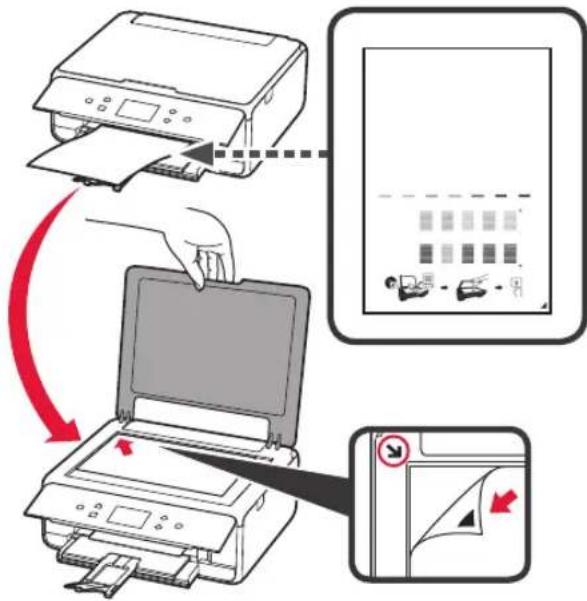

Follow the on-screen instructions to load the pattern on the platen glass.

Close the document cover, and then follow the on- screen instructions to tap OK.

If the following screen appears, tap OK. The print head alignment is now complete.4 Selecting a Printer Connection Method The connection method varies depending on how you use the printer. Select a printer connection method according to the table below. In the following description, smartphones and tablet devices are collectively described as smartphone. Using the printer with your computer or smartphone connected Using the printer without connecting any other devices Wireless LAN connection USB connection Do not connect Connecting the printer to your computer or smartphone via a wireless router router Connecting the printer to your computer or smartphone directly without a wireless router * USB cable Tap Do not connect on the connection method selecting screen. The setup is now complete.

• You may not connect your smartphone to the Internet wirelessly during connecting the printer to the smartphone directly. In that case, you may be charged depending on the contract with your service provider.* Up to 5 devices can be connected to the printer via wireless LAN connection directly.

Tap your printer connection method. Follow the on-screen instructions to proceed with the setup. Users who select USB connection: Do not connect a USB cable until you are instructed.

If the following screen appears, proceed to the next page. ■ If you select Wireless LAN connection: ■ If you select USB connection:5 ENGLISH Connecting with Computer You need connection setup for each computer. Proceed with the setup from step 1 for each computer.The followings describe the procedures for Windows and Mac OS.If you use a computer except for Windows or Mac OS such as Chrome OS, access "http://canon.com/ijsetup", and then follow the instructions on the Canon website to set up your computer.

Select one of the following steps or to start up the setup le. Accessing the Canon websiteaVisit the Canon website below and click Setup.Follow the on-screen instructions to proceed with the setup.bIf the following screen appears, click Download.cStart up the downloaded le. Using the Setup CDaInsert the setup CD into your computer.When using Windows 10, Windows 8.1 or Windows 8:bClick or File Explorer on the taskbar. cSelect This PC or Computer on the left side of the opened window.dDouble-click the CD-ROM icon on the right side of the window.* If the contents of the CD-ROM appear, double-click MSETUP4.EXE.

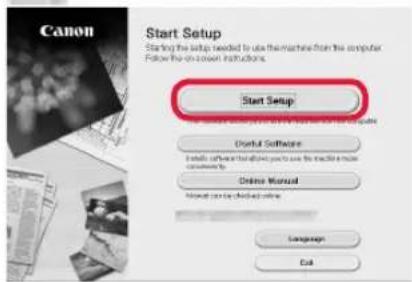

Click Start Setup. Follow the on-screen instructions to proceed with the setup.You can set up your smartphone in the middle of the steps.On the following screen, click Instructions to proceed with setup of your smartphone.* Depending on your settings, the screen above may not appear. In that case, proceed to "Connecting with Smartphone" on page 6 after nishing the connection to your computer.

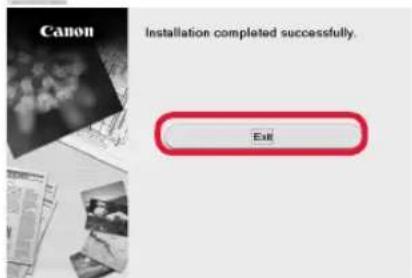

If the following screen appears, click Exit. The connection with your computer is now complete. You can print from your computer.

2. Connecting with Computer and Smartphone/Tablet

If you connect the printer to both your computer and your smartphone, connect it to the computer rst. To connect the printer only to your smartphone, proceed to "Connecting with Smartphone" on page 6.6 Connecting with Smartphone You need connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone. Preparation

• Turn on Wi-Fi on your smartphone.

• If you have a wireless router, connect your smartphone to the wireless router.
• For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

Install the application software Canon PRINT Inkjet/SELPHY in your smartphone. : Search "Canon PRINT" in App Store. : Search "Canon PRINT" in Google Play. Or access the Canon website by scanning the QR code.

Check the display on the printer. The screen turns off when no operation is made for 10 minutes. Press one of the buttons on the operation panel (except for the ON button) to display the screen. ■ If the following screen appears: Check the icon on the lower left, and then proceed

or . If appears, the printer can not communicate by wireless LAN connection. For details, access "http://canon. com/ijsetup" to see Frequently Asked Questions. ■ If the following screen appears: Proceed to

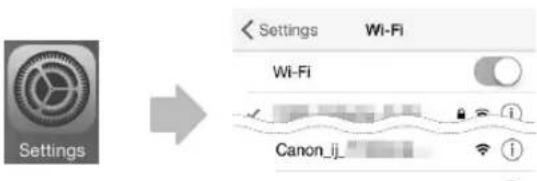

Yes aTap the installed application software. bFollow the on-screen instructions to register the printer. cMake sure that the following screen appears. The connection with your smartphone is now complete. You can print from your smartphone. To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8. The following icon appears. (The printer is connected to a network.)7 ENGLISH Procedures below vary depending on iOS or Android. Select your operating system and proceed to its procedure. aTap Settings on the HOME screen, and then tap Canon_ij_XXXX on the Wi-Fi settings. If Canon_ij_XXXX does not appear on the list, see "Preparation of the Printer" below to operate the printer, and then repeat step a. bTap the installed application software. cFollow the on-screen instructions to register the printer. Follow the on-screen instructions to proceed with the setup. If you select Auto Select Conn. Method (recommended) on the connection method selecting screen, the appropriate connection method is selected automatically depending on your environment. dMake sure that the following screen appears. aTap the installed application software. bFollow the on-screen instructions to register the printer. If a message saying "Printer is not registered. Perform printer setup?" does not appear, see "Preparation of the Printer" below to operate the printer, and then wait for a while until a message appears. Follow the on-screen instructions to proceed with the setup. The appropriate connection method is selected depending on your environment. cMake sure that the following screen appears. The connection with your smartphone is now complete. You can print from your smartphone. To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8. aPress the HOME button on the printer. bTap the icon on the lower left of the HOME screen.

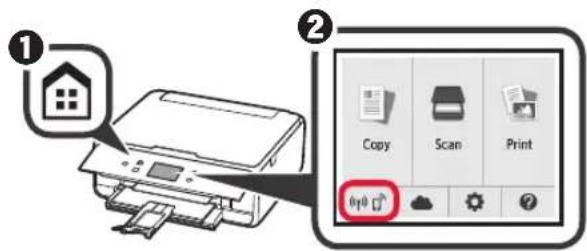

cTap Yes or No. dTap LAN settings > Wireless LAN > Wireless LAN setup > Easy wireless connect. eTap Yes. fReturn to the operation of your smartphone. Preparation of the Printer8

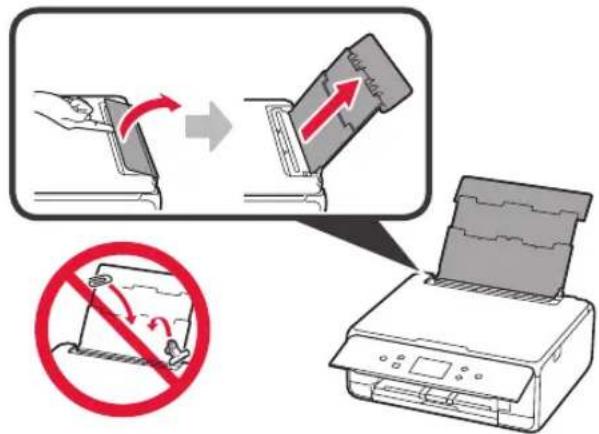

Open the rear tray cover and pull out the paper support.

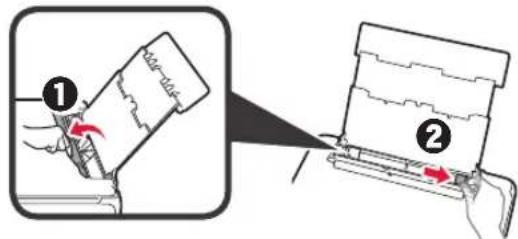

aOpen the feed slot cover. bSlide the right paper guide to the end.

aLoad several sheets of photo paper with the print side facing up. bSlide the right paper guide to align it with the side of the paper stack.

Close the feed slot cover. Read the message on the printer's screen and register the information of the loaded paper.

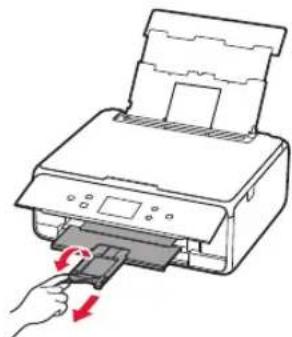

Pull out the paper output tray.

Make sure the printer is turned on.

Load several sheets of photo paper.

Tap Copy on the HOME screen.

Drag the screen and tap Photo copy.

Read the messages and tap OK.

Follow the on-screen instructions to load the printed photo on the platen glass, and then tap OK. When the scanning is complete, the print settings conrmation screen appears.

Specify the print settings as necessary.

Press the Color button for color copying. Press the Black button for monochrome copying. The printer starts printing. Loading Photo Paper Copying Photos You can scan the printed photo and print it. You can also scan several photos and print them at once. Load photo paper in the rear tray.1 FRANÇAIS
