Übersicht / Overview / Aperçu de l'appareil / Overzicht / Přehled / Vista general Vista geral

Inhalt

1. Overview 12

2. Intended purpose 13

3. Safety instructions 13

4. Items supplied 15

5.Before using for the first time 15

5.1 Remote control 15
5.2 Setting up the device.. 15
5.3 Overview - Connections 15
5.4 How to use 16

1. Operation 16

6.1 Selecting the type of connection 16

6.2 Sound settings 16
6.3 HDMI (ARC) connection 16
6.4 Bluetooth 17

1. Cleaning and storing 17
2. Disposal 17
3. Troubleshooting 18
   10.Technical specifications 18
   11.Warranty of the HOYER Handel GmbH ..19

Service Centre 19

1. Overview

Please observe the illustrations on the fold-out page.

Soundbase

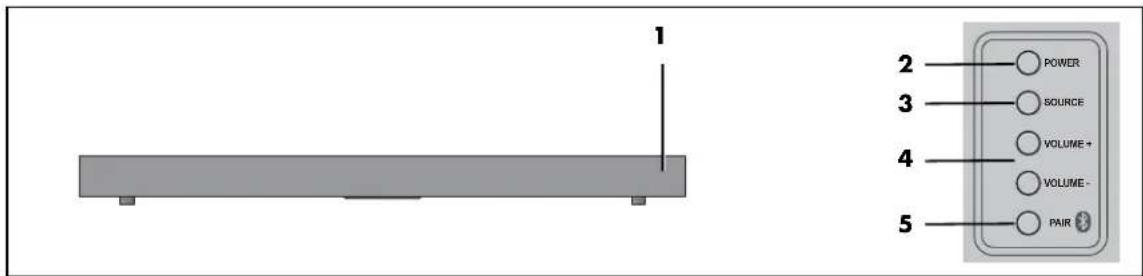

1	Multi-coloured LED
	Red: standby operation
	Green: LINE IN
	Yellow: HDMI (ARC)
	White: AUX IN
	Purple: OPTICAL IN
	Blue: Bluetooth
2	POWER button
3	SOURCE button
4	VOLUME -/+ buttons
5	PAIR button

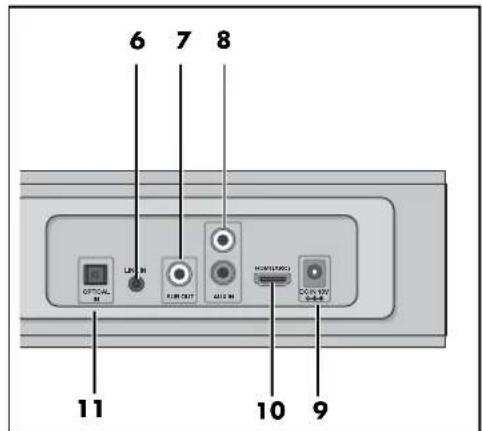

6	LINE IN socket
7	SUB OUT socket
8	AUX IN L/R socket
9	DC IN @ck@
10	HDMI (ARC) socket
11	OPTICAL IN socket

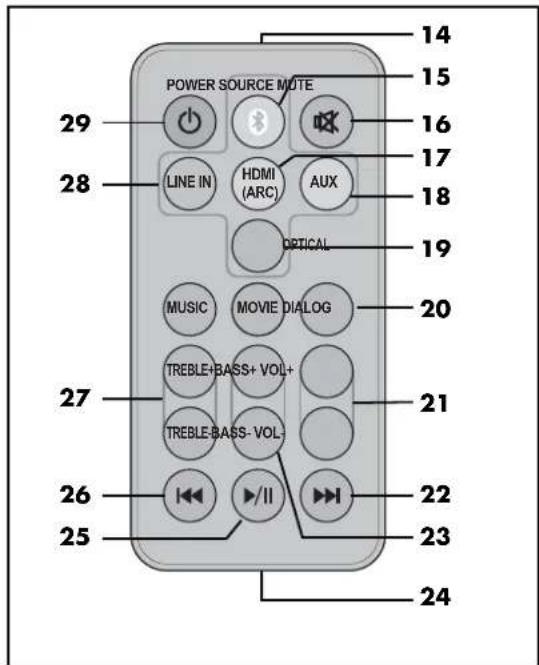

Remote control

14	Transmission LED
15	Button ③
16	MUTE button
17	HDMI (ARC) button
18	AUX button
19	OPTICAL button
20	MUSIC, MOVIE, DIALOG buttons
21	VOL -/+ buttons
22	▶I button
23	BASS -/+ buttons
24	Battery compartment
25	▶/II button
26	I▲按钮
27	TREBLE -/+ buttons
28	LINE IN button
29	POWER ① button

Accessories

12Power unit
13 Stereo cinch cable

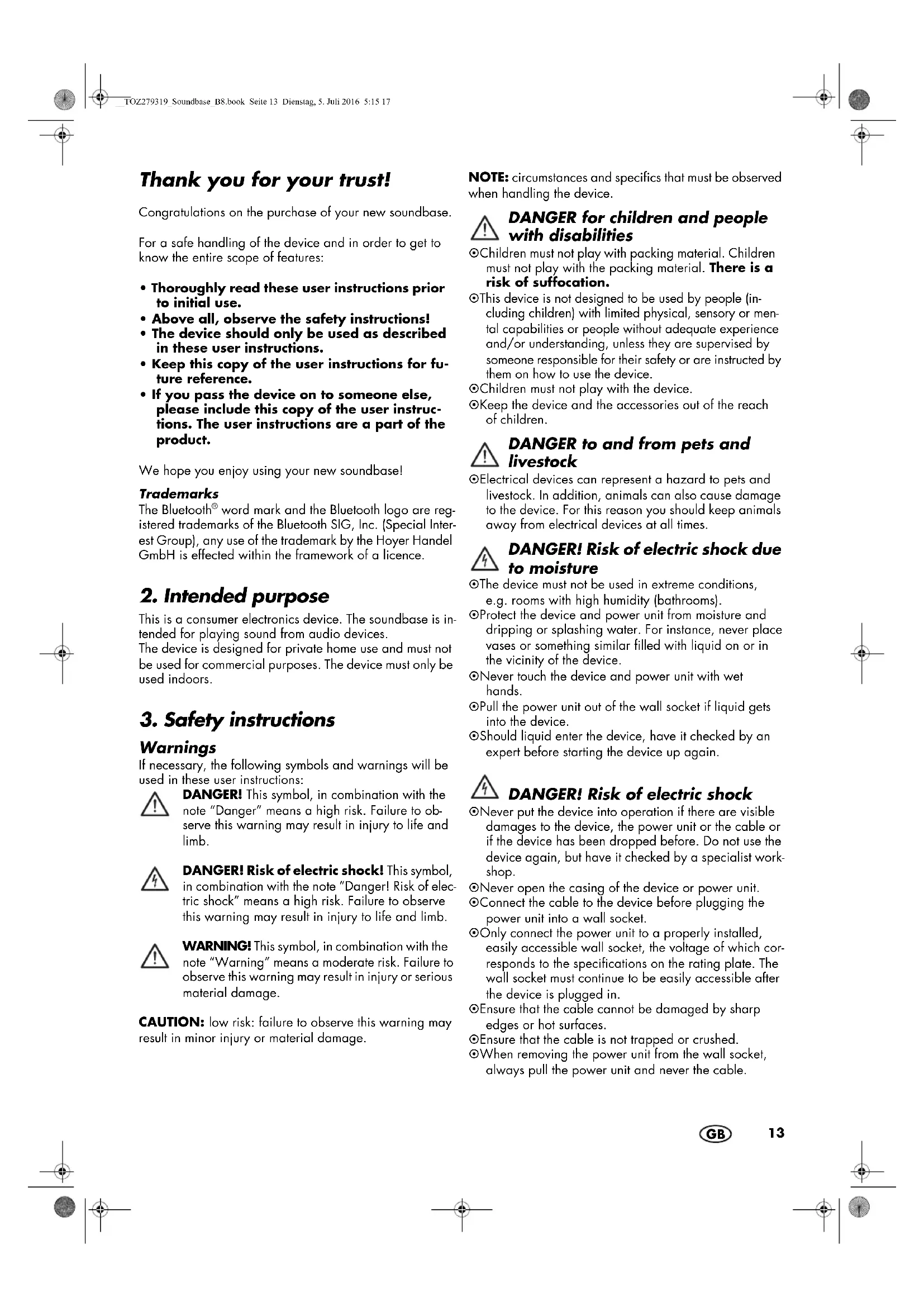

Thank you for your trust!

Congratulations on the purchase of your new soundbase.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these user instructions prior to initial use.
• Above all, observe the safety instructions!
• The device should only be used as described in these user instructions.
• Keep this copy of the user instructions for future reference.
• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a part of the product.

We hope you enjoy using your new soundbase!

Trademarks

The Bluetooth® word mark and the Bluetooth logo are registered trademarks of the Bluetooth SIG, Inc. (Special Interest Group), any use of the trademark by the Hoyer Handel GmbH is effected within the framework of a licence.

2. Intended purpose

This is a consumer electronics device. The soundbase is intended for playing sound from audio devices. The device is designed for private home use and must not be used for commercial purposes. The device must only be used indoors.

3. Safety instructions

Warnings

If necessary, the following symbols and warnings will be used in these user instructions:

DANGER! This symbol, in combination with the note "Danger" means a high risk. Failure to observe this warning may result in injury to life and limb.

DANGER! Risk of electric shock! This symbol, in combination with the note "Danger! Risk of electric shock" means a high risk. Failure to observe this warning may result in injury to life and limb.

WARNING! This symbol, in combination with the note "Warning" means a moderate risk. Failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

DANGER for children and people with disabilities

Children must not play with packing material. Children must not play with the packing material. There is a risk of suffocation.
This device is not designed to be used by people (including children) with limited physical, sensory or mental capabilities or people without adequate experience and/or understanding, unless they are supervised by someone responsible for their safety or are instructed by them on how to use the device.
Children must not play with the device.
Keep the device and the accessories out of the reach of children.

DANGER to and from pets and livestock

Electrical devices can represent a hazard to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture

The device must not be used in extreme conditions, e.g. rooms with high humidity (bathrooms).
Protect the device and power unit from moisture and dripping or splashing water. For instance, never place vases or something similar filled with liquid on or in the vicinity of the device.
- Never touch the device and power unit with wet hands.
Pull the power unit out of the wall socket if liquid gets into the device.
Should liquid enter the device, have it checked by an expert before starting the device up again.

DANGER! Risk of electric shock

• Never put the device into operation if there are visible damages to the device, the power unit or the cable or if the device has been dropped before. Do not use the device again, but have it checked by a specialist workshop.
  Never open the casing of the device or power unit.
  Connect the cable to the device before plugging the power unit into a wall socket.
  Only connect the power unit to a properly installed, easily accessible wall socket, the voltage of which corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.
  Ensure that the cable cannot be damaged by sharp edges or hot surfaces.
  Ensure that the cable is not trapped or crushed.
  When removing the power unit from the wall socket, always pull the power unit and never the cable.

Pull the power unit out of the wall socket, ...

...if there is a fault,
...before connecting the device to the power unit,
...before you clean the device and
...during thunderstorms.
For a complete mains separation, pull the power unit out of the wall socket. Even if it is switched off, a small amount of power is always used as long as the power unit is plugged in.
To avoid any risk, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre.

Batteries

DANGER OF EXPLOSION! Be sure to observe the correct polarity when inserting the battery.

Clean the battery and possibly device terminals before you insert the batteries.
Batteries can be life-threatening if swallowed. Therefore you should store batteries and the remote control out of the reach of young children. If a battery has been swallowed, medical assistance must be sought immediately.
Batteries must not be charged or reactivated by other means, nor must they be dismantled, thrown into a fire or short-circuited.
- Remove the batteries from the remote control if you do not intend to use the remote control for a prolonged period of time, or if the battery runs out of power. The battery might leak and damage the remote control.
Do not subject batteries to extreme conditions, e.g. do not place the remote control on radiators or expose it to direct sunlight. Otherwise, there is an increased danger of batteries leaking.
If battery acid has leaked, avoid contact with the skin, eyes and mucous membranes. In case of contact with the acid, rinse the affected area at once with plenty of clean water and seek medical assistance immediately.
Do not swallow the battery. There is a danger of chemical burn. If the button cell battery used in the supplied remote control is swallowed, it can cause severe internal burns within 2 hours, which can lead to death.
New and used batteries must be kept away from children.
If the battery compartment will not close properly, stop using the remote control and keep it away from children.
If you think the batteries may have been swallowed or have entered any part of the body, seek medical attention immediately.

WARNING! Risk of material damage

If you notice any irregularities (e.g. unusual noises, strange smells or smoke developing), pull the power unit out of the wall socket immediately. Do not use the device any longer.

If the device is moved from a cold location to a warm location, condensate may form in the device. Leave the device switched off for a few hours.
Place the device on a stable, flat surface.
Make sure that the surface can support all the devices.
Protect the device against damage, e.g. from: -heat, direct sunlight and open flames - impacts and similar violent effects
Candles and other open flames must be kept away from this product at all times in order to prevent the spread of fire.
Do not cover the power unit to prevent overheating.
Do not use any astringent or abrasive cleaning agents.
The device is fitted with non-slip plastic feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain ingredients that could attack and soften the non-slip plastic feet. If necessary, place a non-slip mat under the device.

Place the television set on the soundbase

Do not place television sets or other devices that are heavier than 45kg on the soundbase, however.
Always place other devices centrally on the soundbase so that they will not fall.
Ensure that the surface can support the soundbase and any other devices.

Notes on Bluetooth

Radio waves are potentially able to affect or even interfere with the operation of heart pacemakers, (sensitive) electronic devices and other radio waves (e.g. WLAN). Therefore, please observe the following notes.

People wearing heart pacemakers, should maintain a distance of 20 cm to the product.
- Radio waves may cause interferences, e.g. in mobile phones or hearing aids.
- Do not use the product in areas subject to explosion hazards.
- If any interferences in other radio units (e.g. WLAN) occur, check by deenergizing the sound bar if this is the cause.
- Do not use the device in the vicinity of microwave ovens or devices generating magnetic fields.

4. Items supplied

1 soundbase
1 power unit 12
1 remote control
1 CR2025 3 V battery (inserted)
1 stereo cinch cable 13
1 copy of the user instructions

• Remove all packing material.
• Check that the device is undamaged.

In the case of incomplete delivery, please contact the responsible service centre of the manufacturer (see "Warranty of the HOYER Handel GmbH" on page 19). Please observe the illustrations on the fold-out page.

5. Before using for the first time

5.1 Remote control

Initial use

• Remove the transport lock from the battery compartment and remote control.

Changing the battery

DANGER OF EXPLOSION! If the battery is not correctly replaced. Replace only with the same or an equivalent type.

1. FIGURE A: open the battery compartment cover by unlocking it and sliding it in the direction of the arrow.

2. Replace the old battery with a new one.

WARNING! Ensure the correct polarity of the battery. The plus symbol on the battery must be visible.

1. Close the battery compartment again.

5.2 Setting up the device

CAUTION:

Do not place television sets or other devices that are heavier than 45kg on the soundbase.

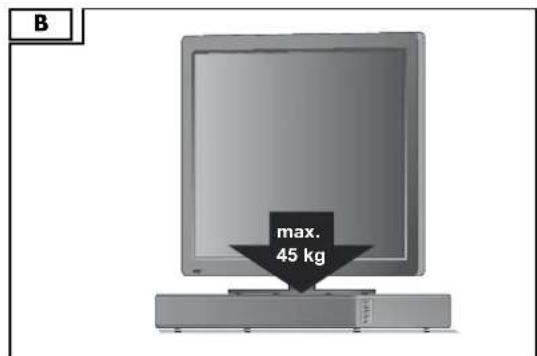

Figure B: always place other devices centrally on the soundbase so that they will not fall.

• Remove all parts of the packaging completely.

• Do not expose the device to extreme heat or moisture.
  Ensure that the device is well ventilated on all sides.

• Place the device on a level surface.

• Connect the power unit 12 to the device.

• Decide where to place the soundbase. Always make sure that ...

• there is a wall socket nearby;

• there is enough space above, in case you want to place a television set on the device;

• a television set and any other devices (e.g. set-top box, DVD player) can be set up nearby, in case you do not want/are unable to place them on the device.

• Connect the source device(s). Always ensure that all devices are securely positioned.

5.3 Overview - Connections

CAUTION: make sure that the soundbase and the devices to be connected are switched off before you connect them. Please also read the user instructions for the devices which you are connecting.

NOTE: the HDMI (ARC) 10 connection is only able to function if all components are ARC-enabled. If necessary, old HDMI cables must be replaced with new ARC-enabled ones.

Input Use		Remote control but- ton	LED colour
AUX IN 8	Connection with ste- reo cinch cable 13, e.g. television set, CD player	AUX 18 white
LINE IN 6	Connection with 3.5 mm stereo jack ca- ble, e.g. MP3 play- er, telephone	LINE IN 28	green
HDMI (ARC) 10	Connection with HDMI (ARC) cable, e. g. to the HDMI- ARC connection of the television set, DVD player	HDMI (ARC) 17	yellow
OPTICAL IN 11	Connection with opti- cal cable (also called Toslink) to the optical output of the televi- sion set or DVD play- er. Before connecting remove the connec- tion's protective cap.	OPTICAL 19	purple
Bluetooth	Radio connection, e.g. smartphone	® 15	blue

• A subwoofer can be connected to the cinch socket of the SUB OUT 7 output. This is automatically controlled by the device.

5.4 How to use

NOTE: the device remains in standby mode after being switched off. In this mode, the power consumption of the device is low. Pull the power unit out of the wall socket to disconnect it from the mains 12.

• Connect the power unit 12 with an easily accessible wall socket. The red LED 1 on the device lights up. The device is now in standby mode.

6. Operation

NOTES:

• All adjustments can be conveniently carried out with the remote control. The basic functions can also be carried out with the buttons on the device. Operation of the device in the instructions is usually described with the remote control.

• If you use the HDMI (ARC) 10 connection, the sound-base is usually switched on and off via the remote control of the connected device. The connected device must support this function.
  The device switches into the standby mode, ... if no Bluetooth connection is established within 15 minutes or if it does not receive a signal for 15 minutes.

• Press hoe from standby mode.

POWER

POWER

29 button to switch on the device HDMI ARC (ARC - Audio Return Channel) means that the cable is provided with an ARC channel. Via this channel, audio signals are transmitted in both direc
tions.

6.1 Selecting the type of connection

1. Press one of the AUX 18, LINE IN 28, HDMI (ARC) 17, OPTICAL 19 or 3 15 buttons to switch to the desired connection (see "Overview - Connections" on page 15).
2. On the audio device you can now start playback and select and control the music tracks.

6.2 Sound settings

NOTES:

Changes to the sound settings are acknowledged with brief flashing of the LED 1 until the minimum/maximum value is reached.
- A level control of the treble sounds and basses is only possible with the setting "Music".

Controlling the volume

During play, press the VOL-/+ 21 buttons on the remote control or VOLUME - / + 4 on the device. For a faster change of the volume, you can also keep the buttons pressed.

Muting the device

1. Press MUTE 16 to switch off the sound. The LED 1 flashes.
2. To switch the sound back on, press MUTE 16 again or one of the VOL/VOLUME - / + 21 / 4 buttons. The LED 1 lights up.

Adjusting the tone quality

The tone quality can only be changed in the mode "Music". The settings are not stored when you change into a different mode.

• Press one of the 20 buttons to select the presets for the tone quality for music (MUSIC), films (MOVIE) or dialogue (DIALOG).
  Only in the mode "Music": use the TREBLE - / + 27 buttons to adjust the treble sounds. If MOVIE or DIALOG is activated, an automatic change to MUSIC takes place.
• Only in the mode "Music": Use the BASS - / + 23 but
  tions to adjust the bass sounds.
  If MOVIE or DIALOG is activated, an automatic
  change to MUSIC takes place.

6.3 HDMI (ARC) connection

Definition

HDMI stands for High Definition Multimedia Interface. Via this transmission route, digital images and audio signals can be transmitted.
the device HDMARC (ARC-Audio Return Channel) means that the cable is provided with an ARC channel. Via this channel, audio signals are transmitted in both direc tions.

The following modern devices are usually provided with an ARC output: television sets, games consoles or digital receivers. In the following, the connection to a television set is described.

Via the ARC channel of the HDMI cable, digital audio signals can be transmitted from the source device (e.g. television set) to the soundbase.

The audio transmission via the HDMI (ARC) socket 10 can only work if all components are ARC-enabled. If the transmission is unsuccessful, you must take one or possibly several of the following items into account:

• The old HDMI cable must be replaced with a new ARC-enabled cable.
• Not every HDMI socket on the television set needs to support ARC. In this case, the HDMI cable on the television set must be connected to another ARC-enabled HDMI socket. Usually, the respective HDMI sockets are labelled with ARC. If not, refer to the user instructions of your television set.

• For several television sets, the digital audio output must be activated. Select the audio output PCM 2.0 (PCM stereo).

• Connect the socket HDMI (ARC) 10 by means of an ARC-enabled HDMI cable to an HDMI ARC socket of your television set.

• Switch on the soundbase with the POWER 29 button.
• By pressing the HDMI (ARC) 17 button, select the HDMI input.
• Switch on the television set. When the connection is established for the first time, it may take several seconds until sound is output from the soundbase.

6.4 Bluetooth

Establishing connection

NOTES:

The identification of the device is "SSBS 36 A1".
- After it has been switched over to Bluetooth, the device automatically attempts to establish a connection with the last paired device.
- Please observe that the establishment process of the connection may vary slightly depending on the device and the software used.

1. Press the 5 button to switch over to a Bluetooth connection. LED 1 flashes blue.
2. Switch on the audio device (e.g. smartphone) and start the Bluetooth connection.
3. The audio device will now receive the device identification "SSBS 36 A1". If nothing happens, press the PAIR 5 button on the device or the 8 15 button on the remote control for approximately 1 second. The blue LED 1 flashes rapidly.
4. Establish the connection with the soundbase on the audio device. If you are asked for a password, enter "0000". Both devices are now interconnected. LED 1 now lights up in blue and a beep is heard.

NOTE: usually, audio devices remember the identification of the device. In this case, it may not be necessary to establish the connection manually again if the Bluetooth function is activated.

1. Now play a music track on the audio device. The sound is played back from the soundbase.
2. With the 1 < 26, > 1 22 and /II 25 buttons you can select and control the music tracks.

Interruption of the connection

The connection is interrupted if

...one of the devices is switched off;
...the Bluetooth function is switched off;
...the range (approx. 10 metres) is exceeded;
...you press the 15 or PAIR 5 buttons until the blue LED is flashing. In this case, a new connection to another device can be established immediately.

7. Cleaning and storing

DANGER! Risk of electric shock!

Pull the power unit 12 out of the wall socket before you clean the device. Make sure that no liquid gets into the device.

• Clean the device with a slightly damp cloth. In case of persistent contamination, you can also use a slightly more gentle cleaner such as detergent. Solvents, spirits, thinners etc. must not be used, as they can damage the surface of the device.
• When not using the device, store it in a place where neither high temperatures nor moisture can affect it. Remove the battery from the remote control.

8. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This

applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Batteries must not be discarded with your household waste. Spent batteries must be disposed of properly. Special containers are available for this purpose in shops selling batteries and at municipal collection points.

(Rechargeable) batteries marked with the following letters contain harmful substances such as: Cd (cadmium), Hg (mercury), Pb (lead).

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

9. Troubleshooting

If your soundbase fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

Do not attempt to repair the device yourself under any circumstances.

Fault Possible causes / Action
No function	·Has the device been connected to the power supply? Is the LED 1 lit up? ·In the case of a connection to the HDMI ARC socket 10, the HDMI cable as well as the connected device (e.g. a television set) must also be ARC-enabled. If your television set is not provided with an ARC-enabled HDMI connection, switch to a different type of connection or replace the television set. ·Replace the old HDMI cable with a new, ARC-enabled cable. ·Has the correct audio signal been selected at the audio device (e.g. television set)? Select PCM 2.0 (or PCM stereo) as the audio output.
No Bluetooth connection	·Is the Bluetooth function of the audio device active? ·Did you switch off the device? ·Does a Bluetooth connection to another device exist? Press the 315 button or the PAIR 5 button until the blue LED starts flashing and establish the new connection.
No music play-back	·Is the volume set too low on the audio device? ·Have you selected the correct connection? ·Is the volume too low or switched off?
Interferences during operation	·In the case of any possibly occurring interferences, remove, if necessary, any mobile phones, tablets or other devices with radio wave operation located in the vicinity of the sound-base.

1. Technical specifications

Model: SSBS 36 A1
Power rating: 2x 18 W RMS
Soundbase: Input:	18.0 =¥ Θ-4+ A
Protection class of the loudspeaker:	III ◆
Power unit Dongguan City Gangqi Electronic Co, Ltd Model EU: GQ30-180130-AG:	Input: 100 - 240 V ~ 50/60 Hz, 1.0 A max. Output: 18.0 =¥ , Θ-4+
Protection class of the power unit:	II ☑
Standby power consumption:	<0.5 W
Audio format PCM 2.0 (PCM stereo)
Bluetooth: Range:	v3.0 up to 10 m
Network standby	<2.0 W
Network port (activated)	the cable-free network port cannot be deactivated
Input: LINE IN AUX IN L/R HDMI (ARC) OPTICAL IN OUTPUT: SUB OUT	1x 3.5 mm stereo jack socket 2x cinch sockets 1x HDMI ARC socket 1x optical input 1x cinch socket
Battery for the remote control:	CR2025 3 V
Dimensions (WxDxH):	approx. 61.0 x 8.5 x 31.0 cm
Weight:	approx. 3.3 kg
Ambient conditions:	only approved for indoor use 10 °C to 35 °C Relative humidity 40 to 85 %

Subject to technical modification.

Notes on the EU declaration of conformity

A complete EU declaration of conformity can be requested from HOYER Handel GmbH; see Service Centre. Subject to technical modification.

11. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us - at our discretion - free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery. The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 279319 and the purchase receipt as a purchase verification for all inquiries.
  The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service Centre

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

{0,08 EUR/Min., {peak})

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

Cy Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN:279319

Supplier

Please note that the following address is no service address.

First contact the aforementioned Service Centre.

HOYER Handel GmbH

Taskoprustraße 3

22761 Hamburg

Germany

Sommaire

Chere cliente, cher client,
