USER MANUAL NSF160 YAMAHA

Please read the following operating precautions before use. Yamaha will not be held responsible for any damage and/or injury caused by not following the cautions below.

1. To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.

2. Install the speakers in a cool, dry, clean place - away from windows, sources of heat, sources of excessive vibration, dust, moisture or cold. Avoid sources of electrical humming (e.g., transformers and motors). To prevent fire or electric shock, do not expose the speakers to rain or water.

3. To prevent the enclosure from warping or discoloring, do not expose the speakers to direct sunlight or excessive humidity.

4. Avoid installing the speakers where foreign objects may fall onto them and/or where they may be exposed to liquid dripping or splashing.

5. Do not place the following objects on top of the speakers:

6. Other components, as they might damage or discolor the surface of the speakers.

7. Burning objects (e.g., candles), as they might cause fire, damage to the speakers or personal injury.

8. Containers of liquid, as they might spill and cause electric shock to the user or damage to the speakers.

9. Do not place the speakers where they are liable to be knocked over or struck by falling objects. Stable placement will also ensure better sound performance.

10. Placing the speakers on the same shelf or rack as the turntable can result in feedback.
11. Do not insert a hand or object into the port or pick up the speaker by holding the port, as it may cause personal injury or damage to the speaker.
12. Any time you note distortion, reduce the volume control on your amplifier to lower setting. Never allow your amplifier to be driven into "clipping". Otherwise, the speakers may be damaged.
13. When using an amplifier with a rated output power higher than the nominal input power of the speakers, care should be taken not to exceed the maximum input of the speakers.
14. Do not attempt to clean the speakers with chemical solvents as this might damage the finish. Use a clean, dry cloth.
15. Do not attempt to modify or fix the speakers. Contact qualified Yamaha service personnel when service is needed. The cabinet should never be opened for any reason.
16. Secure placement or installation is the owner's responsibility. Yamaha is not liable for accidents caused by improper placement or installation of speakers.

Precautions when positioning the speakers

The speaker is constructed with the majority of the weight located in its upper portion, and is thus susceptible to falling over if proper care is not taken to ensure its stability. If the speaker tips over, the

speaker or other personal property may be damaged or an individual may be injured (possibly even fatally injured).

For safe and proper use of the speaker:

• Position the speaker in a location that is solid, level, smooth, and low (with respect to the floor).
• Do not push or apply pressure to the side of the speaker when moving, or lean objects against the side of the speaker.
• Do not sit on or set objects on top of the speaker. Vibrations or jolts associated with earthquakes and other phenomena or activities may cause the speaker to fall over. For safety reasons, using commercially-available products that increase stability of the speaker is recommended (metal fittings or chains, etc.).

Taking care of the speaker

When you wipe this unit, do not use chemical solvents (e.g., alcohol or thinners, etc.): this might damage the finish. Use a clean, dry cloth. For difficult soils, dampen a soft cloth in water, wring it out, and then wipe with the cloth.

Supplied accessory

Speaker cable 4 m (13.1 ft.) x 1

Contents

Supplied accessory. 1

Placing the speakers 1

Connecting to your amplifier. 2

Standard connections 2

Bi-wire connection 3

Removing / Attaching the grille. 4

Specifications 4

Placing the speakers

Notes

• Be sure to have another person support it.
• Pay extra attention to avoid scratching the speaker's surface.
• Be careful not to apply force to the side of the speaker, otherwise the speaker may fall causing damage to the speaker or personal injury.
• To avoid accidents resulting from tripping over loose speaker cables, affix them to the floor.
• Placing this unit too close to a CRT TV set might impair picture color or create a buzzing noise. In this case, move the speakers away from the TV. This is not an issue with LCD and plasma TVs.

Using as 2ch stereo speakers

Better stereo images will be obtained when the speakers are slightly angled in towards the listener.

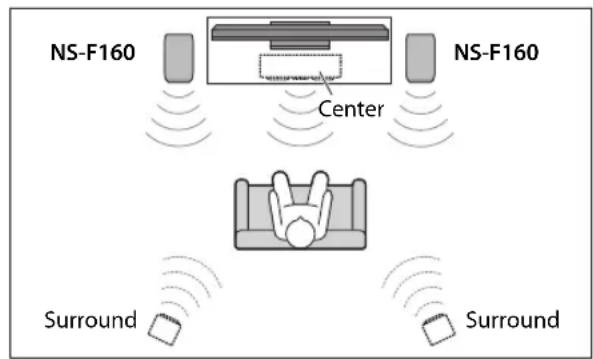

Using as front speakers in a multi-channel system

Position the speakers on both sides of the TV. The positioning of speakers is important, since this dictates the overall sound quality of the multi-channel system. Set up the speakers on the basis of your listening position by following the owner's manual supplied with your amplifier.

Connecting to your amplifier

This speaker system is capable of standard connections and bi-wire connection. Before making connections, make sure that the amplifier is switched off.

Connections

Connect one speaker to the left (marked L) terminals of your amplifier or receiver, and another speaker to the right (marked R) terminals. Please refer to the owner's manual that came with your amplifier or receiver.

Notes

• Make sure you connect the speakers with the correct polarity—positive (+) terminals to positive (+) terminals, and negative (-) terminals to negative (-) terminals. If you get them crossed over, the sound will be unnatural and lack bass.
• The speaker may be damaged if certain sounds are continuously output at high volume level. For example, if sine waves from a test disc, bass sounds from electronic instruments, etc., are continuously output, or when the stylus of a turntable touches the surface of a disc, reduce the volume level to prevent the speaker from being damaged.
• Once you have connected all of the speakers, plug the amplifier and other AV components into suitable AC wall outlets.
• When using an amplifier with a rated output power higher than the nominal input power of the speaker, care should be taken never to exceed the speaker's maximum input.

How to connect the speaker cables

15 mm (5/8")

1 Remove 15mm (5 / 8^ ) of insulation from each end of the cables, and twist the exposed conductors together neatly and tightly, as shown left.
2Loosen the terminal knob.
3Insert the bare wire.
4Tighten the knob and secure the cable.
5 Test the firmness of the connection by pulling lightly on the cable at the terminal.

Notes

• Make sure the terminal is gripping the bare wire, not the insulation.
• Make sure the bare wires do not touch each other, as this could damage the speaker or amplifier.
• If the connections are faulty, you will hear no sound from the speakers.

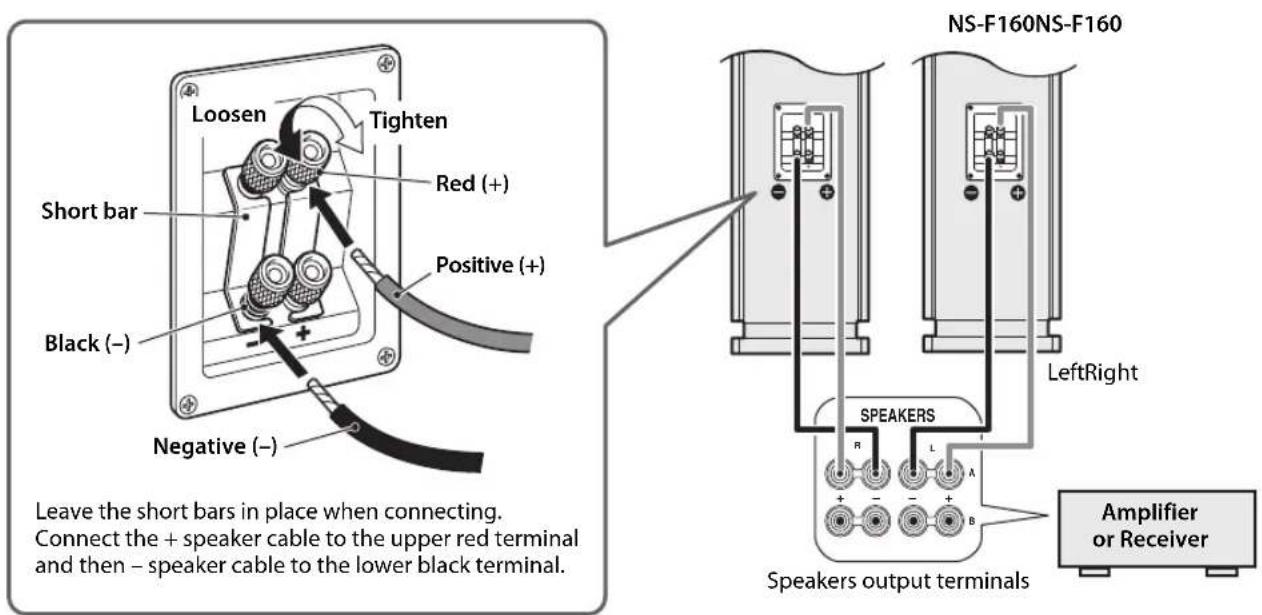

Standard connections

Bi-wire connection

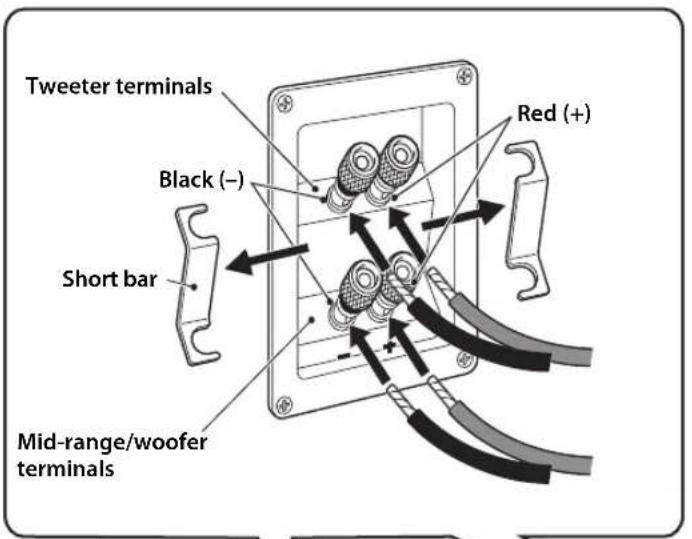

About bi-wire connection

This speaker system is capable of bi-wire connection. To connect the speaker to the output terminals of the amplifier (or receiver), two pairs of cables for each of mid-range/woofer and tweeter used instead of standard connections.

This type of connection decreases the modulation distortion caused by electric resistance of the cables and driving current of the speakers.

Consequently, purer sound quality can be expected.

To utilize bi-wire connection, remove the short bars from the terminals first, and then connect the mid-range/woofer and tweeter to the amplifier separately using two pairs of cables.

If necessary, use a commercially available speaker cable to connect the speaker system.

Remove the short bars before connecting.

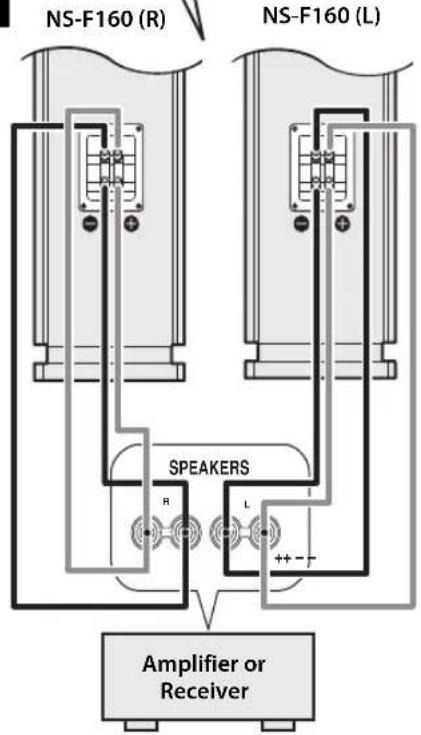

When your amplifier has only one set of speaker output terminals.

1

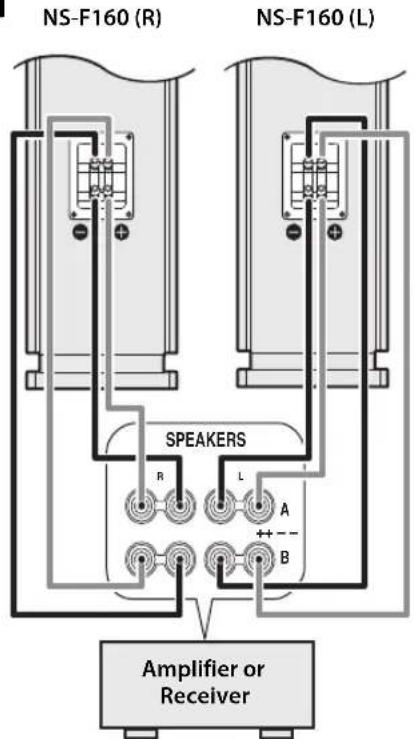

When your amplifier has two sets of speaker output terminals.

2

1

2

Both SPEAKERS A and B should be connected.

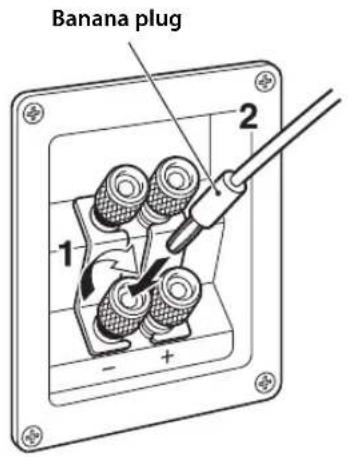

When using a banana plug

1 Tighten the terminal knob.
2Simply insert the banana plug into the terminal.

Removing / Attaching the grille

The front cover is fastened to the enclosure at six points and can be removed if desired. To remove the cover, hold on to both sides and slowly pull straight away from the speaker. To reattach, line up the six holes on the speaker with the six corresponding pegs on the inner surface of the cover and push gently.

Notes

• When removing or attaching the grille, be careful not to touch the drive units, and not to exert excessive force with any tools.
• Do not touch or apply impact to the speaker's diaphragm. Otherwise, the speaker may malfunction.
• To avoid damaging the grille, never apply excessive force, and be sure to use its frame, never pull or push the surface, for removing or attaching the grille.

Specifications

Type 2-way bass reflex

Non-magnetic shielding type

Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Woofer: 16 cm (6-1/2") cone type x 2

Tweeter: 3cm (1") soft dome type

Nominal input power 50 W

Maximum input power 300 W

Impedance Nominal 6Ω

Frequency response 30 Hz - 36 kHz (-10 dB)

• 100kHz (-30dB)

Sensitivity. 87 dB/2.83 V, 1 m

Dimensions (W× H× D)

218 x 1042 x 369 mm (8-5/8" x 41" x 14-1/2")

Weight. 19 kg (41.9 lbs)

Specifications are subject to change without notice.

English

Information for Users on Collection and Disposal of Old Equipment

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[Information on Disposal in other Countries outside the European Union]

This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Précautions

Mepbl npedoctopoXHocTH npn BbIbope MeCTa yCTaHOBKn KOJHOK

BepxHyaactbKOIOHKn 6OJee TAgKeJa, YEm HIXKHa, IIO3OTOMY KOIOHKA MOKeT ONpOKnHytbcr,ecn He IIpeIINPnHrTb Mep IIO o6ecneueHNO ee yCTOnuNBOcTN.

OπpOKnIbBaHnne KOIOHKn
MOKeT IIpNBecTHK
IOBpeXdEHNIO KOIOHKn
IIIN IpyTOI NMyIeCTBa

HIOIb3OBaTeJIa, a TaKKe K ΦN3HuecKm TpaBmAm (B HeKOtOpbIX CnyaJx - CmePeTbHbIM).

YTo6bI 06ecnueHTb 6e3oNaChoe H NaIIeKaIee HcNOJIb3OBAHHe KOIOHKn, Heo6XoIMo:

yCTaHOBnTB KOIOHky Ha TBepNOI,POBHOI n IaIKoI IOBepXHOCTN,Ha He6OJIbIOI (IO OTHOIEHNIO K IOBepXHOCTN IOna) BbICOTe;
BO BpeMa IIepeMeIeHn KIOHKn He JaBNTb Ha ee 6OKOBbIe Yactn Hc ToJIKaTb Ce C6OKy,a TaKKe HE IpiCIOHOHTb K ee 6OKOBbIM Yactm npTyHe IpeJMeTb;
- He CaIaNTbCHa HA KOIOHKn Hc KlaCTb Ha HNX KaKHe-Jn6o IIpeJMeTbI.

Bn6paunnn nnn TOUKN, Bb3BaHHbIe
3mNEtpraeeHNMAH Nn IN dpYHMN ABHEHNAH Nn
JeCTBnMn, MOryT IINPBECTN K NaIEEHIO
KoHOKn. IV3 COOBpaKeHN 6e3ONaCHOCTN
peKOMeHnyETcN cIIIOJIb3OBAtB IOIOJIHNTeJIbHbIE
CpeIcTBa OBeCneueHn yCTOnuBOcTn KOLOHOK,
IOCTyIHbIe B MaRa3UNax (MeTaJIInueckNe
KpeIeKhbIe 3IeMeHTb IIN IeIN N T.I.).

YXoJ3aKoIOHKOJ

IIIA YNCTKN KOIOHOK He IINPIMHeHnTe XHMnueCKne COCTABbI (HaIPIMep, CnInPT, pactBOPHTEN N. T.), TaK KaK OH MOrYT IOBpeINTb OTJeIOUHOE IOKpbITNe. IVcIOJIb3yNTe cyXyIO ChCTyIO TKAHb. YTo6bl YcTpaHNTb CNJIbHOe 3aPr3HEHNE, CMoUHTe MmTKyIO TKAHb B BOIE, OTOXMITE BOdy H IpOTpNTe TkaHBIO MecTO 3aPr3HeHH.

Ppnilaraemar PpHaJneXHocTb

Ka6eJb K0JOhok 4 M x 1

Copepkanhe

Ppnilaraemar npHaJnHexHocTb 1

PacnoJoxeHne KOHOK 1

IopKJIIOUeHne KOLOHOK YcUNITeIIO ....2

IopKJIIOUeHHe K yCNIITeIIO IIN peCnBepy 2

ПодклоченсnomoьуydBoeHHoro Yncna npobod. 3

CHaTne n yCtahOBKa ceTKn 4

TexHueckne xapaKTepcntuKn 4

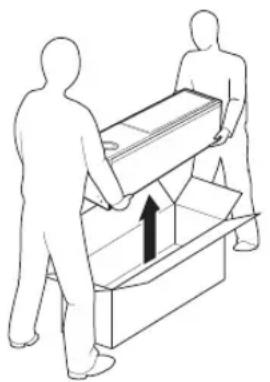

PacnoJoxeHne KOJohok

PnmeaHn

He noHHMaIte yctpoNCTBO OHNIOyK.
- ByIbTe IpeJeJbHO OCTOpOxHbI N CJIEJITe 3a TeM, YTO6bI He IIOUpaIIaTb IOBepXHOCTB KOJIOHN.
He IIpNKJIaIbIbAaTe yChJIne K 6OKOBOuactn KOJOHKn. B IipOTNBHom CJyuae MOXHO OIIPOKINHyTb KOJIOHKU H IOBpeINTb 6OpYIOBaHHe HIN IOJYHTb TpaBMbl.
3aФнсчгTe Ka6eJIN Ha IOJy, TaK KaH He3aKpeIJIe HbIe Ka6eJIMeIIaOT XOJNTb I MOrY TcTaTb IIpHUNHOH HeCHaCTHO ClyuJa.
Pa3MeIeHHe KOIOHOK CJINIIKOM 6JIN3KO K TeJIeBn3Opy c 9JIeKTPOHHOJyEBOI Tpy6KOIM MOKeT IIpNBecTN K yxyIIIEHNIO KaueCTBa H3O6paXeHHN IIN K IOBJIeHNIO IyMObBIX IOMex. B 3TOM Clyuae OTOIBHBTe KOJOHKn OT TeJIeBn3Opa. DaHHa Ipo6JIeMa He xapaKTePha IIN IIA3MeHHbIX IN KK-TeJIeBn3OpOB.

2-x KaHaJIbHbIe CTepeOkoJOhKn

YTO6bIIO6bTbCnOTHMaJIbHOrOCTepeoΦΦeKTa, KOJIOHKn paioJIaIaIOT IOJ He60JIbIIHM yTJOM K cnUyIaTeJIIO.

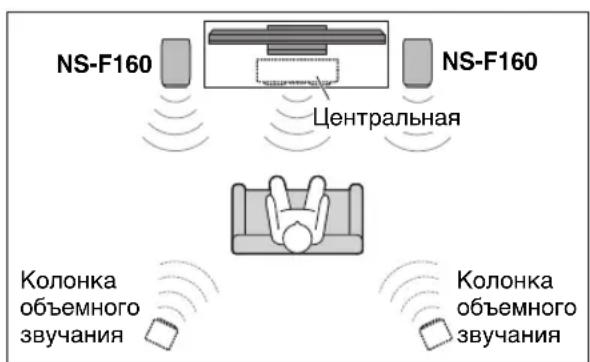

IcnoJb3OBaHne B KaueCTBe pOHTaJIbHbIX KOJOHOK B MyJIbTnKaHaJIbHOH CnCTeMe

YcTaHOBnTe KOJIOHKn C 06eHX CTOpOH TeJIeBN3Opa. O6Iee KaueCTBO 3ByaHnMyJbTHKaHaJIbHOI cHTeMbI CNJIbHO 3aBnCHT OT IPOcTpA HCTBeHNrO paCIOJIOXeHHKoJIOHOK.HAcTpoIteKOJIOHKn B COOTBeTCTBnN C IOJOKeHHem CJyIIaTeJIa.CJeIyra HHCTpyKIIINM, IIpNBcJEHHbIM B pyKOBoIDCTBE IIO HCIOJIb3OBAHHO YCHJInTEJIa.

CHMMHTeIyHTHpyIOUHe IJIaCTHHbI IpeJ IOIKJIOUChHcM.

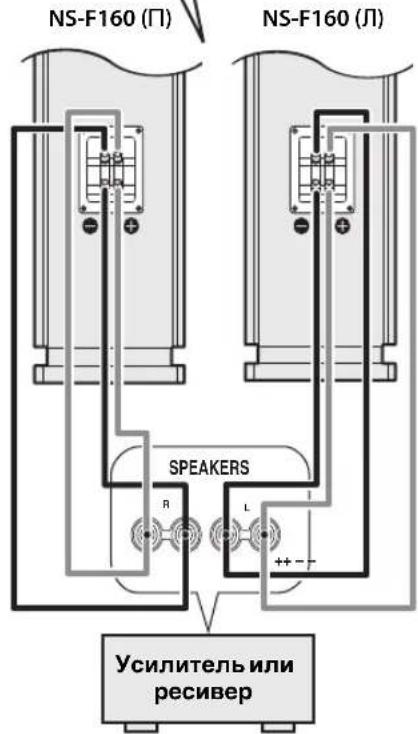

Ecn ycnntelb oIaet TOnbKO OHN MHaOpom BbIXoHbIX TepMHnAOB KOJOhKn.

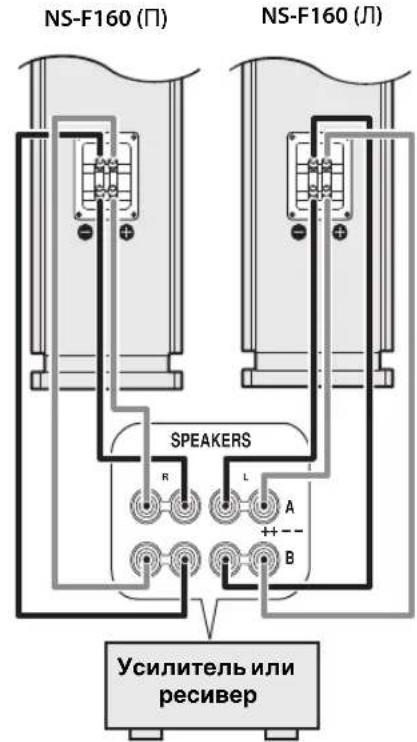

Ecn ycnntelb 6naaet DBymHa6opamn BbIXoHbIX TepMHaIOB KOJOhKn.

1

2
Heo6xoDIMO nCnoJb3OBaTb KJIeMMbI SPEAKERS A B
(Akyctnueckne cncTeMbI A n B).

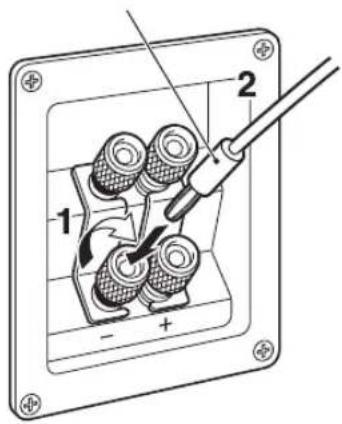

IcnoJIb3ObaHne wTeKepa c npoJoIbHbIMn NOppyXnHeHHbIMN KOHTaTMN

UTekep c npoOJIbHbIMn NOdnpyXnHeHHbIMN KOHTaKTAMN

13aTAHHTe rOJOBky KJIemMbbl.

2PocTo BCTaBbTe WTeKepe npoOJIbHbIMN noDpUxHHeHHbIMKoHTaKTAMB KNeEMMy.

CMaHHTbIM 0KpaHnPOBaHnCm

ToJIOBka H3KOaCTOTHbI INHaMHK: 16-cm KOHHueCKH JINHaMHK x 2

BbICOKOyAcTOTbI JINHAMK:3-CM C6aJIaHcPOBaHHI KYIOJIbHI JINHAMK

MaKcHMa.TbHaBxOHaMooHocTb. 300 Bt

HommaJIbHbI HmneJaHc 6Ω

Yactotnay xapaKTepeHcHka.....30T-36K（-10πB)-100K（-30πB)

YyBcTBHe.1bHOCTb 87 B/2,83 B, 1 M

Fa6apHTbIe pa3MepbI (III x B x F).. 218 x 1042 x 369 MM

Macca 19Kr

TexHueckHe xapaKTepeHCTKN MOryT H3MeHrTBcR 6e3 yBeIDOMJIeHHJ.
