USER MANUAL SAKL50 SONY

Active Subwoofer and Center Speaker

Operating Instructions GB

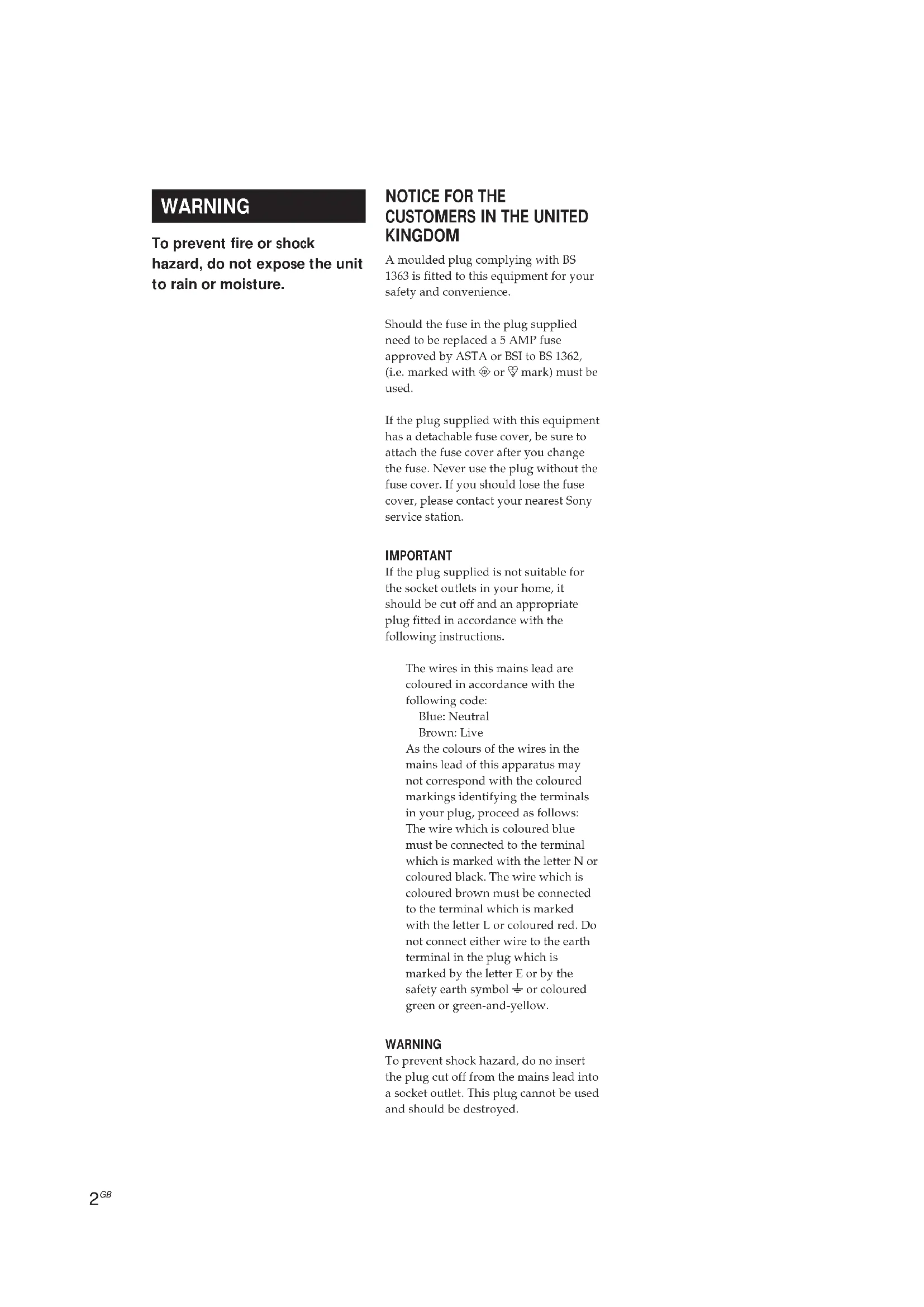

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced a 5 AMP fuse approved by ASTA or BSI to BS 1362, (i.e. marked with ◆ or ▽ mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

IMPORTANT

If the plug supplied is not suitable for the socket outlets in your home, it should be cut off and an appropriate plug fitted in accordance with the following instructions.

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. Do not connect either wire to the earth terminal in the plug which is marked by the letter E or by the safety earth symbol 12 or coloured green or green-and-yellow.

WARNING

To prevent shock hazard, do no insert the plug cut off from the mains lead into a socket outlet. This plug cannot be used and should be destroyed.

Welcome!

Thank you for purchasing the Sony Active Subwoofer and Centre Speaker. Before operating this speaker system, please read this manual thoroughly and retain it for future reference.

About this Manual

The Active Subwoofer and Center Speaker is designed for installing the KL-50W series TV on top of it. Please do not install any other TV set.

This speaker system is compatible with the Dolby Pro Logic Surround System.*

* Manufactured under license from Dolby Laboratories Licensing Corporation. DOLBY, the double-D symbol □□ and "PRO LOGIC" are trademarks of Dolby Laboratories Licensing Corporation.

TABLE OF CONTENTS

Getting Started

Precautions 4

Unpacking 4

Installation 4

Hooking Up the System 5

Operations

Listening to the Sound 8

Adjusting the Sound 9

Additional Information

Troubleshooting 10

Specifications 10

Precautions

On safety

• Before operating the speaker system, be sure that the operating voltage is identical with that of your local power supply.
• Unplug the speaker system from the mains if it is not to be used for an extended period of time. Disconnect the mains lead by grasping the plug. Never pull the lead itself.
• Should any liquid or solid object fall into the speaker system, unplug the unit and have it checked by qualified personnel before operating it any further.
• The mains lead must only be changed at a qualified service shop.

When turning on or off the KL-50W series TV, an amplifier or other connected equipment

Lower the volume of the speaker system to a minimum.

To avoid damaging the speaker system

• Be careful when setting the volume control of the KL-50W series TV or amplifier to avoid excessive input power.
• Do not attempt to open the enclosure or remold the speaker units.
• The grill net is not removable. Do not try to remove it.

In case colour irregularity is observed on a nearby TV screen

The speaker system is not a magnetically shielded type, however, you can install the KL-50W series TV on the speaker system.

Because the KL-50W series TV uses an LCD, it is not affected by the magnets in the speakers.

If you install any other TV set near the speaker system, colour irregularity may be observed on the TV screen.

If colour irregularity is observed....

→ Move the TV set away from the speaker system, turn off the TV set once, then turn it on after 15 or 30 minutes.

On installation

• Do not install the speaker system near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.
• Good ventilation is essential to prevent internal heat build-up in the speaker system. Place the speaker system in a location with adequate air circulation. Do not place the speaker system too close to a wall as this may obstruct the ventilation hole in the back.

On cleaning the cabinet

Clean the cabinet with a soft cloth lightly moistened with water. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your speaker system that are not covered in this manual, please consult your nearest Sony dealer.

Unpacking

Check that you received the following items:

• Audio connecting cord (1)
- Clip for the stabilizing belt (1)
- Screw for the clip (1)

Installation

The speaker system

To obtain better bass reproduction, we recommend that you install the speaker system on a solid floor where resonance is unlikely to occur.

Notes

• Always install the speaker system a few centimetres away from the wall.
• Do not place any object except the KL-50W series TV on the speaker system. Do not sit on it.
• If the speaker system is installed in the centre of a room, the bass may be extremely weakened. This is due to the influence of a standing wave created in the room. If this happens, move the speaker system away from the centre of the room, or eliminate the cause of the standing wave by installing something against the opposite wall such as a bookshelf.

The KL-50W series TV

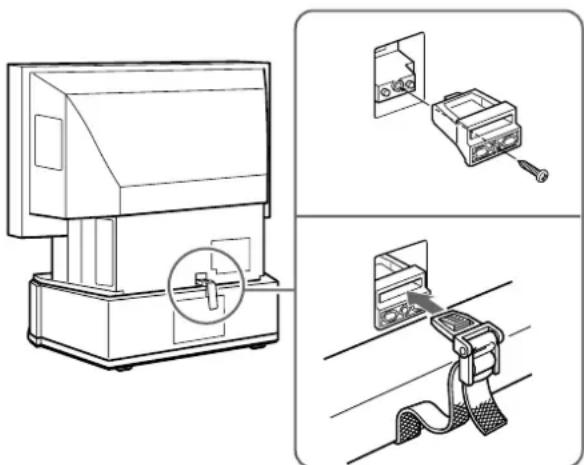

Install the KL-50W series TV on the speaker system and fix the TV to the speaker system using the TV stand stabilizing belt and belt clip.

Technical illustration of a device with three views: top shows close-up of internal components, bottom shows close-up of cable being inserted (no text or symbols)

Hooking Up the System

Overview

Use either the HIGH LEVEL or LOW LEVEL terminal of the speaker system when you connect the KL-50W series TV or a separate amplifier.

• If you connect the KL-50W series TV, connect the LOW LEVEL terminal of the speaker system to the audio line out jacks of the KL-50W using the supplied audio connecting cord.
• If your amplifier has one of the following types of output jacks, connect the LOW LEVEL terminal of the speaker system to the amplifier jacks using the supplied audio connecting cord.

— LINE OUT jacks
— MONO OUT jack
— MIX OUT jack
— SUB WOOFER output jacks
— SUPER WOOFER output jacks

If the amplifier has a single output jack (e.g. MONO OUT or MIX OUT jack), connect the other end of the cord to the L INPUT jack of the LOW LEVEL terminal of the speaker system.

• If your amplifier does not have any of the above mentioned output jacks, connect the speaker terminals of the amplifier to the HIGH LEVEL terminal of the speaker system instead.
• If your amplifier has the Dolby Pro Logic Surround system, connect the center speaker output of the amplifier to the speaker system's CENTER SPEAKER terminal as well.

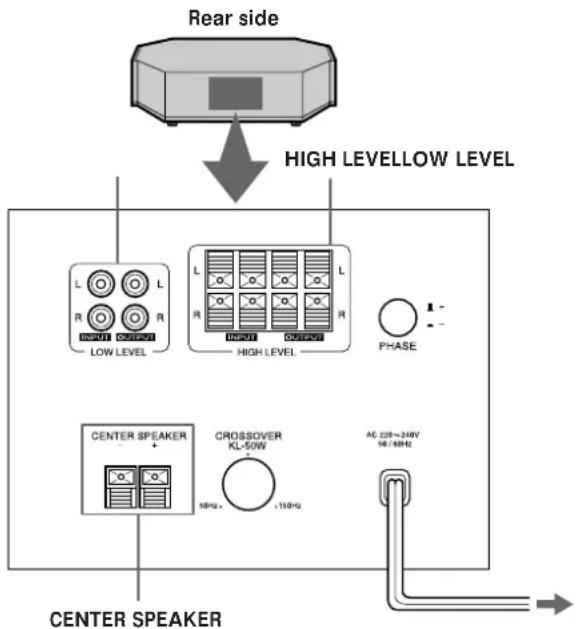


Note

Use either the LOW LEVEL or HIGH LEVEL terminals for connection. Using both may result in a malfunction.


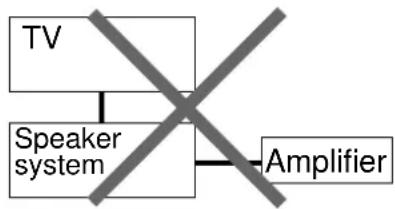

Do NOT connect both the low level and high level terminals

Before you get started

• Turn off the power of the KL-50W series TV or amplifier and the speaker system before making any connections.
• Use the audio connecting cords supplied with the other equipment. If there are not enough audio connecting cords to make the necessary connections, you need to purchase optional audio connecting cords.
• Be sure the connections are secure to avoid noise.
• Connect the mains lead of the speaker system to a mains outlet.

(continued)

Connecting to the KL-50W series TV

What cords will I need?

Audio connecting cord (supplied) (1)

Hookups

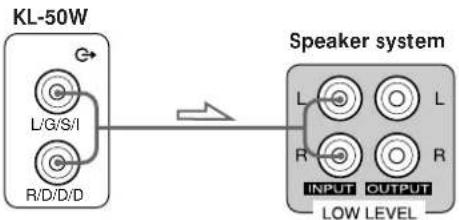

Connect the INPUT L and R jacks of the speaker system's LOW LEVEL terminal to the KL-50W's audio output jacks with the supplied audio connecting cord.

: signal flow

Note

When the power of the KL-50W is turned off, turn down the volume, or turn off the power of the speaker system. Otherwise, a popping noise may be heard.

Connecting to an amplifier with a special super woofer jack

If your amplifier has audio line out jacks or special super woofer jack(s) (like a MONO OUT jack, MIX OUT jack, SUB WOOFER jacks or SUPER WOOFER jacks), use the LOW LEVEL terminal of the speaker system.

What cords will I need?

Audio connecting cord (supplied) (1)

Hookups

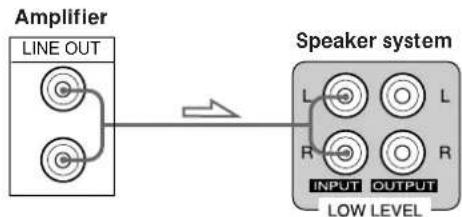

Connect the INPUT L and R jacks of the speaker system's LOW LEVEL terminal to the audio line out jacks or one of the special jacks of the amplifier with the supplied audio connecting cord.

: signal flow

Note

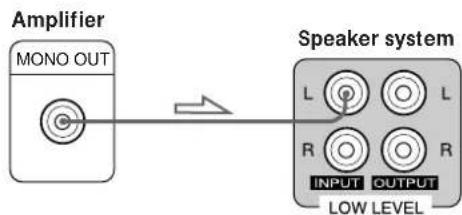

- If the special jack on your amplifier is a single jack (e.g. MONO OUT jack) or the audio line out jack is monaural, connect to the INPUT L jack of the LOW LEVEL terminal.

: signal flow

- If the sound is not loud enough, the output level of your amplifier may not be high enough. In this case, connect the speaker jacks of the amplifier directly to the HIGH LEVEL terminal of the speaker system.

Connecting to an amplifier with speaker jacks

Connect the speaker system to the amplifier, then connect the front speakers to this speaker system.

What cords will I need?

Speaker cord (1 for each speaker) (not supplied)

Pure diagram of two curved black bands with endpoints, no text or symbols present

Strip the ends of the cord about 2/3 inch (15 mm) and twist the exposed wire.

Be sure to match the speaker cord to the appropriate jack on the components: + to + and - to -. If the cords are reversed, the sound will be distorted and will lack bass.

Usually the speaker cord marked with a line is used for positive (+) and should be connected to the positive (+) jack to avoid any improper connections.

Hookups

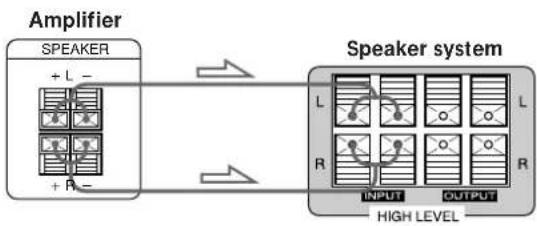

1 Connect the speaker system to the amplifier. Connect the HIGH LEVEL terminal of the speaker system to the amplifier's speaker output jacks with the speaker cords. Be sure to connect both L and R channels.

→: signal flow


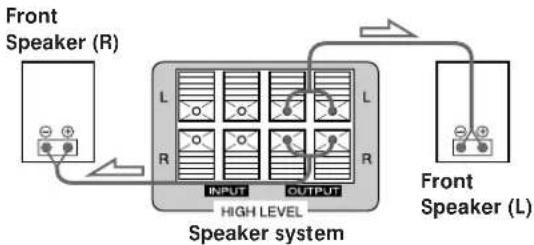

2 Connect the front speakers to this speaker system. Connect the front speakers to the OUTPUT jacks of this speaker system's HIGH LEVEL terminal.

Connecting to an amplifier with the Dolby Pro Logic Surround system

What cords will I need?

Speaker cord (not supplied)

Pure diagram of two curved black bands with endpoints, no text or symbols present

Strip the ends of the cord about 2/3 inch (15 mm) and twist the exposed wire.

Hookups

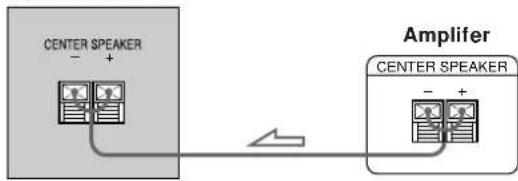

1 Connect the centre speaker output jack of the amplifier to the CENTER SPEAKER terminal of the speaker system.

→: signal flow

Speaker system

Note

When the power of the amplifier is turned off, turn down the volume, or turn off the power of the speaker system. Otherwise, a popping noise may be heard.

What is Dolby Pro Logic Surround?

Dolby Pro Logic Surround is a system that decodes the extra channels on movie videos and TV programmes, and produces sound effects and echoes that make the action seem to envelop you. The sound image is improved by using four separate channels: off-screen audio effects, on-screen dialogue, left to right panning, and music. These channels manipulate the sound and enhance the action as it happens on the screen.

The unit offers PROLOGIC mode for these systems as one of the sound fields. You can tell if a video tape or laser disc uses Dolby Pro Logic Surround encoded software by looking at the packaging. (Some video tapes and laser discs may use Dolby Pro Logic Surround even if it's not indicated on the package.)

Connecting the mains lead

Connect the mains lead of the speaker system and your amplifier to a mains outlet.

Listening to the Sound

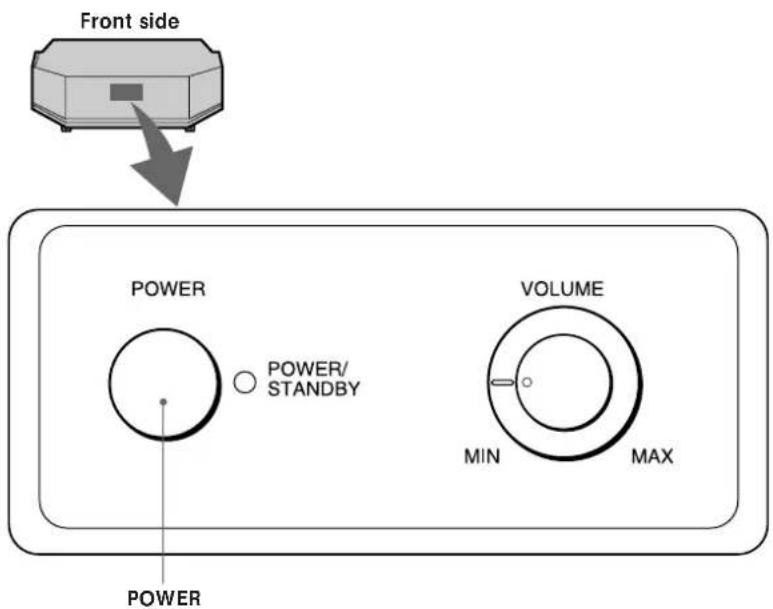

Front side POWER POWER/ STANDBY VOLUME MIN MAX POWER

Note

The following actions may cause damage to the speakers: Setting the amplifier's tone control to a high level, setting an equalizer's output to a high level, or inputting sine waves of 20 Hz to 50 Hz recorded on a commercially available test disk or special sounds (the bass sound of electronic musical instruments, popping noise of an analog disc turntable, sounds with abnormally enhanced bass, etc.) When a special disc containing abnormally enhanced bass is played, noise may be output in addition to the original sound. In such a case, decrease the sound level.

1 Turn on the connected KL-50W series TV or amplifier and select the programme source.

2 Press the POWER switch.

The speaker system turns on and the POWER indicator lights up in red.

3 Play the programme source.

When the speaker system receives a signal, the POWER indicator turns green.

Adjust the volume of the KL-50W series TV or amplifier so sound from the front speakers is not distorted.

The standby mode

When no signal is received, the speaker system goes into standby mode and the POWER indicator turns red after a few minutes. When a new signal comes into the speaker system, the speaker system returns to active mode and the POWER indicator turns green.

To turn off the power

Press the POWER switch to release the switch.

If you hear noise when you turn off the speaker system, turn down the speaker system volume, or turn off the KL-50W series TV or amplifier before turning off the speaker system.

Adjusting the Sound

You can adjust the speaker system to complement the sound of your front speakers. Reinforcing the bass sound gives you a greater sense of atmosphere.

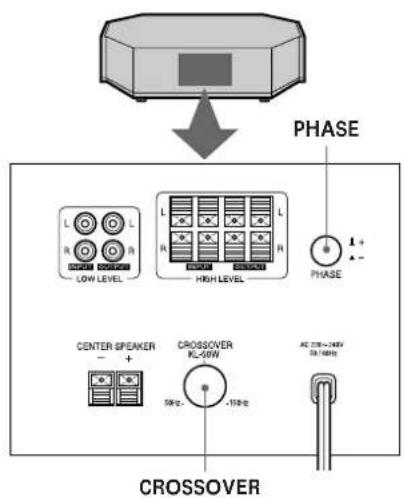

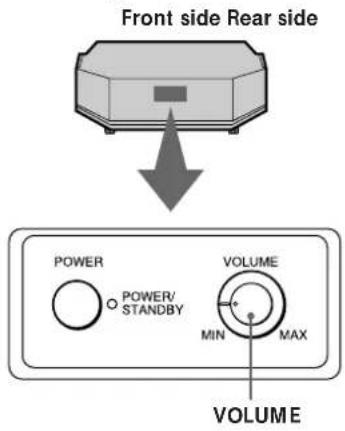

Front side Rear side POWER POWER/ STANDBY VOLUME MIN MAX VOLUME

PHASE L L R R LOW LEVEL I L R HIGH LEVEL PHASE + - CENTER SPEAKER + CROSSOVER KL-50W 150Hz - 150Hz AC 270V~240V DC 740Hz CROSSOVER

1 Play your favourite song.

Male vocal tunes containing bass sounds are most suitable for adjustment. Adjust the volume for the front speakers to the same level as usual.

2 Adjust volume of the speaker system.

Turn the VOLUME control so you can hear the bass sound a little more than before.

To increase the bass sound, turn the VOLUME control clockwise. To decrease the bass sound, turn the VOLUME control counterclockwise.

3 Adjust the cut off frequency.

Turn the CROSSOVER control to match the reproduction frequencies of your front speakers.

Turn the control towards 150 Hz if you have small front speakers. Turn the control towards 50 Hz if you have large front speakers. If you connect the KL-50W series TV, adjust the CROSSOVER control to the marked (KL-50W) position.

4 Select the phase polarity.

Press the PHASE button to select the phase polarity. Select the normal (+) phase polarity if you connect a KL-50W series TV.

Depressing the PHASE button reverses the polarity and may provide better bass reproduction in certain listening environments. (Bass reproduction depends on the type of front speakers, the position of the speaker system and the adjustment of the cut off frequency). It may also change the expanse and tightness of sound, and effect the feeling of the sound field. Select the setting that provides the sound you prefer when listening in your normal listening position.

Depressed position (■ -): Reverse Recovered position (■ +): Normal

Note

If the sound distorts when you turn on the bass reinforcement from your amplifier (such as, DBFB, GROOVE, or the graphic equalizer), turn off the bass reinforcement and adjust the sound.

Troubleshooting

If you experience any of the following difficulties while using the speaker system, use this troubleshooting guide to help you solve the problem. Should any problem persist, consult your nearest Sony dealer.

There's no sound.

→ Check that this speaker system and other components are connected correctly and securely.
→ Turn the VOLUME control clockwise to turn the volume up.

The sound has suddenly stopped.

→ The speaker cords may have short-circuited. Connect the cords properly.

The sound is distorted.

→ The input signal is not clear.
→ The input signal level is too high.

Severe hum or noise is heard.

→ Connect the ground wire of the turntable properly.
The contacts between the plugs of the connecting cords and the corresponding jacks have not been made properly. Connect the plugs firmly.
The audio system is picking up some noise from the KL-50W series TV set. Turn the TV set off.

Specifications

System

Type Active Super Woofer and Passive Center Speaker

Speaker unit Woofer: 13 cm · 2 (5 ^1 /s inches · 2) Centre: 8 cm · 2 (3 ^1 /4 inches · 2), 8 Ω, maximum input level 100 W

Practical maximum super woofer output 55 W

Reproduction frequency range 20 Hz – 200 Hz

High frequency cut off frequency 50 Hz – 150 Hz

Phase switch NORMAL/REVERSE

Inputs/Outputs

LOW LEVEL Pin jacks, 2 channels, with loopthrough outputs.

HIGH LEVEL INPUT/OUTPUT speaker jacks

General

Power requirements 220-240 V AC, 50/60Hz

Power consumption 120 W

Dimensions Approx. 920 x 266 x 534 mm (w/h/d) (36^1/4 · 10^1/2 · 21^1/_8 inches)

Mass 24 kg (52 lb 15 oz)

Supplied accessories

Audio connecting cord (2 phono plugs - 2 phono plugs) (1) Clip (1) Screw (1)

Design and specifications are subject to change without notice.

AVERTISSEMENT

Technical line drawing showing a device with a close-up view of its internal components and a close-up of its cable being inserted into a clip (no text or symbols present)

Pure diagram of two curved black and white lines with endpoints, no text or symbols present

Pure diagram of two curved black and white lines with endpoints, no text or symbols present

Technical line drawing showing a device with a close-up view of its internal components and a close-up of its cable being inserted (no text or symbols present)

Pure diagram of two curved lines with endpoints, no text or symbols present

Pure diagram of two curved lines with endpoints, no text or symbols present

Technical illustration of a device with three steps: close-up, open package, and cable clamp (no text or symbols)

Aansluiten

Overzicht

Pure diagram of two curved black and white lines with endpoints, no text or symbols present

Pure diagram of two curved black bands with no text or symbols

Wat is Dolby Pro Logic Surround?

Technical illustration of a device with three steps: close-up, close-up with cable, and close-up with cable strap (no text or symbols)

Pure diagram of two curved and straight black cables without any text, numbers, or symbols

Pure diagram of two curved lines with endpoints, no text or symbols present

Technical line drawing showing a device with a close-up view of its internal components (no text or symbols present)

Ligação do sistema

Panorâmica geral

Pure diagram of two curved black and white lines with endpoints, no text or symbols present

Pure diagram of two curved lines with endpoints, no text or symbols present

Technical line drawing of a device with three views: top shows close-up, bottom shows close-up of a cable buckle (no text or symbols)

Pure diagram of two curved black and white lines with endpoints, no text or symbols present

Pure diagram of two curved black and white lines with endpoints, no text or symbols present

INNEHÅLLSFÖRTECKNING

Komma igång

Angående installation

Technical line drawing of a device with three views: top shows close-up, bottom shows close-up of a cable buckle (no text or symbols)

Ansluta systemet

Översikt

Pure diagram of two curved black and white lines with endpoints, no text or symbols present

Pure diagram of two curved black and white lines with endpoints, no text or symbols present
