USER MANUAL Black Core Two LTD MAGNAT

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or labels)

At the end of the product's useful life, please dispose of it a appropriate collection points provided in your country.

Dear MAGNAT Customer,

BLACK CORE TWO / BLACK CORE TWO LTD car hi-fi power amplifier will enable you to satisfy you demands on sound reproduction in your car. With its impressive deep-bass power reserves, low harmonic and neutral reproduction, BLACK CORE TWO / BLACK CORE TWO LTD takes car hi-fi to new height amplifier is characterized by low operating current, rapid switching capabilities and excellent temperature stability. Increased output power can be achieved by switching two amplifier channels in an amplifier for bridging mode. Experience and enjoy how this high-tech machine perfectly reproduces magnificent sounds

Please read all of the owner's manual before installing and using the amplifier.

1. TECHNICAL DATA BLACK CORE TWO

	Stereo / Bridged
Max. output power (1 kHz sinus burst 2:8, B+=14.4V)	2 x 200 W / 1 x 600 W on 4 Ohm
Nominal output power (DIN 45 324, B+=14.4V)	2 x 65 W / 1 x 200 W on 4 Ohm
Max. output power (1 kHz sinus burst 2:8, B+=14.4V)	2 x 300 W on 2 Ohm
Nominal output power (DIN 45 324, B+=14.4V)	2 x 100 W on 2 Ohm
Loudspeaker impedance (stereo)	2 - 8 Ohm
Frequency response	5 - 50 000 Hz (-3 dB)
Total harmonic content (DIN 45 403)	< 0.05% (1 kHz)
Stereo separation (IEC 581 )	> 60 dB (1 kHz)
Weighted noise distance (IEC A)	> 100 dB
Input sensitivity LOW LEVEL INPUT	400 mV - 4 V
Input impedance LOW LEVEL INPUT	20 kOhm
Low-pass filter	40 - 300 Hz, 12 dB per octave
High-pass filter	40 - 300 Hz, 12 dB per octave
Bass boost	0...12 dB at 45 Hz
Supply	+12 V (10 - 14,4 V), minus to ground
Fuse	1 x 25 A
Sizes (W x H x D)	234 x 54 x 215 mm
Weight	2.1 kg

BLACK CORE TWO LTD

	Stereo / Bridged
Max. output power (1 kHz sinus burst 2:8, B+=14.4V)	2 x 300 W / 1 x 800 W on 4 Ohm
Nominal output power (DIN 45 324, B+=14.4V)	2 x 90 W / 1 x 300 W on 4 Ohm
Max. output power (1 kHz sinus burst 2:8, B+=14.4V)	2 x 400 W on 2 Ohm
Nominal output power (DIN 45 324, B+=14.4V)	2 x 130 W on 2 Ohm
Loudspeaker impedance (stereo)	2 - 8 Ohm
Frequency response	5 - 50 000 Hz (-3 dB)
Total harmonic content (DIN 45 403)	< 0.05% (1 kHz)
Stereo separation (IEC 581 )	> 60 dB (1 kHz)
Weighted noise distance (IEC A)	> 100 dB
Input sensitivity LOW LEVEL INPUT	400 mV - 4 V
Input impedance LOW LEVEL INPUT	20 kOhm
Low-pass filter	40 - 300 Hz, 12 dB per octave
High-pass filter	40 - 300 Hz, 12 dB per octave
Bass boost	0...12 dB at 45 Hz
Supply	+12 V (10 - 14,4 V), minus to ground
Fuse	2 x 15 A
Sizes (W x H x D)	284 x 54 x 215 mm
Weight	2.5 kg

SUBJECT TO TECHNICAL CHANGE

2. FEATURES

• Complementary push-pull final stage
• Automatic switching on/off via car radio
• Infinitely adjustable high pass and low pass filters
• Infinitely variable bass equalisation
- Adjustable input sensitivity
- Bridgeable 2-/1-channel mode
- Tri-mode
- Electronic protective circuit against short circuiting, DC offset and excess temperature
- Mute switch for suppressing switch-on crackle interference
- Low-level outputs (cinch jacks) for connecting additional amplifiers
- Operating display (green LED) and overload indicator (red LED)

3. IMPORTANT INSTALLATION INFORMATION

• This appliance may only be connected to a 12 volt system with negative ground.
• The heat radiated when the amplifier is used means that sufficient air circulation is required at the installation. It is very important that the cooler's cooler ribs do not contact any metal plating or a which could impair air circulation. The amplifier may not be installed in small confined spaces or without air circulation (e.g. spare wheel recess or under the vehicle carpeting). Installation in the I recommended.
  · Install the amplifier in such a way that it is protected as far as possible against vibrations and du
• Make sure that the input/output cables are sufficiently distant from the power supply cables as other interference may occur.
• Make sure that the fuse and operating elements are accessible after installation.
  The appliance's reliability and performance depend on the quality of installation. Preferably get an ex install the system, particularly if you want to install several loudspeakers or a complex multi-way s

4. CONNECTIONS

4.1 POWER SUPPLY AND AUTOMATIC SWITCHING ON

Important notice: Before commencing the installation, disconnect the plus terminals from the car battery in order to prevent short circuits.

The power cabling usually installed in on-board car networks is not sufficient for a power amplifier's (Make sure that the power lines to GND and to the +12 V terminal have been sufficiently specified. section of at least 10 mm^2 must be used to connect the battery to the amplifier's terminals.

First connect the amplifier's GND terminal to the battery's minus pole. It is very important that the cold good. Dirt residues must be carefully removed from the battery's connection point. A loose connection with malfunctions or interference noise or distortion.

The +12 V amplifier connection must then be connected with a power cable possessing an integrated the battery's plus pole. The fuse must be located close to the battery, the length of cable from the pole to the fuse must be less than 60 centimetres for safety reasons. Only insert the fuse when all work, including the connection of the loudspeakers, has been completed.

Now connect the car hi-fi receiver's remote control connection to the amplifier's REM control jack. A cross-section of 0.75mm^2 is sufficient for connecting the amplifier's REMOTE connection and the device.

4.2 AUDIO CABLES

When installing the audio cable between the cinch output of your car receiver and the cinch input of inside your car, the audio and power supply cables should, wherever possible, not be routed along the side of the vehicle. We recommend an isolated installation, e.g. routing the power cable through the on the left-hand side and the audio cable through the cable duct on the right-hand side or vice versa, interference due to crosstalk into the audio cables.

4.3 LOUDSPEAKER CONNECTIONS

In normal operating mode (i.e. one loudspeaker on each individual amplifier channel), the lowest to resistance is 2 ohm per channel.
- In bridging mode (two amplifier outputs combined) the lowest terminal resistance doubles to 4 ohm.
· The impedance in tri-mode may not fall below 2 ohm per channel.
- Never connect the loudspeakers' minus terminals to the vehicle chassis.
- Never connect the +12 V supply voltage to a loudspeaker output as this would destroy the amplifier stage.
If the amplifier is operated with lower terminal resistances or incorrectly used as described above, amplifier and the loudspeakers may be damaged. The warranty becomes void in such cases.

5. OPERATING ELEMENTS AND IN/OUTPUTS

5.1 SETTING THE INPUT SENSITIVITY

The input sensitivity may be adapted to any car radio or tape deck. Turn the volume control of you central position and then adjust the input-level control (3) to produce an average medium volume. This usually provides sufficient power reserves at optimum weighted noise voltage.

ATTENTION: only reproduce loud test noises briefly to prevent damaging the loudspeakers.

5.2 LOW-PASS FILTER WITH ADJUSTABLE CROSS-OVER FREQUENCY

If the amplifier is used as a subwoofer amplifier, set the switch (7) to "LPF". Set the desired cross-with the control (6). This makes the filter adaptable to the installed woofer's sound requirements.

The filter's high edge steepness is responsible for the precision reduction of medium and high frequer

5.3 HIGH-PASS FILTER WITH ADJUSTABLE CROSS-OVER FREQUENCY

If the amplifier is to be used as an amplifier for satellite loudspeakers (mid-range/tweeter loudspeakers switch (7) to "HPF". Set the desired cross-over frequency with the control (5). Only the frequencies a set cross-over frequency will then be amplified. This effectively minimizes distortions caused by excessi membrane movement at low frequencies and small satellite loudspeakers without reducing the bass lev

5.4 BASS-BOOST

The bass-boost function (4) is used to increase or equalize the lower bass frequencies.

5.5 OUTPUTS FOR CONNECTING ADDITIONAL AMPLIFIERS

The input signal of the LINE INPUT connections L and R (2) is forwarded directly to the LINE OUT jacks. The LINE OUT connections allow the use of additional amplifiers without requiring additional T-p cables.

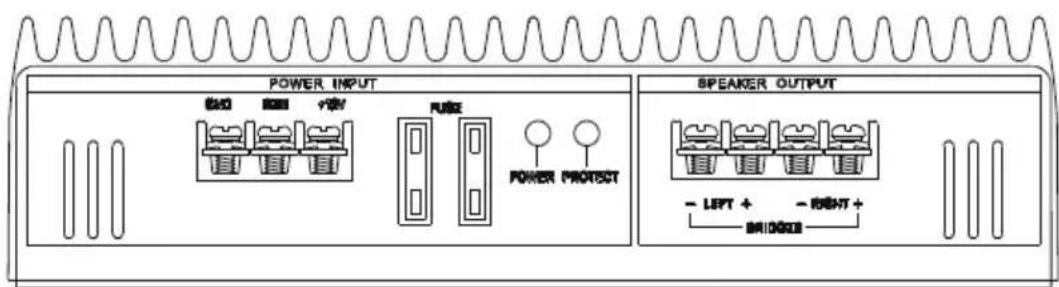

FIG. 1 POWER SUPPLY / REMOTE SWITCH-ON CONNECTION

(1) GND terminal for the ground, to the battery's minus pole
(2) REM terminal for remote switch-on
(3) Terminal for + 12 V battery voltage
(4) Battery
(5) Cable fuse
(6) To your car radio's automatic aerial connection

If your car is not equipped with an automatic aerial connection, connect this cable's plus pole ignition lock. An on/off switch should be inserted in this case. Make sure that this switch is sv the amplifier is not used.

FIG. 2 STEREO MODE

Connect and set the amplifier as shown in Fig. 2 if it is to be controlled with two output channels loudspeakers. The high-pass filter must also be activated if the amplifier is also used for satellite loudSee Chapter 5.3.

(1) To the car radio, left output
(2) To the car radio, right output
(3) Loudspeaker left
(4) Loudspeaker right

FIG. 3 BRIDGE MODE WITH STEREO CAR RADIO

If the amplifier has to generate more power to operate a subwoofer, connect and set it as shown in use of the low-pass filter is described in Chapter 5.2.

(1) To the car radio, left output
(2) To the car radio, right output
(3) Subwoofer

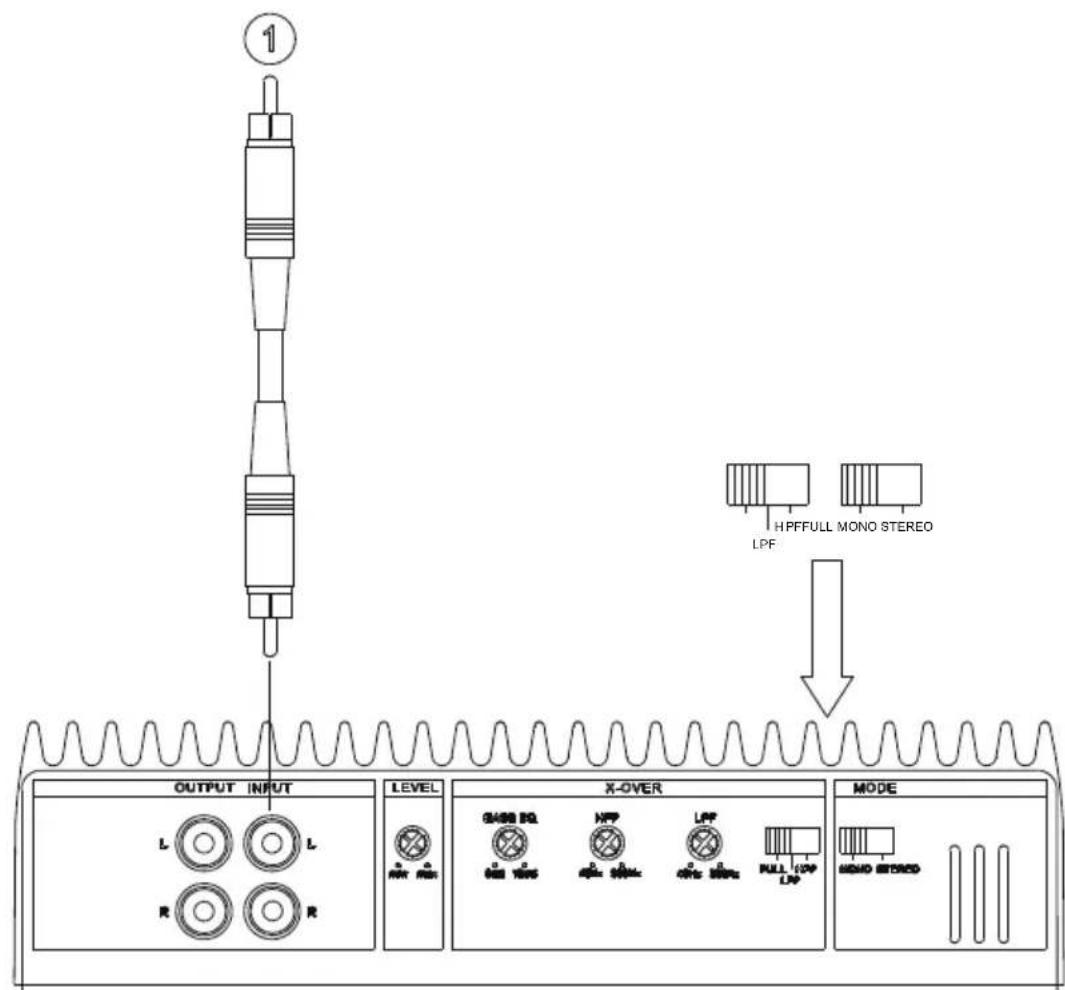

FIG. 4 MONO MODE WITH ONE CAR RADIO WITH SUBWOOFER OUTPUT

(1) To the car radio, subwoofer output
(2) Subwoofer

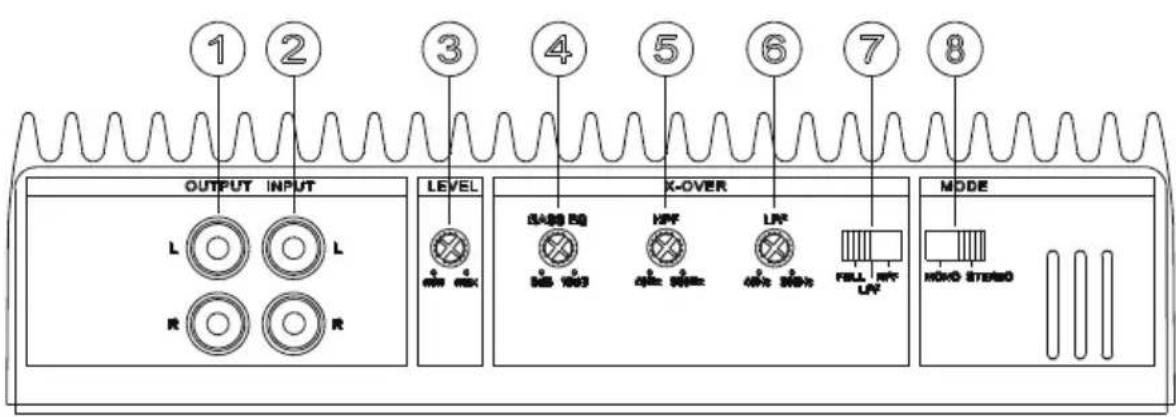

FIG. 5 OPERATING ELEMENTS AND IN/OUTPUTS

(1) Outputs for connecting additional amplifiers
(2) Low-level input
(3) Input level control
(4) Bass-booster control
(5) Cross-over frequency control for the high pass
(6) Cross-over frequency control for the low pass
(7) (FULL) / LPF (low pass filter) / HPF (high pass filter) option switch
(8) Mono-stereo switch
