USER MANUAL MCR1295 Marquant

DVD Player with Radio
4.3 Inch Touch Screen Monitor
RDS (Radio Date System) Function
- USB Interface
SD/MMC Card Interface
Remote Control

SAFETY INFORMATION 3
DISC NOTES. 5
INSTALLATION 7
USING THE DETACHABLE FRONT PANEL. 10
CONNECTIONS 11
LOCATIONS AND FUNCTION OF THE PLAYER 12
LOCATIONS AND FUNCTION OF THE REMOTE CONTROL. 13
1. BASIC OPERATION 163
MENU OPERATION 18

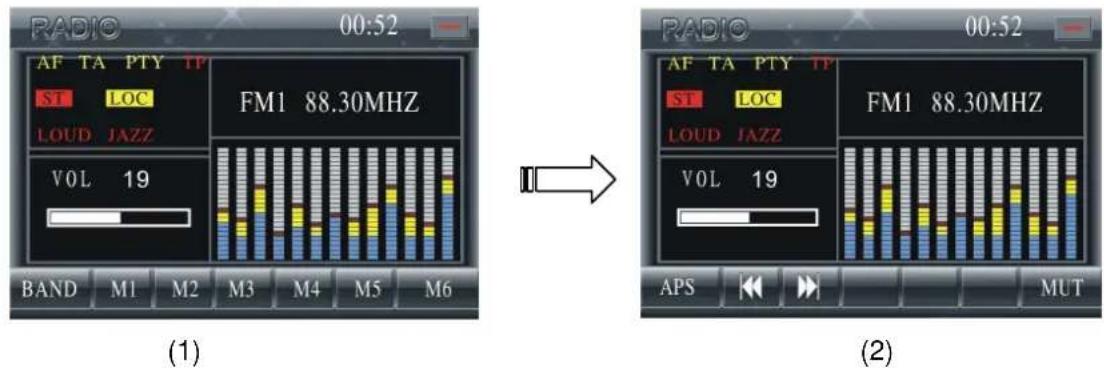

RADIO OPERATION 18
DVD OPERATION 21
USB/ CARD OPERATION 28
AUXILIARY INPUT OPERATION 28
BACK SIGHT OPERATION 29
SETUP OPERATION 29
TROUBLESHOOTING 31
SPECIFICATIONS 33

Use This Product Safely

This unit has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this unit protect you if you observe the following procedures for installation, use and servicing. This unit doesn't contain any parts that can be repaired by the user.

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC, negative ground battery system the regular system.

Protect the Disc Mechanism

Avoid inserting any foreign objects into the slot of this player.

Failure to observe this may cause malfunction due to the precise mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust this precision product. Please refer to the Service Center list included with this product for service assistance.

For Installation

The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30^ .

Protect the Monitor Mechanism

The front panel with the monitor can be adjusted to different positions for your need. It is operated automatically. Do not turn it upward or downward manually. Otherwise, the mechanism construction may be harmed to some degree.

CAUTION:

MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYERCORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATIONEXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DON NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
• TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
• THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

Region Management Information

Region Management Information: This Mobile DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player cannot play this disc.

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

CD

12 cm disc

MP3

12 cm disc

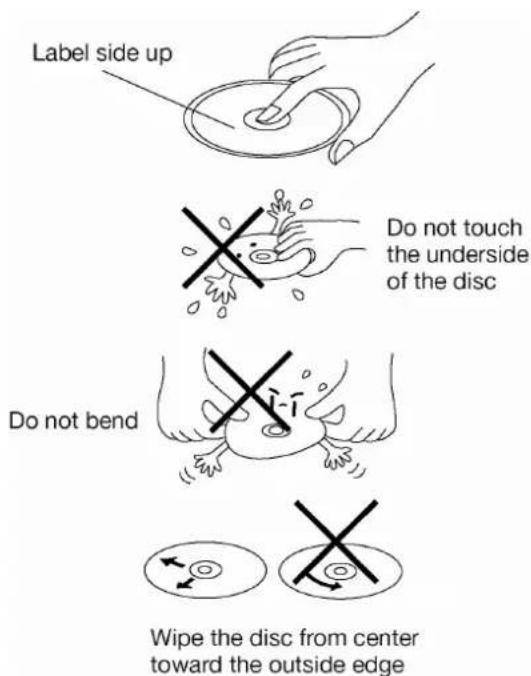

Handling and Cleaning

• Dirt, dust, scratches and warping discs will cause wrong operation.
• Do not place stickers or make scratches on discs.
• Do not warp discs.
• A disc should always be kept in its case when not in use to prevent from damage.

• Do not place discs in the following places:

• Direct sunlight.

• Dirty, dusty and damp areas.
• Near car heaters.
• On the seats or dashboard.

Disc Cleaning

Use a dry soft cloth to wipe the surface. If the disc is quite dirty, using a soft cloth slightly dip with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.

Note:

A disc may become somewhat scratched (although not enough to make it unusable) depending on the way it is handled and conditions in the usage environment. Note these scratches are not an indication of any problem with the player.

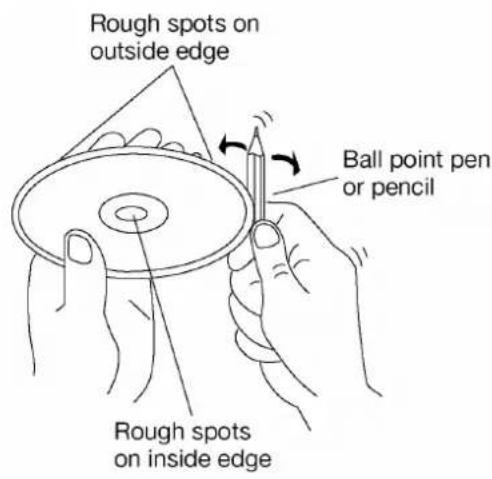

Preparing New Discs with Rough Spots

A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc. Therefore, remove the rough edges in advance by using a ballpoint pen or pencil as shown on the right. To remove the rough edges, press the side of the pen or pencil against the inside and outside edges of the disc.

Notes:

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
  If installation angel exceeds 30^ from horizontal, the unit might not give its optimum performance.

• Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front" (conventional DIN Front-mount) or "Rear" (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

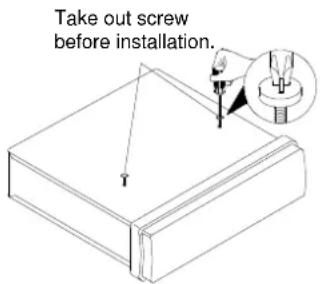

TAKE OUT SCREW BEFORE INSTALLATION

Before install the unit, please remove the two screws.

DIN FRONT-MOUNT (Method A) Installation Opening

This unit can be installed in any dashboard having an opening as shown below:

Installing the unit

Be sure you test all connections first, and then follow these steps to install the unit.

1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal.
2. Disconnect the wire harness and the antenna.

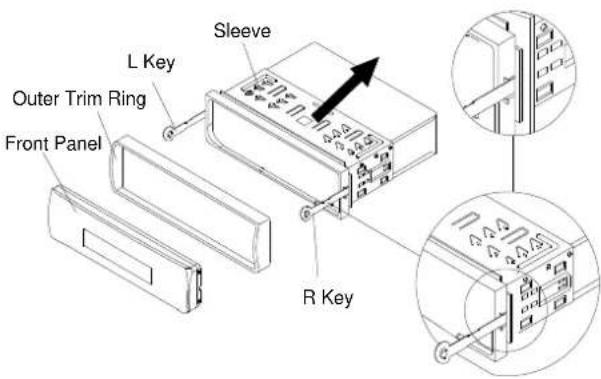

3. Press the release button on the front panel and remove the control panel (see the steps of "removing the front panel").
4. Lift the top of the outer trim ring then pull it out to remove it.
5. The two supplied keys release tabs inside the unit's sleeve so you can remove it. Insert the keys as far as they will go (with the notches facing up) into the appropriate slots at the middle left and right sides of the unit. Then slide the sleeve off the back of the unit.

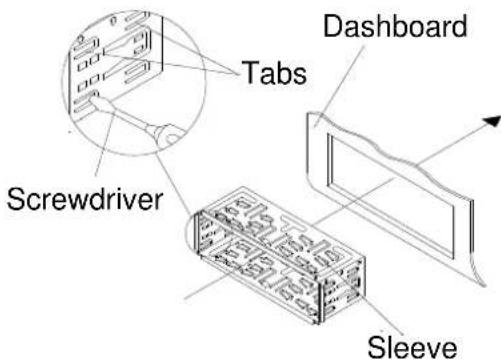

1. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective. Bending open the appropriate tabs behind the dashboard to secure the sleeve in place.

1. Reconnect the wire harness and the antenna and be careful not to pinch any wires or cables.
2. Slide the unit into the sleeve until it locks into place.

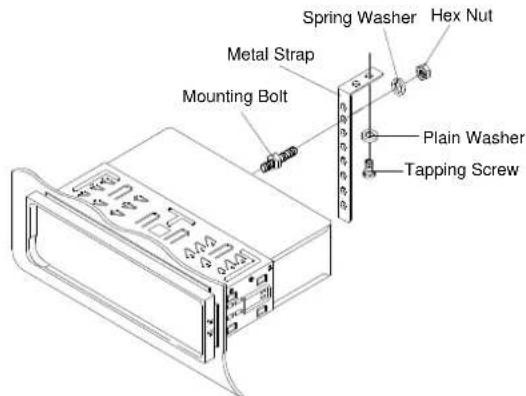

3. To further secure the unit, use the supplied metal strap to secure the back of the unit in place. Use the supplied hardware (Hex Nut (M5mm) and Spring Washer) to attach one end of the strap to the mounting bolt on the back of the unit. If necessary, bend the metal strap to fit your vehicle's mounting area. Then use the supplied hardware (Tapping Screw

and Plain Washer) to attach the other end of metal strap to a solid metal part of the vehicle under the dashboard. This strap also helps ensure proper electrical grounding of the unit. Note to install the short threading terminal of the mounting bolt to the back of the unit and the other long threading terminal to the dashboard.

1. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the outer trim ring and install the unit's front panel (see the steps of "installing the front panel").

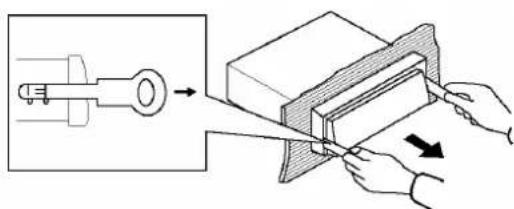

Removing the unit

1. Make sure the ignition is turned off, then disconnect the cable from the vehicle battery's negative (-) terminal.
2. Remove the metal strap attached the back of the unit (if attached).
3. Press the release button to remove the front panel.

Lift the top of the outer trim ring then pull it out to remove it.

1. Insert both of the supplied keys into the slots at the middle left and right sides of the unit, then pull the unit out of the dashboard.

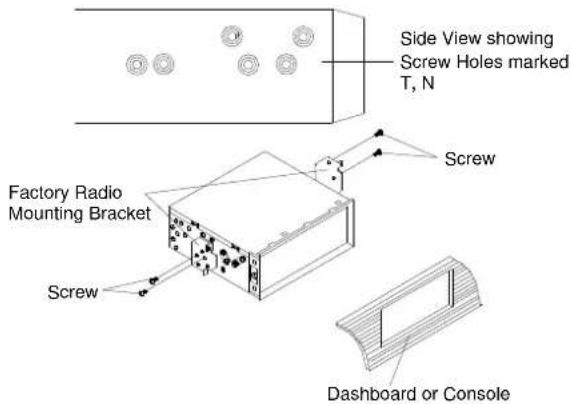

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow these mounting instructions.

Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

To fasten the unit to the factory radio mounting brackets.

Align the screw holes on the bracket with the screw holes on the unit, and then tighten the screws (5x5mm) on each side.

Note: the outer trim ring, sleeve and the metal strap are not used for method B installation.

To Detach the Front Panel

1. Press the release button , then the right-hand side of the panel will be ejected.

1. Remove the front panel by pulling its left-hand side outward.

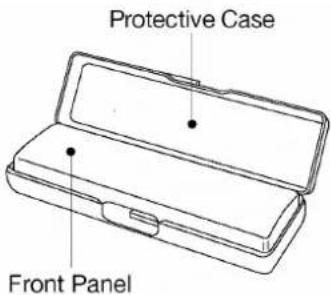

1. For safekeeping, you can store the front panel into the case after being removed.

To Reinstall the Front Panel

1. Push the front panel into the main body. A 'click' sound should be heard.
2. Note that if the front panel fails to lock in position properly, press control button may not function and TFT display may be missing some segments. Pressing the release button and then reinstall the front panel again.

Precautions when handling

1. Do not drop the front panel.
2. Do not put pressure on the display or control buttons when detaching or re-installing the front panel.
3. Do not touch the contacts on the front panel or on the main unit body. It may result in poor electrical contact.
4. If any dirt or foreign substances adhered on the contacts, they can be removed with a clean and dry cloth.
5. Do not expose the front panel to high temperatures or direct sunlight in anywhere.
6. Keep away any volatile agents (e.g. benzene, thinner, or insecticides) from touching the surface of the front panel.
7. Do not attempt to disassemble the front panel.

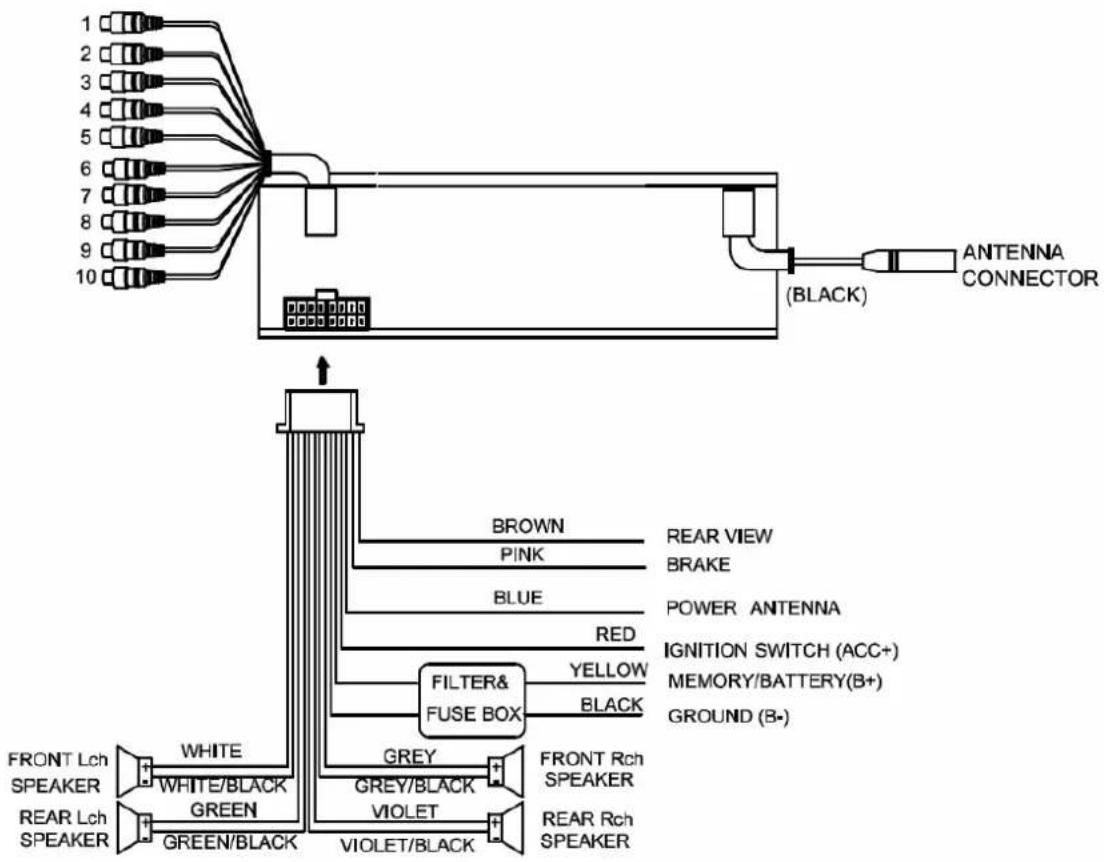

Line No.	Line color Function (terminal color)
1 Black	Auxiliary input right (RED)
2 Black	Auxiliary input left (WHITE)
3 Black	Auxiliary video input (YELLOW)
4 Green	Rearview input (YELLOW)
5 Grey	Video output 1 (YELLOW)
6 Grey	Video output 2 (YELLOW)
7 Grey	Rear RCA out right (RED)
8 Grey	Rear RCA out left (WHITE)
9 Brown	Front RCA out right (RED)
10 Brown	Front RCA out left (WHITE)

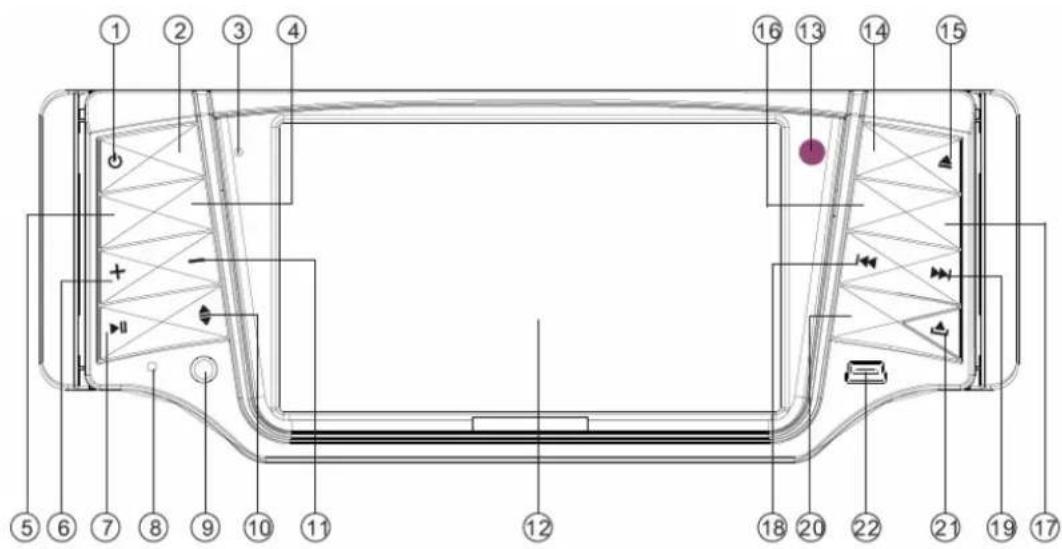

1. power on/off button): Press to turn the unit on/off.
2. MOD: Press to select the desired mode, such as DVD, RADIO, AUX in ... etc.
3. (Mircorphone optional for BT): For this unit without Bluetooth function, it is invalid.
4. LOU/AF: Press shortly to switch loudness on or off.

Press it for several seconds to switch AF mode on or off in RDS mode.

1. SEL: Repeatedly press to select the audio mode to adjust, such as VOL, BASS, TREB, BAL, FADE.
2. +: Press to increase the volume level.
3. II: Press to play/pause the playback.
4. BST: Reset button.
5. AUX: You can connect the auxiliary device through this jack.
6. : Press to turn the monitor up to the desired position to your need and turn the monitor down to normal position.
7. -- Press to decrease the volume level.
8. 4.3 inch TFT monitor; display the current information on the screen.
9. IR (remote sensor); receive signal from the remote control to control the unit.
10. : Press to mute the sound, press it again to resume the sound.
11. : Press to eject the disc that in the disc slot of the unit.
    16.ST/PTY: Press it shortly to select mono or stereo mode in radio mode.

Press it for several seconds to select PY programs in RDS mode.

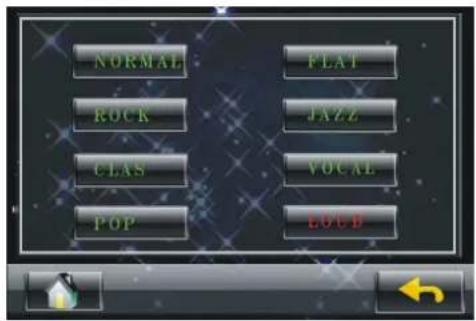

1. EQ: Press to set the equalization mode.

18&19. Seek the radio stations, select the track backwa rd/forward, how to operation please refer to the contents below.
20. BND/TA: Press it shortly to select radio band mode.

Press it for several seconds to selefA on or off in BDS mode.

1. (panel release button): Press to release the front panel.

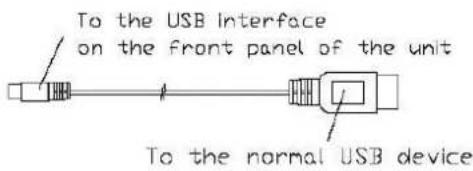

2. USB interface: Provide the interface for USB player.

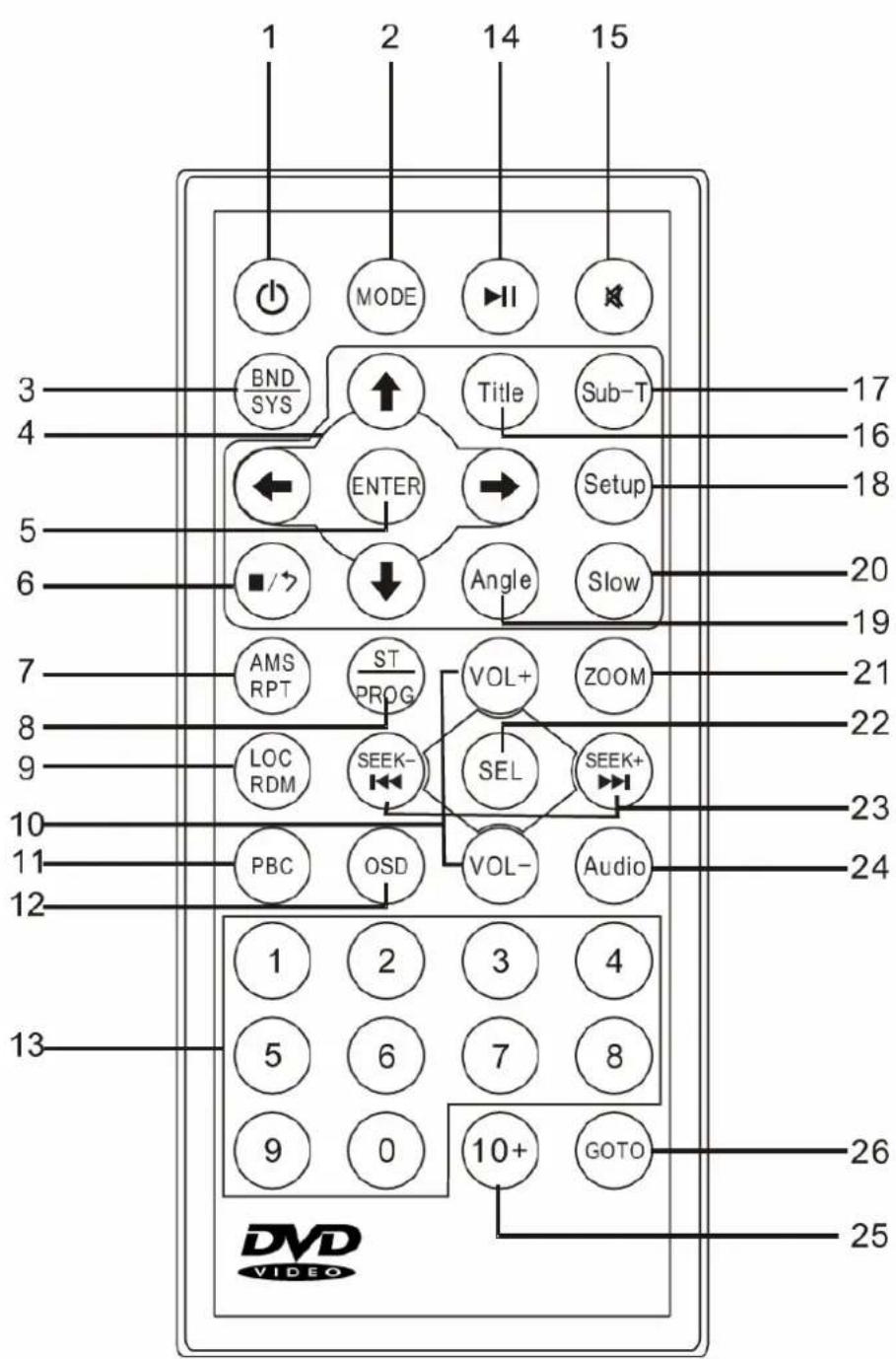

1. ①

Press it to turn on the unit. When the unit is on, press it to turn the unit off.

2. MODE

When the unit is on, press it to select the different mode, such as RADIO, DVD, AUX in, USB/Card mode.

For your need, some modes are for optional.

3. BND/SYS

In radio mode, press it shortly to select the desired band, such as FM1, FM2, FM3, AM1 (MW1) and AM2 (MW2).

In DVD mode, press to change between AUTO, NTSC and PAL.

4. /

In case of menu mode, the buttons served as cursor buttons to select item left/right, up/down.

5. ENTER

Press to confirm your selection.

6.

In DVD/USB/Card mode, press it to stop the play and return to the DVD logo.

7.AMS/RPT

In radio mode, press to activate auto seek/preset store function.

In media play mode, press to switch the repeat mode of programs.

8. ST/PROG

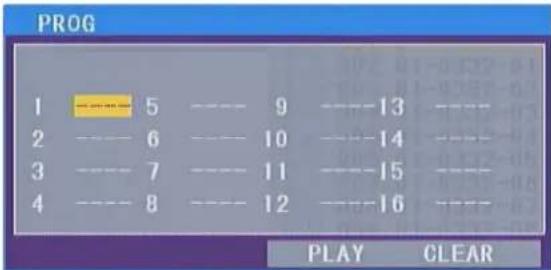

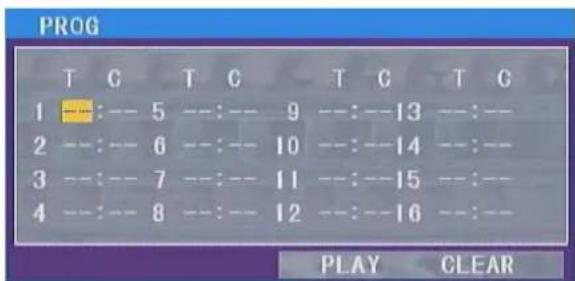

In media play mode, press to enter into program mode to play the track in your desired sequence. In radio mode press to set the reception between mono mode or stereo mode.

9. LOC/RDM

Press to play all tracks in random order.

In radio mode, press it shortly to select between local and distant stations.

10. VOL+/VOL-

Press to increase/decrease the volume level.

11.PBC

It can be used to change between PBC ON and PBC OFF on the VCD disc.

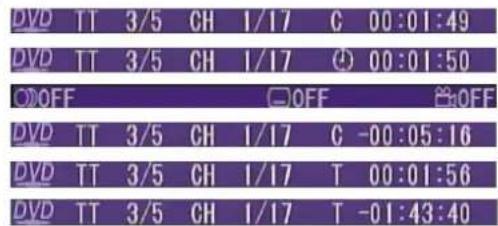

12. OSD

In media play mode, press to display OSD (the on-screen display) information.

13.0-9

Numeric buttons.

14.

Press to play/pause the playback.

15.

Press to mute the sound, press it again to resume the sound.

16. Title

Press to display the title menu of the DVD disc.

17.Sub-T

Press to display the subtitle information of the DVD disc.

18. Setup

In media play mode, press to enter into the DVD setup menu.

19. Angle

Press to change the view angle on multi-angle DVD disc.

20. Slow

For some discs, press to start slow forward function.

21.ZOOM

Press to allow the picture to be increased in size.

22. SEL

Press to enter into the audio selection mode, such as VOL, BASS, TREB, BAL, FADE.

23.SEEK-SEEK+

• Press shortly to skip to the previous/next track.
• Press and hold it to activate fast reverse/forward function.

In radio mode, press it shortly to search the frequency backward/forward manually. Press and hold it to seek the frequency automatically.

1. Audio

Press to display the audio information of the DVD/VCD disc.

1. 10+

Digital selecting button for track, cooperatively used with numeric buttons.

1. GOTO

GOTO (Disc search button) used in media play mode, cooperatively used with numeric buttons.

Preparing the Remote Control

Inserting the Batteries

1. Open the battery compartment cover.

2. Insert the new batteries. Make sure that the positive and negative terminals of the batteries are oriented as indicated.

3. Close the cover.

4. Battery: One button cell lithium battery (CR2025).

Using the Remote Control

Point the remote control towards the remote control signal receiver on the player front face.

Operation angle: About ± 30 degree in each the direction of the front of the remote sensor.

Press button on the front panel or on the remote control to turn the unit on. When the unit is on, press button on the front panel or on the remote control will turn the unit off.

PANEL RELEASE/REINSTALL/ANGLE ADJUST

To Release the Front Panel

Press the release button on the front panel, then the right-hand side of the panel will be ejected. Remove the front panel by pulling its left-hand side outward. For safekeeping, you can store the front panel into the case after being removed.

To Reinstall the Front Panel

Push the front panel into the main body from the left position then the right position. A 'click' sound should be heard. Note to let the front panel lock in position properly.

To adjust the angle of the Front Panel

The front panel can be adjusted to the desired position to your need by using button on the front panel. You can also press button to turn the front panel down to the normal position.

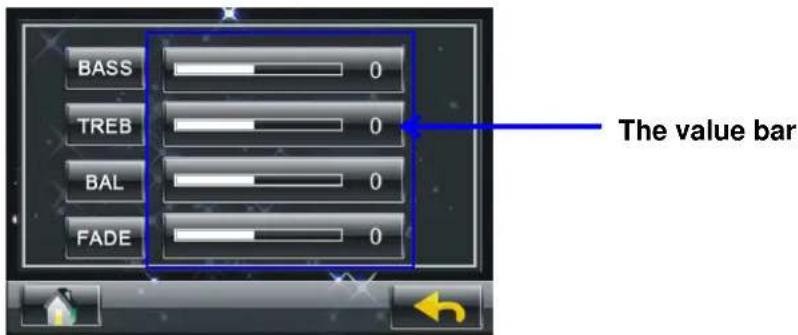

SOUND ADJUSTMENT

Repeatedly press SEL button on the front panel of the unit or on the remote control to select the desired adjustment mode. The adjustment mode will change in the following order:

After selecting your desired mode, you can adjust the current mode being displayed by using +/- buttons on the front panel or VOL+/VOL- buttons on the remote control. Note: When P-EQ mode is activated (not in EQ OFF mode), press SEL button to select the modes. And Bass /Treble modes are invalid. (Shown as below)

REMOTE SENSOR

There is a remote sensor IR on the front panel. You can point the remote control to the remote sensor and press functions keys on the remote control to control the unit.

Note to operation it within the certain operation angle.

VOLUME LEVEL ADJUSTMENT

Pressing the volume +/- buttons on the front panel of the unit or VOL+/VOL- buttons on the remote control to adjust the volume level. You can also adjust the volume level by tapping the volume bar displayed on the screen.

MUTE FUNCTION

Pressing button on the front panel or on the remote control will mute the sound. Press it again will resume the sound.

MODE SELECTION

Press MOD button on the front panel or MODE on the remote control to select the desired mode to enjoy.

BRAKE FUNCTION

If the brake wire (pink wire) isn't connected to the ground (when driving), the picture will not be shown on the screen in DVD/AUX in mode for safety purpose. Only the audio will be heard.

Note: Only when parking, the DVD/AUX in picture can be seen on the screen. When driving, the warning information will be displayed.

RESET FUNCTION

The reset button RST is on the front panel of the unit.

It must be activated with either a ballpoint pen or thin metal object. The reset button is to be activated for the following reasons:

1. Initial installation of the unit when all wiring is completed.
2. All the function buttons do not work.
3. Error symbol on the display.

MAIN MENU

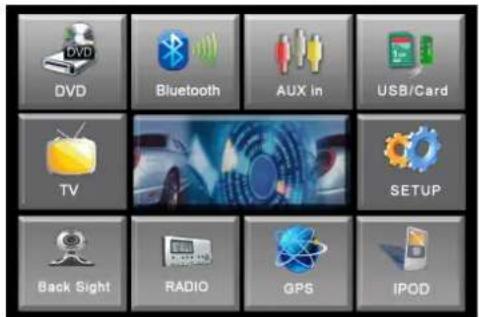

When the unit is on, the following picture will appear. If in other mode, press return icon on the right-top of the screen to return to the main menu.

Click the different icon on the interface to enter into the desired mode. The following contents will introduce the different functions the unit provides.

Note: Click some icons will be invalid if the unit doesn't with the function. For example IPOD function, GPS function. If there isn't any disc in the disc slot, click [DVD] will be invalid.

1. RADIO OPERATION

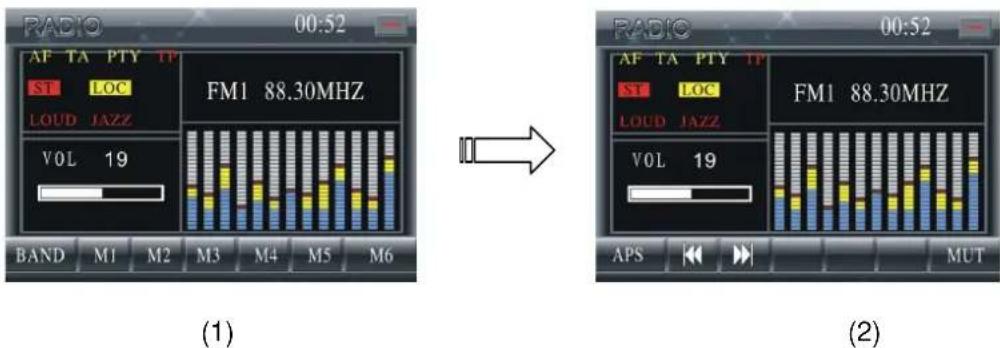

In the main menu click [RADIO] icon to enter into the radio interface:

Touch the right zone position or the other black zone except the operation icons in interface (1) to enter into the following picture (2):

※ BAND --- Click BAND icon to select the different band.
You can also pressBND/TA button on the front panel or BND/SYS on the remote control to select desired band. The reception band will change in the following order: FM1 FM2 FM3 AM1 (MW1) AM2 (MW2).
※ 14/1- click to select channel downward or upward man ually.
Press /按钮 on the remote control or click / on the screen to adjust frequency manually.
During radio mode, hold press on the remote control or / fes on the screen to activate automatic seek function. The frequency is updated correspondingly on display.
MUT--- click to mute or resume the sound.
※ LOUD--- click to switch loudness on or off.

APS--- click to start automatic memory storing/program scanning function.

Automatic memory storing

Press and hold AMS button on remote control or APS icon about several seconds, the radio searches from the current frequency and checks the signal strength until one cycle search is finished. And then stations are stored into the preset number button in turn according to the strength of the stations. When auto seek is finished, it will enter into preset scan mode automatically.

• Program scanning

Shortly press AMS button or APS icon to scan all station presets saved in memory. And it will hold at each station for several seconds.

※ STATIONSTORING

The preset buttons (numeric buttons 1~6) on remote control and M1~M6 bar displayed on touch screen can be used to store 6 stations in each band for convenient access to your favorite stations. The stations might be FM1, FM2, FM3, AM1 (MW1), AM2 (MW2) band. The operation is as below:

■ Programming stations

1. Select the desired band, then tune in the station you want to store in memory.
2. Press and hold one of the preset buttons or M1~M6 bar for several seconds, the current station will be stored to the location button. Repeat steps 1. and 2. to program additional stations.

Quick tuning

Select the desired band, then press one of the sixpreset buttons on

remote control or tapM1~M6 bar displayed on screen will retrieve the corresponding station which had been stored in the memory.

※ MONO/STEREO

You can press ST button on remote control or click ST icon on the screen to select mono or stereo mode. You can sometimes improve reception of distart stations by selecting mono operation.

※ LOCAL/DISTANCE

Press LOC button on the remote control or click LOC icon on the radio menu to select between local and distant stations.

Local setting for reception of strong station, and a distant setting for reception of weaker stations.

When search station in local mode, if there is no s tation available, it will switch to distant mode and search station automatically. If there is no station available too it will stop searching and return to local mode.

When search station in distant mode, if there is no station available, it will stop searching in distant mode.

※ EQUALIZATION

EQ--- click to change the equalization mode, such as EQ OFF, POP, ROCK, CALS, JAZZ, FLAT and VOCAL.

※RDS OPERATION

Touch the right zone position or the other black zone except the operation icons in interface (1) to enter into the following picture (2):

a) Click AF icon on the screen or press LOU/AF button on the front panel for several seconds to s witch AF function on or off.
b) Click TA icon on the screen or press BND/TA button on the front panel for several seconds to s witch TA on or off. When TA on, the unit will search Traffic Announcement automatically. When received a Traffic Announcement station, the unit will change to the Traffic Announcement station automatically. Click TA to exit TA mode.
c) Click PTY icon on the screen or press ST/PTY button on the front panel for several seconds to select program.

PTY icon or ST/PTY button is operated as follows:

While selecting PTY engagement, its selection is implemented by preset buttons (M1-M6).

According to above two allotted group, the preset number is used for PTY selection as follows:

MUSIC group:

SPEECH group:

M1: POP M, ROCK M

M1: NEWS, AFFAIRS, INFO

M2:EASY M, LIGHT M

M2: SPORT, EDUCATE, DRAMA

M3: CLASSICS, OTHER M

M3: CULTURE, SCIENCE, VARIORED

M4: JAZZ, COUNTRY

M4: WEATHER, FINANCE, CHILDREN

M5: NATION M, OLDIES

M5: SOCIAL, RELIGION, PHONE IN

M6:FOLK M

M6: TRAVEL, LEISURE, DOCUMENT

When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

If corresponding PTY information is not existed any more, PTY engaging is automatically exit to normal mode.

Notes:

AF: Alternative Frequencies

Frequency list of broadcasting stations transmitting the same program

TA: Traffic Announcement Identification

Identification data showing traffic information is being transmitted or not

PTY: Program Type Code

Contents of programs such as news, light music, sports etc.

TP: Traffic Program Identification

Identification data for traffic information-broadcasting station

※ --- Click the icon on the right-top of the screento return to the main menu interface.

2.DVD OPERATION

If there is no disc in the disc slot, in any mode insert a disc into the disc slot, the unit will switch to the DVD mode, and play the disc automatically.

If there is a disc in the disc slot, press MOD button on the front panel or MODE button on the remote control or tap [DVD] icon on the main menu to change the mode to DVD mode, then the unit will play the disc automatically.

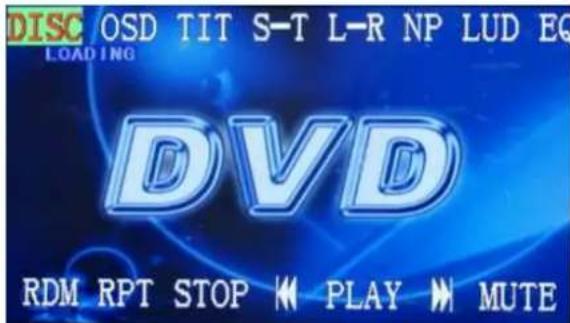

※ In the DVD interface, tap anywhere of the touch screen to display the DVD control interface, you can operation it using these icons on the screen.

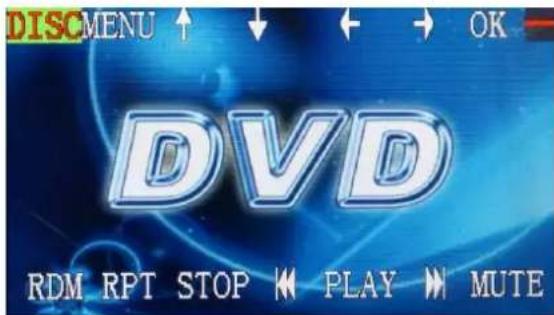

Press DISC icon the left-top of the screen to display the following picture:

DVDVIDEO MENU PLAY

When playing a DVD disc in the DVD player:

1) The disc will be played automatically and stop at menu picture.

Use / turser buttons on the remote control or click / , icons on the screen to move between the highlight bars in the menu.

2) Press ENTER button on the remote control or click OK icon on the touch screen to confirm the selected item.

3) You can press Title button on the remote control or TIT icon on the screen to return to the title of the DVD disc.

※ EJECTING A DISC

Press on the front panel to eject the disc.

STOPPLAYBACK

Press button on the remote control or STOP on the screen one time to stop the playback and go back to the DVD LOGO. Then click on the screen or press on the remote control to start play.

※SKIP TO THE PREVIOUS/NEXT TRACK

During playing, click on the screen or press / buttons on the remote control during playback will skip to the previous/next track.

Note: For some VCD2.0 discs (PBC-playback control), /按钮 or / icons may be unavailable.

Note you can use the numeric buttons (0-9) and 10+ button on the remote control to select the track directly.

PAUSING PLAY/STEP PLAY

Press on the remote control during playback will stop playback temporarily. To return to normal playback, press on the remote control.

※ RAPID FORWARD/RAPID REVERSE

Hold press on the screen or hold press / remote control during playback.

Each time the button is pressed, the speed of rapid forward /reverse changes according to the disc as follows.

DVD/VCD/CD/MP3:

Press SLOW on the remote control during play. Each time the button is pressed, the speed of slow forward (SF) changes according to the disc as follows.

DVD: Normal playback SF1/2 SF1/3 SF1/4 SF1/5 SF1/6 SF1/7

In slow motion state, click PLAY icon on the screen or press on the remote control, normal playback to recover normal playback.

PBC MENU PLAYBACK OF VCD/SVCD

For some VCD or SVCD discs, there is a menu in order to select the desired contents. This menu is called PBC (Playback Control) menu.

Press PBC button on the remote control to change between PBC ON and PBC OFF on the disc. In PBC ON mode, REPEAT, RANDOM, PROGRAM and GOTO functions are unavailable.

※ON-SCREEN DISPLAY FUNCTION

Press the OSD button on the remote control or click OSD icon on the screen during playback to display the console information of the current disc on the screen.

For an example (when playing a DVD disc):

Once you press OSD button on the remote control or click OSD icon on the screen you will see the information as the following order.

1) Item: TT
Function: Display the current title number and total title number.
2) Item: CH
Function: Display the current chapter number and total chapter number.
3) Item: (This icon only displayed for several seconds, after several seconds it will disappeared.)
Function: Display the played time of the current chapter.
4) C:: Display the remaining time of the current chapter.
5) T: Display the played time of the current title.
6) T-: Display the remaining time of the current title.
7) C: Display the played time of the current chapter.
8) OFF OFF

Display the current disc's language, audio type, subtitle language and play angle. Note: The displayed information is different according to different type of discs.

※ REPEAT PLAY

Repeat play: when you want to repeat playing the whole disc or a track or a chapter in the disc.

Press RPT button on the remote control repeatedly to select different repeat modes.
For different kinds of discs, pressing RPT button has different effects.

For example:

DVD:

MP3:

Note: REPEAT feature does not support VCD2.0 (with PBC ON).

※ RANDOM PLAY

Click RDM icon on the screen or press RDM button on the remote control switch between random on or off. When random on, it will play the tracks or programs on random order.

※ GOTO FUNCTION

FOR DVD:

Press GOTO button on the remote control, the screen will display the information as followed:

DVD TT 03/05CH 004/017① 00:00:06

Use the numeric buttons and / buttons to move the cursor position to input the desired Title, Chapter or Time, then press ENTER button on the remote control to confirm.

FOR VCD (WITH PBC OFF)/CD:

You can input the Track and Time then pressENTER to confirm.

※ ZOOM FUNCTION

Allows the picture to be increased in size. Press ZOOM button on the remote control to toggle among 2 scale, 3 scale and 4 scale, 1/2 scale, 1/3 scale, 1/4 scale.

When the scale is 1/4 times, press ZOOM button again to cancel the zoom function.

During Zoom mode, press , /→buttons on the remote control to move pictures up, down, left or right direction.

Multi-subtitle Language Function

Press Sub-T on the remote control or click S-T icon on the screen during playback. The corresponding information will be shown on the screen.

Each time the button is pressed, the subtitle language changes in sequential order.

Notes:

The language number is different according to be disc.
Some discs only contain one subtitle language.

Multi-audio Language Function

Press Audio on the remote control or click L-R icon on the screen during playback. The corresponding information will be shown on the screen.

Each time the button is pressed, the audio soundtrack language changes on sequential order.

Notes:

The language number is different according to the disc.
Some discs only contain one soundtrack language

Multi-angle Function

Press Angle button on the remote control during playback. Thecorresponding information will be shown on the screen.

Each time the button is pressed, the angle changes in sequential order.

Notes:

• The angle number is different according to the disc.
  The function only works for discs having scenes recorded at different angles.

AUDIOFUNCTIONFORVCD

Press Audio on the remote control or click L-R icon on the screen during playback to change the channel, such as MONO L, MONO R and STEREO.

※ PROGRAM PLAY

In program play mode, you can play the track in your desired sequence.

To program play a disc, please follow the next instructions.

For VCD/CD/MP3:

1) In PBC OFF mode. Press PROG button on the remote control to enter program editinterface.

2) Use /, ← cursor buttons to select the items you want to pro gram. The items you selected will become highlight.
3) Input the sequence number you want to program by numeric buttons (0-9) on the remote control.
4) Use cursor buttons to select PLAY character, then press ENTER button on remote control to confirm. And "PRG PLAY" will appear on the screen. The unit will play the tracks you programmed.
5) If you want to clear the program, use cursor but tons to select CLEAR character and press ENTER will clear the information you have programmed. And "PRG CANCEL" will appear on the screen.

For DVD:

The operation is the same as VCD/CD operation.

Press PROG button on the remote control the following media play window will be shown on the screen:

NP--- click to switch the mode of TV SYSTEM, such as AUTO, NTSC and PAL.
※ LUD--- click to switch loudness on or off.
※ EQ--- click to change the equalization mode, such as EQ OFF, POP, ROCK, CALS, JAZZ, FLAT and VOCAL.
DVD SETUP

In DVD mode, when the disc is playing or in stop mode, press Setup on the remote control to enter setup menu.

When the cursor is on the topside, use buttons to move between the different pages, such as SYSTEM SETUP, LANGUAGE SETUP, AUDIO SETUP, VIDEO SEUP and DIGITAL SETUP.

System setup

Language setup

Audio setup

Video setup

Digital setup

• Press ↓ button to move the cursor to the setup page below and then you can use ↑/ ↓ buttons to move between the different setup options.
• Press → button to display the choice list for each setupoption and then use ↑/ ↓ buttons and ENTER button to change your selection.

1)SYSTEM SETUP

When you open the setup menu, you will see the system setup page at first, see below:

SYSTEM SETUP

TV SYSTEM

TV TYPE

DATABASE

RATING

DEFAULT

EXIT SETUP

• TV SYSTEM: Change the TV SYSTEM among NTSC, PAL and AUTO.
• TV TYPE: Change the TV TYPE among 4:3 PS, 4:3 LB and 16:9.
• PASSWORD: Change the PASSWORD lock or unlock, the default PASSWORD is "0000".
  *RATING: Change the parental RATING among 1KID SAFE, 2G, 3PG, 4PG13, 5PG-R, 6R, 7NC-17, 8ADULT.
• DEFAULT: Restore the system setup to the defaultsetup.

2) LANGUAGE SETUP

When you open the language setup menu, you will see the language setup page:

LANGUAGE SETUP

OSD LANGUAGE

AUDIO LANG

SUBTITLE LANG

MENULANG

DIVX LANG

EXIT SETUP

You can change the OSD LANGUAGE among: English, Geman, Spanish, French, Italian and Polish.

You can change the AUDIO LANGUAGE among: Italian, English, Polish, French, Spanish, Russian, Latin and German.

You can change the SUBTITLE LANGUAGE among: Italian, English, Polish, French, Spanish, Russian, German and OFF.

You can change the MENU LANGUAGE among: Italian, English, Polish, French, Spanish, Russian, German and Latin.

You can change the DIVX LANGUAGE among: CYRILLIC and WESTERN EU.

3) AUDIO SETUP

When you open the AUDIO menu, you will see the following picture:

• AUDIO OUT: Change among SPDIF/OFF, SPDIF/RAW andSPDIF/PCM.
• KEY: Change the tone within a certain range.

4)VIDEO SETUP

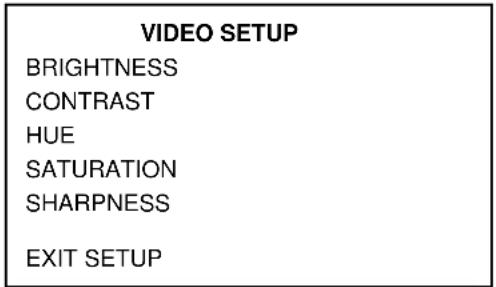

When you open the VIDEO menu, you will see the following picture:

You can adjust the value of the brightness, contrast, hue, saturation and sharpness.

5) DIGITAL SETUP

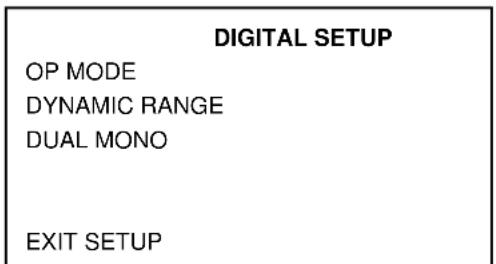

When you open the DIGITAL menu, you will see the following picture:

• OP MODE: to set the operating modes for Dolby Digital decoder, there are LINE OUT and RF REMOD to be selected.
• DYNAMIC RANGE: you can adjust the dynamic range between 1/8, 2/8, 3/8, 1/2, 5/8, 3/4, full.
• DUAL MONO: there are STEREO, MONO L, MONO R and MX MONO to be selected.

LAST PLAY MEMORY

1) During disc playback, if you turn off the unit and then turn on the unit again, the DVD unit will resume playing from the point that just interrupted.
2) During disc playback, if you press MODE button to switch to other mode, then return to DVD mode again, the unit will resume playing from the point that just interrupted.

On the front panel of the unit there is an interface for USB. When you connect an USB to the interface, it can play the audio/video files on the USB.

Note to use a conversion cable to connect the USB device with the normal terminal through the little USB interface on the front panel.

In the main menu click [USB/Card] icon to enter into the USB play interface. You can select the audio, photo, video files to play.

Touch the screen to display the control icons and use the control icons or the buttons on the remote control to operate the USB play.

You can refer to the 2.DVD operation above.

SD

On the top side of the monitor panel of the unit there is a SD/MMC card slot, you can insert a SD card into the slot.

When you insert the SD card, it will enter into the SD play interface.

In the main menu click [USB/Card] icon to enter into the SD play interface. You can select the audio, photo, video files to play.

Tap somewhere of the touch screen, the icons used b control the SD play will appear. Use the control icons or the buttons on the remote control to operate the SD play. You can refer to the 2. DVD operation above.

On the front panel of the unit, there is an auxiliary input jack AUX (AV1). On the back of the unit, there is also a group auxiliary input jacks (AV2). You can connect the auxiliary device from these jacks. In the main menu click [AUX in] icon to enter into the corresponding interface.

But note when the AV1 and AV2 all have input signal, when enter into the AUX mode, you can't receive proper effect, because these two signal source will interfere.

You are suggested to connect one group of auxiliaryinput source.

NP---click to select input video system according to the following sequence:

※ EQ--- click to change the equalization mode, such as EQ OFF, POP, ROCK, CALS, JAZZ, FLAT and VOCAL.
※ LUD--- click to switch loudness on or off.
※ MUTE--- click to mute or resume the sound.
※ --- Click the icon on the right-top of the screento return to the main menu interface.

On the back of the unit, there is a jack for rearview video in. When click the [Back Sight] icon on the main menu to enter back sight function, the unit will play the video information that input from the rearview video in jack.

When the brown rearview line of the unit is connected to +12V , the picture of the screen will switch to rearview picture automatically.

6. SETUP OPERATION

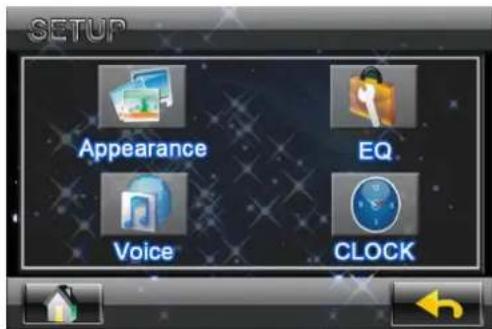

In the main menu click [SETUP] icon to enter into the SETUP interface:

Click the corresponding icon on the menu to enter into the setting.

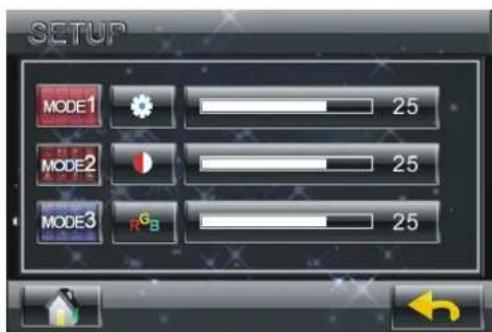

※ Appearance

Click the MODE1, MODE2 and MODE3 to enter the correspond appearance display.

• Brightness adjustment

--- Contrast adjustment

--- RGB (Chroma) adjustment

--- click to back to main menu interface.

--- click to current mode, such radio, DVD...

※ EQ

Click the different icon on the picture to select corresponding equalization mode.

Voice

Use the value bar to adjust the value of the BASS, TREB, BAL and FADE mode.

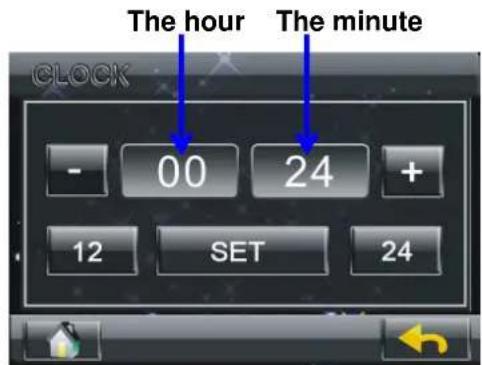

※ CLOCK

Click 12 or 24 to choose 12 hour time format or 24 hour time format.

Click the hour or the minute that you want to change, then use the - and + to adjust the value.

Click SET to confirm the time setting.

What might appear to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems.

Under no circumstances should you try to repair the player yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player.

The power does not turn on.

The lead wires are not connected properly to the c onnectors.
Make sure the connection is correct.
The fuse has blown.
After checking for short circuits in the wires, re place the fuse with one having the same rating.
The internal processor is not working due to noise or other factors.
Press the reset button to reset the unit to factor y defaults.

The remote control does not work. The unit does not operate even when the correct buttons on the remote control are pressed.

Battery capacity is low.
Install new batteries.
Some operations are disabled in specific states.
Enter the correct mode.

The disc can not play.

Disc is of poor quality or damaged or not clean.
Clean or replace the disc with one of higher quality.
The disc installed is not supported by the unit.
Examine the disc type.
The disc installed is not compatible with the vide o system.
Replace the disc with one compatible with your vid eo system.

The desired source is not selected although you press the MODE button.

An optional unit required to listen to each source is not connected yet.
Connect the optional unit correctly.
The reset button is not pressed yet although the optional unit has been connected to the unit.
Press the reset button.

Nothing happens when the button are pressed.

An optional unit required to listen to each source is not connected yet.
Connect the optional unit correctly.
The computer chip in the unit is not functioning normally.
Press the reset button on the unit.

No video image appears.

The unit is not connected to the parking brake detection switch.
Make proper connections.

The parking brake is not engaged.

For safety reasons no television/video images are displayed while the vehicle is moving. Engaging the parking brake will cause images to be displayed

The sound quality is poor or distorted.

One of the speaker wires is being pinched by a screw in the car.
Check the speaker wiring.
The speakers are not wired correctly.
- Reconnect the speaker wires so that each output terminal is connected to a different speaker.

Radio reception is poor.

The car antenna is not extended.
Pull the antenna out all the way.
The antenna control wire is not connected.
Connect the wire correctly.

The sound/picture skips on a DVD/VCD/CD/MP3.

The disc is scratched or dirty.
Clean the disc.

A track will not play.

Random play has been selected.
Turn off random play.

A VCD cannot be played using menus.

The VCD disc being played is not compatible with P BC.
- Menu playback is available only with VCD discs rec ordered with PBC.

The viewing angle cannot be changed.

The DVD disc being played does not contain the recording of more than one angle.
The viewing angle cannot be changed when the DVD disc being played does not contain the recording of more than one angle.
You are attempting to switch the angle in a DVD section where more than one angle is not recorded.
More than one viewing angle may be recorded only i n limited sections in a disc.

GENERAL

Power Supply Requirements : DC 12 Volts, Negative G round

Maximum Output Power

• Version Y : 4x40 watts

Current Drain

• Version Y : 15 Ampere (max.)

RADIO

For 2 Bands

FM

Frequency Coverage 87.5 to 108 MHz

Sensitivity (S / N = 30dB) 10 dBu

Image Rejection >45dB

Stereo Separation >25dB

MW

Frequency Coverage 522 to 1620kHz

Sensitivity (S / N = 20dB) 36 dBu

Image Rejection >45 dB

DVD

Signal system: Compositivedvoe1.0Vp-p75

Discs played: (1) DVD-VIDEO disc

5" (12 cm) single-sided, single-layer
5" (12 cm) single-sided, double-layer
(2) Compact disc (CD-DA/CD-R/CD-RW/MP3)
(3) (12 cm)VIDEO CD

Monitor Screen Size: 4.3" TFT

Solution: 480 (RGB) X272 DOT

Note:

Specifications and design are subject to modification, without notice, due to improvements in technology.

MANUEL D'UTILISATION

M2: SPORT, EDUCATION, COMEDIE

M3: CULTURE, SCIENCE, VARIETES

M4: METEO, FINANCE, PROGRAMMES POUR ENFANTS

M5: AFFAIRS SOCIALES, RELIGION, TELEPHONE

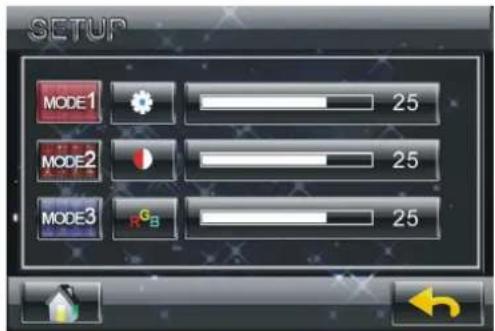

※ Apparances

--- Réglage RGB (Saturation)

VOOR VCD (MET PBC UIT)/CD:
