USER MANUAL BM 90 BORETTI

Fig.1: Dimensions BM-45, BMP-45NL

Before First Use Safety Instructions 34 Cleaning Before First Use 34 General Installation Instructions Installation and connection 35 Description of oven functions Overview 37 Digital timer 39 Maintenance 40 Environmental Regulations 41 Contents46 Before First Use Safety Instructions This manual is part of the range cooker. It must be kept nearby during the entire lifespan of the range cooker. We recommend reading this ma- nual carefully before using the range cooker. The range cooker must be installed by a quali- fied technician in compliance with installation instructions as described in the previous chap- ter. This range cooker is suitable for household use, and complies with current EU guidelines. The range cooker has been manufactured to cook and bake foods. Boretti is not liable for unau- thorized use of the appliance, such as heating up a space. Never block the openings and slots of your Boretti, so that proper ventilation is ensured. Check the appliance after unpacking the oven. If there are visible damages do not install and use the oven and contact Boretti immediately. Boretti can not be held liable for damages after installation of the appliance. Immediately after installation, the range coo- ker should be thoroughly tested, and any mal- functions reported. Always open or close the oven door using the handle. Also, before closing the door check if there are no objects in the oven which should not be left in the oven. Never place combustible products in your oven. Unexpected ignition could result in fire. The range cooker is designed for use by adults, never allow children to remain near the range cooker unsupervised. Certain parts such as the grill element can become extremely hot. Therefore do not allow children to play or be near the range cooker. After every use, verify that all control knobs are set to “off”. In case of doubt regarding the safety instruc- tions of your Boretti, we urgently recommend that you call Boretti. You will find our phone numbers on the back of this manual. Do not use parchment paper when grilling. Do not sit on the oven door or use it for support or as working table. Never put combustible objects or products that could melt at low temperatures in the storage space below the oven. The oven is equipped with a cooling fan which ensures that the outside cavity of the oven is as cool as possible. This fan blows air out of the front of the oven and will keep on doing this until the inside of the oven is efficiently cooled down, Cleaning Before First Use It is recommended to thoroughly remove all packaging residue from the range cooker, fol- lowed by cleaning according to the guidelines. Before first use of the oven, you should heat the oven at full power for 30 minutes. An un- pleasant scorching smell will develop during this initial heating. This is normal. We recommend that you ventilate the kitchen area thoroughly during initial heating.NL

Your oven must be installed by a qualified tech- nician according to legal/locally applicable co- des and ordinances. Check whether voltage and capacity agree with the features mentioned on your oven’s type plate. The oven can be installed under a surface or in a cabinet. Please respect the built-in cabinet dimensions as mentioned in figures 1, 2 and 3. Please take in account that the oven requires sufficient ventilation as indicated in figures 1, 2 and 3. The oven can be fixed by using 4 screws, delive- red together with the oven. Important: never lift the oven by using the handle! General Installation Instructions

Fig.1: Built-in dimensions BM-45, BMP-45NL

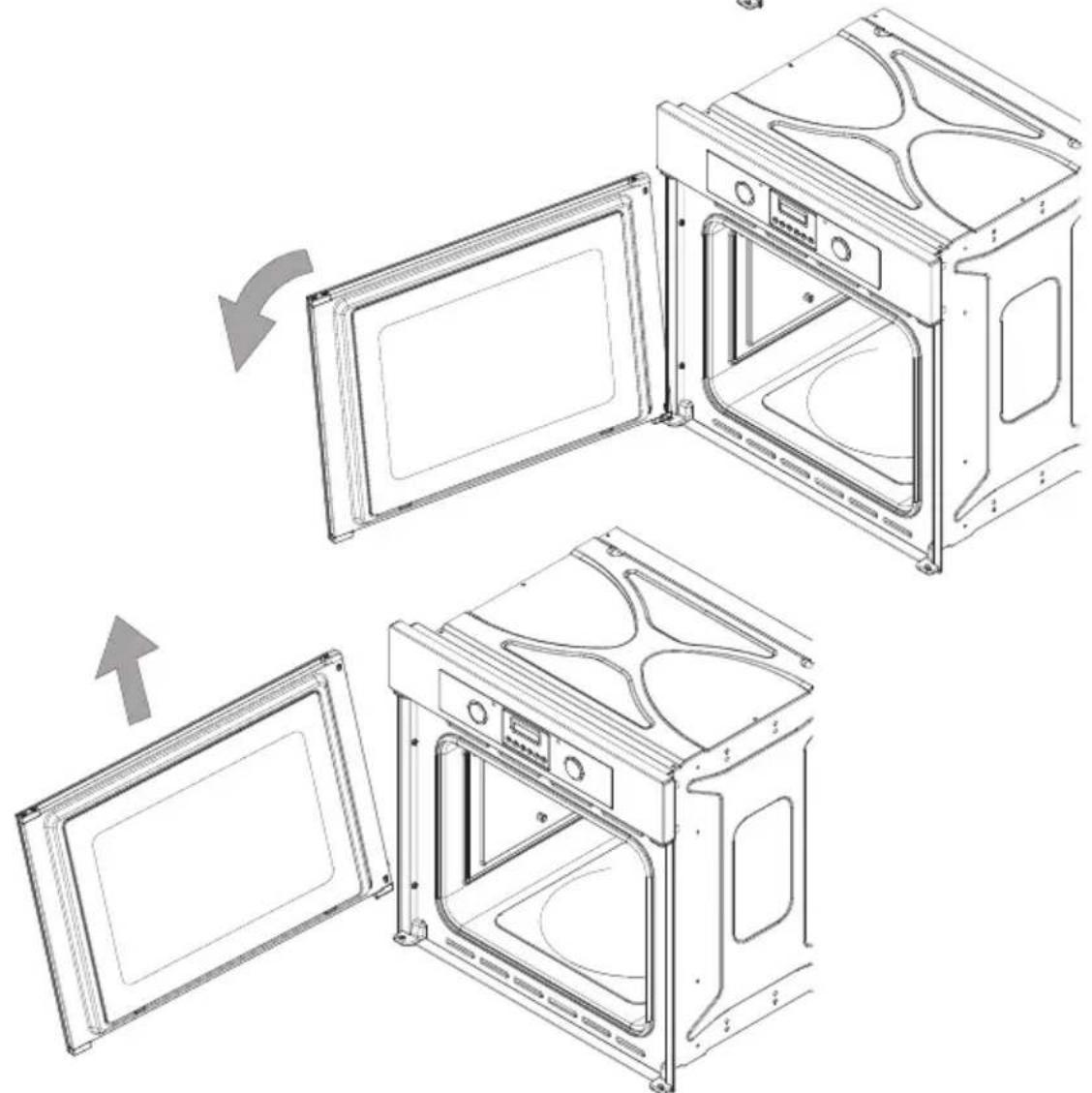

Fig. 3: Built-in dimensions BM-9050 Removing and refitting the oven door The door can be hooked on both sides. Release position Block position Setting screwNL

Warning: once completed

the operation, check the door is correctly hooked. NOTE: Do not place heavy objects on (max 20 Kg) or lean on the oven door when open as this can cause damage to the hinges.52 Description of oven functions Please note that the oven functions differ per model. Some functions mentioned in this user manual may not be available on the oven which you have purchased. The different oven functions an be used by choosing the desired function with the function switch knob and setting the correct temperature with the temperature knob. Thaw function The thaw function will switch on the fan in the back of the oven so that an air stream will start fl owing which will slightly speed up the thawing of your dish. Convection Heating The heat is supplied directly by the heating ele- ment mounted in the back of the oven around the fan. This adjustment is very suitable for ba- king or roasting a complete meal. It is possible to cook on several levels because of the circula- ting heat. Often convection heating is the most popular function of the oven. Caution: This function is also called “intensive baking”, because it is an effective way to cook. In many cases, this function will also reduce the cook time of a dish. Circulation Grilling The heat generated by the grilling element will be evenly distributed throughout the oven by the fan in the back of the oven. This is suitable for grilling such foods as pork chops, sausages, skewers, etc. Caution: The oven door should be closed during grilling. For model BMD-60 this function can be used in combination with the rotisserie. Intensive baking A rapid, intensive form of baking, particularly well suited for preparing various oven dishes. The upper and lower heating elements, toge- ther with the convection fan, provide the best baking results and even distribution of heat. Centre Grill Conventional grilling with the grilling element only. This is suitable for grilling such foods as chicken and roasts. It is also often used for cooking au gratin, or preparing deserts with caramelized sugar. Caution: The oven door should be closed during grilling. For model BMD-60 this function can be used in combination with the rotisserie. Double grill With this function the complete grill element is used. Suitable for grilling large prtions of food. Caution: The oven door should be closed during grilling. For model BMD-60 this function can be used in combination with the rotisserie. Top Heat This should be used to slowly brown the top of a dish, but can also be used to cook a dish au gratin more slowly than when using the grill.NL

Bottom Heat This function is very suitable for dishes that need to rise. It can be used in combination with the convection function. In other words, if the product has risen, it can continue to bake with the convection function. Bottom heat and fan This function is very suitable for slow-cooking Top and Bottom Heat A function that works like a conventional oven, but includes a top heating element. It can be used for all dishes that could also be prepared in a convection oven. Pyrolyse cleaning: (Automatic self-cleaning cycle) This cleaning cycle consists of the combustion of food residues at extremely high temperatu- res. During this cycle, the oven door is blocked. Once the oven cools off to a save temperature, the door is unlocked. Please note that even when the door is unlocked, the oven can still be hot. The residual ashes can be removed with a damp cloth.

WARNING: During pyrolysis cleaning, the oven

surface will reach a higher temperature than normal. Lighting With this function only the lighting of the oven is turned on. The light in the oven will also switch on automatically when you select any particular oven function.54 Digital timer With the digital timer the following options are available:

• Indication of time (24 hours clock)

• Timer (from 1 minute till 23 hours and 59 minutes)

• Programming of automatic start time and end time of cooking sequence

• Programming of cooking time

• Programming of end time Set the time Upon immediate hooking up of the oven or after a blackout, three zeros will flash on the programmer panel. The oven shall not function untill the time has been set. You can adjust the time by first pushing the button and afterwards the buttons + and – till the correct time has been set. Timer The timer can be set by pushing the button and afterwards the buttons + and – till the cor- rect time has been set. After the set time has passed the oven will give a audible signal. You can turn this signal of by pushing the button

Programming of automatic start time and end time of cooking sequence

1. Set the length of cooking time by pushing the

button and afterwards the buttons + and –

2. Set the end of cooking time by pushing the

button and afterwards the buttons + and

3. Turn the temperature and function knobs of

the oven to the corrects settings. The word AUTO will appear in the display, which me- ans the program has been memorized. Setting end time of cooking sequence Set the end of cooking time by pushing the but- ton and afterwards the buttons + and –. The word AUTO will appear in the display, which means the program has been memorized. The oven will turn itself of after the cooking time has expired and will give an audible signal. Turn the signal off by pushing the button

Cancelling a program You can cancel a program by pushing the but- ton . The word AUTO will disappear from the display.. Adjusting the sound level You can adjust the sound level by pushing the – button. You can choose from 3 different sound levels. The sound level can only be adjusted when no programs are set.NL

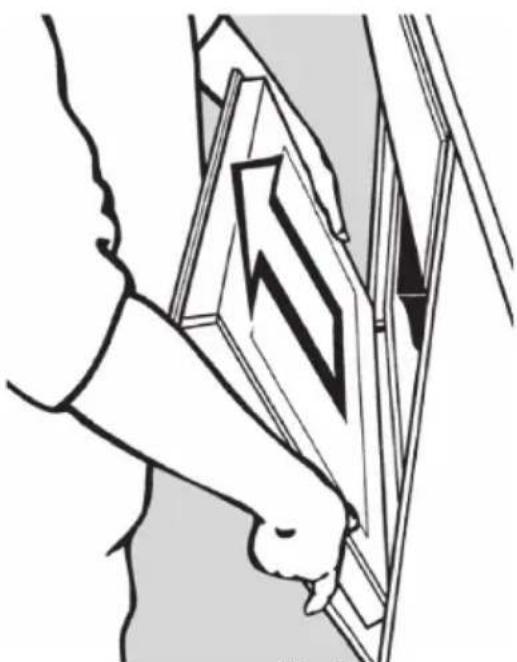

Maintenance Dismantling the Oven Door It is easy to remove the door from your Boretti range cooker. Please follow these instructions: Open the oven door completely. Move the fi tted brackets to an upright position (Fig. 3) Close the door halfway. Without using force, pull the door slowly towards you (Fig. 4). Attaching the door is done in reverse order. However, you must make sure that the little slots underneath the bracket fi t onto the frame of the range cooker. This may take some prac- tice. Removing the Inside Panels from the Oven In order to remove the inside panels from the oven, follow these steps:

• open the oven door completely

• remove all racks and baking sheets from the oven cavity There are two large screws that you can unscrew on the sides, after which the side pa- nels can be easily removed. Cleaning the Oven Cavity Wait until the oven has cooled down complete- ly, then clean it with lukewarm water and a mild cleaning agent. Never use knives, steel–wool pads or other abrasive products or objects for cleaning purposes. This might damage the fi - nish on the inside of your oven. Make sure that food spills are removed after every cooking session, in order to prevent damage. An additional advan- tage of regular cleaning is that there will be fewer unpleasant odours the next time you use the oven. Fig. 3 Fig. 4NL

Never leave packaging unsupervised. Separate the various packing materials by type, and take them to the nearest waste sorting station in your municipality. We use non–polluting and therefore environ- mentally–friendly and recyclable materials for the packaging of our products. We ask for your cooperation in making sure that the packing materials are processed properly. Addresses for collection, recycling and processing centers are available at your dealer or the appropriate local institutions. Never simply dump packaging or parts of it. This could be a choking hazard for children, particularly the plastic bags. You are also res- ponsible for proper processing of the old ap- pliance. Important: take the appli- ance to a local company au- thorized to collect discarded household appliances. With proper processing, valuable materials can be recycled in an intelligent fashion. Before you dispose of your appliance, it is important that you remove the door, and leave the racks in functional position in order to avoid children getting shut into the oven ca- vity while playing. In addition, you should cut off the electrical power cord, and remove it together with the plug. The guidelines deter- mine standards for collection and recycling of discarded appliances which apply to the entire European Union. Environmental RegulationsBORETTI B.V. De Dollard 17 1454 AT Watergang T +31(0)20-4363439 F +31(0)20-4361326 S 0900-2352673 (service) E info@boretti.com The Netherlands N.V. BORETTI S.A. Rupelweg 16 2850 Boom T +32(0)3-4508180 F +32(0)3-4586847 E info@boretti.com Belgium
