USER MANUAL SteamVac Pet Complete HOOVER

Questions or concerns? For assistance, please call Customer Service at 1-800-944-9200 Mon-Fri 8am-7pm EST before returning this product to the store.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIAALLY WARRANTY IS VOID.

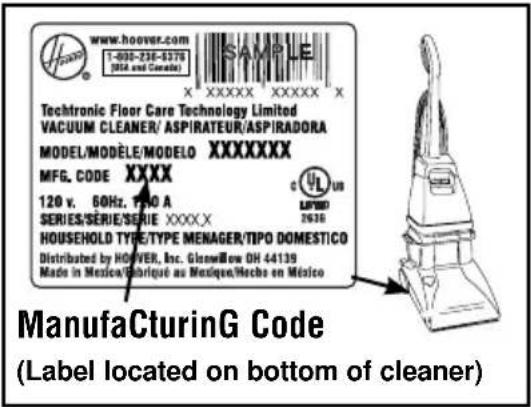

Please enter the complete model and Manufacturing Code in the spaces provided.

MODEL

MFG.CODE

Hint: Attach your sales receipt to this owner's manual. Verification of date of purchase may be required for warranty service of your HOOVER® product.

Be sure to register your product online at Hoover.com or call 1-800-263-6376 to register by phone.

Contents

Important Safety Instructions 3

Cleaner Assembly 5

How To Use 7

Cleaner Description 7
The Tanks 8
Brush Speed Selector 9
Brush Indicator 9

How To Clean. 10

Before You Begin 10
Cleaning Carpet 10

Clean Surge 念 Button 11

Picking Up Spills 11
Cleaning Bare Floors 12

Tools 13

Using The Tools 13
How To Attach 14
Before Using Tool 14
Cleaning Carpeted Stairs 14
Cleaning Upholstery 15
After Using Tool 16
After Cleaning 16

Maintenance. 17

Nozzle 17
Brushes 17
Storage 18
Lubrication 18

Troubleshooting 18

Helpful Reminders. 19

Service. 19
Cleaning Products 20
Warranty 21

If you need assistance:

Visit our website at hoover.com. Follow the authorized dealer locator link to find the Hoover® authorized dealer nearest you or call 1-800-944-9200 for an automated referral of Hoover® authorized dealer locations (U.S. only) or to speak with a customer service representative; Mon- Fri 8am- 7pm EST. Please do not return this product to the store.

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should

followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• To avoid internal component damage, use only Hoover®cleaning products intended for use with this Appliance. (See Cleaning Products section of this manual.)
• Use only on surfaces moistened by the cleaning process or small spills. Do not immerse product.
• Connect to a properly grounded outlet only. See "Grounding Instructions".
• Do not clean over floor electrical outlets.
• Do not use without tanks in place.
  Use extra care when cleaning on stairs. Do not place carpet cleaner on stairs.
  Use carpet cleaner only for its intended use as described in the instructions.
• Use only attachments recommended by Hoover; others may cause hazards.
• The use of an extension cord is not recommended. If an extension cord is absolutely necessary, use at least a 16 gauge 3-wire cord which has a 3-prong grounding type plug and a 3-pole receptacle that accepts the machine plug.
• Unplug carpet cleaner from outlet when not in use. Turn off unplugging.
• Unplug before connecting the powered hand tool (available on select models).
  Always disconnect cord from electrical outlet before servicing the carpet cleaner.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Never handle plug or appliance with wet hands.
• Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water Authorized Hoover® Warranty Service Dealer.
• Close supervision is necessary when any appliance is used by or near children. Do not allow carpet cleaner to be used as a toy or to run unattended at any time.
• Do not point tools toward people or pets.
• To assist in reducing drying time, be certain the area is well ventilated when using detergents and other cleaners with this machine.
• Keep detergents and other cleaners out of children's reach.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not pick up chlorine bleach, drain cleaner, gasoline or any other toxic material with this appliance.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Avoid picking up hard, sharp objects with the carpet cleaner. They may damage the machine.

• Keep hair, loose clothing, fingers, feet and all parts of body away from openings and moving parts.
  Use indoors only.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• To help prevent matting and resoiling, avoid contact with carpets until they are dry. Keep children and pets away from carpets until they are completely dry.
• Store in a dry place. Do not expose machine to freezing temperatures.
• Do not leave appliance unattended when plugged in.
• DO NOT USE THIS EXTRACTOR ON HARD FLOORS UNLESS YOU HAVE THE PROPER HARD FLOOR ATTACHMENT. USING THIS MACHINE ON HARD FLOORS WITHOUT PROPER ATTACHMENT MAY SCRATCH OR DAMAGE YOUR FLOOR.

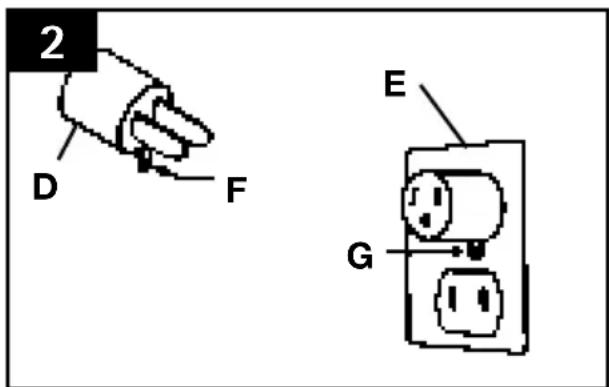

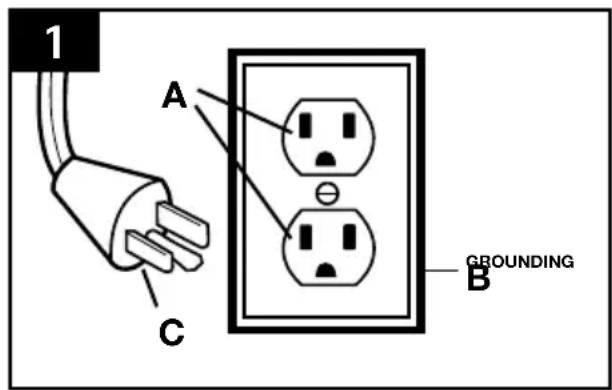

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipme conductor (C) and grounding plug (A). The plug must be plugged into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER: Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120 volt circuit and has a grounding plug that looks like the plug (A) illustrated in sketch (Fig. 1). A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available (Fig. 2). The temporary adapter should be used only until a properly grounded outlet (B) can be installed by a qualified electrician (Fig. 1). The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a permanent ground (G) such as a properly grounded outlet box cover (Fig. 2). Whenever the adapter is used, it must be held in place by a metal screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

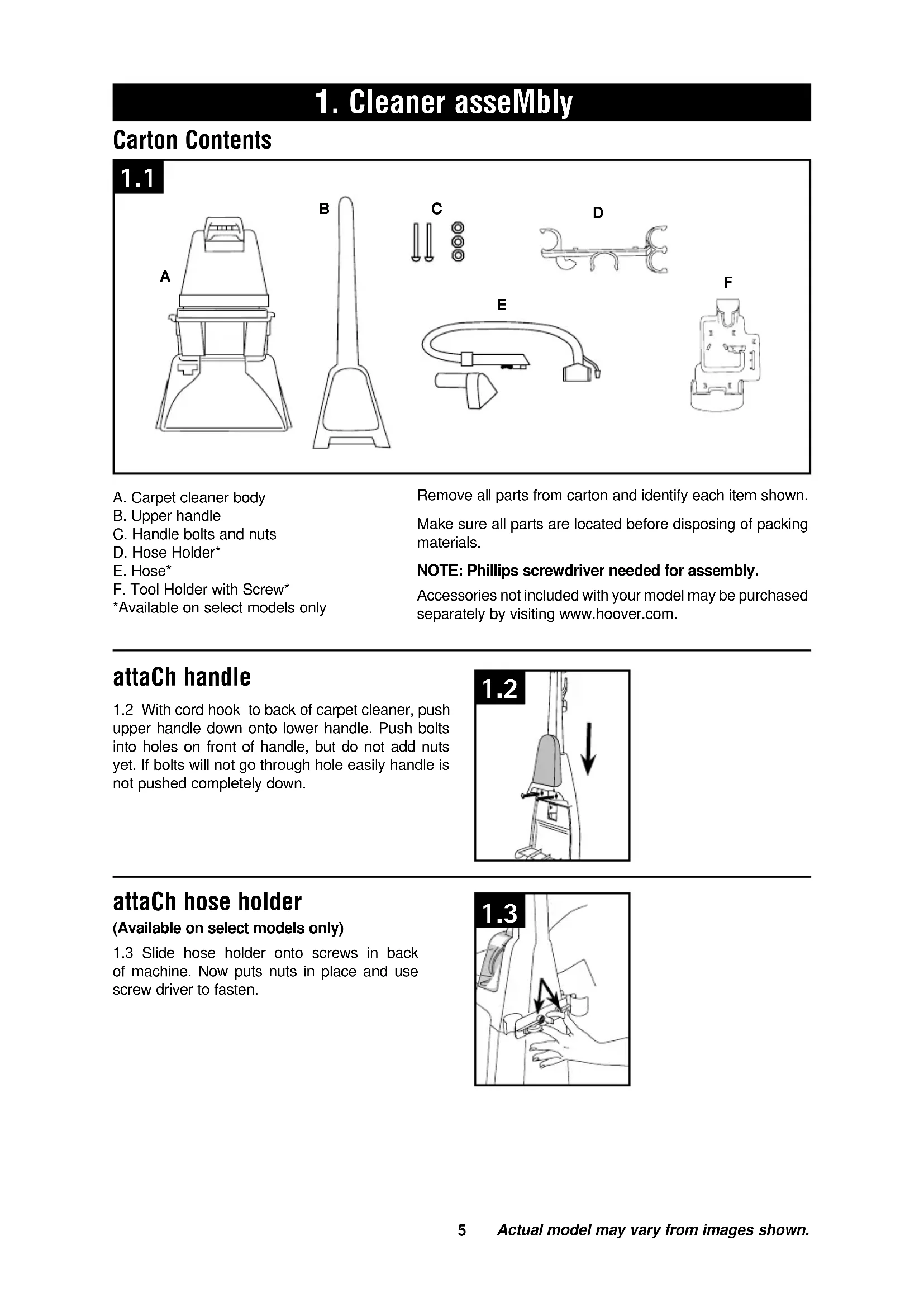

1. Cleaner assemble

Carton Contents

1.1

A. Carpet cleaner body
B. Upper handle
C. Handle bolts and nuts
D. Hose Holder
E. Hose
F. Tool Holder with Screw*

*Available on select models only

Remove all parts from carton and identify each item shown.

Make sure all parts are located before disposing of packing materials.

NOTE: Phillips screwdriver needed for assembly.

Accessories not included with your model may be purchased separately by visiting www.hoover.com.

attachandle

1.2 With cord hook to back of carpet cleaner, push upper handle down onto lower handle. Push bolts into holes on front of handle, but do not add nuts yet. If bolts will not go through hole easily handle is not pushed completely down.

attaCh hose holder

(Available on select models only)

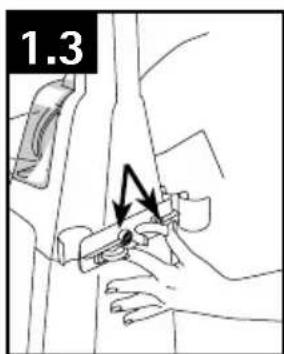

1.3 Slide hose holder onto screws in back of machine. Now puts nuts in place and use screw driver to fasten.

ATTACH TOOL HOLDER

(Available on select models only)

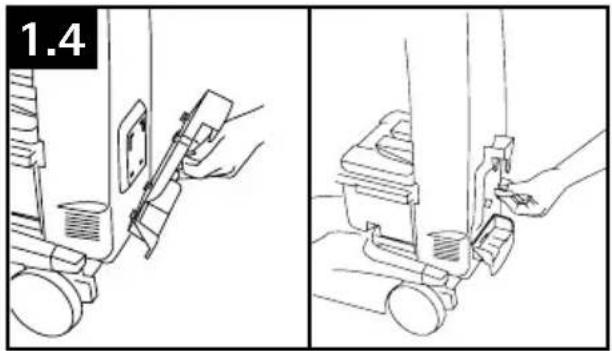

1.4 Remove tool and taped screw from holder. Insert projections on holder into slots on back of cleaner. Insert screw and tighten with screw driver.

STORE HOSE

(Available on select models only)

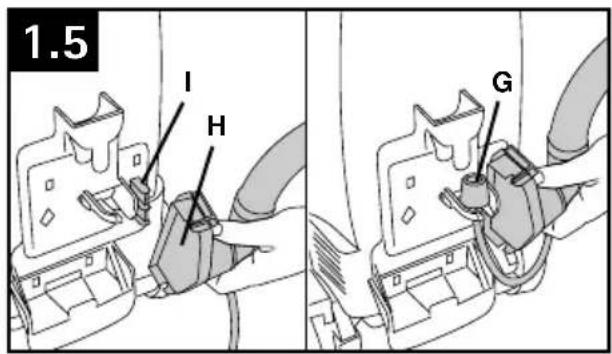

1.5 Start with converter end of hose (H). Fit converter over tab near tool holder (I). Press converter firmly to snap in place. Press solution tube (G) into clip next to converter as shown.

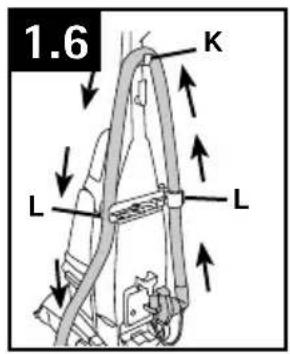

1.6 Wrap hose around hook on upper handle (K). Press hose into clips on upper hose holder (L).

STORE TOOL

(Available on select models only)

Cleaning Tool

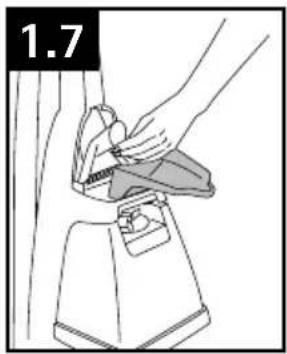

1.7 To store cleaning tool, open tool door, place nozzle in bracket and fit it securely into position. To remove, reverse this procedure.

Break-Away Door

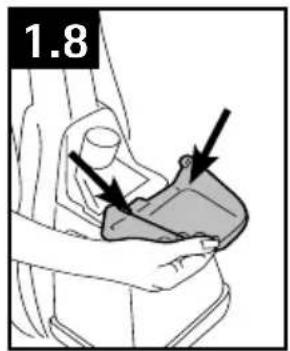

1.8 The tool cover is designed with a break-away feature which allows it to snap free if it is pushed open too far. To reattach, align hinges of cover with slots on sides of tools storage area. Push cover down to secure in place.

2. how to use

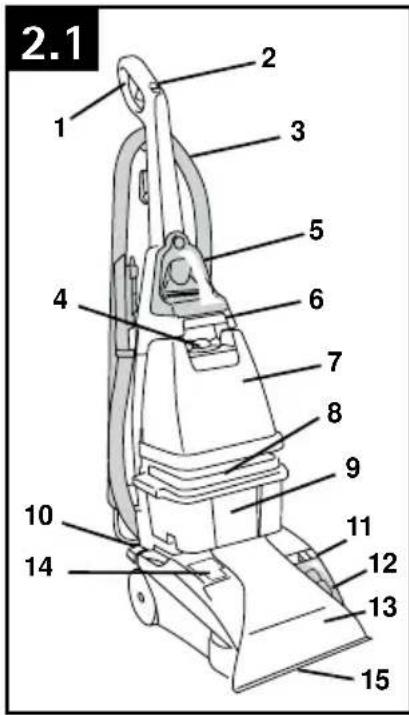

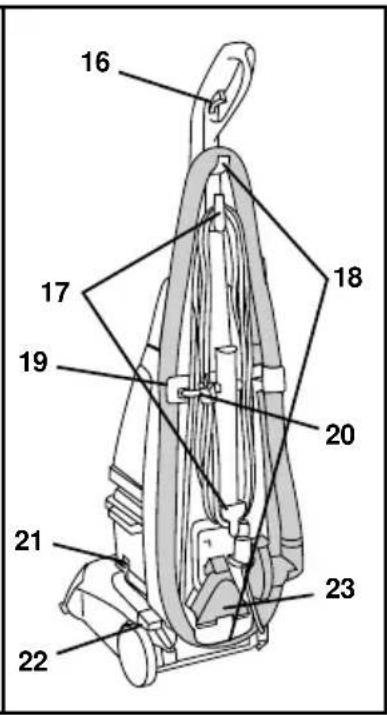

Cleaner desCription

1. Hand Grip
2. Clean Surge® Button*
3. Hose*
4. Clean Water Solution Tank Cap/ Measuring Cup
5. Front Tool Storage*
6. Carry Handle
7. Clean Water Solution Tank
8. Dirty Water Tank Lid
9. Dirty Water Tank
10. Handle Release Pedal
11. Brush Speed Selector: HI, LO, or OFF
12. Brush Indicator: spins when brushes are rotating
13. Hood
14. Solution Tube Connection*
15. Nozzle
16. Solution Trigger
17. Cord Hooks
18. Hose Hooks*
19. Hose Holder*
20. Cord Clip
21. Dirty Water Tank Latches
22. ON/OFF Pedal
23. Stair/Upholstery Nozzle*

Operate cleaner only at voltage specified on data plate on bottom of cleaner.

This cleaner is intended for household use.

*Available on select models only

CAUTION

DO NOT USE THIS EXTRACTOR ON HARD FLOORS UNLESS YOU HAVE THE PROPER HARD FLOOR ATTACHMENT. USING THIS MACHINE ON HARD FLOORS WITHOUT PROPER ATTACHMENT MAY SCRATCH OR DAMAGE YOUR FLOOR.

transporting Cleaner

To move your carpet cleaner from room to room put handle in upright and locked position tilt carpet cleaner back on wheels and push forward.

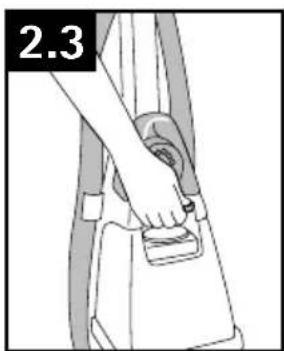

CarryingCleaner

The carpet cleaner may also be lifted by placing a hand under the upper Clean Water Solution Tank handle as shown.

THE TANKS: CLEAN WATER SOLUTION TANK

(upper tank)

The Clean Water Solution Tank holds the cleaning solution that is to be dispersed onto the surface to be cleaned (see "Cleaning Products" on p.20 for details).

How to Fill

CAUTION

To reduce the risk of injury from moving parts, unplug cleaner.

Place carpet cleaner handle in the upright, locked position.

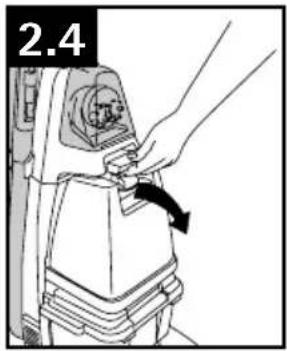

2.4 To remove tank, press down on handle and pull forward.

Carry tank to a sink.

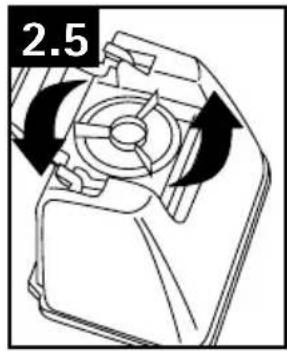

2.5 Rotate tank cap counterclockwise and lift up to remove cap.

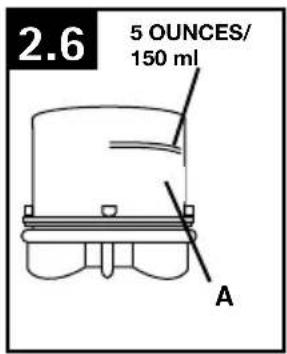

2.6 Turn cap (A) upside down to serve as a measuring cup.

Using cap, measure detergent following the chart below.

Tank Measuring Chart
For carpet, carpeted stairs and upholstery:	Fill cap to fill line (5 ounces) with HOOVER® Carpet/Upholstery Detergent.
For bare floors: Fill cap to fill line (5 ounces) with HOOVER® Hard Floor Cleaning Detergent.
NOTE: If using concentrated detergent, be sure to follow directions on bottle.

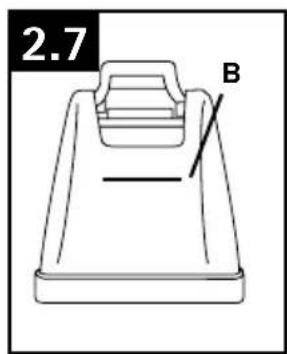

2.7 Pour detergent into tank. Fill tank to fill line (B) (1 gallon) with hot tap water.

To assure proper performance, use only HOOVER cleaning detergent (see "Cleaning Products" section for details.).

For Heavy Traffic Areas

Pre-treat with HOOVER® Spot and Stain Spray Cleaner.

If you do not have access to the Spot and Stain Spray Cleaner, double the amount of HOOVER Detergent (use 2 capfuls or 10 ounces per 1 gallon tank).

DIRTY WATER TANK (lower tank)

Automatic Shut Off

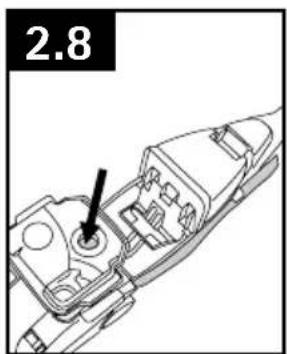

2.8 When the Dirty Water Tank (lower tank) is full the automatic shut off mechanism will shut off the carpet cleaner suction (suction will be noticeably reduced).

At that time the yellow float disk will rise to the top of the Dirty Water Tank lid. The cleaner will no longer pick up liquid and the motor sound will become noticeably higher in pitch. When this happens, turn off and unplug machine. Then empty Dirty Water Tank before continuing use.

How to Empty

Step on handle release pedal and lower handle until it rests on the floor.

If cleaning stairs or upholstery, remove hose (Available on select models only) by reversing procedure as shown on page 13.

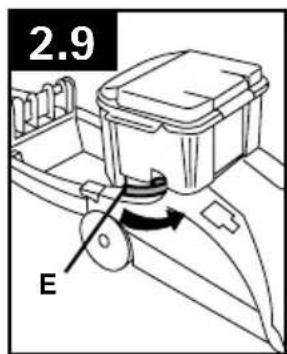

2.9 Rotate Dirty Water Tank latches (E) outward (one on each side of tank).

Lift tank off of carpet cleaner and carry it to a sink or drain. To replace tank, do the opposite.

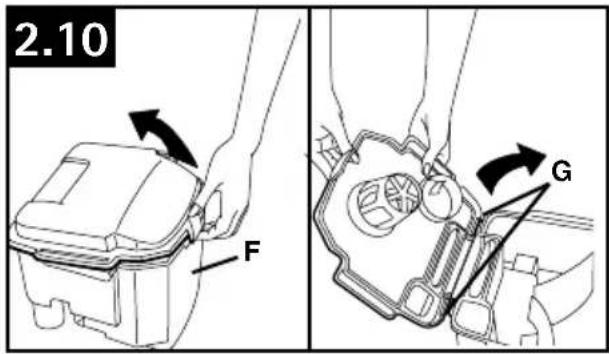

2.10 Unlatch back part of tank lid and remove lid. Empty tank. Pour dirty water out from the rear of the tank (F).

The lid replaces in a hinge-like manner. Position the front of lid under tabs (G) on front of tank. Rotate lid down onto tank. Make sure that the lid is secure on all sides before placing tank on cleaner.

- IMPORTANT

For full suction, it is important that the Dirty Water Tank lid is properly secured before cleaning.

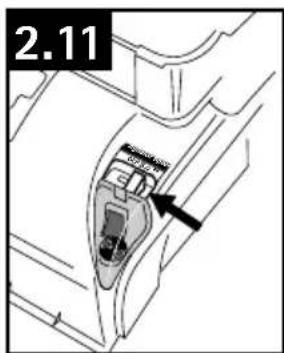

brush speed seleCtor

Your SteamVac® carpet cleaner has three agitator brush settings.

HI - for normal cleaning of carpet and bare floors

LO - for gentle cleaning of carpets and bare floors

OFF - for cleaning carpets and bare floors when brushing is not desired. (See "Picking Up Spills" section on page 11.)

Slide selector button to the desired setting before cleaning.

brush indicator

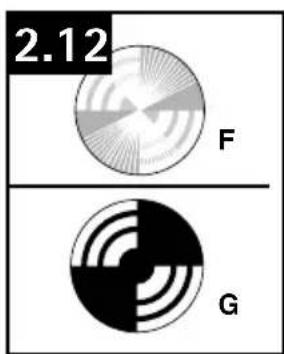

2.12 The brush indicator will spin (F) when the carpet cleaner is turned ON and the brushes are rotating.

If the indicator does not spin and the pattern is visible (G) when the carpet cleaner is turned ON, the brushes are not rotating.

There are three reasons why the brushes may not be rotating:

1. Brush speed selector set on OFF (see previous section).

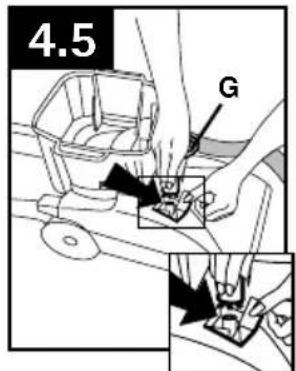

2. Solution tube connected (Available on select models only) (Fig. 4.5).

3. Brush indicator screen dirty.

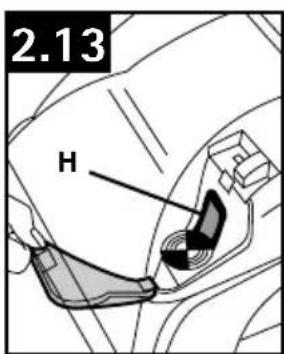

2.13 To clean screen (H), turn carpet cleaner off and disconnect from electrical outlet.

Remove clear cover and wipe off screen with a damp cloth. Snap cover back into position.

3. how to Clean

before you beGin Cleaning

A. Vacuum thoroughly - For carpet, use a Hoover vacuum cleaner with an agitator for best results. Vacuum upholstery with a vacuum cleaner with cleaning tool attachments. Use a crevice tool to reach into tufts and folds. Do not use the SteamVac carpet cleaner as a dry vacuum cleaner.
B. For upholstery, check cleaning code - Use your HOOVER® SteamVac® carpet cleaner only if the upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Do not clean fabric marked "S" ("solvent/dry" clean only). If your upholstery does not have a code, seek professional assistance.
C. Test for colorfastness - Mix detergent and water according to the instructions under "Fill Clean Water Solution Tank" on pages 8. Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.
D. When cleaning entire floor, move furniture out of area to be cleaned (may not be necessary if only high traffic areas are to be cleaned). For furniture too heavy to move, place aluminum foil or wax paper under legs. This will prevent wood finishes from staining carpet. Pin up furniture skirts and draperies.
E. Pretreat spots and heavy traffic areas with HOOVER Spot and Stain Spray Cleaner- Test Spot and Stain Spray Cleaner for colorfastness by first spraying it on a hidden area; wait ten minutes and blot with white paper towels or cloth.

If no color change is visible, spray Spot and Stain Spray Cleaner onto spots and traffic areas. Wait at least ten minutes. Use your SteamVac carpet cleaner to pick up Spot and Stain Spray Cleaner and spot. Repeat until spot is removed; carefully scrub with a household scrub brush if necessary.

Do not saturate carpet or upholstery with Spot and Stain Spray Cleaner.

No cleaning solution removes all stains from all carpets. Stain removal varies with the type of spill, time elapsed before removal, carpet material, and carpet type.

F. To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.
G. To avoid wetting and possible damage to wood floors underneath area rugs/carpet, either move area rugs/carpet to a non-wood hard floor surface or place waterproof material (e.g. plastic) underneath them before cleaning. If rinsing is desired, be careful not to over-wet the carpet or upholstery.

Allow time for carpet or upholstery to dry completely between cleaning and rinsing. To rinse, follow the same procedure for cleaning only using hot tap water with no detergent in the upper Clean Water Solution Tank.

H. Empty tanks, rinse with clear water and let air dry. Rinse the Clean Water Solution Tank cap and Dirty Water Tank lid and let air dry.

Carpet CleaningG

Fill Clean Water Solution Tank (upper tank) with HOOVER® Detergent according to instructions on page 8.

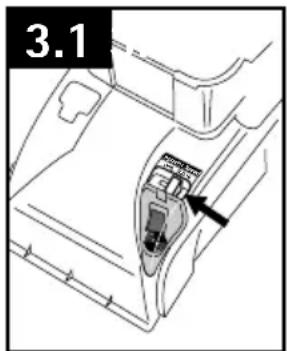

3.1 Move speed selector to LO for gentle cleaning or HI for normal cleaning.

Dry hands and plug cord into a properly grounded outlet.

Do not clean over floor electrical outlets.

To avoid walking on damp carpet, start at the end of the room farthest from the door or path to sink where tanks will be emptied and filled.

Step on handle release pedal and lower handle to operating position; turn carpet cleaner ON.

3.2 Squeeze trigger to release cleaning solution and slowly push carpet cleaner forward (equals one wet stroke).

Actual model may vary from images shown.

Continue to squeeze trigger and slowly pull carpet cleaner back toward you (second wet stroke). Release trigger and slowly push carpet cleaner forward over area just sprayed with solution (dry stroke). Then slowly pull carpet cleaner back toward you without squeezing trigger (dry stroke).

Overlap strokes by 1 inch to help prevent streaking. Keep nozzle flat on floor for both forward and reverse strokes.

3.3 To get the most effective cleaning, clean room in sections as shown. Do not use the same cleaning technique as with a vacuum.

For heavily soiled areas, repeat back and forth cleaning motion.

For particularly soiled carpet or spots, use the Clean Surge® feature (available on select models only). Avoid saturating carpet as noted.

It is best to alternate wet and dry strokes as described above.

For best cleaning results and to aid in faster drying of carpet, end with more dry strokes. (Continue using dry strokes until little water is visible passing through the Dirty Water Tank lid.)

·IMPORTANT·

To avoid saturating carpet, do not use more than 4 wet strokes over one area. Always end with dry strokes.

Clean surGe® button

(Available on select models only)

The Clean Surge® button can be used to dispense extra solution when cleaning particularly soiled areas of carpet or spots.

To use, press Clean Surge button while squeezing solution trigger. For normal solution spray, release button and continue to squeeze solution trigger.

piCkinG up spills

Your HOOVER® SteamVac® carpet cleaner may also be used to pick up small liquid spills (1 gallon or less, never to exceed 1/4 inch in depth) on carpet, upholstery, or bare floors.

For best results, pick up spills immediately by placing the stair/upsolstery nozzle (Available on select models only) just above the spill and suction up any residue on top of the carpet. If the spill remains, place either the stair/upsolstery nozzle or floor nozzle with brushes turned OFF in front of the spill, pull the nozzle very slowly over the spill initially with suction only. Repeat with spray and suction.

When picking up spills on bare floors, use only the floor nozzle with the bare floor attachment (Available on select models. Bare floor attachment sold separately) in place and speed selector in the OFF position (this will help prevent spreading the spill).

If a spot is left, the stair/upsolstery nozzle is generally more effective for removing it. Although no cleaning solution can completely remove all spots, they can be treated by following the instructions provided by the manufacturer of the carpet, upholstery, or bare floor surface being cleaned.

Do not use the SteamVac® carpet cleaner to pick up flammable or combustible liquids or chemicals.

CLEANING BARE FLOORS

How to attach bare floor attachment (available at additional cost if not included with your model)

CAUTION

To reduce the risk of injury from moving parts, unplug cleaner.

To prevent possible leaking, remove Clean Water Solution Tank and Dirty Water Tank before positioning bare floor attachment.

Refer to Fig. 2.4 to remove Clean Water Solution Tank. Set tank aside (do not set tank on furniture).

Refer to Fig. 2.9 to remove Dirty Water Tank. With handle in upright position, tilt cleaner back so that handle rests on the floor.

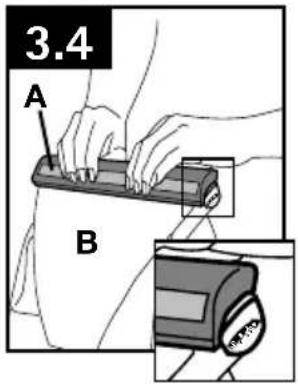

3.4 With foam strip (A) (located under the netting) in position as shown, place attachment on front of nozzle (B).

Make sure arrow on end of attachment points in the direction as shown.

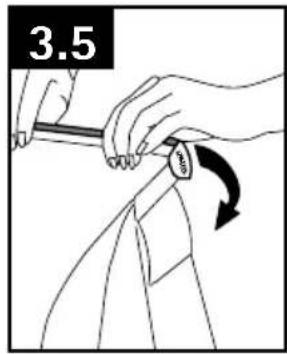

3.5 Push attachment against nozzle while rotating attachment downward until both ends snap into place.

(Note: Some force may be required to rotate and snap attachment into place.) Return carpet cleaner to upright position. Lower handle and replace Dirty Water Tank.

Raise handle to upright position and reposition Clean Water Solution Tank.

CAUTION DO NOT USE THIS EXTRACTOR ON HARD FLOORS UNLESS YOU HAVE THE PROPER HARD FLOOR ATTACHMENT. USING THIS MACHINE ON HARD FLOORS WITHOUT PROPER ATTACHMENT MAY SCRATCH OR DAMAGE YOUR FLOOR.

TO CLEAN BARE FLOORS

- IMPORTANT

Read Before you begin cleaning. Do not use the SteamVac cleaner on hardwood floors.

Fill Clean Water Solution Tank with HOOVER detergent (available at additional cost if not included with your model) according to instruction on page 8.

Do not use any type of wax with your SteamVac cleaner.

Move speed selector to the Lo or HI position for scrubbing or OFF if scrubbing is not desired.

Dry hands and plug cleaner into a properly grounded outlet.

Step on handle release pedal and lower handle to operating position; turn cleaner ON.

To release detergent, press trigger. Slowly move cleaner forward and backward over area to be cleaned.

To pick up dirty solution, release trigger and slowly move cleaner over area where solution has just been dispersed. Use both forward and reverse strokes.

Remove attachment from nozzle and rinse in clean water. Do not remove plastic screen or foam from attachment.

CAUTION DO NOT USE THIS EXTRACTOR ON HARD FLOORS UNLESS YOU HAVE THE PROPER HARD FLOOR ATTACHMENT. USING THIS MACHINE ON HARD FLOORS WITHOUT PROPER ATTACHMENT MAY SCRATCH OR DAMAGE YOUR FLOOR.

4. tools

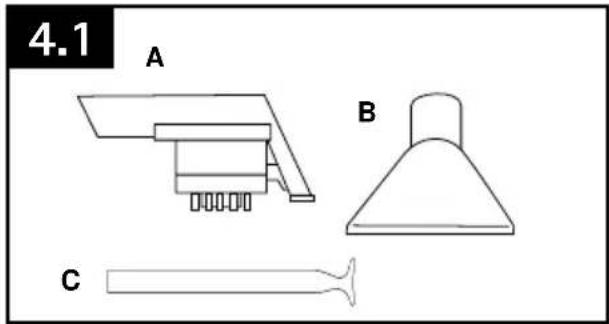

using the tools (Available on select models only)

A. Powered Hand Tool has rotating brushes for extra scrubbing action on small carpet areas, carpeted stairs and upholstery.
B. Stair/Upholstery Nozzle has a built-in brush to help provide the scrubbing action some spots may need for removal.
C. Nozzle Cleaning Tool for removing lint and/or debris from nozzle before storage

how to attaCh hose (Available on select models only)

CAUTION

To reduce the risk of injury from moving parts, unplug cleaner.

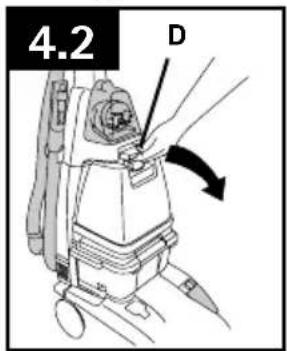

4.2 To prevent possible leaking, remove Clean Water Solution Tank by pressing down on tank handle (D) and pulling forward; set tank aside (do not set tank on furniture).

Remove hose from storage rack.

Step on handle release pedal and lower carpet cleaner handle until it rests on the floor.

Unlatch back part of Dirty Water Tank and remove lid.

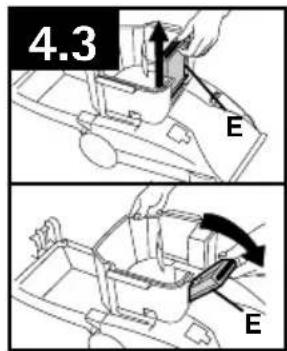

4.3 Pull Dirty Water Tank front panel (E) up one inch then rotate forward so it is horizontal to floor.

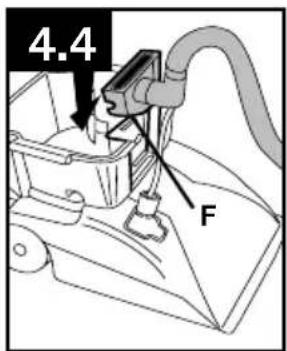

4.4 Replace panel with converter (F). Slide converter halfway down opening until it is firmly in place.

4.5 Before connecting tube (G) to cleaner, make sure black tabs are extended by pulling collar toward tube.

Open door on hood labeled "Stair/upholstery Cleaning Connection". Press round solution tube connector onto round projection inside door. Press connector collar down firmly to ensure that it is fully connected.

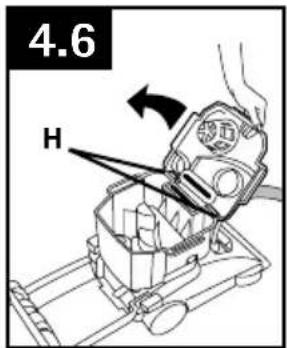

4.6 The tank replaces in a hinge-like manner. Position front of lid under tabs (H) on front of tank. Rotate lid down onto tank.

Make sure lid is secure on all sides before cleaning.

For full suction, it is important that the Dirty Water Tank lid is properly secured before cleaning.

Reverse procedure to remove hose and solution tube.

Raise carpet cleaner handle to upright position.

how to attaCh tool (Available on select models only)

CAUTION

To reduce the risk of injury from moving parts, unplug cleaner.

All tools connect to the hose in the same manner.

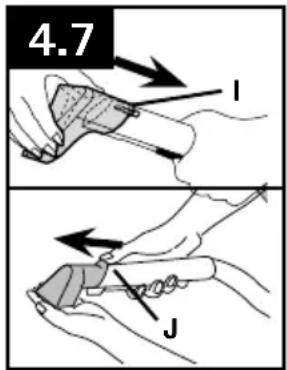

4.7 Attach tool to connector end of hose by sliding it onto connector until the tab (I) locks it securely.

Using your thumb, push forward and up on the latch (J) to remove tool as shown.

before using tool

(Available on select models only)

It may be necessary to remove air from the system ("prime the pump") so the clean solution will flow to the tool. Follow these steps:

1. Attach tool to hose and turn the carpet cleaner ON.
2. Put the tool on a hard surface or against your hand to block off the suction.
3. Wait a few seconds (can take up to 15 seconds). Then squeeze the trigger and begin cleaning.

CleaningG Carpeted stairs

(Tool available on select models only)

Place handle in upright position. Agitator brushes will not rotate while handle is in upright position.

Fill Clean Water Solution Tank with HOOVER Detergent according to instructions on pages 8.

Attach tool to end of hose.

Hose length may require that machine be placed at the top of the stairs to clean upper half of stairway and at bottom of stairs to clean lower half.

To prevent machine from falling, use extra caution when cleaning on stairs.

- IMPORTANT

Do not place carpet cleaner on stairs.
Do not point tools toward people or pets.

Dry hands and plug carpet cleaner into a properly grounded outlet.

Turn carpet cleaner ON. If necessary, refer to "Before Using Tool" section to remove air from system.

4.8 Pre-spray the carpeted stair by holding the tool (A or B in Fig. 4.1) about one inch above the carpet and push it forward while pressing the trigger (equals one wet stroke).

4.9 Position tool against the riser and slightly press it into carpet pile. Press the trigger and pull the tool slowly over the carpet (second wet stroke). Release trigger at end of stroke.

Lift tool, and position it against riser. Pull tool slowly over carpet without pressing trigger (dry stroke).

It is best to alternate wet and dry strokes as described above. End with more dry strokes to aid in faster drying of carpet.

Overlap strokes by 1/2 inch to help prevent streaking.

To avoid saturating carpet, do not use more than 4 wet strokes over any one area. Always end with dry strokes.

If additional cleaning is necessary, wait until the carpet is completely dry before using the tool again.

Cleaning upholstery

(Tool available on select models only)

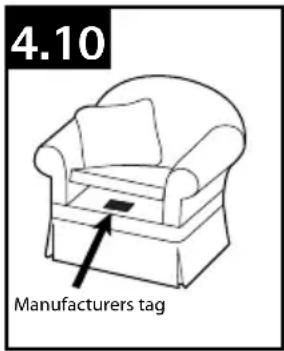

4.10 Be sure to check the cleaning code on your upholstery. Use your HOOVER® SteamVac® carpet cleaner only on upholstery marked "W" or "W/S".

Place handle in upright position. Agitator brushes will not rotate while handle is In upright position.

Fill Clean Water Solution Tank with HOOVER® Detergent according to instructions on page 8.

Attach tool to end of hose.

- IMPORTANT

Do not point tools toward people or pets.

Dry hands and plug carpet cleaner into a properly grounded outlet.

Turn carpet cleaner on. If necessary, refer to "Before using tool" section to remove air from system.

4.11 Gently press the tool onto the fabric. Press the trigger and slowly pull the nozzle over the fabric.

Overlap strokes by 1/2 inch to help prevent streaking.

Make additional strokes without pressing the trigger to remove more moisture.

To clean in corners or creases, lift the tool one-half inch from the fabric and press the solution trigger.

Vacuum up the solution with the tool without pressing the trigger.

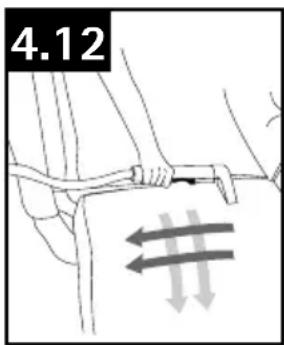

4.12 For heavily soiled areas, it may be necessary to repeat the cleaning process. Make crisscrossing strokes to the original pattern; overlap each pass.

Make no more than 2 passes with the solution over any one area to prevent over-wetting and damage to fabric.

If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again.

after using tool

(Available on select models only)

Drain suction hose by turning carpet cleaner ON and holding end of hose up for several seconds. Do not press trigger.

Disconnect carpet cleaner from electrical outlet.

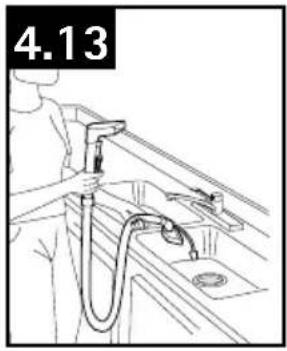

4.13 Drain solution tube by placing round end in sink and raising nozzle above your head. Press the trigger.
Proceed with steps in "After cleaning" section of manual.

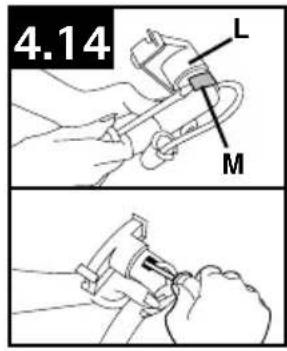

4.14 Occasionally, debris may become lodged inside of the hose at the converter end (L). To clean out the hose, lift bottom of converter clip (M) with a screwdriver and remove clip. Remove debris as shown.

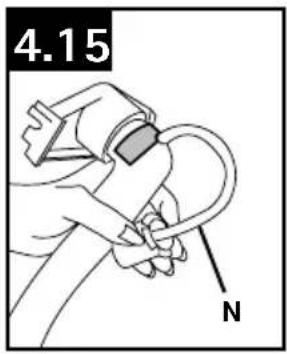

4.15 Snap clip back into position making sure solution hose (N) is not pinched and moves freely.

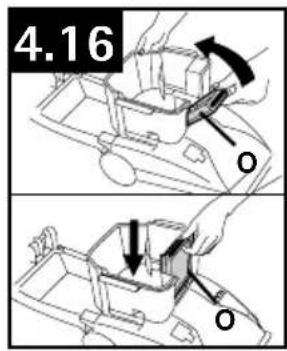

4.16 Replace Dirty Water Tank front panel (O). Rotate panel upward then push down until it snaps firmly in place. For full suction it is important that the front panel is properly secured before cleaning floor.

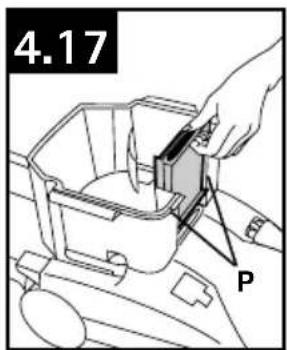

4.17 If the front panel is accidentally removed from the tank, it can be easily re-attached. Slide the panel into the channels (P) and firmly push down until panel snaps into place.

after CleaningG

Allow carpet or upholstery to dry. To help prevent matting and resoiling the carpet, keep children and pets away from surface until it is completely dry. If it is necessary to walk on damp carpet, place towels or white cloths on the traffic areas.

If furniture must be replaced before the carpet is dry, use plastic or aluminum foil pads under legs of furniture so metal slides or wood finishes will not stain the carpet.

If desired, the carpet may be rinsed. Rinsing is not necessary for cleaning, but it may improve the surface's appearance after it is dry.

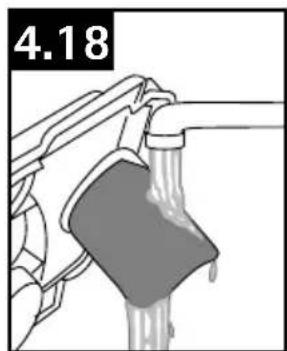

4.18 Empty tanks, rinse with clear water and let air dry. Rinse the Clean Water Solution Tank cap and Dirty Water Tank lid and let air dry.

Remove debris from Dirty Water Tank filter and rinse with clean water.

- IMPORTANT

If the filter must be removed for cleaning, it is easier to replace if the filter is wet.

Vacuum thoroughly after carpet has completely dried. This will help reduce any shading left by the carpet cleaner's brushes.

5. MAINTENANCE

Familiarize yourself with these home maintenance tasks as proper use and care of your cleaner will ensure continued cleaning effectiveness.

Any other servicing should be done by an authorized service representative.

NOZZLE: How to Clean (Available on select models only)

If lint or other debris becomes lodged in nozzle, do not attempt to remove nozzle cover.

Pour one to two cups of clear water on a non-carpeted floor Do not pour water onto a wood floor.

Pick up water with your SteamVac® carpet cleaner. Repeat as necessary until debris is flushed out of nozzle.

Some models have a nozzle clean-out tool for removing debris.

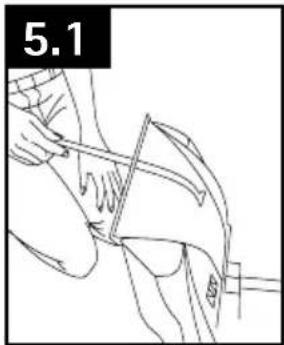

5.1 To use the tool: Disconnect carpet cleaner from electrical outlet. Slide tool into nozzle and remove debris as shown.

To clean the outside of the machine, wipe off dirt with a cloth dampened in warm water and mild detergent. Do not use solvent or petroleum based products to clean the machine.

BRUSHES: How to Change and Clean

Your carpet cleaner is equipped with removable brushes for easy cleaning.

CAUTION

To reduce the risk of injury from moving parts, unplug cleaner before servicing.

How to Remove

To prevent possible leaking, remove Clean Water Solution Tank and Dirty Water Tank. Set tanks aside. Press handle release pedal to lower handle. Turn cleaner over so bottom is facing up.

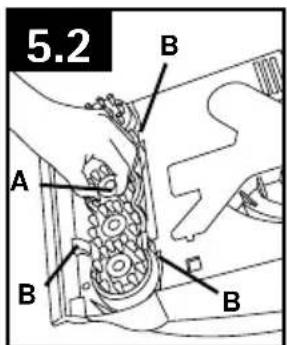

5.2 Grasp inner portion of brush (A) and pull brush assembly out slightly to reveal latches (B).

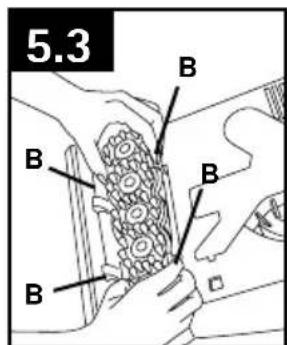

5.3 Press all four latches (B) and pull brush block out. The brushes can be cleaned under running water.

How to Replace

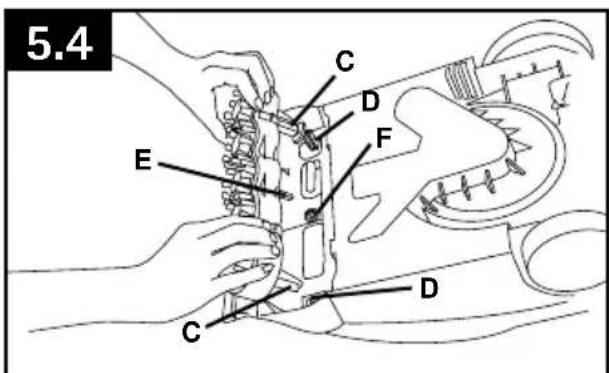

5.4 Align posts (C) on both ends of brush assembly with slots (D) in cleaner housing.

Make sure that square post (E) also aligns with square hole (F). Turn brushes slightly until post fits easily into hole.

Press brush assembly firmly to snap into place.

storaGe

Before storing:

• Empty Clean Water Solution Tank and rinse thoroughly with clean water.
• Replace empty Clean Water Solution Tank and turn carpet cleaner ON. Squeeze trigger and push carpet cleaner forward and back several times to expel any solution remaining in the carpet cleaner's system. (Do not use carpet cleaner on wood floors.)
• Empty Dirty Water Tank and rinse thoroughly with clean water.

Allow brushes and underside of carpet cleaner to air dry thoroughly before storing carpet cleaner on a carpeted or wood surface.

Do not store carpet cleaner with a full Clean Water Solution Tank in place.

lubrication

The motor is equipped with bearings that contain sufficient lubrication for the life of the motor. The addition of lubricant could cause damage. Therefore, do not add lubricant to motor bearings.

6. troubleshootingG

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below.

Any other servicing should be done by an authorized service representative.

WARNING

To reduce risk of personal injury - unplug cleaner before servicing.

problem possible	Cause possible solution
Cleanerwon'trun.	1. Not firmly plugged in.	1. Plug unit in firmly.
	2. No voltage in wall plug.	2. Check fuse or breaker in home.
	3. Blown fuse or tripped breaker.	3. Replace fuse or reset breaker in home.
Low suction. 1. Dirty	Water Tank full/ automatic shut off engaged.	1. Remove and empty Dirty Water Tank.
	2. Blockage In tool on end of hose.	2. Remove tool and clear blockage.
	3. Dirty Water Tank lid not on correctly.	3. Make sure lid is on securely (p.9).
	4. Dirty Water Tank front panel not replaced after stair or upholstery cleaning.	4. Replace Dirty Water Tank front panel (p.8).
Clean Water Solution Tank won't dispense.	1. Clean Water Solution Tank not firmly in place.	1. Make sure tank is securely locked in position.
	2. Clean Water Solution Tank empty.	2. Refill tank according to instructions for surface being cleaned.
	3. Dirty Water Tank lid not on correctly.	3. Make sure lid is firmly in place.
	4. Pump needs to be "primed" (when using tool).	4. See "Before Using Tool" section.
Brushes/brush indicator won't rotate during floor cleaning.	1. Indicator screen dirty. 1. Remo	ve clear cover over indicator and clean screen; replace cover.
	2. Speed selector on OFF.	2. Move speed selector to Low or Hi.

helpful reMinders

CAUTION

Unplug the cleaner before doing any of the following.

Use HOOVERbrand detergents; others may cause excessive foam.

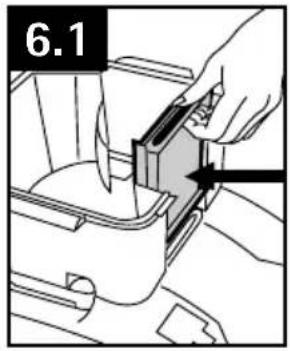

- 6.1 Push recovery tank front panel completely down when cleaning floors.
- 6.2 Secure Dirty Water Tank lid on all sides before cleaning.
- Empty Dirty Water Tank when full or when automatic shut-off engages.
- Use extra dry strokes to aid in faster drying of the carpet.

7. serviCe

To obtain approved Hoover® service and genuine Hoover® parts, locate the nearest Authorized Hoover® Warranty Service Dealer (Depot) by:

• Checking the Yellow Pages under "Vacuum Cleaners" or "Household".
• Visit our website at hoover.com (U.S. Customers) or hoover.ca (Canadian customers).

Follow the service center link to find the service outlet nearest you.
- For an automated referral of authorized service outlet locations call 1-800-944-9200.

Do not send your vacuum to Hoover®, Inc., Company in Glenwillow for service. This will only result in delay.

If you need further assistance:

To speak with a customer service representative call1-800-263-6376; Mon-Fri 8am-7pm EST. In Canada, contact Hoover® Canada, Toronto: 755 Progress Ave., Scarborough, ON M1H 2W7 OR Hoover® Canada, Edmonton: 18129-111 Ave., Edmonton, AB T5W 2P2, Phone: [phone], Mon-Fri 8am-7pm EST. Always identify your vacuum by the complete model number when requesting information or ordering parts. (The model number appears on the bottom of the vacuum.)

Please do not return this product to the store.

WARNING: To reduce the risk of fire and electric shock due to internal component damage, use only Hoover® cleaning products and Hoover® hard surface attachments intended for use with the appliance as noted below.

Hoover Cleaning Product Guide

Product Name	Deep Cleansing	Premium Pet	Oxy	Anti-Allergen	Hard Floor	Hoover Platinum Collection® Professional Strength	Hoover Platinum Collection® Pet Plus
Hoover® Quick & LightTM	✓	✓	✓	✓		✓	✓
Hoover® SteamVac®	✓	✓	✓	✓	✓2	✓	✓
Hoover® MaxExtract® Dual V®	✓	✓	✓	✓	✓3	✓	✓
Hoover® MaxExtract® Dual V® All Terrain	✓	✓	✓	✓	✓	✓	✓
Hoover Platinum Collection®	✓	✓	✓	✓		✓	✓
Hoover® FloorMate®					✓

Allergens: pollen, pet dander, dirt, and dust.
2 When cleaning a hard surface, the Hoover® hard surface attachment below must be used (optional if not included):
5 Brush/Dual Brush Hoover® part # 48417008.

3 When cleaning a hard surface, the optional Hoover® hard surface attachment below must be used:

6 Brush Hoover® part # 36419008

5 Brush Hoover® part # 48417007.

For optimal performance use Hoover® brand detergents, wipes, and spot cleaners available at Hoover.com and retailers nationwide.

liMited one year warranty

(Domestic Use)

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner's Manual, your HOOVER® product is warranted against original defects in material and workmanship for a full one year from date of purchase (the "Warranty Period"). During the Warranty Period, Hoover® will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to either a Hoover® Sales and Service Center or Hoover® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Hoover® online at www.hoover.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Hoover® Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST. In Canada, contact Hoover® Canada, Carson Building, 100 Carson St., Etobicoke, Ontario M8W 3R9, Phone: [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Hoover, owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house

calls. However, if you mail your product to a Hoover® Sales and Service Center for warranty service, cost of shipping will be paid one way.

This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Hoover® products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty.

THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY HOOVER. ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL HOOVER BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

Your SteamVac® carpet cleaner has three agitator brush settings.

BOUTON CLEAN SURGEMC

Your carpet cleaner is equipped with removable brushes for easy cleaning.

MISE EN GARDE
