SSLW500 - Pregnant PIONEER - Free user manual and instructions

Brand	PIONEER
Model	SSLW500
Product type	Passive subwoofer
Impedance	4 Ω
Frequency range	35 Hz - 2.0 kHz
Sensitivity	78 dB
Maximum input power	100 W
Dimensions (horizontal orientation)	435 x 121 x 360 mm (W x H x D)
Dimensions (vertical orientation)	108.5 x 435 x 360 mm (W x H x D)
Weight	4.5 kg
Configuration	Bass-reflex (bookshelf type)
Speaker	16 cm cone
Installation method	Vertical or horizontal
Power supply	Passive (requires external amplifier)
Connectors	Spring terminals (red +, black -)
Supplied accessories	Speaker cable (3 m), non-slip pads (4), gaskets (4), warranty card, instruction manual
Cleaning	Dry cloth or diluted neutral detergent
Usage precautions	Do not expose to excessive power, avoid prolonged distortion, do not place heavy objects on top
Safety	Do not install on unstable surface, do not mount on wall/ceiling, leave 10 cm space around
Warranty	Warranty card included (European model only)

Frequently Asked Questions - SSLW500 PIONEER

How to connect the SSLW500 to my amplifier?

Use the supplied speaker cable (3 m). Connect the wire with the colored mark to the red terminal (+) and the other wire to the black terminal (-) of the subwoofer. Connect the other end to the speaker output terminals of your amplifier dedicated to a passive subwoofer (4 Ω impedance). Ensure the amplifier is powered off when connecting.

What is the impedance of the subwoofer?

The impedance of the SSLW500 is 4 Ω. It must only be connected to an amplifier designed for a 4 Ω load impedance (the amplifier's speaker output connector must clearly indicate '4Ω').

Can I use the SSLW500 with an 8 ohm amplifier?

No, this is not recommended. The SSLW500 is designed for 4 Ω impedance. Using it with an 8 Ω amplifier may cause overloading and damage the amplifier or subwoofer. Always check your amplifier specifications.

How to install the subwoofer in vertical position?

For vertical installation, remove the feet attached with crosshead screws using a screwdriver. Apply the supplied gaskets to hide the screw holes. Attach the non-slip pads to the four corners of the mounting surface. Do not tilt the unit during this operation.

What to do if the subwoofer produces no sound?

First check that the amplifier is on and the subwoofer is correctly connected (red and black terminals). Ensure the amplifier supports 4 Ω impedance. If the subwoofer has a protection function, wait a few seconds after reducing the volume. Also check the crossover frequency settings on the amplifier.

Is the SSLW500 magnetically shielded?

No, the SSLW500 is not magnetically shielded. Do not place it near a CRT television or objects sensitive to magnetism (magnetic cards, watches, video tapes). Color distortion may appear on the TV screen if the subwoofer is too close.

What minimum distance should I leave between the subwoofer and the wall?

When installing, leave at least 10 cm between the back of the subwoofer and any wall. For vertical installation, also leave 10 cm between the left face and any wall. This ensures optimal performance and prevents overheating.

Can I place the subwoofer on a television?

No, it is dangerous to place the subwoofer on a television or any unstable surface. The subwoofer weighs 4.5 kg and could fall, causing injury or damage. Always install it on a stable, flat surface.

How to clean the subwoofer?

Use a dry cloth to dust. For stains, dampen a cloth in diluted neutral detergent (5 to 6 times its volume of water), wring well, then wipe. Never use thinner, benzine, wax or insecticide as they will damage the surface.

What to do if color distortion occurs on my TV?

Move the subwoofer away from the TV. If distortion persists, turn off the TV power and wait 15 to 30 minutes. If the problem continues, move the subwoofer further away. For CRT TVs, a distance of at least 10 cm is recommended.

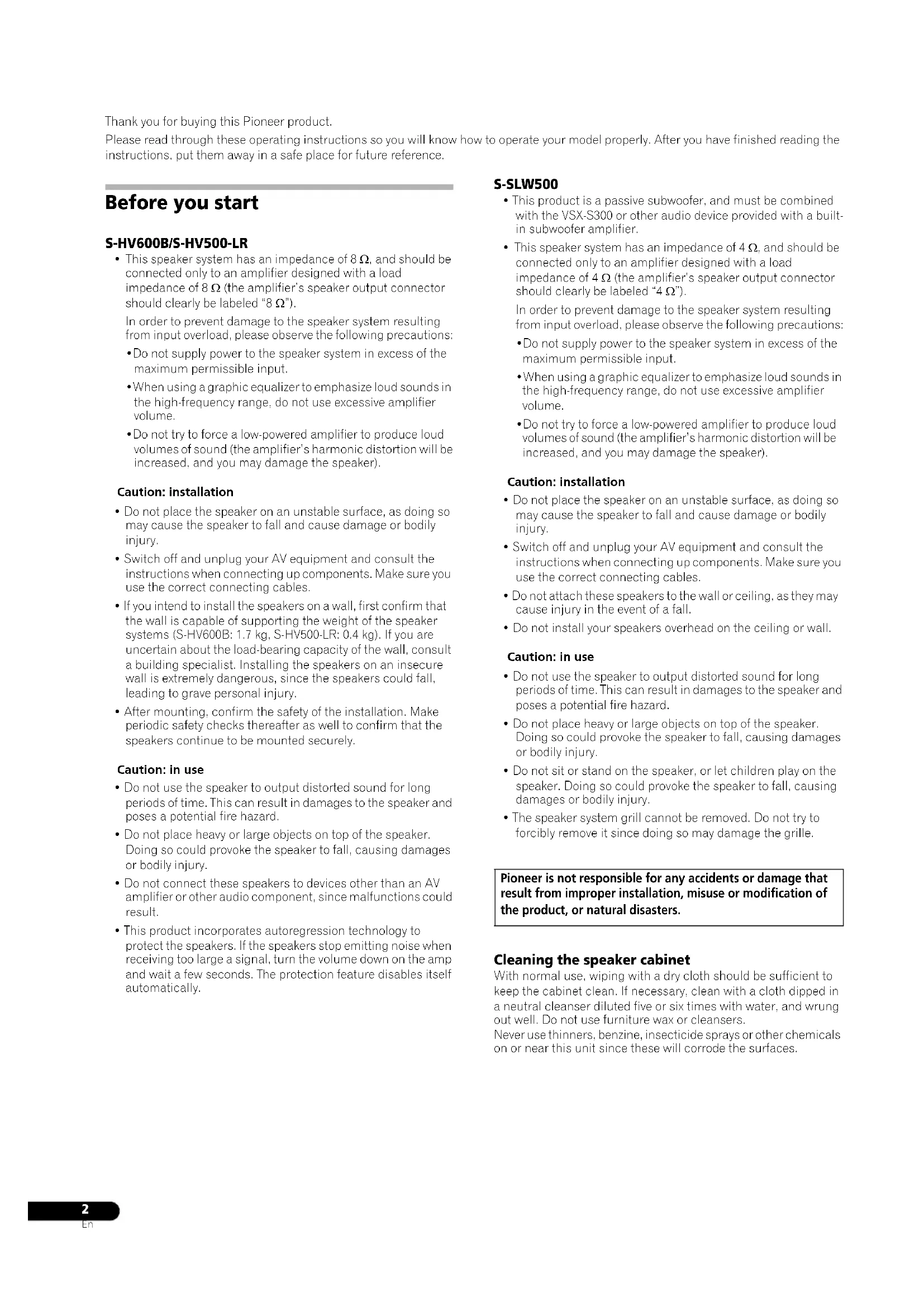

USER MANUAL SSLW500 PIONEER

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

Before you start

S-HV600B/S-HV500-LR

• This speaker system has an impedance of 8 , and should be connected only to an amplifier designed with a load impedance of 8 (the amplifier's speaker output connector should clearly be labeled "8Ω").

In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions:

• Do not supply power to the speaker system in excess of the maximum permissible input.
• When using a graphic equalizer to emphasize loud sounds in the high-frequency range, do not use excessive amplifier volume.
• Do not try to force a low-powered amplifier to produce loud volumes of sound (the amplifier's harmonic distortion will be increased, and you may damage the speaker).

Caution: installation

• Do not place the speaker on an unstable surface, as doing so may cause the speaker to fall and cause damage or bodily injury.
• Switch off and unplug your AV equipment and consult the instructions when connecting up components. Make sure you use the correct connecting cables.
• If you intend to install the speakers on a wall, first confirm that the wall is capable of supporting the weight of the speaker systems (S-HV600B: 1.7 kg, S-HV500-LR: 0.4 kg). If you are uncertain about the load-bearing capacity of the wall, consult a building specialist. Installing the speakers on an insecure wall is extremely dangerous, since the speakers could fall, leading to grave personal injury.
• After mounting, confirm the safety of the installation. Make periodic safety checks thereafter as well to confirm that the speakers continue to be mounted securely.

Caution: in use

• Do not use the speaker to output distorted sound for long periods of time. This can result in damages to the speaker and poses a potential fire hazard.
• Do not place heavy or large objects on top of the speaker. Doing so could provoke the speaker to fall, causing damages or bodily injury.
• Do not connect these speakers to devices other than an AV amplifier or other audio component, since malfunctions could result.
• This product incorporates autoregression technology to protect the speakers. If the speakers stop emitting noise when receiving too large a signal, turn the volume down on the amp and wait a few seconds. The protection feature disables itself automatically.

S-SLW500

• This product is a passive subwoofer, and must be combined with the VSX-S300 or other audio device provided with a built-in subwoofer amplifier.
• This speaker system has an impedance of 4 and should be connected only to an amplifier designed with a load impedance of 4 (the amplifier's speaker output connector should clearly be labeled "4Ω").

In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions:

• Do not supply power to the speaker system in excess of the maximum permissible input.
• When using a graphic equalizer to emphasize loud sounds in the high-frequency range, do not use excessive amplifier volume.
• Do not try to force a low-powered amplifier to produce loud volumes of sound (the amplifier's harmonic distortion will be increased, and you may damage the speaker).

Caution: installation

• Do not place the speaker on an unstable surface, as doing so may cause the speaker to fall and cause damage or bodily injury.
• Switch off and unplug your AV equipment and consult the instructions when connecting up components. Make sure you use the correct connecting cables.
• Do not attach these speakers to the wall or ceiling, as they may cause injury in the event of a fall.
• Do not install your speakers overhead on the ceiling or wall.

Caution: in use

• Do not use the speaker to output distorted sound for long periods of time. This can result in damages to the speaker and poses a potential fire hazard.
• Do not place heavy or large objects on top of the speaker. Doing so could provoke the speaker to fall, causing damages or bodily injury.
• Do not sit or stand on the speaker, or let children play on the speaker. Doing so could provoke the speaker to fall, causing damages or bodily injury.
• The speaker system grill cannot be removed. Do not try to forcibly remove it since doing so may damage the grille.

Pioneer is not responsible for any accidents or damage that result from improper installation, misuse or modification of the product, or natural disasters.

Cleaning the speaker cabinet

With normal use, wiping with a dry cloth should be sufficient to keep the cabinet clean. If necessary, clean with a cloth dipped in a neutral cleanser diluted five or six times with water, and wrung out well. Do not use furniture wax or cleansers.

Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit since these will corrode the surfaces.

What's in the box

S-HV600B

• Bracket x 2
  Non-skid pads × 2
• Wiress stays 4
  Warranty card x 1 (European model only)
• Operating instructions (this document)

S-HV500-LR

• Base x 2

• Standarmx2

• Bracket x 2
• Screw (Bind head) x 2
• Screw (Flathead) x 4
• Hexagonal nut x 2
• Sealx2
  Warranty card x 1 (European model only)
• Operating instructions (this document)

S-SLW500

• Speaker cord (3 m) x 1
  Non-skid pads × 4
  Sealx4
  Warranty card x 1 (European model only)

Features

Sound is produced from both sides (grille net) of the speaker.
- This speaker features full sound directed in every direction. In contrast to ordinary speakers, the orientation shown below is the "front." To enjoy optimum sound quality, orient the speaker so that this "front" side is pointed toward your listening position.

S-HV500-LR: Horizontal orientation

S-HV500-LR: Vertical orientation

Assembly

S-HV600B

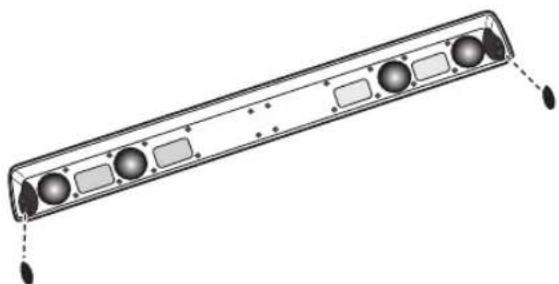

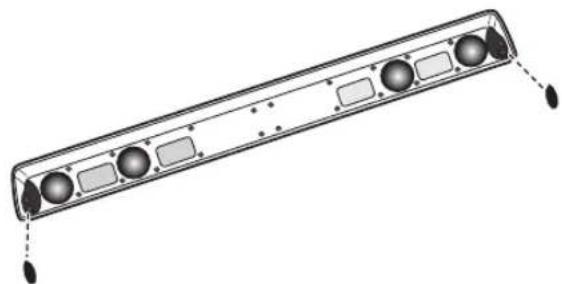

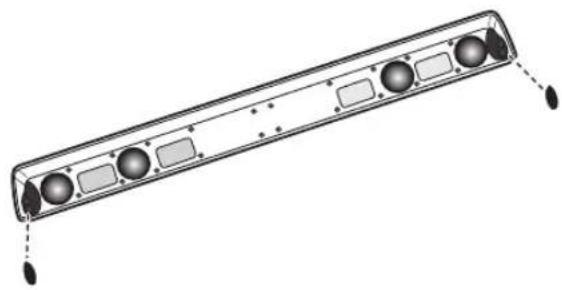

1 Apply the non-skid pad to the bottom surface of the leg.

S-HV500-LR

Horizontal orientation

1 Pass the speaker cord through the hole in the base.

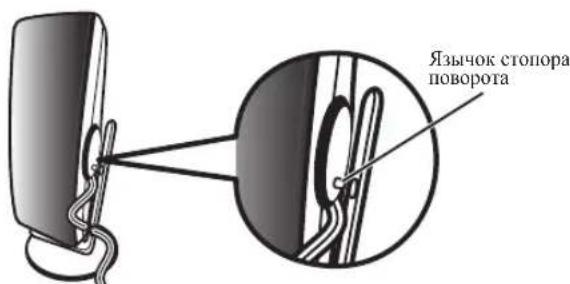

2 Align the rotation stop lug with the hole in the base.

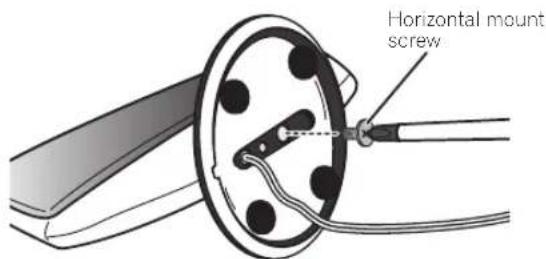

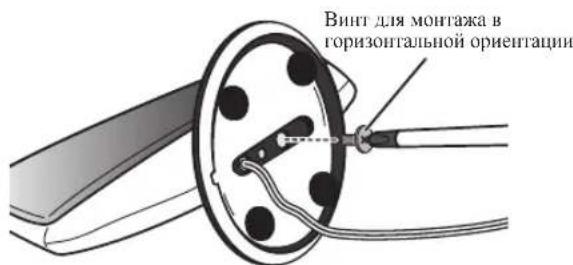

3 Fasten the speaker to the base use the horizontal mounting screw from the back side of the base.

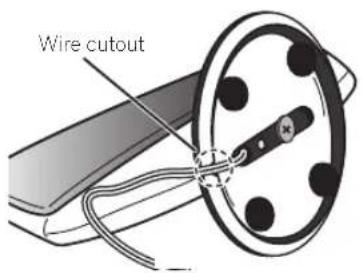

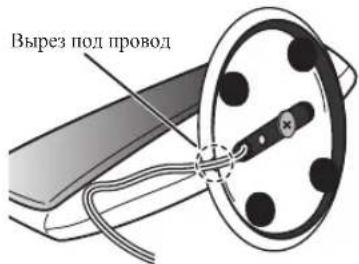

4 Set the speaker so that the speaker cord passes through the groove in the base.

Vertical orientation

1 Align the vertical mounting stay with the hole in the base.

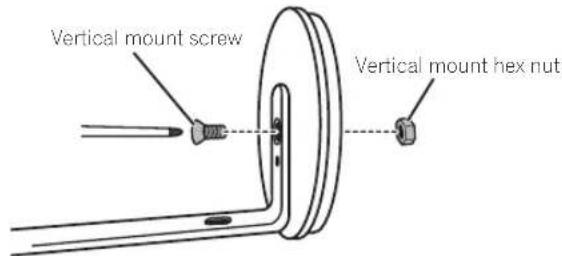

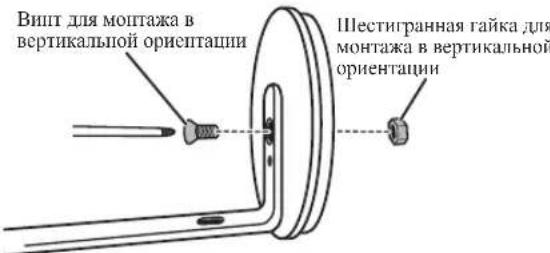

2 Fasten the vertical mount stay to the base using the vertical mount bolt and hex nut. Be sure the hex nut fits into the hexagonal groove in the bottom of the base.

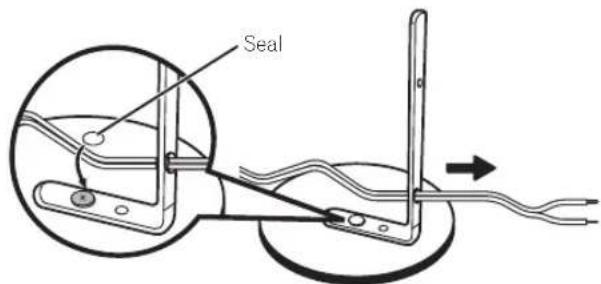

3 Pass the speaker cord through the vertical mount satay hole.

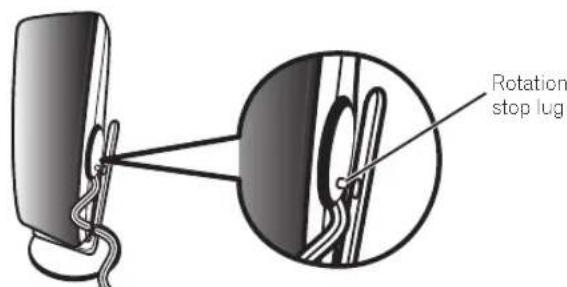

4 Align the speaker's rotation stop lug with the hole in the vertical stay.

5 Fasten the speaker to the vertical stay, using the vertical mount screw.

S-SLW500

Installing the subwoofer

The subwoofer can be mounted in either vertical or horizontal orientation. The factory default is horizontal orientation.

For vertical orientation installation

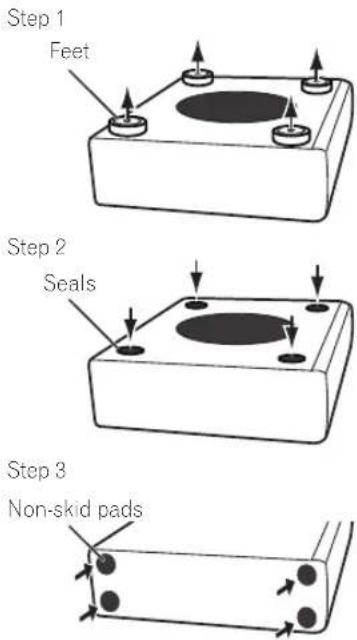

1 The feet are attached with Phillips screws; use a Phillips screwdriver to remove them.
2 Apply the accessory seals to the place the feet were located to hide the screw holes.
3 Apply the non-skid pads to the four corners of the surface where the subwoofer is to be mounted. Note that the nonskid pads may not be fully effective on all surfaces, so do not install in slippery locations.

CAUTION

• Do not attempt to perform these procedures while tilting the unit at an angle. Lay the unit on its side on soft cloth or other material that will not scar the unit.

Installation

Mounting location

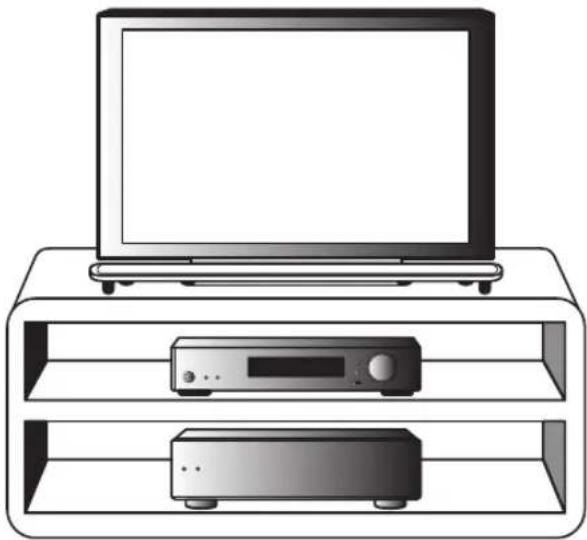

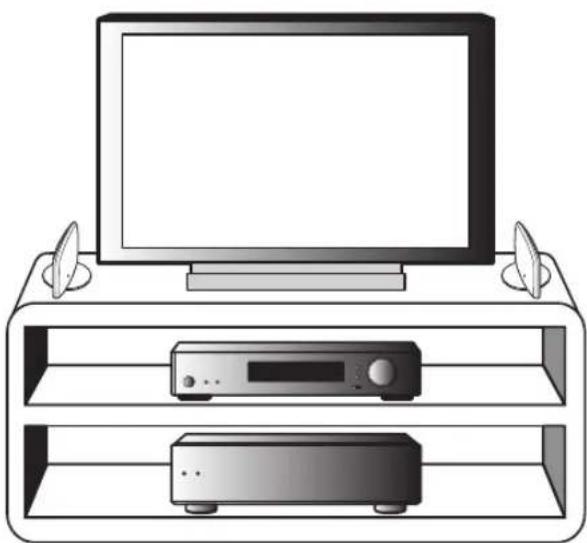

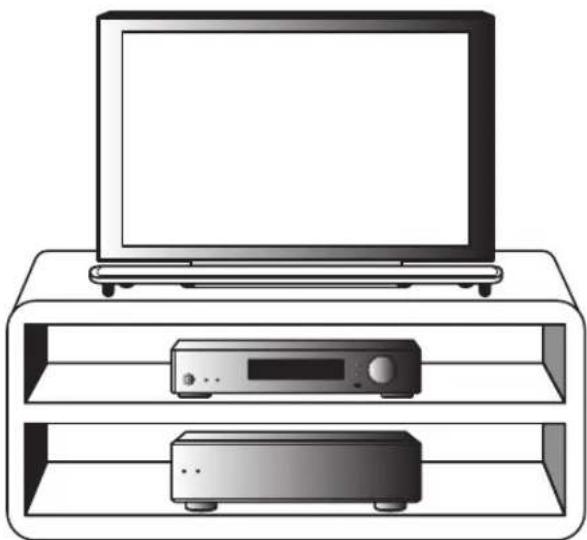

Installation example: For both S-HV600B and S-SLW500

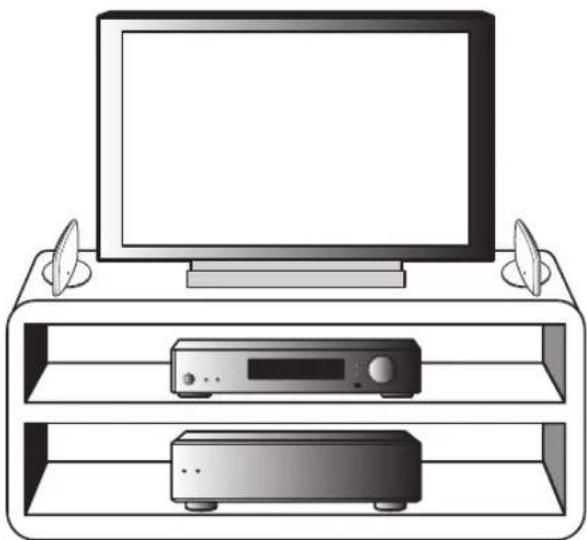

Installation example: For both S-HV500-LR and S-SLW500

S-HV600B

• Sounds played through speaker systems are easily affected in subtle ways by the conditions in the listening space.
• This speaker system does not feature a magnetically shielded design. As a result, color distortion may occur if the speaker is placed near a conventional CRT television. In this event, move the speaker farther away from the television. In addition, devices easily affected by magnetism (magnetic media cards, wrist-watches, video tapes, etc.) should not be placed near this speaker.
• If the room has a lot of reverberation, we recommend hanging heavy fabric on the walls, and/or putting a carpet on the floor to damp the sound. For best results, cover walls completely.

CAUTION

• Mounting the speakers in an unstable location is extremely dangerous and should not be attempted.
• Do not install the speakers on top of a television set or other unstable location. The speakers may fall, causing damage or personal injury.

S-HV500-LR

• Sounds played through speaker systems are easily affected in subtle ways by the conditions in the listening space.
• Can be mounted vertically or horizontally.
• When using a thin-profile television, place the speakers to the sides of the television, separated from the television by 5 cm or more.
• When using a CRT television, separate the speakers from the television by 10cm . Since these speakers are designed for low-magnetic-flux leakage, some color smearing may be experienced depending on the installation conditions. In this case, turn off the power to the television and wait for 15 minutes to 30 minutes. If color smearing continues, separate the speaker systems farther from the television.
• If the room has a lot of reverberation, we recommend hanging heavy fabric on the walls, and/or putting a carpet on the floor to damp the sound. For best results, cover walls completely.

CAUTION

• Mounting the speakers in an unstable location is extremely dangerous and should not be attempted.
• Do not install the speakers on top of a television set or other unstable location. The speakers may fall, causing damage or personal injury.

S-SLW500

• The subwoofer reproduces ultra-low sounds in monaural, using the fact that the human ear has little directional sensitivity to sounds in the low frequencies. As a result, the subwoofer can be located in a variety of places, but if placed too distant, the linkage between sounds of the subwoofer and other speakers may seem unnatural. The intensity of the sound from the subwoofer can be adjusted by changing the distance from the wall.
• Front speakers installed to the right and left should be separated by about 1.8m to 2.7m distance. They should be installed at equal distances from the television, and at equal heights from the floor.
• Optional speaker stands can be purchased to facilitate optimal mounting of the surround speakers at or slightly above the listener's ear height.
  The surround effect will be diminished if the surround speakers are mounted at extreme distances from the listener's position.
• The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor, as the interaction of magnetic materials can cause distortion of the colors on your TV screen. Devices easily affected by magnetism (magnetic media cards, wrist-watches, video tapes, etc.) should not be placed near the subwoofer.

CAUTION

• When installing the speaker system on a TV rack or AV rack, the rack or other audio components may vibrate due to vibrations generated by the speaker. Caution should be taken to assure that the rack shelves or other components do not shift positions due to the vibration.

• Do not place disc media (DVD, CD) players on top of the subwoofer since sound skipping may occur due to vibration.

• When installing, allow at least 10cm space between the rear of the unit and any wall; when installing vertically, also allow at least 10cm space between the unit's left side and any wall. If insufficient distance is taken, the unit may display inadequate performance, or may malfunction.

• Since the speaker system is heavy, installation in unstable locations is extremely dangerous and should not be attempted. A falling speaker may cause damage or personal injury.

Wall mounting the speakers (S-HV600B/S-HV500-LR)

Before mounting

• Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.
• Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

CAUTION

If you are unsure of the qualities and strength of the wall, consult a professional for advice.
- Pioneer is not responsible for any accidents or damage that result from improper installation.

S-HV600B

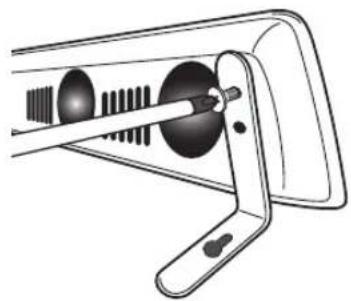

1 Use a Phillips screwdriver to remove the two screws holding the stands to the speaker.

2 Using the two screws removed in step 1, fasten the wall mounting fixtures to the speaker.

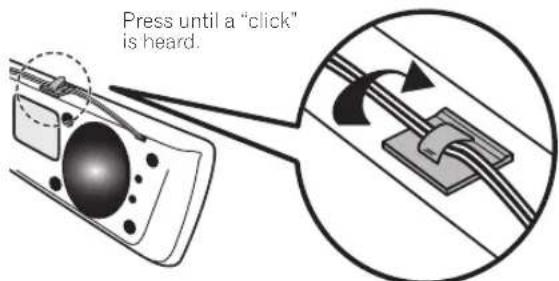

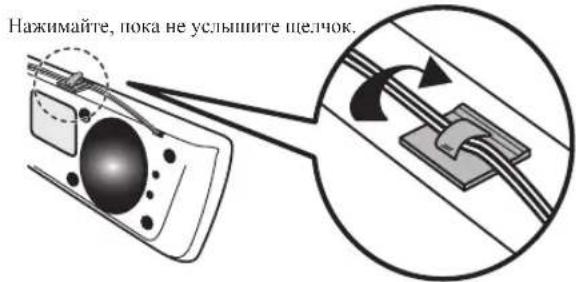

3 Affix the supplied wire stays to the top of the unit as shown and collect the cable there.

4 Mount on wall.

• Wall mounting screws are not included. Purchase appropriate screws taking into consideration the type of wall and the weight of the speaker system.

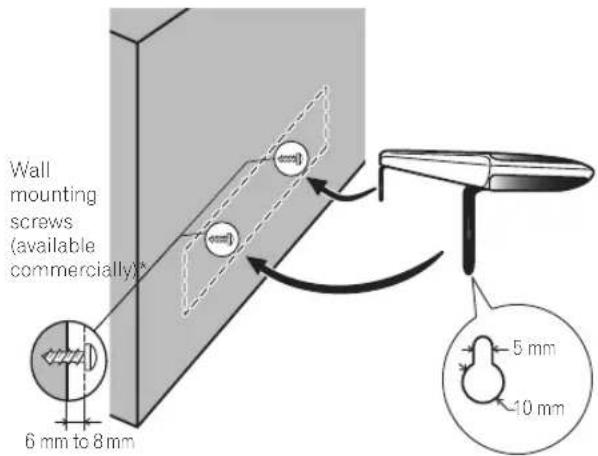

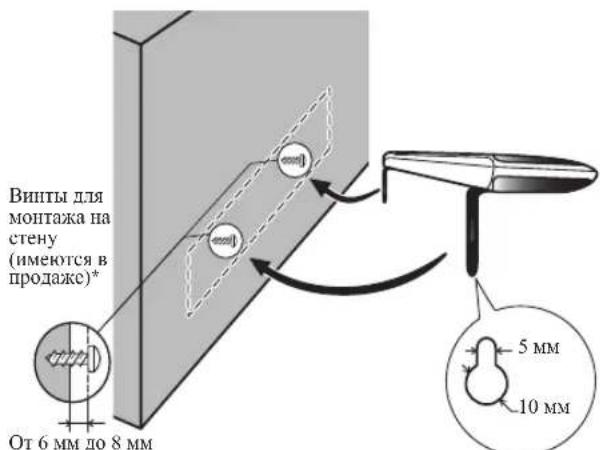

Open two holes in the wall 818 mm apart.

S-HV500-LR Wall mounting

To mount the unit on a wall, first use the vertical-installation screw to fasten the wall-mount brackets to the unit, then fasten the bracket to the wall.

When mounting the unit on a wall, confirm that the wall construction is of a type that allows the mounting screws (available commercially) to tighten fully and hold the speaker securely.

A wall made from weak material or of insufficient strength will be unable to support the weight of the speaker, potentially resulting in the speaker's falling.

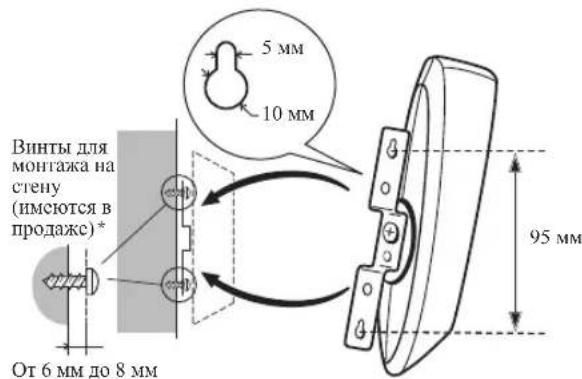

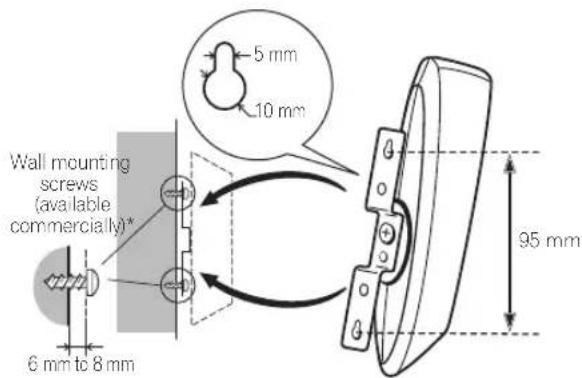

Open two holes in the wall 95 mm apart.

• Wall mounting screws are not included. Purchase appropriate screws taking into consideration the type of wall and the weight of the speaker system.

CAUTION

• When mounting the unit on a wall, unit weight and mounting methods may result in the danger of tipping or falling. Be very careful to prevent accidents.
• During installation, take care to confirm that the location chosen is fully able to support the weight of the unit. If you are uncertain about the strength of the wall, consult a building specialist.
• Pioneer takes no responsibility for damage or injury resulting from faulty or improper installation, modification of the unit, or natural disasters.

When mounting the unit on speaker stand

Use the accessory bracket when mounting the unit on any speaker stand or base other than those provided.

Use M5 screws for installation. Mounting screws are not provided. Follow the instructions accompanying your selected speaker stand or base.

Connection

Connecting the cord

S-HV600B/S-HV500-LR

1 Switch off the power to your amplifier.

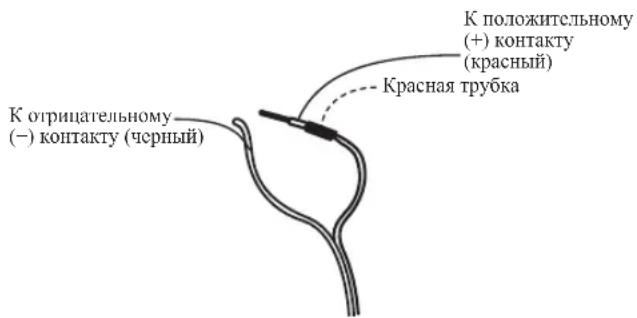

• Connect the wire with the colored marker to the red (+) terminal; the plain wire to the black (-) terminal.

2 Connect the other ends of the cords to the amp's speaker output terminals (for more details, refer to your amp instruction manual).

S-SLW500

1 Attach one end of the supplied speaker cord to the rear of the each speaker.

• Connect the wire with the colored marker to the red (+) terminal; the plain wire to the black (-) terminal. Press down the spring-loaded tab and insert the wire, as shown below. Release the tab to secure the wire.

2 Connect the other ends of the cords to the amp's speaker output terminals (for more details, refer to your amp instruction manual).

CAUTION

These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cords, disconnect the power cord before touching any uninsulated parts.
- After connecting the plugs, pull lightly on the cords to make sure that the ends of the cords are securely connected to the terminals. Poor connections can create noise and interruptions in the sound.
- If the cords' wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the receiver. This may cause the amp to stop functioning, and may even damage the receiver.
- When using a set of speakers connected to an receiver, you won't be able to obtain the normal stereo effect if the polarity (+, -) of one of the speakers (left or right) is reversed.

Operation (S-HV600B/S-HV500-LR)

Since the S-HV600B/S-HV500-LR are designed as compact satellite speakers, it is recommended that they be used in combination with a sub-woofer to provide full base sound. In this case, set your amplifier (receiver) speaker setting to "small" and the crossover frequency to 200 Hz.

Specifications

S-HV600B

Enclosure Closed type

Configuration 2-Way

Woofer/Tweeter .5.7 cm x 3 cm (Double sided) x 4pcs / 2 cm Dome type x 4pcs

Impedance 8Ω

Frequency range. 130 Hz to 32 kHz

Sensitivity 76 dB (Total 82 dB*)

Maximum input power. 100 W

Crossover frequency. 1.5 kHz

Exterior dimensions. 900 (W) mm × 66 (H) mm × 93 (D) mm

Weight 1.7 kg

Supplied accessories

Bracket 2

Non-skid pads 2

Wire stays 4

Warranty card (European model only) 1

Operating instructions (this document)

S-HV500-LR

Enclosure Closed type

Configuration 2-way

Woofer/Tweeter .5.7 cm x 3 cm (Double sided) x 2pcs / 2 cm Dome type x 2pcs Impedance .8Ω

Frequency range. 170 Hz to 32 kHz

Sensitivity .76 dB(Total 82 dB*)

Maximum input power. 100 W

Crossover frequency. 1.5 kHz

Exterior dimensions

Horizontal orientation . . . 207 (W) mm x 100 (H) mm x 100 (D) mm

Vertical orientation. 100 (W) mm × 225 (H) mm × 100 (D) mm

Weight 0.4 kg

Supplied accessories

Base 2

Stand arm 2

Bracket. 2

Screw (Bind head) 2

Screw (Flat head) 4

Hexagonal nut. 2

Seal 2

Warranty card (European model only) 1

Operating instructions (this document)

S-SLW500

Enclosure Bass-reflex bookshelf type

Configuration 16 cm cone

Impedance 4

Frequency range. 35 Hz to 2.0 kHz

Sensitivity .78 dB

Maximum input power. 100 W

Exterior dimensions

Horizontal orientation 435 (W) mm x 121 (H) mm x 360 (D) mm

Vertical orientation. . . . . 108.5 (W) mm x 435 (H) mm x 360 (D) mm

Weight 4.5 kg

Supplied accessories

Speaker cord (3 m). 1

Non-skid pads. 4

Seal 4

Warranty card (European model only). 1

Note

The S-HV500-LR is shipped with two speaker systems per package.
- Specifications and design subject to possible modification without notice, due to improvements.

• Since these speakers produce sound from both sides, the output is doubled. Sound volume is equivalent to 82 dB with ordinary speakers.

© 2011 PIONEER CORPORATION.

All rights reserved.

For European model

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058b_A1_En

Avant de commencer

S-HV600B/S-HV500-LR

Precautions: Installation

Precautions: Installation

S-HV500-LR: Orientation vertical

Assemblage

S-HV600B

© 2011 PIONEER CORPORATION.

© 2011 PIONEER CORPORATION.

.207 (L) mm x 100 (A) mm x 100 (P) mm

Orientamento verticale 100 (L) mm x 225 (A) mm x 100 (P) mm

Peso. 0.4 kg

.435 (L) mm x 121 (A) mm x 360 (P) mm

© 2011 PIONEER CORPORATION.

© 2011 PIONEER CORPORATION.

Orientation vertical

Orientation vertical

.108,5 (An) mm x 435 (Al) mm x 360 (Prf) mm

Peso 4,5 kg

© 2011 PIONEER CORPORATION.

Operação (S-HV600B/S-HV500-LR)

© 2011 PIONEER CORPORATION.

© 2011 PIONEER CORPORATION.

Kopiering forbjuden.

© 2011 af PIONEER CORPORATION.

Thank you for buying this Pioneer product.

S-HV500-LR: Vertical stilling

Sett forra

Montering

S-HV600B

1 For à sikre en stabil oppstilling bör du feste glimotvirkende briketter på undersiden av høytalerfoten.

S-HV500-LR

Horizontal stilling

© 2011 PIONEER CORPORATION.

Alle rettigheter reservert.

Modell for Europa

Hvis du onsker á kaste dette produits, mà du ikke blande det med vanlig husholdningsavfall. Det finnes et separat innsamlingssystem for bruke elektronikkprodukter, som i henhold til lovgivningen krever korrekt SPECIALBEHAVIING, gjenbruK og gjenvinning.

© 2011 PIONEER CORPORATION.

S-HV500-LR:B ropn3oHTaIbHoiOpneHTaun

(BuclnepeJH)

S-HV500-LR: B BepTnKaIbHoI opneTaun

(BHcpeepn)

C6opka

S-HV600B

1 PnpKpeNte K NOBepxHocTn OCHOBaHm HOXe npedoxpaHnteIbHbIe HeckOJIb3Kne NOKnaAdKn.

S-HV500-LR

Topn3oHTaJIbHaI opNeHTaUa

1 Pponyctte KOHOOHbI Ka6enb Yepe3 OTBepCTne BOCHOBAHN.

2 CoBmecTe Ra3b4OK CTOnopa NOBOPoTa C OTBepCTHeM BOCHOBaHH.

3 PnPKpENHTe KOJONHky K OCHOBAHNIO C NOMOUIKpENEXHOR BUNTAДЯ MOHTaJa B ROPN3OHTaJIbHOIpOpNEHTaUINC O6paTHOH CTOPOHbI OCHOBAHNIA.

4 YcTaHOBnTe KOJIOHky TaKIM 06pa3OM, YTO6bl KOnoHOuHbI Ka6eIb npOWeIpe3 Na3 B OCHOBAHN.

BeptnkaJIbHaI opnentaun

1 CoBMeCTHe CTOnKy DnIe BepTNKaJIbHOrO MOHTaXa C OTBepCTHeM B OCHOBAHm.
2 PnKpEnIte cToKy dJIe BepTknAHLHO MOtTaKa K OCHOBAHIO C NOMOuB BuHTa dJIe MOtTaKa B BepTknAHLHOOpNEHaunN WeCTnRpaHHo raKn. O63aTeNbHO NoCaJTE WeCTnRpaHHyO raKy B WeCTNyROlbHyO BbIeMKy B DHNue OCHOBAHJ.

3 Pponyctnte KOHOOHbI KAb Yepe3 OTBepCTne B CToNKe DnBePnKaJIbHOro MoTAtka.

4 CoBmctnTe Ra3bUOK CTOnopa NOBOPota KOONKn C OTBepCTHeM B BePTHKaJIbHOJ CTOnKe.

5 HadejHo npKpenTe KOLOHky K BepTkaJIbHOI cToKe C NOMOsbIO BVHTa DnB BepTkaJIbHOrO MOHTaJa.

S-SLW500

YctaHOBka ca6Bypepa

Ca6byepMOKHO CMOHTPOBArbKa B BePTKaJIbHO, TaH IROP3OHTaJIbHOI OPeHTaIIHH. 3aBOJcKa KOnΦhrypaIIHA IIpeIIIOJaeraT MOHTaK B ROp3OHTaJIbHOI OPeHTaIIHH.

Ja yctaHOBn B BeptnkabHoi opneHTaUN

1 HoXKn KpeIaTc n NOMOuB BuHTOB c KpeToo6pa3Hoi roNobKo; CHMnTe Hx C NOMOuB KpeToo6pa3HO iTBeptKn.
2 PnpKpEnHte npnlaraeMbIe B KOMnJIeKTe NocTaBKn 3aRnyuKN B MecTax, IHe HaxOdNtncb HOxK, YTo6bl cnpraTaB pe3b6oBbIe OTBepCTnI.
3 PnKpEnIte noYetbIpem yrIaM NOBepxHocTn KOpnyac ToI CTopoHbI, KOtOPO ca6ByΦep 6yEt YcTaHaBnBaTbcA, PnIraeMbIe npDeoxpaHnteNbHbIe HeCKoNb3KnE nOdKnAdKn. O6paTe BnHMaHne, yTo npDeoxpaHnteNbHbIe HeCKoNb3KnE nOdKnAdKn MOrTy 5bItb He NOnHO tbo 3ΦΦeKTHBbI Ha BCex NOBepxHocTxA, No3Tomy He BBINOJIHnYe YcTaHOBky B COKJb3KNX MecTaX.

IIIar 1

IIIar 2
IIIar 3

PpeOxpaHHTeJIbHbIe HeckoJIb3KHe HIOJIaJKN

BHIMAHHE

He IbIaIteB bIIIOJIINb 3TH DeIcTBHn, HAKIOHO yCTPOIcTBO IOyIOM. IIOJOKHTe KOIOIKy Ha60K NOBepx MmKoTKaIH INI INpyrTO MATEPHANA, He OCTABINHOero HA KOPHyce IapAHII.

YctaHOBka

MecTo yctaHOBKn

PpimepyctaHOBKn:IgS-HV600B n S-SLW500

PpimepyctaHOBKn:IgS-HV500-LRnS-SLW500

S-HV600B

YCIOBBAIOMIEHHINPOcIyHINBAHNOKA3bBAOTTOHKOe BO3HeCTBHe HA KaecCTBO 3ByKOB,BOcIIPOH3BOIDHMbIXYepe3 aKyctHcckHCnCTcEMbl.
JaHHa akycTHuecka cHcTeMa He ochaHeHa MaHHTHbIM OKpaHHPOBaHHc. N0TOMy np pa3McCHHN KOIOHKn prIOM C 6b4HbIM TcBn3Opm Ha 6a3e 3JT MoYr BO3HKaTb IBCTOBbc HCKaKeHH. B 3OM cIyae nepemecHTte KOIOHky IOnaJIbIE ot

TeJIeBH3Opa.KpOMe TOrO,ycTPOHCTBa,IOIbEpKeHHbIE BO3JeHCTBnHO MaHTTHbX BoIH (MaHTTHbMe MeJINHbE KapTBI, HApYIIhIe YacBI,BHJeONIIeIKHI T.I.)Ie CJIeJyET pa3MeIaTb B01H3N TOI KOJIOnKII.
EeINB KOMHATE Ha6JIHOaETc3HaHTeJIbHbM 3000eKTEpeBep6epaHH, peKOMEIIyETcIOBecHTb IIOTIHyIO MATEPHIO HACTEHN/NIHIOCTeIHb HAIOJ KOEBpIJINPnIRyIHHENH 3Byka.1JIOCTHXKeHH HAnTyHHXpe3yIbTaOB IOINHOctbIO 3AkpoITeEHMaTepeHII.

BHIMAHNE

MoITAK KOJOHOK B HecyToHNBbIX MecTAX IIpeCTABJIcT Uc3BbuaHHyOuAchOcTB, HO3OMY cRO CIEcyT H6Crtb.
He yctaHabHHBaHTe KOIOHKn HA TcJIcB3OpE CBepx HIN BpyTHX HeCyTOUHHBbIX MecTax. KOIOHKa MOKcT yHaCTb H IN pHUNHHTb HMyIeCTBeHHbYyIep6 HIN TpaBMbl.

S-HV500-LR

YcIOBnB HOMCUNHHIPOCJyHBAHnOka3bBAOT TOHKOC BO3eCTBHe Ha KaueCTBO 3ByKOB, BOCpON3BOHMLX Yepe3 aKyCTHneCKHe CHTeMBI.
MoKeT yCTaHaBJIHbATbCBA BepIHKaJIbHOM IIIN TOpH3OHTaJIbHOM IIOJIOKeIIHH.
IIpn HcnoIb3ObaHH TeJIeBH30pa c ToIIHm IpophiJiem pa3MeiHaTRE KOIOHKn H6OKaM TeJIeBH30pa Ha pacCToHnH 5cm HIN 6OJIee OTeJIeBH30pa.
Ipn HcnoB3OBaHHn TeLEB3Opa Ha 6ase OJT yctanaBnBaHne KOIOHNHa paaccToHHn 10cm OT TeLEB3Opa. IocKoJIbky JauHHbe KOIOHNHMeOT KOHCTpyKIIHO C HNI3KM MArHHTbIM paCCeIHHE, B 3ABCHMOCTn OT yCIOBH YCTAOBKn MOKeT NaHIO DAHC HeKOTopaa PA3MBOCTb IBETOB. B OTOM CIyUae BIKIOHHTe IIITAIHHe TELEB3Opa HIOJOKHTte OT 15 Do 30 MNHyT. EChn IpO6JIema pa3MBTOCTh IBETOB COxPAHNTc, OTOIBHBTe AkyCTHNECKHe CHCTeMbE EIue DaJIbHIOT OT TELEB3Opa.
EeINB KOMHATE Ha6JIHOaETc3HaHTeJIbHbM 3000eKTe peBep6epaHH, peKoMeHnyETcIOBeCHb IIOTHyO MaTePHIO HA CTHeH N/IIH IOCTCJITb HA IIOI KOBeP JII INHpyUHCHN 3ByKa. DIOIOCTHXHN HANUYHIX pc3yIBTaOB IOHIOCTbIO 3AkpoHTE CTHeM MaTePneH.

BHIMAHHE

MOHTAK KOLOHOK B HeycToHINBBIX MecTAX IIpeCTABJAE Tpe3BbuaHnyOuAchOcTB,IOIOTMY cRO CIEyct H36eATb.
He yctaHabHbaTe KOIOHK Hn TeJeBH3ope CBepxy HIN BpyTHX HeycToHHBHX MecTx. KoIOHK MoKet yIacTB H IIpHHTB HMyIeCTBCHHbYIcP6 HIN TpaBMbl.

S-SLW500

Ca6ByfepeBOcPOH3BOJHT CBePxHH3KoHaCTOTHbIe 3ByKn B MOHOOHOHHeCKOMpeKHM,IOJIb3yJcB TEm,HTO HeJOBEeCKOE yXO IIOXo paCHO3HaET HAnpaJIeHHOCt 3ByKOB B H3KoHaCTOTHOM IINaHOIIe. Bpe3yIbTaTe,ca6Byfepe MoKeT pa3MeIaTbCn B cMbIX pa3HOo6pa3HbIX MecTAX,HO INH eTO pa3MeIeHH Ha CJIINKOM 6OJIbIHOM yJaIEHH COOTHOIIeHHe MeKJy 3ByKaAMH, BOcPPOH3BOHIMMH Ca6ByfepaMH, H 3ByKaMH, BOcPPOH3BOHIMMbHM JpyTHM KOJIOHKAMH,MOKeT NOKa3aTbCn IeCCCTeTBeIHbIM. IHTEChHbIOCTb 3ByaAHIIra Ca6Byfepe MaKIO OTPeYJInPOBaTb, H3MeHRe paCtToHHe OT CTHebl.
- IpeCIOHc KOIOHk, yctAHABINBaCmBc cIpaBa H CJIeBa, IOJIKHb HaxoHTbcApyrO tpyra Ha pacCTOBHH O1,8Mdo2,7M. Hx CJeIyET yCTaHaBnBaTb Ha OINHaKOBOM yJaTeHHN OT TeJEBH3opa H HA OINHaKOBoB BbICOT HeIIOJOM.
BbMoKeTe pHNo6peCTH OINHOHHbIe CTOnKH NIO KOIOHKN IJIy UnpOHeHr ONTHMaJIbHOrO KpeJIteHn K0JOHOK 06BeMHORO 3ByaHnHa yPoBHe HIN HCMHO r BbIc BbICOTbl yIiC eIyIaTcII.
306bEMHOrO 3ByaHHn OKAKCTcH HNKe, cJIN KOJOHOHn 06bEMHOrO 3ByaHHn 6ydyT 3aKpCIIJIeHb HA CJIINIKOM 6OJIbIOM ydaJIeHHN OT IO3NIHH cIyIIaTeJI.

Ca6Byep He 3aHINHcH MaHHTHbIM 3KpaHnPOBaHHeM, H0TOMy ero He cJIeIyET pa3MeIHATb B6IN3N TEJEBH3Opa HIN MOHTOPa, IIOCKOJIbKY 3BAHMOBIIHIIHE MaHIITIIbIX MaTePbAIOB MOKeT B13BaTb IIeTOBIE HcKaKeIIHa IIa OKpAlE TeJIeBH3Opa. YcToPiCTBa, IOIeBpeKeIIIbIe BO3JeCTBIO MAHIITIIbIX BOIII (MaHHTHbIe MeIINHbIe KapTb, HApYHbIe HaCbI, BHJeONJIeHKn H T.I.) He cJIeIyET pa3MeIHATb B6IN3N ca6Byepa.

BHIMAHNE

• IIpy yctaIOBKe AkyCTHueCKo CnCTeMbI B TeLEBHNIOH O CTOKe HIN B CTOINKC DII ayHO-/BUNCOyCTPOiCTB, CTOKA HIN IpyTHc ayINOKOMNOHeHTb MOrY T BN6pHPOBaTb, IOINBePraCB BN6paHH, RENEHPyEmoI rPOMKOROBOpHTeJIeM. HeoXIOHMIO pIHHMATb MEPb IITRA TORO, YTO6bI IIOJKN CTOnIKN HIN IpyTHe KOMIOHEHTb HE CMEUJIHCb IIOI BO3DCNTBcHcBN6paHH.
  He pa3MeIaIte IpoHrBbIaTeJI INCKOBBXH HcHTeJIe (DVD, CD) Ha ca6ByIepc, IIOCKOJIbKy Bn6paIIHH MOKCT Bbl3BaTb IIPOCKaKNBaHHe 3Byka.
• Ipn yctaHOBKe octabJIHHeIe HIO KpaIIHeI Mepe 10 cm CBO6OJHOIro IIOCTpaHCTBa MEJy 3aHHe II HAHCJIbIO YcTPOiCTBa II IO6oI CTEOH, Ipn yctaHOBKe B BEpTHKa.IbHOM POJOKeHHI TAKKe OCTaJIHHe IIO KpaIIHeI Mepe 10 cm CBO6OJHOrIOpcTpaHCTBa MEKdy IeBoII PAIEIIbIO ycTPOiCTBa II IO6oI CTEOH. Ipn HCIOCTaTOHOM PACCTOHH BO3MOJHKb C6OH B pa6Ote HIN HENIOJIaIKYcTPOiCTBa.
  IockoibkyakctuueckcnaCTemaOTJHuaeTc60JIbHMBeCOM, yctaHOBka cHTcEMb B HecTa6HbHbIX MecTx IpeCTabJIeT Upe3BvauHIOOnACIOCTb,IOIOmy ee CJeIyET H36eATb.Ipn IpaEHHKOJIoIIKA MOKeT IIpHNUHHTb HMyIecTBeHIIb YIep6HIT TaBMBbl.

MOHTaK KOJohok Ha CTeHe

(S-HV600B/S-HV500-LR)

Ipeed BbINOHeHnEM MOHTaxa

IOMHHTe, TTO akCyTHueckKa cnCTeMa HMeet 3HaHTeJIbHbI BEc. IIO ee TaKecTbIO BHTb MOrTy ocAbeTb, a MATEpHaI CTeHb He BbIepeKaTb Ha py3Kn, TTO MoKcET IIpHBCCTN K HAeCHHO KOIOHKn. Y6cIIITcB b Tom, TTO cTeHa, Ha KOtOpoi IIaHHPcyCTc MoTHTpOBaTb KOIOKH, HMeCET IOCTaTOHy IOPOHOCb, YTO6bl yepKaTb Hx. He MOHTpyHte Ha dahepbix cTeHax HIN cTeHax C MaTKHM IOKpBuTHem.
K peeKHbE BnHTM He npHJaraIOTc. HcnoJIyTe BnHTb, COOTBeCTByIOIIHe MaTePHaIy cTeHb H cNoCo6Hbe BILepKHBaT BCC KOJOHOH.

BHIMAHNE

EeHbHeYBepeHbXapaKTePncTHkax HHeCyIe cnooc6HoCTn CTIIb,OBpaTHTeCb3a KOcYbTaIIeK CneHaJIHcty.
KOMIIHnPioneer He Hecet OTBETCTBEHHOCt 3a KaKHe-JIb60 IecyactIIbIe CUYaH HIN y6bITKN, Bb3BaIIbIe HIN NIOIECEIIbIe BCIECTBNC HcHaJIeKaIeYcTaHOBKn.

S-HV600B

1 C nomoubkopecToo6pa3HOn OTBeptKn OTBnHTne DBA BnHTa, KOTOpBM cToK Kn KpenTcK KOJohKe.

2 C nOMOUIBIO DByX BINTOB, CHrTbIX B WARE 1, HApExHO npHKpeHnTe KpenexKhIbe yCTpoINCTBa K KOJOnHe.

3 Pnpkpennte npnlaeraBle B KOMnJIeKTe NOCTaBN DEpKaTeN IPOBOLOKKN BEPXHeu YAcTNI KOHOKN, KAK noka3aHO, IN pponyCTne Upe3 Hx Ka6eNB.

4 YcTaHOBnTe Ha CTeHy.

BHHTI JIO MOHTaKa H A CTeH Ye IINJARAOOTc. IIpHOpeTHe COOTBCTCYIOIIHE BHIJI, IINIIIB BO BIHHMAnHe TIII CTeHb BEC AkyCTHeckO CHCTeMb.

PpocBepHTe DBa OTBepCTHBA CteHe Ha pacctOHH 818 MM ppyr ot pyra.

S-HV500-LR

MOHTAX Ha CTeHy

TTObI yCTaHOBHT bKOIOHcy Ha cTeHy, CHaHaI c HMOIO bBO BHHTa IJI BepTHKaJIbIOH yCTaHOBKH IIaJeKIO IIpHKpeINTE KpeIIeKIIbe cKObI IJI MOITAKa IIa cTeHy K KOIOKe, a 3aTEM IIaJeKIO 3aKpeINTE KpeENKHYO cKOBy K cTeHe.

PnH yctAHOBKc KOJIOHNHa CTChy y6cINTcB BTOM, 4TO KOHCTpyKINc CTHeI COOTBETCTBye TTHNy, IO3BOJIOIIMeMy IOJIHOCTbIO 3aKpeIITb H HAIEKHO ydepKHBaT KOTONc C IOMOIIbIO KpeIeKHBIX BHITOB (HMCHUINxCB HPOJaKe).

Cteha H3 cIabix HIN HMEOHHx HeIOCTaOHyIO IpOCHcB MaTePnaIOB 6yIeT HeCIOco6Ha yIepKHBatB Bec KOIOHKn, YTO MOKeT CO3dAIB NOIEHHaIIbHyIO ONACIOB T NaJIeHH KOTOKHKn.

IipocbepJIHTe IbaOTBepCTHBA CteIIIpaaccTOHH 95 MM ppyr ot pyra.

BHHHIMONMTaKa HcTeHy He npHraIarOc. IPho6peTHTC COOTBECTBYIOHIE BHHb, pIHHH BO BHMHANHE TTH CTHe H BEC AKCYTHueCKOH CHCTeM.

BHIMAHNE

IIpy yctaoBKe KOIOIIN HA cTeHy BEc KOIOIIN H MeToIb MOHTaKa MOrYT Co3JaBaTb OAnCHOCTb OIIPOKJIbIBaHN HJIN HAJeHHKOIOHKn. ByIbTe OChEb OCTOPOKHb, HTO6bl HpeOTBpaTHb BO3MOXHHe HeCHaCTHbe CUYHn.
BoBpemr yctaHOKn 063aTeJIbHo y6eHTncB TOM,TO Bb6paIIIOe dIy cTaIOOBKn MecTo NIOIOCTbIO CMOKET BILIEpKaTt BEc yIPOIcTB. Ecln Bbl Ie yBepenB B IpOIOCTcENI, 6paTHTECB 3a KOHcyJIbTaIIHe K cIeIIHaIIHCTy.
KOMIIHII Pioneer He Iecet OTBcTBeHHIOCTb 3a HecactHIE cIyauH HIN TpaBMbl, Bb3BaIIHbIe HINpapBHLHOH HIN HeHaJIeKaIIeYcTaHOBKOJ,MOHΦHKaIIHe H3JeHN HIN CTHXHbIMN6dCTBAMH.

Pn yctaHOBKe yCTPOINCTBa Ha cTOnKy nOd KOJONKy

IpnMOITaKe yctpoiCTBaII KaKyo-JHbO cTOnKy HIN IOCTaBky IIO KIoTIky, KpOme IIpNlaeMoi, HcNoJIb3yIte KpeIeKHiYIO cKO6y, IIpNlaIaeMyIO B KOMJIeKTE IOCTaBKn.

Iy yctAHOBKn HcIOJIb3yHrTe BHTM M5.KpeIeKHbE BHTbI He IpnIIraIOTc. CteIyIte HIICTpyKIIHM, IIpIIaRaEMIM K Bbl6paIIIOI CTOnke HIN IOCTabKe IIO KOIOIky.

CoeHHHeHn

IopocoeHHeHKe Ka6eJr

S-HV600B/S-HV500-LR

1 BbiknIOuHTe nTuHne ycunnteJra.

PiOIOeHHHTIPOBOICIBETOBOMAPKHPOBKOIKpachomy（+） KOHTAKTY，aPBOB63MapKPbOBKN-KeHpHOMY（-）KOHTAKTY.

2 PndcoeHHnTe Dpyrne KOHcbl Ka6enee K BbIXoHbIM pa3bemam Ha rPOMKOrOBOpNTen yCnnNTenra (3a 0onee npOboHou HnΦopMaueNe O6paauTecb K nHCTpyKuHm no 3Knnyataaun yCnnNTen).

S-SLW500

1 PoiocoeHHnte OOH KOHeu npHnaeraMoro KOnHOUHOro Ka6eJIa K KOHTaKTam B 3aHne YacTn KaKdoi KOnOHKn.

IIOIDCOEINHITNEIPOBOICIBETOBOIMAPKHPOBKOIKpacIOMY（+） KOHTAKTY，aIPBOID6e3MapKPPOBKN-KcepHOY（-）KOHTAKTY. HaKMHTHeHaIpyKHHbIy3bUOKKJIEMMbIIBCTABBEIPOBOJ,KaK 3TO IOKa3aHOHNKe.OTNcyTHTRe3bUOK,HTo6b3aHKnCpOBaTB IIPOBOJ.

2 PndcoeHHnTe DpyrHe KOHcbl Ka6eNe K BbIXoHbIM pa3beMaHa rPOMKOrOBOpHTeN yCnNTeN (3a 6Onee npDp6HoHnHΦopMaunE o6paauTecb K HcTpyKuMaM no 3KcnnyataaunyycnNTeN).

BHIMAHNE

KoHTAKTIIIE KJIEMMBKOJIOHOK HAXOJITcIIOI OIACHbIM HAIIPRAJEHEHM.BIeJHXIpeIoTbpawHnIHpNcKaIopApKeHH 3JIeKTPhueckHM TOKOM IIPH BbIOJIHeHHN IOIDCOeINHeHH NIIH OTcoEINHeHHK JOIOHOUHbIX KaBeJeI, IpeI TeM KAK IIpHKacatbcK K KaKHMM-ⅡH60 HeH3OJIHPoBaIIHbIM qactm,OTcoeINHITcIIHyp IIHTAHII.
IIOIOEOCHHHH HHTTECCHE CIEKAKOTAHNTc 3a Ka6CN, TTObbyoBCHTbCBYTOO KOHbKa6CJIe HAeKHO 3aKpeIIeHb BOKHTAKTHbIX pa3beMax. IIOX0I KOHTAKMOKET cTaTb IIpHNNHO B03HHKHOBEHH IIIMOB II pPOnaHaHH 3ByKa.
EINI IPOBOIa Ka6cJIe 6yJy cIyuaHIO BbIepHyTb H3 KOHTAkhBIX pa3BeMOB H BOITY B KOHTAK MekJy C6oB,3TO BB3OBET Ype3MepHYIO JOnOIHHTeJIbHYIO Harpy3KHa peCBep. TO MOKET IIpHBCTN K c6OAM B pa6Ote H daKe K IOLOMKc pcCHBepa.
KorJa HcHIOHB3yETcKOMIIEKT KOJIOHOK,HOcOeIHHeHHbIX K pccnBepy,BbHCMOKCTCIOJYHTb HopMaJIbHbI 0fKeKT cTepeoOHHueCKOTo 3ByaHH,ecIIIOJIApHOCTb IOJIKIOHCHN (+,-) OIOH N3KOJIOHok (JeBOH IIIN IpaBOH) IIIMeIIHa Ha 06paHHyIO.

3Kcnpnyataza (S-HV600B/S-HV500-LR)

IocKoJIbky S-IV600B/S-IV500-LR cKOHcTppyHpObaHb B KaueCTBe KOMnAaTHbIX CATeJIITHTbIX KOLOHOK, peKoMeHJyTeC HIOJIb3OBaTb Hx B COcTaAHHH C ca6ByfePOM IIN ObCCHeCHN HIOHOr Hn3KoUacToTHOrO 3ByaHn. B 3tOM cIyae ycTaHaBJIHBaHTe HaCTpOoiKy npaMetpa IIN rPOMKOOROpHTeHa yCNIIHTeIe (pechBepe) Ha «Hn3Kn yPoBeH» nAcToTy pa3JeIeHN Ha 200 TII.

TexHnueckne xapaKTepeNCTnKN

S-HV600B

Kopnyc. 3akpbTOrToTHIIa KOnHpyraa 2IOIOcb

HH3KoactOTHb/BBICOKOACTOTHb DHHAMHK 5,7cmx3cm (BBycTOPOHH) x4. /2 cm KYIOIBHOI TOHxA 4 HtI.

NoTHoe coipoTHBHeHc 8Ω

JHannaooh TactoT or 130 Tn do 32 K

76B（PiH82）

MaKcHMaJIbIaBxOJHAR MoIIIOCTb. 100 Br

HaTota pa3eHn. 1,5 Kt

Fa6apHTbIe pa3Mepbl 900 (III) MM x 66 (B) MM x 93 (Γ) MM

Bec. 1,7 kr

NoctabIeMbIe B KomnIeKTe npHaIeXHocTn

Kpenecknaycko6a 2

IpeOxApaHHeIbHbHe HecKoJIb3KHe IIOKaJIAaKn 2

JepkaTeJIH IPOBOIOKn 4

TapaHTHHHcepTHKKat (ToJIbKO dIa MoDeJIe, paCIIPOCTpaHReMbIX B EbpOIIe) 1

HCTpyKINIO3KcIyataaHH（JaHHbIIOkyMeHT）

S-HV500-LR

Kopnyc. 3akpbitoro Tnna

KoHpypana 2 noocb

HHKoactOTHBH/BBICOKOACTOTHBH HAMHKN 5,7cmx3cm (BycropoHH) x2.1 /2 cm KyoIbHO TnHa x 2 nT.

HIOHOe coipoINBJIeHne 8Ω

Dnannaoh qactor . or 170 fu do 32 kU

76 1b (H0Ha8 82 b*)

MaKcHMaTbHaB BXOTHaMOnIHocTb 100BT

Yactota pa3JeHn .1,5Kt

TabapHTbIc pa3McpB Bropn3oHTa.bHOJ opHCTaHH 207 (III) MM x 100 (B) MM x 100 (F) MM

B BepTKaJIbHOJ opHeHTauHH 100 (III) MM x 225 (B) MM x 100 (Γ) MM

Bec 0,4K

NoctabJIaRbIeB KOMnJIeKTe npHaJdNExKHOCTN

Octobattnc 2

Onopa cTouKn 2

Kpeeknckncko6a 2

BHT (Hn3KaIuIIHHpHueckra RoIOBka). 2

BHT (IIIOCKaI ROIOBka) 4

IIecturpaTmraTnKa 2

3ar.tymka. 2

IapaHITINIIcepTHΦHKAT(ToJIbKO DnM MoDeJIe,paCIIpOcTpaIIHeMBxB Ebpone) 1

HctpykuHH no 3Kcn.nyaataaHH (naHHbI JOKymeHT)

S-SLW500

Kopnyc 110IOuHOro TIIa, c OIpaKaTeJIem bacOB KOnIphrypaIIa 16 cm KOHyc

TIOJHoe coipoTHBJIeHne 4Ω

Hana3OH hacto 35TIO2,0K TByBCTBHTeJIbHOCTb 78

MaKcHMaJIbHaB BxOJHaMOnIHocTb. 100 Br

T6apHTHbc pa3McpbB TOpH3OHraJIbHO npHeHaauHH 435 (I1) MM x 121 (B) MM x 360 (I) MM BBePnKaJIbHO npHeHaauHH

108,5 (III) MM x 435 (B) MM x 360 (Γ) MM Boc. 4,5 KI

Noctabnembe B KOMnneKeTepnHaJnxHocTH

KoIOHOHbI KaeB (3M) 1

IpeoxpahntHeBhhe HeckoJIb3KHe IIOkJaikn. 4

3aIyka. 4

TapaHTHHbI cepTHΦHKAT (ToJIbKO IIN MoDeJIeII, paCIIPOCTpaHReMbIX B EbpOnc) 1

3aMeaHne

MoJIbS-HV500-LRIOCTaBJIeTcCAByMaKyCTHueCKHMn CHCTeMaMH B KOMIIJIeKeTe.

TexHHueckHe xapaKTepeHcTHKn H KOHCTpyKHH MoYr H3MeHrTbc8e3IpeBapHTeJIbIO r yBeIOJMeIHn, B CBr3H C BIOCHMBIMycoBepIIIECTBOBAIIHM.

*IOCKOBKYdIINIIe rPOMKOROBOPHTeHHBOCIPON3BOJNT 3ByK c 06eHXCTOPOH, BIXOXYBaHBAeTc. YpOBeIHrPOMKOCTH 3ByKa KKBHBAJIeHTeH82DcO6bUHbIMn rPOMKOROBOPHTeJIaMH.

PIONEER CORPORATION, 2011.

Bce npaba 3aunnuehbl.

Длma moDEJIe, paCnpoCTpaHReMbIX B Ebpone

Ecnn Bbl Jnnae TynnnnepoBb TaanHHe, He bIbpaBbAte Ero BMCTe C 0bNbIM bIbTOBm MycOpom. CyueceBTyET OTeNbHnCtema c6bopaNCnOJIbOaBHnx3NEKToPbHbIX N3eNII B COOTBeTCTBN C 3aHOHaTeBCTBM, KOtopar npEiOnNaerat CoOTBeTCTbUOeSe 6oapaeHne, Bo3pAr n nepepaBoTKy.

Aacthble kIneHTb-BrpaHax-ueHex EC, B WBeuapnnn HOpbernn Moryt 6ecnnaTHo BO3Bpaaatb nCnonb3ObaHHbte 3neKtpoHHbte 3dennr B COOTBEcTBHOUe nyHKtb c0pa nn dnpepy (pnp nokynke cxOnHoro HOBOrno 3dennr).

B ctpanax, He nepeueicneneHHbix Bblwe, Iy nolyeHn Hfopmaun O npabnlbblcx cnocobax ytnin3aun obaaaiTeCB B COOTBeTcByouane ypejckdneH.

IocTynar TAKIM 6pa3OM, Bbl MoKTe 6b1b YBepeHb I TOM, 40 yTINn3NpyEmbI npOyKT 6yET COOTBcTByoUm 6pa3OM 6pa6oTah, nepeaH B COOTBcTByoUm NnykT n nepeapobotan 6e3 Bo3MOxHBIX HeRaTHBbIX nocnEcdTBn dIn OkpykaIouee cpebl 3doOpBBnIOde.

K058b_A1_Ru

開始之前

S-HV600B/S-HV500-LR

http://www.pioneer.co.uk

http://www.pioneer.fr

http://www.pioneer.de

http://www.pioneer.it

http://www.pioneer.nl

http://www.pioneer.be

http://www.pioneer.es

http://www.pioneer.pt

http://www.pioneer.se

http://www.pioneer.dk

http://www.pioneer.no

http://www.pioneer.fi

http://www.pioneer-rus.ru

http://www.pioneer.eu

© 2011 PIONEER CORPORATION

All rights reserved.

© 2011 PIONEER CORPORATION

PIONEER CORPORATION, 2011

Bce npaba 3aunueneHbI.

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

Kopnpaunna Painonnp

1-1, CnH-Orypa, CaBaa-Ky, r. Kabacakn, npefekktypa Kaharaba, 212-0031, Jnohna

HmnpTeP:OOO"NIOHEP PYC"

125040, Poccnr, r. MockBa, yn. PpaBbI, d.26 Ten.: [phone]

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberlaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B4_Ru
