USER MANUAL ACP64 AKAI

Thank you for purchasing the AKAI ACP-64: A dual Alarm Clock Radio with Projection. This is your assurance of quality, performance and value. Our engineers have included many useful and convenient features in this product. Please be sure to read this instruction Manual completely to make sure you are getting the maximum benet from each feature. This product was manufactured using the highest quality components and standards of workmanship. It was tested by inspectors and found to be in perfect working order before it left our factory. For future reference, record the serial number in the space provided. Model No: AKAI ACP-64: Serial Number:

IMPORTANT SAFETY INSTRUCTIONS

1. No naked ame sources, such as lighted candles, should be placed on the

2. Do not place the product in closed bookcases or racks without proper

3. Where the mains plug is used as the disconnect device, the disconnect

device shall remain readily operable.

4. The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc.

5. It shall not be exposed to dripping or splashing and that no objects lled with

liquids, such as vases, shall be placed on the apparatus.

6. Do not connect FM antenna to outside antenna.

7. The unit should not be exposed to direct sunlight, very high or low

temperature, moisture, vibrations or placed in dusty environment.

8. Do not use abrasive, benzene, thinner or other solvents to clean the surface

of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.9. Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.

10. Disconnect device warning: Mains plug is used as the connection, so it

should always remain ready operate.

11. Batteries shall not be exposed to excessive heat such as sunshine, re or

12. Class 1LED product.

CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

POWER SUPPLY & BATTERY BACK-UP SYSTEM

Plug the AC power cord to a household outlet AC source. This unit is equipped with a battery back-up system, it requires a 3V CR2032 at lithium battery (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

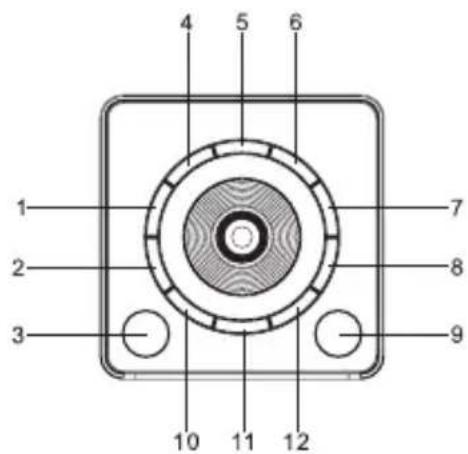

1. ALARM 1 ON / OFF SET

7. ALARM 2 ON / OFF SET

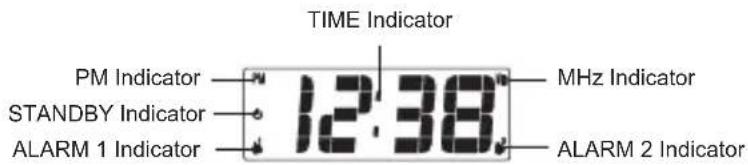

Press CLK.ADJ.TEMPERATURE button (11), in standby mode, and keep depress over 2 seconds to enter time set mode, after enter the setting mode, press CLK.ADJ.TEMPERATURE button (11) to change the mode cycle as follows : Normal → Year → Month → Day → 12/24 H → Real time Hour → Real time Min → Normal Action (during data adjustment): - Press << / Tune - button (2) to adjust data backward. - Press >> / Tune + button (10) to adjust data forward. - Keep depressed << or >> button for 2 seconds to enable auto forward. PM Indicator STANDBY Indicator ALARM 1 Indicator MHz Indicator ALARM 2 Indicator TIME IndicatorALARM SETTING

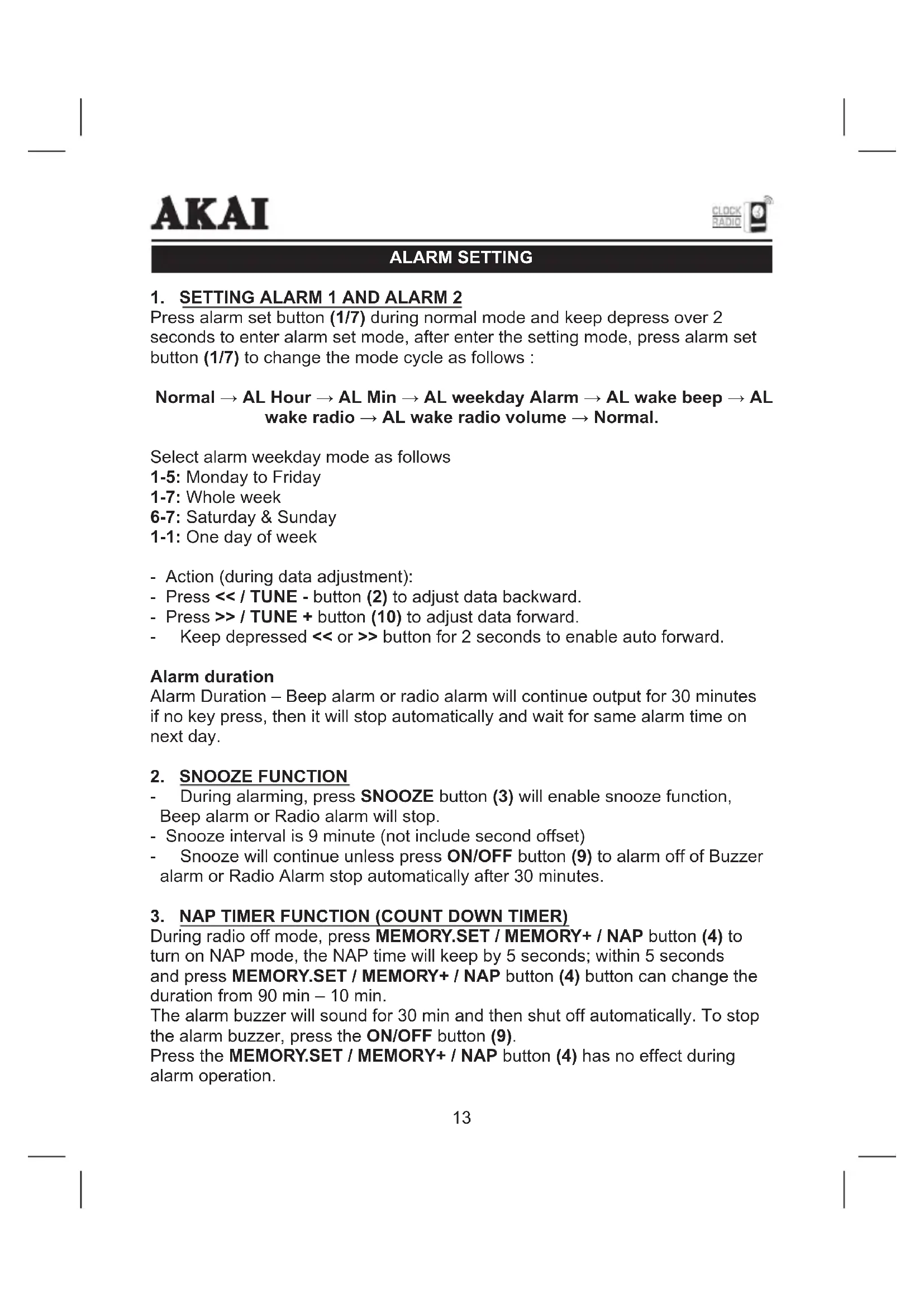

1. SETTING ALARM 1 AND ALARM 2

Press alarm set button (1/7) during normal mode and keep depress over 2 seconds to enter alarm set mode, after enter the setting mode, press alarm set button (1/7) to change the mode cycle as follows : Normal → AL Hour → AL Min → AL weekday Alarm → AL wake beep → AL wake radio → AL wake radio volume → Normal. Select alarm weekday mode as follows 1-5: Monday to Friday 1-7: Whole week 6-7: Saturday & Sunday 1-1: One day of week - Action (during data adjustment): - Press << / TUNE - button (2) to adjust data backward. - Press >> / TUNE + button (10) to adjust data forward. - Keep depressed << or >> button for 2 seconds to enable auto forward. Alarm duration Alarm Duration – Beep alarm or radio alarm will continue output for 30 minutes if no key press, then it will stop automatically and wait for same alarm time on next day.

- During alarming, press SNOOZE button (3) will enable snooze function, Beep alarm or Radio alarm will stop. - Snooze interval is 9 minute (not include second offset) - Snooze will continue unless press ON/OFF button (9) to alarm off of Buzzer alarm or Radio Alarm stop automatically after 30 minutes.

3. NAP TIMER FUNCTION (COUNT DOWN TIMER)

During radio off mode, press MEMORY.SET / MEMORY+ / NAP button (4) to turn on NAP mode, the NAP time will keep by 5 seconds; within 5 seconds and press MEMORY.SET / MEMORY+ / NAP button (4) button can change the duration from 90 min – 10 min. The alarm buzzer will sound for 30 min and then shut off automatically. To stop the alarm buzzer, press the ON/OFF button (9). Press the MEMORY.SET / MEMORY+ / NAP button (4) has no effect during alarm operation. 13Press ON/OFF button (9) to cancel NAP function. Note: The NAP does not include the wake up light function. RADIO OPERATION

1. LISTENING TO RADIO

- Press the ON/OFF button (9) to turn the unit on. - Use the TUNE + or TUNE – button to select the desired radio station. If you press and hold the TUNE + or TUNE – button, then release, the unit will automatically scan to the next broadcasting station. - Press the ON/OFF button (9) to turn off the radio.

2. TO SET / RECALL THE PRESET RADIO STATIONS

- Press the ON/OFF button (9) to turn the unit ON. - Use the TUNE + or TUNE - button to select the desired radio station. - Press the MEMORY / MEMORY + button; “P02” will blink in the display. - Press the MEMORY / MEMORY + button again to set the preset. Repeat steps 2 through 4 to set more presets. The unit can preset 10 stations totally for FM. When “P01-P10” is blinking, press the TUNE + or TUNE - button to select the preset number. When recalling preset stations, press MEMORY / MEMORY +/NAP button to select the preset number. Note: - Ensure that the FM antenna is completely unrolled and extended for best FM reception.

When listening to radio, press SNOOZE/SLEEP/DIMMER button (3) to enter sleep mode. You can just adjust the sleep timer from 90 minutes to 15 minutes by pressing the SNOOZE/SLEEP/DIMMER button (3). The unit will automatically turn off after the selected time. OTHER FUNCTIONS

1. DISPLAY ON/OFF FUNCTION

- Press MEMORY. SET / MEMORY+ / DISPLAY AUTO ON-OFF /NAP button (4) for 3 seconds, the LED display Indicator will light on, the LED display will turn off after 15 seconds automatically. Press any button to maintain the LED display for 15 seconds. - Press MEMORY. SET / MEMORY+ / DISPLAY LIGHT AUTO ON-OFF /NAP button (4) for 3 seconds, the LED display Indicator will light off to cancel this function.

The DIMMER switch (3) allows you to set the brightness of the LED display OTHER FUNCTIONS

3. AUTO CHANGE DISPLAY CONTENT

In radio off mode, press the VOLUME UP / DISPLAY AUTO CHANGE ON/OFF button (8) and keep depress over 2 seconds to enter time display auto change mode to display the Year. Press again to display Month/Day/Temperature, the display returns to time display after 5 seconds.

4. INDOOR TEMPERATURE

- Indoor temperature sensor is at the back of the unit. The unit detects the current environment temperature. - In order to display the indoor temperature in °C or °F, rst turn on the “AUTO CHANGE DISPLAY CONTENT” (refer to the corresponding above paragraph). - During Auto Change display content mode, when temperature is displayed, press on >> (10) key to toggle between temperature in Celsius to Fahrenheit. - The detection range of indoor temperature is between 0°C & 50°C or 32°F & 122°F.

5. SELECT DST (DAYLIGHT SAVING TIME) MODE

For countries with daylight saving time (DST), the clock radio offers you DST option to adjust summer time. In standby mode press and hold >> / TUNE +/DST/C-F button (10) for 2 seconds. The clock advances by one hour. To exit DST mode, repeat the above operation.

- Focus setting: Adjust the projection clock brightness/focus by turning the brightness/focus adjustment wheel unit the projected time is clearly shown on the ceiling or wall. - Adjust projected direction. - To ip projected image by 180°, press PROJECTION TIME 180° FLIP/TIME- TEMPERATURE button (6).

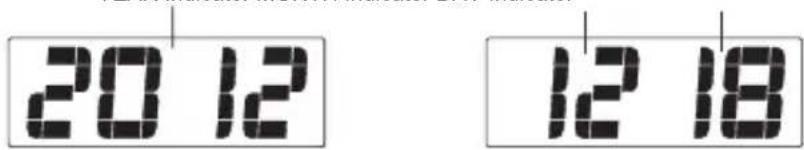

YEAR Indicator MONTH Indicator DAY Indicator- Converted the projection time or temperature, keep depressed over 2 seconds to enter PROJECTION TIME 180° FLIP/TIME-TEMPERATURE button (6). Note: The time must be projected on the wall or on the ceiling of a darkened room. The distance range for the clock projection is between 0.90m ~ 2.70m.

If the system does not respond or exhibits erratic or intermittent operation, you may have experienced an electrostatic discharge (ESD) or a power surge that triggered the internal microcontroller to shut down automatically. If this occurs, simply disconnect the ac power cord and remove the system backup battery, wait at least 3 minutes and then setup the unit again by following the manual. SPECIFICATIONS Model Reference • ACP-64 Power supply • AC 230 V ~ 50 Hz Power consomption • 5 W Standby mode consomption • <1 W Battery back up • 3V (CR2032 Flat Lithium battery x 1) Radio Frequency coverage • FM: 87.5MHz - 108 MHz Audio output power • 150 MW Product weight • 0.423 g Product Dimensions • 121×121×68 mm Indoor temperature range • 0 to +50°C or 32 to 122°F IMPORTANT: Due to continual revision and improvement on our products design, specications are subject to change without further notice.
