USER MANUAL DEHX6700DAB PIONEER

REPRODUCTOR DE CD CON RECEPTOR RDS

CD RDS-EMPFÄNGER

CD RDS-ONTVANGER

CD RDS ПРИЕМНИК

DEH-X6700DAB

DEH-4700DAB

Pioneer

Made for

iPod iPhone

Owner's Manual

Mode d'emploi

Digital Audio Broadcasting (DAB)......6

Radio....7

CD/USB/iPod/AUX....8

App Mode......9

Settings 10

FUNCTION settings 10

AUDIO settings.... 11

SYSTEM settings 11

ILLUMINATION settings.... 12

MIXTRAX settings 13

Connections/Installation.... 14

Additional Information.... 16

About this manual:

- In the following instructions, a USB memory or USB audio player are referred to as "USB device".

- In this manual, iPod and iPhone are referred to as "iPod".

Before You Start

Thank you for purchasing this PIONEER product

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (If you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

WARNING

- Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.

- Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device.

CAUTION

- Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.

•Always keep the volume low enough to hear outside sounds.

•The Pioneer CarStereo-Pass is for use only in Germany.

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007

CLASS 1 LASER PRODUCT

If you experience problems

Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station.

Getting Started

Basic operation

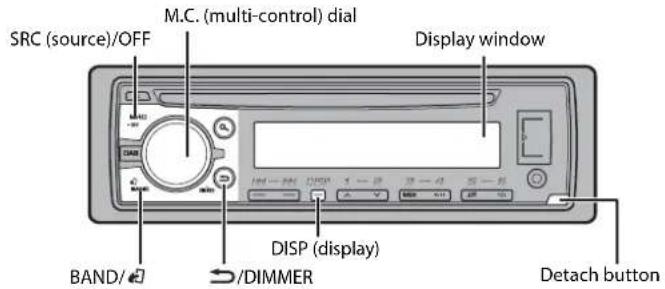

DEH-X6700DAB

SRC (source)/OFF M.C. (multi-control) dial Display window BAND/ / DIMMER DISP (display) Detach button

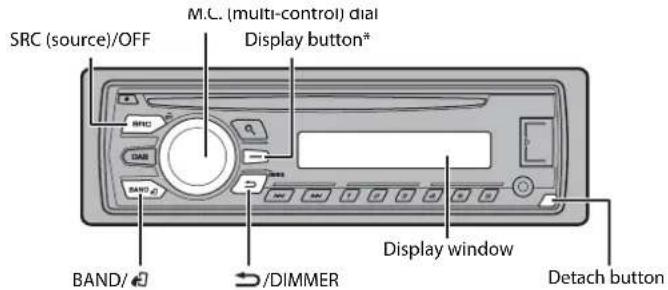

DEH-4700DAB

SRC (source)/OFF M.C. (multi-control) dial Display button* BAND/ /DIMMER Display window Detach button

* This button is referred to as DISP in the manual.

Frequently used operations

The available buttons vary depending on the unit.

Purpose Operation
Turn on the power*	Press SRC/OFF to turn on the power. Press and hold SRC/OFF to turn off the power.
Adjust the volume Turn the M.C. dial.
Select a source Press SRC/OFF repeatedly.
Change the display information Press DISP repeatedly.
Return to the previous display/list Press /DIMMER. ➕
Return to the normal display from the menu Press BAND/ ➔

* When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

Display indication

Indication Description
Appears when a lower tier of the menu or folder exists.
	Appears when the button is pressed.
LOC Appears when the local seek tuning function is set (page 10).
TP	Appears when a traffic program is received.
TA	Appears when traffic announcements are received (page 10).
S.Rtrv	Appears when the sound retriever function is set (page 11).
XX	Appears when random/shuffle play is set.
	Appears when repeat play is set.
	Appears when the iPod control function is set (page 9).

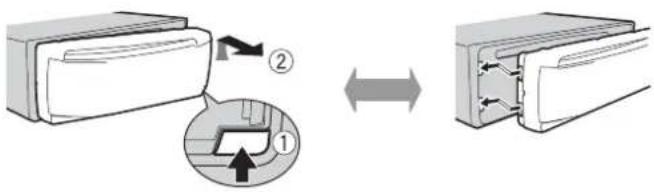

Detaching the front panel

Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.

Detach Attach

Diagram illustrating the process of a door panel installation, showing step 1 before opening and step 2 after opening.

Important

• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.
  • Always store the detached front panel in a protective case or bag.

Setup menu

When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display.

1 Press the M.C. dial.
The setup menu disappears after 30 seconds of no operation. If you prefer not to set at this time, turn the M.C. dial to select [NO], then press to confirm.
2 Turn the M.C. dial to select the options, then press to confirm.
To proceed to the next menu option, you need to confirm your selection.

Menu Item Description

LANGUAGE Select the language to display the text information from a[ENG](English),[PYC](Russian),[TUR](Turkish)	compressed audio file.
CLOCK SET Set the clock.
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.[100], [50]
DAB ANT PW Supply power to a DAB antenna. Select this when using the[ON], optional DAB antenna (AN-DAB1, sold separately) with the unit.

Menu Item Description

[OFF] No power

is supplied to a DAB antenna. Select this when using a passive antenna with no booster.

3[QUIT:YES] appears when all the settings have been made.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm.

4 Press the M.C. dial to confirm the settings.

When [DAB ANT PW] is set to [ON], [UPDATING LIST] appears in the display and the service list will be updated.

NOTES

• You can cancel the menu setting by pressing SRC/OFF.
• These settings can be made at any time from the SYSTEM settings (page 11) and INITIAL settings (page 5).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off.
2 Press and hold SRC/OFF to display the main menu.
3 Turn the M.C. dial to select [INITIAL], then press to confirm.
4 Turn the M.C. dial to select an option, then press to confirm.

NOTE

The options vary depending on the unit.

Menu Item Description

FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50]

Menu Item	Description
SP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/SUB.W]
[SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/REAR]	Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].
DAB ANT PW[ON],	Supply power to a DAB antenna. Select this when using the optional DAB antenna (AN-DAB1, sold separately) with the unit.
[OFF]	No power is supplied to a DAB antenna. Select this when using a passive antenna with no booster.
SYSTEM RESET[YES], [CANCEL]	Select [YES] to initialize the unit settings. The unit will be restarted automatically.(Some of the settings may be retained even after resetting the unit.)

Digital Audio Broadcasting (DAB)

To receive DAB signals, connect a DAB antenna (AN-DAB1) (sold separately) to the unit.

Seeking a service component

1 Press SRC/OFF to select [DIGITAL RADIO].
2 Press BAND/ to select the band from [D1], [D2] or [D3].
3Press / toselect a service component.

NOTE

Press and hold I then release to seek an available service. Scanning stops when the unit receives a service.

To select service component from service lists

1 During DAB reception, press 🔒
2 Turn the M.C. dial to select the list type, then press to confirm. [SERVICE]: Displays the list of all service components. Press again to search for a service component alphabetically. [PROGRAM TYPE]: Displays the program type information ([NEWS/INFO], [POPULAR], [CLASSICS] and [OTHERS]). [ENSEMBLE]: Displays the list of relevant ensembles.
3 Select a service component from the list you selected, then press the M.C. dial to confirm.

NOTE

You can update the service list by pressing and holding. To cancel updating, press again.

Presetting service components

To store service components

1 While receiving the service component you want to store, press and hold one of the number buttons (1/∧ to 6/⇐) until it stops flashing.

To receive stored service components

1 Select the band, then press a number button (1/∧ to 6/→).

Pause/Time shift functions

The unit stores recent broadcasts in the memory automatically. The memory capacity of this unit varies depending on the bit rate of the service component used. The approximate memory capacity is five minutes for 192 kbps.

To pause/resume

1 While receiving the service component, press DAB.

To use the time shift function (Only for DEH-X6700DAB)

1 While receiving the service component, press ZOMMER.
2 Press (skip back one minute)/ (skip forward one minute) to adjust the playback point.

Radio

The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations.

Receiving preset stations

1 Press SRC/OFF to select [RADIO].
2 Press BAND/ to select the band from [FM1], [FM2], [FM3], [MW] or [LW].
3 Press a number button (1/∧ to 6/⇐).

TIP

The button can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 11).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/∧ to 6/⇐).
1 After selecting the band, press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [FUNCTION], then press to confirm.
3 Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1 After selecting the band, press I to select a station.
Press and hold ↖ then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press ↖◀◀ ▶▶

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 11).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1/ ∧ to 6/ ⇌) until it stops flashing.

Using PTY functions

The unit searches for a station by PTY (program type) information.

1 Press during FM reception.

2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS].

3 Press the M.C. dial.

The unit begins to search for a station. When it is found, its program service name is displayed.

NOTES

• To cancel the search, press the M.C. dial.
- The program of some stations may differ from that indicated by the transmitted PTY.
- If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.

PTY list

For more details about PTY list, visit the following site:

http://www.pioneer.eu/eur/products/25/121/tech/CarAudio/PTY.html

CD/USB/iPod/AUX

Playing back

Disconnect headphones from the device before connecting it to the unit.

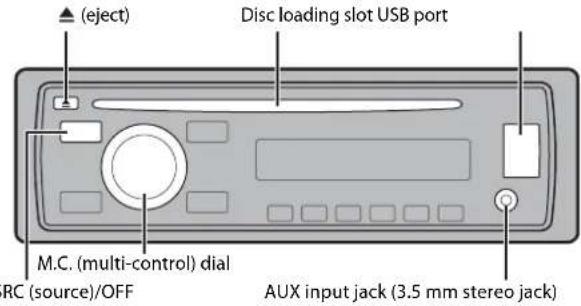

(eject) Disc loading slot USB port M.C. (multi-control) dial RC (source)/OFF AUX input jack (3.5 mm stereo jack)

CD

1 Insert a disc into the disc loading slot with the label side up.

To eject a disc, stop playback first then press ▲

USB device/iPod

1 Open the USB port cover.
2 Plug in the USB device/iPod using an appropriate cable.

CAUTION

Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

MTP connection

A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats, and cannot be used with the MIXTRAX function.

AUX

1 Insert the stereo mini plug into the AUX input jack.
2 Press SRC/OFF to select [AUX] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 12).

Operations

You can make various adjustments in the FUNCTION settings (page 10).

Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

*1 Compressed audio files only
*2 This function is disabled when USB is selected as a source and the MIXTRAX function is on.
*3 When there is no 3/S.Rtrv. button on the unit, the sound retriever function can be set by the FUNCTION settings.

Purpose Operation
Select a folder/album*1	Press 1/ or 2/ .
Select a track/song (chapter) Press or .
Fast forward or reverse Press and hold or .
Search for a file from a list	1 Press to display the list.2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm.Playback starts.
View a list of the files in the selected folder/ category*1	Press the M.C. dial when a folder/category is selected.
Play a song in the selected folder/ category*1	Press and hold the M.C. dial when a folder/ category is selected.
Alphabetical search (iPod only)	1 Press to display the list.2 Turn the M.C. dial to select the desired category list, then press enter the alphabetical search mode.(Turning the M.C. dial twice also enters the alphabetical search mode.)3 Turn the M.C. dial to select a letter, then press to display the alphabetical list.To cancel alphabetical search, press / DIMMER.
Repeat play	Press 6/ .
Random/shuffle play	Press 5/ .
Shuffle all play (iPod only)	Press and hold 5/ .
Pause/resume playback	Press 4/PAUSE.
Sound retriever*2*3	Press 3/S.Rtrv.[1]: Effective for low compression rates[2]: Effective for high compression rates
Return to root folder (USB only)*1 Press and hold BAND/.
Switch between compressed audio and CD-DA (CD only)	Press BAND/.
Change drives in USB device(Devices that support the USB mass storage device class protocol only)	Press BAND/.

Useful functions for iPod

Link play mode

You can access songs based on the artist, album, or genre currently playing.

1 While listening to a song, press and hold to enter the link play mode.
2 Turn the M.C. dial to select the mode ([ARTIST], [ALBUM], [GENRE]), then press to confirm.

The selected song/album will be played after the currently playing song.

NOTE

The selected song/album may be canceled if you use functions other than those from the link play mode (e.g. fast forward and reverse).

iPod control

You can control the unit via a connected iPod.

The following iPod models are not compatible with this function.

iPod nano 1st generation, iPod with video

1 Press BAND/ during playback, then select the control mode.

[CONTROL iPod/CTRL iPod]: The unit's iPod function can be operated from the connected iPod.

[CONTROL AUDIO/CTRL AUDIO]: The unit's iPod function can only be operated by the buttons on the unit. In this mode, the connected iPod cannot be turned on or off.

NOTES

• Switching the control mode to [CONTROL iPod/CTRL iPod] pauses song playback. Use the connected iPod to resume playback.
• The following operations are still accessible from the unit, even if the control mode is set to [CONTROL iPod/CTRL iPod].
  – Pause, fast forward/reverse, song/chapter selection
  • The volume can only be adjusted from the unit.

About MIXTRAX (USB/iPod only)

(Only for DEH-X6700DAB)

The MIXTRAX function creates a non-stop mix of your music library, accompanied by illumination effects. For details on MIXTRAX settings, see page 13.

NOTES

• This function is not compatible with an Android device connected via MTP.
• When USB is selected as a source and the MIXTRAX function is in use, the sound retriever function is disabled.
• Depending on the file/song, sound effects may not be available.
• Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.

1 Press 3/MIX to turn MIXTRAX on/off.

App Mode

You can enjoy listening to an application on an iPhone via the unit. In some cases, you can control an application by using the unit.

For details on compatible devices, visit our website.

Important

Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data.

ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP.

For iPhone users

This function is compatible with iPhones and iPod touches installed with iOS 5.0 or later.

NOTE

PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER.

Playback of an application via the unit

1 Connect this unit with the mobile device.
- iPhone via USB (page 8)
2 Press SRC/OFF to select [APP].
3Operate the mobile device to start up the application.

Basic operations
You can make various adjustments in the FUNCTION settings (page 10).

Purpose Operation
Select a track Press or .	|◀◀ ▶▶|
Fast forward or reverse Press and hold or .	|◀◀ ▶▶|
Pause/resume playback Press BAND/ .	◀

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• FUNCTION settings (page 10)

• AUDIO settings (page 11)
• SYSTEM settings (page 11)
• ILLUMINATION settings (page 12)
• MIXTRAX settings (page 13)

3 Turn the M.C. dial to select the options, then press to confirm.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description

S.FOLLOW DAS

[ON], [OFF] Search for another ensemble that supports the same service component with better reception. If no alternative service component can be found or reception remains poor, the unit will automatically switch to an identical FM broadcast.

FM SETTING RADIO

[TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast signal conditions of the FM band signal. (Available only when FM band is selected.)

BSM RADIO

Store the six strongest stations on the number buttons (1/∧ to 6/⇌) automatically.

REGIONAL RADIO

[ON], [OFF] Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.)

LOCAL RADIO

FM: [OFF], [LV1], [LV2], [LV3], [LV4]	Restrict the tuning station according to the signal strength.
MW/LW: [OFF], [LV1], [LV2]

TA DAB RADIO

[ON], [OFF] Receive current traffic information if available. (Available only when FM band is selected.)

AF RADIO

[ON], [OFF] Allow the unit to return to a different frequency providing the same station. (Available only when FM band is selected.)

NEWS RADIO

[ON], [OFF] Interrupt the currently selected source with news programs. (Available only when FM band is selected.)

Menu Item Description

SEEK RADIO
[MAN], [PCH] Assign or buttons to seek the station▶▶
one by one (manual tuning) or select a station from the preset channels.
S.RTRV CD USB iPod APP
[1] (effective for low compression rates), [2] (effective for high compression rates), [OFF]				Enhance compressed audio and restore rich sound. (Not available when USB is selected as a source and the MIXTRAX function is set to on.)
AUDIO BOOK iPod
[FASTER], [NORMAL], [SLOWER] Change the playback speed. (Not available when [CONTROL iPod/CTRL iPod] is selected in the control mode.)
PAUSE APP Pause or resume playback.

AUDIO settings

Menu Item Description
FADER*1	Adjust the front and rear speaker balance.
BALANCE	Adjust the left and right speaker balance.
EQ SETTING
[SUPER BASS], [POWERFUL],[NATURAL], [VOCAL], [CUSTOM1],[CUSTOM2], [FLAT]	Select or customize the equalizer curve.[CUSTOM1] can be set separately for each source.However, each of the below combinations are set to the same setting automatically.
Select an equalizer band and level for further customizing.	• USB, iPod, and APP (iPhone)
Equalizer band: [80HZ], [250HZ],[800HZ], [2..5KHZ], [8KHZ]	[CUSTOM2] is a shared setting used for all sources.
Equalizer level: [+6] to [-6]
LOUDNESS
[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
SUB.W*2
[NOR], [REV], [OFF] Select the subwoofer phase.

Menu Item Description

SUB.W CTRL*2*3
Cut-off frequency: [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ]Output level: [-24] to [+6]Slope level: [-12], [-24]	Only frequencies lower than those in the selected range are output from the subwoofer.
BASS BOOST[0] to [+6] Select the bass boost level.
HPF SETTING
Cut-off frequency: [OFF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ]Slope level: [-12], [-24]	Only frequencies higher than the high-pass filter (HPF) cutoff are output from the speakers.
SLA
[+4] to [-4] Adjust the volume level for each source except FM.Each of the below combinations are set to the same setting automatically.• USB, iPod, and APP (iPhone)

*1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 6).
*2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 6).
*3 Not available when [OFF] is selected in [SUB.W].

SYSTEM settings
You can also access to these menus when the unit is turned off.

Menu Item Description
LANGUAGE
[ENG](English), [PYC](Russian), [TUR](Turkish)	Select the language to display the text information from a compressed audio file.
CLOCK SET
	Set the clock (page 5).
12H/24H
[12H], [24H]	Select the time notation.

Menu Item Description

INFO DISPLAY (Only for DEH-X6700DAB)

Display the item on the sub information display. Select from "SPEANA," "LEVEL METER," "SOURCE," "CLOCK," and "OFF."

AUTO PI

[ON], [OFF] Search for a different station with the same programming, even if using a preset station.

AUX

[ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.

MUTE MODE

[MUTE], [20dB ATT], [10dB ATT] Mute or attenuate sound automatically when a signal from equipment with a mute function is received.

PW SAVE*

[ON], [OFF] Reduce the battery power consumption.Turning on the source is the only operation allowed when this function is on.

* [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle's ignition does not have an ACC (accessory) position.

ILLUMINATION settings

Menu Item Description
COLOUR (Only for DEH-X6700DAB)
[KEY COLOUR], [DISP COLOUR], [BOTH COLOUR]	Select color for the keys/display of the unit from 12 preset colors, [SCAN] or [CUSTOM]*.• [SCAN]: Cycle through a variety of colors automatically.• [CUSTOM]*:1 Press and hold the M.C. dial until the color setting display appears.2Set the primary color (R(red)/G(green)/B(blue)) and brightness level ([0] to [60]).You cannot select a level below 10 for all three of R(red), G(green), B(blue) at the same time.You can also customize the preset colors. Select one of the preset colors, then press and hold the M.C. dial until the color setting display appears.* The CUSTOM setting is only available for [KEY COLOUR] and [DISP COLOUR].

DIM SETTING

[SYNC ILLUMI]*, [SYNC CLOCK], [MANUAL]	Change the display brightness.
* Only for DEH-X6700DAB

BRIGHTNESS

[1] to [10] Change the display brightness. The available setting ranges differ depending on [DIM SETTING].

ILLUMI FX (Only for DEH-X6700DAB)

[ON], [OFF] The illumination effect can be seen when; - there is an incoming call - you are on a phone call - a CD is inserted/ejected The illumination effect will activate when the ACC power is turned on/off regardless of this setting.

MIXTRAX settings

(Only for DEH-X6700DAB)

Menu Item Description
SHORT PLAYBCK

[1.0 MIN], [1.5 MIN], [2.0 MIN], [2.5 MIN], [3.0 MIN], [OFF]

Select the length of the playback time.

FLASH AREA

[KEY/DISPLAY], [KEY], [OFF] Select the area for the illumination effect.

When [OFF] is selected, the color set under the ILLUMINATION settings (page 12) is used as the display color.

FLASH PATTERN

[SOUND LEVEL 1] to [SOUND LEVEL 6]	Change the illumination effect according to the sound and bass level.The flash pattern changes according to the sound level.
[LOW PASS 1] to [LOW PASS 6]	The flash pattern changes according to the bass level.
[RANDOM1] The flash pattern changes randomly according to the sound level mode and low pass mode.
[RANDOM2] The flash pattern changes randomly according to the sound level mode.
[RANDOM3] The flash pattern changes randomly according to the low pass mode.

DISPLAY FX

[ON], [OFF] Set the MIXTRAX special effects on/off.

CUT IN FX

[ON], [OFF] Turn the MIXTRAX sound effects on/off while manually changing the tracks.

Connections/Installation

Connections

Important

- When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.

ACC position No ACC position

- Use of this unit in conditions other than the following could result in fire or malfunction.

- Vehicles with a 12-volt battery and negative grounding.

-Speakers with 50 W (output value) and 4 Ω to 8 Ω (impedance value).

• To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.

- Disconnect the negative terminal of the battery before installation.

- Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring. - Place all cables away from moving parts, such as the shift lever and seat rails.

- Place all cables away from hot places, such as near the heater outlet. - Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment.

- Cover any disconnected cable connectors with insulating tape. - Do not shorten any cables.

- Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.

-Use a fuse of the rating prescribed.

- Never wire the negative speaker cable directly to ground.

- Never band together negative cables of multiple speakers.

• When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle's auto-antenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.
• Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.
• The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.

This unit

① DAB antenna input
To receive DAB signals, connect a DAB antenna (AN-DAB1) sold separately to the unit.

② Power cord input
③ Rear output or subwoofer output
④ Front output
⑤ Antenna input
⑥ Fuse (10 A)
⑦ Wired remote input

Hard-wired remote control adapter can be connected (sold separately).

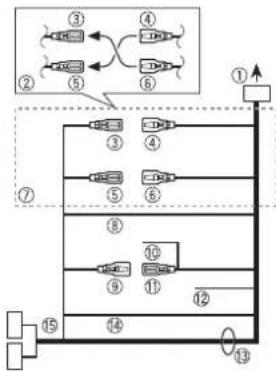

Power cord

① To power cord input
② Depending on the kind of vehicle, the function of and may be different. In this case, be sure to connect to ⑤ and ⑥ to .
③ Yellow

Back-up (or accessory)

Connect to the constant 12 V supply terminal.

Accessory (or back-up)

Connect to terminal controlled by the ignition switch (12 V DC).

④ Yellow
⑤ Red
⑥ Red
⑦ Connect leads of the same color to each other.

⑧ Black (chassis ground)
⑨ Blue/white

The pin position of the ISO connector will differ depending on the type of vehicle. Connect and when Pin 5 is an antenna control type. In another type of vehicle, never connect and

60 Blue/white

Connect to the system control terminal of the power amp (max. 300 mA 12 V DC).

⑪ Blue/white

Connect to the auto-antenna relay control terminal (max. 300 mA 12 V DC).

⑫ Yellow/black

If you use equipment with a Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.

⑬ Speaker leads

White: Front left ⊕

White/black: Front left ☉ Gray: Front right ⊕

Gray/black: Front right ⊖

Green: Rear left or subwoofer

Green/black: Rear left or subwoofer

Violet: Rear right or subwoofer Violet/black: Rear right or subwoofer

⑭ Orange/white (only for DEH-X6700DAB) Connect to a car's illumination signal.

15 ISO connector

In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors.

NOTES

- Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 6). The subwoofer output of this unit is monaural.

- When using a subwoofer of 70 W (2 Ω), be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.

Power amp (sold separately)

Perform these connections when using the optional amplifier.

① System remote control Connect to blue/white
② Power amp (sold separately)
③ Connect with RCA cables (sold separately)
④ To front output
⑤ Front speaker
⑥To rear output or subwoofer output
⑦Rear speaker or subwoofer

Installation

Important

• Check all connections and systems before final installation.
• Do not use unauthorized parts as this may cause malfunctions.
• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.
• Do not install this unit where:
• it may interfere with operation of the vehicle.
  -it may cause injury to a passenger as a result of a sudden stop.

• The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.
- Optimum performance is obtained when the unit is installed at an angle of less than 60°.
- When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.

Leave ample space

DIN front/rear mount

This unit can be properly installed using either front-mount or rear-mount installation.

Use commercially available parts when installing.

DIN Front-mount

1 Insert the mounting sleeve into the dashboard.

For installation in shallow spaces, use the supplied mounting sleeve. If there is enough space, use the mounting sleeve that came with the vehicle.

2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.

① Dashboard
② Mounting sleeve
• Make sure that the unit is installed

securely in place. An unstable installation may cause skipping or other malfunctions.

DIN Rear-mount

1 Determine the appropriate position where the holes on the bracket and the side of the unit match.

2 Tighten two screws on each side.

① Tapping screw (5 mm × 8 mm)
② Mounting bracket
③ Dashboard or console

Removing the unit

1 Remove the trim ring.

① Trim ring
② Notched tab
- Releasing the front panel allows easier access to the trim ring.
- When reattaching the trim ring, point the side with the notched tab down.

2 Insert the supplied extraction keys into both sides of the unit until they click into place.

3 Pull the unit out of the dashboard.

Additional Information

Troubleshooting

The display automatically returns to the normal display.

→No operations have been made for about 30 seconds.

Perform an operation.

The repeat play range changes unexpectedly.

→Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.

- Select the repeat play range again.

A subfolder is not played back.

→Subfolders cannot be played when [FLD] (folder repeat) is selected. - Select another repeat play range.

The sound is intermittent.

→You are using a device, such as a cellular phone, that may cause audible interference.

- Move electrical devices that may be causing the interference away from the unit.

Error messages

Common

AMP ERROR

→This unit fails to operate or the speaker connection is incorrect.

→The protective circuit is activated. - Check the speaker connection.

- Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)

→There is no embedded text information. - Switch the display or play another track/file.

DAB tuner

ANTENNA ERROR

→The antenna connection is incorrect. - Check the antenna connection. - Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

CD player

ERROR-07, 11, 12, 17, 30

→The disc is dirty. -Clean the disc.

→The disc is scratched.

- Replace the disc.

ERROR-07, 10, 11, 12, 15, 17, 30, A0

→There is an electrical or mechanical error.

- Turn the ignition switch OFF and back to ON, or switch to a different source, then back to the CD player.

ERROR-15

→The inserted disc is blank.

- Replace the disc.

ERROR-23

→Unsupported CD format. - Replace the disc.

FORMAT READ

→Sometimes there is a delay between the start of playback and when you start to hear any sound.

- Wait until the message disappears and you hear sound.

NO AUDIO

→The inserted disc does not contain any playable files. - Replace the disc.

SKIPPED

→The inserted disc contains DRM protected files. - The protected files are skipped.

PROTECT

→All the files on the inserted disc are embedded with DRM. - Replace the disc.

USB device/iPod

FORMAT READ

→Sometimes there is a delay between the start of playback and when you start to hear any sound.

- Wait until the message disappears and you hear sound.

NO AUDIO

→There are no songs. - Transfer the audio files to the USB device and connect.

→The connected USB device has security enabled.

– Follow the USB device instructions to disable the security.

SKIPPED

→The connected USB device contains DRM protected files. - The protected files are skipped.

PROTECT

→All the files on the connected USB device are embedded with DRM. - Replace the USB device.

N/A USB

→The connected USB device is not supported by this unit. - Disconnect your device and replace it with a compatible USB device.

CHECK USB

→The USB connector or USB cable has short-circuited. - Check that the USB connector or USB cable is not caught in something or damaged.

→The connected USB device consumes more than maximum allowable current.

- Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.

→The iPod operates correctly but does not charge.

-Make sure the connection cable for the iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPod and reconnect.

ERROR-19

→Communication failed.

- Perform one of the following operations, then return to the USB source.

- Turn the ignition switch OFF and back to ON.

- Disconnect the USB device.

- Change to a different source.

→iPod failure.

- Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.

ERROR-23

→USB device was not formatted properly.

- Format the USB device with FAT12, FAT16 or FAT32

ERROR-16

→The iPod firmware version is old. - Update the iPod version.

→iPod failure.

- Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.

STOP

→There are no songs in the current list. – Select a list that contains songs.

NOT FOUND

No related songs.

- Transfer songs to the iPod.

Apps

START UP APP

→The application has not started running yet. - Operate the mobile device to start up the application.

Handling guidelines

Discs and player

- Use only discs that feature either of the following two logos.

• Use 12-cm discs.
• Use only conventional, fully circular discs.
• The following types of discs cannot be used with this unit:

-DualDiscs

-8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction.
-Oddly shaped discs
- Discs other than CDs
–Damaged discs, including discs that are cracked, chipped or warped
-CD-R/RW discs that have not been finalized

• Do not write on or apply chemicals to the surface of the discs.
• To clean a CD, wipe the disc with a soft cloth outward from the center.
• Condensation may temporarily impair the player's performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.
• When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.
• Do not attach commercially available labels or other materials to the discs.

- The discs may warp making the disc unplayable.

- The labels may come off during playback and prevent ejection of the discs, which may result in damage to the equipment.

USB storage device

• Connections via USB hubs are not supported.
• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Depending on the USB storage device, the following problems may occur.
  -Operations may vary
  – The storage device may not be recognized.
  – Files may not be played back properly.
  – The device may cause audible interference when you are listening to the radio.

iPod

- Do not leave the iPod in places with high temperatures.

• Firmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• The settings of the iPod such as the equalizer and repeat play are changed automatically when the iPod is connected to the unit. Once the iPod is disconnected, those settings will return to the original settings.
• Incompatible text saved on the iPod will not be displayed by the unit.

Compressed audio compatibility

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
• The unit may not work properly depending on the application used to encode WMA files.
• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.
• Russian text to be displayed on this unit should be encoded in one of the following character sets:

-Unicode (UTF-8, UTF-16)

-A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting

CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave discs or a USB storage device in any place that is subject to high temperatures.

WMA files

File extension_wma
Bit rate 48 kbps to 320	kbps(CBR), 48 kbps to 384 kbps (VBR)
Sampling frequency 32	kHz, 44.1 kHz, 48 kHz
Windows MediaTMAudio Professional,Lossless, Voice/DRMStream/Stream with video	Not compatible

MP3 files

File extension .mp3
Bit rate 8 kbps to 320 kbps(CBR), VBR
Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	1.0, 1.1, 2.2, 2.3, 2.4(ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist Not compatible
MP3I (MP3 interactive), mp3 PRO	Not compatible

WAV files

- WAV file formats cannot be connected via MTP.

File extension .wav
Quantization bits 8 and	16 (LPCM), 4 (MSADPCM)
Sampling frequency 16	kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)

AAC

Compatible format AAC encoded by iTunes
File extension .m4a
Sampling frequency 11	025 kHz to 48 kHz
Transmission rate 16 kbps to 320 kbps, VBR
Apple Lossless Not compatible
AAC file bought from the iTunes Store (m4p file extension)	Not compatible

Disc

- Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 99
Playable files Up to 999
File system ISO 9660 Level 1 and 2, Romeo, Jollet
Multi-session playback	Compatible
Packet write data transfer	Not compatible

USB device

• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 500
Playable files Up to 15000
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

iPod compatibility

This unit supports only the following iPod models. Supported iPod software versions are shown below. Older versions may not be supported.

Made for

• iPod touch (1st through 5th generation)
  -iPodclassic
• iPod with video
• iPod nano (1st through 7th generation)
  -iPhone5s
  -iPhone5c
  -iPhone5
  -iPhone4s
  -iPhone4
  -iPhone3GS
  -iPhone3G
  -iPhone
• Operations may vary depending on the generation and/or software version of the iPod.
• Users of iPod with the Lightning Connector should use the Lightning to USB Cable (supplied with iPod).
• Users of iPod with the Dock Connector should use the CD-IU51. For details, consult your dealer.
  • Refer to the iPod manuals for information about the file/format compatibility.
  • Audiobook, Podcast: Compatible

CAUTION

Pioneer accepts no responsibility for data lost on the iPod, even if that data is lost while this unit is used.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device. Note that the hidden files in a USB device cannot be played back.

Example of a hierarchy

Level 1 Level 2 Level 3 Level 4
01 to 05: Folder number
① to :Playback sequence

Russian character chart

D: C	D: C	D: C
A: A	B: B	B: B
Γ: Γ	J: D	E: E, E
Σ: Χ	Σ: 3	H: H, H
K: K	Λ: Π	M: M
H: H	Ω: O	Π: Π
P: P	C: C	T: T
Υ: Υ	Φ: Φ	X: X
Ψ: Ψ	Υ: Υ	Ψ: Ψ, Ψ
Υ: Ψ	Η: Ψ	Β: Ψ
Υ: Ψ	Η: Ψ	Υ: Ψ

D: Display C: Character

Copyright and trademark

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

iPod & iPhone

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a trademark of Apple Inc. "Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

Android™

Android is a trademark of Google Inc.

MIXTRAX

MIXTRAX is a trademark of the PIONEER CORPORATION.

Specifications

General

Power source: 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system: Negative type

Maximum current consumption: 10.0 A

Dimensions (W × H × D):

DIN

Chassis: 178 mm × 50 mm × 165 mm

Nose: 188 mm × 58 mm × 17 mm

D

Chassis: 178 mm × 50 mm × 165 mm

Nose: 170 mm × 46 mm × 17 mm

Weight: 1 kg

Audio

Maximum power output:

50 W × 4

70 W × 1/2 Ω (for subwoofer)

Continuous power output:

22 W × 4 (50 Hz to 15 000 Hz, 5 %

THD, 4 Ω load, both channels driven)

Load impedance: 4 Ω (4 Ω to 8 Ω allowable)

Preout maximum output level: 2.0 V

Loudness contour: +10 dB (100 Hz), +6.5

dB (10 kHz) (volume: -30 dB)

Equalizer (5-Band Graphic Equalizer):

Frequency: 80 Hz/250 Hz/800 Hz/2.5

kHz/8 kHz

Equalization range: ±12 dB (2 dB step)

Subwoofer (mono):

Frequency: 50 Hz/63 Hz/80 Hz/100

Hz/125 Hz/160 Hz/200 Hz

Slope: -12 dB/oct, -24 dB/oct

Gain: +6 dB to -24 dB

Phase: Normal/Reverse

CD player

System: Compact disc audio system

Usable discs: Compact disc

Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A

network)

Number of channels: 2 (stereo)

MP3 decoding format: MPEG-1 & 2 Audio Layer 3

WMA decoding format: Ver. 7, 7.1, 8, 9, 10,

11, 12 (2 ch audio) (Windows Media Player)

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)

WAV signal format: Linear PCM & MS

ADPCM (Non-compressed)

USB

USB standard specification: USB 2.0 full speed

Maximum current supply: 1 A

USB Class: MSC (Mass Storage Class)

File system: FAT12, FAT16, FAT32

MP3 decoding format: MPEG-1 & 2 Audio Layer 3

WMA decoding format: Ver. 7, 7.1, 8, 9, 10,

11, 12 (2 ch audio) (Windows Media Player)

AAC decoding format: MPEG-4 AAC (iTunes

encoded only) (Ver. 10.6 and earlier)

WAV signal format: Linear PCM & MS

ADPCM (Non-compressed)

FM tuner

Frequency range: 87.5 MHz to 108.0 MHz

Usable sensitivity: 11 dBf (1.0 μV/75 Ω,

mono, S/N: 30 dB)

Signal-to-noise ratio: 72 dB (IEC-A network)

MW tuner

Frequency range: 531 kHz to 1 602 kHz

Usable sensitivity: 25 μV (S/N: 20 dB)

Signal-to-noise ratio: 62 dB (IEC-A network)

LW tuner

Frequency range: 153 kHz to 281 kHz

Usable sensitivity: 28 μV (S/N: 20 dB)

Signal-to-noise ratio: 62 dB (IEC-A network)

DAB tuner

Frequency range (Band III): 174.928 MHz to 239.200 MHz (5 A to 13 F)

Frequency range (L Band): 1 452.960 MHz

to 1 490.624 MHz (LA to LW)

Usable sensitivity (Band III): -100 dBm

Usable sensitivity (L Band): -100 dBm

Signal-to-noise ratio: 85 dB

NOTE

Specifications and the design are subject

to modifications without notice.

Table des matières

Avant de commencer 3
Mise en route 4
Radiodiffusion numérique (Digital Audio Broadcasting – DAB) 6
Radio....7
CD/USB/iPod/AUX 8
Mode d'application.... 10
Réglages 10
Réglages FUNCTION 11
Réglages AUDIO.... 11
Réglages SYSTEM 12
Réglages ILLUMINATION.... 13
Réglages MIXTRAX.... 13
Raccordements/Installation.... 15
Informations complémentaires.... 17

Diagram illustrating the process of a door panel installation, showing step ① and step ② with directional arrows and component placement.

Important

MW/LW : [OFF], [LV1], [LV2]

TA DAB RADIO

Raccordements/Installation

Raccordements

Important

Dimensions (L × H × P)

DIN

Digital Audio Broadcasting (DAB)......6

Radio....7

CD/USB/iPod/AUX....8

Modalità app....10

Impostazioni 10

Diagram illustrating the process of inserting a component into a wall-mounted device, with labeled steps ① and ②.

Importante

Digital Audio Broadcasting (DAB)

Best stations memory (BSM)

Dimensioni (L × A × P):

DIN

Telaio: 178 mm × 50 mm × 165 mm

Testata: 188 mm × 58 mm × 17 mm

D

Telaio: 178 mm × 50 mm × 165 mm

Testa Peso: 1 kg

Audio

Potenza massima:

50 W×4

70 W × 1/2 Ω (per il subwoofer)

Potenza continua:

Pendenza: -12 dB/oct, -24 dB/oct

Digital Audio Broadcasting (DAB)......6

Radio....7

CD/USB/iPod/AUX....8

Modo app 10

Ajustes....10

Ajustes de FUNCTION 11

Ajustes de AUDIO 11

Ajustes de SYSTEM.... 12

Ajustes de ILLUMINATION.... 13

Ajustes de MIXTRAX.... 13

Diagram illustrating the process of inserting a component into a wall-mounted device, with labeled steps ① and ②.

Importante

Digital Audio Broadcasting (DAB)

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Curva: -12 dB/oct, -24 dB/oct

Ganancia: +6 dB a -24 dB

(Windows Media Player)

(Windows Media Player)

CD/USB/iPod/AUX....8

App-Modus....10

Anschlüsse/Einbau.... 15

Diagram illustrating the process of a refrigerant or air conditioner unit, showing step 1 and step 2 with directional arrows and internal components.

Wichtig

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

WMA-Decodierformat: Vers. 7, 7.1, 8, 9, 10,

11, 12 (2-Kanal-Audio) (Windows

Media Player)

AAC-Decodierformat MPEG-4 AAC (nur

Digital Audio Broadcasting (DAB)......6

Radio....7

Cd/USB/iPod/AUX 8

App-modus 10

Instellingen 10

FUNCTION-instellingen.... 10

AUDIO-instellingen 11

SYSTEM-instellingen.... 12

ILLUMINATION-instellingen 12

MIXTRAX-instellingen.... 13

Verbindingen/installatie.... 14

KLASSE 1 LASERPRODUCT

Bij problemen

Diagram illustrating the process of a door panel installation, showing step 1 and directional arrow with labeled components.

Belangrijk

Digital Audio Broadcasting (DAB)

Best stations memory (BSM)

Reserve (of accessoire)

④ Geel

Accessoire (of reserve)

⑥ Rood

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

• Audiobook, Podcast: Compatibel

LET OP

Helling: -12 dB/oct, -24 dB/oct

Gain: +6 dB tot -24 dB

Fase: Normaal/tegengesteld

Cd-speler

Systeem: Compact Disc Audio

(Windows Media Player)

AAC-decoderingsformaat: MPEG-4 AAC

(Windows Media Player)

AAC-decoderingsformaat: MPEG-4 AAC

Diagram illustrating the process of a door panel installation, showing step 1 before and after assembly.

Важно

ERROR-07, 11, 12, 17, 30

ERROR-07, 10, 11, 12, 15, 17, 30, A0

Visit www.pioneer.co.uk (or www.pioneer.eu) to register your product.

Pioneer CarStereo-Pass

Please fill out immediately after purchase.

© 2014 PIONEER CORPORATION. All rights reserved.

PIONEER ELECTRONICS (USA) INC.

P.O. Box 1540, Long Beach, California 90801-1540, U.S.A.

TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada

TEL: [phone]

TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936

TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia

TEL:[phone]

PIONEER ELECTRONICS DE MEXICO, S.A. de C.V.

Blvd.Manuel Avila Camacho 138 10 piso

Col.Lomas de Chapultepec, Mexico, D.F. 11000

TEL: [phone]

先锋股份有限公司

台北市內湖區瑞光路407號8樓

電話：886-(0)2-2657-3588

先锋電子（香港）有限公司

香港九龍長沙灣道909號5樓

電話：852-2848-6488

EW
